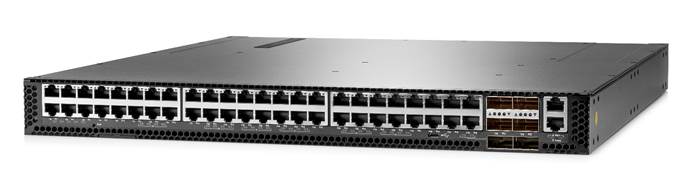

HPE Altoline 6921 Switch Series | |
|
|
|
|
| |
|
|
|
|
Models | |
|
HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Front-to-Back Switch |
JL317A |
|
HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Back-to-Front Switch |
JL318A |
|
HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Front-to-Back Switch |
JL315A |
|
HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front Switch |
JL316A |
|
| |
|
Key features | |
| |
|
| |
|
Product overview | |
|
The HPE Altoline 6921 Switch Series are top-of-rack (TOR) or spine switches for high-performance data centers. In a compact 1RU form factor, these switches provides line-rate L2 and L3 switching across up to 48 1/10GBASE-T or 1/10 GbE SFP+ ports, with 6 x 40GbE QSFP+ uplink connections. The HPE Altoline 6921 Switch Series can be deployed as a TOR switch supporting 10GbE server connections, or as a spine switch, supporting 10GbE interconnects. The HPE Altoline 6921 Switch Series a bare-metal switches loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible independent switch OS offerings. | |
|
| |
|
Features and benefits |
|
Data center optimized
Manageability
Layer 2 switching
Additional information
Warranty and support
|
Configuration
|
Build To Order: | ||
|
|
||
|
Router Chassis |
| |
|
|
| |
|
HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Front-to-Back Switch |
JL315A | |
Each Switch:
|
See Configuration NOTE: 1, 8 | |
|
|
| |
|
PDU Cable NA/MEX/TW/JP |
JL315A#B2B | |
|
| |
|
|
| |
|
PDU Cable ROW |
JL315A #B2C | |
|
| |
|
|
| |
|
High Volt Switch to Wall Power Cord |
JL315A#B2E | |
|
| |
|
|
| |
|
No Power Cord |
JL315A#AC3 | |
|
| |
|
|
| |
|
HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front Switch |
JL316A | |
Each Switch:
|
See Configuration NOTE: 1 | |
|
|
| |
|
PDU Cable NA/MEX/TW/JP |
JL316A#B2B | |
|
| |
|
|
| |
|
PDU Cable ROW |
JL316A#B2C | |
|
| |
|
|
| |
|
High Volt Switch to Wall Power Cord |
JL316A#B2E | |
|
| |
|
|
| |
|
No Power Cord |
JL316A#AC3 | |
|
| |
|
|
| |
|
HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Front-to-Back Switch |
JL317A | |
Each Switch:
|
See Configuration NOTE: 1, 7, 8 | |
|
|
| |
|
PDU Cable NA/MEX/TW/JP |
JL317A#B2B | |
|
| |
|
|
| |
|
PDU Cable ROW |
JL317A#B2C | |
|
| |
|
|
| |
|
High Volt Switch to Wall Power Cord |
JL317A#B2E | |
|
| |
|
|
| |
|
No Power Cord |
JL317A#AC3 | |
|
| |
|
|
| |
|
HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Back-to-Front Switch |
JL318A | |
Each Switch:
|
See Configuration NOTE: 1 | |
|
|
| |
|
PDU Cable NA/MEX/TW/JP |
JL318A #B2B | |
|
| |
|
|
| |
|
PDU Cable ROW |
JL318A#B2C | |
|
| |
|
|
| |
|
High Volt Switch to Wall Power Cord |
JL318A#B2E | |
|
| |
|
|
| |
|
No Power Cord |
JL317A#AC3 | |
|
| |
|
|
| |
|
Configuration Rules: |
| |
|
|
| |
|
Note 1 |
Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) or #B2E. (See Localization Menu) | |
|
|
|
|
|
Note 7 |
The following SFP+ Transceivers install into this switch: |
|
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
JD097C |
|
|
HPE X130 10G SFP+ LC SR Transceiver |
JD092B |
|
|
HPE X130 10G SFP+ LC LR Transceiver |
JD094B |
|
|
|
|
|
Note 8 |
The following QSFP+ Transceivers install into this Switch: |
|
|
|
HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable |
JG327A |
|
|
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable |
JG330A |
|
|
HPE X140 40G QSFP+ MPO SR4 Transceiver |
JG325B |
|
|
HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver |
JL251A |
|
Rack Level Integration CTO Models |
||
|
|
| |
|
CTO Switch Chassis |
| |
|
|
| |
|
HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Front-to-Back Switch |
JL315A | |
Each Switch:
|
See Configuration NOTE: 1, 8 | |
|
|
| |
|
PDU Cable NA/MEX/TW/JP |
JL315A#B2B | |
|
| |
|
|
| |
|
PDU Cable ROW |
JL315A #B2C | |
|
| |
|
|
| |
|
High Volt Switch to Wall Power Cord |
JL315A#B2E | |
|
| |
|
|
| |
|
No Power Cord |
JL315A#AC3 | |
|
| |
|
|
| |
|
HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front Switch |
JL316A | |
Each Switch:
|
See Configuration NOTE: 1 | |
|
|
| |
|
PDU Cable NA/MEX/TW/JP |
JL316A#B2B | |
|
| |
|
|
| |
|
PDU Cable ROW |
JL316A#B2C | |
|
| |
|
|
| |
|
High Volt Switch to Wall Power Cord |
JL316A#B2E | |
|
| |
|
|
| |
|
No Power Cord |
JL316A#AC3 | |
|
| |
|
|
| |
|
HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Front-to-Back Switch |
JL317A | |
Each Switch:
|
See Configuration NOTE: 1, 7, 8 | |
|
|
| |
|
PDU Cable NA/MEX/TW/JP |
JL317A#B2B | |
|
| |
|
|
| |
|
PDU Cable ROW |
JL317A#B2C | |
|
| |
|
|
| |
|
High Volt Switch to Wall Power Cord |
JL317A#B2E | |
|
| |
|
|
| |
|
No Power Cord |
JL317A#AC3 | |
|
| |
|
|
| |
|
HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Back-to-Front Switch |
JL318A | |
Each Switch:
|
See Configuration NOTE: 1 | |
|
|
| |
|
PDU Cable NA/MEX/TW/JP |
JL318A #B2B | |
|
| |
|
|
| |
|
PDU Cable ROW |
JL318A#B2C | |
|
| |
|
|
| |
|
High Volt Switch to Wall Power Cord |
JL318A#B2E | |
|
| |
|
|
| |
|
No Power Cord |
JL318A#AC3 | |
|
| |
|
|
| |
|
Configuration Rules: |
| |
|
|
| |
|
Note 1 |
Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) or #B2E. (See Localization Menu) | |
|
|
| |
|
Note 7 |
The following SFP+ Transceivers install into this switch: |
|
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
JD097C |
|
|
HPE X130 10G SFP+ LC SR Transceiver |
JD092B |
|
|
HPE X130 10G SFP+ LC LR Transceiver |
JD094B |
|
|
|
|
|
Note 8 |
The following QSFP+ Transceivers install into this Switch: |
|
|
|
HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable |
JG327A |
|
|
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable |
JG330A |
|
|
HPE X140 40G QSFP+ MPO SR4 Transceiver |
JG325B |
|
|
HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver |
JL251A |
|
|
| |
|
Transceivers |
| |
|
|
| |
|
SFP Transceivers |
| |
|
|
| |
|
HPE X120 1G SFP RJ45 T Transceiver |
JD089B | |
|
HPE X120 1G SFP LC SX Transceiver |
JD118B | |
|
HPE X120 1G SFP LC LX Transceiver |
JD119B | |
|
HPE X120 1G SFP LC LH40 1550nm Transceiver |
JD062A | |
|
|
| |
|
SFP+ Transceivers |
| |
|
|
| |
|
HPE X130 10G SFP+ LC SR Transceiver |
JD092B | |
|
HPE X130 10G SFP+ LC LR Transceiver |
JD094B | |
|
HPE X130 10G SFP+ LC SR Data Center Transceiver |
JL437A | |
|
HPE X130 10G SFP+ LC LR Data Center Transceiver |
JL439A | |
|
HPE X130 10G SFP+ LC LH 80km Transceiver |
JG915A | |
|
|
| |
|
QSFP+ Transceivers |
| |
|
|
| |
|
HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver |
JG661A | |
|
HPE X140 40G QSFP+ MPO SR4 Transceiver |
JG325B | |
|
HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver |
JG709A | |
|
HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver |
JL251A | |
|
HPE X140 40G QSFP+ LC LR4L 2km SM Transceiver |
JL286A | |
|
|
| |
|
QSFP28 Transceivers |
| |
|
|
| |
|
HPE X150 100G QSFP28 MPO SR4 100m MM Transceiver |
JL274A | |
|
HPE X150 100G QSFP28 LC LR4 10km SM Transceiver |
JL275A | |
|
|
| |
|
Cables |
| |
|
|
| |
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable |
JD095C | |
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable |
JD096C | |
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
JD097C | |
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable |
JG081C | |
|
HPE FlexNetwork X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable |
JC784C | |
|
HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable |
JG326A | |
|
HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable |
JG327A | |
|
HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable |
JG328A | |
|
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable |
JG329A | |
|
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable |
JG330A | |
|
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable |
JG331A | |
|
HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable |
JL287A | |
|
HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable |
JL288A | |
|
HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable |
JL289A | |
|
HPE X240 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable |
JL271A | |
|
HPE X240 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable |
JL272A | |
|
HPE X240 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable |
JL273A | |
|
HPE X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable |
JL276A | |
|
HPE X2A0 100G QSFP28 to QSFP28 10m Active Optical Cable |
JL277A | |
|
HPE X2A0 100G QSFP28 to QSFP28 20m Active Optical Cable |
JL278A | |
|
HPE X240 QSFP28 4xSFP28 1m Direct Attach Copper Cable |
JL282A | |
|
HPE X240 QSFP28 4xSFP28 3m Direct Attach Copper Cable |
JL283A | |
|
|
| |
|
Switch Enclosure Options |
| |
|
|
| |
|
Rack Mount Kit |
| |
|
System (std 0 // max 1) User Selection (min 0 // max 1) |
| |
|
|
| |
|
HPE Altoline Gen2 Rackmount Kit |
JL198A | |
|
|
See Configuration NOTE: 1, 3 | |
|
|
| |
|
Configuration Rules: |
| |
|
|
| |
|
Note 1 |
This rack mount kit is only supported on the following switches: |
|
|
|
HPE Altoline 6920 48XG 6QSFP+ x86 ONIE AC Front-to-Back Switch |
JL167A |
|
|
HPE Altoline 6920 48XG 6QSFP+ x86 ONIE AC Back-to-Front Switch |
JL168A |
|
|
HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Front-to-Back Switch |
JL315A |
|
|
HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front Switch |
JL316A |
|
|
HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Front-to-Back Switch |
JL317A |
|
|
HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Back-to-Front Switch |
JL318A |
|
|
HPE Altoline 6940 32QSFP+ x86 ONIE AC Front-to-Back Switch |
JL165A |
|
|
HPE Altoline 6940 32QSFP+ x86 ONIE AC Back-to-Front Switch |
JL166A |
|
|
HPE Altoline 6941 32QSFP+ x86 ONIE AC Front-to-Back Switch |
JL313A |
|
|
HPE Altoline 6941 32QSFP+ x86 ONIE AC Back-to-Front Switch |
JL314A |
|
|
HPE Altoline 6960 32QSFP28 x86 ONIE AC Front-to-Back Switch |
JL279A |
|
|
HPE Altoline 6960 32QSFP28 x86 ONIE AC Back-to-Front Switch |
JL280A |
|
|
|
|
|
Note 3 |
If a switch ordered and factory racked, then this rackmount must be #0D1 |
|
|
|
| |
|
|
| |
Technical Specifications
|
HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Front-to-Back Switch (JL317A) | ||
|
I/O ports and slots |
48 SFP+ 1/10GbE ports (IEEE 802.3ae Type 10GBASE-ER, IEEE 802.3ae Type 10GBASE-LR, IEEE 802.3ae Type 10GBASE-SR, IEEE 802.3z Type 1000BASE-SX, IEEE 802.3z Type 1000BASE-LX) | |
|
6 QSFP+ 40GbE ports | ||
|
Additional ports and slots |
1 RJ-45 serial console port | |
|
1 RJ-45 out-of-band management port | ||
|
1 USB 2.0 | ||
|
Power supplies |
2 power supply slots | |
|
1 minimum power supply required | ||
|
includes: 2 x PSUs () | ||
|
Fan tray |
5 fan tray slots | |
|
Switch comes with five (5) fan trays (front-to-back airflow) | ||
|
Physical characteristics |
Dimensions |
17.4(w) x 18.6(d) x 1.71(h) in (44.2 x 47.24 x 4.34 cm) |
|
Weight |
18.74 lb (8.5 kg) | |
|
Memory and processor |
Intel Atom C2538 quad-core x86 processor @ 2.4 GHz, 8 GB DDR3 SDRAM; Packet buffer size: 12 MB, 8 GB NAND flash | |
|
Performance |
40 Gbps Latency |
> .6 µs |
|
Throughput |
up to 1 Bpps | |
|
Routing/Switching capacity |
1440 Gbps | |
|
Routing table size |
64000 entries (IPv4), 20000 entries (IPv6) | |
|
MAC address table size |
320000 entries | |
|
Environment |
Operating temperature |
32°F to 104°F (0°C to 40°C) |
|
Operating relative humidity |
5% to 95%, noncondensing | |
|
Nonoperating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) | |
|
Airflow direction |
Front-to-back | |
|
Electrical characteristics |
Frequency |
50/60 Hz |
|
Voltage |
90 - 264 VAC, rated | |
|
Maximum power rating |
282 W | |
|
Idle power |
267 W | |
|
Notes |
Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PSU Efficiency: Up to 93% for AC PSUs | |
|
Safety |
cUL Certified; EN 60950; EN 55022 Class A; VCCI Class A; ROHS Compliance; FCC Class A: Regulations for Radio Frequency Devices for Electromagnetic Compliance; UL | |
|
Emissions |
FCC part 15 Class A; EN 55022 Class A; VCCI; EN 60950-1 | |
|
Immunity |
ESD |
EN 60950 |
|
EFT/Burst |
IEC 68-2-14 | |
|
Management |
Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP | |
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. | |
|
| ||
|
HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Back-to-Front Switch (JL318A) | ||
|
I/O ports and slots |
48 SFP+ 1/10GbE ports (IEEE 802.3ae Type 10GBASE-ER, IEEE 802.3ae Type 10GBASE-LR, IEEE 802.3ae Type 10GBASE-SR, IEEE 802.3z Type 1000BASE-SX, IEEE 802.3z Type 1000BASE-LX) | |
|
6 QSFP+ 40GbE ports | ||
|
Additional ports and slots |
1 RJ-45 serial console port | |
|
1 RJ-45 out-of-band management port | ||
|
1 USB 2.0 | ||
|
Power supplies |
2 power supply slots | |
|
1 minimum power supply required | ||
|
includes: 2 x PSUs () | ||
|
Fan tray |
5 fan tray slots | |
|
Switch comes with five (5) fan trays (back-to-front airflow) | ||
|
Physical characteristics |
Dimensions |
17.4(w) x 18.6(d) x 1.71(h) in (44.2 x 47.24 x 4.34 cm) |
|
Weight |
18.74 lb (8.5 kg) | |
|
Memory and processor |
Intel Atom C2538 quad-core x86 processor @ 2.4 GHz, 8 GB DDR3 SDRAM; Packet buffer size: 12 MB, 8 GB NAND flash | |
|
Performance |
40 Gbps Latency |
> .6 µs |
|
Throughput |
up to 1 Bpps | |
|
Routing/Switching capacity |
1440 Gbps | |
|
Routing table size |
64000 entries (IPv4), 20000 entries (IPv6) | |
|
MAC address table size |
320000 entries | |
|
Environment |
Operating temperature |
32°F to 104°F (0°C to 40°C) |
|
Operating relative humidity |
5% to 95%, noncondensing | |
|
Nonoperating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) | |
|
Airflow direction |
Back-to-front | |
|
Electrical characteristics |
Frequency |
50/60 Hz |
|
Voltage |
90 - 264 VAC, rated | |
|
Maximum power rating |
282 W | |
|
Idle power |
267 W | |
|
Notes |
Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PSU Efficiency: Up to 93% for AC PSUs | |
|
Safety |
cUL Certified; EN 60950; EN 55022 Class A; VCCI Class A; ROHS Compliance; FCC Class A: Regulations for Radio Frequency Devices for Electromagnetic Compliance; UL | |
|
Emissions |
FCC part 15 Class A; EN 55022 Class A; VCCI; EN 60950-1 | |
|
Immunity |
ESD |
EN 60950 |
|
EFT/Burst |
IEC 68-2-14 | |
|
Management |
Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP | |
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. | |
|
| ||
|
HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Front-to-Back Switch (JL315A) | ||
|
I/O ports and slots |
48 1/10GBASE-T ports | |
|
6 QSFP+ 40GbE ports | ||
|
Additional ports and slots |
1 RJ-45 serial console port | |
|
1 RJ-45 out-of-band management port | ||
|
1 USB 2.0 | ||
|
Power supplies |
2 power supply slots | |
|
1 minimum power supply required | ||
|
includes: 2 x PSUs () | ||
|
Fan tray |
5 fan tray slots | |
|
Switch comes with five (5) fan trays (front-to-back airflow) | ||
|
Physical characteristics |
Dimensions |
17.4(w) x 18.6(d) x 1.71(h) in (44.2 x 47.24 x 4.34 cm) |
|
Weight |
18.74 lb (8.5 kg) | |
|
Memory and processor |
Intel Atom C2538 quad-core x86 processor @ 2.4 GHz, 8 GB DDR3 SDRAM; Packet buffer size: 12 MB, 8 GB NAND flash | |
|
Performance |
40 Gbps Latency |
> .6 µs |
|
Throughput |
up to 1 Bpps | |
|
Routing/Switching capacity |
1440 Gbps | |
|
Routing table size |
64000 entries (IPv4), 20000 entries (IPv6) | |
|
MAC address table size |
320000 entries | |
|
Environment |
Operating temperature |
32°F to 104°F (0°C to 40°C) |
|
Operating relative humidity |
5% to 95%, noncondensing | |
|
Nonoperating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) | |
|
Airflow direction |
Front-to-back | |
|
Electrical characteristics |
Frequency |
50/60 Hz |
|
Voltage |
90 - 264 VAC, rated | |
|
Maximum power rating |
282 W | |
|
Idle power |
267 W | |
|
Notes |
Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PSU Efficiency: Up to 93% for AC PSUs | |
|
Safety |
cUL Certified; EN 60950; EN 55022 Class A; VCCI Class A; ROHS Compliance; FCC Class A: Regulations for Radio Frequency Devices for Electromagnetic Compliance; UL | |
|
Emissions |
FCC part 15 Class A; EN 55022 Class A; VCCI; EN 60950-1 | |
|
Immunity |
ESD |
EN 60950 |
|
EFT/Burst |
IEC 68-2-14 | |
|
Management |
Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP | |
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. | |
|
| ||
|
HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front Switch (JL316A) |
||
|
I/O ports and slots |
48 1/10GBASE-T ports |
|
|
6 QSFP+ 40GbE ports |
||
|
Additional ports and slots |
1 RJ-45 serial console port |
|
|
1 RJ-45 out-of-band management port |
||
|
1 USB 2.0 |
||
|
Power supplies |
2 power supply slots |
|
|
1 minimum power supply required |
||
|
includes: 2 x PSUs () |
||
|
Fan tray |
5 fan tray slots |
|
|
Switch comes with five (5) fan trays (back-to-front airflow) |
||
|
Physical characteristics |
Dimensions |
17.4(w) x 18.6(d) x 1.71(h) in (44.2 x 47.24 x 4.34 cm) |
|
Weight |
18.74 lb (8.5 kg) |
|
|
Memory and processor |
Intel Atom C2538 quad-core x86 processor @ 2.4 GHz, 8 GB DDR3 SDRAM; Packet buffer size: 12 MB, 8 GB NAND flash |
|
|
Performance |
40 Gbps Latency |
> .6 µs |
|
Throughput |
up to 1 Bpps |
|
|
Routing/Switching capacity |
1440 Gbps |
|
|
Routing table size |
64000 entries (IPv4), 20000 entries (IPv6) |
|
|
MAC address table size |
320000 entries |
|
|
Environment |
Operating temperature |
32°F to 104°F (0°C to 40°C) |
|
Operating relative humidity |
5% to 95%, noncondensing |
|
|
Nonoperating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|
|
Airflow direction |
Back-to-front |
|
|
Electrical characteristics |
Frequency |
50/60 Hz |
|
Voltage |
90 - 264 VAC, rated |
|
|
Maximum power rating |
282 W |
|
|
Idle power |
267 W |
|
|
Notes |
Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PSU Efficiency: Up to 93% for AC PSUs |
|
|
Safety |
cUL Certified; EN 60950; EN 55022 Class A; VCCI Class A; ROHS Compliance; FCC Class A: Regulations for Radio Frequency Devices for Electromagnetic Compliance; UL |
|
|
Emissions |
FCC part 15 Class A; EN 55022 Class A; VCCI; EN 60950-1 |
|
|
Immunity |
ESD |
EN 60950 |
|
EFT/Burst |
IEC 68-2-14 |
|
|
Management |
Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP |
|
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change: |
|
04-Jun-2018 |
Version 6 |
Changed |
Configuration section updated |
|
07-May-2018 |
Version 5 |
Changed |
Configuration section updated |
|
05-Mar-2018 |
Version 4 |
Changed |
Key features updated |
|
05-Feb-2018 |
Version 3 |
Changed |
Configuration section updated |
|
18-Apr-2017 |
Version 2 |
Added |
Transceivers added on the Configuration section: JL437A, JL439A |
|
05-Sept-2016 |
Version 1 |
Creation |
Document creation |
| ||||||||||||||||||
