HPE Altoline 6900 Switch Series



Models

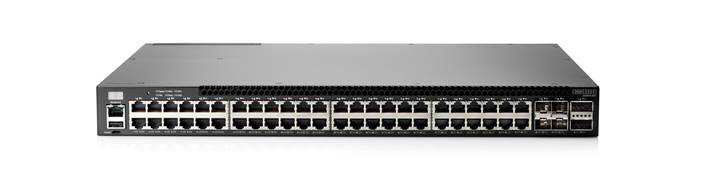

HPE Altoline 6900 48G 4XG 2QSFP ARM ONIE AC Switch	JL223A

Key features
High 10/100/1000BASE-T port density ONIE boot loader for choice of network OS and easy installation Open-networking and disaggregated solution for customer choice Fanless design for quiet operation Dual-core ARM Cortex-A9 1GHz

Product overview
The HPE Altoline 6900 switch is a top-of-rack (TOR) switch for high-performance data centers. In a compact 1RU form factor, the switch provides line-rate Layer 2 and Layer 3 switching across up to 48 x 10/100/1000BASE-T RJ-45 ports, with 4 x 10GbE QSFP+ and 2 x 20GbE QSFP+ stacking connections. The HPE Altoline 6900 switch can be deployed as a TOR switch supporting gigabit server connections, or as a management switch, with 10GbE uplinks. The HPE Altoline 6900 is a bare-metal switch loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible independent switch OS offerings.

Features and benefits

Data center optimized

Flexible high port density
the HPE Altoline 6900 Switch Series enables scaling of the server edge with 1GbE server connection, with 10GbE uplinks, to new heights with high density delivered in a 1RU design.
Redundant power supplies, fanless design
1+1 internal redundant, hot-pluggable power supplies and a fanless design enhance reliability and availability

Manageability

Out-of-band interface
isolates management traffic from user data plane traffic for complete isolation and total reachability, no matter what happens in the data plane
ONIE bootloader
switch is loaded with Open Network Install Environment (ONIE) software installer
Dual-core ARM Cortex-A9 1GHz
Provides high performance, low power consumption, industry standard software and utilities

Layer 2 switching

VLAN support
provides support for 4,096 VLAN IDs

Additional information

Low power consumption
typical operation uses just 122W of AC power

Warranty and support

Software releases
to find software for your product, refer to http://www.hpe.com/networking/support ; for details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary
1-year Warranty
see http://www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.

Build To Order: BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

HPE Altoline 6900 48G 4XG 2QSFP ARM ONIE AC Switch		JL223A
48 RJ-45 10/100/1000 ports 4 SFP/SFP+ 10GbE ports (min=0 \\ max=4 SFP/SFP+ Transceivers) 2 QSFP+ stacking ports (min=0 \\ max=2 QSFP+ Transceivers) Each Switch: 2 Power Supplies Standard (min=2 \ max=2) No removable Fan Trays 1U - Height		See Configuration NOTE: 1, 2, 3

PDU Cable NA/MEX/TW/JP		JL223A#B2B
C13 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable NA/MEX/TW/JP		JL223A#B2C
C13 PDU Jumper Cord (ROW)

High Volt Switch/Router to Wall Power Cord		JL223A#B2E
NEMA L6-20P Cord (NA/MEX/JP/TW)

Configuration Rules:

Note 1	Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) or #B2E. (See Localization Menu)

Note 2	The following Transceivers install into this Switch
	HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver	JG661A
	HPE X140 40G QSFP+ MPO SR4 Transceiver	JG325B
	HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver	JG709A
	HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver	JL251A
	HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable	JG326A
	HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable	JG327A
	HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable	JG328A
	HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable	JG329A
	HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable	JG330A
	HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable	JG331A

Note 3	The following SFP/SFP+ Transceivers install into this Switch
	HPE X120 1G SFP RJ45 T Transceiver	JD089B
	HPE X120 1G SFP LC SX Transceiver	JD118B
	HPE X120 1G SFP LC LX Transceiver	JD119B
	HPE X120 1G SFP LC LH40 1550nm Transceiver	JD062A
	HPE X130 10G SFP+ LC SR Transceiver	JD092B
	HPE X130 10G SFP+ LC LR Transceiver	JD094B
	HPE X130 10G SFP+ LC SR Data Center Transceiver	JL437A
	HPE X130 10G SFP+ LC LR Data Center Transceiver	JL439A
	HPE X130 10G SFP+ LC LH 80km Transceiver	JG915A
	HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable	JD095C
	HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable	JD096C
	HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable	JD097C
	HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable	JG081C
	HPE FlexNetwork X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable	JC784C

Rack Level Integration CTO Models

CTO Switch Chassis

HPE Altoline 6900 48G 4XG 2QSFP ARM ONIE AC Switch		JL223A
48 10/100/1000 Ports 4 SFP+ 10GbE ports 2 QSFP+ stacking ports Each Switch: 2 Power Supplies Standard (min=2 \ max=2) No removable Fan Trays 1U - Height		See Configuration NOTE: 1, 2, 3

PDU Cable NA/MEX/TW/JP		JL223A#B2B
C13 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable NA/MEX/TW/JP		JL223A#B2C
C13 PDU Jumper Cord (ROW)

High Volt Switch/Router to Wall Power Cord		JL223A#B2E
NEMA L6-20P Cord (NA/MEX/JP/TW)

Configuration Rules:

Note 1	Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) or #B2E. (See Localization Menu)

Note 2	The following Transceivers install into this Switch
	HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver	JG661A
	HPE X140 40G QSFP+ MPO SR4 Transceiver	JG325B
	HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver	JG709A
	HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver	JL251A
	HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable	JG326A
	HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable	JG327A
	HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable	JG328A
	HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable	JG329A
	HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable	JG330A
	HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable	JG331A

Note 3	The following SFP/SFP+ Transceivers install into this Switch
	HPE X120 1G SFP RJ45 T Transceiver	JD089B
	HPE X120 1G SFP LC SX Transceiver	JD118B
	HPE X120 1G SFP LC LX Transceiver	JD119B
	HPE X120 1G SFP LC LH40 1550nm Transceiver	JD062A
	HPE X130 10G SFP+ LC SR Transceiver	JD092B
	HPE X130 10G SFP+ LC LR Transceiver	JD094B
	HPE X130 10G SFP+ LC SR Data Center Transceiver	JL437A
	HPE X130 10G SFP+ LC LR Data Center Transceiver	JL439A
	HPE X130 10G SFP+ LC LH 80km Transceiver	JG915A
	HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable	JD095C
	HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable	JD096C
	HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable	JD097C
	HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable	JG081C
	HPE FlexNetwork X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable	JC784C

Transceivers

SFP Transceivers

HPE X120 1G SFP RJ45 T Transceiver		JD089B
HPE X120 1G SFP LC SX Transceiver		JD118B
HPE X120 1G SFP LC LX Transceiver		JD119B
HPE X120 1G SFP LC LH40 1550nm Transceiver		JD062A

SFP+ Transceivers

HPE X130 10G SFP+ LC SR Transceiver		JD092B
HPE X130 10G SFP+ LC LR Transceiver		JD094B
HPE X130 10G SFP+ LC SR Data Center Transceiver		JL437A
HPE X130 10G SFP+ LC LR Data Center Transceiver		JL439A
HPE X130 10G SFP+ LC LH 80km Transceiver		JG915A
HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable		JD095C
HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable		JD096C
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable		JD097C
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable		JG081C
HPE FlexNetwork X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable		JC784C

QSFP+ Transceivers

HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver		JL251A
HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver		JG661A
HPE X140 40G QSFP+ MPO SR4 Transceiver		JG325B
HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver		JG709A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable		JG326A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable		JG327A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable		JG328A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable		JG329A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable		JG330A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable		JG331A

Switch Enclosure Options

Rack Mount Kit

HPE Altoline Gen3 Rackmount Kit		JL228A
		See Configuration NOTE: 2, 3

Configuration Rules:

Note 2	This rack mount kit is only supported on the following switches:
	HPE Altoline 6900 48G 4XG 2QSFP ARM ONIE AC Switch	JL223A

Note 3	If a switch ordered and factory racked, then this rackmount must be #0D1

HPE Altoline 6900 48G 4XG 2QSFP ARM ONIE AC Switch (JL223A)
I/O ports and slots	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 10GbE ports (IEEE 802.3ae Type 10GBASE-LR, IEEE 802.3ae Type 10GBASE-SR) 2 QSFP+ stacking ports; 20GbE Stacking ports, software dependent
Additional ports and slots	1 RJ-45 serial console port 1 RJ-45 out-of-band management port 1 USB 2.0
Power supplies	2 power supply slots 1 minimum power supply required includes: 2 x PSUs ()
Physical characteristics	Dimensions	17.32(w) x 16.1(d) x 1.72(h) in (44 x 40.89 x 4.37 cm) (1U height)
Physical characteristics	Weight	11.86 lb (5.38 kg)
Memory and processor	Fabric	Helix4 with embedded Dual-core ARM Cortex-A9 @ 1.0 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 4 MB, 8 GB flash capacity
Performance	40 Gbps Latency	> .6 µs
	Switching capacity	128 Gbps
	Routing table size	12000 entries (IPv4), 6000 entries (IPv6)
	MAC address table size	176000 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C)
	Operating relative humidity	5% to 95%, noncondensing
	Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
Electrical characteristics	Voltage	100 - 240 / 200 VAC, rated
	Maximum power rating	122 W
	Idle power	92 W
	Frequency	50/60 Hz
	Notes	Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	IEC 60950-1; EN 60950-1; CSA C22.2 60950-1; EN 55022 Class A; VCCI Class A; ROHS Compliance; FCC Class A: Regulations for Radio Frequency Devices for Electromagnetic Compliance; UL
Emissions	FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CNS 13438; UL 60950; IEC 60950-1
Management	Command-line interface; Out-of-band management (RJ-45 Ethernet); Out-of-band management (serial RS-232C or micro USB)
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Altoline 6900 Switch Series

Transceivers
HPE X130 10G SFP+ LC SR Transceiver	JD092B
HPE X130 10G SFP+ LC LR Transceiver	JD094B
HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable	JD095C
HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable	JD096C
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable	JD097C
HPE X120 1G SFP LC SX Transceiver	JD118B
HPE X120 1G SFP LC LX Transceiver	JD119B
HPE X120 1G SFP RJ45 T Transceiver	JD089B
HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable	JG326A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable	JG327A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable	JG328A
HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver	JG661A
HPE X140 40G QSFP+ MPO SR4 Transceiver	JG325B
HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver	JG709A

Mounting Kit
HPE Altoline Gen3 Rackmount Kit	JL228A

Date	Version History	Action	Description of Change:
18-Apr-2017	From Version 4 to 5	Added	Transceivers added on the Configuration section: JL437A, JL439A
01-Aug-2016	From Version 3 to 4	Changed	Several updates made on Configuration section
15-Apr-2016	From Version 2 to 3	Changed	SKUs descriptions and Configuration section updated
08-Apr-2016	From Version 1 to 2	Changed	Voltage on Technical Specifications
