HPE Altoline 6822 Switch Series: технические характеристики и документация
В архивеOverview
|
HPE Altoline 6822 Switch Series | |
|
| |
|
Models | |
|

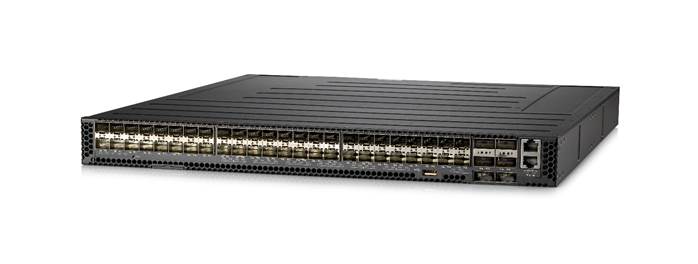

HPE Altoline 6822 48XG 6QSFP28 x86 ONIE Switch |
JL442A |
|
| |
|
Key features | |
| |
|
| |
|
Product overview | |
|
The HPE Altoline 6822 Switch Series are top-of-rack (ToR) leaf switches for high-performance cloud data centers in a compact 1RU form factor. The switches provide L2 and L3 switching across up to 48 GbE SFP+ ports, with 6 x 100GbE QSFP28 uplinks. The HPE Altoline 6822 Switch Series is designed to be deployed as leaf ToR switches supporting 1/10GbE server connections. In the HPE Altoline 6822 Switch Series, bare-metal switches are loaded with the Open Network Install Environment (ONIE), which supports installing and uninstalling of compatible third-party switch Network Operating System (NOS) offerings. | |
|
| |
|
Features and benefits |
|
Data center optimized
- SyncE support stratum 3E - IEEE 1588 step 1 and step 2 Manageability
Layer 2 switching
Additional information
Warranty and support
|
Configuration
|
Build
To Order: |
||
|
|
||
|
Router Chassis |
|
|
|
|
|
|
|
HPE Altoline 6822 48XG 6QSFP28 x86 ONIE Switch |
JL442A |
|
|
See Configuration NOTE: 2, 3, 4 |
|
|
|
|
|
|
Configuration Rules: |
|
|
|
|
|
|
|
Note 2 |
The following SFP/SFP+ Transceivers install into this Switch |
|
|
|
HPE X130 10G SFP+ LC SR Data Center Transceiver |
JL437A |
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable |
JD095C |
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable |
JD096C |
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
JD097C |
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable |
JG081C |
|
|
HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable |
JL290A |
|
|
|
|
|
Note 3 |
The following 40G Transceivers install into this Switch: (Use #0D1 or #B01 if switch is CTO) - if applicable |
|
|
|
HPE X140 40G QSFP+ MPO SR4 Transceiver |
JG325B |
|
|
HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver |
JL251A |
|
|
|
|
|
Note 4 |
The following QSFP28 Transceivers install into this switch: |
|
|
|
HPE X150 100G QSFP28 MPO SR4 100m MM Transceiver |
JL274A |
|
|
HPE X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable |
JL276A |
|
Rack Level Integration CTO Models |
||
|
|
|
|
|
CTO Switch Chassis |
|
|
|
|
|
|
|
HPE Altoline 6822 48XG 6QSFP28 x86 ONIE Switch |
JL442A |
|
|
See Configuration NOTE: 2, 3, 4, 6 |
|
|
|
|
|
|
Configuration Rules: |
|
|
|
|
|
|
|
Note 2 |
The following SFP/SFP+ Transceivers install into this Switch |
|
|
|
HPE X130 10G SFP+ LC SR Data Center Transceiver |
JL437A |
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable |
JD095C |
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable |
JD096C |
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
JD097C |
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable |
JG081C |
|
|
HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable |
JL290A |
|
|
|
|
|
Note 3 |
The following 40G Transceivers install into this Switch: (Use #0D1 or #B01 if switch is CTO) - if applicable |
|
|
|
HPE X140 40G QSFP+ MPO SR4 Transceiver |
JG325B |
|
|
HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver |
JL251A |
|
|
|
|
|
Note 4 |
The following QSFP28 Transceivers install into this switch: |
|
|
|
HPE X150 100G QSFP28 MPO SR4 100m MM Transceiver |
JL274A |
|
|
HPE X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable |
JL276A |
|
|
|
|
|
Note 6 |
If this Switch Chassis is selected for Rack Level Integration, Then the Switch Chassis needs to integrate (with #0D1) to the HPE Rack. |
|
|
|
|
|
|
Switch Options |
|
|
|
|
|
|
|
Transceivers |
|
|
|
|
|
|
|
SFP+ Transceivers |
|
|
|
|
|
|
|
HPE X130 10G SFP+ LC SR Data Center Transceiver |
JL437A |
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable |
JD095C |
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable |
JD096C |
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
JD097C |
|
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable |
JG081C |
|
|
HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable |
JL290A |
|
|
|
|
|
|
QSFP+ Transceivers |
|
|
|
|
|
|
|
HPE X140 40G QSFP+ MPO SR4 Transceiver |
JG325B |
|
|
HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver |
JL251A |
|
|
|
|
|
|
QSFP28 Transceivers |
|
|
|
|
|
|
|
HPE X150 100G QSFP28 MPO SR4 100m MM Transceiver |
JL274A |
|
|
HPE X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable |
JL276A |
|
|
|
|
|
|
Remarks: |
|
|
|
|
OCA Blue NOTE: Optical transceiver support will be dependent on the chosen OS. Please ensure you verify with HPE sales rep or chosen NOS vendor on transceiver support. |
|
|
|
|
|
|
Switch Enclosure Options |
|
|
|
|
|
|
|
Option Kits |
|
|
|
System (std 0 // max 1) User Selection (min 1 // max 1) |
|
|
|
|
|
|
|
HPE Altoline Type 3 Fan Tray AC Power Supply and Rack Mount Front-to-Back Kit |
JL440A |
|
|
See Configuration NOTE: 1, 2 |
|
|
|
|
|
|
PDU Cable NA/MEX/TW/JP |
JL440A#B2B |
|
|
|
|
|
|
|
|
|
PDU Cable ROW |
JL440A#B2C |
|
|
|
|
|
|
|
|
|
High Volt Switch to Wall Power Cord |
JL440A#B2E |
|
|
|
|
|
|
|
|
|
No Power Cord |
JL440A#AC3 |
|
|
|
|
|
|
|
|
|
HPE Altoline Type 3 Fan Tray AC Power Supply and Rack Mount Back-to-Front Kit |
JL441A |
|
|
See Configuration NOTE: 1, 2 |
|
|
|
|
|
|
PDU Cable NA/MEX/TW/JP |
JL441A#B2B |
|
|
|
|
|
|
|
|
|
PDU Cable ROW |
JL441A#B2C |
|
|
|
|
|
|
|
|
|
High Volt Switch to Wall Power Cord |
JL441A#B2E |
|
|
|
|
|
|
|
|
|
No Power Cord |
JL441A#AC3 |
|
|
|
|
|
|
|
|
|
HPE Altoline Type 3 Fan Tray DC Power Supply and Rack Mount Front-to-Back Kit |
JL443A |
|
|
See Configuration NOTE: 1 |
|
|
|
|
|
|
HPE Altoline Type 3 Fan Tray DC Power Supply and Rack Mount Back-to-Front Kit |
JL444A |
|
|
See Configuration NOTE: 1 |
|
|
|
|
|
|
Configuration Rules: |
|
|
|
|
|
|
|
Note 1 |
If a switch is ordered and factory racked, then this rackmount must be #0D1 |
|
|
|
|
|
|
Note 2 |
Localization required on orders without #B2B, #B2C or #B2E options. |
|
|
|
|
|
|
Remarks: |
Drop down under power supply should offer the following options and results: Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO) Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO) #AC3 - No Power Cord |
|
|
|
|
|
Technical Specifications
|
HPE Altoline 6822 48XG 6QSFP28 x86 ONIE Switch (JL442A) | |||
|
I/O ports and slots |
48 SFP+ 1/10GbE ports (IEEE 802.3ae Type 10GBASE-ER, IEEE 802.3ae Type 10GBASE-LR, IEEE 802.3ae Type 10GBASE-SR, IEEE 802.3z Type 1000BASE-SX, IEEE 802.3z Type 1000BASE-LX) | ||
|
6 QSFP28 100GbE ports (each supporting 1 x 40/100 GbE) | |||
|
Additional ports and slots |
1 RJ-45 serial console port | ||
|
1 x RJ-45 100/1000BASE-T management port 1 x USB Type A storage port 1 x RJ-45 100/1000BASE-T management port | |||
|
1 x USB Type A storage port | |||
|
Power supplies |
2 power supply slots; 1 minimum power supply required | ||
|
AC or -48 VDC supported deepening on the optional kit installed 1+1 redundancy and load sharing | |||
|
AC input range: 90 V~300 VAC (90~ 277 VAC is minimum) DC input range: -36~-72 VDC | |||
|
Fan tray |
6 fan tray slots; minimum of 5 required | ||
|
Fans are hot-swappable and support 5+1 redundancy | |||
|
Physical characteristics |
Bare chassis |
Dimensions |
17.26(w) x 20.28(d) x 1.73(h) |
|
Weight |
19.42 lb (8.81 kg) | ||
|
Fully populated chassis |
Dimensions |
17.26(w) x 21.46(d) x 1.73(h) | |
|
Weight |
24.47 lb (11.1kg) | ||
|
Fan |
Dimensions |
1.93(w) x 4.33(d) x 1.65(h) | |
|
Weight |
.32 lb (.143 kg) | ||
|
Power supply AC |
Dimensions |
2.17 (w) x 13.39(d) x 1.57(h) | |
|
Weight |
2.17 lb (.984 kg) | ||
|
Power supply DC |
Dimensions |
2.17 (w) x 13.39(d) x 1.57(h) | |
|
Weight |
2.18 lb (.987 kg) | ||
|
Memory and processor |
Intel® Broadwell-DE, 4-core 2.4GHz CPU; DDR4 SO-DIMM 2*8GB; NAND Flash: 32GB | ||
|
Performance |
Latency |
< 10 μs (64-byte packets) | |
|
Throughput |
up to 720 Mpps | ||
|
Routing/Switching capacity |
800 Gbps | ||
|
VLAN IDs |
4000 | ||
|
Packet Buffer Size |
6 GB | ||
|
Routing table size |
256K entries (IPv4), 64K entries (IPv6) | ||
|
MAC address table size |
750K entries (MAC + IPv4 Host) | ||
|
Environment |
Operating temperature |
32°F to 104°F (0°C to 40°C) | |
|
Operating relative humidity |
5% to 95%, noncondensing | ||
|
Nonoperating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) | ||
|
Airflow direction |
Front-to-back or back-to-front depending on the optional kit that is installed | ||
|
Electrical characteristics |
Frequency |
50/60 Hz | |
|
Voltage |
AC input range: 90 V~300 VAC (90~ 277 VAC minimum) DC input range: -36~-72 VDC | ||
|
Maximum power rating |
380 W | ||
|
Idle power |
241 W | ||
|
Notes |
Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PSU Efficiency: Up to 93% for AC PSUs | ||
|
Safety |
IEC/EN 60950-1; UL 609501-1; CSA 22.2 No 60950-1 IEC/EN 62368-1 | ||
|
Emissions |
FCC part 15 Subpart B Class A; EN 55032 Class A; VCCI-CISPR 32 Class A; FCC part 15 Subpart B Class A; ICES-003 Class A; BSMI CNS 13438 Class A; EN 61000-3-2 Class A; EN 61000-3-3 | ||
|
Immunity |
EN55024 IEC 61000-4-2/3/4/5/6/8/11 | ||
|
Management |
Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP | ||
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. | ||
|
| |||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change: |
|
02-Jul-2018 |
Version 4 |
Changed |
Minor updates made on the document |
|
4-Jun-2018 |
Version 3 |
Changed |
Document name changed from HPE Altoline 6800 Switch Series to HPE Altoline 6822 Switch Series. Updates made on Technical Specifications. |
|
15-Jan-2018 |
Version 2 |
Change |
Edits made on Features, Configuration and Technical Specifications. |
|
08-Jan-2018 |
Version 1 |
Creation |
Document creation |
| ||||||||||||||||||
