HPE 8200 zl Switch Series

Product overview

The HPE 8200 zl Switch Series offers high performance, scalability, and a wide range of features in a high-availability platform that dramatically reduces complexity and the total cost of ownership. As part of a unified wired and wireless network infrastructure solution, the 8200 zl Switch Series provides platform technology, system software, system management, application integration, wired and wireless integration, network security, and support that are common across HPE modular and fixed-port switches. Together, these features deliver an agile, cost-effective, high-availability network solution.

With key technologies to provide solution longevity, the 8200 zl Switch Series delivers long-term investment protection without added complexity for network core, aggregation, and high-availability access layer deployments. In addition to all of these capabilities, this switch series comes with Limited Lifetime Warranty 2.0—making it a compelling switching solution.

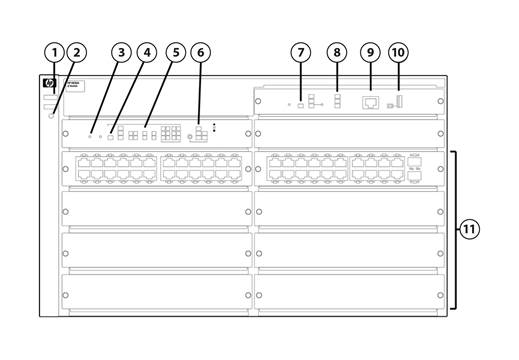

Front of 8206 zl Switch J9638A

1

Power and Fault LEDs

7

Management Module Reset button, and Status LEDs

2

Locator LED

8

Component Status LEDs Switch

3

Reset and Clear buttons

9

Console Port

4

Self-test LED

10

Auxiliary Port

5

Status LEDs for the Fans, Power Supplies, and Switch Modules

11

Switch Modules and slots with Link and Mode LEDs for each port located on each module

6

LED Mode Select button and indicator LEDs

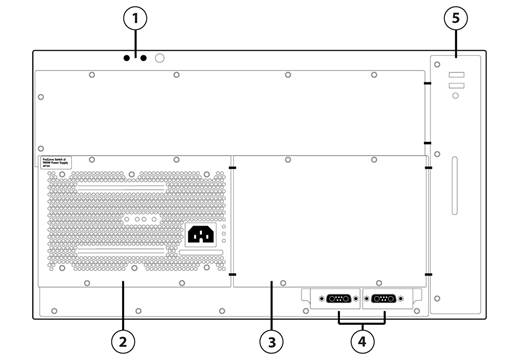

Back of the 8206zl Switch J9638A

1

Grounding lug mounting holes External

4

External PoE/PoE+ power connectors

2

Power supply

5

Fan Power, Fault and Locator LEDs

3

Optional redundant power supply

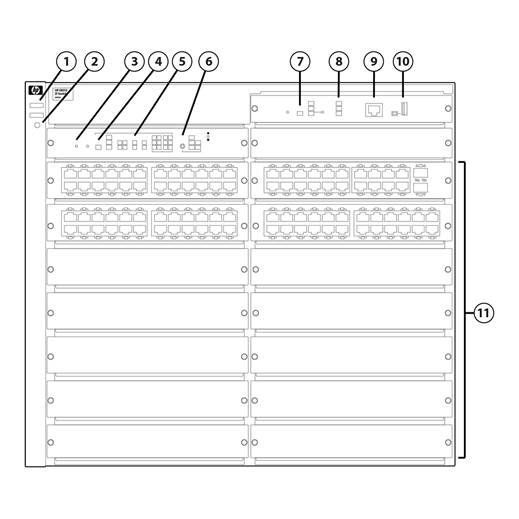

Front of 8212 zlSwitch J9639A

1

Power and Fault LEDs

7

Management Module Reset button, and Status LEDs

2

Locator LED

8

Component Status LEDs Switch

3

Reset and Clear buttons

9

Console Port

4

Self-test LED

10

Auxiliary Port

5

Status LEDs for the Fans, Power Supplies, and Switch Modules

11

Switch Modules and slots with Link and Mode LEDs for each port located on each module

6

LED Mode Select button and indicator LEDs

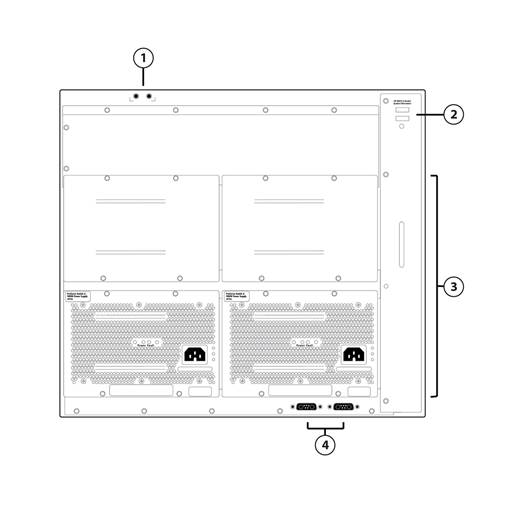

Rear of 8212 zlSwitch J9639A

1

Grounding lug mounting holes External

3

Slots for installing power supplies

2

Fan Power, Fault and Locator LEDs

4

External PoE/PoE+ power connectors

Key features

• Core, distribution, mission-critical access layer
• Advanced high-availability switches
• Integration with HPE AllianceONE solutions
• L2-to-L4 intelligent edge feature set
• Enterprise-class performance and security

Features and Benefits

Software-defined networking

• OpenFlow
  supports OpenFlow 1.0 and 1.3 specifications to enable SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths

Unified Wired and Wireless

• HTTP redirect function
  supports HPE Intelligent Management Center (IMC) bring your own device (BYOD) solution

Quality of Service (QoS)

• Advanced classifier-based QoS
  classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
• Layer 4 prioritization
  enables prioritization based on TCP/UDP port numbers
• Traffic prioritization
  allows real-time traffic classification into eight priority levels mapped to eight queues
• Bandwidth shaping

- Port-based rate limiting
provides per-port ingress-/egress-enforced increased bandwidth

- Classifier-based rate limiting
uses an access control list (ACL) to enforce increased bandwidth
for ingress traffic on each port

- Reduced bandwidth
provides per-port, per-queue egress-based reduced bandwidth

• Class of Service (CoS)
  sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ

HPE AllianceONE integration

• HPE AllianceONE Services zl Module
  allows you to embed applications directly into the network, either distributed throughout the network at the network edge or
  centralized in the core or distribution layer; for more information about the HPE AllianceONE solution, visit the Hewlett Packard Enterprise website

Management

• Remote intelligent mirroring
  mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HPE 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch anywhere on the network
• RMON, XRMON, and sFlow v5
  provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
  advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
• Uni-Directional Link Detection (UDLD)
  monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops
• HPE unified core-to-edge device/network management tools
  provide HPE networking portfolio-common device-level tools (CLI, Web GUI, and Menu) plus seamless integration into HPE
  PCM+/Identity Driven Manager (IDM) network management deployments
• Command authorization
  leverages RADIUS to link a custom list of CLI commands to an individual network administrator's login; an audit trail documents activity
• Friendly port names
  allow assignment of descriptive names to ports
• Dual flash images
  provides independent primary and secondary operating system files for backup while upgrading or fine-tuning the switch configuration
• Multiple configuration files
  can be stored to the flash image
• HPE unified core-to-edge features
  HPE ProVision portfolio-common feature implementation allows faster solution deployment
• Comware- CLI

- Comware-compatible CLI: bridges the experience of Hewlett Packard Enterprise Comware CLI users who are using the ProVision CLI

- Display and fundamental Comware CLI commands: are natively embedded in the switch CLI; display output is formatted as on Comware-based switches; fundamental commands provide Comware-familiar initial switch setup

- Configuration Comware CLI commands: when Comware commands are entered, CLI help is elicited to formulate the correct ProVision software CLI command

Connectivity

• High-density port connectivity
  provides 12 interface module slots, up to 288 wire-speed 10/100/1000 PoE-enabled ports, or 96 10-GbE ports per system
• IEEE 802.3az Energy Efficient Ethernet
  lowers power consumption in periods of low-link usage (supported on v2 zl 10/100/1000 and 10/100 modules)
• IEEE 802.3af Power over Ethernet (PoE)
  provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras
• IEEE 802.3at Power Over Ethernet Plus
  provides up to 30 W per port to IEEE 802.3 for PoE-/PoE+-powered devices such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/zoom/tilt security cameras
• Jumbo frames
  on Gigabit Ethernet and 10-Gigabit Ethernet ports, jumbo frames allow high-performance remote backup and disaster-recovery services
• HPE unified core-to-edge hardware
  HPE ProVision family-common interface and service modules, Gigabit optics/10 GbE transceivers, and power supplies enable sparing simplicity
• Prestandard PoE support
  detects and provides power to prestandard PoE devices; see the list of supported devices in the product FAQs at http://www.hpe.com/networking
• Auto-MDIX
  automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports
• IPv6

- IPv6 host
enables switches to be managed in an IPv6 network

- Dual stack (IPv4 and IPv6)
transitions from IPv4 to IPv6, supporting connectivity for both
protocols

- MLD snooping
forwards IPv6 multicast traffic to the appropriate interface

- IPv6 ACL/QoS
supports ACL and QoS for IPv6 network traffic

- IPv6 routing
supports static and OSPFv3 routing protocols

- 6in4 tunneling
supports encapsulation of IPv6 traffic in IPv4 packets

- Security
provides RA guard, DHCPv6 protection, dynamic IPv6 lockdown

Performance

• High-speed, high-capacity architecture
  1.12 Tbps crossbar switching fabric provides intra-module and inter-module switching with 739.2 million pps throughput on the purpose-built HPE ProVision ASICs
• Selectable queue configurations
  allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications
• Scalable system design
  chassis architecture/backplane provides built-in performance capacity/headroom to support next-generation high-density/high-speed connectivity

Resiliency and high availability

• Virtual Router Redundancy Protocol (VRRP)
  allows groups of two routers to dynamically back each other up to create highly available routed environments in IPv4 and IPv6 networks
• Nonstop switching
  improves network availability to better support critical applications such as unified communication and mobility; interface and fabric modules continue switching traffic during failover from active to standby management module
• Nonstop routing
  enhances Layer 3 high availability; OSPFv2/v3 and VRRP will continue to operate and route network traffic during failover from an active to a standby management module
• Redundant management, fabric, and power
  provide enhanced system availability and continuity of operations
• Distributed trunking
  enables loop-free and redundant network topology without using Spanning Tree Protocol; allows a server or switch to connect to two switches using one logical trunk for redundancy and load sharing
• IEEE 802.1s Multiple Spanning Tree Protocol
  provides high link availability in multiple VLAN environments by allowing multiple spanning trees; encompasses IEEE 802.1D Spanning Tree Protocol and IEEE 802.1w Rapid Spanning Tree Protocol
• IEEE 802.3ad Link Aggregation Control Protocol (LACP) and HPE port trunking
  support up to 144 trunks, each with up to eight links (ports) per trunk
• Proven ASIC and system architecture
  the HPE ProVision ASIC and platform architecture, leveraged from HPE's successful 5400 zl, 3500, 6600, and 6200 yl switch series, reduces technology risk and provides reliable support and flexibility
• HPE zl family components
  employ market-proven intelligent edge switch interface modules, optics, and power supplies to reduce technology risk and enhance system reliability
• Hot-swappable modules
  interface, management, and fabric modules as well as mini-GBIC optics and power supplies can be removed, swapped, or added to the system without interrupting ongoing switch operations
• Redundant, hot-swappable cooling
  redundant fan design and hot-swappable fan tray provide continuity of operation in case of a single fan failure
• Passive system design
  passive chassis backplane (no traffic-forwarding active componentry) provides system reliability and reduces the impact of a component failure
• Virtual Route Redundancy Protocol
  allows groups of two routers to dynamically back each other up to create highly available routed environments
• NEW SmartLink
  provides easy-to-configure link redundancy of active and standby links

Layer 2 switching

• VLAN support and tagging
  supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously
• IEEE 802.1v protocol VLANs
  isolate select non-IPv4 protocols automatically into their own VLANs
• GARP VLAN Registration Protocol
  allows automatic learning and dynamic assignment of VLANs
• IEEE 802.1ad Q-in-Q
  increases the scalability of an Ethernet network by providing a hierarchical structure; connects multiple LANs on a high-speed campus or metro network
• MAC-based VLAN
  provides granular control and security; uses RADIUS to map a MAC address/user to specific VLANs (requires v2 modules)
• Rapid Per-VLAN Spanning Tree (RPVST+)
  allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+

Layer 3 services

• User Datagram Protocol (UDP) helper function
  allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents server spoofing for UDP services such as DHCP
• Loopback interface address
  defines an address in Routing Information Protocol (RIP) and Open Standard Path First (OSPF), improving diagnostic capability
• Route maps
  provide more control during route redistribution; allow filtering and altering of route metrics
• DHCP server:
  centralizes and reduces the cost of IPv4 address management

Layer 3 routing

• Static IP routing
  provides manually configured routing for both IPv4 and IPv6
  networks
• Routing Information Protocol (RIP)
  provides RIPv1 and RIPv2 routing
• OSPF
  provides OSPFv2 for IPv4 routing and OSPFv3 for IPv6 routing
• Policy-based routing
  uses a classifier to select traffic that can be forwarded based on policy set by the network administrator (requires v2 or higher modules)
• Border Gateway Protocol (BGP)
  provides IPv4 Border Gateway Protocol routing, which is scalable, robust, and flexible

Security

• Access control lists (ACLs)
  provide filtering based on the IP field, source/destination IP address/subnet, and source/destination TCP/UDP port number on a per-VLAN or per-port basis
• Multiple user authentication methods

- IEEE 802.1X users per port
provides authentication of multiple IEEE 802.1X users per port

- Web-based authentication
authenticates from a Web browser for clients that do not support IEEE 802.1X supplicant

- MAC-based authentication
authenticates client with the RADIUS server based on a client's MAC address

- Concurrent IEEE 802.1X, Web, and MAC authentication schemes per port
accepts up to 32 sessions of IEEE 802.1X, Web, and MAC authentications

• Virus throttling
  detects traffic patterns typical of worm-type viruses and either throttles or entirely prevents the virus from spreading across the routed VLANs or bridged interfaces without requiring external appliances
• DHCP protection
  blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
• Secure management access
  securely encrypts all access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3
• Management Interface Wizard
  helps secure management interfaces such as SNMP, telnet, SSH, SSL, Web, and USB at the desired level
• Switch CPU protection
  provides automatic protection against malicious network traffic trying to shut down the switch
• ICMP throttling
  defeats ICMP denial-of-service attacks by enabling any switch port to automatically throttle ICMP traffic
• Identity-driven ACL
  enables implementation of a highly granular and flexible access security policy and VLAN assignment specific to each authenticated network user
• STP BPDU port protection
  blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
• Dynamic IP lockdown
  works with DHCP protection to block traffic from unauthorized hosts, preventing IP source address spoofing
• Dynamic ARP protection
  blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
• Detection of malicious attacks
  monitors 10 types of network traffic and sends a warning when an anomaly that potentially can be caused by malicious attacks is detected
• Port security
  allows access only to specified MAC addresses, which can be learned or specified by the administrator
• MAC address lockout
  prevents particular configured MAC addresses from connecting to the network
• Source-port filtering
  allows only specified ports to communicate with each other
• RADIUS/TACACS+
  eases switch management security administration by using a password authentication server
• Secure Shell
  encrypts all transmitted data for secure remote CLI access over IP networks
• Secure Sockets Layer (SSL)
  encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
• Secure FTP
  allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file
• Switch management logon security
  can require either RADIUS or TACACS+ authentication for secure switch CLI logon
• Security banner
  displays a customized security policy when users log in to the switch
• STP Root Guard
  protects the root bridge from malicious attacks or configuration mistakes
• Integrated Threat Management applications
  includes advanced, scalable, switch-integrated security tools such as stateful firewall, intrusion detection/prevention system (IDS/IPS), and VPN concentrator via the HPE Threat Management Services zl Module

Convergence

• IP multicast routing
  includes PIM Sparse and Dense modes to route IP multicast traffic
• IP multicast snooping (data-driven IGMP)
  automatically prevents flooding of IP multicast traffic
• LLDP-MED (Media Endpoint Discovery)
  is a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones
• PoE allocations
  support multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user specified) to allocate PoE power for more
  efficient energy savings
• Auto VLAN configuration for voice

- RADIUS VLAN
uses a standard RADIUS attribute and LLDP-MED to automatically
configure a VLAN for IP phones

- CDPv2
uses CDPv2 to configure legacy IP phones

• Local MAC Authentication
  assigns attributes such as VLAN and QoS using locally configured profile that can be a list of MAC prefixes

Flexibility

• Unified wired and wireless deployment and management
  employs the MSM765zl mobility controller and offers secure, advanced wireless services with simplified management and unified wired and wireless operation across the network
• Complete feature set
  provides Gigabit PoE for edge VoIP solutions, scalable 10 GbE for enterprise-class distribution-layer implementations, advanced wireless management for comprehensive mobility solutions, and critical high-availability features for midmarket core network deployments
• Programmable ASIC design
  allows the seamless addition of new QoS and security features over time without costly hardware upgrades

Warranty and support

• Limited Lifetime Warranty
  See http://www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
• Software releases
  to find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary

Build To Order:
BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

Standard Switch Chassis

HP 8206 zl Switch with Premium Software

J9640A

• 1 Power Supply required
• 1 - J9092A - HPE E8200 zl Management Module Included
• 2 - J9093A - HPE E8200 zl Fabric Module Included
• 1 - J9095A - HPE E8200 zl System Support Module Included
• 6U - Height

HP 8206-44G-PoE+-2XG v2 zl Switch with Premium Software

J9638A

• 44 RJ-45 autosensing 10/100/1000 PoE+ ports
• 1 - J9306A - HPE 1500 W PoE+ zl Power Supply Included
• 1 - J9092A - HPE E8200 zl Management Module Included
• 2 - J9093A - HPE E8200 zl Fabric Module Included
• 1 - J9095A - HPE E8200 zl System Support Module Included
• 1 - J9534A - HPE 24-port Gig-T PoE+ v2 zl Module Included
• 1 - J9536A - HPE 20-port Gig-T PoE+ / 2-port 10-GbE SFP+ v2 zl Module Included (Min 0 // Max 2 SFP+ Transceivers)
• 6U - Height

See Configuration NOTE:1, 2, 5

HP 8206-44G-PoE+-2XG v2 zl Switch with Premium Software

J9638A

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

HP 8206-44G-PoE+-2XG v2 zl Switch with Premium Software

J9638A

• C15 PDU Jumper Cord (ROW)

HP 8206-44G-PoE+-2XG v2 zl Switch with Premium Software

J9638A

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HP 8212 zl Switch with Premium Software

J9641A

• 2 Power Supply required
• 1 - J9092A - HPE E8200 zl Management Module Included
• 2 - J9093A - HPE E8200 zl Fabric Module Included
• 1 - J9095A - HPE E8200 zl System Support Module Included
• 9U - Height

HP 8212-92G-PoE+-2XG v2 zl Switch with Premium Software

J9639A

• 92 RJ-45 autosensing 10/100/1000 PoE+ ports
• 2 - J9306A - HPE 1500 W PoE+ zl Power Supply Included
• 1 - J9092A - HPE E8200 zl Management Module Included
• 2 - J9093A - HPE E8200 zl Fabric Module Included
• 1 - J9095A - HPE E8200 zl System Support Module Included
• 3 - J9534A - HPE 24-port Gig-T PoE+ v2 zl Module Included
• 1 - J9536A - HPE 20-port Gig-T PoE+ / 2-port 10-GbE SFP+ v2 zl Module Included (Min 0 // Max 2 SFP+ Transceivers)
• 9U - Height

See Configuration NOTE:1, 2, 5

HP 8212-92G-PoE+-2XG v2 zl Switch with Premium Software

J9639A

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

HP 8212-92G-PoE+-2XG v2 zl Switch with Premium Software

J9639A

• C15 PDU Jumper Cord (ROW)

HP 8212-92G-PoE+-2XG v2 zl Switch with Premium Software

J9639A

• NEMA L6-20P Cord (NA/MEX/JP/TW)

Note 1

The following Transceivers install into this Chassis:

HPE X121 1G SFP LC SX Transceiver

J4858C

HPE X121 1G SFP LC LX Transceiver

J4859C

HPE X121 1G SFP LC LH Transceiver

J4860C

HPE X121 1G SFP RJ45 T Transceiver

J8177C

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143B

HPE X132 10G SFP+ LC ER Transceiver

J9153A

HPE X132 10G SFP+ LC LR Transceiver

J9151A

HPE X132 10G SFP+ LC LRM Transceiver

J9152A

HPE X132 10G SFP+ LC SR Transceiver

J9150A

HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HPE X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HP X244 10G XFP to SFP+ 1m Direct Attach Copper Cable

J9300A

HP 10G X244 XFP to SFP+ 3m Direct Attach Copper Cable

J9301A

HP 10G X244 XFP to SFP+ 5m Direct Attach Copper Cable

J9302A

HP X242 10G SFP+ to SFP+ 10m Direct Attach Copper Cable

J9286B

HP X242 10G SFP+ to SFP+ 15m Direct Attach Copper Cable

J9287B

Note 2

Localization required. (See Localization Menu for list.)

Note 5

If #B2E is selected Then replace Localized option with #B2E for power supply and with #B2E for switch . (Offered only in North America, Mexico Taiwan, and Japan)

Box Level Integration CTO Models

CTO Solution SKU

HPE 82xx CTO Switch Solution

J9849A

• SSP trigger SKU

CTO Base SKU

HP 8206 zl Switch with Premium Software

J9640A

• 1 Power Supply required
• 1 - J9092A - HPE E8200 zl Management Module Included
• 2 - J9093A - HPE E8200 zl Fabric Module Included
• 1 - J9095A - HPE E8200 zl System Support Module Included
• 6U - Height

See Configuration NOTE:9

HP 8206-44G-PoE+-2XG v2 zl Switch with Premium Software

J9638A

• 44 RJ-45 autosensing 10/100/1000 PoE+ ports
• 1 - J9306A - HPE 1500 W PoE+ zl Power Supply Included
• 1 - J9092A - HPE E8200 zl Management Module Included
• 2 - J9093A - HPE E8200 zl Fabric Module Included
• 1 - J9095A - HPE E8200 zl System Support Module Included
• 1 - J9534A - HPE 24-port Gig-T PoE+ v2 zl Module Included
• 1 - J9536A - HPE 20-port Gig-T PoE+ / 2-port 10-GbE SFP+ v2 zl Module Included (Min 0 // Max 2 SFP+ Transceivers)
• 6U - Height

See Configuration NOTE:1, 2, 5, 8, 9

PDU CABLE NA/MEX/TW/JP

#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU CABLE ROW

#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HP 8212 zl Switch with Premium Software

J9641A

• 2 Power Supply required
• 1 - J9092A - HPE E8200 zl Management Module Included
• 2 - J9093A - HPE E8200 zl Fabric Module Included
• 1 - J9095A - HPE E8200 zl System Support Module Included
• 9U - Height

See Configuration NOTE:9

HP 8212-92G-PoE+-2XG v2 zl Switch with Premium Software

J9639A

• 92 RJ-45 autosensing 10/100/1000 PoE+ ports
• 2 - J9306A - HPE 1500 W PoE+ zl Power Supply Included
• 1 - J9092A - HPE E8200 zl Management Module Included
• 2 - J9093A - HPE E8200 zl Fabric Module Included
• 1 - J9095A - HPE E8200 zl System Support Module Included
• 3 - J9534A - HPE 24-port Gig-T PoE+ v2 zl Module Included
• 1 - J9536A - HPE 20-port Gig-T PoE+ / 2-port 10-GbE SFP+ v2 zl Module Included (Min 0 // Max 2 SFP+ Transceivers)
• 9U - Height

See Configuration NOTE:1, 2, 5, 8, 9

PDU CABLE NA/MEX/TW/JP

#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU CABLE ROW

#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

Note 1

The following Transceivers install into this Chassis : (Use #0D1 or #B01 quoted to switch if switch is CTO) - if applicable

HPE X121 1G SFP LC SX Transceiver

J4858C

HPE X121 1G SFP LC LX Transceiver

J4859C

HPE X121 1G SFP LC LH Transceiver

J4860C

HPE X121 1G SFP RJ45 T Transceiver

J8177C

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143B

HPE X132 10G SFP+ LC ER Transceiver

J9153A

HPE X132 10G SFP+ LC LR Transceiver

J9151A

HPE X132 10G SFP+ LC LRM Transceiver

J9152A

HPE X132 10G SFP+ LC SR Transceiver

J9150A

HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HPE X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HP X244 10G XFP to SFP+ 1m Direct Attach Copper Cable

J9300A

HP 10G X244 XFP to SFP+ 3m Direct Attach Copper Cable

J9301A

HP 10G X244 XFP to SFP+ 5m Direct Attach Copper Cable

J9302A

HP X242 10G SFP+ to SFP+ 10m Direct Attach Copper Cable

J9286B

HP X242 10G SFP+ to SFP+ 15m Direct Attach Copper Cable

J9287B

Note 2

Localization required (See Localization Menu)

Note 5

If #B2E is selected Then replace Localized option with #B2E for power supply and with #B2E for switch . (Offered only in North America, Mexico Taiwan, and Japan)

Note 8

If this Switch is selected, Then a Minimum of 1 factory integrated accessory must be ordered and integrated to CTO chassis. See Menu below, option must have a #0D1 to be integrated to the CTO Chassis.

Note 9

If the Switch Chassis is to be Box Level Factory Integrated (CTO), Then the #0D1 is required on the Switch Chassis and integrated to the J9849A - HPE 82xx CTO Enablement. (Min 1/Max 1 Switch per SSP)

Rack Level Integration CTO Models

HP 8206 zl Switch with Premium Software

J9640A

• 1 Power Supply required
• 1 - J9092A - HPE E8200 zl Management Module Included
• 2 - J9093A - HPE E8200 zl Fabric Module Included
• 1 - J9095A - HPE E8200 zl System Support Module Included
• 6U - Height

HP 8206-44G-PoE+-2XG v2 zl Switch with Premium Software

J9638A

• 44 RJ-45 autosensing 10/100/1000 PoE+ ports
• 1 - J9306A - HPE 1500 W PoE+ zl Power Supply Included
• 1 - J9092A - HPE E8200 zl Management Module Included
• 2 - J9093A - HPE E8200 zl Fabric Module Included
• 1 - J9095A - HPE E8200 zl System Support Module Included
• 1 - J9534A - HPE 24-port Gig-T PoE+ v2 zl Module Included
• 1 - J9536A - HPE 20-port Gig-T PoE+ / 2-port 10-GbE SFP+ v2 zl Module Included (Min 0 // Max 2 SFP+ Transceivers)
• 6U - Height

See Configuration NOTE:1, 9

PDU CABLE NA/MEX/TW/JP

#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU CABLE ROW

#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HP 8212 zl Switch with Premium Software

J9641A

• 2 Power Supply required
• 1 - J9092A - HPE E8200 zl Management Module Included
• 2 - J9093A - HPE E8200 zl Fabric Module Included
• 1 - J9095A - HPE E8200 zl System Support Module Included
• 9U - Height

HP 8212-92G-PoE+-2XG v2 zl Switch with Premium Software

J9639A

• 92 RJ-45 autosensing 10/100/1000 PoE+ ports
• 2 - J9306A - HPE 1500 W PoE+ zl Power Supply Included
• 1 - J9092A - HPE E8200 zl Management Module Included
• 2 - J9093A - HPE E8200 zl Fabric Module Included
• 1 - J9095A - HPE E8200 zl System Support Module Included
• 3 - J9534A - HPE 24-port Gig-T PoE+ v2 zl Module Included
• 1 - J9536A - HPE 20-port Gig-T PoE+ / 2-port 10-GbE SFP+ v2 zl Module Included (Min 0 // Max 2 SFP+ Transceivers)
• 9U - Height

See Configuration  NOTE:1, 9

PDU CABLE NA/MEX/TW/JP

#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU CABLE ROW

#B2C

• C15 to C14 Jumper Cord (ROW

High Volt Switch to Wall Power Cord

#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

Configuration rules

Note 1

The following Transceivers install into this Chassis : (Use #0D1 or #B01 quoted to switch if switch is CTO) - if applicable

HPE X121 1G SFP LC SX Transceiver

J4858C

HPE X121 1G SFP LC LX Transceiver

J4859C

HPE X121 1G SFP LC LH Transceiver

J4860C

HPE X121 1G SFP RJ45 T Transceiver

J8177C

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143B

HPE X132 10G SFP+ LC ER Transceiver

J9153A

HPE X132 10G SFP+ LC LR Transceiver

J9151A

HPE X132 10G SFP+ LC LRM Transceiver

J9152A

HPE X132 10G SFP+ LC SR Transceiver

J9150A

HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HPE X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HP X244 10G XFP to SFP+ 1m Direct Attach Copper Cable

J9300A

HP 10G X244 XFP to SFP+ 3m Direct Attach Copper Cable

J9301A

HP 10G X244 XFP to SFP+ 5m Direct Attach Copper Cable

J9302A

HP X242 10G SFP+ to SFP+ 10m Direct Attach Copper Cable

J9286B

HP X242 10G SFP+ to SFP+ 15m Direct Attach Copper Cable

J9287B

Note 2

Localization required (See Localization Menu)

Note 9

Localization required on orders without #B2B or #B2C options.

Internal Power Supplies

J9640x only - System (std 0 // max=2) User Selection (min 1 / max=2) per Chassis
J9638x only - System (std 1 // max=2) User Selection (min 0 / max=1) per Chassis
J9641x only - System (std 0 // max=4) User Selection (min 2 / max=4) per Chassis
J9639x only - System (std 2 // max=4) User Selection (min 0 / max=2) per Chassis

HPE 1500W PoE+ zl Power Supply

J9306A

• C15 Outlet

See Configuration NOTE:1, 2, 6

PDU CABLE NA/MEX/TW/JP

J9306A#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU CABLE ROW

J9306A#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

J9306A#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE 875W zl Power Supply

J8712A#0D1

• C15 Outlet

See Configuration NOTE:1, 2, 5, 6

PDU CABLE NA/MEX/TW/JP

J8712A#B2B

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU CABLE ROW

J8712A#B2C

• C15 PDU Jumper Cord (ROW)

High Volt Switch to Wall Power Cord

J8712A#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE 1500W zl Power Supply

J8713A

• C20 Outlet

See Configuration NOTE:1, 2, 5, 6

C19 PDU WW

J8713A#B2D

• C19 to C20 Jumper Cord

High Volt Switch to Wall Power Cord

J8713A#B2E

• NEMA L6-20P Cord (NA/MEX/JP/TW)

Note 1

Power Supplies cannot be mixed for a switch enclosure

Note 2

Localization required on orders without #B2B, #B2C, or #B2E options.

Note 5

This power supply is not supported on the J9638x and J9639x switches.

Note 6

If #B2E is selected Then replace Localized option with #B2E for power supply and with #B2E for switch . (Offered only in North America, Mexico Taiwan, and Japan)

Remarks:

"Drop down under power supply should offer the following options and results:

Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)

Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)

High Volt Switch/Router/Power Supply to Wall Power Cord - #B2E Option. (Offered only in North America, Mexico, Taiwan, and Japan)"

Modules

Interface Modules

J9640x only - System (std 0 // max=6) User Selection (min 0 / max=6) per Chassis
J9641x only - System (std 0 // max=12) User Selection (min 0 / max=12) per Chassis
J9638x only - System (std 2 // max=6) User Selection (min 0 / max=4) per Chassis
J9639x only - System (std 4 // max=12) User Selection (min 0 / max=8) per Chassis

HPE 20-port GT PoE+/4-port SFP v2 zl Mod

J9535A

• min=0 \ max=4 SFP Transceivers

See Configuration NOTE:1

HPE 24-port SFP v2 zl Module

J9537A

• min=0 \ max=24 SFP Transceivers

See Configuration NOTE:1

HPE 12p Gig-T PoE+/12p SFP v2 zl Mod

J9637A

• min=0 \ max=12 SFP Transceivers

See Configuration NOTE:1

HPE 20-port Gig-T / 4-port SFP v2 zl Mod

J9549A

• min=0 \ max=4 SFP Transceivers

See Configuration NOTE:1

HPE 4-port 10GbE SFP+ zl Module

J9309A

• min=0 \ max=4 SFP+ Transceivers

See Configuration NOTE:2

HPE 8-port 10 GbE SFP+ v2 zl Module

J9538A

• min=0 \ max=8 SFP+ Transceivers

See Configuration NOTE:5

HPE 20p GT PoE+ / 2p SFP+ v2 zl Module

J9536A

• min=0 \ max=2 SFP+ Transceivers

See Configuration NOTE:5

HPE 20-port Gig-T / 2-port SFP+ v2 zl Mod

J9548A

• min=0 \ max=2 SFP+ Transceivers

See Configuration NOTE:5

HPE 4-Port 10 GbE X2 zl Module

J8707A

• min=0 \ max=4 X2 Transceivers

See Configuration NOTE:3

HPE 4-Port 10 GbE CX4 zl Module

J8708A

• min=0 \ max=4 CX4 Media Converter

HPE 8-port 10GBase-T v2 zl Module

J9546A

• No Transceivers

HPE 24-Port 10/100/1000 PoE zl Module

J8702A

• No Transceivers

HPE 20p 10/100/1000 PoE+/4p MGBIC zl Mod

J9308A

• min=0 \ max=4 SFP Transceivers

See Configuration NOTE:1

HPE 20-Port Gig-T/4-Port Mini-GBIC zl Module

J8705A

• min=0 \ max=4 SFP Transceivers

See Configuration NOTE:11

HPE 24-Port Mini-GBIC zl Module

J8706A

• min=0 \ max=24 SFP Transceivers

See Configuration NOTE:11

HPE 24-Port 10/100/1000 PoE+ zl Module

J9307A

• No Transceivers

HPE 24-port Gig-T PoE+ v2 zl Module

J9534A

• No Transceivers

HPE 24-Port 10/100 PoE+ zl Module

J9478A

• No Transceivers

HPE 24-port 10/100 PoE+ v2 zl Module

J9547A

• No Transceivers

HPE 24-port Gig-T v2 zl Module

J9550A

• No Transceivers

HPE MSM765 zl Mobility Controller

J9370A

• No Transceivers

See Configuration NOTE:6, 7

HPE MSM775 zl Premium Controller Module

J9840A

• No Transceivers

See Configuration NOTE:9

HPE Surv Brch Com zl Mod pwrby Msft Lync

J9485A

• No Transceivers.
• Double Height Module, takes up 2 Vertical slots*

See Configuration NOTE: 6, 7, 8

HPE Svc zlMod f/AvayaSBC pwrby AcmePacket

J9486A

• No Transceivers.
• Double Height Module, takes up 2 Vertical slots*

See Configuration NOTE:6, 7, 8

HPE Advanced Services v2 zl Module w/ HDD

J9857A

• No Transceivers

See Configuration NOTE:10

HPE Advanced Services v2 zl Module w/ SSD

J9858A

• No Transceivers

See Configuration NOTE:10

HPE Adv Srvs zl Mod w/XenServer Platform

J9747A

• No Transceivers

See Configuration NOTE:6, 7

HPE Adv Srvs zl Mod w/vSphere Platform

J9748A

• No Transceivers

See Configuration NOTE:6, 7

Configuration NOTES:

Note 1

The following Transceivers install into this Module: (Use #0D1 quoted to switch if switch is CTO)

HPE X111 100M SFP LC FX Transceiver

J9054C

HPE X112 100M SFP LC BX-D Transceiver

J9099B

HPE X112 100M SFP LC BX-U Transceiver

J9100B

HPE X121 1G SFP LC LH Transceiver

J4860C

HPE X121 1G SFP LC SX Transceiver

J4858C

HPE X121 1G SFP LC LX Transceiver

J4859C

HPE X122 1G SFP LC BX-D Transceiver

J9142B

HPE X122 1G SFP LC BX-U Transceiver

J9143B

HPE X121 1G SFP RJ45 T Transceiver

J8177C

Note 2

The following Transceivers install into this Module: (Use #0D1 or #B01 quoted to switch if switch is CTO)

HPE X132 10G SFP+ LC ER Transceiver

J9153A

HPE X132 10G SFP+ LC LR Transceiver

J9151A

HPE X132 10G SFP+ LC LRM Transceiver

J9152A

HPE X132 10G SFP+ LC SR Transceiver

J9150A

HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HPE X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HP X244 10G XFP to SFP+ 1m Direct Attach Copper Cable

J9300A

HP 10G X244 XFP to SFP+ 3m Direct Attach Copper Cable

J9301A

HP 10G X244 XFP to SFP+ 5m Direct Attach Copper Cable

J9302A

HP X242 10G SFP+ to SFP+ 10m Direct Attach Copper Cable

J9286B

HP X242 10G SFP+ to SFP+ 15m Direct Attach Copper Cable

J9287B

Note 3

The following Transceivers install into this Module: (Use #0D1 quoted to switch if switch is CTO)

HPE X131 10G X2 SC SR Transceiver

J8436A

HP X131 10G X2 SC LR Transceiver

J8437A

HP X131 10G X2 SC ER Transceiver

J8438A

HP X131 10G X2 CX4 Transceiver

J8440C

HP X131 10G X2 SC LRM Transceiver

J9144A

The following Transceivers install into this Module: (Use #0D1 quoted to switch if switch is CTO)

HPE X121 1G SFP LC LH Transceiver

J4860C

HPE X121 1G SFP LC SX Transceiver

J4858C

HPE X121 1G SFP LC LX Transceiver

J4859C

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143B

HPE X121 1G SFP RJ45 T Transceiver

J8177C

HPE X132 10G SFP+ LC ER Transceiver

J9153A

HPE X132 10G SFP+ LC LR Transceiver

J9151A

HPE X132 10G SFP+ LC LRM Transceiver

J9152A

HPE X132 10G SFP+ LC SR Transceiver

J9150A

HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HPE X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HP X244 10G XFP to SFP+ 1m Direct Attach Copper Cable

J9300A

HP 10G X244 XFP to SFP+ 3m Direct Attach Copper Cable

J9301A

HP 10G X244 XFP to SFP+ 5m Direct Attach Copper Cable

J9302A

ProCurve 10-GbE SFP+ 10m Direct Attach Cable

J9286A

HPE X242 10G SFP+ 15m DAC Cable

J9287A

Note 6

If this module is selected, Then:
J9641A, J9639A Max = 4 Modules of any combination or pairing of the following modules: J9517A, J9485A, J9486A, J9289A, J9483A, J9666A, J9747A, J9748A. Double Height Modules occupy 2 vertical slots.
J9640A, J9638A Max = 2 Slots for Modules of any combination or pairing of the following modules: J9517A, J9485A, J9486A, J9289A, J9483A, J9666A, J9747A, J9748A. Double Height Modules occupy 2 vertical slots.

Note 7

If this module is selected, Then show following message - For all OA modules, it is preferred that they be populated on the left side of the Chassis as it gets better airflow.

Note 8

This module occupies 2 Vertical Slots.

Note 9

Maximum of this Module per Chassis:
J9638x min=0\max= 4 per Chassis
J9640x min=0\max=5 per Chassis
J9639x, J9641x min=0\max=6 per Chassis
There are no restrictions on which slots these modules may go in.

Note 10

Maximum of this Module per Chassis:
J9638x, J9640x min=0\max=3 per Chassis
J9639x, J9641x min=0\max=6 per Chassis
There are no restrictions on which slots these modules may go in.

 Management Modules

System (std 1 // max 2) User Selection (min 0 / max 1)

HP 8200 zl Management Module

J9092A

 Fabric Modules

System (std 2 // max 2) User Selection (min 0 / max 0)

HP 8200 zl Fabric Module

J9093A

Order for Spares only.

 System Support Modules

System (std 1 // max 1) User Selection (min 0 / max 1)

HP 8200 zl System Support Module

J9095A

Order for Spares only.

 Transceivers

SFP Transceivers

HPE X111 100M SFP LC FX Transceiver

J9054C

HP X112 100M SFP LC BX-D Transceiver

J9099B

HP X112 100M SFP LC BX-U Transceiver

J9100B

HPE X121 1G SFP LC LH Transceiver

J4860C

HPE X121 1G SFP LC LX Transceiver

J4859C

HPE X121 1G SFP LC SX Transceiver

J4858C

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143B

HPE X121 1G SFP RJ45 T Transceiver

J8177C

 SFP+ Transceivers

HPE X132 10G SFP+ LC ER Transceiver

J9153A

HPE X132 10G SFP+ LC LR Transceiver

J9151A

HPE X132 10G SFP+ LC LRM Transceiver

J9152A

HPE X132 10G SFP+ LC SR Transceiver

J9150A

HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HPE X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HP X242 10G SFP+ to SFP+ 10m Direct Attach Copper Cable

J9286B

HP X242 10G SFP+ to SFP+ 15m Direct Attach Copper Cable

J9287B

HP X244 10G XFP to SFP+ 1m Direct Attach Copper Cable

J9300A

HP 10G X244 XFP to SFP+ 3m Direct Attach Copper Cable

J9301A

HP 10G X244 XFP to SFP+ 5m Direct Attach Copper Cable

J9302A

 X2 Transceivers

HP X131 10G X2 SC ER Transceiver

J8438A

HP X131 10G X2 SC LR Transceiver

J8437A

HP X131 10G X2 SC LRM Transceiver

J9144A

HP X131 10G X2 SC SR Transceiver

J8436A

Cables

 Multi-Mode Cables

HP LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HP LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HP LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HP LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HP LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HP LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HP LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

QK732A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

QK733A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

QK734A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

QK735A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

QK736A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

QK737A

Switch Enclosure Options

License

HP 8200 zl Switch Premium License

J9474A

Fan Trays

HP 8212 zl Fan Tray

J9094A

HP 8206 zl Switch Fan Tray

J9476A

Survivable Branch Communication Upgrades

Sangoma 2-port T1/E1/J1 Telephony Card

J9488A

Sangoma 4-port T1/E1/J1 Telephony Card

J9489A

Sangoma 4-port FXO Telephony Card

J9516A

Sangoma 4-port FXS Telephony Card

J9482A

Sangoma 2-p FXO / 2-p FXS Telephony Card

J9518A

Sangoma 1-port T1/E1/J1 Telephony Card

J9487A

US Federal Government certifications

HP zl Chassis FIPS 10K Rack Mounting Kit

J9708A

See Configuration NOTE:1

HPE 16mm x 32mm Tmpr-Evidence (20) Labels

J9740A

See Configuration NOTE:1

HPE 16mm x 32mm Tmpr-Evidence (120) Label

J9709A

See Configuration NOTE:1

HP 8206 zl FIPS Opacity Shield Kit

J9712A

See Configuration NOTE:1

HP 8212 zl FIPS Opacity Shield Kit

J9713A

See Configuration NOTE:1

HP 8206 zl High Performance Fan Tray

J9723A

See Configuration NOTE:1

HP 8212 zl High Performance Fan Tray

J9724A

See Configuration NOTE:1

Note 1

Do not display in Watson.

HP 8206 zl Switch with Premium Software (J9640A)

Included accessories

1 HPE 8200 zl Management Module (J9092A)

2 HPE 8200 zl Fabric Module (J9093A)

1 HPE 8200 zl System Support Module (J9095A)

I/O ports and slots

6 open module slots

Supports a maximum of 144 autosensing 10/100/1000 ports or 48 10-GbE ports or 144 mini-GBICs, or a combination

Power supplies

2 power supply slots

1 minimum power supply required (ordered separately)

Physical characteristics

Dimensions

17.42(w) x 17.49(d) x 10.35(h) in (44.25 x 44.42 x 26.29 cm) (6U height)

Weight

48.1 lb (21.82 kg)

Memory and processor

Gigabit Module

ARM9 @ 200 MHz; packet buffer size: 144 Mb QDR SDRAM

10G Module

ARM9 @ 200 MHz; packet buffer size: 36 Mb QDR SDRAM

Management Module

Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash, 256 MB DDR
SDRAM

Mounting and enclosure

Mounts in an EIA-standard 19 in telco rack/equipment cabinet (hardware included); horizontal surface mounting only. An optional 4-post cabinet rail is available (see ordering guide).

Performance

1000 Mb Latency

< 3.7 µs (FIFO 64-byte packets)

10 Gbps Latency

< 2.1 µs (FIFO 64-byte packets)

Throughput

up to 369.6 Mpps

Routing/Switching capacity

496.8 Gbps

Switch fabric speed

561.6 Gbps

Routing table size

10000 entries (IPv4)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 131°F (55°C), noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 60.0 dB, Pressure: 41.3 dB; ISO 7779, ISO 9296

Electrical characteristics

Achieved Miercom Certified Green Award

Frequency

50/60 Hz

Description

Chassis ships without power supplies. Two power supply slots are available; three different power supplies are available. See power supply products for additional specifications.

Maximum heat dissipation

2450 BTU/hr (2584.75 kJ/hr), (max. non-PoE); 3700 BTU/hr (3903 kJ/hr) (max. PoE)

AC voltage

100-127/200-240 VAC

Safety

CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950; IEC 60825

Emissions

FCC Class A; FCC part 15 Class A; ICE-003, Canadian Radio Interface Regulation; VCCI Class A; EN 55022/CISPR 22 Class A

Immunity

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2; 4 kV CD, 8 kV AD

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

HPE PCM+; HPE PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)

Notes

Interface/Service modules, power supplies, and redundant management module must be ordered separately.
RS-232C console port via an RJ-45 connector.
Supported 1G SFP transceivers are revision "B" or later (product number ends with the letter "B" or later; for example, J9142B, J8177C).

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services:   for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP 8212 zl Switch with Premium Software (J9641A)

Included accessories

1 HPE 8200 zl Management Module (J9092A)

2 HPE 8200 zl Fabric Module (J9093A)

1 HPE 8200 zl System Support Module (J9095A)

1 HPE 8200 zl Switch Premium License (J9474A)

I/O ports and slots

12 open module slots

Supports a maximum of 288 autosensing 10/100/1000 ports or 96 10-GbE ports or 288 mini-GBICs, or a combination

Power supplies

4 power supply slots

2 minimum power supplies required (ordered separately)

Physical characteristics

Dimensions

17.5(w) x 18.7(d) x 15.6(h) in (44.45 x 47.5 x 39.62 cm) (9U height)

Weight

50.44 lb (22.88 kg)

Memory and processor

Gigabit Module

ARM9 @ 200 MHz; packet buffer size: 144 Mb QDR SDRAM

10G Module

ARM9 @ 200 MHz; packet buffer size: 36 Mb QDR SDRAM

Management Module

Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash, 256 MB DDR
SDRAM

Mounting and enclosure

Mounts in an EIA-standard 19 in telco rack or equipment cabinet (hardware included); horizontal surface mounting only. An optional 4-post cabinet rail is available (see ordering guide).

Performance

1000 Mb Latency

< 3.7 µs (FIFO 64-byte packets)

10 Gbps Latency

< 2.1 µs (FIFO 64-byte packets)

Throughput

up to 739 Mpps

Routing/Switching capacity

993.6 Gbps

Switch fabric speed

1.1 Tbps

Routing table size

10000 entries (IPv4)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 131°F (55°C), noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 63.0 dB, Pressure: 47.8 dB; ISO 7779, ISO 9296

Electrical characteristics

Achieved Miercom Certified Green Award

Frequency

50/60 Hz

Description

Chassis ships without power supplies. Four power supply slots are available; three different power supplies are available. See power supply products for additional specifications.

Maximum heat dissipation

4900 BTU/hr (5170 kJ/hr), (max. non-PoE); 7400 BTU/hr (7807 kJ/hr) (max. PoE)

AC voltage

100-127/200-240 VAC

Safety

CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950; IEC 60825

Emissions

FCC Class A; FCC part 15 Class A; ICE-003, Canadian Radio Interface Regulation; VCCI Class A; EN 55022/CISPR 22 Class A

Immunity

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2; 4 kV CD, 8 kV AD

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

HPE PCM+; HPE PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)

Notes

Interface/Service modules, power supplies, and redundant management module must be ordered separately.
RS-232C console port via an RJ-45 connector.
Supported 1G SFP transceivers are revision "B" or later (product number ends with the letter "B" or later; for example, J9142B, J8177C).

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services:   for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP 8206-44G-PoE+-2XG v2 zl Switch with Premium Software (J9638A)

Included accessories

1 HPE 8200 zl Management Module (J9092A)

2 HPE 8200 zl Fabric Module (J9093A)

1 HPE 8200 zl System Support Module (J9095A)

1 HPE 1500W PoE+ zl Power Supply (J9306A)

1 HPE 24-port Gig-T PoE+ v2 zl Module (J9534A)

1 HPE 20-port Gig-T PoE+ / 2-port 10GbE SFP+ v2 zl Module (J9536A)

1 HPE 8200 zl Switch Premium License (J9474A)

I/O ports and slots

44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP+ 10-GbE ports; Duplex: full only

4 open module slots

Supports a maximum of 144 autosensing 10/100/1000 ports or 48 10-GbE ports or 144 mini-GBICs, or a combination

Power supplies

2 power supply slots

1 minimum power supply required
includes: 1 x J9306A (HPE 1500W PoE+ zl Power Supply)

Physical characteristics

Dimensions

17.42(w) x 17.49(d) x 10.35(h) in
(44.25 x 44.42 x 26.29 cm) (6U height)

Weight

61.49 lb (27.89 kg)

Memory and processor

Gigabit Module

ARM9 @ 200 MHz; packet buffer size: 144 Mb QDR SDRAM

10G Module

ARM9 @ 200 MHz; packet buffer size: 36 Mb QDR SDRAM

Management Module

Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash, 256 MB DDR
SDRAM

Mounting and enclosure

Mounts in an EIA-standard 19 in telco rack/equipment cabinet (hardware included); horizontal surface mounting only. An optional 4-post cabinet rail is available (see ordering guide).

Performance

1000 Mb Latency

< 3.7 µs (FIFO 64-byte packets)

10 Gbps Latency

< 2.1 µs (FIFO 64-byte packets)

Throughput

up to 369.6 Mpps

Routing/Switching capacity

496.8 Gbps

Switch fabric speed

561.6 Gbps

Routing table size

10000 entries (IPv4)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 131°F (55°C), noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 60.0 dB, Pressure: 41.3 dB; ISO 7779, ISO 9296

Electrical characteristics

Achieved Miercom Certified Green Award

Frequency

50/60 Hz

Description

Chassis ships without power supplies. Two power supply slots are available; three different power supplies are available. See power supply products for additional specifications.

Maximum heat dissipation

2450 BTU/hr (2584.75 kJ/hr), (max. non-PoE); 3700 BTU/hr (3903 kJ/hr) (max. PoE)

AC voltage

100-127/200-240 VAC

Safety

CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950; IEC 60825

Emissions

FCC Class A; FCC part 15 Class A; ICE-003, Canadian Radio Interface Regulation; VCCI Class A; EN 55022/CISPR 22 Class A

Immunity

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2; 4 kV CD, 8 kV AD

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

HPE PCM+; HPE PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)

Notes

Interface/Service modules, power supplies, and redundant management module must be ordered separately.
RS-232C console port via an RJ-45 connector.
Supported 1G SFP transceivers are revision "B" or later (product number ends with the letter "B" or later; for example, J9142B, J8177C).

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services:   for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP 8212-92G-PoE+-2XG v2 zl Switch with Premium Software (J9639A)

Included accessories

1 HPE 8200 zl Management Module (J9092A)

2 HPE 8200 zl Fabric Module (J9093A)

1 HPE 8200 zl System Support Module (J9095A)

1 HPE 8200 zl Switch Premium License (J9474A)

2 HPE 1500W PoE+ zl Power Supply (J9306A)

3 HPE 24-port Gig-T PoE+ v2 zl Module (J9534A)

1 HPE 20-port Gig-T PoE+ / 2-port 10GbE SFP+ v2 zl Module (J9536A)

I/O ports and slots

92 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP+ 10-GbE ports; Duplex: full only

8 open module slots

Supports a maximum of 288 autosensing 10/100/1000 ports or 96 10-GbE ports or 288 mini-GBICs, or a combination

Power supplies

4 power supply slots

2 minimum power supplies required
includes: 2 x J9306A (HPE 1500W PoE+ zl Power Supply)

Physical characteristics

Dimensions

17.5(w) x 18.7(d) x 15.6(h) in
(44.45 x 47.5 x 39.62 cm) (9U height)

Weight

102.76 lb (46.61 kg)

Memory and processor

Gigabit Module

ARM9 @ 200 MHz; packet buffer size: 144 Mb QDR SDRAM

10G Module

ARM9 @ 200 MHz; packet buffer size: 36 Mb QDR SDRAM

Management Module

Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash, 256 MB DDR
SDRAM

Mounting and enclosure

Mounts in an EIA-standard 19 in telco rack or equipment cabinet (hardware included); horizontal surface mounting only. An optional 4-post cabinet rail is available (see ordering guide).

Performance

1000 Mb Latency

< 3.7 µs (FIFO 64-byte packets)

10 Gbps Latency

< 2.1 µs (FIFO 64-byte packets)

Throughput

up to 739 Mpps

Routing/Switching capacity

993.6 Gbps

Switch fabric speed

1.1 Tbps

Routing table size

10000 entries (IPv4)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 131°F (55°C), noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 63.0 dB, Pressure: 47.8 dB; ISO 7779, ISO 9296

Electrical characteristics

Achieved Miercom Certified Green Award

Frequency

50/60 Hz

Description

Chassis ships without power supplies. Four power supply slots are available; three different power supplies are available. See power supply products for additional specifications.

Maximum heat dissipation

4900 BTU/hr (5170 kJ/hr), (max. non-PoE); 7400 BTU/hr (7807 kJ/hr) (max. PoE)

AC voltage

100-127/200-240 VAC

Safety

CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950; IEC 60825

Emissions

FCC Class A; FCC part 15 Class A; ICE-003, Canadian Radio Interface Regulation; VCCI Class A; EN 55022/CISPR 22 Class A

Immunity

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2; 4 kV CD, 8 kV AD

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

HPE PCM+; HPE PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)

Notes

Interface/Service modules, power supplies, and redundant management module must be ordered separately.
RS-232C console port via an RJ-45 connector.
Supported 1G SFP transceivers are revision "B" or later (product number ends with the letter "B" or later; for example, J9142B, J8177C).

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services:   for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Standards and protocols
(applies to all products in series)

BGP

RFC 1997 BGP Communities Attribute
RFC 2918 Route Refresh Capability
RFC 4271 A Border Gateway Protocol 4 (BGP-4)
RFC 4456 BGP Route Reflection: An Alternative to Full
Mesh Internal BGP (IBGP)
RFC 4724 Graceful Restart Mechanism for BGP
RFC 5492 Capabilities Advertisement with BGP-4

Denial of service protection

CPU DoS Protection

Device management

RFC 1591 DNS (client)
HTML and telnet management

General protocols

IEEE 802.1ad Q-in-Q

IEEE 802.1AX-2008 Link Aggregation

IEEE 802.1D MAC Bridges

IEEE 802.1p Priority

IEEE 802.1Q VLANs

IEEE 802.1s Multiple Spanning Trees

IEEE 802.1v VLAN classification by Protocol and Port

IEEE 802.1w Rapid Reconfiguration of Spanning Tree

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

IEEE 802.3af Power over Ethernet

IEEE 802.3x Flow Control

RFC 768 UDP

RFC 783 TFTP Protocol (revision 2)

RFC 792 ICMP

RFC 793 TCP

RFC 826 ARP

RFC 854 TELNET

RFC 868 Time Protocol

RFC 951 BOOTP

RFC 1058 RIPv1

RFC 1350 TFTP Protocol (revision 2)

RFC 1519 CIDR

RFC 1542 BOOTP Extensions

RFC 1918 Address Allocation for Private Internet

RFC 2030 Simple Network Time Protocol (SNTP) v4

RFC 2131 DHCP

RFC 2453 RIPv2

RFC 2548 (MS-RAS-Vendor only)

RFC 3046 DHCP Relay Agent Information Option

RFC 3576 Ext to RADIUS (CoA only)

RFC 3768 VRRP

RFC 4675 RADIUS VLAN & Priority

RFC 5798 VRRP (exclude Accept Mode and sub-sec timer)

UDLD (Uni-directional Link Detection)

IP multicast

RFC 3376 IGMPv3 (host joins only)
RFC 3973 PIM Dense Mode
RFC 4601 PIM Sparse Mode

IPv6

RFC 1981 IPv6 Path MTU Discovery
RFC 2375 IPv6 Multicast Address Assignments
RFC 2460 IPv6 Specification
RFC 2464 Transmission of IPv6 over Ethernet Networks
RFC 2710 Multicast Listener Discovery (MLD) for IPv6
RFC 2925 Definitions of Managed Objects for Remote
Ping, Traceroute, and Lookup Operations (Ping only)
RFC 3019 MLDv1 MIB
RFC 3315 DHCPv6 (client and relay)
RFC 3484 Default Address Selection for IPv6
RFC 3587 IPv6 Global Unicast Address Format
RFC 3596 DNS Extension for IPv6
RFC 3810 Multicast Listener Discovery Version 2
(MLDv2) for IPv6
RFC 4022 MIB for TCP
RFC 4087 IP Tunnel MIB
RFC 4113 MIB for UDP
RFC 4213 Basic Transition Mechanisms for IPv6 Hosts
and Routers
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4291 IP Version 6 Addressing Architecture
RFC 4293 MIB for IP
RFC 4294 IPv6 Node Requirements
RFC 4419 Key Exchange for SSH
RFC 4443 ICMPv6
RFC 4541 IGMP & MLD Snooping Switch
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto-configuration
RFC 5095 Deprecation of Type 0 Routing Headers in IPv6
RFC 5340 OSPFv3 for IPv6
RFC 5453 Reserved IPv6 Interface Identifiers
RFC 5519 Multicast Group Membership Discovery MIB
(MLDv2 only)
RFC 5722 Handling of Overlapping IPv6 Fragments

MIBs

IEEE 802.1ap (MSTP and STP MIB's only)

RFC 1155 Structure & ID of Mgmt Info for TCP/IP Internets

RFC 1213 MIB II

RFC 1493 Bridge MIB

RFC 1724 RIPv2 MIB

RFC 1850 OSPFv2 MIB

RFC 2021 RMONv2 MIB

RFC 2096 IP Forwarding Table MIB

RFC 2578 Structure of Management Information Version 2 (SMIv2)

RFC 2613 SMON MIB

RFC 2618 RADIUS Client MIB

RFC 2620 RADIUS Accounting MIB

RFC 2665 Ethernet-Like-MIB

RFC 2668 802.3 MAU MIB

RFC 2674 802.1p and IEEE 802.1Q Bridge MIB

RFC 2737 Entity MIB (Version 2)

RFC 2787 VRRP MIB

RFC 2863 The Interfaces Group MIB

RFC 2925 Ping MIB

RFC 2932 IP (Multicast Routing MIB)

RFC 2933 IGMP MIB

RFC 4836 Managed Objects for 802.3 Medium Attachment Units (MAU)

Network management

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)

RFC 3176 sFlow

RFC 5424 Syslog Protocol

ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)

SNMPv1/v2c/v3

XRMON

OSPF

RFC 2328 OSPFv2
RFC 3101 OSPF NSSA
RFC 3623 Graceful OSPF Restart (Unplanned Outages only)
RFC 5340 OSPFv3 for IPv6

QoS/CoS

RFC 2474 DiffServ Precedence, including 8 queues/port
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)

Security

IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2865 RADIUS (client only)
RFC 2866 RADIUS Accounting
RFC 3579 RADIUS Support For Extensible Authentication Protocol (EAP)
Secure Sockets Layer (SSL)
SSHv2 Secure Shell

HPE 8200 zl Switch Series accessories

Modules

HPE 8-port 10GbE SFP+ v2 zl Module

J9546A

HPE 8-port 10GbE SFP+ v2 zl Module

J9538A

HP 4-port 10GbE CX4 zl Module

J8708A

HP 4-port 10GbE X2 zl Module

J8707A

HP 4-port 10GbE SFP+ zl Module

J9309A

HPE 20-port Gig-T PoE+/2-port 10GbE SFP+ v2 zl Module

J9536A

HPE 20-port Gig-T/2-port 10GbE SFP+ v2 zl Module

J9548A

HPE 20-port Gig-T PoE+/4-port SFP v2 zl Module

J9535A

HPE 20-port Gig-T/4-port SFP v2 zl Module

J9549A

HPE 24-port SFP v2 zl Module

J9537A

HPE 12-port Gig-T PoE+/12-port SFP v2 zl Module

J9637A

HPE 24-port Gig-T PoE+ v2 zl Module

J9534A

HPE 24-port Gig-T v2 zl Module

J9550A

HP 24-port 10/100/1000 PoE zl Module

J8702A

HP 20-port Gig-T / 4-port Mini-GBIC zl Module

J8705A

HP 24-port Mini-GBIC zl Module

J8706A

HPE 24-port 10/100 PoE+ v2 zl Module

J9547A

HP 24-port 10/100 PoE+ zl Module

J9478A

HP 24-port 10/100/1000 PoE+ zl Module

J9307A

HP 20-port 10/100/1000 PoE+ / 4-port Mini-GBIC zl Module

J9308A

HP 8200 zl System Support Module

J9095A

HP 8200 zl Management Module

J9092A

HP 8200 zl Fabric Module

J9093A

HPE Advanced Services v2 zl Module with HDD

J9857A

HPE Advanced Services v2 zl Module with SSD

J9858A

Transceivers

HP X131 10G X2 SC ER Transceiver

J8438A

HP X131 10G X2 SC SR Transceiver

J8436A

HP X131 10G X2 CX4 Transceiver

J8440C

HPE X111 100M SFP LC FX Transceiver

J9054C

HP X131 10G X2 SC LR Transceiver

J8437A

HP X131 10G X2 SC LRM Transceiver

J9144A

HP X112 100M SFP LC BX-D Transceiver

J9099B

HP X112 100M SFP LC BX-U Transceiver

J9100B

HPE X132 10G SFP+ LC SR Transceiver

J9150A

HPE X132 10G SFP+ LC LR Transceiver

J9151A

HPE X132 10G SFP+ LC LRM Transceiver

J9152A

HPE X121 1G SFP LC LH Transceiver

J4860C

HPE X121 1G SFP LC SX Transceiver

J4858C

HPE X121 1G SFP LC LX Transceiver

J4859C

HPE X121 1G SFP RJ45 T Transceiver

J8177C

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143B

HPE X132 10G SFP+ LC ER Transceiver

J9153A

Cables

HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HPE X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HP X244 10G XFP to SFP+ 1m Direct Attach Copper Cable

J9300A

HP 10G X244 XFP to SFP+ 3m Direct Attach Copper Cable

J9301A

HP 10G X244 XFP to SFP+ 5m Direct Attach Copper Cable

J9302A

HP LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HP LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HP LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HP LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HP LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HP LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HP LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

QK732A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

QK733A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

QK734A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

QK735A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

QK736A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

QK737A

Power Supply

HPE 1500W PoE+ zl Power Supply

J9306A

HPE 1500W zl Power Supply

J8713A

HPE 875W zl Power Supply

J8712A

License

HP 8200 zl Switch Premium License

J9474A

WLAN

HP MSM775 zl Premium Controller Module

J9840A

HP 8206 zl Switch with Premium Software (J9640A)

HPE 20-port Gig-T/4-port SFP v2 zl Module

J9549A

HP 8206 zl Switch Fan Tray

J9476A

HP 8212 zl Switch with Premium Software (J9641A)

HP 8212 zl Fan Tray

J9094A

NOTE: Details are not available for all accessories. The following specifications were available at the time of publication.

HPE 8-port 10GbE SFP+ v2 zl Module (J9546A)

Ports

8 RJ-45 10-GbE ports; Duplex: full only

Physical characteristics

Dimensions

10.3(d) x 8.13(w) x 1.75(h) in. (26.16 x 20.65 x 4.45 cm)

Weight

2.1 lb. (0.95 kg)

Full configuration weight

2.1 lb. (0.95 kg)

Environment

Operating temperature

32°F to 131°F (0°C to 55°C)

Operating relative humidity

15% to 95% @ 131°F (55°C), noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 158°F (70°C), noncondensing

Fiber type

Single Mode

Notes

Max Distance upto 100m with qualified 10Gbase-T Cat7(Shielded), Cat6a (Shielded/Unshielded) and Cat6 (Shielded, tested to 350Mhz TIA/EIA TSB-155A) cables. Max Distance upto 55m with Cat6 (unshielded, tested to 350Mhz TIA/EIA TSB-155A)

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services   for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE 8-port 10GbE SFP+ v2 zl Module (J9538A)

Ports

8 open 10-GbE SFP+ transceiver slots

Physical characteristics

Dimensions

10.3(d) x 8.13(w) x 1.75(h) in. (26.16 x 20.65 x 4.45 cm)

Weight

2.09 lb (0.95 kg)

Environment

Operating temperature

32°F to 131°F (0°C to 55°C)

Operating relative humidity

15% to 95% @ 131°F (55°C), noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 158°F (70°C), noncondensing

Notes

When using mini-GBICs with this product, mini-GBICs with revision "B" or later (product number ends with the letter "B" or later, e.g., J4858B, J4859C) are required.
When mini-GBICs are inserted in any mini-GBIC slot of a J9538A, this limits the operating temperature range of the chassis to 32F to 104F (0C to 40C).

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services   for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP 4-port 10GbE CX4 zl Module (J8708A)

Ports

4 CX4 10-GbE ports (IEEE 802.3ak Type 10GBASE-CX4); Duplex: full only

Physical characteristics

Dimensions

10.3(d) x 8.13(w) x 1.75(h) in. (26.16 x 20.65 x 4.45 cm)

Weight

1.74 lb. (0.79 kg)

Environment

Operating temperature

32°F to 131°F (0°C to 55°C)

Cabling

Maximum distance:
15 m using CX4 cable
300 m using optical media converters and multimode fiber cable

Notes

Use CX4 10-GbE cable (0.5 m-15 m)
No CX4 cables are included with this module.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services   for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP 4-port 10GbE X2 zl Module (J8707A)

Ports

4 open 10-GbE X2 transceiver slots

Physical characteristics

Dimensions

10.3(d) x 8.13(w) x 1.75(h) in. (26.16 x 20.65 x 4.45 cm)

Weight

1.74 lb. (0.79 kg)

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Notes

When installed in a zl chassis, the J8707A module limits the operating temperature range of the chassis to 32°F to 104°F (0°C to 40°C).

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services   for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HP 4-port 10GbE SFP+ zl Module (J9309A)

Ports

4 open 10-GbE SFP+ transceiver slots

Physical characteristics

Dimensions

10.3(d) x 8.13(w) x 1.75(h) in. (26.16 x 20.65 x 4.45 cm)

Weight

1.64 lb. (0.74 kg)

Environment

Operating temperature

32°F to 131°F (0°C to 55°C)

Operating relative humidity

15% to 95% @ 113°F (45°C), noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 158°F (70°C), noncondensing

Notes

When installed in a zl chassis, the J9309A module limits the operating temperature range of the chassis to 32F to 113F (0C to 45C).

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services   for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE 20-port Gig-T PoE+/2-port 10GbE SFP+ v2 zl Module (J9536A)

Ports

2 open 10-GbE SFP+ transceiver slots
20 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Physical characteristics

Dimensions

10.3(d) x 8.13(w) x 1.75(h) in. (26.16 x 20.65 x 4.45 cm)

Weight

2.1 lb. (0.95 kg)

Environment

Operating temperature

32°F to 131°F (0°C to 55°C)

Operating relative humidity

15% to 95% @ 131°F (55°C), noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 158°F (70°C), noncondensing

Cabling

Cable type:
1000BASE-T: Category 5 (5E or better recommended), 100 Ω differential 4-pair unshielded twisted pair (UTP) or shielded twisted pair (STP) balanced, complying with IEEE 802.3ab 1000BASE-T;

Notes

When using mini-GBICs with this product, mini-GBICs with revision "B" or later (product number ends with the letter "B" or later, e.g., J4858B, J4859C) are required.
When mini-GBICs are inserted in any mini-GBIC slot of a J9308A, this limits the operating temperature range of the chassis to 32F to 104F (0C to 40C).

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services   for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE 20-port Gig-T/2-port 10GbE SFP+ v2 zl Module (J9548A)

Ports

2 open 10-GbE SFP+ transceiver slots
20 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type:
Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Physical characteristics

Dimensions

10.3(d) x 8.13(w) x 1.75(h) in. (26.16 x 20.65 x 4.45 cm)

Weight

2.1 lb. (0.95 kg)

Environment

Operating temperature

32°F to 131°F (0°C to 55°C)

Operating relative humidity

15% to 95% @ 131°F (55°C), noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 158°F (70°C), noncondensing

Cabling

Cable type:
1000BASE-T: Category 5 (5E or better recommended), 100 Ω differential 4-pair unshielded twisted pair (UTP) or shielded twisted pair (STP) balanced, complying with IEEE 802.3ab 1000BASE-T;

Notes

When using mini-GBICs with this product, mini-GBICs with revision "B" or later (product number ends with the letter "B" or later, e.g., J4858B, J4859C) are required.
When mini-GBICs are inserted in any mini-GBIC slot of a J9308A, this limits the operating temperature range of the chassis to 32F to 104F (0C to 40C).

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services   for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE 20-port Gig-T PoE+/4-port SFP v2 zl Module (J9535A)

Ports

4 open mini-GBIC (SFP) slots
20 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Physical characteristics

Dimensions

10.3(d) x 8.13(w) x 1.75(h) in. (26.16 x 20.65 x 4.45 cm)

Weight

2.1 lb. (0.95 kg)

Environment

Operating temperature

32°F to 131°F (0°C to 55°C)

Operating relative humidity

15% to 95% @ 131°F (55°C), noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 158°F (70°C), noncondensing

Cabling

Cable type:
1000BASE-T: Category 5 (5E or better recommended), 100 Ω differential 4-pair unshielded twisted pair (UTP) or shielded twisted pair (STP) balanced, complying with IEEE 802.3ab 1000BASE-T;
