HPE Altoline 6700 Switch Series

Models

HPE Altoline 6940 32QSFP+ PPC ONIE AC Front-to-Back Switch

JL114A

HPE Altoline 6940 32QSFP+ PPC ONIE AC Back-to-Front Switch

JL115A

Key features

• High 40GbE port density and low latency for demanding applications.
• ONIE boot loader for choice of network OS and easy installation.
• Open-networking and disaggregated solution for customer choice.
• VXLAN for efficient network virtualization overlay solutions.
• 40GbE and redundant fans and power supplies for data center deployments.

Product overview

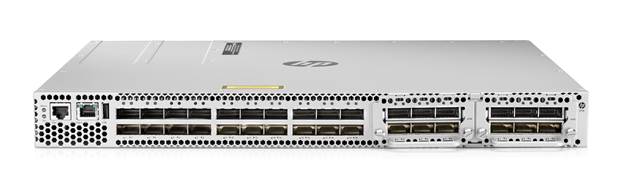

The HPE Altoline 6700 switch is a top-of-rack (TOR) or spine switch for high-performance data centers. In a compact 1RU form factor, the switch provides line-rate L2 and L3 switching across up to 32 x QSFP ports, supporting up to 32 x 40GbE connections or 96 x 10GbE with 8 x 40GbE uplink connections.

The HPE Altoline 6700 switch can be deployed as a TOR switch supporting 10GbE or 40GbE server connections, or as a spine switch, supporting 10GbE or 40GbE spine interconnects. The switch provides 20 fixed QSFP ports and two module slots, each capable of supporting a 6 x QSFP module, pre-installed.

The HPE Altoline 6700 is a bare-metal switch loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible independent switch OS offerings.

Features and benefits

Data center optimized

• Flexible high port density
  the HPE Altoline 6700 Switch Series enables scaling of the server edge with 40GbE spine and ToR deployments to new heights with high-density 32-port solutions delivered in a 1RU design. Up to 24 40GbE QSFP+ ports can also be configured as four 10GbE ports by using a 40GbE-to-10GbE splitter cable providing up to 96 10GbE ports with eight 40GbE uplinks.
• High-performance switching
  cut-through and nonblocking architecture delivers low latency (600 - 720 nanosecond for 40GbE) for very demanding enterprise applications; the switch delivers high-performance switching capacity and wire-speed packet forwarding
• Hot/cold aisle support
  models available with front-to-back (port to power) or back-to-front (power to port) airflow
• Redundant fans and power supplies
  1+1 internal redundant and hot-pluggable power supplies and N+1 redundant fan trays enhance reliability and availability
• VXLAN hardware support
  supports VXLAN VTEP overlay technologies

Manageability

• Out-of-band interface
  isolates management traffic from user data plane traffic for complete isolation and total reachability, no matter what happens in the data plane
• ONIE bootloader
  switch is loaded with Open Network Install Environment (ONIE) software installer

Layer 2 switching

• VLAN support
  provides support for 4,096 VLAN IDs

Additional information

• Low power consumption
  typical operation uses just 267W of AC power

Warranty and support

• 3-year Warranty
  advance hardware replacement with 10-calendar-day delivery (available in most countries)
• Electronic and telephone support
  limited electronic and business-hours telephone support is available from HPE for the entire warranty period; to reach our support centers, refer to http://www.hp.com/networking/contact-support; for details on the duration of support provided with your product purchase, refer to http://www.hp.com/networking/warrantysummary
• Software releases
  to find software for your product, refer to http://www.hp.com/networking/support ; for details on the software releases available with your product purchase, refer to http://www.hp.com/networking/warrantysummary

HPE Altoline 6940 32QSFP+ PPC ONIE AC Front-to-Back Switch (JL114A)

I/O ports and slots

32 QSFP+ 40GbE ports

Additional ports and slots

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 USB 2.0

Power supplies

2 power supply slots

1 minimum power supply required

includes: 2 x PSUs

Fan tray

5 fan tray slots

Switch comes with five (5) fan trays (port to power airflow)

Physical characteristics

Dimensions

17.32(w) x 18.5(d) x 1.72(h) in (44.00 x 47.0 x 4.4 cm)

Weight

18.52 lb (8.4 kg)

Memory and processor

Freescale PPC @ 1.2 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 12 MB, 8 GB SD Card

Performance

40 Gbps Latency

> .6 µs

Throughput

up to 1440 Mpps

Routing/Switching capacity

2560 Gbps

Routing table size

64000 entries (IPv4), 20000 entries (IPv6)

MAC address table size

320000 entries

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 95%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Electrical characteristics

Frequency

50/60 Hz

Voltage

90 - 264 VAC, rated

(depending on power supply chosen)

Maximum power rating

315 W

Idle power

267 W

Notes

Idle power is the actual power consumption of the device with no ports connected.

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

PSU Efficiency: Up to 93% for AC PSUs

Safety

cUL Certified; EN 60950; EN 55022 Class A; VCCI Class A; ROHS Compliance; FCC Class A:

Regulations for Radio Frequency Devices for Electromagnetic Compliance; UL

Emissions

FCC part 15 Class A; EN 55022 Class A; VCCI

Immunity

ESD

EN 60950

EFT/Burst

IEC 68-2-14

Management

Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP

Services

Refer to the Hewlett Packard Enterprise website at: http://www.hp.com/networking/services or details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Altoline 6940 32QSFP+ PPC ONIE AC Back-to-Front Switch (JL115A)

I/O ports and slots

32 QSFP+ 40GbE ports

Additional ports and slots

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 USB 2.0

Power supplies

2 power supply slots

1 minimum power supply required

includes: 2 x PSUs

Fan tray

5 fan tray slots

Switch comes with five (5) fan trays (power to port airflow)

Physical characteristics

Dimensions

17.32(w) x 18.5(d) x 1.72(h) in (44.00 x 47.0 x 4.4 cm)

Weight

18.52 lb (8.4 kg)

Memory and processor

Freescale PPC @ 1.2 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 12 MB, 8 GB SD Card

Performance

40 Gbps Latency

> .6 µs

Throughput

up to 1440 Mpps

Routing/Switching capacity

2560 Gbps

Routing table size

64000 entries (IPv4), 20000 entries (IPv6)

MAC address table size

320000 entries

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

5% to 95%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Electrical characteristics

Frequency

50/60 Hz

Voltage

90 - 264 VAC, rated

(depending on power supply chosen)

Maximum power rating

315 W

Idle power

267 W

Notes

Idle power is the actual power consumption of the device with no ports connected.

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

PSU Efficiency: Up to 93% for AC PSUs

Safety

cUL Certified; EN 60950; EN 55022 Class A; VCCI Class A; ROHS Compliance; FCC Class A: Regulations for Radio Frequency Devices for Electromagnetic Compliance; UL

Emissions

FCC part 15 Class A; EN 55022 Class A; VCCI

Immunity

ESD

EN 60950

EFT/Burst

IEC 68-2-14

Management

Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP

Services

Refer to the Hewlett Packard Enterprise website at: http://www.hp.com/networking/services or details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Altoline 6700 Switch Series accesories

Transceivers

HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable

JG326A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable

JG327A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable

JG328A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable

JG329A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable

JG330A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable

JG331A

HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver

JG661A

HPE X140 40G QSFP+ MPO SR4 Transceiver

JG325B

HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver

JG709A
