Aruba CX 8360 Switch Series

High Performance Enterprise Campus and Data Center Switch

The Aruba CX 8360 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 2.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.

The 8360 series includes industry-leading line rate ports with 1/10/25GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 100GbE ports.

In addition, the 32 x 25G port 8360 models support low density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains.

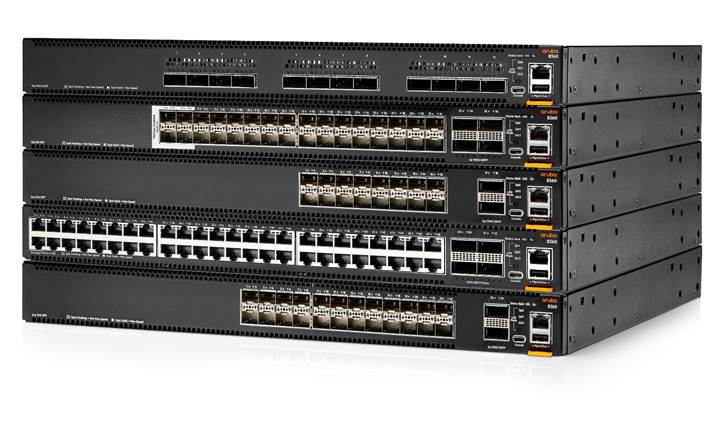

Aruba CX 8360 Switch Series

Key Features

• High-performance 2.4Tbps and 1,145 Mpps
• Intelligent monitoring and visibility with Aruba Network Analytics Engine
• High availability with industry-leading VSX redundancy, and redundant power supplies and fans
• Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments
• MACsec secured connectivity over untrusted domains
• ArubaOS-CX automation and programmability using built-in REST APIs and Python scripts
• Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6
• Compact 1U switch with 1/10/25GbE and 40/100GbE connectivity
• Supports Aruba Fabric Composer - a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.

Product Differentiators

The Aruba CX 8360 switch series is based on ArubaOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex tasks. The enhanced capabilities of ArubaOS-CX provide a unique set of differentiators for campus and data center switching.

Modular Architecture with native cloud-native ArubaOS-CX

ArubaOS-CX is built on a modular Linux architecture with OVSDB, providing the following unique capabilities:

• Safe and powerful access to all state at all times allows unique visibility and analytics capabilities
• REST APIs and Python scripting provide fine-grained microservices architecture enables full integration with other workflow systems and services
• Continual state synchronization provides superior fault tolerance and high availability
• All software processes communicate with the database rather than with each other, ensuring high stability with minimal inter-process communication

Aruba Network Analytics Engine

ArubaOS-CX includes Aruba's Network Analytics Engine (NAE) for advanced telemetry and automation. The NAE framework is an industry-first monitoring and troubleshooting system, providing greatly improved network operations. NAE uniquely provides the ability to monitor and easily troubleshoot network health and congestion issues. The Time Series Database (TSDB) may be used to store configuration and operational state.

Customers can use data from the TSDB to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies and predict future capacity requirements.

Aruba Virtual Switching Extension

The ability of ArubaOS-CX to maintain synchronous state across dual control planes allows a unique high availability solution called Aruba Virtual Switching Extension (VSX). VSX is delivered through redundancy gained by deploying two chassis with an inter-switch link, with each chassis maintaining its independent control.

Designed using the best features of existing HA technologies such as Multichassis Link Aggregation (MC-LAG) and Virtual Switching Framework (VSF), Aruba VSX enables a distributed architecture that is highly available during upgrades or control plane events.

Product Capabilities

Performance

• High-speed fully distributed architecture

Provides up to 2.4Tbps for bidirectional switching and 1,145 Mpps for forwarding to meet the demands of bandwidth-intensive applications today and in the future

• Scalable system design

Provides investment protection to support future technologies and higher-speed connectivity

Connectivity

• Variety of port density options

­ Five different base models, each sold in two versions: a port-to-power airflow bundle, and a power-to-port airflow bundle:

o 12 ports of 40GbE/100GbE (QSFP+/QSFP28)

o 16 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) + 2 ports of 40GbE/100GbE (QSFP+/QSFP28)

o 28 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) + 4 10GbE/25GbE (SFP+/SFP28) with MACsec + 4 ports of 40GbE/100GbE (QSFP+/QSFP28)

o 24 ports of 1GbE/10GbE (SFP/SFP+) + 2 ports of 40GbE/100GbE (QSFP+/QSFP28)

o 48 ports of 100M/1GbE/10GbE (10GBASE-T) + 4 ports of 40GbE/100GbE (QSFP+/QSFP28)

­ MACsec support is on selected ports (see above model descriptions).

­ All QSFP ports (QSFP+/QSFP28), except those on the 48x1G/10GBASE-T model, support optional 4x10G/4x25G break out capability.

­ There is 10GBASE-T transceiver support on the SFP+/SFP28 ports.

­ There is 1Gbps transceiver support, including 1GBASE-T, on non-MACsec SFP+/ SFP28 ports

• Jumbo frames

Allows high-performance backups and disaster-recovery systems; provides a maximum frame size of 9K bytes

• Unsupported Transceiver Mode (UTM)

Allows users to insert and enable all unsupported 1G and 10G transceivers and cables

No warranty nor support for the transceiver/cable when used

• Loopback

Supports internal loopback testing for maintenance purposes and increased availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per-VLAN basis for added flexibility

• Packet storm protection

Protects against unknown broadcast, multicast, or unicast storms with user-defined thresholds

Quality of Service (QoS)

• Strict priority (SP) queuing and Deficit Weighted Round Robin (DWRR)

Enables congestion avoidance

• Data Center Bridging (DCB)

Supports lossless Ethernet networking standards to eliminate packet loss due to queue overflow

• Priority Flow Control (PFC) 7 priorities per port
• Enhanced Transmission Service (ETS)
• DCB Exchange Protocol (Pre-standard LLDP DCBX IEEE 1.01 version)
• Flow-Control Guard

Prevents accumulation of excessive congestion with periodic flushing. Avoids packets buffering for an extended time period

• ECN with slope

Marks packets as ECN-CE (Congestion Experienced. Helps TCP to reduce receive window size during congestion

• Advanced lossless pool configuration
• Global buffering statistics
• Storage Solution Support

iSCSI, Lossless iSCSI, RDMA over Converged Ethernet version 2 (RoCE v1 and v2) and Non-Volatile Memory Express (NVMeOF)

• Explicit Congestion Notification (ECN)

Marks packets rather than drops them, enabling the receiver to indicate the congestion to the sender, which in turn can reduce its transmission rate as if it detected a dropped packet.

 Resiliency and high availability

• Redundant and load-sharing fans and power supplies

Increases total performance and power availability while providing hitless, stateful failover

• Hot swappable power supply and fan modules

Allows replacement of accessory modules without any operational impact on other modules nor the switch operations

• Separate data and control paths

Separates control from services and keeps service processing isolated; increases security and performance

• Aruba Virtual Switching Extension (VSX)

VSX enables a distributed and redundant architecture by deploying two switches with each switch maintaining independent control yet staying synchronized during upgrades or failover. Also supports upgrades during live operation

• Virtual Router Redundancy Protocol (VRRP)

VRRP allows a group of switches to dynamically back each other up to create highly available routed environments

• Bidirectional Forward Detection (BFD)

- Enable sub-second failure detection for rapid routing protocol re-balancing

- Enabled for both BGP IPv4 and IPv6

• Ethernet Ring Protection Switching (ERPS)

Supports rapid protection and recovery in a ring topology.

• Unidirectional Link Detection (UDLD)

Monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks

• IEEE 802.3ad LACP

Supports up to 54 LAGs, with up to 16 members per LAG (32 for a VSX pair), with a user-selectable L1- 4 hashing algorithm.

Management

In addition to the Aruba CX Mobile App, Aruba NetEdit and Aruba Network Analytics Engine, the 8360 series offers the following:

• REST API interface

Built-in, programmable and easy-to-use

• Management interface control

Enables or disables each of the following interfaces depending on security preferences: console port, or reset button

• Industry-standard CLI with a hierarchical structure

Reduces training time and expenses, and increases productivity in multivendor installations

• Management security

Restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide SNMP access; local and remote Syslog capabilities allow logging of all access

• IPSLA

Monitors the network for degradation of various services, including voice.

Monitoring is enabled via the NAE for history and for immediate automated gathering of additional information when anomalies are detected

• SNMP v2c/v3

Provides SNMP read and trap support of industry standard Management Information Base (MIB), and private extensions

• sFlow® (RFC 3176)

Provides scalable ASIC-based wire speed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes

• Remote monitoring (RMON)

Uses standard SNMP to monitor essential network functions and supports events, alarms, history, and statistics groups as well as a private alarm extension group

• TFTP and SFTP support

Offers different mechanisms for configuration updates; trivial FTP (TFTP) allows bidirectional transfers over a TCP/IP network

Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security

• Debug and sampler utility

Supports ping and traceroute for IPv4 and IPv6

• Supportability

Job scheduler framework

• Network Time Protocol (NTP)

Synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network

Can serve as the NTP server in a customer network

• Precision Time Protocol

- Enables precise clock synchronization across distributed devices

- Needed for time critical applications like AVB and financial systems

- Support for transparent clock E-E and P-P

- Support for boundary clock

• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

Advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications

• LACP-fallback

Enables Zero Touch Provisioning over Link Aggregation Groups.

• Dual flash images

Provides independent primary and secondary operating system files for backup while upgrading

• Multiple configuration files

Stores files easily to the flash image

Layer 2 Switching

• VLAN

Supports up to 4,094 port-based or IEEE 802.1Q-based VLANs

• Troubleshooting on the Overlay

- Supports ping over VXLAN for IPv4 and IPv6

- Supports traceroute over VXLAN for IPv4 and IPv6

- Services on the Overlay

- Supports RADIUS server over VXLAN for IPv4 and IPv6

- IPv4 DHCP relay over VXLAN for non-default VRF

• VLAN Translation

Remaps VLANs during transit across a core network

• Bridge Protocol Data Unit (BPDU) tunneling

Transmits STP BPDUs transparently, allowing correct tree calculations across service providers, WANs, or MANs

• Port mirroring

Duplicates port traffic (ingress and egress) to a local or remote monitoring port; supports 4 mirroring groups, with an unlimited number of ports per group

• STP

Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

• Rapid Per-VLAN spanning tree plus (RPVST+)

Allows each VLAN to build a separate spanning tree to improve link bandwidth usage in network environments with multiple VLANs

• Internet Group Management Protocol (IGMP)

Controls and manages the flooding of multicast packets in a Layer 2 network

• Static VXLAN

Allows operators to manually connect two or more VXLAN tunnel endpoints (VTEP)

• Dynamic VXLAN with BGP-EVPN

Deep segmentation for Spine/Leaf data center networks or Layer 3 campus designs with centralized gateway and symmetric Integrated Routing and Bridging (IRB) based distributed gateways VXLAN tunnels

• VXLAN distributed anycast gateway

Addressing mechanism that enables the use of the same gateway IP addresses across all the leaf switches part of a VXLAN network

• VXLAN ARP suppression

Allows to minimize the amount of ARP traffic flooding within individual VXLAN segments

Dynamic Segmentation

• VXLAN GBP and Role-based Policies

Enables micro segmentation and role-based policies across the VXLAN overlay

• Dual VTEP termination and VXLAN GBP relay

Allows stub fabric extender VTEPs to relay VXLAN GBP between static and dynamic VXLAN tunnels

Layer 3 Services

• Address Resolution Protocol (ARP)

Determines the MAC address of another IP host in the same subnet; supports static ARPs

Gratuitous ARP allows detection of duplicate IP addresses

Proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network

• IP Directed Broadcast

Supports directed broadcast on configured network subnets

• Multi-fabric GPO

Enables GPO for multi-fabric unicast traffic

• Dynamic Host Configuration Protocol (DHCP)

DHCP services are offered within a client network to simplify network management

DHCP Relay enables DHCP operation across subnets

• DHCP Server

Supports DHCP services (for IPv4 and IPv6) in customer networks

•   DHCP Relay Coexistence with Server

Allows DHCP relay coexistence with DHCP server for both IPv4 and IPv6

• Domain Name System (DNS)

Provides a distributed database that translates domain names and IP addresses, which simplifies network design; supports client and server

• Generic Routing Encapsulation (GRE)

Enables tunneling traffic from site to site over a Layer 3 path

Layer 3 Routing

• Static IPv4 routing

Provides simple manually configured IPv4 routing

• Sub-interface

- Allows multiple IP addresses on a single routed interface.

- Supports unicast and multicast routing for both IPv4 and IPv6

- Supports OSPF, BGP and PIM for both IPv4 and IPV6

- Supported on RoP, L3 lags and Hydra interfaces

- Network Load Balancing (NLB)

• Open shortest path first (OSPF)

Delivers faster convergence; uses link-state routing Interior Gateway Protocol (IGP), which supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for faster failure recovery

• Loopback IP redistribution in OSPF

Allows redistribution of IPv4 and IPv6 addresses of loopback interface in OSFPv2/v3

• Border Gateway Protocol 4 (BGP-4)

Delivers an implementation of the Exterior Gateway Protocol (EGP) utilizing path vectors; uses TCP for enhanced reliability for the route discovery process; reduces bandwidth consumption by advertising only incremental updates; supports extensive policies for increased flexibility; scales to very large networks

• Dynamic BGP peering

Simplifies BGP configuration for ZTP scenarios and enables CX for Azure stack integration

• Routing Information Protocol version 2 (RIPv2)

Easy to configure routing protocol for small networks relying on User Datagram Protocol (UDP)

• Routing Information Protocol Next Generation (RIPng)

Extension of RIPv2 for support of IPv6 networking

• Multiprotocol BGP (MP-BGP) with IPv6 Address Family

Enables sharing of IPv6 routes using BGP and connections to BGP peers using IPv6

• Policy Based Routing (PBR)

Enables using a classifier to select traffic that can be forwarded based on policy set by the network administrator

• 6in4 tunnels

Supports the tunneling of IPv6 traffic in an IPv4 network

• IP performance optimization

Provides a set of tools to improve the performance of IPv4 networks; includes directed broadcasts, customization of TCP parameters, support of ICMP error packets, and extensive display capabilities

• Static IPv6 routing

Provides simple manually configured IPv6 routing

• Dual IP stack

Maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design

• OSPFv3

Provides OSPF support for IPv6

• Equal-Cost Multipath (ECMP)

Enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth

• Generic Routing Encapsulation (GRE)

Enables tunneling traffic from site to site over a Layer 3 path

Security

• TAA Compliance

The Aruba CX 8360 with AOS-CX, a TAA compliant product, uses FIPS 140-2 validated cryptography for protection of sensitive information

• Federal Certification

Compliant with DoDIN, APL, NDcPP, FIPS, and USGv6 requirements for federal certifications.

• Access control list (ACL) Features

Supports powerful ACLs for both IPv4 and IPv6. Supports creation of object groups representing sets of devices like IP addresses. For instance, IT management devices could be grouped in this way

ACLs can also protect control plane services such as SSH, SNMP, NTP or web servers

• Private VLAN

- Enables traffic isolation for users on the same VLAN

- Support for isolated, community and primary VLANs

• Enrollment over Secure Transport (EST)

Enables secure certificate enrollment, allowing for easier enterprise management of PKI

• Remote Authentication Dial-In User Service (RADIUS)

Eases security access administration by using a password authentication server

• Terminal Access Controller Access-Control System (TACACS+)

Delivers an authentication tool using TCP with encryption of the full authentication request, providing additional security

• RadSec

Enable RADIUS authentication and accounting data to be passed safely and reliably across insecure networks such as the internet

• Management access security

AOS-CX provides for both on-box as well as off-box authentication for administrative access. RADIUS or TACACS+ can be used to provide encrypted user authentication

Additionally, TACACS+ can also provide user authorization services

• Secure shell (SSHv2)

Uses external servers to securely log in to a remote device; with authentication and encryption, it protects against IP spoofing and plain-text password interception; increases the security of Secure FTP (SFTP) transfers

• MACsec

High level encryption from AES128 and AES256 with 2SAK as well as 4SAK mode of Static Key provisioning enabling secure communication for all traffic on Ethernet links

• Korea Government Security Features

- Ensure configuration integrity

- Limit concurrent users for web access

Multicast

• Internet Group Management Protocol (IGMP)

Enables establishing multicast group memberships in IPv4 networks; supports IGMPv1, v2, and v3

• Multicast Listener Discovery (MLD)

Enables discovery of IPv6 multicast listeners; supports MLDv1 and v2

• Anycast RP

Two or more RPs configured with same /32 Host IP address on loopback interfaces. All the downstream routers will be configured to point to Anycast RP address for multicast routes. Device will automatically select the closest RP for each source and receiver. If equal costs routes exist, the process of registering the sources will be shared equally by all the RPs in the network.

• Multicast Service Delivery Protocol (MSDP)

Efficiently routes multicast traffic through core networks

• MSDP Mesh Groups

MSDP used for Anycast RP is an intradomain feature that provides redundancy and load-sharing capabilities. When MSDP mesh groups are used, SA messages are not flooded to other mesh group peers. When an MSDP peer in a group receives an SA message from another MSDP peer in the group, it assumes that this SA message was sent to all the other MSDP peers in the group. It also eliminates RPF checks on arriving SA messages. With MSDP mesh group configured, SA messages are always accepted from mesh group peer.

• PIM-Dense Mode

Floods multicast traffic to every corner of the network (push-model). Method is for delivering data to receivers without receivers requesting the data. Can be efficient in certain deployments in which there are active receivers on every subnet in the network. Branches without downstream receivers are pruned from the forwarding trees.

• FastLeave (FL) and Forced-FastLeave (FFL)

FL and FFL for IGMP/MLD speeds up the process of blocking unnecessary Multicast traffic to a switch port that is connected to end nodes for IGMP. They help to eliminate the CPU overhead of having to generate an IGMP/MLD Group- Specific Query message.

• Network Load Balancer (NLB)

Supported for server applications

• Load balancing technology for server clustering developed on Microsoft Windows Server

Supports load sharing and redundancy among servers within a cluster

• IGMP/MLD Snooping

Prevent flooding of multicast traffic to non-listening ports

• Protocol Independent Multicast (PIM)

Protocol Independent Multicast for IPv4 and IPv6 supports one-to-many and many-to-many media casting use cases such as IPTV over IPv4 and IPv6 networks. Support for PIM Sparse Mode (PIM-SM, IPv4 and IPv6).

Additional information

• Green initiative support

Provides support for RoHS (EN 50581:2012) regulations

• Analytics

- AIOPS - NAE Agent & Engine Improvements - Unicast Routing

- AIOPS - NAE Agent & Engine Improvements - Client Services

Warranty, services, and support

• Limited Lifetime Warranty

See https://www.arubanetworks.com/support-services/product-warranties/ for warranty and support information included with your product purchase.

• For Software Releases and Features, refer to AOS-CX Switch Software Documentation Portal or Aruba Switch Feature Navigator
• For support and services information, visit https://www.arubanetworks.com/support-services/arubacare/
• For global services information, see https://www.arubanetworks.com/services/

BTO Models

Rule #

Description

SKU

1, 2, 3, 4, 5, 6, 7, 8

Aruba 8360-32Y4C with MACSec Port to Power 3 Fans 2 PSU Bundle

JL700A

• Includes 2 Port-to-Power Power Units (JL600A)
• Includes 3 Port-to-Power Fan Trays (JL714A)
• Rack Kit not included
• Min=0 \ Max= 28 SFP/SFP+/SFP28 1/10/25G Transceivers
• Min=0 \ Max= 4 SFP+/SFP28 10/25G Transceivers with MACsec, ports 1-4
• Min=0 \ Max = 4 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=2, ports 34/35 (rule7)
• 1U - Height

Aruba 8360-32Y4C with MACSec Port to Power 3 Fans 2 PSU Bundle PDU

JL700A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-32Y4C with MACSec Port to Power 3 Fans 2 PSU Bundle PDU RoW

JL700A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-32Y4C with MACSec Port to Power 3 Fans 2 PSU Bundle 220v

JL700A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-32Y4C with MACSec Port to Power 3 Fans 2 PSU Bundle No Loc

JL700A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

1, 2, 3, 4, 5, 6, 7, 8

Aruba 8360-32Y4C with MACSec Power to Port 3 Fans 2 PSU Bundle

JL701A

• Includes 2 Power-to-Port Power Units (JL712A)
• Includes 3 Power-to-Port Fan Trays (JL715A)
• Rack Kit not included
• Min=0 \ Max= 28 SFP/SFP+/SFP28 1/10/25G Transceivers
• Min=0 \ Max= 4 SFP+/SFP28 10/25G Transceivers with MACsec, ports 1-4
• Min=0 \ Max = 4 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=2, ports 34/35 (rule7)
• 1U - Height

Aruba 8360-32Y4C with MACSec Power to Port 3 Fans 2 PSU Bundle PDU

JL701A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-32Y4C with MACSec Power to Port 3 Fans 2 PSU Bundle PDU RoW

JL701A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-32Y4C with MACSec Power to Port 3 Fans 2 PSU Bundle 220v

JL701A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-32Y4C with MACSec Power to Port 3 Fans 2 PSU Bundle No Loc

JL701A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

1, 2, 3, 4, 5, 6, 7, 8

Aruba 8360-16Y2C Port to Power 3 Fans 2 PSU Bundle

JL702A

• Includes 2 Port-to-Power Power Units (JL600A)
• Includes 3 Port-to-Power Fan Trays (JL714A)
• Rack Kit not included
• Min=0 \ Max= 16 SFP/SFP+/SFP28 1/10/25G Transceivers
• Min=0 \ Max = 2 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=1, ports 17 (rule7)
• 1U - Height

Aruba 8360-16Y2C Port to Power 3 Fans 2 PSU Bundle PDU

JL702A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-16Y2C Port to Power 3 Fans 2 PSU Bundle PDU RoW

JL702A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-16Y2C Port to Power 3 Fans 2 PSU Bundle 220v

JL702A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-16Y2C Port to Power 3 Fans 2 PSU Bundle No Loc

JL702A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

1, 2, 3, 4, 5, 6, 7, 8

Aruba 8360-16Y2C Power to Port 3 Fans 2 PSU Bundle

JL703A

• Includes 2 Power-to-Port Power Units (JL712A)
• Includes 3 Power-to-Port Fan Trays (JL715A)
• Rack Kit not included
• Min=0 \ Max= 16 SFP/SFP+/SFP28 1/10/25G Transceivers
• Min=0 \ Max = 2 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=1, ports 17 (rule7)
• 1U - Height

Aruba 8360-16Y2C Power to Port 3 Fans 2 PSU Bundle PDU

JL703A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-16Y2C Power to Port 3 Fans 2 PSU Bundle PDU RoW

JL703A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-16Y2C Power to Port 3 Fans 2 PSU Bundle 220v

JL703A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-16Y2C Power to Port 3 Fans 2 PSU Bundle No Loc

JL703A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

4, 5, 6, 7

Aruba 8360-48XT4C Port to Power 3 Fans 2 PSU Bundle

JL706A

• Includes 2 Port-to-Power Power Units (JL600A)
• Includes 3 Port-to-Power Fan Trays (JL714A)
• Rack Kit not included
• Min=0 \ Max = 4 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=2, ports 50/52 (rule7)
• 1U - Height

Aruba 8360-48XT4C Port to Power 3 Fans 2 PSU Bundle PDU

JL706A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-48XT4C Port to Power 3 Fans 2 PSU Bundle PDU RoW

JL706A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-48XT4C Port to Power 3 Fans 2 PSU Bundle 220v

JL706A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-48XT4C Port to Power 3 Fans 2 PSU Bundle No Loc

JL706A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

4, 5, 6

Aruba 8360-48XT4C Power to Port 3 Fans 2 PSU Bundle

JL707A

• Includes 2 Power-to-Port Power Units (JL712A)
• Includes 3 Power-to-Port Fan Trays (JL715A)
• Rack Kit not included
• Min=0 \ Max = 4 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=2, ports 50/52 (rule7)
• 1U - Height

Aruba 8360-48XT4C Power to Port 3 Fans 2 PSU Bundle PDU

JL707A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-48XT4C Power to Port 3 Fans 2 PSU Bundle PDU RoW

JL707A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-48XT4C Power to Port 3 Fans 2 PSU Bundle 220v

JL707A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-48XT4C Power to Port 3 Fans 2 PSU Bundle No Loc

JL707A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

4, 5, 6, 7, 8

Aruba 8360-12C Port to Power 3 Fans 2 PSU Bundle

JL708A

• Includes 2 Port-to-Power Power Units (JL600A)
• Includes 3 Port-to-Power Fan Trays (JL714A)
• Rack Kit not included
• Min=0 \ Max = 12 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=6, ports 7-12 (rule7)
• 1U - Height

Aruba 8360-12C Port to Power 3 Fans 2 PSU Bundle PDU

JL708A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-12C Port to Power 3 Fans 2 PSU Bundle PDU RoW

JL708A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-12C Port to Power 3 Fans 2 PSU Bundle 220v

JL708A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-12C Port to Power 3 Fans 2 PSU Bundle No Loc

JL708A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

4, 5, 6, 7, 8

Aruba 8360-12C Power to Port 3 Fans 2 PSU Bundle

JL709A

• Includes 2 Power-to-Port Power Units (JL712A)
• Includes 3 Power-to-Port Fan Trays (JL715A)
• Rack Kit not included
• Min=0 \ Max = 12 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=6, ports 7-12 (rule7)
• 1U - Height

Aruba 8360-12C Power to Port 3 Fans 2 PSU Bundle PDU

JL709A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-12C Power to Port 3 Fans 2 PSU Bundle PDU RoW

JL709A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-12C Power to Port 3 Fans 2 PSU Bundle 220v

JL709A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-12C Power to Port 3 Fans 2 PSU Bundle No Loc

JL709A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

1, 2, 4, 5, 6, 7, 8

Aruba 8360-24XF2C Port to Power 3 Fans 2 PSU Bundle

JL710A

• Includes 2 Port-to-Power Power Units (JL600A)
• Includes 3 Port-to-Power Fan Trays (JL714A)
• Rack Kit not included
• Min=0 \ Max= 24 SFP/SFP+ 1/10G Transceivers
• Min=0 \ Max = 2 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=1, ports 25 (rule7)
• 1U - Height

Aruba 8360-24XF2C Port to Power 3 Fans 2 PSU Bundle PDU

JL710A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-24XF2C Port to Power 3 Fans 2 PSU Bundle PDU RoW

JL710A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-24XF2C Port to Power 3 Fans 2 PSU Bundle 220v

JL710A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-24XF2C Port to Power 3 Fans 2 PSU Bundle No Loc

JL710A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

1, 2, 4, 5, 6, 7, 8

Aruba 8360-24XF2C Power to Port 3 Fans 2 PSU Bundle

JL711A

• Includes 2 Power-to-Port Power Units (JL712A)
• Includes 3 Power-to-Port Fan Trays (JL715A)
• Rack Kit not included
• Min=0 \ Max= 24 SFP/SFP+ 1/10G Transceivers
• Min=0 \ Max = 2 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=1, ports 25 (rule7)
• 1U - Height

Aruba 8360-24XF2C Power to Port 3 Fans 2 PSU Bundle PDU

JL711A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-24XF2C Power to Port 3 Fans 2 PSU Bundle PDU RoW

JL711A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-24XF2C Power to Port 3 Fans 2 PSU Bundle 220v

JL711A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-24XF2C Power to Port 3 Fans 2 PSU Bundle No Loc

JL711A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

Configuration Rules

Rule #

Description

SKU

1

The following Transceivers install into this Module: (Use BTO only when adding to switch)

Aruba 1G SFP LC LX 10km SMF Transceiver

J4859D

Aruba 1G SFP LC LH 70km SMF Transceiver

J4860D

Aruba 1G SFP RJ45 T 100m Cat5e Transceiver

J8177D

Aruba 1G SFP LC SX 500m MMF TAA Transceiver

JL745A

Aruba 1G SFP LC LX 10km SMF TAA Transceiver

JL746A

Aruba 1G SFP RJ45 T 100m Cat5e TAA Transceiver

JL747A

2

The following Transceivers install into this Module: (Use BTO only when adding to switch)

Aruba 10G SFP+ LC LR 10km SMF Transceiver

J9151E

Aruba 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver

JL563B

Aruba 10G SFP+ LC ER 40km SMF Transceiver

J9153D

Aruba 10G SFP+ LC SR 300m MMF TAA Transceiver

JL748A

Aruba 10G SFP+ LC LR 10km SMF TAA Transceiver

JL749A

Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281D

Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283D

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable

537963-B21

3

The following Transceivers install into this Module: (Use BTO only when adding to switch)

Aruba 25G SFP28 LC SR 100m MMF Transceiver

JL484A

Aruba 25G SFP28 LC eSR 400m MMF Transceiver

JL485A

Aruba 25G SFP28 LC LR 10km SMF Transceiver

JL486A

Aruba 25G SFP28 to SFP28 0.65m Direct Attach Cable

JL487A

Aruba 25G SFP28 to SFP28 3m Direct Attach Copper Cable

JL488A

Aruba 25G SFP28 to SFP28 5m Direct Attach Copper Cable

JL489A

HPE 25Gb SFP28 to SFP28 3m Direct Attach Copper Cable

844477-B21

HPE 25Gb SFP28 to SFP28 5m Direct Attach Copper Cable

844480-B21

Aruba 25G SFP28 to SFP28 3m Active Optical Cable

R0M44A

Aruba 25G SFP28 to SFP28 7m Active Optical Cable

R0M45A

Aruba 25G SFP28 to SFP28 15m Active Optical Cable

R0Z21A

4

The following Transceivers install into this Module: (Use BTO only when adding to switch)

Aruba 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver

JL308A

HPE X142 40G QSFP+ MPO SR4 Transceiver

JH231A

HPE X142 40G QSFP+ LC LR4 SM Transceiver

JH232A

HPE X142 40G QSFP+ MPO eSR4 300M Transceiver

JH233A

Aruba 40G QSFP+ LC ER4 40km SMF Transceiver

Q9G82A

Aruba 40G QSFP+ to QSFP+ 7m Active Optical Cable

R0Z22A

Aruba 40G QSFP+ to QSFP+ 15m Active Optical Cable

R0Z23A

Aruba 40G QSFP+ to QSFP+ 30m Active Optical Cable

R0Z24A

HPE X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable

JH234A

HPE X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable

JH235A

HPE X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable

JH236A

5

The following Transceivers install into this Module: (Use BTO only when adding to switch)

Aruba 100G QSFP28 LC ER4L 40km SMF Transceiver

JL743A

Aruba 100G QSFP28 MPO SR4 100m 12-fiber MPO OM3 MMF Transceiver

JL309A

Aruba 100G QSFP28 LC CWDM4 2km SMF Transceiver

R0Z30A

Aruba 100G QSFP28 LC FR1 SMF 2km Transceiver

R9B63A

Aruba 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver

JL310A

HPE 100Gb QSFP28 Bidirectional Transceiver

845972-B21

Aruba 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable

R0Z25A

Aruba 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable

JL307A

Aruba 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable

R0Z26A

Aruba 100G QSFP28 to QSFP28 7m Active Optical Cable

R0Z27A

Aruba 100G QSFP28 to QSFP28 15m Active Optical Cable

R0Z28A

Aruba 100G QSFP28 to QSFP28 30m Active Optical Cable

R0Z29A

HPE QSFP28 to SFP28 Adapter

845970-B21

Aruba 100G QSFP28 to QSFP28 2m Active Optical Cable

JL856A

6

Localization required on orders without #B2B, #B2C, #B2E, or #AC3 options.

7

If qty1 of the folowing QSA28 Adapter(845970-B21)  is selected, then increase max SFP28 Port qty by 1 and allow user selection of the following SFP Transceivers. Refer to qty and port restrictions for individual Switch in the "Additional Info" sections: (Use BTO only when adding this QSA28 Adapter)

Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver

J9150D

Aruba 10G SFP+ LC LR 10km SMF Transceiver

J9151E

Aruba 10G SFP+ LC ER 40km SMF Transceiver

J9153D

Aruba 10G SFP+ LC SR 300m MMF TAA Transceiver

JL748A

Aruba 10G SFP+ LC LR 10km SMF TAA Transceiver

JL749A

Aruba 25G SFP28 LC SR 100m MMF Transceiver

JL484A

Aruba 25G SFP28 LC eSR 400m MMF Transceiver

JL485A

Aruba 25G SFP28 LC LR 10km SMF Transceiver

JL486A

8

The following Transceivers install into this Switch: (Use BTO only when adding to switch)

HPE QSFP28 to 4x25Gb SFP28 7m Active Optical Cable

845420-B21

HPE QSFP28 to 4x25Gb SFP28 15m Active Optical Cable

845424-B21

HPE BladeSystem c-Class QSFP+ to 4x10G SFP+ 15m Active Optical Cable

721076-B21

9

The following Transceivers install into this Switch: (Use #0D1 for XCVRs or #B01 for Cables since switch is factory racked):

Aruba 50G SFP56 LC SR 100m MMF Transceiver

R0M48A

Aruba 50G SFP56 to SFP56 0.65m Direct Attach Copper Cable

R0M46A

Aruba 50G SFP56 to SFP56 3m Direct Attach Copper Cable

R0M47A

Notes:

- OCA Only: Required Custom Choice (Min1/Max1):

o Switch/Router/Power Supply to PDU Power Cord -  B2B in North America, Mexico, Taiwan, and Japan or B2C ROW. (OCA Default B2B or B2C for Rack Level CTO)

o Switch/Router/Power Supply to Wall Power Cord - Localized Option (OCA Default for BTO)

o High Volt Switch/Router/Power Supply to Wall Power Cord -  B2E Option. (Offered only in North America, Mexico, Taiwan, and  Japan)

o No Power Cord - AC3 Option

- OCA Blue Notes:  Locking Power Cord (J9955A) L6-20P is available through the OCA Accessories tab

- OCA Only Model Selection Form - HPE Offering > Aruba > Switches > ArubaOS > AOS-CX: Aruba 8360 Switch Series

Rack Level Integration CTO Models

Rule #

Description

SKU

1, 2, 3, 4, 5, 6, 7, 8, 9

Aruba 8360-32Y4C with MACSec Port to Power 3 Fans 2 PSU Bundle

JL700A

• Includes 2 Port-to-Power Power Units (JL600A)
• Includes 3 Port-to-Power Fan Trays (JL714A)
• Rack Kit not included
• Min=0 \ Max= 28 SFP/SFP+/SFP28 1/10/25G Transceivers, ports 5-32
• Min=0 \ Max= 4 SFP+/SFP28 10/25G Transceivers with MACsec, ports 1-4
• Min=0 \ Max = 4 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=2, ports 34/35 (rule8)
• 1U - Height

Aruba 8360-32Y4C with MACSec Port to Power 3 Fans 2 PSU Bundle PDU

JL700A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-32Y4C with MACSec Port to Power 3 Fans 2 PSU Bundle PDU RoW

JL700A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-32Y4C with MACSec Port to Power 3 Fans 2 PSU Bundle 220v

JL700A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-32Y4C with MACSec Port to Power 3 Fans 2 PSU Bundle No Loc

JL700A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

1, 2, 3, 4, 5, 6, 7, 8, 9

Aruba 8360-32Y4C with MACSec Power to Port 3 Fans 2 PSU Bundle

JL701A

• Includes 2 Power-to-Port Power Units (JL712A)
• Includes 3 Power-to-Port Fan Trays (JL715A)
• Rack Kit not included
• Min=0 \ Max= 28 SFP/SFP+/SFP28 1/10/25G Transceivers
• Min=0 \ Max= 4 SFP+/SFP28 10/25G Transceivers with MACsec, ports 1-4
• Min=0 \ Max = 4 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=2, ports 34/35 (rule8)
• 1U - Height

Aruba 8360-32Y4C with MACSec Power to Port 3 Fans 2 PSU Bundle PDU

JL701A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-32Y4C with MACSec Power to Port 3 Fans 2 PSU Bundle PDU RoW

JL701A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-32Y4C with MACSec Power to Port 3 Fans 2 PSU Bundle 220v

JL701A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-32Y4C with MACSec Power to Port 3 Fans 2 PSU Bundle No Loc

JL701A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

1, 2, 3, 4, 5, 6, 7, 8, 9

Aruba 8360-16Y2C Port to Power 3 Fans 2 PSU Bundle

JL702A

• Includes 2 Port-to-Power Power Units (JL600A)
• Includes 3 Port-to-Power Fan Trays (JL714A)
• Rack Kit not included
• Min=0 \ Max= 16 SFP/SFP+/SFP28 1/10/25G Transceivers
• Min=0 \ Max = 2 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=1, ports 17 (rule8)
• 1U - Height

Aruba 8360-16Y2C Port to Power 3 Fans 2 PSU Bundle PDU

JL702A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-16Y2C Port to Power 3 Fans 2 PSU Bundle PDU RoW

JL702A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-16Y2C Port to Power 3 Fans 2 PSU Bundle 220v

JL702A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-16Y2C Port to Power 3 Fans 2 PSU Bundle No Loc

JL702A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

1, 2, 3, 4, 5, 6, 7, 8, 9

Aruba 8360-16Y2C Power to Port 3 Fans 2 PSU Bundle

JL703A

• Includes 2 Power-to-Port Power Units (JL712A)
• Includes 3 Power-to-Port Fan Trays (JL715A)
• Rack Kit not included
• Min=0 \ Max= 16 SFP/SFP+/SFP28 1/10/25G Transceivers
• Min=0 \ Max = 2 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=1, ports 17 (rule8)
• 1U - Height

Aruba 8360-16Y2C Power to Port 3 Fans 2 PSU Bundle PDU

JL703A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-16Y2C Power to Port 3 Fans 2 PSU Bundle PDU RoW

JL703A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-16Y2C Power to Port 3 Fans 2 PSU Bundle 220v

JL703A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-16Y2C Power to Port 3 Fans 2 PSU Bundle No Loc

JL703A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

4, 5, 6, 7, 8

Aruba 8360-48XT4C Port to Power 3 Fans 2 PSU Bundle

JL706A

• Includes 2 Port-to-Power Power Units (JL600A)
• Includes 3 Port-to-Power Fan Trays (JL714A)
• Rack Kit not included
• Min=0 \ Max = 4 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=2, ports 50/52 (rule8)
• 1U - Height

Aruba 8360-48XT4C Port to Power 3 Fans 2 PSU Bundle PDU

JL706A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-48XT4C Port to Power 3 Fans 2 PSU Bundle PDU RoW

JL706A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-48XT4C Port to Power 3 Fans 2 PSU Bundle 220v

JL706A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-48XT4C Port to Power 3 Fans 2 PSU Bundle No Loc

JL706A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

4, 5, 6, 7, 8

Aruba 8360-48XT4C Power to Port 3 Fans 2 PSU Bundle

JL707A

• Includes 2 Power-to-Port Power Units (JL712A)
• Includes 3 Power-to-Port Fan Trays (JL715A)
• Rack Kit not included
• Min=0 \ Max = 4 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=2, ports 50/52 (rule8)
• 1U - Height

Aruba 8360-48XT4C Power to Port 3 Fans 2 PSU Bundle PDU

JL707A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-48XT4C Power to Port 3 Fans 2 PSU Bundle PDU RoW

JL707A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-48XT4C Power to Port 3 Fans 2 PSU Bundle 220v

JL707A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-48XT4C Power to Port 3 Fans 2 PSU Bundle No Loc

JL707A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

4, 5, 6, 7, 8, 9

Aruba 8360-12C Port to Power 3 Fans 2 PSU Bundle

JL708A

• Includes 2 Port-to-Power Power Units (JL600A)
• Includes 3 Port-to-Power Fan Trays (JL714A)
• Rack Kit not included
• Min=0 \ Max = 12 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=6, ports 7-12 (rule8)
• 1U - Height

Aruba 8360-12C Port to Power 3 Fans 2 PSU Bundle PDU

JL708A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-12C Port to Power 3 Fans 2 PSU Bundle PDU RoW

JL708A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-12C Port to Power 3 Fans 2 PSU Bundle 220v

JL708A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-12C Port to Power 3 Fans 2 PSU Bundle No Loc

JL708A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

4, 5, 6, 7, 8, 9

Aruba 8360-12C Power to Port 3 Fans 2 PSU Bundle

JL709A

• Includes 2 Power-to-Port Power Units (JL712A)
• Includes 3 Power-to-Port Fan Trays (JL715A)
• Rack Kit not included
• Min=0 \ Max = 12 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=6, ports 7-12 (rule8)
• 1U - Height

Aruba 8360-12C Power to Port 3 Fans 2 PSU Bundle PDU

JL709A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-12C Power to Port 3 Fans 2 PSU Bundle PDU RoW

JL709A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-12C Power to Port 3 Fans 2 PSU Bundle 220v

JL709A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-12C Power to Port 3 Fans 2 PSU Bundle No Loc

JL709A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

1, 2, 4, 5, 6, 7, 8, 9

Aruba 8360-24XF2C Port to Power 3 Fans 2 PSU Bundle

JL710A

• Includes 2 Port-to-Power Power Units (JL600A)
• Includes 3 Port-to-Power Fan Trays (JL714A)
• Rack Kit not included
• Min=0 \ Max= 24 SFP/SFP+ 1/10G Transceivers
• Min=0 \ Max = 2 QSFP+/QSFP28 40/100G Transceivers
• QSA28 Adapter Min=0 \ Max=1, ports 25 (rule8)
• 1U - Height

Aruba 8360-24XF2C Port to Power 3 Fans 2 PSU Bundle PDU

JL710A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-24XF2C Port to Power 3 Fans 2 PSU Bundle PDU RoW

JL710A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-24XF2C Port to Power 3 Fans 2 PSU Bundle 220v

JL710A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-24XF2C Port to Power 3 Fans 2 PSU Bundle No Loc

JL710A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

1, 2, 4, 5, 6, 7

Aruba 8360-24XF2C Power to Port 3 Fans 2 PSU Bundle

JL711A

• Includes 2 Power-to-Port Power Units (JL712A)
• Includes 3 Power-to-Port Fan Trays (JL715A)
• Rack Kit not included
  Min=0 \ Max= 24 SFP/SFP+ 1/10G Transceivers
• Min=0 \ Max = 2 QSFP+/QSFP28 40/100G Transceivers
• 1U - Height

Aruba 8360-24XF2C Power to Port 3 Fans 2 PSU Bundle PDU

JL711A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (J9943A C15 equivalent)

Aruba 8360-24XF2C Power to Port 3 Fans 2 PSU Bundle PDU RoW

JL711A#B2C

• C13 PDU Jumper Cord (ROW) (J9944A C15 equivalent)

Aruba 8360-24XF2C Power to Port 3 Fans 2 PSU Bundle 220v

JL711A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba 8360-24XF2C Power to Port 3 Fans 2 PSU Bundle No Loc

JL711A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

Configuration Rules

Rule #

Description

SKU

1

The following Transceivers install into this Switch: (Use #0D1 for XCVRs or #B01 for Cables since switch is factory racked):

Aruba 1G SFP LC SX 500m OM2 MMF Transceiver

J4858D

Aruba 1G SFP LC LX 10km SMF Transceiver

J4859D

Aruba 1G SFP LC LH 70km SMF Transceiver

J4860D

Aruba 1G SFP RJ45 T 100m Cat5e Transceiver

J8177D

Aruba 1G SFP LC SX 500m MMF TAA Transceiver

JL745A

Aruba 1G SFP LC LX 10km SMF TAA Transceiver

JL746A

Aruba 1G SFP RJ45 T 100m Cat5e TAA Transceiver

JL747A

2

The following Transceivers install into this Switch: (Use #0D1 for XCVRs or #B01 for Cables since switch is factory racked):

Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver

J9150D

Aruba 10G SFP+ LC LR 10km SMF Transceiver

J9151E

Aruba 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver

JL563B

Aruba 10G SFP+ LC ER 40km SMF Transceiver

J9153D

Aruba 10G SFP+ LC SR 300m MMF TAA Transceiver

JL748A

Aruba 10G SFP+ LC LR 10km SMF TAA Transceiver

JL749A

Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281D

Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283D

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable

537963-B21

3

The following Transceivers install into this Switch: (Use #0D1 for XCVRs or #B01 for Cables since switch is factory racked):

Aruba 25G SFP28 LC SR 100m MMF Transceiver

JL484A

Aruba 25G SFP28 LC eSR 400m MMF Transceiver

JL485A

Aruba 25G SFP28 LC LR 10km SMF Transceiver

JL486A

Aruba 25G SFP28 to SFP28 0.65m Direct Attach Cable

JL487A

Aruba 25G SFP28 to SFP28 3m Direct Attach Copper Cable

JL488A

Aruba 25G SFP28 to SFP28 5m Direct Attach Copper Cable

JL489A

HPE 25Gb SFP28 to SFP28 3m Direct Attach Copper Cable

844477-B21

HPE 25Gb SFP28 to SFP28 5m Direct Attach Copper Cable

844480-B21

Aruba 25G SFP28 to SFP28 3m Active Optical Cable

R0M44A

Aruba 25G SFP28 to SFP28 7m Active Optical Cable

R0M45A

Aruba 25G SFP28 to SFP28 15m Active Optical Cable

R0Z21A

4

The following Transceivers install into this Switch: (Use #0D1 for XCVRs or #B01 for Cables since switch is factory racked):

Aruba 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver

JL308A

HPE X142 40G QSFP+ MPO SR4 Transceiver

JH231A

HPE X142 40G QSFP+ LC LR4 SM Transceiver

JH232A

HPE X142 40G QSFP+ MPO eSR4 300M Transceiver

JH233A

Aruba 40G QSFP+ LC ER4 40km SMF Transceiver

Q9G82A

Aruba 40G QSFP+ to QSFP+ 7m Active Optical Cable

R0Z22A

Aruba 40G QSFP+ to QSFP+ 15m Active Optical Cable

R0Z23A

Aruba 40G QSFP+ to QSFP+ 30m Active Optical Cable

R0Z24A

HPE X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable

JH234A

HPE X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable

JH235A

HPE X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable

JH236A

5

The following Transceivers install into this Switch: (Use #0D1 for XCVRs or #B01 for Cables since switch is factory racked):

Aruba 100G QSFP28 LC ER4L 40km SMF Transceiver

JL743A

Aruba 100G QSFP28 MPO SR4 100m 12-fiber MPO OM3 MMF Transceiver

JL309A

Aruba 100G QSFP28 LC CWDM4 2km SMF Transceiver

R0Z30A

Aruba 100G QSFP28 LC FR1 SMF 2km Transceiver

R9B63A

Aruba 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver

JL310A

HPE 100Gb QSFP28 Bidirectional Transceiver

845972-B21

Aruba 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable

R0Z25A

Aruba 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable

JL307A

Aruba 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable

R0Z26A

Aruba 100G QSFP28 to QSFP28 7m Active Optical Cable

R0Z27A

Aruba 100G QSFP28 to QSFP28 15m Active Optical Cable

R0Z28A

Aruba 100G QSFP28 to QSFP28 30m Active Optical Cable

R0Z29A

Aruba 100G QSFP28 to QSFP28 2m Active Optical Cable

JL856A

6

­ Required Custom Choice (Min1/Max1)

­ Switch/Router/Power Supply to PDU Power Cord -  B2B in North America, Mexico, Taiwan, and Japan or B2C ROW. (OCA Default B2B or B2C for Rack Level CTO)

­ Switch/Router/Power Supply to Wall Power Cord - Localized Option (OCA Default for BTO)

­ High Volt Switch/Router/Power Supply to Wall Power Cord -  B2E Option. (Offered only in North America, Mexico, Taiwan, and  Japan)

­ No Power Cord - AC3 Option

7

Factory racked CTO Base Model must integrate (#0D1) to the Rack.

8

If qty1 of the folowing QSA28 Adapter(845970-B21)  is selected, then increase max SFP28 Port qty by 1 and allow user selection of the following SFP Transceivers. Refer to qty and port restrictions for individual Switch in the "Additional Info" sections: (Use BTO only when adding this QSA28 Adapter)

Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver

J9150D

Aruba 10G SFP+ LC LR 10km SMF Transceiver

J9151E

Aruba 10G SFP+ LC ER 40km SMF Transceiver

J9153D

Aruba 10G SFP+ LC SR 300m MMF TAA Transceiver

JL748A

Aruba 10G SFP+ LC LR 10km SMF TAA Transceiver

JL749A

Aruba 25G SFP28 LC SR 100m MMF Transceiver

JL484A

Aruba 25G SFP28 LC eSR 400m MMF Transceiver

JL485A

Aruba 25G SFP28 LC LR 10km SMF Transceiver

JL486A

9

The following Transceivers install into this Switch: (Use BTO only when adding to switch)

HPE BladeSystem c-Class QSFP+ to 4x10G SFP+ 15m Active Optical Cable

721076-B21

HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable

721064-B21

HPE 100Gb QSFP28 to 4x25Gb SFP28 3m Direct Attach Copper Cable

845416-B21

HPE QSFP28 to 4x25Gb SFP28 7m Active Optical Cable

845420-B21

HPE QSFP28 to 4x25Gb SFP28 15m Active Optical Cable

845424-B21

10

The following Transceivers install into this Switch: (Use #0D1 for XCVRs or #B01 for Cables since switch is factory racked):

Aruba 50G SFP56 LC SR 100m MMF Transceiver

R0M48A

Aruba 50G SFP56 to SFP56 0.65m Direct Attach Copper Cable

R0M46A

Aruba 50G SFP56 to SFP56 3m Direct Attach Copper Cable

R0M47A

Notes:

Locking Power Cord (J9955A) L6-20P is available through the OCA Accessories tab

Transceivers

Rule #

Description

SKU

SPF Transceivers

Aruba 1G SFP LC SX 500m OM2 MMF Transceiver

J4858D

Aruba 1G SFP LC LX 10km SMF Transceiver

J4859D

Aruba 1G SFP LC LH 70km SMF Transceiver

J4860D

Aruba 1G SFP RJ45 T 100m Cat5e Transceiver

J8177D

Aruba 1G SFP LC SX 500m MMF TAA Transceiver

JL745A

Aruba 1G SFP LC LX 10km SMF TAA Transceiver

JL746A

Aruba 1G SFP RJ45 T 100m Cat5e TAA Transceiver

JL747A

Notes:

For 48Y6C and 32Y4C models; All Ports are valid except 1-4

SPF+ Transceivers

Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver

J9150D

Aruba 10G SFP+ LC LR 10km SMF Transceiver

J9151E

Aruba 10G SFP+ LC LRM 220m OM2 MMF Transceiver

J9152D

Aruba 10G SFP+ LC ER 40km SMF Transceiver

J9153D

Aruba 10G SFP+ LC SR 300m MMF TAA Transceiver

JL748A

Aruba 10G SFP+ LC LR 10km SMF TAA Transceiver

JL749A

Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281D

Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283D

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable

537963-B21

SFP28 Transceivers

Aruba 25G SFP28 LC SR 100m MMF Transceiver

JL484A

Aruba 25G SFP28 LC eSR 400m MMF Transceiver

JL485A

Aruba 25G SFP28 LC LR 10km SMF Transceiver

JL486A

Aruba 25G SFP28 to SFP28 0.65m Direct Attach Cable

JL487A

Aruba 25G SFP28 to SFP28 3m Direct Attach Copper Cable

JL488A

Aruba 25G SFP28 to SFP28 5m Direct Attach Copper Cable

JL489A

HPE 25Gb SFP28 to SFP28 3m Direct Attach Copper Cable

844477-B21

HPE 25Gb SFP28 to SFP28 5m Direct Attach Copper Cable

844480-B21

Aruba 25G SFP28 to SFP28 3m Active Optical Cable

R0M44A

Aruba 25G SFP28 to SFP28 7m Active Optical Cable

R0M45A

Aruba 25G SFP28 to SFP28 15m Active Optical Cable

R0Z21A

QSFP+ Transceivers

Aruba 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver

JL308A

HPE X142 40G QSFP+ MPO SR4 Transceiver

JH231A

HPE X142 40G QSFP+ LC LR4 SM Transceiver

JH232A

Aruba 40G QSFP+ LC ER4 40km SMF Transceiver

Q9G82A

HPE X142 40G QSFP+ MPO eSR4 300M Transceiver

JH233A

Aruba 40G QSFP+ to QSFP+ 7m Active Optical Cable

R0Z22A

Aruba 40G QSFP+ to QSFP+ 15m Active Optical Cable

R0Z23A

Aruba 40G QSFP+ to QSFP+ 30m Active Optical Cable

R0Z24A

HPE X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable

JH234A

HPE X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable

JH235A

HPE X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable

JH236A

*

HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable

721064-B21

*

HPE BladeSystem c-Class QSFP+ to 4x10G SFP+ 15m Active Optical Cable

721076-B21

Notes:

*This Breakout Cable is not supported on the following Switches:

Aruba 8360-48XT4C Port to Power 3 Fans 2 PSU Bundle

JL706A

Aruba 8360-48XT4C Power to Port 3 Fans 2 PSU Bundle

JL707A

QSFP28 Transceivers

Aruba 100G QSFP28 LC ER4L 40km SMF Transceiver

JL743A

Aruba 100G QSFP28 MPO SR4 100m 12-fiber MPO OM3 MMF Transceiver

JL309A

Aruba 100G QSFP28 LC CWDM4 2km SMF Transceiver

R0Z30A

Aruba 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver

JL310A

HPE 100Gb QSFP28 Bidirectional Transceiver

845972-B21

Aruba 100G QSFP28 LC FR1 SMF 2km Transceiver

R9B63A

Aruba 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable

R0Z25A

Aruba 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable

JL307A

Aruba 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable

R0Z26A

Aruba 100G QSFP28 to QSFP28 2m Active Optical Cable

JL856A

Aruba 100G QSFP28 to QSFP28 7m Active Optical Cable

R0Z27A

Aruba 100G QSFP28 to QSFP28 15m Active Optical Cable

R0Z28A

Aruba 100G QSFP28 to QSFP28 30m Active Optical Cable

R0Z29A

*

HPE 100Gb QSFP28 to 4x25Gb SFP28 3m Direct Attach Copper Cable

845416-B21

*

HPE QSFP28 to 4x25Gb SFP28 7m Active Optical Cable

845420-B21

*

HPE QSFP28 to 4x25Gb SFP28 15m Active Optical Cable

845424-B21

Notes:

*This Breakout Cable is not supported on the following Switches:

Aruba 8360-48XT4C Port to Power 3 Fans 2 PSU Bundle

JL706A

Aruba 8360-48XT4C Power to Port 3 Fans 2 PSU Bundle

JL707A

QSA28 Adapter

*

HPE QSFP28 to SFP28 Adapter

845970-B21

Notes:

*If selecting the 845970-B21 - QSFP28 to SFP28 Adapter, then see Aruba Tranceiver Guide for details.

Switch Options

For 8360 System (std 0 // max 1) User Selection (min 1 // max 1) per Switch

Remarks

Description

SKU

Rack Mount Kits

For 8360 System (std 0 // max 1) User Selection (min 1 // max 1) per Switch

For JL704C and JL705C System (std 0 // max 1) User Selection (min 0 // max 1) per Switch

Aruba X412 1U Universal 2-post Rack Mount Kit

JL602A

Notes:

If the switch will be factory racked into an HPE Universal Rack, then (Min 1) of the 4 Post Rack Mount kit is required with #0D1.

Aruba X414 1U Universal 4-post Rack Mount Kit

J9583B

Air Duct Kit

Rule #

Description

SKU

1, 2, 3

Aruba X544 Universal 4-post Duct Kit (Must order 4-post rack mount kit separately)

JL716A

• Only for Power to Port Bundles

Configuration Rules

1

If the Switch Bundle will be Factory Racked, then this Duct Kit is required with #0D1 for the Power to Port Switch Bundles: JL701A, JL703A, JL705C, JL707A, JL709A, JL711A.

2

For optimal performance, it is recommended that the user select the Duct Kit for Power to Port Switch Bundles

3

If this Air Duct Kit is selected then the following 4 Post Rack Mount kit must be selected:

J9583B - Aruba X414 1U Universal 4-post Rack Mount Kit

USB Console Cables

System (std 0 // max 99) User Selection (min 0 // max 99) per enclosure

Aruba USBA-RJ45 PIN3TX-6RX 2.5m Cable

R8Z87A

Aruba USBA-RJ45 PC-to-Switch PIN6TX-3RX 2.5m Cable

R9G48A

Aruba USB-A reversible to USB-C PC-to-Switch 3m Cable

R9J32A

Aruba USB-C to USB-C PC-to-Switch 3m Cable

R9J33A

Notes:

This cable is only compatible with the following Switches; JL700A, JL701A, JL702A, JL703A, JL704C, JL706A, JL707A, JL708A, JL709A, JL710A, JL711A

Accessories

Rule #

Description

SKU

Spare Items

1

Aruba X391 550W Port to Power AC Power Supply

JL600A

• Includes 1 x c13,  550w

Aruba X391 550W Port to Power AC Power Supply PDU

JL600A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (JL697A)

Aruba X391 550W Port to Power AC Power Supply PDU RoW

JL600A#B2C

• C13 PDU Jumper Cord (ROW) (JL697A)

Aruba X391 550W Port to Power AC Power Supply 220v

JL600A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba X391 550W Port to Power AC Power Supply No Loc

JL600A#AC3

Aruba X391 850W Port to Power AC Power Supply

JL601A#BTO

• includes 1 x c13,  850w

Aruba X391 850W Port to Power AC Power Supply PDU

JL601A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (JL697A)

Aruba X391 850W Port to Power AC Power Supply PDU RoW

JL601A#B2C

• C13 PDU Jumper Cord (ROW) (JL697A)

Aruba X391 850W Port to Power AC Power Supply 220v

JL601A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba X391 850W Port to Power AC Power Supply No Loc

JL601A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

1

Aruba X391 550W Power to Port AC Power Supply

JL712A

• Includes 1 x c13,  550w

Aruba X391 550W Power to Port AC Power Supply PDU

JL712A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (JL697A)

Aruba X391 550W Power to Port AC Power Supply PDU RoW

JL712A#B2C

• C13 PDU Jumper Cord (ROW) (JL697A)

Aruba X391 550W Power to Port AC Power Supply 220v

JL712A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba X391 550W Power to Port AC Power Supply No Loc

JL712A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

Aruba X391 850W Power to Port AC Power Supply

JL713A

• includes 1 x c13,  850w

Aruba X391 850W Power to Port AC Power Supply PDU

JL713A#B2B

• C13 PDU Jumper Cord (NA/MEX/TW/JP) (JL697A)

Aruba X391 850W Power to Port AC Power Supply PDU RoW

JL713A#B2C

• C13 PDU Jumper Cord (ROW) (JL697A)

Aruba X391 850W Power to Port AC Power Supply 220v

JL713A#B2E

• HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

Aruba X391 850W Power to Port AC Power Supply No Loc

JL713A#AC3

• No Localized Power Cord Selected. Use J9955A to obtain a Locking Plug Power Cord (L6-20P)

Aruba X741 Port to Power Fan

JL714A

Aruba X742 Power to Port Fan

JL715A

Aruba X412 1U Universal 2-post Rack Mount Kit

JL602A

Aruba X414 1U Universal 4-post Rack Mount Kit

J9583B

Aruba X544 Universal 4-post Duct Kit (Must order 4-post rack mount kit separately)

JL716A

• Must order 4-post rack mount kit separately

Aruba X2C2 RJ45 to DB9 Console Cable

JL448A

Configuration Rules

Rule #

Description

1

Localization required on orders without B2B, B2C, B2E or AC3 options.

Notes:

­ OCA Only: Required Custom Choice (Min1/Max1)

­ Switch/Router/Power Supply to PDU Power Cord -  B2B in North America, Mexico, Taiwan, and Japan or B2C ROW. (OCA Default B2B or B2C for Rack Level CTO)

­ Switch/Router/Power Supply to Wall Power Cord - Localized Option (OCA Default for BTO)

­ High Volt Switch/Router/Power Supply to Wall Power Cord -  B2E Option. (Offered only in North America, Mexico, Taiwan, and  Japan)

­ No Power Cord - AC3 Option

Software

Remarks

Description

SKU

ArubaOS-CX Software

CX Advanced Software Licenses

Aruba CX Software 8/9xxx Switch Advanced 1-year Subscription E-STU

S0T87AAE

Aruba CX Software 8/9xxx Switch Advanced 3-year Subscription E-STU

S0T88AAE

Aruba CX Software 8/9xxx Switch Advanced 5-year Subscription E-STU

S0T89AAE

Aruba CX Software 8/9xxx Switch Advanced 7-year Subscription E-STU

S0T90AAE

Aruba CX Software 8/9xxx Switch Advanced 10-year Subscription E-STU

S0T86AAE

Aruba CX Software 8/9xxx Switch Advanced 1-year Subscription SaaS

S0T87AAS

Aruba CX Software 8/9xxx Switch Advanced 3-year Subscription SaaS

S0T88AAS

Aruba CX Software 8/9xxx Switch Advanced 5-year Subscription SaaS

S0T89AAS

Aruba CX Software 8/9xxx Switch Advanced 7-year Subscription SaaS

S0T90AAS

Aruba CX Software 8/9xxx Switch Advanced 10-year Subscription SaaS

S0T86AAS

NetEdit

Single Node Subscription

Aruba NetEdit Single Node 1yr Subscription E-STU

JL639AAE

Aruba NetEdit Single Node 3yr Subscription E-STU

JL640AAE

Aruba Fabric Composer

Fabric Composer / Single Node Subscription

Aruba Fabric Composer Device Management Service Tier 4 Switch 1 year Subscription E-STU

R7G99AAE

Aruba Fabric Composer Device Management Service Tier 4 Switch 3 year Subscription E-STU

R7H00AAE

Aruba Fabric Composer Device Management Service Tier 4 Switch 5 year Subscription E-STU

R7H01AAE

Central

Advanced Services / 8XX/9XX/10XXX Switch Advanced Subscriptions

Aruba Central 84xx/83xx/64xx/54xx Switch Advanced 1 year Subscription E-STU

JZ540AAE

Aruba Central 84xx/83xx/64xx/54xx Switch Advanced 3 year Subscription E-STU

JZ541AAE

Aruba Central 84xx/83xx/64xx/54xx Switch Advanced 5 year Subscription E-STU

JZ542AAE

Aruba Central 84xx/83xx/64xx/54xx Switch Advanced 7 year Subscription E-STU

JZ543AAE

Aruba Central 8xx/9xx/10xxx Switch Advanced 10 year Subscription E-STU

JZ544AAE

Notes:

Add the Central  Advanced Service Skus to the Aruba Catalog as Standalone:

Aruba > Network Management > Central > Advanced

Cloud Services / 8XXX Switch Foundation Subscriptions

2

Aruba Central 8xxx Switch Foundation 1 year Subscription E-STU

R3K03AAE

2

Aruba Central 8xxx Switch Foundation 3 year Subscription E-STU

R3K04AAE

2

Aruba Central 8xxx Switch Foundation 5 year Subscription E-STU

R3K05AAE

2

Aruba Central 8xxx Switch Foundation 7 year Subscription E-STU
