HPE Aruba Networking 3810M Switch Series

Overview

Aruba 3810M Switch Series

The Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high speed access points and IoT devices, this advanced Layer 3 network switch delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity.

A powerful Aruba ProVision ASIC delivers performance, robust feature support, and value with flexible programmability for the latest applications.  The 3810 delivers resiliency and scalability via innovative backplane stacking technology and redundant, hot-swappable power supplies all in a convenient 1U form factor.  It supports an advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, Dynamic Segmentation, robust QoS, and policy-based routing are included with no software licensing.

The 3810M is easy to deploy, use and manage using Aruba AirWave or Aruba Central. Aruba ClearPass offers centralized security and external captive portal support.  The switches offer a limited lifetime warranty.

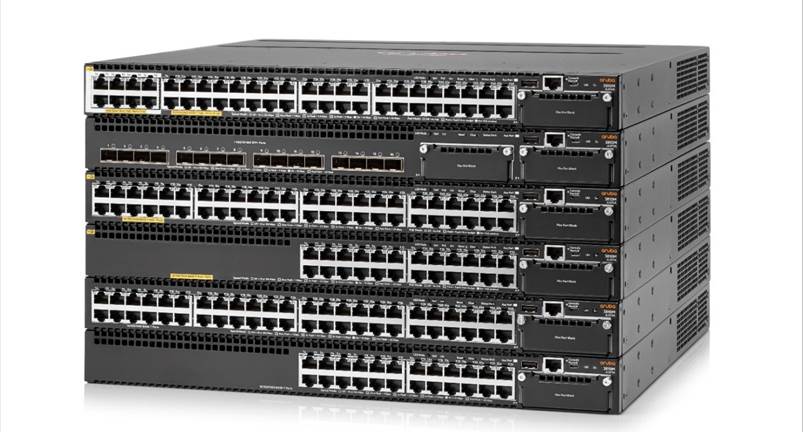

ArubaFamily_LF

Aruba 3810M Switch Series

Key features

  • Advanced Layer 3 switch series with backplane stacking, dynamic segmentation, low latency and resiliency
  • Advanced security and network management via Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central
  • Modular 10GbE and 40GbE uplinks for wireless aggregation
  • HPE Smart Rate for high-speed multi-gigabit capacity and PoE+ power
  • Software-defined ready with REST APIs and OpenFlow support



Standard Features

Software-defined networks

  • Supports multiple programmatic interfaces

Including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.

Unified Wired and Wireless Support

  • ClearPass Policy Manager support

unified wired and wireless policies using Aruba ClearPass Policy Manager

  • Switch auto-configuration

Automatically configures switch for different settings such as VLAN, CoS, PoE max power, and PoE priority when an Aruba access point is detected.

  • User role

Defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switch-based local user role or download from ClearPass

  • Improved network simplicity and security

Aruba Dynamic Segmentation automatically enforces user, device and application-aware policies on Aruba wired and wireless networks. Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.

  • Dynamic segmentation

Provides a secured tunnel to transport network traffic on a per-port or per-user-role basis to an Aruba Controller.  In per-user-role Tunneled Node, users are authenticated with ClearPass Policy Manager which can direct the traffic to be tunneled to Aruba controller or switch locally.

  • Static IP visibility

provides a way for ClearPass to do accounting for clients with static IP addresses

Quality of Service (QoS)

  • Advanced classifier-based QoS

classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis

  • Layer 4 prioritization

based on TCP/UDP port numbers

  • Class of Service (CoS)

sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ

  • Bandwidth shaping:

- Port-based rate limiting: provides per-port ingress-/egress-enforced increased bandwidth

- Classifier-based rate limiting: uses an access control list (ACL) to enforce increased bandwidth for ingress traffic on each port

- Reduced bandwidth: provides per-port, per-queue egress-based reduced bandwidth

  • Remote intelligent mirroring

mirrors selected ingress/egress traffic based on an ACL, port, MAC address, or VLAN to a local or remote HPE 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 switch anywhere on the network

  • Remote monitoring (RMON), Extended RMON (XRMON), and sFlow v5

provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events

  • Traffic prioritization

allows real-time traffic classification into eight priority levels that are mapped to eight queues

  • Unknown Unicast Rate Limiting

throttles unicast packets with unknown destination addresses and limits flooding on the VLAN



Simplified management and configuration

  • Flexible management

supports both cloud-based Central and on-premise AirWave without ripping and replacing switching infrastructure

  • Aruba Central cloud-based management platform

offers simple, secure, and cost effective way to manage switches

  • Built-in programmable and easy to use REST API interface

provides configuration automation for campus networks

  • Friendly port names

allows assignment of descriptive names to ports

  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications

  • Command authorization

leverages RADIUS to link a custom list of CLI commands to an individual network administrator's login; an audit trail documents activity

  • Multiple configuration files

stores easily to the flash image

  • Dual flash images

provides independent primary and secondary operating system files for backup while upgrading

  • Out-of-band Ethernet management port

enables management over a separate physical management network; and keeps management traffic segmented from network data traffic

  • Zero Touch ProVisioning (ZTP)

simplifies installation of the switch infrastructure using the Aruba Activate-based or a DHCP-based process with AirWave and Central Network Management

  • Unidirectional Link Detection (UDLD)

monitors the link between two switches and blocks the ports on both ends of the link if the link goes down at any point between the two devices

  • IP service level agreements (SLA) for voice

monitor quality of voice traffic using the UDP jitter and UDP jitter for VoIP tests

Connectivity

  • Jumbo frames on Gigabit Ethernet and 10-Gigabit Ethernet ports

allow high-performance remote backup and disaster-recovery services

  • IEEE 802.3at Power over Ethernet (PoE+)

provides up to 30 W per port that allows support of the latest PoE+ capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments

  • Support for pre-standard PoE

detects and provides power to pre-standard PoE devices

  • Choice of uplinks:

- SFP+ uplink models: provide fiber-optic (up to 70 km) or direct-attach-cable (DAC) connectivity

- 10GBASE-T uplink models: offer 10GbE speeds, using standard RJ-45 connectors and standard twisted-pair cabling up to 100 m

  • Auto-MDIX

provides automatic adjustments for straight-through or crossover cables on all RJ-45 ports

  • IPv6:

- IPv6 host: enables switch management in an IPv6 network

- Dual stack (IPv4 and IPv6): transitions IPv4 to IPv6, supporting connectivity for both protocols

- MLD snooping: forwards IPv6 multicast traffic to the appropriate interface

- IPv6 ACL/QoS: supports ACL and QoS for IPv6 traffic

- IPv6 routing: supports static, RIPng, OSPFv3 routing protocols

- 6in4 tunneling: supports encapsulation of IPv6 traffic in IPv4 packets

- Security: provides RA guard, DHCPv6 protection, dynamic IPv6 lockdown, and ND snooping

Resiliency and high availability

  • Virtual Router Redundancy Protocol (VRRP)

allows groups of two routers to dynamically back each other up to create highly available routed environments in IPv4 and IPv6 networks

  • Nonstop switching and routing

improves network availability to better support critical applications, such as unified communication and mobility; traffic will continue to be forwarded during failovers, when the backup member of the stack becomes the commander

  • IEEE 802.3ad Link Aggregation Protocol (LACP) and Hewlett Packard Enterprise port trunking

support up to 144 trunks, each with up to 8 links (ports) per trunk

  • IEEE 802.1s Multiple Spanning Tree

provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w

  • Dual hot-swappable power supplies

- Increased resiliency: with secondary power supply to enable complete switch power redundancy in case of power line or supply failure

- Secondary power supply increases available PoE+ power

  • Distributed trunking

enables loop-free and redundant network topology without using Spanning Tree Protocol; allows a server or switch to connect to two switches using one logical trunk for redundancy and load sharing

  • SmartLink

provides easy-to-configure link redundancy of active and standby links

Layer 2 switching

  • IEEE 802.1ad QinQ

increases the scalability of an Ethernet network by providing a hierarchical structure; connects multiple LANs on a high-speed campus or metro network

  • VLAN support and tagging

supports the IEEE 802.1Q standard and 4096 VLANs simultaneously

  • IEEE 802.1v protocol VLANs

isolate select non-IPv4 protocols automatically into their own VLANs

  • MAC-based VLAN

provides granular control and security; uses RADIUS to map a MAC address/user to specific VLANs

  • Rapid Per-VLAN Spanning Tree (RPVST+)

allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+

  • Aruba 3810M switch meshing

dynamically load balances across multiple active redundant links to increase available aggregate bandwidth; allows concurrent Layer 3 routing

  • GVRP and MVRP

allows automatic learning and dynamic assignment of VLANs

Layer 3 routing

  • Static IP routing

provides manually configured routing for both IPv4 and IPv6 networks

  • OSPF

provides OSPFv2 for IPv4 routing and OSPFv3 for IPv6 routing

  • Policy-based routing

makes routing decisions based on policies set by the network administrator

  • Border Gateway Protocol (BGP)

provides IPv4 Border Gateway Protocol routing, which is scalable, robust, and flexible

  • Routing Information Protocol (RIP)

provides RIPv1, RIPv2, and RIPng routing

Layer 3 services

  • Loopback interface address

defines an address in Routing Information Protocol (RIP) and Open Standard Path First (OSPF), improving diagnostic capability

  • Route maps

provide more control during route redistribution; allow filtering and altering of route metrics

  • User datagram protocol (UDP) helper function

allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses; and helps prevent server spoofing for UDP services such as DHCP

  • DHCP server

centralizes and reduces the cost of IPv4 address management

  • Bidirectional Forwarding Detection (BFD)

enables link connectivity monitoring and reduces network convergence time for static routing, OSPFv2, and VRRP

Convergence

  • IP multicast snooping (data-driven IGMP)

prevents flooding of IP multicast traffic

  • LLDP-MED (Media Endpoint Discovery)

defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to configure automatically network devices such as IP phones

  • PoE allocations

supports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power for more efficient energy savings

  • Protocol Independent Multicast for IPv6

supports one-to-many and many-to-many media casting use cases such as IPTV over IPv6 networks

  • IP multicast routing

includes PIM sparse and dense modes to route IP multicast traffic

  • Auto VLAN configuration for voice

- RADIUS VLAN

uses a standard RADIUS attribute and LLDP-MED to automatically configure a VLAN for IP phones

- CDPv2

uses CDPv2 to configure legacy IP phones

  • Local MAC Authentication

assigns attributes such as VLAN and QoS using locally configured profile that can be a list of MAC prefixes

Customer first, customer last support

When your network is important to your business, then your business needs the backing of Aruba Support Services. Partner with Aruba product experts to increase your team productivity, keep pace with technology advances, software releases, and obtain break-fix support.

  • Foundation Care for Aruba support services include priority access to Aruba Technical Assistance Center (TAC) engineers 24x7x365, flexible hardware and onsite support options, and total coverage for Aruba products. Aruba switches with assigned Aruba Central subscriptions benefit with option for additional hardware support only.
  • Aruba Pro Care adds fast access to senior Aruba TAC engineers, who are assigned as a single point of contact for case management, reducing the time spent addressing and resolving issues.

For complete details on Foundation Care and Aruba Pro Care, please visit: https://www.arubanetworks.com/supportservices/

Warranty, Services and Support

  • Limited Lifetime Warranty

See https://www.arubanetworks.com/support-services/ product-warranties/ for warranty and support information included with your product purchase

  • For Software Releases and Documentation, refer to https://asp.arubanetworks.com/downloads
  • For support and services information, visit https://www.arubanetworks.com/support-services/arubacare/

Security

  • Control plane policing

sets rate limit on control protocols to protect CPU overload from DOS attacks

  • Source-port filtering

allows only specified ports to communicate with each other

  • RADIUS/TACACS+

eases switch management security administration by using a password authentication server

  • Secure shell

encrypts all transmitted data for secure remote CLI access over IP networks

  • Secure Sockets Layer (SSL)

encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch

  • Radius over TLS (RadSec)

allows users to use a more secure and reliable mode of communications between switch and radius servers over unsecure networks

  • Port security

allows access only to specified MAC addresses, which can be learned or specified by the administrator

  • MAC address lockout

prevents particular configured MAC addresses from connecting to the network

  • Detection of malicious attacks

monitors 10 types of network traffic and sends a warning when an anomaly that potentially can be caused by malicious attacks is detected

  • Secure FTP

allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file

  • Switch management logon security

helps secure switch CLI logon by optionally requiring either RADIUS or TACACS+ authentication

  • Secure management access

delivers secure encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3

  • ICMP throttling

defeats ICMP denial-of-service attacks by enabling any switch port to automatically throttle ICMP traffic

  • Identity-driven ACL

enables implementation of a highly granular and flexible access security policy and VLAN assignment specific to each authenticated network user

  • STP BPDU port protection

blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks

  • Dynamic IP lockdown

works with DHCP protection to block traffic from unauthorized hosts, preventing IP source address spoofing

  • DHCP protection

blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks

  • Dynamic ARP protection

blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data

  • STP root guard

protects the root bridge from malicious attacks or configuration mistakes

  • Management Interface Wizard

helps secure management interfaces such as SNMP, Telnet, SSH, SSL, Web, and USB at the desired level

  • Security banner

displays a customized security policy when users log in to the switch

  • Switch CPU protection

provides automatic protection against malicious network traffic trying to shut down the switch

  • ACLs

provide filtering based on the IP field, source/destination IP address/subnet and source/destination TCP/UDP port number on a per-VLAN or per-port basis

  • Multiple authentication methods

- IEEE 802.1X

authenticates multiple IEEE 802.1X users per port; prevents a user from "piggybacking" on another user's authentication

- Supports web-based authentication

- MAC-based client authentication

- Concurrent authentication modes

enables a switch port to accept up to 32 sessions of 802.1X, Web, and MAC authentication

  • Private VLAN

provides network security by restricting peer-to-peer communication to prevent a variety of malicious attacks; typically a switch port can only communicate with other ports in the same community and/or an uplink port, regardless of VLAN ID or destination MAC address

  • IEEE 802.1AE MACsec

provides security on a link between two switch ports (1Gbps or 10Gbps) using standard encryption and authentication

  • Open authentication role

simplifies first-time deployment of AAA in brownfield deployments by allowing full network access for failed clients and provides instant connectivity as soon as a client is plugged-in

  • Critical authentication role

ensures that important infrastructure devices such as IP phones are allowed network access even in the absence of a RADIUS server

  • MAC pinning

allows non-chatty legacy devices to stay authenticated by pinning client MAC addresses to the port until the clients logoff or get disconnected

  • Enrollment over Secure Transport (EST)

enhances the switch PKI infrastructure with a simpler, scalable and more secure method of certificate provisioning, re-enrollment and renewal





Configuration Information

Build To Order:  BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

BTO Models

Rule #

Description

SKU



Aruba 3810M 24G 1-slot Switch

JL071A


  • 24 RJ-45 autosensing 10/100/1000 ports
  • 1 open stacking module slot
  • 1 open uplink module slot
  • 1 Power Supply required (Max 2)
  • 1U - Height





Aruba 3810M 48G 1-slot Switch

JL072A


  • 48 RJ-45 autosensing 10/100/1000 ports
  • 1 open stacking module slot
  • 1 open uplink module slot
  • 1 Power Supply required (Max 2)
  • 1U - Height





Aruba 3810M 24G PoE+ 1-slot Switch

JL073A


  • 24 RJ-45 autosensing 10/100/1000 PoE+ ports
  • 1 open stacking module slot
  • 1 open uplink module slot
  • 1 Power Supply required (Max 2)
  • 1U - Height





Aruba 3810M 48G PoE+ 1-slot Switch

JL074A


  • 48 RJ-45 autosensing 10/100/1000 PoE+ ports
  • 1 open stacking module slot
  • 1 open uplink module slot
  • 1 Power Supply required (Max 2)
  • 1U - Height



1, 3

Aruba 3810M 16SFP+ 2-slot Switch

JL075A


  • 16 fixed 1000/10000 SFP/SFP+ ports
  • min=0 \ max=16 SFP/SFP+  Transceivers
  • 1 open stacking module slot
  • 2 open uplink module slot
  • 1 Power Supply required (Max 2)
  • 1U - Height





Aruba 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch

JL076A


  • 40 RJ-45 autosensing 10/100/1000 PoE+ ports
  • 8 RJ-45 1/2.5/5/XGT PoE+ ports
  • 1 open stacking module slot
  • 1 open uplink module slot
  • 1 Power Supply required (Max 2)
  • 1U - Height





Rule #

Description

SKU

1 ,2, 3

Aruba 3810M 48G PoE+ 4SFP+ 680W Switch

JL428A


  • Includes 1 3810M 48 Port PoE+ Switch (JL074A)
  • 48 RJ-45 autosensing 10/100/1000 PoE+ ports
  • 4 fixed 1000/10000 SFP/SFP+ ports
  • min=0 \ max=4 SFP/SFP+  Transceivers
  • 1 open stacking module slot
  • Includes 1 uplink module (JL083A)
  • Includes 1 680W Power Supply (JL086A, Max 2)
  • 1U - Height





Aruba 3810M 48G PoE+ 4SFP+ 680W Switch PDU NA, JP or TW

JL428A#B2B


  • C15 PDU Jumper Cord (NA/MEX/TW/JP)





Aruba 3810M 48G PoE+ 4SFP+ 680W Switch PDU ROW

JL428A#B2C


  • C15 PDU Jumper Cord (ROW)





Aruba 3810M 48G PoE+ 4SFP+ 680W Switch United States 220 volt

JL428A#B2E


  • NEMA L6-20P Cord (NA/MEX/JP/TW)





Aruba 3810M 48G PoE+ 4SFP+ 680W Switch

JL428A#AC3


  • No Localized Power Cord Selected



1 ,2, 3

Aruba 3810M 48G PoE+ 4SFP+ 1050W Switch

JL429A


  • Includes 1 3810M 48 Port PoE+ Switch (JL074A)
  • 48 RJ-45 autosensing 10/100/1000 PoE+ ports
  • 4 fixed 1000/10000 SFP/SFP+ ports
  • min=0 \ max=4 SFP/SFP+  Transceivers
  • 1 open stacking module slot
  • Includes 1 uplink module (JL083A)
  • Includes 1 1050W Power Supply (JL087A, Max 2)
  • 1U - Height





Aruba 3810M 48G PoE+ 4SFP+ 1050W Switch PDU NA, JP or TW

JL429A#B2B


  • C15 PDU Jumper Cord (NA/MEX/TW/JP)





Aruba 3810M 48G PoE+ 4SFP+ 1050W Switch PDU ROW

JL429A#B2C


  • C15 PDU Jumper Cord (ROW)





Aruba 3810M 48G PoE+ 4SFP+ 1050W Switch United States 220 volt

JL429A#B2E


  • NEMA L6-20P Cord (NA/MEX/JP/TW)





Aruba 3810M 48G PoE+ 4SFP+ 1050W Switch

JL429A#AC3


  • No Localized Power Cord Selected



1 ,2, 3

Aruba 3810M 24SFP+ 250W Switch

JL430A


  • Includes 1 3810M 16 Port SFP+ Switch (JL075A)
  • 16 fixed 1000/10000 SFP/SFP+ ports
  • 8 port SFP+ ports on the included modules
  • min=0 \ max=24 SFP/SFP+  Transceivers
  • 1 open stacking module slot
  • Includes 2 uplink modules (JL083A)
  • Includes 1 250W Power Supply (JL085A, Max 2)
  • 1U - Height





Aruba 3810M 24SFP+ 250W Switch PDU NA, JP or TW

JL430A#B2B


  • C15 PDU Jumper Cord (NA/MEX/TW/JP)





Aruba 3810M 24SFP+ 250W Switch PDU ROW

JL430A#B2C


  • C15 PDU Jumper Cord (ROW)





Aruba 3810M 24SFP+ 250W Switch United States 220 volt

JL430A#B2E


  • NEMA L6-20P Cord (NA/MEX/JP/TW)





Aruba 3810M 24SFP+ 250W Switch

JL430A#AC3


  • No Localized Power Cord Selected





Configuration Rules

Rule #

Description

SKU

1

The following Transceivers install into this Switch (For the 1000/10000 SFP+ Ports):





HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver

J4858D



HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver

J4859D



HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver

J4860D



HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver

J8177D



HPE Aruba Networking 100M SFP LC FX 2km MMF Transceiver

J9054D



HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver

J9150D



HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver

J9151E



HPE Aruba Networking 10G SFP+ LC LRM 220m OM2 MMF Transceiver

J9152D



HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver

J9153D



HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver

S2P30A



HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver

S2P31A



HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver

S2P32A



HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281D



HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283D



HPE Aruba Networking 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285D

2

Localization required on orders without #B2B, #B2C, #B2E options.



3

The following Transceivers install into this Switch : (For the 1000/10000 SFP+ Ports)





HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver

JL745A



HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver

JL746A



HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e TAA Transceiver

JL747A



HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver

JL748A



HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver

JL749A



Rack Level Integration CTO Models

Rule #

Description

SKU

10, 11

Aruba 3810M 24G 1-slot Switch

JL071A


  • 24 RJ-45 autosensing 10/100/1000 ports
  • 1 open stacking module slot
  • 1 open uplink module slot
  • 1 Power Supply required (Max 2)
  • 1U - Height



10, 11

Aruba 3810M 48G 1-slot Switch

JL072A


  • 48 RJ-45 autosensing 10/100/1000 ports
  • 1 open stacking module slot
  • 1 open uplink module slot
  • 1 Power Supply required (Max 2)
  • 1U - Height



10, 11

Aruba 3810M 24G PoE+ 1-slot Switch

JL073A


  • 24 RJ-45 autosensing 10/100/1000 PoE+ ports
  • 1 open stacking module slot
  • 1 open uplink module slot
  • 1 Power Supply required (Max 2)
  • 1U - Height



10, 11

Aruba 3810M 48G PoE+ 1-slot Switch

JL074A


  • 48 RJ-45 autosensing 10/100/1000 PoE+ ports
  • 1 open stacking module slot
  • 1 open uplink module slot
  • 1 Power Supply required (Max 2)
  • 1U - Height



1, 2, 10, 11

Aruba 3810M 16SFP+ 2-slot Switch

JL075A


  • 16 fixed 1000/10000 SFP/SFP+ ports
  • min=0 \ max=16 SFP/SFP+  Transceivers
  • 1 open stacking module slot
  • 2 open uplink module slot
  • 1 Power Supply required (Max 2)
  • 1U - Height



10, 11

Aruba 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch

JL076A


  • 40 RJ-45 autosensing 10/100/1000 PoE+ ports
  • 8 RJ-45 1/2.5/5/XGT PoE+ ports
  • 1 open stacking module slot
  • 1 open uplink module slot
  • 1 Power Supply required (Max 2)
  • 1U - Height



1, 2, 3, 4, 10, 11

Aruba 3810M 48G PoE+ 4SFP+ 680W Switch

JL428A


  • Includes 1 3810M 48 Port PoE+ Switch (JL074A)
  • 48 RJ-45 autosensing 10/100/1000 PoE+ ports
  • 4 fixed 1000/10000 SFP/SFP+ ports
  • min=0 \ max=4 SFP/SFP+  Transceivers
  • 1 open stacking module slot
  • Includes 1 uplink module (JL083A)
  • Includes 1 680W Power Supply (JL086A, Max 2)
  • 1U - Height



Rule #

Description

SKU



PDU Cable NA/MEX/TW/JP

JL428A #B2B


  • C15 PDU Jumper Cord (NA/MEX/TW/JP)





PDU Cable ROW

JL428A #B2C


  • C15 PDU Jumper Cord (ROW)





High Volt Power Supply to Wall Power Cord

JL428A #B2E


  • NEMA L6-20P Cord (NA/MEX/JP/TW)





Aruba 3810M 48G PoE+ 4SFP+ 680W Switch

JL428A#AC3


  • No Localized Power Cord Selected



1, 3, 4, 10, 11

Aruba 3810M 48G PoE+ 4SFP+ 1050W Switch

JL429A


  • Includes 1 3810M 48 Port PoE+ Switch (JL074A)
  • 48 RJ-45 autosensing 10/100/1000 PoE+ ports
  • 4 fixed 1000/10000 SFP/SFP+ ports
  • min=0 \ max=4 SFP/SFP+  Transceivers
  • 1 open stacking module slot
  • Includes 1 uplink module (JL083A)
  • Includes 1 1050W Power Supply (JL087A, Max 2)
  • 1U - Height





PDU Cable NA/MEX/TW/JP

JL429A #B2B


  • C15 PDU Jumper Cord (NA/MEX/TW/JP)





PDU Cable ROW

JL429A #B2C


  • C15 PDU Jumper Cord (ROW)





High Volt Power Supply to Wall Power Cord

JL429A #B2E


  • NEMA L6-20P Cord (NA/MEX/JP/TW)





No Power Cord

JL429A #AC3


  • No Localized Power Cord Selected



1, 3, 4, 10, 11

Aruba 3810M 24SFP+ 250W Switch

JL430A


  • Includes 1 3810M 16 Port SFP+ Switch (JL075A)
  • 16 fixed 1000/10000 SFP/SFP+ ports
  • 8 port SFP+ ports on the included modules
  • min=0 \ max=24 SFP/SFP+  Transceivers
  • 1 open stacking module slot
  • Includes 2 uplink modules (JL083A)
  • Includes 1 250W Power Supply (JL085A, Max 2)
  • 1U - Height





PDU Cable NA/MEX/TW/JP

JL430A #B2B


  • C15 PDU Jumper Cord (NA/MEX/TW/JP)





PDU Cable ROW

JL430A #B2C


  • C15 PDU Jumper Cord (ROW)





High Volt Power Supply to Wall Power Cord

JL430A #B2E


  • NEMA L6-20P Cord (NA/MEX/JP/TW)





No Power Cord

JL430A #AC3


  • No Localized Power Cord Selected







Configuration Rules

Rule #

Description

SKU

1

The following Transceivers install into this Switch (For the 1000/10000 SFP+ Ports):





HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver

J4858D



HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver

J4859D



HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver

J4860D



HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver

J8177D



HPE Aruba Networking 100M SFP LC FX 2km MMF Transceiver

J9054D



HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver

J9150D



HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver

J9151E



HPE Aruba Networking 10G SFP+ LC LRM 220m OM2 MMF Transceiver

J9152D



HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver

J9153D



HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver

S2P30A



HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver

S2P31A



HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver

S2P32A



HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281D



HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283D



HPE Aruba Networking 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285D

2

The following Transceivers install into this Switch : (For the 1000/10000 SFP+ Ports)





HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver

JL745A



HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver

JL746A



HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e TAA Transceiver

JL747A



HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver

JL748A



HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver

JL749A

3

Localization required on orders without #B2B, #B2C, #B2E options.



4

When Switches are Factory Racked with this power supply, Then #B2B, or #B2C should be the Defaulted Power Cable option on the Power Supplies. (See Drop down remark in "Internal Power Supplies" section.)



10

If switch is 0D1 to Racks, then the J9583A#0D1 is also required.



11

If the CTO Switch Chassis needs to be racked, Then the CTO Base Model needs to integrate (with #0D1) to the HPE Network Rack.



Notes:

­ Drop down under power supply should offer the following options and results:

­ Switch/Router/Power Supply to PDU Power Cord -  #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)

­ Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)

­ High Volt Switch/Router/Power Supply to Wall Power Cord -  #B2E Option. (Offered only in North America, Mexico, Taiwan, and  Japan)

­ Watson Blue Notes: It is recommended that both power supplies match for full redundancy in the case of a fully populated switch, but not required.

­ Clic UNB - If an option is ordered with #0D1/#B01, then the switch must have #0D1 option.





Enter the following menu selections as integrated to the CTO Model X switch above if order is factory built.

Modules



Stacking Modules



Rule #

Description

SKU



System (std 0 // max=1) User Selection (min 0 / max=1) per Chassis



1

Aruba 3810M 4-port Stacking Module

JL084A


  • min=1 \ max=4 Stacking cables





Configuration Rules

1

One of the following Stacking Cables must be selected:





HPE Aruba Networking 3800/3810M 0.5m Stacking Cable

J9578A



HPE Aruba Networking 3800/3810M 1m Stacking Cable

J9665A



HPE Aruba Networking 3800/3810M 3m Stacking Cable

J9579A



Uplink Modules




  • JL071A, JL072A, JL073A, JL074A, JL076A Only System (std 0 // max 1) User Selection (min 0 / max 1) per Chassis
  • JL075A Only System (std 0 // max 2) User Selection (min 0 / max 2) per Chassis
  • JL428A, JL429A Only System (std 1 // max 1) User Selection (min 0 / max 0) per Chassis
  • JL430A Only System (std 2 // max 2) User Selection (min 0 / max 0) per Chassis



1

HPE Aruba Networking 3810M/2930M 1-port QSFP+ 40GbE Module

JL078A


  • min=0 \ max=1 QSFP+  Transceiver



1, 3

HPE Aruba Networking 3810M 2QSFP+ 40GbE Module

JL079A


  • min=0 \ max=2 QSFP+  Transceiver





HPE Aruba Networking 3810M 4 HPE Smart Rate PoE+ Module

JL081A


  • 4 x HPE Smart Rate Ports



2, 4, 5

HPE Aruba Networking 3810M/2930M 4-port 100M/1G/10G SFP+ MACsec Module

JL083A


  • min=0 \ max=4 SFP/SFP+  Transceivers





Configuration Rules

1

The following Transceivers install into this Module: (Use #0D1 or #B01 if switch is CTO) - if applicable





HPE Networking X142 40G QSFP+ MPO SR4 Transceiver

JH231A



HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver

JH232A



HPE Networking X142 40G QSFP+ MPO eSR4 300M Transceiver

JH233A



HPE Networking X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable

JH234A



HPE Networking X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable

JH235A



HPE Networking X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable

JH236A



HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver

JL308A

2

The following Transceivers install into this Switch (For the 1000/10000 SFP+ Ports):





HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver

J4858D



HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver

J4859D



HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver

J4860D



HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver

J8177D



HPE Aruba Networking 100M SFP LC FX 2km MMF Transceiver

J9054D



HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver

J9150D



HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver

J9151E



HPE Aruba Networking 10G SFP+ LC LRM 220m OM2 MMF Transceiver

J9152D



HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver

J9153D



HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver

S2P30A



HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver

S2P31A



HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver

S2P32A



HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281D



HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283D



HPE Aruba Networking 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285D

3

This module is only available for the following switches:





Aruba 3810M 48G 1-slot Switch

JL072A



Aruba 3810M 48G PoE+ 1-slot Switch

JL074A



Aruba 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch

JL076A

4

The following Transceivers install into this Switch (Use #0D1 qutoed to switch if switch is CTO) - if applicable :





HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver

JL745A



HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver

JL746A



HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e TAA Transceiver

JL747A

5

The following Transceivers install into this Switch (Use #0D1 qutoed to switch if switch is CTO) - if applicable :





HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver

JL748A



HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver

JL749A

Notes:

Although all 3810M/2930M Switches are compatible with the 4 Port HPE Smart Rate module, non PoE switches do not provide PoE power to the HPE Smart Rate Module.



Transceivers

Remarks

Description

SKU



SFP Transceivers





HPE Aruba Networking 100M SFP LC FX 2km MMF Transceiver

J9054D



HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver

J4858D



HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver

J4859D



HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver

J4860D



HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver

J8177D



HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver

JL745A



HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver

JL746A



HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e TAA Transceiver

JL747A



SFP+ Transceivers





HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver

J9150D



HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver

J9151E



HPE Aruba Networking 10G SFP+ LC LRM 220m OM2 MMF Transceiver

J9152D



HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver

J9153D



HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver

JL748A



HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver

JL749A



HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver

S2P30A



HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver

S2P31A



HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver

S2P32A



HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281D



HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283D



HPE Aruba Networking 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285D



QSFP+ Transceivers





HPE Networking X142 40G QSFP+ MPO SR4 Transceiver

JH231A



HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver

JH232A



HPE Networking X142 40G QSFP+ MPO eSR4 300M Transceiver

JH233A



HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver

JL308A



HPE Networking X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable

JH234A



HPE Networking X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable

JH235A



HPE Networking X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable

JH236A

Internal Power Supplies



System (std 0 // max=2) User Selection (min 1 / max=2) per Switch

For JL428A, JL429A, JL430A System (std 1 // max=2) User Selection (min 0 / max=1) per Switch



Rule #

Description

SKU

1, 3, 4

HPE Aruba Networking X371 12VDC 250W 100-240VAC Power Supply

JL085A


  • PDU Cable NA/MEX/TW/JP

JL085A #B2B



C15 PDU Jumper Cord (NA/MEX/TW/JP)




  • PDU Cable ROW

JL085A #B2C



C15 PDU Jumper Cord (ROW)




  • High Volt Power Supply to Wall Power Cord

JL085A #B2E



NEMA L6-20P Cord (NA/MEX/JP/TW)




  • No Power Cord

JL085A #AC3



No Localized Power Cord Selected



2, 3, 4

HPE Aruba Networking X372 54VDC 680W 100-240VAC Power Supply

JL086A



PDU Cable NA/MEX/TW/JP

JL086A #B2B


  • C15 PDU Jumper Cord (NA/MEX/TW/JP)





PDU Cable ROW

JL086A #B2C


  • C15 PDU Jumper Cord (ROW)





High Volt Power Supply to Wall Power Cord

JL086A #B2E


  • NEMA L6-20P Cord (NA/MEX/JP/TW)





No Power Cord

JL086A #AC3


  • No Localized Power Cord Selected



2, 3, 4

HPE Aruba Networking X372 54VDC 1050W 110-240VAC Power Supply

JL087A



PDU Cable NA/MEX/TW/JP

JL087A #B2B



C15 PDU Jumper Cord (NA/MEX/TW/JP)




  • PDU Cable ROW

JL087A #B2C



C15 PDU Jumper Cord (ROW)





High Volt Power Supply to Wall Power Cord

JL087A #B2E


  • NEMA L6-20P Cord (NA/MEX/JP/TW)





No Power Cord

JL087A #AC3


  • No Localized Power Cord Selected





Configuration Rules



1

If this Power supply is selected, Then  JL071A, JL072A, JL075A, JL430A  must be the switch its installed into.



2

If this Power supply is selected, Then JL073A, JL074A, JL076A, JL428A, JL429A must be the switch its installed into.



3

Localization required on orders without #B2B or #B2C options.



4

When Switches are Factory Racked with this power supply, Then #B2B, or #B2C should be the Defaulted Power Cable option on the Power Supplies. (See Drop down remark in "Internal Power Supplies" section.)



Notes:

­ Drop down under power supply should offer the following options and results:

­ Switch/Router/Power Supply to PDU Power Cord -  #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)

­ Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)

­ High Volt Switch/Router/Power Supply to Wall Power Cord -  #B2E Option. (Offered only in North America, Mexico, Taiwan, and  Japan)

­ No Localized Power Cord Selected - #AC3 Option

­ Watson Blue Notes: It is recommended that both power supplies match for full redundancy in the case of a fully populated switch, but not required.



Cables

Remarks

Description

SKU



Stacking Cables





(std 0 // max 99) User Selection (min 0 // max 99) per switch





HPE Aruba Networking 3800/3810M 0.5m Stacking Cable

J9578A



HPE Aruba Networking 3800/3810M 1m Stacking Cable

J9665A



HPE Aruba Networking 3800/3810M 3m Stacking Cable

J9579A









Console Cables





(std 0 // max 99) User Selection (min 0 // max 99) per switch





HPE Aruba Networking X2C2 RJ45 to DB9 Console Cable

JL448A









Multi-Mode Cables





(std 0 // max 99) User Selection (min 0 // max 99) per switch





HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A



HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A



HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A



HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A



HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A



HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A



HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A



HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable

QK732A



HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable

QK733A



HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable

QK734A



HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable

QK735A



HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable

QK736A



HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable

QK737A



Switch Enclosure Options

Remarks

Description

SKU



Mounting Kit (std 0 // max 1) User Selection (min 0 // max 1) per switch





HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit

J9583B

Notes:

If this switch is factory installed in HPE Network Racks, Then the J9583A#0D1 is required





Fan Tray





HPE Aruba Networking 3810 Switch Fan Tray

JL088A


  • This is a Spare Only



Software

Remarks

Description

SKU



Central





Cloud Services / 63XX/38XX Switch Foundation Subscriptions





HPE Aruba Networking Central Switch Class-3 Foundation 1 year Subscription E-STU

Q9Y78AAE



HPE Aruba Networking Central Switch Class-3 Foundation 3 year Subscription E-STU

Q9Y79AAE



HPE Aruba Networking Central Switch Class-3 Foundation 5 year Subscription E-STU

Q9Y80AAE



HPE Aruba Networking Central Switch Class-3 Foundation 7 year Subscription E-STU

Q9Y81AAE



HPE Aruba Networking Central Switch Class3 Foundation 10-year Subscription E-STU

R3K02AAE

Notes:

Add the Central Cloud Skus to the Aruba Catalog as Standalone:
Aruba > Network Management > Central > Cloud Services





On-Prem Services / 63XX/38XX Switch Foundation Subscriptions





HPE Aruba Networking Central on Prem Switch Class-3 Foundation 1 year Subscription E-STU

R6U83AAE



HPE Aruba Networking Central on Prem Switch Class-3 Foundation 3 year Subscription E-STU

R6U84AAE



HPE Aruba Networking Central on Prem Switch Class-3 Foundation 5 year Subscription E-STU

R6U85AAE



HPE Aruba Networking Central on Prem Switch Class-3 Foundation 7 year Subscription E-STU

R6U86AAE



HPE Aruba Networking Central on Prem Switch Class-3 Foundation 10 year Subscription E-STU

R6U87AAE

Notes:

Add the Central  On-Prem Skus to the Aruba Catalog as Standalone:
Aruba > Network Management > Central > On-Prem Services





On-Prem Services / 63XX/38XX Switch Advanced Subscriptions





HPE Aruba Networking Central On-Premises Switch Class3 Advanced 1-year Subscription E-STU

R6V03AAE



HPE Aruba Networking Central On-Premises Switch Class3 Advanced 3-year Subscription E-STU

R6V04AAE



HPE Aruba Networking Central On-Premises Switch Class3 Advanced 5-year Subscription E-STU

R6V05AAE



HPE Aruba Networking Central On-Premises Switch Class3 Advanced 7-year Subscription E-STU

R6V06AAE



HPE Aruba Networking Central On-Premises Switch Class3 Advanced 10-year Subscription E-STU

R6V07AAE

Notes:

Add the Central  On-Prem Skus to the Aruba Catalog as Standalone:

Aruba > Network Management > Central > On-Prem Services





FedRAMP Services / 63XX/38XX Switch Foundation Subscriptions





HPE Aruba Networking Central 63xx/38xx Switch Foundation Government 1-year Subscription E-STU

R8K99AAE



HPE Aruba Networking Central 63xx/38xx Switch Foundation Government 3-year Subscription E-STU

R8L00AAE



HPE Aruba Networking Central 63xx/38xx Switch Foundation Government 5-year Subscription E-STU

R8L01AAE



HPE Aruba Networking Central 63xx/38xx Switch Foundation Government 7-year Subscription E-STU

R8L02AAE



HPE Aruba Networking Central 63xx/38xx Switch Foundation Government 10-year Subscription E-STU

R8L03AAE

Notes:

Add the Central  FedRAMP Service Skus to the Aruba Catalog as Standalone:

Aruba > Network Management > Central > FedRAMP



As a Service





Central





Cloud Services / 63XX/38XX Switch Foundation Subscriptions



2

HPE Aruba Networking Central Switch Class-3 Foundation 1 year Subscription SaaS

Q9Y78AAS

2

HPE Aruba Networking Central Switch Class-3 Foundation 3 year Subscription SaaS

Q9Y79AAS

2

HPE Aruba Networking Central Switch Class-3 Foundation 5 year Subscription SaaS

Q9Y80AAS

2

HPE Aruba Networking Central Switch Class-3 Foundation 7 year Subscription SaaS

Q9Y81AAS

2

HPE Aruba Networking Central Switch Class-3 Foundation 10 year Subscription SaaS

R3K02AAS







7

HPE Aruba Networking Central Switch Class-3 Advanced 1 year Subscription SaaS

S0W52AAS

7

HPE Aruba Networking Central Switch Class-3 Advanced 3 year Subscription SaaS

S0W53AAS

7

HPE Aruba Networking Central Switch Class-3 Advanced 5 year Subscription SaaS

S0W54AAS

7

HPE Aruba Networking Central Switch Class-3 Advanced 7 year Subscription SaaS

S0W55AAS

7

HPE Aruba Networking Central Switch Class-3 Advanced 10 year Subscription SaaS

S0W56AAS

7

HPE Aruba Networking Central Switch Class-3 Advanced 1 year Subscription SaaS

S0W77AAS

7

HPE Aruba Networking Central Switch Class-3 Advanced 3 year Subscription SaaS

S0W78AAS

7

HPE Aruba Networking Central Switch Class-3 Advanced 5 year Subscription SaaS

S0W79AAS

7

HPE Aruba Networking Central Switch Class-3 Advanced 7 year Subscription SaaS

S0W80AAS

7

HPE Aruba Networking Central Switch Class-3 Advanced 10 year Subscription SaaS

S0W81AAS



Configuration Rules



Rule#

Description

SKU

2

Add the Central Cloud Skus to the Aruba Catalog as Standalone:

Aruba > Network Management > Central > Cloud Services



7

For IRIS reference only. No action required for OCX and Clic




Technical Specifications

Aruba 3810M 24G 1-slot Switch (JL071A)

Included accessories

1 Aruba 3810 Switch Fan Tray (JL088A)

I/O ports and slots

24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 24 support MACSec Supports a maximum of 4 SFP+ ports or 1 40GbE ports, with optional module

1 open module slot

Supports a maximum of 4 SFP+ ports or 1 40GbE ports, with optional module

Additional ports and slots

1 stacking module slot

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 dual-personality (RJ-45 or USB micro-B)

Power supplies

2 power supply slots

1 minimum power supply required (ordered separately)

Fan tray

includes: 1 x JL088A

1 fan tray slot

Switch ships with 1 JL088A fan tray installed. Spares ordered separately.

Physical characteristics

Dimensions

17.42(w) x 16.98(d) x 1.73(h) in (44.25 x 43.13 x 4.39 cm) (1U height)

Weight

12.76 lb (5.79 kg)

Memory and processor

P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card

Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only

Performance

IPv6 Ready Certified



1000 Mb Latency

< 2.8 µs (FIFO 64-byte packets)

10 Gbps Latency

< 1.8 µs (FIFO 64-byte packets)

40 Gbps Latency

< 1.5 µs (FIFO 64-byte packets)

Throughput

up to 95.2 Mpps (64-byte packets)

Routing/Switching capacity

160 Gbps

Switch fabric speed

169 Gbps

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 104°F (40°C), noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

15% to 90% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 39 dB, Pressure: 22.8 dB

Primary Airflow Direction

Front-to-side and front-to-rear



Electrical Characteristics

Frequency

50/60Hz

Voltage

JL085A PSU: 100-127/200-240 VAC

Current

JL085A PSU (Each): 1A/0.5A

Max/Idle Power Rating (Switch+ 1 PSU)

JL078A: 4W/3W

JL079A: 7W/3W

JL081A: 4W/3W

JL083A: 11W/4W

Maximum Heat Dissipation* (Max Case)

310.31

PoE Power (Max Possible)

N/A

Notes:

­ Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This is a modular product.

­ *Switch + 2 power supplies + one JL083A Uplink. For most accurate heat dissipation, idle and max power for any combination of chassis and accessories, please consult configurator.

Safety

EN 60950/IEC 60950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; EN 60825; CSA 22.2 60950-1; EN62479:2010; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1, Ed. 2; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825:2007; EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1; UL 62368-1 Ed.2

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

Immunity

Generic

EN55022: 2010

EN

EN55024: 2010

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods

Harmonics

EN61000-3-2:2006 +A1:2009 +A2:2009 Class A

Flicker

EN61000-3-3:2008

Management

Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); In-line and out-of-band; Out-of-band management (serial RS-232c or micro usb)

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.



Aruba 3810M 48G 1-slot Switch (JL072A)

Included accessories

1 Aruba 3810 Switch Fan Tray (JL088A)

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 48 support MACSec

1 open module slot

Supports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module

Additional ports and slots

1 stacking module slot

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 dual-personality (RJ-45 or USB micro-B)

Power supplies

2 power supply slots

1 minimum power supply required (ordered separately)

Fan tray

includes: 1 x JL088A

1 fan tray slot

Switch ships with 1 JL088A fan tray installed. Spares ordered separately.

Physical characteristics

Dimensions

17.42(w) x 16.98(d) x 1.73(h) in (44.25 x 43.13 x 4.39 cm) (1U height)

Weight

13.20 lb (5.99 kg)

Memory and processor

P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card

Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only

Performance

IPv6 Ready Certified



1000 Mb Latency

< 2.8 µs (FIFO 64-byte packets)

10 Gbps Latency

< 1.8 µs (FIFO 64-byte packets)

40 Gbps Latency

< 1.5 µs (FIFO 64-byte packets)

Throughput

up to 190.5 Mpps (64-byte packets)

Routing/Switching capacity

320 Gbps

Switch fabric speed

338 Gbps

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 104°F (40°C), noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

15% to 90% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 38 dB, Pressure: 21.8 dB

Primary Airflow Direction

Front-to-side and front-to-rear



Electrical Characteristics

Frequency

50/60Hz

Voltage

JL085A PSU: 100-127/200-240 VAC

Current

JL085A PSU (Each): 1A/0.5A

Max/Idle Power Rating (Switch+ 1 PSU)

95W/78W

Second PSU Power Adder

10W

Max/Idle Uplink Power Adder

JL078A: 4W/3W

JL079A: 7W/3W

JL081A: 4W/3W

JL083A: 11W/4W

Maximum Heat Dissipation* (Max Case)

395.56

PoE Power (Max Possible)

N/A

Notes:

­ Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This is a modular product.

­ *Switch + 2 power supplies + one JL083A Uplink. For most accurate heat dissipation, idle and max power for any combination of chassis and accessories, please consult configurator.

Safety

EN 60950/IEC 60950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; EN 60825; CSA 22.2 60950-1; EN62479:2010; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1, Ed. 2; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825:2007; EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1; UL 62368-1 Ed.2

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

Immunity

Generic

EN55022: 2010

EN

EN55024: 2010

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods

Harmonics

EN61000-3-2:2006 +A1:2009 +A2:2009 Class A

Flicker

EN61000-3-3:2008

Management

Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); In-line and out-of-band; Out-of-band management (serial RS-232c or micro usb)

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.



Aruba 3810M 24G PoE+ 1-slot Switch (JL073A)

Included accessories

1 Aruba 3810 Switch Fan Tray (JL088A)

I/O ports and slots

24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 24 support MACSec

1 open module slot

Supports a maximum of 4 SFP+ ports or 1 40GbE ports, with optional module

Additional ports and slots

1 stacking module slot

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 dual-personality (RJ-45 or USB micro-B)

Power supplies

2 power supply slots

1 minimum power supply required (ordered separately)

Fan tray

includes: 1 x JL088A

1 fan tray slot

Switch ships with 1 JL088A fan tray installed. Spares ordered separately

Physical characteristics

Dimensions

17.42(w) x 16.98(d) x 1.73(h) in (44.25 x 43.13 x 4.39 cm) (1U height)

Weight

13.02 lb (5.91 kg)

Memory and processor

P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card

Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only

Performance

IPv6 Ready Certified



1000 Mb Latency

< 2.8 µs (FIFO 64-byte packets)

10 Gbps Latency

< 1.8 µs (FIFO 64-byte packets)

40 Gbps Latency

< 1.5 µs (FIFO 64-byte packets)

Throughput

up to 95.2 Mpps (64-byte packets)

Routing/Switching capacity

160 Gbps

Switch fabric speed

169 Gbps

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 104°F (40°C), noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

15% to 90% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 44 dB, Pressure: 27.6 dB

Primary Airflow Direction

Front-to-side and front-to-rear



Electrical Characteristics

Frequency

50/60Hz

Voltage

JL086A PSU: 100-127/200-240 VAC

JL087A PSU: 110-127/200-240 VAC

Current

JL086A PSU (Each): 5A/2.5A

JL087A PSU (Each): 8.5A/5A

Max/Idle Power Rating (Switch+ 1 PSU)

95W/82W

Second PSU Power Adder

10W

Max/Idle Uplink Power Adder

JL078A: 4W/3W

JL079A: 7W/3W

JL081A: 4W/3W

JL083A: 11W/4W

Maximum Heat Dissipation* (Max Case)

395.56

PoE Power (Max Possible)

840W

Notes:

­ Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This is a modular product.

­ *Switch + 2 power supplies + one JL083A Uplink. For most accurate heat dissipation, idle and max power for any combination of chassis and accessories, please consult configurator.

Safety

EN 60950/IEC 60950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; EN 60825; CSA 22.2 60950-1; EN62479:2010; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1, Ed. 2; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825:2007; EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1; UL 62368-1 Ed.2

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

Immunity

Generic

EN55022: 2010

EN

EN55024: 2010

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods

Harmonics

EN61000-3-2:2006 +A1:2009 +A2:2009 Class A

Flicker

EN61000-3-3:2008

Management

Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); In-line and out-of-band; Out-of-band management (serial RS-232c or micro usb)

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.



Aruba 3810M 48G PoE+ 1-slot Switch (JL074A)

Included accessories

1 Aruba 3810 Switch Fan Tray (JL088A)

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 48 support MACSec

1 open module slot

Supports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module

Additional ports and slots

1 stacking module slot

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 dual-personality (RJ-45 or USB micro-B)

Power supplies

2 power supply slots

1 minimum power supply required (ordered separately)

Fan tray

includes: 1 x JL088A

1 fan tray slot

Switch ships with 1 JL088A fan tray installed. Spares ordered separately.

Physical characteristics

Dimensions

17.42(w) x 16.98(d) x 1.73(h) in (44.25 x 43.13 x 4.39 cm) (1U height)

Weight

13.62 lb (6.18 kg)

Memory and processor

P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card

Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only

Performance

IPv6 Ready Certified



1000 Mb Latency

< 2.8 µs (FIFO 64-byte packets)

10 Gbps Latency

< 1.8 µs (FIFO 64-byte packets)

40 Gbps Latency

< 1.5 µs (FIFO 64-byte packets)

Throughput

up to 190.5 Mpps (64-byte packets)

Routing/Switching capacity

320 Gbps

Switch fabric speed

338 Gbps

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 104°F (40°C), noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

15% to 90% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 47 dB, Pressure: 29.4 dB

Primary Airflow Direction

Front-to-side and front-to-rear



Electrical Characteristics

Frequency

50/60Hz

Voltage

JL086A PSU: 100-127/200-240 VAC

JL087A PSU: 110-127/200-240 VAC

Current

JL086A PSU (Each): 5A/2.5A

JL087A PSU (Each): 8.5A/5A

Max/Idle Power Rating (Switch+ 1 PSU)

135W/103W

Second PSU Power Adder

10W

Max/Idle Uplink Power Adder

JL078A: 4W/3W

JL079A: 7W/3W

JL081A: 4W/3W

JL083A: 11W/4W

Maximum Heat Dissipation* (Max Case)

531.96

PoE Power (Max Possible)

1440W

Notes:

­ Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This is a modular product.

­ *Switch + 2 power supplies + one JL083A Uplink. For most accurate heat dissipation, idle and max power for any combination of chassis and accessories, please consult configurator.

Safety

EN 60950/IEC 60950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; EN 60825; CSA 22.2 60950-1; EN62479:2010; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1, Ed. 2; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825:2007; EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1; UL 62368-1 Ed.2

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

Immunity

Generic

EN55022: 2010

EN

EN55024: 2010

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods

Harmonics

EN61000-3-2:2006 +A1:2009 +A2:2009 Class A

Flicker

EN61000-3-3:2008

Management

Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); In-line and out-of-band; Out-of-band management (serial RS-232c or micro usb)

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.





Aruba 3810M 16SFP+ 2-slot Switch (JL075A)

Included accessories

1 Aruba 3810 Switch Fan Tray (JL088A)

I/O ports and slots

16 SFP+ fixed 1000/10000 SFP+ ports; Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 16 support MACSec

2 open module slots

Supports a maximum of 8 SFP+ ports or 2 40GbE ports, with optional module

Additional ports and slots

1 stacking module slot

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 dual-personality (RJ-45 or USB micro-B)

Power supplies

2 power supply slots

1 minimum power supply required (ordered separately)

Fan tray

includes: 1 x JL088A

1 fan tray slot

Switch ships with 1 JL088A fan tray installed. Spares ordered separately.

Physical characteristics

Dimensions

17.42(w) x 16.98(d) x 1.73(h) in (44.25 x 43.13 x 4.39 cm) (1U height)

Weight

13.28 lb (6.02 kg)

Memory and processor

P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card

Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only

Performance

IPv6 Ready Certified



1000 Mb Latency

< 2.8 µs (FIFO 64-byte packets)

10 Gbps Latency

< 1.8 µs (FIFO 64-byte packets)

40 Gbps Latency

< 1.5 µs (FIFO 64-byte packets)

Throughput

up to 285.7 Mpps (64-byte packets)

Routing/Switching capacity

480 Gbps

Switch fabric speed

508 Gbps

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 104°F (40°C), noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

15% to 90% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 39 dB, Pressure: 22.3 dB

Primary Airflow Direction

Front-to-side and front-to-rear



Electrical Characteristics

Frequency

50/60Hz

Voltage

JL085A PSU: 100-127/200-240 VAC

Current

JL085A PSU (Each): 1A/0.5A

Max/Idle Power Rating (Switch+ 1 PSU)

120W/95W

Second PSU Power Adder

10W

Max/Idle Uplink Power Adder

JL078A: 4W/3W

JL079A: 7W/3W

JL081A: 4W/3W

JL083A: 11W/4W

Maximum Heat Dissipation* (Max Case)

480.81

PoE Power (Max Possible)

N/A

Notes:

­ Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This is a modular product.

­ *Switch + 2 power supplies + one JL083A Uplink. For most accurate heat dissipation, idle and max power for any combination of chassis and accessories, please consult configurator

Safety

EN 60950/IEC 60950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; EN 60825; CSA 22.2 60950-1; EN62479:2010; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1, Ed. 2; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825:2007; EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1; UL 62368-1 Ed.2

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

Immunity

Generic

EN55022: 2010

EN

EN55024: 2010

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods

Harmonics

EN61000-3-2:2006 +A1:2009 +A2:2009 Class A

Flicker

EN61000-3-3:2008

Management

Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); In-line and out-of-band; Out-of-band management (serial RS-232c or micro usb)

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.



Aruba 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL076A)

Included accessories

1 Aruba 3810 Switch Fan Tray (JL088A)

I/O ports and slots

40 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 40 support MACSec

8 RJ-45 HPE Smart Rate Multi-Gigabit ports (100M, 1/2.5/5GBASE-T and 10GBASE-T); Ports 1 - 8 support MACSec

1 open module slot

Supports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module

Additional ports and slots

1 stacking module slot

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 dual-personality (RJ-45 or USB micro-B)

Power supplies

2 power supply slots

1 minimum power supply required (ordered separately)

Fan tray

includes: 1 x JL088A

1 fan tray slot

Switch ships with 1 JL088A fan tray installed. Spares ordered separately.

Physical characteristics

Dimensions

17.42(w) x 16.98(d) x 1.73(h) in (44.25 x 43.13 x 4.39 cm) (1U height)

Weight

13.61 lb (6.17 kg)

Memory and processor

P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card

Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only

Performance

IPv6 Ready Certified



1000 Mb Latency

< 2.8 µs (FIFO 64-byte packets)

10 Gbps Latency

< 1.8 µs (FIFO 64-byte packets)

40 Gbps Latency

< 1.5 µs (FIFO 64-byte packets)

Throughput

up to 273.8 Mpps (64-byte packets)

Routing/Switching capacity

480 Gbps

Switch fabric speed

508 Gbps

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 104°F (40°C), noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

15% to 90% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 49 dB, Pressure: 31.5 dB

Primary Airflow Direction

Front-to-side and front-to-rear



Electrical Characteristics

Frequency

50/60Hz

Voltage

JL086A PSU: 100-127/200-240 VAC

JL087A PSU: 110-127/200-240 VAC

Current

JL086A PSU (Each): 5A/2.5A

JL087A PSU (Each): 8.5A/5A

Max/Idle Power Rating (Switch+ 1 PSU)

190W/158W

Second PSU Power Adder

10W

Max/Idle Uplink Power Adder

JL078A: 4W/3W

JL079A: 7W/3W

JL081A: 4W/3W

JL083A: 11W/4W

Maximum Heat Dissipation* (Max Case)

719.51

PoE Power (Max Possible)

1440W

Notes:

­ Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This is a modular product.

­ *Switch + 2 power supplies + one JL083A Uplink. For most accurate heat dissipation, idle and max power for any combination of chassis and accessories, please consult configurator.

Safety

EN 60950/IEC 60950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; EN 60825; CSA 22.2 60950-1; EN62479:2010; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1, Ed. 2; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825:2007; EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1; UL 62368-1 Ed.2

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

Immunity

Generic

EN55022: 2010

EN

EN55024: 2010

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods

Harmonics

EN61000-3-2:2006 +A1:2009 +A2:2009 Class A

Flicker

EN61000-3-3:2008

Management

Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); In-line and out-of-band; Out-of-band management (serial RS-232c or micro usb)

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.



Aruba 3810M 48G PoE+ 4SFP+ 680W Switch (JL428A)

Included accessories

1 Aruba 3810M 48G PoE+ 1-slot Switch (JL074A)

1 Aruba X372 54VDC 680W Power Supply (JL086A)

1 Aruba 3810M 4SFP+ Module (JL083A)

1 Aruba 3810 Switch Fan Tray (JL088A)

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE- TX: half or full; 1000BASE-T: full only; Ports 1 - 48 support MACSec

1 open module slot

Supports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module

Additional ports and slots

1 stacking module slot

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 dual-personality (RJ-45 or USB micro-B)

Power supplies

2 power supply slots

1 minimum power supply required (ordered separately)

Fan tray

includes: 1 x JL088A

1 fan tray slot

Switch ships with 1 JL088A fan tray installed. Spares ordered separately.

Physical characteristics

Dimensions

17.42(w) x 16.98(d) x 1.73(h) in (44.25 x 43.13 x 4.39 cm) (1U height)

Weight

13.62 lb (6.18 kg)

Memory and processor

P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card

Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only

Performance

IPv6 Ready Certified



1000 Mb Latency

< 2.8 µs (FIFO 64-byte packets)

10 Gbps Latency

< 1.8 µs (FIFO 64-byte packets)

40 Gbps Latency

< 1.5 µs (FIFO 64-byte packets)

Throughput

up to 190.5 Mpps (64-byte packets)

Routing/Switching capacity

320 Gbps

Switch fabric speed

338 Gbps

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 104°F (40°C), noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

15% to 90% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 47 dB, Pressure: 29.4 dB

Primary Airflow Direction

Front-to-side and front-to-rear



Electrical Characteristics

Frequency

50/60Hz

Voltage

JL085A PSU: 100-127/200-240 VAC

Current

JL085A PSU (Each): 1A/0.5A

Max/Idle Power Rating (Switch+ 1 PSU)

70W/55W

Second PSU Power Adder

10W

Max/Idle Uplink Power Adder

JL078A: 4W/3W

JL079A: 7W/3W

JL081A: 4W/3W

JL083A: 11W/4W

Maximum Heat Dissipation* (Max Case)

310.31

PoE Power (Max Possible)

N/A

Notes:

­ Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This is a modular product.

­ *Switch + 2 power supplies + one JL083A Uplink. For most accurate heat dissipation, idle and max power for any combination of chassis and accessories, please consult configurator.

Safety

EN 60950/IEC 60950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; EN 60825; CSA 22.2 60950-1; EN62479:2010; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1, Ed. 2; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825:2007; EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1; UL 62368-1 Ed.2

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

Immunity

Generic

EN55022: 2010

EN

EN55024: 2010

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods

Harmonics

EN61000-3-2:2006 +A1:2009 +A2:2009 Class A

Flicker

EN61000-3-3:2008

Management

Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); In-line and out-of- band; Out-of-band management (serial RS-232c or micro usb)

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.



Aruba 3810M 48G PoE+ 4SFP+ 1050W Switch (JL429A)

Included accessories

1 Aruba 3810M 48G PoE+ 1-slot Switch (JL074A)

1 Aruba X372 54VDC 1050W Power Supply (JL087A)

1 Aruba 3810M 4SFP+ Module (JL083A)

1 Aruba 3810 Switch Fan Tray (JL088A)

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE- TX: half or full; 1000BASE-T: full only; Ports 1 - 48 support MACSec

1 open module slot

Supports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module

Additional ports and slots

1 stacking module slot

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 dual-personality (RJ-45 or USB micro-B)

Power supplies

2 power supply slots

1 minimum power supply required (ordered separately)

Fan tray

includes: 1 x JL088A 1 fan tray slot

Switch ships with 1 JL088A fan tray installed. Spares ordered separately.

Physical characteristics

Dimensions

17.42(w) x 16.98(d) x 1.73(h) in (44.25 x 43.13 x 4.39 cm) (1U height)

Weight

13.62 lb (6.18 kg)

Memory and processor

P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card

Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only

Performance

IPv6 Ready Certified



1000 Mb Latency

< 2.8 µs (FIFO 64-byte packets)

10 Gbps Latency

< 1.8 µs (FIFO 64-byte packets)

40 Gbps Latency

< 1.5 µs (FIFO 64-byte packets)

Throughput

up to 190.5 Mpps (64-byte packets)

Routing/Switching capacity

320 Gbps

Switch fabric speed

338 Gbps

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 104°F (40°C), noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

15% to 90% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 47 dB, Pressure: 29.4 dB

Primary Airflow Direction

Front-to-side and front-to-rear



Electrical Characteristics

Frequency

50/60Hz

Voltage

JL085A PSU: 100-127/200-240 VAC

Current

JL085A PSU (Each): 1A/0.5A

Max/Idle Power Rating (Switch+ 1 PSU)

70W/55W

Second PSU Power Adder

10W

Max/Idle Uplink Power Adder

JL078A: 4W/3W

JL079A: 7W/3W

JL081A: 4W/3W

JL083A: 11W/4W

Maximum Heat Dissipation* (Max Case)

310.31

PoE Power (Max Possible)

N/A

Notes:

­ Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This is a modular product.

­ *Switch + 2 power supplies + one JL083A Uplink. For most accurate heat dissipation, idle and max power for any combination of chassis and accessories, please consult configurator.

Safety

EN 60950/IEC 60950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; EN 60825; CSA 22.2 60950-1; EN62479:2010; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1, Ed. 2; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825:2007; EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1; UL 62368-1 Ed.2

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

Immunity

Generic

EN55022: 2010

EN

EN55024: 2010

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods

Harmonics

EN61000-3-2:2006 +A1:2009 +A2:2009 Class A

Flicker

EN61000-3-3:2008

Management

Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); In-line and out-of- band; Out-of-band management (serial RS-232c or micro usb)

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.



Aruba 3810M 24SFP+ 250W Switch (JL430A)

Included accessories

1 Aruba 3810M 16SFP+ 2-slot Switch (JL075A)

1 Aruba X371 12VDC 250W Power Supply (JL085A)

2 Aruba 3810M 4SFP+ Module (JL083A)

1 Aruba 3810 Switch Fan Tray (JL088A)

I/O ports and slots

16 SFP+ fixed 1000/10000 SFP+ ports; Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; Ports

1 - 16 support MACSec

2 open module slots

Supports a maximum of 8 SFP+ ports or 2 40GbE ports, with optional module

Additional ports and slots

1 stacking module slot

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 dual-personality (RJ-45 or USB micro-B)

Power supplies

2 power supply slots

1 minimum power supply required (ordered separately)

Fan tray

includes: 1 x JL088A

1 fan tray slot

Switch ships with 1 JL088A fan tray installed. Spares ordered separately.

Physical characteristics

Dimensions

17.42(w) x 16.98(d) x 1.73(h) in (44.25 x 43.13 x 4.39 cm) (1U height)

Weight

13.28 lb (6.02 kg)

Memory and processor

P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card

Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only

Performance

IPv6 Ready Certified



1000 Mb Latency

< 2.8 µs (FIFO 64-byte packets)

10 Gbps Latency

< 1.8 µs (FIFO 64-byte packets)

40 Gbps Latency

< 1.5 µs (FIFO 64-byte packets)

Throughput

up to 285.7 Mpps (64-byte packets)

Routing/Switching capacity

480 Gbps

Switch fabric speed

508 Gbps

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 104°F (40°C), noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

15% to 90% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 39 dB, Pressure: 22.3 dB

Primary Airflow Direction

Front-to-side and front-to-rear



Electrical Characteristics

Frequency

50/60Hz

Voltage

JL085A PSU: 100-127/200-240 VAC

Current

JL085A PSU (Each): 1A/0.5A

Max/Idle Power Rating (Switch+ 1 PSU)

142W/103W

Second PSU Power Adder

10W

Max/Idle Uplink Power Adder

JL078A: 4W/3W

JL079A: 7W/3W

JL081A: 4W/3W

JL083A: 11W/4W

Maximum Heat Dissipation* (Max Case)

310.31

PoE Power (Max Possible)

N/A

Notes:

­ Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This is a modular product.

­ *Switch + 2 power supplies + one JL083A Uplink. For most accurate heat dissipation, idle and max power for any combination of chassis and accessories, please consult configurator.

Safety

EN 60950/IEC 60950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; EN 60825; CSA 22.2 60950-1; EN62479:2010; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1, Ed. 2; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825:2007; EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1; UL 62368-1 Ed.2

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

Immunity

Generic

EN55022: 2010

EN

EN55024: 2010

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods

Harmonics

EN61000-3-2:2006 +A1:2009 +A2:2009 Class A

Flicker

EN61000-3-3:2008

Management

Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); In-line and out-of- band; Out-of-band management (serial RS-232c or micro usb)

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.



Standards and protocols

Applies to all products in series

General Protocols

  • IEEE 802.1ad Q-in-Q
  • IEEE 802.1AX-2008 Link Aggregation
  • IEEE 802.1D MAC Bridges
  • IEEE 802.1p Priority
  • IEEE 802.1Q VLANs
  • IEEE 802.1s Multiple Spanning Trees
  • IEEE 802.1v VLAN classification by Protocol and Port
  • IEEE 802.1w Rapid Reconfiguration of Spanning Tree
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • IEEE 802.3af Power over Ethernet
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.3x Flow Control
  • IEEE 802.3bz 2.5Gb/s and 5Gb/s interfaces
  • RFC 768 UDP
  • RFC 783 TFTP Protocol (revision 2)
  • RFC 792 ICMP
  • RFC 793 TCP
  • RFC 826 ARP
  • RFC 854 TELNET
  • RFC 868 Time Protocol
  • RFC 951 BOOTP
  • RFC 1058 RIPv1
  • RFC 1350 TFTP Protocol (revision 2)
  • RFC 1519 CIDR
  • RFC 1542 BOOTP Extensions
  • RFC 1918 Address Allocation for Private Internet
  • RFC 2030 Simple Network Time Protocol (SNTP) v4
  • RFC 2131 DHCP
  • RFC 2453 RIPv2
  • RFC 2548 (MS-RAS-Vendor only)
  • RFC 3046 DHCP Relay Agent Information Option
  • RFC 3575 IANA Considerations for RADIUS
  • RFC 3576 Ext to RADIUS (CoA only)
  • RFC 3768 VRRP
  • RFC 4675 RADIUS VLAN & Priority
  • RFC 5798 VRRP (exclude Accept Mode and sub-sec timer)
  • RFC 5880 Bidirectional Forwarding Detection
  • RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification
  • UDLD (Uni-directional Link Detection)

BGP

  • RFC 1997 BGP Communities Attribute
  • RFC 2918 Route Refresh Capability
  • RFC 4271 A Border Gateway Protocol 4 (BGP-4)
  • RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP)
  • RFC 4724 Graceful Restart Mechanism for BGP
  • RFC 5492 Capabilities Advertisement with BGP-4



IPv6

  • RFC 1981 IPv6 Path MTU Discovery
  • RFC 2080 RIPng for IPv6
  • RFC 2081 RIPng Protocol Applicability Statement
  • RFC 2082 RIP-2 MD5
  • RFC 2375 IPv6 Multicast Address Assignments
  • RFC 2460 IPv6 Specification
  • RFC 2464 Transmission of IPv6 over Ethernet Networks
  • RFC 2710 Multicast Listener Discovery (MLD) for IPv6
  • RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only)
  • RFC 3019 MLDv1 MIB
  • RFC 3315 DHCPv6 (client only)
  • RFC 3484 Default Address Selection for IPv6
  • RFC 3587 IPv6 Global Unicast Address Format
  • RFC 3596 DNS Extension for IPv6
  • RFC 3810 MLDv2 for IPv6
  • RFC 4022 MIB for TCP
  • RFC 4087 IP Tunnel MIB
  • RFC 4113 MIB for UDP
  • RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers
  • RFC 4251 SSHv6 Architecture
  • RFC 4252 SSHv6 Authentication
  • RFC 4253 SSHv6 Transport Layer
  • RFC 4254 SSHv6 Connection
  • RFC 4291 IP Version 6 Addressing Architecture
  • RFC 4293 MIB for IP
  • RFC 4294 IPv6 Node Requirements
  • RFC 4419 Key Exchange for SSH
  • RFC 4443 ICMPv6
  • RFC 4541 IGMP & MLD Snooping Switch
  • RFC 4861 IPv6 Neighbor Discovery
  • RFC 4862 IPv6 Stateless Address Auto-configuration
  • RFC 5095 Deprecation of Type 0 Routing Headers in IPv6
  • RFC 5340 OSPFv3 for IPv6
  • RFC 5453 Reserved IPv6 Interface Identifiers
  • RFC 5519 Multicast Group Membership Discovery MIB (MLDv2 only)
  • RFC 5722 Handling of Overlapping IPv6 Fragments
  • RFC 6620 FCFS SAVI



Device Management

  • RFC 1591 DNS (client)
  • RFC 2576 (Coexistence between SNMP V1, V2, V3)
  • RFC 2579 (SMIv2 Text Conventions)
  • RFC 2580 (SMIv2 Conformance)
  • RFC 3416 (SNMP Protocol Operations v2)
  • RFC 3417 (SNMP Transport Mappings)
  • HTML and telnet management



Denial of service protection

  • CPU DoS Protection



IP Multicast

  • RFC 3376 IGMPv3
  • RFC 3973 PIM Dense Mode
  • RFC 4601 PIM Sparse Mode



MIBs

  • IEEE 802.1ap (MSTP and STP MIB's only)
  • IEEE 8021-Bridge-MIB (2008)
  • IEEE 8021-Q-Bridge-MIB (2008)
  • RFC 1155 Structure & ID of Mgmt Info for TCP/IP Internets
  • RFC 1213 MIB II
  • RFC 1493 Bridge MIB
  • RFC 1724 RIPv2 MIB
  • RFC 1850 OSPFv2 MIB
  • RFC 2021 RMONv2 MIB
  • RFC 2096 IP Forwarding Table MIB
  • RFC 2578 Structure of Management Information Version 2 (SMIv2)
  • RFC 2613 SMON MIB
  • RFC 2618 RADIUS Client MIB
  • RFC 2620 RADIUS Accounting MIB
  • RFC 2665 Ethernet-Like-MIB
  • RFC 2668 802.3 MAU MIB
  • RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
  • RFC 2737 Entity MIB (Version 2)
  • RFC 2787 VRRP MIB
  • RFC 2863 The Interfaces Group MIB
  • RFC 2925 Ping MIB
  • RFC 2932 IP (Multicast Routing MIB)
  • RFC 2933 IGMP MIB
  • RFC 4836 Managed Objects for 802.3 Medium Attachment Units (MAU)
  • RFC 7331 BFD MIB



Network Management

  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
  • RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
  • RFC 3176 sFlow
  • RFC 3411 SNMP Management Frameworks
  • RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP)
  • RFC 3413 Simple Network Management Protocol (SNMP) Applications
  • RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
  • RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)
  • RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)
  • RFC 5424 Syslog Protocol
  • ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
  • SNMPv1/v2c/v3
  • XRMON



OSPF

  • RFC 2328 OSPFv2
  • RFC 3101 OSPF NSSA
  • RFC 3623 Graceful OSPF Restart (Unplanned Outages only)
  • RFC 5340 OSPFv3 for IPv6



QoS/CoS

  • RFC 2474 DiffServ Precedence, including 8 queues/port
  • RFC 2475 DiffServ Architecture
  • RFC 2597 DiffServ Assured Forwarding (AF)
  • RFC 2598 DiffServ Expedited Forwarding (EF)



Security

  • IEEE 802.1X Port Based Network Access Control
  • RFC 1321 The MD5 Message-Digest Algorithm
  • RFC 2698 A Two Rate Three Color Marker
  • RFC 2818 HTTP Over TLS
  • RFC 2865 RADIUS (client only)
  • RFC 2866 RADIUS Accounting
  • RFC 3579 RADIUS Support For Extensible Authentication Protocol (EAP)
  • RFC 6614 Transport Layer Security (TLS) Encryption over Radius (RadSec)
  • RFC 7030 Enrollment over Secure Transport
  • Secure Sockets Layer (SSL)
  • SSHv2 Secure Shell

Summary of Changes

Date

Version History

Action

Description of Change

01-Apr-2024

Version 28

Changed

Configuration Information sections was updated.

15-May-2023

Version 27

Changed

Configuration Information sections was updated.

05-Dec-2022

Version 26

Changed

Configuration Information sections was updated.

07-Nov-2022

Version 25

Changed

Configuration Information sections was updated.

28-Jun-2021

Version 24

Changed

Standard Features and Configuration Information sections were updated.

08-Mar-2021

Version 23

Changed

SKUs added in Configuration Information section.

08-Sep-2020

Version 22

Changed

Configuration Information sections was updated.

06-Apr-2020

Version 21

Changed

Standard Features- Warranty and Configuration Information sections were updated.

01-Jul-2019

Version 20

Changed

Standard Features and Technical Specifications sections were updated.

Obsolete SKUs were removed.

04-Mar-2019

Version 19

Changed

SKU J9151D was replaced with J9151E

CTO models were removed.

Obsolete SKUs were removed.

03-Dec-2018

Version 18

Changed

Software feature update: Key features, Product overview and Enhanced Capabilities updated

02-Jul-2018

Version 17

Changed

Software feature update

07-May-2018

Version 16

Added

Edits made on Configuration section and Technical Specifications

05-Mar-2018

Version 15

Changed

Configuration section updated.

05-Feb-2018

Version 14

Changed

Configuration section updated.

Document name updated to match Product Master.

08-Jan-2018

Version 13

Changed

Software feature update

07-Aug-2017

Version 12

Added

SKU added: JL308A

03-Jul-2017

Version 11

Added

SKU added: JL448A

08-May-2017

Version 10

Changed

Configuration section updated

03-Apr-2017

Version 9

Changed

Modules updated on Configuration section

17-Feb-2017

Version 8

Changed

Configuration section updated (Adding #B2B, #B2C, and #B2E Options on SKUs JL428A; JL429A and JL430A)

09-Jan-2017

Version 7

Added

Models added: JL428A, JL429A, JL430A

07-Nov-2016

Version 6

Changed

Product overview, Features and Benefits updated

19-Aug-2016

Version 5

Changed

Configuration section updated. Minor changes made on Technical Specifications.

06-Jun-2016

Version 4

Changed

Features and Benefits, Standards and Protocols, Accessories updated. SKU descriptions updated.

18-Mar-2016

Version 3

Changed

Minor edits on Features and Benefits, Switch family photo added.

11-Dec-2015

Version 2

Changed

Standards and protocols and Configuration Menu updated

01-Dec-2015

Version 1

New

New QuickSpecs



Copyright

Make the right purchase decision. Contact our presales specialists.









HewlettPackardEnterpriseLogo



© Copyright 2024 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.



To learn more, visit: http://www.hpe.com/networking



c04843019 - 15438 - Worldwide  - V28 - 01-April-2024
