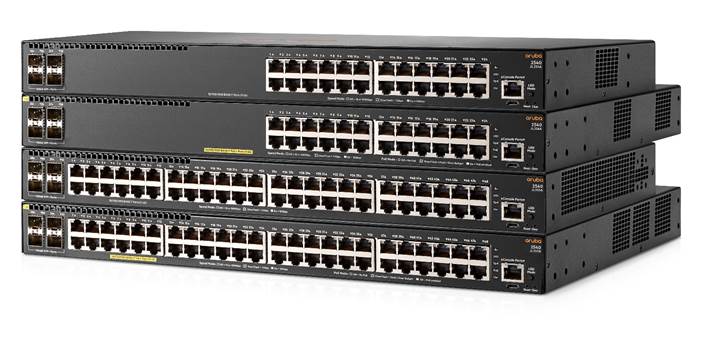

Aruba 2540 Switch Series
Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for today's mobile and IoT needs. The switches are easy to deploy, use and manage using Aruba AirWave or Aruba Central. Aruba ClearPass offers centralized security and external captive portal support. The Aruba 2540 Switch Series provides a convenient and cost-effective wired access solution that can be quickly set up with Zero Touch Provisioning. PoE+ models deliver power across all access ports for wireless APs, security cameras and other IoT devices. The 2540 has wire speed backhaul bandwidth capacity with built-in 10GbE uplinks, robust QoS, static & RIP routing, IPv6 and includes a limited lifetime warranty with no software licensing required.


Aruba 2540 Switch Series

Models
Aruba 2540 24G 4SFP+ Switch	JL354A
Aruba 2540 48G 4SFP+ Switch	JL355A
Aruba 2540 24G PoE+ 4SFP+ Switch	JL356A
Aruba Central Managed 2540 24G PoE+ 4SFP+ Switch	JL356ACM
Aruba 2540 48G PoE+ 4SFP+ Switch	JL357A

Key Features Aruba Layer 2 switch series with Static and RIP routing, ACLs and robust QoS Security and network management via Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central Simple deployment with Zero Touch Provisioning Convenient 10GbE uplinks and up to 370W PoE+ Software-defined ready with REST APIs

Unified Wired and Wireless

Software-defined networks

supports REST APIs to enable automation of network operations, monitoring, and troubleshooting

Supports unified wired and wireless policies

using Aruba ClearPass Policy Manager

Switch auto-configuration

automatically configures switch for different settings such as VLAN, CoS, PoE max power, and PoE priority when an Aruba access point is detected

User role

defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switch-based local user role or download from ClearPass

Static IP Visibility

provides a way for ClearPass to do accounting for clients with static IP address

Quality of Service (QoS)

Traffic prioritization (IEEE 802.1p)

allows real-time traffic classification into eight priority levels mapped to eight queues

Layer 4 prioritization

based on TCP/UDP port numbers

Class of Service (CoS)

sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ

Rate limiting

sets per-port ingress enforced maximums and per-port, per-queue minimums

Large buffers

Provide graceful congestion management

Connectivity

Flexible 10 Gb/s Ethernet connectivity

four fixed 10 Gigabit ports (SFP+)

Auto-MDIX

provides automatic adjustments for straight-through or crossover cables on all 10/100 and 10/100/1000 ports

IEEE 802.3at Power over Ethernet (PoE+)

provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments

Pre-standard PoE support

detects and provides power to pre-standard PoE devices

IPv6

- IPv6 host

enables switches to be managed in an IPv6 network

- Dual stack (IPv4 and IPv6)

transitions from IPv4 to IPv6, supporting connectivity for both protocols

- MLD snooping

forwards IPv6 multicast traffic to the appropriate interface

- IPv6 ACL/QoS

supports ACL and QoS for IPv6 network traffic

- IPv6 routing

supports static and RIPng protocols

- Security

provides RA guard, DHCPv6 protection, dynamic IPv6 lockdown, and ND snooping

Performance and efficiency

Energy-efficient design delivers power savings

- 80 PLUS Silver Certified power supply:

increases efficiency and savings

- Energy-efficient Ethernet (EEE) support

reduces power consumption in accordance with IEEE 802.3az

Designed with the latest Aruba ProVision ASIC

provides very low latency, increased packet buffering, and adaptive power consumption

Selectable queue configurations

allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications

Convergence

IP multicast snooping and IGMP

automatically prevent flooding of IP multicast traffic

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

facilitates easy mapping using network management applications with LLDP automated device discovery protocol

LLDP-MED (Media Endpoint Discovery)

defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to configure automatically network devices such as IP phones

PoE and PoE+ allocations

support multiple methods (automatic, IEEE 802.3at dynamic, LLDP-MED fine grain, IEEE 802.3af device class, or user-specified) to allocate and manage PoE/PoE+ power for more efficient energy savings

Local MAC Authentication

assigns attributes such as VLAN and QoS using locally configured profile that can be a list of MAC prefixes

Resiliency and high availability

IEEE 802.1s Multiple Spanning Tree

provides high link availability by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w

IEEE 802.3ad link-aggregation-control protocol (LACP) and port trunking

support up to 26 static or dynamic trunks with each trunk having up to eight links (ports) per static trunk

SmartLink

provides easy-to-configure link redundancy of active and standby links

Simplified configuration and management

SNMPv1, v2, and v3

provide complete support of SNMP; support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption

Zero-Touch ProVisioning (ZTP)

simplifies installation of the switch using Aruba Activate or a DHCP-based process with AirWave Network Management

Flexible management with same hardware

supports both cloud-based Central and on-premise AirWave without ripping and replacing switching infrastructure

Aruba Central support

cloud based management platform offers simple, secure, and cost effective way to manage switches

Layer 3 services

DHCP server
centralizes and reduces the cost of IPv4 address management

Layer 2 switching

Jumbo packet support
improves the performance of large data transfers; supports frame size of up to 9220 bytes
IEEE 802.1v protocol VLANs
isolate select non-IPv4 protocols automatically into their own VLANs
Rapid Per-VLAN Spanning Tree (RPVST+)
allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+
GVRP and MVRP
allows automatic learning and dynamic assignment of VLANs
VLAN support and tagging
supports IEEE 802.1Q (4094 VLAN IDs) and 512 VLANs simultaneously

Layer 3 routing

Static IP routing
provides manually configured routing; includes ECMP capability
256 static and 2,000 RIP route
facfacilitate segregation of user data, without adding external hardware
Routing Information Protocol (RIP)
provides RIPv1, RIPv2, and RIPng routing

Manageability

Dual flash images

provide independent primary and secondary operating system files for backup while upgrading

Friendly port names

allow assignment of descriptive names to ports

Find-Fix-Inform

finds and fixes common network problems automatically, then informs administrator

Multiple configuration files

allow multiple configuration files to be stored to a flash image

Software updates

free downloads from the Web

RMON, XRMON, and sFlow

provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events

Troubleshooting

ingress and egress port monitoring enable more efficient problem solving

Uni-Directional Link Detection (UDLD)

monitors the link between two switches and blocks the ports on both ends of the link if the link goes down at any point between the two devices

IP SLA for voice

monitor quality of voice traffic using the UDP Jitter and UDP Jitter for VoIP tests.

Monitor and diagnostics

Digital optical monitoring of SFP+ and 1000BASE-T transceivers
allows detailed monitoring of the transceiver settings and parameters

Warranty and support

Limited Lifetime Warranty

see http://www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.

Software releases

to find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary

Security

Multiple user authentication methods

- IEEE 802.1X

uses an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server to authenticate in accordance with industry standards

- Web-based authentication

provides a browser-based environment, similar to IEEE 802.1X, to authenticate clients that do not support the IEEE 802.1X supplicant

- Supports MAC-based authentication

using MAC address

Authentication flexibility

- Multiple IEEE 802.1X users per port

provides authentication of multiple devices on a single port; prevents a user from "piggybacking" on another user's IEEE 802.1X authentication

- Concurrent IEEE 802.1X, Web, and MAC authentication schemes per port

switch port will accept up to 32 sessions of IEEE 802.1X, Web, and MAC authentications

Access control lists (ACLs)
provide IP Layer 3 filtering based on source/destination IP address/subnet and source/destination TCP/UDP port number
Source-port filtering
allows only specified ports to communicate with each other
RADIUS/TACACS+
eases switch management security administration by using a password authentication server
Secure shell
encrypts all transmitted data for secure remote CLI access over IP networks
Secure Sockets Layer (SSL)
encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
Port security
allows access only to specified MAC addresses, which can be learned or specified by the administrator
MAC address lockout
prevents particular configured MAC addresses from connecting to the network
Secure FTP

allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file

Switch management logon security
helps secure switch CLI logon by optionally requiring either RADIUS or TACACS+ authentication
STP BPDU port protection
blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
DHCP protection
blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
Dynamic ARP protection
blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
Dynamic IP lockdown
works with DHCP protection to block traffic from unauthorized hosts, preventing IP source address spoofing
STP Root Guard
protects the root bridge from malicious attacks or configuration mistakes
Identity-driven ACL

enables implementation of a highly granular and flexible access security policy and VLAN assignment specific to each authenticated network user

Per-port broadcast throttling
configures broadcast control selectively on heavy traffic port uplinks

Build To Order BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.
Rule #	Description	SKU
1, 2, 3	Aruba 2540 24G 4SFP+ Switch	JL354A
	24 RJ-45 autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	PDU Cable NA/MEX/TW/JP	JL354A #B2B
	HPE 2M C14 to C13 Power Cord (J9959A)
	PDU CABLE ROW	JL354A #B2C
	HPE 2M C14 to C13 Power Cord (J9959A)
	High Volt Switch to Wall Power Cord	JL354A #B2E
	HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
	No Power Cord	JL354A #AC3
	No Localized Power Cord Selected
1, 2, 3	Aruba 2540 48G 4SFP+ Switch	JL355A
	48 RJ-45 autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	Aruba 2540 48G 4SFP+ Switch PDU NA, JP or TW	JL355A#B2B
	HPE 2M C14 to C13 Power Cord (J9959A)
	Aruba 2540 48G 4SFP+ Switch PDU ROW	JL355A#B2C
	HPE 2M C14 to C13 Power Cord (J9959A)
	Aruba 2540 48G 4SFP+ Switch United States 220 volt	JL355A#B2E
	HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
	Aruba 2540 48G 4SFP+ Switch	JL355A#AC3
	No Localized Power Cord Selected
1, 2, 3	Aruba 2540 24G PoE+ 4SFP+ Switch	JL356A
	24 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	Aruba 2540 24G PoE+ 4SFP+ Switch PDU NA, JP or TW	JL356A#B2B
	HPE 2M C14 to C13 Power Cord (J9959A)
	Aruba 2540 24G PoE+ 4SFP+ Switch PDU ROW	JL356A#B2C
	HPE 2M C14 to C13 Power Cord (J9959A)
	Aruba 2540 24G PoE+ 4SFP+ Switch United States 220 volt	JL356A#B2E
	HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
	Aruba 2540 24G PoE+ 4SFP+ Switch	JL356A#AC3
	No Localized Power Cord Selected
1, 2, 3	Aruba 2540 48G PoE+ 4SFP+ Switch	JL357A
	24 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height

	Aruba 2540 48G PoE+ 4SFP+ Switch PDU NA, JP or TW	JL357A#B2B
	HPE 2M C14 to C13 Power Cord (J9959A)
	Aruba 2540 48G PoE+ 4SFP+ Switch PDU ROW	JL357A#B2C
	HPE 2M C14 to C13 Power Cord (J9959A)
	Aruba 2540 48G PoE+ 4SFP+ Switch United States 220 volt	JL357A#B2E
	HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
	Aruba 2540 48G PoE+ 4SFP+ Switch	JL357A#AC3
	No Localized Power Cord Selected
3 4, 5, 6	Aruba Central Managed 2540 24G PoE+ 4SFP+ Switch	JL356ACM
	24 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	Aruba Central Managed 2540 24G PoE+ 4SFP+ Switch PDU NA, JP or TW	JL356ACM#B2B
	HPE 2.0m C13 to C14 PDU Pwr Cord (J9959A)
	Aruba Central Managed 2540 24G PoE+ 4SFP+ Switch	JL356ACM#AC3
	No Localized Power Cord Selected

	Configuration Rules
Rule #	Description	SKU
1	The following Transceivers install into this Module Switch:
	Aruba 1G SFP LC SX 500m OM2 MMF Transceiver	J4858D
	Aruba 1G SFP LC LX 10km SMF Transceiver	J4859D
	Aruba 1G SFP LC LH 70km SMF Transceiver	J4860D
	Aruba 1G SFP RJ45 T 100m Cat5e Transceiver	J8177D
	Aruba 100M SFP LC FX 2km MMF Transceiver	J9054D
2	The following Transceivers install into this Switch (Use #0D1 quoted to switch if switch is CTO) - if applicable:.
	Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver	J9150D
	Aruba 10G SFP+ LC LR 10km SMF Transceiver	J9151E
	Aruba 10G SFP+ LC ER 40km SMF Transceiver	J9153D
	Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable	J9281D
	Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable	J9283D
3	Localization required on orders without #B2B, #B2C or #B2E options.
4	Central Managed Switch Chassis are available in the US, and Canada only.
5	The following Transceivers install into this Switch:
	Aruba CM 1G SFP LC SX 500m OM2 MMF Transceiver	J4858DCM
	Aruba CM 1G SFP LC LX 10km SMF Transceiver	J4859DCM
	Aruba CM 1G SFP LC LH 70km SMF Transceiver	J4860DCM
	Aruba CM 1G SFP RJ45 T 100m Cat5e Transceiver	J8177DCM
	Aruba CM 100M SFP LC FX 2km MMF Transceiver	J9054DCM
6	The following Transceivers install into this Switch:
	Aruba CM 10G SFP+ LC SR 300m OM3 MMF Transceiver	J9150DCM
	Aruba CM 10G SFP+ LC LR 10km SMF Transceiver	J9151ECM

Rack Level Integration CTO Models
Rule #	Description	SKU
1, 2, 3, 4, 5	Aruba 2540 24G 4SFP+ Switch	JL354A
	24 RJ-45 autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	PDU Cable NA/MEX/TW/JP	JL354A #B2B
	HPE 2M C14 to C13 Power Cord (J9959A)
	PDU CABLE ROW	JL354A #B2C
	HPE 2M C14 to C13 Power Cord (J9959A)
	High Volt Switch to Wall Power Cord	JL354A #B2E
	HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
	No Power Cord	JL354A #AC3
	No Localized Power Cord Selected
1, 2, 3, 4, 5	Aruba 2540 48G 4SFP+ Switch	JL355A
	48 RJ-45 autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	Aruba 2540 48G 4SFP+ Switch PDU NA, JP or TW	JL355A#B2B
	HPE 2M C14 to C13 Power Cord (J9959A)
	Aruba 2540 48G 4SFP+ Switch PDU ROW	JL355A#B2C
	HPE 2M C14 to C13 Power Cord (J9959A)
	Aruba 2540 48G 4SFP+ Switch United States 220 volt	JL355A#B2E
	HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
	Aruba 2540 48G 4SFP+ Switch	JL355A#AC3
	No Localized Power Cord Selected
1, 2, 3, 4, 5	Aruba 2540 24G PoE+ 4SFP+ Switch	JL356A
	24 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	Aruba 2540 24G PoE+ 4SFP+ Switch PDU NA, JP or TW	JL356A#B2B
	HPE 2M C14 to C13 Power Cord (J9959A)
	Aruba 2540 24G PoE+ 4SFP+ Switch PDU ROW	JL356A#B2C
	HPE 2M C14 to C13 Power Cord (J9959A)
	Aruba 2540 24G PoE+ 4SFP+ Switch United States 220 volt	JL356A#B2E
	HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
	Aruba 2540 24G PoE+ 4SFP+ Switch	JL356A#AC3
1, 2, 3, 4, 5	Aruba 2540 48G PoE+ 4SFP+ Switch	JL357A
	24 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	Aruba 2540 48G PoE+ 4SFP+ Switch PDU NA, JP or TW	JL357A#B2B
	HPE 2M C14 to C13 Power Cord (J9959A)
	Aruba 2540 48G PoE+ 4SFP+ Switch PDU ROW	JL357A#B2C
	HPE 2M C14 to C13 Power Cord (J9959A)
	Aruba 2540 48G PoE+ 4SFP+ Switch United States 220 volt	JL357A#B2E
	HPE 2.3M C13 to NEMA L6-20P Power Cord(J9936A)
	Aruba 2540 48G PoE+ 4SFP+ Switch	JL357A#AC3

	Configuration Rules
Rule #	Description	SKU
1	The following Transceivers install into this Switch (Use #0D1 qutoed to switch if switch is CTO) - if applicable
	Aruba 1G SFP LC SX 500m OM2 MMF Transceiver	J4858D
	Aruba 1G SFP LC LX 10km SMF Transceiver	J4859D
	Aruba 1G SFP LC LH 70km SMF Transceiver	J4860D
	Aruba 1G SFP RJ45 T 100m Cat5e Transceiver	J8177D
	Aruba 100M SFP LC FX 2km MMF Transceiver	J9054D
2	The following Transceivers install into this Switch (Use #0D1 qutoed to switch if switch is CTO) - if applicable :
	Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver	J9150D
	Aruba 10G SFP+ LC LR 10km SMF Transceiver	J9151E
	Aruba 10G SFP+ LC ER 40km SMF Transceiver	J9153D
	Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable	J9281D
	Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable	J9283D
3	If this switch is factory installed in HPE Racks, Then the J9583A#0D1 is required. CLIC Only - Allow the J9583AZ in all regions.
4	Localization required on orders without #B2B, #B2C, #B2E options.
5	If this Switch Chassis is selected for Rack Level Integration, Then the Switch Chassis needs to integrate (with #0D1) to the HPE Rack.
Notes:	Drop down under power supply should offer the following options and results: Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO) Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO) No Power Cord - #AC3

Cables
Rule #	Description	SKU
	Console Cables
	(std 0 // max 99) User Selection (min 0 // max 99) per switch
	Aruba X2C2 RJ45 to DB9 Console Cable	JL448A
Notes:	Option not available for Central Managed Switch Configuration; Can be ordered Separately if needed.
	Switch Enclosure Options
	Mounting Kit
	(std 0 // max 1) User Selection (min 0 // max 1) per switch
	Aruba X414 1U Universal 4-post Rack Mount Kit	J9583B
Notes:	If this Mounting Kit is order with #0D1 then it integrates to the HPE Universal Rack. (not the switch) Option not available for Central Managed Switch Configuration; Can be ordered Separately if needed.

Transceivers
Rule #	Description	SKU
	SFP Transceivers
	Aruba 100M SFP LC FX 2km MMF Transceiver	J9054D
	Aruba 1G SFP LC SX 500m OM2 MMF Transceiver	J4858D
	Aruba 1G SFP LC LX 10km SMF Transceiver	J4859D
	Aruba 1G SFP LC LH 70km SMF Transceiver	J4860D
	Aruba 1G SFP RJ45 T 100m Cat5e Transceiver	J8177D
	Only for Central Managed Switches
	Aruba CM 100M SFP LC FX 2km MMF Transceiver	J9054DCM
	Aruba CM 1G SFP LC SX 500m OM2 MMF Transceiver	J4858DCM
	Aruba CM 1G SFP LC LX 10km SMF Transceiver	J4859DCM
	Aruba CM 1G SFP LC LH 70km SMF Transceiver	J4860DCM
	Aruba CM 1G SFP RJ45 T 100m Cat5e Transceiver	J8177DCM
	SFP+ Transceivers
	Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver	J9150D
	Aruba 10G SFP+ LC LR 10km SMF Transceiver	J9151E
	Aruba 10G SFP+ LC ER 40km SMF Transceiver	J9153D
	Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable	J9281D
	Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable	J9283D
Notes:	No Support for 10G LRM (J9152D) and no support for 10G 7M DAC (J9285D)
	Only for Central Managed Switches
	Aruba CM 10G SFP+ LC SR 300m OM3 MMF Transceiver	J9150DCM
	Aruba CM 10G SFP+ LC LR 10km SMF Transceiver	J9151ECM

Software
Rule #	Description	SKU
	Central
	Aruba Central 25xx or 8 to 16 port Switch Foundation 1 year Subscription E-STU	Q9Y68AAE
	Aruba Central 25xx or 8 to 16 port Switch Foundation 3 year Subscription E-STU	Q9Y69AAE
	Aruba Central 25xx or 8 to 16 port Switch Foundation 5 year Subscription E-STU	Q9Y70AAE
	Aruba Central 25xx or 8 to 16 port Switch Foundation 7 year Subscription E-STU	Q9Y71AAE
	Aruba Central 25xx or 8 to 16 port Switch Foundation 10 year Subscription E-STU	Q9Y72AAE
Notes:	Add the Central Cloud Skus to the Aruba Catalog as Standalone: Aruba > Network Management > Central > Cloud Services
	Aruba Central On-Premises Switch 25xx/6100 Foundation 1 year Subscription E-STU	R6U73AAE
	Aruba Central On-Premises Switch 25xx/6100 Foundation 3 year Subscription E-STU	R6U74AAE
	Aruba Central On-Premises Switch 25xx/6100 Foundation 5 year Subscription E-STU	R6U75AAE
	Aruba Central On-Premises Switch 25xx/6100 Foundation 7 year Subscription E-STU	R6U76AAE
	Aruba Central On-Premises Switch 25xx/6100 Foundation 10 year Subscription E-STU	R6U77AAE
Notes:	Add the Central On-Prem Skus to the Aruba Catalog as Standalone: Aruba > Network Management > Central > On-Prem Services

	Aruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 1 year COP only TAC E-STU	R8L95AAE
	Aruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 3 year COP only TAC E-STU	R8L96AAE
	Aruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 5 year COP only TAC E-STU	R8L97AAE
	Aruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 7 year COP only TAC E-STU	R8L98AAE
	Aruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 10 year COP only TAC E-STU	R8L99AAE
Notes:	- Add the Central On-Prem Skus to the Aruba Catalog as Standalone: Aruba > Network Management > Central > On-Prem Services - In addition to the platforms identfied, the following Switches can also use this Service:
	Aruba 2930F 12G PoE+ 2G/2SFP+ Switch	JL693A
	Aruba 2930F 8G PoE+ 2SFP+ Switch	JL258A

Aruba 2540 Switch Series accessories
	Transceivers
Rule #	Description	SKU
	Aruba 100M SFP LC FX 2km MMF Transceiver	J9054D
1	Aruba CM 100M SFP LC FX 2km MMF Transceiver	J9054DCM
	Aruba 1G SFP RJ45 T 100m Cat5e Transceiver	J8177D
1	Aruba CM 1G SFP RJ45 T 100m Cat5e Transceiver	J8177DCM
	Aruba 1G SFP LC SX 500m OM2 MMF Transceiver	J4858D
1	Aruba CM 1G SFP LC SX 500m OM2 MMF Transceiver	J4858DCM
	Aruba 1G SFP LC LX 10km SMF Transceiver	J4859D
1	Aruba CM 1G SFP LC LX 10km SMF Transceiver	J4859DCM
	Aruba 1G SFP LC LH 70km SMF Transceiver	J4860D
1	Aruba CM 1G SFP LC LH 70km SMF Transceiver	J4860DCM
	Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver	J9150D
1	Aruba CM 10G SFP+ LC SR 300m OM3 MMF Transceiver	J9150DCM
	Aruba 10G SFP+ LC LR 10km SMF Transceiver	J9151E
1	Aruba CM 10G SFP+ LC LR 10km SMF Transceiver	J9151ECM
	Aruba 10G SFP+ LC ER 40km SMF Transceiver	J9153D
	Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable	J9281D
	Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable	J9283D
Notes:	No support for 10G LRM (J9152D) and no support for 10G 7m DAC (J9285D)
	Configuration Rules:
1	All hardware SKUs can be managed by Aruba Central. Central Managed (CM) SKUs are used for simplified ordering within U.S. and Canada only. Append "CM" to the indicated SKU #: (e.g., J9772ACM to order the J9772A). Requires an active Central license and end-user information consistent with the Central license purchase. Applicable accessories with a valid "CM" suffix should also be placed on the same order.
	Cables
	Aruba X2C2 RJ45 to DB9 Console Cable	JL448A

Aruba 2540 24G 4SFP+ Switch (JL354A)
I/O ports and slots	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42(w) x 7.88(d) x 1.73(h) in (44.25 x 20.02 x 4.39 cm) (1U height)
Physical characteristics	Weight	5.31 lb (2.41 kg)
Memory and processor	Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
	10 Gbps Latency	< 1.6 µs (64-byte packets)
	Throughput	up to 95.2 Mpps
	Switching capacity	128 Gbps
	Routing table size	2000 entries (IPv4), 1000 entries (IPv6)
	MAC address table size	16384 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/ Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/ Storage relative humidity	15% to 95% @ 149°F (65°C)
	Acoustic	Power: 49.7 dB, Pressure: 37.1 dB
	Airflow direction	Side-to-side
Electrical characteristics	Frequency	50/60 Hz
	Maximum heat dissipation	100 BTU/hr (105.5 kJ/hr)
	Voltage	100 - 127 / 200 - 240 VAC, rated
	Current	0.6/0.4 A
	Maximum power rating	29.3 W
	Idle power	19.5 W
	Notes:	Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated
Safety	UL 60950-1 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Emissions	VCCI Class A; CNS 13438; ICES-003 Class A; FCC CFR 47 Part 15, Class A ; EN 55022: 2010/CISPR-22, Class A
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
Immunity	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management (serial RS-232C or micro USB)
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Aruba 2540 48G 4SFP+ Switch (JL355A)
I/O ports and slots	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42(w) x 9.7(d) x 1.73(h) in (44.25 x 24.63 x 4.39 cm) (1U height)
Physical characteristics	Weight	6.83 lb (3.10 kg)
Memory and processor	Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 GB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
	10 Gbps Latency	< 1.6 µs (64-byte packets)
	Throughput	up to 112.0 Mpps
	Switching capacity	176 Gbps
	Routing table size	2000 entries (IPv4), 1000 entries (IPv6)
	MAC address table size	16384 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/ Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/ Storage relative humidity	15% to 95% @ 149°F (65°C)
	Acoustic	Power: 54.1 dB, Pressure: 40.2 dB
	Airflow direction	Side-to-side
Electrical characteristics	Frequency	50/60 Hz
	Maximum heat dissipation	159 BTU/hr (167.74 kJ/hr)
	Voltage	100 - 127 / 200 - 240 VAC, rated
	Current	0.9/0.6 A
	Maximum power rating	46.6 W
	Idle power	32.7 W
	Notes:	Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated
Safety	UL 60950-1 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Emissions	VCCI Class A; CNS 13438; ICES-003 Class A; FCC CFR 47 Part 15, Class A ; EN 55022: 2010/CISPR-22, Class A
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management (serial RS-232C or micro USB)
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Aruba 2540 24G PoE+ 4SFP+ Switch (JL356A, JL356ACM¹)
I/O ports and slots	24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions		17.42(w) x 11.98(d) x 1.73(h) in (44.25 x 30.42 x 4.39 cm) (1U height)
	Weight		8.6 lb (3.9 kg)
Memory and processor	Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC
Performance	1000 Mb Latency		< 3.8 µs (64-byte packets)
	10 Gbps Latency		< 1.6 µs (64-byte packets)
	Throughput		up to 95.2 Mpps
	Switching capacity		128 Gbps
	Routing table size		2000 entries (IPv4), 1000 entries (IPv6)
	MAC address table size		16384 entries
Environment	Operating temperature		32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
	Operating relative humidity		15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/ Storage temperature		-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/ Storage relative humidity		15% to 95% @ 149°F (65°C)
	Acoustic		Power: 54.1 dB, Pressure: 40.6 dB
	Airflow direction		Side-to-side
Electrical characteristics	Frequency		50/60 Hz
	80plus.org Certification		Silver
	Maximum heat dissipation		258.0 BTU/hr (272.2 kJ/hr)
	Voltage		100 - 127 / 200 - 240 VAC, rated
	Current		4.9/2.4 A
Electrical characteristics	Maximum power rating		445 W
	Idle power		36.8 W
	PoE powe		370 W PoE+
	Notes:		Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated
Safety	UL 60950-1 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Emissions	VCCI Class A; CNS 13438; ICES-003 Class A; FCC CFR 47 Part 15, Class A ; EN 55022: 2010/CISPR-22, Class A
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management (serial RS-232C or micro USB)
Notes:	¹ All hardware SKUs can be managed by Aruba Central. Central Managed (CM) SKUs are used for simplified ordering within U.S. and Canada only. Append "CM" to the indicated SKU #: (e.g., J9772ACM to order the J9772A). Requires an active Central license and end-user information consistent with the Central license purchase. Applicable accessories with a valid "CM" suffix should also be placed on the same order.
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Aruba 2540 48G PoE+ 4SFP+ Switch (JL357A)
I/O ports and slots	48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42(w) x 11.98(d) x 1.73(h) in (44.25 x 30.42 x 4.39 cm) (1U height)
Physical characteristics	Weight	9.83 lb (4.46 kg)
Memory and processor	Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
	10 Gbps Latency	< 1.6 µs (64-byte packets)
	Throughput	up to 112.0 Mpps
Performance	Switching capacity	176 Gbps
	Routing table size	2000 entries (IPv4), 1000 entries (IPv6)
	MAC address table size	16384 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/ Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/ Storage relative humidity	15% to 95% @ 149°F (65°C)
	Acou stic	Power: 55.7 dB, Pressure: 41.7 dB
	Airflow direction	Side-to-side
Electrical characteristics	Frequency	50/60 Hz
	80plus.org Certification	Silver
	Maximum heat dissipation	293.0 BTU/hr (309.1 kJ/hr)
	Voltage	100 - 127 / 200 - 240 VAC, rated
	Current	5.1/2.5 A
	Maximum power rating	459 W
	Idle power	48.6 W
	PoE powe	370 W PoE+
	Notes:	Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated
Safety	UL 60950-1 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Emissions	VCCI Class A; CNS 13438; ICES-003 Class A; FCC CFR 47 Part 15, Class A ; EN 55022: 2010/CISPR-22, Class A
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Management	Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management (serial RS-232C or micro USB)
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Standards and protocols

Applies to all products in series

General Protocols

IEEE 802.1AX-2008 Link Aggregation
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1v VLAN classification by Protocol and Port
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3af Power over Ethernet
IEEE 802.3at PoE+
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 868 Time Protocol
RFC 951 BOOTP
RFC 1058 RIPv1
RFC 1256 ICMP Router Discovery Protocol (IRDP)
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 1918 Address Allocation for Private Internet
RFC 2030 Simple Network Time Protocol (SNTP) v4
RFC 2131 DHCP
RFC 2236 IGMPv2
RFC 2453 RIPv2
RFC 2865 Remote Authentication Dial In User Service (RADIUS)
RFC 2866 RADIUS Accounting
RFC 3046 DHCP Relay Agent Information Option
RFC 3411 An Architecture for Describing Simple Network Management Protocol (SNMP) Management Frameworks
RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP)
RFC 3413 Simple Network Management Protocol (SNMP) Applications
RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)
RFC 3416 Protocol Operations for SNMP
RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP)
RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)
RFC 3575 IANA Considerations for RADIUS
RFC 3576 Ext to RADIUS (CoA only)
RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches
RFC 4675 RADIUS VLAN & Priority
RFC 4861 Neighbor Discovery for IP version 6 (IPv6)
RFC 4862 IPv6 Stateless Address Autoconfiguration
RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification
UDLD (Uni-directional Link Detection)

IPv6

RFC 1981 IPv6 Path MTU Discovery
RFC 2080 RIPng for IPv6
RFC 2081 RIPng Protocol Applicability Statement
RFC 2082 RIP-2 MD5
RFC 2460 IPv6 Specification
RFC 2464 Transmission of IPv6 over Ethernet Networks
RFC 2710 Multicast Listener Discovery (MLD) for IPv6
RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only)
RFC 2925 Remote Operations MIB (Ping only)
RFC 3019 MLDv1 MIB
RFC 3315 DHCPv6 (client and relay)
RFC 3484 Default Address Selection for IPv6
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNS Extension for IPv6
RFC 3810 MLDv2 for IPv6
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4291 IP Version 6 Addressing Architecture
RFC 4293 MIB for IP
RFC 4419 Key Exchange for SSH
RFC 4443 ICMPv6
RFC 4541 IGMP & MLD Snooping Switch
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto-configuration
RFC 5095 Deprecation of Type 0 Routing Headers in IPv6
RFC 6620 FCFS SAVI
draft-ietf-savi-mix

IP Multicast

RFC 1112 IGMP
RFC 2236 IGMPv2
RFC 2710 Multicast Listener Discovery (MLD) for IPv6
RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches

Denial of service protection

CPU DoS Protection

Device Management

RFC 1155 Structure and Mgmt Information (SMIv1)
RFC 1157 SNMPv1/v2c
RFC 1591 DNS (client)
RFC 1901 (Community based SNMPv2)
RFC 1901-1907 SNMPv2c, SMIv2 and Revised MIB-II
RFC 1908 (SNMP v1/2 Coexistence)
RFC 2576 (Coexistence between SNMP V1, V2, V3)
RFC 2578-2580 SMIv2
RFC 2579 (SMIv2 Text Conventions)
RFC 2580 (SMIv2 Conformance)
RFC 2819 (RMON groups Alarm, Event, History and Statistics only)
RFC 3416 (SNMP Protocol Operations v2)
RFC 3417 (SNMP Transport Mappings)
HTML and telnet management
HTTP, SSHv1, and Telnet
Multiple Configuration Files
Multiple Software Images
SNMP v3 and RMON RFC support
SSHv1/SSHv2 Secure Shell
TACACS/TACACS+
Web UI

Network Management

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
RFC 1155 Structure of Management Information
RFC 1157 SNMPv1
RFC 2021 Remote Network Monitoring Management Information Base Version 2 using SMIv2
RFC 2576 Coexistence between SNMP versions
RFC 2578 Structure of Management Information Version 2 (SMIv2)
RFC 2579 Textual Conventions for SMIv2
RFC 2580 Conformance Statements for SMIv2
RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
RFC 2819 Remote Network Monitoring Management Information Base
RFC 2856 Textual Conventions for Additional High Capacity Data Types
RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations
RFC 3164 BSD syslog Protocol
RFC 3176 sFlow
RFC 3411 SNMP Management Frameworks
RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP)
RFC 3413 Simple Network Management Protocol (SNMP) Applications
RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)
RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)
RFC 5424 Syslog Protocol
ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
SNMPv1/v2c/v3
XRMON

MIBs

IEEE 802.1ap (MSTP and STP MIB's only)
IEEE 8021-Bridge-MIB (2008)
IEEE 8021-Q-Bridge-MIB (2008)
RFC 1155 Structure & ID of Mgmt Info for TCP/IP Internets
RFC 1156 (TCP/IP MIB)
RFC 1157 A Simple Network Management Protocol (SNMP)
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 1724 RIPv2 MIB
RFC 2021 RMONv2 MIB
RFC 2578 Structure of Management Information Version 2 (SMIv2)
RFC 2579 Textual Conventions for SMIv2
RFC 2580 Conformance Statements for SMIv2
RFC 2613 SMON MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 2665 Ethernet-Like-MIB
RFC 2668 802.3 MAU MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON MIB
RFC 2863 The Interfaces Group MIB
RFC 2925 Ping MIB
RFC 2932 IP (Multicast Routing MIB)
RFC 2933 IGMP MIB
RFC 3414 SNMP-User based-SM MIB
RFC 3415 SNMP-View based-ACM MIB
RFC 3417 Simple Network Management Protocol (SNMP) over IEEE 802 Networks
RFC 3418 MIB for SNMPv3
RFC 4836 Managed Objects for 802.3 Medium Attachment Units (MAU)

QoS/CoS

IEEE 802.1p (CoS)
RFC 2474 DiffServ Precedence, including 8 queues/port
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
Ingress Rate Limiting

Security

IEEE 802.1X Port Based Network Access Control
RFC 1321 The MD5 Message-Digest Algorithm
RFC 1334 PPP Authentication Protocols (PAP)
RFC 1492 An Access Control Protocol, Sometimes Called TACACS
RFC 1492 TACACS+
RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP)
RFC 2082 RIP-2 MD5 Authentication
RFC 2104 Keyed-Hashing for Message Authentication
RFC 2138 RADIUS Authentication
RFC 2139 RADIUS Accounting
RFC 2246 Transport Layer Security (TLS)
RFC 2548 Microsoft Vendor-specific RADIUS Attributes
RFC 2618 RADIUS Authentication Client MIB
RFC 2620 RADIUS Accounting Client MIB
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2818 HTTP Over TLS
RFC 2865 RADIUS (client only)
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 2867 RADIUS Accounting Modifications for Tunnel Protocol Support
RFC 2868 RADIUS Attributes for Tunnel Protocol Support
RFC 2869 RADIUS Extensions
RFC 2882 NAS Requirements: Extended RADIUS Practices
RFC 3162 RADIUS and IPv6
RFC 3576 Dynamic Authorization Extensions to RADIUS
RFC 3579 RADIUS Support For Extensible Authentication Protocol (EAP)
RFC 3580 IEEE 802.1X RADIUS
RFC 3580 IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines
RFC 4576 RADIUS Attributes
Access Control Lists (ACLs)
draft-grant-tacacs-02 (TACACS)
Guest VLAN for 802.1X
MAC Authentication
MAC Lockdown
MAC Lockout
Port Security
Secure Sockets Layer (SSL)
SSHv2 Secure Shell
Web Authentication

Date	Version History	Action	Description of Change
07-Jun-2021	Version 14	Changed	SKUs added in Configuration Information section.
08-Mar-2021	Version 13	Changed	SKUs added in Configuration Information section.
08-Sep-2020	Version 12	Changed	Configuration Information section was updated.
04-Nov-2019	Version 11	Changed	Overview, Technical Specifications, Related Options and Configuration Information sections were updated. New SKUs were added.
04-Mar-2019	Version 10	Changed	SKU J9151D was replaced with J9151E Obsolete SKUs were removed.
10-Dec-2018	Version 9	Changed	Technical Specifications updated
03-Dec-2018	Version 8	Changed	Key Features, Product overview and Enhanced Features
02-Jul-2018	Version 7	Changed	Software feature update
05-Feb-2018	Version 6	Changed	Configuration section updated
08-Jan-2018	Version 5	Changed	Software feature update
03-Jul-2017	Version 4	Added	SKU added: JL448A
05-Jun-2017	Version 3	Changed	Minor edits made on Features and Benefits
17-Feb-2017	Version 2	Changed	Accessories updated
07-Nov-2016	Version 1	New	New QuickSpecs

Make the right purchase decision. Contact our presales specialists.

Chat

Email

Call

HewlettPackardEnterpriseLogo

© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

To learn more, visit: http://www.hpe.com/networking

c05278966 - 15731 - Worldwide - V14 - 7-June-2021

HPE Aruba 2540 Switch Series: технические характеристики и документация
