Arista 7500R Data Center Switch Router Series

HPE and Arista share a common vision around the need to deliver secure hybrid IT solutions and experiences built on industry-leading software-defined infrastructure-helping customers to operate their workloads with speed and agility to grow their business. This partnership will provide our customers with proven networking solutions that are superior to legacy alternatives and that complement HPE compute, storage, virtualization, and cloud offerings.

The Arista 7500R series of purpose-built modular switches delivers the industry's highest performance with 150 Tbps of system throughput to meet the needs of the largest scale data centers. They combine scalable L2 and L3 resources and high density with advanced features for network monitoring, precision timing, and network virtualization to deliver scalable and deterministic network performance-while simplifying designs and reducing OPEX.

The 7500R can be deployed in a wide range of open networking solutions, including large scale Layer 2 and Layer 3 cloud designs, overlay networks, and virtualized or traditional enterprise data center networks. Deep packet buffers and large routing tables allow for internet peering applications and provides complete deployment flexibility.

Available in a compact system design-with a choice of 16, 12, 8, or 4 slots-the Arista 7500R is the next generation of the 7500 series and delivers seamless upgrades-ensuring investment protection of fabric modules, line cards and supervisor modules while setting a new standard for performance, density, reliability, and power efficiency. The 7500R can support up to 576 ports of wire speed 100GbE and 40GbE, and offers over 150 Tbps of total capacity with a broad choice of line cards. Standards based QSFP 100GbE interfaces support a choice of speeds including 25GbE and 50GbE providing unparalleled flexibility and the ability to seamlessly transition data centers to the next generation of Ethernet performance.

All components are hot-swappable, with redundant supervisor, power, fabric, and cooling modules with front-to-rear airflow. The system is purpose-built for data centers and is energy efficient with typical power consumption of under 25 watts per 100GbE port for a fully configured chassis. These attributes make the Arista 7500R an ideal platform for building reliable and highly scalable data center networks.

Product Highlights

Performance

• 150 Tbps fabric capacity
• Up to 69 billion packets per second (Bpps)
• Up to 9.6 Tbps per slot
• Up to 576 wire-speed 100GbE ports
• 10GbE, 25GbE, and 50GbE mode support
• Under 4 ms latency (64 bytes)
• 200GbE and 400GbE ready

High Availability

• N+N grid redundant power system
• 1+1 supervisor redundancy
• N+1 fabric module redundancy
• N+1 fan module redundancy

Virtualization and provisioning

• CloudVision
• VXLAN for next-generation DC
• LANZ for microburst detection
• VM Tracer
• Zero touch provisioning (ZTP)
• Advanced Events Monitoring
• sFlow (RFC3176)
• IEEE 1588 Precision Time Protocol (PTP)

Scalable architecture

• Dense 40GbE and 100GbE
• Flexible support for 25GbE and 50GbE
• Deep packet buffer (24 GB per line card)
• 18,342 virtual output queues per port to eliminate head-of-line (HOL) blocking

Resilient Control Plane

• Multi-core hyper-threaded x86 CPU
• 32 GB DRAM/4 GB flash
• Dual supervisor modules
• User applications can run in a VM

Data Center Class Design

• AC and DC power options
• Front-to-rear airflow for optimized cooling
• 25W per 100GbE port typical power
• Up to 864 100GbE ports per 42U rack

Arista Extensible Operating System

• Single binary image
• Fine-grained truly modular network OS
• Stateful Fault Containment (SFC)
• Stateful Fault Repair (SFR)
• Full access to Linux shell and tools
• Extensible platform-Bash, Python, C++, Go, and OpenConfig

Arista Extensible Operating System (EOS)

All Arista products including the 7500R Series runs the same Arista EOS software, binary image simplifying network administration with a single standard across all switches. Arista EOS is a modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic. Built on top of a standard Linux kernel, all EOS processes run in their own protected memory space and exchange state through an in-memory database. This multi-process state sharing architecture provides the foundation for in-service-software updates and self-healing resiliency together with stateful switchover without the loss of data plane forwarding.

Arista EOS enables advanced monitoring and automation capabilities such as Zero Touch Provisioning, LANZ, VM Tracer and Linux based tools to be run natively on the switch.

Software Defined Cloud Networks

Arista Software Defined Cloud Networking (SDCN), combines the principles that have made cloud computing the unstoppable force that it is: automation, self service provisioning, and linear scaling of both performance and economics coupled with the trend in Software Defined Networking that delivers: network virtualization, custom programmability, simplified architectures, and lower capital expenditure. This combination creates a best-in-class software foundation for maximizing the value of the network to both the enterprise and service provider data center. A new architecture for the most mission-critical location within the IT infrastructure that simplifies management and provisioning, speeds up service delivery, lowers costs and creates opportunities for competitive differentiation, while putting control and visibility back in the hands of the network and systems administrators.

The Four Pillars of Arista's Software Defined Cloud Networking:

Universal Cloud Network

• Scalable standards-based MLAG at Layer 2, ECMP for Layer 3 and VXLAN for network virtualization flexibility
• Non blocking leaf-spine for 50K- 1M hosts

Cloud Control

• Standards based EOS with AEM, ZTP/ZTR, LANZ and DANZ
• Automated Monitoring for visibility and telemetry

Network Wide Virtualization

• Multi-vendor API Support with eAPI
• Support for VMWare and NSX with VXLAN and VMTracer
• Support for Microsoft OMI and Openstack OVSDB

Network Applications and Automated Management

• Single point of network-wide state with Arista CloudVision
• Networked applications for workload mobility, smart systems rollback and upgrades and workflow telemetry
• Open Partner integration

Scaling Data Center Performance

The Arista 7500R Series deliver non-blocking switching capacity that enables dramatically faster and simpler network designs for data centers and lower both capital and operational expenses. A wide range of modular systems with a single consistent EOS allows for flexible selections at all tiers of the network and deployment scenarios including layer 2 MLAG, layer 3 ECMP, VXLAN Overlay and Internet Peering.

Arista's Multi-Chassis Link Aggregation (MLAG) technology supports a leaf and spine active/active L2 network topology. An Equal Cost Multi-Path (ECMP) design at Layer 3 scales the network in a fully non-blocking, low-latency, two-stage network that provides predictable and consistent application performance. The flexibility of the L2 and L3 multi-path design options combined with support for open standards provides maximum flexibility, scalability and network wide virtualization that scales to hundreds of thousands of hosts in a single two-tier design. Both designs support overlay networks via VXLAN and can integrate with standards-based overlay controller solutions.

The Arista 7500R Series FlexRoute engine provides the flexible scalability to support deployment as a routing platform with Internet scale routing. Arista FlexRoute along with EOS NetDB enables innovation not natively available in merchant chipsets. Arista EOS provides operational savings through visibility, automation and improved network operations.

Enhanced Features for High Performance Cloud Networks

The Arista 7500R delivers a suite of advanced traffic control and monitoring features to improve the agility of modern high performance environments, with solutions for automation, data monitoring, precise timing and next-generation virtualization.

Automating the data center enables customers to dynamically provision computing resources in the most efficient manner while also meeting business needs by maintaining service level agreements (SLAs). Arista EOS automates complex IT workflows and simplifies network operations while reducing or even eliminating downtime. Arista EOS rich automation capabilities not only reduce the human error element in network operations but also enable IT operators to make the network work the way they want.

Arista offers solutions for a variety of approaches to cloud-like network automation. Addressing the needs of the largest public cloud environments as well as applying those lessons learned in the turnkey CloudVision automation offering.

CloudVision

CloudVision is a network-wide approach for workload orchestration and workflow automation as a turnkey solution for Cloud Networking. CloudVision extends the EOS publish subscribe architectural approach across the network for state, topology, monitoring and visibility. This enables enterprises to move to cloud-class automation without needing any significant internal development.

Arista Event Management (AEM)

Advanced Event Management (AEM), a sub-system of Arista EOS, is a powerful and flexible tool to automate tasks and customize the behavior of EOS and the operation of the overall data center switching infrastructure. Simplifying the overall operations, AEM provides the tools to customize alerts and actions. AEM allows operators to fully utilize the intelligence within EOS to respond to real-time events, automate routine tasks, and automate actions based on changing network conditions.

Precise Data Analysis

Arista Latency Analyzer (LANZ) and Precision Data Analyzer (DANZ) are integrated features of EOS. DANZ provides a solution to monitoring and visibility challenges at 10/25/40/100Gbps giving IT operations the ability to proactively deliver feedback on congestion events, filter, replicate, aggregate and capture traffic without affecting production performance. LANZ provides precise real-time monitoring of micro-burst and congestion events before they impact applications, with the ability to identify the sources and capture affected traffic for analysis.

Precision Timing (IEEE 1588)

Arista's hardware derived Precision Time Protocol solution provides a robust mechanism for accurate in-band time distribution in high performance environments. The system clock can be synchronized using the Supervisor module clock input port with a PPS source or IEEE 1588 PTP.

Virtualization

Supporting next-generation virtualized data centers requires tight integration with orchestration tools and emerging encapsulation technologies such as VXLAN. The 7500R builds on the valuable tools already provided by the Arista VM Tracer suite to integrate directly into encapsulated environments. Offering a wire-speed gateway between VXLAN and traditional L2/3 environments, the 7500R makes integration of non-VXLAN aware devices including servers, firewalls and load-balancers seamless and provides the ability to leverage VXLAN as a standards based L2 extension technology for non-MPLS environments.

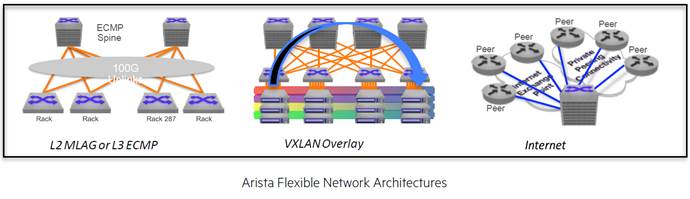

Maximum Network Design Flexibility

• Scalable designs with up to a 128-way ECMP provides flexibility and balances traffic evenly across the largest leaf-spine designs
• MLAG designs are effective at almost any layer of the network and maximize cross-sectional bandwidth with fast failover times measured in 100's of milliseconds for link failures.
• VXLAN gateway, bridging and routing with VMTracer features to enable next generation data center designs
• Scaleable routing tables to support internet route peering
• Wide choice of dense 10G/25G/40G/100G line cards with support for flexible 10GbE, 25GbE or 50GbE modes.
• Support for standards-based IEEE 25GbE with mix-and-match support for both 10G and 25G for simple and cost effective migration.
• Virtual output queue (VoQ) architecture and deep packet buffering to eliminate head of line blocking with low latency
• ACL scalability with up to 128K entries per forwarding engine allows for rich policy control
• Flexible allocation of L2 and L3 forwarding table resources for more design choice
• PTP, sFlow, DANZ and multi-port mirroring tools provide network wide visibility and monitoring to detect traffic bursts, monitor latency and congestion and allow capacity planning to improve application performance and availability

System Overview

The 7500R Series offers complete investment protection with the Arista 7500E Series with seamless upgrade paths for key components and a common system architecture that ensures long term investment protection. The following 7500R chassis options are available:

• 7516R a 16-slot 29RU chassis that supports up to 16 line cards with both AC or DC power options
• 7512R a 12-slot 18 RU chassis that supports up to 12 line cards with both AC or DC power options
• 7508R an 8-slot 13 RU chassis that supports up to 8 line cards with both AC or DC power options
• 7504R a 4-slot 7 RU chassis that supports up to 4 line cards with both AC or DC power options

The 7500R 4- and 8-slot modular chassis can accommodate any combination of the 7500E line cards or the 7500R line cards providing a rich choice of density and speed. The 7500 12- and 16-slot systems support any combination of the 7500R Series line cards, including support for FlexRoute.

The Arista 7500R lowers total cost of ownership as it is designed to be efficient with power per port as low as 25W per 100GbE port which combined with front to rear cooling to optimize the data center environment produces the most reliable, dense and power efficient modular switch.

7500R Deterministic Network Performance

The Arista 7500 Series uses a deep buffer virtual output queue (VOQ) architecture that eliminates head-of-line (HOL) blocking and virtually eliminates packet drops even in the most congested network scenarios. An advanced traffic scheduler fairly allocates bandwidth between all virtual output queues while accurately following queue disciplines including weighted fair queueing, fixed priority, or hybrid schemes. As a result, the Arista 7500 can handle the most demanding data center requirements with ease, including mixed traffic loads of real-time, multicast, and storage traffic while still delivering low latency.

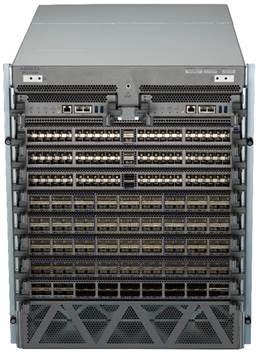

7500R Series Chassis - 16-slot, 12-slot, 8-slot and 4-slot

The 7500R Series chassis provides room for two supervisor modules, four, eight, twelve or sixteen line card modules, grid redundant power supply modules, and six fabric modules. Supervisor and line card modules plug in from the front, while the fabric modules are inserted from the rear. The midplane is completely passive and provides control plane connectivity to each of the fabric and line card modules. The system design is optimized for data center deployments with front-to-rear airflow.

Arista 7500R Series Chassis - 7512R (front), 7508R (front and rear) and 7504R (front and rear)

Line Card Modules

Wire-speed line cards deliver up to 51 Billion packets per second of forwarding with a distributed virtual output queue architecture and lossless fabric that eliminates head-of-line blocking and provides fairness across all ports. Line cards contain up to 24GB of packet memory for approximately 50msec of traffic buffer per ingress port and virtually eliminating packet drops in congestion scenarios. Line cards connect to all fabric modules in a non-blocking full mesh.

The Arista 7500R systems can be populated with any combination of line cards. For environments requiring the highest performance combined with scalability a range of speed and interface options is available with full support for industry standard connections and comprehensive layer 2 and 3 features for flexible deployment choice.

7500R Series Line Cards

The 7500R and 7500R2 Series line cards support industry standard optics for both single and multi-mode fiber along with flexibility for multi-rate configurations. All line cards supporting 100GbE include built-in support for quad 10GbE or 25GbE, dual 50GbE or single 40GbE and 100GbE to ensure future proofing for next generation network architectures. Speed changes and breakout modes are enabled independently of the other ports on the line card. 40GbE ports allow high density 10GbE and the 25GbE and 10GbE SFP+ ports support 1GbE mode offering comprehensive investment protection for both existing and new network designs.

The 7500R2A Series of line cards build on the capability of the 7500R and 7500R2 Series with the addition of Arista AlgoMatch. AlgoMatch provides flexible pattern matching for access control, policy based forwarding and network telemetry. All variations of the 7500R Series line cards interoperate with the 7500E Series. The large scale 7500R2AK Series of line cards extend FlexRoute to over 2M IPv4 and IPv6 routes.

7500R-36CQ: 36 port 100GbE QSFP line card for broad interface choice and highest density

• Offers 36 wire speed 100G ports with QSFP100 optics
• 5 speeds for flexible 10GbE, 25GbE, 40GbE, 50GbE and 100GbE with optics or cables
• 4.32Bpps of wire speed performance with 24GB of buffer

7500R-36Q: 36 port 40GbE QSFP+ line card for 10G/40G and 100GbE

• 36 x 40GbE ports with QSFP+ optics and breakout cables
• Flexible interface combination of 36 x 40GbE, 96 x 10GbE, 6 x 100GbE, 24 x 25GbE
• 1.44Bpps of wire speed performance with 8GB of buffer

7500R-48S2CQ: 48 port SFP+ for 1/10GbE and 2 port 100GbE QSFP line card

• Up to 56 10G ports per line card or 48 1/10GbE ports and 2 flexible 40G/100G ports
• Two QSFP100 ports allow choice of 2 x 100GbE, 8x 25GbE, 2 x 40GbE, or 8x 10GbE
• 720Mpps of wire speed performance with 4GB of buffer

7500R2A-36CQ and 7500R2-36CQ: 36-port 100GbE QSFP MACsec line card for broad interface choice and highest density

• Offers 36 wire-speed 100G ports with QSFP100 optics and 24 GB of buffer
• 5 speeds for flexible 10GbE, 25GbE, 40GbE, 50GbE and 100GbE with optics or cables
• Offers IEEE 802.1AE MACsec encryption at 100GbE wire speed rate on every port

7500R2-18CQ: 18 port 100GbE QSFP line card

• Offers 18 wire speed 100G ports with QSFP100 optics or 72 25G with FC and RS FEC
• Flexible 10GbE, 25GbE, 40GbE, 50GbE and 100GbE with optics or cables
• 1.67Bpps of wire speed performance with 8GB of buffer

7500R2AK-36CQ: 36 port 100GbE QSFP line card

• Offers 36 wire-speed 100G ports with QSFP100 optics or 144 25G with FC and RS FEC
• 3.34Bpps of wire-speed performance with 4GB of buffer and 2M routes
• Power efficient 100G with support for AlgoMatch

7500R2L-36CQ: 36 port 100GbE QSFP line card

• Offers 36 wire speed 100G ports with QSFP100 optics or 144 25G with FC and RS FEC
• 3.34 Bpps of wire speed performance with 16GB of buffer and 4M routes

7500R2AK-48YCQ: 48 port SFP+ and 2 port 100GbE QSFP line card

• Up to 48 10G ports, with 12 ports of 25G capable with FC and RS FEC plus 2 ports of 100G
• 837Mpps of wire-speed performance with 4GB of buffer, with 2M routes
• Power efficient 10/25G with dedicated 100G ports with AlgoMatch

All line cards supporting 100GbE also include built-in support for quad 10GbE or 25GbE, dual 50GbE or single 40GbE and 100GbE to ensure future-proofing for next-generation network architectures. Speed changes and breakout modes are enabled independently of the other ports on the line card. 40GbE ports allow high-density 10GbE and the 25GbE and 10GbE SFP+ ports support 1GbE mode offering comprehensive investment protection for both existing and new network designs.

The 7500R2A Series of line cards build on the capability of the 7500R and 7500R2 switches with the addition of Arista AlgoMatch. AlgoMatch provides flexible pattern matching for access control, policy based forwarding and network telemetry. All variations of the 7500R Series line cards interoperate with the 7500E Series. The large scale 7500R2AK Series of line cards extend FlexRoute to over 2M IPv4 and IPv6 routes.

Supervisor Module

The supervisor modules for the 7500R series run Arista Extensible Operating System (EOS) and handle all control plane and management functions of the system. One supervisor module is needed to run the system and a second can be added for stateful 1+1 redundancy. Each supervisor module takes up only a half slot resulting in very efficient use of space and a higher density design. The multi-core x86 CPU with 32GB of DRAM and an optional SSD provides the control plane performance needed to run an advanced data center switch scaling to over 500 physical ports and thousands of virtual ports. A pulse per second clock input port enables synchronizing with an external source to improve the accuracy of monitoring tools.

Fabric Module

At the heart of the 7500R series is the fabric. It interconnects all line cards in a non-blocking architecture irrespective of the traffic. Each line card module connects to the fabric with multiple links and data packets are spread across the links to fully utilize the fabric capacity. Unlike hash-based selection of fabric links, the 7500R architecture provides 100% efficient connectivity from any port to any other port with no drops. The fabric modules are always active-active, provide N+1 redundancy and can be hot-swapped with zero performance degradation. The fabric modules for the each of the 7500 Series are different based on the size of the chassis and all integrate a fan assembly for flexible and redundant cooling.

Power Supply Modules

The 7500R Series switches are equipped with redundant and hot-swappable AC or DC power supplies with an internal variable- speed fan. Each system supports N+N power redundancy with a choice of 3000W AC or DC power supplies. The AC power supplies are Titanium climate saver rated and have an efficiency of over 94% with single stage conversion to the internal 12V DC voltage. 3000W DC power supplies use -40 to -72V direct current inputs.

7500R High Availability

The Arista 7500R Series are designed for continuous operations with system wide monitoring of both hardware and software components, simple serviceability and provisioning to prevent single points of failure. The hardware supports high-availability with hot- swap of all components with redundant supervisors, power supplies, fabric and cooling modules. Fabric N+1 redundancy provides zero loss of performance with deterministic degradation and integrated fan systems provide dynamic temperature control combined with N

+1 redundancy. The 7500R Series offer power redundancy that supports both power source and power supply redundancy. The Arista EOS software supports stateful failover between the dual redundant supervisors as well as self-healing stateful fault containment (SFC), stateful fault repair (SFR) and live patching through in-service-software updates to help ensure continuous service.

AlgoMatch

AlgoMatch is a unique Arista innovation for modern cloud networks, combining both software and hardware to enable more flexible and scalable solutions for access control, policy based forwarding and network telemetry. By combining general purpose memory with advanced software algorithms AlgoMatch delivers higher scale, performance and efficiency with lower power and is more cost effective than traditional solutions. AlgoMatch provides a more efficient packet matching algorithm that in turn enables flow matching for access control, policy and visibility. The net benefits are a high-performance policy engine with both increased functionality and scale in a cost- and power-efficient solution.

• AlgoMatch enables IPv4 and IPv6 access control at the same scale
• L4 rule ranges are programmed efficiently without expansion or reduced capacity
• Multiple actions can be performed on a single packet or flow
• User-defined filters allow flexible packet classification based on offsets for custom actions
• Supports rich policy with consistent semantics that would exhaust classical resources

7500R Accelerated sFlow

SFlow is a powerful tool used commonly by network operators for advanced network telemetry, capacity planning, security analysis and quality of experience monitoring. All members of the 7500R Series enable sFlow utilizing the high-performance CPU. Within modern high-performance systems, traffic sampling requires the capability to both sample and process packet rates of hundreds of millions of packets per second. With 7500R Series Accelerated sFlow the sampling and processing of flow samples into sFlow datagrams is handled via integrated sFlow engines capable of generating up to 1.6Mpps of sFlow data, and of supporting 1:1000 sampling rates on full wire-speed systems or even higher rates with selective sampling based on triggers and filters. All sFlow v5 information is included in the sFlow records ensuring integration with standard sFlow collection and analysis tools and no loss of key information.

Features and Benefits

Layer 2 Features

• 802.1w Rapid Spanning Tree
• 802.1s Multiple Spanning Tree Protocol
• Rapid Per Vlan Spanning Tree (RPVST+)
• 4096 VLANs
• Q-in-Q
• 802.3ad Link Aggregation/LACP

- 64 Ports / Channel

- 256 groups per system (1152 groups *)

• MLAG (Multi-Chassis Link Aggregation)

- Uses IEEE 802.3ad LACP

- 128 ports per MLAG

• 802.1Q VLANs/Trunking
• 802.1AB Link Layer Discovery Protocol
• 802.3x Flow Control
• Jumbo Frames (9216 Bytes)
• IGMP v1/v2/v3 snooping
• Storm Control *
• 802.1 AVB *
• SMPTE-2059-2

Layer 3 Features

• Static Routes
• Routing Protocols: OSPF, OSPFv3, BGP, MP-BGP, IS-IS, and RIPv2
• 128-way Equal Cost Multipath Routing (ECMP)
• VRF
• Bi-Directional Forwarding Detection (BFD)
• Unicast Reverse Path Forwarding (uRPF)
• VRRP
• Virtual ARP (VARP)
• Policy Based Routing (PBR)
• Route Maps

Multicast

• IGMP v2/v3
• Protocol Independent Multicast (PIM-SM / PIM-SSM)
• PIM-BiDir *
• Anycast RP (RFC 4610)
• Multicast Source Discovery Protocol (MSDP)

Advanced Monitoring and Provisioning

• Latency Analyzer and Microburst Detection (LANZ)

- Configurable Congestion Notification (CLI, Syslog) *

- Streaming Events (GPB Encoded) *

- Capture/Mirror of congested traffic *

• Zero Touch Provisioning (ZTP)

• Advanced Mirroring

- Port Mirroring (16 sessions)

- Enhanced Remote Port Mirroring

- SPAN/TAP M:N Aggregation *

- L2/3/4 Filtering *

• Advanced Event Management suite (AEM)

- CLI Scheduler

- Event Manager

- Event Monitor

- Linux tools

• Integrated packet capture/analysis with TCPDump
• Restore and Configure from USB
• RFC 3176 sFlow
• Optional SSD for logging and data capture
• IEEE 1588 PTP *

Virtualization Support

• VXLAN  Gateway  (draft-mahlingam-dutt-dcops-vxlan-01)
• VXLAN Tunnel Endpoint
• VXLAN Bridging
• VXLAN Routing (VRF, MLAG) *
• VM Tracer VMware Integration

Security Features

• Ingress / Egress ACLs using L2, L3, L4 fields
• Ingress / Egress ACL Logging and Counters
• Atomic ACL Hitless restart
• Control Plane Protection (CPP)
• DHCP Relay
• MAC Security
• TACACS+
• RADIUS
• ARP trapping and rate limiting

Quality of Service (QoS) Features

• Up to 8 queues per port
• Strict priority queueing
• 802.1p based classification
• DSCP based classification and remarking *
• Egress shaping / Weighted round robin (WRR)
• Policing / Shaping
• Rate limiting *
• Explicit Congestion Notification (ECN) marking *
• 802.1Qbb Per-Priority Flow Control (PFC)
• 802.1Qaz Enhanced Transmission Selection (ETS)*
• Data Center Bridging Extensions (DCBX)*

Network Management

• CloudVision
• Configuration rollback and commit
• 100/1000 Management Port
• RS-232 Serial Console Port
• USB Port
• SNMP v1, v2, v3
• Management over IPv6
• Telnet and SSHv2
• Syslog
• AAA
• Industry Standard CLI
• Beacon LED for system identification
• System Logging
• Environment monitoring

High Availability

• L2 Stateful Switcover (SSO) *
• L3 Stateful Switchover (SSO) *
• SSU Spine

Extensibility

• Linux Tools

- Bash shell access and scripting

- RPM support

- Custom kernel modules

• Software Defined Networking (SDN)

- eAPI

- OpenStack Neutron Support

- Programmatic access to system state

- Python

- Chef

- Puppet

- C++

- eAPI

- OpenStack Neutron Plug-in support

• Native KVM/QEMU support

Line card Features

• 8 Priority Queues per Port
• 1152 Link Aggregation Groups (LAG)
• 32 Ports per LAG

Fabric Features

• Up to 153 Terabit/sec capacity
• 9.6 Terabit/sec per line card
• Up to 25 Terabit/sec per fabric module
• N+1 redundant
• Non-blocking
• Virtual Output Queueing
• Self-healing
• Distributed  Scheduler
• WFQ, CIR*, ETS*, Fixed Priority

Standards Compliance

• 802.1D Bridging and Spanning Tree
• 802.1p QOS/COS
• 802.1Q VLAN Tagging
• 802.1w Rapid Spanning Tree
• 802.1s Multiple Spanning Tree Protocol
• 802.1AB Link Layer Discovery Protocol
• 802.3ad Link Aggregation with LACP
• 802.3x Flow Control
• 802.3ab 1000BASE-T
• 802.3z Gigabit Ethernet
• 802.3ae 10 Gigabit Ethernet
• 802.3ba 40 Gigabit Ethernet
• 802.3ba 100 Gigabit Ethernet
• RFC 2460 Internet Protocol, Version 6 (IPv6) Specification
• RFC 2461 Neighbor Discovery for IP Version 6 (IPv6)
• RFC 2462 IPv6 Stateless Address Autoconfiguration
• RFC 2463 Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) Specification
• IEEE 1588-2008 Precision Time Protocol

SNMP MIBs

• RFC 3635 EtherLike-MIB
• RFC 3418 SNMPv2-MIB
• RFC 2863 IF-MIB
• RFC 2864 IF-INVERTED-STACK-MIB
• RFC 2096 IP-FORWARD-MIB
• RFC 4363 Q-BRIDGE-MIB
• RFC 4188 BRIDGE-MIB
• RFC 2013 UDP-MIB
• RFC 2012 TCP-MIB
• RFC 2011 IP-MIB
• RFC 2790 HOST-RESOURCES-MIB
• RFC 3636 MAU-MIB
• RMON-MIB
• RMON2-MIB
• HC-RMON-MIB
• LLDP-MIB
• LLDP-EXT-DOT1-MIB
• LLDP-EXT-DOT3-MIB
• ENTITY-MIB
• ENTITY-SENSOR-MIB
• ENTITY-STATE-MIB
• ARISTA-ACL-MIB
• ARISTA-QUEUE-MIB
• RFC 4273 BGP4-MIB
• RFC 4750 OSPF-MIB
• ARISTA-CONFIG-MAN-MIB
• ARISTA-REDUNDANCY-MIB
• RFC 2787 VRRPv2MIB
• MSDP-MIB
• PIM-MIB
• IGMP-MIB
• IPMROUTE-STD-MIB
• SNMP Authentication Failure trap
• ENTITY-SENSOR-MIB support for DOM (Digital Optical Monitoring)
• User configurable custom OIDs

See EOS release notes for latest supported MIBs

* Not currently supported in EOS

**See the EOS release notes for latest supported MIBs.

Ordering Information

Description

Arista SKU

HPE SKU

7516R Chassis

Arista 7516R NEBS-compliant Empty Chassis

DCS-7516N-CH

JQ130A

Arista 7516R Chassis Bundle with NEBS-compliant 7516R Chassis 12x3kW PS 6xFabric-R 1xSupervisor 2

DCS-7516R-BND

JQ125A

Arista 7516R Chassis Bundle with NEBS-compliant 7516R Chassis 12x3kW PS 6xFabric-R 1xSupervisor 2D

DCS-7516R-BND-D

JQ126A

Arista 7516R Chassis Bundle with NEBS-compliant 7516R Chassis 12xDC PS 6xFabric-R 1x7516 Supervisor2

DCS-7516R-BND-DC

JQ127A

Arista 7516R-FLX Chassis Bundle with NEBS-compliant 7516R Chassis 12x3kW PS 6xFabric-R 1xSupervisor2

DCS-7516R-BND-FLX

JQ128A

Arista 7516R Chassis Bundle with NEBS-compliant 7516N Chassis 12xDC PS 6xFabric-R 1xSupervisor2-D

DCS-7516R-BND-DC-D

JQ396A

7512R chassis

Arista 7512R 8x PSU 6x Fabric Supervisor 2 DC Bundle

DCS-7512R-BND-DC

JH830A

Arista 7512N Empty Chassis

DCS-7512N-CH

JH924A

Arista 7512R 8x PSU 6x Fabric Supervisor 2 AC Bundle

DCS-7512R-BND

JH921A

Arista 7512R 8x PSU 6x Fabric Supervisor 2 Expanded L3 AC Bundle

DCS-7512R-BND-FLX

JH922A

Arista 7512R Chassis with 7512N Chassis 8x AC PS 6x Fabric-R Supervisor 2-D Bundle

DCS-7512R-BND-D

JQ012A

Arista 7512R Chassis with 7512N Chassis 8x DC PS 6x Fabric-R Supervisor 2-D Bundle

DCS-7512R-BND-DC-D

JQ013A

Arista 7512R Chassis Bundle with NEBS-compliant 7512N Chassis 8xDC PS 6xFabric-R 1xSupervisor 2

DCS-7512R-BND-D

JQ068A

7508R chassis

Arista 7508N Empty Chassis

DCS-7508N-CH

JH855A

Arista 7508 Empty Chassis

DCS-7508-CH

JH853A

Arista 7508R 6x PSU 6x Fabric Supervisor 2 DC Bundle

DCS-7508R-BND-DC

JH828A

Arista 7508R 6x PSU 6x Fabric Supervisor 2 Expanded L3 AC Bundle

DCS-7508R-BND-FLX

JH829A

Arista 7508R 8-slot 6xPSU 6xFabricR 1xSupervisor2 Bundle

DCS-7508R-BND

JH529A

Arista 7508R Chassis Bundle with NEBS-compliant 7508N Chassis 6xDC PS 6xFabric-R 1xSupervisor 2

DCS-7508R-BND-D

JQ067A

Arista 7508R Chassis Bundle with NEBS-compliant 7508N Chassis 6xDC PS 6xFabric-R 1xSupervisor 2-D

DCS-7508R-BND-DC-D

JQ405A

7504R chassis

Arista 7504N Empty Chassis

DCS-7504N-CH

JH852A

Arista 7504 Empty Chassis

DCS-7504-CH

JH851A

Arista 7504R 4x PSU 6x Fabric Supervisor 2 DC Bundle

DCS-7504R-BND-DC

JH824A

Arista 7504R 4x PSU 6x Fabric Supervisor 2 Expanded L3 AC Bundle

DCS-7504R-BND-FLX

JH825A

Arista 7504R 4-slot 4xPSU 6xFabricR 1xSupervisor2 Bundle

DCS-7504R-BND

JH528A

Arista 7504R Chassis Bundle with NEBS-compliant 7504N Chassis 4xDC PS 6xFabric-R 1xSupervisor 2

DCS-7504R-BND-D

JQ066A

Arista 7504R Chassis Bundle with NEBS-compliant 7504N Chassis 4xDC PS 6xFabric-R 1xSupervisor 2-D

DCS-7504R-BND-DC-D

JQ411A

7500R supervisor, line card, and fabric modules

Arista 7500 Series Supervisor2 Module

DCS-7500-SUP2

JH532A

Arista 7500R Supervisor 2 with SSD Module

DCS-7500-SUP2-D

JQ065A

Arista 7500R2 Series 36-port 100G QSFP28 MACsec Module

DCS-7500R2M-36CQ-LC

JQ124A

Arista 7500R Series 36QSFP 100G Module

DCS-7500R-36CQ-LC

JH530A

Arista 7500R2 Series 36-port 100G QSFP28 Module

DCS-7500R2-36CQ-LC

JQ122A

Arista 7500R2 Series 36-port 100G QSFP28 Algomatch Module

DCS-7500R2A-36CQ-LC

JQ118A

Arista 7500R2 Series 36-port 100GbE QSFP28 Algomatch 2M Route Module

DCS-7500R2AK-36CQ-LC

JQ339A

Arista 7500R2 Series 36-port 100G QSFP28 4M Route Module

DCS-7500R2L-36CQ-LC

JQ404A

Arista 7500R2 Series 18-port 100G QSFP28 Module

DCS-7500R2-18CQ-LC

JQ179A

Arista 7500R Series 36QSFP 40G Module

DCS-7500R-36Q-LC

JH531A

Arista 7500R2 Series 48-port 10/25G SFP+ and 2-port 100G QSFP28 Algomatch 2M Route Module

DCS-7500R2AK-48YCQ-LC

JQ119A

Arista 7500R Series 48SFP+ 2QSFP28 Module

DCS-7500R-48S2CQ-LC

JH850A

Arista 7516R Fabric Module with Integrated Fan

DCS-7516R-FM

JQ129A

Arista 7516R Supervisor 2 Module

DCS-7516-SUP2

JQ131A

Arista 7516R Supervisor 2 with SSD Module

DCS-7516-SUP2-D

JQ132A

Arista 7512R Fabric Module

DCS-7512R-FM

JH925A

Arista 7508R Fabric Module

DCS-7508R-FM

JL389A

Arista 7504R Fabric Module

DCS-7504R-FM

JL390A

Arista 7500R 8-port 200GbE Tunable Coherent DWDM MACsec Module

DCS-7500R-8CFPX-LC

JQ010A

Arista 7500R 36-port 100GbE QSFP28 with MACsec Wirespeed Module

DCS-7500RM-36CQ-LC

JQ011A

7500R accessories

Arista 7500 Series 2900W AC Power Supply

PWR-2900AC

JL391A

Arista 7500 Series 3000W Titanium Red AC Power Supply

PWR-3KT-AC-RED

JL392A

Arista 7500 Series 3000W Red DC Power Supply

PWR-3K-DC-RED

JL393A

Arista 7508 Fan Module

DCS-7508-FAN

JH854A

Arista 7500 Series Line Card Slot Cover

DCS-7500-LCVR

JL394A

Arista 7500 Series Supervisor Slot Cover

DCS-7500-SCVR

JL395A

Arista 7516R Spare Accessory Kit with 12xC19-C20 Power Cords 4xPost Mounting Brackets

KIT-7516

JQ133A

Arista 7512 Accessory Kit

KIT-7512

JH926A

Arista 7508 Accessory Kit

KIT-7508

JL396A

Arista 7504 Accessory Kit

KIT-7504

JL397A

EOS licensing for modular switches

Arista Expanded L3 Software Mod-1 E-LTU

LIC-MOD-1-FLX

JH543AAE

Arista Expanded L3 Software Mod-2 E-LTU

LIC-MOD-2-FLX

JH544AAE

Arista Enhanced Software Mod-1 E-LTU

LIC-MOD-1-E

JH545AAE

Arista Enhanced Software Mod-2 E-LTU

LIC-MOD-2-E

JH546AAE

Arista MACsec Software Mod-1 E-LTU

LIC-MOD-1-MACSEC

JH716AAE

Arista Virtualization Software Mod-1 E-LTU

LIC-MOD-1-V

JH717AAE

Arista Provisioning Software Mod-1 E-LTU

LIC-MOD-1-Z

JH718AAE

Arista Virtualization Software Mod-2 E-LTU

LIC-MOD-2-V

JH719AAE

Arista Provisioning Software Mod-2 E-LTU

LIC-MOD-2-Z

JH720AAE

Arista Expanded L3 Software Mod-3 E-LTU

LIC-MOD-3-FLX

JH920AAE

Arista FlexRoute L3 Lite Software Mod-1 E-LTU

LIC-MOD-1-FLX-L

JQ045AAE

Arista FlexRoute L3 Lite Software Mod-2 E-LTU

LIC-MOD-2-FLX-L

JQ046AAE

Arista FlexRoute L3 Lite Software Mod-3 E-LTU

LIC-MOD-3-FLX-L

JQ047AAE

Arista Enhanced Software Mod-3 E-LTU

LIC-MOD-3-E

JQ055AAE

Arista Provisioning Software Mod-3 E-LTU

LIC-MOD-3-Z

JQ056AAE

Arista Virtualization Software Mod-3 E-LTU

LIC-MOD-3-V

JQ057AAE

Arista Expanded L3 Lite Software Mod-4 E-LTU

LIC-MOD-4-FLX-L

JQ321AAE

Arista Expanded L3 Software Mod-4 E-LTU

LIC-MOD-4-FLX

JQ322AAE

Arista Enhanced Software Mod-4 E-LTU

LIC-MOD-4-E

JQ323AAE

Arista Provisioning Software Mod-4 E-LTU

LIC-MOD-4-Z

JQ324AAE

Arista Virtualization Software Mod-4 E-LTU

LIC-MOD-4-V

JQ325AAE

Arista FlexRoute L3 Lite Software Fix-2 E-LTU

LIC-FIX-2-FLX-L

JQ049AAE

7500R support

Arista A-Care 7508R NBD Software 1 Month Support E-LTU

SVC-7508R-1M-NB

JH451AAE

Arista A-Care 7508R 4H Software 1 Month Support E-LTU

SVC-7508R-1M-4H

JH452AAE

Arista A-Care 7508R 2H Software 1 Month Support E-LTU

SVC-7508R-1M-2H

JH453AAE

Arista A-Care 7504R NBD Software 1 Month Support E-LTU

SVC-7504R-1M-NB

JH454AAE

Arista A-Care 7504R 4H Software 1 Month Support E-LTU

SVC-7504R-1M-4H

JH455AAE

Arista A-Care 7504R 2H Software 1 Month Support E-LTU

SVC-7504R-1M-2H

JH456AAE

Arista A-Care 7512R NBD Software 1 Month Support E-LTU

SVC-7512R-1M-NB

JH896AAE

Arista A-Care 7512R 4H Software 1 Month Support E-LTU

SVC-7512R-1M-4H

JH897AAE

Arista A-Care 7512R 2H Software 1 Month Support E-LTU

SVC-7512R-1M-2H

JH898AAE

Arista A-Care 7516R 1 Month Support for 7516R Chassis w/NBD Software and Hardware Replacement E-LTU

SVC-7516R-1M-NB

JQ168AAE

Arista A-Care 7516R 1 Month Support for 7516R Chassis w/4H Software and Hardware Replacement E-LTU

SVC-7516R-1M-4H

JQ169AAE

Arista A-Care 7516R 1 Month Support for 7516R Chassis w/2H Software and Hardware Replacement E-LTU

SVC-7516R-1M-2H

JQ170AAE

Warranty, service, and support

The Arista 7500R switches come with a one-year limited hardware warranty that covers parts, repair, or replacement with a 10-business-day turnaround after the unit is received.

All technical, hardware, and software support for Arista products is provided directly by Arista and not HPE. Consult the Arista Customer Support page for contact information:  arista.com/en/support/customer-support. Services may be purchased from HPE or Arista to extend your support coverage and software upgrades. Support will be provided by Arista for these services. For details on Arista warranty and support, see: arista.com/assets/data/pdf/Warranty.pdf

Services may be purchased from HPE or Arista to extend your support coverage and software upgrades. Support will be provided by Arista for these services. For details on Arista warranty and support, see: arista.com/assets/data/pdf/Warranty.pdf.

* Typical power consumption measured at 25C ambient with 50% load on all ports

7500N Chassis are recommended for all new installations

* Typical power consumption measured at 25C ambient with 50% load on all ports

* Typical power consumption measured at 25C ambient with 50% load on all ports

¹ Maximum values dependent on shared resources in some cases

* Not currently supported in EOS

Note 1 - DCS-7508 rated to 35C with 7500R Series line cards

Date

Version History

Action

Description of Change

02-Apr-2018

Version 9

Changed

Configuration section updated

05-Mar-2018

Version 8

Added

SKU added: JQ404A

08-Jan-2018

Version 7

Changed

Technical Specifications updated

04-Dec-2017

Version 6

Added

SKUs added: JH543AAE, JH544AAE, JH545AAE, JH546AAE, JH716AAE, JH717AAE, JH718AAE, JH719AAE, JH720AAE, JH920AAE, JQ045AAE, JQ046AAE, JQ047AAE, JQ055AAE, JQ056AAE, JQ057AAE, JQ321AAE, JQ322AAE, JQ323AAE, JQ324AAE, JQ325AAE, JQ049AAE, JH451AAE, JH452AAE, JH453AAE, JH454AAE, JH455AAE, JH456AAE, JH896AAE, JH897AAE, JH898AAE, JQ168AAE, JQ169AAE, JQ170AAE

02-Oct-2017

Version 5

Added

Model added: JQ179A

04-Sep-2017

Version 4

Added

Model added: JQ130A
SKUs added: JQ125A, JQ126A, JQ127A, JQ128A, JQ118A, JQ119A, JQ122A, JQ129A, JQ131A, JQ132A, JQ133A, JQ168A, JQ169A, JQ170A, JQ124A

03-Jul-2017

Version 3

Added

Models added: JQ066A, JQ067A, JQ068A
SKUs added: JQ065A, JQ045A, JQ046A, JQ047A, JQ055A, JQ056A, JQ057A

08-May-2017

Version 2

Changed

Overview, Configuration and Technical Specifications updated

06-Mar-2017

Version 1

Created

Document creation.
