Arista 7320X 10/25/40/50/100G Data Center Switch Series |
| ||
|
| |||
|
The Arista 7320X Series modular switches deliver over 50Tbps of switching with up to 256 wire speed 100GbE ports. The 7320X Series are part of the Arista portfolio of data center switches and increase availability, flexibility and scalability supporting both leaf and spine and SplineTM applications. The 7320X systems share feature consistency and a common architecture with the Arista 7300X, 7060X and 7260X Series in two modular systems, a 4-slot and 8-slot, that support comprehensive features for network monitoring, precision timing and network virtualization to deliver scalable high performance for software defined cloud networking. Increased adoption of high performance servers and applications requiring higher bandwidth is driving adoption of 25 Gigabit Ethernet switching in combination with 100Gigabit Ethernet. The 7320X Series support high density 100GbE in combination with wire speed layer 2/3/4 performance. Each 100GbE interface supports a choice of 10GbE, 25GbE, 40GbE, 50GbE and 100GbE speeds allowing customers to seamlessly transition data centers from existing 10GbE and 40GbE architectures to 25GbE and 100GbE in open leaf and spine networks with the capacity that meets the need for scale-out of virtualized networks, with east-west traffic patterns. With front-to-rear airflow, redundant and hot swappable supervisor, power, fabric and cooling modules the system is purpose built for data centers. The 7320X Series is energy efficient with typical power consumption of under 17 Watts per 100GbE port for a fully loaded system. These attributes make the Arista 7320X Series an ideal platform for building reliable, low latency, resilient and scalable data center networks. Combined with Arista EOS the 7320X Series delivers advanced features for cloud, Big Data, virtualized and traditional designs. |
| ||
|
|
|
| |
|
|
| ||
|
|
Arista 7320X Series 100GbE Modular Data Center Switches | ||
|
|
|
| |
|
|
Product Highlights |
| |
|
|
|
| |
|
|
Performance
High Availability
Cloud Networking Ready
Advanced Provisioning & Monitoring
|
Resilient Control Plane
Data Center Class Design
Arista Extensible Operating System
|
|
|
|
|
| |
|
|
Arista Extensible Operating System (EOS) All Arista products including the 7320X Series runs the same Arista EOS software binary image simplifying network administration with a single standard across all switches. Arista EOS is a modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic. Built on top of a standard Linux® kernel, all EOS processes run in their own protected memory space and exchange state through an in-memory database. This multi-process state sharing architecture provides the foundation for in-service-software updates and self- healing resiliency together with stateful switchover without the loss of data plane forwarding. Arista EOS enables advanced monitoring and automation capabilities such as Zero Touch Provisioning, LANZ, VM Tracer and Linux based tools to be run natively on the switch. Scaling Data Center Performance The Arista 7320X Series delivers wire speed switching at later 2 and layer 3 to enable dramatically faster and simpler network designs for data centers that lowers network capital and operational expenses. When used in conjunction with Arista 1G, 10G and 40G leaf switches and Arista's Multi-Chassis Link Aggregation (MLAG) technology, a pair of 7320X Switches can support over 48,000 Servers with a leaf and spine active/active L2 network topology. A spine of 16 7320X at Layer 3 scales the network up to over 100K 10G Servers in a fully non-blocking, low-latency, two-stage network that provides predictable and consistent application performance. The flexibility of the L2 and L3 multi-path design options combined with support for open standards provides maximum flexibility, scalability and network wide virtualization. Arista EOS advanced features provides control, and visibility with single point of management.
Software Driven Cloud Networks Arista Software Driven Cloud Networking (SDCN), combines the principles that have made cloud computing the unstoppable force that it is: automation, self service provisioning, and linear scaling of both performance and economics coupled with the trend in Software Defined Networking that delivers: network virtualization, custom programmability, simplified architectures, and lower capital expenditure. This combination creates a best-in-class software foundation for maximizing the value of the network to both the enterprise and service provider data center. A new architecture for the most mission-critical location within the IT infrastructure that simplifies management and provisioning, speeds up service delivery, lowers costs and creates opportunities for competitive differentiation, while putting control and visibility back in the hands of the network and systems administrators.
The Four Pillars of Arista's Software Defined Cloud Networking: Universal Cloud Network-scalable standards based MLAG at Layer 2, ECMP for Layer 3 and VXLAN for most flexibility Cloud Control-Standards based EOS with AEM, ZTP/ZTR, LANZ and DANZ, together with Automated Monitoring Network Wide Virtualization-Multi-vendor Network Applications and Automated Management-Networks applications; single point of network wide state with CloudVision and open partner integration
Dynamic Buffer Allocation In cut-through mode, the Arista 7320X series switches forward packets with a latency of less than 2 usec. Upon congestion, the packets are buffered in shared packet memory that has a total size of 16 Mbytes. Unlike other architectures that have fixed per-port packet memory, the 7320X Series use Dynamic Buffer Allocation (DBA) to allocate packet memory to a single port for lossless forwarding.
Maximum Flexibility for Scale Out Network Designs Scale out network designs enable solutions to start small and evolve overtime. A simple two-way design can grow as wide as 64-way without significant changes to the architecture. The 7300X Series include enhancements that allow for flexible scale-out designs: 128-way ECMP and 64-way MLAG to provide scalable designs and balance traffic evenly across large scale 2 tier leaf-spine designs Flexible allocation of L2 and L3 forwarding table resources for more design choice Wide choice of interface types with multi-speed support on the QSFP100 interfaces combined with a wide range of optics and cables VXLAN routing, bridging and gateway for physical to virtualization communication to enable next generation data center designs DANZ, sFlow, and multi-port mirroring to detect micro-burst congestion and provide network wide visibility and monitoring Investment protection for current and evolving requirements with support for 10GbE, 25GbE, 40GbE and 100GbE
Enhanced Features for High Performance Networks The Arista 7320X Series delivers a suite of advanced traffic control and monitoring features to improve the agility of modern high performance environments, with solutions for data monitoring, precise timing and next-generation virtualization.
Smart System Upgrade Smart System Upgrade (SSU) is a network application designed to address one of the most complicated and challenging tasks facing data center administrators-network infrastructure maintenance. Changes to the underlying network infrastructure can affect large numbers of devices and cause significant outages. SSU provides a fully customizable suite of features that tightly couples data center infrastructure to technology partners allowing for intelligent insertion and removal, programmable updates to software releases and open integration with application and infrastructure elements.
Precise Data Analysis Arista Latency Analyzer (LANZ) is an integrated feature of EOS. LANZ provides precise real-time monitoring of micro-burst and congestion events before they impact applications, with the ability to identify the sources and capture affected traffic for analysis
Virtualization Supporting next-generation virtualized data centers requires tight integration with orchestration tools and emerging encapsulation technologies such as VXLAN. The 7320X Series builds on the valuable tools already provided by the Arista VM Tracer suite to integrate directly into encapsulated environments. Offering a wire-speed gateway between VXLAN and traditional L2/3 environments, the 7320X Series makes integration of non-VXLAN aware devices including servers, firewalls and load-balancers seamless and provides the ability to leverage VXLAN as a standards based L2 extension technology for non-MPLS environments.
Advanced Event Management (AEM) Simplifying the overall operations, AEM provides the tools to customize alerts and actions. AEM is a powerful and flexible set of tools to automate tasks and customize the behavior of EOS and the operation of the overall data center switching infrastructure. AEM allows operators to fully utilize the intelligence within EOS to respond to real-time events, automate routine tasks, and automate actions based on changing network conditions.
Unified Forwarding Table Cloud network scalability is directly impacted by the size of a switches forwarding tables. In many systems a 'one size fits all' approach is adopted using discrete fixed size tables for each of the common types of forwarding entry. The Arista 7320X leverages a common Unified Forwarding Table (UFT) for the L2 MAC, L3 Routing, L3 Host and IP Multicast forwarding entries, which can be partitioned per entry type. The ideal size of each partition varies depending on the network deployment scenario. The flexibility of the UFT coupled with the range of pre-defined configuration profiles available on the 7320X ensures optimal resource allocation for all network topologies and network virtualization technologies. Algorithmic Longest Prefix Match (ALPM) allows for the shared UFT to be expanded to contain up to 128K longest prefix match (LPM) route entries.
Designed for High Availability and Manageability The Arista 7320X Series are designed for continuous operations with system wide monitoring of both hardware and software components, simple serviceability and provisioning to prevent single points of failure. The hardware supports high-availability with hot-swap of all components with redundant supervisors, power supplies, fabric and cooling modules. Fabric redundancy provides deterministic degradation and integrated fan systems for dynamic temperature control combined with N+1 redundancy. Each of the 7320X Series offers power redundancy that supports both power-source and powersupply redundancy. The Arista EOS software enabled stateful failover* between the dual redundant supervisors as well as self-healing stateful fault containment (SFC), stateful fault repair (SFR) and live patching through in-service-software updates to help ensure continuous service. The Arista 7320X lowers total cost of ownership as it is designed to be efficient with power per port as low as 17W per 100GbE port which combined with front to rear cooling produces the most reliable, dense and power efficient modular switch.
CloudVision CloudVision is a network-wide approach for workload orchestration and workflow automation as a turnkey solution for Cloud Networking. CloudVision extends the EOS publish subscribe architectural approach across the network for state, topology, monitoring and visibility. This enables enterprises to move to cloud-class automation without needing any significant internal development.
7320X Architecture The 7320X Series architecture is designed around an internal clos with line cards and fabric modules fully interconnected to deliver a low latency fully non-blocking system. Each line card has self contained switch modules and interconnect via the vertical fabric modules for over 50 Tbps of switching capacity. Dual redundant supervisor modules provide centralized control plane and management functionality. 7300 Chassis-8-slot and 4-slot The Arista 7300 chassis provides room for two supervisor modules, four or eight line card modules, multiple power supply modules, and four fabric modules. The 7304 chassis fits into 8 rack units while the 7308 chassis fits into 13U of a standard data center rack. Supervisor and line card modules plug in from the front, as do power supply modules, while the fabric and fan modules are inserted from the rear. | ||
|
|
| ||
|
|

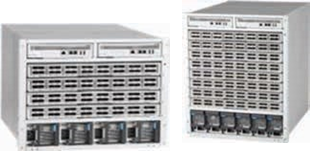

Arista 7300X Series Chassis | ||
|
|
The midplane is completely passive with orthogonal connectors that provide direct connectivity between each of the fabric and line card modules. The system is optimized for data center deployments with front-to-rear airflow and can be installed in both standard 4-post and 2- post rack or cabinets without special modifications.
System Cooling The Arista 7320X Series supports front to rear cooling that is optimized for modern data center and co-location facilities. Cool air is drawn into the system through the front over the line cards, supervisor modules and power supplies. Warm air is exhausted at the rear through the fabric modules by fan modules that are integrated into the fabric cards. The system controls the fans speeds to dynamically adjust to the ambient air temperature and internal temperature sensors built into all system elements to ensure optimum cooling.
Line Card Modules The 7320X Series line cards deliver up to 4.7 Billion packets per second of forwarding with a single stage architecture that provides fair access to all ports. Each line card contains up to 32MB of packet memory that ensures up to 4MB for any single port for lossless forwarding. Line cards connect to all fabric modules in a non-blocking full mesh and leverage flow based load balancing to improve fabric efficiency. Fabric and line card connections are optimized to allow individual flows of up to 100 Gigabit per second The Arista 7320X Series can be populated with up to eight high density 100GbE line cards. For environments requiring the highest performance combined with interface flexibility the 7320X line cards support five speed choices on each port. Each port can be configured for quad 10GbE or 25GbE, dual 50GbE or single 40GbE and 100GbE. Speed changes and breakout modes are enabled independently of the other ports on the line card. Additionally a wide range of both copper and fiber optics for all speeds are available with full support for industry standard connections. Each 7320X line card supports wire speed layer 2 and 3 forwarding and support for a wide range of L2 and L3 features.
| ||
|
|
| ||
|
|
Arista 7320X Series 32 port 100GbE Line Card | ||
|
|
32 port QSFP100 100GbE line card for
Supervisor Module The supervisor module for the 7300X and 7320X series runs Arista Extensible Operating System (EOS) and handles all control plane and management functions of the system. One supervisor module is needed to run the system and a second can be added for 1+1 redundancy. Each supervisor module takes up only a half slot resulting in very efficient use of space and a higher density design. The quad-core x86 CPU with 16GB of DRAM and an optional solid state drive (SSD) provides the control plane performance needed to run an advanced data center switch scaling to over 2,000 physical ports and thousands of virtual ports. Supervisor modules have dedicated connections to all fabric modules and line cards for communication and monitoring.
|
||
|
|
| ||
|
|
Arista 7300X Series Supervisor Module | ||
|
|
| ||
|
|
A pulse per second clock input port enables synchronizing with an external source to improve the accuracy of network timing and monitoring tools. The supervisor module features an auxiliary console port, 2 Ethernet management interfaces and a pair of USB ports for attaching external storage to install images, copy logs or support external connections. A series of status LEDs provide summary information for the system, power supplies, line cards, fabrics and fan modules.
Fabric and Fan Module At the heart of the 7320X series is the fabric. It interconnects all line cards in a non-blocking architecture irrespective of the traffic pattern providing a full 6.4 Tbps of forwarding to each line card slot. Each line card connects to the fabric with multiple links and flows are spread across these paths to efficiently utilize the available fabric capacity. The four fabric modules are always active-active, providing high availability and can be hot-swapped with graceful performance degradation.
| ||
|
|
| ||
|
|
| ||
|
|
| ||
|
|
Arista 7320X Series Fabric and Fan Modules | ||
|
|
| ||
|
|
The fabric modules for the two chassis are different based on the size of the chassis and each accommodates a set of individual hot-swap high speed fan modules which provides redundancy for cooling. Each high speed fan module can be independently replaced without any impact of the system. The high speed fan modules are common to many of the 7000 Series 2RU switches providing simpler maintenance and sparing across modular and fixed products.
Power Supply Modules The 7320 series switches are equipped with a choice of 3000W AC or 2700W DC power supplies. The power supplies provide load sharing, support grid redundancy and are hot-swappable to eliminate downtime when replacing power supplies. A maximum of 4 power supplies are used on the 7304 and up to 6 power supplies on the 7308. System are fully redundant with just two power supplies depending on the configuration and adding more power supplies provides increased power capacity.
| ||
|
|
| ||
|
|
Arista 7320X Series AC and DC Power Supplies | ||
|
|
| ||
|
|
The AC power supplies are Titanium climate saver rated and have an efficiency of over 94% across typical loading with a single stage conversion to the internal DC voltage. The DC power supplies require inputs at -48V DC to deliver up to 2700W. The 7320X Series uses multiple small power supplies which allows for incremental provisioning and smaller input circuits. Variable power supply fan speeds ensure power supply efficiency is optimized and reduces noise in data center environments. | ||
|
|
| ||
|
