Arista 7280R MACsec Data Center Switch Router Series

Overview

Arista 7280R MACsec Data Center Switch Router Series

HPE and Arista share a common vision around the need to deliver secure hybrid IT solutions and experiences built on industry-leading software-defined infrastructure-helping customers to operate their workloads with speed and agility to grow their business. This partnership will provide our customers with proven networking solutions that are superior to legacy alternatives and that complement HPE compute, storage, virtualization, and cloud offerings. The Arista 7280R MACsec Data Center Switch Router Series is part of the 7280R fixed systems which are key components of the Arista 7000 Series portfolio of data center switches. The Arista 7280R MACsec Data Center Switch Router Series is a high performance compact routing platform with built-in wire speed MACsec encryption that is purpose built for the highest performance environments, and to meet the needs of the largest scale data centers. It delivers scalable L2 and L3 resources and high density with advanced features for network monitoring, precision timing and network virtualization to deliver scalable and deterministic network performance while simplifying designs and reducing Opex. The built-in MACsec capability removes the need for external encryption device and provides security against intrusion, passive wire tapping and other playback attacks. MACsec encryption meets regulatory compliance requirements and provides data protection without loss of performance. The Arista MACsec solution utilizes proven encryption technology to protect traffic for simple, reliable and scalable data center interconnect and for securing links between tiers in leaf and spine data center designs. MACsec offers security in the data link layer and is transparent and non-disruptive to L2/L3 traffic. Flexible 100GbE QSFP pluggable optics ensures a broad choice of cost effective connections. The 7280R MACsec Data Center Switch Router Series can be deployed in a wide range of open networking solutions including secure Data Center Interconnect (DCI), large scale layer 2 and layer 3 cloud designs, overlay networks and virtualized or traditional enterprise data center networks. Deep packet buffers and large routing tables allow for internet peering applications. The broad range of interfaces and density choice provides deployment flexibility.

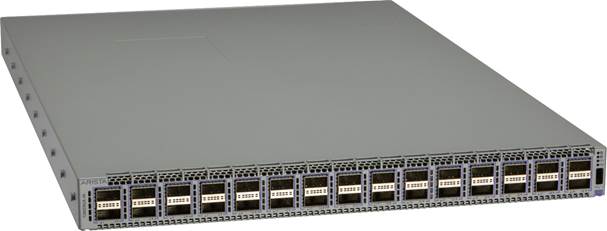

Figure 1. Arista 7280SRAM-48C6 MACsec systems


Product Highlights

Density and Performance 48 x 1/10GbE and 6x 100GbE in 1RU Wire speed L2 and L3 forwarding Up to 2.16Tbps of wire speed performance with 4GB of buffer Wire-speed Encryption IEEE 802.1AE MACsec encryption Wire speed encryption on 6x100GbE ports MACsec encryption on a per port basis Optimized for secure DCI and site-site encryption in a compact footprint Data Center Optimized Design 4GB of Ultra-deep packet buffer Virtual Output Queues per port to eliminate head of line blocking Over 94% efficient power supplies Redundant & hot-swap power and fans Front-to-rear or rear-to-front cooling NEBS compliant Tool less rails for simple installation Virtualization and Provisioning CloudVision VXLAN for next generation DC LANZ for microburst detection DANZ Advanced Mirroring & TAP Aggregation for improved visibility VM Tracer Zero Touch Provisioning (ZTP) Advanced Event Monitoring Accelerated sFlow® (RFC3176)	Cloud Networking Ready 768K MAC Addresses 768K IPv4 and IPv6 Host Routes Over 1M IPv4 Routes Arista AlgoMatchTM Resilient Control Plane High Performance x86 CPU 32GB System memory 4GB Flash User applications can run in a VM Arista Extensible Operating System Single binary image Fine-grained truly modular network OS Stateful Fault Containment (SFC) Stateful Fault Repair (SFR) Full access to Linux shell and tools Extensible platform - bash, python, C++, GO, OpenConfig

Arista EOS All Arista products including the 7280R MACsec Data Center Switch Router Series runs the same Arista EOS software, binary image simplifying network administration with a single standard across all switches. Arista EOS is a modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic. Built on top of a standard Linux® kernel, all EOS processes run in their own protected memory space and exchange state through an in-memory database. This multi-process state sharing architecture provides the foundation for in-service-software updates and self-healing resiliency together with stateful switchover without the loss of data plane forwarding. Arista EOS enables advanced monitoring and automation capabilities such as Zero Touch Provisioning, LANZ, VM Tracer and Linux based tools to be run natively on the switch.

System Overview The Arista 7280R MACsec Data Center Switch Router Series delivers unprecedented levels of buffering, scale and availability with built-in wire-speed MACsec encryption on the 100G ports and support for AlgoMatch.


Figure 2. Arista 7280SRAM-48C6 front

7280SRAM-48C6: 48 port SFP+ and 6 ports QSFP100 Offers 48 wire speed 1/10G SFP+ ports Six 100G QSFP ports allow choice of 6 x 100GbE (with MACsec) and 6x40GbE 2.16Tbps of wire speed performance with 4GB of buffer


Figure 3. 7280SRAM-48C6 Rear View: Rear to Front and Front to Rear

The 7280R MACsec Data Center Switch Router Series is designed for continuous operations with system wide monitoring for both hardware and software components, simple serviceability and provisioning to prevent single point of failure. Key high availability features include 1+1 hot swappable power supplies and four hot-swap fans provide dynamic temperature control combined with N+1 redundancy Color coded PSUs and fans that deliver platinum level power efficiency Self healing software with Stateful Fault Repair (SFR), Smart System Upgrade (SSU) and Accelerated Software Update (ASU)


7280R Accelerated sFlow SFlow is a powerful tool used commonly by network operators for advanced network telemetry, capacity planning, security analysis and quality of experience monitoring. All models of the 7280R Series enable sFlow utilizing the high performance CPU. Within modern high performance systems traffic sampling requires the capability to both sample and process packet rates of hundreds of millions of packets per second. With the 7280R Series Accelerated sFlow feature the sampling and processing of flow samples into sFlow datagrams is handled via a dedicated sFlow engine capable of generating up to 1.6Mpps of sFlow data, and of supporting 1:1000 sampling rates of full wire speed systems or higher rates with selective sampling based on triggers and filters. All sFlow v5 information is included in the sFlow records ensuring consistent integration with existing standard sFlow collection and analysis tools and no loss of information. AlgoMatch AlgoMatch is a unique Arista innovation for modern cloud networks, combining both software and hardware to enable more flexible and scalable solutions for access control, policy based forwarding and network telemetry. By combining general purpose memory with advanced software algorithms AlgoMatch delivers higher scale, performance and efficiency with lower power and is more cost effective than traditional solutions. AlgoMatch provides a more efficient packet matching algorithm that in turn enables flow matching for access control, policy and visibility. The net benefits are a high performance policy engine with both increased functionality and scale in a cost and power efficient solution. AlgoMatch is available on the 7280RA Series of products. AlgoMatch enables IPv4 and IPv6 access control at the same scale L4 rule ranges are programmed efficiently without expansion or reduced capacity Multiple actions can be performed on a single packet or flow User defined filters allow flexible packet classification based on offsets for custom actions Supports rich policy with consistent semantics that would exhaust classical resources 100G Wire-speed Encryption Industry standard IEEE 802.1AE (MAC Security standard, referred to as MACsec) capabilities provide line-rate frame encryption and authentication for all traffic. This removes the need for additional encryption devices and ensures confidentiality as well as provides anti-replay protection and therefore confidence in the integrity of encrypted traffic. MACsec is a link layer encryption technology and operates at the speed of the Ethernet ports, providing high performance without the processing overheads associated with encryption options such as IPSec. MACsec uses a long-term key to derive session keys used for encryption utilizing the MACsec Key Agreement Protocol per IEEE 802.1X-2010. Long term keys can either be statically defined or derived via RADIUS server(s). Data is encrypted using the 128 bit or 256- bit GCM-AES-XPN block cipher suite. MACsec encryption is a EOS licensed feature and requires a license file to enable the encryption feature. License information is included in the ordering information section of this document.

Features and Benefits

Layer 2 Features

802.1w Rapid Spanning Tree
802.1s Multiple Spanning Tree Protocol
Rapid Per Vlan Spanning Tree (RPVST+)
4096 VLANs
Q-in-Q
802.3ad Link Aggregation/LACP

- 54 Ports /Channel

- 48 groups per system

MLAG (Multi-Chassis Link Aggregation)

- Uses IEEE 802.3ad LACP

- 96 ports per MLAG

802.1Q VLANs/Trunking
802.1AB Link Layer Discovery Protocol
802.3x Flow Control
Jumbo Frames (9216 Bytes)
IGMP v1/v2/v3 snooping
Storm Control *
802.1 AVB *
SMPTE-2059-2 *

Layer 3 Features

Static Routes
Routing Protocols: OSPF, OSPFv3, BGP, MP-BGP, IS-IS, and RIPv2
128-way Equal Cost Multipath Routing (ECMP)
VRF
Bi-Directional Forwarding Detection (BFD)
Unicast Reverse Path Forwarding (uRPF)
VRRP
Virtual ARP (VARP)
Policy Based Routing (PBR)
Route Maps

Advanced Monitoring and Provisioning

IGMP v2/v3
Protocol Independent Multicast (PIM-SM/PIM-SSM)
PIM-BiDir
Anycast RP (RFC 4610)
Multicast Source Discovery Protocol (MSDP)

Advanced Monitoring and Provisioning

Latency Analyzer and Microburst Detection (LANZ)

- Configurable Congestion Notification (CLI, Syslog) *

- Streaming Events (GPB Encoded) *

- Capture/Mirror of congested traffic *

Zero Touch Provisioning (ZTP)

Advanced Mirroring

- Port Mirroring (16 sessions)

- Enhanced Remote Port Mirroring

- SPAN/TAP M:N Aggregation

- L2/3/4 Filtering

Advanced Event Management suite (AEM)

- CLI Scheduler

- Event Manager

- Event Monitor

- Linux tools

Integrated packet capture/analysis with TCPDump
Restore and Configure from USB
RFC 3176 sFlow
Built-in SSD for logging and data capture
IEEE 1588 PTP *

Virtualization Support

VXLAN Gateway (draft-mahlingam-dutt-dcops-vxlan-01)
VXLAN Tunnel Endpoint
VXLAN Bridging
VXLAN Routing (VRF, MLAG)
VM Tracer VMware® Integration

Security Features

PDP
Service ACLs
Ingress/Egress ACLs using L2, L3, L4 fields
Ingress/Egress ACL Logging and Counters
MAC ACLs*
ACL Deny Logging
ACL Counters
DHCP Relay/Snooping
MAC Security
TACACS+
RADIUS
ARP trapping and rate limiting

Quality of Service (QoS) Features

Up to 8 queues per port
Strict priority queueing
802.1p based classification
DSCP based classification and remarking
Egress shaping/Weighted round robin (WRR)
Policing/Shaping
Rate limiting *
Explicit Congestion Notification (ECN) marking *
802.1Qbb Per-Priority Flow Control (PFC)
802.1Qaz Enhanced Transmission Selection (ETS)*
Data Center Bridging Extensions (DCBX)*

Network Management CloudVision Configuration rollback and commit 100/1000 Management Port RS-232 Serial Console Port USB Port SNMP v1, v2, v3 Management over IPv6 Telnet and SSHv2 Syslog AAA Industry Standard CLI Beacon LED for system identification System Logging Environment monitoring Extensibility Linux Tools - Bash shell access and scripting - RPM support - Custom kernel modules Software Defined Networking (SDN) - eAPI - OpenStack® Neutron Support Programmatic access to system state - Python - Chef Puppet - C++ - eAPI GO - OpenConfig - OpenStack Neutron Plug-in support Native KVM/QEMU support System Scalability 9216 Byte Jumbo Frame Support 8 Priority Queues per Port 1152 Link Aggregation Groups (LAG) 32 Ports per LAG Virtual Output Queueing Distributed Scheduler WFQ, CIR, ETS, Fixed Priority Standards Compliance 802.1D Bridging and Spanning Tree 802.1p QOS/COS 802.1Q VLAN Tagging 802.1w Rapid Spanning Tree 802.1s Multiple Spanning Tree Protocol 802.1AB Link Layer Discovery Protocol 802.3ad Link Aggregation with LACP 802.3x Flow Control	802.3ab 1000BASE-T 802.3z Gigabit Ethernet 802.3ae 10 Gigabit Ethernet 802.3ba 40 Gigabit Ethernet 802.3ba 100 Gigabit Ethernet RFC 2460 Internet Protocol, Version 6 (IPv6) Specification RFC 2461 Neighbor Discovery for IP Version 6 (IPv6) RFC 2462 IPv6 Stateless Address Autoconfiguration RFC 2463 Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) Specification IEEE 1588-2008 Precision Time Protocol SNMP MIBs RFC 3635 EtherLike-MIB RFC 3418 SNMPv2-MIB RFC 2863 IF-MIB RFC 2864 IF-INVERTED-STACK-MIB RFC 2096 IP-FORWARD-MIB RFC 4363 Q-BRIDGE-MIB RFC 4188 BRIDGE-MIB RFC 2013 UDP-MIB RFC 2012 TCP-MIB RFC 2011 IP-MIB RFC 2790 HOST-RESOURCES-MIB RFC 3636 MAU-MIB RMON-MIB RMON2-MIB HC-RMON-MIB LLDP-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB ENTITY-MIB ENTITY-SENSOR-MIB ENTITY-STATE-MIB ARISTA-ACL-MIB ARISTA-QUEUE-MIB RFC 4273 BGP4-MIB RFC 4750 OSPF-MIB ARISTA-CONFIG-MAN-MIB ARISTA-REDUNDANCY-MIB RFC 2787 VRRPv2MIB MSDP-MIB PIM-MIB IGMP-MIB IPMROUTE-STD-MIB SNMP Authentication Failure trap ENTITY-SENSOR-MIB support for DOM (Digital Optical Monitoring) User configurable custom OIDs See EOS release notes for latest supported MIBs * Not currently supported in EOS


Service and Support

HPE Pointnext's full portfolio of Consulting services as well as Support Services are available. The support services include Installation and Startup Services, Next Business Day Exchange, Next Business Day Onsite and 24x7 Onsite parts, Engineer and 4-hour committed response as well as Datacenter Care and Flex Capacity. (Arista A-Care services can also be purchased. Learn more at http://www.arista.com). For service depot locations, please see: http://www.arista.com/en/service



Warranty

The Arista 7280R switches come with a one-year limited hardware warranty that covers parts, repair, or replacement with a 10-business-day turnaround after the unit is received. Learn more at http://www.arista.com

Configuration

Build To Order: BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

7250QX Switch

Arista 7250 64QSFP+ FB AC Swch		JH797A
Arista 7250, 64xQSFP+ switch, front-to-rear air, 2xAC, 2xC13-C14 cords Min 0 // Max 64 QSFP+ 40G Transceivers 2U - Height		See Configuration NOTE: 2, 5

Arista 7250 64QSFP+ BF AC Swch		JH798A
Arista 7250, 64xQSFP+ switch, rear-to-front air, 2xAC, 2xC13-C14 cords Min 0 // Max 64 QSFP+ 40G Transceivers 2U - Height		See Configuration NOTE: 2, 5

7260CX Switch

Arista 7260CX3 64Q28 2S FB AC Swch		JQ193A
Arista 7260X3, 64x100GbE QSFP & 2xSFP+ switch, front-to-rear air, 2xAC, 2xC19-C20 cords Min 0 // Max 2 SFP+ 10G Transceivers Min 0 // Max 64 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7260CX3 64Q28 2S BF AC Swch		JQ194A
Arista 7260X3, 64x100GbE QSFP & 2xSFP+ switch, rear-to-front air, 2xAC, 2xC19-C20 cords Min 0 // Max 2 SFP+ 10G Transceivers Min 0 // Max 64 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7260X 64QSFP28 2SFP+ FB AC Swch		JH799A
Arista 7260X, 64x100GbE QSFP & 2xSFP+ switch, front-to-rear air, 2xAC, 2xC19-C20 cords Min 0 // Max 2 SFP+ 10G Transceivers Min 0 // Max 64 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7260X 64QSFP28 2SFP+ BF AC Swch		JH800A
Arista 7260X, 64x100GbE QSFP & 2xSFP+ switch, rear-to-front air, 2xAC, 2xC19-C20 cords Min 0 // Max 2 SFP+ 10G Transceivers Min 0 // Max 64 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

7260QX Switch

Arista 7260X 64QSFP+ 2SFP+ FB AC Swch		JH801A
Arista 7260X, 64x40GbE QSFP+ & 2xSFP+ switch, front-to-rear air, 2xAC, 2xC13-C14 cords Min 0 // Max 64 QSFP+ 40G Transceivers Min 0 // Max 2 SFP+ 10G Transceivers 2U - Height		See Configuration NOTE: 1, 2, 5
Arista 7260X 64QSFP+ 2SFP+ BF AC Swch		JH802A
Arista 7260X, 64x40GbE QSFP+ & 2xSFP+ switch, rear-to-front air, 2xAC, 2xC13-C14 cords Min 0 // Max 64 QSFP+ 40G Transceivers Min 0 // Max 2 SFP+ 10G Transceivers 2U - Height		See Configuration NOTE: 1, 2, 5

7280CR Switch

Arista 7280R 48QSFP28 8QSFP+ FB DC Swch		JH803A
Arista 7280R, 48x100GbE QSFP and 8x40GbE QSFP+ switch, front to rear air, 2 x DC Min 0 // Max 8 QSFP+ 40G Transceivers Min 0 // Max 48 QSFP28 100G Transceivers 2U - Height		See Configuration NOTE: 2, 3, 5

Arista 7280R 48QSFP28 8QSFP+ FB AC Swch		JH804A
Arista 7280R, 48x100GbE QSFP and 8x40GbE QSFP+ switch, front to rear air, 2 x AC and 2 x C19-C20 cords Min 0 // Max 8 QSFP+ 40G Transceivers Min 0 // Max 48 QSFP28 100G Transceivers 2U - Height		See Configuration NOTE: 2, 3, 5

7280CR2A Switch

Arista 7280R2 30QSFP28 AG MX FB AC Swch		JQ413A
Arista 7280R2 30x100GbE QSFP switch AlgoMatch expn mem front to rear air AC. Over 256K Routes MPLS and VXLAN Min 0 // Max 30 QSFP28 100G Transceivers NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59) 2U - Height		See Configuration NOTE: 3, 5, 6

Arista 7280R2 30QSFP28 AG X FB AC Swch		JQ407A
Arista 7280R2, 30x100GbE QSFP switch, AlgoMatch, expn mem, front to rear air, 2 x AC and 2 x C19-C20 cords Min 0 // Max 30 QSFP28 100G Transceivers NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59) 2U - Height		See Configuration NOTE: 3, 5, 6

Arista 7280R2 60QSFP28 AG FB AC Swch		JQ110A
Arista 7280R2, 60x100GbE QSFP switch router, AlgoMatch, front to rear air, 2 x AC Min 0 // Max 60 QSFP28 100G Transceivers NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59) 2U - Height		See Configuration NOTE: 3, 5, 6

Arista 7280R2 60QSFP28 AG FB DC Swch		JQ111A
Arista 7280R2, 60x100GbE QSFP switch router, AlgoMatch, front to rear air, 2 x DC Min 0 // Max 60 QSFP28 100G Transceivers NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59) 2U - Height		See Configuration NOTE: 3, 5, 6

Arista 7280R2 60QSFP28 AG L3 FB AC Swch		JQ113A
Arista 7280R2, 60x100GbE QSFP switch router, AlgoMatch, front to rear air, 2 x AC. Over 256K Routes, MPLS and VXLAN Min 0 // Max 60 QSFP28 100G Transceivers NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59) 2U - Height		See Configuration NOTE: 3, 5, 6

7280CR2 Switch

Arista 7280R2 60QSFP28 FB AC Swch		JQ078A
Arista 7280R2, 60x100GbE QSFP switch router, front to rear air, 2 x AC Min 0 // Max 60 QSFP28 100G Transceivers NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59) 2U - Height		See Configuration NOTE: 3, 5, 6

Arista 7280R2 60QSFP28 FB DC Swch		JQ079A
Arista 7280R2, 60x100GbE QSFP switch router, front to rear air, 2 x DC Min 0 // Max 60 QSFP28 100G Transceivers NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59) 2U - Height		See Configuration NOTE: 3, 5, 6

Arista 7280R2 60QSFP28 L3 FB AC Swch		JQ081A
Arista 7280R2, 60x100GbE QSFP switch router, front to rear air, 2 x AC. Over 256K Routes, MPLS and VXLAN Min 0 // Max 60 QSFP28 100G Transceivers NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59) 2U - Height		See Configuration NOTE: 3, 5, 6

7280CR2K Switch

Arista 7280R2 60QSFP28 AG2 FB AC Swch		JQ195A
Arista 7280R2, 60x100GbE QSFP switch router, AlgoMatch-2, front to rear air, 2 x AC Min 0 // Max 60 QSFP28 100G Transceivers NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59) 2U - Height		See Configuration NOTE: 3, 5, 6

Arista 7280R2 60QSFP28 AG2 FB DC Swch		JQ196A
Arista 7280R2, 60x100GbE QSFP switch router, AlgoMatch-2, front to rear air, 2 x DC Min 0 // Max 60 QSFP28 100G Transceivers NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59) 2U - Height		See Configuration NOTE: 3, 5, 6

Arista 7280R2 60QSFP28 AG2 L3 FB AC Swch		JQ197A
Arista 7280R2, 60x100GbE QSFP switch router, AlgoMatch-2, front to rear air, 2 x AC. Over 256K Routes, MPLS and VXLAN Min 0 // Max 60 QSFP28 100G Transceivers NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59) 2U - Height		See Configuration NOTE: 3, 5, 6

Arista 7280R2 30QSFP28 AG2 E FB AC Swch		JQ206A
Arista 7280R2, 30x100GbE QSFP switch, AlgoMatch-2, expn mem, front to rear air, 2 x AC and 2 x C19-C20 cords Min 0 // Max 30 QSFP28 100G Transceivers 2U - Height		See Configuration NOTE: 3, 5

Arista 7280R2 30QSFP28 AG2 E BF AC Swch		JQ207A
Arista 7280R2, 30x100GbE QSFP switch, AlgoMatch-2, expn mem, rear to front air, 2 x AC and 2 x C19-C20 cords Min 0 // Max 30 QSFP28 100G Transceivers 2U - Height		See Configuration NOTE: 3, 5

Arista 7280R2 30Q28 AG2 E L3 FB AC Swch		JQ208A
Arista 7280R2, 30x100GbE QSFP switch, AlgoMatch-2, expn mem, front to rear air, 2 x AC. Over 256K Routes, MPLS and VXLAN Min 0 // Max 30 QSFP28 100G Transceivers 2U - Height		See Configuration NOTE: 3, 5

Arista 7280R2 30Q28 AG2 E L3 BF AC Swch		JQ209A
Arista 7280R2, 30x100GbE QSFP switch, AlgoMatch-2, expn mem, rear to front air, 2 x AC. Over 256K Routes, MPLS and VXLAN Min 0 // Max 30 QSFP28 100G Transceivers 2U - Height		See Configuration NOTE: 3, 5

7280SE Switch

Arista 7280E 48SFP+ 2QSFP28 FB AC Swch		JH807A
Arista 7280E, 48x10GbE (SFP+) & 2x100GbE QSFP100 switch, front-to-rear air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 2 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7280E 48SFP+ 2QSFP28 BF AC Swch		JH808A
Arista 7280E, 48x10GbE (SFP+) & 2x100GbE QSFP100 switch, rear-to-front air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 2 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7280E 48SFP+ 2MXP100 FB AC Swch		JH809A
Arista 7280E, 48x10GbE (SFP+) & 2x100GbE MXP switch, front-to-rear air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 2 MXP QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7280E 48SFP+ 2MXP100 BF AC Swch		JH810A
Arista 7280E, 48x10GbE (SFP+) & 2x100GbE MXP switch, rear-to-front air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 2 MXP QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7280E 48SFP+ 4QSFP+ FB AC Swch		JH568A
Arista 7280E, 48x10GbE (SFP+) & 4x40GbE QSFP+ switch, front-to-rear air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 4 QSFP+ 40G Transceivers 1U - Height		See Configuration NOTE: 1, 2, 5

Arista 7280E 48SFP+ 4QSFP+ BF AC Swch		JH569A
Arista 7280E, 48x10GbE (SFP+) & 4x40GbE QSFP+ switch, rear-to-front air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 4 QSFP+ 40G Transceivers 1U - Height		See Configuration NOTE: 1, 2, 5

7280QRA Switch

Arista 7280RA36Q+ 12Q28 AG SX BF AC Swch		JQ089A
Arista 7280RA, 36x40GbE QSFP+ with 12x100GbE QSFP switch router, AlgoMatch, epxn mem, SSD, rear to front air, 2x AC Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP+/QSFP28 40G/100G Transceivers NOTE: Depending on the port configuration a maximum of 36-40G ports or 12-100G ports with 24-40G ports. Other combinations can be configured. Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 7-29) 1U - Height		See Configuration NOTE: 2, 3, 5, 6

Arista 7280RA36Q+ 12Q28 AG SX FB AC Swch		JQ088A
Arista 7280RA, 36x40GbE QSFP+ with 12x100GbE QSFP switch router, AlgoMatch, epxn mem, SSD, front to rear air, 2x AC Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP+/QSFP28 40G/100G Transceivers NOTE: Depending on the port configuration a maximum of 36-40G ports or 12-100G ports with 24-40G ports. Other combinations can be configured. Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 7-29) 1U - Height		See Configuration NOTE: 2, 3, 5, 6

Arista 7280RA 36Q+ 12Q28 AG BF AC Swch		JQ087A
Arista 7280RA, 36x40GbE QSFP+ with 12x100GbE QSFP switch router, AlgoMatch, rear to front air, 2x AC and 2xC13-C14 cords Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP+/QSFP28 40G/100G Transceivers NOTE: Depending on the port configuration a maximum of 36-40G ports or 12-100G ports with 24-40G ports. Other combinations can be configured. Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 7-29) 1U - Height		See Configuration NOTE: 2, 3, 5, 6

Arista 7280RA 36Q+ 12Q28 AG FB AC Swch		JQ086A
Arista 7280RA, 36x40GbE QSFP+ with 12x100GbE QSFP switch router, AlgoMatch, front to rear air, 2x AC and 2xC13-C14 cords Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP+/QSFP28 40G/100G Transceivers NOTE: Depending on the port configuration a maximum of 36-40G ports or 12-100G ports with 24-40G ports. Other combinations can be configured. Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 7-29) 1U - Height		See Configuration NOTE: 2, 3, 5, 6

Arista 7280RA 36Q+ 12Q28 AG S MX BF Swch		JQ091A
Arista 7280RA, 36x40GbE QSFP+ with 12x100GbE switch, AlgoMatch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP+/QSFP28 40G/100G Transceivers NOTE: Depending on the port configuration a maximum of 36-40G ports or 12-100G ports with 24-40G ports. Other combinations can be configured. Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 7-29) 1U - Height		See Configuration NOTE: 2, 3, 5, 6

Arista 7280RA 36Q+ 12Q28 AG S MX FB Swch		JQ090A
Arista 7280RA, 36x40GbE QSFP+ with 12x100GbE switch router, AlgoMatch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP+/QSFP28 40G/100G Transceivers NOTE: Depending on the port configuration a maximum of 36-40G ports or 12-100G ports with 24-40G ports. Other combinations can be configured. Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 7-29) 1U - Height		See Configuration NOTE: 2, 3, 5, 6

7280QR Switch

Arista 7280R 72QSFP+ 16QSFP28 FB AC Swch		JQ004A
Arista 7280R, 72x40GbE QSFP+ with 16x100GbE QSFP switch, front to rear air, 2x AC and 2xC19-C20 cords Min 0 // Max 72 QSFP+ 40G Transceivers Min 0 // Max 16 QSFP28 100G Transceivers 2U - Height		See Configuration NOTE: 2, 3, 5

Arista 7280R 72QSFP+ 16QSFP28 BF AC Swch		JQ005A
Arista 7280R, 72x40GbE QSFP+ with 16x100GbE QSFP switch, rear to front air, 2x AC and 2xC19-C20 cords Min 0 // Max 72 QSFP+ 40G Transceivers Min 0 // Max 16 QSFP28 100G Transceivers 2U - Height		See Configuration NOTE: 2, 3, 5

Arista 7280R 72Q+ 16Q28 SSD X FB AC Swch		JQ006A
Arista 7280R, 72x40GbE QSFP+ with 16x100GbE QSFP switch, expn mem, SSD, front to rear air, 2x AC Min 0 // Max 72 QSFP+ 40G Transceivers Min 0 // Max 16 QSFP28 100G Transceivers 2U - Height		See Configuration NOTE: 2, 3, 5

Arista 7280R 72Q+ 16Q28 SSD X BF AC Swch		JQ007A
Arista 7280R, 72x40GbE QSFP+ with 16x100GbE QSFP switch, expn mem, SSD, rear to front air, 2x AC Min 0 // Max 72 QSFP+ 40G Transceivers Min 0 // Max 16 QSFP28 100G Transceivers 2U - Height		See Configuration NOTE: 2, 3, 5

Arista 7280R 72Q+ 16Q28 SSDMX FB AC Swch		JQ008A
Arista 7280R, 72x40GbE QSFP+ with 16x100GbE QSFP switch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 72 QSFP+ 40G Transceivers Min 0 // Max 16 QSFP28 100G Transceivers 2U - Height		See Configuration NOTE: 2, 3, 5

Arista 7280R 72Q+ 16Q28 SSDMX BF AC Swch		JQ009A
Arista 7280R, 72x40GbE QSFP+ with 16x100GbE QSFP switch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 72 QSFP+ 40G Transceivers Min 0 // Max 16 QSFP28 100G Transceivers 2U - Height		See Configuration NOTE: 2, 3, 5

Arista 7280R 24QSFP+ 12Q28 MX FB AC Swch		JH805A
Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 2, 3, 5

Arista 7280R 24QSFP+ 12Q28 MX BF AC Swch		JH806A
Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 2, 3, 5

Arista 7280R 24QSFP+ 12QSFP28 FB AC Swch		JH558A
Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, front to rear air, 2x AC and 2xC13-C14 cords Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 2, 3, 5

Arista 7280R 24QSFP+ 12QSFP28 BF AC Swch		JH559A
Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, rear to front air, 2x AC and 2xC13-C14 cords Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 2, 3, 5

Arista 7280R 24Q+ 12Q28 SSD FB AC Swch		JH560A
Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, expn mem, SSD, front to rear air, 2x AC and 2xC13-C14 cords Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 2, 3, 5

Arista 7280R 24Q+ 12Q28 SSD BF AC Swch		JH561A
Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, expn mem, SSD, rear to front air, 2x AC and 2xC13-C14 cords Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 2, 3, 5

7280SR Switch

Arista 7280SR 48SFP+ 6Q28 MX FB AC Swch		JH832A
Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7280SR 48SFP+ 6Q28 MX BF AC Swch		JH833A
Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7280R 48SFP+ 6QSFP28 FB AC Swch		JH562A
Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, front to rear air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7280R 48SFP+ 6QSFP28 BF AC Swch		JH563A
Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, rear to front air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7280R 48SFP+ 6Q28 SSD FB AC Swch		JH564A
Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, expn mem, SSD, front to rear air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7280R 48SFP+ 6Q28 SSD BF AC Swch		JH565A
Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, expn mem, SSD, rear to front air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

7280SR2 Switch

Arista 7280R2 48S28 6Q28 S MX BF AC Swch		JQ178A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4, 5

Arista 7280R2 48S28 6Q28 S MX FB AC Swch		JQ177A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4, 5

Arista 7280R2 48S28 6Q28 S X BF AC Swch		JQ176A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, expn mem, SSD, rear to front air, 2 x AC Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4, 5

Arista 7280R2 48S28 6Q28 S X FB AC Swch		JQ175A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, expn mem, SSD, front to rear air, 2 x AC Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4, 5

Arista 7280R2 48SFP28 6QSFP28 BF AC Swch		JQ174A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, rear to front air, 2 x AC and 2 x C13-C14 cords Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4, 5

Arista 7280R2 48SFP28 6QSFP28 FB AC Swch		JQ173A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, front to rear air, 2 x AC and 2 x C13-C14 cords Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4, 5

7280SR2A Switch

Arista 7280R2 48S28 6Q28 AG FB AC Swch		JH996A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, AlgoMatch, front to rear air, 2 x AC Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4, 5

Arista 7280R2 48S28 6Q28 AG BF AC Swch		JH997A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, AlgoMatch, rear to front air, 2 x AC Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4, 5

Arista 7280R2 48S28 6Q28 AG E FB AC Swch		JH998A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, AlgoMatch, expn mem, front to rear air, 2 x AC Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4, 5

Arista 7280R2 48S28 6Q28 AG E BF AC Swch		JH999A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, AlgoMatch, expn mem, rear to front air, 2 x AC Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4, 5

Arista 7280R2 48S28 6Q28 SSDMXFB AC Swch		JQ002A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4, 5

Arista 7280R2 48S28 6Q28 SSDMXBF AC Swch		JQ003A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4, 5

7280SRA Switch

Arista 7280RA 48S+ 6Q28 AG BF AC Swch		JQ093A
Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, rear to front air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7280RA 48S+ 6Q28 AG FB AC Swch		JQ092A
Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, front to rear air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5

Arista 7280RA 48S+ 6Q28 AG SSDMX BF Swch		JQ097A
Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers NOTE: Use up to 2 ports of DWDM QSFP on top row (odd ports 49-53) 1U - Height		See Configuration NOTE: 1, 3, 5, 6

Arista 7280RA 48S+ 6Q28 AG SSDMX FB Swch		JQ096A
Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers NOTE: Use up to 2 ports of DWDM QSFP on top row (odd ports 49-53) 1U - Height		See Configuration NOTE: 1, 3, 5, 6

Arista 7280RA 48S+6Q28 AG S X BF AC Swch		JQ095A
Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, rear to front air, 2x AC Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers NOTE: Use up to 2 ports of DWDM QSFP on top row (odd ports 49-53) 1U - Height		See Configuration NOTE: 1, 3, 5, 6

Arista 7280RA 48S+6Q28 AG S X FB AC Swch		JQ094A
Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, front to rear air, 2x AC Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers NOTE: Use up to 2 ports of DWDM QSFP on top row (odd ports 49-53) 1U - Height		See Configuration NOTE: 1, 3, 5, 6

7280SR2K Switch

Arista 7280R2 24+24S86Q8 S MX BF AC Swch		JQ409A
Arista 7280R2, 24x10GbE, 24x25GbE & 6x100GbE QSFP switch router, expn mem, SSD, rear to front air, 2x AC. Over 256K Routes, MPLS and VXLAN Min 0 // Max 24 SFP+ 10G Transceivers Min 0 // Max 24 SFP28 25G Transceivers Min 0 // Max 24 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 4, 5

Arista 7280R2 24+24S86Q8 S MX FB AC Swch		JQ410A
Arista 7280R2, 24x10GbE, 24x25GbE & 6x100GbE QSFP switch router, expn mem, SSD, front to rear air, 2x AC. Over 256K Routes, MPLS and VXLAN Min 0 // Max 24 SFP+ 10G Transceivers Min 0 // Max 24 SFP28 25G Transceivers Min 0 // Max 24 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 4, 5

Arista 7280R2 24+ 24S8 6Q8 SX FB AC Swch		JQ412A
Arista 7280R2, 24x10GbE, 24x25GbE & 6x100GbE QSFP switch router, expn mem, SSD, front to rear air, 2x AC Min 0 // Max 24 SFP+ 10G Transceivers Min 0 // Max 24 SFP28 25G Transceivers Min 0 // Max 24 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 4, 5

Arista 7280R2 24+ 24S8 6Q8 SX BF AC Swch		JQ419A
Arista 7280R2, 24x10GbE, 24x25GbE & 6x100GbE QSFP switch router, expn mem, SSD, rear to front air, 2x AC Min 0 // Max 24 SFP+ 10G Transceivers Min 0 // Max 24 SFP28 25G Transceivers Min 0 // Max 24 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 4, 5

7280SRAM Switch

Arista 7280R 48S+6Q28 MS L3 BF AC Swch		JQ280A
Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, MACsec, rear to front air, 2x AC. Over 256K Routes, MPLS and VXLAN Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5, 6

Arista 7280R 48S+6Q28 MS L3 FB AC Swch		JQ279A
Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, MACsec, front to rear air, 2x AC. Over 256K Routes, MPLS and VXLAN Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5, 6

Arista 7280R 48S+6Q28 SSD EMS BF AC Swch		JQ199A
Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, MACsec, rear to front air, 2x AC Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5, 6

Arista 7280R 48S+6Q28 SSD EMS FB AC Swch		JQ198A
Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, MACsec, front to rear air, 2x AC Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5, 6

7280TRA Switch

Arista 7280RA 48XGT 6Q28 AG BF AC Swch		JQ099A
Arista 7280RA, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch router, AlgoMatch, rear to front air, 2x AC and 2xC13-C14 cords 48 1000/10000GbaseT Ports Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 5

Arista 7280RA 48XGT 6Q28 AG FB AC Swch		JQ098A
Arista 7280RA, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch router, AlgoMatch, front to rear air, 2x AC and 2xC13-C14 cords 48 1000/10000GbaseT Ports Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 5

Arista 7280RA 48XGT 6Q28 AG S MX BF Swch		JQ103A
Arista 7280RA, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN 48 1000/10000GbaseT Ports Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 5

Arista 7280RA 48XGT 6Q28 AG S MX FB Swch		JQ102A
Arista 7280RA, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN 48 1000/10000GbaseT Ports Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 5

Arista 7280RA 48XGT6Q28 AG SX BF AC Swch		JQ101A
Arista 7280RA, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, rear to front air, 2x AC 48 1000/10000GbaseT Ports Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 5

Arista 7280RA 48XGT6Q28 AG SX FB AC Swch		JQ100A
Arista 7280RA, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, front to rear air, 2x AC 48 1000/10000GbaseT Ports Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 5

7280TR Switch

Arista 7280R 48XGT 6Q28 SSD X BF AC Swch		JQ408A
Arista 7280R, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch, expn mem, SSD, rear to front air, 2x AC and 2xC13-C14 cords 48 1000/10000GbaseT Ports Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 5

Arista 7280R 48XGT 6Q28 SSD X FB AC Swch		JQ414A
Arista 7280R, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch, expn mem, SSD, front to rear air, 2x AC and 2xC13-C14 cords 48 1000/10000GbaseT Ports Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 5

Arista 7280R 48XGT 6QSFP28 FB AC Swch		JH566A
Arista 7280R, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch, front to rear air, 2x AC and 2xC13-C14 cords 48 1000/10000GbaseT Ports Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 5

Arista 7280R 48XGT 6QSFP28 BF AC Swch		JH567A
Arista 7280R, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch, rear to front air, 2x AC and 2xC13-C14 cords 48 1000/10000GbaseT Ports Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 5

Arista 7280R 48XGT 6Q28 SSDMX FB AC Swch		JQ072A
Arista 7280R, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN 48 1000/10000GbaseT Ports Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 5

Arista 7280R 48XGT 6Q28 SSDMX BF AC Swch		JQ073A
Arista 7280R, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN 48 1000/10000GbaseT Ports Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 5

Configuration Rules

Note 1	The following Transceivers install into this Switch:
Note 1	Arista X121 1G SFP RJ45 T Transceiver	JH650A
	Arista X125 1G SFP LC SX Transceiver	JH648A
	Arista X120 1G SFP LC LX Transceiver	JH649A
	Arista X130 10G SFP+ LC SRL Transceiver	JH644A
	Arista X130 10G SFP+ LC SR Transceiver	JH645A
	Arista X130 10G SFP+ LC LRM Transceiver	JH646A
	Arista X130 10G SFP+ LC LR Transceiver	JH647A
	Arista X130 10G SFP+ ER 40km Transceiver	JH893A
	Arista X130 10G SFP+ ZR 80km Transceiver	JH894A
	Arista X130 10G SFP+ DWDM Tunable Transceiver	JH944A
	Arista X240 10G SFP+ SFP+ 0.5m DAC Cable	JH651A
	Arista X240 10G SFP+ SFP+ 1.5m DAC Cable	JH652A
	Arista X240 10G SFP+ SFP+ 2m DAC Cable	JH653A
	Arista X240 10G SFP+ SFP+ 2.5m DAC Cable	JH654A
	Arista X240 10G SFP+ SFP+ 3m DAC Cable	JH655A
	Arista X2A0 10G SFP+ SFP+ 5m AOC Cable	JH661A
	Arista X2A0 10G SFP+ SFP+ 3m AOC Cable	JH662A
	Arista X240 10G SFP+ to SFP+ 1m Direct Attach Cable	JH773A
	Arista X240 10G SFP+ to SFP+ 5m Direct Attach Cable	JH774A
	Arista X2A0 10G SFP+ to SFP+ 10m Active Optical Cable	JH765A
	Arista X2A0 10G SFP+ to SFP+ 15m Active Optical Cable	JH766A
	Arista X2A0 10G SFP+ to SFP+ 20m Active Optical Cable	JH767A
	Arista X2A0 10G SFP+ to SFP+ 25m Active Optical Cable	JH768A
	Arista X2A0 10G SFP+ to SFP+ 30m Active Optical Cable	JH769A
	Arista X2A0 10G SFP+ to SFP+ 7m Active Optical Cable	JH770A

Note 2	The following Transceivers install into this Switch:
	Arista X140 40G QSFP+ LC BiDi 100m MM Transceiver	JH633A
	Arista 40G QSFP+ Universal Transceiver	JH634A
	Arista X140 40G QSFP+ MPO SR4 Transceiver	JH635A
	Arista X140 40G QSFP+ LC LR4L SM Transceiver	JH636A
	Arista X140 40G QSFP+ LC PLRL4 SM Transceiver	JH637A
	Arista X140 40G QSFP+ XSR4 Transceiver	JH892A
	Arista X140 40G QSFP+ ER4 40km SM Transceiver	JH889A
	Arista X140 40G QSFP+ LR4 10km SM Transceiver	JH890A
	Arista 40G QSFP+ 4x10G 10km SM Transceiver	JH891A
	Arista X240 40G QSFP+ QSFP+ 1m DAC Cable	JH638A
	Arista X240 40G QSFP+ QSFP+ 2m DAC Cable	JH639A
	Arista X240 40G QSFP+ QSFP+ 3m DAC Cable	JH640A
	Arista X240 40G QSFP+ QSFP+ 5m DAC Cable	JH641A
	Arista X240 40G QSFP+ 4x10G SFP+ 0.5m DAC Cable	JH656A
	Arista X240 40G QSFP+ 4x10G SFP+ 1m DAC Cable	JH657A
	Arista X240 40G QSFP+ 4x10G SFP+ 2m DAC Cable	JH658A
	Arista X240 40G QSFP+ 4x10G SFP+ 3m DAC Cable	JH659A
	Arista X240 40G QSFP+ 4x10G SFP+ 5m DAC Cable	JH660A
	Arista X2A0 40G QSFP+ to QSFP+ 100m Active Optical Cable	JH756A
	Arista X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable	JH757A
	Arista X2A0 40G QSFP+ to QSFP+ 15m Active Optical Cable	JH758A
	Arista X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable	JH759A
	Arista X2A0 40G QSFP+ to QSFP+ 25m Active Optical Cable	JH760A
	Arista X2A0 40G QSFP+ to QSFP+ 30m Active Optical Cable	JH761A
	Arista X2A0 40G QSFP+ to QSFP+ 50m Active Optical Cable	JH762A
	Arista X2A0 40G QSFP+ to QSFP+ 75m Active Optical Cable	JH763A
	Arista X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable	JH764A
	Arista X240 40G QSFP+ to QSFP+ 0.5m Direct Attach Cable	JH772A

Note 3	The following Transceivers install into this Switch:
	Arista X150 100G QSFP28 WDM2 2km SM Transceiver	JH624A
	Arista X150 100G QSFP28 LR4 10km SM Transceiver	JH625A
	Arista X150 100G QSFP28 MPO SR4 100m MM Transceiver	JH626A
	Arista X150 100G QSFP28 CWDM4 2km SM Transceiver	JH888A
	Arista X150 100G QSFP28 MPO PSM4 500m SM Transceiver	JQ028A
	Arista X150 100G QSFP28 LC BiDi 100m MM Transceiver	JQ191A
	Arista X150 100G QSFP28 LC SWDM4 100m MM Transceiver	JQ192A
	Arista X150 100G QSFP28 ERL4 30km SM Transceiver	JQ406A
	Arista X240 100G QSFP QSFP 1m DAC Cable	JH627A
	Arista X240 100G QSFP QSFP 2m DAC Cable	JH628A
	Arista X240 100G QSFP QSFP 3m DAC Cable	JH629A
	Arista X240 100G QSFP QSFP 5m DAC Cable	JH630A
	Arista X2A0 100G QSFP QSFP 3m AOC Cable	JH631A
	Arista X2A0 100G QSFP QSFP 5m AOC Cable	JH632A
	Arista X2A0 100G QSFP to QSFP 10m Active Optical Cable	JH750A
	Arista X2A0 100G QSFP to QSFP 15m Active Optical Cable	JH751A
	Arista X2A0 100G QSFP to QSFP 20m Active Optical Cable	JH752A
	Arista X2A0 100G QSFP to QSFP 25m Active Optical Cable	JH753A
	Arista X2A0 100G QSFP to QSFP 30m Active Optical Cable	JH754A
	Arista X2A0 100G QSFP to QSFP 7m Active Optical Cable	JH755A
	Arista X240 100G QSFP28 4x25G SFP+ 1m Direct Attach Cable Cable	JH834A
	Arista X240 100G QSFP28 4x25G SFP+ 2m Direct Attach Cable Cable	JH835A
	Arista X240 100G QSFP28 4x25G SFP+ 3m Direct Attach Cable Cable	JH836A
	Arista X240 100G QSFP28 4x25G SFP28 5m Direct Attach Cable	JH993A

Note 4	The following Transceivers install into this Switch:
	Arista X190 25G SFP28 LC 100m SR MM Transceiver	JH991A
	Arista X190 25G SFP28 LC 10km LR SM Transceiver	JH992A
	Arista X240 25G SFP28 to SFP28 1m Direct Attach Cable	JH979A
	Arista X240 25G SFP28 to SFP28 2m Direct Attach Cable	JH980A
	Arista X240 25G SFP28 to SFP28 3m Direct Attach Cable	JH981A
	Arista X240 25G SFP28 to SFP28 5m Direct Attach Cable	JH982A
	Arista X2A0 25G SFP28 to SFP28 3m Active Optical Cable	JH983A
	Arista X2A0 25G SFP28 to SFP28 5m Active Optical Cable	JH984A
	Arista X2A0 25G SFP28 to SFP28 7m Active Optical Cable	JH985A
	Arista X2A0 25G SFP28 to SFP28 10m Active Optical Cable	JH986A
	Arista X2A0 25G SFP28 to SFP28 15m Active Optical Cable	JH987A
	Arista X2A0 25G SFP28 to SFP28 20m Active Optical Cable	JH988A
	Arista X2A0 25G SFP28 to SFP28 25m Active Optical Cable	JH989A
	Arista X2A0 25G SFP28 to SFP28 30m Active Optical Cable	JH990A

Note 5	Product not available in the following Countries: Kazakhstan Armenia Belarus South Africa Indonesia Russia

Note 6	The following Transceivers install into this Module: JQ281A JQ282A JQ283A JQ284A JQ285A JQ286A JQ287A JQ288A JQ289A JQ290A JQ291A JQ292A JQ293A JQ294A JQ295A JQ296A JQ297A JQ298A JQ299A JQ300A JQ301A JQ302A JQ303A JQ304A JQ305A JQ306A JQ307A JQ308A JQ309A JQ310A JQ311A JQ312A JQ313A JQ314A JQ315A JQ316A JQ317A JQ318A JQ319A JQ320A

Rack Level Integration CTO Models

7280QR Switch

Arista 7280R 24QSFP+ 12QSFP28 FB AC Swch		JH558A
Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, front to rear air, 2x AC and 2xC13-C14 cords Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 2, 3, 5, 6

Arista 7280R 24QSFP+ 12QSFP28 BF AC Swch		JH559A
Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, front to rear air, 2x AC and 2xC13-C14 cords Min 0 // Max 24 QSFP+ 40G Transceivers Min 0 // Max 12 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 2, 3, 5, 6

7280SR Switch

Arista 7280R 48SFP+ 6QSFP28 FB AC Swch		JH562A
Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, front to rear air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5, 6

Arista 7280R 48SFP+ 6QSFP28 BF AC Swch		JH563A
Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, rear to front air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5, 6

7280SRA Switch

Arista 7280RA 48S+ 6Q28 AG BF AC Swch		JQ093A
Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, rear to front air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5, 6

Arista 7280RA 48S+ 6Q28 AG FB AC Swch		JQ092A
Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, front to rear air, 2x AC and 2xC13-C14 cords Min 0 // Max 48 SFP+ 10G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 1, 3, 5, 6

7280SR2A Switch

Arista 7280R2 48S28 6Q28 AG FB AC Swch		JH996A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, AlgoMatch, front to rear air, 2 x AC Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4 , 5, 6

Arista 7280R2 48S28 6Q28 AG BF AC Swch		JH997A
Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, AlgoMatch, rear to front air, 2 x AC Min 0 // Max 48 SFP28 25G Transceivers Min 0 // Max 6 QSFP28 100G Transceivers 1U - Height		See Configuration NOTE: 3, 4 , 5, 6

Configuration Rules

Note 1	The following Transceivers install into this Switch:
Note 1	Arista X121 1G SFP RJ45 T Transceiver	JH650A
	Arista X125 1G SFP LC SX Transceiver	JH648A
	Arista X120 1G SFP LC LX Transceiver	JH649A
	Arista X130 10G SFP+ LC SRL Transceiver	JH644A
	Arista X130 10G SFP+ LC SR Transceiver	JH645A
	Arista X130 10G SFP+ LC LRM Transceiver	JH646A
	Arista X130 10G SFP+ LC LR Transceiver	JH647A
	Arista X130 10G SFP+ ER 40km Transceiver	JH893A
	Arista X130 10G SFP+ ZR 80km Transceiver	JH894A
	Arista X130 10G SFP+ DWDM Tunable Transceiver	JH944A
	Arista X240 10G SFP+ SFP+ 0.5m DAC Cable	JH651A
	Arista X240 10G SFP+ SFP+ 1.5m DAC Cable	JH652A
	Arista X240 10G SFP+ SFP+ 2m DAC Cable	JH653A
	Arista X240 10G SFP+ SFP+ 2.5m DAC Cable	JH654A
	Arista X240 10G SFP+ SFP+ 3m DAC Cable	JH655A
	Arista X2A0 10G SFP+ SFP+ 5m AOC Cable	JH661A
	Arista X2A0 10G SFP+ SFP+ 3m AOC Cable	JH662A
	Arista X240 10G SFP+ to SFP+ 1m Direct Attach Cable	JH773A
	Arista X240 10G SFP+ to SFP+ 5m Direct Attach Cable	JH774A
	Arista X2A0 10G SFP+ to SFP+ 10m Active Optical Cable	JH765A
	Arista X2A0 10G SFP+ to SFP+ 15m Active Optical Cable	JH766A
	Arista X2A0 10G SFP+ to SFP+ 20m Active Optical Cable	JH767A
	Arista X2A0 10G SFP+ to SFP+ 25m Active Optical Cable	JH768A
	Arista X2A0 10G SFP+ to SFP+ 30m Active Optical Cable	JH769A
	Arista X2A0 10G SFP+ to SFP+ 7m Active Optical Cable	JH770A

Note 2	The following Transceivers install into this Switch:
	Arista X140 40G QSFP+ LC BiDi 100m MM Transceiver	JH633A
	Arista 40G QSFP+ Universal Transceiver	JH634A
	Arista X140 40G QSFP+ MPO SR4 Transceiver	JH635A
	Arista X140 40G QSFP+ LC LR4L SM Transceiver	JH636A
	Arista X140 40G QSFP+ LC PLRL4 SM Transceiver	JH637A
	Arista X140 40G QSFP+ XSR4 Transceiver	JH892A
	Arista X140 40G QSFP+ ER4 40km SM Transceiver	JH889A
	Arista X140 40G QSFP+ LR4 10km SM Transceiver	JH890A
	Arista 40G QSFP+ 4x10G 10km SM Transceiver	JH891A
	Arista X240 40G QSFP+ QSFP+ 1m DAC Cable	JH638A
	Arista X240 40G QSFP+ QSFP+ 2m DAC Cable	JH639A
	Arista X240 40G QSFP+ QSFP+ 3m DAC Cable	JH640A
	Arista X240 40G QSFP+ QSFP+ 5m DAC Cable	JH641A
	Arista X240 40G QSFP+ 4x10G SFP+ 0.5m DAC Cable	JH656A
	Arista X240 40G QSFP+ 4x10G SFP+ 1m DAC Cable	JH657A
	Arista X240 40G QSFP+ 4x10G SFP+ 2m DAC Cable	JH658A
	Arista X240 40G QSFP+ 4x10G SFP+ 3m DAC Cable	JH659A
	Arista X240 40G QSFP+ 4x10G SFP+ 5m DAC Cable	JH660A
	Arista X2A0 40G QSFP+ to QSFP+ 100m Active Optical Cable	JH756A
	Arista X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable	JH757A
	Arista X2A0 40G QSFP+ to QSFP+ 15m Active Optical Cable	JH758A
	Arista X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable	JH759A
	Arista X2A0 40G QSFP+ to QSFP+ 25m Active Optical Cable	JH760A
	Arista X2A0 40G QSFP+ to QSFP+ 30m Active Optical Cable	JH761A
	Arista X2A0 40G QSFP+ to QSFP+ 50m Active Optical Cable	JH762A
	Arista X2A0 40G QSFP+ to QSFP+ 75m Active Optical Cable	JH763A
	Arista X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable	JH764A
	Arista X240 40G QSFP+ to QSFP+ 0.5m Direct Attach Cable	JH772A

Note 3	The following Transceivers install into this Switch:
	Arista X150 100G QSFP28 WDM2 2km SM Transceiver	JH624A
	Arista X150 100G QSFP28 LR4 10km SM Transceiver	JH625A
	Arista X150 100G QSFP28 MPO SR4 100m MM Transceiver	JH626A
	Arista X150 100G QSFP28 CWDM4 2km SM Transceiver	JH888A
	Arista X150 100G QSFP28 MPO PSM4 500m SM Transceiver	JQ028A
	Arista X150 100G QSFP28 LC BiDi 100m MM Transceiver	JQ191A
	Arista X150 100G QSFP28 LC SWDM4 100m MM Transceiver	JQ192A
	Arista X150 100G QSFP28 ERL4 SM XCVR	JQ406A
	Arista X240 100G QSFP QSFP 1m DAC Cable	JH627A
	Arista X240 100G QSFP QSFP 2m DAC Cable	JH628A
	Arista X240 100G QSFP QSFP 3m DAC Cable	JH629A
	Arista X240 100G QSFP QSFP 5m DAC Cable	JH630A
	Arista X2A0 100G QSFP QSFP 3m AOC Cable	JH631A
	Arista X2A0 100G QSFP QSFP 5m AOC Cable	JH632A
	Arista X2A0 100G QSFP to QSFP 10m Active Optical Cable	JH750A
	Arista X2A0 100G QSFP to QSFP 15m Active Optical Cable	JH751A
	Arista X2A0 100G QSFP to QSFP 20m Active Optical Cable	JH752A
	Arista X2A0 100G QSFP to QSFP 25m Active Optical Cable	JH753A
	Arista X2A0 100G QSFP to QSFP 30m Active Optical Cable	JH754A
	Arista X2A0 100G QSFP to QSFP 7m Active Optical Cable	JH755A
	Arista X240 100G QSFP28 4x25G SFP+ 1m Direct Attach Cable Cable	JH834A
	Arista X240 100G QSFP28 4x25G SFP+ 2m Direct Attach Cable Cable	JH835A
	Arista X240 100G QSFP28 4x25G SFP+ 3m Direct Attach Cable Cable	JH836A
	Arista X240 100G QSFP28 4x25G SFP28 5m Direct Attach Cable	JH993A

Note 4	The following Transceivers install into this Switch:
	Arista X190 25G SFP28 LC 100m SR MM Transceiver	JH991A
	Arista X190 25G SFP28 LC 10km LR SM Transceiver	JH992A
	Arista X240 25G SFP28 to SFP28 1m Direct Attach Cable	JH979A
	Arista X240 25G SFP28 to SFP28 2m Direct Attach Cable	JH980A
	Arista X240 25G SFP28 to SFP28 3m Direct Attach Cable	JH981A
	Arista X240 25G SFP28 to SFP28 5m Direct Attach Cable	JH982A
	Arista X2A0 25G SFP28 to SFP28 3m Active Optical Cable	JH983A
	Arista X2A0 25G SFP28 to SFP28 5m Active Optical Cable	JH984A
	Arista X2A0 25G SFP28 to SFP28 7m Active Optical Cable	JH985A
	Arista X2A0 25G SFP28 to SFP28 10m Active Optical Cable	JH986A
	Arista X2A0 25G SFP28 to SFP28 15m Active Optical Cable	JH987A
	Arista X2A0 25G SFP28 to SFP28 20m Active Optical Cable	JH988A
	Arista X2A0 25G SFP28 to SFP28 25m Active Optical Cable	JH989A
	Arista X2A0 25G SFP28 to SFP28 30m Active Optical Cable	JH990A

Note 5	Product not available in the following Countries: Kazakhstan Armenia Belarus South Africa Indonesia Russia

Note 6	If Arista CTO Switch Chassis is selected for Rack Level Integration, Then the Switch needs to integrate (with #0D1) to the Rack.

Transceivers

1G
Arista 1G SFP LC SX Transceiver		JH648A
Arista 1G SFP LC LX Transceiver		JH649A
Arista 1G SFP RJ45 T Transceiver		JH650A

10G
Arista 10G SFP+ LC SRL Transceiver		JH644A
Arista 10G SFP+ LC SR Transceiver		JH645A
Arista 10G SFP+ LC LRM Transceiver		JH646A
Arista 10G SFP+ LC LR Transceiver		JH647A
Arista 10G SFP+ ER 40km Transceiver		JH893A
Arista 10G SFP+ ZR 80km Transceiver		JH894A
Arista 10G SFP+ DWDM Tunable XCVR		JH944A

25G
Arista 25G SFP28 SR 100m MM Transceiver		JH991A
Arista 25G SFP28 LR 10km SM Transceiver		JH992A

40G
Arista 40G QSFP+ LC BiDi Transceiver		JH633A
Arista 40G QSFP+ Universal Transceiver		JH634A
Arista 40G QSFP+ MPO SR4 Transceiver		JH635A
Arista 40G QSFP+ LC LR4L Transceiver		JH636A
Arista 40G QSFP+ LC PLRL4 Transceiver		JH637A
Arista 40G QSFP+ XSR4 Transceiver		JH892A
Arista 40G QSFP+ ER4 40km SM Transceiver		JH889A
Arista 40G QSFP+ LR4 10km SM Transceiver		JH890A
Arista 4x10G QSFP+ 10km SM Transceiver		JH891A

100G
Arista 100G QSFP28 WDM2 Transceiver		JH624A
Arista QSFP28 CWDM4 2km SM Transceiver		JH888A
Arista 100G QSFP28 LR4 Transceiver		JH625A
Arista 100G QSFP28 SR4 Transceiver		JH626A
Arista 100G QSFP28 PSM4 SM Transceiver		JQ028A
Arista X150 100G QSFP28 LC BiDi MM XCVR		JQ191A
Arista X150 100G QSFP28 LC SWDM4 MM XCVR		JQ192A
Arista X150 100G QSFP28 ERL4 SM XCVR		JQ406A

100G DWDM
Arista 100G DWDM QSFP-100G-DZ2-20 XCVR		JQ281A
Arista 100G DWDM QSFP-100G-DZ2-21 XCVR		JQ282A
Arista 100G DWDM QSFP-100G-DZ2-22 XCVR		JQ283A
Arista 100G DWDM QSFP-100G-DZ2-23 XCVR		JQ284A
Arista 100G DWDM QSFP-100G-DZ2-24 XCVR		JQ285A
Arista 100G DWDM QSFP-100G-DZ2-25 XCVR		JQ286A
Arista 100G DWDM QSFP-100G-DZ2-26 XCVR		JQ287A
Arista 100G DWDM QSFP-100G-DZ2-27 XCVR		JQ288A
Arista 100G DWDM QSFP-100G-DZ2-28 XCVR		JQ289A
Arista 100G DWDM QSFP-100G-DZ2-29 XCVR		JQ290A
Arista 100G DWDM QSFP-100G-DZ2-30 XCVR		JQ291A
Arista 100G DWDM QSFP-100G-DZ2-31 XCVR		JQ292A
Arista 100G DWDM QSFP-100G-DZ2-32 XCVR		JQ293A
Arista 100G DWDM QSFP-100G-DZ2-33 XCVR		JQ294A
Arista 100G DWDM QSFP-100G-DZ2-34 XCVR		JQ295A
Arista 100G DWDM QSFP-100G-DZ2-35 XCVR		JQ296A
Arista 100G DWDM QSFP-100G-DZ2-36 XCVR		JQ297A
Arista 100G DWDM QSFP-100G-DZ2-37 XCVR		JQ298A
Arista 100G DWDM QSFP-100G-DZ2-38 XCVR		JQ299A
Arista 100G DWDM QSFP-100G-DZ2-39 XCVR		JQ300A
Arista 100G DWDM QSFP-100G-DZ2-40 XCVR		JQ301A
Arista 100G DWDM QSFP-100G-DZ2-41 XCVR		JQ302A
Arista 100G DWDM QSFP-100G-DZ2-42 XCVR		JQ303A
Arista 100G DWDM QSFP-100G-DZ2-43 XCVR		JQ304A
Arista 100G DWDM QSFP-100G-DZ2-44 XCVR		JQ305A
Arista 100G DWDM QSFP-100G-DZ2-45 XCVR		JQ306A
Arista 100G DWDM QSFP-100G-DZ2-46 XCVR		JQ307A
Arista 100G DWDM QSFP-100G-DZ2-47 XCVR		JQ308A
Arista 100G DWDM QSFP-100G-DZ2-48 XCVR		JQ309A
Arista 100G DWDM QSFP-100G-DZ2-49 XCVR		JQ310A
Arista 100G DWDM QSFP-100G-DZ2-50 XCVR		JQ311A
Arista 100G DWDM QSFP-100G-DZ2-51 XCVR		JQ312A
Arista 100G DWDM QSFP-100G-DZ2-52 XCVR		JQ313A
Arista 100G DWDM QSFP-100G-DZ2-53 XCVR		JQ314A
Arista 100G DWDM QSFP-100G-DZ2-54 XCVR		JQ315A
Arista 100G DWDM QSFP-100G-DZ2-55 XCVR		JQ316A
Arista 100G DWDM QSFP-100G-DZ2-56 XCVR		JQ317A
Arista 100G DWDM QSFP-100G-DZ2-57 XCVR		JQ318A
Arista 100G DWDM QSFP-100G-DZ2-58 XCVR		JQ319A
Arista 100G DWDM QSFP-100G-DZ2-59 XCVR		JQ320A

Cables
Arista 10G SFP+ SFP+ 0.5m DAC Cable		JH651A
Arista 10G SFP+ to SFP+ 1m DAC Cable		JH773A
Arista 10G SFP+ SFP+ 1.5m DAC Cable		JH652A
Arista 10G SFP+ SFP+ 2m DAC Cable		JH653A
Arista 10G SFP+ SFP+ 2.5m DAC Cable		JH654A
Arista 10G SFP+ SFP+ 3m DAC Cable		JH655A
Arista 10G SFP+ to SFP+ 5m DAC Cable		JH774A
Arista 10G SFP+ SFP+ 5m AOC Cable		JH661A
Arista 10G SFP+ SFP+ 3m AOC Cable		JH662A
Arista 10G SFP+ to SFP+ 10m AOC Cable		JH765A
Arista 10G SFP+ to SFP+ 15m AOC Cable		JH766A
Arista 10G SFP+ to SFP+ 20m AOC Cable		JH767A
Arista 10G SFP+ to SFP+ 25m AOC Cable		JH768A
Arista 10G SFP+ to SFP+ 30m AOC Cable		JH769A
Arista 10G SFP+ to SFP+ 7m AOC Cable		JH770A
Arista QSFP+ 4x10G SFP+ 0.5m DAC Cable		JH656A
Arista QSFP+ 4x10G SFP+ 1m DAC Cable		JH657A
Arista QSFP+ 4x10G SFP+ 2m DAC Cable		JH658A
Arista QSFP+ 4x10G SFP+ 3m DAC Cable		JH659A
Arista QSFP+ 4x10G SFP+ 5m DAC Cable		JH660A
Arista 25G SFP28 to SFP28 1m DAC Cable		JH979A
Arista 25G SFP28 to SFP28 2m DAC Cable		JH980A
Arista 25G SFP28 to SFP28 3m DAC Cable		JH981A
Arista 25G SFP28 to SFP28 5m DAC Cable		JH982A
Arista 25G SFP28 to SFP28 3m AOC Cable		JH983A
Arista 25G SFP28 to SFP28 5m AOC Cable		JH984A
Arista 25G SFP28 to SFP28 7m AOC Cable		JH985A
Arista 25G SFP28 to SFP28 10m AOC Cable		JH986A
Arista 25G SFP28 to SFP28 15m AOC Cable		JH987A
Arista 25G SFP28 to SFP28 20m AOC Cable		JH988A
Arista 25G SFP28 to SFP28 25m AOC Cable		JH989A
Arista 25G SFP28 to SFP28 30m AOC Cable		JH990A
Arista QSFP28 4x25G SFP+ 1m DAC Cable		JH834A
Arista QSFP28 4x25G SFP+ 2m DAC Cable		JH835A
Arista QSFP28 4x25G SFP+ 3m DAC Cable		JH836A
Arista QSFP28 4x25G SFP28 5m DAC Cable		JH993A
Arista 40G QSFP+ QSFP+ 1m DAC Cable		JH638A
Arista 40G QSFP+ QSFP+ 2m DAC Cable		JH639A
Arista 40G QSFP+ QSFP+ 3m DAC Cable		JH640A
Arista 40G QSFP+ QSFP+ 5m DAC Cable		JH641A
Arista 40G QSFP+ to QSFP+ 100m AOC Cable		JH756A
Arista 40G QSFP+ to QSFP+ 10m AOC Cable		JH757A
Arista 40G QSFP+ to QSFP+ 15m AOC Cable		JH758A
Arista 40G QSFP+ to QSFP+ 20m AOC Cable		JH759A
Arista 40G QSFP+ to QSFP+ 25m AOC Cable		JH760A
Arista 40G QSFP+ to QSFP+ 30m AOC Cable		JH761A
Arista 40G QSFP+ to QSFP+ 50m AOC Cable		JH762A
Arista 40G QSFP+ to QSFP+ 75m AOC Cable		JH763A
Arista 40G QSFP+ to QSFP+ 7m AOC Cable		JH764A
Arista 40G QSFP+ to QSFP+ 0.5m DAC Cable		JH772A
Arista 100G QSFP QSFP 1m DAC Cable		JH627A
Arista 100G QSFP QSFP 2m DAC Cable		JH628A
Arista 100G QSFP QSFP 3m DAC Cable		JH629A
Arista 100G QSFP QSFP 5m DAC Cable		JH630A
Arista 100G QSFP QSFP 3m AOC Cable		JH631A
Arista 100G QSFP QSFP 5m AOC Cable		JH632A
Arista 100G QSFP to QSFP 10m AOC Cable		JH750A
Arista 100G QSFP to QSFP 15m AOC Cable		JH751A
Arista 100G QSFP to QSFP 20m AOC Cable		JH752A
Arista 100G QSFP to QSFP 25m AOC Cable		JH753A
Arista 100G QSFP to QSFP 30m AOC Cable		JH754A
Arista 100G QSFP to QSFP 7m AOC Cable		JH755A

Accessories

Licenses
Std (Min 0 // max 99) User Selection (min 0 // max 99)

Arista MACsec Fix-2 E-LTU		JQ420AAE
MACSEC Encryption License for Arista Fixed switches, 1-6 MACSEC capable ports		See Configuration NOTE: 11

Arista Expanded L3 Fix-2 LTU		JH601AAE
Expanded L3 License for Arista Fixed switches, 40-256 port 10G - Over 256K Routes, MPLS and VXLAN		See Configuration NOTE: 1, 3, 4, 7, 8, 9, 10, 11, 15

Arista Enhanced L3 10G Fix-2 LTU		JH606AAE
Enhanced L3 License for Arista Fixed switches, 40-132 port 10G (BGP, OSPF, ISIS, PIM, NAT)		See Configuration NOTE: 1, 3, 4, 7, 8, 9, 10, 11, 15

Arista Provisioning 10G Fix-2 LTU		JH608AAE
Monitoring & provisioning license for Arista Fixed switches 40-132 port 10G (ZTP, LANZ, TapAgg, API, Time-stamping, OpenFlow)		See Configuration NOTE: 1, 3, 4, 7, 8, 9, 10, 11, 15

Arista Virtualization 10G Fix-2 LTU		JH609AAE
Virtualization license for Arista Fixed switches 40-132 port 10G (VMTracer and VXLAN)		See Configuration NOTE: 1, 3, 4, 7, 8, 9, 10, 11, 15

Arista FlexRoute L3 Lite Fix-2 LTU		JQ049AAE
FlexRoute-Lite L3 License for Arista Fixed switches, 40-132 port 10G - OSPF, ISIS, BGP, PIM, Up to 256K Routes, EVPN, VXLAN		See Configuration NOTE: 1, 3, 4, 7, 8, 9, 10, 11, 15

Arista FlexRoute L3 Lite Fix-3 LTU		JQ050AAE
FlexRoute-Lite L3 License for Arista Fixed switches, 144-256 port 10G - OSPF, ISIS, BGP, PIM, Up to 256K Routes, EVPN, VXLAN		See Configuration NOTE: 2

Arista FlexRoute L3 Fix-3 LTU		JQ051AAE
FlexRoute L3 License for Arista Fixed switches, 144-256 port 10G - OSPF, ISIS, BGP, PIM, 256K-1M Routes, EVPN, VXLAN, SR and MPLS		See Configuration NOTE: 2

Arista Enhanced L3 10G Fix-3 LTU		JL409AAE
Enhanced L3 License for Arista Fixed switches, 144-256 port 10G (BGP, OSPF, ISIS, PIM, NAT)		See Configuration NOTE: 2

Arista Provisioning 10G Fix-3 LTU		JL411AAE
Network monitoring and provisioning feature license for Arista Fixed switches 144-256 port 10G (ZTP, LANZ, TapAgg, API, Time-stamping)		See Configuration NOTE: 2

Arista Virtualization 10G Fix-3 LTU		JL414AAE
Virtualization feature license for Arista Fixed switches 144-256 port 10G (VM Tracer and VXLAN)		See Configuration NOTE: 2

Arista FlexRoute L3 Lite Fix-4 LTU		JQ052AAE
FlexRoute-Lite L3 License for Arista Fixed switches, 288-640 port 10G - OSPF, ISIS, BGP, PIM, Up to 256K Routes, EVPN, VXLAN		See Configuration NOTE: 5, 6, 12, 14

Arista Enhanced L3 10G Fix-4 LTU		JL410AAE
Enhanced L3 License for Arista Fixed switches, 288-640 port 10G (BGP, OSPF, ISIS, PIM, NAT)		See Configuration NOTE: 5, 6, 12, 14

Arista Provisioning 10G Fix-4 LTU		JL412AAE
Monitoring & provisioning license for Arista Fixed switches 288-640 port 10G (ZTP, LANZ, TapAgg, OpenFlow)		See Configuration NOTE: 5, 6, 12, 14

Arista Virtualization 10G Fix-4 LTU		JL415AAE
Virtualization license for Arista Fixed switches 288-640 port 10G (VMTracer and VXLAN)		See Configuration NOTE: 5, 6, 12, 14

Arista Expanded L3 Fix-4 LTU		JH602AAE
Arista Expanded L3 Software Fix-4 License		See Configuration NOTE: 5, 6, 12, 14

Configuration Rules

Note 1	This license is applicable to the 7280SE-64, 7280SE-68, 7280SE-72 Switches below: JH568A JH569A JH807A JH808A JH809A JH810A

Note 2	This license is applicable to the 7280QR-C36 and 7250QX Switches below: JH558A JH559A JH560A JH561A JH797A JH798A JH801A JH802A JH805A JH806A

Note 3	This license is applicable to the 7280SR-48C6 switch: JH562A JH563A JH564A JH565A JH832A JH833A

Note 4	This license is applicable to the 7280TR-48C6 switch: JH566A JH567A JQ072A JQ073A JQ408A JQ414A

Note 5	This license is applicable to the 7260CX-64, 7260CX3-64, 7280CR-48, 7280CR-60, 7280CR2A-60 Switches below: JQ193A JQ194A JH799A JH800A JH803A JH804A JQ078A JQ079A JQ081A JQ110A JQ111A JQ113A

Note 6	This license is applicable to the 7280QR-C72, 7280QR-C72M Switches below: JQ004A JQ005A JQ006A JQ007A JQ008A JQ009A

Note 7	This license is applicable to the 7280SR2A-48YC6, 7280SR2A-48YC6M Switches below: JH996A JH997A JH998A JH999A JQ002A JQ003A JQ092A JQ093A JQ094A JQ095A JQ096A JQ097A

Note 8	This license is applicable to the 7280SR2-48YC6, 7280SR2-48YC6M Switches below: JQ173A JQ174A JQ175A JQ176A JQ177A JQ178A

Note 9	This license is applicable to the 7280TRA-48C6, 7280TRA-48C6M Switches below: JQ100A JQ099A JQ098A JQ103A JQ102A JQ101A

Note 10	This license is applicable to the 7280QRA-C36S, 7280QRA-C36SM Switches below: JQ089A JQ088A JQ087A JQ086A JQ091A JQ090A

Note 11	This license is applicable to the 7280SRM-48C6 Switches below: JQ198A JQ199A JQ279A JQ280A

Note 12	This license is applicable to the 7280CR2K-30, 7280CR2K-60 Switches below: JQ195A JQ196A JQ197A JQ206A JQ207A JQ208A JQ209A

Note 14	This license is applicable to the 7280CR2A-320 Switches below: JQ413A JQ407A

Note 15	This license is applicable to the 7280SR2K-48C6M Switches below: JQ409A JQ410A JQ412A JQ419A


Power Cords
Std (Min 0 // max 2) User Selection (min 0 // max 2)

Arista C13 North America 2.5m Power Cord		JH618A
Power Cord, North America,C13 to NEMA 5-15P, 8 Feet (2.5m)

Arista C13 Europe 2.5m Power Cord		JH619A
Power Cord, Europe,C13 to CEE 7/7, 8 Feet (2.5m)

Arista C13 UK 2.5m Power Cord		JH620A
Power Cord, United Kingdom,C13 to BS 1363/A, 8 Feet (2.5m)

Arista C13 Australia 2.5m Power Cord		JH621A
Power Cord, Australia,C13 to AS/NZS 3112, 8 Feet (2.5m)

Arista C13 Italy 2.5m Power Cord		JH622A
Power Cord, Italy,C13 to CEI 23-16, 8 Feet (2.5m)

Arista C13 Argentina 2.5m Power Cord		JH623A
Power Cord, Argentina,C13 to IRAM 2073, 8 Feet (2.5m)

Remarks
	Watson Blue NOTE: The 7200 Switch Series come with Qty 2 of the following Power Cord: JH617A - Arista C13 C14 2m Power Cord If the Switch is directly connected to a wall outlet, the appropriate localized power cords should be selected

Spares
Std (Min 0 // max 99) User Selection (min 0 // max 99)

Arista C13 C14 2m Power Cord		JH617A
Power Cord C13 to C14 (2m)		See Configuration NOTE: 1

Arista 7260CX-64 2RU Accessory Kit		JQ398A
Spare accessory kit for Arista 7260CX-64 2RU switches		See Configuration NOTE: 1

Arista 7280R 1RU High Speed BF Fan Mod		JQ117A
Spare high speed fan module for Arista 7280R 1RU switches (rear to front airflow)		See Configuration NOTE: 1

Arista 7280R 1RU High Speed FB Fan Mod		JQ116A
Spare high speed fan module for Arista 7280R 1RU switches (front to rear airflow)		See Configuration NOTE: 1

Arista 750W 7280R BF AC Power Supply		JQ083A
Spare 750 Watt AC power supply for Arista 7280R Switches (rear-to-front airflow)		See Configuration NOTE: 1

Arista 750W 7280R FB AC Power Supply		JQ082A
Spare 750 Watt AC power supply for Arista 7280R Switches (front-to-rear airflow)		See Configuration NOTE: 1

Arista 7000 F-B Fan Module		JH856A
Spare fan module for Arista 7150, 7124SX(FX), 7050, 7050X 1U, 7280 & 7048-A switches (front-to-rear airflow)		See Configuration NOTE: 1

Arista 7000 B-F Fan Module		JH857A
Spare fan module for Arista 7150, 7124SX(FX), 7050, 7050X 1U, 7280 & 7048-A switches (rear-to-front airflow)		See Configuration NOTE: 1

Arista 2 Post 2RU RacK Mount Kit		JH862A
Spare 2 post rack mount installation kit for Arista 7050X and 7250X 2RU switches		See Configuration NOTE: 1

Arista 2 Post 1RU RacK Mount Kit		JH863A
Spare 1RU 2 post rail kit for 1RU tool less systems (7050QX-32S, 7050SX/TX and 7280)		See Configuration NOTE: 1

Arista 4 Post RacK Mount Kit		JH864A
Spare 1RU/2RU tool-less rail kits for 4-post installation (7280, 7250QX, 7050SX/TX, 7050QX-32S)		See Configuration NOTE: 1

Arista 1100W F-B AC Power Supply		JH874A
Spare 1100 Watt AC power supply for Arista 7250QX-64 Switches (front-to-rear airflow)		See Configuration NOTE: 1

Arista 1100W B-F AC Power Supply		JH875A
Spare 1100 Watt AC power supply for Arista 7250QX-64 Switches (rear-to-front airflow)		See Configuration NOTE: 1

Arista 500W F-B AC Power Supply		JH882A
Spare 500 Watt AC power supply for Arista 7050X and 7280 Switches (front-to-rear airflow)		See Configuration NOTE: 1

Arista 500W B-F AC Power Supply		JH883A
Spare 500 Watt AC power supply for Arista 7050X and 7280 Switches (rear-to-front airflow)		See Configuration NOTE: 1

Arista 750W TX F-B AC Power Supply		JH884A
Spare 750 Watt AC power supply for Arista 7050TX-128, 7060X and 7280QR Switches (front-to-rear airflow)		See Configuration NOTE: 1

Arista 750W TX B-F AC Power Supply		JH885A
Spare 750 Watt AC power supply for Arista 7050TX-128, 7060X and 7280QR Switches (rear-to-front airflow)		See Configuration NOTE: 1

Arista C13 C14 2m Power Cord		JH617A
Power Cord C13 to C14 (2m)		See Configuration NOTE: 1

Arista 500W DC Power Supply		JH597A
Spare 500W DC Power Supply for 7050X and 7280 series (front to rear airflow switch)		See Configuration NOTE: 1

Arista 500W BF DC Power Supply		JH599A
Spare 500W DC Power Supply for 7050X and 7280 series (rear to front airflow switch)		See Configuration NOTE: 1

Arista 1900W F-B DC Power Supply		JH878A
Spare 1900W DC power supply for Arista 7000 Series 2U switches (front to rear airflow)		See Configuration NOTE: 1

Arista 7000 1900W BF DC Power Supply		JQ014A
Spare 1900W DC power supply for Arista 7000 Series 2U switches (rear-to-front airflow)		See Configuration NOTE: 1

Configuration Rules

Note 1	Add to Add-On section on Watson for Networking only

Services

Support
Std (Min 0 // max 99) User Selection (min 0 // max 9999)

Arista 7280SR2-48YC6 2H SW 1M Sup LTU		JQ184AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280SR2-48YC6		See Configuration NOTE: 17, 20

Arista 7280SR2-48YC6 4H SW 1M Sup LTU		JQ183AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280SR2-48YC6		See Configuration NOTE: 17, 20

Arista 7280SR2-48YC6 NBD SW 1M Sup LTU		JQ182AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280SR2-48YC6		See Configuration NOTE: 17, 20

Arista 7280SR2-48YC6-M 2H SW 1M Sup LTU		JQ187AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280SR2-48YC6-M		See Configuration NOTE: 17, 19

Arista 7280SR2-48YC6-M 4H SW 1M Sup LTU		JQ186AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280SR2-48YC6-M		See Configuration NOTE: 17, 19

Arista 7280SR2-48YC6-M NBD SW 1M Sup LTU		JQ185AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280SR2-48YC6-M		See Configuration NOTE: 17, 19

Arista 7280CR2-60 2H SW 1M Sup LTU		JQ137AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280CR2-60		See Configuration NOTE: 17, 18

Arista 7280CR2-60 4H SW 1M Sup LTU		JQ136AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280CR2-60		See Configuration NOTE: 17, 18

Arista 7280CR2-60 NBD SW 1M Sup LTU		JQ135AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280CR2-60		See Configuration NOTE: 17, 18

Arista 7280SRA-48C6 2H SW 1M Sup LTU		JQ149AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280SRA-48C6		See Configuration NOTE: 17, 21

Arista 7280SRA-48C6 4H 1M Sup LTU		JQ148AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280SRA-48C6		See Configuration NOTE: 17, 21

Arista 7280SRA-48C6 NBD SW 1M Sup LTU		JQ147AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280SRA-48C6		See Configuration NOTE: 17, 21

Arista 7280SRA-48C6M 2H SW 1M Sup LTU		JQ152AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280SRA-48C6M		See Configuration NOTE: 17, 22

Arista 7280SRA-48C6M 4H SW 1M Sup LTU		JQ151AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280SRA-48C6M		See Configuration NOTE: 17, 22

Arista 7280SRA-48C6M NBD SW 1M Sup LTU		JQ150AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280SRA-48C6M		See Configuration NOTE: 17, 22

Arista 7250QX-64 2H SW 1M Support LTU		JH727AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7250QX-64		See Configuration NOTE: 7, 17

Arista 7250QX-64 4H SW 1M Support LTU		JH728AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7250QX-64		See Configuration NOTE: 7, 17

Arista 7250QX-64 NBD SW 1M Support LTU		JH729AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7250QX-64		See Configuration NOTE: 7, 17

Arista 7260CX3-64 2H SW 1M Sup E-LTU		JQ216AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7260CX3-64		See Configuration NOTE: 17, 29

Arista 7260CX3-64 4H SW 1M Sup E-LTU		JQ215AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7260CX3-64		See Configuration NOTE: 17, 29

Arista 7260CX3-64 NBD SW 1M Sup E-LTU		JQ214AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7260CX3-64		See Configuration NOTE: 17, 29

Arista 7260CX-64 2H SW 1M Support LTU		JH730AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7260CX-64		See Configuration NOTE: 8, 17

Arista 7260CX-64 4H SW 1M Support LTU		JH731AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7260CX-64		See Configuration NOTE: 8, 17

Arista 7260CX-64 NBD SW 1M Support LTU		JH732AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7260CX-64		See Configuration NOTE: 8, 17

Arista 7260QX-64 2H SW 1M Support LTU		JH733AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7260QX-64		See Configuration NOTE: 9, 17

Arista 7260QX-64 4H SW 1M Support LTU		JH734AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7260QX-64		See Configuration NOTE: 9, 17

Arista 7260QX-64 NBD SW 1M Support LTU		JH735AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7260QX-64		See Configuration NOTE: 9, 17

Arista 7280CR-48 2H SW 1M Support LTU		JH736AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280CR-48		See Configuration NOTE: 10, 17

Arista 7280CR-48 4H SW 1M Support LTU		JH737AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280CR-48		See Configuration NOTE: 10, 17

Arista 7280CR-48 NBD SW 1M Support LTU		JH738AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280CR-48		See Configuration NOTE: 10, 17

Arista 7280SE-68 2H SW 1M Support LTU		JH739AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280SE-68		See Configuration NOTE: 11, 17

Arista 7280SE-68 4H SW 1M Support LTU		JH740AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280SE-68		See Configuration NOTE: 11, 17

Arista 7280SE-68 NBD SW 1M Support LTU		JH741AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280SE-68		See Configuration NOTE: 11, 17

Arista 7280SE-72 2H SW 1M Support LTU		JH742AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280SE-72		See Configuration NOTE: 12, 17

Arista 7280SE-72 4H SW 1M Support LTU		JH743AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280SE-72		See Configuration NOTE: 12, 17

Arista 7280SE-72 NBD SW 1M Support LTU		JH744AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280SE-72		See Configuration NOTE: 12, 17

Arista 7280QR-36 NBD SW 1M Support LTU		JH472AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280QR-C36		See Configuration NOTE: 2, 17

Arista 7280QR-36 4H SW 1M Support LTU		JH473AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280QR-C36		See Configuration NOTE: 2, 17

Arista 77280QR-36 2H SW 1M Support LTU		JH474AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280QR-C36		See Configuration NOTE: 2, 17

Arista 7280QR-36 SSD NBD SW 1M Sup LTU		JH475AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280QR-C36-M		See Configuration NOTE: 5, 17

Arista 7280QR-36 SSD SW 1M Support LTU		JH476AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280QR-C36-M		See Configuration NOTE: 5, 17

Arista 77280QR-36 SSD 2H SW 1M Sup LTU		JH477AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280QR-C36-M		See Configuration NOTE: 5, 17

Arista 7280QR-C72 NBD SW 1M Sup LTU		JH970AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280QR-C72		See Configuration NOTE: 13, 17

Arista 7280QR-C72 4H SW 1M Sup LTU		JH971AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280QR-C72		See Configuration NOTE: 13, 17

Arista 7280QR-C72 2H SW 1M Sup LTU		JH972AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280QR-C72		See Configuration NOTE: 13, 17

Arista 7280QR-C72M NBD SW 1M Sup LTU		JH973AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280QR-C72M		See Configuration NOTE: 14, 17

Arista 7280QR-C72M 4H SW 1M Sup LTU		JH974AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280QR-C72M		See Configuration NOTE: 14, 17

Arista 7280QR-C72M 2H SW 1M Sup LTU		JH975AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280QR-C72M		See Configuration NOTE: 14, 17

Arista 7280SR-48 NBD SW 1M Support LTU		JH478AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280SR-48C6		See Configuration NOTE: 3, 17

Arista 7280SR-48 4H SW 1M Support LTU		JH479AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280SR-48C6		See Configuration NOTE: 3, 17

Arista 7280SR-48 2H SW 1M Support LTU		JH480AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280SR-48C6		See Configuration NOTE: 3, 17

Arista 7280SR-48 SSD NBD SW 1M Sup LTU		JH481AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280SR-48C6-M		See Configuration NOTE: 6, 17

Arista 7280SR-48 SSD 4H SW 1M Sup LTU		JH482AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280SR-48C6-M		See Configuration NOTE: 6, 17

Arista 7280SR-48 2H SSD SW 1M Sup LTU		JH483AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280SR-48C6-M		See Configuration NOTE: 6, 17

Arista 7280SR2K-48C6M 2H SW 1M Sup E-LTU		JQ386AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280SR2K-48C6M		See Configuration NOTE: 17, 34

Arista 7280SR2K48C6M NBD SW 1M Sup E-LTU		JQ393AAE
1 Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280SR2K-48C6M		See Configuration NOTE: 17, 34

Arista 7280SR2K-48C6M 4H SW 1M Sup E-LTU		JQ394AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280SR2K-48C6M		See Configuration NOTE: 17, 34

Arista 7280SR2A-48YC6 NBD SW 1M Sup LTU		JH964AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280SR2A-48YC6		See Configuration NOTE: 15, 17

Arista 7280SR2A-48YC6 4H SW 1M Sup LTU		JH965AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280SR2A-48YC6		See Configuration NOTE: 15, 17

Arista 7280SR2A-48YC6 2H SW 1M Sup LTU		JH966AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280SR2A-48YC6		See Configuration NOTE: 15, 17

Arista 7280SR2A-48YC6M NBD SW 1M Sup LTU		JH967AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280SR2A-48YC6M		See Configuration NOTE: 16, 17

Arista 7280SR2A-48YC6M 4H SW 1M Sup LTU		JH968AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280SR2A-48YC6M		See Configuration NOTE: 16, 17

Arista 7280SR2A-48YC6M 2H SW 1M Sup LTU		JH969AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280SR2A-48YC6M		See Configuration NOTE: 16, 17

Arista 7280SRM-48C6M 2H SW 1M Sup E-LTU		JQ222AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280SRM-48C6		See Configuration NOTE: 17, 30

Arista 7280SRM-48C6M 4H SW 1M Sup E-LTU		JQ221AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280SRM-48C6		See Configuration NOTE: 17, 30

Arista 7280SRM-48C6M NBD SW 1M Sup E-LTU		JQ220AAE
1 Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280SRM-48C6		See Configuration NOTE: 17, 30

Arista 7280TR-48 NBD SW 1M Support LTU		JH484AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280TR-48C6		See Configuration NOTE: 4, 17

Arista 7280TR-48 4H SW 1M Support LTU		JH485AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280TR-48C6		See Configuration NOTE: 4, 17

Arista 7280TR-48 2H SW 1M Support LTU		JH486AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280TR-48C6		See Configuration NOTE: 4, 17

Arista 7280SE-64 NBD SW 1M Support LTU		JH487AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280SE-64		See Configuration NOTE: 1, 17

Arista 7280SE-64 4H SW 1M Support LTU		JH488AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280SE-64		See Configuration NOTE: 1, 17

Arista 7280SE-64 2H SW 1M Support LTU		JH489AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280SE-64		See Configuration NOTE: 1, 17

Arista 7280QRA-C36S NBD SW 1M Sup LTU		JQ141AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280QRA-C36S		See Configuration NOTE: 17, 24

Arista 7280QRA-C36S 4H SW 1M Sup LTU		JQ142AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280QRA-C36S		See Configuration NOTE: 17, 24

Arista 7280QRA-C36S 2H SW 1M Sup LTU		JQ143AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280QRA-C36S		See Configuration NOTE: 17, 24

Arista 7280QRA-C36SM NBD SW 1M Sup LTU		JQ144AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280QRA-C36SM		See Configuration NOTE: 17, 25

Arista 7280QRA-C36SM 4H SW 1M Sup LTU		JQ145AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280QRA-C36SM		See Configuration NOTE: 17, 25

Arista 7280QRA-C36SM 2H SW 1M Sup LTU		JQ146AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280QRA-C36SM		See Configuration NOTE: 17, 25

Arista 7280TRA-48C6 NBD SW 1M Sup LTU		JQ153AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280TRA-48C6		See Configuration NOTE: 17, 26

Arista 7280TRA-48C6 4H 1M Sup LTU		JQ154AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280TRA-48C6		See Configuration NOTE: 17, 26

Arista 7280TRA-48C6 2H SW 1M Sup LTU		JQ155AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280TRA-48C6		See Configuration NOTE: 17, 26

Arista 7280TRA-48C6M NBD SW 1M Sup LTU		JQ156AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280TRA-48C6M		See Configuration NOTE: 17, 27

Arista 7280TRA-48C6M 4H 1M Sup LTU		JQ157AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280TRA-48C6M		See Configuration NOTE: 17, 27

Arista 7280TRA-48C6M 2H SW 1M Sup LTU		JQ158AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280TRA-48C6M		See Configuration NOTE: 17, 27

Arista 7280CR2A-60 NBD SW 1M Sup LTU		JQ165AAE
1-Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280CR2A-60		See Configuration NOTE: 17, 28

Arista 7280CR2A-60 4H 1M Sup LTU		JQ166AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280CR2A-60		See Configuration NOTE: 17, 28

Arista 7280CR2A-60 2H SW 1M Sup LTU		JQ167AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280CR2A-60		See Configuration NOTE: 17, 28

Arista 7280CR2K-60 NBD SW 1M Sup E-LTU		JQ217AAE
1 Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280CR2K-60		See Configuration NOTE: 17, 31

Arista 7280CR2K-60 4H SW 1M Sup E-LTU		JQ218AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280CR2K-60		See Configuration NOTE: 17, 31

Arista 7280CR2K-60 2H SW 1M Sup E-LTU		JQ219AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280CR2K-60		See Configuration NOTE: 17, 31

Arista 7280CR2K-30 NBD SW 1M Sup E-LTU		JQ229AAE
1 Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280CR2K-30		See Configuration NOTE: 17, 32

Arista 7280CR2K-30 4H SW 1M Sup E-LTU		JQ230AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280CR2K-30		See Configuration NOTE: 17, 32

Arista 7280CR2K-30 2H SW 1M Sup E-LTU		JQ231AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280CR2K-30		See Configuration NOTE: 17, 32

Arista 7280CR2A-30 2H SW 1M Sup E-LTU		JQ378AAE
1-Month A-Care Software & 24x7x2 Hour Hardware Replacement for 7280CR2A-30		See Configuration NOTE: 17, 33

Arista 7280CR2A-30 4H SW 1M Sup E-LTU		JQ385AAE
1-Month A-Care Software & 24x7x4 Hour Hardware Replacement for 7280CR2A-30		See Configuration NOTE: 17, 33

Arista 7280CR2A-30 NBD SW 1M Sup E-LTU		JQ395AAE
1 Month A-Care Software & NBD Hardware Replacement/Same Day Ship for 7280CR2A-30		See Configuration NOTE: 17, 33

Configuration Rules

Note 1	This Service is applicable to the 7280SE-64 Switches below: JH568A JH569A

Note 2	This Service is applicable to the 7280QR-C36 Switches below: JH558A JH559A JH805A JH806A

Note 3	This Service is applicable to the 7280SR-48C6 Switches below: JH562A JH563A JH832A JH833A

Note 4	This Service is applicable to the 7280TR-48C6 Switches below: JH566A JH567A JQ072A JQ073A JQ408A JQ414A

Note 5	This Service is applicable to the 7280QR-C36-M Switches below: JH560A JH561A

Note 6	This Service is applicable to the 7280SR-48C6-M Switches below: JH564A JH565A

Note 7	This Service is applicable to the 7250QX-64 Switches below: JH797A JH798A

Note 8	This Service is applicable to the 7260CX-64 Switches below: JH799A JH800A

Note 9	This Service is applicable to the 7260QX-64 Switches below: JH801A JH802A

Note 10	This Service is applicable to the 7280CR-48 Switches below: JH803A JH804A

Note 11	This Service is applicable to the 7280SE-68 Switches below: JH807A JH808A

Note 12	This Service is applicable to the 7280SE-72 Switches below: JH809A JH810A

Note 13	This Service is applicable to the 7280QR-C72 Switches below: JQ004A JQ005A

Note 14	This Service is applicable to the 7280QR-C72M Switches below: JQ006A JQ007A JQ008A JQ009A

Note 15	This Service is applicable to the 7280SR2A-48YC6 Switches below: JH996A JH997A

Note 16	This Service is applicable to the 7280SR2A-48YC6M Switches below: JH998A JH999A JQ002A JQ003A

Note 17	If this service is selected, then qty 1 - 11 is not allowed.

Note 18	This Service is applicable to the 7280CR2-60 Switches below: JQ078A JQ079A JQ081A

Note 19	This Service is applicable to the 7280SR2-48YC6M Switches below: JQ175A JQ176A JQ177A JQ178A

Note 20	This Service is applicable to the 7280SR2-48YC6 Switches below: JQ173A JQ174A

Note 21	This Service is applicable to the 7280SRA-48C6 Switches below: JQ092A JQ093A

Note 22	This Service is applicable to the 7280SRA-48C6M Switches below: JQ097A JQ096A JQ095A JQ094A

Note 24	This Service is applicable to the 7280QRA-C36S Switches below: JQ086A JQ087A

Note 25	This Service is applicable to the 7280QRA-C36SM Switches below: JQ088A JQ089A JQ090A JQ091A

Note 26	This Service is applicable to the 7280TRA-48C6 Switches below: JQ098A JQ099A

Note 27	This Service is applicable to the 7280TRA-48C6M Switches below: JQ100A JQ101A JQ102A JQ103A

Note 28	This Service is applicable to the 7280CR2A-60 Switches below: JQ110A JQ111A JQ113A

Note 29	This Service is applicable to the 7260CX3-64 Switches below: JQ193A JQ194A

Note 30	This Service is applicable to the 7280SRM-48C6 Switches below: JQ198A JQ199A JQ279A JQ280A

Note 31	This Service is applicable to the 7280CR2K-60 Switches below: JQ195A JQ196A JQ197A

Note 32	This Service is applicable to the 7280CR2K-30 Switches below: JQ206A JQ207A JQ208A JQ209A

Note 33	This Service is applicable to the 7280CR2A-30 Switches below: JQ413A JQ407A

Note 34	This Service is applicable to the 7280SR2K-48C6M Switches below: JQ409A JQ410A JQ412A JQ419A

Remarks:
	OCA Blue NOTE: Valid configurations must include support services for Arista switches - either of the following services but NOT both: a) HPE Support (Foundation Care or Proactive Care) b) Arista Service (A-Care) HPE support should default with the option to remove/edit in the 'Services' tab Arista support can be selected in the 'Services' section of the 'Menu' tab (minimum Qty 12 for 1 year)

CloudVision
Std (Min 0 // max 99) User Selection (min 0 // max 99)

Arista Cloudvision Unlimited 1M STU		JH523AAE
CloudVision SW Subscription Enterprise License for 1-Month (Unlimited)		See Configuration NOTE: 1

Arista Cloudvision Sw-500 1M STU		JH524AAE
CloudVision SW Subscription License for 1-Month for up to 500 Switches		See Configuration NOTE: 1

Arista Cloudvision Sw-150 1M STU		JH525AAE
CloudVision SW Subscription License for 1-Month for up to 150 Switches		See Configuration NOTE: 1

Arista Cloudvision Sw-1 1M STU		JH526AAE
CloudVision SW Subscription License for 1-Month for 1 Switch		See Configuration NOTE: 1

Arista Cloudvision Lite Sw-1 1M STU		JH527AAE
CloudVision Lite SW Subscription License for 1-Month for 1 Switch		See Configuration NOTE: 1

Arista CloudVision Lab Switch-1 1M STU		JH895AAE
Lab Use Only: CloudVision SW Subscription License for 1-month for up to 10 Switches		See Configuration NOTE: 1

Configuration Rules

Note 1	If this service is selected, then qty 1 - 11 is not allowed.

Remarks:
	OCA Blue Note: (minimum Qty 12 for 1 year) If the solution contains > 500 Switches, select JH523A. If the solution contains > 150 but < or = 500 Switches, select JH524A. If the solution contains > 1 but < or = 150 Switches, select JH525A. If the solution contains = 1 switch, select JH526A or JH527A.

Technical Specifications

Specifications

Model	7280SRAM-48C6-64
Ports	48 x SFP+, 6 x QSFP100
Max 100GbE Ports	6
Max 40GbE Ports*	6
Max 10GbE Ports	48
Throughput	2.16Tbps
Packets/Second	720Mpps
Latency	From 3.8us
CPU	Quad-Core x86
System Memory	32 Gigabytes
Packet Buffer Memory	4GB
USB Ports	2
Flash Storage Memory	4GB
SSD Storage	30GB
100/1000 Mgmt Ports	1
RS-232 Serial Ports	1 (RJ-45)
Hot-swap Power	2 (1+1 redundant)
Hot-swap Fans	4 (N+1 redundant)
Reversible Airflow	Yes
Rack Units	1U
Size (WxHxD)	19 x 1.75 x16" (48.3 x 4.4 x40.6cm)
Typical**/Max Power Draw	382W/403W
Weight	20.4lbs (9.25kg)
NEBS	Yes
Power Supplies	500W AC, 500W DC
AlgoMatch	Yes
Accelerated sFlow	Yes
Minimum EOS	4.20.1

* 40G QSFP not currently supported in EOS. MACsec encryption can be used in 100G mode only

** Typical power consumption measured at 25C ambient with 50% load on all ports

Scale

MAC Addresses	768K
IPv4 Host Routes	768K
IPv6 Unicast Host Routes	768K
IPv4 Unicast LPM Routes	Over 1M
IPv6 Unicast LPM Routes	1M
Multicast Routes	Up to 768K
ACL Entries	24K

Power Supply Specifications

Power supply model	PWR-500AC	PWR-500-DC
Input Voltage	100-240V AC	40-72V DC
Typical Input Current	6.3 - 2.3A	13.1 - 7.3A 11A at -48V
Input Frequency	50/60Hz	DC
Input Connector	IEC 320-C13	AWG #16-#12
Efficiency (Typical)	93% Platinum	90%

Supported optics and cables

Interface type	SFP+ port
10GBASE-CR	SFP+ to SFP+: 0.5m-5m
10GBASE-AOC	SFP+ to SFP+: 3m-30m
10GBASE-SRL	100m OM3 / 150m OM4 duplex MMF
10GBASE-SR	300m OM3 / 400m OM4 duplex MMF
10GBASE-LR/LRL	10km/1km duplex SMF
10GBASE-ER	40km duplex SMF
10GBASE-ZR	80km duplex SMF
10GBASE-DWDM	80km duplex SMF (DWDM)
100M, 1GbE SX/LX/TX	Supported

Interface type	QSFP ports
100GBASE-CR4	Up to 5m
100GBASE-AOC	3m to 30m
100GBASE-SR4	70m OM3/100m OM4 parallel MMF
100GBASE-SWDM4	70m OM3/100m OM4 duplex MMF
100GBASE-PSM4	500m parallel SMF
100GBASE-CWDM4	2km duplex SMF
100GBASE-LR4/LRL4	10km/2km duplex SMF
100GBASE-ERL4	40 km SM Duplex
100GBASE-DWDM	80km duplex SMF (DWDM)
40GBASE-CR4	Up to 5m
40GBASE-AOC	3m to 100m
40GBASE-SR4	100m OM3/150m OM4 parallel MMF
40GBASE-XSR4	300m OM3/400m OM4 parallel MMF
40GBASE-SRBD	100m OM3/150m OM4 duplex MMF
40GBASE-UNIV	150m OM3/OM4 duplex MMF 500m duplex SMF
40GBASE-PLR4/PLRL4	10km/1km duplex SMF (4x10G LR/LRL)
40GBASE-LR4/LRL4	10km/1km duplex SMF
40GBASE-ER4	40km duplex SMF

Environmental characteristics

Operating temperature	0 to 40ËC (32 to 104ËF) ***
Storage temperature	-40 to 70ËC (-40 to 158ËF)
Relative humidity	5% to 95%
Operating altitude	0 to 10,000 ft (0-3,000 m)

*** Higher power or reduced temperature range optics may reduce system operating temperature to 35ËC (95ËF)

Warranty

The Arista 7280R Series switches come with a one-year limited hardware warranty, which covers parts, repair, or replacement with a 10 business day turn-around after the unit is received.

Service and Support

Support services including next business day and 4-hour advance hardware replacement are available. For service depot locations, please see: http://www.arista.com/en/service

Summary of Changes

Date

Version History

Action

Description of Change

03-Dec-2018

Version 4

Changed

Configuration section updated (Configuration notes changed)

02-Jul-2018

Version 3

Changed

Configuration section updated (Added PSU to Spares section)

07-May-2018

Version 2

Changed

Configuration section updated

05-Mar-2018

Version 1

Created

Document creation.


Sign up for updates

© Copyright 2018 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

To learn more, visit: http://www.hpe.com/networking

a00038967enw - 16133 - Worldwide - V4 - 3-December-2018
