Arista 7260X3 10/25/40/50/100G Data Center Switch Series

HPE and Arista share a common vision around the need to deliver secure hybrid IT solutions and experiences built on industry-leading software-defined infrastructure-helping customers to operate their workloads with speed and agility to grow their business. This partnership will provide our customers with proven networking solutions that are superior to legacy alternatives and that complement HPE compute, storage, virtualization, and cloud offerings.

Increased adoption of high performance servers coupled with applications using higher bandwidth is accelerating the need for dense 100 Gigabit Ethernet switching in both leaf and spine tiers of modern networks. The Arista 7260X3 Series are purpose-built high-performance, high-density, fixed-configuration, data center switches with wire speed layer 2 and layer 3 features, combined with advanced features for software defined cloud networking and emerging requirements.

With 64 QSFP100 ports the 7260CX3-64 is a dense 40/100GbE system that can support a flexible combination of up to 64x 40/100GbE, 128x 50GbE or 10/25GbE of wire speed performance in a 2RU system. The Arista 7260CX3-64 combines low latency, and a shared packet buffer pool of 42MB that is allocated dynamically to ports that are congested.

Combining 100GbE density and industry leading power efficiency with typical power consumption under 10W per 100GbE port the 7260CX3-64 is ideal for both middle and end-of-row leaf or collapsed spine tiers with airflow choices for back to front, or front to back.

With support for a flexible combination of speeds including 10G, 25G, 40G, 50G and 100G and combined with Arista EOS, the 7260CX3-64 delivers rich features for big data, cloud, virtualized and traditional designs and accommodates the myriad different applications and east-west traffic patterns found in modern data centers.

Figure 1: Arista 7260CX3-64: 64 x 40/100GbE QSFP100ports, 2 SFP+ ports

Product Highlights

Performance

• 7260CX3-64: 64x QSFP100
• Flexible 10G to 100G support on all ports
• Up to 128 x 10G, 25G or 50G using breakout cables
• Up to 12.8 terabits per second
• Up to 4.2 billion packets per second
• Wire speed L2 and L3 forwarding
• Latency from 450ns

Data Center Optimized Design

• 64 QSFP100 ports in 2RU
• Under 6W per port typical
• Over 93% efficient power supplies
• 1+1 redundant & hot-swappable power
• N+1 redundant & hot-swappable fans
• Front-to-rear or rear-to-front cooling
• Tool less rails for simple installation

Cloud Networking Ready

• VXLAN and VM Tracer
• OpenFlow, DirectFlow and eAPI
• 264K MAC entries
• 180K IPv4 Routes
• 200K IPv4 Host Routes
• 42MB integrated smart buffer
• Dynamic Buffer Allocation up to 10.5MB per slice

Resilient Control Plane

• High Performance x86 CPU
• 8GB DRAM
• User applications can run in a VM

Advanced Provisioning & Monitoring

• CloudVision
• Zero Touch Provisioning (ZTP)
• LANZ for microburst detection
• DANZ Advanced Mirroring for visibility
• sFlow®
• Self-configure and recover from USB
• Traffic aware ECMP and UCMP
• PFC and ETS for congestion management

Arista Extensible Operating System

• Single binary image for all products
• Fine-grained truly modular network OS
• Stateful Fault Containment (SFC)
• Stateful Fault Repair (SFR)
• Full Access to Linux® shell and tools
• Extensible platform - bash, python, C++

Arista Extensible Operating System (EOS)

The Arista 7260X3 series runs the same Arista EOS software as all Arista products, simplifying network administration. Arista EOS is a modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic. Built on top of a standard Linux kernel, all EOS processes run in their own protected memory space and exchange state through an in-memory database. This multi-process state sharing architecture provides the foundation for in-service-software updates and self-healing resiliency.

With Arista EOS, advanced monitoring and automation capabilities such as Zero Touch Provisioning, VMTracer and Linux based tools can be run natively on the switch with the powerful x86 CPU subsystem.

Model Overview

The 7260CX3-64 is a 2RU system with 64 100G QSFP ports offering wire speed performance with an overall throughput of up to 12.8 Tbps. Each QSFP port is capable of a choice of 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x50GbE with hitless configuration change between modes. The 64 QSFP ports can be broken out to a system maximum of 128 ports allowing for easy transitions and maximum flexibility enabling deployment as both a leaf and spine. The two SFP+ ports provide additional connections for low speed management networks or out of band monitoring.

Consistent features to both the Arista 7060CX and 7260CX Series combined with lower power and high 100GbE density means the 7260CX3 is optimized for 100GbE top of rack and spine tiers, high density storage and next generation financial trading systems requiring predictable performance with low latency.

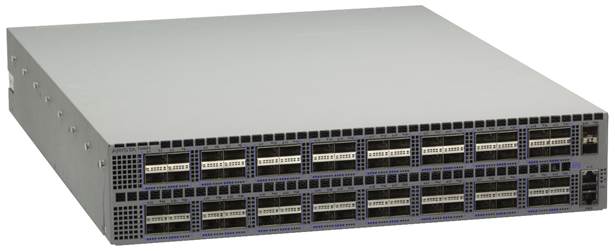

Figure 2: Arista 7260CX3-64:

64x 100GbE QSFP100 ports, 2 SFP+ ports

Dynamic buffer allocation

The Arista 7260CX3 switches offer consistent latency from 450ns in cut-through mode, and a shared 42 MB integrated packet buffer that is twice the capacity of the 7060X Series. Upon congestion from micro-bursts or fan-in packets are buffered in an intelligent shared packet memory that has a total size of 42MB arranged as 10.5MB per port group to accommodate bursts and lossless traffic requirements. Unlike other architectures that have fixed per-port packet memory, or smaller shared memory pools the 7260CX3 Series use a Dynamic Buffer Allocation (DBA) scheme to allocate memory intelligently based on a combination of traffic class, queue depth and quality of service policy ensuring fair allocation to all ports. Buffer utilization, occupancy and thresholds are all visible with Arista LANZ and can be exported to monitoring tools for detailed analysis.

High availability

The Arista 7260X3 series switches are designed for high availability from both a software and hardware perspective. Key high availability features include:

· 1+1 hot-swappable power supplies and four N+1 hot-swap fans

· Color coded PSU's and fans

· Live software patching

· Self healing software with Stateful Fault Repair (SFR)

· Smart System Upgrade (SSU) and Accelerated Software Update (ASU)

Figure 3: Arista 7260X3 2RU Rear View: Front to Rear airflow (red)

Figure 4: Arista 7260X3 2RU Rear View: Rear to Front airflow (blue)

Software Driven Cloud Networking

Arista Software Driven Cloud Networking (SDCN), combines the principles that have made cloud computing the unstoppable force that it is: automation, self service provisioning, and linear scaling of both performance and economics coupled with the trend in Software Defined Networking that delivers: network virtualization, custom programmability, simplified architectures, and lower capital expenditure. This combination creates a best-in-class software foundation for maximizing the value of the network to both the enterprise and service provider data center. A new architecture for the most mission-critical location within the IT infrastructure that simplifies management and provisioning, speeds up service delivery, lowers costs and creates opportunities for competitive differentiation, while putting control and visibility back in the hands of the network and systems administrators.

Smart System Upgrade

Smart System Upgrade is a network application designed to address one of the most complicated and challenging tasks facing data center administrators - network infrastructure maintenance. Changes to the underlying network infrastructure can affect large numbers of devices and cause significant outages. SSU provides a fully customizable suite of features that tightly couples data center infrastructure to technology partners allowing for intelligent insertion and removal, programmable updates to software releases and open integration with application and infrastructure elements.

Enhanced features for high performance networks

The Arista 7260X3 deliver a suite of advanced traffic control and monitoring features to improve the agility of modern high performance environments, with solutions for data monitoring, and next-generation virtualization.

Automating the data center enables customers to dynamically provision computing resources in the most efficient manner while also meeting business needs by maintaining service level agreements (SLAs). Arista EOS automates complex IT workflows and simplifies network operations while reducing or even eliminating downtime. Arista EOS rich automation capabilities not only reduce the human error element in network operations but also enable IT operators to make the network work the way they want.

Arista offers solutions for a variety of approaches to cloud-like network automation. Addressing the needs of the largest public cloud environments as well as applying those lessons learned in the turnkey CloudVision automation offering.

CloudVision

CloudVision is a network-wide approach for workload orchestration and workflow automation as a turnkey solution for Cloud Networking. CloudVision extends the EOS publish subscribe architectural approach across the network for state, topology, monitoring and visibility. This enables enterprises to move to cloud-class automation without needing any significant internal development.

Scaling data center performance

The Arista 7260X3 series deliver line rate switching at layer 2 and layer 3 to enable faster and simpler network designs for data centers that dramatically lowers the network capital and operational expenses. When used in conjunction with the Arista 7000 series of fixed and modular switches it allows networks to scale to over 55,000 25/50G servers in low-latency two-tier networks that provide predictable and consistent application performance. The flexibility of the L2 and L3 multi-path design options combined with support for open standards provides architectural flexibility, scalability and network wide virtualization. Both designs support overlay networks via VXLAN and can integrate with standards-based overlay controller solutions. Arista EOS advanced features provide control and visibility with single point of management.

Arista Leaf-Spine Two-tier Network Architecture with 7260X3 Series

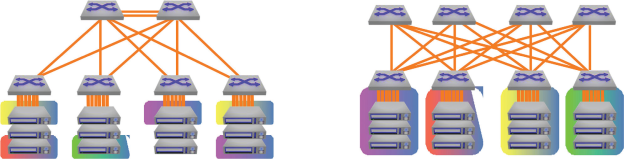

Figure 5: Arista Fixed System Leaf-Spine Designs Scale to 6,144 10GbE/25GbE ports or 1,536 40GbE/100GbE port at 3:1

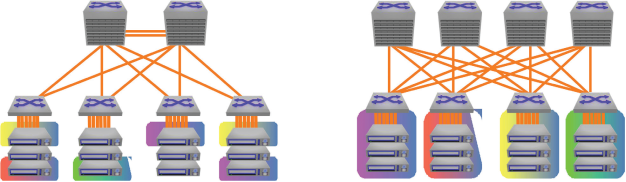

Figure 6: Arista Modular System Leaf-Spine Designs Scale to 55,296 25/50GbE ports at 3:1 subscription in a 16-way ECMP Design

Maximum flexibility for scale-out network designs

Scale out network designs enable solutions to start small and evolve over time. A simple two-way design can grow as far as 128-way without significant changes to the architecture. The Arista 7260X3 include enhancements for flexible scale-out designs:

• 128-way ECMP and 64-way MLAG to provide scalable designs and balance traffic evenly across large scale 2 tier leaf-spine designs
• Equal and Unequal Cost Multi-Pathing (ECMP and UCMP) for flexible traffic balancing in large scale multi-tier topologies
• Custom hash algorithms for efficient hashing, persistent hashing and custom lookups for tunneled protocols
• Flexible allocation of L2 and L3 forwarding table resources for more design choice
• Wide choice of dense 10G/25G/40G/100G interfaces for multi-speed flexibility
• Support for standards based IEEE 25GbE for simple and cost effective migration from 10G and 40G to 25G and 100G
• VXLAN routing, bridging and gateway capability for physical to virtualization communication in next generation data center designs
• DANZ, sFlow and multi-port mirroring to detect micro-burst congestion and provide network wide visibility and monitoring
• Hitless speed changes from 10G to 100G to eliminate down-time when implementing speed changes

Unified Forwarding Table

Cloud network scalability is directly impacted by the size of a switches forwarding tables. In many systems a 'one size fits all' approach is adopted using discrete fixed size tables for each of the common types of forwarding entry. The Arista 7260X3 leverage a common Unified Forwarding Table for the L2 MAC, L3 Routing, L3 Host and IP Multicast forwarding entries, which can be partitioned per entry type. The ideal size of each partition varies depending on the network deployment scenario. The flexibility of the UFT coupled with the range of pre-defined configuration profiles available on the 7260X3 ensures optimal resource allocation for all network topologies and network virtualization technologies.

Dynamic Load Balancing (DLB)

Traditional hash-based load balancing algorithms can result in link and path allocations with short term imbalances and underutilization of aggregate capacity. This is aggravated further in modern data centers with high traffic loads, varied flow duration, mixed packet sizes and micro-bursts. DLB enhancements to load balancing consider the real time load on links and dynamically assign new and existing flows to the best link. When imbalances are detected active flows and new flows are allocated to the least loaded paths to reduce the possibility of drops. Supported with any combination of ECMP and LAG/MLAG, DLB delivers higher throughout with enhanced load distribution while offering the user an open implementation.

Advanced Event Management (AEM)

Simplifying the overall operations, AEM provides the tools to customize alerts and actions. AEM is a powerful and flexible set of tools to automate tasks and customize the behavior of EOS and the operation of the overall data center switching infrastructure. AEM allows operators to fully utilize the intelligence within EOS to respond to real-time events, automate routine tasks, and automate actions based on changing network conditions.

Virtualization

Supporting next-generation virtualized data centers requires tight integration with orchestration tools and emerging encapsulation technologies such as VXLAN. The 7260X3 build on the valuable tools already provided by the Arista VM Tracer suite to integrate directly into encapsulated environments. Offering a wire-speed gateway between VXLAN and traditional L2/3 environments, they make integration of non-VXLAN aware devices including servers, firewalls and load-balancers seamless and provide the ability to leverage VXLAN as a standards based L2 extension technology for non-MPLS environments.

Precise data analysis

Arista Latency Analyzer (LANZ) is an integrated feature of EOS. LANZ provides precise real-time monitoring of micro-burst and congestion events before they impact applications, with the ability to identify the sources and capture affected traffic for analysis. Advanced analytics are provided with features like buffer monitoring with configurable thresholds, in-band path and latency monitoring, event driven trace packets and granular time stamping.

Precision timing (IEEE 1588)

Arista's hardware derived Precision Time Protocol solution provides a robust mechanism for accurate in-band time distribution in high performance environments. The system clock can be synchronized using IEEE 1588 PTP.

Features and Benefits

Layer 2 Features

• 802.1w Rapid Spanning Tree
• 802.1s Multiple Spanning Tree Protocol
• Rapid Per VLAN Spanning Tree (RPVST+)
• 4096 VLANs
• Q-in-Q
• Dynamic Load Balancing *
• 802.3ad Link Aggregation/LACP

- 64 ports/channel

- 64 groups per system

• Multi-Chassis Link Aggregation (MLAG)

- 64 ports per MLAG

• Custom LAG Hashing
• Resilient LAG Hashing
• 802.1AB Link Layer Discovery Protocol
• 802.3x Flow Control
• Jumbo Frames (9216 Bytes)
• IGMP v1/v2/v3 snooping
• Storm Control
• Audio Video Bridging (AVB)*

Layer 3 Features

• Routing Protocols: OSPF, OSPFv3, BGP, MP-BGP, IS-IS, and RIPv2
• 128-way Equal Cost Multipath Routing (ECMP)
• Resilient ECMP Routes
• VRF
• BFD
• Route Maps
• IGMP v2/v3
• PIM-SM / PIM-SSM
• Anycast RP (RFC 4610)
• VRRP
• Virtual ARP (VARP)
• Policy Based Routing (PBR)
• uRPF
• RAIL

Advanced Monitoring and Provisioning

• Zero Touch Provisioning (ZTP)
• Smart System Upgrade
• Latency Analyzer and Microburst Detection (LANZ)

- Configurable Congestion Notification (CLI, Syslog)

- Streaming Events (GPB Encoded)

- Capture/Mirror of congested traffic

• Advanced Monitoring and Aggregation

- Port Mirroring (4 active sessions)

- L2/3/4 Filtering on Mirror Sessions

- Port Channel source and destination

- Mirror to CPU *

• Advanced Event Management suite (AEM)

- CLI Scheduler

- Event Manager

- Event Monitor

- Linux tools

• Integrated packet capture/analysis with TCPDump
• RFC 3176 sFlow
• Restore & configure from USB
• Blue Beacon LED for system identification
• Software Defined Networking (SDN)

- OpenFlow 1.0 *

- OpenFlow 1.3 *

- Arista DirectFlow *

- eAPI

- OpenStack® Neutron Support

• IEEE 1588 PTP (Transparent Clock and Boundary Clock) *

Virtualization Support

• VXLAN  Gateway  (draft-mahalingam-dutt-dcops-vxlan-01) *
• VXLAN Tunnel Endpoint *
• VXLAN Routing *
• VXLAN Bridging *

- VM Tracer VMware® Integration

- VMware® vSphereTM support

- VM Auto Discovery

- VM Adaptive Segmentation

- VM Host View

Security Features

• PDP
• Service ACLs
• DHCP Relay / Snooping
• TACACS+
• RADIUS

Quality of Service (QoS) Features

• Up to 8 queues per port
• 802.1p based classification
• DSCP based classification and remarking
• Explicit Congestion Notification (ECN)
• QoS interface trust (COS / DSCP)
• Strict priority queueing
• Weighted Round Robin (WRR) Scheduling
• Per-Priority Flow Control (PFC)
• Data Center Bridging Extensions (DCBX)
• 802.1Qaz Enhanced Transmissions Selection (ETS) *
• ACL based DSCP Marking
• ACL based Policing
• Per port MMU Configuration
• Policing/Shaping
• Rate limiting

Network Management

• CloudVision
• 10/100/1000 Management Port
• RS-232 Serial Console Port
• USB Port
• SNMP v1, v2, v3
• Management over IPv6
• Telnet and SSHv2
• Syslog
• AAA
• Industry Standard CLI

Extensibility

• Linux Tools

- Bash shell access and scripting

- RPM support

- Custom kernel modules

• Programmatic access to system state

- Python

- C++

• Native KVM/QEMU support

Standards Compliance

• 802.1D Bridging and Spanning Tree
• 802.1p QOS/COS
• 802.1Q VLAN Tagging
• 802.1w Rapid Spanning Tree
• 802.1s Multiple Spanning Tree Protocol
• 802.1AB Link Layer Discovery Protocol
• 802.3ad Link Aggregation with LACP
• 802.3ab 1000BASE-T
• 802.3z Gigabit Ethernet
• 802.3ae 10 Gigabit Ethernet
• 802.3by 25 Gigabit Ethernet
• 802.3ba 40 and 100 Gigabit Ethernet
• RFC 2460 Internet Protocol, Version 6 (IPv6) Specification
• RFC 4861 Neighbor Discovery for IP Version 6 (IPv6)
• RFC 4862 IPv6 Stateless Address Autoconfiguration
• RFC 4443 Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) Specification

SNMP MIBs

• RFC 3635 EtherLike-MIB
• RFC 3418 SNMPv2-MIB
• RFC 2863 IF-MIB
• RFC 2864 IF-INVERTED-STACK-MIB
• RFC 4292 IP-FORWARD-MIB
• RFC 4363 Q-BRIDGE-MIB
• RFC 4188 BRIDGE-MIB
• RFC 2013 UDP-MIB
• RFC 2012 TCP-MIB
• RFC 2011 IP-MIB
• RFC 2790 HOST-RESOURCES-MIB
• RFC 3636 MAU-MIB
• RMON-MIB
• RMON2-MIB
• HC-RMON-MIB
• LLDP-MIB
• LLDP-EXT-DOT1-MIB
• LLDP-EXT-DOT3-MIB
• ENTITY-MIB
• ENTITY-SENSOR-MIB
• ENTITY-STATE-MIB
• ARISTA-ACL-MIB
• ARISTA-QUEUE-MIB
• RFC 4273 BGP4-MIB
• RFC 4750 OSPF-MIB
• ARISTA-CONFIG-MAN-MIB
• ARISTA-REDUNDANCY-MIB
• RFC 2787 VRRPv2-MIB
• MSDP-MIB
• PIM-MIB
• IGMP-MIB
• IPMROUTE-STD-MIB
• SNMP Authentication Failure trap
• ENTITY-SENSOR-MIB support for DOM (Digital Optical Monitoring)
• User configurable custom OIDs

*Not currently supported in EOS

* Not currently supported in EOS

See EOS release notes for latest supported MIBs

Build To Order: BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

7250QX Switch

Arista 7250 64QSFP+ FB AC Swch

JH797A

• Arista 7250, 64xQSFP+ switch, front-to-rear air, 2xAC, 2xC13-C14 cords
• Min 0 // Max 64 QSFP+ 40G Transceivers
• 2U - Height

See Configuration NOTE: 2, 5

Arista 7250 64QSFP+ BF AC Swch

JH798A

• Arista 7250, 64xQSFP+ switch, rear-to-front air, 2xAC, 2xC13-C14 cords
• Min 0 // Max 64 QSFP+ 40G Transceivers
• 2U - Height

See Configuration NOTE: 2, 5

7260CX Switch

Arista 7260CX3 64Q28 2S FB AC Swch

JQ193A

• Arista 7260X3, 64x100GbE QSFP & 2xSFP+ switch, front-to-rear air, 2xAC, 2xC19-C20 cords
• Min 0 // Max 2 SFP+ 10G Transceivers
• Min 0 // Max 64 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5

Arista 7260CX3 64Q28 2S BF AC Swch

JQ194A

• Arista 7260X3, 64x100GbE QSFP & 2xSFP+ switch, rear-to-front air, 2xAC, 2xC19-C20 cords
• Min 0 // Max 2 SFP+ 10G Transceivers
• Min 0 // Max 64 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5

Arista 7260X 64QSFP28 2SFP+ FB AC Swch

JH799A

• Arista 7260X, 64x100GbE QSFP & 2xSFP+ switch, front-to-rear air, 2xAC, 2xC19-C20 cords
• Min 0 // Max 2 SFP+ 10G Transceivers
• Min 0 // Max 64 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5

Arista 7260X 64QSFP28 2SFP+ BF AC Swch

JH800A

• Arista 7260X, 64x100GbE QSFP & 2xSFP+ switch, rear-to-front air, 2xAC, 2xC19-C20 cords
• Min 0 // Max 2 SFP+ 10G Transceivers
• Min 0 // Max 64 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5

7260QX Switch

Arista 7260X 64QSFP+ 2SFP+ FB AC Swch

JH801A

• Arista 7260X, 64x40GbE QSFP+ & 2xSFP+ switch, front-to-rear air, 2xAC, 2xC13-C14 cords
• Min 0 // Max 64 QSFP+ 40G Transceivers
• Min 0 // Max 2 SFP+ 10G Transceivers
• 2U - Height

See Configuration NOTE: 1, 2, 5

Arista 7260X 64QSFP+ 2SFP+ BF AC Swch

JH802A

• Arista 7260X, 64x40GbE QSFP+ & 2xSFP+ switch, rear-to-front air, 2xAC, 2xC13-C14 cords
• Min 0 // Max 64 QSFP+ 40G Transceivers
• Min 0 // Max 2 SFP+ 10G Transceivers
• 2U - Height

See Configuration NOTE: 1, 2, 5

7280CR Switch

Arista 7280R 48QSFP28 8QSFP+ FB DC Swch

JH803A

• Arista 7280R, 48x100GbE QSFP and 8x40GbE QSFP+ switch, front to rear air, 2 x DC
• Min 0 // Max 8 QSFP+ 40G Transceivers
• Min 0 // Max 48 QSFP28 100G Transceivers
• 2U - Height

See Configuration NOTE: 2, 3, 5

Arista 7280R 48QSFP28 8QSFP+ FB AC Swch

JH804A

• Arista 7280R, 48x100GbE QSFP and 8x40GbE QSFP+ switch, front to rear air, 2 x AC and 2 x C19-C20 cords
• Min 0 // Max 8 QSFP+ 40G Transceivers
• Min 0 // Max 48 QSFP28 100G Transceivers
• 2U - Height

See Configuration NOTE: 2, 3, 5

7280CR2A Switch

Arista 7280R2 30QSFP28 AG MX FB AC Swch

JQ413A

• Arista 7280R2 30x100GbE QSFP switch AlgoMatch expn mem front to rear air AC. Over 256K Routes MPLS and VXLAN
• Min 0 // Max 30 QSFP28 100G Transceivers
• NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59)
• 2U - Height

See Configuration NOTE: 3, 5, 6

Arista 7280R2 30QSFP28 AG X FB AC Swch

JQ407A

• Arista 7280R2, 30x100GbE QSFP switch, AlgoMatch, expn mem, front to rear air, 2 x AC and 2 x C19-C20 cords
• Min 0 // Max 30 QSFP28 100G Transceivers
• NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59)
• 2U - Height

See Configuration NOTE: 3, 5, 6

Arista 7280R2 60QSFP28 AG FB AC Swch

JQ110A

• Arista 7280R2, 60x100GbE QSFP switch router, AlgoMatch, front to rear air, 2 x AC
• Min 0 // Max 60 QSFP28 100G Transceivers
• NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59)
• 2U - Height

See Configuration NOTE:  3, 5, 6

Arista 7280R2 60QSFP28 AG FB DC Swch

JQ111A

• Arista 7280R2, 60x100GbE QSFP switch router, AlgoMatch, front to rear air, 2 x DC
• Min 0 // Max 60 QSFP28 100G Transceivers
• NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59)
• 2U - Height

See Configuration NOTE:  3, 5, 6

Arista 7280R2 60QSFP28 AG L3 FB AC Swch

JQ113A

• Arista 7280R2, 60x100GbE QSFP switch router, AlgoMatch, front to rear air, 2 x AC. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 60 QSFP28 100G Transceivers
• NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59)
• 2U - Height

See Configuration NOTE:  3, 5, 6

7280CR2 Switch

Arista 7280R2 60QSFP28 FB AC Swch

JQ078A

• Arista 7280R2, 60x100GbE QSFP switch router, front to rear air, 2 x AC
• Min 0 // Max 60 QSFP28 100G Transceivers
• NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59)
• 2U - Height

See Configuration NOTE:  3, 5, 6

Arista 7280R2 60QSFP28 FB DC Swch

JQ079A

• Arista 7280R2, 60x100GbE QSFP switch router, front to rear air, 2 x DC
• Min 0 // Max 60 QSFP28 100G Transceivers
• NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59)
• 2U - Height

See Configuration NOTE:  3, 5, 6

Arista 7280R2 60QSFP28 L3 FB AC Swch

JQ081A

• Arista 7280R2, 60x100GbE QSFP switch router, front to rear air, 2 x AC. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 60 QSFP28 100G Transceivers
• NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59)
• 2U - Height

See Configuration NOTE:  3, 5, 6

7280CR2K Switch

Arista 7280R2 60QSFP28 AG2 FB AC Swch

JQ195A

• Arista 7280R2, 60x100GbE QSFP switch router, AlgoMatch-2, front to rear air, 2 x AC
• Min 0 // Max 60 QSFP28 100G Transceivers
• NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59)
• 2U - Height

See Configuration NOTE:  3, 5, 6

Arista 7280R2 60QSFP28 AG2 FB DC Swch

JQ196A

• Arista 7280R2, 60x100GbE QSFP switch router, AlgoMatch-2, front to rear air, 2 x DC
• Min 0 // Max 60 QSFP28 100G Transceivers
• NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59)
• 2U - Height

See Configuration NOTE:  3, 5, 6

Arista 7280R2 60QSFP28 AG2 L3 FB AC Swch

JQ197A

• Arista 7280R2, 60x100GbE QSFP switch router, AlgoMatch-2, front to rear air, 2 x AC. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 60 QSFP28 100G Transceivers
• NOTE: Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 1-29) and up to 6 ports on 3rd row (odd ports 31-59)
• 2U - Height

See Configuration NOTE:  3, 5, 6

Arista 7280R2 30QSFP28 AG2 E FB AC Swch

JQ206A

• Arista 7280R2, 30x100GbE QSFP switch, AlgoMatch-2, expn mem, front to rear air, 2 x AC and 2 x C19-C20 cords
• Min 0 // Max 30 QSFP28 100G Transceivers
• 2U - Height

See Configuration NOTE:  3, 5

Arista 7280R2 30QSFP28 AG2 E BF AC Swch

JQ207A

• Arista 7280R2, 30x100GbE QSFP switch, AlgoMatch-2, expn mem, rear to front air, 2 x AC and 2 x C19-C20 cords
• Min 0 // Max 30 QSFP28 100G Transceivers
• 2U - Height

See Configuration NOTE:  3, 5

Arista 7280R2 30Q28 AG2 E L3 FB AC Swch

JQ208A

• Arista 7280R2, 30x100GbE QSFP switch, AlgoMatch-2, expn mem, front to rear air, 2 x AC. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 30 QSFP28 100G Transceivers
• 2U - Height

See Configuration NOTE:  3, 5

Arista 7280R2 30Q28 AG2 E L3 BF AC Swch

JQ209A

• Arista 7280R2, 30x100GbE QSFP switch, AlgoMatch-2, expn mem, rear to front air, 2 x AC. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 30 QSFP28 100G Transceivers
• 2U - Height

See Configuration NOTE:  3, 5

7280SE Switch

Arista 7280E 48SFP+ 2QSFP28 FB AC Swch

JH807A

• Arista 7280E, 48x10GbE (SFP+) & 2x100GbE QSFP100 switch, front-to-rear air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 2 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  1, 3, 5

Arista 7280E 48SFP+ 2QSFP28 BF AC Swch

JH808A

• Arista 7280E, 48x10GbE (SFP+) & 2x100GbE QSFP100 switch, rear-to-front air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 2 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  1, 3, 5

Arista 7280E 48SFP+ 2MXP100 FB AC Swch

JH809A

• Arista 7280E, 48x10GbE (SFP+) & 2x100GbE MXP switch, front-to-rear air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 2 MXP QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  1, 3, 5

Arista 7280E 48SFP+ 2MXP100 BF AC Swch

JH810A

• Arista 7280E, 48x10GbE (SFP+) & 2x100GbE MXP switch, rear-to-front air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 2 MXP QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  1, 3, 5

Arista 7280E 48SFP+ 4QSFP+ FB AC Swch

JH568A

• Arista 7280E, 48x10GbE (SFP+) & 4x40GbE QSFP+ switch, front-to-rear air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 4 QSFP+ 40G Transceivers
• 1U - Height

See Configuration NOTE:  1, 2, 5

Arista 7280E 48SFP+ 4QSFP+ BF AC Swch

JH569A

• Arista 7280E, 48x10GbE (SFP+) & 4x40GbE QSFP+ switch, rear-to-front air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 4 QSFP+ 40G Transceivers
• 1U - Height

See Configuration NOTE:  1, 2, 5

7280QRA Switch

Arista 7280RA36Q+ 12Q28 AG SX BF AC Swch

JQ089A

• Arista 7280RA, 36x40GbE QSFP+ with 12x100GbE QSFP switch router, AlgoMatch, epxn mem, SSD, rear to front air, 2x AC
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP+/QSFP28 40G/100G Transceivers
• NOTE: Depending on the port configuration a maximum of 36-40G ports or 12-100G ports with 24-40G ports. Other combinations can be configured.
• Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 7-29)
• 1U - Height

See Configuration NOTE: 2, 3, 5, 6

Arista 7280RA36Q+ 12Q28 AG SX FB AC Swch

JQ088A

• Arista 7280RA, 36x40GbE QSFP+ with 12x100GbE QSFP switch router, AlgoMatch, epxn mem, SSD, front to rear air, 2x AC
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP+/QSFP28 40G/100G Transceivers
• NOTE: Depending on the port configuration a maximum of 36-40G ports or 12-100G ports with 24-40G ports. Other combinations can be configured.
• Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 7-29)
• 1U - Height

See Configuration NOTE: 2, 3, 5, 6

Arista 7280RA 36Q+ 12Q28 AG BF AC Swch

JQ087A

• Arista 7280RA, 36x40GbE QSFP+ with 12x100GbE QSFP switch router, AlgoMatch, rear to front air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP+/QSFP28 40G/100G Transceivers
• NOTE: Depending on the port configuration a maximum of 36-40G ports or 12-100G ports with 24-40G ports. Other combinations can be configured.
• Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 7-29)
• 1U - Height

See Configuration NOTE: 2, 3, 5, 6

Arista 7280RA 36Q+ 12Q28 AG FB AC Swch

JQ086A

• Arista 7280RA, 36x40GbE QSFP+ with 12x100GbE QSFP switch router, AlgoMatch, front to rear air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP+/QSFP28 40G/100G Transceivers
• NOTE: Depending on the port configuration a maximum of 36-40G ports or 12-100G ports with 24-40G ports. Other combinations can be configured.
• Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 7-29)
• 1U - Height

See Configuration NOTE: 2, 3, 5, 6

Arista 7280RA 36Q+ 12Q28 AG S MX BF Swch

JQ091A

• Arista 7280RA, 36x40GbE QSFP+ with 12x100GbE switch, AlgoMatch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP+/QSFP28 40G/100G Transceivers
• NOTE: Depending on the port configuration a maximum of 36-40G ports or 12-100G ports with 24-40G ports. Other combinations can be configured.
• Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 7-29)
• 1U - Height

See Configuration NOTE: 2, 3, 5, 6

Arista 7280RA 36Q+ 12Q28 AG S MX FB Swch

JQ090A

• Arista 7280RA, 36x40GbE QSFP+ with 12x100GbE switch router, AlgoMatch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP+/QSFP28 40G/100G Transceivers
• NOTE: Depending on the port configuration a maximum of 36-40G ports or 12-100G ports with 24-40G ports. Other combinations can be configured.
• Use up to 6 ports of 100G DWDM QSFP on top row (odd ports 7-29)
• 1U - Height

See Configuration NOTE: 2, 3, 5, 6

7280QR Switch

Arista 7280R 72QSFP+ 16QSFP28 FB AC Swch

JQ004A

• Arista 7280R, 72x40GbE QSFP+ with 16x100GbE QSFP switch, front to rear air, 2x AC and 2xC19-C20 cords
• Min 0 // Max 72 QSFP+ 40G Transceivers
• Min 0 // Max 16 QSFP28 100G Transceivers
• 2U - Height

See Configuration NOTE: 2, 3, 5

Arista 7280R 72QSFP+ 16QSFP28 BF AC Swch

JQ005A

• Arista 7280R, 72x40GbE QSFP+ with 16x100GbE QSFP switch, rear to front air, 2x AC and 2xC19-C20 cords
• Min 0 // Max 72 QSFP+ 40G Transceivers
• Min 0 // Max 16 QSFP28 100G Transceivers
• 2U - Height

See Configuration NOTE: 2, 3, 5

Arista 7280R 72Q+ 16Q28 SSD X FB AC Swch

JQ006A

• Arista 7280R, 72x40GbE QSFP+ with 16x100GbE QSFP switch, expn mem, SSD, front to rear air, 2x AC
• Min 0 // Max 72 QSFP+ 40G Transceivers
• Min 0 // Max 16 QSFP28 100G Transceivers
• 2U - Height

See Configuration NOTE: 2, 3, 5

Arista 7280R 72Q+ 16Q28 SSD X BF AC Swch

JQ007A

• Arista 7280R, 72x40GbE QSFP+ with 16x100GbE QSFP switch, expn mem, SSD, rear to front air, 2x AC
• Min 0 // Max 72 QSFP+ 40G Transceivers
• Min 0 // Max 16 QSFP28 100G Transceivers
• 2U - Height

See Configuration NOTE: 2, 3, 5

Arista 7280R 72Q+ 16Q28 SSDMX FB AC Swch

JQ008A

• Arista 7280R, 72x40GbE QSFP+ with 16x100GbE QSFP switch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 72 QSFP+ 40G Transceivers
• Min 0 // Max 16 QSFP28 100G Transceivers
• 2U - Height

See Configuration NOTE: 2, 3, 5

Arista 7280R 72Q+ 16Q28 SSDMX BF AC Swch

JQ009A

• Arista 7280R, 72x40GbE QSFP+ with 16x100GbE QSFP switch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 72 QSFP+ 40G Transceivers
• Min 0 // Max 16 QSFP28 100G Transceivers
• 2U - Height

See Configuration NOTE: 2, 3, 5

Arista 7280R 24QSFP+ 12Q28 MX FB AC Swch

JH805A

• Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 2, 3, 5

Arista 7280R 24QSFP+ 12Q28 MX BF AC Swch

JH806A

• Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 2, 3, 5

Arista 7280R 24QSFP+ 12QSFP28 FB AC Swch

JH558A

• Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, front to rear air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 2, 3, 5

Arista 7280R 24QSFP+ 12QSFP28 BF AC Swch

JH559A

• Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, rear to front air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 2, 3, 5

Arista 7280R 24Q+ 12Q28 SSD FB AC Swch

JH560A

• Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, expn mem, SSD, front to rear air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 2, 3, 5

Arista 7280R 24Q+ 12Q28 SSD BF AC Swch

JH561A

• Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, expn mem, SSD, rear to front air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 2, 3, 5

7280SR Switch

Arista 7280SR 48SFP+ 6Q28 MX FB AC Swch

JH832A

• Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5

Arista 7280SR 48SFP+ 6Q28 MX BF AC Swch

JH833A

• Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5

Arista 7280R 48SFP+ 6QSFP28 FB AC Swch

JH562A

• Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, front to rear air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5

Arista 7280R 48SFP+ 6QSFP28 BF AC Swch

JH563A

• Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, rear to front air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5

Arista 7280R 48SFP+ 6Q28 SSD FB AC Swch

JH564A

• Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, expn mem, SSD, front to rear air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5

Arista 7280R 48SFP+ 6Q28 SSD BF AC Swch

JH565A

• Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, expn mem, SSD, rear to front air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5

7280SR2 Switch

Arista 7280R2 48S28 6Q28 S MX BF AC Swch

JQ178A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 48 SFP28 25G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  3, 4, 5

Arista 7280R2 48S28 6Q28 S MX FB AC Swch

JQ177A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 48 SFP28 25G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  3, 4, 5

Arista 7280R2 48S28 6Q28 S X BF AC Swch

JQ176A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, expn mem, SSD, rear to front air, 2 x AC
• Min 0 // Max 48 SFP28 25G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  3, 4, 5

Arista 7280R2 48S28 6Q28 S X FB AC Swch

JQ175A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, expn mem, SSD, front to rear air, 2 x AC
• Min 0 // Max 48 SFP28 25G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  3, 4, 5

Arista 7280R2 48SFP28 6QSFP28 BF AC Swch

JQ174A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, rear to front air, 2 x AC and 2 x C13-C14 cords
• Min 0 // Max 48 SFP28 25G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  3, 4, 5

Arista 7280R2 48SFP28 6QSFP28 FB AC Swch

JQ173A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, front to rear air, 2 x AC and 2 x C13-C14 cords
• Min 0 // Max 48 SFP28 25G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  3, 4, 5

7280SR2A Switch

Arista 7280R2 48S28 6Q28 AG FB AC Swch

JH996A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, AlgoMatch, front to rear air, 2 x AC
  Min 0 // Max 48 SFP28 25G Transceivers
  Min 0 // Max 6 QSFP28 100G Transceivers
  1U - Height

See Configuration NOTE:  3, 4, 5

Arista 7280R2 48S28 6Q28 AG BF AC Swch

JH997A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, AlgoMatch, rear to front air, 2 x AC
• Min 0 // Max 48 SFP28 25G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  3, 4, 5

Arista 7280R2 48S28 6Q28 AG E FB AC Swch

JH998A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, AlgoMatch, expn mem, front to rear air, 2 x AC
• Min 0 // Max 48 SFP28 25G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  3, 4, 5

Arista 7280R2 48S28 6Q28 AG E BF AC Swch

JH999A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, AlgoMatch, expn mem, rear to front air, 2 x AC
• Min 0 // Max 48 SFP28 25G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  3, 4, 5

Arista 7280R2 48S28 6Q28 SSDMXFB AC Swch

JQ002A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 48 SFP28 25G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE:  3, 4, 5

Arista 7280R2 48S28 6Q28 SSDMXBF AC Swch

JQ003A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN
  Min 0 // Max 48 SFP28 25G Transceivers
  Min 0 // Max 6 QSFP28 100G Transceivers
  1U - Height

See Configuration NOTE:  3, 4, 5

7280SRA Switch

Arista 7280RA 48S+ 6Q28 AG BF AC Swch

JQ093A

• Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, rear to front air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5

Arista 7280RA 48S+ 6Q28 AG FB AC Swch

JQ092A

• Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, front to rear air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5

Arista 7280RA 48S+ 6Q28 AG SSDMX BF Swch

JQ097A

• Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• NOTE: Use up to 2 ports of DWDM QSFP on top row (odd ports 49-53)
• 1U - Height

See Configuration NOTE: 1, 3, 5, 6

Arista 7280RA 48S+ 6Q28 AG SSDMX FB Swch

JQ096A

• Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• NOTE: Use up to 2 ports of DWDM QSFP on top row (odd ports 49-53)
• 1U - Height

See Configuration NOTE: 1, 3, 5, 6

Arista 7280RA 48S+6Q28 AG S X BF AC Swch

JQ095A

• Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, rear to front air, 2x AC
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• NOTE: Use up to 2 ports of DWDM QSFP on top row (odd ports 49-53)
• 1U - Height

See Configuration NOTE: 1, 3, 5, 6

Arista 7280RA 48S+6Q28 AG S X FB AC Swch

JQ094A

• Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, front to rear air, 2x AC
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• NOTE: Use up to 2 ports of DWDM QSFP on top row (odd ports 49-53)
• 1U - Height

See Configuration NOTE: 1, 3, 5, 6

7280SR2K Switch

Arista 7280R2 24+24S86Q8 S MX BF AC Swch

JQ409A

• Arista 7280R2, 24x10GbE, 24x25GbE & 6x100GbE QSFP switch router, expn mem, SSD, rear to front air, 2x AC. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 24 SFP+ 10G Transceivers
• Min 0 // Max 24 SFP28 25G Transceivers
• Min 0 // Max 24 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 4, 5

Arista 7280R2 24+24S86Q8 S MX FB AC Swch

JQ410A

• Arista 7280R2, 24x10GbE, 24x25GbE & 6x100GbE QSFP switch router, expn mem, SSD, front to rear air, 2x AC. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 24 SFP+ 10G Transceivers
• Min 0 // Max 24 SFP28 25G Transceivers
• Min 0 // Max 24 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 4, 5

Arista 7280R2 24+ 24S8 6Q8 SX FB AC Swch

JQ412A

• Arista 7280R2, 24x10GbE, 24x25GbE & 6x100GbE QSFP switch router, expn mem, SSD, front to rear air, 2x AC
• Min 0 // Max 24 SFP+ 10G Transceivers
• Min 0 // Max 24 SFP28 25G Transceivers
• Min 0 // Max 24 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 4, 5

Arista 7280R2 24+ 24S8 6Q8 SX BF AC Swch

JQ419A

• Arista 7280R2, 24x10GbE, 24x25GbE & 6x100GbE QSFP switch router, expn mem, SSD, rear to front air, 2x AC
• Min 0 // Max 24 SFP+ 10G Transceivers
• Min 0 // Max 24 SFP28 25G Transceivers
• Min 0 // Max 24 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 4, 5

7280SRAM Switch

Arista 7280R 48S+6Q28 MS L3 BF AC Swch

JQ280A

• Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, MACsec, rear to front air, 2x AC. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5, 6

Arista 7280R 48S+6Q28 MS L3 FB AC Swch

JQ279A

• Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, MACsec, front to rear air, 2x AC. Over 256K Routes, MPLS and VXLAN
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5, 6

Arista 7280R 48S+6Q28 SSD EMS BF AC Swch

JQ199A

• Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, MACsec, rear to front air, 2x AC
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5, 6

Arista 7280R 48S+6Q28 SSD EMS FB AC Swch

JQ198A

• Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, MACsec, front to rear air, 2x AC
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5, 6

7280TRA Switch

Arista 7280RA 48XGT 6Q28 AG BF AC Swch

JQ099A

• Arista 7280RA, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch router, AlgoMatch, rear to front air, 2x AC and 2xC13-C14 cords
• 48 1000/10000GbaseT Ports
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 5

Arista 7280RA 48XGT 6Q28 AG FB AC Swch

JQ098A

• Arista 7280RA, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch router, AlgoMatch, front to rear air, 2x AC and 2xC13-C14 cords
• 48 1000/10000GbaseT Ports
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 5

Arista 7280RA 48XGT 6Q28 AG S MX BF Swch

JQ103A

• Arista 7280RA, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN
• 48 1000/10000GbaseT Ports
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 5

Arista 7280RA 48XGT 6Q28 AG S MX FB Swch

JQ102A

• Arista 7280RA, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN
• 48 1000/10000GbaseT Ports
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 5

Arista 7280RA 48XGT6Q28 AG SX BF AC Swch

JQ101A

• Arista 7280RA, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, rear to front air, 2x AC
• 48 1000/10000GbaseT Ports
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 5

Arista 7280RA 48XGT6Q28 AG SX FB AC Swch

JQ100A

• Arista 7280RA, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch router, AlgoMatch, expn mem, SSD, front to rear air, 2x AC
• 48 1000/10000GbaseT Ports
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 5

7280TR Switch

Arista 7280R 48XGT 6Q28 SSD X BF AC Swch

JQ408A

• Arista 7280R, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch, expn mem, SSD, rear to front air, 2x AC and 2xC13-C14 cords
• 48 1000/10000GbaseT Ports
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 5

Arista 7280R 48XGT 6Q28 SSD X FB AC Swch

JQ414A

• Arista 7280R, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch, expn mem, SSD, front to rear air, 2x AC and 2xC13-C14 cords
• 48 1000/10000GbaseT Ports
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 5

Arista 7280R 48XGT 6QSFP28 FB AC Swch

JH566A

• Arista 7280R, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch, front to rear air, 2x AC and 2xC13-C14 cords
• 48 1000/10000GbaseT Ports
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 5

Arista 7280R 48XGT 6QSFP28 BF AC Swch

JH567A

• Arista 7280R, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch, rear to front air, 2x AC and 2xC13-C14 cords
• 48 1000/10000GbaseT Ports
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 5

Arista 7280R 48XGT 6Q28 SSDMX FB AC Swch

JQ072A

• Arista 7280R, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch, expn mem, SSD, front to rear air. Over 256K Routes, MPLS and VXLAN
• 48 1000/10000GbaseT Ports
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 5

Arista 7280R 48XGT 6Q28 SSDMX BF AC Swch

JQ073A

• Arista 7280R, 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch, expn mem, SSD, rear to front air. Over 256K Routes, MPLS and VXLAN
• 48 1000/10000GbaseT Ports
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 5

Configuration Rules

Note 1

The following Transceivers install into this Switch:

 Arista X121 1G SFP RJ45 T Transceiver

JH650A

 Arista X125 1G SFP LC SX Transceiver

JH648A

 Arista X120 1G SFP LC LX Transceiver

JH649A

 Arista X130 10G SFP+ LC SRL Transceiver

JH644A

 Arista X130 10G SFP+ LC SR Transceiver

JH645A

 Arista X130 10G SFP+ LC LRM Transceiver

JH646A

 Arista X130 10G SFP+ LC LR Transceiver

JH647A

 Arista X130 10G SFP+ ER 40km Transceiver

JH893A

 Arista X130 10G SFP+ ZR 80km Transceiver

JH894A

 Arista X130 10G SFP+ DWDM Tunable Transceiver

JH944A

 Arista X240 10G SFP+ SFP+ 0.5m DAC Cable

JH651A

 Arista X240 10G SFP+ SFP+ 1.5m DAC Cable

JH652A

 Arista X240 10G SFP+ SFP+ 2m DAC Cable

JH653A

 Arista X240 10G SFP+ SFP+ 2.5m DAC Cable

JH654A

 Arista X240 10G SFP+ SFP+ 3m DAC Cable

JH655A

 Arista X2A0 10G SFP+ SFP+ 5m AOC Cable

JH661A

 Arista X2A0 10G SFP+ SFP+ 3m AOC Cable

JH662A

 Arista X240 10G SFP+ to SFP+ 1m Direct Attach Cable

JH773A

 Arista X240 10G SFP+ to SFP+ 5m Direct Attach Cable

JH774A

 Arista X2A0 10G SFP+ to SFP+ 10m Active Optical Cable

JH765A

 Arista X2A0 10G SFP+ to SFP+ 15m Active Optical Cable

JH766A

 Arista X2A0 10G SFP+ to SFP+ 20m Active Optical Cable

JH767A

 Arista X2A0 10G SFP+ to SFP+ 25m Active Optical Cable

JH768A

 Arista X2A0 10G SFP+ to SFP+ 30m Active Optical Cable

JH769A

 Arista X2A0 10G SFP+ to SFP+ 7m Active Optical Cable

JH770A

Note 2

The following Transceivers install into this Switch:

 Arista X140 40G QSFP+ LC BiDi 100m MM Transceiver

JH633A

 Arista 40G QSFP+ Universal Transceiver

JH634A

 Arista X140 40G QSFP+ MPO SR4 Transceiver

JH635A

 Arista X140 40G QSFP+ LC LR4L SM Transceiver

JH636A

 Arista X140 40G QSFP+ LC PLRL4 SM Transceiver

JH637A

 Arista X140 40G QSFP+ XSR4 Transceiver

JH892A

 Arista X140 40G QSFP+ ER4 40km SM Transceiver

JH889A

 Arista X140 40G QSFP+ LR4 10km SM Transceiver

JH890A

 Arista 40G QSFP+ 4x10G 10km SM Transceiver

JH891A

 Arista X240 40G QSFP+ QSFP+ 1m DAC Cable

JH638A

 Arista X240 40G QSFP+ QSFP+ 2m DAC Cable

JH639A

 Arista X240 40G QSFP+ QSFP+ 3m DAC Cable

JH640A

 Arista X240 40G QSFP+ QSFP+ 5m DAC Cable

JH641A

 Arista X240 40G QSFP+ 4x10G SFP+ 0.5m DAC Cable

JH656A

 Arista X240 40G QSFP+ 4x10G SFP+ 1m DAC Cable

JH657A

 Arista X240 40G QSFP+ 4x10G SFP+ 2m DAC Cable

JH658A

 Arista X240 40G QSFP+ 4x10G SFP+ 3m DAC Cable

JH659A

 Arista X240 40G QSFP+ 4x10G SFP+ 5m DAC Cable

JH660A

 Arista X2A0 40G QSFP+ to QSFP+ 100m Active Optical Cable

JH756A

 Arista X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable

JH757A

 Arista X2A0 40G QSFP+ to QSFP+ 15m Active Optical Cable

JH758A

 Arista X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable

JH759A

 Arista X2A0 40G QSFP+ to QSFP+ 25m Active Optical Cable

JH760A

 Arista X2A0 40G QSFP+ to QSFP+ 30m Active Optical Cable

JH761A

 Arista X2A0 40G QSFP+ to QSFP+ 50m Active Optical Cable

JH762A

 Arista X2A0 40G QSFP+ to QSFP+ 75m Active Optical Cable

JH763A

 Arista X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable

JH764A

 Arista X240 40G QSFP+ to QSFP+ 0.5m Direct Attach Cable

JH772A

Note 3

The following Transceivers install into this Switch:

 Arista X150 100G QSFP28 WDM2 2km SM Transceiver

JH624A

 Arista X150 100G QSFP28 LR4 10km SM Transceiver

JH625A

 Arista X150 100G QSFP28 MPO SR4 100m MM Transceiver

JH626A

 Arista X150 100G QSFP28 CWDM4 2km SM Transceiver

JH888A

 Arista X150 100G QSFP28 MPO PSM4 500m SM Transceiver

JQ028A

 Arista X150 100G QSFP28 LC BiDi 100m MM Transceiver

JQ191A

 Arista X150 100G QSFP28 LC SWDM4 100m MM Transceiver

JQ192A

 Arista X150 100G QSFP28 ERL4 30km SM Transceiver

JQ406A

 Arista X240 100G QSFP QSFP 1m DAC Cable

JH627A

 Arista X240 100G QSFP QSFP 2m DAC Cable

JH628A

 Arista X240 100G QSFP QSFP 3m DAC Cable

JH629A

 Arista X240 100G QSFP QSFP 5m DAC Cable

JH630A

 Arista X2A0 100G QSFP QSFP 3m AOC Cable

JH631A

 Arista X2A0 100G QSFP QSFP 5m AOC Cable

JH632A

 Arista X2A0 100G QSFP to QSFP 10m Active Optical Cable

JH750A

 Arista X2A0 100G QSFP to QSFP 15m Active Optical Cable

JH751A

 Arista X2A0 100G QSFP to QSFP 20m Active Optical Cable

JH752A

 Arista X2A0 100G QSFP to QSFP 25m Active Optical Cable

JH753A

 Arista X2A0 100G QSFP to QSFP 30m Active Optical Cable

JH754A

 Arista X2A0 100G QSFP to QSFP 7m Active Optical Cable

JH755A

 Arista X240 100G QSFP28 4x25G SFP+ 1m Direct Attach Cable Cable

JH834A

 Arista X240 100G QSFP28 4x25G SFP+ 2m Direct Attach Cable Cable

JH835A

 Arista X240 100G QSFP28 4x25G SFP+ 3m Direct Attach Cable Cable

JH836A

 Arista X240 100G QSFP28 4x25G SFP28 5m Direct Attach Cable

JH993A

Note 4

The following Transceivers install into this Switch:

 Arista X190 25G SFP28 LC 100m SR MM Transceiver

JH991A

 Arista X190 25G SFP28 LC 10km LR SM Transceiver

JH992A

 Arista X240 25G SFP28 to SFP28 1m Direct Attach Cable

JH979A

 Arista X240 25G SFP28 to SFP28 2m Direct Attach Cable

JH980A

 Arista X240 25G SFP28 to SFP28 3m Direct Attach Cable

JH981A

 Arista X240 25G SFP28 to SFP28 5m Direct Attach Cable

JH982A

 Arista X2A0 25G SFP28 to SFP28 3m Active Optical Cable

JH983A

 Arista X2A0 25G SFP28 to SFP28 5m Active Optical Cable

JH984A

 Arista X2A0 25G SFP28 to SFP28 7m Active Optical Cable

JH985A

 Arista X2A0 25G SFP28 to SFP28 10m Active Optical Cable

JH986A

 Arista X2A0 25G SFP28 to SFP28 15m Active Optical Cable

JH987A

 Arista X2A0 25G SFP28 to SFP28 20m Active Optical Cable

JH988A

 Arista X2A0 25G SFP28 to SFP28 25m Active Optical Cable

JH989A

 Arista X2A0 25G SFP28 to SFP28 30m Active Optical Cable

JH990A

Note 5

Product not available in the following Countries:

Kazakhstan

Armenia

Belarus

South Africa

Indonesia

Russia

Note 6

The following Transceivers install into this Module:

JQ281A JQ282A

JQ283A JQ284A

JQ285A JQ286A

JQ287A JQ288A

JQ289A JQ290A

JQ291A JQ292A

JQ293A JQ294A

JQ295A JQ296A

JQ297A JQ298A

JQ299A JQ300A

JQ301A JQ302A

JQ303A JQ304A

JQ305A JQ306A

JQ307A JQ308A

JQ309A JQ310A

JQ311A JQ312A

JQ313A JQ314A

JQ315A JQ316A

JQ317A JQ318A

JQ319A JQ320A

Rack Level Integration CTO Models

7280QR Switch

Arista 7280R 24QSFP+ 12QSFP28 FB AC Swch

JH558A

• Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, front to rear air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 2, 3, 5, 6

Arista 7280R 24QSFP+ 12QSFP28 BF AC Swch

JH559A

• Arista 7280R, 24x40GbE QSFP+ & 12x100GbE QSFP switch, front to rear air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 24 QSFP+ 40G Transceivers
• Min 0 // Max 12 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 2, 3, 5, 6

7280SR Switch

Arista 7280R 48SFP+ 6QSFP28 FB AC Swch

JH562A

• Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, front to rear air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5, 6

Arista 7280R 48SFP+ 6QSFP28 BF AC Swch

JH563A

• Arista 7280R, 48x10GbE (SFP+) & 6x100GbE QSFP switch, rear to front air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5, 6

7280SRA Switch

Arista 7280RA 48S+ 6Q28 AG BF AC Swch

JQ093A

• Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, rear to front air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5, 6

Arista 7280RA 48S+ 6Q28 AG FB AC Swch

JQ092A

• Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, front to rear air, 2x AC and 2xC13-C14 cords
• Min 0 // Max 48 SFP+ 10G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 1, 3, 5, 6

7280SR2A Switch

Arista 7280R2 48S28 6Q28 AG FB AC Swch

JH996A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, AlgoMatch, front to rear air, 2 x AC
• Min 0 // Max 48 SFP28 25G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 4 , 5, 6

Arista 7280R2 48S28 6Q28 AG BF AC Swch

JH997A

• Arista 7280R2, 48 25GbE SFP and 6 x 100GbE QSFP switch, AlgoMatch, rear to front air, 2 x AC
• Min 0 // Max 48 SFP28 25G Transceivers
• Min 0 // Max 6 QSFP28 100G Transceivers
• 1U - Height

See Configuration NOTE: 3, 4 , 5, 6

Configuration Rules

Note 1

The following Transceivers install into this Switch:

 Arista X121 1G SFP RJ45 T Transceiver

JH650A

 Arista X125 1G SFP LC SX Transceiver

JH648A

 Arista X120 1G SFP LC LX Transceiver

JH649A

 Arista X130 10G SFP+ LC SRL Transceiver

JH644A

 Arista X130 10G SFP+ LC SR Transceiver

JH645A

 Arista X130 10G SFP+ LC LRM Transceiver

JH646A

 Arista X130 10G SFP+ LC LR Transceiver

JH647A

 Arista X130 10G SFP+ ER 40km Transceiver

JH893A

 Arista X130 10G SFP+ ZR 80km Transceiver

JH894A

 Arista X130 10G SFP+ DWDM Tunable Transceiver

JH944A

 Arista X240 10G SFP+ SFP+ 0.5m DAC Cable

JH651A

 Arista X240 10G SFP+ SFP+ 1.5m DAC Cable

JH652A

 Arista X240 10G SFP+ SFP+ 2m DAC Cable

JH653A

 Arista X240 10G SFP+ SFP+ 2.5m DAC Cable

JH654A

 Arista X240 10G SFP+ SFP+ 3m DAC Cable

JH655A

 Arista X2A0 10G SFP+ SFP+ 5m AOC Cable

JH661A

 Arista X2A0 10G SFP+ SFP+ 3m AOC Cable

JH662A

 Arista X240 10G SFP+ to SFP+ 1m Direct Attach Cable

JH773A

 Arista X240 10G SFP+ to SFP+ 5m Direct Attach Cable

JH774A

 Arista X2A0 10G SFP+ to SFP+ 10m Active Optical Cable

JH765A

 Arista X2A0 10G SFP+ to SFP+ 15m Active Optical Cable

JH766A

 Arista X2A0 10G SFP+ to SFP+ 20m Active Optical Cable

JH767A

 Arista X2A0 10G SFP+ to SFP+ 25m Active Optical Cable

JH768A

 Arista X2A0 10G SFP+ to SFP+ 30m Active Optical Cable

JH769A

 Arista X2A0 10G SFP+ to SFP+ 7m Active Optical Cable

JH770A

Note 2

The following Transceivers install into this Switch:

 Arista X140 40G QSFP+ LC BiDi 100m MM Transceiver

JH633A

 Arista 40G QSFP+ Universal Transceiver

JH634A

 Arista X140 40G QSFP+ MPO SR4 Transceiver

JH635A

 Arista X140 40G QSFP+ LC LR4L SM Transceiver

JH636A

 Arista X140 40G QSFP+ LC PLRL4 SM Transceiver

JH637A

 Arista X140 40G QSFP+ XSR4 Transceiver

JH892A

 Arista X140 40G QSFP+ ER4 40km SM Transceiver

JH889A

 Arista X140 40G QSFP+ LR4 10km SM Transceiver

JH890A

 Arista 40G QSFP+ 4x10G 10km SM Transceiver

JH891A

 Arista X240 40G QSFP+ QSFP+ 1m DAC Cable

JH638A

 Arista X240 40G QSFP+ QSFP+ 2m DAC Cable

JH639A

 Arista X240 40G QSFP+ QSFP+ 3m DAC Cable

JH640A

 Arista X240 40G QSFP+ QSFP+ 5m DAC Cable

JH641A

 Arista X240 40G QSFP+ 4x10G SFP+ 0.5m DAC Cable

JH656A

 Arista X240 40G QSFP+ 4x10G SFP+ 1m DAC Cable

JH657A

 Arista X240 40G QSFP+ 4x10G SFP+ 2m DAC Cable

JH658A

 Arista X240 40G QSFP+ 4x10G SFP+ 3m DAC Cable

JH659A

 Arista X240 40G QSFP+ 4x10G SFP+ 5m DAC Cable

JH660A

 Arista X2A0 40G QSFP+ to QSFP+ 100m Active Optical Cable

JH756A

 Arista X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable

JH757A

 Arista X2A0 40G QSFP+ to QSFP+ 15m Active Optical Cable

JH758A

 Arista X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable

JH759A

 Arista X2A0 40G QSFP+ to QSFP+ 25m Active Optical Cable

JH760A

 Arista X2A0 40G QSFP+ to QSFP+ 30m Active Optical Cable

JH761A

 Arista X2A0 40G QSFP+ to QSFP+ 50m Active Optical Cable

JH762A

 Arista X2A0 40G QSFP+ to QSFP+ 75m Active Optical Cable

JH763A

 Arista X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable

JH764A

 Arista X240 40G QSFP+ to QSFP+ 0.5m Direct Attach Cable

JH772A

Note 3

The following Transceivers install into this Switch:

 Arista X150 100G QSFP28 WDM2 2km SM Transceiver

JH624A

 Arista X150 100G QSFP28 LR4 10km SM Transceiver

JH625A

 Arista X150 100G QSFP28 MPO SR4 100m MM Transceiver

JH626A

 Arista X150 100G QSFP28 CWDM4 2km SM Transceiver

JH888A

 Arista X150 100G QSFP28 MPO PSM4 500m SM Transceiver

JQ028A

 Arista X150 100G QSFP28 LC BiDi 100m MM Transceiver

JQ191A

 Arista X150 100G QSFP28 LC SWDM4 100m MM Transceiver

JQ192A

 Arista X150 100G QSFP28 ERL4 SM XCVR

JQ406A

 Arista X240 100G QSFP QSFP 1m DAC Cable

JH627A

 Arista X240 100G QSFP QSFP 2m DAC Cable

JH628A

 Arista X240 100G QSFP QSFP 3m DAC Cable

JH629A

 Arista X240 100G QSFP QSFP 5m DAC Cable

JH630A

 Arista X2A0 100G QSFP QSFP 3m AOC Cable

JH631A

 Arista X2A0 100G QSFP QSFP 5m AOC Cable

JH632A

 Arista X2A0 100G QSFP to QSFP 10m Active Optical Cable

JH750A

 Arista X2A0 100G QSFP to QSFP 15m Active Optical Cable

JH751A

 Arista X2A0 100G QSFP to QSFP 20m Active Optical Cable

JH752A

 Arista X2A0 100G QSFP to QSFP 25m Active Optical Cable

JH753A

 Arista X2A0 100G QSFP to QSFP 30m Active Optical Cable

JH754A

 Arista X2A0 100G QSFP to QSFP 7m Active Optical Cable

JH755A

 Arista X240 100G QSFP28 4x25G SFP+ 1m Direct Attach Cable Cable

JH834A

 Arista X240 100G QSFP28 4x25G SFP+ 2m Direct Attach Cable Cable

JH835A

 Arista X240 100G QSFP28 4x25G SFP+ 3m Direct Attach Cable Cable

JH836A

 Arista X240 100G QSFP28 4x25G SFP28 5m Direct Attach Cable

JH993A

Note 4

The following Transceivers install into this Switch:

 Arista X190 25G SFP28 LC 100m SR MM Transceiver

JH991A

 Arista X190 25G SFP28 LC 10km LR SM Transceiver

JH992A

 Arista X240 25G SFP28 to SFP28 1m Direct Attach Cable

JH979A

 Arista X240 25G SFP28 to SFP28 2m Direct Attach Cable

JH980A

 Arista X240 25G SFP28 to SFP28 3m Direct Attach Cable

JH981A

 Arista X240 25G SFP28 to SFP28 5m Direct Attach Cable

JH982A

 Arista X2A0 25G SFP28 to SFP28 3m Active Optical Cable

JH983A

 Arista X2A0 25G SFP28 to SFP28 5m Active Optical Cable

JH984A

 Arista X2A0 25G SFP28 to SFP28 7m Active Optical Cable

JH985A

 Arista X2A0 25G SFP28 to SFP28 10m Active Optical Cable

JH986A

 Arista X2A0 25G SFP28 to SFP28 15m Active Optical Cable

JH987A

 Arista X2A0 25G SFP28 to SFP28 20m Active Optical Cable

JH988A

 Arista X2A0 25G SFP28 to SFP28 25m Active Optical Cable

JH989A

 Arista X2A0 25G SFP28 to SFP28 30m Active Optical Cable

JH990A

Note 5

Product not available in the following Countries:

Kazakhstan

Armenia

Belarus

South Africa

Indonesia

Russia

Note 6

If Arista CTO Switch Chassis is selected for Rack Level Integration, Then the Switch needs to integrate (with #0D1) to the Rack.

Transceivers

1G

Arista 1G SFP LC SX Transceiver

JH648A

Arista 1G SFP LC LX Transceiver

JH649A

Arista 1G SFP RJ45 T Transceiver

JH650A

10G

Arista 10G SFP+ LC SRL Transceiver

JH644A

Arista 10G SFP+ LC SR Transceiver

JH645A

Arista 10G SFP+ LC LRM Transceiver

JH646A

Arista 10G SFP+ LC LR Transceiver

JH647A

Arista 10G SFP+ ER 40km Transceiver

JH893A

Arista 10G SFP+ ZR 80km Transceiver

JH894A

Arista 10G SFP+ DWDM Tunable XCVR

JH944A

25G

Arista 25G SFP28 SR 100m MM Transceiver

JH991A

Arista 25G SFP28 LR 10km SM Transceiver

JH992A

40G

Arista 40G QSFP+ LC BiDi Transceiver

JH633A

Arista 40G QSFP+ Universal Transceiver

JH634A

Arista 40G QSFP+ MPO SR4 Transceiver

JH635A

Arista 40G QSFP+ LC LR4L Transceiver

JH636A

Arista 40G QSFP+ LC PLRL4 Transceiver

JH637A

Arista 40G QSFP+ XSR4 Transceiver

JH892A

Arista 40G QSFP+ ER4 40km SM Transceiver

JH889A

Arista 40G QSFP+ LR4 10km SM Transceiver

JH890A

Arista 4x10G QSFP+ 10km SM Transceiver

JH891A

100G

Arista 100G QSFP28 WDM2 Transceiver

JH624A

Arista QSFP28 CWDM4 2km SM Transceiver

JH888A

Arista 100G QSFP28 LR4 Transceiver

JH625A

Arista 100G QSFP28 SR4 Transceiver

JH626A

Arista 100G QSFP28 PSM4 SM Transceiver

JQ028A

Arista X150 100G QSFP28 LC BiDi MM XCVR

JQ191A

Arista X150 100G QSFP28 LC SWDM4 MM XCVR

JQ192A

Arista X150 100G QSFP28 ERL4 SM XCVR

JQ406A

100G DWDM

Arista 100G DWDM QSFP-100G-DZ2-20 XCVR

JQ281A

Arista 100G DWDM QSFP-100G-DZ2-21 XCVR

JQ282A

Arista 100G DWDM QSFP-100G-DZ2-22 XCVR

JQ283A

Arista 100G DWDM QSFP-100G-DZ2-23 XCVR

JQ284A

Arista 100G DWDM QSFP-100G-DZ2-24 XCVR

JQ285A

Arista 100G DWDM QSFP-100G-DZ2-25 XCVR

JQ286A

Arista 100G DWDM QSFP-100G-DZ2-26 XCVR

JQ287A

Arista 100G DWDM QSFP-100G-DZ2-27 XCVR

JQ288A

Arista 100G DWDM QSFP-100G-DZ2-28 XCVR

JQ289A

Arista 100G DWDM QSFP-100G-DZ2-29 XCVR

JQ290A

Arista 100G DWDM QSFP-100G-DZ2-30 XCVR

JQ291A

Arista 100G DWDM QSFP-100G-DZ2-31 XCVR

JQ292A

Arista 100G DWDM QSFP-100G-DZ2-32 XCVR

JQ293A

Arista 100G DWDM QSFP-100G-DZ2-33 XCVR

JQ294A

Arista 100G DWDM QSFP-100G-DZ2-34 XCVR

JQ295A

Arista 100G DWDM QSFP-100G-DZ2-35 XCVR

JQ296A

Arista 100G DWDM QSFP-100G-DZ2-36 XCVR

JQ297A

Arista 100G DWDM QSFP-100G-DZ2-37 XCVR

JQ298A

Arista 100G DWDM QSFP-100G-DZ2-38 XCVR

JQ299A

Arista 100G DWDM QSFP-100G-DZ2-39 XCVR

JQ300A

Arista 100G DWDM QSFP-100G-DZ2-40 XCVR

JQ301A

Arista 100G DWDM QSFP-100G-DZ2-41 XCVR

JQ302A

Arista 100G DWDM QSFP-100G-DZ2-42 XCVR

JQ303A

Arista 100G DWDM QSFP-100G-DZ2-43 XCVR

JQ304A

Arista 100G DWDM QSFP-100G-DZ2-44 XCVR

JQ305A

Arista 100G DWDM QSFP-100G-DZ2-45 XCVR

JQ306A

Arista 100G DWDM QSFP-100G-DZ2-46 XCVR

JQ307A

Arista 100G DWDM QSFP-100G-DZ2-47 XCVR

JQ308A

Arista 100G DWDM QSFP-100G-DZ2-48 XCVR

JQ309A

Arista 100G DWDM QSFP-100G-DZ2-49 XCVR

JQ310A

Arista 100G DWDM QSFP-100G-DZ2-50 XCVR

JQ311A

Arista 100G DWDM QSFP-100G-DZ2-51 XCVR

JQ312A

Arista 100G DWDM QSFP-100G-DZ2-52 XCVR

JQ313A

Arista 100G DWDM QSFP-100G-DZ2-53 XCVR

JQ314A

Arista 100G DWDM QSFP-100G-DZ2-54 XCVR

JQ315A

Arista 100G DWDM QSFP-100G-DZ2-55 XCVR

JQ316A

Arista 100G DWDM QSFP-100G-DZ2-56 XCVR

JQ317A

Arista 100G DWDM QSFP-100G-DZ2-57 XCVR

JQ318A

Arista 100G DWDM QSFP-100G-DZ2-58 XCVR

JQ319A

Arista 100G DWDM QSFP-100G-DZ2-59 XCVR

JQ320A

Cables

Arista 10G SFP+ SFP+ 0.5m DAC Cable

JH651A

Arista 10G SFP+ to SFP+ 1m DAC Cable

JH773A

Arista 10G SFP+ SFP+ 1.5m DAC Cable

JH652A

Arista 10G SFP+ SFP+ 2m DAC Cable

JH653A

Arista 10G SFP+ SFP+ 2.5m DAC Cable

JH654A

Arista 10G SFP+ SFP+ 3m DAC Cable

JH655A

Arista 10G SFP+ to SFP+ 5m DAC Cable

JH774A

Arista 10G SFP+ SFP+ 5m AOC Cable

JH661A

Arista 10G SFP+ SFP+ 3m AOC Cable

JH662A

Arista 10G SFP+ to SFP+ 10m AOC Cable

JH765A

Arista 10G SFP+ to SFP+ 15m AOC Cable

JH766A

Arista 10G SFP+ to SFP+ 20m AOC Cable

JH767A

Arista 10G SFP+ to SFP+ 25m AOC Cable

JH768A

Arista 10G SFP+ to SFP+ 30m AOC Cable

JH769A

Arista 10G SFP+ to SFP+ 7m AOC Cable

JH770A

Arista QSFP+ 4x10G SFP+ 0.5m DAC Cable

JH656A

Arista QSFP+ 4x10G SFP+ 1m DAC Cable

JH657A

Arista QSFP+ 4x10G SFP+ 2m DAC Cable

JH658A

Arista QSFP+ 4x10G SFP+ 3m DAC Cable

JH659A

Arista QSFP+ 4x10G SFP+ 5m DAC Cable

JH660A

Arista 25G SFP28 to SFP28 1m DAC Cable

JH979A

Arista 25G SFP28 to SFP28 2m DAC Cable

JH980A

Arista 25G SFP28 to SFP28 3m DAC Cable

JH981A

Arista 25G SFP28 to SFP28 5m DAC Cable

JH982A

Arista 25G SFP28 to SFP28 3m AOC Cable

JH983A

Arista 25G SFP28 to SFP28 5m AOC Cable

JH984A

Arista 25G SFP28 to SFP28 7m AOC Cable

JH985A

Arista 25G SFP28 to SFP28 10m AOC Cable

JH986A

Arista 25G SFP28 to SFP28 15m AOC Cable

JH987A

Arista 25G SFP28 to SFP28 20m AOC Cable

JH988A

Arista 25G SFP28 to SFP28 25m AOC Cable

JH989A

Arista 25G SFP28 to SFP28 30m AOC Cable

JH990A

Arista QSFP28 4x25G SFP+ 1m DAC Cable

JH834A

Arista QSFP28 4x25G SFP+ 2m DAC Cable

JH835A

Arista QSFP28 4x25G SFP+ 3m DAC Cable

JH836A

Arista QSFP28 4x25G SFP28 5m DAC Cable

JH993A

Arista 40G QSFP+ QSFP+ 1m DAC Cable

JH638A

Arista 40G QSFP+ QSFP+ 2m DAC Cable

JH639A

Arista 40G QSFP+ QSFP+ 3m DAC Cable

JH640A

Arista 40G QSFP+ QSFP+ 5m DAC Cable

JH641A

Arista 40G QSFP+ to QSFP+ 100m AOC Cable

JH756A

Arista 40G QSFP+ to QSFP+ 10m AOC Cable

JH757A

Arista 40G QSFP+ to QSFP+ 15m AOC Cable

JH758A

Arista 40G QSFP+ to QSFP+ 20m AOC Cable

JH759A

Arista 40G QSFP+ to QSFP+ 25m AOC Cable

JH760A

Arista 40G QSFP+ to QSFP+ 30m AOC Cable

JH761A

Arista 40G QSFP+ to QSFP+ 50m AOC Cable

JH762A

Arista 40G QSFP+ to QSFP+ 75m AOC Cable

JH763A

Arista 40G QSFP+ to QSFP+ 7m AOC Cable

JH764A

Arista 40G QSFP+ to QSFP+ 0.5m DAC Cable

JH772A

Arista 100G QSFP QSFP 1m DAC Cable

JH627A

Arista 100G QSFP QSFP 2m DAC Cable

JH628A

Arista 100G QSFP QSFP 3m DAC Cable

JH629A

Arista 100G QSFP QSFP 5m DAC Cable

JH630A

Arista 100G QSFP QSFP 3m AOC Cable

JH631A

Arista 100G QSFP QSFP 5m AOC Cable

JH632A

Arista 100G QSFP to QSFP 10m AOC Cable

JH750A

Arista 100G QSFP to QSFP 15m AOC Cable

JH751A

Arista 100G QSFP to QSFP 20m AOC Cable

JH752A

Arista 100G QSFP to QSFP 25m AOC Cable

JH753A

Arista 100G QSFP to QSFP 30m AOC Cable

JH754A

Arista 100G QSFP to QSFP 7m AOC Cable

JH755A

Accessories

Licenses

Std (Min 0 // max 99) User Selection (min 0 // max 99)

Arista MACsec Fix-2 E-LTU

JQ420AAE

• MACSEC Encryption License for Arista Fixed switches, 1-6 MACSEC capable ports

See Configuration NOTE: 11

Arista Expanded L3 Fix-2 LTU

JH601AAE

• Expanded L3 License for Arista Fixed switches, 40-256 port 10G - Over 256K Routes, MPLS and VXLAN

See Configuration NOTE: 1, 3, 4, 7, 8, 9, 10, 11, 15

Arista Enhanced L3 10G Fix-2 LTU

JH606AAE

• Enhanced L3 License for Arista Fixed switches, 40-132 port 10G (BGP, OSPF, ISIS, PIM, NAT)

See Configuration NOTE: 1, 3, 4, 7, 8, 9, 10, 11, 15
