Arista 7060X and 7260X 10/25/40/50/100G Data Center Switch Series: технические характеристики и документация
В архивеOverview
|
Arista 7060X and 7260X 10/25/40/50/100G Data Center Switch Series |
| |||
|
|
| |||
|
HPE and Arista share a common vision around the need to deliver secure hybrid IT solutions and experiences built on industry-leading software-defined infrastructure-helping customers to operate their workloads with speed and agility to grow their business. This partnership will provide our customers with proven networking solutions that are superior to legacy alternatives and that complement HPE compute, storage, virtualization, and cloud offerings. Increased adoption of high performance servers coupled with applications using higher bandwidth is accelerating the need for dense 10/40 and 25/100 Gigabit Ethernet switching in both leaf and spine tiers of modern networks. The Arista 7060X and 7260X Series are purpose built high performance, high density, fixed configuration, data center switches with wire speed layer 2 and layer 3 features, combined with advanced features for software defined cloud networking and emerging requirements. The Arista 7060X and 7260X are key components of the Arista portfolio of data center switches delivering a rich choice of interface speed and density allowing customers to seamlessly evolve from existing 10GbE and 40GbE to 25GbE, 50GbE and 100GbE.
The 7060SX2-48YC6, 7060CX2-32S, 7060CX-32S and 7260CX-64 support a flexible combination of speeds including 10G, 25G, 40G and 100G in compact form factors that allows customers to design networks to accommodate the myriad different applications and east-west traffic patterns found in modern data centers whilst providing investment protection. In addition, the 7060CX2-32S and 7060SX2 enable seamless transition for 1/10/25G servers with IEEE 25G support.
The 7260QX Series are purpose built high density and low power 40GbE systems that enable cost effective solutions with flexible and scalable resources for layer 2 and layer 3 designs.
Combined with Arista EOS both the 7060X and 7260X Series deliver advanced features for cloud, big data, virtualized, and traditional data centers. |
| |||
|
| ||||
|
Arista 7260CX-64: 64x 100GbE QSFP100 ports, 2 SFP+ ports | ||||
|
| ||||
|
Arista 7060CX-32S: 32 x 40/100GbE QSFP100 ports, 2 SFP+ ports | ||||
|
| ||||
|
Arista 7060SX2-48YC6: 48 x 10/25GbE SFP ports, 6 QSFP100 ports | ||||
|
| ||||
|
| ||||
|
| ||||
|
|
| |||
|
Product Highlights |
| |||
|
|
| |||
|
Performance
Data Center Optimized Design
Cloud Networking Ready
|
Resilient Control Plane
Advanced Provisioning & Monitoring
Arista Extensible Operating System
| |||
|
|
| |||
|
Arista Extensible Operating System (EOS) The Arista 7060X and 7260X run the same Arista EOS software as all Arista products, simplifying network administration. Arista EOS is a modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic. Built on top of a standard Linux kernel, all EOS processes run in their own protected memory space and exchange state through an in-memory database. This multi-process state sharing architecture provides the foundation for in-service-software updates and self-healing resiliency. With Arista EOS, advanced monitoring and automation capabilities such as Zero Touch Provisioning, VMTracer and Linux based tools can be run natively on the switch with the powerful x86 CPU subsystem.

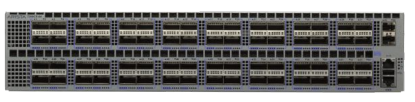

Model Overview The 7260CX-64 is a 2RU system with 64 QSFP100 ports offering wire speed performance with an overall throughput of up to 12.8 Tbps, combined with latency of under 1500ns and 64MB of buffer that is shared between groups of interfaces. Each QSFP port supports a choice of five speeds with flexible configuration between 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x50GbE modes for up to 256 ports of 10GbE or 25GbE, and 128x 50GbE. All ports can operate in any supported mode without limitation, allowing easy transitions and maximum flexibility.
| ||||
|
| ||||
|
|
Arista 7260CX-64: | |||
|

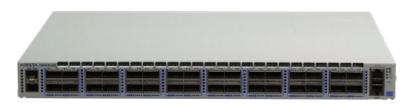

The 7060CX2-32S and 7060CX-32S deliver 32 QSFP100 ports in a 1RU system with an overall throughput of 6.4Tbps. All ports allow for a choice of 5 speeds including 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x 50GbE with a wide choice of QSFP transceivers and cables. All QSFP ports can operate in any mode without limitation enabling a wide choice of combinations for both top of rack and spine deployment. The Arista 7060CX-32S supports latency as low as 450ns in cut-through mode, and a 16 MB shared packet buffer pool that is allocated dynamically to ports that are congested. The Arista 7060CX2-32S introduces support for IEEE 25GbE and supports a larger shared packet buffer pool of 22 MB with the same low latency of 450ns. | ||||
|
| ||||
|
|
Arista 7060CX2-32S and 7060CX-32S: | |||
|
The 7260QX-64 is a 2RU system with 64 fixed ports of 40GbE QSFP+ in a power efficient system with overall throughput of 5.12Tbps and up to 3.3Bpps of forwarding at both layer 2 and layer 3. | ||||
|
| ||||
|
|
Arista 7260QX-64: | |||
|
The Arista 7260QX switches offer low latency from 550ns in cut-through mode, and a shared 16 MB packet buffer pool that is allocated dynamically to ports that are congested. Consistent features to the 7060CX and 7260CX combined with low power and high 40GbE density means the 7260QX is optimized for 40GbE top of rack and spine tiers, high density storage and financial trading systems. All members of the 7060X and 7260X Series provide two SFP+ ports that enhance the 40GbE and 100GbE capacity and allow direct 10GbE and 1GbE connections using a comprehensive range of transceivers and cables.
| ||||
|
|
Arista 7060SX2-48YC6: | |||
|
The 7060SX2-48YC6 delivers 48 ports of 25G SFP and 6 ports of 100G QSFP in a 1RU system with an overall throughput of 3.6Tbps with all ports active. The SFP ports allow a choice of 1/10/25G speeds and QSFP ports allow for a choice of 5 speeds including 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x 50GbE and a wide choice of transceivers and cables. All QSFP ports can operate in any mode without limitation enabling a wide choice of combinations for both top of rack and spine deployment.
The Arista 7060SX2-48YC6 supports IEEE 25G and latency as low as 450ns in cut-through mode coupled with a 22 MB shared packet buffer pool that is allocated dynamically to ports that are congested. | ||||
|
| ||||
|
Dynamic Buffer Allocation In cut-through mode, the Arista 7060X and 7260X switches forward packets with a latency of 450 nanoseconds to 550 nanoseconds. Upon congestion, the packets are buffered in shared packet memory that has a total size of 22 MB per port group. Unlike other architectures that have fixed per-port packet memory, the 7060X and 7260X Series use Dynamic Buffer Allocation (DBA) to allocate packet memory to a single port for lossless forwarding.
| ||||
|
Scaling Data Center Performance The Arista 7060X and 7260X series deliver line rate switching at layer 2 and layer 3 to enable faster and simpler network designs for data centers that dramatically lowers the network capital and operational expenses. When used in conjunction with the Arista 7000 series of fixed and modular switches it allows networks to scale to over 27,000 10G/25G servers in low-latency two-tier networks that provide predictable and consistent application performance. The flexibility of the L2 and L3 multi-path design options combined with support for open standards provides architectural flexibility, scalability and network wide virtualization. Arista EOS advanced features provide control and visibility with single point of management. | ||||
|
| ||||
|

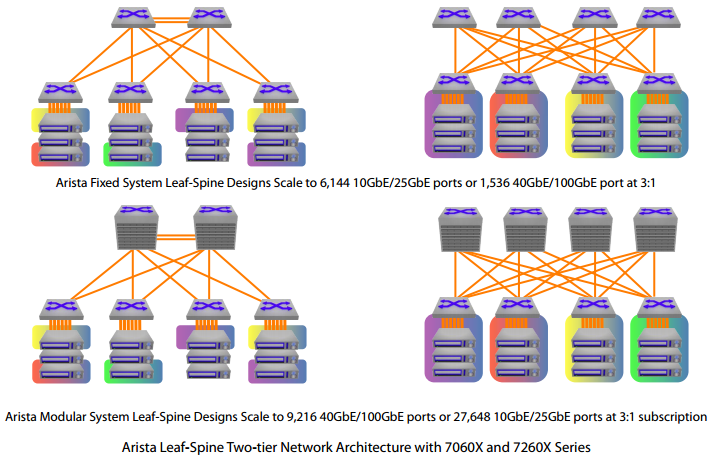

Maximum Flexibility for Scale Out Network Designs Scale out network designs enable solutions to start small and evolve over time. A simple two-way design can grow as far as 64-way without significant changes to the architecture. The Arista 7060X and 7260X include enhancements for flexible scale-out designs: 128-way ECMP and 64-way MLAG to provide scalable designs and balance traffic evenly across large scale 2 tier leaf-spine designs Custom hash algorithms for efficient hashing, persistent hashing and custom lookups for tunneled protocols. Flexible allocation of L2 and L3 forwarding table resources for more design choice Wide choice of dense 10G/25G/40G/100G interfaces for multi-speed flexibility Support for standards-based IEEE 25GbE with mix-and-match support for both 10G and 25G for simple and cost effective migration VXLAN routing, bridging and gateway capability for physical to virtualization communication in next generation data center designs DANZ, sFlow and multi-port mirroring to detect micro-burst congestion and provide network wide visibility and monitoring
| ||||
|
High Availability The Arista 7260X and 7060X series switches were designed for high availability from both a software and hardware perspective. Key high availability features include: 1+1 hot-swappable power supplies and four N+1 hot-swap fans Color coded PSU’s and fans Live software patching Self healing software with Stateful Fault Repair (SFR) Smart System Upgrade (SSU) and Accelerated Software Update (ASU) Up to 64 10/25/40/50/100GbE ports per link aggregation group Multi-chassis LAG for active/active L2 multi-pathing 128-way ECMP routing for load balancing and redundancy
|
| |||
|
Software-driven Cloud Networking Arista Software Driven Cloud Networking (SDCN), combines the principles that have made cloud computing the unstoppable force that it is: automation, self service provisioning, and linear scaling of both performance and economics coupled with the trend in Software Defined Networking that delivers: network virtualization, custom programmability, simplified architectures, and lower capital expenditure. This combination creates a best-in-class software foundation for maximizing the value of the network to both the enterprise and service provider data center.
| ||||
|
Smart System Upgrade Smart System Upgrade is a network application designed to address one of the most complicated and challenging tasks facing data center administrators - network infrastructure maintenance. Changes to the underlying network infrastructure can affect large numbers of devices and cause significant outages. SSU provides a fully customizable suite of features that tightly couples data center infrastructure to technology partners allowing for intelligent insertion and removal, programmable updates to software releases and open integration with application and infrastructure elements.
| ||||
|
Advanced Event Management (AEM) Simplifying the overall operations, AEM provides the tools to customize alerts and actions. AEM is a powerful and flexible set of tools to automate tasks and customize the behavior of EOS and the operation of the overall data center switching infrastructure. AEM allows operators to fully utilize the intelligence within EOS to respond to real-time events, automate routine tasks, and automate actions based on changing network conditions.
| ||||
|
Precise Data Analysis Arista Latency Analyzer (LANZ) is an integrated feature of EOS. LANZ provides precise real-time monitoring of micro-burst and congestion events before they impact applications, with the ability to identify the sources and capture affected traffic for analysis.
| ||||
|
Virtualization Supporting next-generation virtualized data centers requires tight integration with orchestration tools and emerging encapsulation technologies such as VXLAN. The 7060X & 7260X build on the valuable tools already provided by the Arista VM Tracer suite to integrate directly into encapsulated environments. Offering a wire-speed gateway between VXLAN and traditional L2/3 environments, they make integration of non-VXLAN aware devices including servers, firewalls and load-balancers seamless and provide the ability to leverage VXLAN as a standards based L2 extension technology for non-MPLS environments.
| ||||
|

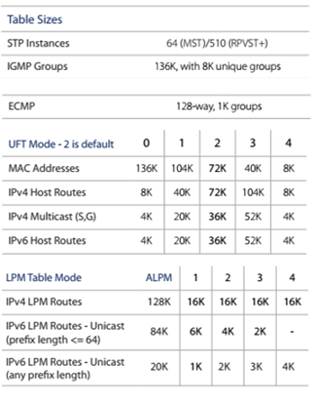

Unified Forwarding Table Cloud network scalability is directly impacted by the size of the switch forwarding tables. In many systems a 'one size fits all' approach is adopted using discrete fixed size tables for each of the common types of forwarding entry. The Arista 7060X and 7260X leverage a common Unified Forwarding Table for the L2 MAC, L3 Routing, L3 Host and IP Multicast forwarding entries, which can be partitioned per entry type. The ideal size of each partition varies depending on the network deployment scenario. The flexibility of the UFT coupled with the range of pre-defined configuration profiles available on the 7060X and 7260X ensures optimal resource allocation for all network topologies and network virtualization technologies. | ||||
|
| ||||
|
| ||||
|
Features and Benefits | |
|
Layer 2 Features
- 64 ports/channel - 64 groups per system
- 64 ports per MLAG
Layer 3 Features
Advanced Monitoring and Provisioning
- Configurable Congestion Notification (CLI, Syslog) - Streaming Events (GPB Encoded) - Capture/Mirror of congested traffic
- Port Mirroring (4 active sessions) - L2/3/4 Filtering on Mirror Sessions - Port Channel source and destination - Mirror to CPU *
- CLI Scheduler - Event Manager - Event Monitor - Linux tools
- Openflow 1.0 - Openflow 1.3 - Arista DirectFlow - eAPI - OpenStack Neutron Support
Virtualization Support
- VMware vSphere support - VM Auto Discovery - VM Adaptive Segmentation - VM Host View
Security Features
Quality of Service (QoS) Features
|
Network Management
Extensibility
- Bash shell access and scripting - RPM support - Custom kernel modules
- Python - C++
Standards Compliance
SNMP MIBs
See EOS release notes for latest supported MIBs
|
|
|
|
|
2 Supported only on 7060CX2-32S and 7060SX2-48YC6 |
* Not currently supported in EOS |
Configuration
|
Ordering Information | ||
|
|
|
|
|
Switches |
Arista SKU |
HPE SKU |
|
Arista 7260X, 64x100GbE QSFP & 2xSFP+ Switch, Front-to-Rear Air, 2xAC, 2xC19-C20 Cords |
DCS-7260CX-64-F |
JH799A |
|
Arista 7260X, 64x100GbE QSFP & 2xSFP+ Switch, Rear-to-Front Air, 2xAC, 2xC19-C20 Cords |
DCS-7260CX-64-R |
JH800A |
|
Arista 7260X, 64x40GbE QSFP+ & 2xSFP+ Switch, Front-to-Rear Air, 2xAC, 2xC13-C14 Cords |
DCS-7260QX-64-F |
JH801A |
|
Arista 7260X, 64x40GbE QSFP+ & 2xSFP+ Switch, Rear-to-Front Air, 2xAC, 2xC13-C14 Cords |
DCS-7260QX-64-R |
JH802A |
|
Arista 7060X2, 32x100GbE QSFP & 2xSFP+ Switch, Front-to-Rear Air, 2xAC, 2xC13-C14 Cords |
DCS-7060CX2-32S-F |
JH976A |
|
Arista 7060X2, 32x100GbE QSFP & 2xSFP+ Switch, Rear-to-Front air, 2xAC, 2xC13-C14 Cords |
DCS-7060CX2-32S-R |
JH977A |
|
Arista 7060X, 32x100GbE QSFP & 2xSFP+ Switch, Front-to-Rear Air, 2xAC, 2xC13-C14 Cords |
DCS-7060CX-32S-F |
JH576A |
|
Arista 7060X, 32x100GbE QSFP & 2xSFP+ Switch, Rear-to-Front Air, 2xAC, 2xC13-C14 Cords |
DCS-7060CX-32S-R |
JH577A |
|
Arista 7060X2 32QSFP28 2SFP+ Front-to-Back AC Switch |
DCS-7060CX2-32S-F |
JH976A |
|
Arista 7060X2 32QSFP28 2SFP+ Back-to-Front AC Switch |
DCS-7060CX2-32S-R |
JH977A |
|
Arista 7060X2 48SFP28 6QSFP28 Front-to-Back AC Switch |
DCS-7060SX2-48YC6-F |
JQ180A |
|
Arista 7060X2 48SFP28 6QSFP28 Back-to-Front AC Switch |
DCS-7060SX2-48YC6-R |
JQ181A |
|
|
|
|
|
Optional Components |
|
|
|
Arista Expanded L3 Software Fix-2 E-LTU |
LIC-FIX-2-FLX |
JH601AAE |
|
Arista Enhanced L3 Software 10G Fix-2 E-LTU |
LIC-FIX-2-E |
JH606AAE |
|
Arista Provisioning Software 10G Fix-2 E-LTU |
LIC-FIX-2-Z |
JH608AAE |
|
Arista Virtualization Software 10G Fix-2 E-LTU |
LIC-FIX-2-V |
JH609AAE |
|
Arista FlexRoute L3 Lite Software Fix-2 E-LTU |
LIC-FIX-2-FLX-L |
JQ049AAE |
|
Arista FlexRoute L3 Lite Software Fix-2 E-LTU |
LIC-FIX-2-FLX-L |
JQ049AAE |
|
Arista Enhanced L3 Software 10G Fix-3 E-LTU |
LIC-FIX-3-E |
JL409AAE |
|
Arista Provisioning Software 10G Fix-3 E-LTU |
LIC-FIX-3-Z |
JL411AAE |
|
Arista Virtualization Software 10G Fix-3 E-LTU |
LIC-FIX-3-V |
JL414AAE |
|
Arista FlexRoute L3 Lite Software Fix-3 E-LTU |
LIC-FIX-3-FLX-L |
JQ050AAE |
|
Arista FlexRoute L3 Software Fix-3 E-LTU |
LIC-FIX-3-FLX |
JQ051AAE |
|
Arista Expanded L3 Software Fix-4 E-LTU |
LIC-FIX-4-FLX |
JH602AAE |
|
Arista Enhanced L3 Software 10G Fix-4 E-LTU |
LIC-FIX-4-E |
JL410AAE |
|
Arista Provisioning Software 10G Fix-4 E-LTU |
LIC-FIX-4-Z |
JL412AAE |
|
Arista Virtualization Software 10G Fix-4 E-LTU |
LIC-FIX-4-V |
JL415AAE |
|
Arista FlexRoute L3 Lite Software Fix-4 E-LTU |
LIC-FIX-4-FLX-L |
JQ052AAE |
|
Arista 7002 High Speed Front-to-Back Fan Module |
FAN-7002H-F |
JH859A |
|
Arista 7002 High Speed Back-to-Front Fan Module |
FAN-7002H-R |
JH860A |
|
Arista 7300 Series Front-to-Back Fan Module |
FAN-7002-F |
JL402A |
|
Arista 7300 Series Back-to-Front Fan Module |
FAN-7002-R |
JL403A |
|
Arista 7000 Front-to-Back Fan Module |
FAN-7000-F |
JH856A |
|
Arista 7000 Back-to-Front Fan Module |
FAN-7000-R |
JH857A |
|
Arista 500W Front-to-Back AC Power Supply |
PWR-500AC-F |
JH882A |
|
Arista 500W Back-to-Front AC Power Supply |
PWR-500AC-R |
JH883A |
|
Arista 500W Back-to-Front DC Power Supply |
PWR-500-DC-R |
JH599A |
|
Arista 750W TX Front-to-Back AC Power Supply |
PWR-745AC-F |
JH884A |
|
Arista 750W TX Back-to-Front AC Power Supply |
PWR-745AC-R |
JH885A |
|
Arista 1100W Front-to-Back AC Power Supply |
PWR-1100AC-F |
JH874A |
|
Arista 1100W Back-to-Front AC Power Supply |
PWR-1100AC-R |
JH875A |
|
Arista 7000 1900W Front-to-Back AC Power Supply |
PWR-1900AC-F |
JH876A |
|
Arista 7000 1900W Back-to-Front AC Power Supply |
PWR-1900AC-R |
JH877A |
|
Arista 7000 1900W Front-to-Back DC Power Supply |
PWR-1900-DC-F |
JH878A |
|
Arista 7000 1900W Back-to-Front DC Power Supply |
PWR-1900-DC-R |
JH975A |
|
Arista 7002 2RU Accessory Kit |
KIT-7002 |
JH867A |
|
Arista 7001 1RU Accessory Kit |
KIT-7001 |
JH866A |
|
Arista 7260CX-64 2RU Accessory Kit |
KIT-7003 |
JQ398A |
|
Arista 2 Post 2RU Rack Mount Kit |
KIT-2POST |
JH862A |
|
Arista 2 Post 1RU Rack Mount Kit |
KIT-2POST-1U-NT |
JH863A |
|
Arista 4 Post Rack Mount Kit |
KIT-4POST-NT |
JH864A |
|
|
|
|
|
Service |
|
|
|
Arista A-Care 7060CX-32 NBD Software 1 Month Support E-LTU |
SVC-7060CX-32S-1M-NB |
JH499AAE |
|
Arista A-Care 7060CX-32 4H Software 1 Month Support E-LTU |
SVC-7060CX-32S-1M-4H |
JH500AAE |
|
Arista A-Care 7060CX-32 2H Software 1 Month Support E-LTU |
SVC-7060CX-32S-1M-2H |
JH501AAE |
|
Arista A-Care 7260CX-64 2H Software 1 Month Support E-LTU |
SVC-7260CX-64-1M-2H |
JH730AAE |
|
Arista A-Care 7260CX-64 4H Software 1 Month Support E-LTU |
SVC-7260CX-64-1M-4H |
JH731AAE |
|
Arista A-Care 7260CX-64 NBD Software 1 Month Support E-LTU |
SVC-7260CX-64-1M-NB |
JH732AAE |
|
Arista A-Care 7260QX-64 2H Software 1 Month Support E-LTU |
SVC-7260QX-64-1M-2H |
JH733AAE |
|
Arista A-Care 7260QX-64 4H Software 1 Month Support E-LTU |
SVC-7260QX-64-1M-4H |
JH734AAE |
|
Arista A-Care 7260QX-64 NBD Software 1 Month Support E-LTU |
SVC-7260QX-64-1M-NB |
JH735AAE |
|
Arista A-Care 7060X2 NBD Software 1 Month Support E-LTU |
SVC-7060CX2-32S-1M-NB |
JH958AAE |
|
Arista A-Care 7060X2 4H Software 1 Month Support E-LTU |
SVC-7060CX2-32S-1M-4H |
JH959AAE |
|
Arista A-Care 7060X2 2H Software 1 Month Support E-LTU |
SVC-7060CX2-32S-1M-2H |
JH960AAE |
|
Arista A-Care 7060X2-48YC6 NBD Software 1 Month Support E-LTU |
SVC-7060SX2-48YC6-1M-NB |
JQ188AAE |
|
Arista A-Care 7060X2-48YC6 4H Software 1 Month Support E-LTU |
SVC-7060SX2-48YC6-1M-4H |
JQ189AAE |
|
Arista A-Care 7060X2-48YC6 2H Software 1 Month Support E-LTU |
SVC-7060SX2-48YC6-1M-2H |
JQ190AAE |
|
| ||
|
Warranty, service, and support | ||
|
The Arista 7060X and 7260X switches come with a one-year limited hardware warranty that covers parts, repair, or replacement with a 10-business-day turnaround after the unit is received. All technical, hardware, and software support for Arista products is provided directly by Arista and not HPE. Consult the Arista Customer Support page for contact information: arista.com/en/support/customer-support. Services may be purchased from HPE or Arista to extend your support coverage and software upgrades. Support will be provided by Arista for these services. For details on Arista warranty and support, see: arista.com/assets/data/pdf/Warranty.pdf. Learn more at arista.com | ||
|
| ||
Technical Specifications
|
Technical Specifications |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
* Typical power consumption measured at 25C ambient with 50% load NOTE: 1. Performance rated over operation with average packets larger than 200 bytes. 2. Cut-through forwarding is not currently supported
NOTE: 1. Not supported on 7260QX-64 QSFP+ ports
NOTE: 1. Not supported on 7260QX-64 QSFP+ ports * Not currently supported in EOS
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change | ||||||||||||||||||
|
05-Mar-2018 |
Version 7 |
Added |
SKU added: JQ398A | ||||||||||||||||||
|
04-Dec-2017 |
Version 6 |
Added |
SKUs added: JH499AAE, JH500AAE, JH501AAE, JH730AAE, JH731AAE, JH732AAE, JH733AAE, JH734AAE, JH735AAE, JH958AAE, JH959AAE, JH960AAE, JQ188AAE, JQ189AAE, JQ190AAE, JH601AAE, JH606AAE, JH608AAE, JH609AAE, JQ049AAE, JQ049AAE, JL409AAE, JL411AAE, JL414AAE, JQ050AAE, JQ051AAE, JH602AAE, JL410AAE, JL412AAE, JL415AAE, JQ052AAE | ||||||||||||||||||
|
02-Oct-2017 |
Version 5 |
Added |
Models added: JQ180A, JQ181A | ||||||||||||||||||
|
03-Jul-2017 |
Version 4 |
Added |
SKUs added: JQ049A, JQ052A | ||||||||||||||||||
|
05-Jun-2017 |
Version 3 |
Changed |
Technical Specifications updated. | ||||||||||||||||||
|
08-May-2017 |
Version 2 |
Added |
SKUs added: JH976A, JH977A | ||||||||||||||||||
|
Changed |
Overview, Configuration and Technical Specifications updated | ||||||||||||||||||||
|
10-Mar-2017 |
Version 1 |
Created |
Document creation. | ||||||||||||||||||
| |||||||||||||||||||||
