Arista 7050SX 10/40G Data Center Switch Series

HPE and Arista share a common vision around the need to deliver secure hybrid IT solutions and experiences built on industry-leading software-defined infrastructure—helping customers to operate their workloads with speed and agility to grow their business. This partnership will provide our customers with proven networking solutions that are superior to legacy alternatives and that complement HPE compute, storage, virtualization and cloud offerings.

The Arista 7050SX switches are members of the Arista 7050X series and key components of the Arista portfolio of data center switches. The Arista 7050X series are purpose-built 10/40GbE data center switches in compact and energy efficient form factors with wire speed Layer 2 and Layer 3 features combined with low latency and advanced features for software-defined cloud networking.

Increased adoption of 10 Gigabit Ethernet servers, coupled with applications using higher bandwidth, is accelerating the need for dense 10 and 40 Gigabit Ethernet switching. The 7050SX series switches support flexible combinations of 10G and 40G that allow customers to design large leaf and spine networks to accommodate both east-west traffic patterns found in modern data centers, high performance compute, and big data environments.

Featuring a choice of seven different 1RU and two 2RU models, the 7050SX series delivers high density 1/10G SFP+ based ports and 10/40G ports using QSFP+. Or embedded optics with MXP multi-speed ports for higher density. Each MXP port can enable a choice of 3x 40GbE or 12x 10GbE.

All models in the 7050SX series deliver rich Layer 2 and Layer 3 features with wire speed performance of up to 2.56 Tbps. The Arista 7050SX switches offer low latency from 550ns in cut-through mode, and a shared packet buffer pool of up to 16MB that is allocated dynamically to ports that are congested. With typical power consumption of less than 2 watts per 10GbE port, the 7050SX series provides industry-leading power efficiency with airflow choices for back-to-front, or front-to-back. An optional built-in SSD supports advanced logging, data captures, and other services directly on the switch.

Combined with Arista EOS, the 7050X series delivers advanced features for big data, cloud, and virtualized and traditional designs.

Arista 7050SX series of 1/10GbE and 10/40GbE switches.
Top to bottom: 7050SX-64, 7050SX-72, 7050SX-96, 7050SX-128

Product Highlights

Performance

• 7050SX-128: 96 x 1/10GbE and 8x 40GbE
• 7050SX2-128: 96 x 1/10GbE and 8x 40GbE
• 7050SX-96: 48x 1/10GbE and 12x 40GbE
• 7050SX-72: 48x 1/10GbE and 6x 40GbE
• 7050SX-72Q: 48x 1/10GbE and 6x 40GbE
• 7050SX2-72Q: 48x 1/10GbE and 6x 40GbE
• 7050SX-64: 48x 1/10GbE and 4x 40GbE
• Up to 2.56 terabits per second
• Up to 1.44 billion packets per second
• Wire speed L2 and L3 forwarding
• Latency from 550ns

Data center optimized design

• Typical power under 2W per 10GbE port for lower cost of ownership
• Over 94% efficient power supplies
• Redundant & hot-swap power and fans
• Front-to-rear or rear-to-front cooling
• Tool less rails for simple installation

Cloud networking ready

• VXLAN and VM Tracer
• OpenFlow, DirectFlow and eAPI
• 288K MAC entries
• 144K IPv4 Routes
• 208K IPv4 Host Routes
• Up to 16MB Dynamic Buffer Allocation

Resilient control plane

• High Performance x86 CPU
• Up to 8GB DRAM
• 4GB Flash
• User applications can run in a VM

Built-in solid state storage

• Solid State Drive option
• Store logs and data captures
• Leverage linux tools with no limitations

Advanced provisioning and monitoring

• CloudVision
• Zero Touch Provisioning (ZTP)
• LANZ for microburst detection
• DANZ Advanced Mirroring for visibility
• sFlow

Arista Extensible Operating System

• Single binary image for all products
• Fine-grained truly modular network OS
• Stateful Fault Containment (SFC)
• Stateful Fault Repair (SFR)
• Full Access to Linux shell and tools
• Extensible platform - bash, python, C++

Arista Extensible Operating System (EOS)

The Arista 7050X runs the same Arista EOS software as all Arista products, simplifying network administration. Arista EOS is a modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic. Built on top of a standard Linux kernel, all EOS processes run in their own protected memory space and exchange state through an in-memory database. This multi-process state sharing architecture provides the foundation for in-service-software updates and self-healing resiliency.

With Arista EOS, advanced monitoring and automation capabilities such as Zero Touch Provisioning, VMTracer and Linux based tools can be run natively on the switch with the powerful x86 CPU subsystem.

High Availability

The Arista 7050X series switches were designed for high availability from both a software and hardware perspective. Key high availability features include:

• 1+1 hot-swappable power supplies and four N+1 hot-swap fans
• Color coded PSU's and fans
• Live software patching
• Self healing software with Stateful Fault Repair (SFR)
• Smart System Upgrade (SSU) and Accelerated Software Update (ASU)
• Up to 64 10GbE or 40GbE ports per link aggregation group (LAG)
• Multi-chassis LAG for active/active L2 multi-pathing
• Up to 128-way ECMP routing for load balancing and redundancy

Arista 7050X 2RU Rear View: Rear-to-front airflow model (blue)

Arista 7050X 1RU Rear View: Rear-to-front airflow model (blue) Front-to-rear airflow (red)

Arista 7050X hot swap and reversible power supplies

Dynamic buffer allocation

In cut-through mode, the Arista 7050SX switches forward packets with a latency of 550 nanoseconds to 650 nanoseconds. Upon congestion, the packets are buffered in shared packet memory that has a total size of 12 Mbytes. Unlike other architectures that have fixed per-port packet memory, the 7050X Series use Dynamic Buffer Allocation (DBA) to allocate up to 6.7MB of packet memory to a single port for lossless forwarding. The 7050SX2-128 and 7050SX2-72Q have an enhanced 16Mbyte buffer that is optimized for more demanding environments.

Scaling Data Center Performance:

The Arista 7050X series delivers line rate switching at layer 2 and layer 3 to enable dramatically faster and simpler network designs for data centers that dramatically lowers the network capital and operational expenses. When used in conjunction with the Arista 7000 series of fixed and modular switches it allows networks to scale to over 110,000 10G servers in a low-latency two-tier network that provides predictable and consistent application performance. The flexibility of the L2 and L3 multi-path design options combined with support for open standards provides maximum flexibility, scalability and network wide virtualization. Arista EOS advanced features provide control and visibility with single point of management.

Number of 10GbE nodes interconnected using Arista leaf-spine designs

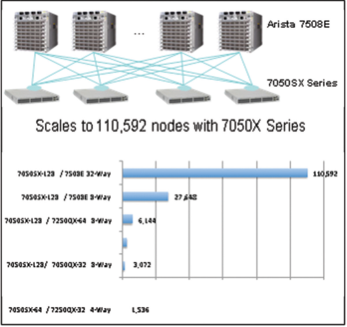

Arista leaf-spine design with L3 ECM

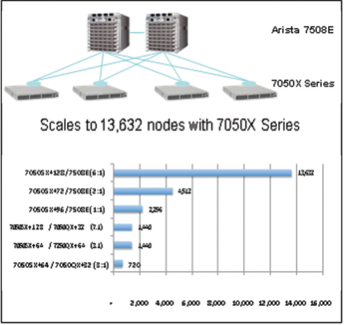

Arista Leaf-Spine Design with L2 MLAG

Maximum Flexibility for Scale Out Network Designs

Scale out network designs enable solutions to start small and evolve over time. A simple two-way design can grow as far as 64-way without significant changes to the architecture. The Arista 7050X include enhancements that allow for flexible scale-out designs:

• Up to 128-way ECMP and 64-way MLAG provide scalable designs and balance traffic evenly across large scale 2 tier leaf-spine designs
• Custom hash algorithms for efficient hashing, persistent hashing and custom lookups for tunneled protocols.
• Flexible allocation of L2 and L3 forwarding table resources for more design choice
• Wide choice of dense 10G/40G ports for single port multi-speed flexibility
• VXLAN routing, bridging and gateway for physical to virtualization communication to enable next generation data center designs
• DANZ, sFlow and multi-port mirroring to detect micro-burst congestion and provide network wide visibility and monitoring

Software Defined Networking

Arista Software Defined Cloud Networking (SDCN), combines the principles that have made cloud computing the unstoppable force that it is: automation, self service provisioning, and linear scaling of both performance and economics coupled with the trend in Software Defined Networking that delivers: network virtualization, custom programmability, simplified architectures, and lower capital expenditure. This combination creates a best-in-class software foundation for maximizing the value of the network to both the enterprise and service provider data center. A new architecture for the most mission-critical location within the IT infrastructure that simplifies management and provisioning, speeds up service delivery, lowers costs and creates opportunities for competitive differentiation, while putting control and visibility back in the hands of the network and systems administrators.

Smart System Upgrade

Smart System Upgrade is a network application designed to address one of the most complicated and challenging tasks facing data center administrators - network infrastructure maintenance. Changes to the underlying network infrastructure can affect large numbers of devices and cause significant outages. SSU provides a fully customizable suite of features that tightly couples data center infrastructure to technology partners allowing for intelligent insertion and removal, programmable updates to software releases and open integration with application and infrastructure elements.

Advanced Event Management (AEM)

Simplifying the overall operations, AEM provides the tools to customize alerts and actions. AEM is a powerful and flexible set of tools to automate tasks and customize the behavior of EOS and the operation of the overall data center switching infrastructure. AEM allows operators to fully utilize the intelligence within EOS to respond to real-time events, automate routine tasks, and automate actions based on changing network conditions.

Enhanced Features for High Performance Networks

The Arista 7050X delivers a suite of advanced traffic control and monitoring features to improve the agility of modern high performance environments, with solutions for data monitoring, and next-generation virtualization.

Precise Data Analysis

Arista Latency Analyzer (LANZ) is an integrated feature of EOS. LANZ provides precise real-time monitoring of micro-burst and congestion events before they impact applications, with the ability to identify the sources and capture affected traffic for analysis.

Virtualization

Supporting next-generation virtualized data centers requires tight integration with orchestration tools and emerging encapsulation technologies such as VXLAN. The 7050X builds on the valuable tools already provided by the Arista VM Tracer suite to integrate directly into encapsulated environments. Offering a wire-speed gateway between VXLAN and traditional L2/3 environments, the 7050X makes integration of non-VXLAN aware devices including servers, firewalls and load-balancers seamless and provides the ability to leverage VXLAN as a standards based L2 extension technology for non-MPLS environments.

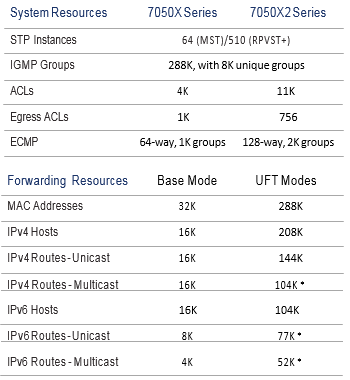

Unified Forwarding Table

Cloud network scalability is directly impacted by the size of a switches forwarding tables. In many systems a 'one size fits all' approach is adopted using discrete fixed size tables for each of the common types of forwarding entry. The Arista 7050X leverages a common Unified Forwarding Table for the L2 MAC, L3 Routing, L3 Host and IP Multicast forwarding entries, which can be partitioned per entry type. The ideal size of each partition varies depending on the network deployment scenario. The flexibility of the UFT coupled with the range of pre-defined configuration profiles available on the 7050X ensures optimal resource allocation for all network topologies and network virtualization technologies.

Features and Benefits

Layer 2 Features

• 802.1w Rapid Spanning Tree
• 802.1s Multiple Spanning Tree Protocol
• Rapid Per VLAN Spanning Tree (RPVST+)
• 4096 VLANs
• Q-in-Q
• 802.3ad Link Aggregation/LACP

- 64 ports/channel

- 104 groups per system

• Multi-Chassis Link Aggregation (MLAG)

- 64 ports per MLAG

• Custom LAG Hashing
• 802.1AB Link Layer Discovery Protocol
• 802.3x Flow Control
• Jumbo Frames (9216 Bytes)
• IGMP v1/v2/v3 snooping
• Storm Control
• RAIL

Layer 3 Features

• Routing Protocols: OSPF, OSPFv3, BGP, MP-BGP, IS-IS, and RIPv2
• 64-way Equal Cost Multipath Routing (ECMP) ²
• Resilient ECMP Routes
• VRF
• BFD
• Route Maps
• IGMP v2/v3
• PIM-SM / PIM-SSM / PIM-BIDIR
• Anycast RP (RFC 4610)
• VRRP
• Virtual ARP (VARP)
• Policy Based Routing
• uRPF
• Selective Route Download

Advanced Monitoring and Provisioning

• Zero Touch Provisioning (ZTP)
• Latency Analyzer and Microburst Detection (LANZ)

- Configurable Congestion Notification (CLI, Syslog)

- Streaming Events (GPB Encoded) *

- Capture/Mirror of congested traffic*

• Advanced Monitoring

- Port Mirroring (4 active sessions)

- L2/3/4 Filtering on Mirror Sessions

- Mirror to EOS/SSD

• Advanced Event Management suite (AEM)

- CLI Scheduler

- Event Manager

- Event Monitor

- Linux tools

• Optional SSD for logging and data capture
• Integrated packet capture/analysis with TCPDump
• RFC 3176 sFlow
•  Restore & configure from USB
• Blue Beacon LED for system identification
• Software Defined Networking (SDN)
• Openflow 1.0 ¹
• Openflow 1.3 ¹
• Arista DirectFlow ³
• eAPI
• OpenStack Neutron Support
• IEEE 1588 PTP (Transparent Clock and Boundary Clock)

Virtualization Support

• VXLAN  Gateway  (draft-mahalingam-dutt-dcops-vxlan-01)
• VXLAN Routing
• VXLAN Bridging
• VXLAN Tunnel Endpoint
• VM Tracer VMware Integration

- VMware vSphere support

- VM Auto Discovery

- VM Adaptive Segmentation

- VM Host View

Security Features

• IPv4 / IPv6 Ingress & Egress ACLs using L2, L3, L4 fields
• MAC ACLs
• ACL Drop Logging
• ACL Counters
• Control Plane Protection (CPP)
• DHCP Relay / Snooping
• MAC Security
• TACACS+
• RADIUS

Quality of Service (QoS) Features

• Up to 8 queues per port
• 802.1p based classification
• DSCP based classification and remarking
• Explicit Congestion Notification (ECN)
• QoS interface trust (COS / DSCP)
• Strict priority queueing
• Weighted Round Robin (WRR) Scheduling
• Per-Priority Flow Control (PFC)
• Data Center Bridging Extensions (DCBX)
• 802.1Qaz Enhanced Transmissions Selection (ETS) *
• ACL based DSCP Marking
• ACL based Policing
• Policing/Shaping
• Rate limiting
• Audio Video Bridging (AVB) *

Network Management

• CloudVision
• 10/100/1000 Management Port
• RS-232 Serial Console Port
• USB Port
• SNMP v1, v2, v3
• Management over IPv6
• Telnet and SSHv2
• Syslog
• AAA
• Industry Standard CLI
• Accelerated Software Upgrade (ASU) ⁴

Extensibility

• Linux tools

- Bash shell access and scripting

- RPM support

- Custom kernel modules

• Programmatic access to system state

- Python

- C++

• Native KVM/QEMU support

Standards Compliance

• 802.1D Bridging and Spanning Tree
• 802.1p QOS/COS
• 802.1Q VLAN Tagging
• 802.1w Rapid Spanning Tree
• 802.1s Multiple Spanning Tree Protocol
• 802.1AB Link Layer Discovery Protocol
• 802.3ad Link Aggregation with LACP
• 802.3ab 1000BASE-T
• 802.3z Gigabit Ethernet
• 802.3ae 10 Gigabit Ethernet
• 802.3ba 40 Gigabit Ethernet
• RFC 2460 Internet Protocol, Version 6 (IPv6) Specification
• RFC 4861 Neighbor Discovery for IP Version 6 (IPv6)
• RFC 4862 IPv6 Stateless Address Autoconfiguration
• RFC 4443 Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) Specification

SNMP MIBs

• RFC 3635 EtherLike-MIB
• RFC 3418 SNMPv2-MIB
• RFC 2863 IF-MIB
• RFC 2864 IF-INVERTED-STACK-MIB
• RFC 2096 IP-FORWARD-MIB
• RFC 4363 Q-BRIDGE-MIB
• RFC 4188 BRIDGE-MIB
• RFC 2013 UDP-MIB
• RFC 2012 TCP-MIB
• RFC 2011 IP-MIB
• RFC 2790 HOST-RESOURCES-MIB
• RFC 3636 MAU-MIB
• RMON-MIB
• RMON2-MIB
• HC-RMON-MIB
• LLDP-MIB
• LLDP-EXT-DOT1-MIB
• LLDP-EXT-DOT3-MIB
• ENTITY-MIB
• ENTITY-SENSOR-MIB
• ENTITY-STATE-MIB
• ARISTA-ACL-MIB
• ARISTA-QUEUE-MIB
• RFC 4273 BGP4-MIB
• RFC 4750 OSPF-MIB
• ARISTA-CONFIG-MAN-MIB
• ARISTA-REDUNDANCY-MIB
• RFC 2787 VRRPv2MIB
• MSDP-MIB
• PIM-MIB
• IGMP-MIB
• IPMROUTE-STD-MIB
• SNMP Authentication Failure trap
• ENTITY-SENSOR-MIB support for DOM (Digital Optical Monitoring)
• User configurable custom OIDs

See EOS release notes for latest supported MIBs

* Not currently supported in EOS

NOTE 1: Not supported on 7050SX2-128 and 72Q
NOTE 2: Up to 128-way ECMP on 7050SX2-128 and 7050SX2-72Q
NOTE 3: Not currently supported on 7050SX2-128 and 72Q

See EOS release notes for latest supported MIBs

Ordering Information

Switch

Description

HPE SKU

Arista SKU

Arista 7050X2 96SFP+ 8QSFP+ FB AC Switch

JH783A

DCS-7050SX2-128-F

Arista 7050X2 96SFP+ 8QSFP+ BF AC Switch

JH784A

DCS-7050SX2-128-R

Arista 7050X2 48SFP+ 6QSFP+ FB AC Switch

JH942A

DCS-7050SX2-72Q-F

Arista 7050X2 48SFP+ 6QSFP+ BF AC Switch

JH943A

DCS-7050SX2-72Q-R

Arista 7050 96SFP+ 8QSFP+ FB AC Switch

JH781A

DCS-7050SX-128-F

Arista 7050 96SFP+ 8QSFP+ BF AC Switch

JH782A

DCS-7050SX-128-R

Arista 7050X 48SFP+ 6QSFP+ F-B AC Switch

JH585A

DCS-7050SX-72Q-F

Arista 7050X 48SFP+ 6QSFP+ B-F AC Switch

JH586A

DCS-7050SX-72Q-R

Arista 7050X 48SFP+ 4QSFP+ F-B AC Switch

JH581A

DCS-7050SX-64-F

Arista 7050X 48SFP+ 4QSFP+ B-F AC Switch

JH582A

DCS-7050SX-64-R

Arista 7050X 48SFP+ 4QSFP+ Front-to-Back DC Switch

JQ397A

DCS-7050SX-64-F-DC

NOTE: Switches sold in the US are manufactured at a US facility and comply with TAA requirements.

Optional components

Description

HPE SKU

Arista SKU

Arista 7000 F-B Fan Module

JH856A

FAN-7000-F

Arista 7000 B-F Fan Module

JH857A

FAN-7000-R

Arista 7300 Series Front-to-Back Fan Module

JL402A

FAN-7002-F

Arista 7300 Series Back-to-Front Fan Module

JL403A

FAN-7002-R

Arista 2 Post 2RU Rack Mount Kit

JH862A

KIT-2POST

Arista 2 Post 1RU Rack Mount Kit

JH863A

KIT-2POST-1U-NT

Arista 4 Post Rack Mount Kit

JH864A

KIT-4POST-NT

Arista 7000 Accessory Kit

JH865A

KIT-7000

Arista 7001 1RU Accessory Kit

JH866A

KIT-7001

Arista 7002 2RU Accessory Kit

JH867A

KIT-7002

Arista 500W F-B AC Power Supply

JH882A

PWR-500AC-F

Arista 500W B-F AC Power Supply

JH883A

PWR-500AC-R

Arista 500W Front-to-Back DC Power Supply

JH597A

PWR-500-DC-F

Arista 500W Back-to-Front DC Power Supply

JH599A

PWR-500-DC-R

Arista Expanded L3 Software Fix-2 E-LTU

JH601AAE

LIC-FIX-2-FLX

Arista Enhanced L3 Software 10G Fix-2 E-LTU

JH606AAE

LIC-FIX-2-E

Arista Provisioning Software 10G Fix-2 E-LTU

JH608AAE

LIC-FIX-2-Z

Arista Virtualization Software 10G Fix-2 E-LTU

JH609AAE

LIC-FIX-2-V

Arista FlexRoute L3 Lite Software Fix-2 E-LTU

JQ049AAE

LIC-FIX-2-FLX-L

Service

Description

HPE SKU

Arista SKU

Arista A-Care 7050TX-48 NBD Software 1 Month Support E-LTU

JH511AAE

SVC-7050TX-48-1M-NB

Arista A-Care 7050TX-48 4H Software 1 Month Support E-LTU

JH512AAE

SVC-7050TX-48-1M-4H

Arista A-Care 7050TX-48 2H Software 1 Month Support E-LTU

JH513AAE

SVC-7050TX-48-1M-2H

Arista A-Care 7050TX-64 NBD Software 1 Month Support E-LTU

JH514AAE

SVC-7050TX-64-1M-NB

Arista A-Care 7050TX-64 4H Software 1 Month Support E-LTU

JH515AAE

SVC-7050TX-64-1M-4H

Arista A-Care 7050TX-64 2H Software 1 Month Support E-LTU

JH516AAE

SVC-7050TX-64-1M-2H

Arista A-Care 7050TX2-128 2H Software 1 Month Support E-LTU

JH724AAE

SVC-7050TX2-128-1M-2H

Arista A-Care 7050TX2-128 4H Software 1 Month Support E-LTU

JH725AAE

SVC-7050TX2-128-1M-4H

Arista A-Care 7050TX2-128 NBD Software 1 Month Support E-LTU

JH726AAE

SVC-7050TX2-128-1M-NB

Arista A-Care 7050X 48XGT 6QSFP+ NBD Software 1 Month Support E-LTU

JL422AAE

SVC-7050TX-72Q-1M-NB

Arista A-Care 7050X 48XGT 6QSFP+ 4H Software 1 Month Support E-LTU

JL423AAE

SVC-7050TX-72Q-1M-4H

Arista A-Care 7050X 48XGT 6QSFP+ 2H Software 1 Month Support E-LTU

JL424AAE

SVC-7050TX-72Q-1M-2H

Service, and support

HPE Pointnext's full portfolio of Consulting services as well as Support Services are available. The support services include Installation and Startup Services, Next Business Day Exchange, Next Business Day Onsite and 24x7 Onsite parts, Engineer and 4-hour committed response as well as Datacenter Care and Flex Capacity. (Arista A-Care services can also be purchased.
Learn more at arista.com). For service depot locations, please see: http://www.arista.com/en/service.

Warranty

The Arista 7050SX switches come with a one-year limited hardware warranty that covers parts, repair, or replacement with a 10-business-day turnaround after the unit is received. Learn more at http://www.arista.com

Technical Specifications

7050SX2-128

7050SX2-72Q

7050SX-128

7050SX-96

7050SX-72Q

7050SX-72

7050SX-64

Ports

96 x SFP+

8 x QSFP+

48 x SFP+

6x QSFP+

96 x SFP+

8 x QSFP+

48 x SFP+

4 x MXP

48 x SFP+

6x QSFP+

48 x SFP+

2x MXP

48 x SFP+

4 x QSFP+

Total 40GbE ports

8

6

8

12

6

6

4

Total 10GbE ports

96

72

96

96

72

72

64

Throughput

2.56 Tbps

1.44 Tbps

2.56 Tbps

1.92 Tbps

1.44 Tbps

1.44 Tbps

1.28 Tbps

Packets/second

1440 Mpps

1080 Mpps

1440 Mpps

1440 Mpps

1080 Mpps

1080 Mpps

960 Mpps

Latency

550 ns

550 ns

550 ns

550 ns

550 ns

550 ns

550 ns

CPU

Quad-core x86

System memory

8 gigabytes

8 gigabytes

8 gigabytes

4 gigabytes

4 gigabytes

4 gigabytes

4 gigabytes

Flash storage memory

4 gigabytes

4 gigabytes

4 gigabytes

4 gigabytes

4 gigabytes

4 gigabytes

4 gigabytes

SSD storage (optional)

No

No

100 gigabytes

120 gigabytes

No

120 gigabytes

120 gigabytes

Packet buffer memory

16MB

12MB (Dynamic buffer allocation)

10/100/1000 management ports

2

1

2

1

1

1

1

RS-232 serial ports

1 (RJ-45)

USB ports

1

1

1

1

2

1

1

Hot-swappable fans

2 (1+1 redundant)

Hot-swappable fans

4 (N+1 redundant)

Reversible airflow

Yes

Typical / max power*

214W/396W

127W/251W

235W/415W

159W/290W

144W/261W

144W/267W

140W/220

Size

19 x 3.5 x 18.1 in(48.3 x 8.8 x45.9 cm)

19 x 1.75 x 16 in(48.3 x 4.4 x40.6 cm)

19 x 3.5 x 18.1 in(48.3 x 8.8 x45.9 cm)

19 x 1.75 x 16 in(48.3 x 4.4 x40.6 cm)

Weight

33 lb (15.1 kg)

17.3 lb (7.8 kg)

33 lb (15.1 kg)

20 lb (9.1 kg)

17.3 lb (7.8 kg)

19 lb (8.6 kg)

19 lb (8.6 kg)

Minimum EOS version

TBD

TBD

4.13.0

4.14.2

4.15.4

4.14.2

4.14.0

* Typical power consumption measured at 25°C ambient with 50% load

NOTE: Performance rated over operation with average packets larger than 200 bytes

Power supply specifications

Power supply model

PWR-500AC

PWR-500-DC

PWR-750AC

Input voltage

100-240V AC

40-72V DC

100-240V AC

Typical input current

6.3 - 2.3A

13.1 - 7.3A, 11A at -48V

10 - 4A

Input frequency

50/60 Hz

DC

50/60 Hz

Input connector

IEC 320-C13

AWG #16-12

IEC 320-C13

Efficiency (typical)

94% platinum

-

94% platinum

Compatibility

7050SX-64, 7050SX-72, 7050SX-72Q, 7050SX2 -72Q7050SX-96, 7050SX-128, 7050SX2-128

7050SX-128

Environmental characteristics

Operating temperature

0°C to 40°C (32°F to 104°F)

Storage temperature

-25°C to 70°C (-13°F to 158°F)

Relative humidity

5% to 95%

Operating altitude

0 to 10,000 ft (0-3000 m)

Standards compliance

EMC

Emissions: FCC, EN55022, EN61000-3-2, EN61000-3-3 or EN61000-3-11, EN61000-3-12 (as applicable) Immunity: EN55024

Emissions and immunity: EN300 386

Safety

UL/CSA 60950-1, EN 60950-1, IEC 60950-1
CB Scheme with all country differences

Certifications

North America (NRTL)

European Union (EU)

BSMI (Taiwan)

RCM (Australia)

CCC (PRC)

MSIP (Korea)

EAC (Customs Union)

VCCI (Japan)

European Union Directives

2006/95/EC Low Voltage Directive 2004/108/EC EMC Directive 2011/65/EU RoHS Directive 2012/19/EU WEEE Directive

Supported optics and cables

Interface type

QSFP+ ports

10GBASE-CR

0.5 m-5 m QSFP+ to 4x SFP+ 1

40GBASE-CR4

0.5-5 m QSFP+ to QSFP+

40GBASE-AOC

3 m to 100 m

40GBASE-UNIV

150 m (OM3)/150 m (OM4)

40GBASE-SRBD

100 m (OM3)/150 m (OM4)

40GBASE-SR4

100 m (OM3)/150 m (OM4)

40GBASE-XSR4

300 m (OM3)/400 m (OM4)

40GBASE-PLRL4

1 km (1 km 4 x 10 G LR/LRL)

40GBASE-PLR4

10 km (10 km 4 x 10 G LR/LRL)

40GBASE-LRL4

1 km

40GBASE-LR4

10 km

40GBASE-ER4

40 km

1 Not supported on 7050SX-128 QSFP+ ports

Interface type

SFP+ ports

10GBASE-CR

SFP+ to SFP+: 0.5 m-5 m

10GBASE-AOC

SFP+ to SFP+: 3 m-30 m

10GBASE-SRL

100 m (OM3)/150 m (OM4)

10GBASE-SR

300 m (OM3)/400 m (OM4)

10GBASE-LRL

1 km

10GBASE-LR

10 km

10GBASE-ER

40 km

10GBASE-ZR

80 km

10GBASE-DWDM

80 km

100/1000BASE-T, 1GbE SX/LX

Yes

Date

Version History

Action

Description of Change

05-Mar-2018

Version 5

Added

SKU added: JQ397A

04-Dec-2017

Version 4

Added

SKUs added: JH601AAE, JH606AAE, JH608AAE, JH609AAE, JQ049AAE, JH511AAE, JH512AAE, JH513AAE, JH514AAE, JH515AAE, JH516AAE, JH724AAE, JH725AAE, JH726AAE, JL422AAE, JL423AAE, JL424AAE

03-Jul-2017

Version 3

Added

SKU added: JQ049A

09-May-2017

Version 2

Changed

Changes made due to wrong information was shown in the document.

06-Mar-2017

Version 1

Created

Document creation.
