HPE Networking CW 2150 Switch Series QuickSpecs

The HPE Networking CW 2150 Switch Series is a family of stackable L3 access switches purposely built for enterprise branch offices and SMB networks.

Fully managed, stackable, supporting up to 176Gbps of switching capacity and 770W of PoE power, the CW 2150 family delivers enterprise-grade performance at the SMB price point. With 8, 16, 24, and 48 gigabit access ports and 802.3at compliant PoE ports, this flexible series is ready to connect your wireless access points, security cameras, and IoT devices. Four built-in 10G SFP+ uplinks and nine (9) switch Intelligent Resilient Fabric (IRF) stacking add scale, resiliency, and simplicity for your access network. The switch family supports dynamic routing protocols including PBR (Policy based routing), RIP (Routing Information Protocol), and OSPF (Open Shortest Path First).

Network visibility, management, and operation tools for this series include Web GUI, standard CLI and the switch embedded CW Dashboard at no additional cost. Other management options include HPE Intelligent Management Center (IMC), SNMP manager, Aruba Airwave, and REST API for seamless integration into third party dashboards.

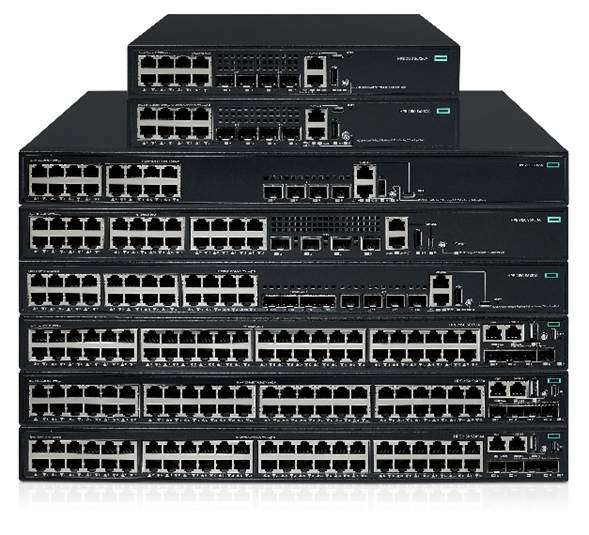

HPE Networking CW 2150 Switch Series

Key features

- Enterprise-grade access switches with 8, 16, 24 and 48 built-in 1 GbE access ports and four 1/10G SFP+ uplinks

- Deliver up to 176 Gbps in nonblocking bandwidth and 131 Mpps in forwarding

- Up to 9-member Intelligent Resilient Fabric (IRF) stacking for reliable connectivity and simplified management

- Class 4 PoE (802.3at) provides 30W per port and up to 770W per system

- Fast PoE and Perpetual PoE for continued power delivery during equipment power cycle

- 24-port model adds 4 fiber copper combo ports for flexible connectivity options

- 8-port model has two 1G SFP and two 1G/10G SFP+ uplinks

- Fanless design in the 8-port and 24-/48- port non-PoE models

- Comprehensive security support including multi-layer access protection with granular ACLs, secure boot, encrypted access, and threat prevention features

- Advanced Quality of Service (QoS), IPv6, and dynamic L3 protocols (RIP and OSPF) for reliable connectivity

- Simplified management with Web GUI, CLI and embedded CW Dashboard included free of charge

- Additional management choices include HPE Intelligent Management Center (IMC), Airwave, SNMP, and REST APIs

- Built-in 6 kV surge protection reduces the risk of power strikes in demanding environments such as construction sites

Enterprise-class Access Connectivity

The HPE Networking CW 2150 Switch Series delivers up to 176 Gbps of non-blocking bandwidth and up to 131 Mpps in forwarding. It supports nine (9) switch Intelligent Resilient Fabric (IRF) stacking for resilient and availability.

The 1U switch family supports 8 models, with four (4) 1G/10G SFP+ uplinks in the 16, 24 and 48 port models, and additional two (2) 1G SFP and two (2) 1G/10G SFP+ uplinks in the 8 port models. The 24-port model adds four SFP combo ports for flexible connectivity options.

Fanless design on the 8-, 24-, and 48- port non-PoE models for noise sensitive environments.

Built-in 6 kV surge protection reduces the risk of power strikes in demanding settings such as construction sites.

Powerful PoE Capabilities

The CW 2150 switch series deliver 125W, 248W, 405W, 390W, and 770W Class 4 PoE across the 8, 16, 24, and 48-portmodels. It supports advanced PoE features including fast PoE to deliver power within seconds of system startup, perpetual PoE to maintain power during a power-source reboot, and PoE watchdog function to automatically remove power when the connected device is no longer active.

Comprehensive Security Control

The switch family provides comprehensive security features to protect your business data and keep unauthorized access for modern SMB environments:

- Secure boot verifies digital signatures to prevent unauthorized or malicious software from loading at startup

- Multi-layer access protection with granular ACLs (IPv4/IPv6, VLAN, port-based), identity-driven policies, and authentication options including 802.1X, MAC, Web, RADIUS, TACACS+

- Encrypted access using SSHv2, SSL, SNMPv3, and TLS, along with role-based privileges and audit logging

- Threat-prevention features include Control Plane Policing (DoS protection), ARP and DHCP protection, ICMP throttling, port security, and source-port filtering.

Advanced Layer 2 and Layer 3 Traffic Management

The CW 2150 series support advanced Layer 2 and Layer 3 features for SMB, enterprise branch offices, as well as service provider managed services. Highlights including:

- Dynamic routing protocols including PBR, RIP and OSPF

- Multi-VRF Customer Edge (MCE or VRF-Lite) to support multiple virtual routing and forwarding (VRF) tables, separating traffic for different customers or internal departments over a single physical link to a provider edge (PE) router

- IPv4 and IPv6 dual stack

- Rapid Ring Protection Protocol (RRPP) for rapid ring topology convergence

- Provider Backbone Bridges (PBB) allowing service provider to separate customer MAC addresses from the provider's backbone (MAC-in-MAC)

- Ethernet OAM (IEEE 802.3ah) for monitoring the status of the link between two devices

- Dying Gasp notifies network management systems of an impending and unexpected power loss

Performance

Nonblocking architecture
Up to 176 Gbps of nonblocking wire speed switching with up to 130.9 Mpps throughput

Hardware-based wire speed access control lists (ACLs)

Help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation

Resiliency and High Availability

Separate Data and Control Paths
Separate control from services and keeps service processing isolated; increases security and performance

Intelligent Resilient Fabric (IRF)

Creates virtual resilient switching fabrics where up to nine (9) switches perform as a single logical device; switches do not have to be co-located and can be part of a disaster-recovery system; servers or switches can be attached using standard LACP for automatic load balancing and high availability; can eliminate the need for complex protocols like Spanning Tree Protocol or VRRP, thereby simplifying network operation.

Smart Link
Provides easy-to-configure link redundancy of active and standby links allowing 100ms failover between links, supports 48 groups and 64 instances

Quality of Service

Broadcast control

Allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic

Advanced classifier-based QoS

Classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; apply QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch

Powerful Queuing and Scheduling

Supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), and SP+WRR hybrid scheduling for latency-sensitive traffic

Traffic policing

Supports Committed Access Rate (CAR) and line rate

ACL Logging

Enables detailed monitoring of packet flows that match QoS-related ACL entries, improving traffic visibility and assisting in troubleshooting and policy validation

Buffer Configuration

Supports flexible queue buffer allocation to accommodate bursty traffic patterns, enhance congestion management and improve overall forwarding performance

Connectivity

Auto-MDIX

Automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports

Flow Control

Provides back pressure using standard IEEE 802.3x, reducing congestion in heavy traffic situations

High-density Connectivity

Provides up to 48 fixed 10/100/1000BASE-T ports in a Layer 2/Layer 3 switch

IEEE 802.3at Power over Ethernet (PoE+)

Simplifies deployment and dramatically reduces installation costs by helping to eliminate the time and cost involved in supplying local power at each access point location

Ethernet Operations, Administration and Maintenance (OAM)

Detects data link layer problems that occurred in the "last mile" using the IEEE 802.3ah OAM standard; monitors the status of the link between two devices

Provider Backbone Bridges (PBB)

IEEE 802.1ah-2008, or Provider Backbone Bridges (PBB), is a networking standard that enhances network scalability by encapsulating customer Ethernet frames (MAC-in-MAC) inside a provider-specific header; it allows service providers to scale up services, separating customer MAC addresses from the provider backbone.

3rd Party Transceiver support

Allows to enable non-HPE 1G and 10G transceivers and cables. Note that there is no warranty nor support for the transceiver/cable when this feature is used

Layer 2 Switching

16K MAC Address Table

Provides access to many Layer 2 devices

10GbE Port Aggregation

Allows grouping of ports to increase overall data throughput to a remote device

VLAN Support and Tagging

Supports IEEE 802.1Q with 4,094 VLAN IDs and 512 VLANs simultaneously

Jumbo Frame Support

Improves the performance of large data transfers; supports frame size of up to 9 KB

IEEE 802.1ad QinQ and Selective QinQ

Increase the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed campus or metro network

STP, MSTP, RSTP, PVST+, RPVST+, MVRP

Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), Per-VLAN Spanning Tree (PVST+), Rapid Per-VLAN Spanning Tree (RPVST+) for improved bandwidth and faster convergence. MVRP allows automatic learning and dynamic assignment of VLANs

Rapid Ring Protection Protocol (RRPP)

Ethernet ring-specific protocol designed to prevent broadcast storms and provide rapid topology convergence, typically under 50ms, supports 8 instances and 16 rings.

Bridge Protocol Data Unit (BPDU) Tunneling

Transmits STP BPDUs transparently, allowing correct tree calculations across service providers, WANs, or MANs

Port Mirroring and RSPAN

Duplicates port traffic (ingress and egress) to a monitoring port; supports 4 mirroring groups; RSPAN mirrors traffic from source ports or VLANs across multiple, physically distributed switches to a centralized destination device remotely

Internet Group Management Protocol (IGMP)

Controls and manages the flooding of multicast packets in a Layer 2 network

Layer 3 Services

Address Resolution Protocol (ARP)

Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network

Domain Name System (DNS)

Provides a distributed database that translates domain names and IP addresses, which simplifies network design; supports client and server

Dynamic Host Configuration Protocol (DHCP)

Simplifies the management of large IP networks; supports DHCP Server, DHCP Client, DHCP Relay, DHCP Rogue Server Check

Virtual Router Redundancy Protocol (VRRP) and VRRPe

An open-standard IETF protocol that provides network redundancy by allowing multiple routers to act as a single virtual default gateway

Loopback Interface Address
Defines an address that can always be reachable, improving diagnostic capability

User Datagram Protocol (UDP) Helper Function

Allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents server spoofing for UDP services such as DHCP

Layer 3 Routing

IPv4 and IPv6 Static IP Routing
Provides manually configured routing for both IPv4 and IPv6 networks

IPv4 and IPv6 Policy Based Routing
Route packets based on custom policies (source IP, application, port) rather than just the destination IP address; it enables granular control for steering specific traffic, such as directing sensitive data over secure links or managing Quality of Service (QoS)

Open Shortest Path First (OSPF)

An Interior Gateway Protocol (IGP) that uses a link state routing algorithm; supports OSPFv1/v2 and OSPFv3

Routing Information Protocol (RIP)

Uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 and RIPng routing; includes loop protection

Multi-VRF Customer Edge (MCE or VRF-Lite) to support multiple virtual routing and forwarding (VRF) tables, separating traffic for different customers or internal departments over a single physical link to a provider edge (PE) router and significantly reducing hardware costs. Supports up to 32 VPN instances.

Multicast

Internet Group Management Protocol (IGMP)

Utilizes Any-Source Multicast (ASM) to manage IPv4 multicast networks; supports IGMPv1, v2, and v3

IGMP Snooping and PIM snooping

Allow multiple VLANs to receive the same IPv4 multicast traffic and prevent unnecessary flooding between host and switch as well as between the switches

Multicast Listener Discovery (MLD)

Enables discovery of IPv6 multicast listeners; support MLD v1 and v2

Multicast VLAN Registration (MVR), MVR+, MVRP

Used to efficiently manage and distribute multicast traffic-typically IPTV or video services-across a network without needing complex Layer 3 routing. MVR+ allows for advanced or enhanced implementations of MVR, which provides improved control over how multicast traffic is delivered, filtered, and managed

IPv6

IPv6 Host

Enables switches to be managed in an IPv6 network

Dual Stack (IPv4 and IPv6)

Transitions from IPv4 to IPv6, supporting connectivity for both protocols

MLD Snooping

Forwards IPv6 multicast traffic to the appropriate interface

IPv6 ACL/QoS

supports ACL and QoS for IPv6 network traffic

IPv6 static routing, Policy Based Routing and Dynamic Routing

Supports static, IPv6 PBR, RIPng and OSPFv3

Management

Secure Web GUI

Provides a secure, easy-to-use graphical interface for configuring the module via HTTPS

Industry-standard CLI

With a hierarchical structure for reduced training time and expense. Delivers increased productivity in multivendor environments

Remote Configuration and Management
Enables configuration and management through a secure Web browser or a CLI located on a remote device

CW Dashboard

Embedded network management tool with a web-based GUI to simplify operations and facilitate centralized management. It is made available at no additional cost and offers centralized configuration backup, software version management and seamless switch replacement.

HPE Intelligent Management Center (IMC)

Integrates fault management, element configuration, and network monitoring from a central vantage point; built-in support for third-party devices enables network administrators to centrally manage all network elements with a variety of automated tasks, including discovery, categorization, baseline configurations, and software images; the software also provides configuration comparison tools, version tracking, change alerts, and more

Network Management

SNMP v1/v2c/v3, MIB-II with Traps, and RADIUS Authentication Client MIB (RFC 2618); embedded HTML management tool with secure access

REST API interface

Programmable interface for seamless integration into 3^rd party dashboards

sFlow (RFC 3176)

Provides scalable ASIC-based wirespeed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes

TFTP and SFTP

support offers different mechanisms for configuration updates; trivial FTP (TFTP) allows bidirectional transfers over a TCP/IP network; Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security

Manager and Operator Privilege Levels
Provides read-only (operator) and read/write (manager) access on CLI and Web browser management interfaces

Command Authorization

Leverages HWTACACS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit trail

Multiple Configuration Files

Stores easily to the flash image

Session Logging
Provides detailed information for problem identification and resolution

Remote Monitoring (RMON)

Uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group; supports RMON1 and RMON2

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

Advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications

Management VLAN

Segments traffic to and from management interfaces, including CLI/telnet, a Web browser interface, and SNMP

Remote Intelligent Mirroring

Mirrors ingress ACL-selected traffic from a switch port or VLAN to a local or remote switch port anywhere on the network

Device Link Detection Protocol (DLDP)

Monitors a cable between two compatible switches and shuts down the ports on both ends if the cable is broken, which prevents network problems such as loops

IPv6 Management

Provides future-proof networking because the switch is capable of being managed whether the attached network is running IPv4 or IPv6; supports pingv6, tracertv6, Telnetv6, TFTPv6, DNSv6, syslogv6, FTPv6, SNMPv6, DHCPv6, and RADIUS for IPv6

Troubleshooting

Ingress and egress port monitoring enables network problem-solving; Virtual Cable Tests (VTC) provide visibility into cable problems

Security

Secure Boot
Verifies digital signatures to help prevent unauthorized or malicious software from loading at startup

Access Control Lists (ACLs)
Provides IP Layer 2 to Layer 4 traffic filtering; supports global ACL, VLAN ACL, port ACL, and IPv6 ACL

IEEE 802.1X

Industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server

Remote Authentication Dial-In User Service (RADIUS)/HWTACACS

Eases switch management security administration by using a password authentication server

MAC-based Authentication
Client is authenticated with the RADIUS server based on the client's MAC address

Identity-driven Security and Access Control

- Per-user ACLs
Permits or denies user access to specific network resources based on user identity and time of day, allowing multiple types of users on the same network to access specific network services without risking network security or providing unauthorized access to sensitive data

- Automatic VLAN assignment
Automatically assigns users to the appropriate VLAN based on their identities

Secure Management Access
Delivers secure encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, HTTPS, TLS, and/or SNMPv3

Secure FTP/ SCP

Allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file

Guest VLAN
Provides a browser-based environment to authenticated clients similar to IEEE 802.1X

Private VLAN (PVLAN)
Improves network security by allowing virtual organization of devices regardless of their physical location and enhances performance by reducing traffic congestion

Port Security
Allows access only to specified MAC addresses, which can be learned or specified by the administrator

Port Isolation
Secures and adds privacy, and prevents malicious attackers from obtaining user information

STP BPDU Port Protection
Blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks

STP Root Guard
Protects the root bridge from malicious attacks or configuration mistakes

Dynamic ARP Protection and Rate Limiting
Blocks ARP broadcasts from unauthorized hosts and preventing eavesdropping or theft of network data

DHCP Snooping and DHCP Relay Option 82

Prevent malicious denial-of-service attacks by acting as a firewall between untrusted hosts and trusted DHCP servers. Support DHCP snooping option 82, DHCP Relay option 82, DHCP snooping trust, DHCP snooping item backup

IP Source Guard
Prevent IP spoofing attacks

Device support

Prestandard PoE Support
Detects and provides power to prestandard PoE devices such as wireless LAN access points and IP phones

Convergence

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

Facilitates easy mapping using network management applications with LLDP automated device discovery protocol

LLDP-MED

Is a standard extension that automatically configures network devices, including LLDP-capable IP phones

LLDP-CDP compatibility

Receives and recognizes CDP packets from Cisco's IP phones for seamless interoperation

Bidirectional Forwarding Detection (BFD)

Allows rapid failure detection (often in milliseconds) between adjacent network devices

IEEE 802.3at Power over Ethernet (PoE+)

Provides up to 30 W per port for devices such as IP phones, wireless access points, and security cameras, as well as IEEE 802.3af-compliant IoT end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary

Auto PoE Power Configuration and Allocations

Assigns the required power to a port for a PD device based on Link Layer Discovery Protocol (LLDP); supports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power

Voice VLAN
Automatically assigns VLAN and priority for IP phones, simplifying network configuration and maintenance

IP Multicast Snooping (data-driven IGMP)
Prevents flooding of IP multicast traffic

Additional Information

Energy Efficient Ethernet (EEE)

Reduces power consumption in accordance with IEEE 802.3az

Green initiative support

Provides support for RoHS and WEEE regulations

Built-in 6 kV surge protection technology

Reduce the risk of power strikes in demanding environments such as construction sites

Warranty and Support

Limited Lifetime Warranty

See the HPE Aruba Networking Product Warranty Quick Reference Guide for warranty information included with your product purchase.

Software Releases

To find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to https://www.hpe.com/us/en/networking/hpe-aruba-networking-support-services.html

BTO Models

Switch Chassis

Description

SKU

HPE Networking CW 2150 48p 10M/100M/1G 4p SFP+ 1G/10G Switch

S6X52A

HPE Networking CW 2150 48p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 390W Switch

S6X53A

HPE Networking CW 2150 48p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 770W Switch

S6X54A

HPE Networking CW 2150 24p 10M/100M/1G 4p SFP+ 1G/10G Switch

S6X50A

HPE Networking CW 2150 24p 10M/100M/1G PoE+ 4p SFP 1G Combo 4p SFP+ 1G/10G 405W Switch

S6X51A

HPE Networking CW 2150 16p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 248W Switch

S6X55A

HPE Networking CW 2150 8p 10M/100M/1G 2p SFP 1G 2p SFP+ 1G/10G Switch

S6X56A

HPE Networking CW 2150 8p 10M/100M/1G PoE+ 2p SFP 1G 2p SFP+ 1G/10G 125W Switch

S6X57A

Transceivers

SFP Transceivers

Description

SKU

HPE Networking X120 1G SFP LC SX Transceiver

JD118B

HPE Networking X120 1G SFP LC LX Transceiver

JD119B

HPE Networking X120 1G SFP RJ45 T Transceiver

JD089B

HPE Networking X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE Networking X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE Networking X120 1G SFP LC LH100 Transceiver

JD103A

SFP+ Transceivers

Description

SKU

HPE Networking X130 10G SFP+ LC BiDi 40km-Downlink Transceiver

JL740A

HPE Networking X130 10G SFP+ LC ER 40km Transceiver

JG234A

HPE Networking X130 10G SFP+ LC BiDi 40km-Uplink Transceiver

JL739A

HPE Networking X130 10G SFP+ LC LH 80km Transceiver

JG915A

HPE Networking X130 10G SFP+ LC SR Transceiver

JD092B

HPE Networking X130 10G SFP+ LC LR Transceiver

JD094B

HPE Networking X130 10G SFP+ LC BiDi 10km-Uplink Transceiver

JL737A

HPE Networking X130 10G SFP+ LC BiDi 10km-Downlink Transceiver

JL738A

HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable

JD097C

HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable

JG081C

HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable

JD095C

HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable

JD096C

HPE Networking X2A0 10G SFP+ to SFP+ 7m Active Optical Cable

JL290A

HPE Networking X2A0 10G SFP+ to SFP+ 10m Active Optical Cable

JL291A

HPE Networking X2A0 10G SFP+ to SFP+ 20m Active Optical Cable

JL292A

Cables

Description

HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable

JD097C

HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable

JG081C

HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable

JD095C

HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable

JD096C

HPE Networking X2A0 10G SFP+ to SFP+ 7m Active Optical Cable

JL290A

HPE Networking X2A0 10G SFP+ to SFP+ 10m Active Optical Cable

JL291A

HPE Networking X2A0 10G SFP+ to SFP+ 20m Active Optical Cable

JL292A

HPE Networking CW 2150 Switch Series

Specifications

S6X52A

S6X53A

S6X54A

Description

HPE NW CW 2150 48G 4P Sw

HPE NW CW 2150 48G PoE+ 4P 390W Sw

HPE NW CW 2150 48G PoE+ 4P 770W Sw

Fixed Ports

48x10/100/1000BASE-T

4*1G/10GBASE-X SFP+

48x10/100/1000BASE-T PoE+

4x1G/10GBASE-X SFP+

48x10/100/1000BASE-T PoE+

4x1G/10GBASE-X SFP+

Additional Ports

1xRJ45 Console
1xOOBM

1xUSB Type C

1xRJ45 Console
1xOOBM

1xUSB Type C

1xRJ45 Console
1xOOBM

1xUSB Type C

Power supplies

Fixed

Fixed

Fixed

Fans

Fanless

2

2

Physical Characteristics

Dimensions

440mm×260mm×44mm

440mm×260mm×44mm

440mm×260mm×44mm

Weight

≤ 3.6kg

≤ 4.1kg

≤ 4.2kg

CPU

ARM 1.2GHz @ Dual Core

ARM 1.2GHz @ Dual Core

ARM 1.2GHz @ Dual Core

Memory and Flash

1GB SDRAM
512MB Flash

1GB SDRAM
512MB Flash

1GB SDRAM
512MB Flash

Packet Buffer

1.5MB

1.5MB

1.5MB

Performance

Forwarding Capacity

176Gbps

176Gbps

176Gbps

Throughput

131Mpps

131Mpps

131Mpps

Average Latency

GE: <5us
10GE:<3us

GE: <5us
10GE:<3us

GE: <5us
10GE:<3us

Stacking Members

9

9

9

Switched virtual interface

32

32

32

Mac address table

16K

16K

16K

IPv4 Routes

1500

1500

1500

IPv4 host table (ARP)

1024

1024

1024

IPv6 Routes

512

512

512

IPv6 Host Table (ND)

512

512

512

IGMP groups

500

500

500

MLD groups

500

500

500

ACL (Ingress/Egress)

1024

1024

1024

VRF

32

32

32

CW Dashboard

Device Role

Topology Master (TM) and Topology Client (TC)

Topology Master (TM) and Topology Client (TC)

Topology Master (TM) and Topology Client (TC)

Environment

Operating Temperature

23°F to 122°F (-5°C to 50°C)

23°F to 122°F (-5°C to 50°C)

23°F to 122°F (-5°C to 50°C)

Operating Relative Humidity

5% to 95%, noncondensing

5% to 95%, noncondensing

5% to 95%, noncondensing

Non-operating Temperature

-40°F to 158°F (-40°C to 70°C)

-40°F to 158°F (-40°C to 70°C)

-40°F to 158°F (-40°C to 70°C)

Non-operating storage humidity

5% to 95%, noncondensing

5% to 95%, noncondensing

5% to 95%, noncondensing

Acoustic (ISO7779)

-

37.6/45.5dB

32.9/60.0dB

Electric Characteristics

Power Rating

AC: 90V to 264V

AC: 90 to 290V

AC: 90 to 290V

Power Consumption

Idle: 13W
Typical: 31W
Full Load: 42W

Idle: 29W
Typical: 54W
Full Load: 512W (POE 390W)

Idle: 35W
Typical: 56W
Full Load: 969W (POE 770W)

PoE Power

Non-PoE

390W

770W

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1;
EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance

Emissions

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A;
EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

Immunity

EN 55024

EN 300 386

Mounting and Enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Management

Web GUI, Command-line interface (CLI), CW Dashboard, IMC - Intelligent Management Center  (IMC),  Airwave, SNMP manager and Rest API;

Warranty

Limited lifetime warranty. See the warranty duration guide

Services

See the HPE website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, contact your local HPE sales office.

HPE Networking CW 2150 Switch Series

Specifications

S6X50A

S6X51A

S6X55A

Description

HPE NW CW 2150 24G 4P Sw

HPE NW CW 2150 24G PoE+ 4F 4P 405W Sw

HPE NW CW 2150 16G PoE+ 4P 248W Sw

Fixed Prts

24x10/100/1000BASE-T

4x 1G/10GBASE-X SFP+

24x10/100/1000BASE-T PoE+

4x100/1000BASE-X SFP Combo

4x1G/10GBASE-X SFP+

16x10/100/1000BASE-T PoE+

4x1G/10GBASE-X SFP+

Additional Ports

1xRJ45 Console
1xOOBM

1xUSB Type C

1xRJ45 Console
1xOOBM

1xUSB Type C

1xRJ45 Console
1xOOBM

1xUSB Type C

Power supplies

Fixed

Fixed

Fixed

Fans

Fanless

2

1

Physical Characteristics

Dimensions

440mm×160mm×44mm

440mm×260mm×44mm

440mm×260mm×44mm

Weight

≤2.0kg

≤3.6kg

≤3.6kg

CPU

ARM 1.2 GHz @ Dual Core

ARM 1.2 GHz @ Dual Core

ARM 1.2 GHz @ Dual Core

Memory and Flash

1GB SDRAM
512MB Flash

1GB SDRAM
512MB Flash

1GB SDRAM
512MB Flash

Packet Buffer

1.5MB

1.5MB

1.5MB

Performance

Forwarding Capacity

128Gbps

128Gbps

112Gbps

Throughput

95.2Mpps

95.2Mpps

83.3Mpps

Average Latency

GE: <5us
10GE:<3us

GE: <5us
10GE:<3us

GE: <5us
10GE:<3us

Stacking Members

9

9

9

Switched virtual interface

32

32

32

Mac Address Table

16K

16K

16K

IPv4 Routes

1500

1500

1500

IPv4 host table (ARP)

1024

1024

1024

IPv6 Routes

512

512

512

IPv6 Host Table (ND)

512

512

512

IGMP groups

500

500

500

MLD groups

500

500

500

ACL (Ingress/Egress)

1024

1024

1024

VRF

32

32

32

CW Dashboard

Device Role

Topology Master (TM) and Topology Client (TC)

Topology Master (TM) and Topology Client (TC)

Topology Master (TM) and Topology Client (TC)

Environment

Operating Temperature

23°F to 122°F (-5°C to 50°C)

23°F to 122°F (-5°C to 50°C)

23°F to 122°F (-5°C to 50°C)

Operating Relative Humidity

5% to 95%, non-condensing

5% to 95%, non-condensing

5% to 95%, non-condensing

Non-operating Temperature

-40°F to 158°F (-40°C to 70°C)

-40°F to 158°F (-40°C to 70°C)

-40°F to 158°F (-40°C to 70°C)

Non-operating storage humidity

5% to 95%, non-condensing

5% to 95%, non-condensing

5% to 95%, non-condensing

Acoustic (ISO7779)

-

37.6/45.5dB

37.6/45.5dB

Electric Characteristics

Power Rating

AC: 90V to 264V

AC: 90 to 290V

AC: 90 to 290V

Power Consumption

Idle: 6W
Typical: 16W
Full Load: 21W

Idle: 23W
Typical: 35W
Full Load: 465W (POE 405W)

Idle: 25W
Typical: 38W
Full Load: 317W (POE 248W)

PoE Power

Non-PoE

405W

248W

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1;
EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance

Emissions

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A;
EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

Immunity

EN 55024

EN 300 386

Mounting and Enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Management

Web GUI, Command-line interface (CLI), CW Dashboard, IMC - Intelligent Management Center (IMC), Airwave, SNMP manager and Rest AP

Warranty

Limited lifetime warranty. See the warranty duration guide

Services

See the HPE website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, contact your local HPE sales office.

HPE Networking CW 2150 Switch Series

Specifications

S6X56A

S6X57A

Description

HPE NW CW 2150 8G 2F 2P Sw

HPE NW CW 2150 8G PoE+ 2F 2P 125W Sw

Fixed Ports

8x10/100/1000BASE-T

2x1000BASE-X SFP

2x1G/10G BASE-X SFP+

8x10/100/1000BASE-T PoE+

2x1000BASE-X SFP

2x1G/10G BASE-X SFP+

Additional Ports

1xRJ45 Console
1xOOBM

1xUSB Type C

1xRJ45 Console
1xOOBM

1xUSB Type C

Power supplies

Fixed

Fixed

Fans

Fanless

Fanless

Physical Characteristics

Dimensions

266mm×161mm×44mm

266mm×161mm×44mm

Weight

≤1.1kg

≤1.5kg

CPU

ARM 1.2GHz @ Dual Core

ARM 1.2GHz @ Dual Core

Memory and Flash

1GB SDRAM
512MB Flash

1GB SDRAM
512MB Flash

Packet Buffer

1.5MB

1.5MB

Performance

Forwarding Capacity

60Gbps

60Gbps

Throughput

44.6Mpps

44.6Mpps

Average Latency

GE: <5us
10GE:<3us

GE: <5us
10GE:<3us

Stacking Members

9

9

Switched virtual interface

32

32

Mac Address Table

16K

16K

IPv4 Routes

1500

1500

IPv4 host table (ARP)

1024

1024

IPv6 Routes

512

512

IPv6 Host Table (ND)

512

512

IGMP groups

500

500

MLD groups

500

500

ACL (Ingress/Egress)

1024

1024

VRF

32

32

CW Dashboard

Device Role

Topology Master (TM) and Topology Client (TC)

Topology Master (TM) and Topology Client (TC)

Environment

Operating Temperature

23°F to 122°F (-5°C to 50°C)

23°F to 122°F (-5°C to 50°C)

Operating Relative Humidity

5% to 95%, noncondensing

5% to 95%, noncondensing

Non-operating Temperature

-40°F to 158°F (-40°C to 70°C)

-40°F to 158°F (-40°C to 70°C)

Non-operating storage humidity

5% to 95%, noncondensing

5% to 95%, noncondensing

Acoustic (ISO7779)

-

-

Electric Characteristics

Power Rating

AC: 90V to 264V

AC: 90 to 264V

Power Consumption

Idle: 5W
Typical: 8W
Full Load: 16W

Idle: 8W
Typical: 10W
Full Load: 152W (POE 125W)

PoE Power

Non-PoE

125W

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1;
EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance

Emissions

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A;
EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

Immunity

EN 55024
EN 300 386

Mounting and Enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Management

Web GUI, Command-line interface (CLI), CW Dashboard, IMC - Intelligent Management Center (IMC), Airwave, SNMP manager and Rest AP

Warranty

Limited lifetime warranty. See the warranty duration guide

Services

See the HPE website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, contact your local HPE sales office.

Date

Version History

Action

Description of Change:

15-Jun-2026

Version 3

Changed

New SFP+ Transceivers SKUs were added in Configuration Information section: JD097C, JG081C, JD095C, JD096C, JL290A, JL291A, JL292A.

18-May-2026

Version 2

Changed

CW Dashboard information was added in Overview, Standard Features, and Technical Specifications.

06-Apr-2026

Version 1

New

New QuickSpecs

Have feedback on QuickSpecs? We're listening

Chat now

© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Products within this series are IPv6 Ready certified. See the Specifications section of this series for more information.

To learn more, visit: http://www.hpe.com/networking

a50009251enw - 17283 - Worldwide  - V3 - 15-June-2026

HEWLETT PACKARD ENTERPRISE

HPE.com
