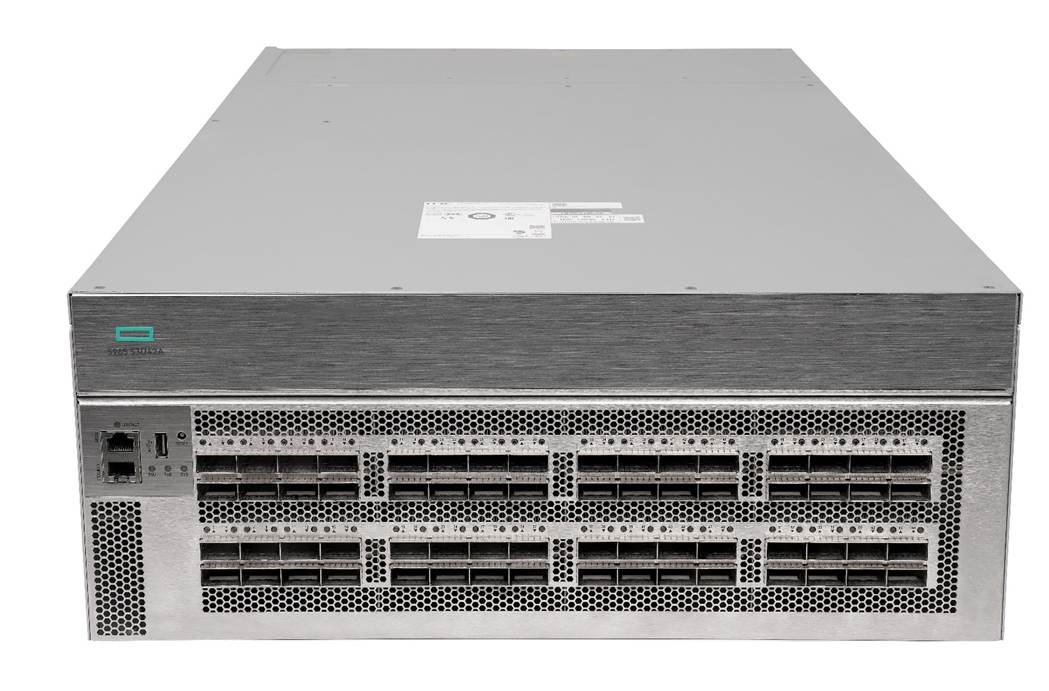

HPE Networking Comware Switch Series 5965 QuickSpecs
The HPE Networking Comware Switch Series 5965 is a high-performance, high-density top-of-rack (ToR) switch designed for enterprise data centers, cloud service providers, and telco environments.
With multiple connectivity options including 400 G and 100 G QSFP28® ports, these switches offer exceptional performance and improved power savings. Virtual Extensible LAN (VXLAN) and Ethernet VPN (EVPN), along with Distributed Resilient Network Interconnect (DRNI), improve scalability and resiliency, while modern software features enable a dynamic and highly available network. |
|
|
HPE Intelligent Management Center (IMC) support provides centralized configuration, compliance, policy management, monitoring, and troubleshooting. HPE IMC Orchestrator and Analyzer are also supported for data center fabric orchestration and application telemetry. |
|
|
|
|
|
HPE Networking Comware Switch Series 5965
|
|
|
|
Key features |
|
- High-performance 25.6 Tbps, high-density access, aggregation or core switch designed for enterprise data centers, cloud service providers, and telcos. Supports a maximum of 64 400G QSFP-DD® ports - Multiple connectivity options including 400 G, 200 G and 100G QSFP28 ports offer exceptional performance and improved power savings - The VXLAN/EVPN and DRNI improve scalability and resiliency, while modern software features enable a dynamic and highly available network - Supports centralized configuration, compliance, policy, monitoring, and troubleshooting. HPE IMC Orchestrator and Analyzer also supported for data center fabric orchestration and application telemetry - It supports OS Comware v9 offering features such as microsegmentation, RoCE®v2, PFC, ECN for highly distributed environments built on a modular, open architecture and supporting container deployments - It increases network visibility by sending real-time information, statistics, and RDMA notifications to the data center operation and maintenance platform through ERSPAN, and gRPC® protocols |
|
|
|
Advanced Data Center Switches with Flexible Connectivity Options The HPE Networking Comware Switch Series 5965 offers 40/100/200/400 G connectivity.
The switch series supports new-generation OS Comware v9 offering enhanced features such as microsegmentation, RoCEv2, PFC, ECN, and others for highly distributed environments built on a modular and open architecture, supports containerized deployment and it can run third-party software applications.
Virtual Extensible LAN (VXLAN) and Ethernet VPN (EVPN) for network virtualization and overlay solutions for improved flexibility. |
|
|
|
High-performance Data Center Switching It delivers up to 25.6 Tbps switching capacity for demanding data center applications and provides low latency of less than 1 μs, increasing network throughput.
Redundant, hot-swappable power modules and varied fan speeds to meet the actual demands, thereby enabling a dynamic and highly available network.
It uses programmability that improves flexibility and aids in network expansion by defining forwarding logic and developing new features as per user needs through simple software upgrades. |
|
|
|
Rich Quality of Service (QoS) Features The HPE Networking Comware Switch Series 5965 supports Layer 2-4 packet filtering for traffic classification based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN.
The switch supports committed access rate (CAR) and line rate for anomaly detection and troubleshooting.
It provides extensive traffic prioritization with strict priority (SP) queuing, weighted round robin (WRR), SP+WRR, WFQ, and SP+WFQ. |
|
|
|
Improved Visibility and Simplified Management The HPE Networking Comware Switch Series 5965 supports operations, administration, and maintenance (OAM) for improved manageability.
The switch series increases network visibility by sending real-time information, statistics, and RDMA notifications to the data center operation and maintenance platform through ERSPAN and gRPC protocols.
It supports real-time analysis, troubleshooting, and risk warning to improve network performance and provide business continuity.
Intel and Xeon are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. QSFP and QSFP-DD are trademarks of the Multi Source Agreement (MSA) Group. RoCE is a trademark of the InfiniBand Trade Association. gRPC is a trademark of The Linux Foundation. All third-party marks are property of their respective owners. |
|
|
|
BTO Models |
||
|
BTO Switch Enclosures |
||
|
Description |
SKU | |
|
HPE Networking Comware Data Center Switch 64p QSFP-DD 400G 5965 |
S3U42A | |
|
|
| |
|
| ||
|
CTO Models |
||
|
CTO Switch Chassis |
||
|
Description |
SKU | |
|
HPE Networking Comware Data Center Switch 64p QSFP-DD 400G 5965 |
S3U42A | |
|
|
| |
|
| ||
|
Enter the following menu selections as integrated to the CTO Model X server above if order is factory built. | ||
|
Switch Options | ||
|
QSFP28 Transceivers |
||
|
Description |
SKU | |
|
HPE Networking Comware 100G DR QSFP28 LC 500m SM Transceiver |
S4J89A | |
|
HPE Networking X150 100G QSFP28 MPO SR4 100m MM Transceiver |
JL274A | |
|
HPE Networking X150 100G QSFP28 LC SWDM4 100m MM Transceiver |
JH419A | |
|
HPE Networking X150 100G QSFP28 LC BiDi 100m MM Transceiver |
JQ344A | |
|
HPE Networking X150 100G QSFP28 eSR4 300m MM Transceiver |
JH672A | |
|
HPE Networking X150 100G QSFP28 PSM4 500m SM Transceiver |
JH420A | |
|
HPE Networking X150 100G QSFP28 LC LR4 10km SM Transceiver |
JL275A | |
|
HPE Networking X150 100G QSFP28 CWDM4 2km SM Transceiver |
JH673A | |
|
HPE Networking Comware 100G FR1 QSFP28 LC 2km SMF Transceiver |
S2P29A | |
|
HPE Networking X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable |
JL276A | |
|
HPE Networking X2A0 100G QSFP28 to QSFP28 10m Active Optical Cable |
JL277A | |
|
HPE Networking X2A0 100G QSFP28 to QSFP28 20m Active Optical Cable |
JL278A | |
|
HPE Networking X240 100G QSFP28 1m DAC Cable |
JL271A | |
|
HPE Networking X240 100G QSFP28 3m DAC Cable |
JL272A | |
|
HPE Networking X240 100G QSFP28 5m DAC Cable |
JL273A | |
|
HPE Networking X240 QSFP28 4xSFP28 1m Direct Attach Copper Cable |
JL282A | |
|
HPE Networking X240 QSFP28 4xSFP28 3m Direct Attach Copper Cable |
JL283A | |
|
HPE Networking X240 QSFP28 4xSFP28 5m Direct Attach Copper Cable |
JL284A | |
|
HPE Networking X2A0 100G QSFP28 5m Active Optical Cable |
JL796A | |
|
HPE Networking X2A0 100G QSFP28 30m Active Optical Cable |
JL795A | |
|
|
| |
|
QSFP-DD Transceivers |
||
|
Description |
SKU | |
|
HPE Networking Comware 400G DR4 QSFP-DD MPO 500m SM Transceiver |
S4J85A | |
|
HPE Networking Comware 400G LR4 WDM QSFP-DD LC 10km Transceiver |
S4J87A | |
|
HPE Networking Comware 400G ZR QSFP-DD LC 120km Tunable Transceiver |
S4M22A | |
|
HPE Networking X1E0 400G QSFP-DD SR8 MM850 100m OM4 MPO16/APC Transceiver |
R9J29A | |
|
HPE Networking X1E0 400G QSFP-DD FR4-WDM1300 2km LC Transceiver |
R9J30A | |
|
HPE Networking X1E0 400G QSFP-DD to QSFP-DD 2m Passive Cable |
R9J28A | |
|
HPE Networking Comware 1xQSFP-DD 400G to 4xQSFP56 100G 2x50G PAM4 2.5m Split Direct Attach Cable |
S0E49A | |
|
HPE Networking Comware 400G QSFP-DD to 2x QSFP56 200G 5m Active Optical Cable |
S4J99A | |
|
HPE Networking Comware 400G QSFP-DD to 2x QSFP56 200G 10m Active Optical Cable |
S4K00A | |
|
HPE Networking Comware 400G QSFP-DD to 2x QSFP56 200G 20m Active Optical Cable |
S4K01A | |
|
HPE Networking Comware 400G QSFP-DD to QSFP-DD 5m Active Optical Cable |
S6H75A | |
|
HPE Networking Comware 400G QSFP-DD to QSFP-DD 10m Active Optical Cable |
S6H76A | |
|
HPE Networking Comware 400G QSFP-DD to QSFP-DD 20m Active Optical Cable |
S6H77A | |
|
HPE Networking Comware 400G QSFP-DD to QSFP-DD 30m Active Optical Cable |
S6H78A | |
|
HPE Networking Comware 400G QSFP-DD to 4x QSFP56 100G 5m Active Optical Cable |
S6H79A | |
|
HPE Networking Comware 400G QSFP-DD to 4x QSFP56 100G 10m Active Optical Cable |
S6H80A | |
|
|
| |
|
| ||
|
Internal Power Supplies |
||
|
Description |
SKU | |
|
HPE Networking Comware 5960 400G 1600W AC Power Supply Unit |
R9Y18A | |
|
HPE Networking Comware 5960 400G 1600W AC Power Supply Unit PDU |
R9Y18A#B2B | |
|
HPE Networking Comware 5960 400G 1600W AC Power Supply Unit PDU |
R9Y18A#B2C | |
|
HPE Networking Comware 5960 400G 1600W AC Power Supply Unit No Loc |
R9Y18A#AC3 | |
|
HPE Networking Comware 5960 400G 48VDC 2400W Power Supply Unit |
R9Y19A | |
|
|
| |
|
| ||
|
Fan Trays |
||
|
Description |
SKU | |
|
HPE Networking Comware Fan Module QSFP-DD 400G Port-to-Power 5965 |
S4J83A | |
|
|
| |
|
| ||
|
HPE Networking Comware Data Center Switch 64p QSFP-DD 400G 5965 (S3U42A) | |
|
I/O ports and slots |
1 I/O module slot Supports a max of 64 400G QSFP-DD ports |
|
additional ports and slots |
1 console port, 1 RJ45 GE out of band management port, 1 USB port |
|
Power modules and slots |
4 power supply slots. 2 minimum power supply required (ordered separately) |
|
Fan tray |
6 hot swappable fans （5+1） |
|
Physical Characteristics | |
|
Dimensions (HXWXD) |
175 mm × 440 mm × 760 mm |
|
Weight |
≤ 37.20KG |
|
Memory and proc |
Intel Xeon D-1718T 4core@2.6GHZ, 16G DDR4，240G SSD |
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch rack or other equipment cabinet (hardware included); horizontal surface mounting only |
|
Performance | |
|
Latency |
<1us |
|
Switching capacity |
25.6T |
|
Forwarding capacity |
10.6 BPPS |
|
MAC address table size |
16K MAC mode |
|
8K routing mode | |
|
Routing table size |
1M/IPV4 (routing mode) |
|
1M/IPV6 (routing mode) | |
|
Environment | |
|
Operating temp |
0°C to 40°C |
|
operating relative humidity |
5% to 95%, noncondensing |
|
non-operating/storage temp |
-40°F to 158°F (-40°C to 70°C) |
|
non-operating/storage relative humidity |
5% to 95%, noncondensing |
|
Acoustic |
|
|
Airflow direction |
From front to rear |
|
Electrical characteristics | |
|
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
5592 BTU/h |
|
Current |
133A |
|
Voltage |
- Rated AC input voltage: 100 VAC to 240 VAC @ 50 Hz or 60 Hz - Rated HVDC input voltage range: 180 VDC to 320 VDC - Max output power: 1600 W |
|
Maximum power rating |
- Single power supply: 599 W - Dual power supplies: 619 W |
|
Idle power |
Static Power: Dual AC：243W Four AC：251W |
|
Typical Power: Dual AC：613W Four AC：630W | |
|
Max.Power: Dual AC：1852W Four AC：1855W | |
|
Notes |
Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. |
|
Safety |
UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1, EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1 |
|
Emissions |
FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254 YD/T 993 |
|
Management |
IMC; CLI; out-of-band management; SNMP Manager; Telnet; FTP. |
|
Notes: The customer must install a minimum of two power supply, as the device does not come with one. The customer must install 6 fan kits, as the device does not come with one. | |
|
Services |
Refer to the Hewlett Packard Enterprise website at hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office |
|
Date |
Version History |
Action |
Description of Change |
|
06-Jul-2026 |
Version 2 |
Changed |
Updated the Menu |
|
05-Jan-2026 |
Version 1 |
New |
New QuickSpecs |
|
|
|
