HPE Networking Comware Switch Series 5960 QuickSpecs

The HPE Networking Comware Switch Series 5960 are high-density, high-performance top-of-rack (ToR) switches suited for deployment at the core and aggregation layer of enterprise data centers, large cloud service providers, and telco environments.

These switches offer multiple connectivity options with high-density 400G connectivity and are backward compatible with the widely used 100G QSFP28 ports. Switching capacity of 12.8 Tbps and redundant hot-swappable power supplies offer exceptional performance with improved power savings. VXLAN/EVPN and DRNI lead to improved scalability and resiliency. Enhanced software features such as SR-MPLS running with the latest OS Comware v9 enables a dynamic and highly available network.

HPE Intelligent Management Center (IMC) support on these switches provides a consistent network manageability experience through centralized configuration, compliance, policy management, monitoring, and troubleshooting. The HPE Networking Comware Switch Series 5960 also supports HPE IMC Orchestrator and Analyzer for DC fabric orchestration and application telemetry.

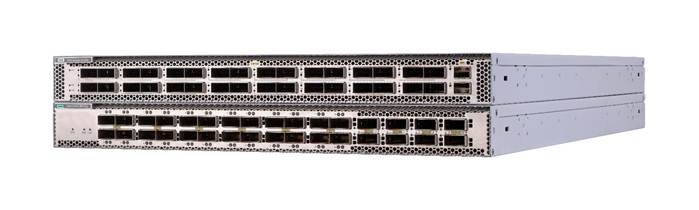

HPE Networking Comware 5960 Switch Series

Key features

- High-performance, high-density, and backward-compatible switch with varied 400/200/100G connectivity options

- New-generation OS Comware v9 offering enhanced software features such as Segment Routing MPLS, egress ACL, egress rate limiting, and others for highly distributed environments

- Dual, redundant, hot-swappable power supplies maintain a dynamic and highly available network

- Supports HPE IMC for a consistent network manageability experience; integrates with HPE IMC Orchestrator and Analyzer for DC fabric orchestration, monitoring, and application telemetry

Features and Benefits

Consistent and advanced data center switches with flexible connectivity options

- The HPE Networking Comware Switch Series 5960 offers multiple connectivity options of 25/40/100/200/400G with three SKUs

• A high-density 32 x 400GbE QSFP-DD switch
• A highly flexible 24x100/200G + 8x400G QSFP-DD switch that is backward compatible with the widely used 100G QSFP28 ports
• A high-density 48x100G 6 QSFP-DD switch

- Supports new-generation OS Comware v9 offering enhanced features such as SR-MPLS, SRv6, and others for highly distributed environments built on a modular and open architecture; supports containerized deployment; can run third-party software applications

- VXLAN/EVPN for network virtualization and overlay solutions for improved flexibility

- Supports DRNI that combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, fast forwarding, resiliency, and high availability

High-Performance Data Center Switching

- The HPE Networking Comware Switch Series 5960 supports redundant, hot-swappable power modules and varied fan speeds to meet the actual demands, thereby, ensuring a dynamic and highly available network

- Delivers up to 25.6 Tbps switching capacity for demanding data center applications

- Low latency, under 1 μs delivering increased network throughput

- Uses programmable chips that improve flexibility and aid in network expansion by defining forwarding logic and developing new features as per user needs through simple software upgrades

- HPE Networking Comware 5960R is a router switch for border leaf or DCI connection with MACsec security connection.

- HPE Networking Comware 5960R series switches support 400G 120km ZR+ transceiver, which is suitable for DCI connection scenarios, and can partially replace the transmission equipment through the ZR+ module, which is more convenient to manage.

Rich Quality of Service (QoS) Features

- The HPE Networking Comware Switch Series 5960 support Layer 2 to Layer 4 packet filtering for traffic classification based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN

- Supports committed access rate (CAR) and line rate for anomaly detection and troubleshooting

- Provides extensive traffic prioritization with strict priority (SP) queuing, weighted round robin (WRR), SP+WRR, WFQ, and SP+WFQ

Segment Routing

- SRv6 is a future-oriented new-generation protocol. It naturally supports IPv6 and satisfies access to massive address spaces. SRv6 can identify applications and tenants, realize intelligent routing based on index such as delay and bandwidth, and ensure SLA. At the same time, SRv6 implements a unified protocol, which simplifies configuration.

- SRv6 uses segments with a length of 128 bits to define network functions, and then by arranging the segments, a series of forwarding and processing behaviors of network devices can be implemented to complete service orchestration. Compared with MPLS SR protocol, it has stronger scalability and better compatibility with SDN controller, which is more conducive to deploying applications in DCI, MAN and other scenarios.

- The notable feature of SRv6 is that the forwarding plane adopts IPV6. Based on the reachability of IPV6, it is easier to realize the interconnection of different networks. SRV6 is used for forwarding within a domain, and only ordinary IPV6 forwarding is required between domains. It does not need to be like MPLS which needs to convert MPLS to IP and do a lot of complicated configurations.

Improved Visibility and Simplified Management

- The HPE Networking Comware Switch Series 5960 supports operations, administration, and maintenance (OAM) for improved manageability

- These switches can send real-time information, statistics, and RDMA notifications to the data center operation and maintenance platform through ERSPAN and gRPC protocols, thereby, enabling improved visibility

- Supports real-time analysis, troubleshooting, and risk warning to improve network performance and ensure business continuity

- Uses multiple access methods including SNMPv1/v2c/v3, Telnet, SSH 2.0, SSL, and FTP to monitor essential network functions; and supports events, alarm, history, and statistics group plus a private alarm extension group

- Supports centralized configuration, compliance and policy management, monitoring, and troubleshooting with HPE IMC to provide a consistent network manageability experience; for DC fabric orchestration and application telemetry, this switch supports HPE IMC Orchestrator and Analyzer

BTO Models

BTO Switch Enclosures

Description

SKU

HPE Networking Comware Data Center Switch 48p QSFP28 100G 6p QSFP-DD 400G 5960R

S4J82A

HPE Networking Comware Data Center Switch 24-port 100/200G QSFP56 8-port 400G QSFP-DD 5960

R9Y12A

HPE Networking Comware Data Center Switch 32-port 400G QSFP-DD 5960

R9Y13A

Rack Level Integration CTO Models

CTO Switch Chassis

Description

SKU

HPE Networking Comware Data Center Switch 48p QSFP28 100G 6p QSFP-DD 400G 5960R

S4J82A

- 48 QSFP+/QSFP28 40/100G ports (min=0 \ max=48)

- 6 QSFP28/QSFP-DD 100G/400G ports (min=0 \ max=6)

- 1 RJ45 Management Port

- 1 Console port

- 1 USB2.0 port

- 2 Power Supply Slots (Min 1 required)

- 6 Fan Tray Slots (Min 6 required)

- 2U - Height

HPE Networking Comware Data Center Switch 24-port 100/200G QSFP56 8-port 400G QSFP-DD 5960

R9Y12A

- 24 QSFP+/QSFP28 40/100G ports (min=0 \ max=24)

- 8 QSFP28/QSFP-DD 100G/400G ports (min=0 \ max=8)

- 1 RJ45 Management Port

- 1 Console port

- 1 USB2.0 port

- 2 Power Supply Slots (Min 1 required)

- 6 Fan Tray Slots (Min 6 required)

- 1U - Height

HPE Networking Comware Data Center Switch 32-port 400G QSFP-DD 5960

R9Y13A

- 32 QSFP+/QSFP28/QSFP-DD 40G/100G/400G ports (min=0 \ max=32)

- 2 SFP/SFP+ 1/10G ports (min=0 \ max=2)

- 1 RJ45 Management Port

- 1 Console port

- 1 USB2.0 port

- 2 Power Supply Slots (Min 1 required)

- 6 Fan Tray Slots (Min 6 required)

- 1U - Height

Enter the following menu selections as integrated to the CTO Model X server above if order is factory built.

Switch Options

Transceivers

SFP Transceivers

Description

SKU

HPE Networking X120 1G SFP RJ45 T Transceiver

JD089B

HPE Networking X120 1G SFP LC SX Transceiver

JD118B

HPE Networking X120 1G SFP LC LX Transceiver

JD119B

HPE Networking X120 1G SFP LC LH100 Transceiver

JD103A

SFP+ Transceivers

Description

SKU

HPE Networking X130 10G SFP+ LC BiDi 10km-Uplink Transceiver

JL737A

HPE Networking X130 10G SFP+ LC BiDi 10km-Downlink Transceiver

JL738A

HPE Networking X130 10G SFP+ LC BiDi 40km-Uplink Transceiver

JL739A

HPE Networking X130 10G SFP+ LC BiDi 40km-Downlink Transceiver

JL740A

HPE Networking X130 10G SFP+ LC SR Transceiver

JD092B

HPE Networking X130 10G SFP+ LC LR Transceiver

JD094B

HPE Networking X130 10G SFP+ LC ER 40km Transceiver

JG234A

HPE Networking X130 10G SFP+ LC LH 80km Transceiver

JG915A

HPE Networking X2A0 10G SFP+ to SFP+ 7m Active Optical Cable

JL290A

HPE Networking X2A0 10G SFP+ to SFP+ 10m Active Optical Cable

JL291A

HPE Networking X2A0 10G SFP+ to SFP+ 20m Active Optical Cable

JL292A

HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable

JD095C

HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable

JD096C

HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable

JD097C

HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable

JG081C

QSFP+ Transceivers

Description

SKU

HPE Networking X140 40G QSFP+ MPO SR4 Transceiver

JG325B

HPE Networking X140 40G QSFP+ CSR4 300m Transceiver

JG709A

HPE Networking X140 40G QSFP+ LC BiDi 100m MM Transceiver

JL251A

HPE Networking X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver

JG661A

HPE Networking X140 40G QSFP+ LC LR4L 2km SM Transceiver

JL286A

HPE Networking X140 40G QSFP+ LC ER4 40km SM Transceiver

JL306A

HPE Networking Comware 40G PLR4 QSFP+ 10km Transceiver

S4J93A

HPE Networking X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable

JL287A

HPE Networking X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable

JL288A

HPE Networking X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable

JL289A

HPE Networking Comware X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable

JG326A

HPE Networking Comware X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable

JG327A

HPE Networking Comware X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable

JG328A

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable

JG329A

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable

JG330A

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable

JG331A

QSFP28 Transceivers

Description

SKU

HPE Networking X150 100G QSFP28 MPO SR4 100m MM Transceiver

JL274A

HPE Networking X150 100G QSFP28 LC SWDM4 100m MM Transceiver

JH419A

HPE Networking X150 100G QSFP28 LC BiDi 100m MM Transceiver

JQ344A

HPE Networking X150 100G QSFP28 eSR4 300m MM Transceiver

JH672A

HPE Networking X150 100G QSFP28 PSM4 500m SM Transceiver

JH420A

HPE Networking X150 100G QSFP28 LC LR4 10km SM Transceiver

JL275A

HPE Networking X150 100G QSFP28 CWDM4 2km SM Transceiver

JH673A

HPE Networking Comware 100G FR1 QSFP28 LC 2km SMF Transceiver

S2P29A

HPE Networking X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable

JL276A

HPE Networking X2A0 100G QSFP28 to QSFP28 10m Active Optical Cable

JL277A

HPE Networking X2A0 100G QSFP28 to QSFP28 20m Active Optical Cable

JL278A

HPE Networking X240 100G QSFP28 1m DAC Cable

JL271A

HPE Networking X240 100G QSFP28 3m DAC Cable

JL272A

HPE Networking X240 100G QSFP28 5m DAC Cable

JL273A

HPE Networking X240 QSFP28 4xSFP28 1m Direct Attach Copper Cable

JL282A

HPE Networking X240 QSFP28 4xSFP28 3m Direct Attach Copper Cable

JL283A

HPE Networking X240 QSFP28 4xSFP28 5m Direct Attach Copper Cable

JL284A

HPE Networking X2A0 100G QSFP28 5m Active Optical Cable

JL796A

HPE Networking X2A0 100G QSFP28 30m Active Optical Cable

JL795A

QSFP-DD Transceivers

Description

SKU

HPE Networking Comware 400G DR4 QSFP-DD MPO 500m SM Transceiver

S4J85A

HPE Networking Comware 400G LR4 WDM QSFP-DD LC 10km Transceiver

S4J87A

HPE Networking Comware 400G ZR QSFP-DD LC 120km Tunable Transceiver

S4M22A

HPE Networking X1E0 400G QSFP-DD SR8 MM850 100m OM4 MPO16/APC Transceiver

R9J29A

HPE Networking X1E0 400G QSFP-DD FR4-WDM1300 2km LC Transceiver

R9J30A

HPE Networking X1E0 400G QSFP-DD to QSFP-DD 2m Passive Cable

R9J28A

HPE Networking Comware 1xQSFP-DD 400G to 4xQSFP56 100G 2x50G PAM4 2.5m Split Direct Attach Cable

S0E49A

HPE Networking Comware 1xQSFP-DD 400G to 8xSFP56 50G 2.5m Split Direct Attach Cable

S0P73A

HPE Networking Comware 400G QSFP-DD to QSFP-DD 10m Active Optical Cable

S6H76A

HPE Networking Comware 400G QSFP-DD to QSFP-DD 20m Active Optical Cable

S6H77A

HPE Networking Comware 400G QSFP-DD to QSFP-DD 30m Active Optical Cable

S6H78A

HPE Networking Comware 400G QSFP-DD to 4x QSFP56 100G 5m Active Optical Cable

S6H79A

HPE Networking Comware 400G QSFP-DD to 4x QSFP56 100G 10m Active Optical Cable

S6H80A

Internal Power Supplies

Description

SKU

HPE Networking Comware 5960 400G 1600W AC Power Supply Unit

R9Y18A

HPE Networking Comware 5960 400G 1600W AC Power Supply Unit PDU

R9Y18A#B2B

HPE Networking Comware 5960 400G 1600W AC Power Supply Unit PDU

R9Y18A#B2C

HPE Networking Comware 5960 400G 1600W AC Power Supply Unit No Loc

R9Y18A#AC3

HPE Networking Comware 5960 400G 48VDC 2400W Power Supply Unit

R9Y19A

Fan Trays

Description

SKU

HPE Networking Comware Module 400G Port Side to Power Supply Side Airflow Fan 5960

R9Y16A

HPE Networking Comware Module 400G Power Supply Side to Port Side Airflow Fan 5960

R9Y17A

Software

IMC

Orchestrator

Description

SKU

HPE Networking IMC Orchestrator Base License E-LTU

JL849AAE

HPE Networking IMC Orchestrator Analyzer Add-on License E-LTU

JL850AAE

HPE Networking IMC Orchestrator Network Node Add-on License E-LTU

JL851AAE

HPE Networking IMC Orchestrator Analyzer IP Host Add-on License E-LTU

JL852AAE

HPE NW CW 5960 24x100G/200G+ 8x400GQDD Sw (R9Y12A)

I/O ports and slots

1 I/O module slot Supports a max of 24x100G/200G QSFP56/ QSFP28 ports, 8x400G QDD ports

Additional ports and slots

1 console port, 1 out of band management port, 1 USB port

Power modules and slots

2 power supply slots. 1 minimum power supply required (ordered separately)

Fan tray

6 hot swappable fans

Physical Characteristics

Dimensions (HxWxD)

44 mm x 440 mm x 460 mm

Weight

≤ 13.5 kg

Memory and proc

D-1627 @ 2.9 GHz, 16G DDR4, 240G SSD

Mounting and enclosure

Mounts in an EIA standard 19-inch rack or other equipment cabinet (hardware included); horizontal surface mounting only

Performance

Latency

<1μs

Switching capacity

16Tbps

Forwarding capacity

268 Bps

MAC address table size

32K (Route mode) 224K(MAC mode)

Routing table size

IPv4

97500 (MAC mode)

980000(24B)/ 1000000(32B) (Routing mode)

IPv6

97500 (MAC mode)

1000000 (80B/128B) (Routing mode)

MAC & ARP table size

ARP Entries - Upto 88K

MAC Entries - Upto 500K

Operating temp

0°C to 40°C

Operating relative humidity

5% to 95%, noncondensing

Non-operating/storage temp

-40°F to 158°F (-40°C to 70°C)

Non-operating/storage relative humidity

5% to 95%, noncondensing

Acoustic

59.5 dB at 40% Fan Speed

72.3 dB at 70% Fan Speed

79.6 dB at 100% Fan Speed

Airflow direction

From front to rear

Electrical Characteristics

Frequency

50/60 Hz

Maximum heat dissipation

2552BTU/h

Current

70A (12V)

Voltage

DC-Input Voltage 180V to 320V

AC-Input Voltage 100V to 240V

Maximum power rating

748W

Idle power

Dual AC 146W

Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950-1CAN/CSA C22.2 No 60950-1IEC 60950-1AS/NZS 60950-1FDA 21 CFR Subchapter J GB 4943.1UL 62368-1CAN/CSA C22.2 No 62368-1IEC 62368-1EN 62368-1AS/NZS 62368-1

Emissions

FCC Part 15 SubpartB CLASS A ICES-003 CLASS A VCCI CLASS ACISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR 32 CLASS A CISPR 35EN 55035EN 61000-3-2EN 61000-3-3ETSI EN 300 386

Telecom

Management

IMC; CLI; out-of-band management; SNMP Manager; Telnet; FTP.

Notes: The customer must install a minimum of one power supply, as the device does not come with one. The customer must install 6 fan kits, as the device does not come with one.

Services

Refer to the Hewlett Packard Enterprise website at hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE NW CW 5960 32x400G QSFP-DD Sw (R9Y13A)

I/O ports and slots

1 I/O module slot Supports a max of 32 400G QSFP-DD ports and 2 SFP+ ports

Additional ports and slots

1 console port, 1 out of band management port, 1 USB port

Power modules and slots

2 power supply slots. 1 minimum power supply required (ordered separately)

Fan tray

6 hot swappable fans

Physical Characteristics

Dimensions (HxWxD)

44 mm x 440 mm x 660 mm

Weight

≤ 12.2 kg

Memory and proc

D-1627 @ 2.9 GHz, 16G DDR4, 240G SSD

Mounting and enclosure

Mounts in an EIA standard 19-inch rack or other equipment cabinet (hardware included); horizontal surface mounting only

Performance

Latency

<1 μs

Switching capacity

25.6Tbps

Forwarding capacity

353 Bps

MAC address table size

32K (Route mode) 224K(MAC mode)

Routing table size

IPv4

196000 (MAC mode)

980000 (24B)/ 1000000 (32B) (Routing mode)

IPv6

196000 (MAC mode)

1000000 (80B/128B) (Routing mode)

MAC & ARP table size

ARP Entries - Upto 88K

MAC Entries - Upto 500K

Operating temp

0°C to 40°C

Operating relative humidity

5% to 95%, noncondensing

Non-operating/storage temp

-40°F to 158°F (-40°C to 70°C)

Non-operating/storage relative humidity

5% to 95%, noncondensing

Acoustic

60.3 dB at 40% Fan Speed

73.2 dB at 70% Fan Speed

78.9 dB at 100% Fan Speed

Airflow direction

From front to rear

Electrical Characteristics

Frequency

50/60 Hz

Maximum heat dissipation

3890BTU/h

Current

70A (12V)

Voltage

DC-Input Voltage 180V to 320V

AC-Input Voltage 100V to 240V

Maximum power rating

1140W

Idle power

Dual AC 168W

Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950-1CAN/CSA C22.2 No 60950-1IEC 60950-1AS/NZS 60950-1FDA 21 CFR Subchapter J GB 4943.1UL 62368-1CAN/CSA C22.2 No 62368-1IEC 62368-1EN 62368-1AS/NZS 62368-1

Emissions

FCC Part 15 SubpartB CLASS A ICES-003 CLASS A VCCI CLASS ACISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR 32 CLASS A CISPR 35EN 55035EN 61000-3-2EN 61000-3-3ETSI EN 300 386

Telecom

Management

IMC; CLI; out-of-band management; SNMP Manager; Telnet; FTP. Notes: The customer must install a minimum of one power supply, as the device does not come with one. The customer must install 6 fan kits, as the device does not come with one.

Services

Refer to the Hewlett Packard Enterprise website at hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

HPE NW CW Sw 48C 6D 5960R (S4J82A)

I/O ports and slots

1 I/O module slot Supports a max of 48x100G QSFP28 (*24x100G QSFP56)   6 QSFP-DD ports

Additional ports and slots

1 console port, 1 out of band management port-copper, 1 USB port, 1 PPS/ToD time synchronization port

Power modules and slots

2 power supply slots. 1 minimum power supply required (ordered separately)

Fan tray

6 hot swappable fans

Physical Characteristics

Dimensions (HxWxD)

65.5 mm × 440 mm × 660 mm

Weight

≤ 20 kg

Memory and proc

32G DDR4 Memory, 4GB NAND FLASH (eMMC)

Mounting and enclosure

Mounts in an EIA standard 19-inch rack or other equipment cabinet (hardware included); horizontal surface mounting only

Performance

Latency

5～6 ms (64-byte packets)

Switching capacity

14.4 Tbps

Forwarding capacity

2700 Mpps

MAC address table size

Normal - 500K

Routing - 155K

Routing table size

3.9M IPV4/3.9M IPV6

MAC & ARP table size

ARP Entries - Upto 88K

MAC Entries - Upto 500K

Environment

Operating temp

0°C to 40°C

Operating relative humidity

5% to 95%, noncondensing

Non-operating/storage temp

-40°F to 158°F (-40°C to 70°C)

Non-operating/storage relative humidity

5% to 95%, noncondensing

Acoustic

Airflow direction

From front to rear

Electrical Characteristics

Frequency

50/60 Hz

Maximum heat dissipation

2112 BTU/hr

Current

52A (12V)

Voltage

DC - Input Voltage 180V to 320V

AC - Input Voltage 100V to 240V

Maximum power rating

1600W (Max)

Idle power

Single power supply - 218W

Dual power supplies - 229W

Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950-1

CAN/CSA C22.2 No 60950-1 IEC 60950-1

AS/NZS 60950-1

FDA 21 CFR Subchapter J GB 4943.1

UL 62368-1

CAN/CSA C22.2 No 62368-1 IEC 62368-1

EN 62368-1

AS/NZS 62368-1

Emissions

FCC Part 15 Subpart B Class A ICES-003 Class A

VCCI Class A CISPR 32 Class A EN 55032 Class A

AS/NZS CISPR32 Class A CISPR 35

EN 55035

EN 61000-3-2

EN 61000-3-3

ETSI EN 300 386

Telecom

Management

IMC; CLI; out-of-band management; SNMP Manager; Telnet; FTP.

Notes: The customer must install a minimum of one power supply, as the device does not come with one. The customer must install 6 fan kits, as the device does not come with one.

Services

Refer to the Hewlett Packard Enterprise website at hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

Standards and Protocols

Item

Standards

Forwarding mode

Store-forward

Virtualization

Distributed device management

Distributed link aggregation

Distributed resilient routing

Link aggregation

100GbE/200GbE/400GbE port aggregation

Static aggregation, dynamic aggregation

Data center

VXLAN

VXLAN DCI

802.1Qbb PFC, 802.1Qaz ETS, ECN, DCBX

EVPN distributed gateway

NETCONF, Python

RDMA, RoCE

Jumbo frame

Supported

MAC address table

Static MAC address

MAC address

VLAN

Port-based VLAN (quantity: 4094)

Default VLAN

Traffic monitoring

sFlow®/Netstream

DHCP

DHCP client

DHCP snooping/DHCP relay

DHCP snooping support for Option 82/DHCP relay agent support for Option 82

IPv6 DHCP client

DHCP relay

ARP

Gratuitous ARP Dynamic

ARP source-suppression

ARP

IP routing

Stating routing, OSPFv1/v2/v3, BGP,

IS-IS ECMP, VRRP, policy-based routing BGP4+ for IPv6,

VRRP, IPv6 policy-based routing OSPFv3, ISISv6

IPv6

IPv6 ND

ICMPv6, Telnetv6, SFTPv6, SNMP over IPv6, BFDv6, VRRPv3

IPv6 tunnel

Zero touch provisioning (ZTP)

Auto-config

MPLS

L3VPN

VPLS

MPLS L3VPN

MPLS L2VPN (Martini, Kompella)

LDP

VPLS

QinQ, Supports P/PE Function

Segment Routing (Supported with 5960R)

MPLS SR, TI-LFA FRR

MPLS TE policy, SRv6

EVPN VPLS over SRv6

EVPN VPWS over SRv6

MPLS L3VPN over SRv6

EVPN L3VPN over SRv6

MSTP

STP/RSTP/MSTP

PVST+/RPVST+

STP root guard

BPDU guard

QoS/ACL

Inbound and outbound traffic rate limit

Committed Access Rate (CAR)

Eight output queues on each port

Flexible port and queue-based queuing and scheduling algorithms

SP, WRR, WFQ, SP+WRR, and SP+WFQ queuing

802.1p and DSCP priority remarking

Packet filtering at Layer 2 to Layer 4

Traffic classification based on source MAC address, destination

MAC address, source IPv4/IPv6 address, destination IPv4/IPv6 address, port number, protocol type, and VLAN

Time range-based ACL

Bi-directional ACLs (inbound and outbound)

ACLs VLAN-based ACL assignment

WRED

Mirroring

Traffic mirroring

N:4 port mirroring

Local port mirroring, remote port mirroring

Multiple remote mirroring ports (reflector port)

LACP

LACP

LACP local forwarding first

LACP short time

LACP stack split detection

Security

Hierarchical user management and password protection

AAA/RADIUS/HWTACACS

MACsec (only supported with 5960R)

SSH 2.0

HTTPS/SSL PKI

LLDP

LLDP

LLDP-MED

Loading and upgrading

Loading/upgrading through the XMODEM protocol

Loading/upgrading through FTP and TFTP

Management and maintenance

Configuration via CLI, Telnet, and console port scheduled job

SNMPv1/v2c/v3

Telemetry

gRPC

HPE IMC

System logs

Hierarchical alarms

NTP, SNTP

Power, fan, and temperature alarms

Debugging information output

Ping and traceroute

File uploading and downloading through the USB port

Safety

UL 60950-1

CAN/CSA C22.2 No. 60950-1

IEC 60950-1, EN 60950-1

AS/NZS 60950-1

FDA 21 CFR Subchapter J

GB 4943.1

EMC

FCC Part 15 Subpart B CLASS A

ICES-003 CLASS A

VCCI CLASS A

CISPR 32 CLASS A

EN 55032 CLASS A

AS/NZS CISPR 32 CLASS A

CISPR 24

EN 55024

EN 61000-3-2

EN 61000-3-3

ETSI EN 300 386

GB/T 9254

YD/T 993

Have feedback on QuickSpecs? We're listening

Chat now

© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

To learn more, visit http://www.hpe.com/networking

a50007000enw - 17110 - Worldwide  - V12 - 15-June-2026

HEWLETT PACKARD ENTERPRISE

HPE.com
