HPE Networking Comware Switch Series 5550 HI: технические характеристики и документация

HPE Networking Comware Switch Series 5550 HI

Overview

Have feedback on QuickSpecs? We're listening

HPE Networking Comware Switch Series 5550 HI QuickSpecs

The HPE Networking Comware Switch Series 5550 HI is a family of stackable L3 access and aggregation switches powered by HPE Comware OS delivering scalability and resiliency for medium and large enterprise campus networks.

With 36 and 48 MACsec-256 enabled 1 GbE downlink ports, 10/25 GbE uplinks, combo ports, expansion slots for dual 100 GbE modules, and up to 90W of 802.3bt PoE per port, this flexible series delivers security, modularity, and performance for your network. Up to nine (9) switch Intelligent Resilient Fabric (IRF) stacking add scale, resiliency, and simplicity for your access network.



Network visibility, management, and operation tools for this series facilitated by standard CLI at no additional cost. The series integrates with HPE Aruba Networking IMC, delivering a centralized point of control for your entire network

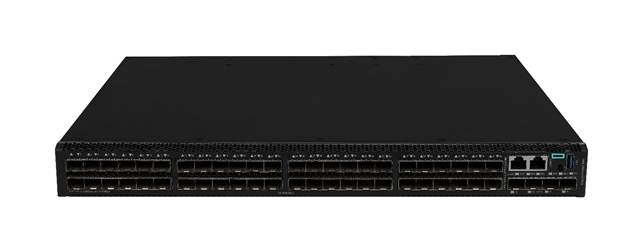

HPE NW CW Sw 48F 4Y 1-slot 5550HI (S5T55A)



HPE NW CW Sw 32G 4P 4Y 1-slot 5550HI (S5T56A)

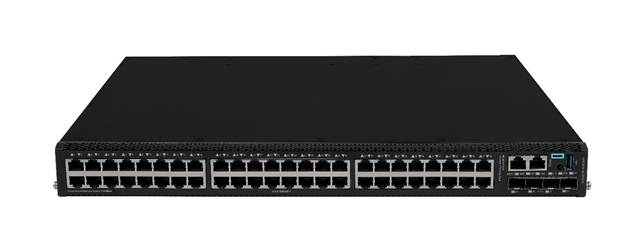

HPE NW CW Sw 48G 4Y 1-slot 5550HI (S5T57A)



HPE NW CW Sw 32G PoE8 4P 4Y 1s 5550HI (S5T58A)

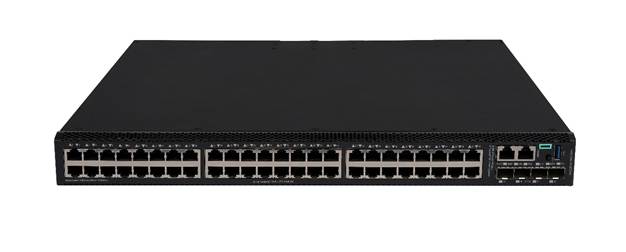

HPE NW CW Sw 48G PoE8 4Y 1-slot 5550HI (S5T59A)

Key Features

- Stackable gigabit L3 access switches with 10/25 GbE uplinks, supporting MPLS, VPLS, L3 multicast, VXLAN/EVPN, OSPF, VRRP, VRRPE, RIP, and routed access. 802.3bt up to 90 watts per port on PoE models

- 36 and 48 port options with larger 128K MAC tables, up to 744 Gbps of switching capacity and 553 Mpps of forwarding. Scales up to 9-members with Intelligent Resilient Fabric (IRF) stacking. PoE+ for up to 30 Watts of PoE power per port on all ports simultaneously

- Adds VXLAN and EVPN for isolation and scalability of L2/L3 overlay and multicast services, containerization for application hosting, and industry-standard MACsec 256 encryption

- DRNI combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability

- Standard CLI delivers network visibility, management, and operations at no additional cost

Standard Features

Quality of Service (QoS)

Advanced classifier based QoS

Classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis



VXLAN hardware support
VXLAN L2/L3 gateway support for up to 3072 unicast tunnels with 512 VSI instance



EVPN support
Used as overlay control plane and provides virtual connectivity between different Layer 2/3 domains over an IP or MPLS network



Powerful QoS feature
Creates traffic classes based on access control lists (ACLs), IEEE 802.1p precedence, IP, and DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror, or remark; supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), weighted random early discard (WRED), weighted deficit round robin (WDRR), SP+WDRR, and SP+WFQ


Supports IPv6 and fully featured L3 functionality, including RIP, OSPF, ISIS, BGP, and PIM without additional software licensing.



Storm restraint and Broadcast control

Allows limitations of broadcast, multicast, and unknown unicast traffic rate to reduce unwanted network broadcast traffic

Management

Friendly port names
Allows assignment of descriptive names to ports



sFlow

Provides scalable ASIC-based wire-speed network monitoring and accounting with no impact on network performance that allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring



Complete session logging
Provides detailed information for problem identification and resolution



Remote configuration and management
Enables configuration and management through a CLI located on a remote device



Manager and operator privilege levels
Provides read-only (operator) and read/write (manager) access on CLI management interfaces



Management VLAN
Segments traffic to and from management interfaces, including CLI/Telnet and SNMP

Command authorization

Leverages RADIUS/HWTACACS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit trail



Remote monitoring (RMON)

Uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group



Multiple configuration files
Stores easily to the flash image



Remote intelligent mirroring

Mirrors ingress/egress ACL-selected traffic from a switch port or VLAN to a local or remote switch port anywhere on the network



Network Management

SNMP v1/v2c/v3, MIB-II with Traps, and RADIUS Authentication Client MIB (RFC 2618); embedded HTML management tool with secure access



IPv6 management

Provides future-proof networking as the switch is capable of being managed whether the attached network is running IPv4 or IPv6; supports pingv6, tracertv6, Telnetv6, TFTPv6, DNSv6, syslogv6, FTPv6, SNMPv6, DHCPv6, and RADIUS for IPv6



Troubleshooting

Ingress and egress port monitoring enables network problem-solving; virtual cable tests provide visibility into cable problems



HPE Intelligent Management Center (IMC)

Integrates fault management, element configuration, and network monitoring from a central vantage point; built-in support for third-party devices enables network administrators to centrally manage all network elements with a variety of automated tasks, including discovery, categorization, baseline configurations, and software images; the software also provides configuration comparison tools, version tracking, change alerts, and more.



Connectivity

Auto-MDIX
Automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports



Packet storm protection
Protects against broadcast, multicast, or unicast storms with user-defined thresholds



Ethernet operations, administration and maintenance (OAM)
Detects data link layer problems that occurred in the "last mile" using the IEEE 802.3ah OAM standard; monitors the status of the link between two devices



Flow control
Provides back pressure using standard IEEE 802.3x, reducing congestion in heavy traffic situations



Fixed 10/25G SFP+ Ports

Provides four (4) fixed 10/25G SFP+ ports to the network without the need for additional extension interface modules



Jumbo packet support
Supports up to 10000-byte frame size to improve the performance of large data transfers



IEEE 802.3at Power over Ethernet (PoE+)

Provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments.

Performance

Supports Equal-Cost Multipath
Enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth.



Hardware-based wirespeed access control lists (ACLs)

Help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation



Nonblocking architecture

Delivers up to 744 Gbps of wire-speed switching with a nonblocking switching fabric and up to 553 Mpps throughput

Virtual Private Network (VPN)

Generic Routing Encapsulation (GRE)
Transports Layer 2 connectivity over a Layer 3 path in a secured way; enables the segregation of traffic from site to site



Resiliency and High Availability

Separate data and control paths
Separate control from services and keeps service processing isolated; increases security and performance



Distributed Resilient Network Interconnection (DRNI)

Enables link aggregation from multiple switches to implement device-level link backup for node redundancy. DRNI also simplifies network topology by virtualizing multiple physical devices into one logical device.



Device Link Detection Protocol (DLDP)

Monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks



Intelligent Resilient Fabric (IRF)

Creates virtual resilient switching fabrics, where up to nine switches perform as a single L2 switch and L3 router; switches do not have to be co-located and can be part of a disaster-recovery system; servers or switches can be attached using standard LACP for automatic load balancing and high availability; can eliminate need for complex protocols like Spanning Tree Protocol, Equal-Cost Multipath (ECMP), or VRRP, thereby simplifying network operation



Rapid Ring Protection Protocol (RRPP)

Connects multiple switches in a high-performance ring using standard Ethernet technology; traffic can be rerouted around the ring in less than 50 ms, reducing the impact on traffic and applications



Smart Link
Allows under 100ms failover between links



Virtual Router Redundancy Protocol (VRRP)
Allows groups of two routers to dynamically back each other up to create highly available routed environments



IRF Capability

Provides single IP address management for a resilient virtual switching fabric of up to nine switches with stacking bandwidth of up to 160 Gbps to enhance performance and reliability with uninterrupted L2 switching and L3 forwarding. It delivers simpler, flatter, and more agile networks by reducing the need for complex protocols.



Spanning Tree, PVST+, MSTP, RSTP
Provides redundant links while preventing network loops



Internal Dual Redundant Power Supply
Provides high reliability by keeping network up while delivering up to 1440 Watts of PoE+



Manageability

Dual flash images

Provides independent primary and secondary operating system files for backup while upgrading



Multiple configuration files

Allow multiple configuration files to be stored to a flash image



Troubleshooting

Allows ingress and egress port monitoring, enabling network problem solving; virtual cable tests provide visibility into cable problems

Layer 2 Switching

IP multicast snooping and data-driven IGMP
Automatically prevents flooding of IP multicast traffic



Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) protocol snooping
Controls and manages the flooding of multicast packets in a Layer 2 network



128K MAC addresses
Provide access to many Layer 2 devices



IEEE 802.1ad QinQ and selective QinQ

Increase the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed campus or metro network



10/25/40/100G port aggregation
Allows grouping of ports to increase overall data throughput to a remote device



Spanning Tree/MSTP, RSTP, and STP root guard
Prevent network loops



64 MSTP instances
Allow multiple configurations of STP per VLAN group



Isolation at data link layer with private VLANs

Provides, through a two-tier VLAN structure, an additional layer of protection, simplifying network configuration while saving VLAN resources



VLAN support and tagging
Supports the IEEE 802.1Q (4K VLAN IDs)



Layer 3 Services

Longest Prefix Match (LPM)

Helps in enabling and scaling multipathing, larger switch route forwarding table, faster destination resolution



Address Resolution Protocol (ARP)

Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network



Dynamic Host Configuration Protocol (DHCP)
Simplifies the management of large IP networks; supports client, DHCP Relay enables DHCP operation across subnets



Loopback interface address
Defines an address that can always be reachable, improving diagnostic capability



User Datagram Protocol (UDP) helper function

Allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents server spoofing for UDP services such as DHCP

Route maps
Provide more control during route redistribution; allow filtering and altering of route metrics



DHCP server
Centralizes and reduces the cost of the IPv4 address management

Layer 3 Routing

IPv4 routing protocols
Support static routes, RIP, OSPF, ISIS, and BGP



IPv6 routing protocols
Provide routing of IPv6 at wire speed; support static routes, RIPng, OSPFv3, IS-ISv6, and BGP4+ for IPv6



PIM-SSM, PIM-DM, and PIM-SM (for IPv4 and IPv6)
Support IP Multicast address management and inhibition of DoS attacks



MPLS support
Provides extended support of MPLS, including MPLS VPNs and MPLS Traffic Engineering (MPLS TE)



Virtual Private LAN Service (VPLS)
Establishes point-to-multipoint Layer 2 VPNs across a provider network



Bidirectional Forwarding Detection (BFD)

Enables link connectivity monitoring and reduces network convergence time for RIP, OSPF, BGP, IS-IS, VRRP, MPLS, and IRF.



Policy-based routing
Makes routing decisions based on policies set by the network administrator



Equal-Cost Multipath (ECMP)
Enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth



IPv6 tunneling
Allows a smooth transition from IPv4 to IPv6 by encapsulating IPv6 traffic over an existing IPv4 infrastructure

Security

Access control lists (ACLs)
Provide IP Layer 2 to Layer 4 traffic filtering; support global ACL, 4K VLAN ACL table size, port ACL, and IPv6 ACL; up to 2K ingress ACLs and 512 egress ACLs are supported



IEEE 802.1X
Defines an industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server



MACsec encryption

Secures connected devices by establishing bi-directional encrypted links after an exchange and verification of security keys. Increased demand for PoE connected devices and a dramatic growth in sophistication and frequency of cyber security threats makes this feature highly relevant



Supports IPSec VPN for secure communications at the network layer



MAC-based authentication
Client is authenticated with the RADIUS server based on the client's MAC address



Identity-driven security and access control

- Per-user ACLs
Permits or denies user access to specific network resources based on user identity and time of day, allowing multiple types of users on the same network to access specific network services without risking network security or providing unauthorized access to sensitive data

- Automatic VLAN assignment
Automatically assigns users to the appropriate VLAN based on their identities



Port security
Allows access only to specified MAC addresses, which can be learned or specified by the administrator



Secure FTP/ SCP
Allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file



STP BPDU port protection
Blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks

DHCP protection
Blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks



DHCP snooping
Helps ensure that DHCP clients receive IP addresses from authorized DHCP servers and maintain a list of DHCP entries for trusted ports; prevents reception of fake IP addresses and reduces ARP attacks, improving security



DHCPv6 snooping
Ensures that DHCPv6 clients obtain IPv6 addresses from authorized DHCPv6 servers and record IP-to-MAC mappings of DHCPv6 clients



Dynamic ARP protection
Blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data



STP root guard
Protects the root bridge from malicious attacks or configuration mistakes



Guest VLAN
Provides a browser-based environment to authenticated clients similar to IEEE 802.1X



Port isolation
Secures and adds privacy, and prevents malicious attackers from obtaining user information



Endpoint Admission Defense (EAD)
Provides security policies to users accessing a network



RADIUS/HWTACACS
Eases switch management security administration by using a password authentication server



Simplified and Secure Management
Management access is provided via CLI, SNMP, Netconf and Yang



Unicast Reverse Path Forwarding (URPF)
Allows normal packets to be forwarded correctly, but discards the attaching packet due to lack of reverse path route or incorrect inbound interface; prevents source spoofing and distributed attacks; supports distributed URPF



IP source guard
Helps prevent IP spoofing attacks



IPv6 source guard
Help prevent IPv6 spoofing attacks using ND Snooping as well as DHCPv6 Snooping



ND Snooping
Allows only packets with a legally obtained IPv6 address to pass

Convergence

LLDP-MED (Media Endpoint Discovery)

Defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones



Internet Group Management Protocol (IGMP)

Utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4 multicast networks; supports IGMPv1, v2, and v3



IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Facilitates easy mapping using network management applications with LLDP automated device discovery protocol



Multicast Source Discovery Protocol (MSDP)
Allows multiple PIM-SM domains to interoperate; is used for inter-domain multicast applications



Multicast VLAN

Allows multiple VLANs to receive the same IPv4 or IPv6 multicast traffic, lessening network bandwidth demand by reducing or eliminating multiple streams to each VLAN



IEEE 802.3at Power over Ethernet (PoE+)

Provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments



PoE allocations

Supports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power for more efficient energy savings



Voice VLAN
Automatically assigns VLAN and priority for IP phones, simplifying network configuration and maintenance



IP multicast snooping (data-driven IGMP)
Prevents flooding of IP multicast traffic

Additional Information

Green IT and power

Improves energy efficiency through the use of the latest advances in silicon development; shuts off unused ports and utilizes variable-speed fans, reducing energy costs



Unified Hewlett Packard Enterprise Comware operating system with modular architecture

Provides an easy-to-enhance-and-extend feature set, which doesn't require whole-scale changes; all switching, routing, and security platforms leverage the Comware OS, a common unified modular operating system



Energy Efficient Ethernet (EEE) support
Reduces power consumption in accordance with IEEE 802.3az

Warranty and support

Limited Lifetime Warranty

See HPE Aruba Networking Support Services for warranty and support information included with your product purchase.



Software releases

To find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to HPE Aruba Networking Support Services.

Configuration Information

BTO Models

Switch Chassis

Rule #

Description

SKU

1, 2, 3

HPE Networking Comware Switch 48p SFP 1G 4p SFP28 10G/25G 1-slot 5550HI

S5T55A

- 48 SFP 1 GbE ports (min=0 \ max=48 SFP XCVR)

- 4 SFP28 10/25 GbE ports (min=0 \ max=4 SFP+/SFP28 XCVR)

- 1 port expansion module slot

- Must select min 1/ max 2 power supply

- Must select min 2/ max 2 Fan Trays

- 1U - Height

1, 2, 3

HPE Networking Comware Switch 32p 10M/100M/1G 4p SFP+ 1G/10G 4p SFP28 10G/25G 1-slot 5550HI

S5T56A

- 32 RJ-45 autosensing 10/100/1000 BASE-T ports

- Duplex: ports 1-32 support 10BASE-T/100BASE-TX, 1000BASE-T (full only);

- 4 SFP+ 1/10 GbE ports (min=0 \ max=4 SFP/SFP+ XCVR)

- 4 SFP28 10/25 GbE ports (min=0 \ max=4 SFP+/SFP28 XCVR)

- 1 port expansion module slot

- Must select min 1/ max 2 power supply

- Must select min 2/ max 2 Fan Trays

- 1U - Height

2, 3

HPE Networking Comware Switch 48p 10M/100M/1G 4p SFP28 10G/25G 1-slot 5550HI

S5T57A

- 48 RJ-45 autosensing 10/100/1000 BASE-T ports

- Duplex: ports 1-48 support 10BASE-T/100BASE-TX, 1000BASE-T (full only);

- 4 SFP28 10/25 GbE ports (min=0 \ max=4 SFP+/SFP28 XCVR)

- 1 port expansion module slot

- Must select min 1/ max 2 power supply

- Must select min 2/ max 2 Fan Trays

- 1U - Height

1, 2, 3

HPE Networking Comware Switch 32p 10M/100M/1G PoE8 4p SFP+ 1G/10G 4p SFP28 10G/25G 1-slot 5550HI

S5T58A

- 32 RJ-45 autosensing 10/100/1000 BASE-T PoE++ ports;

- Duplex: ports 1-32 support 10BASE-T/100BASE-TX (half or full), 1000BASE-T (full only);

- 4 SFP+ 1/10 GbE ports (min=0 \ max=4 SFP/SFP+ XCVR)

- 4 SFP28 10/25 GbE ports (min=0 \ max=4 SFP+/SFP28 XCVR)

- 1 port expansion module slot

- Must select min 1/ max 2 power supply

- Must select min 2/ max 2 Fan Trays

- 1U - Height

2, 3

HPE Networking Comware Switch 48p 10M/100M/1G PoE8 4p SFP28 10G/25G 1-slot 5550HI

S5T59A

- 48 RJ-45 autosensing 10/100/1000 BASE-T PoE++ ports

- Duplex: ports 1-48 support 10BASE-T/100BASE-TX (half or full), 1000BASE-T (full only);

- 4 SFP28 10/25 GbE ports (min=0 \ max=4 SFP+/SFP28 XCVR)

- 1 port expansion module slot

- Must select min 1/ max 2 power supply

- Must select min 2/ max 2 Fan Trays

- 1U - Height







Configuration Rules

Rule #

Description

1

The following Transceivers install into this Switch: (SFP Ports)



HPE Networking X120 1G SFP LC SX Transceiver

JD118B



HPE Networking X120 1G SFP LC LX Transceiver

JD119B



HPE Networking X120 1G SFP RJ45 T Transceiver

JD089B



HPE Networking X120 1G SFP LC BX 10-U Transceiver

JD098B



HPE Networking X120 1G SFP LC BX 10-D Transceiver

JD099B



HPE Networking X120 1G SFP LC LH100 Transceiver

JD103A

2

The following Transceivers install into this Switch: (SFP+ Ports)



HPE Networking X130 10G SFP+ LC BiDi 40km-Downlink Transceiver

JL740A



HPE Networking X130 10G SFP+ LC ER 40km Transceiver

JG234A



HPE Networking X130 10G SFP+ LC BiDi 40km-Uplink Transceiver

JL739A



HPE Networking X130 10G SFP+ LC LH 80km Transceiver

JG915A



HPE Networking X130 10G SFP+ LC SR Transceiver

JD092B



HPE Networking X130 10G SFP+ LC LR Transceiver

JD094B



HPE Networking X130 10G SFP+ LC BiDi 10km-Uplink Transceiver

JL737A



HPE Networking X130 10G SFP+ LC BiDi 10km-Downlink Transceiver

JL738A



HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable

JD097C



HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable

JG081C



HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable

JD095C



HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable

JD096C



HPE Networking X2A0 10G SFP+ to SFP+ 7m Active Optical Cable

JL290A



HPE Networking X2A0 10G SFP+ to SFP+ 10m Active Optical Cable

JL291A



HPE Networking X2A0 10G SFP+ to SFP+ 20m Active Optical Cable

JL292A

3

The following 25G Transceivers install into this Switch: (SFP28 Ports)



HPE Networking X190 25G SFP28 LC SR 100m MM Transceiver

JL293A



HPE Networking 25G SFP28 LC LR 10km SMF Transceiver

JL855A



HPE Networking X240 25G SFP28 to SFP28 1m DAC Cable

JL294A



HPE Networking X240 25G SFP28 to SFP28 3m DAC Cable

JL295A



HPE Networking X240 25G SFP28 to SFP28 5m DAC Cable

JL296A



HPE Networking X2A0 25G SFP28 to SFP28 3m Active Optical Cable

JH955A



HPE Networking X2A0 25G SFP28 to SFP28 5m Active Optical Cable

JH956A



HPE Networking X2A0 25G SFP28 to SFP28 7m Active Optical Cable

JL297A



HPE Networking X2A0 25G SFP28 to SFP28 10m Active Optical Cable

JL298A



HPE Networking X2A0 25G SFP28 to SFP28 20m Active Optical Cable

JL299A

Notes:

OCA Only Model Selection Form - HPE Aruba Networking > Switches > HPE Networking Comware > Campus > 5550 HI Switch Series



Modules

Rule #

Description

SKU

2, 5

HPE Networking Comware Module 2p QSFP28 100G 5550HI

S5T60A

- min=0 \ max=2 QSFP+/QSFP28 Transceivers

1, 4

HPE Networking Comware Module 8p SFP28 25G 5550HI

S5T61A

- min=0 \ max=8 SFP+/SFP28 Transceivers

1, 3

HPE Networking Comware Module MACsec 8p SFP+ 1G/10G 5XX0HI

S6C30A1

- min=0 \ max=8 SFP/SFP+ Transceivers

2

HPE Networking Comware Module 2-port 40G QSFP+ 5520HI/5600HI

JH155A

- min=0 \ max=2 QSFP+ Transceivers

1

HPE Networking Comware Module 8 Port SFP+ 5520HI/5600HI

S0T03A

- min=0 \ max=8 SFP+ Transceivers

HPE Networking Comware Module 8-port 1/2.5/5/10GBASE-T 5140HI/5520HI/5600HI

S0T05A

- No Transceivers



Notes: 1MACsec-enabled Port can't use as an IRF physical interface, all ports on S6C30A module can't be used as IRF physical interface regardless of whether MACsec is enabled on these ports





Configuration Rules

Rule #

Description

1

The following Transceivers install into this Switch: (SFP+ Ports)



HPE Networking X130 10G SFP+ LC BiDi 40km-Downlink Transceiver

JL740A



HPE Networking X130 10G SFP+ LC ER 40km Transceiver

JG234A



HPE Networking X130 10G SFP+ LC BiDi 40km-Uplink Transceiver

JL739A



HPE Networking X130 10G SFP+ LC LH 80km Transceiver

JG915A



HPE Networking X130 10G SFP+ LC SR Transceiver

JD092B



HPE Networking X130 10G SFP+ LC LR Transceiver

JD094B



HPE Networking X130 10G SFP+ LC BiDi 10km-Uplink Transceiver

JL737A



HPE Networking X130 10G SFP+ LC BiDi 10km-Downlink Transceiver

JL738A



HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable

JD097C



HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable

JG081C



HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable

JD095C



HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable

JD096C



HPE Networking X2A0 10G SFP+ to SFP+ 7m Active Optical Cable

JL290A



HPE Networking X2A0 10G SFP+ to SFP+ 10m Active Optical Cable

JL291A



HPE Networking X2A0 10G SFP+ to SFP+ 20m Active Optical Cable

JL292A

2

The following 40G Transceivers install into this Module:  (Use #0D1 or #B01 if switch is CTO)



HPE Networking X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver

JG661A



HPE Networking X140 40G QSFP+ CSR4 300m Transceiver

JG709A



HPE Networking X140 40G QSFP+ MPO SR4 Transceiver

JG325B



HPE Networking X140 40G QSFP+ LC BiDi 100m MM Transceiver

JL251A



HPE Networking X140 40G QSFP+ LC LR4L 2km SM Transceiver

JL286A



HPE Networking X140 40G QSFP+ LC ER4 40km SM Transceiver

JL306A



HPE Networking Comware X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable

JG326A



HPE Networking Comware X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable

JG327A



HPE Networking Comware X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable

JG328A



HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable

JG329A



HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable

JG330A



HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable

JG331A



HPE Networking X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable

JL287A



HPE Networking X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable

JL288A

3

The following 100M Transceivers install into this Module: (Use #0D1 or #B01 if switch is CTO)



HPE Networking X115 100M SFP LC FX Transceiver

JD102B



HPE Networking X110 100M SFP LC LX Transceiver

JD120B



HPE Networking X115 100M SFP LC BX 10-U Transceiver

JD100A



HPE Networking X115 100M SFP LC BX 10-D Transceiver

JD101A

4

The following 25G Transceivers install into this Switch: (SFP28 Ports)



HPE Networking X190 25G SFP28 LC SR 100m MM Transceiver

JL293A



HPE Networking 25G SFP28 LC LR 10km SMF Transceiver

JL855A



HPE Networking X240 25G SFP28 to SFP28 1m DAC Cable

JL294A



HPE Networking X240 25G SFP28 to SFP28 3m DAC Cable

JL295A



HPE Networking X240 25G SFP28 to SFP28 5m DAC Cable

JL296A



HPE Networking X2A0 25G SFP28 to SFP28 3m Active Optical Cable

JH955A



HPE Networking X2A0 25G SFP28 to SFP28 5m Active Optical Cable

JH956A



HPE Networking X2A0 25G SFP28 to SFP28 7m Active Optical Cable

JL297A



HPE Networking X2A0 25G SFP28 to SFP28 10m Active Optical Cable

JL298A



HPE Networking X2A0 25G SFP28 to SFP28 20m Active Optical Cable

JL299A

5

The following 100G Transceivers install into this Module: (Use #0D1 or #B01 if switch is CTO)



HPE Networking X150 100G QSFP28 MPO SR4 100m MM Transceiver

JL274A



HPE Networking X150 100G QSFP28 eSR4 300m MM Transceiver

JH672A



HPE Networking X150 100G QSFP28 LC LR4 10km SM Transceiver

JL275A



HPE Networking X150 100G QSFP28 PSM4 500m SM Transceiver

JH420A



HPE Networking X150 100G QSFP28 CWDM4 2km SM Transceiver

JH673A



HPE Networking X150 100G QSFP28 LC SWDM4 100m MM Transceiver

JH419A



HPE Networking X240 100G QSFP28 1m DAC Cable

JL271A



HPE Networking X240 100G QSFP28 3m DAC Cable

JL272A



HPE Networking X240 QSFP28 4xSFP28 1m Direct Attach Copper Cable

JL282A



HPE Networking X240 QSFP28 4xSFP28 3m Direct Attach Copper Cable

JL283A



HPE Networking X240 QSFP28 4xSFP28 5m Direct Attach Copper Cable

JL284A



HPE Networking X240 100G QSFP28 5m DAC Cable

JL273A



HPE Networking X2A0 100G QSFP28 5m Active Optical Cable

JL796A



HPE Networking X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable

JL276A

6

MACsec supported on last 8 ports of Modules R9L65A-AES256 and JH157A-AES128.







Transceivers

FE Transceivers

Rule #

Description

SKU

HPE Networking X115 100M SFP LC FX Transceiver

JD102B

HPE Networking X110 100M SFP LC LX Transceiver

JD120B

HPE Networking X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE Networking X115 100M SFP LC BX 10-D Transceiver

JD101A







SFP Transceivers

Rule #

Description

SKU

HPE Networking X120 1G SFP LC SX Transceiver

JD118B

HPE Networking X120 1G SFP LC LX Transceiver

JD119B

HPE Networking X120 1G SFP RJ45 T Transceiver

JD089B

HPE Networking X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE Networking X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE Networking X120 1G SFP LC LH100 Transceiver

JD103A







SFP+ Transceivers

Rule #

Description

SKU

HPE Networking X130 10G SFP+ LC BiDi 40km-Downlink Transceiver

JL740A

HPE Networking X130 10G SFP+ LC ER 40km Transceiver

JG234A

HPE Networking X130 10G SFP+ LC BiDi 40km-Uplink Transceiver

JL739A

HPE Networking X130 10G SFP+ LC LH 80km Transceiver

JG915A

HPE Networking X130 10G SFP+ LC SR Transceiver

JD092B

HPE Networking X130 10G SFP+ LC LR Transceiver

JD094B

HPE Networking X130 10G SFP+ LC BiDi 10km-Uplink Transceiver

JL737A

HPE Networking X130 10G SFP+ LC BiDi 10km-Downlink Transceiver

JL738A

HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable

JD095C

HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable

JD096C

HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable

JD097C

HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable

JG081C

HPE Networking X2A0 10G SFP+ to SFP+ 7m Active Optical Cable

JL290A

HPE Networking X2A0 10G SFP+ to SFP+ 10m Active Optical Cable

JL291A

HPE Networking X2A0 10G SFP+ to SFP+ 20m Active Optical Cable

JL292A



SFP28 Transceiver

Rule #

Description

SKU

HPE Networking X190 25G SFP28 LC SR 100m MM Transceiver

JL293A

HPE Networking 25G SFP28 LC LR 10km SMF Transceiver

JL855A

HPE Networking X240 25G SFP28 to SFP28 1m DAC Cable

JL294A

HPE Networking X240 25G SFP28 to SFP28 3m DAC Cable

JL295A

HPE Networking X240 25G SFP28 to SFP28 5m DAC Cable

JL296A

HPE Networking X2A0 25G SFP28 to SFP28 3m Active Optical Cable

JH955A

HPE Networking X2A0 25G SFP28 to SFP28 5m Active Optical Cable

JH956A

HPE Networking X2A0 25G SFP28 to SFP28 7m Active Optical Cable

JL297A

HPE Networking X2A0 25G SFP28 to SFP28 10m Active Optical Cable

JL298A

HPE Networking X2A0 25G SFP28 to SFP28 20m Active Optical Cable

JL299A







QSFP+ Transceivers

Rule #

Description

SKU

HPE Networking X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver

JG661A

HPE Networking X140 40G QSFP+ CSR4 300m Transceiver

JG709A

HPE Networking X140 40G QSFP+ MPO SR4 Transceiver

JG325B

HPE Networking X140 40G QSFP+ LC BiDi 100m MM Transceiver

JL251A

HPE Networking X140 40G QSFP+ LC LR4L 2km SM Transceiver

JL286A

HPE Networking X140 40G QSFP+ LC ER4 40km SM Transceiver

JL306A

HPE Networking Comware X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable

JG326A

HPE Networking Comware X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable

JG327A

HPE Networking Comware X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable

JG328A

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable

JG329A

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable

JG330A

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable

JG331A

HPE Networking X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable

JL287A

HPE Networking X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable

JL288A







QSFP28 Transceiver Cables

Rule #

Description

SKU

HPE Networking X150 100G QSFP28 MPO SR4 100m MM Transceiver

JL274A

HPE Networking X150 100G QSFP28 eSR4 300m MM Transceiver

JH672A

HPE Networking X150 100G QSFP28 LC LR4 10km SM Transceiver

JL275A

HPE Networking X150 100G QSFP28 PSM4 500m SM Transceiver

JH420A

HPE Networking X150 100G QSFP28 CWDM4 2km SM Transceiver

JH673A

HPE Networking X150 100G QSFP28 LC SWDM4 100m MM Transceiver

JH419A

HPE Networking X240 100G QSFP28 1m DAC Cable

JL271A

HPE Networking X240 100G QSFP28 3m DAC Cable

JL272A

HPE Networking X240 QSFP28 4xSFP28 1m Direct Attach Copper Cable

JL282A

HPE Networking X240 QSFP28 4xSFP28 3m Direct Attach Copper Cable

JL283A

HPE Networking X240 QSFP28 4xSFP28 5m Direct Attach Copper Cable

JL284A

HPE Networking X240 100G QSFP28 5m DAC Cable

JL273A

HPE Networking X2A0 100G QSFP28 5m Active Optical Cable

JL796A

HPE Networking X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable

JL276A

HPE Networking X2A0 100G QSFP28 to QSFP28 10m Active Optical Cable

JL277A

HPE Networking X2A0 100G QSFP28 to QSFP28 20m Active Optical Cable

JL278A







Internal Power Supplies

Rule #

Description

SKU

1

HPE Networking Comware 5X50 180W DC Power Supply

S5Z23A

1, 3, 4, 5

HPE Networking Comware 5550HI 180W Back-to-Front AC Power Supply

S5Z21A

HPE Networking Comware 5550HI 180W Back-to-Front AC Power Supply PDU

S5Z21A#B2B

HPE Networking Comware 5550HI 180W Back-to-Front AC Power Supply PDU

S5Z21A#B2C

HPE Networking Comware 5550HI 180W Back-to-Front AC Power Supply 220v

S5Z21A#B2E

HPE Networking Comware 5550HI 180W Back-to-Front AC Power Supply No Loc

S5Z21A#AC3

1, 3, 4, 5

HPE Networking Comware 5550HI 180W Front-to-Back AC Power Supply

S5Z22A

HPE Networking Comware 5550HI 180W Front-to-Back AC Power Supply PDU

S5Z22A#B2B

HPE Networking Comware 5550HI 180W Front-to-Back AC Power Supply PDU

S5Z22A#B2C

HPE Networking Comware 5550HI 180W Front-to-Back AC Power Supply 220v

S5Z22A#B2E

HPE Networking Comware 5550HI 180W Front-to-Back AC Power Supply No Loc

S5Z22A#AC3

2, 3, 4, 5

HPE Networking Comware 5x50HI 920W AC PoE Power Supply

S5Z24A

HPE Networking Comware 5x50HI 920W AC PoE Power Supply PDU

S5Z24A#B2B

HPE Networking Comware 5x50HI 920W AC PoE Power Supply PDU

S5Z24A#B2C

HPE Networking Comware 5x50HI 920W AC PoE Power Supply 220v

S5Z24A#B2E

2, 3, 4, 5

HPE Networking Comware 5x50HI 1600W AC PoE Power Supply

S5Z25A

HPE Networking Comware 5x50HI 1600W AC PoE Power Supply PDU

S5Z25A#B2B

HPE Networking Comware 5x50HI 1600W AC PoE Power Supply PDU

S5Z25A#B2C

HPE Networking Comware 5x50HI 1600W AC PoE Power Supply 220v

S5Z25A#B2E







Configuration Rules

Rule #

Description

1

This power supply is only supported on S5T56A, S5T57A, S5T55A

2

This power supply is only supported on S5T58A and S5T59A,

3

Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) . (See Localization Menu)
REMARK: When Switches/Routers are Factory Racked, Then #B2B, or #B2C should be the Defaulted Power Cable option on the Switches/Routers.

4

If #B2E is selected Then replace Localized option with #B2E for power supply and with #B2E for switch. (Offered only in North America, Mexico Taiwan, and  Japan)

5

Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following:

- For BTO shipments to India:
Please replace <Base Model>#B2C option with <Base Model>#AC3 in the Bill of Materials and add the appropriate INDIA PDU Power Cord below via Ad-Hoc:



HPE Networking 2.0m C13 to C14 PDU India Power Cord

JL671A



HPE Networking 2.5m C15 to C14 PDU India Power Cord

JL672A



HPE Networking 2.5m C19 to C20 PDU India Power Cord

JL673A

Notes:

- Drop down under power supply should offer the following options and results:

  • Switch/Router/Power Supply to PDU Power Cord -  #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (OCA Default B2B or B2C for Rack Level CTO)
  • Switch/Router/Power Supply to Wall Power Cord - Localized Option (OCA Default for BTO and Box Level CTO)
  • High Volt Switch/Router/Power Supply to Wall Power Cord -  #B2E Option. (Offered only in North America, Mexico, Taiwan, and  Japan)
  • No Power Cord Selected - #AC3 Option

- DC Power Supply does not require Localization (CLIC Rule does not require looking for Localization)

- Mixing of power supplies is supported

Accessories

Fan Trays

Rule #

Description

SKU

1, 2

HPE Networking Comware 5550HI Front-to-Back Fan Tray

S5Z28A

1, 3

HPE Networking Comware 5550HI Back-to-Front Fan Tray

S5Z29A

Configuration Rules

Rule #

Description

1

No mixing allowed

2

If BF Power Supply S5Z21A was selected in PSU section, then this FB Fan Tray cannot be selected

3

If FB Power Supply S5Z22A was selected in PSU section, then this BF Fan Tray cannot be selected



Technical Specifications

HPE Networking Comware Switch Series 5550 HI

Specifications

S5T55A
NW CW Sw 48F 4Y 1-slot 5550HI

S5T56A
NW CW Sw 32G 4P 4Y 1-slot 5550HI

S5T57A
NW CW Sw 48G 4Y 1-slot 5550HI

Fixed Ports

48x  100/1000Base-X SFP ports
4x 10G/25GBase-X SFP28 ports

32x 10/100/1000Base-T ports
4x 1G/10GBase-X SFP+ ports
4x 10G/25GBase-X SFP28 ports

48x 10/100/1000Base-T ports
4x 10G/25GBase-X SFP28 ports

Additional Ports

1x RJ45 console
1x USB
1x OOBM

1x RJ45 console
1x USB
1x OOBM

1x RJ45 console
1x USB
1x OOBM

Expansion slots

1 slot

1 slot

1 slot

Power supplies

1+1, hot swappable

1+1, hot swappable

1+1, hot swappable

Fans

1+1, hot swappable

1+1, hot swappable

1+1, hot swappable

Physical Characteristics

Dimensions

44cm(W) × 36cm(D) × 4.4cm(H)

44cm(W) × 36cm(D) ×- 4.4cm(H)

44cm(W) × 36cm(D) × 4.4cm(H)

Weight

≤6.7kg

≤6.6kg

≤6.7kg

CPU

ARM,2GHz @ Quard Core

ARM,2GHz @ Quard Core

ARM,2GHz @ Quard Core

Memory and Flash

4GB RAM
4GB Flash

4GB RAM
4GB Flash

4GB RAM
4GB Flash

Packet Buffer

8M

8M

8M

Performance

Forwarding Capacity

696Gbps

744Gbps

696Gbps

Throughput

518Mpps

554Mpps

518Mpps

Average Latency

GE: <5us
25GE: <3us

GE: <5us
25GE: <3us

GE: <5us
25GE: <3us

Stacking Members

9

9

9

Stacking Bandwidth

200Gbps

200Gbps

200Gbps

Switched virtual interface

1K

1K

1K

Mac Address Table

128K

128K

128K

IPv4 Routes

266K

266K

266K

IPv4 host table (ARP)

80K

80K

80K

IPv6 Routes

133K

133K

133K

IPv6 Host Table (ND)

 58K

 58K

 58K

IPv4/v6 Multicast Routes

1000/1000

1000/1000

1000/1000

IGMP groups

4000

4000

4000

MLD groups

2718

2718

2718

ACL (Ingress/Egress)

4864/512

4864/512

4864/512

VRF

1000

1000

1000

Environment

Operating Temperature

23°F to 122°F (-5°C to 50°C)

23°F to 122°F (-5°C to 50°C)

23°F to 122°F (-5°C to 50°C)

Operating Relative Humidity

5% to 95%, noncondensing

5% to 95%, noncondensing

5% to 95%, noncondensing

Non-operating Temperature

-40°F to 158°F (-40°C to 70°C)

-40°F to 158°F (-40°C to 70°C)

-40°F to 158°F (-40°C to 70°C)

Non-operating storage humidity

5% to 95%, noncondensing

5% to 95%, noncondensing

5% to 95%, noncondensing

Acoustic (ISO7779)

41.5/55dB

40.3/55dB

44.9/55dB

Electric Characteristics

Max Heat Dissipation

Ranges from 98 BTU/hr to 477 BTU/hr depending on power supply configuration

Ranges from 109 BTU/hr to 324 BTU/hr depending on power supply configuration

Ranges from 116 BTU/hr to 341 BTU/hr depending on power supply configuration

Power Rating

AC: 90V to 290V
DC: -36V to -72V

AC: 90V to 290V
DC: -36V to -72V

AC: 90V to 290V
DC: -36Vto -72V

Power Consumption

Idle:
Single AC: 29W
Dual AC: 36W
Single DC: 34W
Dual DC: 39W

Full Load:
Single AC: 135W
Dual AC: 139W
Single DC: 135W
Dual DC: 140W

Idle:
Single AC: 32W
Dual AC: 39W
Single DC: 34W
Dual DC: 39W

Full Load:
Single AC: 90W
Dual AC: 96W
Single DC: 90W
Dual DC: 95W

Idle:
Single AC: 34W
Dual AC: 42W
Single DC: 35W
Dual DC: 41W

Full Load:
Single AC: 90W
Dual AC: 100W
Single DC: 95W
Dual DC: 100W

PoE Power

-

-

-

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1;
EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1;
EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1;
EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance

Emissions

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A;
EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A;
EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A;
EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

Immunity

EN 55024
EN 300 386

EN 55024
EN 300 386

EN 55024
EN 300 386

Mounting and Enclosure

Mounts in an EIA standard 19 inch telco rack or equipment cabinet (hardware included)

Management

IMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC GUI

Warranty

Limited lifetime warranty. See the warranty duration guide

Services

See the HPE website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, contact your local HPE sales office.



HPE Networking Comware Switch Series 5550 HI (continued)

Specifications

S5T58A
NW CW Sw 32G PoE8 4P 4Y 1s 5550HI

S5T59A
NW CW Sw 48G PoE8 4Y 1-slot 5550HI

Fixed Ports

32x 10/100/1000Base-T PoE++ ports
4x 1G/10GBase-X SFP+ ports
4x 10G/25GBase-X SFP28 ports

48x 10/100/1000Base-T PoE++ ports
4x 10G/25GBase-X SFP28 ports

Additional Ports

1x RJ45 console
1x USB
1x OOBM

1x RJ45 console
1x USB
1x OOBM

Expansion slots

1 slot

1 slot

Power supplies

1+1, hot swappable

1+1, hot swappable

Fans

1+1, hot swappable

1+1, hot swappable

Phsyical Characteristics

Dimensions

44cm(W) × 40cm(D) × 4.4cm(H)

44cm(W) ×40cm(D) × 4.4cm(H)

Weight

≤7.9kg

≤8.1kg

CPU

ARM,2GHz @ Quard Core

ARM,2GHz @ Quard Core

Memory and Flash

4GB RAM
4GB Flash

4GB RAM
4GB Flash

Packet Buffer

8M

8M

Performance

Forwarding Capacity

744Gbps

696Gbps

Throughput

554Mpps

518Mpps

Average Latency

GE: <5us
25GE: <3us

GE: <5us
25GE: <3us

Stacking Members

9

9

Stacking Bandwidth

200Gbps

200Gbps

Switched virtual interface

1K

1K

Mac Address Table

128K

128K

IPv4 Routes

266K

266K

IPv4 host table (ARP)

80K

80K

IPv6 Routes

133K

133K

IPv6 Host Table (ND)

 58K

 58K

IPv4/v6 Multicast Routes

1000/1000

1000/1000

IGMP groups

4000

4000

MLD groups

2718

2718

ACL (Ingress/Egress)

4864/512

4864/512

VRF

1000

1000

Environment

Operating Temperature

23°F to 122°F (-5°C to 50°C)

23°F to 122°F (-5°C to 50°C)

Operating Relative Humidity

5% to 95%, noncondensing

5% to 95%, noncondensing

Non-operating Temperature

-40°F to 158°F (-40°C to 70°C)

-40°F to 158°F (-40°C to 70°C)

Non-operating storage humidity

5% to 95%, noncondensing

5% to 95%, noncondensing

Acoustic (ISO7779)

35/65.3dB

35/65.3dB

Electric Characteristics

Max Heat Dissipation

Ranges from 163 BTU/hr to 10922 BTU/hr depending on power supply configuration

Ranges from 184 BTU/hr to 10901 BTU/hr depending on power supply configuration

Power Rating

AC: 90V to 290V

AC: 90V to 290V

Power Consumption

Idle:
Single AC: 48W
Dual AC: 59W

Full Load:
Single AC: 1705W
Dual AC: 3201W

Idle:
Single AC: 54W
Dual AC: 66W

Full Load:
Single AC: 1690W
Dual AC: 3195W

PoE Power

Single PSU

PSU 920W (S5Z24A):1014W (POE:790W)

PSU 1600W (S5Z25A): (90VAC~176VAC): 997W(POE:790W)

PSU 1600W (S5Z25A): (176VAC~290VAC /180VDC~320VDC):1710W(POE:1470W)



Dual PSU

PSU 920W (S5Z24A) *2：2004W(POE:1620W)

PSU 1600W (S5Z25A) *2: (90VAC~176VAC): 2020W(POE:1620W)

PSU 1600W (S5Z25A) *2: (176VAC~290VAC /180VDC~320VDC): 3201W(POE:2870W)

Single PSU

PSU 920W (S5Z24A):1008W (POE:790W)

PSU 1600W (S5Z25A): (90VAC~176VAC): 1026W(POE:790W)

PSU 1600W (S5Z25A): (176VAC~290VAC /180VDC~320VDC):1666W(POE:1470W)



Dual PSU

PSU 920W (S5Z24A) *2：1996W(POE:1620W)

PSU 1600W (S5Z25A) *2: (90VAC~176VAC): 2010W(POE:1620W)

PSU 1600W (S5Z25A) *2: (176VAC~290VAC /180VDC~320VDC): 3195W(POE:2870W)

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1;
EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1;
EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance

Emissions

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A;
EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A;
EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

Immunity

EN 55024
EN 300 386

EN 55024
EN 300 386

Mounting and Enclosure

Mounts in an EIA standard 19 inch telco rack or equipment cabinet (hardware included)

Management

IMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC GUI

Warranty

Limited lifetime warranty. See the warranty duration guide

Services

See the HPE website at https://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, contact your local HPE sales office.



Summary of Changes

Date

Version History

Action

Description of Change

20-Jul-2026

Version 4

Changed

Adjusted the standard feature sequence, updated PoE parameters in the technical specifications, and added notes under the configuration information

05-Jan-2026

Version 3

Changed

Configuration Information section was updated.

10-Nov-2025

Version 2

Changed

Fan Trays were updated in Configuration Information section.

02-Jun-2025

Version 1

New

New QuickSpecs

Copyright





Have feedback on QuickSpecs? We're listening











Chat now





© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.



To learn more, visit: http://www.hpe.com/networking



a50009241enw - 17273 - Worldwide  - V4 - 20-July-2026





HEWLETT PACKARD ENTERPRISE

HPE.com
