HPE Networking Comware Switch Series 5150 HI QuickSpecs

The HPE Networking Comware Switch Series 5150 HI is a family of stackable L3 access switches powered by HPE Comware OS delivering scalability and resiliency for medium and large enterprise campus networks.

With 24 and 48 MACsec-256 enabled 1 GbE downlink ports, 10/25 GbE uplinks, combo ports, add-on modules, and up to 90 watts of 802.3bt PoE per port, this flexible series delivers security and performance for your, clients, servers, and IoT devices. Intelligent Resilient Fabric (IRF) stacking up to 9-members adds scale and high availability while Intelligent Network Quality Analyzer (iNQA) supports real-time visibility into network health and performance.

Network visibility, management, and operation tools for this series include standard CLI and the Smart Management Center (SmartMC), embedded and ready to use at no additional cost. The series integrates with HPE Aruba Networking IMC, delivering a centralized point of control for your entire network

HPE Networking Comware Sw 24G 8F 6Y 5150HI (S5T46A)

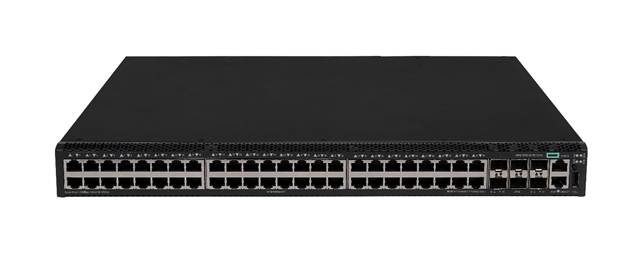

HPE Networking Comware Sw 48G 6Y 5150HI (S5T47A)

Key Features

• Stackable gigabit L3 access switches with 10/25 GbE uplinks, supporting MPLS, VPLS, L3 multicast, VXLAN/EVPN, OSPF, VRRP, VRRPE, RIP, and routed access. 802.3bt up to 90 watts per port on PoE models.
• 24 and 48 port options available, with up to 396 Gbps of switching capacity and 294 Mpps of forwarding throughput. Scales up to 9-members with Intelligent Resilient Fabric (IRF) stacking.
• Industry standard MACsec 256 support, increased MAC port binding and link group capacity for improved encryption and end-to-end network security
• In-Service Software Upgrades (ISSU) enable high availability by lowering downtime caused by planned maintenance and software upgrades
• DRNI combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
• Intelligent Network Quality Analyzer (iNQA) measures network packet loss performance and provides visibility into real  time application performance and health.
• Standard CLI and Smart Management Center (SmartMC) embedded and ready to use, delivering network visibility, management, and operations at no additional cost.

Software-Defined Networking

OpenFlow

Supports OpenFlow 1.3 specification to enable SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths

Management

Remote configuration and management
Enables configuration and management through a secure CLI located on a remote device

Manager and operator privilege levels
Provides read-only (operator) and read/write (manager) access on CLI management interfaces

Command authorization

Leverages RADIUS/HWTACACS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit trail

Multiple configuration files
Stores easily to the flash image

Complete session logging
Provides detailed information for problem identification and resolution

Remote monitoring (RMON)

Uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

Advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications

sFlow (RFC 3176)

Provides scalable ASIC-based wirespeed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes

Management VLAN
Segments traffic to and from management interfaces, including CLI/Telnet and SNMP

Remote intelligent mirroring

Mirrors ingress/egress ACL-selected traffic from a switch port or VLAN to a local or remote switch port anywhere on the network

Device Link Detection Protocol (DLDP)

Monitors a cable between two compatible switches and shuts down the ports on both ends if the cable is broken, which prevents network problems such as loops

IPv6 management

Provides future-proof networking because the switch is capable of being managed whether the attached network is running IPv4 or IPv6; supports pingv6, tracertv6, Telnetv6, TFTPv6, DNSv6, syslogv6, FTPv6, SNMPv6, DHCPv6, and RADIUS for IPv6

Troubleshooting

Ingress and egress port monitoring enables network problem-solving; virtual cable tests provide visibility into cable problems

HPE Intelligent Management Center (IMC)

Integrates fault management, element configuration, and network monitoring from a central vantage point; built-in support for third-party devices enables network administrators to centrally manage all network elements with a variety of automated tasks, including discovery, categorization, baseline configurations, and software images; the software also provides configuration comparison tools, version tracking, change alerts, and more

Network Management

SNMP v1/v2c/v3, MIB-II with Traps, and RADIUS Authentication Client MIB (RFC 2618); embedded HTML management tool with secure access

Security

Access control lists (ACLs)
Provides IP Layer 2 to Layer 4 traffic filtering; supports global ACL, VLAN ACL, port ACL, and IPv6 ACL

IEEE 802.1X

Industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server

MAC-based authentication
Client is authenticated with the RADIUS server based on the client's MAC address
Supports industry standard AES256 MACsec which provides increased MAC port binding and link group capacity for greater end-to-end security.

Identity-driven security and access control

• Per-user ACLs
  Permits or denies user access to specific network resources based on user identity and time of day, allowing multiple types of users on the same network to access specific network services without risking network security or providing unauthorized access to sensitive data
• Automatic VLAN assignment
  Automatically assigns users to the appropriate VLAN based on their identities

Secure management access
Delivers secure encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, HTTPS and/or SNMPv3

Secure FTP/ SCP

Allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file

Guest VLAN
Provides a browser-based environment to authenticated clients that is similar to IEEE 802.1X

Port security
Allows access only to specified MAC addresses, which can be learned or specified by the administrator

Port isolation
Secures and adds privacy, and prevents malicious attackers from obtaining user information

STP BPDU port protection
Blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks

STP root guard
Protects the root bridge from malicious attacks or configuration mistakes

DHCP protection
Blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks

IP source guard
Helps prevent IP spoofing attacks

Dynamic ARP protection
Blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data

RADIUS/HWTACACS
Eases switch management security administration by using a password authentication server

Endpoint Admission Defense (EAD)
Provides security policies to users accessing a network

IPv6 source guard
Help prevent IPv6 spoofing attacks using ND Snooping as well as DHCPv6 Snooping

Quality of Service (QoS)

Broadcast control
Allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic

Advanced classifier-based QoS

Classifies traffic using multiple match criteria based on Layers 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or entire switch

Powerful QoS feature
Supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), and SP+WRR

Traffic policing
Supports Committed Access Rate (CAR) and line rate

Connectivity

Auto-MDIX
Automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports

Flow control
Provides back pressure using standard IEEE 802.3x, reducing congestion in heavy traffic situations

High-density connectivity
Provides up to 48 fixed 10/100/1000BASE-T ports in a Layer 2/Lite Layer 3 switch

IEEE 802.3at Power over Ethernet (PoE+) support

Simplifies deployment and dramatically reduces installation costs by helping to eliminate the time and cost involved in supplying local power at each access point location

Ethernet operations, administration and maintenance (OAM)

Detects data link layer problems that occurred in the "last mile" using the IEEE 802.3ah OAM standard; monitors the status of the link between two devices

Performance

Nonblocking architecture
Up to 216 Gb/s nonblocking switching fabric provides wirespeed switching with up to 190.5 million pps throughput DRNI, enables link aggregation from multiple switches to implement device-level link backup for node redundancy. DRNI also simplifies network topology by virtualizing two physical devices into a logical device.

iNQA helps in measuring network packet loss performance, forward, reverse, and two-way packet loss, including lost number of messages and bytes, message loss and byte loss rate.

Hardware-based wirespeed access control lists (ACLs)

Help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation

Resiliency and High Availability

Separate data and control paths
Separates control from services and keeps service processing isolated; increases security and performance

Smart Link
Allows under 100ms failover between links

Spanning Tree/PVST+, MSTP, RSTP
Provides redundant links while preventing network loops

Intelligent Resilient Fabric (IRF)

Creates virtual resilient switching fabrics, where two to nine switches perform as a single L2 switch and L3 router; switches do not have to be co-located and can be part of a disaster-recovery system; servers or switches can be attached using standard LACP for automatic load balancing and high availability; can eliminate need for complex protocols like Spanning Tree Protocol, Equal-Cost Multipath (ECMP), or VRRP, thereby simplifying network operation

Internal Dual Redundant Power Supply
Provides high reliability by keeping network up while delivering up to 1440 Watts of PoE+

Layer 2 Switching

32K MAC address table
Provides access to many Layer 2 devices

VLAN support and tagging
Supports IEEE 802.1Q with 4,094 simultaneous VLAN IDs

IEEE 802.1ad QinQ and selective QinQ

Increase the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed campus or metro network

10/25GbE port aggregation
Allows grouping of ports to increase overall data throughput to a remote device

Device Link Detection Protocol (DLDP)

Monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks

Jumbo frame support
Improves the performance of large data transfers; supports frame size of up to 9K-bytes

Layer 3 Services

Address Resolution Protocol (ARP)

Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network

Dynamic Host Configuration Protocol (DHCP)
Simplifies the management of large IP networks; supports client; DHCP Relay enables DHCP operation across subnets

Loopback interface address
Defines an address that can always be reachable, improving diagnostic capability

User Datagram Protocol (UDP) helper function

Allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents server spoofing for UDP services such as DHCP

Route maps
Provide more control during route redistribution; allow filtering and altering of route metrics

DHCP server
Centralizes and reduces the cost of IPv4 address management

Policy Based Routing

Provides a mechanism for indicating and executing forwarding/routing of data packets based on the policies defined by the network administrator

Layer 3 Routing

Static IP routing
Provides manually configured routing for both IPv4 and IPv6 networks

Open shortest path first (OSPF)

Delivers faster convergence; uses this link-state routing Interior Gateway Protocol (IGP), which supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for faster failure recovery

Routing Information Protocol (RIP)

Uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop protection

Policy Based Routing

Provides a mechanism for indicating and executing forwarding/routing of data packets based on the policies defined by the network administrator

Convergence

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Facilitates easy mapping using network management applications with LLDP automated device discovery protocol

LLDP-MED (Media Endpoint Discovery)

Defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones

LLDP-CDP compatibility
Receives and recognizes CDP packets from Cisco's IP phones for seamless interoperation

IEEE 802.3at Power over Ethernet (PoE+)

Provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments

PoE allocations

Supports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power for more efficient energy savings

Voice VLAN
Automatically assigns VLAN and priority for IP phones, simplifying network configuration and maintenance

IP multicast snooping (data-driven IGMP)
Prevents flooding of IP multicast traffic

Multicast Source Discovery Protocol (MSDP)
Allows multiple PIM-SM domains to interoperate; is used for inter-domain multicast applications

Device Support

Pre-standard PoE support
Detects and provides power to pre-standard PoE devices such as wireless LAN access points and IP phones

Manageability

Dual flash images
Provides independent primary and secondary operating system files for backup while upgrading

Multiple configuration files
Allow multiple configuration files to be stored to a flash image

IPv6 management

Future-proofs networking, as the switch is capable of being managed whether the attached network is running IPv4 or IPv6; supports pingv6, tracertv6, Telnetv6, TFTPv6, DNSv6, and ARPv6

Troubleshooting

Allows ingress and egress port monitoring, enabling network problem solving; virtual cable tests provide visibility into cable problems

Additional Information

Green IT and power

Improves energy efficiency through the use of the latest advances in silicon development; shuts off unused ports and utilizes variable-speed fans, reducing energy costs

Green initiative support
Provides support for RoHS and WEEE regulations

Unified Hewlett Packard Enterprise Comware operating system with modular architecture

Provides an easy-to-enhance-and-extend feature set, which doesn't require whole-scale changes; all switching, routing, and security platforms leverage the Comware OS, a common unified modular operating system

Energy Efficient Ethernet (EEE) support
Reduces power consumption in accordance with IEEE 802.3az

Warranty and Support

Limited Lifetime Warranty

See HPE Aruba Networking  Support for warranty and support information included with your product purchase.

Software releases

To find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to HPE Aruba Networking  Support.

BTO Models

Switch Chassis

Rule #

Description

SKU

1, 2, 3

HPE Networking Comware Switch 24p 10M/100M/1G 8p SFP 1G Combo 6p SFP28 10G/25G 5150HI

S5T46A

- 24 fixed 10/100/1000Base-T Ports

- 8 combo SFP Ports

- min=0 \ max 8 SFP Transceivers

- 6 fixed SFP+/SFP28 Ports

- min=0 \ max=6 SFP+/SFP28  Transceivers

- Must select min1/max2 power supply

- Must select min2/max2 Fan Trays

- 1U - Height

2, 3

HPE Networking Comware Switch 48p 10M/100M/1G 6p SFP28 10G/25G 5150HI

S5T47A

- 48 fixed 10/100/1000Base-T Ports

- 6 fixed SFP+/SFP28 Ports

- min=0 \ max=6 SFP+/SFP28  Transceivers

- Must select min1/max2 power supply

- Must select min2/max2 Fan Trays

- 1U - Height

Configuration Rules

Rule #

Description

1

The following Transceivers install into this Switch: (SFP+ Ports)

HPE Networking X120 1G SFP LC SX Transceiver

JD118B

HPE Networking X120 1G SFP LC LX Transceiver

JD119B

HPE Networking X120 1G SFP RJ45 T Transceiver

JD089B

HPE Networking X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE Networking X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE Networking X120 1G SFP LC LH100 Transceiver

JD103A

2

The following Transceivers install into this Switch: (SFP+ Ports)

HPE Networking X130 10G SFP+ LC BiDi 40km-Downlink Transceiver

JL740A

HPE Networking X130 10G SFP+ LC ER 40km Transceiver

JG234A

HPE Networking X130 10G SFP+ LC BiDi 40km-Uplink Transceiver

JL739A

HPE Networking X130 10G SFP+ LC LH 80km Transceiver

JG915A

HPE Networking X130 10G SFP+ LC SR Transceiver

JD092B

HPE Networking X130 10G SFP+ LC LR Transceiver

JD094B

HPE Networking X130 10G SFP+ LC BiDi 10km-Uplink Transceiver

JL737A

HPE Networking X130 10G SFP+ LC BiDi 10km-Downlink Transceiver

JL738A

HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable

JD097C

HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable

JG081C

HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable

JD095C

HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable

JD096C

HPE Networking X2A0 10G SFP+ to SFP+ 7m Active Optical Cable

JL290A

HPE Networking X2A0 10G SFP+ to SFP+ 10m Active Optical Cable

JL291A

HPE Networking X2A0 10G SFP+ to SFP+ 20m Active Optical Cable

JL292A

3

The following 25G Transceivers install into this Switch: (SFP28 Ports)

HPE Networking X190 25G SFP28 LC SR 100m MM Transceiver

JL293A

HPE Networking 25G SFP28 LC LR 10km SMF Transceiver

JL855A

HPE Networking X240 25G SFP28 to SFP28 1m DAC Cable

JL294A

HPE Networking X240 25G SFP28 to SFP28 3m DAC Cable

JL295A

HPE Networking X240 25G SFP28 to SFP28 5m DAC Cable

JL296A

HPE Networking X2A0 25G SFP28 to SFP28 3m Active Optical Cable

JH955A

HPE Networking X2A0 25G SFP28 to SFP28 5m Active Optical Cable

JH956A

HPE Networking X2A0 25G SFP28 to SFP28 7m Active Optical Cable

JL297A

HPE Networking X2A0 25G SFP28 to SFP28 10m Active Optical Cable

JL298A

HPE Networking X2A0 25G SFP28 to SFP28 20m Active Optical Cable

JL299A

Notes:

OCA Only Model Selection Form - HPE Aruba Networking > Switches > HPE Networking Comware > Campus > 5150 HI Switch Series

Transceivers

FE SFP Transceivers

Notes:

For S0T02A module only

Rule #

Description

SKU

HPE Networking X115 100M SFP LC FX Transceiver

JD102B

HPE Networking X110 100M SFP LC LX Transceiver

JD120B

HPE Networking X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE Networking X115 100M SFP LC BX 10-D Transceiver

JD101A

SFP Transceivers

Rule #

Description

SKU

HPE Networking X120 1G SFP RJ45 T Transceiver

JD089B

HPE Networking X120 1G SFP LC SX Transceiver

JD118B

HPE Networking X120 1G SFP LC LX Transceiver

JD119B

HPE Networking X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE Networking X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE Networking X120 1G SFP LC LH100 Transceiver

JD103A

SFP+ Transceivers

Rule #

Description

SKU

HPE Networking X130 10G SFP+ LC BiDi 40km-Downlink Transceiver

JL740A

HPE Networking X130 10G SFP+ LC ER 40km Transceiver

JG234A

HPE Networking X130 10G SFP+ LC BiDi 40km-Uplink Transceiver

JL739A

HPE Networking X130 10G SFP+ LC LH 80km Transceiver

JG915A

HPE Networking X130 10G SFP+ LC SR Transceiver

JD092B

HPE Networking X130 10G SFP+ LC LR Transceiver

JD094B

HPE Networking X130 10G SFP+ LC BiDi 10km-Uplink Transceiver

JL737A

HPE Networking X130 10G SFP+ LC BiDi 10km-Downlink Transceiver

JL738A

HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable

JD097C

HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable

JG081C

HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable

JD095C

HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable

JD096C

HPE Networking X2A0 10G SFP+ to SFP+ 7m Active Optical Cable

JL290A

HPE Networking X2A0 10G SFP+ to SFP+ 10m Active Optical Cable

JL291A

HPE Networking X2A0 10G SFP+ to SFP+ 20m Active Optical Cable

JL292A

SFP28 Transceiver

Rule #

Description

SKU

HPE Networking X190 25G SFP28 LC SR 100m MM Transceiver

JL293A

HPE Networking 25G SFP28 LC LR 10km SMF Transceiver

JL855A

HPE Networking X240 25G SFP28 to SFP28 1m DAC Cable

JL294A

HPE Networking X240 25G SFP28 to SFP28 3m DAC Cable

JL295A

HPE Networking X240 25G SFP28 to SFP28 5m DAC Cable

JL296A

HPE Networking X2A0 25G SFP28 to SFP28 3m Active Optical Cable

JH955A

HPE Networking X2A0 25G SFP28 to SFP28 5m Active Optical Cable

JH956A

HPE Networking X2A0 25G SFP28 to SFP28 7m Active Optical Cable

JL297A

HPE Networking X2A0 25G SFP28 to SFP28 10m Active Optical Cable

JL298A

HPE Networking X2A0 25G SFP28 to SFP28 20m Active Optical Cable

JL299A

Cables

Multi-Mode Cables

Rule #

Description

SKU

HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable

QK732A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable

QK733A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable

QK734A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable

QK735A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable

QK736A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable

QK737A

Internal Power Supplies

Rule #

Description

SKU

1, 2, 3, 4

HPE Networking Comware 5150 70W AC Power Supply

S5Z19A

- includes 1 x c13,  70w

HPE Networking Comware 5150 70W AC Power Supply

S5Z19A

- C13 PDU Jumper Cord (NA/MEX/TW/JP)

HPE Networking Comware 5150 70W AC Power Supply

S5Z19A

- C13 PDU Jumper Cord (ROW)

HPE Networking Comware 5150 70W AC Power Supply

S5Z19A

- HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

HPE Networking Comware 5150 70W AC Power Supply

S5Z19A

- No Localized Power Cord Selected

1

HPE Networking Comware 5X50 180W DC Power Supply

S5Z23A

2, 3, 4

HPE Networking Comware 5x50HI 920W AC PoE Power Supply

S5Z24A

2, 3, 4

HPE Networking Comware 5x50HI 1600W AC PoE Power Supply

S5Z25A

Configuration Rules

Rule #

Description

1

This power supply is only supported on S5T46A, and S5T47A. Can be mixed.

2

If B2E is selected Then replace Localized option with B2E for power supply and with B2E for switch. (Offered only in North America, Mexico, Taiwan, and  Japan)

3

Localization (Wall Power Cord) required on orders without B2B, B2C (PDU Power Cord) . (See Localization Menu)

REMARK: When Switches/Routers are Factory Racked, Then B2B, or B2C should be the Defaulted Power Cable option on the Switches/Routers.

4

Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following:

- For BTO shipments to India: Please replace <Base Model>#B2C option with <Base Model>#AC3 in the Bill of Materials and add the appropriate INDIA PDU Power Cord below via Ad-Hoc:

HPE Networking 2.0m C13 to C14 PDU India Power Cord

JL671A

HPE Networking 2.5m C15 to C14 PDU India Power Cord

JL672A

HPE Networking 2.5m C19 to C20 PDU India Power Cord

JL673A

Notes:

- Drop down under power supply should offer the following options and results:

• Switch/Router/Power Supply to PDU Power Cord -  B2B in North America, Mexico, Taiwan, and Japan or B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)
• Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)
• High Volt Switch/Router/Power Supply to Wall Power Cord -  B2E Option. (Offered only in North America, Mexico, Taiwan, and  Japan)
• No Power Cord Selected - AC3 Option

- DC Power Supply does not require Localization (CLIC Rule does not require looking for Localization)

Accessories

Fan Trays

Rule #

Description

SKU

1

HPE Networking Comware 5150HI Front-to-Back Fan Tray

S5Z27A

1

HPE Networking Comware 5150HI Back-to-Front Fan Tray

S5Z26A

Configuration Rules

Rule #

Description

1

No mixing allowed

HPE Networking Comware Switch Series 5150 HI

Specifications

S5T46A
NW CW Sw 24G 8F 6Y 5150HI

S5T47A
NW CW Sw 48G 6Y 5150HI

Fixed Ports

24x 10/100/1000BASE-T ports
8x 100/1000BASE-X SFP Combo ports
6x 10G/25G SFP28 ports

48x 10/100/1000BASE-T ports
6x 10G/25G SFP28 ports

Additional Ports

1x RJ45 console
1x USB
1x OOBM

1x RJ45 console
1x USB
1x OOBM

Expansion slots

-

-

Power supplies

1+1, hot swappable

1+1, hot swappable

Fans

1+1, hot swappable

1+1, hot swappable

Physical Characteristics

Dimensions

440mm×360mm ×43.6mm

440mm×360mm ×43.6mm

Weight

CPU

ARM 1.6GHz @ Dual Core

ARM 1.6GHz @ Dual Core

Memory and Flash

4GB RAM
4GB Flash

4GB RAM
4GB Flash

Packet Buffer

3MB

3MB

Performance

Forwarding Capacity

348 Gbps

396 Gbps

Throughput

258.9Mpps

294.6Mpps

Average Latency

GE:<5
25GE:<3

GE:<5
25GE:<3

Stacking Members

9

9

Stacking Bandwidth

300Gbps

300Gbps

Switched virtual interface

1K

1K

Mac Address Table

32K

32K

IPv4 Routes

32K

32K

IPv4 host table (ARP)

16K

16K

IPv6 Routes

16K

16K

IPv6 Host Table (ND)

16,376

16,376

IPv4/v6 Multicast Routes

1000/1000

1000/1000

IGMP groups

2000

2000

MLD groups

512

512

ACL (Ingress/Egress)

1792/512

1792/512

VRF

4095

4095

Environment

Operating Temperature

23°F to 122°F (-5°C to 50°C)

23°F to 122°F (-5°C to 50°C)

Operating Relative Humidity

5% to 95%, noncondensing

5% to 95%, noncondensing

Non-operating Temperature

-40°F to 158°F (-40°C to 70°C)

-40°F to 158°F (-40°C to 70°C)

Non-operating storage humidity

5% to 95%, noncondensing

5% to 95%, noncondensing

Acoustic (ISO7779)

27.2dB/58.7dB

27.2dB/58.7dB

Electric Characteristics

Max Heat Dissipation

Ranges from 48 BTU/hr to 209 BTU/hr depending on power supply configuration

Ranges from 58 BTU/hr to 229 BTU/hr depending on power supply configuration

Power Rating

AC: 90V to 264V
DC: -36V to -72V

AC: 90V to 264V
DC: -36V to -72V

Power Consumption

Idle:
Single AC: 14W
Dual AC: 16W
Single DC:18W
Dual DC: 25W

Full Load:
Single AC: 53W
Dual AC: 56W
Single DC: 54W
Dual DC: 61W

Idle:
Single AC: 17W
Dual AC: 19W
Single DC: 21W
Dual DC: 28W

Full Load:
Single AC: 62W
Dual AC: 63W
Single DC: 61W
Dual DC: 67W

PoE Power

-

-

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1;
EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1;
EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance

Emissions

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A;
EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A;
EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A

Immunity

EN 55024
EN 300 386

EN 55024
EN 300 386

Mounting and Enclosure

Mounts in an EIA standard 19 inch telco rack or equipment cabinet (hardware included)

Mounts in an EIA standard 19 inch telco rack or equipment cabinet (hardware included)

Management

IMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC GUI

IMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC GUI

Warranty

Limited lifetime warranty. See the warranty duration guide

Limited lifetime warranty. See the warranty duration guide

Services

See the HPE website at http://www.hpe.com/networking/services for details on the service-level descriptions and product
numbers. For details about services and response times in your area, contact your local HPE sales office.

See the HPE website at http://www.hpe.com/networking/servicesfor details on the service-level descriptions and product
numbers. For details about services and response times in your area, contact your local HPE sales office.

Date

Version History

Action

Description of Change

05-Jan-2026

Version 3

Changed

Configuration Information section was updated.

28-Jul-2025

Version 2

Changed

Update survey link.

02-Jun-2025

Version 1

New

New QuickSpecs

Shape the Future of QuickSpecs - Your Input Matters

Chat now

© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Products within this series are IPv6 Ready certified. See the Specifications section of this series for more information.

To learn more, visit: http://www.hpe.com/networking

a50009237enw - 17269 - Worldwide  - V3 - 05-January-2026

HEWLETT PACKARD ENTERPRISE

HPE.com
