HPE Aruba Networking CX 8360 v2 Switch Series QuickSpecs
The HPE Aruba Networking CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era.
These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps. |
|
|
The 8360v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.
In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains. |
|
|
|
|
|

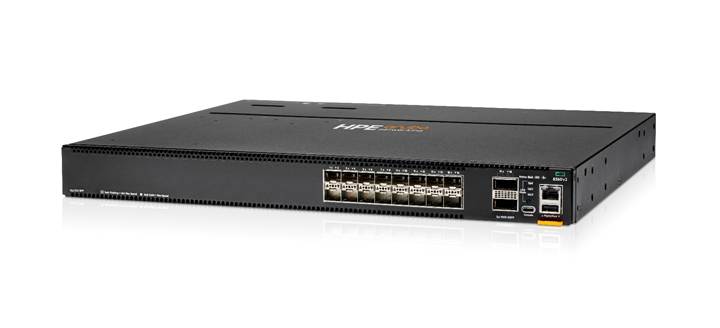

HPE Aruba Networking CX 8360 v2 Switch Series |
|
|
|
Key Features - High-performance 4.8Tbps and 2,678 Mpps - Intelligent monitoring and visibility with Network Analytics Engine - High availability with industry leading VSX redundancy, and redundant power supplies and fans - Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments - MACsec secured connectivity over untrusted domains - HPE Aruba Networking OS-CX automation and programmability using built-in REST APIs and Python scripts - Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6 - 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches - Addition of Smart Rate (1/2.5/5/10G) ports on the 8360-48XT4C |
|
|
|
Product Benefits The HPE Aruba Networking CX 8360 Switch Series is based on HPE Aruba Networking CX Switch Operating System, a modern, database-driven operating system that automates and simplifies many critical and complex tasks. The enhanced capabilities of HPE Aruba Networking CX Switch Operating System provide a unique set of differentiators for campus and data center switching.
Every CX switch includes HPE Aruba Networking CX Switch Operating System at no cost and with an active, perpetual set of native features which has everything needed to deploy, connect, and troubleshoot an enterprise network, including: - HPE Aruba Networking Network Analytics Engine (NAE) - Dynamic segmentation - Switch stacking - High Availability and Resiliency - Quality of Service (QoS) - Layer 2 switching - Layer 3 services and routing - IP Multicast - Network Security - Support for HPE Aruba Networking NetEdit
In addition to the native features available in HPE Aruba Networking CX Switch Operating System, we offer an optional, term-based HPE Aruba Networking CX Advanced Feature Pack that unlocks container infrastructure that can host HPE certified applications for flexible and reliable IT services.
For more information, read the HPE Aruba Networking CX Switch Operating System data sheet.
HPE Aruba Networking Central, Cloud-Based Network Management Flexible cloud-based or on-premises management for unified network operations of wired, WLAN, SD-WAN, and public cloud infrastructure. Designed to simplify day zero through day two operations with streamlined workflows. Switch management capabilities include configuration, onboarding, monitoring, troubleshooting, and reporting.
An HPE Aruba Networking Central Advanced license expands these capabilities with premium security and AIOps, including the Central NetConductor Fabric Wizard and Policy Manager to enable dynamic segmentation and distributed enforcement at a global scale.
Central Advanced license now comes with all CX Advanced features so there is no need to purchase a CX Advanced license. This streamlines operational efficiency, reducing the need for IT teams to keep track of multiple licenses, active terms, and renewal dates.
For more information on HPE Aruba Networking Central subscriptions, see the HPE Aruba Networking Central SaaS subscription ordering guide.
HPE Aruba Networking Network Analytics Engine HPE Aruba Networking CX Switch Operating System includes HPE Aruba Networking Network Analytics Engine (NAE) for advanced telemetry and automation. The NAE framework is an industry-first monitoring and troubleshooting system, providing greatly improved network operations. NAE uniquely provides the ability to monitor and easily troubleshoot network health and congestion issues. The Time Series Database (TSDB) may be used to store configuration and operational state.
Customers can use data from the TSDB to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.
HPE Aruba Networking Virtual Switching Extension The ability of HPE Aruba Networking CX Switch Operating System to maintain synchronous state across dual control planes allows a unique high availability solution called HPE Aruba Networking Virtual Switching Extension (VSX). VSX is delivered through redundancy gained by deploying two chassis with an inter-switch link, with each chassis maintaining its independent control.
Designed using the best features of existing HA technologies such as Multichassis Link Aggregation (MC-LAG) and Virtual Switching Framework (VSF), VSX enables a distributed architecture that is highly available during upgrades or control plane events. |
|
|
|
Product Capabilities Performance High-Speed Fully Distributed Architecture Provides up to 2.4Tbps for bidirectional switching and 1,145 Mpps for forwarding to meet the demands of bandwidth-intensive applications today and in the future
Scalable System Design Provides investment protection to support future technologies and higher-speed connectivity
Connectivity The 8360- 48Y6C v2 is available to two versions; a port-to-power airflow bundle, and a power-to-port airflow bundle: -
44
ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) - 12 ports of 40GbE/50GbE/100GbE (QSFP+/QSFP28) -
16
ports of 1GbE/10GbE/25GbE or
8 ports of 50GbE
(SFP/SFP+/SFP28) -
28
ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) -
24
ports of 1GbE/10GbE (SFP/SFP+) -
48
ports of 100M/1GbE/10GbE (10GBASE-T) MACsec support is on selected ports (see above model descriptions).
All QSFP ports (QSFP+/QSFP28), except those on the 48x1G/10GBASE-T model, support optional 4x10G/4x25G break out capability.
There is 10GBASE-T transceiver support on the SFP+/SFP28 ports.
There is 1Gbps transceiver support, including 1GBASE-T, on non-MACsec SFP+/ SFP28 ports.
Jumbo Frames Allows high-performance backups and disaster-recovery systems; provides a maximum frame size of 9K bytes
Unsupported Transceiver Mode (UTM) - Allows users to insert and enable unsupported 1G and 10G transceivers and cables - No warranty nor support for the transceiver/cable when used
Loopback Supports internal loopback testing for maintenance purposes and increased availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per-VLAN basis for added flexibility
Packet Storm Protection Protects against unknown broadcast, multicast, or unicast storms with user-defined thresholds
Quality of Service (QoS) - Strict priority (SP) queuing and Deficit Weighted Round Robin (DWRR) Enables congestion avoidance - Data Center Bridging (DCB)
- Flow-Control Guard Prevents accumulation of excessive congestion with periodic flushing. Avoids packets buffering for an extended time period - ECN with slope Marks packets as ECN-CE (Congestion Experienced. Helps TCP to reduce receive window size during congestion - Advanced lossless pool configuration - Global buffering statistics - Storage Solution Support iSCSI, Lossless iSCSI, RDMA over Converged Ethernet version 2 (RoCE v1 and v2) and Non-Volatile Memory Express (NVMeOF)
Resiliency and High Availability Redundant and load-sharing fans and power supplies Increases total performance and power availability while providing hitless, stateful failover
Hot Swappable Power Supply And Fan Modules Allows replacement of accessory modules without any operational impact on other modules nor the switch operations
Separate Data and Control Paths Separates control from services and keeps service processing isolated; increases security and performance
Virtual Switching Extension (VSX) VSX enables a distributed and redundant architecture by deploying two switches with each switch maintaining independent control yet staying synchronized during upgrades or failover. Also supports upgrades during live operation
Virtual Router Redundancy Protocol (VRRP) VRRP allows a group of switches to dynamically back each other up to create highly available routed environments
Bidirectional Forward Detection (BFD) - Enable sub-second failure detection for rapid routing protocol re-balancing - Enabled for both BGP IPv4 and Ipv6
Ethernet Ring Protection Switching (ERPS) Supports rapid protection and recovery in a ring topology.
Unidirectional Link Detection (UDLD) Monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks
IEEE 802.3ad LACP Supports up to 54 LAGs, with up to 16 members per LAG (32 for a VSX pair), with a user-selectable L1- 4 hashing algorithm.
Management In addition to the CX Mobile App, NetEdit and Network Analytics Engine, the 8360 series offers the following:
REST API interface Built-in, programmable and easy-to-use
Management interface Control Enables or disables each of the following interfaces depending on security preferences: console port, or reset button
Industry-standard CLI with a Hierarchical Structure Reduces training time and expenses, and increases productivity in multivendor installations
Management Security Restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide SNMP access; local and remote Syslog capabilities allow logging of all access
IPSLA - Monitors the network for degradation of various services, including voice. - Monitoring is enabled via the NAE for history and for immediate automated gathering of additional information when anomalies are detected
SNMP v2c/v3 Provides SNMP read and trap support of industry standard Management Information Base (MIB), and private extensions
sFlow® (RFC 3176) Provides scalable ASIC-based wire speed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes
Remote Monitoring (RMON) Uses standard SNMP to monitor essential network functions and supports events, alarms, history, and statistics groups as well as a private alarm extension group
gNMI Support Supports OpenConfig standardized YANG model for gNMI Streaming Telemetry
TFTP and SFTP support - Offers different mechanisms for configuration updates; trivial FTP (TFTP) allows bidirectional transfers over a TCP/IP network - Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security
Supportability Job scheduler framework
Debug and Sampler Utility Supports ping and traceroute for IPv4 and IPv6
Network Time Protocol (NTP) - Synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network - Can serve as the NTP server in a customer network
Precision Time Protocol (PTP) - Enables precise clock synchronization across distributed devices - Needed for time critical applications like AVB and financial systems - Support for transparent clock E-E and P-P - Support for boundary clock - Support for PTP Boundary Clock on VSX peers
IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications LACP-fallback Enables Zero Touch Provisioning over Link Aggregation Groups.
Dual Flash Images Provides independent primary and secondary operating system files for backup while upgrading
Multiple Configuration Files Stores files easily to the flash image
Layer 2 Switching VLAN Supports up to 4,094 port-based or IEEE 802.1Q-based VLANs VLAN Translation Remaps VLANs during transit across a core network
Bridge Protocol Data Unit (BPDU) tunneling Transmits STP BPDUs transparently, allowing correct tree calculations across service providers, WANs, or MANs
Port Mirroring Duplicates port traffic (ingress and egress) to a local or remote monitoring port; supports 4 mirroring groups, with an unlimited number of ports per group
STP Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Rapid Per-VLAN Spanning Tree Plus (RPVST+) Allows each VLAN to build a separate spanning tree to improve link bandwidth usage in network environments with multiple VLANs
Internet Group Management Protocol (IGMP) Controls and manages the flooding of multicast packets in a Layer 2 network
Static VXLAN Allows operators to manually connect two or more VXLAN tunnel endpoints (VTEP) Dynamic VXLAN with BGP-EVPN Deep segmentation for Spine/Leaf data center networks or Layer 3 campus designs with centralized gateway and symmetric Integrated Routing and Bridging (IRB) based distributed gateways VXLAN tunnels - Port PBR VXLAN support - VXLAN DC Multi-fabric DCI support - VSX Active Forwarding support for VXLAN underlay - Route-map support BGP EVPN AF
IPv4 Multicast in VXLAN/EVPN Overlay Enable PIM-SM/IGMP snooping in the VXLAN Overlay
IPv6 VXLAN/EVPN Overlay Support Enables IPv6 traffic over the VXLAN overlay
VXLAN Distributed Anycast Gateway Addressing mechanism that enables the use of the same gateway IP addresses across all the leaf switches part of a VXLAN network
VXLAN ARP/ND Suppression Allows minimization of ARP and ND traffic flooding within individual VXLAN segments, thus optimizing the VXLAN network
Multicast SM underlay Supports Multicast SM routing in underlay of VXLAN fabric
Dynamic Segmentation VXLAN GBP and Role-based Policies - Enables micro segmentation and role-based policies across the VXLAN overlay
Dual VTEP termination and VXLAN GBP relay
Reserved GBP Tag for Infrastructure (Switch Generated) Traffic - Allows stub fabric extender VTEPs to relay VXLAN GBP between static and dynamic VXLAN tunnels
Troubleshooting on the Overlay - Supports ping over VXLAN for IPv4 and IPv6 - Supports traceroute over VXLAN for IPv4 and IPv6 Services on the Overlay - Supports RADIUS server over VXLAN for IPv4 and IPv6 - IPv4 DHCP relay over VXLAN for non-default VRF - Route-leaking to/from default VRF
Layer 3 Services Address Resolution Protocol (ARP) - Determines the MAC address of another IP host in the same subnet; supports static ARPs - Gratuitous ARP allows detection of duplicate IP addresses - Proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
IP Directed Broadcast Supports directed broadcast on configured network subnets
Multi-fabric GPO Enables GPO for multi-fabric unicast traffic
Dynamic Host Configuration Protocol (DHCP) - DHCP services are offered within a client network to simplify network management - DHCP Relay enables DHCP operation across subnets
DHCP Server Supports DHCP services (for IPv4 and IPv6) in customer networks Support for DHCP smart relay
DHCP Relay Coexistence with Server Allows DHCP relay coexistence with DHCP server for both IPv4 and IPv6
Domain Name System (DNS) Provides a distributed database that translates domain names and IP addresses, which simplifies network design; supports client and server
Layer 3 Routing Static IPv4 routing Provides simple manually configured IPv4 routing
Sub-interface - Allows multiple IP addresses on a single routed interface. - Supports unicast and multicast routing for both IPv4 and IPv6 - Supports OSPF, BGP and PIM for both IPv4 and IPV6 - Supported on RoP, L3 lags and Hydra interfaces - Network Load Balancing (NLB) - PBR and Ingress Policy support
Open Shortest Path First (OSPF) Delivers faster convergence; uses link-state routing Interior Gateway Protocol (IGP), which supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for faster failure recovery
Configurable OSPF distance for type-5 LSA.
Configurable default-metric for OSPF default-information guide.
Loopback IP Redistribution in OSPF Allows redistribution of IPv4 and IPv6 addresses of loopback interface in OSPF v2/v3
Border Gateway Protocol 4 (BGP-4) Delivers an implementation of the Exterior Gateway Protocol (EGP) utilizing path vectors; uses TCP for enhanced reliability for the route discovery process; reduces bandwidth consumption by advertising only incremental updates; supports extensive policies for increased flexibility; scales to very large networks
MPLS, L3 VPN PE to CE routing, ECMP
Dynamic BGP peering Simplifies BGP configuration for ZTP scenarios and enables CX for Azure stack integration
Routing Information Protocol version 2 (RIPv2) Easy to configure routing protocol for small networks relying on User Datagram Protocol (UDP)
Routing Information Protocol Next Generation (RIPng) Extension of RIPv2 for support of IPv6 networking
Multiprotocol BGP (MP-BGP) with IPv6 Address Family Enables sharing of IPv6 routes using BGP and connections to BGP peers using IPv6
Policy Based Routing (PBR) Enables using a classifier to select traffic that can be forwarded based on policy set by the network administrator 6in4 Tunnels Supports the tunneling of IPv6 traffic in an IPv4 network 32 way Equal-cost multi-path routing (ECMP)
IP Performance Optimization Provides a set of tools to improve the performance of IPv4 networks; includes directed broadcasts, customization of TCP parameters, support of ICMP error packets, and extensive display capabilities
Static IPv6 Routing Provides simple manually configured IPv6 routing
Dual IP stack Maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design
OSPFv3 Provides OSPF support for IPv6
Equal-Cost Multipath (ECMP) Enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth
Generic Routing Encapsulation (GRE) Enables tunneling traffic from site to site over a Layer 3 path
Visibility CX Edge Insights Upgrade the active, perpetual CX Foundation license to the term based CX Advanced license to unlock deep visibility with CX Edge Insights for application recognition, identification, and flow capture from layer 4 to layer 7. CX Edge Insights enables granular datapoint collection with search, sort and reporting as well as the ability to recognize 22 categories and more than 3700 applications.
Security TAA Compliance The CX 8360 v2 Switch Series with AOS-CX, a TAA compliant product, uses FIPS 140-2 validated cryptography for protection of sensitive information
Federal Certification Compliant with DoDIN, APL, NDcPP, FIPS, and USGv6 requirements for federal certifications. Access control list (ACL) Features - Supports powerful ACLs for both IPv4 and IPv6. Supports creation of object groups representing sets of devices like IP addresses. For instance, IT management devices could be grouped in this way. - ACLs can also protect control plane services such as SSH, SNMP, NTP or web servers. - 802.1x, Mac-auth, LUR, DUR, Port-Access Policy, Static Port Filtering - MAC lockdown, MAC lockout, sticky MAC
Private VLAN Enables traffic isolation for users on the same VLAN Support for isolated, community and primary VLANs VSF, L3-Mcast, IGMP snooping, MLD snooping, ACL/QoS interop, L3 unicast (BGP, IPDB, L3 addressing, static routes) VSX support
Enrollment Over Secure Transport (EST) Enables secure certificate enrollment, allowing for easier enterprise management of PKI
Remote Authentication Dial-In User Service (RADIUS) Eases security access administration by using a password authentication server - RADIUS Port-Access (Accounting, Tracking, CoA, v4/v6, Dead Only Server Tracking)
Terminal Access Controller Access-Control System (TACACS+) Delivers an authentication tool using TCP with encryption of the full authentication request, providing additional security
RadSec Enable RADIUS authentication and accounting data to be passed safely and reliably across insecure networks such as the internet
Management Access Security - AOS-CX provides for both on-box as well as off-box authentication for administrative access. RADIUS or TACACS+ can be used to provide encrypted user authentication - Additionally, TACACS+ can also provide user authorization services - Dot1x supplicant: support for EAP-TLS
Secure shell (SSHv2) Uses external servers to securely log in to a remote device; with authentication and encryption, it protects against IP spoofing and plain-text password interception; increases the security of Secure FTP (SFTP) transfers
MACsec High level encryption from AES128 and AES256 with 2SAK as well as 4SAK mode of Static Key provisioning enabling secure communication for all traffic on Ethernet links
Multicast Internet Group Management Protocol (IGMP) Enables establishing multicast group memberships in IPv4 networks; supports IGMPv1, v2, and v3
PIM Multicast Boundary (v4) VSX Graceful shutdown for IGMP/MLD Multicast NSF
Multicast Listener Discovery (MLD) Enables discovery of IPv6 multicast listeners; supports MLDv1 and v2
ROP Extension for VSX Border Leaf (Centralized/Distributed)
PIM-SSM - ACL Support to define the PIM-SSM ranges - VSX, IPv6, IGMPv3 for IPv4, MSDP and PIM-SSM interaction
Anycast RP Two or more RPs configured with same /32 Host IP address on loopback interfaces. All the downstream routers will be configured to point to Anycast RP address for multicast routes. Device will automatically select the closest RP for each source and receiver. If equal costs routes exist, the process of registering the sources will be shared equally by all the RPs in the network.
Multicast Service Delivery Protocol (MSDP) Efficiently routes multicast traffic through core networks
MSDP Mesh Groups MSDP used for Anycast RP is an intradomain feature that provides redundancy and load-sharing capabilities. When MSDP mesh groups are used, SA messages are not flooded to other mesh group peers. When an MSDP peer in a group receives an SA message from another MSDP peer in the group, it assumes that this SA message was sent to all the other MSDP peers in the group. It also eliminates RPF checks on arriving SA messages. With MSDP mesh group configured, SA messages are always accepted from mesh group peer.
PIM-Dense Mode Floods multicast traffic to every corner of the network (push-model). Method is for delivering data to receivers without receivers requesting the data. Can be efficient in certain deployments in which there are active receivers on every subnet in the network. Branches without downstream receivers are pruned from the forwarding trees.
FastLeave (FL) and Forced-FastLeave (FFL) FL and FFL for IGMP/MLD speeds up the process of blocking unnecessary Multicast traffic to a switch port that is connected to end nodes for IGMP. They help to eliminate the CPU overhead of having to generate an IGMP/MLD Group- Specific Query message.
Network Load Balancer (NLB) - Supported for server applications - Load balancing technology for server clustering developed on Microsoft Windows Server - Supports load sharing and redundancy among servers within a cluster
IGMP/MLD Snooping Prevent flooding of multicast traffic to non-listening ports
Protocol Independent Multicast (PIM) Protocol Independent Multicast for IPv4 and IPv6 supports one-to-many and many-to-many media casting use cases such as IPTV over IPv4 and IPv6 networks. Support for PIM Sparse Mode (PIM-SM, IPv4 and IPv6).
Additional information Green initiative support Provides support for RoHS (EN 50581:2012) regulations
Korea Government Security Features - Ensure configuration integrity - Limit concurrent users for web access
Analytics - AIOPS - NAE Agent & Engine Improvements - Unicast Routing - AIOPS - NAE Agent & Engine Improvements - Client Services
Customer First, Customer Last Support When your network is important to your business, then your business needs the backing of Support Services. Partner with HPE Aruba Networking product experts to increase your team productivity, keep pace with technology advances, software releases, and obtain break-fix support. Foundation Care for HPE Aruba Networking support services include priority access to Technical Assistance Center (TAC) engineers 24x7x365, flexible hardware and onsite support options, and total coverage for HPE Aruba Networking products. HPE Aruba Networking switches with assigned HPE Aruba Networking Central subscriptions benefit with option for additional hardware support only. Aruba Networking Pro Care adds fast access to senior TAC engineers, who are assigned as a single point of contact for case management, reducing the time spent addressing and resolving issues. For complete details on Foundation Care and HPE Aruba Networking Pro Care, please visit: https://www.hpe.com/us/en/networking/hpe-aruba-networking-support-services.html
Warranty, Services and Support Limited lifetime warranty Visit Support Center for warranty and support information included with your product purchase. Refer the below webpages for more detailed information HPE Aruba Networking CX Switch Operating System software releases and features. HPE Aruba Networking CX Operating System Switch Software Documentation Portal HPE Aruba Networking Switch Feature Navigator For software releases and documentation, refer to HPE Networking Support Portal For support and services information, visit HPE Aruba Networking Support Services For global services information, see HPE Aruba Networking services |
|
|
|
BTO Models |
|
|
Description |
SKU |
|
HPE Aruba Networking CX 8360-32Y4C v2 32p 25G SFP/+/28 4 Sec 4p 100G QSFP+/28 FB 3 Fans 2 AC Bdl |
JL700C |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL700C#B2B |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL700C#B2C |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 FB 3 Fans 2AC Bundle 220v |
JL700C#B2E |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 FB 3 Fans 2AC Bundle NoLoc |
JL700C#AC3 |
|
HPE Aruba Networking CX 8360-32Y4C v2 32p 25G SFP/+/28 4 Sec 4p 100G QSFP+/28 BF 3 Fans 2 AC Bdl |
JL701C |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 BF 3 Fans 2AC Bundle PDU |
JL701C#B2B |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 BF 3 Fans 2AC Bundle PDU |
JL701C#B2C |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 BF 3 Fans 2AC Bundle 220v |
JL701C#B2E |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 BF 3 Fans 2AC Bundle NoLoc |
JL701C#AC3 |
|
HPE Aruba Networking CX 8360-16Y2C v2 16p 25G SFP/SFP+/SFP28 2p 100G QSFP+/28 FB 3 Fans 2 AC Bdl |
JL702C |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL702C#B2B |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL702C#B2C |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 FB 3 Fans 2AC Bundle 220v |
JL702C#B2E |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 FB 3 Fans 2AC Bundle NoLoc |
JL702C#AC3 |
|
HPE Aruba Networking CX 8360-16Y2C v2 16p 25G SFP/SFP+/SFP28 2p 100G QSFP+/28 BF 3 Fans 2 AC Bdl |
JL703C |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 BF 3 Fans 2AC Bundle PDU |
JL703C#B2B |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 BF 3 Fans 2AC Bundle PDU |
JL703C#B2C |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 BF 3 Fans 2AC Bundle 220v |
JL703C#B2E |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 BF 3 Fans 2AC Bundle NoLoc |
JL703C#AC3 |
|
HPE Aruba Networking CX 8360-48Y6C v2 48p 25G SFP/+/28 4 Sec 6p 100G QSFP+/28 2 Sec FB 5Fs 2 AC Bdl |
JL704C |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP28 2Sec FB 5 Fans 2AC Bundle PDU |
JL704C#B2B |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP28 2Sec FB 5 Fans 2AC Bundle PDU |
JL704C#B2C |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP28 2Sec FB 5 Fans 2AC Bundle 220v |
JL704C#B2E |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP28 2Sec FB 5 Fans 2AC Bundle NoLoc |
JL704C#AC3 |
|
HPE Aruba Networking CX 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP+ 2Sec BF 5 Fans 2AC Bundle |
JL705C |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP+ 2Sec BF 5 Fans 2AC Bundle PDU |
JL705C#B2B |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP+ 2Sec BF 5 Fans 2AC Bundle PDU |
JL705C#B2C |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP+ 2Sec BF 5 Fans 2AC Bundle 220v |
JL705C#B2E |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP+ 2Sec BF 5 Fans 2AC Bundle NoLoc |
JL705C#AC3 |
|
HPE Aruba Networking CX 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 FB 3 Fans 2AC Bundle |
JL706C |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL706C#B2B |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL706C#B2C |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 FB 3 Fans 2AC Bundle 220v |
JL706C#B2E |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 FB 3 Fans 2AC Bundle NoLoc |
JL706C#AC3 |
|
HPE Aruba Networking CX 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 BF 3 Fans 2AC Bundle |
JL707C |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 BF 3 Fans 2AC Bundle PDU |
JL707C#B2B |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 BF 3 Fans 2AC Bundle PDU |
JL707C#B2C |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 BF 3 Fans 2AC Bundle 220v |
JL707C#B2E |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 BF 3 Fans 2AC Bundle NoLoc |
JL707C#AC3 |
|
HPE Aruba Networking CX 8360-12C v2 12-port 100G QSFP+/QSFP28 Front-to-Back 3 Fans 2 AC Bundle |
JL708C |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Front-to-Back 3 Fans 2 AC Bundle PDU |
JL708C#B2B |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Front-to-Back 3 Fans 2 AC Bundle PDU |
JL708C#B2C |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Front-to-Back 3 Fans 2 AC Bundle 220v |
JL708C#B2E |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Front-to-Back 3 Fans 2 AC Bundle NoLoc |
JL708C#AC3 |
|
HPE Aruba Networking CX 8360-12C v2 12-port 100G QSFP+/QSFP28 Back-to-Front 3 Fans 2 AC Bundle |
JL709C |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Back-to-Front 3 Fans 2 AC Bundle PDU |
JL709C#B2B |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Back-to-Front 3 Fans 2 AC Bundle PDU |
JL709C#B2C |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Back-to-Front 3 Fans 2 AC Bundle 220v |
JL709C#B2E |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Back-to-Front 3 Fans 2 AC Bundle NoLoc |
JL709C#AC3 |
|
HPE Aruba Networking CX 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 FB 3 Fans 2AC Bundle |
JL710C |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL710C#B2B |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL710C#B2C |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 FB 3 Fans 2AC Bundle 220v |
JL710C#B2E |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 FB 3 Fans 2AC Bundle NoLoc |
JL710C#AC3 |
|
HPE Aruba Networking CX 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 BF 3 Fans 2 AC Bundle |
JL711C |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 BF 3 Fans 2 AC Bundle PDU |
JL711C#B2B |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 BF 3 Fans 2 AC Bundle PDU |
JL711C#B2C |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 BF 3 Fans 2 AC Bundle 220v |
JL711C#B2E |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 BF 3 Fans 2 AC Bundle NoLoc |
JL711C#AC3 |
|
| |
|
Rack Level Integration CTO Models |
|
|
Description |
SKU |
|
HPE Aruba Networking CX 8360-32Y4C v2 32p 25G SFP/+/28 4 Sec 4p 100G QSFP+/28 FB 3 Fans 2 AC Bdl |
JL700C |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL700C#B2B |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL700C#B2C |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 FB 3 Fans 2AC Bundle 220v |
JL700C#B2E |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 FB 3 Fans 2AC Bundle NoLoc |
JL700C#AC3 |
|
HPE Aruba Networking CX 8360-32Y4C v2 32p 25G SFP/+/28 4 Sec 4p 100G QSFP+/28 BF 3 Fans 2 AC Bdl |
JL701C |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 BF 3 Fans 2AC Bundle PDU |
JL701C#B2B |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 BF 3 Fans 2AC Bundle PDU |
JL701C#B2C |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 BF 3 Fans 2AC Bundle 220v |
JL701C#B2E |
|
HPE Aruba Networking 8360-32Y4C v2 32p 25G SFP28 4Sec 4p 100G QSFP28 BF 3 Fans 2AC Bundle NoLoc |
JL701C#AC3 |
|
HPE Aruba Networking CX 8360-16Y2C v2 16p 25G SFP/SFP+/SFP28 2p 100G QSFP+/28 FB 3 Fans 2 AC Bdl |
JL702C |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL702C#B2B |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL702C#B2C |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 FB 3 Fans 2AC Bundle 220v |
JL702C#B2E |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 FB 3 Fans 2AC Bundle NoLoc |
JL702C#AC3 |
|
HPE Aruba Networking CX 8360-16Y2C v2 16p 25G SFP/SFP+/SFP28 2p 100G QSFP+/28 BF 3 Fans 2 AC Bdl |
JL703C |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 BF 3 Fans 2AC Bundle PDU |
JL703C#B2B |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 BF 3 Fans 2AC Bundle PDU |
JL703C#B2C |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 BF 3 Fans 2AC Bundle 220v |
JL703C#B2E |
|
HPE Aruba Networking 8360-16Y2C v2 16p 25G SFP28 2p 100G QSFP28 BF 3 Fans 2AC Bundle NoLoc |
JL703C#AC3 |
|
HPE Aruba Networking CX 8360-48Y6C v2 48p 25G SFP/+/28 4 Sec 6p 100G QSFP+/28 2 Sec FB 5Fs 2 AC Bdl |
JL704C |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP28 2Sec FB 5 Fans 2AC Bundle PDU |
JL704C#B2B |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP28 2Sec FB 5 Fans 2AC Bundle PDU |
JL704C#B2C |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP28 2Sec FB 5 Fans 2AC Bundle 220v |
JL704C#B2E |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP28 2Sec FB 5 Fans 2AC Bundle NoLoc |
JL704C#AC3 |
|
HPE Aruba Networking CX 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP+ 2Sec BF 5 Fans 2AC Bundle |
JL705C |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP+ 2Sec BF 5 Fans 2AC Bundle PDU |
JL705C#B2B |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP+ 2Sec BF 5 Fans 2AC Bundle PDU |
JL705C#B2C |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP+ 2Sec BF 5 Fans 2AC Bundle 220v |
JL705C#B2E |
|
HPE Aruba Networking 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP+ 2Sec BF 5 Fans 2AC Bundle NoLoc |
JL705C#AC3 |
|
HPE Aruba Networking CX 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 FB 3 Fans 2AC Bundle |
JL706C |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL706C#B2B |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL706C#B2C |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 FB 3 Fans 2AC Bundle 220v |
JL706C#B2E |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 FB 3 Fans 2AC Bundle NoLoc |
JL706C#AC3 |
|
HPE Aruba Networking CX 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 BF 3 Fans 2AC Bundle |
JL707C |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 BF 3 Fans 2AC Bundle PDU |
JL707C#B2B |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 BF 3 Fans 2AC Bundle PDU |
JL707C#B2C |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 BF 3 Fans 2AC Bundle 220v |
JL707C#B2E |
|
HPE Aruba Networking 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 BF 3 Fans 2AC Bundle NoLoc |
JL707C#AC3 |
|
HPE Aruba Networking CX 8360-12C v2 12-port 100G QSFP+/QSFP28 Front-to-Back 3 Fans 2 AC Bundle |
JL708C |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Front-to-Back 3 Fans 2 AC Bundle PDU |
JL708C#B2B |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Front-to-Back 3 Fans 2 AC Bundle PDU |
JL708C#B2C |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Front-to-Back 3 Fans 2 AC Bundle 220v |
JL708C#B2E |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Front-to-Back 3 Fans 2 AC Bundle NoLoc |
JL708C#AC3 |
|
HPE Aruba Networking CX 8360-12C v2 12-port 100G QSFP+/QSFP28 Back-to-Front 3 Fans 2 AC Bundle |
JL709C |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Back-to-Front 3 Fans 2 AC Bundle PDU |
JL709C#B2B |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Back-to-Front 3 Fans 2 AC Bundle PDU |
JL709C#B2C |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Back-to-Front 3 Fans 2 AC Bundle 220v |
JL709C#B2E |
|
HPE Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Back-to-Front 3 Fans 2 AC Bundle NoLoc |
JL709C#AC3 |
|
HPE Aruba Networking CX 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 FB 3 Fans 2AC Bundle |
JL710C |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL710C#B2B |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 FB 3 Fans 2AC Bundle PDU |
JL710C#B2C |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 FB 3 Fans 2AC Bundle 220v |
JL710C#B2E |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 FB 3 Fans 2AC Bundle NoLoc |
JL710C#AC3 |
|
HPE Aruba Networking CX 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 BF 3 Fans 2 AC Bundle |
JL711C |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 BF 3 Fans 2 AC Bundle PDU |
JL711C#B2B |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 BF 3 Fans 2 AC Bundle PDU |
JL711C#B2C |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 BF 3 Fans 2 AC Bundle 220v |
JL711C#B2E |
|
HPE Aruba Networking 8360-24XF2C v2 24p 10G SFP+ 2p 100G QSFP28 BF 3 Fans 2 AC Bundle NoLoc |
JL711C#AC3 |
|
| |
Transceivers | |
|
Description |
SKU |
|
SPF Transceivers |
|
|
HPE Aruba Networking 100M SFP LC FX 2km MMF Transceiver |
J9054D |
|
HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver |
J4858D |
|
HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver |
J4859D |
|
HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver |
J4860D |
|
HPE Aruba Networking 1G SFP RJ45 100m Cat5e Transceiver |
J8177E |
|
HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver |
JL745A |
|
HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver |
JL746A |
|
HPE Aruba Networking 1G SFP RJ45 100m Cat5e TAA Transceiver |
JL747B |
|
|
|
|
SPF+ Transceivers |
|
|
HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver |
J9150D |
|
HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver |
J9151E |
|
HPE Aruba Networking 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver |
JL563C |
|
HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver |
J9153D |
|
HPE Aruba Networking 10G ER SFP+ LC 40km SMF Transceiver |
J9153E |
|
HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver |
S2P32B |
|
HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver |
JL748A |
|
HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver |
JL749A |
|
HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver |
S2P30A |
|
HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver |
S2P31A |
|
HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver |
S2P32A |
|
HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
J9281D |
|
HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
J9283D |
|
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable |
487655-B21 |
|
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable |
537963-B21 |
|
|
|
|
SFP56 Transceivers |
|
|
HPE Aruba Networking 50G SFP56 LC SR 100m MMF Transceiver |
R0M48A |
|
HPE Aruba Networking 50G eSR 300m MMF Transceiver |
S0V64A |
|
HPE Aruba Networking 50G LR 10km SMF Transceiver |
S0V65A |
|
HPE Aruba Networking 50G ER 40km SMF Transceiver |
S0V66A |
|
HPE Aruba Networking 50G BiDi 40km-Downstream 1314/1289 Transceiver |
S0V67A |
|
HPE Aruba Networking 50G BiDi 40km-Upstream 1289/1314 Transceiver |
S0V68A |
|
HPE Aruba Networking 50G BiDi 10km-Downstream 1330/1270 Transceiver |
S1C92A |
|
HPE Aruba Networking 50G BiDi 10km-Upstream 1270/1330 Transceiver |
S1C94A |
|
HPE Aruba Networking 50G I-Temp LR SFP56 LC 10km SMF TAA Transceiver |
S6H23A |
|
HPE Aruba Networking 50G SFP56 to SFP56 0.65m Direct Attach Copper Cable |
R0M46A |
|
HPE Aruba Networking 50G SFP56 to SFP56 3m Direct Attach Copper Cable |
R0M47A |
|
|
|
|
SFP28 Transceivers |
|
|
HPE Aruba Networking 25G ER LC 40km SMF Transceiver |
S0V69A |
|
HPE Aruba Networking 25G BiDi 40km-Downstream 1314/1289 Transceiver |
S0V70A |
|
HPE Aruba Networking 25G BiDi 40km-Upstream 1289/1314 Transceiver |
S0V71A |
|
HPE Aruba Networking 25G BiDi 10km-Downstream 1330/1270 Transceiver |
S1C96A |
|
HPE Aruba Networking 25G BiDi 10km-Upstream 1270/1330 Transceiver |
S1C98A |
|
HPE Aruba Networking 25G BiDi 40km-Downstream 1314/1289 Transceiver |
S0V70A |
|
HPE Aruba Networking 25G BiDi 40km-Upstream 1289/1314 Transceiver |
S0V71A |
|
HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver |
JL484A |
|
HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver |
JL485A |
|
HPE Aruba Networking 25G eSR SFP28 LC 400m MMF TAA Transceiver |
S5U19A |
|
HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver |
JL486A |
|
HPE Aruba Networking 25G LR SFP28 LC 10km SMF TAA Transceiver |
S2N63A |
|
HPE Aruba Networking 25G SR SFP28 LC 100m MMF C-Class Transceiver |
S2P33A |
|
HPE Aruba Networking 25G LR SFP28 LC 10km SMF C-Class Transceiver |
S2P34A |
|
HPE Aruba Networking 25G SFP28 to SFP28 0.65m Direct Attach Cable |
JL487A |
|
HPE Aruba Networking 25G SFP28 to SFP28 3m Direct Attach Copper Cable |
JL488A |
|
HPE Aruba Networking 25G SFP28 to SFP28 5m Direct Attach Copper Cable |
JL489A |
|
HPE 25Gb SFP28 to SFP28 3m Direct Attach Copper Cable |
844477-B21 |
|
HPE 25Gb SFP28 to SFP28 5m Direct Attach Copper Cable |
844480-B21 |
|
HPE Aruba Networking 25G SFP28 to SFP28 3m Active Optical Cable |
R0M44A |
|
HPE Aruba Networking 25G SFP28 to SFP28 7m Active Optical Cable |
R0M45A |
|
HPE Aruba Networking 25G SFP28 to SFP28 15m Active Optical Cable |
R0Z21A |
|
|
|
|
QSFP+ Transceivers |
|
|
HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver |
JL308A |
|
HPE Networking X142 40G QSFP+ MPO SR4 Transceiver |
JH231A |
|
HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver |
JH232A |
|
HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver |
Q9G82A |
|
HPE Networking X142 40G QSFP+ MPO eSR4 300M Transceiver |
JH233A |
|
HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable |
R0Z22A |
|
HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable |
R0Z23A |
|
HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable |
R0Z24A |
|
HPE Networking X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable |
JH234A |
|
HPE Networking X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable |
JH235A |
|
HPE Networking X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable |
JH236A |
|
HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable |
721064-B21 |
|
HPE BladeSystem c-Class QSFP+ to 4x10G SFP+ 15m Active Optical Cable |
721076-B21 |
|
|
|
|
QSFP28 Transceivers |
|
|
HPE Aruba Networking 100G SR1.2 QSFP28 LC 100m MMF Transceiver |
S4B44A |
|
HPE Aruba Networking 100G DR QSFP28 LC 500m SMF Transceiver |
S3N88A |
|
HPE Aruba Networking 100G LR QSFP28 LC 10km SMF Transceiver |
S3N89A |
|
HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver |
JL743A |
|
HPE Aruba Networking 100G QSFP28 MPO SR4 100m 12-fiber MPO OM3 MMF Transceiver |
JL309A |
|
HPE Aruba Networking 100G QSFP28 LC CWDM4 2km SMF Transceiver |
R0Z30A |
|
HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver |
JL310A |
|
HPE Aruba Networking 100G QSFP28 LC FR1 SMF 2km Transceiver |
R9B63A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable |
R0Z25A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable |
JL307A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable |
R0Z26A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable |
JL856A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable |
R0Z27A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable |
R0Z28A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable |
R0Z29A |
|
HPE 100Gb QSFP28 to 4x25Gb SFP28 3m Direct Attach Copper Cable |
845416-B21 |
|
HPE QSFP28 to 4x25Gb SFP28 7m Active Optical Cable |
845420-B21 |
|
HPE QSFP28 to 4x25Gb SFP28 15m Active Optical Cable |
845424-B21 |
|
HPE Aruba Networking 200G DD-2xQSFP28 100G 3m Active Optic Cable |
R9B60A |
|
HPE Aruba Networking 200G DD-2xQSFP28 100G 7m Active Optic Cable |
R9B58A |
|
HPE Aruba Networking 200G DD-2xQSFP28 100G 15m Active Optic Cable |
R9B62A |
|
HPE Aruba Networking 200G DD-2xQSFP28 100G 30m Active Optic Cable |
R9B61A |
|
HPE Aruba Networking 200G DD-2xQSFP28 100G 50m Active Optic Cable |
R9B59A |
|
|
|
|
QSA28 Adapter |
|
|
HPE QSFP28 to SFP28 Adapter |
845970-B21 |
|
HPE Aruba Networking CX 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 FB 3 Fans 2AC Bundle |
JL706C |
|
HPE Aruba Networking CX 8360-48XT4C v2 48p 1G/10GBase-T 4p 100G QSFP28 BF 3 Fans 2AC Bundle |
JL707C |
|
|
|
|
Description |
SKU |
|
Rack Mount Kits |
|
|
HPE Aruba Networking X412 1U Universal 2-post Rack Mount Kit |
JL602A |
|
HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit |
J9583B |
|
|
|
|
HPE Networking 2.0m C13 to C14 PDU India Power Cord |
JL671A |
|
HPE Networking 2.5m C15 to C14 PDU India Power Cord |
JL672A |
|
|
|
|
Description |
SKU |
|
HPE Aruba Networking X544 Universal 4-post Duct Kit (Must order 4-post rack mount kit) |
JL716A |
|
|
|
|
USB Console Cables |
|
|
Description |
SKU |
|
HPE Aruba Networking USBA-RJ45 PIN3TX-6RX 2.5m Cable |
R8Z87A |
|
HPE Aruba Networking USBA-RJ45 PC-to-Switch PIN6TX-3RX 2.5m Cable |
R9G48B |
|
HPE Aruba Networking USB-A reversible to USB-C PC-to-Switch 3m Cable |
R9J32A |
|
HPE Aruba Networking USB-C to USB-C PC-to-Switch 3m Cable |
R9J33A |
|
This cable is only compatible with the following Switches; JL700C, JL701C, JL702C, JL703C, JL704C, JL705C, JL706C, JL707C, JL708C, JL709C, JL710C, JL711C
|
|
|
Description |
SKU |
|
Spare Items |
|
|
HPE Aruba Networking CX 8360-32Y4C v2 32-port 25G SFP/SFP+/SFP28 4 Sec 4-port 100G QSFP+/QSFP28 Sw |
JL717C |
|
HPE Aruba Networking CX 8360-16Y2C v2 16 port 25G SFP/SFP+/SFP28 2-port 100G QSFP+/QSFP28 Switch |
JL718C |
|
HPE Aruba Networking CX 8360-48Y6C v2 48p 25G SFP/SFP+/SFP28 4 Sec 6p 100G QSFP+/QSFP28 2 Sec Switch |
JL719C |
|
HPE Aruba Networking CX 8360-48XT4C v2 48-port 1G/10GBase-T 4-port 100G QSFP+/QSFP28 Switch |
JL720C |
|
HPE Aruba Networking CX 8360-12C v2 12-port 100G QSFP+/QSFP28 Switch |
JL721C |
|
HPE Aruba Networking CX 8360-24XF2C v2 24-port 10G SFP/SFP+ 2-port 100G QSFP+/QSFP28 Switch |
JL722C |
|
HPE Aruba Networking X391 550W Port-to-Power AC Power Supply |
JL600A |
|
HPE Aruba Networking X391 550W Port-to-Power AC Power Supply PDU |
JL600A#B2B |
|
HPE Aruba Networking X391 550W Port-to-Power AC Power Supply PDU |
JL600A#B2C |
|
HPE Aruba Networking X391 550W Port-to-Power AC Power Supply 220v |
JL600A#B2E |
|
HPE Aruba Networking X391 550W Port-to-Power AC Power Supply NoLoc |
JL600A#AC3 |
|
HPE Aruba Networking X391 850W Port-to-Power AC Power Supply |
JL601A |
|
HPE Aruba Networking X391 850W Port-to-Power AC Power Supply PDU |
JL601A#B2B |
|
HPE Aruba Networking X391 850W Port-to-Power AC Power Supply PDU |
JL601A#B2C |
|
HPE Aruba Networking X391 850W Port-to-Power AC Power Supply 220v |
JL601A#B2E |
|
HPE Aruba Networking X391 850W Port-to-Power AC Power Supply NoLoc |
JL601A#AC3 |
|
HPE Aruba Networking X391 550W Power-to-Port AC Power Supply |
JL712A |
|
HPE Aruba Networking X391 550W Power-to-Port AC Power Supply PDU |
JL712A#B2B |
|
HPE Aruba Networking X391 550W Power-to-Port AC Power Supply PDU |
JL712A#B2C |
|
HPE Aruba Networking X391 550W Power-to-Port AC Power Supply 220v |
JL712A#B2E |
|
HPE Aruba Networking X391 550W Power-to-Port AC Power Supply NoLoc |
JL712A#AC3 |
|
HPE Aruba Networking X391 850W Power-to-Port AC Power Supply |
JL713A |
|
HPE Aruba Networking X391 850W Power-to-Port AC Power Supply PDU |
JL713A#B2B |
|
HPE Aruba Networking X391 850W Power-to-Port AC Power Supply PDU |
JL713A#B2C |
|
HPE Aruba Networking X391 850W Power-to-Port AC Power Supply 220v |
JL713A#B2E |
|
HPE Aruba Networking X391 850W Power-to-Port AC Power Supply NoLoc |
JL713A#AC3 |
|
HPE Aruba Networking X741 Port-to-Power Fan |
JL714A |
|
HPE Aruba Networking X742 Power-to-Port Fan |
JL715A |
|
HPE Aruba Networking X412 1U Universal 2-post Rack Mount Kit |
JL602A |
|
HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit |
J9583B |
|
HPE Aruba Networking X544 Universal 4-post Duct Kit (Must order 4-post rack mount kit) |
JL716A |
|
HPE Aruba Networking X2C2 RJ45 to DB9 Console Cable |
JL448A |
|
HPE Aruba Networking CX Switch Bluetooth Adapter |
S1H23A |
|
HPE Aruba Networking USBA-RJ45 PIN3TX-6RX 2.5m Cable |
R8Z87A |
|
HPE Aruba Networking USBA-RJ45 PC-to-Switch PIN6TX-3RX 2.5m Cable |
R9G48B |
|
HPE Aruba Networking USB-A reversible to USB-C PC-to-Switch 3m Cable |
R9J32A |
|
HPE Aruba Networking USB-C to USB-C PC-to-Switch 3m Cable |
R9J33A |
|
|
|
|
Description |
SKU |
|
HPE Aruba Networking OS-CX Software |
|
|
CX Advanced Software Licenses |
|
|
HPE Aruba Networking CX Software 8/9xxx Switch Advanced 1-year Subscription E-STU |
S0T87AAE |
|
HPE Aruba Networking CX Software 8/9xxx Switch Advanced 3-year Subscription E-STU |
S0T88AAE |
|
HPE Aruba Networking CX Software 8/9xxx Switch Advanced 5-year Subscription E-STU |
S0T89AAE |
|
HPE Aruba Networking CX Software 8/9xxx Switch Advanced 7-year Subscription E-STU |
S0T90AAE |
|
HPE Aruba Networking CX Software 8/9xxx Switch Advanced 10-year Subscription E-STU |
S0T86AAE |
|
|
|
|
NetEdit |
|
|
Single Node Subscription |
|
|
HPE Aruba Networking NetEdit Single Node 1yr Subscription E-STU |
JL639AAE |
|
HPE Aruba Networking NetEdit Single Node 3yr Subscription E-STU |
JL640AAE |
|
|
|
|
HPE Aruba Networking Fabric Composer |
|
|
Fabric Composer / Single Node Subscription |
|
|
HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 1y Subscription E-STU |
R7G99AAE |
|
HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 3y Subscription E-STU |
R7H00AAE |
|
HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 5y Subscription E-STU |
R7H01AAE |
|
|
|
|
Central |
|
|
Cloud Services / 8XXX Switch Foundation Subscriptions |
|
|
HPE Aruba Networking Central Switch Class5 Foundation 1-year Subscription E-STU |
R3K03AAE |
|
HPE Aruba Networking Central Switch Class5 Foundation 3-year Subscription E-STU |
R3K04AAE |
|
HPE Aruba Networking Central Switch Class5 Foundation 5-year Subscription E-STU |
R3K05AAE |
|
HPE Aruba Networking Central Switch Class5 Foundation 7-year Subscription E-STU |
R3K06AAE |
|
HPE Aruba Networking Central Switch Class5 Foundation 10-year Subscription E-STU |
R3K07AAE |
|
|
|
|
On-Prem Services / 8XXX Switch Foundation Subscriptions |
|
|
HPE Aruba Networking Central on Prem Switch Class-5 Foundation 1 year Subscription E-STU |
R6U88AAE |
|
HPE Aruba Networking Central on Prem Switch Class-5 Foundation 3 year Subscription E-STU |
R6U89AAE |
|
HPE Aruba Networking Central on Prem Switch Class-5 Foundation 5 year Subscription E-STU |
R6U90AAE |
|
HPE Aruba Networking Central on Prem Switch Class-5 Foundation 7 year Subscription E-STU |
R6U91AAE |
|
HPE Aruba Networking Central on Prem Switch Class-5 Foundation 10 year Subscription E-STU |
R6U92AAE |
|
|
|
|
On-Prem Services / 8XXX/9XXX/10XXX Switch Advanced Subscriptions |
|
|
HPE Aruba Networking Central On-Premises Switch Class5 Advanced 1-year Subscription E-STU |
R6V08AAE |
|
HPE Aruba Networking Central On-Premises Switch Class5 Advanced 3-year Subscription E-STU |
R6V09AAE |
|
HPE Aruba Networking Central On-Premises Switch Class5 Advanced 5-year Subscription E-STU |
R6V10AAE |
|
HPE Aruba Networking Central On-Premises Switch Class5 Advanced 7-year Subscription E-STU |
R6V11AAE |
|
HPE Aruba Networking Central On-Premises Switch Class5 Advanced 10-year Subscription E-STU |
R6V12AAE |
|
|
|
|
HPE Aruba Networking OS-CX Software |
|
|
CX Advanced AAS Software Licenses |
|
|
HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 1-year Subscription 9x5 Support E-STU |
S0T87AAS |
|
HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 3-year Subscription 9x5 Support E-STU |
S0T88AAS |
|
HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 5-year Subscription 9x5 Support E-STU |
S0T89AAS |
|
HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 7-year Subscription 9x5 Support E-STU |
S0T90AAS |
|
HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 10-year Subscription 9x5 Support E-STU |
S0T86AAS |
|
HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 1-year Subscription 24x7 Support E-STU |
S3M90AAS |
|
HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 3-year Subscription 24x7 Support E-STU |
S3M91AAS |
|
HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 5-year Subscription 24x7 Support E-STU |
S3M92AAS |
|
HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 7-year Subscription 24x7 Support E-STU |
S3M93AAS |
|
HPE Aruba Networking CX 8/9xxx Group5 Advanced Feature Pack 10-year Subscription 24x7 Support E-STU |
S3M89AAS |
|
|
|
|
Central |
|
|
Cloud Services / 8XXX Switch Foundation Subscriptions |
|
|
HPE Aruba Networking Central Switch Class-5 Foundation 1 year Subscription SaaS |
R3K03AAS |
|
HPE Aruba Networking Central Switch Class-5 Foundation 3 year Subscription SaaS |
R3K04AAS |
|
HPE Aruba Networking Central Switch Class-5 Foundation 5 year Subscription SaaS |
R3K05AAS |
|
HPE Aruba Networking Central Switch Class-5 Foundation 7 year Subscription SaaS |
R3K06AAS |
|
HPE Aruba Networking Central Switch Class-5 Foundation 10 year Subscription SaaS |
R3K07AAS |
|
|
|
|
Cloud Services / Switch Advanced AAS Licenses |
|
|
HPE Aruba Networking Central Switch Class-5 Advanced 7 year Subscription SaaS |
S0W45AAS |
|
HPE Aruba Networking Central Switch Class-5 Advanced 10 year Subscription SaaS |
S0W46AAS |
|
HPE Aruba Networking Central Switch Class-5 Advanced 1 year Subscription SaaS |
S0W62AAS |
|
HPE Aruba Networking Central Switch Class-5 Advanced 3 year Subscription SaaS |
S0W63AAS |
|
HPE Aruba Networking Central Switch Class-5 Advanced 5 year Subscription SaaS |
S0W64AAS |
|
HPE Aruba Networking Central Switch Class-5 Advanced 7 year Subscription SaaS |
S0W65AAS |
|
HPE Aruba Networking Central Switch Class-5 Advanced 10 year Subscription SaaS |
S0W66AAS |
|
HPE Aruba Networking Central Switch Class-5 Advanced 1 year Subscription SaaS |
S0W87AAS |
|
HPE Aruba Networking Central Switch Class-5 Advanced 3 year Subscription SaaS |
S0W88AAS |
|
HPE Aruba Networking Central Switch Class-5 Advanced 5 year Subscription SaaS |
S0W89AAS |
|
|
|
|
| |
|
|
HPE Aruba Networking 8360v2- 32Y4C MACsec Front-to-Back 3 Fans, 2 Power Supplies [JL700C] |
HPE Aruba Networking 8360v2- 32Y4C MACsec Back-to-Front 3 Fans, 2 Power Supplies [JL701C] |
HPE Aruba Networking 8360v2- 16Y2C Front-to-Back 3 Fans, 2 Power Supplies [JL702C] |
HPE Aruba Networking 8360v2- 16Y2C Back-to-Front 3 Fans, 2 Power Supplies [JL703C] |
HPE Aruba Networking 8360- 48Y6C v2 MACsec Front-to-Back 5 Fans, 2 AC Power Supplies [JL704C] |
HPE Aruba Networking 8360- 48Y6C v2 MACsec Back-to-Front 5 Fans, 2 AC Power Supplies [JL705C] | ||||||||
|
I/O ports and slots | ||||||||||||||
|
|
8360-32Y4C up to 14 ports of 50G 28 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) 4 ports of 10GbE/25GbE (SFP+/SFP28) with MACsec 4 ports of 40GbE/100GbE (QSFP+/QSFP28) (optional 1GBASE-T SFP, 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported) |
8360-16Y2C up to 8 ports of 50G 16 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) 2 ports of 40GbE/100GbE (QSFP+/QSFP28) (optional 1GBASE-T SFP and 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported) |
8360-48Y6C up to 22 ports of 50G 44 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) 4 ports of 10GbE/25GbE (SFP+/SFP28) with MACsec 4 ports of 40GbE/100GbE (QSFP+/QSFP28) 2 ports of 40GbE/100GbE (QSFP+/QSFP28) with MACsec | |||||||||||
|
Additional ports and slots | ||||||||||||||
|
Power Supplies |
2 field-replaceable and hot-swappable power supplies1 | |||||||||||||
|
Fans |
3 field-replaceable and hot-swappable fans2 |
5 field-replaceable and hot-swappable fans2 | ||||||||||||
|
Management |
RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A | |||||||||||||
|
Physical characteristics | ||||||||||||||
|
Physical Dimensions (HxWxD) |
1.73in x 17.4in x 16.0in 44.0mm x 442.5mm x 406.4 |
1.73in x 17.4in x 22.0in 44.0mm x 442.5mm x 558.8 | ||||||||||||
|
Full configuration weight |
18.05 lb 8.19 kg |
17.00 lb (estim.) 7.71 kg (estim.) |
23.65lb 10.73kgs | |||||||||||
|
Memory and Processor | ||||||||||||||
|
CPU |
1.8 GHz 4-core 64-bit | |||||||||||||
|
Memory, Drive and Flash |
16GB RAM, 32GB Flash/Storage | |||||||||||||
|
Packet Buffer |
32MB | |||||||||||||
|
Performance | ||||||||||||||
|
Switching Capacity |
2.4Tbps |
1.2Tbps |
4.8Tbps | |||||||||||
|
MAC Address Table Size |
212,992 | |||||||||||||
|
IPv4 Host Table |
145,780 | |||||||||||||
|
IPv6 Host Table |
145,780 | |||||||||||||
|
IPv4 Unicast Routes |
606,977 | |||||||||||||
|
IPv6 Unicast Routes |
630,784 | |||||||||||||
|
Maximum Number of Access Control List (ACL) Entries Ingress |
IPv4 65,536, IPv6 16,384, MAC 65,536 | |||||||||||||
|
Performance | ||||||||||||||
|
Maximum Number of Access Control List (ACL) Entries Egress |
IPv4 8,192, IPv6 2,048, MAC 8,192 | |||||||||||||
|
Maximum VLANs |
4,094 | |||||||||||||
|
IGMP Groups |
7,000 | |||||||||||||
|
MLD Groups |
7,000 | |||||||||||||
|
IPv4 Multicast Routes |
7,000 | |||||||||||||
|
IPv6 Multicast Routes |
7,000 | |||||||||||||
|
Environment | ||||||||||||||
|
Operating Temperature3 |
32°F to 113°F (0°C to 45°C) up to 5000 ft |
32°F to 104°F (0°C to 40°C) up to 5000 ft |
32°F to 113°F (0°C to 45°C) up to 5000 ft |
32°F to 104°F (0°C to 40°C) up to 5000 ft |
32°F to 113°F (0°C to 45°C) up to 5000 ft |
32°F to 104°F (0°C to 40°C) up to 5000 ft | ||||||||
|
Operating Relative Humidity |
15% to 95% relative humidity at 113°F (45°C), non-condensing |
15% to 95% relative humidity at 104°F (40°C), non-condensing |
15% to 95% relative humidity at 113°F (45°C), non-condensing |
15% to 95% relative humidity at 104°F (40°C), non-condensing |
15% to 95% relative humidity at 113°F (45°C), non-condensing |
15% to 95% relative humidity at 104°F (40°C), non-condensing | ||||||||
|
Non-Operating Temperature |
-40°C to 70°C (-40°F to 158°F) up to 4.6km (15,000 ft.) | |||||||||||||
|
Non-Operating/ Storage Relative Humidity |
15% to 95% at 149°F (65°C) non-condensing | |||||||||||||
|
Maximum Operating Altitude |
Up to 10,000ft (3.048Km) | |||||||||||||
|
Maximum Non-Operating Altitude |
Up to 15,000ft (4.6Km) | |||||||||||||
|
Primary Airflow |
Power-to-Port (PwrToPrt) or Port-to-Power (PrtToPwr) |
Front-to-Back (Frnt-to-Bck) or Back-to- Front (Bck-to-Front) | ||||||||||||
|
BTU/hr |
1,450 |
1,450 |
1,109 |
1,109 |
1,450 |
1,450 | ||||||||
|
Acoustics4 |
LWAd = 6.3 Bel LpAm (Bystander) = 45.4 dB |
LWAd = 6.4 Bel LpAm (Bystander) = 45.8 dB |
LWAd = 6.0 Bel LpAm (Bystander) = 42.8 dB |
LWAd = 6.0 Bel LpAm (Bystander) = 42.8 dB |
LWAd = 6.3 Bel LpAm (Bystander) = 45.4 dB |
LWAd = 6.4 Bel LpAm (Bystander) = 45.8 dB | ||||||||
|
Electrical Characteristics | ||||||||||||||
|
Frequency |
47-63 Hz | |||||||||||||
|
AC Voltage Current |
7.1A for 100-127VAC 3.4A for 200-240VAC |
100-127V/200-240V 10A (Low Voltage) / 5A (High Voltage) | ||||||||||||
|
Power Consumption |
Max: 425W Idle: 120W |
Max: 325W Idle: 110W |
230W Idle Power / 725W Max Power | |||||||||||
|
Regulatory | ||||||||||||||
|
Compliance |
Products comply with CE Markings according to directives 2014/30/EU (EMC) and 2014/35/EU (Safety) | |||||||||||||
|
RoHS |
EN 63000:2018 | |||||||||||||
|
Safety |
| |||||||||||||
|
EU |
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN62368-1, Ed.2:2014 | |||||||||||||
|
North America |
UL60950-1, CSA 22.2 No 60950-1 | |||||||||||||
|
Worldwide |
IEC60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014 | |||||||||||||
|
EMC |
EN 55024:2010+A2016/CISPR24:2015 EN55032:2015/CISPR 32, Class A EN55035:2017/CISPR 35 EN61000-3-2:2014, Class A EN61000-3-3:2013 FCC CFR 47 Part 15:2010, Class A ICES-003, Class A VCCI Class A CNS 13438 CNS 13438 Class A | |||||||||||||
|
Laser |
| |||||||||||||
|
Transceivers |
EN60825-1:2014 / IEC 60825-1: 2014 Class 1 Class 1 Laser Products / Laser Klasse 1 | |||||||||||||
|
Mounting |
Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post and 4-post mounting options available5; air duct available for 4-post deployments and sold separately | |||||||||||||
|
| ||||||||||||||
|
|
HPE Aruba Networking 8360v2- 48XT4C Front-to-Back 3 Fans, 2 Power Supplies [JL706C] |
HPE Aruba Networking 8360v2- 48XT4C Back-to-Front3 Fans, 2 Power Supplies [JL707C] |
HPE Aruba Networking 8360v2-12C Front-to-Back 3 Fans, 2 Power Supplies [JL708C] |
HPE Aruba Networking 8360v2-12C Back-to-Front 3 Fans, 2 Power Supplies [JL709C] |
HPE Aruba Networking 8360v2- 24XF2C Front-to-Back 3 Fans, 2 Power Supplies [JL710C] |
HPE Aruba Networking 8360v2- 24XF2C Back-to-Front 3 Fans, 2 Power Supplies [JL711C] | ||
|
I/O ports and slots | ||||||||
|
|
48 ports of 100M/1GbE/10GBASE-T 4 ports of 40GbE/100GbE (QSFP+/ QSFP28) |
12 ports of 40GbE/100GbE (QSFP+/ QSFP28) (optional 4x10G/25G breakout cables supported) |
24 ports of 1GbE/10GbE (SFP/SFP+) 2 ports of 40GbE/100GbE (QSFP+/ QSFP28) (optional 1GBASE-T SFP and 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported) | |||||
|
Additional ports and slots | ||||||||
|
Power Supplies |
2 field-replaceable and hot-swappable power supplies6 | |||||||
|
Fans |
3 field-replaceable and hot-swappable fans7 | |||||||
|
Management |
RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A | |||||||
|
Physical characteristics | ||||||||
|
Physical Dimensions (HxWxD) |
1.73in x 17.4in x 16.0in 44.0mm x 442.5mm x 406.4 | |||||||
|
Full configuration weight |
18.85 lb. 8.55 kg |
17.65 lb 8.01 kg |
17.8 lb 8.07 kg | |||||
|
Memory and Processor | ||||||||
|
CPU |
1.8 GHz 4-core 64-bit | |||||||
|
Memory, Drive and Flash |
16GB RAM, 32GB Flash/Storage | |||||||
|
Packet Buffer |
32MB | |||||||
|
Performance | ||||||||
|
Switching Capacity |
1.76Tbps |
2.4Tbps |
880Gbps | |||||
|
MAC Address Table Size |
212,992 | |||||||
|
IPv4 Host Table |
145,780 | |||||||
|
IPv6 Host Table |
145,780 | |||||||
|
IPv4 Unicast Routes |
606,977 | |||||||
|
IPv6 Unicast Routes |
630,784 | |||||||
|
Maximum Number of Access Control List (ACL) Entries Ingress |
IPv4 65,536, IPv6 16,384, MAC 65,536 | |||||||
|
Performance | ||||||||
|
Maximum Number of Access Control List (ACL) Entries Egress |
IPv4 8,192, IPv6 2,048, MAC 8,192 | |||||||
|
Maximum VLANs |
4,094 | |||||||
|
IGMP Groups |
7,000 | |||||||
|
MLD Groups |
7,000 | |||||||
|
IPv4 Multicast Routes |
7,000 | |||||||
|
IPv6 Multicast Routes |
7,000 | |||||||
|
Environment | ||||||||
|
Operating Temperature8
|
32°F to 113°F (0°C to 45°C) up to 5000 ft |
32°F to 104°F (0°C to 40°C) up to 5000 ft |
32°F to 113°F (0°C to 45°C) up to 5000 ft |
32°F to 104°F (0°C to 40°C) up to 5000 ft |
32°F to 113°F (0°C to 45°C) up to 5000 ft |
32°F to 104°F (0°C to 40°C) up to 5000 ft | ||
|
Operating Relative Humidity |
15% to 95% relative humidity at 113°F (45°C), non-condensing |
15% to 95% relative humidity at 104°F (40°C), non-condensing |
15% to 95% relative humidity at 113°F (45°C), non-condensing |
15% to 95% relative humidity at 104°F (40°C), non-condensing |
15% to 95% relative humidity at 113°F (45°C), non-condensing |
15% to 95% relative humidity at 104°F (40°C), non-condensing | ||
|
Non-Operating Temperature |
-40°C to 70°C (-40°F to 158°F) up to 4.6km (15,000 ft.) | |||||||
|
Non-Operating/ Storage Relative Humidity |
15% to 95% at 149°F (65°C) non-condensing | |||||||
|
Maximum Operating Altitude |
Up to 10,000ft (3.048Km) | |||||||
|
Maximum Non-Operating Altitude |
Up to 15,000ft (4.6Km) | |||||||
|
Primary Airflow |
Port-to-Power (PrtToPwr) |
Power-to-Port (PwrToPrt) |
Port-to-Power (PrtToPwr) |
Power-to-Port (PwrToPrt) |
Port-to-Power (PrtToPwr) |
Power-to-Port (PwrToPrt) | ||
|
BTU/hr |
1,706 |
1,706 |
1,280 |
1,280 |
1,280 |
1,280 | ||
|
Acoustics9 |
LWAd = 6.7 Bel LpAm (Bystander) = 48.7 dB |
LWAd = 6.5 Bel LpAm (Bystander) = 47.6 dB |
LWAd = 6.3 Bel LpAm (Bystander) = 46.7 dB |
LWAd = 6.2 Bel LpAm (Bystander) = 45.3 dB |
LWAd = 6.0 Bel LpAm (Bystander) = 42.6 dB |
LWAd = 6.2 Bel LpAm (Bystander) = 44.4 dB | ||
|
Electrical Characteristics | ||||||||
|
Frequency |
47-63 Hz | |||||||
|
AC Voltage Current |
7.1A for 100-127VAC 3.4A for 200-240VAC | |||||||
|
Power Consumption |
Max: 500W Idle: 120W |
Max: 375W Idle: 120W |
Max: 375W Idle: 120W | |||||
|
Regulatory | ||||||||
|
Compliance |
Products comply with CE Markings according to directives 2014/30/EU (EMC) and 2014/35/EU (Safety) | |||||||
|
RoHS |
EN 50581:2012 | |||||||
|
Safety | ||||||||
|
EU |
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN62368-1, Ed.2:2014 | |||||||
|
North America |
UL/CUL 69050-1: 2nd Edition UL/CUL 63268-1:2014 UL60950-1, CSA 22.2 No 60950-1 | |||||||
|
Worldwide |
IEC60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014 | |||||||
|
EMC |
EN 55024:2010+A2016/CISPR24:2015 EN55032:2015/CISPR 32, Class A EN55035:2017/CISPR 35 EN61000-3-2:2014, Class A EN61000-3-3:2013 FCC CFR 47 Part 15:2010, Class A ICES-003, Class A VCCI Class A CNS 13438 CNS 13438 Class A | |||||||
|
Laser | ||||||||
|
Transceivers |
EN60825-1:2014 / IEC 60825-1: 2014 Class 1 Class 1 Laser Products / Laser Klasse 1 | |||||||
|
Mounting |
Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post and 4-post mounting options available10; air duct available for 4-post deployments and sold separately | |||||||
|
| ||||||||
|
Standards and Protocols The following standards and protocols are supported. - CPU DoS Protection - IEEE 802.1AB-2009 - IEEE 802.1AE MACSEC - IEEE 802.1AEbn-2011 GCM-AES-256 Cipher Suite - IEEE 802.1AEbw-2013 Extended Packet Numbering - IEEE 802.1ak-2007 - IEEE 802.1AX-2008 Link Aggregation - IEEE 802.1p Priority - IEEE 802.1p Traffic Class Expediting and Dynamic Multicast Filtering - IEEE 802.1Q VLANs - IEEE 802.1s Multiple Spanning Trees - IEEE 802.1t-2001 - IEEE 802.1v VLAN classification by Protocol and Port - IEEE 802.1w Rapid Reconfiguration of Spanning Tree - IEEE 802.3ad Link Aggregation Control Protocol (LACP) - IEEE 802.3ae 10-Gigabit Ethernet - IEEE 802.3an 10-GBASE-T-2006 - IEEE 802.3by 25 Gigabit Ethernet-2016 - IEEE 802.3cc 25 Gigabit Ethernet-2017 - IEEE 802.3ba 40-Gigabit Ethernet - 2010 - IEEE 802.3cd 50-Gigabit Ethernet - 20181 - IEEE 802.3ba 802.3bj-100 Gigabit Ethernet - 2010/2014 - IEEE 802.3x Flow Control - IEEE 802.3z 1000BASE-X - IEEE 802.3z Gigabit Ethernet - RFC 1215 Convention for defining traps for use with the SNMP - RFC 1256 ICMP Router Discovery Messages - RFC 1350 TFTP Protocol (revision 2) - RFC 1393 Traceroute Using an IP Option - RFC 1403 BGP OSPF Interaction - RFC 1519 CIDR - RFC 1583 OSPF Version 2 - RFC 1591 Domain Name System Structure and Delegation - RFC 1657 Definitions of Managed Objects for BGP-4 using SMIv2 - RFC 1757 Remote Network Monitoring Management Information Base - RFC 1772 Application of the Border Gateway Protocol in the Internet - RFC 1812 Requirements for IP Version 4 Router - RFC 1918 Address Allocation for Private Internet - RFC 1981 Path MTU Discovery for IP version 6 - RFC 1997 BGP Communities Attribute - RFC 1998 An Application of the BGP Community Attribute - RFC 2131 DHCP - RFC 2131 DHCP Options and BOOTP Vendor Extensions - RFC 2236 IGMP - RFC 2328 OSPF Version 2 - RFC 2375 IPv6 Multicast Address Assignments - RFC 2385 Protection of BGP Sessions via the TCP MD5 Signature Option - RFC 2401 Security Architecture for the Internet Protocol - RFC 2402 IP Authentication Header - RFC 2406 IP Encapsulating Security Payload (ESP) - RFC 2439 BGP Route Flap Damping - RFC 2460 Internet Protocol, Version 6 (IPv6) Specification - RFC 2464 Transmission of IPv6 over Ethernet Networks - RFC 2545 Use of BGP-4 Multiprotocol Extensions for IPv6 Inter-Domain Routing - RFC 2576 Coexistence between SNMP V1, V2, V3) - RFC 2710 Multicast Listener Discovery (MLD) for IPv6 - RFC 2711 IPv6 Router Alert Option - RFC 2787 Definitions of Managed Objects for the Virtual Router Redundancy Protocol - RFC 2918 Route Refresh Capability for BGP-4 - RFC 2934 Protocol Independent Multicast MIB for IPv4 - RFC 3019 MLDv1 MIB - RFC 3056 Connection of IPv6 Domains via IPv4 Clouds - RFC 3065 Autonomous System Confederation for BGP - RFC 3101 OSPF Not-so-stubby-area option - RFC 3137 OSPF Stub Router Advertisement - RFC 3176 InMon Corporation's sFlow: A Method for Monitoring Traffic in Switched and Routed Networks - RFC 3376 IGMPv3 - RFC 3416 (SNMP Protocol Operations v2) - RFC 3417 (SNMP Transport Mappings) - RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) - RFC 3484 Default Address Selection for IPv6 - RFC 3509 Alternative Implementations of OSPF Area Border Routers - RFC 3623 Graceful OSPF Restart - RFC 3768 VRRP - RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6 - RFC 3973 PIM Dense Mode - RFC 4022 MIB for TCP - RFC 4113 MIB for UDP - RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers - RFC 4251 The Secure Shell (SSH) Protocol - RFC 4252 SSHv6 Authentication - RFC 4253 SSHv6 Transport Layer - RFC 4254 SSHv6 Connection - RFC 4271 A Border Gateway Protocol 4 (BGP-4) - RFC 4273 Definitions of Managed Objects for BGP-4 - RFC 4291 IP Version 6 Addressing Architecture - RFC 4292 IP Forwarding Table MIB - RFC 4293 Management Information Base for the Internet Protocol (IP) - RFC 4360 BGP Extended Communities Attribute - RFC 4419 Key Exchange for SSH - RFC 4443 ICMPv6 - RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP) - RFC 4486 Subcodes for BGP Cease Notification Message - RFC 4541 IGMP & MLD Snooping Switch - RFC 4552 Authentication/Confidentiality for OSPFv3 - RFC 4601 PIM Sparse Mode - RFC 4724 Graceful Restart Mechanism for BGP - RFC 4750 OSPFv2 MIB [partial support no Set MIB] - RFC 4760 Multiprotocol Extensions for BGP-4 - RFC 4861 IPv6 Neighbor Discovery for IP version 6 (IPv6) - RFC 4862 IPv6 Stateless Address Auto-configuration - RFC 4940 IANA Considerations for OSPF - RFC 5065 Autonomous System Confederation for BGP - RFC 5095 Deprecation of Type 0 Routing Headers in IPv6 - RFC 5187 OSPFv3 Graceful Restart - RFC 5340 OSPFv3 for IPv6 - RFC 53492 Capabilities Advertisement with BGP-4 - RFC 5424 Syslog Protocol - RFC 5492 Capabilities Advertisement with BGP-4 - RFC 5519 Multicast Group Membership Discovery MIB (MLDv2 only) - RFC 5701 IPv6 Address Specific BGP Extended Community Attribute - RFC 5722 Handling of Overlapping IPv6 Fragments - RFC 5798 VRRP (exclude Accept Mode and sub-sec timer) - RFC 5880 Bidirectional Forwarding Detection - RFC 6987 OSPF Stub Router Advertisement - RFC 7047 The Open vSwitch Database Management Protocol - RFC 7059 A Comparison of IPv6-overoIPv4 Tunnel Mechanisms - RFC 7313 Enhanced Route Refresh Capability for BGP-4 - RFC 768 User Datagram Protocol - RFC 783 TFTP Protocol (revision 2) - RFC 791 IP - RFC 792 ICMP - RFC 793 TCP - RFC 813 Window and Acknowledgement Strategy in TCP - RFC 815 IP datagram reassembly algorithms - RFC 8201 Path MTU Discovery for IP version 6 - RFC 826 ARP - RFC 879 TCP maximum segment size and related topics - RFC 896 Congestion control in IP/TCP internetworks - RFC 917 Internet subnets - RFC 919 Broadcasting Internet Datagrams - RFC 922 Broadcasting Internet Datagrams in the Presence of Subnets (IP_BROAD) - RFC 925 Multi-LAN address resolution |
|
|
|
New HPE Aruba Networking Data Center Networking Solution SKUs for HPE
|
|
Hewlett Packard Enterprise and HPE Aruba Networking offer customers highly differentiated pre-engineered IT infrastructure solutions that span a wide variety HPE compute, storage, networking that span virtualization, vSAN, HCI, HPC, MCS, Microsoft, SAP HANA, Vmware, Nutanix application and IaaS service offerings. HPE Aruba Networking 10/25 and 40/100G CX switches can be deployed as part of these solutions and is often designed into these integrated solutions along with HPE ProLiant DL/DX servers, SimpliVity, Nimble, Synergy, Cray Shasta, Cray ClusterStor, Superdome Flex and GreenLake. These ready-to-deploy, integrated IT data center solutions help simplify and speed IT service delivery while reducing the time, risk, and expertise needed to deploy complex solutions.
To ensure that these Hewlett Packard Enterprise and HPE Aruba Networking integrated solutions receive simplified ordering and the highest-level of customer service and support, HPE Aruba Networking has created a special tracking HPE Aruba Networking Data Center networking SKUs for HPE deployments that identifies these integrated solutions to ensure they receive rapid support triage and streamlines escalation through HPE Services. Please use these new tracking SKUs when HPE Aruba Networking CX switches are included in HPE integrated and mixed compute, storage and networking configuration and deployments.
Notes: Current HPE Aruba Networking "J#" SKUs should still be used for all data center network centric (HPE Aruba Networking "only", Non HPE environments). Please contact your sales representative for additional information and ordering guidance. |
|
|
|
HPE Aruba Networking 8360 DC Switch Series |
|
BTO Models |
|
|
Description |
SKU |
|
HPE Aruba Networking CX 8360-32Y4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G08A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G08A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G08A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G08A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G08A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G09A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G09A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G09A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G09A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G09A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G10A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G10A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G10A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G10A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G10A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G11A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G11A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G11A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G11A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G11A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Port-to-Power Airflow 5 Fans 2 PSU Attached Bundle |
R9G22A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Port-to-Power Airflow 5 Fans 2 PSU Attached Bundle |
R9G22A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Port-to-Power Airflow 5 Fans 2 PSU Attached Bundle |
R9G22A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Port-to-Power Airflow 5 Fans 2 PSU Attached Bundle |
R9G22A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Port-to-Power Airflow 5 Fans 2 PSU Attached Bundle |
R9G22A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Power-to-Port Airflow 5 Fans 2 PSU Attached Bundle |
R9G23A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Power-to-Port Airflow 5 Fans 2 PSU Attached Bundle |
R9G23A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Power-to-Port Airflow 5 Fans 2 PSU Attached Bundle |
R9G23A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Power-to-Port Airflow 5 Fans 2 PSU Attached Bundle |
R9G23A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Power-to-Port Airflow 5 Fans 2 PSU Attached Bundle |
R9G23A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G12A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G12A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G12A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G12A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G12A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G13A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G13A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G13A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G13A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G13A |
|
HPE Aruba Networking CX 8360-12C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G14A |
|
HPE Aruba Networking CX 8360-12C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G14A |
|
HPE Aruba Networking CX 8360-12C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G14A |
|
HPE Aruba Networking CX 8360-12C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G14A |
|
HPE Aruba Networking CX 8360-12C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G14A |
|
HPE Aruba Networking CX 8360-12C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G15A |
|
HPE Aruba Networking CX 8360-12C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G15A |
|
HPE Aruba Networking CX 8360-12C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G15A |
|
HPE Aruba Networking CX 8360-12C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G15A |
|
HPE Aruba Networking CX 8360-12C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G15A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G16A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G16A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G16A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G16A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G16A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G17A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G17A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G17A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G17A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G17A |
|
|
|
|
Rack Level Integration CTO Models |
|
|
Description |
SKU |
|
HPE Aruba Networking CX 8360-32Y4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G08A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G08A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G08A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G08A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G08A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G09A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G09A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G09A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G09A |
|
HPE Aruba Networking CX 8360-32Y4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G09A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G10A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G10A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G10A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G10A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G10A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G11A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G11A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G11A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G11A |
|
HPE Aruba Networking CX 8360-16Y2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G11A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Port-to-Power Airflow 5 Fans 2 PSU Attached Bundle |
R9G22A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Port-to-Power Airflow 5 Fans 2 PSU Attached Bundle |
R9G22A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Port-to-Power Airflow 5 Fans 2 PSU Attached Bundle |
R9G22A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Port-to-Power Airflow 5 Fans 2 PSU Attached Bundle |
R9G22A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Port-to-Power Airflow 5 Fans 2 PSU Attached Bundle |
R9G22A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Power-to-Port Airflow 5 Fans 2 PSU Attached Bundle |
R9G23A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Power-to-Port Airflow 5 Fans 2 PSU Attached Bundle |
R9G23A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Power-to-Port Airflow 5 Fans 2 PSU Attached Bundle |
R9G23A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Power-to-Port Airflow 5 Fans 2 PSU Attached Bundle |
R9G23A |
|
HPE Aruba Networking CX 8360-48Y6C v2 Power-to-Port Airflow 5 Fans 2 PSU Attached Bundle |
R9G23A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G12A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G12A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G12A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G12A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G12A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G13A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G13A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G13A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G13A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G13A |
|
HPE Aruba Networking CX 8360-12C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G14A |
|
HPE Aruba Networking CX 8360-12C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G14A |
|
HPE Aruba Networking CX 8360-12C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G14A |
|
HPE Aruba Networking CX 8360-12C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G14A |
|
HPE Aruba Networking CX 8360-12C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G14A |
|
HPE Aruba Networking CX 8360-12C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G15A |
|
HPE Aruba Networking CX 8360-12C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G15A |
|
HPE Aruba Networking CX 8360-12C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G15A |
|
HPE Aruba Networking CX 8360-12C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G15A |
|
HPE Aruba Networking CX 8360-12C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G15A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G16A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G16A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G16A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G16A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G16A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G17A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G17A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G17A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G17A |
|
HPE Aruba Networking CX 8360-24XF2C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G17A |
|
|
|
|
| |
|
Transceivers |
|
|
SFP Transceivers |
|
|
Description |
SKU |
|
HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver |
R9F86A |
|
HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver |
J4859D |
|
HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver |
J4860D |
|
HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver |
R9F87A |
|
HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver |
R9Q43A |
|
HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver |
R9Q44A |
|
HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e TAA Transceiver |
R9Q45A |
|
|
|
|
SFP+ Transceivers |
|
|
Description |
SKU |
|
HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver |
J9150D |
|
HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver |
J9151E |
|
HPE Aruba Networking 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver |
JL563C |
|
HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver |
J9153D |
|
HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver |
JL748A |
|
HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver |
JL749A |
|
HPE Aruba Networking 10G I-Temp BiDi LC 10km-Downstream SMF 1330/1270 Transceiver |
S6H20A |
|
HPE Aruba Networking 10G I-Temp BiDi LC 10km-Downstream SMF 1330/1270 TAA Transceiver |
S6H22A |
|
HPE Aruba Networking 10G I-Temp BiDi LC 10km-Upstream SMF 1270/1330 TAA Transceiver |
S6H24A |
|
HPE Aruba Networking 10G I-Temp BiDi LC 10km-Downstream SMF 1330/1270 Transceiver |
S6H20A |
|
HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver |
S2P30A |
|
HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver |
S2P31A |
|
HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver |
S2P32A |
|
HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
J9281D |
|
HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
J9283D |
|
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable |
487655-B21 |
|
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable |
537963-B21 |
|
|
|
|
SFP28 Transceivers |
|
|
Description |
SKU |
|
HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver |
R9F89A |
|
HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver |
R9F90A |
|
HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver |
JL486A |
|
HPE Aruba Networking 25G SFP28 to SFP28 0.65m Direct Attach Copper Cable |
R9F91A |
|
HPE Aruba Networking 25G SFP28 to SFP28 3m Direct Attach Copper Cable |
R9F92A |
|
HPE Aruba Networking 25G SFP28 to SFP28 5m Direct Attach Copper Cable |
R9F93A |
|
HPE 25Gb SFP28 to SFP28 3m Direct Attach Copper Cable |
844477-B21 |
|
HPE 25Gb SFP28 to SFP28 5m Direct Attach Copper Cable |
844480-B21 |
|
HPE Aruba Networking 25G SFP28 to SFP28 3m Active Optical Cable |
R9F94A |
|
HPE Aruba Networking 25G SFP28 to SFP28 7m Active Optical Cable |
R9F95A |
|
HPE Aruba Networking 25G SFP28 to SFP28 15m Active Optical Cable |
R9F96A |
|
|
|
|
SFP56 Transceivers |
|
|
Description |
SKU |
|
HPE Aruba Networking 50G SFP56 LC SR 100m MMF Transceiver |
R0M48A |
|
HPE Aruba Networking 50G eSR 300m MMF Transceiver |
S0V64A |
|
HPE Aruba Networking 50G LR 10km SMF Transceiver |
S0V65A |
|
HPE Aruba Networking 50G ER 40km SMF Transceiver |
S0V66A |
|
HPE Aruba Networking 50G BiDi 40km-Downstream 1314/1289 Transceiver |
S0V67A |
|
HPE Aruba Networking 50G BiDi 40km-Upstream 1289/1314 Transceiver |
S0V68A |
|
HPE Aruba Networking 50G BiDi 10km-Downstream 1330/1270 Transceiver |
S1C92A |
|
HPE Aruba Networking 50G BiDi 10km-Upstream 1270/1330 Transceiver |
S1C94A |
|
HPE Aruba Networking 50G I-Temp LR SFP56 LC 10km SMF TAA Transceiver |
S6H23A |
|
HPE Aruba Networking 50G SFP56 to SFP56 0.65m Direct Attach Copper Cable |
R0M46A |
|
HPE Aruba Networking 50G SFP56 to SFP56 3m Direct Attach Copper Cable |
R0M47A |
|
|
|
|
QSFP+ Transceivers |
|
|
Description |
SKU |
|
HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver |
R9G02A |
|
HPE Aruba Networking 40G QSFP+ MPO SR4 Transceiver |
R9F97A |
|
HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver |
JH232A |
|
HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver |
Q9G82A |
|
HPE Aruba Networking 40G QSFP+ MPO eSR4 300M Transceiver |
R9F98A |
|
HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable |
R9G03A |
|
HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable |
R9G04A |
|
HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable |
R9G05A |
|
HPE Aruba Networking 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable |
R9F99A |
|
HPE Aruba Networking 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable |
R9G00A |
|
HPE Aruba Networking 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable |
R9G01A |
|
HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable |
721064-B21 |
|
HPE BladeSystem c-Class QSFP+ to 4x10G SFP+ 15m Active Optical Cable |
721076-B21 |
|
|
|
|
QSFP28 Transceivers |
|
|
Description |
SKU |
|
HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver |
JL743A |
|
HPE Aruba Networking 100G LR4 QSFP28 LC 10km SMF TAA Transceiver |
S6H32A |
|
HPE Aruba Networking 100G QSFP28 MPO SR4 MMF Transceiver |
R9F75A |
|
HPE Aruba Networking 100G QSFP28 LC CWDM4 2km SMF Transceiver |
R0Z30A |
|
HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver |
JL310A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable |
R9F77A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable |
R9F78A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable |
R9F79A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable |
R9F76A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable |
R9F79A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable |
R9F80A |
|
HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable |
R9F81A |
|
HPE 100Gb QSFP28 to 4x25Gb SFP28 3m Direct Attach Copper Cable |
845416-B21 |
|
HPE QSFP28 to 4x25Gb SFP28 7m Active Optical Cable |
845420-B21 |
|
HPE QSFP28 to 4x25Gb SFP28 15m Active Optical Cable |
845424-B21 |
|
|
|
|
QSA28 Adapter |
|
|
Description |
SKU |
|
HPE QSFP28 to SFP28 Adapter |
845970-B21 |
|
Configuration Rules |
|
|
Description |
|
|
This Breakout Cable is not supported on the following Switches: |
|
|
HPE Aruba Networking CX 8360-48XT4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle |
R9G12A |
|
HPE Aruba Networking CX 8360-48XT4C v2 Power-to-Port Airflow 3 Fans 2 PSU Attached Bundle |
R9G13A |
|
If selecting the 845970-B21 - QSFP28 to SFP28 Adapter, then see HPE Aruba Networking Transceiver Guide for details.
|
|
|
| |
|
Switch Options |
|
|
Rack Mount Kits |
|
|
Description |
SKU |
|
HPE Aruba Networking X412 1U Universal 2-post Rack Mount Kit |
JL602A |
|
HPE Aruba Networking 1U Universal 4-post Rack Mount Kit |
R9F57A |
|
|
|
|
Air Duct Kit |
|
|
Description |
SKU |
|
HPE Aruba Networking Universal 4-post Duct Kit |
R9F60A |
|
|
|
|
| |
|
Accessories |
| |||||||||||||||||||||||||||||
|
Spare Items |
||||||||||||||||||||||||||||||
|
Description |
SKU | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 550W Port-to-Power Airflow AC Power Supply Unit |
R9G19A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 550W Port-to-Power Airflow AC Power Supply Unit |
R9G19A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 550W Port-to-Power Airflow AC Power Supply Unit |
R9G19A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 550W Port-to-Power Airflow AC Power Supply Unit |
R9G19A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 550W Port-to-Power Airflow AC Power Supply Unit |
R9G19A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 850W Port-to-Power Airflow AC Power Supply Unit |
R9G25A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 850W Port-to-Power Airflow AC Power Supply Unit |
R9G25A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 850W Port-to-Power Airflow AC Power Supply Unit |
R9G25A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 850W Port-to-Power Airflow AC Power Supply Unit |
R9G25A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 850W Port-to-Power Airflow AC Power Supply Unit |
R9G25A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 550W Power-to-Port Airflow AC Power Supply Unit |
R9G18A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 550W Power-to-Port Airflow AC Power Supply Unit |
R9G18A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 550W Power-to-Port Airflow AC Power Supply Unit |
R9G18A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 550W Power-to-Port Airflow AC Power Supply Unit |
R9G18A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 550W Power-to-Port Airflow AC Power Supply Unit |
R9G18A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 850W Power-to-Port Airflow AC Power Supply Unit |
R9G24A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 850W Power-to-Port Airflow AC Power Supply Unit |
R9G24A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 850W Power-to-Port Airflow AC Power Supply Unit |
R9G24A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 850W Power-to-Port Airflow AC Power Supply Unit |
R9G24A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 850W Power-to-Port Airflow AC Power Supply Unit |
R9G24A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking Port-to-Power Airflow Fan |
R9G20A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking Power-to-Port Airflow Fan |
R9G21A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking X412 1U Universal 2-post Rack Mount Kit |
JL602A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking 1U Universal 4-post Rack Mount Kit |
R9F57A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking Universal 4-post Duct Kit |
R9F60A | |||||||||||||||||||||||||||||
|
HPE Aruba Networking RJ45 to DB9 Console Cable |
R9F58A | |||||||||||||||||||||||||||||
|
|
| |||||||||||||||||||||||||||||
|
|
| |||||||||||||||||||||||||||||
|
Software |
|
| ||||||||||||||||||||||||||||
|
NetEdit |
|
| ||||||||||||||||||||||||||||
|
NetEdit / Single Node Subscription for Data Center Solutions |
|
| ||||||||||||||||||||||||||||
|
HPE Aruba Networking NetEdit Single Node 1-year Subscription E-STU |
R9G36AAE |
| ||||||||||||||||||||||||||||
|
HPE Aruba Networking NetEdit Single Node 3-year Subscription E-STU |
R9G37AAE |
| ||||||||||||||||||||||||||||
|
|
|
| ||||||||||||||||||||||||||||
|
HPE Aruba Networking Fabric Composer |
|
| ||||||||||||||||||||||||||||
|
Fabric Composer / Single Node Subscription for Data Center Solutions |
|
| ||||||||||||||||||||||||||||
|
HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 1y Subscription E-STU |
R9G26AAE |
| ||||||||||||||||||||||||||||
|
HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 3y Subscription E-STU |
R9G27AAE |
| ||||||||||||||||||||||||||||
|
HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 5y Subscription E-STU |
R9G28AAE |
| ||||||||||||||||||||||||||||
|
|
| |||||||||||||||||||||||||||||
|
Technical Specifications |
| |||||||||||||||||||||||||||||
|
|
HPE Aruba Networking 8360v2- 32Y4C MACsec Port-to- Power 3 Fans, 2 Power Supplies (R9G08A) |
HPE Aruba Networking 8360v2- 32Y4C MACsec Power-to-Port 3 Fans, 2 Power Supplies (R9G09A) |
HPE Aruba Networking 8360v2- 16Y2C Port-to-Power 3 Fans, 2 Power Supplies (R9G10A) |
HPE Aruba Networking 8360v2- 16Y2C Power-to-Port 3 Fans, 2 Power Supplies (R9G11A) |
HPE Aruba Networking 8360- 48Y6C v2 MACsec Front-to-Back 5 Fans, 2 AC Power Supplies (R9G22A) |
HPE Aruba Networking 8360- 48Y6C v2 MACsec Back-to-Front 5 Fans, 2 AC Power Supplies (R9G23A) |
| |||||||||||||||||||||||
|
I/O ports and slots |
| |||||||||||||||||||||||||||||
|
|
8360-32Y4C up to 12 ports of 50G 28 ports of 1GbE/10GbE/25GbE (SFP/ SFP+/SFP28) 4 ports of 10GbE/25GbE (SFP+/SFP28) with MACsec 4 ports of 40GbE/100GbE (QSFP+/QSFP28) (optional 1GBASE-T SFP, 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported) |
8360-16Y2C up to 8 ports of 50G 16 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) 2 ports of 40GbE/100GbE (QSFP+/QSFP28) (optional 1GBASE-T SFP and 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported) |
8360-48Y6C up to 22 ports of 50G 44 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) 4 ports of 10GbE/25GbE (SFP+/SFP28) with MACsec 4 ports of 40GbE/100GbE (QSFP+/QSFP28) 2 ports of 40GbE/100GbE (QSFP+/QSFP28) with MACsec |
| ||||||||||||||||||||||||||
|
Additional ports and slots |
| |||||||||||||||||||||||||||||
|
Power Supplies |
2 field-replaceable and hot-swappable power supplies1 |
| ||||||||||||||||||||||||||||
|
Fans |
3 field-replaceable and hot-swappable fans2 |
5 field-replaceable and hot-swappable fans2 |
| |||||||||||||||||||||||||||
|
Management |
RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A |
| ||||||||||||||||||||||||||||
|
Physical characteristics |
| |||||||||||||||||||||||||||||
|
Physical Dimensions (HxWxD) |
1.73in x 17.4in x 16.0in 44.0mm x 442.5mm x 406.4 |
1.73in x 17.4in x 22.0in 44.0mm x 442.5mm x 558.8 |
| |||||||||||||||||||||||||||
|
Full configuration weight |
18.05 lb 8.19 kg |
17.00 lb (estim.) 7.71 kg (estim.) |
23.65lb 10.73kgs |
| ||||||||||||||||||||||||||
|
Memory and Processor |
| |||||||||||||||||||||||||||||
|
CPU |
1.8 GHz 4-core 64-bit |
| ||||||||||||||||||||||||||||
|
Memory, Drive and Flash |
16GB RAM, 32GB Flash/Storage |
| ||||||||||||||||||||||||||||
|
Packet Buffer |
32MB |
| ||||||||||||||||||||||||||||
|
Performance |
| |||||||||||||||||||||||||||||
|
Switching Capacity |
2.4Tbps |
1.2Tbps |
4.8Tbps |
| ||||||||||||||||||||||||||
|
MAC Address Table Size |
212,992 |
| ||||||||||||||||||||||||||||
|
IPv4 Host Table |
145,780 |
| ||||||||||||||||||||||||||||
|
IPv6 Host Table |
145,780 |
| ||||||||||||||||||||||||||||
|
IPv4 Unicast Routes |
606,977 |
| ||||||||||||||||||||||||||||
|
IPv6 Unicast Routes |
630,784 |
| ||||||||||||||||||||||||||||
|
Maximum Number of Access Control List (ACL) Entries Ingress |
IPv4 65,536, IPv6 16,384, MAC 65,536 |
| ||||||||||||||||||||||||||||
|
Performance |
| |||||||||||||||||||||||||||||
|
Maximum Number of Access Control List (ACL) Entries Egress |
IPv4 8,192, IPv6 2,048, MAC 8,192 |
| ||||||||||||||||||||||||||||
|
Maximum VLANs |
4,094 |
| ||||||||||||||||||||||||||||
|
IGMP Groups |
7,000 |
| ||||||||||||||||||||||||||||
|
MLD Groups |
7,000 |
| ||||||||||||||||||||||||||||
|
IPv4 Multicast Routes |
7,000 |
| ||||||||||||||||||||||||||||
|
IPv6 Multicast Routes |
7,000 |
| ||||||||||||||||||||||||||||
|
Environment |
| |||||||||||||||||||||||||||||
|
Operating Temperature3 |
32°F to 113°F (0°C to 45°C) up to 5000 ft |
32°F to 104°F (0°C to 40°C) up to 5000 ft |
32°F to 113°F (0°C to 45°C) up to 5000 ft |
32°F to 104°F (0°C to 40°C) up to 5000 ft |
32°F to 113°F (0°C to 45°C) up to 5000 ft |
32°F to 104°F (0°C to 40°C) up to 5000 ft |
| |||||||||||||||||||||||
|
Operating Relative Humidity |
15% to 95% relative humidity at 113°F (45°C), non-condensing |
15% to 95% relative humidity at 104°F (40°C), non-condensing |
15% to 95% relative humidity at 113°F (45°C), non-condensing |
15% to 95% relative humidity at 104°F (40°C), non-condensing |
15% to 95% relative humidity at 113°F (45°C), non-condensing |
15% to 95% relative humidity at 104°F (40°C), non-condensing |
| |||||||||||||||||||||||
|
Non-Operating Temperature |
-40°C to 70°C (-40°F to 158°F) up to 4.6km (15,000 ft.) |
| ||||||||||||||||||||||||||||
|
Non-Operating/ Storage Relative Humidity |
15% to 95% at 149°F (65°C) non-condensing |
| ||||||||||||||||||||||||||||
|
Maximum Operating Altitude |
Up to 10,000ft (3.048Km) |
| ||||||||||||||||||||||||||||
|
Maximum Non-Operating Altitude |
Up to 15,000ft (4.6Km) |
| ||||||||||||||||||||||||||||
|
Primary Airflow |
Power-to-Port (PwrToPrt) or Port-to-Power (PrtToPwr) |
Front-to-Back (Frnt-to-Bck) or Back-to- Front (Bck-to-Front) |
| |||||||||||||||||||||||||||
|
BTU/hr |
1,450 |
1,450 |
1,109 |
1,109 |
1,450 |
1,450 |
| |||||||||||||||||||||||
|
Acoustics4 |
LWAd = 6.3 Bel LpAm (Bystander) = 45.4 dB |
LWAd = 6.4 Bel LpAm (Bystander) = 45.8 dB |
LWAd = 6.0 Bel LpAm (Bystander) = 42.8 dB |
LWAd = 6.0 Bel LpAm (Bystander) = 42.8 dB |
LWAd = 6.3 Bel LpAm (Bystander) = 45.4 dB |
LWAd = 6.4 Bel LpAm (Bystander) = 45.8 dB |
| |||||||||||||||||||||||
|
Electrical Characteristics |
| |||||||||||||||||||||||||||||
|
Frequency |
47-63 Hz |
| ||||||||||||||||||||||||||||
|
AC Voltage Current |
7.1A for 100-127VAC 3.4A for 200-240VAC |
100-127V/200-240V 10A (Low Voltage) / 5A (High Voltage) |
| |||||||||||||||||||||||||||
|
Power Consumption |
Max: 425W Idle: 120W |
Max: 325W Idle: 110W |
230W Idle Power / 725W Max Power |
| ||||||||||||||||||||||||||
|
Regulatory |
| |||||||||||||||||||||||||||||
|
Compliance |
Products comply with CE Markings according to directives 2014/30/EU (EMC) and 2014/35/EU (Safety) |
| ||||||||||||||||||||||||||||
|
RoHS |
EN 50581:2012 |
| ||||||||||||||||||||||||||||
|
Safety |
|
| ||||||||||||||||||||||||||||
|
EU |
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN62368-1, Ed.2:2014 |
| ||||||||||||||||||||||||||||
|
North America |
UL60950-1, CSA 22.2 No 60950-1 |
| ||||||||||||||||||||||||||||
|
Worldwide |
IEC60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014 |
| ||||||||||||||||||||||||||||
|
EMC |
EN 55024:2010+A2016/CISPR24:2015 EN55032:2015/CISPR 32, Class A EN55035:2017/CISPR 35 EN61000-3-2:2014, Class A EN61000-3-3:2013 FCC CFR 47 Part 15:2010, Class A ICES-003, Class A VCCI Class A CNS 13438 CNS 13438 Class A |
| ||||||||||||||||||||||||||||
|
Laser |
|
| ||||||||||||||||||||||||||||
|
Transceivers |
EN60825-1:2014 / IEC 60825-1: 2014 Class 1 Class 1 Laser Products / Laser Klasse 1 |
| ||||||||||||||||||||||||||||
|
Mounting |
Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post and 4-post mounting options available5; air duct available for 4-post deployments and sold separately |
| ||||||||||||||||||||||||||||
|
|
| |||||||||||||||||||||||||||||
|
|
HPE Aruba Networking 8360v2- 48XT4C Port-to- Power 3 Fans, 2 Power Supplies (R9G12A) |
HPE Aruba Networking 8360v2- 48XT4C Power-to-Port 3 Fans, 2 Power Supplies (R9G13A) |
HPE Aruba Networking 8360v2-12C Port-to-Power 3 Fans, 2 Power Supplies (R9G14A) |
HPE Aruba Networking 8360v2-12C Power-to-Port 3 Fans, 2 Power Supplies (R9G15A) |
HPE Aruba Networking 8360v2- 24XF2C Port-to-Power 3 Fans, 2 Power Supplies (R9G16A) |
HPE Aruba Networking 8360v2- 24XF2C Power-to-Port 3 Fans, 2 Power Supplies (R9G17A) | ||||||||||||||||||||||||
|
I/O ports and slots | ||||||||||||||||||||||||||||||
|
|
48 ports of 100M/1GbE/10GBASE-T 4 ports of 40GbE/100GbE (QSFP+/ QSFP28) |
12 ports of 40GbE/100GbE (QSFP+/ QSFP28) (optional 4x10G/25G breakout cables supported) |
24 ports of 1GbE/10GbE (SFP/SFP+) 2 ports of 40GbE/100GbE (QSFP+/ QSFP28) (optional 1GBASE-T SFP and 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported) | |||||||||||||||||||||||||||
|
Additional ports and slots | ||||||||||||||||||||||||||||||
|
Power Supplies |
2 field-replaceable and hot-swappable power supplies6 | |||||||||||||||||||||||||||||
|
Fans |
3 field-replaceable and hot-swappable fans7 | |||||||||||||||||||||||||||||
|
Management |
RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A | |||||||||||||||||||||||||||||
|
Physical characteristics | ||||||||||||||||||||||||||||||
|
Physical Dimensions (HxWxD) |
1.73in x 17.4in x 16.0in 44.0mm x 442.5mm x 406.4 | |||||||||||||||||||||||||||||
|
Full configuration weight |
18.85 lb. 8.55 kg |
17.65 lb 8.01 kg |
17.8 lb 8.07 kg | |||||||||||||||||||||||||||
|
Memory and Processor | ||||||||||||||||||||||||||||||
|
CPU |
1.8 GHz 4-core 64-bit | |||||||||||||||||||||||||||||
|
Memory, Drive and Flash |
16GB RAM, 32GB Flash/Storage | |||||||||||||||||||||||||||||
|
Packet Buffer |
32MB | |||||||||||||||||||||||||||||
|
Performance | ||||||||||||||||||||||||||||||
|
Switching Capacity |
1.76Tbps |
2.4Tbps |
880Gbps | |||||||||||||||||||||||||||
|
MAC Address Table Size |
212,992 | |||||||||||||||||||||||||||||
|
IPv4 Host Table |
145,780 | |||||||||||||||||||||||||||||
|
IPv6 Host Table |
145,780 | |||||||||||||||||||||||||||||
|
IPv4 Unicast Routes |
606,977 | |||||||||||||||||||||||||||||
|
IPv6 Unicast Routes |
630,784 | |||||||||||||||||||||||||||||
|
Maximum Number of Access Control List (ACL) Entries Ingress |
IPv4 65,536, IPv6 16,384, MAC 65,536 | |||||||||||||||||||||||||||||
|
Performance | ||||||||||||||||||||||||||||||
|
Maximum Number of Access Control List (ACL) Entries Egress |
IPv4 8,192, IPv6 2,048, MAC 8,192 | |||||||||||||||||||||||||||||
|
Maximum VLANs |
4,094 | |||||||||||||||||||||||||||||
|
IGMP Groups |
7,000 | |||||||||||||||||||||||||||||
|
MLD Groups |
7,000 | |||||||||||||||||||||||||||||
|
IPv4 Multicast Routes |
7,000 | |||||||||||||||||||||||||||||
|
IPv6 Multicast Routes |
7,000 | |||||||||||||||||||||||||||||
|
Environment | ||||||||||||||||||||||||||||||
|
Operating Temperature8
|
32°F to 113°F (0°C to 45°C) up to 5000 ft |
32°F to 104°F (0°C to 40°C) up to 5000 ft |
32°F to 113°F (0°C to 45°C) up to 5000 ft |
32°F to 104°F (0°C to 40°C) up to 5000 ft |
32°F to 113°F (0°C to 45°C) up to 5000 ft |
32°F to 104°F (0°C to 40°C) up to 5000 ft | ||||||||||||||||||||||||
|
Operating Relative Humidity |
15% to 95% relative humidity at 113°F (45°C), non-condensing |
15% to 95% relative humidity at 104°F (40°C), non-condensing |
15% to 95% relative humidity at 113°F (45°C), non-condensing |
15% to 95% relative humidity at 104°F (40°C), non-condensing |
15% to 95% relative humidity at 113°F (45°C), non-condensing |
15% to 95% relative humidity at 104°F (40°C), non-condensing | ||||||||||||||||||||||||
|
Non-Operating Temperature |
-40°C to 70°C (-40°F to 158°F) up to 4.6km (15,000 ft.) | |||||||||||||||||||||||||||||
|
Non-Operating/ Storage Relative Humidity |
15% to 95% at 149°F (65°C) non-condensing | |||||||||||||||||||||||||||||
|
Maximum Operating Altitude |
Up to 10,000ft (3.048Km) | |||||||||||||||||||||||||||||
|
Maximum Non-Operating Altitude |
Up to 15,000ft (4.6Km) | |||||||||||||||||||||||||||||
|
Primary Airflow |
Port-to-Power (PrtToPwr) |
Power-to-Port (PwrToPrt) |
Port-to-Power (PrtToPwr) |
Power-to-Port (PwrToPrt) |
Port-to-Power (PrtToPwr) |
Power-to-Port (PwrToPrt) | ||||||||||||||||||||||||
|
BTU/hr |
1,706 |
1,706 |
1,280 |
1,280 |
1,280 |
1,280 | ||||||||||||||||||||||||
|
Acoustics9 |
LWAd = 6.7 Bel LpAm (Bystander) = 48.7 dB |
LWAd = 6.5 Bel LpAm (Bystander) = 47.6 dB |
LWAd = 6.3 Bel LpAm (Bystander) = 46.7 dB |
LWAd = 6.2 Bel LpAm (Bystander) = 45.3 dB |
LWAd = 6.0 Bel LpAm (Bystander) = 42.6 dB |
LWAd = 6.2 Bel LpAm (Bystander) = 44.4 dB | ||||||||||||||||||||||||
|
Electrical Characteristics | ||||||||||||||||||||||||||||||
|
Frequency |
47-63 Hz | |||||||||||||||||||||||||||||
|
AC Voltage Current |
7.1A for 100-127VAC 3.4A for 200-240VAC | |||||||||||||||||||||||||||||
|
Power Consumption |
Max: 500W Idle: 120W |
Max: 375W Idle: 120W |
Max: 375W Idle: 120W | |||||||||||||||||||||||||||
|
Regulatory | ||||||||||||||||||||||||||||||
|
Compliance |
Products comply with CE Markings according to directives 2014/30/EU (EMC) and 2014/35/EU (Safety) | |||||||||||||||||||||||||||||
|
RoHS |
EN 50581:2012 | |||||||||||||||||||||||||||||
|
Safety | ||||||||||||||||||||||||||||||
|
EU |
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN62368-1, Ed.2:2014 | |||||||||||||||||||||||||||||
|
North America |
UL/CUL 69050-1: 2nd Edition UL/CUL 63268-1:2014 UL60950-1, CSA 22.2 No 60950-1 | |||||||||||||||||||||||||||||
|
Worldwide |
IEC60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014 | |||||||||||||||||||||||||||||
|
EMC |
EN 55024:2010+A2016/CISPR24:2015 EN55032:2015/CISPR 32, Class A EN55035:2017/CISPR 35 EN61000-3-2:2014, Class A EN61000-3-3:2013 FCC CFR 47 Part 15:2010, Class A ICES-003, Class A VCCI Class A CNS 13438 CNS 13438 Class A | |||||||||||||||||||||||||||||
|
Laser | ||||||||||||||||||||||||||||||
|
Transceivers |
EN60825-1:2014 / IEC 60825-1: 2014 Class 1 Class 1 Laser Products / Laser Klasse 1 | |||||||||||||||||||||||||||||
|
Mounting |
Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post and 4-post mounting options available10; air duct available for 4-post deployments and sold separately | |||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
|
Date |
Version History |
Action |
Description of Change |
|
15-Jun-2026 |
Version 23 |
Changed |
Standard Features section was updated. New SFP+, SFP56, and QSFP28 Transceivers SKUs were added in Configuration Information section: S6H32A, S0V67A, S0V68A, S6H20A, S6H21A, S6H22A, S6H24A. |
|
04-May-2026 |
Version 22 |
Changed |
Standard Features and Technical Specifications sections were updated. New transceivers SKUs were added for SFP+ and SFP56: S6H20A, S6H21A, S6H22A, S6H24A. |
|
05-Jan-2026 |
Version 21 |
Changed |
New branding applied and Overview, Standard Features and Technical Specifications sections were updated. |
|
07-Jul-2025 |
Version 20 |
Added |
New SKU# S5U19A added in BTO and CTO rule 3 and Transceivers in Configuration Information section. |
|
09-Jun-2025 |
Version 19 |
Changed |
Version links added in Summary of Changes section. |
|
Added |
AOS As-a-Service Software Licenses SKUs were added in Configuration Information section: S0T87AAS, S0T88AAS, S0T89AAS, S0T90AAS, S0T86AAS, S3M90AAS, S3M91AAS, S3M92AAS, S3M93AAS, S3M89AAS. | ||
|
05-May-2025 |
Version 18 |
Changed |
Configuration Information section was updated, new transceiver SKUs were added. |
|
03-Mar-2025 |
Version 17 |
Changed |
Configuration Information section was updated. |
|
06-Jan-2025 |
Version 16 |
Changed |
Configuration Information section was updated. |
|
02-Dec-2024 |
Version 15 |
Changed |
Configuration Information, Technical Specifications, and HPE Aruba Networking Data Center Networking Solution for HPE sections were updated. |
|
03-Sep-2024 |
Version 14 |
Changed |
Configuration Information section was updated. |
|
01-Apr-2024 |
Version 13 |
Changed |
Configuration Information section was updated. |
|
04-Dec-2023 |
Version 12 |
Changed |
Configuration Information section was updated. Obsolete SKU was removed. Series name was updated. |
|
10-Jul-2023 |
Version 11 |
Changed |
Configuration Information section was updated. |
|
15-May-2023 |
Version 10 |
Changed |
Configuration Information section was updated. |
|
06-Feb-2023 |
Version 9 |
Changed |
Standard Features and Configuration Information sections were updated. |
|
05-Dec-2022 |
Version 8 |
Changed |
HPE Aruba Networking Data Center Networking Solution for HPE section was updated. |
|
07-Nov-2022 |
Version 7 |
Changed |
Standard Features and Configuration Information sections were updated. |
|
03-Oct-2022 |
Version 6 |
Changed |
Configuration Information section was updated. |
|
01-Aug-2022 |
Version 5 |
Changed |
Configuration Information section was updated. |
|
06-Jun-2022 |
Version 4 |
Changed |
Configuration Information section was updated. |
|
02-May-2022 |
Version 3 |
Changed |
Configuration Information, Technical Specifications, and HPE Aruba Networking Data Center Networking Solution for HPE sections were updated. |
|
04-Apr-2022 |
Version 2 |
Changed |
Overview, Standard Features, Configuration Information, and Technical Specifications sections were updated. New HPE Aruba Networking Data Center Networking Solution for HPE section was added to QuickSpecs |
|
06-Dec-2021 |
Version 1 |
New |
New QuickSpecs |
|
|
|
Have feedback on QuickSpecs? We're listening | |
|
|
|
| |
|
|
|
Chat now | |
|
|
|
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
To learn more, visit: http://www.hpe.com/networking
a50004274enw - 16878 - Worldwide - V23 - 15-June-2026 | |
|
|
|
HEWLETT PACKARD ENTERPRISE HPE.com |
|
