HPE Aruba Networking CX 10000 Switch Series QuickSpecs
Deploy software-defined stateful services where data is processed
The HPE Aruba Networking CX 10000 Switch Series helps network and security administrators distribute intelligence to the data center network-server edge, overcoming legacy network and security design limitations that often require overly complex, highly inefficient, and costly architecture designed to address decades old requirement.
It combines the best-of-breed network operating system, HPE Aruba Networking CX, for data center, campus, and edge in addition to the fully programmable data processing unit (DPU). |
|
|
This allows the DPU-enabled CX 10000 and CX 10040 switches to deliver stateful software-defined services inline, at scale, with wire-rate performance and orders of magnitude scale and performance improvements over traditional L2/L3 switches at a fraction of their total cost of ownership (TCO).
The switches allows operators to extend industry-standard leaf-spine networking with distributed stateful segmentation, east-west firewalling, NAT, encryption, and telemetry services - all delivered inline, all the time, on every access port, closer to where critical enterprise applications run.
The switches' distributed services architecture is agnostic of network deployment architecture. This allows the flexibility to enable stateful services delivery, when deployed as access, leaf top of rack (ToR), or end of row (EoR) in a data center, and potentially in the aggregation layer in campus or edge data center designs.

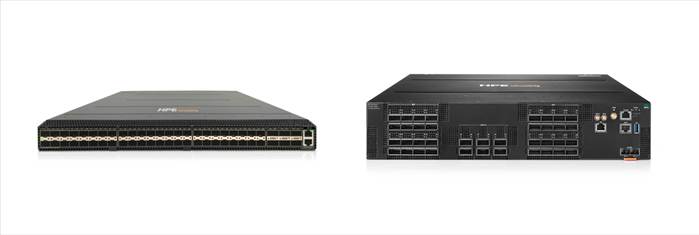

HPE Aruba Networking CX 10000 Switch HPE Aruba Networking CX 10000 delivers a flexible and innovative approach to address the security performance, agility, and scalability demands of both traditional enterprise data centers and emerging distributed, edge, and colocated centers of data.
CX 10000 offer 3.2 Tbps of switching capacity with interface configurations supporting 1/10/25GbE (SFP/SFP+/SFP28) and 40/100GbE (QSFP+/QSFP28) connectivity, in a compact 1U form factor. Consequently, it offers a fantastic investment for customers migrating from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE to 100GbE ports.
HPE Aruba Networking CX 10040 Switch HPE Aruba Networking CX 10040 built on the foundation of the CX 10000 Series, elevates the network fabric to new heights by delivering double the performance at scale, deeply integrated, near line-rate security, real-time operational insights, and automation-ready simplicity critical for powering the next generation of cloud, AI-driven services, and digital infrastructure.
HPE Aruba Networking CX 10040 offer 8 Tbps of switching capacity with interface configurations supporting 32x100G, 6x400G connectivity, in a compact 2U form factor supporting east-west traffic demands and accelerating application performance. The switch includes 1.6 Tbps of L4 stateful inspection natively integrated, 4.8 Tbps encryption engine to support MACsec, flexibly assignable to ports, securing traffic without compromising speed or scalability.
The switch has built-in hardware support for PTP Boundary Clock capabilities and is uniquely positioned to serve the next wave of precision-driven digital infrastructure.
Notes: Hardware capable, software support in future release |
|
|
|
|
|
HPE Aruba Networking CX 10000 and 10040 Switch Series
|
|
|
|
Product Capabilities |
|
HPE Aruba Networking CX Operating System-a modern software system The switch is based on the CX Operating System, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks.
A built-in time series database enables customers and developers to utilize software scripts for historical troubleshooting, as well as past trends analysis. This helps predict and avoid future problems due to scale, security, and performance bottlenecks.
Every CX switch includes HPE Aruba Networking CX Switch Operating System at no cost and with an active, perpetual set of native features that has everything needed to deploy, connect, and troubleshoot an enterprise network, including: - HPE Aruba Networking CX Network Analytics Engine (NAE) - Dynamic Segmentation - Switch stacking - High availability and resiliency - Quality of service (QoS) - Layer 2 switching - Layer 3 services and routing - IP multicast - Network security - Support for HPE Aruba Networking Switch Multi-Edit Software
The switch requires an additional HPE Aruba Networking Central Advanced license to extend the HPE Aruba Networking Central Foundational network features with distributed, accelerated stateful firewall, pervasive telemetry services, and container infrastructure.
The switch can further be upgraded with the HPE Aruba Networking CX Premium Feature Pack that includes all HPE Aruba Networking Central Advanced Feature Pack functionality plus IPSec VPN encryption, NAT, and additional network and security services at a future date.
An HPE Aruba Networking Central Advanced license expands these capabilities with premium security and AIOps, including the HPE Aruba Networking Central NetConductor Fabric Wizard and global policy manager to enable dynamic segmentation and distributed enforcement at a global scale.
Distributed Stateful Services Embedded natively in the switch, the HPE Aruba Networking CX Switch Operating System is an industry unique, inline stateful software service, enabled through the AMD Pensando programmable DPU, delivered at scale with wire-rate performance. The services include stateful firewalling and secure segmentation, distributed denial of service (DDoS) protection, deep flow-based session-level telemetry with logging, enabled natively in the fabric switching infrastructure without requiring host-based agents or dedicated appliances.
Operational benefits include: - Overcoming the design, performance, and cost limitations of software only and dedicated appliances-protecting the unprotected assets in your data center - Improving security posture, limiting appliance sprawl - Extending Zero Trust segmentation deeper into the data center for any type of host - Delivering isolation and multitenancy for virtualized, bare-metal, or containerized workloads - Optimizing network traffic flows, bandwidth, and performance, which reduces operational complexity associated with service stitching - Overcoming centralized networking service layer chokepoints, which reduces downtime - Simplifying operations through unified network and security automation and management with HPE Aruba Networking Fabric Composer - Addressing deployments where security agents can't be deployed into servers - Accelerating infrastructure service provisioning - Lowering CapEx/OpEx expenditure on security and services
HPE Aruba Networking Fabric Composer HPE Aruba Networking Fabric Composer is an intelligent, API-driven, software-defined orchestration solution that simplifies and accelerates leaf-spine fabric provisioning and day-to-day operations across rack-scale compute and storage infrastructure. HPE Aruba Networking Fabric Composer supports deep IT ecosystem integrations, enables seamless configuration and operational experience, and is easy to manage, provision, and visualize the entire end-to-end network.
Fabric Composer is designed to work with HPE Aruba Networking CX switches and is optimized for HPE data center products and tools such as HPE SimpliVity, HPE iLO and Pensando Distributed Services Platform. |
|
|
|
Unified Security Policy Configuration Ease of Deployment Beyond traditional Zero Touch deployment approaches, which require significant up-front work, AFC user-friendly, guided wizards provide turnkey workflows that walk customers through the fabric deployment process, radically simplifying operations. AFC is agnostic of topology and can equally support standards based VXLAN EVPN fabric as well as traditional VSX deployments seamlessly. Any complexity of deploying the fabric is hidden, ensuring that network operators don't need to understand the specific protocols and commands in AOS-CX in order to deploy best practice architectures.
Service Orchestration The operational benefits of AFC also extend to services because now, with the CX10000, you can orchestrate provisioning and securing tenants on the fabric in a simplified wizard driven workflow. This is enabled through an integration with Pensando Policy and Services Manager. The solution allows SecOps and NetOps teams to accelerate application rollouts, while ensuring strict compliance and secure segmentation requirements are met. From rapid and error-free fabric deployment to automation and security, we are truly delivering a cloud-like experience to our customers with AFC and Pensando across virtualized, bare-metal, and containerized deployments.
Easy Integration The event driven automation engine within AFC (StackStorm) supports Integration Packs that are easily installed and offer integrations with VMware Cloud Foundation, vCenter, vSAN, Nutanix, HPE SimpliVity, and HPE iLo Amplifier. Integrations allow customers to enjoy the benefits of automated fabric provisioning, event-based workflow automations, end-to-end network and host visibility, and automatic storage traffic optimization.
Pervasive Visibility Network and virtualization admins have complete, end-to-end network visibility of connective of hosts, virtual machines, VLANs, services, and workloads to simplify troubleshooting of connectivity and performance problems. Automatically detect and dynamically solve network issues before your business is impacted. Integration with Pensando provides not just visibility into the network and compute, but also extends to services allowing customers to utilize flow logging, to understand communication patterns in the data center, and to more accurately segment and firewall application tiers, workloads, and services. |
|
|
|
Performance High-speed fully distributed architecture HPE Aruba Networking CX 10000 Provides ASIC switching capacity of 3.2 Tbps(6.4 Tbps full-duplex) and 2000 Mpps for forwarding; all switching and routing are wire-speed to meet the demands of bandwidth-intensive applications today and in the future
Front panel switching capacity of 1.8 Tbps(3.6 Tbps full-duplex) - 800G of stateful services performance through dual AMD Pensando DPUs
HPE Aruba Networking CX 10040 Provides ASIC switching capacity of 8 Tbps(16 Tbps full-duplex); all switching and routing are wire-speed to meet the demands of bandwidth- intensive applications today and in the future
Front panel switching capacity of 5.6 Tbps(11.2 Tbps full-duplex) - 1.6 Tbps of stateful services performance through four AMD Pensando DPUs
Scalable system design Provides investment protection to support future technologies and higher-speed connectivity |
|
|
|
Connectivity High-density port options HPE Aruba Networking CX 10000 Compact, high port density 1U switch with airflow direction flexibility includes a model with 48 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) (1GBASE-T and 10GBASE-T transceiver support) + 6 ports of 40GbE/100GbE (QSFP+/QSFP28) (optional 4x10 and 4x25
HPE Aruba Networking CX 10040 Compact, high port density 2U switch with high speed Interfaces (400G/200G/100G) including 50G/40G/25G/10G/1G. 32 ports 100GbE QSFP, 6x400GbE QSFP-DD, 2x10GbE SFP+. breakout) Unsupported Transceiver Mode (UTM) - Allows ability to insert and enable unsupported up to 400G transceiver and cable - No warranty nor support for the transceiver/cable when used
Jumbo Frames Allows high performance backups and disaster-recovery systems; provides a maximum frame size of 9K bytes
Loopback Supports internal loopback testing for maintenance purposes and increased availability. Loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per- VLAN basis for added flexibility.
Packet storm protection Protects against unknown broadcast, multicast, or unicast storms with user-defined thresholds |
|
|
|
Quality of Service (QoS) Strict priority (SP) queuing and Deficit Weighted Round Robin (DWRR) Enables congestion avoidance
Data Center Bridging (DCB) Supports lossless Ethernet networking standards to eliminate packet loss due to queue overflow - Priority Flow Control (PFC) 7 priorities per port - Enhanced Transmission Service (ETS) - DCB Exchange Protocol (Pre-standard LLDP DCBX IEEE 1.01 version)
Flow-Control Guard Prevents accumulation of excessive congestion with periodic flushing. Avoids packets buffering for an extended time period
ECN with slope Marks packets as ECN-CE (Congestion Experienced. Helps TCP to reduce receive window size during congestion
Dynamic pool configuration Enables lossless pool configuration without switch reboot
Storage solution support iSCSI, lossless iSCSI, RDMA over Converged Ethernet version 2 (RoCE v1 and v2) and nonvolatile memory express over fabrics (NVMe-oF) |
|
|
|
Resiliency and high availability Redundant and load-sharing fans and power supplies - N+1 fans and power supplies provide redundancy
Hot swappable power supply and fan modules - Allows replacement of accessory modules without operationally impacting other modules or switch operations
Separate data and control paths - Separates control from services to keep service processing isolated and increases security and performance
Virtual Switching Extension (VSX) - VSX enables a distributed and redundant architecture by deploying two switches with each switch, maintaining independent control yet staying synchronized during upgrades or failover. Also supports upgrades during live operation.
Virtual Router Redundancy Protocol (VRRP) - VRRP allows a group of switches to dynamically back up each other to create highly available routed environments
Bidirectional Forward Detection (BFD) - Enables sub-second failure detection for rapid routing protocol re-balancing
Ethernet Ring Protection Switching (ERPS) - Supports rapid protection and recovery in a ring topology.
Unidirectional Link Detection (UDLD) - Monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks
IEEE 802.3ad LACP - Supports up to 54 LAGs, with up to 16 members per LAG (32 for a VSX pair), with a user-selectable L1- 4 hashing algorithm
Management In addition to the CX Mobile App, NetEdit and Network Analytics Engine, CX 10000 Switch Series offers the following capabilities
REST API Built-in programmable and easy to use
Management Interface Control Enables or disables the console port or reset button, depending on security preferences
Industry-Standard CLI With A Hierarchical Structure Reduces training time and expenses, and increases productivity in multivendor installations
Management Security - Restricts access to critical configuration commands - Offers multiple privilege levels with password protection - Provides SNMP access with ACLs - Local and remote Syslog capabilities allow access logging
IPSLA - Monitors network for degradation of various services, including voice - Enables monitoring via the NAE for history and for immediate automated gathering of additional information when anomalies are detected
SNMP v2c/v3 Provides SNMP read and trap support of industry standard Management Information Base (MIB) and private extensions
sFlow® (RFC 3176) Provides scalable ASIC-based wire speed network monitoring and accounting with no impact on network performance, allowing network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes
Remote Monitoring (RMON) Uses standard SNMP to monitor essential network functions and supports events, alarms, history, and statistics groups as well as a private alarm extension group
TFTP and SFTP Support - Offers different mechanisms for configuration updates. - Trivial FTP (TFTP) allows bidirectional transfers over a TCP/ IP network - Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security
Debug and sampler utility Supports ping and trace route for IPv4 and Ipv6
Network Time Protocol (NTP) - Synchronizes timekeeping among distributed time servers and clients. - Keeps timekeeping consistent among all clock-dependent devices within the network - Can serve as the NTP server in a customer network
IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
LACP-fallback Enables Zero Touch Provisioning over Link Aggregation Groups.
Dual images Provides independent primary and secondary operating system files for backup while upgrading
Multiple configuration files Stores files easily to the flash image |
|
|
|
Layer 2 Switching VLAN Supports up to 4,018 port-based or IEEE 802.1Q-based user configurable VLANs
VLAN Translation Remaps VLANs during transit across a core network
Bridge Protocol Data Unit (BPDU) Transmits STP BPDUs transparently, allowing correct tree calculations across service providers, WANs, or MANs
Port mirroring - Duplicates port traffic (ingress and egress) to a local or remote monitoring port - Supports 4 mirroring groups, with an unlimited number of ports per group
STP Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Rapid Per-VLAN spanning tree plus (RPVST+) Allows each VLAN to build a separate spanning tree to improve link bandwidth usage in network environments with multiple VLANs
Internet Group Management Protocol (IGMP) Controls and manages the flooding of multicast packets in a Layer 2 network
Static VXLAN Allows operators to manually connect two or more VXLAN tunnel endpoints (VTEP)
Dynamic VXLAN with BGP-EVPN Deep segmentation for spine-leaf data center networks or Layer 3 campus designs with centralized gateway and symmetric Integrated Routing and Bridging (IRB) based distributed gateways VXLAN tunnels
Ipv4 Multicast in VXLAN/EVPN Overlay Enables PIM-SM/IGMP snooping in the VXLAN Overlay
Ipv6 VXLAN/EVPN Overlay Support Enables Ipv6 traffic over the VXLAN overlay
VXLAN distributed anycast gateway Addressing mechanism that enables the use of the same gateway IP addresses across all the leaf switches part of a VXLAN network
VXLAN ARP/ND suppression Allows minimization of ARP and ND traffic flooding within individual VXLAN segments, thus optimizing the VXLAN network |
|
|
|
Layer 3 Services Address Resolution Protocol (ARP) - Determines the MAC address of another IP host in the same subnet and supports static ARPs - Gratuitous ARP allows detection of duplicate IP addresses - Proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
IP Directed Broadcast Supports directed broadcast on configured network subnets
Dynamic Host Configuration Protocol (DHCP) - DHCP services are offered within a client network to simplify network management - DHCP Relay enables DHCP operation across subnets
DHCP Server - Supports DHCP services (for IPv4 and IPv6) in customer networks - DHCP Smart Relay
Domain Name System (DNS) - Provides a distributed database that translates domain names and IP addresses, which simplifies network design. - Supports client and server
Generic Routing Encapsulation (GRE) Enables tunneling traffic from site to site over a Layer 3 path |
|
|
|
Layer 3 Routing Static IPv4 routing Provides simple, manually configured IPv4 routing
Open shortest path first (OSPF) - Delivers faster convergence - Uses link-state routing Interior Gateway Protocol (IGP), which supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for faster failure recovery
Border Gateway Protocol 4 (BGP-4) - Delivers an implementation of the Exterior Gateway Protocol (EGP) utilizing path vectors - Uses TCP for enhanced reliability for the route discovery process - Reduces bandwidth consumption by advertising only incremental updates - Supports extensive policies for increased flexibility - Scales to very large networks
Dynamic BGP peering Simplifies BGP configuration for ZTP scenarios and enables CX for Azure stack integration
Routing Information Protocol version 2 (RIPv2) Easy to configure routing protocol for small networks relying on User Datagram Protocol (UDP)
Routing Information Protocol Next Generation (RIPng) Extension of RIPv2 for support of IPv6 networking
Multiprotocol BGP (MP-BGP) with IPv6 Address Family Enables sharing of IPv6 routes using BGP and connections to BGP peers using IPv6
Policy Based Routing (PBR) Enables using a classifier to select traffic that can be forwarded based on policy set by the network administrator
6in4 tunnels Supports the tunneling of IPv6 traffic in an IPv4 network
IP performance optimization - Provides a set of tools to improve the performance of IPv4 networks - Includes directed broadcasts, customization of TCP parameters, support of ICMP error packets, and extensive display capabilities
IP sub-interface Enables IP sub-interface for ingress & egress ACL/Policies, routing, VSX-keep alive
Dynamic pool configuration Enables lossless pool configuration without switch reboot Static IPv6 routing Provides simple, manually configured IPv6 routing
Dual IP stack Maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design
OSPFv3 Provides OSPF support for IPv6
Equal-Cost Multipath (ECMP) - Enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth - 32 way ECMP
Generic Routing Encapsulation (GRE) Enables tunneling traffic from site to site over a Layer 3 path |
|
|
|
Security TAA and FIPS 140-2 Compliance HPE Aruba Networking CX 10000 Switch Series with AOS-CX, a TAA compliant product, uses FIPS 140-2 validated cryptography for protection of sensitive information
Federal Certification Compliant with DoDIN, APL, NDcPP, FIPS, and USGv6 requirements for federal certifications.
Access control list (ACL) Features - Supports powerful ACLs for both IPv4 and IPv6. - Supports creating object groups representing sets of devices - Protects control plane services such as SSH, SNMP, NTP or web servers
Dynamic policy refresh Enforce policy changes immediately to terminate malicious flows
Enrollment over Secure Transport (EST) Enables secure certificate enrollment, allowing for easier enterprise management of PKI.
Remote Authentication Dial-In User Service (RADIUS) Eases security access administration by using a password authentication server
Terminal Access Controller Access-Control System (TACACS+) Delivers an authentication tool using TCP with encryption of the full authentication request, providing additional security
RadSec Enables RADIUS authentication and accounting data to be passed safely and reliably across insecure networks such as the internet
Management access security - AOS-CX provides for both on-box as well as off- box authentication for administrative access. - RADIUS or TACACS+ can be used to provide encrypted user authentication - TACACS+ can also provide user authorization services - Secure port access - 802.1x, Mac-auth, LUR, DUR, Port-Access Policy, Static Port Filtering
Secure shell (SSHv2) - Uses external servers to securely log in to a remote device. - With authentication and encryption, it protects against IP spoofing and plain-text password interception - Increases the security of Secure FTP (SFTP) transfers |
|
|
|
Multicast Internet Group Management Protocol (IGMP) - Enables establishing multicast group memberships in IPv4 networks - Supports IGMPv1, v2, and v3
Multicast Listener Discovery (MLD) - Enables discovery of IPv6 multicast listeners - Supports MLDv1 and v2
PIM Multicast Boundary (v4) HPE Aruba Networking Virtual Switching Extension graceful shutdown for IGMP/MLD Multicast NSF
Multicast Service Delivery Protocol (MSDP) for Anycast RP MSDP used for Anycast RP is an intradomain feature that provides redundancy and load-sharing capabilities.
MSDP Mesh Groups Avoids SA messages flooding to other mesh group peers.
PIM-Dense Mode - Floods multicast traffic to every corner of the network (push-model). Method is for delivering data to receivers without receivers requesting the data, which can be efficient in certain deployments in which there are active receivers on every subnet in the network. - Branches without downstream receivers are pruned from the forwarding trees.
FastLeave (FL) and Forced-FastLeave (FFL) - FL and FFL for IGMP/MLD speed up the process of blocking unnecessary Multicast traffic to a switch port that is connected to end nodes for IGMP. They help to eliminate the CPU overhead of having to generate an IGMP/MLD group-specific query message.
Support for Microsoft Network Load Balancer (NLB) for server applications.
Microsoft Network Load Balancer (NLB) Supports server applications
Protocol Independent Multicast (PIM) - Protocol Independent Multicast for IPv4 and IPv6 supports one-to-many and many-to-many media casting use cases such as IPTV over IPv4 and IPv6 networks - Supports PIM Sparse Mode (PIM-SM, IPv4 and IPv6)
Additional information - Green initiative support - Provides support for RoHS (EN 50581:2012) regulations
Customer first, customer last support When your network is important to your business, your business needs the backing of HPE Aruba Networking Support Services. Partner with product experts to increase team productivity and keep pace with technology advances, software releases, and break-fix support.
Foundation Care for HPE Aruba Networking support services include priority access to Technical Assistance Center (TAC) engineers 24x7x365, flexible hardware and onsite support options, and total coverage for HPE Aruba Networking products. HPE Aruba Networking switches with assigned Central subscriptions have the added benefit of additional hardware support only.
Pro Care adds fast access to senior TAC engineers, who are assigned as a single point of contact for case management, reducing the time spent addressing and resolving issues. For complete details on Foundation Care and Pro Care, please visit: https://www.hpe.com/us/en/networking/hpe-aruba-networking-support-services.html
Warranty, services and support Limited 1 Year Warranty See Support Center for warranty and support information included with your product purchase.
Reference the following web pages for more detailed information-HPE Aruba Networking CX Switch Operating System software releases and features: - HPE Aruba Networking CX Switch Operating System software documentation portal - HPE Aruba Networking Switch Feature Navigator - For support and services information, visit HPE Aruba Networking Support Services |
|
|
|
BTO Models |
|
|
|
Description |
SKU | |
|
10000 Switch Bundles |
| |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Front-to-Back 6 Fans 2 PSU Switch Bdl |
R8P13A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Front-to-Back 6 Fans 2 PSU Switch Bdl |
R8P13A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Front-to-Back 6 Fans 2 PSU Switch Bdl |
R8P13A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Front-to-Back 6 Fans 2 PSU Switch Bdl |
R8P13A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Front-to-Back 6 Fans 2 PSU Switch Bdl |
R8P13A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 PSU Switch Bdl |
R8P14A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 PSU Switch Bdl |
R8P14A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 PSU Switch Bdl |
R8P14A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 PSU Switch Bdl |
R8P14A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 PSU Switch Bdl |
R8P14A | |
|
|
| |
|
TAA Switch Bundles |
| |
|
HPE Aruba Networking CX 10000 48p SFP28 10G/25G 6p QSFP28 100G Front-to-Back 6xFan 2xPSU TAA Bundle |
S0F97A | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Front-to-Back 6xFan 2xPSU TAA Bundle PDU |
S0F97A#B2B | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Front-to-Back 6xFan 2xPSU TAA Bundle PDU |
S0F97A#B2C | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Front-to-Back 6Fs 2xPSU TAA 220v Bundle |
S0F97A#B2E | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Front-to-Back 6Fs 2xPSU TAA Bdl No Loc |
S0F97A#AC3 | |
|
HPE Aruba Networking CX 10000 48p SFP28 10G/25G 6p QSFP28 100G Back-to-Front 6xFan 2xPSU TAA Bundle |
S0F98A | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Back-to-Front 6xFan 2xPSU TAA Bundle PDU |
S0F98A#B2B | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Back-to-Front 6xFan 2xPSU TAA Bundle PDU |
S0F98A#B2C | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Back-to-Front 6Fs 2xPSU TAA 220v Bundle |
S0F98A#B2E | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Back-to-Front 6Fs 2xPSU TAA Bdl No Loc |
S0F98A#AC3 | |
|
|
| |
|
10040 Switch Bundles |
| |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4xFan 2xPSU AC Bundle |
S4R54A | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4Fs 2xPSU AC Bdl PDU |
S4R54A#B2B | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4Fs 2xPSU AC Bdl PDU |
S4R54A#B2C | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4Fs 2xPSU AC Bdl 220v |
S4R54A#B2E | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4Fs 2xPSU AC Bdl NoLo |
S4R54A#AC3 | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4xFan 2xPSU AC Bdl |
S4R55A | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4Fs 2xPSU AC Bdl PDU |
S4R55A#B2B | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4Fs 2xPSU AC Bdl PDU |
S4R55A#B2C | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4Fs 2xPSU AC Bdl 220v |
S4R55A#B2E | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4Fs 2xPSU AC Bdl NoLo |
S4R55A#AC3 | |
|
|
| |
|
TAA Switch Bundles |
| |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4xFan 2xPSU AC TAA Bdl |
S4R56A | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G FB 4xFan 2xPSU AC TAA Bundle PDU |
S4R56A#B2B | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G FB 4xFan 2xPSU AC TAA Bundle PDU |
S4R56A#B2C | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G FB 4xFan 2xPSU AC TAA Bundle 220v |
S4R56A#B2E | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G FB 4xFan 2xPSU AC TAA Bundle No Loc |
S4R56A#AC3 | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4xFan 2xPSU AC TAA Bdl |
S4R57A | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G BF 4xFan 2xPSU AC TAA Bundle PDU |
S4R57A#B2B | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G BF 4xFan 2xPSU AC TAA Bundle PDU |
S4R57A#B2C | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G BF 4xFan 2xPSU AC TAA Bundle 220v |
S4R57A#B2E | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G BF 4xFan 2xPSU AC TAA Bundle No Loc |
S4R57A#AC3 | |
|
|
| |
|
|
| |
|
Rack Level Integration CTO Models |
|
|
|
10000 Switch Bundles |
| |
|
Description |
SKU | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Front-to-Back 6 Fans 2 PSU Switch Bdl |
R8P13A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Front-to-Back 6 Fans 2 PSU Switch Bdl |
R8P13A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Front-to-Back 6 Fans 2 PSU Switch Bdl |
R8P13A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Front-to-Back 6 Fans 2 PSU Switch Bdl |
R8P13A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Front-to-Back 6 Fans 2 PSU Switch Bdl |
R8P13A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 PSU Switch Bdl |
R8P14A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 PSU Switch Bdl |
R8P14A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 PSU Switch Bdl |
R8P14A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 PSU Switch Bdl |
R8P14A | |
|
HPE Aruba Networking CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 PSU Switch Bdl |
R8P14A | |
|
|
| |
|
TAA Switch Bundles |
| |
|
HPE Aruba Networking CX 10000 48p SFP28 10G/25G 6p QSFP28 100G Front-to-Back 6xFan 2xPSU TAA Bundle |
S0F97A | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Front-to-Back 6xFan 2xPSU TAA Bundle PDU |
S0F97A#B2B | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Front-to-Back 6xFan 2xPSU TAA Bundle PDU |
S0F97A#B2C | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Front-to-Back 6Fs 2xPSU TAA 220v Bundle |
S0F97A#B2E | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Front-to-Back 6Fs 2xPSU TAA Bdl No Loc |
S0F97A#AC3 | |
|
HPE Aruba Networking CX 10000 48p SFP28 10G/25G 6p QSFP28 100G Back-to-Front 6xFan 2xPSU TAA Bundle |
S0F98A | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Back-to-Front 6xFan 2xPSU TAA Bundle PDU |
S0F98A#B2B | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Back-to-Front 6xFan 2xPSU TAA Bundle PDU |
S0F98A#B2C | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Back-to-Front 6Fs 2xPSU TAA 220v Bundle |
S0F98A#B2E | |
|
HPE Aruba Networking 10000 48p SFP28 10G/25G 6p QSFP28 100G Back-to-Front 6Fs 2xPSU TAA Bdl No Loc |
S0F98A#AC3 | |
|
|
| |
|
10040 Switch Bundles |
| |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4xFan 2xPSU AC Bundle |
S4R54A | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4Fs 2xPSU AC Bdl PDU |
S4R54A#B2B | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4Fs 2xPSU AC Bdl PDU |
S4R54A#B2C | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4Fs 2xPSU AC Bdl 220v |
S4R54A#B2E | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4Fs 2xPSU AC Bdl NoLo |
S4R54A#AC3 | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4xFan 2xPSU AC Bdl |
S4R55A | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4Fs 2xPSU AC Bdl PDU |
S4R55A#B2B | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4Fs 2xPSU AC Bdl PDU |
S4R55A#B2C | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4Fs 2xPSU AC Bdl 220v |
S4R55A#B2E | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4Fs 2xPSU AC Bdl NoLo |
S4R55A#AC3 | |
|
|
| |
|
TAA Switch Bundles |
| |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4xFan 2xPSU AC TAA Bdl |
S4R56A | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G FB 4xFan 2xPSU AC TAA Bundle PDU |
S4R56A#B2B | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G FB 4xFan 2xPSU AC TAA Bundle PDU |
S4R56A#B2C | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G FB 4xFan 2xPSU AC TAA Bundle 220v |
S4R56A#B2E | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G FB 4xFan 2xPSU AC TAA Bundle No Loc |
S4R56A#AC3 | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4xFan 2xPSU AC TAA Bdl |
S4R57A | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G BF 4xFan 2xPSU AC TAA Bundle PDU |
S4R57A#B2B | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G BF 4xFan 2xPSU AC TAA Bundle PDU |
S4R57A#B2C | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G BF 4xFan 2xPSU AC TAA Bundle 220v |
S4R57A#B2E | |
|
HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G BF 4xFan 2xPSU AC TAA Bundle No Loc |
S4R57A#AC3 | |
|
|
| |
|
Transceivers |
| ||
|
SFP Transceivers |
|||
|
Description |
SKU | ||
|
HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver |
J4858D | ||
|
HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver |
J4859D | ||
|
HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver |
J4860D | ||
|
HPE Aruba Networking 1G SFP RJ45 100m Cat5e Transceiver |
J8177E | ||
|
HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver |
JL745A | ||
|
HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver |
JL746A | ||
|
HPE Aruba Networking 1G SFP RJ45 100m Cat5e TAA Transceiver |
JL747B | ||
|
|
| ||
|
SFP+ Transceivers |
|||
|
Description |
SKU | ||
|
HPE Aruba Networking 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver |
JL563C | ||
|
HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver |
J9150D | ||
|
HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver |
J9151E | ||
|
HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver |
J9153D | ||
|
HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver |
JL748A | ||
|
HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver |
JL749A | ||
|
HPE Aruba Networking 10G SMF Simplex LC BiDi 40km-Downstream 1330/1270 Transceiver |
R9X54A | ||
|
HPE Aruba Networking 10G SMF Simplex LC BiDi 40km-Upstream 1270/1330 Transceiver |
R9X55A | ||
|
HPE Aruba Networking 10G I-Temp BiDi LC 10km-Downstream SMF 1330/1270 Transceiver |
S6H20A | ||
|
HPE Aruba Networking 10G I-Temp BiDi LC 10km-Upstream SMF 1270/1330 Transceiver |
S6H21A | ||
|
HPE Aruba Networking 10G I-Temp BiDi LC 10km-Downstream SMF 1330/1270 TAA Transceiver |
S6H22A | ||
|
HPE Aruba Networking 10G I-Temp BiDi LC 10km-Upstream SMF 1270/1330 TAA Transceiver |
S6H24A | ||
|
HPE Aruba Networking 10G SR SFP+ LC 400m OM4 MMF C-Class Transceiver |
S2P30A | ||
|
HPE Aruba Networking 10G LR SFP+ LC 10km SMF C-Class Transceiver |
S2P31A | ||
|
HPE Aruba Networking 10G ER SFP+ LC 40km SMF C-Class Transceiver |
S2P32A | ||
|
HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
J9281D | ||
|
HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
J9283D | ||
|
|
| ||
|
SFP28 Transceivers |
|||
|
Description |
SKU | ||
|
HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver |
JL484A | ||
|
HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver |
JL485A | ||
|
HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver |
JL486A | ||
|
HPE Aruba Networking 25G SFP28 to SFP28 0.65m Direct Attach Cable |
JL487A | ||
|
HPE Aruba Networking 25G SFP28 to SFP28 3m Direct Attach Copper Cable |
JL488A | ||
|
HPE Aruba Networking 25G SFP28 to SFP28 5m Direct Attach Copper Cable |
JL489A | ||
|
HPE Aruba Networking 25G SFP28 to SFP28 3m Active Optical Cable |
R0M44A | ||
|
HPE Aruba Networking 25G SFP28 to SFP28 7m Active Optical Cable |
R0M45A | ||
|
HPE Aruba Networking 25G SFP28 to SFP28 15m Active Optical Cable |
R0Z21A | ||
|
HPE 25Gb SFP28 to SFP28 3m Direct Attach Copper Cable |
844477-B21 | ||
|
HPE 25Gb SFP28 to SFP28 5m Direct Attach Copper Cable |
844480-B21 | ||
|
|
| ||
|
QSFP+ Transceivers |
|||
|
Description |
SKU | ||
|
HPE Aruba Networking 40G QSFP+ LC ER4 40km SMF Transceiver |
Q9G82A | ||
|
HPE Networking X142 40G QSFP+ MPO SR4 Transceiver |
JH231A | ||
|
HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver |
JH232A | ||
|
HPE Networking X142 40G QSFP+ MPO eSR4 300M Transceiver |
JH233A | ||
|
HPE Aruba Networking 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver |
JL308A | ||
|
HPE Networking X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable |
JH234A | ||
|
HPE Networking X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable |
JH235A | ||
|
HPE Networking X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable |
JH236A | ||
|
HPE Aruba Networking 40G QSFP+ to QSFP+ 7m Active Optical Cable |
R0Z22A | ||
|
HPE Aruba Networking 40G QSFP+ to QSFP+ 15m Active Optical Cable |
R0Z23A | ||
|
HPE Aruba Networking 40G QSFP+ to QSFP+ 30m Active Optical Cable |
R0Z24A | ||
|
HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable |
721064-B21 | ||
|
|
| ||
|
QSFP28 Transceivers |
|||
|
Description |
SKU | ||
|
HPE Aruba Networking 100G QSFP28 MPO SR4 100m 12-fiber MPO OM3 MMF Transceiver |
JL309A | ||
|
HPE Aruba Networking 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver |
JL310A | ||
|
HPE Aruba Networking 100G QSFP28 LC ER4L 40km SMF Transceiver |
JL743A | ||
|
HPE Aruba Networking 100G QSFP28 LC CWDM4 2km SMF Transceiver |
R0Z30A | ||
|
HPE Aruba Networking 100G QSFP28 LC FR1 SMF 2km Transceiver |
R9B63A | ||
|
HPE Aruba Networking 100G SR2 MPO QSFP28 100m MMF Transceiver |
S1C93A | ||
|
HPE Aruba Networking 100G DR QSFP28 LC 500m SMF Transceiver |
S3N88A | ||
|
HPE Aruba Networking 100G LR QSFP28 LC 10km SMF Transceiver |
S3N89A | ||
|
HPE Aruba Networking 100G LR4 QSFP28 LC 10km SMF TAA Transceiver |
S6H32A | ||
|
HPE Aruba Networking 100G SR1.2 QSFP28 LC 100m MMF Transceiver |
S4B44A | ||
|
HPE Aruba Networking 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable |
JL307A | ||
|
HPE Aruba Networking 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable |
R0Z25A | ||
|
HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable |
R0Z26A | ||
|
HPE 100Gb QSFP28 to 4x25Gb SFP28 3m Direct Attach Copper Cable |
845416-B21 | ||
|
HPE Aruba Networking 100G QSFP28 to QSFP28 2m Active Optical Cable |
JL856A | ||
|
HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable |
R0Z27A | ||
|
HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable |
R0Z28A | ||
|
HPE Aruba Networking 100G QSFP28 to QSFP28 30m Active Optical Cable |
R0Z29A | ||
|
HPE QSFP28 to 4x25Gb SFP28 7m Active Optical Cable |
845420-B21 | ||
|
HPE QSFP28 to 4x25Gb SFP28 15m Active Optical Cable |
845424-B21 | ||
|
|
| ||
|
| |||
|
Switch Options |
| ||
|
Rack Mount Kits |
|||
|
Description |
SKU | ||
|
HPE Aruba Networking CX 10000 1U 2 post Rack Mount Kit |
R8R55A | ||
|
HPE Aruba Networking CX 10000 1U 4 post Rack Mount Kit |
R8R56A | ||
|
HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit |
J9583B | ||
|
|
| ||
|
India PDU Cable For Switch System (std 0 // max 2) User Selection (0 or 2) per enclosure |
| ||
|
HPE Networking 2.0m C13 to C14 PDU India Power Cord |
JL671A | ||
|
HPE Networking 2.5m C19 to C20 PDU India Power Cord |
JL673A | ||
|
|
| ||
|
| |||
|
Accessories |
|
|
|
Spare Items |
| |
|
Description |
SKU |
|
|
HPE Aruba Networking CX 10000-48Y6C Port-to-Power(FB) AC Power Supply Unit |
R8R51A |
|
|
HPE Aruba Networking CX 10000-48Y6C Port-to-Power(FB) AC Power Supply Unit PDU |
R8R51A#B2B |
|
|
HPE Aruba Networking CX 10000-48Y6C Port-to-Power(FB) AC Power Supply Unit PDU |
R8R51A#B2C |
|
|
HPE Aruba Networking CX 10000-48Y6C Port-to-Power(FB) AC Power Supply Unit 220v |
R8R51A#B2E |
|
|
HPE Aruba Networking CX 10000-48Y6C Port-to-Power(FB) AC Power Supply Unit NoLoc |
R8R51A#AC3 |
|
|
HPE Aruba Networking CX 10000-48Y6C Power-to-Port(BF) AC Power Supply Unit |
R8R52A |
|
|
HPE Aruba Networking CX 10000-48Y6C Power-to-Port(BF) AC Power Supply Unit PDU |
R8R52A#B2B |
|
|
HPE Aruba Networking CX 10000-48Y6C Power-to-Port(BF) AC Power Supply Unit PDU |
R8R52A#B2C |
|
|
HPE Aruba Networking CX 10000-48Y6C Power-to-Port(BF) AC Power Supply Unit 220v |
R8R52A#B2E |
|
|
HPE Aruba Networking CX 10000-48Y6C Power-to-Port(BF) AC Power Supply Unit NoLoc |
R8R52A#AC3 |
|
|
HPE Aruba Networking CX 10040 3000W Front-to-Back C20 AC Power Supply Unit |
S4R52A |
|
|
HPE Aruba Networking CX 10040 3000W Front-to-Back C20 AC Power Supply Unit PDU |
S4R52A#B2B |
|
|
HPE Aruba Networking CX 10040 3000W Front-to-Back C20 AC Power Supply Unit PDU |
S4R52A#B2C |
|
|
HPE Aruba Networking CX 10040 3000W Front-to-Back C20 AC Power Supply Unit 220v |
S4R52A#B2E |
|
|
HPE Aruba Networking CX 10040 3000W Back-to-Front C20 AC Power Supply Unit |
S4R53A |
|
|
HPE Aruba Networking CX 10040 3000W Back-to-Front C20 AC Power Supply Unit PDU |
S4R53A#B2B |
|
|
HPE Aruba Networking CX 10040 3000W Back-to-Front C20 AC Power Supply Unit PDU |
S4R53A#B2C |
|
|
HPE Aruba Networking CX 10040 3000W Back-to-Front C20 AC Power Supply Unit 220v |
S4R53A#B2E |
|
|
HPE Aruba Networking CX 10000-48Y6C Port-to-Power(FB) Fan |
R8R53A |
|
|
HPE Aruba Networking CX 10000-48Y6C Power-to-Port(BF) Fan |
R8R54A |
|
|
HPE Aruba Networking CX 10040 Front-to-Back Fan |
S4R50A |
|
|
HPE Aruba Networking CX 10040 Back-to-Front Fan |
S4R51A |
|
|
HPE Aruba Networking CX 10000 1U 2 post Rack Mount Kit |
R8R55A |
|
|
HPE Aruba Networking CX 10000 1U 4 post Rack Mount Kit |
R8R56A |
|
|
HPE Aruba Networking X412 1U Universal 2-post Rack Mount Kit |
JL602A |
|
|
HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit |
J9583B |
|
|
HPE Aruba Networking X2C2 RJ45 to DB9 Console Cable |
JL448A |
|
|
HPE Aruba Networking CX Switch Bluetooth Adapter |
S1H23A |
|
|
|
|
|
|
|
| |
|
Software |
|
|
|
CX Software |
| |
|
CX Advanced Software Licenses |
| |
|
HPE Aruba Networking CX Software 10xxx Advanced License E-LTU |
R9H25AAE | |
|
HPE Aruba Networking CX Software 10xxx Switch Advanced 1-year Subscription E-STU |
S0T97AAE | |
|
HPE Aruba Networking CX Software 10xxx Switch Advanced 3-year Subscription E-STU |
S0T98AAE | |
|
HPE Aruba Networking CX Software 10xxx Switch Advanced 5-year Subscription E-STU |
S0T99AAE | |
|
HPE Aruba Networking CX 10040 Advanced 1-year Subscription E-STU |
S6J68AAE | |
|
HPE Aruba Networking CX 10040 Advanced 3-year Subscription E-STU |
S6J69AAE | |
|
HPE Aruba Networking CX 10040 Advanced 5-year Subscription E-STU |
S6J70AAE | |
|
HPE Aruba Networking CX 10040 Advanced Perpetual Subscription E-STU |
S6J71AAE | |
|
|
| |
|
CX Premium Software Licenses |
| |
|
HPE Aruba Networking CX 10040 Premium 1-year Subscription E-STU |
S6J72AAE | |
|
HPE Aruba Networking CX 10040 Premium 3-year Subscription E-STU |
S6J73AAE | |
|
HPE Aruba Networking CX 10040 Premium 5-year Subscription E-STU |
S6J74AAE | |
|
HPE Aruba Networking CX 10040 Premium Perpetual Subscription E-STU |
S6J75AAE | |
|
HPE Aruba Networking IPSec Encryption/NAT for CX 10000 E-LTU |
R9H26AAE | |
|
|
| |
|
CX Premium Software Licenses |
| |
|
HPE Aruba Networking CX 10040 Premium 1-year Subscription E-STU |
S6J72AAE | |
|
HPE Aruba Networking CX 10040 Premium 3-year Subscription E-STU |
S6J73AAE | |
|
HPE Aruba Networking CX 10040 Premium 5-year Subscription E-STU |
S6J74AAE | |
|
HPE Aruba Networking CX 10040 Premium Perpetual Subscription E-STU |
S6J75AAE | |
|
HPE Aruba Networking IPSec Encryption/NAT for CX 10000 E-LTU |
R9H26AAE | |
|
|
| |
|
HPE Aruba Networking Fabric Composer |
| |
|
Single Node Subscription |
| |
|
HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 1y Subscription E-STU |
R7G99AAE | |
|
HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 3y Subscription E-STU |
R7H00AAE | |
|
HPE Aruba Networking Fabric Composer Device Management Service Tier 4 Switch 5y Subscription E-STU |
R7H01AAE | |
|
|
| |
|
HPE Aruba Networking Central |
| |
|
On-Prem Services / 8XXX/9XXX/10XXX Switch Advanced Subscriptions |
| |
|
HPE Aruba Networking Central On-Premises Switch Class5 Advanced 1-year Subscription E-STU |
R6V08AAE | |
|
HPE Aruba Networking Central On-Premises Switch Class5 Advanced 3-year Subscription E-STU |
R6V09AAE | |
|
HPE Aruba Networking Central On-Premises Switch Class5 Advanced 5-year Subscription E-STU |
R6V10AAE | |
|
HPE Aruba Networking Central On-Premises Switch Class5 Advanced 7-year Subscription E-STU |
R6V11AAE | |
|
HPE Aruba Networking Central On-Premises Switch Class5 Advanced 10-year Subscription E-STU |
R6V12AAE | |
|
|
| |
|
Cloud Services / 8XXX/9XXX/10XXX Switch Foundation Subscriptions |
| |
|
HPE Aruba Networking Central Switch Class5 Foundation 1-year Subscription E-STU |
R3K03AAE | |
|
HPE Aruba Networking Central Switch Class5 Foundation 3-year Subscription E-STU |
R3K04AAE | |
|
HPE Aruba Networking Central Switch Class5 Foundation 5-year Subscription E-STU |
R3K05AAE | |
|
HPE Aruba Networking Central Switch Class5 Foundation 7-year Subscription E-STU |
R3K06AAE | |
|
HPE Aruba Networking Central Switch Class5 Foundation 10-year Subscription E-STU |
R3K07AAE | |
|
|
| |
|
|
| |
|
As-a-Service |
|
|
|
HPE Aruba Networking Central |
| |
|
Cloud Services / Switch Advanced AAS Licenses |
| |
|
HPE Aruba Networking Central Switch Class-5 Advanced 7 year Subscription SaaS |
S0W45AAS | |
|
HPE Aruba Networking Central Switch Class-5 Advanced 10 year Subscription SaaS |
S0W46AAS | |
|
HPE Aruba Networking Central Switch Class-5 Advanced 1 year Subscription SaaS |
S0W62AAS | |
|
HPE Aruba Networking Central Switch Class-5 Advanced 3 year Subscription SaaS |
S0W63AAS | |
|
HPE Aruba Networking Central Switch Class-5 Advanced 5 year Subscription SaaS |
S0W64AAS | |
|
HPE Aruba Networking Central Switch Class-5 Advanced 7 year Subscription SaaS |
S0W65AAS | |
|
HPE Aruba Networking Central Switch Class-5 Advanced 10 year Subscription SaaS |
S0W66AAS | |
|
HPE Aruba Networking Central Switch Class-5 Advanced 1 year Subscription SaaS |
S0W87AAS | |
|
HPE Aruba Networking Central Switch Class-5 Advanced 3 year Subscription SaaS |
S0W88AAS | |
|
HPE Aruba Networking Central Switch Class-5 Advanced 5 year Subscription SaaS |
S0W89AAS | |
|
|
| |
|
HPE Aruba Networking OS-CX Software |
| |
|
CX Advanced AAS Software Licenses |
| |
|
HPE Aruba Networking CX 10xxx Group6 Advanced Feature Pack 1-year Subscription 9x5 Support E-STU |
S0T97AAS | |
|
HPE Aruba Networking CX 10xxx Group6 Advanced Feature Pack 3-year Subscription 9x5 Support E-STU |
S0T98AAS | |
|
HPE Aruba Networking CX 10xxx Group6 Advanced Feature Pack 5-year Subscription 9x5 Support E-STU |
S0T99AAS | |
|
HPE Aruba Networking CX 10xxx Group6 Advanced Feature Pack 1-year Subscription 24x7 Support E-STU |
S3M95AAS | |
|
HPE Aruba Networking CX 10xxx Group6 Advanced Feature Pack 3-year Subscription 24x7 Support E-STU |
S3M96AAS | |
|
HPE Aruba Networking CX 10xxx Group6 Advanced Feature Pack 5-year Subscription 24x7 Support E-STU |
S3M97AAS | |
|
|
| |
|
CX Premium AAS Software Licenses |
| |
|
HPE Aruba Networking CX 10xxx Group6 Premium Feature Pack 1-year Subscription 9x5 Support E-STU |
S0U02AAS | |
|
HPE Aruba Networking CX 10xxx Group6 Premium Feature Pack 3-year Subscription 9x5 Support E-STU |
S0U03AAS | |
|
HPE Aruba Networking CX 10xxx Group6 Premium Feature Pack 5-year Subscription 9x5 Support E-STU |
S0U04AAS | |
|
HPE Aruba Networking CX 10xxx Group6 Premium Feature Pack 1-year Subscription 24x7 Support E-STU |
S3M98AAS | |
|
HPE Aruba Networking CX 10xxx Group6 Premium Feature Pack 3-year Subscription 24x7 Support E-STU |
S3M99AAS | |
|
HPE Aruba Networking CX 10xxx Group6 Premium Feature Pack 5-year Subscription 24x7 Support E-STU |
S3N00AAS | |
|
For IRIS reference only. No action required for OCX and Clic |
| |
|
|
| |
|
|
| |
|
HPE Aruba Networking CX 10000 Switch Series bundles | |||
|
|
R8P13A 10000 48Y 6C Front-to-back switch bundle (S0F97A HPE ANW 10000 48Y 6C FB 6Fs TAA Bdl) |
R8P14A 10000 48Y 6C Back-to-front switch bundle (S0F98A HPE ANW 10000 48Y 6C BF 6Fs 2PS TAA Bdl) | |
|
Description |
- R8P13A HPE Aruba Networking 10000 48Y 6C bundle includes: 48 x 25 Gb ports (SFP/+/28), 6 x 100 Gb ports (QSFP+/28) - 6xR8R53A front-to-back fan - 2xR8R51A front-to-back 800W 100-240 VAC power supply |
- R8P14A HPE Aruba Networking 10000 48Y 6C bundle includes: 48 x 25 Gb ports (SFP/+/28), 6 x 100 Gb ports (QSFP+/28) - 6xR8R54A back-to-front fan - 2xR8R52A back-to-front 800W 100-240 VAC power supply | |
|
Power supplies |
Field-replaceable, hot-swappable, and up to two power supplies. | ||
|
Fans |
Field-replaceable, hot-swappable, and up to six fans. | ||
|
Physical characteristics | |||
|
Dimensions |
(H) 4.44 cm x (W) 43.82 cm x (D) 51.1 cm (1.75'' x 17.25'' x 20.12'') |
(H) 4.44 cm x (W) 43.82 cm x (D) 51.1 cm (1.75'' x 17.25'' x 20.12'') | |
|
Full configuration weight |
9.75 kg (21.45 lb) |
9.75 kg (21.45 lb) | |
|
Additional specifications | |||
|
CPU |
Intel® Xeon® CPU D-1637 6 cores @ 2.90 GHz | ||
|
Switch memory, drive, and flash |
32 GB RAM, 64 GB SSD | ||
|
Packet buffer |
|
32 MB | |
|
Performance1 Notes: 1Some of these scaling numbers assume shared tables. | |||
|
Switching capacity |
3.2 Tbps | ||
|
Latency (LIFO) |
<1 uSec (without redirect) <5 uSec (with redirect) | ||
|
IPv4 host table |
|
120,000 | |
|
IPv6 host table |
|
52,000 | |
|
IPv4 unicast routes |
|
131,072 | |
|
IPv6 unicast routes |
|
32,732 | |
|
MAC table size |
|
98,304 | |
|
IGMP groups |
|
8000 | |
|
MLD groups |
|
8000 | |
|
IPv4 multicast routes |
|
8000 | |
|
IPv6 multicast routes |
|
8000 | |
|
Environment | |||
|
Operating temperature |
0°C to 40°C (32°F to 104°F) up to 3.0 km (10,000 ft.) | ||
|
Operating relative humidity |
10% to 85% at 40°C (104°F) noncondensing | ||
|
Nonoperating |
-40°C to 70°C (-40°F to 158°F) up to 4.6 km (15,000 ft.) | ||
|
Nonoperating/storage relative humidity |
5% to 95% @ 65°C (149°F) | ||
|
Max operating altitude |
Up to 10,000 ft (3.048 km) | ||
|
Max nonoperating |
Up to 15,000 ft (4.6 km) | ||
|
Primary airflow |
Front-to-back port to PSU or back-to-front PSU to port | ||
|
Electrical characteristics | |||
|
Frequency |
50-60 Hz | ||
|
AC voltage |
100-240 volts | ||
|
Current |
6A (low voltage)-3A (high voltage) | ||
|
Power consumption2 |
Max: 753W Typical: 550W Idle: 400W Idle: 400W |
Max: 753W Typical: 550W Idle: 400W Idle: 400W | |
|
Notes: 2Max measurement is collected under 100% line rate network traffic running, with all ports populated with SFP and QSFP modules. Typical measurement is collected under 50% line rate network traffic running, with all ports populated with SFP and QSFP modules. Idle measurement is collected with no network traffic or modules.
| |||
|
Safety |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. | ||
|
EMC |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KS C 9832 Class A AS/NZS CISPR 32 Class A EN 55035, CISPR 35, KS KS C 9835 |
| |
|
Lasers |
EN 60825-1:2014 / IEC 60825-1: 2014 Class 1 Class 1 Laser Products/Laser Klasse 1 |
| |
|
Management |
CLI REST API SNMP HPE Aruba Networking Fabric Composer HPE Aruba Networking Switch Multi-Edit Software HPE Aruba Networking Central. HPE Aruba Networking Central support will come with HPE Networking Central 2.5.6 Micro USB console and RJ-45 serial port AMD Pensando PSM | ||
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; order 2-post or 4-post mounting kit separately. | ||
|
| |||
|
HPE Aruba Networking CX 10040 Switch Series bundles | ||
|
|
HPE Aruba Networking CX 10040 Front-to-back switch bundle (S4R54A HPE ANW CX 10040 32C 6D FB 4Fs 2PS AC Bdl) |
HPE Aruba Networking CX 10040 Back-to-front switch bundle (S4R55A HPE ANW CX 10040 32C 6D BF 4Fs 2PS AC Bdl) |
|
Description |
- HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Front-to-Back 4xFan 2xPSU AC Bundle (S4R54A) - 4xS4R50A front-to-back fan - 2xS4R52A front-to-back 3000W AC PSU |
- HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4xFan 2xPSU AC Bundle (S4R55A) - 4xS4R51A back-to-front fan - 2xS4R53A back-to-front 3000W AC PSU |
|
Power supplies |
Field-replaceable, hot-swappable, and up to two power supplies* | |
|
Fans |
Field-replaceable, hot-swappable, and up to four dual-rotor fans. | |
|
Physical characteristics | ||
|
Dimensions |
(H) 4.43 cm x (W) 60.96 cm x (D) 8.84 cm (1.74'' x 24.0'' x 3.48'') |
(H) 4.43 cm x (W) 60.96 cm x (D) 8.84 cm (1.74'' x 24.0'' x 3.48'') |
|
Full configuration weight |
23.0 kg (50.6 lb) |
23.0 kg (50.6 lb) |
|
Additional specifications | ||
|
CPU |
AMD V3C48 | |
|
Switch memory, drive, and flash |
120GB M.2 SSD, 64MB SPI Flash, 32GB x2 DDR5 SODIMM | |
|
Packet buffer |
|
82 MB |
|
Performance1 Notes: 1Some of these scaling numbers assume shared tables. | |||
|
Switching capacity |
8 Tbps | ||
|
IPv4 host table |
|
98,304 | |
|
IPv6 host table |
|
4,9152 | |
|
IPv4 unicast routes |
|
720,527 | |
|
IPv6 unicast routes |
|
368,404 | |
|
MAC table size |
|
49,152 | |
|
IGMP groups |
|
8,192 | |
|
MLD groups |
|
8,192 | |
|
IPv4 multicast routes |
|
8,196 | |
|
IPv6 multicast routes |
|
8,196 | |
|
Environment | |||
|
Operating temperature |
32°F to 113°F (0°C to 45°C) at sea level Derate 1°C for every 1,000 ft to 10,000 ft (300m to 3.0 km) |
32°F to 104°F(0°C to 40°C) at sea level Derate 1°C for every 1,000 ft to 10,000 ft (300m to 3.0 km) | |
|
Operating relative humidity |
5% to 95% @ 113°F (45°C) non-condensing | ||
|
Nonoperating |
-40°F to 158°F up to 15,000 ft (-40°C to 70°C up to 4.6 km) | ||
|
Nonoperating/storage relative humidity |
5% to 95% @ 149°F (65°C) non-condensing | ||
|
Max operating altitude |
Up to 10,000 ft (3 km) | ||
|
Max nonoperating |
Up to 15,000 ft (4.6 km) | ||
|
Primary airflow |
Front-to-back |
Back-to-front PSU | |
|
Electrical characteristics | |||
|
Frequency |
50-60 Hz | ||
|
AC voltage |
100-127 VAC / 200-240 VAC | ||
|
Current |
6A (low voltage)-3A (high voltage) | ||
|
Power consumption2 |
Max: 1580W Typical: 775W Idle: 650W |
Max: 1580W Typical: 775W Idle: 650W | |
|
Acoustics |
LWAd = 7.3 Bel LpAm (Bystander) = 54.2 dB |
LWAd = 7.1 Bel LpAm (Bystander) = 52.4 dB | |
|
Notes: - 2Max power is at 100% traffic,max temperature, all ports with SR optics. Typical power is at 50% traffic, 230VAC, 25C with DAC cables. Idle power is at 0% traffic, 25C with no modules. | |||
|
Safety |
EU: EN62368-1, Ed.2:2014 EN62368-1, Ed.3:2020 North America: UL62368-1, CSA 22.2 No 62368-1 Worldwide: IEC 62368-1:2014 IEC 62368-1:2018
| ||
|
EMC |
FCC Part 15 Class A EN55032:2015+AC:2016+A11:2020 Class A CISPR-32:2015 Class A,ANSI C63.4:2014&C63.4a:2017, ICES-003 Issue7:2020, VCCI-CISPR 32:2016, CNS 15936:2016, KSC 9832:2024; QCVN 118:2018/BTTTT
| ||
|
Immunity |
CISPR-35:2016,EN55035:2017+A11:2020, KS C 9835:2019, KS C 9610-4-11:2020
| ||
|
Management |
CLI REST API SNMP HPE Aruba Networking Fabric Composer HPE Aruba Networking Switch Multi-Edit Software HPE Aruba Networking Central. HPE Aruba Networking Central support will come with HPE Aruba Networking Central 2.5.6 (not currently supported) USB-C USB console RJ-45 Ethernet port AMD Pensando PSM USB-C console and RJ-45 serial port AMD Pensando PSM | ||
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post Rack Mount Kit included with switch, optional 4-post rack mount kit must be ordered separately. | ||
|
| |||
|
Standards and protocols The following standards and protocols are supported. - IEEE 802.1AB-2009 - IEEE 802.1ak-2007 - IEEE 802.1t-2001 - IEEE 802.1AX-2008 Link Aggregation - IEEE 802.1p Traffic Class Expediting and Dynamic - Multicast Filtering - IEEE 802.1Q VLANs - IEEE 802.1s Multiple Spanning Trees - IEEE 802.1w Rapid Reconfiguration of Spanning Tree - IEEE 802.3ad Link Aggregation Control Protocol (LACP) - IEEE 802.3x Flow Control - IEEE 802.3z Gigabit Ethernet - IEEE 802.3ae 10 Gigabit Ethernet - IEEE 802.3by 25 Gigabit Ethernet - IEEE 802.3ba 40 and 100 Gigabit Ethernet Architecture - RFC 768 UDP - RFC 791 IP - RFC 792 ICMP - RFC 793 TCP - RFC 826 ARP - RFC 768 User Datagram Protocol - RFC 813 Window and Acknowledgement Strategy in TCP - RFC 815 IP datagram reassembly algorithms - RFC 879 TCP maximum segment size and related topics - RFC 896 Congestion control in IP/TCP internetworks - RFC 917 Internet subnets - RFC 919 Broadcasting Internet Datagrams - RFC 922 Broadcasting Internet Datagrams in the Presence of Subnets (IP_BROAD) - RFC 925 Multi-LAN address resolution - RFC 1215 Convention for defining traps for use with the SNMP - RFC 1256 ICMP Router Discovery Messages - RFC 1393 Traceroute Using an IP Option - RFC 1591 Domain Name System Structure and Delegation - RFC 1657 Definitions of Managed Objects for BGP-4 using SMIv2 - RFC 1772 Application of the Border Gateway Protocol in the Internet - RFC 1981 Path MTU Discovery for IP version 6 - RFC 1997 BGP Communities Attribute - RFC 1998 An Application of the BGP Community Attribute in Multi-home Routing - RFC 2385 Protection of BGP Sessions via the TCP MD5 Signature Option - RFC 2401 Security Architecture for the Internet Protocol - RFC 2402 IP Authentication Header - RFC 2406 IP Encapsulating Security Payload (ESP) - RFC 2460 Internet Protocol, Version 6 (IPv6) Specification - RFC 2545 Use of BGP-4 Multiprotocol Extensions for IPv6 Inter-Domain Routing - RFC 2710 Multicast Listener Discovery (MLD) for IPv6 - RFC 2787 Definitions of Managed Objects for the Virtual Router Redundancy Protocol - RFC 2918 Route Refresh Capability for BGP-4 - RFC 2934 Protocol Independent Multicast MIB for IPv4 - RFC 3137 OSPF Stub Router Advertisement - RFC 3176 InMon Corporation's sFlow: A Method for Monitoring Traffic in Switched and Routed Networks - RFC 3484: Default Address Selection for Internet Protocol version 6 (IPv6) - RFC 3509 Alternative Implementations of OSPF Area Border Routers - RFC 3623 Graceful OSPF Restart - RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6 - RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers - RFC 4251 The Secure Shell (SSH) Protocol - RFC 4271 A Border Gateway Protocol 4 (BGP-4) - RFC 4273 Definitions of Managed Objects for BGP-4 - RFC 4291 IP Version 6 Addressing Architecture - RFC 4292 IP Forwarding Table MIB - RFC 4293 Management Information Base for the Internet Protocol (IP) - RFC 4360 BGP Extended Communities Attribute - RFC 4486 Subcodes for BGP Cease Notification Message - RFC 4552 Authentication/Confidentiality for OSPFv3 - RFC 4724 Graceful Restart Mechanism for BGP - RFC 4760 Multiprotocol Extensions for BGP-4 - RFC 4940 IANA Considerations for OSPF - RFC 5095: Deprecation of Type 0 Routing Headers in IPv6 - RFC 5187 OSPFv3 Graceful Restart - RFC 5701 IPv6 Address Specific BGP Extended Community Attribute - RFC 6987 OSPF Stub Router Advertisement - RFC 7047 The Open vSwitch Database Management Protocol - RFC 7059 A Comparison of IPv6-over-IPv4 Tunnel Mechanisms - RFC 7313 Enhanced Route Refresh Capability for BGP-4 - RFC 8201 Path MTU Discovery for IP version 6 |
|
|
|
Date |
Version History |
Action |
Description of Change |
|
15-Jun-2026 |
Version 27 |
Changed |
Standard Features section was updated. New SFP+ and QSFP28 Transceivers SKUs were added in Configuration Information section: S6H32A, S6H20A, S6H21A, S6H22A, S6H24A. |
|
04-May-2026 |
Version 26 |
Changed |
Performance information in Standard Features section was updated. SKUs for Configuration Rules added for BTO and CTO Models in Configuration Information section. |
|
05-Jan-2026 |
Version 25 |
Changed |
Overview, Standard Features and Technical Specifications sections were updated. |
|
Added |
SKUs added in Configuration Inforamtion section: S6J72AAE, S6J73AAE, S6J74AAE, S6J75AAE, R9H26AAE | ||
|
07-Jul-2025 |
Version 24 |
Changed |
Overview, Standard Features, and Technical Specifications sections were updated to include CX10040 information. |
|
Added |
New SKUs added for CX 10040 in Configuration Information section: S4R54A, S4R55A, S4R56A, S4R57A, J9583B, S4R52A, S4R53A, S4R50A, S4R51A. Also new SKUs for AOS-CX SW were added in Configuration Information section: S6J68AAE, S6J69AAE, S6J70AAE, S6J71AAE, S6J72AAE, S6J73AAE, S6J74AAE, S6J75AAE. | ||
|
Removed |
SKU deleted: R8S96A | ||
|
09-Jun-2025 |
Version 23 |
Changed |
Version links added in Summary of Changes section. |
|
Added |
AOS As-a-Service Software Licenses SKUs were added in Configuration Information section: S0T97AAS, S0T98AAS, S0T99AAS, S3M95AAS, S3M96AAS, S3M97AAS, S0U02AAS, S0U03AAS, S0U04AAS, S3M98AAS, S3M99AAS, S3N00AAS. | ||
|
03-Mar-2025 |
Version 22 |
Changed |
Configuration Information section was updated |
|
16-Dec-2024 |
Version 21 |
Changed |
Overview, Standard Features, Configuration Information and Technical Specifications sections were updated |
|
18-Nov-2024 |
Version 20 |
Changed |
Overview, Standard Features, Configuration Information and Technical Specifications sections were updated |
|
03-Sep-2024 |
Version 19 |
Changed |
Configuration Information section was updated |
|
03-Jun-2024 |
Version 18 |
Changed |
Configuration Information section was updated |
|
06-May-2024 |
Version 17 |
Changed |
Configuration Information and Technical Specifications sections were updated |
|
01-Apr-2024 |
Version 16 |
Changed |
Configuration Information section was updated |
|
04-Dec-2023 |
Version 15 |
Changed |
Series name was updated. |
|
14-Aug-2023 |
Version 14 |
Changed |
Configuration Information section was updated |
|
10-Jul-2023 |
Version 13 |
Changed |
Configuration Information section was updated |
|
05-Jun-2023 |
Version 12 |
Changed |
Configuration Information section was updated |
|
15-May-2023 |
Version 11 |
Changed |
Configuration Information section was updated |
|
13-Mar-2023 |
Version 10 |
Changed |
Configuration Information section was updated |
|
06-Feb-2023 |
Version 9 |
Changed |
Standard Features and Configuration Information sections were updated. |
|
19-Dec-2022 |
Version 8 |
Changed |
Configuration Information section was updated |
|
05-Dec-2022 |
Version 7 |
Changed |
Configuration Information section was updated, new SKUs were also added. |
|
07-Nov-2022 |
Version 6 |
Changed |
Standard Features section was updated. |
|
03-Oct-2022 |
Version 5 |
Changed |
Configuration Information section was updated. |
|
06-Jun-2022 |
Version 4 |
Changed |
Standard Features and Configuration Information sections were updated. |
|
07-Feb-2022 |
Version 3 |
Changed |
Configuration Information section was updated. |
|
10-Jan-2022 |
Version 2 |
Changed |
Configuration Information section was updated, SKUs were added. |
|
06-Dec-2021 |
Version 1 |
New |
New QuickSpecs |
|
|
|
Have feedback on QuickSpecs? We're listening | |
|
|
|
| |
|
|
|
Chat now | |
|
|
|
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
To learn more, visit: http://www.hpe.com/networking
a50004267enw - 16871 - Worldwide - V27 - 15-June-2026 | |
|
|
|
HEWLETT PACKARD ENTERPRISE HPE.com |
|
