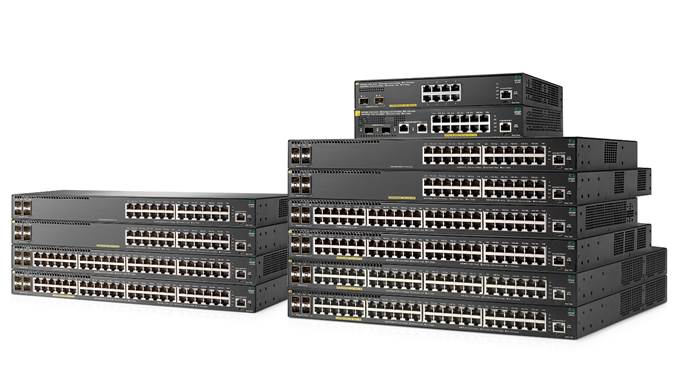

HPE Aruba Networking 2930F Switch Series

The HPE Aruba Networking 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power and are simple to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central.

A powerful HPE Aruba Networking ProVision ASIC delivers performance, robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required.

The HPE Aruba Networking 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust basic Layer 3 feature set includes a limited lifetime warranty.

HPE Aruba Networking 2930F Switch Series

Key Features

HPE Aruba Networking Layer 3 switch series with VSF stacking, static, RIP and Access OSPF Routing, dynamic segmentation, ACLs, and robust QoS
Supports cloud and on-premises management. And advanced policy management using HPE Aruba Networking ClearPass
Convenient built-in 1GbE or 10GbE uplinks and up to 740 W PoE+
Software-defined ready with REST APIs and OpenFlow support
Simple deployment with Zero Touch Provisioning

Enhanced Capabilities

Unified Wired and Wireless Support

Supports unified wired and wireless policies

HPE Aruba Networking ClearPass Policy Manager

Switch auto-configuration

automatically configures switch for different settings such as VLAN, CoS, PoE max power, and PoE priority when an HPE Aruba Networking access point is detected.

User role

defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switch-based local user role or download from ClearPass.

Dynamic segmentation

automatically enforces user, device, and application-aware policies on HPE Aruba Networking wired and wireless networks. Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end users alike.

provides a secured tunnel to transport network traffic on a per-port or per-user-role basis to an HPE Aruba Networking controller. In per-user-role Tunneled Node, users are authenticated with ClearPass Policy Manager which can direct the traffic to be tunneled to an HPE Aruba Networking controller or switch locally.

Static IP visibility

allows ClearPass to do accounting for clients with static IP address

Software-defined networks

REST APIs and OpenFlow

Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.

Quality of Service (QoS)

Traffic prioritization (IEEE 802.1p)

for classification into eight priority levels mapped to eight queues

Layer 4 prioritization

based on TCP/UDP port numbers

Class of Service (CoS)

sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ

Rate limiting

sets per-port ingress enforced maximums and per-port, per-queue minimums

Large buffers

provide graceful congestion management

Unknown Unicast Rate Limiting

throttles unicast packets with unknown destination addresses and limits flooding on the VLAN

Connectivity

Convenient built-in 10 Gbps Ethernet (4 x SFP+) uplinks

available on select models

Auto-MDIX

provides automatic adjustments for straight-through or crossover cables on all 10/100 and 10/100/1000 ports

12-port fanless model available

12x 1Gbps Ethernet PoE+ ports and four built-in uplinks (2x SFP+ and 2x 1GBASE-T). Built-in power supply.

IEEE 802.3at Power over Ethernet (PoE+)

provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments

Support for pre-standard PoE detects and provides power to pre-standard PoE devices

IPv6

IPv6 host
enables switches to be managed in an IPv6 network
Dual stack (IPv4 and IPv6)
transitions from IPv4 to IPv6, supporting connectivity for both protocols
MLD snooping
forwards IPv6 multicast traffic to the appropriate interface
IPv6 ACL/QoS
supports ACL and QoS for IPv6 network traffic
IPv6 routing
supports static and RIPng protocols
Security
provides RA guard, DHCPv6 protection, dynamic IPv6 lockdown, and ND snooping

Performance and efficiency

Energy-efficient design

- 80 PLUS Silver Certified power supply

increases power efficiency and savings

- Energy-efficient Ethernet (EEE) support

reduces power consumption in accordance with IEEE 802.3az

Designed with the latest HPE Aruba Networking ProVision ASIC

providing very low latency, increased packet buffering, and adaptive power consumption

Selectable queue configurations

allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications

Stacking topology

- Virtual Switching Framework (VSF) front plane stacking creates one virtual resilient switch from up to eight switches.

Notes:Requires HPE Aruba Networking OS-Switch 16.06 software.

- Ring topology supports up to an 8-member stack

- Virtualized switching provides simplified management as the switches act as a single chassis when stacked

Convergence

IP multicast snooping and data-driven IGMP

automatically prevent flooding of IP multicast traffic

LLDP-MED (Media Endpoint Discovery)

defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to configure automatically network devices such as IP phones

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

facilitates easy mapping using network management applications with LLDP automated device discovery protocol

PoE and PoE+ allocations

support multiple methods (automatic, IEEE 802.3at dynamic, LLDP-MED fine grain, IEEE 802.3af device class, or user-specified) to allocate and manage PoE/PoE+ power for more efficient energy savings

Local MAC Authentication

assigns attributes such as VLAN and QoS using a locally configured profile that can be a list of MAC prefixes

IP multicast routing

includes PIM Sparse and Dense modes to route IP multicast traffic (limited to 16 interfaces)

Protocol Independent Multicast for IPv6

supports one-to-many and many-to-many media casting use cases such as IPTV over IPv6 networks

Monitor and diagnostics

Digital optical monitoring of SFP+ and 1000BASE-T transceivers

allows detailed monitoring of the transceiver settings and parameters

Resiliency and high availability

IEEE 802.1s Multiple Spanning Tree

provides high link availability by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w

Virtual Router Redundancy Protocol (VRRP)

allows groups of two routers to dynamically back each other up to create highly available routed environments for IPv4 and IPv6 networks (limited to 128 VRs)

IEEE 802.3ad link-aggregation-control protocol (LACP) and port trunking

support up to 60 static or dynamic trunks with each trunk having up to eight links (ports) per static trunk

SmartLink

provides easy-to-configure link redundancy of active and standby links

SNMPv1, v2, and v3

provide complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption

Simplified configuration and management

HPE Aruba Networking Central support

cloud based management platform offers simple, secure, and cost effective way to manage switches

Zero-Touch Provisioning (ZTP)

simplifies installation of the switch infrastructure using HPE Aruba Networking Activate or a DHCP-based process with AirWave and Central Network Management

Built-in programmable and easy-to-use REST API interface

provides configuration automation for campus networks

Flexible management with same hardware

supports both cloud-based Central and on-premises AirWave with the same hardware, ensuring management platform changes without ripping and replacing switching infrastructure

Manageability

Dual flash images

provides independent primary and secondary operating system files for backup while upgrading

Friendly port names

allow assignment of descriptive names to ports

Find-Fix-Inform feature

finds and fixes common network problems automatically, then informs administrator

Supports multiple configuration files

stored to a flash image

RMON, XRMON, and sFlow

provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events

Troubleshooting

ingress and egress port monitoring enable more efficient network problem solving

Unidirectional link detection (UDLD)

monitors the link between two switches and blocks the ports on both ends of the link if the link goes down at any point between the two devices

IP service level agreements (SLA) for voice

monitor quality of voice traffic using the UDP jitter and UDP jitter for VoIP tests

Software releases

to find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to https://www.hpe.com/us/en/networking/hpe-aruba-networking-support-services.html

Layer 3 services

DHCP server

centralizes and reduces the cost of IPv4 address management

Layer 2 switching

IEEE 802.1ad Q-in-Q

increases the scalability of an Ethernet network by providing a hierarchical structure; connects multiple LANs on a high-speed campus or metro network

VLAN Support and Tagging

supports IEEE 802.1Q (4094 VLAN IDs) and 2K VLANs simultaneously

Jumbo packet support

improves the performance of large data transfers; supports frame size of up to 9220 bytes

IEEE 802.1v protocol VLANs

isolate select non-IPv4 protocols automatically into their own VLANs

Rapid Per-VLAN Spanning Tree (RPVST+)

allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+

GVRP and MVRP

allows automatic learning and dynamic assignment of VLANs

VxLAN

encapsulation (tunneling) protocol for overlay network that enables a more scalable virtual network deployment

Layer 3 routing

Static IP routing

provides manually configured routing; includes ECMP capability

256 static and 10,000 RIP routes

facilitate segregation of user data, without adding external hardware

Routing Information Protocol (RIP)

provides RIPv1, RIPv2, and RIPng routing

Access OSPF

provides OSPFv2 and OSPFv3 protocols for routing between access and the next layer on the LAN. Only one OSPF area and up to 8 interfaces are supported

Policy-based routing

uses a classifier to select traffic that can be forwarded based on policy set by the network administrator (limited to 16 next-hop routes)

Customer first, customer last support

When your network is important to your business, then your business needs the backing of Support Services. Partner with HPE Aruba Networking product experts to increase your team productivity, keep pace with technology advances, software releases, and obtain break-fix support.

Foundation Care for HPE Aruba Networking support services include priority access to Technical Assistance Center (TAC) engineers 24x7x365, flexible hardware and onsite support options, and total coverage for HPE Aruba Networking products. HPE Aruba Networking switches with assigned HPE Aruba Networking Central subscriptions benefit with option for additional hardware support only.
HPE Aruba Networking Pro Care adds fast access to senior TAC engineers, who are assigned as a single point of contact for case management, reducing the time spent addressing and resolving issues.

For complete details on Foundation Care and HPE Aruba Networking Pro Care, please visit: https://www.hpe.com/us/en/networking/hpe-aruba-networking-support-services.html

Warranty and support

Limited Lifetime Warranty

See https://www.hpe.com/us/en/networking/hpe-aruba-networking-support-services.html for warranty and support information included with your product purchase.

Security

Control Plane Policing set rate limit on control protocols to protect CPU overload from DOS attacks
Multiple user authentication methods

- uses an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server to authenticate in accordance with industry standards

- supports Web-based authentication

- supports MAC-based authentication

Authentication flexibility

- Multiple IEEE 802.1X users per port

provides authentication of multiple devices on a single port; prevents a user from "piggybacking" on another user's IEEE 802.1X authentication

- Concurrent IEEE 802.1X, Web, and MAC authentication schemes per port

switch port will accept up to 32 sessions of IEEE 802.1X, Web, and MAC authentications

TPM-based Security

Includes a Trusted Platform Module (TPM) for secure hardware-based generation and storage of cryptographic keys that can be used for a variety of authentication purposes

Access control lists (ACLs)

provide IP Layer 3 filtering based on source/destination IP address/subnet and source/destination TCP/UDP port number

Source-port filtering

allows only specified ports to communicate with each other

RADIUS/TACACS+

eases switch management security administration by using a password authentication server

Secure shell

encrypts all transmitted data for secure remote CLI access over IP networks

Secure Sockets Layer (SSL)

encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch

Port security

allows access only to specified MAC addresses, which can be learned or specified by the administrator

Radius over TLS (RadSec)

allows users to use a more secure and reliable mode of communications between switch and radius servers over unsecure networks

MAC address lockout

prevents particular configured MAC addresses from connecting to the network

Secure FTP

allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file

Switch management logon security

helps secure switch CLI logon by optionally requiring either RADIUS or TACACS+ authentication

Custom banner

displays security policy when users log in to the switch

STP BPDU port protection

blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks

DHCP protection

blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks

Dynamic ARP protection

blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data

STP root guard

protects the root bridge from malicious attacks or configuration mistakes

Identity-driven ACL

enables implementation of a highly granular and flexible access security policy and VLAN assignment specific to each authenticated network user

Per-port broadcast throttling

Configures broadcast control selectively on heavy traffic port uplinks

Private VLAN

provides network security by restricting peer-to-peer communication to prevent a variety of malicious attacks; typically a switch port can only communicate with other ports in the same community and/or an uplink port, regardless of VLAN ID or destination MAC address

Open authentication role

simplifies first-time deployment of AAA in brownfield deployments by allowing full network access for failed clients and provides instant connectivity as soon as a client is plugged-in

Critical authentication role

ensures that important infrastructure devices such as IP phones are allowed network access even in the absence of a RADIUS server

MAC pinning

allows non-chatty legacy devices to stay authenticated by pinning client MAC addresses to the port until the clients logoff or get disconnected

Enrollment over Secure Transport (EST)

enhances the switch PKI infrastructure with a simpler, scalable and more secure method of certificate provisioning, re-enrollment and renewal

BTO Models
Rule #	Description	SKU
1, 2, 3, 10	HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch	JL693A
	12 RJ-45 PoE+ autosensing 10/100/1000 ports 2 SFP/SFP+ 1G/10G ports min=0 \\ max=2 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch PDU	JL693A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch PDU	JL693A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch 220v	JL693A#B2E
	HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)
	HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch No Loc	JL693A#AC3
	No Localized Power Cord Selected
1, 2, 3, 10	HPE Aruba Networking 2930F 24G 4SFP+ Switch	JL253A
	24 RJ-45 autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 24G 4SFP+ Switch PDU	JL253A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 24G 4SFP+ Switch PDU	JL253A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 24G 4SFP+ Switch 220v	JL253A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 24G 4SFP+ Switch No Loc	JL253A#AC3
	No Localized Power Cord Selected
1, 2, 3, 10	HPE Aruba Networking 2930F 48G 4SFP+ Switch	JL254A
	48 RJ-45 autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 24G 4SFP+ Swch PDU	JL254A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 24G 4SFP+ Swch PDU	JL254A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 24G 4SFP+ Switch 220v	JL254A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G 4SFP+ Switch No Loc	JL254A#AC3
	No Localized Power Cord Selected
1, 2, 3, 10	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ Switch	JL255A
	24 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height

Rule #	Description	SKU
	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ Switch PDU	JL255A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ Switch PDU	JL255A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ Switch 220v	JL255A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ Switch No Loc	JL255A#AC3
	No Localized Power Cord Selected
1, 2, 3, 10	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch	JL256A
	48 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch PDU	JL256A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch PDU	JL256A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch 220v	JL256A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch No Loc	JL256A#AC3
	No Localized Power Cord Selected
1, 2, 3, 10	HPE Aruba Networking 2930F 8G PoE+ 2SFP+ Switch	JL258A
	8 RJ-45 PoE+ autosensing 10/100/1000 ports 2 SFP/SFP+ 1G/10G ports min=0 \\ max=2 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 8G PoE+ 2SFP+ Switch PDU	JL258A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 8G PoE+ 2SFP+ Switch PDU	JL258A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 8G PoE+ 2SFP+ Switch 220v	JL258A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 8G PoE+ 2SFP+ Switch No Loc	JL258A#AC3
	No Localized Power Cord Selected
1, 3, 10	HPE Aruba Networking 2930F 24G 4SFP Switch	JL259A
	24 RJ-45 autosensing 10/100/1000 ports 4 SFP 1G ports min=0 \\ max=4 SFP Transceivers 1U - Height
	HPE Aruba Networking 2930F 24G 4SFP Switch PDU	JL259A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 24G 4SFP Switch PDU	JL259A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 24G 4SFP Switch 220v	JL259A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 24G 4SFP Switch No Loc	JL259A#AC3
	No Localized Power Cord Selected
Rule #	Description	SKU
1, 3, 10	HPE Aruba Networking 2930F 48G PoE+ 4SFP 740W Switch	JL557A
	48 RJ-45 autosensing 10/100/1000 ports 4 SFP 1G ports min=0 \\ max=4 SFP Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G PoE+ 4SFP 740W Switch PDU	JL557A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP 740W Switch PDU	JL557A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP 740W Switch 220v	JL557A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP 740W Switch No Loc	JL557A#AC3
	No Localized Power Cord Selected
1, 3, 10	HPE Aruba Networking 2930F 48G 4SFP Switch	JL260A
	48 RJ-45 autosensing 10/100/1000 ports 4 SFP 1G ports min=0 \\ max=4 SFP Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G 4SFP Switch PDU	JL260A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 48G 4SFP Switch PDU	JL260A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G 4SFP Switch 220V	JL260A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G 4SFP Switch No Loc	JL260A#AC3
	No Localized Power Cord Selected
1, 3, 10	HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch	JL261A
	24 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP 1G ports min=0 \\ max=4 SFP Transceivers 1U - Height
	HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch PDU	JL261A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch PDU	JL261A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch 220v	JL261A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch No Loc	JL261A#AC3
	No Localized Power Cord Selected
1, 3, 10	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch	JL558A
	48 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP 1G ports min=0 \\ max=4 SFP Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch PDU	JL558A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)

	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch PDU	JL558A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch 220v	JL558A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch No Loc	JL558A#AC3
	No Localized Power Cord Selected
1, 3, 10	HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch	JL262A
	48 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP 1G ports min=0 \\ max=4 SFP Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch PDU	JL262A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch PDU	JL262A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch 220v	JL262A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch No Loc	JL262A#AC3
	No Localized Power Cord Selected

	TAA Compliant Chassis
Rule #	Description	SKU
1, 2, 3, 4, 8, 9, 10	HPE Aruba Networking 2930F 8G PoE+ 2SFP+ TAA-compliant Switch	JL692A
	8 RJ-45 PoE+ autosensing 10/100/1000 ports 2 SFP/SFP+ 1G/10G ports min=0 \\ max=2 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 8G PoE+ 2SFP+ TAA-compliant Switch PDU	JL692A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 8G PoE+ 2SFP+ TAA-compliant Switch PDU	JL692A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 8G PoE+ 2SFP+ TAA-compliant Switch 220v	JL692A#B2E
	HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)
	HPE Aruba Networking 2930F 8G PoE+ 2SFP+ TAA-compliant Switch No Loc	JL692A#AC3
	No Localized Power Cord Selected
1, 2, 3, 4, 8, 9, 10	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ TAA-compliant Switch	JL263A
	24 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ TAA Switch PDU	JL263A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ TAA Switch PDU	JL263A#B2C
	C15 PDU Jumper Cord (ROW)

Rule #	Description	SKU
	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ TAA Switch 220v	JL263A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ TAA Switch No Loc	JL263A#AC3
	No Localized Power Cord Selected
1, 2, 3, 4, 8, 9, 10	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch	JL559A
	48 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch PDU NA, JP or TW	JL559A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch PDU ROW	JL559A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch United States 220 volt	JL559A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch	JL559A#AC3
	No Localized Power Cord Selected
1, 2, 3, 4, 8, 9, 10	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ TAA-compliant Switch	JL264A
	48 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ TAA Switch PDU	JL264A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ TAA Switch PDU	JL264A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ TAA Switch 220v	JL264A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ TAA Switch No Loc	JL264A#AC3
	No Localized Power Cord Selected
	Configuration Rules
1	The following Transceivers install into this Switch:
	HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver	J4858D
	HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver	J4859D
	HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver	J4860D
	HPE Aruba Networking 1G SFP RJ45 100m Cat5e Transceiver	J8177E
	HPE Aruba Networking 100M SFP LC FX 2km MMF Transceiver	J9054D
2	The following Transceivers install into this Switch:
	HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver	J9150D
	HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver	J9151E
	HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver	J9153D
	HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable	J9281D
	HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable	J9283D
3	Localization required on orders without #B2B, #B2C or #B2E options.
4	TAA Switch Chassis are available in the US, UK, Israel, Vietnam, South Korea, India, and Taiwan only.
8	The following Transceivers install into this Switch:
	HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver	JL745A
	HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver	JL746A
9	The following Transceivers install into this Switch:
	HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver	JL748A
	HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver	JL749A
10	Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following: For BTO shipments to India: Please replace <Base Model>#B2C option with <Base Model>#AC3 in the Bill of Materials and add the appropriate INDIA PDU Power Cord below via Ad-Hoc: For Factory Integration of Power Cord, please add "#0D1" to the Power Cord SKU suffix. (Ex. JL671A#0D1)
	HPE Networking 2.0m C13 to C14 PDU India Power Cord	JL671A
	HPE Networking 2.5m C15 to C14 PDU India Power Cord	JL672A
	HPE Networking 2.5m C19 to C20 PDU India Power Cord	JL673A
Notes:	Drop down under power supply should offer the following options and results: Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO) Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO) #AC3 - No Power Cord

Rack Level Integration CTO Models
Rule #	Description	SKU
1, 2, 3, 4, 5, 10	HPE Aruba Networking 2930F 24G 4SFP+ Switch	JL253A
	24 RJ-45 autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 24G 4SFP+ Switch PDU	JL253A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 24G 4SFP+ Switch PDU	JL253A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 24G 4SFP+ Switch 220v	JL253A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 24G 4SFP+ Switch No Loc	JL253A#AC3
	No Localized Power Cord Selected
1, 2, 3, 4, 5, 10	HPE Aruba Networking 2930F 48G 4SFP+ Switch	JL254A
	48 RJ-45 autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 24G 4SFP+ Swch PDU	JL254A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 24G 4SFP+ Swch PDU	JL254A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 24G 4SFP+ Switch 220v	JL254A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G 4SFP+ Switch No Loc	JL254A#AC3
	No Localized Power Cord Selected
1, 2, 3, 4, 5, 10	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ Switch	JL255A
	24 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
1, 2, 3, 4, 5, 10	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch	JL256A
	48 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch PDU	JL256A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch PDU	JL256A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch 220v	JL256A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)

Rule #	Description	SKU
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch No Loc	JL256A#AC3
	No Localized Power Cord Selected
1, 3, 4, 5, 10	HPE Aruba Networking 2930F 24G 4SFP Switch	JL259A
	24 RJ-45 autosensing 10/100/1000 ports 4 SFP 1G ports min=0 \\ max=4 SFP Transceivers 1U - Height
	HPE Aruba Networking 2930F 24G 4SFP Switch PDU	JL259A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 24G 4SFP Switch PDU	JL259A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 24G 4SFP Switch 220v	JL259A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 24G 4SFP Switch No Loc	JL259A#AC3
	No Localized Power Cord Selected
1, 3, 10	HPE Aruba Networking 2930F 48G PoE+ 4SFP 740W Switch	JL557A
	48 RJ-45 autosensing 10/100/1000 ports 4 SFP 1G ports min=0 \\ max=4 SFP Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G PoE+ 4SFP 740W Switch PDU	JL557A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP 740W Switch PDU	JL557A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP 740W Switch 220v	JL557A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP 740W Switch No Loc	JL557A#AC3
	No Localized Power Cord Selected
1, 3, 4, 5, 10	HPE Aruba Networking 2930F 48G 4SFP Switch	JL260A
	48 RJ-45 autosensing 10/100/1000 ports 4 SFP 1G ports min=0 \\ max=4 SFP Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G 4SFP Switch PDU	JL260A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 48G 4SFP Switch PDU	JL260A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G 4SFP Switch 220V	JL260A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G 4SFP Switch No Loc	JL260A#AC3
	No Localized Power Cord Selected
1, 3, 4, 5, 10	HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch	JL261A
	24 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP 1G ports min=0 \\ max=4 SFP Transceivers 1U - Height

Rule #	Description	SKU
	HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch PDU	JL261A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch PDU	JL261A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch 220v	JL261A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch No Loc	JL261A#AC3
	No Localized Power Cord Selected
1, 3, 10	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch	JL558A
	48 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP 1G ports min=0 \\ max=4 SFP Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch PDU	JL558A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch PDU	JL558A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch 220v	JL558A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch No Loc	JL558A#AC3
	No Localized Power Cord Selected
1, 3, 4, 5, 10	HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch	JL262A
	48 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP 1G ports min=0 \\ max=4 SFP Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch PDU	JL262A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch PDU	JL262A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch 220v	JL262A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch No Loc	JL262A#AC3
	No Localized Power Cord Selected

	TAA Compliant Chassis
Rule #	Description	SKU
1, 2, 3, 4, 5, 6, 8, 9, 10	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ TAA-compliant Switch	JL263A
	24 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ TAA Switch PDU	JL263A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ TAA Switch PDU	JL263A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ TAA Switch 220v	JL263A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 24G PoE+ 4SFP+ TAA Switch No Loc	JL263A#AC3
	No Localized Power Cord Selected
1, 2, 3, 4, 5, 6, 8, 9, 10	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch	JL559A
	48 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch PDU NA, JP or TW	JL559A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch PDU ROW	JL559A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch United States 220 volt	JL559A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch	JL559A#AC3
	No Localized Power Cord Selected
1, 2, 3, 4, 5, 6, 8, 9, 10	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ TAA-compliant Switch	JL264A
	48 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP/SFP+ 1G/10G ports min=0 \\ max=4 SFP/SFP+ Transceivers 1U - Height
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ TAA Switch PDU	JL264A#B2B
	C15 PDU Jumper Cord (NA/MEX/TW/JP)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ TAA Switch PDU	JL264A#B2C
	C15 PDU Jumper Cord (ROW)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ TAA Switch 220v	JL264A#B2E
	HPE 2.3m C13 to NEMA 6-15P Power Cord(J9936A)
	HPE Aruba Networking 2930F 48G PoE+ 4SFP+ TAA Switch No Loc	JL264A#AC3
	No Localized Power Cord Selected
	Configuration Rules
Rule #	Description	SKU
1	The following Transceivers install into this Switch:
	HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver	J4858D
	HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver	J4859D
	HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver	J4860D
	HPE Aruba Networking 1G SFP RJ45 100m Cat5e Transceiver	J8177E
	HPE Aruba Networking 100M SFP LC FX 2km MMF Transceiver	J9054D
2	The following Transceivers install into this Switch:
	HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver	J9150D
	HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver	J9151E
	HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver	J9153D
	HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable	J9281D
	HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable	J9283D
3	If this switch is factory installed in HPE Racks, Then the J9583A#0D1 is required. CLIC Only - Allow the J9583AZ in all regions.
4	Localization required on orders without #B2B, #B2C, #B2E options.
5	If this Switch Chassis is selected for Rack Level Integration, Then the Switch Chassis needs to integrate (with #0D1) to the HPE Rack.
6	TAA Switch Chassis are available in the US, UK, Israel, Vietnam, South Korea, India, and Taiwan only.
8	The following Transceivers install into this Switch:
	HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver	JL745A
	HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver	JL746A
9	The following Transceivers install into this Switch:
	HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver	JL748A
	HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver	JL749A
10	Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following: For BTO shipments to India: Please replace <Base Model>#B2C option with <Base Model>#AC3 in the Bill of Materials and add the appropriate INDIA PDU Power Cord below via Ad-Hoc: For Factory Integration of Power Cord, please add "#0D1" to the Power Cord SKU suffix. (Ex. JL671A#0D1)
	HPE Networking 2.0m C13 to C14 PDU India Power Cord	JL671A
	HPE Networking 2.5m C15 to C14 PDU India Power Cord	JL672A
	HPE Networking 2.5m C19 to C20 PDU India Power Cord	JL673A
Notes:	Drop down under power supply should offer the following options and results: Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO) Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO) #AC3 - No Power Cord. Enter the following menu selections as integrated to the CTO Model X server above if order is factory built.

Transceivers
Remarks	Description		SKU
	SFP Transceivers
	HPE Aruba Networking 100M SFP LC FX 2km MMF Transceiver		J9054D
	HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver		J4858D
	HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver		J4859D
	HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver		J4860D
	HPE Aruba Networking 1G SFP RJ45 100m Cat5e Transceiver		J8177E
	HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver		JL745A
	HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver		JL746A

	SFP+ Transceivers
	HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver		J9150D
Notes:	Temperature Limitations
	HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver		J9151E
Notes:	Temperature Limitations
	HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver		J9153D
Notes:	Mounting Limitations
	HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver		JL748A
	HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver		JL749A
	HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable		J9281D
	HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable		J9283D
Notes:	Temperature limitations apply when the J9150D HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver or J9151E HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver are configured with JL693A HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch. See product installation guide for more information. Mounting limitations apply when the J9153D HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver is configured with a JL693A HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch. See product installation guide for more information.

Cables
Remarks		Description	SKU
		Console Cables
		(std 0 // max 99) User Selection (min 0 // max 99) per switch
		HPE Aruba Networking X2C2 RJ45 to DB9 Console Cable	JL448A
Notes:		Option not available for Central Managed Switch Configuration; can be ordered Separately if needed.
		Multi-Mode Cables
		(std 0 // max 99) User Selection (min 0 // max 99) per switch
		HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable	AJ833A
		HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable	AJ834A
		HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable	AJ835A
		HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable	AJ836A
		HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable	AJ837A
		HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable	AJ838A
		HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable	AJ839A
		HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable	QK732A
		HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable	QK733A
		HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable	QK734A
		HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable	QK735A
		HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable	QK736A
		HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable	QK737A
Notes:		Option not available for Central Managed Switch Configuration; can be ordered Separately if needed.

Switch Enclosure Options
	Mounting Kit
Rule #	Description	SKU
	(std 0 // max 1) User Selection (min 0 // max 1) per switch
1, 2	HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit	J9583B
	Configuration Rules
1	If this Mounting Kit is order with #0D1 then it integrates to the HPE Universal Rack. (not the switch)
2	This Rack Mount Kit is not compatible with JL258A, JL692A, and JL693A.
	Accessories
Notes:	For JL258A and JL692A System (std 0 // max 1) User Selection (min 0 // max 1) per switch
	HPE Aruba Networking 2930F 8-port Cable Guard	JL311A
	HPE Aruba Networking 2930F 8-port Power Shelf	JL312A

Spares
	Power Supply
	For JL258A and JL692A System (std 0 // max 99) User Selection (min 0 // max 99) per switch
1, 2, 3	HPE Aruba Networking 2930F 8-port 54VDC 180W External Power Supply Unit	S3R22A
	HPE Aruba Networking 2930F 8-port 54VDC 180W External Power Supply Unit	S3R22A
	HPE Aruba Networking 2930F 8-port 54VDC 180W External Power Supply Unit	S3R22A
	HPE Aruba Networking 2930F 8-port 54VDC 180W External Power Supply Unit	S3R22A
	HPE Aruba Networking 2930F 8-port 54VDC 180W External Power Supply Unit	S3R22A
	Configuration Rules
Rule #	Description	SKU
1	Localization required on orders without B2B, B2C, B2E or AC3 options.
2	Unbuildable/FAN required, generates CFGU: If order is quoted for India and contains "#B2C" Option, then Display the following: For BTO shipments to India: Please replace <Base Model>#B2C option with <Base Model>#AC3 in the Bill of Materials and add the appropriate INDIA PDU Power Cord below via Ad-Hoc:
	HPE Networking 2.0m C13 to C14 PDU India Power Cord	JL671A
	HPE Networking 2.5m C15 to C14 PDU India Power Cord	JL672A
	HPE Networking 2.5m C19 to C20 PDU India Power Cord	JL673A
3	S3R22A External Power Supply is included with all 8-Port Switches but can be ordered as a Spare.
Notes:	Drop down under power supply should offer the following options and results: Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (OCA Default B2B or B2C for Rack Level CTO) Switch/Router/Power Supply to Wall Power Cord - Localized Option (OCA Default for BTO) High Volt Switch/Router/Power Supply to Wall Power Cord - #B2E Option. (Offered only in North America, Mexico, Taiwan, and Japan) No Power Cord - #AC3 Option

Software
	Central
	Cloud Services / 62XX/29XX Switch Foundation Subscriptions
	HPE Aruba Networking Central Switch Class-2 Foundation 1 year Subscription E-STU	Q9Y73AAE
	HPE Aruba Networking Central Switch Class-2 Foundation 3 year Subscription E-STU	Q9Y74AAE
	HPE Aruba Networking Central Switch Class-2 Foundation 5 year Subscription E-STU	Q9Y75AAE
	HPE Aruba Networking Central Switch Class-2 Foundation 7 year Subscription E-STU	Q9Y76AAE
	HPE Aruba Networking Central Switch Class-2 Foundation 10 year Subscription E-STU	Q9Y77AAE
Notes:	Add the Central Cloud SKUs to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > Cloud Services
	On-Prem Services / 62XX/29XX Switch Foundation Subscriptions
	HPE Aruba Networking Central on Prem Switch Class-2 Foundation 1 year Subscription E-STU	R6U78AAE
	HPE Aruba Networking Central on Prem Switch Class-2 Foundation 3 year Subscription E-STU	R6U79AAE
	HPE Aruba Networking Central on Prem Switch Class-2 Foundation 5 year Subscription E-STU	R6U80AAE
	HPE Aruba Networking Central on Prem Switch Class-2 Foundation 7 year Subscription E-STU	R6U81AAE
	HPE Aruba Networking Central on Prem Switch Class-2 Foundation 10 year Subscription E-STU	R6U82AAE
Notes:	Add the Central On-Prem SKUs to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > On-Prem Services
	HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch	JL693A
	HPE Aruba Networking 2930F 8G PoE+ 2SFP+ Switch	JL258A
	FedRAMP Services / 62XX/29XX Switch Foundation Subscriptions
	HPE Aruba Networking Central 62xx or 29xx Switch Foundation Government 1-year Subscription E-STU	R8K94AAE
	HPE Aruba Networking Central 62xx or 29xx Switch Foundation Government 3-year Subscription E-STU	R8K95AAE
	HPE Aruba Networking Central 62xx or 29xx Switch Foundation Government 5-year Subscription E-STU	R8K96AAE
	HPE Aruba Networking Central 62xx or 29xx Switch Foundation Government 7-year Subscription E-STU	R8K97AAE
	HPE Aruba Networking Central 62xx or 29xx Switch Foundation Government 10-year Subscription E-STU	R8K98AAE
Notes:	Add the Central FedRAMP Service SKUs to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > FedRAMP
	On-Prem Services / 62XX/29XX Switch Advanced Subscriptions
	HPE Aruba Networking Central On-Premises Switch Class2 Advanced 1-year Subscription E-STU	R6U98AAE
	HPE Aruba Networking Central On-Premises Switch Class2 Advanced 3-year Subscription E-STU	R6U99AAE
	HPE Aruba Networking Central On-Premises Switch Class2 Advanced 5-year Subscription E-STU	R6V00AAE
	HPE Aruba Networking Central On-Premises Switch Class2 Advanced 7-year Subscription E-STU	R6V01AAE
	HPE Aruba Networking Central On-Premises Switch Class2 Advanced 10-year Subscription E-STU	R6V02AAE
Notes:	Add the Central On-Prem SKUs to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > On-Prem Services

As-a-Service
	HPE Aruba Networking Central
	Cloud Services / 62XX/29XX Switch Foundation Subscriptions
2	HPE Aruba Networking Central Switch Class-2 Foundation 1 year Subscription SaaS	Q9Y73AAS
2	HPE Aruba Networking Central Switch Class-2 Foundation 3 year Subscription SaaS	Q9Y74AAS
2	HPE Aruba Networking Central Switch Class-2 Foundation 5 year Subscription SaaS	Q9Y75AAS
2	HPE Aruba Networking Central Switch Class-2 Foundation 7 year Subscription SaaS	Q9Y76AAS
2	HPE Aruba Networking Central Switch Class-2 Foundation 10 year Subscription SaaS	Q9Y77AAS

	Cloud Services / Switch Advanced AAS Licenses
7	HPE Aruba Networking Central Switch Class-2 Advanced 1 year Subscription SaaS	S0W72AAS
7	HPE Aruba Networking Central Switch Class-2 Advanced 3 year Subscription SaaS	S0W73AAS
7	HPE Aruba Networking Central Switch Class-2 Advanced 5 year Subscription SaaS	S0W74AAS
7	HPE Aruba Networking Central Switch Class-2 Advanced 7 year Subscription SaaS	S0W75AAS
7	HPE Aruba Networking Central Switch Class-2 Advanced 10 year Subscription SaaS	S0W76AAS
	Configuration Rules
Rule#	Description	SKU
2	Add the Central Cloud SKUs to the HPE Aruba Networking Catalog as Standalone: HPE Aruba Networking > Network Management > Central > Cloud Services
7	For IRIS reference only. No action required for OCX and Clic

HPE Aruba Networking 2930F 8-port Cable Guard (JL311A)
The Cable Guard secures cables that are connected to the switch and provides extra security against theft or tampering with the switch and its cables after it is installed
Product Type	Mounting Kit
Physical characteristics	Dimensions: 1.42(w) x 4.33(d) x 0.69(h) in (3.6 x 11 x 1.75 cm) Weight: 1.28 lb (0.58 kg)
Notes	Dimensions: 10.94" x 3.62" x 1.69" or 27.8cm x 9.2cm x 4.3cm w/ears 10.94" x 1.69" x 1.69" or 27.8cm x 4.3cm x 4.3cm without ears Weight: 1.262 lbs or 57 kg (including faceplate, ears, and screws) 1.026 lbs or . 47 kg (faceplate only)
Warranty	Limited Lifetime Warranty: See https://www.hpe.com/us/en/networking/hpe-aruba-networking-support-services.html for warranty and support information included with your product purchase.
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Aruba Networking 2930F 8-port Power Shelf (JL312A)
An easy-to-use solution for attaching the external power adapter to any of the 2530 8-port switches.
Product Type	Mounting Kit
Physical characteristics	Dimensions: 10.75(w) x 6(d) x 2(h) in (27.31 x 15.24 x 5.08 cm) Weight: 0.93 lb (0.42 kg)
Overall Positioning Statement	The 2930F 8-port Power Shelf provides an easy to use solution for attaching the external power adapter to the 2930F 8G 2SFP+ PoE+ Switch. The power adapter shelf can be quickly attached on the rear of the 2930F 8G PoE+ 2SFP+ Switch and the adapter fit into place. This power adapter shelf is designed for wall, table or rack deployments.
Key Features	Quickly attach external power adapter to 8 port switch Designed for use with 2930F 8G PoE+ 2SFP+ Switch
Notes	The 2930F 8-port Power Shelf is an accessory for the 2930F 8G PoE+ 2SFP+ Switch. The shelf mounts on the back of the switch providing a place to hold the external power adapter.
Warranty	Limited Lifetime Warranty: See https://www.hpe.com/us/en/networking/hpe-aruba-networking-support-services.html for warranty and support information included with your product purchase.
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Aruba Networking 2930F 24G 4SFP+ Switch (JL253A)
I/O ports and slots	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
I/O ports and slots	4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42(w) x 7.88(d) x 1.73(h) in (44.25 x 20.02 x 4.39 cm) (1U height)
Physical characteristics	Weight	5.31 lb (2.41 kg)
Memory and processor	Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
	10 Gbps Latency	< 2.9 µs (64-byte packets)
	Throughput	up to 95.2 Mpps
	Switching capacity	128 Gbps
Performance	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
Performance	MAC address table size	32768 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C), noncondensing
	Acoustic	Power: 49.7 dB, Pressure: 37.1 dB
	Airflow direction	Side-to-side
Electrical characteristics	Maximum heat dissipation	100.0 BTU/hr (105.5 kJ/hr)
	Voltage	100 - 127 / 200 - 240 VAC, rated
	Current	0.6/0.4 A
	Maximum power rating	29.3 W
	Idle power	19.5 W
	Frequency	50/60 Hz
	Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
Immunity	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3

HPE Aruba Networking 2930F 48G 4SFP+ Switch (JL254A)
I/O ports and slots	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
I/O ports and slots	4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42(w) x 9.7(d) x 1.73(h) in (44.25 x 24.63 x 4.39 cm) (1U height)
Physical characteristics	Weight	6.83 lb (3.10 kg)
Memory and processor	Dual Core ARM Cortex @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
	10 Gbps Latency	< 2.9 µs (64-byte packets)
	Throughput	up to 112.0 Mpps
	Switching capacity	176 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32768 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C), noncondensing
	Acoustic	Power: 54.1 dB, Pressure: 40.2 dB
	Airflow direction	Side-to-side
Electrical characteristics	Maximum heat dissipation	157.2 BTU/hr (165.8 KJ/hr)
	Voltage	100 - 127 / 200 - 240 VAC, rated
	Current	0.9/0.6 A
	Maximum power rating	46.6 W
	Idle power	32.7 W
	Frequency	50/60 Hz
	Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
Immunity	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; Airwave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Aruba Networking 2930F 24G PoE+ 4SFP+ Switch (JL255A)
I/O ports and slots	24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
I/O ports and slots	4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42(w) x 11.98(d) x 1.73(h) in (44.25 x 30.42 x 4.39 cm) (1U height)
Physical characteristics	Weight	8.6 lb (3.9 kg)
Memory and processor	Dual Core ARM Cortex @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875MB Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
	10 Gbps Latency	< 2.9 µs (64-byte packets)
	Throughput	up to 95.2 Mpps
	Switching capacity	128 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32768 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C), noncondensing
	Acoustic	Power: 54.1 dB, Pressure: 40.2 dB
	Airflow direction	Side-to-side
Electrical characteristics	Power efficiency certifications	80plus.org certification: Silver
	Maximum heat dissipation	258.0 BTU/hr (272.2 KJ/hr)
	Voltage	100 - 127 / 200 - 240 VAC, rated
	Current	4.9/2.4 A
	Maximum power rating	445 W
	Idle power	36.8 W
	PoE power	370 W PoE+
	Frequency	50/60 Hz
	Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch (JL256A, JL256ACM)¹
I/O ports and slots	48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
I/O ports and slots	4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42(w) x 11.98(d) x 1.73(h) in (44.25 x 30.42 x 4.39 cm) (1U height)
Physical characteristics	Weight	9.83 lb (4.46 kg)
Memory and processor	Dual Core ARM Cortex @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
	10 Gbps Latency	< 2.9 µs (64-byte packets)
	Throughput	up to 112.0 Mpps
	Switching capacity	176 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32768 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C), noncondensing
	Acoustic	Power: 55.7 dB, Pressure: 41.7 dB
Environment	Airflow direction	Side-to-side
Electrical characteristics	Power efficiency certifications	80plus.org certification: Silver
	Maximum heat dissipation	293.0 BTU/hr (309.1 kJ/hr)
	Voltage	100 - 127 / 200 - 240 VAC, rated
	Current	5.1/2.5 A
	Maximum power rating	459 W
	Idle power	48.6 W
	PoE power	370 W PoE+
	Frequency	50/60 Hz
Electrical characteristics	Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Notes:	¹ All hardware SKUs can be managed by HPE Aruba Networking Central. Central Managed (CM) SKUs are used for simplified ordering within U.S. and Canada only. Append "CM" to the indicated SKU #: (e.g., JL261ACM to order the JL261A). Requires an active Central license and end-user information consistent with the Central license purchase. Applicable accessories with a valid "CM" suffix should also be placed on the same order.

HPE Aruba Networking 2930F 8G PoE+ 2SFP+ Switch (JL258A, JL258ACM) ¹
I/O ports and slots	8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
I/O ports and slots	2 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	10(w) x 10(d) x 1.73(h) in (25.4 x 25.4 x 4.39 cm) (1U height)
Physical characteristics	Weight	4.41 lb (2.0 kg)
Memory and processor	Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
Performance	10 Gbps Latency	< 2.9 µs (64-byte packets)
Performance	Throughput	up to 41.7 Mpps
	Switching capacity	56 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32768 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
Environment	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
Environment	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C), noncondensing
	Acoustic	Power: 0 dB, Pressure: 0 dB Fanless
Electrical characteristics	Power efficiency certifications	DoE VI certification.
	Maximum heat dissipation	58.6 BTU/hr (61.8 kJ/hr)
	Voltage	90 - 264 VAC, rated
	Current	2.6 A
	Maximum power rating	155 W
	PoE power	125 W PoE+
	Frequency	50/60 Hz
	Notes: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply, it is dependent on the type and quantity of power supplies and may be supplemented with the use of a External Power Supply (EPS).
Safety	UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Notes:	¹ All hardware SKUs can be managed by HPE Aruba Networking Central. Central Managed (CM) SKUs are used for simplified ordering within U.S. and Canada only. Append "CM" to the indicated SKU #: (e.g., JL261ACM to order the JL261A). Requires an active Central license and end-user information consistent with the Central license purchase. Applicable accessories with a valid "CM" suffix should also be placed on the same order.

HPE Aruba Networking 2930F 8G PoE+ 2SFP+ TAA-compliant Switch (JL692A)
I/O ports and slots	8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
I/O ports and slots	2 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	10(w) x 10(d) x 1.73(h) in (25.4 x 25.4 x 4.39 cm) (1U height)
Physical characteristics	Weight	4.41 lb (2.0 kg)
Memory and processor	Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
	10 Gbps Latency	< 2.9 µs (64-byte packets)
	Throughput	up to 41.7 Mpps
	Switching capacity	56 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32768 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
Environment	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
Environment	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C), noncondensing
	Acoustic	Power: 0 dB, Pressure: 0 dB Fanless
Electrical characteristics	Power efficiency certifications	DoE VI certification.
	Maximum heat dissipation	58.6 BTU/hr (61.8 kJ/hr)
	Voltage	90 - 264 VAC, rated
	Current	2.6 A
	Maximum power rating	155 W
	PoE power	125 W PoE+
	Frequency	50/60 Hz
	Notes: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply, it is dependent on the type and quantity of power supplies and may be supplemented with the use of a External Power Supply (EPS).
Safety	UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
Immunity	Harmonics	IEC/EN 61000-3-2
Immunity	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Notes:	¹ All hardware SKUs can be managed by HPE Aruba Networking Central. Central Managed (CM) SKUs are used for simplified ordering within U.S. and Canada only. Append "CM" to the indicated SKU #: (e.g., JL261ACM to order the JL261A). Requires an active Central license and end-user information consistent with the Central license purchase. Applicable accessories with a valid "CM" suffix should also be placed on the same order.

HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch (JL693A)
I/O ports and slots	12 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
	2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
	2 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	10 (w) x 10 (d) x 1.73 (h) in (25.4 x 25.4 x 4.39 cm) (1U height)
Physical characteristics	Weight	4.85 lb (2.2kg)
Memory and processor	Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
	10 Gbps Latency	< 2.9 µs (64-byte packets)
	Throughput	up to 41.7 Mpps
	Switching capacity	68 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32768 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C), noncondensing
	Acoustic	Power: 0 dB, Pressure: 0 dB Fanless
Electrical characteristics	Power efficiency certifications	meets DoE VI certification.
	Maximum heat dissipation	68.2 BTU/hr (72.0 kJ/hr)
	Voltage	90 - 264 VAC, rated
	Current	1.7 A
	Maximum power rating	170 W
	PoE power	139 W PoE+
	Frequency	50/60 Hz
	Notes: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply, it is dependent on the type and quantity of power supplies and may be supplemented with the use of a External Power Supply (EPS).
Safety	UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Aruba Networking 2930F 24G 4SFP Switch (JL259A)
I/O ports and slots	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
I/O ports and slots	4 SFP
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42(w) x 7.88(d) x 1.73(h) in (44.25 x 20.02 x 4.39 cm) (1U height)
Physical characteristics	Weight	5.31 lb (2.41 kg)
Memory and processor	Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
	Throughput	up to 41.7 Mpps
	Switching capacity	56 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32768 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C), noncondensing
	Acoustic	Power: 49.7 dB, Pressure: 37.1 dB
	Airflow direction	Side-to-side
Electrical characteristics	Maximum heat dissipation	100.0 BTU/hr (105.5 kJ/hr)
	Voltage	100 - 127 / 200 - 240 VAC, rated
	Current	0.6/0.4 A
	Maximum power rating	29.3 W
Electrical characteristics	Idle power	19.5 W
	Frequency	50/60 Hz
	Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Aruba Networking 2930F 48G 4SFP Switch (JL260A)
I/O ports and slots	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
I/O ports and slots	4 SFP
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42(w) x 9.7(d) x 1.73(h) in (44.25 x 24.63 x 4.39 cm) (1U height)
Physical characteristics	Weight	6.83 lb (3.10 kg)
Memory and processor	Dual Core ARM Cortex @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
	Throughput	up to 77.4 Mpps
	Switching capacity	104 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32768 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C), noncondensing
Environment	Acoustic	Power: 54.1 dB, Pressure: 40.2 dB
Environment	Airflow direction	Side-to-side
Electrical characteristics	Maximum heat dissipation	100.0 BTU/hr (105.5 kJ/hr)
	Voltage	100 - 127 / 200 - 240 VAC, rated
	Current	0.9/0.6 A
	Maximum power rating	46.6 W
	Idle power	32.7 W
	Frequency	50/60 Hz
Electrical characteristics	Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2:
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
Immunity	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch (JL261A, JL261ACM)¹
I/O ports and slots	24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
I/O ports and slots	4 SFP
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42(w) x 11.98(d) x 1.73(h) in (44.25 x 30.42 x 4.39 cm) (1U height)
Physical characteristics	Weight	8.6 lb (3.9 kg)
Memory and processor	Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
	Throughput	up to 41.7 Mpps
	Switching capacity	56 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32768 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C)
	Acoustic	Power: 54.1 dB, Pressure: 40.6 dB
	Airflow direction	Side-to-side
Electrical characteristics	Power efficiency certifications	80plus.org certification: Silver
	Maximum heat dissipation	258.0 BTU/hr (272.2 kJ/hr)
	Voltage	100 - 127 / 200 - 240 VAC, rated
	Current	4.9/2.4 A
	Maximum power rating	445 W
	Idle power	36.8 W
	PoE power	370 W PoE+
	Frequency	50/60 Hz
	Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2:
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Centra; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Notes:	¹ All hardware SKUs can be managed by HPE Aruba Networking Central. Central Managed (CM) SKUs are used for simplified ordering within U.S. and Canada only. Append "CM" to the indicated SKU #: (e.g., JL261ACM to order the JL261A). Requires an active Central license and end-user information consistent with the Central license purchase. Applicable accessories with a valid "CM" suffix should also be placed on the same order.

HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch (JL262A, JL262ACM) ¹
I/O ports and slots	48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
I/O ports and slots	4 SFP
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42(w) x 11.98(d) x 1.73(h) in (44.25 x 30.42 x 4.39 cm) (1U height)
Physical characteristics	Weight	9.83 lb (4.46 kg)
Memory and processor	Dual Core ARM Cortex @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 µs (64-byte packets)
	Throughput	up to 77.4 Mpps
	Switching capacity	104 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32768 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C)
	Acoustic	Power: 55.7 dB, Pressure: 41.7 dB
	Airflow direction	Side-to-side
Electrical characteristics	Power efficiency certifications	80plus.org certification: Silver
	Maximum heat dissipation	293.0 BTU/hr (309.1 kJ/hr)
	Voltage	100 - 127 / 200 - 240 VAC, rated
	Current	5.1/2.5 A
	Maximum power rating	459 W
	Idle power	48.6 W
	PoE power	370 W PoE+
	Frequency	50/60 Hz
	Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
Immunity	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Notes:	¹ All hardware SKUs can be managed by HPE Aruba Networking Central. Central Managed (CM) SKUs are used for simplified ordering within U.S. and Canada only. Append "CM" to the indicated SKU #: (e.g., JL261ACM to order the JL261A). Requires an active Central license and end-user information consistent with the Central license purchase. Applicable accessories with a valid "CM" suffix should also be placed on the same order.

HPE Aruba Networking 2930F 24G PoE+ 4SFP+ TAA-compliant Switch (JL263A)
I/O ports and slots	24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42(w) x 11.98(d) x 1.73(h) in. (44.25 x 30.42 x 4.39 cm) (1U height)
Physical characteristics	Weight	8.6 lb (3.9 kg)
Memory and processor	Dual Core ARM® Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5 MB Ingress/7.785 MB Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 μs (64-byte packets)
	10 Gbps Latency	< 2.9 μs (64-byte packets)
	Throughput	Up to 95.2 Mpps
	Switching capacity	128 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32,768 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, -0°C to 40°C (32°F to 104°F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C)
	Acoustic	Power: 54.1 dB, Pressure: 40.6 dB
	Airflow direction	Side-to-side
Electrical characteristics	Power efficiency certifications	80plus.org certification: Silver
	Maximum heat dissipation	258.0 BTU/hr (272.2kJ/hr)
	Voltage	100-127 / 200-240 VAC, rated
	Current	4.9/2.4 A
	Maximum power rating	445 W
	Idle power	36.8 W
	PoE power	370 W PoE+
	Frequency	50/60 Hz

Electrical characteristics	Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	UL 60950-1: 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Aruba Networking 2930F 48G PoE+ 4SFP+ TAA-compliant Switch (JL264A)
I/O ports and slots	48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42(w) x 11.98(d) x 1.73(h) in. (44.25 x 30.42 x 4.39 cm) (1U height)
Physical characteristics	Weight	9.83 lb (4.46 kg)
Memory and processor	Dual Core ARM® Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5 MB Ingress/7.785 MB Egress, 4 GB eMMC
Performance	1000 Mb Latency	< 3.8 μs (64-byte packets)
	10 Gbps Latency	< 2.9 μs (64-byte packets)
	Throughput	Up to 112.0 Mpps
	Switching capacity	176 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32,768 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, -0°C to 40°C (32°F to 104°F) up to 10000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C)
Environment	Acoustic	Power: 55.7 dB, Pressure: 41.7 dB
Environment	Airflow direction	Side-to-side
Electrical characteristics	Power efficiency certifications	80plus.org certification: Silver
	Maximum heat dissipation	293.0 BTU/hr (309.1 kJ/hr)
	Voltage	100-127 / 200-240 VAC, rated
	Current	5.1/2.5 A
	Maximum power rating	459 W
	Idle power	48.6 W
	PoE power	370 W PoE+
	Frequency	50/60 Hz
	Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	UL 60950-1: 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
Immunity	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Aruba Networking 2930F 48G PoE+ 4SFP 740W Switch (JL557A)
I/O ports and slots	48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42 (w) x 12.77 (d) x 1.73 (h) in (44.25 x 32.42 x 4.39 cm) (1U height)
Physical characteristics	Weight	10.56 lb (4.79 kg)
Memory and processor	Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress,4 GB eMMC
Performance	1000 Mb Latency	< 3.8 μs (64-byte packets)
	Throughput	up to 77.4 Mpps
	Switching capacity	104 Gbps
Performance	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
Performance	MAC address table size	32,768
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5,000 Feet, 0°C to 40°C (32°F to 104°F) up to 10,000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15,000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C)
	Acoustic (power and pressure) in decibels	Power: 55.1 dB, Pressure: 41.1 dB
	Airflow direction	Side to side
Electrical characteristics	Power efficiency certifications	80plus.org certification: Gold
	Maximum heat dissipation	420.9 BTU/hr (444.1 kJ/hr)
	Voltage	100-127 / 200-240 VAC, rated
	Current	9.2 / 4.9 A
	Maximum power rating	980W
	Idle power	49.9W
	PoE power	740 W PoE+
	Frequency	50/60 Hz
Electrical characteristics	Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch (JL558A, JL558ACM) ¹
I/O ports and slots	48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42 (w) x 12.77 (d) x 1.73 (h) in (44.25 x 32.42 x 4.39 cm) (1U height)
Physical characteristics	Weight	10.56 lb (4.79 kg)
Memory and processor	Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress,4 GB eMMC
Performance	1000 Mb Latency	< 3.8 μs (64-byte packets)
	10Gbps latency	< 1.6 μs (64-byte packets)
	Throughput	up to 112.0 Mpps
	Switching capacity	176 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32,768
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5,000 Feet, 0°C to 40°C (32°F to 104°F) up to 10,000 Feet
Environment	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
Environment	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15,000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C)
	Acoustic (power and pressure) in decibels	Power: 55.1 dB, Pressure: 41.1 dB
	Airflow direction	Side to side
Electrical characteristics	Power efficiency certifications	80plus.org certification: Gold
	Maximum heat dissipation	420.9 BTU/hr (444.1 kJ/hr)
	Voltage	100-127 / 200-240 VAC, rated
	Current	9.2 / 4.9 A
	Maximum power rating	980W
	Idle power	49.9W
	PoE power	740 W PoE+
	Frequency	50/60 Hz
	Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438

Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Notes:	¹ All hardware SKUs can be managed by HPE Aruba Networking Central. Central Managed (CM) SKUs are used for simplified ordering within U.S. and Canada only. Append "CM" to the indicated SKU #: (e.g., JL261ACM to order the JL261A). Requires an active Central license and end-user information consistent with the Central license purchase. Applicable accessories with a valid "CM" suffix should also be placed on the same order.

HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W TAA-compliant Switch (JL559A)
I/O ports and slots	48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports PHY-less
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions	17.42 (w) x 12.77 (d) x 1.73 (h) in (44.25 x 32.42 x 4.39 cm) (1U height)
Physical characteristics	Weight	10.56 lb (4.79 kg)
Memory and processor	Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress,4 GB eMMC
Performance	1000 Mb Latency	< 3.8 μs (64-byte packets)
	10Gbps latency	< 1.6 μs (64-byte packets)
	Throughput	up to 112.0 Mpps
	Switching capacity	176 Gbps
	Routing table size	2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
	MAC address table size	32,768
Environment	Operating temperature	32°F to 113°F (0°C to 45°C); up to 5,000 Feet, 0°C to 40°C (32°F to 104°F) up to 10,000 Feet
	Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
	Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C); up to 15,000 Feet
	Non-operating/Storage temperature	15% to 95% @ 149°F (65°C)
	Acoustic (power and pressure) in decibels	Power: 55.1 dB, Pressure: 41.1 dB
Environment	Airflow direction	Side to side
Electrical characteristics	Power efficiency certifications	80plus.org certification: Gold
	Maximum heat dissipation	420.9 BTU/hr (444.1 kJ/hr)
	Voltage	100-127 / 200-240 VAC, rated
	Current	9.2 / 4.9 A
	Maximum power rating	980W
	Idle power	49.9W
	PoE power	740 W PoE+
	Frequency	50/60 Hz
	Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	UL 60950-1: 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950- 1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825- 1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	Generic	EN 55024:2010/CISPR 24
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC/EN 61000-3-2
	Flicker	IEC/EN 61000-3-3
Management	HPE Aruba Networking Central; AirWave; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP
Services	Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Standards and Protocols

Applies to all products in series

Denial of service protection

CPU DoS Protection

Device Management

RFC 1155 Structure and Mgmt Information (SMIv1)
RFC 1157 SNMPv1/v2c
RFC 1591 DNS (client)
RFC 1901 (Community based SNMPv2)
RFC 1901-1907 SNMPv2c, SMIv2 and Revised MIB-II
RFC 1908 (SNMP v1/2 Coexistence)
RFC 2576 (Coexistence between SNMP V1, V2, V3)
RFC 2578-2580 SMIv2
RFC 2579 (SMIv2 Text Conventions)
RFC 2580 (SMIv2 Conformance)
RFC 2819 (RMON groups Alarm, Event, History and Statistics only)
RFC 3416 (SNMP Protocol Operations v2)
RFC 3417 (SNMP Transport Mappings)
HTML and telnet management
HTTP, SSHv1, and Telnet
Multiple Configuration Files
Multiple Software Images
SNMP v3 and RMON RFC support
SSHv1/SSHv2 Secure Shell
TACACS/TACACS+
Web UI

IP Multicast

RFC 1112 IGMP
RFC 2236 IGMPv2
RFC 2710 Multicast Listener Discovery (MLD) for IPv6
RFC 3376 IGMPv3
RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches

QoS/CoS

IEEE 802.1p (CoS)
RFC 2474 DiffServ Precedence, including 8 queues/port
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
Ingress Rate Limiting

General Protocols

IEEE 802.1AX-2008 Link Aggregation
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1v VLAN classification by Protocol and Port
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3af Power over Ethernet
IEEE 802.3at PoE+
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control
IEEE 802.1ad Q-in-Q
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 868 Time Protocol
RFC 951 BOOTP
RFC 1058 RIPv1
RFC 1256 ICMP Router Discovery Protocol (IRDP)
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 1918 Address Allocation for Private Internet
RFC 2030 Simple Network Time Protocol (SNTP) v4
RFC 2131 DHCP
RFC 2236 IGMP Snooping
RFC 2453 RIPv2
RFC 2865 Remote Authentication Dial In User Service (RADIUS)
RFC 2866 RADIUS Accounting
RFC 3046 DHCP Relay Agent Information Option
RFC 3411 An Architecture for Describing Simple Network Management Protocol (SNMP) Management Frameworks
RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP)
RFC 3413 Simple Network Management Protocol (SNMP) Applications
RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)
RFC 3416 Protocol Operations for SNMP
RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP)
RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)
RFC 3575 IANA Considerations for RADIUS
RFC 3576 Ext to RADIUS (CoA only)
RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches
RFC 4675 RADIUS VLAN & Priority
RFC 4861 Neighbor Discovery for IP version 6 (IPv6)
RFC 4862 IPv6 Stateless Address Autoconfiguration
RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification
UDLD (Uni-directional Link Detection)

IPv6

RFC 1981 IPv6 Path MTU Discovery
RFC 2080 RIPng for IPv6
RFC 2081 RIPng Protocol Applicability Statement
RFC 2082 RIP-2 MD5
RFC 2460 IPv6 Specification
RFC 2464 Transmission of IPv6 over Ethernet Networks
RFC 2710 Multicast Listener Discovery (MLD) for IPv6
RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only)
RFC 2925 Remote Operations MIB (Ping only)
RFC 3019 MLDv1 MIB
RFC 3315 DHCPv6 (client and relay)
RFC 3484 Default Address Selection for IPv6
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNS Extension for IPv6
RFC 3810 MLDv2 for IPv6
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4291 IP Version 6 Addressing Architecture
RFC 4293 MIB for IP
RFC 4419 Key Exchange for SSH
RFC 4443 ICMPv6
RFC 4541 IGMP & MLD Snooping Switch
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto-configuration
RFC 5095 Deprecation of Type 0 Routing Headers in IPv6
RFC 6620 FCFS SAVI

Date	Version History	Action	Description of Change:
21-Jan-2025	Version 32	Changed	Overview and Standard Features sections were updated.
06-Jan-2025	Version 31	Changed	Standard Features, Configuration Information, and Technical Specifications sections were updated.
07-Oct-2024	Version 30	Changed	Standard Features and Configuration Information sections were updated.
22-Jan-2024	Version 29	Changed	Series name was updated.
20-Nov-2023	Version 28	Changed	Configuration Information section was updated. Obsolete SKUs were removed.
07-Aug-2023	Version 27	Changed	Configuration Information section was updated.
15-May-2023	Version 26	Changed	Configuration Information section was updated.
06-Feb-2023	Version 25	Changed	Configuration Information section was updated.
05-Dec-2022	Version 24	Changed	Configuration Information section was updated. Obsolete SKUs were removed and new SKUs were added.
07-Nov-2022	Version 23	Changed	Configuration Information section was updated. Obsolete SKUs were removed.
28-Jun-2021	Version 22	Changed	Standard Features and Configuration Information sections were updated. SKUs were added in Configuration Information section.
08-Mar-2021	Version 21	Changed	SKUs added in Configuration Information section.
21-Sep-2020	Version 20	Changed	Overview and Technical Specification sections were updated. New SKUs were added.
08-Sep-2020	Version 19	Changed	Configuration Information, Standard Features and Technical Specification sections were updated.
01-Jun-2020	Version 18	Changed	Standard Features and Technical Specification sections were updated.
06-Apr-2020	Version 17	Changed	Configuration Information section was updated. TAA transceivers were added, Obsolete SKUs were removed.
02-Dec-2019	Version 16	Changed	Configuration Information section was updated. Obsolete SKUs were removed.
04-Nov-2019	Version 15	Changed	Overview, Standard Features, Configuration Information and Technical Specification sections were updated.
07-Oct-2019	Version 14	Changed	Overview, Standard Features, Configuration Information and Technical Specification sections were updated.
05-Aug-2019	Version 13	Changed	Configuration Information section was updated
01-Jul-2019	Version 12	Changed	Standard Features and Technical Specification sections were updated. SKU descriptions were updated. Obsolete SKUs were removed.
04-Mar-2019	Version 11	Changed	SKU J9151D was replaced with J9151E Obsolete SKUs were removed.
03-Dec-2018	Version 10	Changed	Software feature update: Key features, Product overview, Enhanced Capabilities and Technical Specifications updated
02-Jul-2018	Version 9	Changed	Software feature update
15-Jan-2018	Version 8	Changed	Minor changes made on Technical Specifications
08-Jan-2018	Version 7	Added	Models added: JL557A, JL558A, JL559A
03-Jul-2017	Version 6	Added	SKU added: JL448A
20-Jan-2017	Version 5	Changed	Minor changes made on Standards and protocols
07-Nov-2016	Version 4	Changed	Product overview, Features and Benefits, Technical Specifications updated
02-Sep-2016	Version 3	Changed	Product description updated.
24-Jun-2016	Version 2	Changed	Updated B2E Attribute Description for all switches on the Configuration section.
06-Jun-2016	Version 1	New	New QuickSpecs

Make the right purchase decision. Contact our presales specialists.

HewlettPackardEnterpriseLogo

© Copyright 2025 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warrant y. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

To learn more, visit: http://www.hpe.com/networking

c05052929 - 15576 - Worldwide - V32 - 21-January-2025

HPE Aruba Networking 2930F Switch Series: технические характеристики и документация
