HPE Storage Switch M-series SN4700M: технические характеристики и документация

HPE Storage Switch M-series SN4700M

Overview

Shape the Future of QuickSpecs - Your Input Matters

HPE Storage Switch M-series SN4700M with NVIDIA Cumulus® Linux

QuickSpecs

HPE Storage Switch M-series SN4700M with NVIDIA Cumulus® Linux is based on the 3rd generation of NVIDIA Spectrum switches, purpose-built for leaf/spine/super-spine data center applications.

Allowing maximum flexibility, the 1U SN4700M provides port speeds spanning from 1 GbE to 400 GbE based on QSFP-DD ports, and a port density that enables full rack connectivity to any server. HPE Storage Switch M-series SN4700M provides an on-chip fully shared 64 MB packet buffer, and flexible per port PAM-4 and NRZ signaling in addition to advanced hardware capabilities.

HPE M-Series with NVIDIA Cumulus® Linux family of Ethernet switches are capable of addressing today's data center's complex networking requirements, growth, and expansion and are perfect for Top-Of-Rack (TOR) deployments and optimized for virtualized environments, hyperconverged infrastructure, and storage deployments. HPE M-Series Ethernet switches give you the right network bandwidth with consistent zero packet loss performance for high-performance and storage workloads. HPE Storage Switch M-series SN4700M with NVIDIA Cumulus® Linux is based on the 3rd generation of NVIDIA Spectrum^TM switches, purpose-built for leaf/spine/super-spine data center applications. The uplink ports allow a variety of blocking ratios to suit any application requirement. The SN4700M is ideal for building cloud-scale layer-2 and layer-3 networks. The HPE Storage Switch M-series SN4700M platform delivers high performance, consistent low latency along with support for advanced software defined networking features, making it the ideal choice for web scale IT, cloud, hyperconverged storage and data analytics applications. With an increasing need to access data faster and accommodate growing workloads, rising levels of east-west traffic, and new storage arrays based on flash storage technologies, a high bandwidth, low-latency, zero packet loss network becomes paramount. The HPE Storage Switch M-series SN4700M with NVIDIA Cumulus® Linux offers QSFP-DD, which is compatible with QSFP56 and QSFP28, connectivity for leaf-spine applications requiring matched downlink to uplink bandwidth. NVIDIA Cumulus® network platforms are capable of delivering unbelievable networking speed and agility to keep pace with the most intense workloads small to large scale enterprises can produce. With port speeds spanning 1 Gb/s to 400 Gb/s and a switching capacity of 25.6 Tb/s from 32 ports at 400 GbE. This switch provides non-blocking throughput at wire-speed transfers-across all packet sizes. The SN4700M delivers a landmark 8.4 Bpps processing capacity and an uncompromising ultra-low true cut-through latency. Delivering the highest feature set at the right price allows you to get the most out of your Ethernet infrastructure to best support a variety of use cases, including media and entertainment; streaming video, financial services industry, virtualized data centers, and next generation storage, including software-defined storage and NVMe® flash. HPE SN4700M switches are available with factory integrated NVIDIA Cumulus® Linux for immediate deployment. With HPE M-Series switches, you can: - Optimize Storage- modernize your network to eliminate limitations and bottlenecks that can be caused by the addition of flash storage - Enjoy efficient network performance- avoid packet loss, provide predictable performance with line-rate packet delivery across all ports and all packet sizes - Realize breakthrough economics- make better use of your data center resources with the highest port density per rack unit and the industry's lowest power consumption - Accelerate business innovation- utilize 100/200 Gbps Ethernet connectivity for existing workloads and enhance connectivity utilizing built-in 400 Gbps Ethernet capabilities to respond quickly to business needs and to stay on the leading edge of Ethernet switching technology HPE Storage Switch M-series SN4700M Ethernet switches are built on Spectrum-3 technology with capabilities: - Flexible Ethernet port speeds from 1 Gbps to 400 Gbps - Wire-speed consistent True cut-through latency - 64 MB on-chip fully-shared packet buffering - Feature-rich layer 2 and layer 3 forwarding - 512K forwarding entries flexibly shared across ACL, LPM routes, Host routes, MAC, ECMP, and Tunnel applications. - Refer to the NVIDIA Cumulus® Linux Forwarding Table Size and Profiles Longest Prefix Match (LPM) for routing scalability specifications - Deep packet inspection - 512 billion deep - Advanced granular telemetry with - What-Just-Happened ® (WJH) and 512K on-chip flow counters - Ultra-low latency with true cut through performance, Zero packet loss performance with NVMe TCP and RoCEV2 RDMA, DCBX, PFC, ECN support

Models
HPE Storage Switch M-series SN4700M Ethernet Switch
Description	SKU
HPE 400 GbE 32QSFPDD Power to Connector Airflow Switch SN4700M with NVIDIA Cumulus	S2T81A
- HPE 400 GbE 32QSFP-DD P2C Sw SN4700M w/NVD

Notes: HPE switch SKUs with factory installed NVIDIA Cumulus® Linux cannot be converted to HPE ONYX or ONIE switch SKUS.

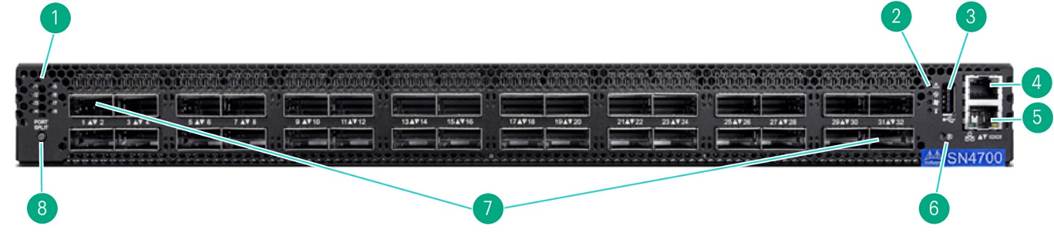

HPE Storage Switch M-series SN4700M - Front View

Item	Description	Item		Description
1	Splitting State Indication Status		5	IOIOI RS232 Serial Console Port: 115200 BAUD
2	Status LEDs (System, Fan, Power Supply, Unit Identifier)		6	Password Reset Button - refer to the Single User Mode Boot Recovery section in the Cumulus Linux User Guide
3	USB Type A 2.0 compliant (USB 1.0 not supported)		7	Ports 1-32 1 to 400 GbE QSFP-DD ports (32 x 400 GbE; 64 x 40/200 GbE; 128 x 1/10/25/50/100 GbE)
4	MGMT0 100 Mb/s to 1 Gb/s Port		8	LED Splitting Control link information

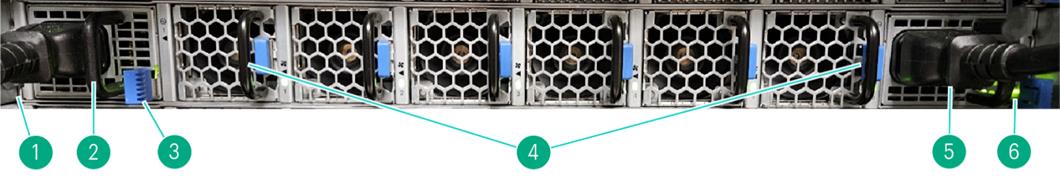

HPE Storage Switch M-series SN4700M - Rear View

Item	Description	Item			Description
1	Inventory Information Pull-Out Tab		4	FANs (1 left to 6 right)
2	Power Supply 1		5	Power Supply 2
3	Power Supply 1 Unit Status		6	Power Supply 2 Unit Status

Standard Features

Key Features and Benefits

- SN4700M switches are ideal for modern server and storage networks, supporting up to 128 1/10/25 GbE ports with DAC, AOC, and optical breakout cables. The 32 ports of 400 GbE deliver predictable performance and zero packet loss at line-rate across each port and packet size

- SN4700M can be deployed to support 1/10/25/100 GbE ports, including 10 Gbase-T RJ45 transceivers, and is designed to be able to evolve over time to support 200/400 GbE speeds. This helps future-proof your network architecture and allows for implementing significant speed upgrades to the architecture over time

All 32 QSFP-DD ports 1-32 support x4 or x2 breakout

Notes: Only ODD ports support x8 breakout. For example, port 3 configured for x8 breakout results in port 4 being blocked and not usable.

- SN4700M provides ultra-low cut-through latency port-to-port. This is advantageous for flash storage which moved the latency bottleneck from storage media to the network, as well as for the bursty nature of today's software-defined and cloud-driven data center traffic flows

- It provides high port density in a single rack unit, allowing for higher capacity and efficiency, simplifying scale-out environments and saving on total cost of ownership. Unique breakout cables fan out individual switch ports to multiple device ports

- Provides wire-rate performance with zero packet loss across all frame sizes, avoiding any negative impact on applications that could occur with frame loss as unexpected packet loss is unacceptable in modern data centers, especially within a storage network

- Capable of forwarding 100% capacity wire rate performance with zero packet loss across all ports concurrently at 400 GbE speeds while transferring data across both Layer 2 and Layer 3 networks

- Designed to use less electric power than competing switches, providing one of the industry's lowest power draws, producing less heat than competing products, providing reduced OPEX cost

- Provides enough switching bandwidth to transport all ports at 400 GB/s bandwidth concurrently. This allows the switches to avoid head-of-line blocking which can reduce a switches overall performance and throughput

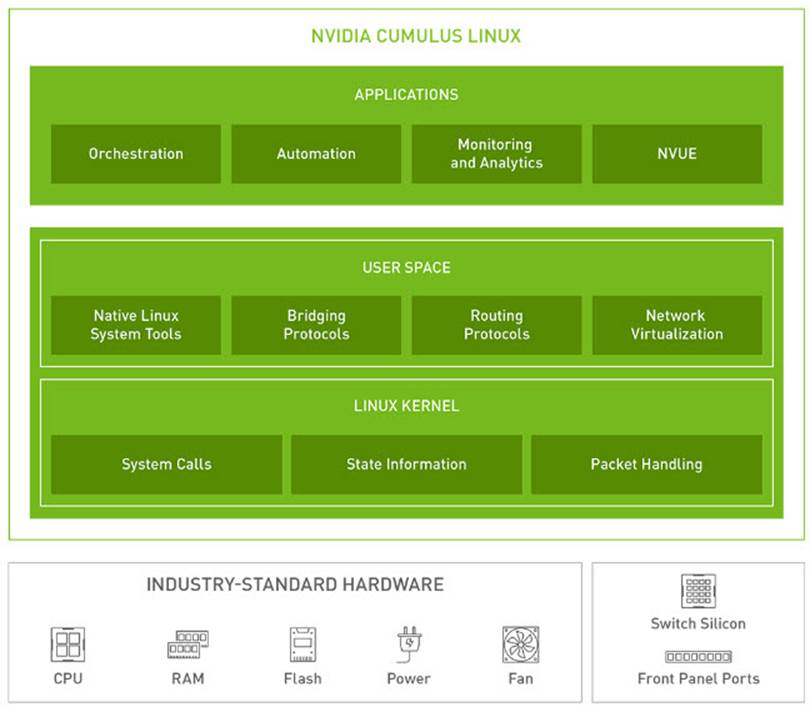

NVIDIA Cumulus® Linux

Cumulus Linux is a powerful open network operating system enabling advanced automation, customization and scalability using web-scale principles like the world's largest data centers. It accelerates networking functions and provides choice from an extensive list of supported switch models including NVIDIA Spectrum^TM based switches. Cumulus Linux was built for automation, scalability and flexibility, allowing you to build data center and campus networks that ideally suits your business needs. Cumulus Linux is the only open network OS that allows you to build affordable and efficient network operations like the world's largest data center operators, unlocking webscale networking for businesses of all sizes.

The Ideal Solution for Your Network Challenges, Cumulus Linux enables modern data center architectures, while providing a transition path for traditional data center architectures, with support for layer 2, layer 3, and overlay networks. This open approach enables a wide range of solutions. Centralized, remote management of AI deployments enables over-the-air software updates, remote debugging, and system monitoring, as well as other features like self-healing systems. These remote management features make maintenance and upkeep easier, and AI more accessible and practical for locations that are difficult to access or far from headquarters. This results in faster, more comprehensive insights that can drive real-time decisions.

Deployment Models:

L3 network, L2 network, Clos, Out-of-band management, Overlay network,

Use cases:

Containers, Big data, Private cloud, Network virtualization, DevOps / automation, Monitoring and analytics, Hyperconverged infrastructure.

Key Features

Unnumbered Interfaces: Automation gets even easier with this simplified Internet Protocol (IP) approach for Border Gateway Protocol (BGP) and Open Shortest Path First (OSPF). All you need is one IP template for leaf nodes, and one for spine nodes. BGP Unnumbered, the only difference between a BGP unnumbered configuration and the BGP numbered configuration is that the BGP neighbor is as an interface (instead of an IP address). There is no need to configure an IP address on the interface between the two peers on each side.

Redistribute Neighbor (RDNBR): Get virtual machine (VM) and host mobility by plugging your server into any RDNBR switch and making it layer-3 discoverable on the fabric. If you need to move the server, there's no need to reconfigure.

Prescriptive Topology Manager (PTM): Efficiently go from whiteboard to physical cable. With PTM, you can program your data center to verify connections and resolve issues faster.

Virtual Routing and Forwarding: Run multiple network paths without the need for multiple switches, giving you traffic isolation and network segmentation for multiple devices.

Ethernet Virtual Private Networks (EVPN): The most advanced capabilities available for EVPN allow legacy layer-2 applications to operate over next-generation layer-3 networks.

NVIDIA User Experience (NVUE): A full command-line interface (CLI) object model of Cumulus Linux enables advanced programmability, extensibility, and usability.

Digital twins: NVIDIA Air makes physical deployments seamless by validating and simplifying deployments and upgrades in a virtual network.

NVIDIA Cumulus® Linux Interface

User Interface: Command Line

With the NVIDIA User Experience (NVUE) object-oriented management tool, Cumulus Linux customers can go beyond the CLI and unify their network management with the rest of the data center management. NVUE enables any APIs to tie into NOS management, including REST, gRPC, RestConf, NetConf, and OpenConfig. Additionally, NVUE is Git-based, enabling Diff, revert, apply, branch, and stash behaviors. NVUE's configuration is simple: one YAML file ties all Linux configurations together, making it easy to copy configurations from switch to switch.

Operating System Install and Upgrade

- Server-style upgrade/patching across minor releases, server-style process restart/termination

- Support for zero touch OS installation using ONIE loaded on industry-standard switches

- Standard mechanism for authentication, authorization, and accounting with TACACS+

Extensibility

- Cumulus Linux works with any language supported in Linux today, including scripting with Bash. Perl. Python, and Ruby

Hardware Management

- The switch hardware abstraction layer accelerates Linux kernel networking constructs in hardware, including the routing table, ARP table, bridge FOB, IP/EB tables, bonds, VLANs, and VXLAN bridges

- Hardware management also includes jumbo frames support and environmental management

- Forwarding table profiles on the ASIC provide flexible partitioning of resources

Layer 3 Features

- IPv4/v6 routing suite including OSPFv2, OSPFv3, and BGPv4/v6

- RDMA over Converged Ethernet (RoCEv2) support for Layer 2 and Layer 3

- Virtual routing and forwarding (VRF) and VRF route leaking

- Equal-cost multi-path (ECMP) and ECMP resilient hashing for IPv4 and IPv6 traffic

- Bidirectional forwarding detection (BFD) across all platform and interface types, IPv4 and IPv6, BGP and OSPF, VXLAN, BGP conditional route advertisement

- Protocol-independent multicast (PIM, PIM-SM, PIM-SSM)

- Policy-based routing

- Generic routing encapsulation (GRE) tunneling

- Precision time protocol (PTP) Boundary Clock

- VNI scaling supports 6 bridges with up to 1,000 VNls

- GTP Hashing

- Adaptive Routing with RoCEv2

Layer 2 features

- Bridge management with STP (IEEE 802.1d). RSTP (IEEE 802.1 W), PVRST, PVST, bridge assurance, BPDU guard, and BPDU filter

- VLANs. VLAN trunks (IEEE 802.1q). LACP (IEEE 802.3adl. LACP bypass, unicast/broadcast storm control, LLDP, CDP, IPv6 neighbor discovery, and IPv6 route advertisement

- MLAG (cladg daemon)

- IGMPv2/v3 snooping, MLDv1/v2 snooping, Optimized Multicast Flooding (OMF)

- Virtual router redundancy (VRR - active-active first hop redundancy protocol)

- LLDP DCB IEEE TLVs

Network Virtualization

- VXLAN support

- VXLAN Routing - symmetric and asymmetric

- L2 gateway services integration with VMware NSX

- VXLAN head end replication

- VXLAN active-active bridging with MLAG

- Controller-less network virtualization with EVPN

Management

- Object-oriented APl-compatible switch management with NVIDIA User Experience (NVUE)

- ISSU: in-service software upgrades

- Warm boot on bonds

- Native Linux management tools, such as OpenSSH, SCP, and FTPS

- Automated installation and provisioning: zero touch install and zero touch provisioning

- Management VRF

- DHCP and v4/v6 DHCP relays.

- Authentication with LDAP and authorization with sudo NTP.

- Interface configuration management (ifupdown2).

- Advanced management/orchestration through third-party add-on packages.

- Snapshot and rollback of the entire system to eliminate risk from system updates.

Monitoring and Troubleshooting

- Monitor traffic patterns and preemptive capacity planning with buffer monitoring

- Traditional monitoring with SNMPv2 and SNMPv3 and network-specific MIBs, hardware monitoring via watchdog, analytics with SPAN, ERSPAN, ACL-based counters, DOM optics data, thermal sensors, real time queue depth, and buffer utilization reporting

HPE recommends use of SNMPv3 username and password instead of the read-only community; SNMPv3 does not expose the password in the GetRequest and GetResponse packets and can also encrypt packet contents. You can configure multiple usernames for different user roles with different levels of access to various MIBs

The /usr/share/snmp/mibs/Cumulus-Snmp-MIB.txt file defines the overall Cumulus Linux MIB

- Troubleshooting with dnsutils, syslog, reachability tools, hardware inventory, log files, server-style filesystem, and Spectrum ASIC commands

- The cl-support script generates a compressed archive file (.txz) of useful information for troubleshooting. The system either creates the archive file automatically or you can create the archive file manually. The system creates the cl-support archive file automatically for the following reasons:

When there is a core dump file for any application (not specific to Cumulus Linux, but something all Linux distributions support), located in /var/support/core

When one of the monitored services fails for the first time after you reboot or power cycle the switch

- sFlow monitoring for system statistics and network traffic

- The NVIDIA Firmware Tool (MFT) mlxlink tool is integrated into Cumulus and is used to check and debug link status and related issues. The tool can be used on different links and cables (passive, active, transceiver and backplane)

- What Just Happened (WJH) provides real time visibility into network problems and has two components:

The WJH agent enables you to stream detailed and contextual telemetry for off-switch analysis with tools such as NVIDIA NetQ
The WJH service (what-just-happened) enables you to diagnose network problems by looking at dropped packets. WJH can monitor layer 1, layer 2, layer 3, tunnel, buffer and ACL related issues. Cumulus Linux enables and runs the WJH service by default
You can choose which packet drops you want to monitor and show by creating channels and setting the packet drop categories (layer 1, layer 2, layer 3, tunnel, buffer and ACL) you want to monitor
NVUE does not provide commands to set the buffer and ACL packet drop categories. You must edit the /etc/what-just-happened/what-just-happened.json file. NVUE supports WJH show commands

Security

- Access control lists (ACLs) L2-L4 classification through IP/EP tables and CPU protection through hardware enforced ACL-based rate limiting DoS control

- Authenticate and authorize attached devices with 802.1x

- Kernel Address Space Randomization

QoS

- Link PAUSE

- Classification based on Class of Service (CoS) (IEEE 802.1p) or DSCP (queuing, scheduling-DWRR and Strict Priority - and buffer allocation)

- Ingress ACL-based classification/policing

- Priority flow control and explicit congestion notification (ECN)

- Dynamic buffer configuration as default

Cumulus VX and NVIDIA AIR

- Getting started with Cumulus Linux is easy. Customers can explore, test, and prototype the technology

To build a data center digital twin or mock-up a deployment with Cumulus, visit NVIDIA Air

- Download the free NVIDIA Cumulus VX appliance, supported virtual appliance to test and stage production rollouts

Third-party Packages

- Orchestration: Ansible, CFEngine, Chef, and Puppet

- Monitoring: Collectd, Ganglia, Graphite, Nagios/lcinga, and NetSNMP

- You can use Cumulus Linux to run the Docker container platform. You can install Docker Engine directly on a Cumulus Linux switch and run Docker containers natively on the switch

Service and Support

Warranty

(3-3-3) Hardware Warranty: 3-year parts, 3-year on-site (standard business hours, next business day response), and 3-year labor.

Notes: The hardware warranty covers firmware. For extended hardware support and installation information, please see the "Services and Support" Section.

The HPE SN4700M switch is the replaceable service unit. HPE does not spare the SN4700M power supply and fan. The SN4700M switch supports power supply and fan hot swap as documented in https://docs.nvidia.com/networking/display/nvidia-spectrum-3-sn4000-1u-and-2u-switch-systems-hardware-user-manual.pdf.

A self-sparing customer would utilize power supply and fan part numbers:

- 930-9BFAN-00IX-000 MTEF-FANF-M NVIDIA fan module, 40 x 40 [mm], P2C airflow

- 930-9NPSU-00J2-000 MTEF-PSF-AC-F Power-Supply Unit, 1500 W AC, P2C Airflow

- ACC001449 N/A Power cord gray 250 V 10A 1830 mm C14 to C15 EUR + CCC

- ACC001550 N/A Power cord black 110 V 15A 1830 mm C14 to C15 UL
