HPE Storage Switch M-series SN2010M QuickSpecs
With NVIDIA Cumulus® Linux HPE M-Series with NVIDIA Cumulus® Linux family of Ethernet switches are capable of addressing today's data center's complex networking requirements, growth, and expansion and are perfect for Top-Of-Rack (TOR) deployments and optimized for virtualized environments, hyperconverged infrastructure, and storage deployments. HPE M-Series Ethernet switches give you the right network bandwidth with consistent zero packet loss performance for high-performance and storage workloads. |
|
|
With an increasing need to access data faster and accommodate growing workloads, rising levels of east-west traffic, and new storage arrays based on flash storage technologies, a high bandwidth, low-latency, zero packet loss network becomes paramount. The HPE Storage Switch M-series SN2010M offer a mix of 1/10/25 GbE and 100 GbE for the right network bandwidth for your applications with consistent performance for high-performance and storage workloads. Delivering the highest feature set at the right price allows you to get the most out of your Ethernet infrastructure to best support a variety of use cases, including media and entertainment, streaming video, financial services industry, virtualized data centers, and next generation storage, including software-defined storage and NVMe® flash. HPE Storage Switch M-series SN2010M are available with factory integrated NVIDIA Cumulus® Linux for immediate deployment. With HPE Storage Switch M-series SN2010M, you can: - Optimize Storage- modernize your network to eliminate limitations and bottlenecks that can be caused by the addition of flash storage. - Enjoy efficient network performance- avoid packet loss, provide predictable performance with line-rate packet delivery across all ports and all packet sizes - Realize breakthrough economics- make better use of your data center resources with the highest port density per rack unit and the industry's lowest power consumption. - Accelerate business innovation- utilize 1/10/40 Gbps Ethernet connectivity for existing workloads and enhance connectivity utilizing built-in 25/100 Gbps capabilities to respond quickly to business needs and to stay on the leading edge of Ethernet switching technology. The HPE Storage Switch M-series SN2010M provides a high density, side-by-side 1/10/25/100 GbE switching solution which scales up to 34 ports per switch with QSFP28 breakout cables for up to 16 additional 1/10/25 Gbps ports in single Rack Unit (1RU) for the growing demands of today's storage, database, and data center environments. HPE Storage Switch M-series SN2010M carries a unique design to accommodate the highest rack performance. Its design allows side-by-side placement of two switches in a single, 1RU slot of a 19" rack, delivering high availability to the hosts. Available with 18 SFP28/SFP+ slots and 4 QSFP28/QSFP+ slots, each SN2010M carries a switching capacity of 1.7 TB /s with 1.26Bpps processing capacity when running 18 ports at 25 GbE and 4 ports at 100 GbE, and enables 3.4 TB /s and 2.52Bpps when two units are deployed side-by-side in a 1 RU space. |
|
HPE Storage Switch M-series SN2010M Ethernet switches are based on the high-performance 25 GbE NRZ encoding capable Spectrum-1 ASIC and are ideally suited for both top-of-rack leaf and fixed configurations with capabilities: - Ethernet port speeds from 1 Gbps to 100 Gbps - 4 100/40 GbE QSFP28 ports and 18 x1/10/25 GbE SFP28 ports
- 16 MB of fully-shared packet buffering - Feature-rich layer 2 and layer 3 forwarding - Ultra-low latency with true cut through performance, Zero packet loss performance with NVMe TCP and RoCEV2 RDMA, DCBX, PFC, ECN support |
|
|
|
Models
HPE Storage Switch M-series SN2010M Ethernet Switch Model | |
|
|
|
|
Description |
SKU |
|
HPE 25 GbE 18SFP28 4QSFP28 Power to Connector Airflow Half Width Switch SN2010M with NVIDIA Cumulus |
S2T75A |
|
- HPE 18SFP28 4QSFP28 P2C Sw SN2010M w/NVD |
|
|
HPE SN2100M Rack Installation Kit |
Q2F25A |
|
Notes: - Only 1 Rack Mount kit is needed for 2x SN2010M switches within the same rack - HPE switch SKUs with factory installed NVIDIA Cumulus® Linux cannot be converted to HPE ONYX or ONIE switch SKUS - For HPE Storage Switch M-series SN2010M models Q9E63A, R0P77A, and R0P78A refer to QuickSpecs Version 17 | |
|
| |
|
| |
|

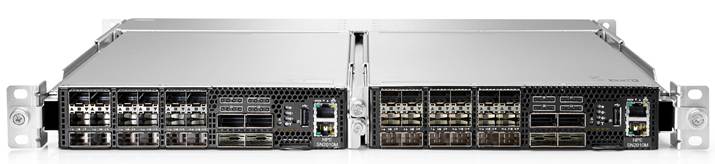

HPE Storage Switch M-series 2 x SN2010M Ethernet Switch with Q2F25A Rack Mount Kit | |
|
| |||
|

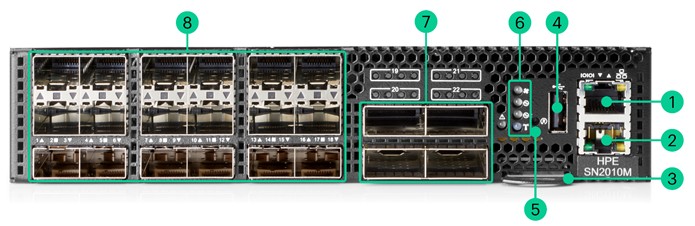

HPE Storage Switch M-series SN2010M (18 x SFP28 + 4 x QSFP28) Front View | |||
|
Item |
Description |
Item |
Description |
|
1. |
MGMT0 100 Mb/s to 1 Gb/s Port |
5. |
Password Reset Button - refer to the Single User Mode Boot Recovery section in the Cumulus Linux User Guide |
|
2. |
IOIOI RS232 Serial Console Port: 115200 BAUD |
6. |
Status LEDs (System; Fan; Power Supply 1, 2; Unit Identifier) |
|
3. |
Inventory Information Pull-out Tab |
7. |
QSFP28/QSFP Ports (19-22); split x4 supported |
|
4. |
USB Type A 2.0 compliant (USB 1.0 not supported) |
8. |
SFP28/SFP Ports (1-18) |
|
| |||
|
| |||
|

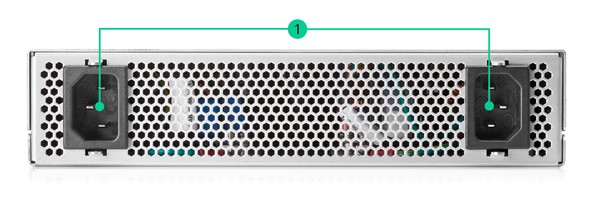

HPE Storage Switch M-series SN2010M (18 x SFP28 + 4 x QSFP28) Rear View | |||
|
Item |
Description | ||
|
1. |
Power Supply and Fans (non-replaceable) | ||
|
| |||
|
Key Features and Benefits |
|
- The HPE Storage Switch M-series SN2010M Ethernet switch is a Half-width 10/25 GbE and 40/100 GbE Ethernet Switch ideal for Primary, Secondary storage and Hyperconverged Infrastructures. The SN2010 switch is the ideal top of rack (ToR) solution packed with 18 ports of 10/25 GbE and 4 QSFP28 ports supporting 40/100 GbE and which can breakout to 4 10 GbE or 25 GbE ports. - HPE Storage Switch M-series SN2010M introduces low latency for 10/25 GbE and 40/100 GbE switching, features a robust implementation of data, control and management planes, and offers the most compact form factor and lowest power consumption. - HPE Storage Switch M-series SN2010M provides ultra-low latency of under 300ns port-to-port. This is advantageous for flash storage which has moved latency bottlenecks from storage access to the network, as well as for the burst nature of today's software defined and cloud data centers traffic. - The buffering architecture of the HPE Storage Switch M-series SN2010M provides superior micro burst absorption for applications that burst data at random intervals. - The HPE Storage Switch M-series SN2010M provides a flexible combination of ports, allowing for efficiency, simplifying scale-out environments, and saving on total cost of ownership. - Optimized port configuration enables high-speed rack connectivity to the server at 1/10 GbE or 25 GbE speeds with 40/100 GbE uplink ports that allow for a variety of blocking ratios that suit specific application requirements. - HPE Storage Switch M-series SN2010M with its optimization for RoCE, full buffer utilization, and zero packet loss combined into a small form factor with low latency make it the ideal switch for ESF (Ethernet Storage Fabric). - The HPE Storage Switch M-series SN2010M provide port density in a single rack unit, allowing for higher capacity and efficiency, simplifying scale-out environments and saving on total cost of ownership. - Its unique half-width form factors and port counts, these Ethernet switches allow for two SN2010 units to be deployed side-by-side allowing for increased density, making it the ideal top-of-rack switch. - Designed to use less power than competing switches, providing one of the industry's lowest power draws, producing less heat than competing products allowing reduced OpEx cost. - SN2010 is the best fit with a mix of 10/25 GbE and 40/100 GbE ports that are all designed for zero packet loss. Distributed storage, hyperconverged, analytic and database solutions require the ability to scale out without compromising performance or high availability. - High throughput, low latency and active-active network switching capabilities are crucial when deploying clustered servers and storage. HPE Storage Switch M-series SN2010M delivers connectivity to many clients plus 40/100 GbE connectivity to selected servers, storage systems or for network uplinks, and all with low latency. |
|
|
|

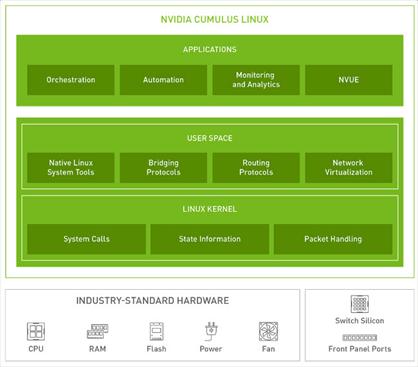

NVIDIA Cumulus® Linux
|
|
Cumulus Linux is a powerful open network operating system enabling advanced automation, customization and scalability using web-scale principles like the world's largest data centers. It accelerates networking functions and provides choice from an extensive list of supported switch models including NVIDIA SpectrumTM based switches. Cumulus Linux was built for automation, scalability and flexibility, allowing you to build data center and campus networks that ideally suits your business needs. Cumulus Linux is the only open network OS that allows you to build affordable and efficient network operations like the world's largest data center operators, unlocking webscale networking for businesses of all sizes.
The Ideal Solution for Your Network Challenges, Cumulus Linux enables modern data center architectures, while providing a transition path for traditional data center architectures, with support for layer 2, layer 3, and overlay networks. This open approach enables a wide range of solutions. Centralized, remote management of AI deployments enables over-the-air software updates, remote debugging, and system monitoring, as well as other features like self-healing systems. These remote management features make maintenance and upkeep easier, and AI more accessible and practical for locations that are difficult to access or far from headquarters. This results in faster, more comprehensive insights that can drive real-time decisions. |
|
|
|
Deployment Models: L3 network, L2 network, Clos, Out-of-band management, Overlay network
|
|
Use cases: Containers, Big data, Private cloud, Network virtualization, DevOps / automation, Monitoring and analytics, Hyperconverged infrastructure |
|
|
|
Key Features
|
|
Unnumbered Interfaces: Automation gets even easier with this simplified Internet Protocol (IP) approach for Border Gateway Protocol (BGP) and Open Shortest Path First (OSPF). All you need is one IP template for leaf nodes and one for spine nodes. BGP Unnumbered, the only difference between a BGP unnumbered configuration and the BGP numbered configuration is that the BGP neighbor is as an interface (instead of an IP address). There is no need to configure an IP address on the interface between the two peers on each side.
Redistribute Neighbor (RDNBR): Get virtual machine (VM) and host mobility by plugging your server into any RDNBR switch and making it layer-3 discoverable on the fabric. If you need to move the server, there's no need to reconfigure.
Prescriptive Topology Manager (PTM): Efficiently go from whiteboard to physical cable. With PTM, you can program your data center to verify connections and resolve issues faster.
Virtual Routing and Forwarding: Run multiple network paths without the need for multiple switches, giving you traffic isolation and network segmentation for multiple devices.
Ethernet Virtual Private Networks (EVPN): The most advanced capabilities available for EVPN allow legacy layer-2 applications to operate over next-generation layer-3 networks.
NVIDIA User Experience (NVUE): A full command-line interface (CLI) object model of Cumulus Linux enables advanced programmability, extensibility, and usability.
Digital twins: NVIDIA Air makes physical deployments seamless by validating and simplifying deployments and upgrades in a virtual network. |
|
|
|
|
|
NVIDIA Cumulus® Linux Interface |
|
|
|
User Interface: Command Line
|
|
With the NVIDIA User Experience (NVUE) object-oriented management tool, Cumulus Linux customers can go beyond the CLI and unify their network management with the rest of the data center management. NVUE enables any APIs to tie into NOS management, including REST, gRPC, RestConf, NetConf, and OpenConfig. Additionally, NVUE is Git-based, enabling Diff, revert, apply, branch, and stash behaviors. NVUE's configuration is simple: one YAML file ties all Linux configurations together, making it easy to copy configurations from switch to switch.
|
|
Operating System Install and Upgrade - Server-style upgrade/patching across minor releases, server-style process restart/termination - Support for zero touch OS installation using ONIE loaded on industry-standard switches - Standard mechanism for authentication, authorization, and accounting with TACACS+
|
|
Extensibility - Cumulus Linux works with any language supported in Linux today, including scripting with Bash, Perl, Python, and Ruby
|
|
Hardware Management - The switch hardware abstraction layer accelerates Linux kernel networking constructs in hardware, including the routing table, ARP table, bridge FOB, IP/EB tables, bonds, VLANs, and VXLAN bridges - Hardware management also includes jumbo frames support and environmental management - Forwarding table profiles on the ASIC provide flexible partitioning of resources
|
|
Layer 3 Features - IPv4/v6 routing suite including OSPFv2, OSPFv3, and BGPv4/v6 - RDMA over Converged Ethernet (RoCEv2) support for Layer 2 and Layer 3 - Virtual routing and forwarding (VRF) and VRF route leaking - Equal-cost multi-path (ECMP) and ECMP resilient hashing for IPv4 and IPv6 traffic - Bidirectional forwarding detection (BFD) across all platform and interface types, IPv4 and IPv6, BGP and OSPF, VXLAN, BGP conditional route advertisement - Protocol-independent multicast (PIM, PIM-SM, PIM-SSM) - Policy-based routing - Generic routing encapsulation (GRE) tunneling - Precision time protocol (PTP) Boundary Clock - VNI scaling: supports 6 bridges with up to 1,000 VNls - GTP Hashing - Adaptive Routing with RoCEv2
|
|
Layer 2 features - Bridge management with STP (IEEE 802.1d). RSTP (IEEE 802.1 W), PVRST, PVST, bridge assurance, BPDU guard, and BPDU filter - VLANs. VLAN trunks (IEEE 802.1q). LACP (IEEE 802.3adl. LACP bypass, unicast/broadcast storm control, LLDP, CDP, IPv6 neighbor discovery, and IPv6 route advertisement - MLAG (cladg daemon) - IGMPv2/v3 snooping, MLDv1/v2 snooping, Optimized Multicast Flooding (OMF) - Virtual router redundancy (VRR - active-active first hop redundancy protocol) - LLDP DCB IEEE TLVs
|
|
Network Virtualization - VXLAN support - VXLAN Routing - symmetric and asymmetric - L2 gateway services integration with VMware NSX - VXLAN head end replication - VXLAN active-active bridging with MLAG - Controller-less network virtualization with EVPN
|
|
Management - Object-oriented APl-compatible switch management with NVIDIA User Experience (NVUE) - ISSU: in-service software upgrades - Warm boot on bonds - Native Linux management tools, such as OpenSSH, SCP, and FTPS - Automated install and provisioning: zero touch install and zero touch provisioning - Management VRF - DHCP and v4/v6 DHCP relays - Authentication with LDAP and authorization with sudo NTP - Interface configuration management (ifupdown2) - Advanced management/orchestration through third-party add-on packages - Snapshot and rollback of the entire system to eliminate risk from system updates |
|
Monitoring and Troubleshooting - Monitor traffic patterns and preemptive capacity planning with buffer monitoring
- Troubleshooting with dnsutils, syslog, reachability tools, hardware inventory, log files, server-style filesystem, and Spectrum ASIC commands - The cl-support script generates a compressed archive file (.txz) of useful information for troubleshooting. The system either creates the archive file automatically or you can create the archive file manually. The system creates the cl-support archive file automatically for the following reasons:
- sFlow monitoring for system statistics and network traffic - The NVIDIA Firmware Tool (MFT) mlxlink tool is integrated into Cumulus and is used to check and debug link status and related issues. The tool can be used on different links and cables (passive, active, transceiver and backplane). - What Just Happened (WJH) provides real time visibility into network problems and has two components:
|
|
Security - Access control lists (ACLs) L2-L4 classification through IP/EP tables and CPU protection through hardware enforced ACL-based rate limiting DoS control - Authenticate and authorize attached devices with 802.1x - Kernel Address Space Randomization
|
|
QoS - Link PAUSE - Classification based on Class of Service (CoS) (IEEE 802.1p) or DSCP (queuing, scheduling-DWRR and Strict Priority - and buffer allocation) - Ingress ACL-based classification/policing - Priority flow control and explicit congestion notification (ECN) - Dynamic buffer configuration as default |
|
Cumulus VX and NVIDIA AIR - Getting started with Cumulus Linux is easy. Customers can explore, test, and prototype the technology.
- Download the free NVIDIA Cumulus VX appliance, supported virtual appliance to test and stage production rollouts
|
|
Third-party Packages - Orchestration: Ansible, CFEngine, Chef, and Puppet - Monitoring: Collectd, Ganglia, Graphite, Nagios/lcinga, and NetSNMP - You can use Cumulus Linux to run the Docker container platform. You can install Docker Engine directly on a Cumulus Linux switch and run Docker containers natively on the switch. |
|
|
|
Warranty (3-3-3) Hardware Warranty: 3-year parts, 3-year on-site (standard business hours, next business day response), and 3-year labor. Notes: The hardware warranty covers firmware. For extended hardware support and installation information, please see the "Services and Support" Section. |
|
|
|
HPE Services No matter where you are in your transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.HPE.com/services
|
|
Consulting services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.HPE.com/services/consulting
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.HPE.com/services/operational |
|
|
|
Recommended Services
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.
https://www.HPE.com/services/techcare
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides: - A complete coverage approach -- edge to cloud - An assigned HPE team - Modular and fully personalized engagement - Enhanced Incident Management experience with priority access - Digitally enabled and AI driven customer experience https://www.HPE.com/services/completecare |
|
|
|
Other related services from HPE Services
HPE Installation and Start-up Service Provides for the hardware installation and startup of HPE branded M-Series switches with operating system, according to the product specifications. The HPE service delivery technician will assist you in bringing your new hardware into operation in a timely and professional manner. https://www.HPE.com/h20195/v2/Getdocument.aspx?docname=a00025816enw
HPE Hardware Installation Provides for the basic hardware installation of HPE branded M-Series ONIE switches to assist you in bringing your new hardware into operation in a timely and professional manner. https://www.HPE.com/h20195/v2/Getdocument.aspx?docname=5981-9356enw
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include: - Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system. - HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment. - HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment. - Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums. - HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices. https://www.HPE.com/services/lifecycle - For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu |
|
|
|
HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
https://www.HPE.com/services/training
Defective Media Retention An option available with HPE
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
How to purchase services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners: - Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools. - Customers purchasing from a commercial reseller can find services at https://ssc.HPE.com/portal/site/ssc/ |
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience.
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
https://support.HPE.com/hpesc/public/home/signin |
|
|
|
Consume IT on your terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world. - Get faster time to market - Save on TCO, align costs to business - Scale quickly, meet unpredictable demand - Simplify IT operations across your data centers and clouds
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.HPE.com/us/en/contact-HPE.html
For more information: http://www.HPE.com/services |
|
|
|
