QLogic QMH2562 8Gb FC HBA for HPE c-Class BladeSystem: технические характеристики и документация
В архивеOverview
|

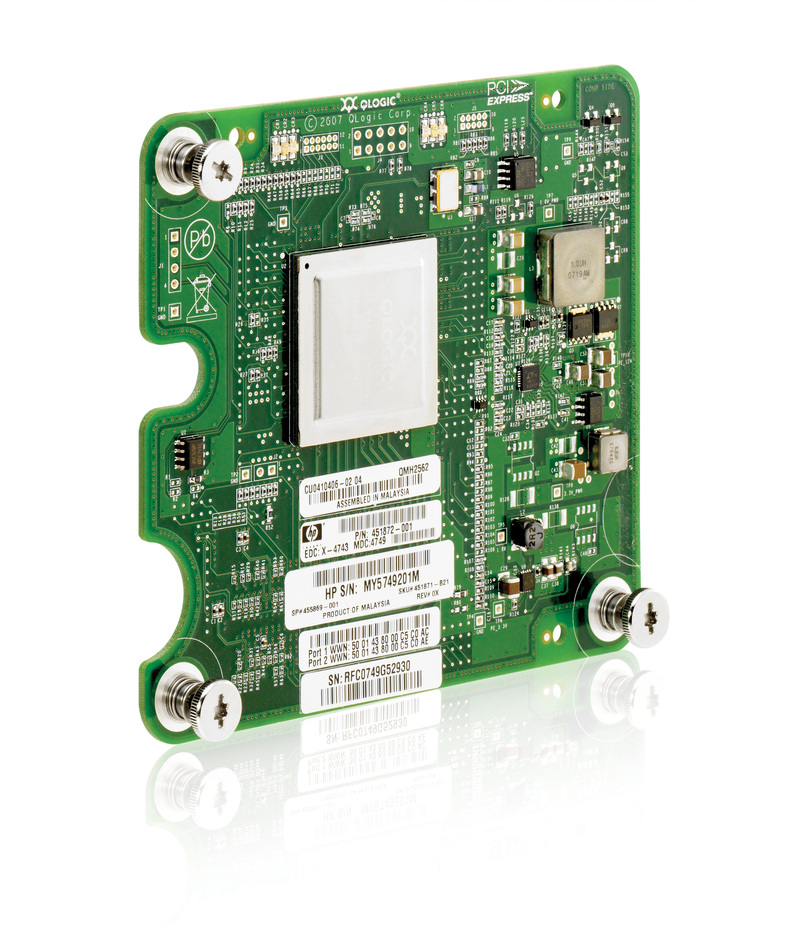

QLogic QMH2562 8Gb FC HBA for HPE c-Class BladeSystem The QLogic QMH2562 8Gb FC HBA is a dual channel PCI Express Fibre Channel mezzanine card that provides reliable, high-performance connectivity at up to 8Gb/s. Operating systems supported include Windows and Linux. It is optimized for HPE and is also supported by third-party SAN vendors. For details on supported HPE Fibre Channel SAN Switches, please consult the SAN Design Reference Guide at the following WEB address: https://www.hpe.com/us/en/networking/switches.html.  QLogic QMH2562 8Gb FC HBA for HPE c-Class BladeSystem
|
Platform Information
|
Models
|
Kit Contents |
Drivers, user guide, and utilities via: http://www.hpe.com | ||||
|
Compatibility - Supported Servers 8Gb c-Class HBA Mezzanine (Mezz) Card Applications
NOTE:
The QLogic QMH2562 8Gb FC HBA for HPE c-Class BladeSystem must be deployed with the c-Class BladeSystem infrastructure and will only work with the BL c-Class Server Enclosures.
NOTE:
HPE ProLiant Generation (G5) and earlier server blades do not support the QLogic QMH2562 8Gb FC HBA for HPE c-Class BladeSystem.
*The BL860c "A" versions (AD217A, AD323A) do not support the QLogic QMH2562 8Gb Fibre Channel mezzanine card. The BL860c "B" versions (AD217B, AD323B) are required when using the QMH2562. The BL860c "A" version can be upgraded to the "B" version with the AM333A system board upgrade kit.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability - HPE Storage and Third Party Switches |
| ||||
Standard Features
At a Glance Features |
| ||||||||||||||||||||||||||||||||
Warranty | Maximum: The remaining warranty of the HPE product in which it is installed (to a maximum three-year, limited warranty). Minimum: One year limited warranty. NOTE:
Additional information regarding worldwide limited warranty and technical support is available at:
http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/index.aspx#.V4e3tPkrJhE
|
Service and Support
Service and Support | NOTE:
This adapter is covered under HPE Support Services/ Service Contract applied to the HPE ProLiant Server or enclosure. No separate HPE Support Services need to be purchased.
Most HPE branded options sourced from HPE that are compatible with your product will be covered under your main product support at the same level of coverage, allowing you to upgrade freely. Additional support is required on select workload accelerators, switches, racks and UPS options 12KVA and over. Coverage of the UPS battery is not included under HPE support services; standard warranty terms and conditions apply. |
Warranty and Support Services | Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS options 12KVA and over. Coverage of the UPS battery is not included under TS support services; standard warranty terms and conditions apply. |
Protect your business beyond warranty with HPE Support Services | HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to HPE to help prevent problems and solve issues faster. HPE Support Services enable you to choose the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement to the support you need for your IT and business. Protect your product, beyond warranty. |
Parts and Materials | Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. |
For more information | Visit the Hewlett Packard Enterprise Service and Support website. |
Technical Specifications
System Unit |
| ||
Power and Environmental Specifications |
| ||||||||||||||||
Environment-friendly Products and Approach - End-of-life Management and Recycling | Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
Summary of Changes
|
| ||||||||||
