Mellanox SX1018HP Ethernet Switch

The Mellanox SX1018HP Ethernet Switch brings high bandwidth, low latency capability to the HPE c-Class enclosure. Based on Mellanox's SwitchX® silicon and advanced hardware design, this switch provides sixteen downlinks capable of 40Gb per link and up to eighteen 40Gb QSFP+ ports in a double wide c-Class interconnect form factor. The SX1018HP features industry leading latency of 230nS and exceptional power efficiency while providing optimal performance for enterprise data center, financial services, web 2.0, high performance computing and cloud computing applications. In addition, the SX1018HP incorporates a familiar industry-standard CLI, which enables administrators to easily configure and manage the switch.

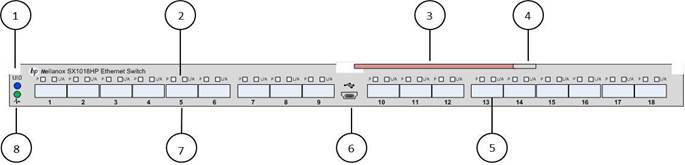

Mellanox SX1018HP Ethernet Switch

1.

Switch Identifier LED

5.

40Gb QSFP+ Port

2.

Port LEDs

6.

Mini USB port

3.

Latch

7.

Port Number

4.

Latch release

8.

Switch Status LED

Models

Mellanox SX1018HP Ethernet Switch for c-Class BladeSystem

689638-B21

Compatibility

HPE ProLiant Servers

HPE ProLiant BL420c Gen8
HPE ProLiant BL460c Gen8
HPE ProLiant BL465c Gen8
HPE ProLiant BL660c Gen8

HPE ProLiant WS460c Gen8

HPE ProLiant BL460c Gen9

HPE ProLiant BL660c Gen9

HPE ProLiant WS460c Gen9

NOTE: Some servers listed above may be discontinued.

ProLiant BL c-Class
Server Blade Enclosures

HPE BladeSystem c7000 Enclosure

Performance

• Totally Non blocking architecture
• 230ns latency at 40Gb; 280ns latency at 10Gb
• Wire speed switching on any packet size
• Eighteen QSFP+ ports support 40Gb uplinks
• Sixteen server side downlinks support 10Gb/40Gb per port
• Up to eight QSFP+ uplinks can be broken out to 4 x 10Gb with optional breakout cable
• Maximum of two SX1018HP switches per enclosure
• Efficient Cut through switching
• Hardware-based wire-speed access control lists (ACLs)
• RDMA over Converged Ethernet (RoCEE)

Management

• Remote configuration and management through Web browser or CLI
• Secure Web-based management through HTTPS
• Standards based SNMP management via SNMPv1, v2c and v3
• OOBM via Onboard Administrator
• GUI Management via Unified Fabric Manager
• Manager and operator privilege levels
• Command authorization via RADIUS
• Complete session logging for problem resolution
• LLDP Discovery protocol
• IPv6 management
• Dual flash images
• Multiple configuration files
• Syslog
• Network Time Protocol (NTP)
• MAC-based authentication with RADIUS server
• Access Control Lists (ACLs)
• Secure FTP
• STP Root Guard
• DHCP protection from unauthorized DHCP servers
• DHCP realy
• RADIUS/TACACS+
• Secure management via SSHv2 and SNMPv3
• mLAG
• PIM (Bidirectional)
• sFlow
• Port mirroring

Layer 2 Switching

• 48 K MAC addresses
• Priority based Flow Control (802.1Qbb)
• Flow Control (802.3x)
• Enhanced Transmission Selection (802.1Qaz)
• 4094 VLANs
• Jumbo packet support
• LAG, LACP (802.3ad)
• mLAG
• Rapid Spanning Tree Protocol RSTP (802.1W)
• Multiple Spanning Tree Protocol MSTP (802.1s)
• IGMPv1, IGMPv2
• IGMP querier
• RSTP, STP Root Guard
• IP Multicast Snooping and data-driven IGMP
• DCBx
• OpenFlow

Layer 3 Switching

• Static Routing
• OSPF
• ECMP
• VRRPv2 (IPv4)
• PIM (bidirectional)

Service and Support

HPE Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HPE ProLiant server and HPE BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know Hewlett Packard Enterprise infrastructure hardware and software best - the experienced professionals at HPE Services.

Protect your business beyond warranty with HPE Pointnext operational services
HPE Pointnext operational services offer complete care and support expertise with committed response choices designed to meet your IT and business needs.

HPE Foundation Care services offer scalable reactive support-packages for Hewlett Packard Enterprise servers and software. You can choose the type and level of service that is most suitable for your IT and business needs. HPE Proactive Care delivers high levels of system availability through proactive service management and advanced technical response. HPE Datacenter Care provides highly flexible environmental support to address unique customer business needs.

Choose a recommended service appropriate to your product or contact your Hewlett Packard Enterprise sales representative or authorized HPE ServiceOne partner for additional HPE Pointnext operational services information.

Recommended HPE Pointnext operational services for optimal satisfaction with your HPE product

Optimized Support

3-Year HPE 6 hour Call to Repair Response, Proactive Care
Combined reactive and proactive support for hardware and software helping optimize your systems and delivering high levels of availability through proactive service management and advanced technical response. Hardware problem resolution to return the hardware in operating condition within 6 hours of the initial service request. A Technical Account Manager, as your single point of contact, will own your call or issue end to end until resolved.
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-8855eee.pdf

HPE Installation and Startup Service for HPE BladeSystem c-Class Infrastructure for c7000 enclosure
Provides for hardware installation (c-Class ProLiant and Integrity server blades, storage blades, Ethernet Interconnects and Virtual Connect) and software installation and startup of a BladeSystem c7000 Infrastructure in a single enclosure including deployment of OS (two servers), HPE Insight Control and Server Deployment (formerly RDP).
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa0-5964enw.pdf

HPE Installation and Startup Service for HPE BladeSystem c-Class Enhanced Network
Hewlett Packard Enterprise provides for the configuration and testing of BladeSystem Ethernet interconnect switches and Virtual Connect to facilitate proper implementation of network protocols and access to advanced features.
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa0-5969enw.pdf

HPE Pointnext operational services to enhance your HPE product experience

Related Services

3-Year HPE 24x7 4 hour response, Proactive Care Service
This service gives you combined reactive and proactive support including rapid access to our Advanced Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of technical knowledge that will engage with additional technical expertise as needed from HPE's vast global resources.
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-8855eee.pdf

HPE Installation and Startup Service for HPE BladeSystem c-Class Infrastructure for c7000 enclosure
Provides for hardware installation (c-Class ProLiant and Integrity server blades, storage blades, Ethernet Interconnects and Virtual Connect) and software installation and startup of a BladeSystem c7000 Infrastructure in a single enclosure including deployment of OS (two servers), HPE Insight Control and Server Deployment (formerly RDP).
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa0-5964enw.pdf

HPE Installation and Startup Service for HPE BladeSystem c-Class Enhanced Network
Hewlett Packard Enterprise provides for the configuration and testing of BladeSystem Ethernet interconnect switches and Virtual Connect to facilitate proper implementation of network protocols and access to advanced features.
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa0-5969enw.pdf

HPE Proactive Care Personalized Support - Environmental Option
The Personalized Support option provides an assigned Account Support Manager who can bring best practices from across the industry plus extra technical skills to your IT team. This option is only available as an add-on to HPE Proactive Care Support.

HPE Proactive Select Service
Provides a flexible way to purchase HPE best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf

Additional HPE Pointnext operational services can be found at: http://www.hp.com/go/cpc

Insight Online/Insight Remote Support

HPE Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. This comes at no additional cost with your HPE solution. Learn more about Insight Remote Support http://www.hp.com/go/insightremotesupport and Insight Online http://www.hp.com/go/insightonline

NOTE: Insight Remote Support is a prerequisite for Proactive Care.

HPE Support Center

Personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc

The HPE Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Care Pack or Hewlett Packard Enterprise contractual support agreement.

NOTE: HPE Support Center Mobile App is subject to local availability.

Parts and materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Warranty

Mellanox SX1018HP Ethernet Switch Limited Warranty includes 1 year Parts, 1 year Labor, 1-year on-site next business day support. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.

For more information

To learn more on HPE ProLiant servers and HPE BladeSystem servers, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit:
http://www.hp.com/services/bladesystem

Adapter options

HP Infiniband QDR/Ethernet 10Gb 2-port 544M Adapter
NOTE: Only one port of each adapter is available for use with this switch regardless of mezzanine slot occupied. Two adapters and two switches are required for redundancy.

644160-B21

QSFP+ Options

HPE QSFP/SFP+ Adapter Kit

655874-B21

HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable

JG326A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable

JG327A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable

JG328A

Direct Attach Cables

HPE 0.5M FDR Quad Small Form Factor Pluggable InfiniBand Copper Cable

670759-B21

HPE 1M FDR Quad Small Form Factor Pluggable InfiniBand Copper Cable

670759-B22

HPE 1.5M FDR Quad Small Form Factor Pluggable InfiniBand Copper Cable

670759-B23

HPE 2M FDR Quad Small Form Factor Pluggable InfiniBand Copper Cable

670759-B24

HPE 3M FDR Quad Small Form Factor Pluggable InfiniBand Copper Cable

670759-B25

Service and Support Offerings

NOTE: HPE Pointnext operational services for the c7000 Enclosure cover the enclosure, power supplies and fans. The Mellanox SX1018HP Ethernet Switch for c-Class BladeSystem is also covered by the c7000 enclosure Care Pack services.

NOTE: Some options, including Fibre Channel and InfiniBand switches for the HPE c-Class BladeSystem, are not covered under the c7000 enclosure Care Packs and carry separate Care Packs. Care Pack service level support for these options should always be uplifted to match existing storage or server service level

Proactive Care Services for the c7000 Enclosure

HPE 3 year Proactive Care 24x7 c7000 Enclosure Service

U3C33E

Installation & Start-up Services recommended for the c7000

HPE BladeSystem c7000 Infrastructure Startup Service

UE602E

HPE BladSys c7000 Encd Network Startup Service

UE603E

Additional HPE Pointnext operational services can be found at:
http://www.hp.com/go/cpc

Shipping Dimensions

Length

20.12 in (511 mm)

Width

14 53 in (369 mm)

Height

2.41in (61 mm)

Shipping Weight

8.82 lbs (3.680 kg)

Product Specifications Hardware

Performance

1440 Gbps uplink port bandwidth; 640 Gbps downlink (server) port bandwidth;

Forwarding rate 1.48 million pps per Gigabit port, (64-byte packets) and 14.8 million pps per 10 Gig port and 59.37 MPPS per 40GbE

Non-blocking, full-wire speed for all connections

Forwarding Mode

Cut through

MAC Addresses

Supports 48K MAC addresses per switch in a BladeSystem Enclosure

Forwarding Table Age Time
(Maximum age)

10 to 1,000,000 seconds
(default: 300 seconds)

VLAN IDs

4096 Byte

IGMP Groups

5000

Memory

Flash Nor 128M bit, Nand Flash 16Gbit. DDR (main) - 2Gbyte, FW flash -32Mbit.

Connectors and Cabling

Connector

18 QSFP+

1 mini-USB Management

Cable Support

FCC Class A

ICES-003 Class A

AS/NZS 3548 Class A

VCCI Class A

Indicators

Status LED
Module locator (UID)
Port physical link
1/10/40GbE port link/activity, Green

Dimensions

Length

15.28 in (388 mm)

Width

10.87 in (276 mm)

Height

1.10 in (27.9 mm)

Weight

7.18lbs (3.226 kg)

Environmental Ranges

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Non-operating

-40° to 158° F (-40° to 70° C)

Relative Humidity
(non-condensing)

Operating 5% to 95%

Power Specification

Power Requirements

Passive Cables 82.6W
Active Cables 95.76W
Optical Cables 106.76W

Standards Support

General protocols
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3ae 10-Gigabit Ethernet
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 925 Multi-LAN Address Resolution
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 2131 DHCP
RFC 4675 RADIUS VLAN & Priority

MIBs
RFC 1213 MIB II
RFC 2233 Interface MIB
RFC 2571 SNMP Framework MIB
RFC 2572 SNMP-MPD MIB
RFC 2579 SNMPv2-TC
RFC 2591 IANA-LANGUAGE-MIB
RFC 2863 IF MIB
RFC 2932 IANA-RTPROTO-MIB
RFC 3433 ENTITY SENSOR MIB
RFC 4133 Entity MIB (Version 3)
RFC 4268 ENTITY STATE MIB
RFC 4318 RSTP MIB
LLDP-MIB

Safety and Compliance
Safety Certifications

Complies with UL 60950-1 2nd Ed CAN/CSA C22.2 No.60950-1 2nd Ed cTUVus certified.

CE Marking

RoHS 6/6 compliant

Electromagnetic Emissions Certifications FCC Part 15 Class A

FCC Part 15 Class A

EN 55022: 1998 (CISPR22)

EN 55024: 1998 (CISPR24)

VCCI Class A

AS/NZS 3548 Class A CE

CNS 13438 Class A MIC

MIC

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

23-Oct-2017

Version 9

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

21-Oct-2016

From version 7 to 8

Updated

Rebranding edition.

02-Oct-2015

From version 6 to 7

Updated

Update overview section

17-Nov-2014

From Version 5 to 6

Updated

Servers Compatibility

12-Aug-2014

From Version 4 to 5

Updated

Standard Features updated

11-Jul-2014

From Version 3 to 4

Changed

Changes were made on all document

05-Jul-2013

From Version 2 to 3

Added

HPE 0.5M, 1M, and 3M FDR Quad Small Form Factor Pluggable InfiniBand Copper Cables were added to Direct Attach Cables.

21-Feb-2013

From Version 1 to 2

Changed

Updated the Introduction Section, Standard Features and Related Options Section.
