Mellanox InfiniBand Switch Chassis | ||
|

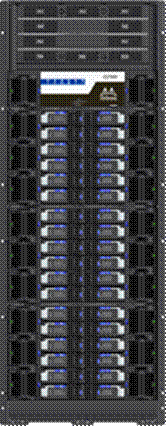

Mellanox InfiniBand (IB) EDR Modular Switches are supported to work with HPE InfiniBand Adapters to deliver high performance connectivity for HPC clusters using HPE ProLiant XL and DL Server families. The Modular switches feature the Mellanox Switch-BTM 2 ASIC, and include three chassis with 216 ports, 324 ports, and 648 ports, respectively. The Mellanox InfiniBand EDR Switch is ideally suited for customers who deploy high-performance clusters based on HPE ProLiant XL and DL Servers using InfiniBand technology. | ||
|
|
|
|
Standard Features
|
Key features |
|
|
|
|
Features and benefits |
|
Switch Specifications
Management
o Support fabrics of up to 2k nodes
Connectors and cabling
Warranty and support
|
Service and Support
|
HPE Pointnext - Service and Support Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike. Consume IT on your terms HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.
Managed services to run your IT operations HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. |
|
|
|
Recommended Services HPE Pointnext Tech Care. HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare HPE Pointnext Complete Care HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:
https://www.hpe.com/services/completecare |
|
|
|
Parts and Materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
Other related Services HPE Server Hardware Installation Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner. http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf
HPE Factory Express for Servers and storage HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches. HPE Technology Services Support Credits offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business. |
|
Standards and protocols |
|
IBTA 1.2.1 and 1.3 |
Configuration Information
|
Mellanox InfiniBand EDR Modular Switch Series | |
|
Models | |
|
Mellanox InfiniBand EDR 648 Port Switch Chassis |
843188-B21 |
|
Mellanox InfiniBand EDR 324 Port Switch Chassis |
843189-B21 |
|
Mellanox InfiniBand EDR 216 Port Switch Chassis |
843190-B21 |
|
Mellanox InfiniBand EDR Modular Management Board |
843191-B21 |
|
Mellanox InfiniBand EDR Modular Fabric Board |
843192-B21 |
|
Mellanox InfiniBand EDR 36 Port Modular Line Board |
843193-B21 |
|
Mellanox InfiniBand EDR 648 Port Switch Chassis |
843188-B21 |
|
|
|
Mellanox InfiniBand EDR 324 Port Switch Chassis |
843189-B21 |
|
|
|
Mellanox InfiniBand EDR 216 Port Switch Chassis |
843190-B21 |
|
|
|
Mellanox InfiniBand EDR Modular Management Board |
843191-B21 |
|
|
|
Mellanox InfiniBand EDR Modular Fabric Board |
843192-B21 |
|
|
|
Mellanox InfiniBand EDR 36 Port Modular Line Board |
843193-B21 |
Notes: See Related Options for supported cables |
|
Related Options
|
Mellanox Unified Fabric Manager (UFM) Software Licenses | |
|
Mellanox Unified Fabric Manager Advanced 1yr 24x7 Updates and Technical Support Flex License |
BD571A |
|
Mellanox Unified Fabric Manager Advanced 3yr 24x7 Updates and Technical Support Flex License |
BD572A |
|
HPE InfiniBand EDR cables | |
|
Passive Copper cables | |
|
HPE 0.5m InfiniBand EDR QSFP Copper Cable |
834973-B21 |
|
HPE 1m InfiniBand EDR QSFP Copper Cable |
834973-B22 |
|
HPE 1.5m InfiniBand EDR QSFP Copper Cable |
834973-B23 |
|
HPE 2m InfiniBand EDR QSFP Copper Cable |
834973-B24 |
|
HPE 3m InfiniBand EDR QSFP Copper Cable |
834973-B25 |
|
Active Optical cables | |
|
HPE 3m InfiniBand EDR QSFP Optical Cable |
834972-B21 |
|
HPE 5m InfiniBand EDR QSFP Optical Cable |
834972-B22 |
|
HPE 7m InfiniBand EDR QSFP Optical Cable |
834972-B23 |
|
HPE 10m InfiniBand EDR QSFP Optical Cable |
834972-B24 |
|
HPE 12m InfiniBand EDR QSFP Optical Cable |
834972-B25 |
|
HPE 15m InfiniBand EDR QSFP Optical Cable |
834972-B26 |
|
HPE 20m InfiniBand EDR QSFP Optical Cable |
834972-B27 |
|
HPE 30m InfiniBand EDR QSFP Optical Cable |
834972-B28 |
Technical Specifications
|
Mellanox InfiniBand EDR 648 Port Switch Chassis |
843188-B21 | ||||
|
I/O ports and slots |
Eighteen (18) Slots for Line Boards, each with 36 QSFP28 ports Eighteen (18) Slots for Modular Fabric Boards | ||||
|
Power supplies |
Ten (10) Power Supplies (N+N redundant), hot swappable | ||||
|
Fan units |
Twenty (20) Fan Units (N+N redundant), hot swappable | ||||
|
Physical characteristics |
Dimensions |
48.96 in (H) x 17.64 in (W) x 30.3 in (D) 124.4 cm (H) x 44.8 cm (W) x 77.0 cm (D) | |||
|
Weight |
369.5 kg (fully configured) 815 lb (fully configured) | ||||
|
Performance |
Latency |
≤ 0.5 µs | |||
|
Throughput |
up to 130 Tbps | ||||
|
Linear forwarding data base |
4x48K entries | ||||
|
Power Consumption (fully populated)
|
Passive cable |
9161 W | |||
|
Active cable |
12370 W | ||||
| |||||
|
I/O ports and slots |
Nine (9) Slots for Line Boards, each with 36 QSFP28 ports Nine (9) Slots for Modular Fabric Boards | ||||
|
Power supplies |
Six (6) Power Supplies (N+N redundant), hot swappable | ||||
|
Fan units |
Twelve (12) Fan Units (N+N redundant), hot swappable | ||||
|
Physical characteristics |
Dimensions |
28 in (H) x 17.64 in (W) x 30.3 in (D) 71.1 cm (H) x 44.8 cm (W) x 77.0 cm (D) | |||
|
Weight |
275 kg (fully configured) 606 lb (fully configured) | ||||
|
Performance |
Latency |
≤ 0.5 µs | |||
|
Throughput |
up to 64 Tbps | ||||
|
Linear forwarding data base |
4x48K entries | ||||
|
Power Consumption (fully populated)
|
Passive cable |
4939 W | |||
|
Active cable |
6543 W | ||||
| |||||
|
I/O ports and slots |
Six (6) Slots for Line Boards, each with 36 QSFP28 ports Six (6) Slots for Modular Fabric Boards | ||||
|
Power supplies |
Four (4) Power Supplies (N+N redundant), hot swappable | ||||
|
Fan units |
Eight (8) Fan Units (N+N redundant), hot swappable | ||||
|
Physical characteristics |
Dimensions |
20.96 in (H) x 17.64 in (W) x 30.3 in (D) 53.2 cm (H) x 44.8 cm (W) x 77.0 cm (D) | |||
|
Weight |
200 kg (fully configured) 441 lb (fully configured) | ||||
|
Performance |
Latency |
≤ 0.5 µs | |||
|
Throughput |
up to 43 Tbps | ||||
|
Linear forwarding data base |
4x48K entries | ||||
|
Power Consumption (fully populated)
|
Passive cable |
3474 W | |||
|
Active cable |
4543 W | ||||
| |||||
|
Additional ports and slots |
One (1) System reset button One (1) USB port One (1) Console port Two (2) RJ45 Ethernet management ports | ||||
|
Physical characteristics |
Dimensions |
Plug into the management slots on the switch chassis | |||
| |||||
|
Additional ports and slots |
|||||
|
Physical characteristics |
Dimensions |
Plug into the fabric slots on the switch chassis | |||
| |||||
|
I/O ports and slots |
Thirty-six (36) QSFP28 ports per Line Board | ||||
|
Physical characteristics |
Dimensions |
Plug into the line-board slots on the switch chassis | |||
|
Environment |
Operating temperature |
0°C to 45°C (32°F to 113°F) | |||
|
Non-Operating temperature |
-40°C to 70°C | ||||
|
Operating humidity |
10% to 85% | ||||
|
Operating Altitude |
-60 to 2000m | ||||
|
Acoustic |
ISO 7779 ETS 300 753 | ||||
|
Electrical characteristics |
Frequency |
47/63 Hz, single phase AC | |||
|
Voltage |
180 - 265 VAC | ||||
|
Safety |
US/Canada: cTUVus EU: EN60950-1 International: IEC60950-1 | ||||
|
Emissions |
USA: FCC, Class A Canada: ICES, Class A EU: EN55022, Class A EU: EN55024, Class A EU: EN61000-3-2, Class A EU: EN61000-3-3, Class A Japan: VCCI, Class A | ||||
|
Others |
RoHS-6 compliant | ||||
|
Management |
The Management Board comes with a dual-core x86 CPU for the onboard subnet manager, enabling simple, out-of-the-box fabric bring-up for up to 2k nodes. The InfiniBand fabric can also be managed by the Mellanox Unified Fabric ManagerTM. The Mellanox Unified Fabric Manager Advanced (UFM) is a powerful platform for managing scale-out computing environments. UFM enables data center operators to efficiently provision, monitor and operate the modern data center fabric.
UFM runs on a server and is used to monitor and analyze Mellanox fabrics health and performance. UFM also can be used to automate provisioning and device management tasks. For example, UFM can communicate with devices, to reset or shut down ports or devices, perform firmware and software upgrades, etc. UFM's extensive API enables it to easily integrate with existing management tools for a unified cluster view. UFM also includes the ability to save historical information, to send alerts to external systems and to activate user made scripts based on system events. | ||||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
15-Nov-2021 |
Version 2 |
Changed |
Service and Support section was updated |
|
06-June-2016 |
Version 1 |
Created |
Initial version of QuickSpecs for Mellanox InfiniBand Switch Chassis |
