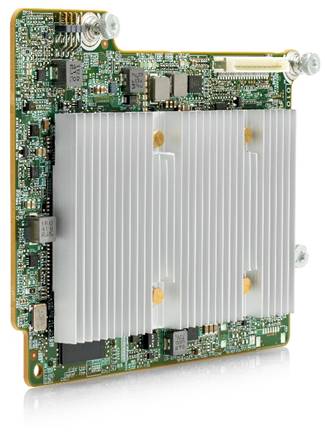

HPE Smart Array P741m Controller

The HPE Smart Array P741m is a PCI-Express (PCIe) 3.0 mezzanine card supporting direct attached and shared storage for the HPE ProLiant Gen9 BladeSystem servers. It supports 12Gb/s level bandwidth and provides enterprise level reliability, connectivity, and storage performance for HPE Gen9 Blade servers through its support of the latest SCSI technology and advanced RAID capabilities. The P741m can support up to 227 zoned direct attached SAS or SATA drives, tape drives, and can connect to D3600, D3700, D6000, and D6020 Disk Enclosures.

Model

HPE Smart Array P741m/2GB FBWC 12Gb 4-ports Ext Mezzanine SAS Controller (Extended)

726782-B21

NOTE: HPE Smart Array P741m/2GB FBWC controller option kit does not include the HPE Smart Storage Battery that is used as the backup power source necessary to protect the data on the Flash-backed Write Cache. HPE Smart Storage Battery has to be purchased separately if this is the first P-class Smart Array controller on your Gen9 server.

Key Features

Storage interface (SAS/SATA)

8 physical links across 4 x2 external ports

12Gb/s SAS, 6Gb/s SATA technology

Mix-and-match SAS and SATA drives to the same controller

Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries

2 GiBytes Flash-Backed Write Cache (FBWC)

PCI Express Gen3 x8 link

RAID 0, 1, 10, 5, 50, 6, 60, 10 ADM (Advanced Data Mirroring)

RAID or HBA mode

Legacy and UEFI boot operation

Up to 200 physical drives

Up to 64 logical drives

HPE SmartCache (license included)

HPE Secure Encryption (optional license)

HPE SSD Smart Path

Certified controller for Microsoft Storage Spaces

Rapid Parity Initialization (RPI)

Rapid rebuild

Drive Erase

Performance Optimization-Degraded Reads and Read Coalescing

Power Efficiency

Seamless upgrades to and from other HPE Smart Array controllers

Recovery ROM to protect against controller ROM corruption

Ports

External: 8 SAS/SATA physical links across 4 x2 ports

Performance

12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)

6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)

PCI Express Gen3 x8 link width

2 GiBytes 72-bit wide DDR3-1866MHz Flash-Backed Write Cache provides up to 12.8GB/s maximum cache bandwidth

Read ahead caching

Write-back caching

Online Management Features

Online array expansion

Online capacity expansion

Online logical drive extension

Online RAID level migration

Online stripe size migration

Online mirror split, recombine, and rollback

Online active drive replacement

Online drive firmware upgrade

Online and high performance offline Rapid Parity Initialization (RPI)

Unlimited global online spares assignment

User selectable expand and rebuild priority

User selectable RAID level and stripe size

User selectable read and write cache sizes

Supports Predictive Spare Activation

Fault Prevention

The following features offer detection of possible failures before they occur, allowing preventive action to be taken:

S.M.A.R.T.: Self-Monitoring Analysis and Reporting Technology first developed at Hewlett Packard Enterprise detects possible hard disk failure before it occurs, allowing replacement of the component before failure occurs.

Drive Parameter Tracking monitors drive operational parameters, predicting failure and notifying the administrator.

Dynamic Sector Repairing continually performs background surface scans on the hard disk drives during inactive periods and automatically remaps bad sectors, ensuring data integrity.

Smart Array Cache Tracking monitors integrity of controller cache, allowing pre-failure preventative maintenance.

Fault Recovery

Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure:

Recovery ROM: This feature protects the user from a firmware image corruption by storing a redundant copy of the firmware image. If the active firmware image becomes corrupt, the controller will use the redundant firmware image and continue operating.

On-Line Spares: There is no limit to the number of spare drives that can be installed prior to drive failure. If a failure occurs, recovery begins with an On-Line Spare and data is reconstructed automatically.

DRAM ECC detects and corrects data bit errors.

HPE SmartCache

The HPE SmartCache feature is a controller-based read and write caching solution in a DAS environment that caches the most frequently accessed data ("hot" data) onto lower latency SSDs to dynamically accelerate application workloads. The HPE SmartCache architecture is flexible and supports any HPE ProLiant Gen9 supported HDD for bulk storage and any HPE ProLiant Gen9 supported SSD as an accelerator. HPE SmartCache is deployed and managed using the HPE Smart Storage Administrator (HPE SSA).

For more information please visit: http://www.hpe.com/servers/smartcache.

HPE Secure Encryption

HPE Secure Encryption is a Smart Array controller-based data encryption solution for ProLiant Gen9 servers that protects sensitive, mission critical data. This is an enterprise-class encryption solution for data at rest on any bulk storage attached to the HPE Smart Array P741m including data on the cache memory of the controller. HPE Secure Encryption is an optional license per server requiring encryption enablement (see Related Options for more information on the license).

The solution is available for both local and remote key management mode deployments. Local Key Management Mode is focused on single server deployment where there is one Master key per controller that is managed by the user. Remote Key Management Mode is for enterprise wide deployments from just a few servers to thousands of servers.

FIPS 140-2 Cryptographic Module Validation

FIPS provides a security assurance level validation for cryptographic modules. HPE Smart Array P741m controller has completed FIPS 140-2 Level 1 validation (certificate #2506). The validation for this controller has recently moved to the Historical List. HPE is actively engaged in activities to return this controllers to the Validated Modules List. The National Institute of Standards and Technology (NIST) issued the FIPS 140-2 requirements and standards for cryptography modules that include both hardware and software components.

For more information on please visit: http://www.hpe.com/servers/secureencryption

HPE SSD Smart Path

The HPE SSD Smart Path feature included in the Smart Array software stack improves Solid State Disk (SSD) read performance. With up to 4x better SSD read performance, HPE SSD Smart Path chooses the optimum path to the SSD and accelerates reads for all RAID levels and RAID 0 writes. HPE SSD Smart Path requires updated firmware, drivers, and configuration utility available at: http://www.hpe.com/servers/ssa. HPE SSD Smart Path is ideal for read intensive workloads and is included as a base feature on HPE Smart Array P-class controllers.

Server Support

NOTE: For BL460c Gen9 and BL660c Gen9 - P741m is a Type B mezzanine controller that can only be installed on mezzanine slot 2 which requires a second processor for functionality.

Disk Enclosure Support

HPE D3600 Disk Enclosure

HPE D3700 Disk Enclosure

HPE D6000 Disk Enclosure

HPE D6020 Disk Enclosure

HPE MSA 2040 SAN Storage

HPE 6Gb SAS Switch for HPE BladeSystem c-Class

Operating Systems

Microsoft Windows Server

Microsoft Windows Hyper-V Server

VMware vSphere ESXi

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)

Oracle Solaris

Oracle Linux

Canonical Ubuntu

CentOS

Wind River

Citrix XenServer

NOTE: For more information on HPE's Certified and Supported ProLiant Servers for OS and Virtualization Software, please visit our Support Matrix at: http://www.hpe.com/info/ossupport

Storage Management Software Suite

HPE Smart Storage Administrator (HPE SSA)

Comprehensive management for HPE Smart Storage products with advanced scripting and diagnostic features and simplified and intuitive interface and functionality. For more information please visit: http://www.hpe.com/servers/ssa

HPE Systems Insight Manager

Powerful server and server options/storage manager tool with configuration/diagnostic utilities

HPE Storage Management Utility

Offers the simplest method for configuring the storage system via Initial System Configuration Wizard

Service and Support

NOTE: HPE Smart Array controllers are supported as a part of the HPE Server Infrastructure. No separate care packs are needed to be purchased.

HPE Technology Services for Industry Standard Servers

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

Get connected to HPE to improve your support experience

Connecting products to Hewlett Packard Enterprise will help prevent problems with 24x7monitoring, pre-failure alerts, automatic call logging, and parts dispatch. With Connected products, you can have a dashboard to manage your IT anywhere, anytime, from any device.

HPE Support Center

Personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more http://www.hpe.com/support/hpesc

The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime..

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Care Pack or Hewlett Packard Enterprise contractual support agreement.

* NOTE: The Hewlett Packard Enterprise Support Center Mobile App is subject to local availability

Parts and materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

For more information

To learn more on HPE BladeSystem services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized ServiceOne Channel Partner, or visit: http://www.hpe.com/services/bladesystem

Extended Option

This controller is an Extended Option. Extended Options provide an extended catalog of products tailored for customers in specific markets or with specific workloads, requiring the utmost in performance or value.

Warranty

The warranty for this device is 3 years parts only.

Pre-Failure Warranty: Drives attached to the Smart Array Controller and monitored under Insight Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HPE Support Center or refer to your HPE Server Documentation.

Enhancements to warranty services are available through Care Pack services.

For more information, visit HPE Pointnext operational services at: http://www.hpe.com/services

HPE Smart Storage Battery

HPE 12W Smart Storage Battery for BL Servers (Extended)

P01363-B21

HPE Secure Encryption

HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU

Q2F26AAE

NOTE: HPE Secure Encryption licensing is based on the number of servers requiring encryption for direct attached storage.

For more information visit: https://www.hpe.com/us/en/product-catalog/detail/pip.6532260.html

Date

Version History

Action

Description of Change:

4-Jun-2018

Version 7

Changed

Updated FIPS and Battery SKU

08-Jan-2018

Version 6

Added

Related Options, SKUs and Parts and Material were Updated

23-Oct-2017

Version 5

Added

Care Pack naming and Service and Support- Parts and Materials updated.

19-Aug-2016

Version 4

Changed

Overview, Standard Features, Compatibility, and Related Options were revised.

29-Apr-2016

Version 3

Changed

Overview, Standard Features, Compatibility, and Related Options were revised.

11-Dec-2015

Version 2

Removed

Support for MSA 2040 and P2000 Smart Array G3 was removed from the QuickSpecs.

30-Mar-2015

Version 1

Created

QuickSpecs was created
