В архивеOverview
|

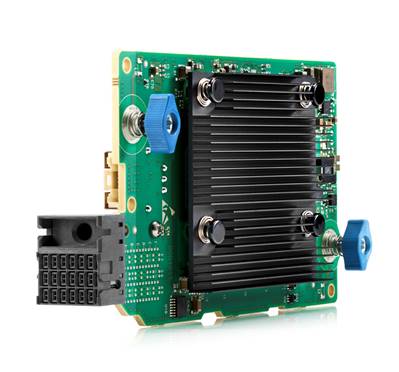

HPE Apollo InfiniBand/EDR 100Gb 2p Mezzanine FIO Adapter HPE Apollo InfiniBand EDR 100Gb Mezzanine Adapter is a InfiniBand adapter for HPE ProLiant XL260a and HPE ProLiant XL230k Server that is designed for customers who need low latency and high bandwidth interconnect in their high performance computing (HPC) systems. The 840z adapter is Based on Mellanox ConnectX®-4 technology for scalability and fabric flexibility, the dual ported mezzanine card functions as a EDR InfiniBand card while the 841z adapter utilizes the latest Mellanox ConnectX®-5 technology. Combined with EDR InfiniBand Switches, they deliver low latency and up to 100Gbps bandwidth, ideal for performance driven server and storage clustering applications in HPC and enterprise data centers. | ||
|
| ||
|
Models | ||
|
HPE Apollo InfiniBand EDR 100Gb 2-port 840z Mezzanine FIO Adapter HPE Apollo InfiniBand EDR 100Gb 2-port 841z Mezzanine FIO Adapter |
843400-B21 872723-B21
| |
|
Kit Contents |
| |
Compatibility
|
Servers supported |
HPE ProLiant XL Servers:
|
Service and Support
|
Product Features |
|
|
EDR InfiniBand 100Gb Throughput |
The HPE Apollo InfiniBand EDR 100Gb 2-port 840z Mezzanine FIO Adapter and HPE Apollo InfiniBand EDR 100Gb 2-port 841z Mezzanine FIO Adapter deliver up to 100Gbps EDR InfiniBand speed, providing the performance needed to improve response times and alleviate bottlenecks that impact performance of customer’s applications. The HPE EDR 840z Mezzanine adapter is ideal for high performance computing clusters and datacenter servers that require low latency and high bandwidth interconnect. |
|
InfiniBand Standards |
Compliant to IBTA 1.3 standard |
|
Congestion Control |
Hardware-based congestion control |
|
Offloads |
Collective operation offloads |
|
Transport |
Hardware-based reliable transport Extended Reliable Connected transport (XRC) Dynamically Connected transport (DCT) |
|
Atomic Operation |
Enhanced Atomic operations |
|
MSI and MSI-X |
Message Signaled Interrupt (Extended) provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores. The HPE Apollo InfiniBand EDR 100Gb Mezzanine Adapter support MSI and MSI-X. |
|
Management | |
|
Server Integration |
The HPE Apollo InfiniBand EDR 100Gb Mezzanine adapter is validated, tested, and qualified server options for the supported HPE ProLiant XL260a and XL230k server. This approach provides a more robust and reliable networking solution than offerings from other venders and provides users with a single point of contact for both their servers and their network adapters. |
|
Configuration Utilities |
HPE Apollo InfiniBand EDR 100Gb Mezzanine adapters is configurable through UEFI.
|
|
HPE Sea of Sensors 3D |
Support for HPE's Sea of Sensors technology for improved thermal control and energy efficiency. |
|
Warranty |
This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. |
|
Parts and Materials |
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. |
|
For more information |
To learn more on services for HPE Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hpe.com/services/proliant |
Related Options
|
Direct Attach Cable |
Single port connectivity, please order |
|
|
HPE InfiniBand EDR/Intel® Omni-Path Architecture Single Fabric PCIe I/O Module FIO Kit |
863662-B21 | |
|
For 2 Mezz cards or 2 ports connectivity, please order |
| |
|
HPE InfiniBand EDR/Intel® Omni-Path Architecture Dual Fabric PCIe I/O Module FIO Kit |
867280-B21 | |
|
NOTE: The above XL260a IO module SKUs include 2M copper cable(s) in the kit. NOTE: Please reference HPE InfiniBand Options for HPE ProLiant and Apollo Servers QuickSpecs for cable connections for HPE ProLiant XL230k server. | ||
Technical Specifications
|
General Specifications |
Network Processor |
840z uses Mellanox ConnectX-4; 841z uses Mellanox ConnectX-5 |
|
Data Rate |
100Gbps | |
|
Bus Type |
PCIe Gen3 x16 | |
|
Form Factor |
Mezzanine form factor adapter | |
|
Power and Environmental Specifications |
Power EMC (Emissions) |
Adapter with 1P active cable: 13.91W (typical), 15.70W (max). Adapter with 2P active cables: 16.12W (typical), 18.04W (max) |
|
FCC Part 15 (CFR 47), Class A ICES-003, Class A EN55022, Class A CISPR22, Class A AS/NZS CISPR 22, Class A (RCM mark) VCCI Class A EN55024 KC (Korea) | ||
|
RoHS Compliance |
6 of 6 | |
|
Safety |
UL 60950-1 CAN/CSA-C22.2 No. 60950-1 EN 60950-1 IEC 60950-1 | |
|
Environmental |
EU: IEC 60068-2-64: Random Vibration EU: IEC 60068-2-29: Shocks, Type I / II EU: IEC 60068-2-32: Fall Test | |
|
Safety |
UL 60950-1 CAN/CSA-C22.2 No. 60950-1 EN 60950-1 IEC 60950-1 | |
|
HPE Apollo InfiniBand EDR 100Gb Mezzanine adapter is supported on the following 64-bit Linux operating systems:
Please refer to the firmware/software download page of the device and HPE ProLiant XL260a server for the latest update. |
||
|
Operating System Support |
End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett is posted on the Hewlett Packard Enterprise web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HEWLETT PACKARD ENTERPRISE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. | |
