HPE 6120XG Blade Switch

Designed for the c-Class BladeSystem enclosure, the HPE 6120XG Blade Switch provides sixteen 10Gb downlinks and eight 10G SFP+ uplinks (including a dual personality CX4 and SFP+ 10G uplink, and two 10Gb cross-connects). A robust set of industry standard enhanced Layer 2 switching functions, QOS metering, security and High Availability features round out this extremely capable switch. The 6120XG is perfectly suited for datacenters migrating to 10G high performance architectures. With support of dual speed on 10G uplinks and Converged Enhanced Ethernet (CEE) capability, the 6120XG provides future proofing and investment protection. The 6120XG blade switch provides consistency and interoperability across existing network investments to help reduce the complexity of network management through resilient core-to-edge connectivity and automated provisioning technologies. With a variety of connection interfaces, the 6120XG switch offers excellent investment protection, flexibility, and scalability, as well as ease of deployment and reduced operational expense.

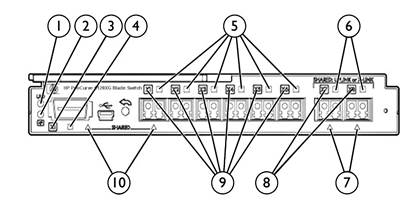

Figure 1 HPE 6120XG Blade Switch

1.

Switch locator UID

6.

SFP+/SFP link indicators

2.

Switch status indicator

7.

Active multiplexed port indicators

3.

10Gb CX4 backlit port number and status indicator LED

8.

Backlit port number and status indicator LED

4.

10Gb CX4 link indicator

9.

Backlit port number and status indicator LED

5.

SFP+/SFP link indicators

10.

Active multiplexed port indicator

What's New

• Support for Converged Enhanced Ethernet
• Support for sFlow
• Support for Uplink Failure Detection
• The 6120XG now supports Cut Through Mode at 10GbE

At A Glance

Performance:

• Non blocking architecture
• Configurable for Store and Forward Switching or Cut Through Switching
• Wirespeed 16 x 10Gb downlinks to server NICs
• Wirespeed 2 x 10Gb cross connects for redundancy
• Wirespeed 1 x 10Gb copper uplinks CX-4 for uplinking to data center switches
• Wirespeed 8 x 10Gb SR, LR, or LRM fiber and copper SFP+ uplinks
• Line Rate, full-duplex 240Gbps bridging fabric

Management:

• Offers simplified management through CLI option
• Can be managed through HTTP, HTTPS,
• Standards based SNMP management via tools such as PCM and PCM+
• OOBM via Onboard Administrator
• USB console port
• Web and telnet management options available
• Automated provisioning via Datacenter Connection Manager (DCM)

Security:

• Port security based on 802.1x, web, mac authentication limits access to unwanted users
• Secured access through SSH and HTTPS (SSL), SFTP
• Offers RADIUS Authentication
• Offers TACACS+ Authentication
• Port security and mac address lockout for access control
• STP root guard and per-port broadcast throttling for protection against misbehaved traffic.

Models

HPE 6120XG Blade Switch

516733-B21

Compatibility

HPE ProLiant Servers

HPE ProLiant BL685c G7

HPE ProLiant BL685c G6

HPE ProLiant BL685c G5

HPE ProLiant BL680c G7

HPE ProLiant BL680c G5

HPE ProLiant BL660c Gen8

HPE ProLiant BL620c G7

HPE ProLiant BL495c G6

HPE ProLiant BL495c G5

HPE ProLiant BL490c G7

HPE ProLiant BL490c G6

HPE ProLiant BL480c

HPE ProLiant BL465c Gen8

HPE ProLiant BL465c G7

HPE ProLiant BL465c G6

HPE ProLiant BL465c G5

HPE ProLiant BL460c Gen9

HPE ProLiant BL460c Gen8

HPE ProLiant BL460c G7

HPE ProLiant BL460c G6

HPE ProLiant BL460c G5

HPE ProLiant BL460c

HPE ProLiant 420c Gen8

HPE ProLiant BL280c G6

HPE ProLiant BL260c G5

HPE ProLiant BL2x220c G7

HPE ProLiant BL2x220c G5

NOTE: Some servers listed above may be discontinued.

HPE Integrity Servers

HPE Integrity BL860c Server Blade

HPE Integrity BL860c i2 Server Blade

HPE Integrity BL860c i4 Server Blade

HPE Integrity BL870c Server Blade

HPE Integrity BL870c i2 Server Blade

HPE Integrity BL870c i4 Server Blade

HPE Integrity BL890c i2 Server Blade

HPE Integrity BL890c i4 Server Blade

NOTE: Some servers listed above may be discontinued.

HPE ProLiant BL c-Class
Server Blade Enclosures

HPE BladeSystem c3000 Enclosure

HPE BladeSystem c7000 Enclosure

Required Network
Cabling

10Gb

Multimode fiber cable; 62.5/125 or 50/125 microns
Singlemode fiber cable: 9/125 micron

The following CX4 cable lengths have been qualified and can be purchased directly from HPE. Please see the Related Options section of this QuickSpecs:

HPE BladeSystem c-Class .5m 10-GbE CX4 Cable
HPE BladeSystem c-Class 1m 10-GbE CX4 Cable
HPE BladeSystem c-Class 3m 10-GbE CX4 Cable
HPE BladeSystem c-Class 15m 10-GbE CX4 Cable

* 26m at 160MHz and 33m at 200MHz.
NOTE: For additional information on 10Gb cable specifications go to:
http://www.Hewlett Packard Enterprise.com/rnd/pdfs/10gig_cabling_technical_brief.pdf

Service and Support

HPE Pointnext operational services: Packaged server and storage services for increased uptime, productivity and ROI

When you buy HPE server and storage products and solutions, it's also a good time to think about what levels of support you may need. Our portfolio of service options reduce deployment and management worries while helping you get the most out of your server and storage investments. We take a holistic approach to your environment, bridging servers, blades, storage, software and network infrastructures with our packaged HPE Pointnext operational services for servers and storage.

Protect your business beyond warranty
When it comes to robustness and reliability, standard computing equipment warranties have matured along with technology. Good news that can also create problems stemming from depending on standard warranties designed to only protect against product defects and some downtime causes. Using a standard approach to warranty uplifts, such as HPE Pointnext operational services, helps reduce downtime risks and provides operational consistency for mission-critical and standard business computing.

HPE Pointnext operational services: Upgrading or extending standard server and storage warranties cost effectively
Hewlett Packard Enterprise recommends Proactive Care for your BladeSystem servers, enclosures and components to prevent problems with proactive advice and assistance, resolve issues and rapidly recover by connecting to The Hewlett Packard Enterprise enhanced call experience and advanced technical expertise. In addition with HPE Proactive Select, you can acquire the specific proactive constancy and technical services. HPE Proactive Select menu offers a broad set of service options that you can mix and match depending on your specific requirements. Proactive service options include offers for server, storage, network, SAN device, software, environment and education services.

HPE server and storage lifecycle support services offers a full spectrum of customer care-from technology support to complex migrations to complete managed services. HPE Factory Express provides customization, integration and deployment services for turnkey solutions. HPE Education Services offer flexible, comprehensive training on to help your IT staff get the most out of your server and storage investments. HPE Financial solutions extend innovative financing and cost-effective asset management programs-from purchase to equipment retirement.

Learn more: http://www.hp.com/services/servers and http://www.hp.com/services/storage

NOTE: Care Pack Services availability may vary by product and country.

HPE Pointnext operational services are sold by HPE and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find HPE Pointnext operational services at
  http://www.hp.com/go/lookuptool

Recommended HPE Pointnext operational services for optimal satisfaction with your HPE product

Recommended Services

Hardware Options Support

HPE Care Packs provide support for all HPE-branded hardware options qualified for inclusion in your server or storage solution. Any additional HPE-qualified options installed within the server are covered at the same service level and for the same period as the server and no additional cost.

The benefits include:

• Help improve or maintain system uptime
• Convenient onsite support
• Committed response time

https://www.hpe.com/h20195/v2/getpdf.aspx/5982-6547eee

3-Year Hewlett Packard Enterprise hardware Support Onsite Service, 4-hour response, 24x7

Provides you with rapid remote support and if required an Hewlett Packard Enterprise Authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.

This service provides a trained HPE service specialist to perform an installation that meets Hewlett Packard Enterprise quality standards, for:

• Help improve or maintain system uptime
• Convenient onsite support
• Committed response time

https://www.hpe.com/h20195/v2/getpdf.aspx/5982-6547eee

HPE Installation and Startup of HPE ProLiant Servers

Provides for the installation of your new HPE ProLiant server and operating system to assist you in bringing your new HPE ProLiant server and operating system into operation in a timely and professional manner.

This service provides a trained HPE service specialist to perform an installation that meets Hewlett Packard Enterprise quality standards, for:

• Delivery of the service at a mutually scheduled time convenient to your organization
• Availability of an HPE service specialist to answer basic questions during the onsite delivery of this service
• Custom installation as detailed in "Delivery specifications" or in a Statement of Work (SOW)
• Verification prior to installation that all service prerequisites are met

https://www.hpe.com/h20195/v2/getpdf.aspx/5982?7572enn

Optional HPE Pointnext operational services that will enhance your HPE product experience

Optional Services

3-Year Hewlett Packard Enterprise hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour

As an alternative to our recommended support level, for customers who need committed call-to-repair for server hardware.

Provides your IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 or 24 hours of the initial service request to the HPE Global Solution Center.

https://www.hpe.com/h20195/v2/getpdf.aspx/5982-6547en.pdf

HPE Proactive Select Service

Customer needs on demand access to consulting, technical proactive services and education courses

Provides a flexible way to purchase HPE best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months.

https://www.hpe.com/h20195/v2/getpdf.aspx/4aa2-3842enn

eSupport

HPE eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal
The HPE support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

• Access to self-solve tools (including search technical knowledge base)
• Efficient logging and tracking of support cases
• Collaboration with other business and IT professionals
• Download of patches and drivers
• Access to diagnostic tools
• Proactive notification of relevant information

Access to certain features of the support portal requires an HPE service agreement. To access the support portal, visit: http://www.hp.com/support

HPE Insight Remote Support software delivers secure remote support for your Hewlett Packard Enterprise servers and Storage, 24 X 7, so you can spend less time solving problems and more time focused on your business. You can have your systems remotely monitored for hardware failure using secure technology that's been proven at thousands of companies around the world. In many cases, you can avoid problems before they occur.

Customer Technical Training

HPE Education Services
In today's cost-conscious business environment, IT professionals, developers, consultants and users face an interesting challenge: how to keep up with the latest technologies and expand important skills while delivering profitable results on current projects. To help address this challenge, Hewlett Packard Enterprise offers innovative training solutions that help keep you up-to-date on virtualization, server, storage, Insight Control, Citrix, Microsoft® and open source/Linux-related topics-while spending less time away from business-critical activities.

HPE Services Awards

HPE Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction.

Additional Services Information

To learn more on HPE ProLiant servers, HPE BladeSystem servers and HPE storage products, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit http://www.hp.com/services/proliant or http://www.hp.com/services/bladesystem or http://www.hp.com/services/storage

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

HPE Cable and Transceiver Options

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 0.5m Direct Attach Copper Cable

487649-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 1m Direct Attach Copper Cable

487652-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable

537963-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 7m Direct Attach Copper Cable

487658-B21

HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver

455883-B21

HPE BladeSystem c-Class 10Gb SFP+ LR Transceiver

455886-B21

HPE BladeSystem c-Class 10Gb SFP+ LRM Transceiver

455889-B21

HPE BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver

453151-B21

HPE BladeSystem c-Class Virtual Connect 1G SFP RJ-45 Transceiver

453154-B21

HPN Cable and Transceiver Options

HPE X132 10G SFP+ LC SR Transceiver

J9150A

HPE X132 10G SFP+ LC LR Transceiver

J9151A

HPE X132 10G SFP+ LC LRM Transceiver

J9152A

HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HPE X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HP X242 10G SFP+ to SFP+ 10m Direct Attach Copper Cable

J9286B

HP X242 10G SFP+ to SFP+ 15m Direct Attach Copper Cable

J9287B

HPE Pointnext operational services

NOTE: The HPE Care Pack service part numbers below for ProLiant BL c-Class server blades, cover the server blade and all Hewlett Packard Enterprise branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.

Hardware Services On-site Service

HP 3year 4hour 13x5 c-Class Server Blade HW Support

UE458E

HP 3year 4hour 24x7 c-Class Server Blade Hardware Support

UE459E

HP 3year 6hour 24x7 Call to Repair c-Class Server Blade Hardware Support

UE460E

Support Plus 24

HP 3year SupportPlus24 Microsoft c-ClassServer Blade Service

UE473E

NOTE: HPE Pointnext operational services for the c7000 and c3000 Enclosure cover the enclosure, power supplies and fans. HPE qualified rack options are covered by these services when installed within the same rack. Hewlett Packard Enterprise supported c-Class enclosure devices including pass thru, Ethernet interconnect and virtual connect modules are also covered by the c7000 and c3000 enclosure Care Pack services.

NOTE: SAN/Fabric switches for the HPE c-Class BladeSystem are not covered under the c7000 and c3000 enclosure Care Packs, SAN/Fabric switches carry separate Care Packs. SAN/Fabric Switch Care Pack service level support should always be uplifted to match existing storage or server service level.

Hardware Support Services On-site Service

HPE 3 year Next business day c7000 Enclosure Hardware Support
NOTE: Uplifts the Ethernet devices to the same level of warranty as the c-class enclosure.

UE477E

HPE 3 year 4-Hour 24x7 c7000 Enclosure Hardware Support

UE479E

Installation & Start-up Services

HPE BladeSystem c7000 Infrastructure Startup Service

UE602E

HPE BladSys c7000 Encd Network Startup Service

UE603E

HPE Install c-Class Server Blade Service

UE493E

HPE Hardware Install c-Class Enclosure and Server Blade Service

UE494E

NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/bladesystemservices

Shipping Dimensions

Length

13.88 in (352.55 mm)

Width

10.63 in (270.00 mm)

Height

4.75 in (120.65 mm)

Shipping Weight

4.4 lbs (2.0 kg)

Product Specifications Hardware

Performance

80 Gbps external port bandwidth per BladeSystem enclosure (160 Gbps full duplex) 480Gb total throughput

Forwarding rate 357.1million pps (64-byte packets)

Non-blocking, full-wire speed for all connections Auto-MDI/MDIX, auto-negotiation and auto-sensing with full-duplex support.

Forwarding Mode

Configurable for Store and forward or Cut Through

Latency

1.8uS (FIF64 byte packets) (store and forward mode)

MAC Addresses

Supports 16K MAC addresses per switch in a BladeSystem Enclosure

Forwarding Table Age Time
(Maximum age)

1 to 1,000,000 seconds

(default: 300 seconds)

Jumbo Frame Support

9220 Byte

Multicast Groups

256

Memory

512 MB Main, 640MB flash and 2MB packet buffer per interconnect switch

Routing Table Size

*

Connectors and Cabling

Connector

8 10Gb SR, LR, or LRM fiber uplinks SFP+ slots

1 10Gb CX4

1 mini USB Management

16 x 10Gb downlinks midplane

2 x 10Gb cross connect

Cable Support

FCC Class A

ICES-003 Class A

AS/NZS 3548 Class A

VCCI Class A

Network Transfer Rate

10 Base-T (half-duplex)

10 Mbps

10 Base-T (full-duplex)

20 Mbps

100 Base-TX (half-duplex)

100 Mbps

100 Base-TX (full-duplex)

200 Mbps

1000 Base-TX (half and full-duplex)

2000 Mbps

10Gb (full duplex)

20000 Mbps

Indicators

Recessed Momentary Reset Switch
Momentary Next/Step Switch
Backlit port number and status indicator LED, one per bulkhead port, blue/amber/green
Module status indicator, amber/green
Module locator (UID), blue
Link indicator, one per CX4-port, green
Link indicator, one per SFP+-port, green/amber
USB port
Active multiplexed port indicator, green

Dimensions

Length

10.5 in (267.7 mm)

Width

7.5 in (192.79 mm)

Height

1.1 in (27.94 mm)

Weight

1.27 kg (2.8 lbs)

Environmental Ranges

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Non-operating

-40° to 140° F (-40° to 60° C)

Relative Humidity
(non-condensing)

Operating 10% to 90%

Power Specification

Power Requirements

12V @ 8.75A (105 W) (per interconnect switch)

Product Specifications Software

Security Features

SSHV2, TACACS and TACACS+

VLANs can be configured to provide segregation for data - improving bandwidth, performance and limiting traffic to its designated domains. The Switch also provides secured access through SSH v2, protecting against IP spoofing as well as DNS spoofing. Support of HTTPS, RADIUS TACACS and TACACS+ enables users to meet their security requirements.

Spanning Tree Features

802.1d, 802.1w, 802.1 s

Industry standard Spanning Tree provides redundancy and the loop avoidance capabilities to keep the network not only up, but operating at peak performance.

Based on the industry standard 802.1w, Rapid Spanning Tree Protocol (RSTP) offers fast convergence - reducing packet loss and downtime in high-availability and high resilient networks. Industry-standard based RSTP offers instant failover to secondary links in an unlikely event of primary link failure.
This switch also offers Multiple Spanning Tree Protocol (MSTP; 802.1s) for seamless integration into networks running 802.1s. Multiple Spanning Tree enables networks to utilize individual uplinks for separate VLANs thus improving the overall performance of the network. Up to 16 Spanning Tree Groups (STGs) are supported.

Trunking Features

802.3 ad

Reduced downtime in an unlikely event of link failure by supporting link aggregation protocol. This link aggregation is compatible with Cisco Etherchannel® thus providing seamless integration into Cisco® based networks.

VLAN Features

VLANs (802.1Q) can be configured to provide segregation for data - improving bandwidth, performance and limiting traffic to its designated domains.

Management Features

This switch provides multiple easy-to-use configuration and management options. The management interface enables administrators to easily configure the most advanced features such as Rapid Spanning Tree and SNMP management by pointing and clicking.

The switch also enables sophisticated administrators to configure and manage the switch through SNMP. Full Support is provided for SNMP v1,v2c and v3.

QoS Features

Data can be classified into 2, 4, or 8 hardware priority queues to ensure maximum bandwidth availability for time sensitive and mission critical traffic.

Data can be prioritized based on 802.1p CoS and DSCP.
Priority can be assigned per vlan, per port, and globally.

Data can be easily reclassified from 802.1p to DSCP or from DSCP to 802.1.

The HPE 6120XG Blade Switch adheres to a strict queue mechanism to ensure important business-sensitive traffic is delivered ahead of other traffic.

Converged Fabric Features

The HPE 6120XG supports Converged Enhanced Ethernet (also referred to as Data Center Bridging) on all 24 ports.

NOTE: Converged Enhanced Ethernet requires the purchase of the following FW license: HPE 6120XG Switch CEE License (PN 608074-B21).

NOTE: Converged Enhanced Ethernet requires the use of a G7 server with a FlexFabric LOM or the addition of the NC551m or NC553m FlexFabric Adapters.

Standards Support

IEEE 802.1D MAC
Bridges

Supported
16K MAC entries
2MB Packet memory
640 MB flash memory

IEEE 802.1p Priority

Supported
4 default HW queues to map to 8 802.1p packet priority queues (can be configured for 2, 4, or 8 hardware queues to be mapped to 8 802.1p priority queues)

IEEE 802.1Q VLANs

Supported
1024 VLANs, 4K VLAN IDs
802.1Q Tagged VLAN
GVRP is supported for VLAN registration

IEEE 802.1v VLAN classification by Protocol Port

Support is for 3 protocols per port

VLAN Classification by IP, MAC

Not Supported
NOTE: This is the ability to auto classify VLAN membership of a frame via its IP, or its MAC.

QoS

Supported for DSCP, CoS

IEEE 802.1w Rapid Reconfiguration of Spanning Tree

Supported
32 Spanning Tree Instances in FW
RPVST+ not supported

IEEE 802.1s Multiple Spanning Tree

Supported
32 MSTP Instances
PVSTP+ is not supported

BPDU Protection
and STP root guard

Supported
BPDU guard
STP root guard

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

Supported
Up to 24 trunks with 8 members per trunk
LACP is supported

IEEE 802.3x Flow Control

Supported
Auto Negotiation is also supported

RFC 792 ICMP

Supported

Rate Limiting

Ingress Rate Limiting supported

Broadcast Throttling

Supported
One global configuration for all the ports

RFC 951 BOOTP & RFC 1542 BOOTP Extensions

Supported
Includes DHCP on OA port

RFC 2030 Simple Network Time Protocol (SNTP)

Supported
Includes configurable Daylight Savings
Timep supported

RFC 2131 DHCP

Supported

QoS (COS, TOS, DSCP)

Supported

TFTP, SFTP

Supported
(FTP not supported)

Uni-Directional Link Detection

Supported

IPv6 Host
IPv4 Static Routes
RIPv2
Uplink Failure Detection

Supported
Supported (256 routes)
Supported
Supported

Converged Enhanced Ethernet

802.1Qaz - Data Center Bridging Capability Exchange Protocol (DCBX)

Proposal 1.01, Nov 2008**

802.1Qbb - Priority-based Flow Control;

Draft 1.2, Dec 2009

802.1Qaz - Enhanced Transmission Selection;

Proposal 1.01, Nov 2008; Draft 1.1, Nov 2009

CEE support on trunked ports

Supported

IP Multicast

RFC 3376 IGMPv3 (Data Driven)

Full IGMP v1, v2

Network Management

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

Supported

ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)

Supported

RFC 3164 BSD syslog Protocol

Supported
Up to 6 syslog servers

SNMPv1/v2c/v3

Supported

Device Management

HTML and telnet management

Supported

Authorized Managers List

Supported

Onboard Administrator ISMIC integration (musts per spec)

Supported

Security

IEEE 802.1X Port Based Network Access Control

Supported
Up to 32 users on a single port

Web Authentication

Supported
NOTE: This is used to login to the network port, not to the HTML web agent on the switch.

Mac Authentication

Supported

Concurrent 802.1X, Web, and MAC auth

Supported

TACACS+ & RADIUS

Supported

Secure Sockets Layer (SSL)

Supported

SSHv1/SSHv2 Secure Shell

Supported
NOTE: Also supports SCP for configuration and FW downloads.

Port Security, MAC Address lock down, MAC Address Lock outs

Supported

DHCP Snooping
Dynamic ARP protect
CLI ACLs
IDM ACLs

Supported
Supported
Supported
Supported

Monitor and Diagnostics

Port Mirroring

Supported

RFC3176 SFlow

Supported

RMON

Supported
RMON V1/V2
NOTE: Groups supported are Statistics, history, alarms, and events.

Safety and Compliance
Safety Certifications

TUV to UL 60950-1, and CAN/CSA C22.2 No. 60950-1 and to EN 60950-1

CE Marking

RoHS 6/6 compliant

Electromagnetic Emissions Certifications FCC Part 15 Class A

FCC Part 15 Class A

EN 55022: 1998 (CISPR22)

EN 55024: 1998 (CISPR24)

VCCI Class A

AS/NZS 3548 Class A CE

CNS 13438 Class A MIC

MIC

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

23-Oct-2017

From Version 16 to 17

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

21-Oct-2016

From Version 15 to 16

Changed

Rebranding edition.

15-Nov-2014

From Version 14 to 15

Changed

Compatibility section was updated.

18-Apr-2014

From Version 13 to 14

Changed

Service and Support was revised.

16-Aug-2013

From Version 12 to 13

Changed

Changes made in the Compatibility Section and Service and Support Section

05-Jul-2013

From Version 11 to 12

Changed

Changes made to the Related Options Section - HPE Cable and Transceiver Options

12-Oct-2012

From Version 10 to 11

Changed

Change made to URL in Service and Support section.

17-Aug-2012

From Version 9 to 10

Changed

Changes made in Compatibility section.

27-Mar-2012

From Version 8 to 9

Added

HPE X242 SFP+ to SFP+ 10m Direct Attach Copper Cable and HPE X242 SFP+ to SFP+ 15m Direct Attach Copper Cable were added.

20-Jun-2011

From Version 7 to 8

Changed

Related Options descriptions were revised

ProCurve and StorageWorks were removed

15-Nov-2010

From Version 6 to 7

Changed

Changes were made throughout the QuickSpecs.

05-Oct-2010

From Version 5 to 6

Changed

Changes were made throughout the QuickSpecs.

17-Aug-2010

From Version 4 to 5

Changed

Only PDF formatting changes were made.

25-Jun-2010

From Version 3 to 4

Changed

HPE ProLiant Servers were completely revised and HPE Integrity BL860c i2, BL870c i2 and BL890c i2 were added to Compatibility.

20-Nov-2009

From Version 2 to 3

Added

HPE ProLiant BL2x220c G5 was added to Compatibility.

Changed

Cabling and Transceiver Options were revised and Performance was updated in Product Specifications Hardware.

06-Nov-2009

From Version 1 to 2

Changed

Part numbers for HPE ProCurve 10-GbE SFP+-SFP+ 1m, 3m, and 7m Direct Attach Cables were updated in cabling and Transceiver Options.
