В архивеOverview
|
HPE 10GbE Pass-Thru Module | |||
|
The HPE 10GbE Pass-Thru Module is designed for c-Class BladeSystem customers requiring a non-blocking, one-to-one connection between each server and the network. The pass-thru module provides 16 uplink ports that accept both SFP and SFP+ transceivers. | |||
|
| |||
|

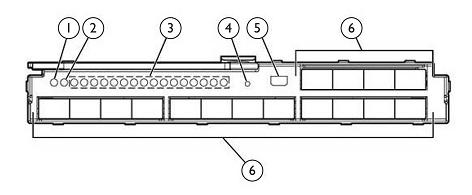

HPE 10GbE Pass-Thru Module | |||
|
1. |
UID LED |
4. |
Reset Button |
|
2. |
Health LED |
5. |
Mini USB RS-232 (reserved) |
|
3. |
Ethernet port link status and speed LEDs |
6. |
Uplinks ports that accept SFP and SFP+ transceiver modules and Direct Attach Cables (DAC) |
|
| |||
|
What's New | |||
| |||
|
| |||
|
At A Glance | |||
|
Performance:
Management:
| |||
Models and Options
|
Models | |
|
HPE 10GbE Ethernet Pass-Thru Module II for c-Class BladeSystem |
854194-B21 |
|
HPE 10GbE Ethernet Pass-Thru TAA-compliant Module II for c-Class BladeSystem |
854194-B22 |
Compatibility
|
ProLiant BL c-Class |
|
|
HPE c-Class Mezzanine Adapters |
NOTE: Some adapters listed above may be discontinued. |
|
Cabling and Transceivers |
SFP+ Direct attached cables:
NOTE: The above cables have been tested and verified to work with the HPE 10GbE Pass-Thru Module. However, the module will accept cables from any vendor. Hewlett Packard Enterprise does not guarantee the performance of non HPE cables and users may receive a warning message via the CLI when a non-verified cable has been inserted.
NOTE: Only HPE transceivers listed above may be used in the HPE 10GbE Pass-Thru Module. |
Service and Support
|
Service and Support |
HPE Technology Services When you buy HPE BladeSystem Options for your HPE BladeSystem, it is also good time to think about services. HPE Technology Services offers you technical consultants and support expertise to solve your most complex infrastructure problems, giving you one call to make, fast answers, and global reach. We help keep your business running, boost availability, and avoid downtime.
Protect your business beyond warranty with HPE Pointnext operational services HPE Pointnext operational services provide total care and support expertise with committed response choices designed to meet your IT and business needs.
HPE Foundation Care services offer scalable, reactive support-packages for Hewlett Packard Enterprise industry-standard servers and software. You can choose the type and level of service that is most suitable for your IT and business needs. HPE Collaborative Support offers hardware and basic software support with enhanced call management. If you are running business critical environments, Hewlett Packard Enterprise offers Proactive Care. This service helps you deliver high levels of system availability through proactive service management and advanced technical response. |
|
Recommended HPE Pointnext operational services for your HPE product | |
|
Optimized Care |
3- Year HPE Foundation Care CTR HPE Foundation Care Call-To-Repair Service connects you to HPE around the clock for assistance on resolving issues -this includes our commitment to repair hardware within six hours after opening your case and response to software questions within two hours. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW HPE Installation of ProLiant Add On Options Service This easy-to-buy, easy-to-use HPE Care Pack service helps ensure that your new Hewlett Packard Enterprise hardware is installed smoothly, efficiently, and with minimal disruption of your IT and business operations |
|
Standard Care |
3-Year HPE Foundation Care 24x7 HPE Foundation Care 24x7 connects you to HPE around the clock for assistance on resolving issues - hardware onsite response within four hours and software call back within two hours after opening your case. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW HPE Installation of ProLiant Add On Options Service This easy-to-buy, easy-to-use HPE Care Pack service helps ensure that your new Hewlett Packard Enterprise hardware is installed smoothly, efficiently, and with minimal disruption of your IT and business operations. |
|
Related Services |
HPE Installation and Startup Service for HPE BladeSystem c-Class Enhanced Network Hewlett Packard Enterprise provides for the configuration and testing of BladeSystem Ethernet interconnect switches to facilitate proper implementation of network protocols and access to advanced features. https://www.hpe.com/h20195/V2/GetPDF.aspx/4aa0-5969ENW.pdf HPE Proactive Select Service Provides a flexible way to purchase HPE best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months. https://www.hpe.com/h20195/V2/GetPDF.aspx/4AA2-3842ENN.pdf NOTE: Additional HPE Pointnext operational services can be found at: https://ssc.hpe.com |
|
Insight Remote Support |
HPE Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. This comes at no additional cost with your HPE solution. Learn more about Insight Remote Support and Insight Online. NOTE: Insight Remote Support is a prerequisite for HPE Proactive Care |
|
Parts and materials |
Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
For more information |
To learn more about HPE BladeSystem services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized ServiceONE Channel Partner. Or visit: http://www.hpe.com/services/bladesystem |
Related Options
|
Cabling and Transceivers |
SFP+ Direct attached cables |
|
|
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 1m Direct Attach Copper Cable |
487652-B21 | |
|
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable |
487655-B21 | |
|
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable |
537963-B21 | |
|
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 7m Direct Attach Copper Cable |
487658-B21 | |
|
Transceivers |
| |
|
HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver |
455883-B21 | |
|
HPE BladeSystem c-Class 10Gb SFP+ LR Transceiver |
455886-B21 | |
|
HPE BladeSystem c-Class 10Gb SFP+ LRM Transceiver |
455889-B21 | |
|
HPE 10GBase-T SFP+ Transceiver |
813874-B21 | |
|
HPE BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver |
453151-B21 | |
|
HPE BladeSystem c-Class Virtual Connect 1G SFP RJ-45 Transceiver |
453154-B21 | |
|
Service and Support Offerings |
NOTE: HPE Pointnext operational services for the c7000 and c3000 Enclosure cover the enclosure, power supplies and fans. HPE qualified rack options are covered by these services when installed within the same rack. Hewlett Packard Enterprise supported c-Class enclosure devices including pass thru, Ethernet interconnect and virtual connect modules are also covered by the c7000 and c3000 enclosure Care Pack services. |
|
|
Hardware Support Services On-site Service |
| |
|
HPE 3 year Next business day c7000 Enclosure Hardware Support |
UE477E | |
|
NOTE: Uplifts the Ethernet devices to the same level of warranty as the c-class enclosure. |
| |
|
HPE 3 year 4-Hour 24x7 c7000 Enclosure Hardware Support |
UE479E | |
|
Installation & Start-up Services |
| |
|
HPE BladeSystem c7000 Infrastructure Startup Service |
UE602E | |
|
HPE BladSys c7000 Encd Network Startup Service |
UE603E | |
|
HPE Install c-Class Server Blade Service |
UE493E | |
|
HPE Hardware Install c-Class Enclosure and Server Blade Service |
UE494E | |
|
NOTE: For more information, customer/resellers can contact: https://www.hpe.com/us/en/integrated-systems/bladesystem.html |
|
Technical Specifications
|
Shipping Dimensions |
Length |
21.7 in (551 mm) | |
|
Width |
17.0 in (432 mm) | ||
|
Height |
5.5 in. (140 mm) | ||
|
Shipping Weight |
|
4.47 kg (9.85 lbs) | |
|
Product Specifications Hardware |
Performance |
320 Gbps external port bandwidth per module | |
|
Measured latency under 536nS per port @ 10Gb | |||
|
Line rate 10Gb full-wire speed performance | |||
|
Auto-negotiation and auto-sensing with full-duplex support | |||
|
Connectors and Cabling |
Uplink Ports |
16 SFP/SFP+ Modules | |
|
Management |
Mini-USB Management | ||
|
Network Transfer Rate |
1 Gbps Port (2,000 Mbps full duplex) | ||
|
10 Gbps port (20,000 Mbps full duplex) | |||
|
LED Indicators |
UID LED |
Blue light on module is activated. | |
|
Health LED |
Off: The pass-thru module is powered off. | ||
|
Ethernet port |
Green Link is 10G | ||
|
Product Dimensions |
Length |
10.54 in (267.7 mm) | |
|
Width |
7.59 in (192.8 mm) | ||
|
Height |
1.1 in (27.9mm) | ||
|
Product Weight |
3.65 kg (8.04 lbs) | ||
|
Environmental Ranges |
Operating Temperature 50° to 95° F (10° to 35° C) | ||
|
Non-operating Temperature -40° to 158° F (-40° to 70° C) | |||
|
Relative Humidity (non-condensing) Operating 5% to 95% | |||
|
Power Specification |
Power Requirements 12VDC: 5A, 60W maximum | ||
|
Safety and Compliance |
TUV to UL 60950-1, and CAN/CSA C22.2 No. 60950-1 and to EN 60950-1 | ||
|
CE Marking | |||
|
RoHS 6/6 compliant | |||
|
Electromagnetic Emissions Certifications FCC Part 15 Class A |
FCC Part 15 Class A | ||
|
EN 55022: 1998 (CISPR22) | |||
|
EN 55024: 1998 (CISPR24) | |||
|
VCCI Class A | |||
|
AS/NZS 3548 Class A CE | |||
|
CNS 13438 Class A MIC | |||
|
MIC | |||
|
| |||
|
Environment-friendly Products and Approach |
End-of-life Management and Recycling |
Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/info/recycle. To recycle your product, please go to: http://www.hpe.com/info/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. | |
Summary of Changes
|
Date |
Version History |
Action |
Description of Change | ||||||||||||||||||
|
23-Oct-2017 |
Version 3 |
Changed |
Care Pack naming and Service and Support- Parts and Materials updated. | ||||||||||||||||||
|
05-Jun-2017 |
From Version 1 to 2 |
Added |
SKU added in Models and Options section: 854194-B22. | ||||||||||||||||||
|
8-May-2017 |
Version 1 |
Created |
New QuickSpecs | ||||||||||||||||||
| |||||||||||||||||||||
