Cisco Fabric Extender for HPE BladeSystem

The Cisco Fabric Extender for HPE BladeSystem (Model B22HP) provides an extension of the Cisco Nexus switch fabric to the HPE server edge. Logically, it behaves like a remote line card to a parent Cisco Nexus 5000/6000/7000 series switch with the Fabric Extender and the parent Nexus together forming a distributed modular system. The Cisco Fabric Extender for HPE BladeSystem forwards traffic to the parent Cisco Nexus Series Switch over eight 10 Gigabit Ethernet uplinks.

Low-cost uplink connections up to 10 meters can be made with copper Twin-ax cable, and longer connections up to 100 meters can use the Fabric Extender Transceiver. Standard 10Gb optics such as SR and LR are also supported.

Downlinks to each server are auto-negotiating and work with all HPE Ethernet and CNA modules allowing customers a choice of Ethernet, FCoE or iSCSI connections. Being a seamless extension of the Nexus Switch allows traffic to be switched according to policies established by the parent Nexus Series Switch with a single point of management.

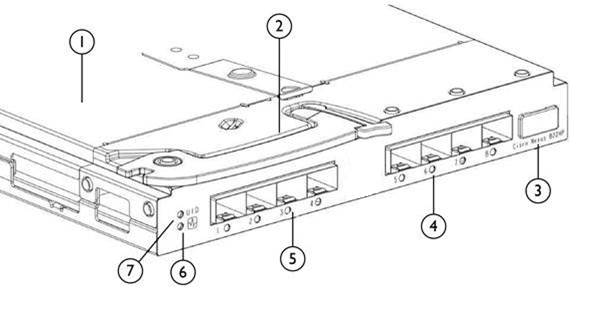

Cisco Fabric Extender for HPE BladeSystem (Model B22HP)

1.

Switch Module

5.

SFP+ 10Gbps Fabric Interfaces

2.

Release Latch

6.

Health LED

3.

Management Port (covered)

7.

UID LED

4.

Port Status LEDs

Models

HPE Cisco B22HP Fabric Extender for BladeSystem c-Class

641146-B21

HPE Cisco B22HP Fabric Extender with 16 FET for BladeSystem c-Class

657787-B21

NOTE: The Cisco Fabric Extender for HPE BladeSystem with 16 FET - (PN 657787-B21), comes packaged with 16 Cisco Fabric Extender Transceivers. These Cisco transceivers can be used to connect the Fabric Extender with a parent Nexus 5000/6000/7000 over optical cable up to 100 meters using OM3 grade fiber.

Standard Features

Performance

• Sixteen 1Gb/10Gb downlinks

- Each Ethernet downlink supports FibreChannel over Ethernet (FCoE), Datacenter Bridging (DCB), and iSCSI

• Each Ethernet downlink can autonegotiate to 1Gb to support legacy NICs and/or Wake On LAN Eight 10Gb uplinks

- Each Fabric uplink carries both Ethernet and FibreChannel over Ethernet (FCoE) traffic

- Fabric uplinks support .5m/1m/3m/5m/7m/10m twinax, Fabric Extender Tranceiver (FET-10G), 10Gbase-SR, and 10Gbase-LR optics

• Up to 48 Fabric Extenders can be managed by a single Nexus 5000/6000/7000 series switch

- Nexus 5010/5020 supports up to 16 Fabric Extenders

- Nexus 5548/5596 supports up to 24 Fabric Extenders (L2) and 16 Fabric Extenders (L3)

- Nexus 6001 supports up to 14 Fabric Extenders

- Nexus 6001 supports up to 48 Fabric Extenders (L2) and 24 Fabric Extenders (L3)

- Nexus 7000 supports 32 - 64 Fabric Extenders

• Ports support Ethernet, iSCSI and DCB protocols

Management

• Centralized Management - All configuration & monitoring performed on parent Nexus switch

- Up to 48 Fabric Extenders can be managed by a single Nexus 5000/6000/7000 series switch

• Nexus 5010/5020 supports up to 16 Fabric Extenders
• Nexus 5548/5596 supports up to 24 Fabric Extenders (L2) and 16 Fabric Extenders (L3)
• Nexus 6001 supports up to 14 Fabric Extenders
• Nexus 6001 supports up to 48 Fabric Extenders (L2) and 24 Fabric Extenders (L3)
• Nexus 7000 supports 32 - 64 Fabric Extenders
• Supported by CiscoWorks and Cisco Data Center Network Manager
• Support for SNMP V1, V2, V3
• XML (Netconf) support

Compatibility

HPE ProLiant Servers

HPE ProLiant BL2x220c G7
HPE ProLiant BL280c G6
HPE ProLiant BL420c Gen8

HPE ProLiant BL460c Gen10

HPE ProLiant BL460c Gen9
HPE ProLiant BL460c Gen8
HPE ProLiant BL460c G7
HPE ProLiant BL460c G6
HPE ProLiant BL465c Gen8
HPE ProLiant BL465c G7
HPE ProLiant BL465 G6
HPE ProLiant BL490c G7
HPE ProLiant BL490c G6
HPE ProLiant BL495c G6
HPE ProLiant BL620c G7
HPE ProLiant BL660c Gen8

HPE ProLiant BL660c Gen9
HPE ProLiant BL680c G7
HPE ProLiant BL685c G7
HPE ProLiant BL685 G6
NOTE: Some servers listed above may be discontinued.

HPE ProLiant Workstation Servers

HPE ProLiant WS460 Gen9

HPE ProLiant WS460 Gen8
HPE ProLiant WS460 G6

HPE Integrity Servers

HPE Integrity BL860c Server Blade
HPE Integrity BL860c i2 Server Blade
HPE Integrity BL860c i4 Server Blade
HPE Integrity BL870c Server Blade
HPE Integrity BL870c i2 Server Blade
HPE Integrity BL870c i4 Server Blade
HPE Integrity BL890c i2 Server Blade
HPE Integrity BL890c i4 Server Blade
HPE Integrity Superdome 2
NOTE: Some servers listed above may be discontinued.

HPE ProLiant c-Class
Server Blade Enclosures

HPE BladeSystem c3000 Enclosure
HPE BladeSystem c7000 Enclosure

Cisco Network Switches

Cisco Nexus 5010
Cisco Nexus 5020
Cisco Nexus 5548P
Cisco Nexus 5548UP
Cisco Nexus 5596UP
Cisco Nexus 6001UP
Cisco Nexus 6004 UP
Cisco Neuxs 7004
Cisco Nexus 7009
Cisco Nexus 7010
Cisco Nexus 7018

Cisco Nexus 7700

Cisco Nexus 7706

Cisco Nexus 7710

Cisco Nexus 7718

Cisco Nexus 9396

Network Cabling

10Gb

Multimode fiber cable; 62.5/125 or 50/125 microns
Singlemode fiber cable: 9/125 micron
TwinAx Copper

NOTE: Feature support for the Cisco Fabric Extender for Hewlett Packard Enterprise is mainly derived from the parent switch feature set. Therefore, consult the appropriate Cisco Nexus switch series data sheet, release notes, and configuration guides for a comprehensive list of feature supported. Table 1 lists the hardware capabilities of the Cisco Nexus Fabric Extender for HPE BladeSystem. For more information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at: http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Interfaces

• Sixteen internal 1/10 Gigabit Ethernet/FibreChannel over Ethernet ports
• Eight external 10 Gigabit Ethernet/FCoE Fabric Interfaces
• External Fabric Interfaces support a wide range of transceivers:

- Fabric Extender Transceiver

- 10Gbase-SR optic

- 10Gbase-LR optic

• Copper twin-ax cables, .5/1/3/5/7/10m



Enhanced Ethernet

• Support for Data Center Bridging (DCB) suite



Quality of service (QoS)

• Layer 2 IEEE 802.1p (class of service [CoS])
• 8 hardware queues per port
• Per-port QoS configuration
• Local policing (64 policers)
• CoS trust
• Configurable tail-drop threshold
• Egress strict-priority queuing
• Egress port-based scheduling:

- Weighted Round Robin (WRR)

High availability

• Uplink traffic management through Cisco EtherChannel hashing or static port pinning
• vPCs for dual-homed active-active connectivity across two Cisco Nexus 5000/6000/7000 Series Switches
• vPCs for dual-homed straight-through NIC connectivity across two Cisco Series Fabric Extenders

• In-Service Software Upgrade (ISSU)



Security

• Local classification (256 access control list [ACL] entries)



Management

• Fabric extender management using in-band management
• UID and Health LEDs
• Syslog
• Simple Network Management Protocol Versions 1, 2, and 3 (SNMP v1, v2, and v3)
• Enhanced SNMP MIB support
• XML (NETCONF) support
• Remote monitoring (RMON)
• Cisco Discovery Protocol Versions 1 and 2
• Switched Port Analyzer (SPAN) source on server ports
• Power-on self-test (POST)
• Cisco Generic Online Diagnostics (GOLD): Ethernet
• Comprehensive boot-up diagnostic tests
• CiscoWorks

• Cisco Data Center Network Manager (DCNM); the Cisco Fabric Extender is managed through the parent Cisco Nexus Series Switch using Cisco DCNM and standard SNMP, XML interfaces, and command-line interface (CLI)



Configuration MIBs

• ENTITY-MIB
• IF-MIB
• FABRIC-EXTENDER MIB
• CISCO-ENTITY-EXT-MIB
• CISCO-ENTITY-FRU-CONTROL-MIB
• CISCO-ENTITY-SENSOR-MIB

• CISCO-ETHERNET-FABRIC-EXTENDER-MIB



Monitoring MIBs

• RMON-MIB



Industry standards

• IEEE 802.1p: CoS prioritization
• IEEE 802.1Q: VLAN tagging
• IEEE 802.3: Ethernet
• IEEE 802.3ae: 10 Gigabit Ethernet
• IEEE 802.3ap: 10GBase-KR
• SFF 8431 SFP+ support
• 10GBASE-SR
• 10GBASE-LR
• RMON

• SFF-8461

Service and Support

NOTE: The Cisco Fabric Extender is an extension of the Nexus fabric, therefore primary support for the Fabric Extender comes from the support package applied to the Nexus switch. Customers who have a Cisco Smartnet contract on the parent Nexus switch should consider Cisco for all first line support calls. For more information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at: http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

HPE Technology Services
HPE Technology Services offers you consultants and support experts to solve your most complex infrastructure problems. We help keep your business running, boost availability and avoid downtime.

Protect your business beyond warranty with HPE Pointnext operational services
When you buy HPE Options, it's also a good time to think about what level of service you may need. HPE Pointnext operational services provide total care and support expertise with committed response choices designed to meet your IT and business need.

Recommended Services

Recommended HPE Pointnext operational services for optimal satisfaction with your HPE product
3-Year HPE 24x7 4 hour Response, Hardware Support Onsite Service
Provides you with rapid remote support and if required an Hewlett Packard Enterprise authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.

https://www.hpe.com/h20195/v2/getpdf.aspx/5982-6547eee.pdf
HPE ProLiant Server Hardware Installation
Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Related Services

Related HPE Pointnext operational services to enhance your HPE product experience
3-Year HPE 6 hour Hardware Support Onsite Call-to-Repair Service
Provides an IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 hours of the initial service request to the HPE Global Solution Center.
https://www.hpe.com/h20195/v2/getpdf.aspx/5982-6547en.pdf

HPE Proactive Select Service
Provides a flexible way to purchase Hewlett Packard Enterprise best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months.

Insight Remote Support

Delivers secure remote monitoring and support for Hewlett Packard Enterprise servers and storage, 24x7 at no additional cost. Available as part of Hewlett Packard Enterprise Warranty, Care Pack and Service Contract offers.

Parts and materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Coverage

For BladeSystem enclosures, this service covers the enclosure, power supplies, fans, enclosure devices, and options not designated by Hewlett Packard Enterprise as requiring separate coverage.

For more information

To learn more on services for HPE ESSN Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: https://www.hpe.com/us/en/support.html or https://www.hpe.com/us/en/services/operational.html

Connection Options

HPE C-series 10GbE Short Range SFP+ Transceiver

AP783A

HPE C-series SFP+ to SFP+ Active Copper 7.0m Direct Attach Cable

QK701A

HPE C-series SFP+ to SFP+ Active Copper 10.0m Direct Attach Cable

QK702A

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable

537963-B21

NOTE: HPE BladeSystem cables listed above may report an "Unknown Cable" message on the Cisco Nexus switch log depending on NX version. Cable is still usable.
NOTE: Additional Cisco SFP+ module types may be procured directly from Cisco for customers wishing to use standard LR optical connections between the Fabric Extender and the Nexus Switch

Service and Support Offerings (HPE Pointnext operational services)

NOTE: For hardware replacement under warranty or HPE Pointnext operational services, contact Hewlett Packard Enterprise.

NOTE: SAN/Fabric switches for the HPE c-Class BladeSystem are not covered under the c7000 enclosure HPE Pointnext operational, SAN/Fabric switches carry separate HPE Pointnext operational. SAN/Fabric Switch Care Pack service level support should always be uplifted to match existing storage or server service level.

Hardware Support Services On-site Service

c7000 HPE Pointnext operational services

HPE 3 year Next business day c7000 Enclosure Hardware Support

UE477E

HPE 3 year 4-Hour 24x7 c7000 Enclosure Hardware Support

UE479E

Support Plus 24

HP 3 year Support Plus 24 Insight Control Linux Edition BladeSystem c7000 Service

UH321E

Hardware Services On-site Service

c3000 HPE Pointnext operational services

HPE 3 year Next business day c3000 Enclosure Hardware Support

UH309E

HPE 3 year 4-Hour 24x7 c3000 Enclosure Hardware Support

UH311E

Installation & Start-up Services

HPE BladeSystem c7000 Infrastructure Startup Service

UE602E

HPE BladeSystem c3000 Infrastructure Startup Service

UF817E

HPE BladeSystem c3000 + OS Startup Service

UF818E

HPE BladSys c7000 Encd Network Startup Service

UE603E

HPE BladSys c3000 Encd Network Startup Service

UF814E

HPE Install c-Class Server Blade Service

UE493E

HPE Hardware Install c-Class Enclosure and Server Blade Service

UE494E

NOTE: For more information, customer/resellers can contact https://www.hpe.com/us/en/services/operational.html

Shipping Dimensions

Length

13.88 in (352.55mm)

Width

10.63 in (270.00mm)

Height

4.75 in (120.65mm)

Shipping Weight

2.0kg (4.4lbs)

Product Specifications Hardware

Connectors and Cabling

Cisco Fabric Extender for HPE BladeSystem

• Sixteen internal 1/10 Gigabit Ethernet/FibreChannel over Ethernet/iSCSI ports
• Eight external 10 Gigabit Ethernet/iSCSI/FCoE Fabric Interfaces - SFP+ type connectors
• External Fabric Interfaces support a wide range of transceivers:

- Fabric Extender Transceiver

- 10Gbase-SR optic

- 10Gbase-LR optic

• Copper twin-ax cables, .5/1/3/5/7/10m

Indicators

Total of 10 LEDs on the face place

• 8 LEDs for uplink port status
• 2 HPE specific LEDs to indicate Health and UID status

System Unit

Dimensions
(L x W x D)

10.5in x 7.5 in x 1.1 in
267.7mm x 92.79mm x 27.94mm

Weight

1.27kg (2.8 lbs)

Environmental Ranges

Temperature Range

Operating Temperature

50° to 104° F (10° to 40° C)

Storage Temperature

-40° to 140° F (-40° to 60° C)

Operating Relative Humidity
(non-condensing)

10 to 95%

Storage Relative Humidity
(non-condensing)

5 to 95%

Power Specifications

12V @ 6A (72 W)

Max (70 watts Typical)

Safety and
Compliance

Safety Certifications

CSA certified to UL/CSA 60950-1

CB report and certificate to IEC 60950-1 with all country deviations

CE Marking

Electromagnetic Emissions Certifications FCC Part 15 Class A

FCC Part 15 Class A

EN 55022 Class A (CISPR22 Class A)

VCCI Class A

AS/NZS 3548 Class A or AS/NZS CISPR22 Class A

KCC Class A

BSMI Class A

CE Marking

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: https://www.hpe.com/us/en/about/environment/product-recycling.html. To recycle your product, please go to: https://www.hpe.com/us/en/about/environment/product-recycling.html or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: https://www.hpe.com/us/en/about/environment/product-recycling.html. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

03-Jun-2019

Version 17

Removed

Models and Options and Related Options sections were updated. Obsolete SKUS were deleted: AT135A, AT136A, 487652-B21.

05-Nov-2018

Version 16

Changed

Standard features section was updated.

Removed

Obsolete SKU was deleted: 487649-B21

23-Oct-2017

Version 15

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

17-Dec-2015

Version 14

Changed

Standard Features section was updated.

Removed

Obsolete SKUs deleted: UE478E, UE480E, UH322E, UH323E, UH310E, UH312, UF540E

12-Dec-2014

Version 13

Changed

Cisco Network Switched added: Cisco Nexus 7706, Cisco Nexus 7710, Cisco Nexus 7718.

15-Nov-2014

Version 12

Changed

Compatibility section was updated

10-Oct-2014

Version 11

Added

Cisco Network Switched added: Cisco Nexus 7700, Cisco Nexus 9396

13-Aug-2014

Version 10

Changed

Connection Options updated

08-Nov-2013

Version 9

Changed

Changes made throughout the QuickSpecs except for the Technical Specifications section.

26-Apr-2013

Version 8

Changed

Standard Features: Updated HPE Integrity Servers section of the Compatibility section.

15-Mar-2013

Version 7

Added

Compatibility: Added HPE ProLiant BL660c Gen8 to the HPE ProLiant Severs section.

09-Nov-2012

Version 6

Changed

Changes made in Standard Features section.

11-May-2012

Version 5

Changed

Change made in the Compatibility section.

27-Mar-2012

Version 2

Changed

Changes were within the Standard Features section.

26-Sep-2011

Version 1

Created

New QuickSpecs
