Overview
|
HPE Adapters with Intel OPA HPE Adapters with Intel OPA is designed to provide a high-performance and scalable fabric for High Performance Computing (HPC) systems built with HPE ProLiant XL and DL servers. Intel Omni-Path Adapters, an element of the Intel Omni-Path Architecture, use an advanced "on-load" design that scales fabric performance with rising server core counts, making these adapters ideal for today's increasingly demanding workloads. Combined with Intel Omni-Path Switches, Intel Omni-Path Adapters deliver low latency and up to 100Gbps bandwidth, ideal for performance driven server and storage clustering applications in HPC data centers. | |
|
| |
|
| |
|
Models | |
|

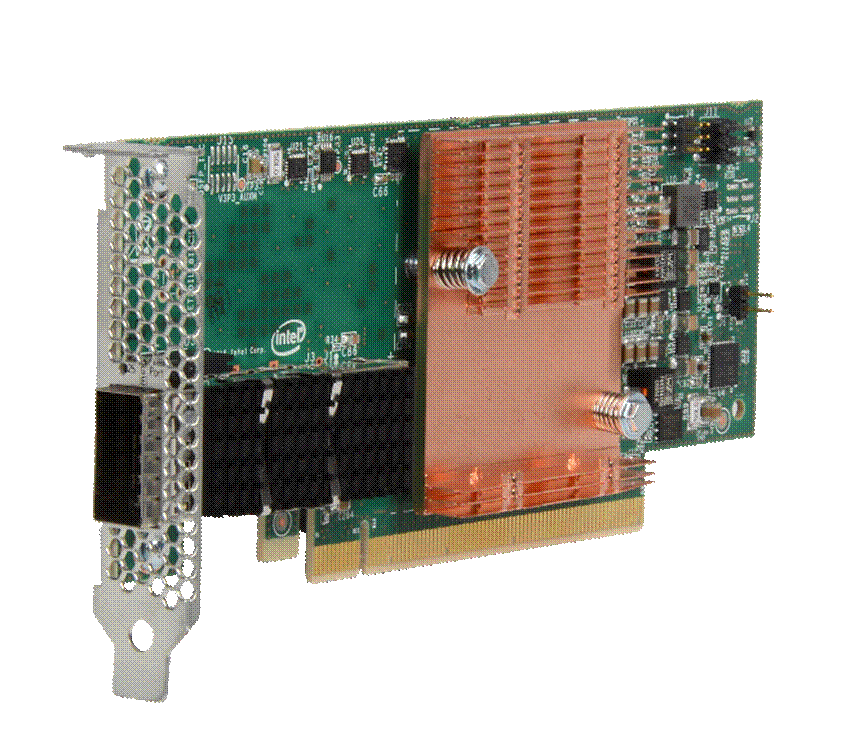

HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter |
829335-B21 |
|
| |
|
Kit Contents
|
|
|
| |
|
Servers supported for HPE 100Gb 1p OP101 QSFP28 x16 OPA Adapter HPE ProLiant XL Servers
HPE Servers
Notes: For the HPE ProLiant XL230k Gen10 for Apollo 6000, please select the dedicated adapter mezzanine form factor (851226-B21) |
|
|
Standard Features
|
Product Features
|
|
|
|
Congestion Management Medium grained adaptive routing and dispersive routing, Explicit congestion backward notification. |
|
|
|
Protocol Control Libraries HPC application focused protocol control libraries that include Performance Scale Messaging (PSM) and OFED Verbs. |
|
|
|
MTU sizes Maximum Transfer Unit (MTU) sizes can be set to 2048 bytes, 4096 bytes, 8192 bytes, or 10240 bytes. |
|
|
|
MSI-X Message Signaled Interrupt provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores. |
|
|
|
Management Support The HPE 100Gb 1p OP101 QSFP28 x16 OPA Adapter is supported by Hewlett Packard Enterprise Integrated Lights-Out (iLO). |
|
|
|
Server Integration The HPE 100Gb 1p OP101 QSFP28 x16 OPA Adapter is validated, tested, and qualified server options for the supported HPE ProLiant XL and DL servers. This approach provides a more robust and reliable networking solution than offerings from other venders and provides users with a single point of contact for both their servers and their network adapters. |
|
|
|
Configuration Utilities The HPE 100Gb 1p OP101 QSFP28 x16 OPA Adapter is configurable through UEFI. |
|
|
|
LED Indicators The colored LED on HPE 100Gb 1p OP101 QSFP28 x16 OPA Adapter indicates link status and link activity. |
|
|
|
HPE Sea of Sensors 3D Support for the HPE Sea of Sensors technology for improved thermal control and energy efficiency. |
|
|
|
Warranty 1 year warranty, parts exchange. |
|
|
|
For more information To learn more on services for HPE Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hpe.com/services/ |
|
|
Configuration Information
|
Direct Attach Cable (Passive Copper cables) |
|
|
HPE 0.5m 100Gb QSFP28 Omni-Path Architecture Copper Cable |
830024-B21 |
|
HPE 1m 100Gb QSFP28 Omni-Path Architecture Copper Cable |
830024-B22 |
|
HPE 1.5m 100Gb QSFP28 Omni-Path Architecture Copper Cable |
830024-B23 |
|
HPE 2m 100Gb QSFP28 Omni-Path Architecture Copper Cable |
830024-B24 |
|
HPE 3m 100Gb QSFP28 Omni-Path Architecture Copper Cable |
830024-B25 |
|
Notes: Direct Attach Cable must be purchased separately for copper environments | |
|
Active Optic Cables (AOCs) |
|
|
HPE 3M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable |
881204-B21 |
|
HPE 5M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable |
881204-B22 |
|
HPE 7M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable |
881204-B23 |
|
HPE 10M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable |
881204-B24 |
|
HPE 15M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable |
881204-B26 |
|
HPE 20M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable |
881204-B27 |
|
HPE 30M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable |
881204-B28 |
|
Notes: Active Optical Cable must be purchased separately for fiber-optic environments. | |
|
| |
Technical Specifications
|
General Specifications | ||
|
Network Processor |
Intel OPA HFI ASIC | |
|
Data Rate |
100Gbps - PCIe x16 | |
|
Bus Type |
PCIe Gen3 x16 | |
|
Form Factor |
Low profile adapter compliant with the PCIe Gen3 standard | |
|
Power and Environmental Specifications | ||
|
Operating |
Temperature |
32° to 131° F (0° to 55° C) |
|
Humidity |
10% to 85% non-condensing | |
|
Power |
PCIe x16 adapter: 7.4W (typical), 11.7W (max) with passive copper cable. 10.6W (typical), 14.9W (max) with Active Optical Cable (3 Watts Max) | |
|
EMC (Emissions) |
US/Canada
Europe/International
Japan
Australia/New Zealand
Korea
Taiwan
Customs Union: Russian Federation, Belarus and Kazakhstan
|
|
|
RoHS/REACH |
|
|
|
Safety |
US/Canada
Europe
International
Customs Union: Russian Federation, Belarus and Kazakhstan
|
|
|
Operating System Support |
The HPE 100Gb 1p OP101 QSFP28 x16 OPA Adapter is supported on the following 64-bit Linux operating systems:
Please refer to the firmware/software download page of the device for the latest update. |
|
|
|
|
Environment-friendly Products and Approach - End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
20-Jun-2023 |
Version 9 |
Changed |
Overview section was updated. |
|
03-Apr-2023 |
Version 8 |
Changed |
QS name was changed to the series name. Overview section was updated. |
|
04-Oct-2021 |
Version 7 |
Changed |
Add XL225n, DL385, DL325 compatibility Overview section was updated. |
|
06-Jul-2021 |
Version 6 |
Changed |
Overview and Related Options sections were updated. Gen10 Plus servers added, first generation of optical cables removed |
|
03-Dec-2018 |
Version 5 |
Changed |
Overview was section was updated, |
|
07-May-2018 |
Version 4 |
Changed |
829334-B21 removed, Supported OS updated, Supported platforms updated |
|
04-Dec-2017 |
Version 3 |
Updated |
Add SKUs to the related Options section |
|
26-Sep-2016 |
Version 2 |
Changed |
Add HPE 100Gb 1p OP101 QSFP28 x8 OPA Adapter |
|
06-Jun-2016 |
Version 1 |
New |
New QuickSpecs |
