В архивеOverview
|
Smartoptics Smartoptics provides the DWDM platform to enable all traffic to be connected between multiple sites over a single dark fiber network at hugely reduced capex and opex compared to traditional DWDM platforms. It does not matter if it is a simple point to point connection or a multisite campus network and is applicable to both SAN and WAN protocols - any protocol in any combination. This is an extremely versatile solution to connect sites together. As long as there is a fiber network there is an opportunity for this solution. Smartoptics are simple to set up, low cost to purchase and run yet delivers high capacity. Smartoptics solutions offer one of the lowest latency solutions on the market and with the unique Brocade approvals, means that any customer owning FC equipment and needing to replicate between sites can make use of the Smartoptics products. Smartoptics has solutions for 100/32/16/10/8G connectivity, whether it is based on embedded or transponder based DWDM networking. The Open line system extends the usable range of embedded networking and maintains the benefits of operating at the pure physical layer; advantages which also benefit the switch usage by not having to be run in R_Ready mode. Regardless of the challenges faced in the network, Smartoptics has a suitable solution. Smartoptics is available on HPE Catalog via HPE Complete program. Intelligent DWDM solutions Fibre Channel is the traffic protocol of choice for SANs (storage area networking). The ability to synchronously replicate 32/16/8G FC ISLs (inter switch links) between data centers is key to the successful implementation of a remote back or disaster recovery policy. Smartoptics has been at the forefront of SAN connectivity for data centers and were first to market with 4G FC embedded CWDM solutions in 2007. Smartoptics has continued to provide simple, low cost Fibre Channel/Ethernet connectivity between geographically separated sites. With just a few simple building blocks: through multiplexers - passive or managed, transponders, and DWDM transceivers, most connectivity types are supported. |
|
|
|
|
|

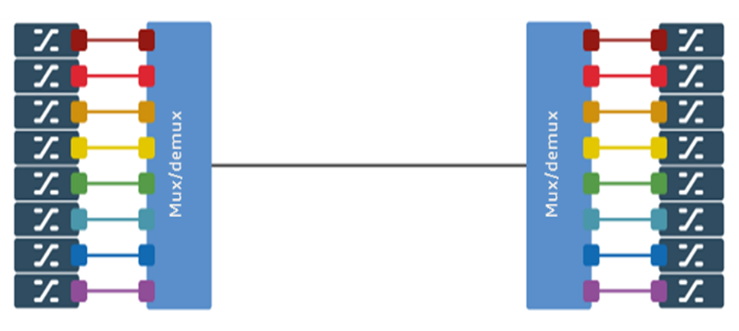

Figure 1. Smartoptics OLS |
|
|
|
HPE Complete- Resell of Third Party Branded Products The HPE Complete program enables the purchase of best in class third party branded products with the added reliability of the HPE interop assurance for a complete validated solution, all via one HPE purchase order. Benefits
For more information please refer HPE Complete on HPE.com |
|
|
|
Models |
|
Hewlett Packard Enterprise is making the following Smartoptics SKUs available via HPE Complete: |
|
Description |
SKU |
|
Hardware SKUs |
|
|
100Gbps DWDM QSFP28 transceivers |
|
|
Smartoptics D921 103G DWDM SM DDM QSFP28 Module |
R0P24A |
|
Smartoptics D922 103G DWDM SM DDM QSFP28 Module |
R0P25A |
|
Smartoptics D923 103G DWDM SM DDM QSFP28 Module |
R0P26A |
|
Smartoptics D924 103G DWDM SM DDM QSFP28 Module |
R0P27A |
|
Smartoptics D925 103G DWDM SM DDM QSFP28 Module |
R0P28A |
|
Smartoptics D926 103G DWDM SM DDM QSFP28 Module |
R0P29A |
|
Smartoptics D927 103G DWDM SM DDM QSFP28 Module |
R0P30A |
|
Smartoptics D928 103G DWDM SM DDM QSFP28 Module |
R0P31A |
|
Smartoptics D945 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L35A |
|
Smartoptics D946 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L36A |
|
Smartoptics D947 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L37A |
|
Smartoptics D948 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L38A |
|
Smartoptics D949 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L39A |
|
Smartoptics D950 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L40A |
|
Smartoptics D951 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L42A |
|
100Gbps QSFP28 transceivers |
|
|
Smartoptics 100GbE 1310nm SM LC DDM 10km QSFP28 Transceiver |
R6L43A |
|
Smartoptics 100GbE 850nm MM MPO OM4 DDM 100m QSFP28 Transceiver |
R6L44A |
|
16/8/4Gbps Fibre Channel SFP+ transceivers |
|
|
Smartoptics 16/8/4G FC/FICON 850nm MM DDM 4dB 35m/OM2 100m/OM3 125m/OM4 SFP+ Module |
R0P17A |
|
Smartoptics 16/8/4G FC/FICON 1310nm SM DDM 8.9dB 10km SFP+ Module |
R0P18A |
|
Description |
SKU |
|
16Gbps DWDM Fibre Channel SFP+ transceivers |
|
|
Smartoptics 16G DWDM 1560.61nm 14dB 40km SFP+ Module |
P9N35A |
|
Smartoptics 16G DWDM 1559.79nm 14dB 40km SFP+ Module |
P9N36A |
|
Smartoptics 16G DWDM 1558.98nm 14dB 40km SFP+ Module |
P9N37A |
|
Smartoptics 16G DWDM 1558.17nm 14dB 40km SFP+ Module |
P9N38A |
|
Smartoptics 16G DWDM 1557.36nm 14dB 40km SFP+ Module |
P9N39A |
|
Smartoptics 16G DWDM 1556.55nm 14dB 40km SFP+ Module |
P9N40A |
|
Smartoptics 16G DWDM 1555.75nm 14dB 40km SFP+ Module |
P9N41A |
|
Smartoptics 16G DWDM 1554.94nm 14dB 40km SFP+ Module |
P9N42A |
|
Smartoptics 16G DWDM 1554.13nm 14dB 40km SFP+ Module |
P9N43A |
|
Smartoptics 16G DWDM 1555.33nm 14dB 40km SFP+ Module |
P9N44A |
|
Smartoptics 16G DWDM 1552.52nm 14dB 40km SFP+ Module |
P9N45A |
|
Smartoptics 16G DWDM 1551.72nm 14dB 40km SFP+ Module |
P9N46A |
|
Smartoptics 16G DWDM 1550.92nm 14dB 40km SFP+ Module |
P9N47A |
|
Smartoptics 16G DWDM 1550.12nm 14dB 40km SFP+ Module |
P9N48A |
|
Smartoptics 16G DWDM 1549.32nm 14dB 40km SFP+ Module |
P9N49A |
|
Smartoptics 16G DWDM 1548.51nm 14dB 40km SFP+ Module |
P9N50A |
|
Smartoptics 16G DWDM 1547.72nm 14dB 40km SFP+ Module |
P9M97A |
|
Smartoptics 16G DWDM 1546.92nm 14dB 40km SFP+ Module |
P9M98A |
|
Smartoptics 16G DWDM 1546.12nm 14dB 40km SFP+ Module |
P9M99A |
|
Smartoptics 16G DWDM 1545.32nm 14dB 40km SFP+ Module |
P9N00A |
|
Smartoptics 16G DWDM 1544.53nm 14dB 40km SFP+ Module |
P9N01A |
|
Smartoptics 16G DWDM 1537.40nm 14db 40km SFP+ Module |
Q0G00A |
|
Smartoptics 16G DWDM 1536.61nm 14db 40km SFP+ Module |
Q0G01A |
|
Smartoptics 16G DWDM 1535.82nm 14db 40km SFP+ Module |
Q0G02A |
|
Smartoptics 16G DWDM 1535.04nm 14db 40km SFP+ Module |
Q0G03A |
|
Smartoptics 16G DWDM 1534.25nm 14db 40km SFP+ Module |
Q0G04A |
|
Smartoptics 16G DWDM 1533.47nm 14db 40km SFP+ Module |
Q0G05A |
|
Smartoptics 16G DWDM 1532.68nm 14db 40km SFP+ Module |
Q0G06A |
|
Smartoptics 16G DWDM 1531.90nm 14db 40km SFP+ Module |
Q0G07A |
|
Smartoptics 16G DWDM 1531.12nm 14db 40km SFP+ Module |
Q0G08A |
|
Smartoptics 16G DWDM 1530.33nm 14db 40km SFP+ Module |
Q0G09A |
|
Smartoptics 16G DWDM 1529.55nm 14db 40km SFP+ Module |
Q0G10A |
|
Smartoptics 16G DWDM 1528.77nm 14db 40km SFP+ Module |
Q0G11A |
|
Smartoptics 16G DWDM 1543.73nm 14db 40km SFP+ Module |
Q0G32A |
|
Smartoptics 16G DWDM 1542.94nm 14db 40km SFP+ Module |
Q0G33A |
|
Smartoptics 16G DWDM 1542.14nm 14db 40km SFP+ Module |
Q0G34A |
|
Smartoptics 16G DWDM 1541.35nm 14db 40km SFP+ Module |
Q0G35A |
|
Smartoptics 16G DWDM 1540.56nm 14db 40km SFP+ Module |
Q0G36A |
|
Smartoptics 16G DWDM 1539.77nm 14db 40km SFP+ Module |
Q0G37A |
|
Smartoptics 16G DWDM 1538.98nm 14db 40km SFP+ Module |
Q0G38A |
|
Smartoptics 16G DWDM 1538.19nm 14db 40km SFP+ Module |
Q0G39A |
|
Description |
SKU |
|
Smartoptics D9210 16/8/4Gb FC/FICON DWDM 1560.61nm SM DDM 13dB 40km SFP+ Transceiver |
R6K95A |
|
Smartoptics D9220 16/8/4Gb FC/FICON DWDM 1559.79nm SM DDM 13dB 40km SFP+ Transceiver |
R6K96A |
|
Smartoptics D9230 16/8/4Gb FC/FICON DWDM 1558.98nm SM DDM 13dB 40km SFP+ Transceiver |
R6K97A |
|
Smartoptics D9240 16/8/4Gb FC/FICON DWDM 1558.17nm SM DDM 13dB 40km SFP+ Transceiver |
R6K98A |
|
Smartoptics D9250 16/8/4Gb FC/FICON DWDM 1557.36nm SM DDM 13dB 40km SFP+ Transceiver |
R6K99A |
|
Smartoptics D9260 16/8/4Gb FC/FICON DWDM 1556.55nm SM DDM 13dB 40km SFP+ Transceiver |
R6L00A |
|
Smartoptics D9270 16/8/4Gb FC/FICON DWDM 1555.75nm SM DDM 13dB 40km SFP+ Transceiver |
R6L01A |
|
Smartoptics D9280 16/8/4Gb FC/FICON DWDM 1554.94nm SM DDM 13dB 40km SFP+ Transceiver |
R6L02A |
|
Smartoptics D9290 16/8/4Gb FC/FICON DWDM 1554.13nm SM DDM 13dB 40km SFP+ Transceiver |
R6L03A |
|
Smartoptics D9300 16/8/4Gb FC/FICON DWDM 1553.33nm SM DDM 13dB 40km SFP+ Transceiver |
R6L04A |
|
Smartoptics D9310 16/8/4Gb FC/FICON DWDM 1552.52nm SM DDM 13dB 40km SFP+ Transceiver |
R6L05A |
|
Smartoptics D9320 16/8/4Gb FC/FICON DWDM 1551.72nm SM DDM 13dB 40km SFP+ Transceiver |
R6L06A |
|
Smartoptics D9330 16/8/4Gb FC/FICON DWDM 1550.92nm SM DDM 13dB 40km SFP+ Transceiver |
R6L07A |
|
Smartoptics D9340 16/8/4Gb FC/FICON DWDM 1550.12nm SM DDM 13dB 40km SFP+ Transceiver |
R6L08A |
|
Smartoptics D9350 16/8/4Gb FC/FICON DWDM 1549.32nm SM DDM 13dB 40km SFP+ Transceiver |
R6L09A |
|
Smartoptics D9360 16/8/4Gb FC/FICON DWDM 1548.51nm SM DDM 13dB 40km SFP+ Transceiver |
R6L10A |
|
Smartoptics D9370 16/8/4Gb FC/FICON DWDM 1547.72nm SM DDM 13dB 40km SFP+ Transceiver |
R6L11A |
|
Smartoptics D9380 16/8/4Gb FC/FICON DWDM 1546.92nm SM DDM 13dB 40km SFP+ Transceiver |
R6L12A |
|
Smartoptics D9390 16/8/4Gb FC/FICON DWDM 1546.12nm SM DDM 13dB 40km SFP+ Transceiver |
R6L13A |
|
Smartoptics D9400 16/8/4Gb FC/FICON DWDM 1545.32nm SM DDM 13dB 40km SFP+ Transceiver |
R6L14A |
|
Smartoptics D9410 16/8/4Gb FC/FICON DWDM 1544.53nm SM DDM 13dB 40km SFP+ Transceiver |
R6L15A |
|
Smartoptics D9420 16/8/4Gb FC/FICON DWDM 1543.73nm SM DDM 13dB 40km SFP+ Transceiver |
R6L16A |
|
Smartoptics D9430 16/8/4Gb FC/FICON DWDM 1542.94nm SM DDM 13dB 40km SFP+ Transceiver |
R6L17A |
|
Smartoptics D9440 16/8/4Gb FC/FICON DWDM 1542.14nm SM DDM 13dB 40km SFP+ Transceiver |
R6L18A |
|
Smartoptics D9450 16/8/4Gb FC/FICON DWDM 1541.35nm SM DDM 13dB 40km SFP+ Transceiver |
R6L19A |
|
Smartoptics D9460 16/8/4Gb FC/FICON DWDM 1540.56nm SM DDM 13dB 40km SFP+ Transceiver |
R6L20A |
|
Smartoptics D9470 16/8/4Gb FC/FICON DWDM 1539.77nm SM DDM 13dB 40km SFP+ Transceiver |
R6L21A |
|
Smartoptics D9480 16/8/4Gb FC/FICON DWDM 1538.98nm SM DDM 13dB 40km SFP+ Transceiver |
R6L22A |
|
Smartoptics D9490 16/8/4Gb FC/FICON DWDM 1538.19nm SM DDM 13dB 40km SFP+ Transceiver |
R6L23A |
|
Smartoptics D9500 16/8/4Gb FC/FICON DWDM 1537.40nm SM DDM 13dB 40km SFP+ Transceiver |
R6L24A |
|
Smartoptics D9510 16/8/4Gb FC/FICON DWDM 1536.61nm SM DDM 13dB 40km SFP+ Transceiver |
R6L25A |
|
Smartoptics D9520 16/8/4Gb FC/FICON DWDM 1535.82nm SM DDM 13dB 40km SFP+ Transceiver |
R6L26A |
|
Smartoptics D9530 16/8/4Gb FC/FICON DWDM 1535.04nm SM DDM 13dB 40km SFP+ Transceiver |
R6L27A |
|
Smartoptics D9540 16/8/4Gb FC/FICON DWDM 1534.25nm SM DDM 13dB 40km SFP+ Transceiver |
R6L28A |
|
Smartoptics D9550 16/8/4Gb FC/FICON DWDM 1533.47nm SM DDM 13dB 40km SFP+ Transceiver |
R6L29A |
|
Smartoptics D9560 16/8/4Gb FC/FICON DWDM 1532.68nm SM DDM 13dB 40km SFP+ Transceiver |
R6L30A |
|
Smartoptics D9570 16/8/4Gb FC/FICON DWDM 1531.90nm SM DDM 13dB 40km SFP+ Transceiver |
R6L31A |
|
Smartoptics D9580 16/8/4Gb FC/FICON DWDM 1531.12nm SM DDM 13dB 40km SFP+ Transceiver |
R6L32A |
|
Smartoptics D9590 16/8/4Gb FC/FICON DWDM 1530.33nm SM DDM 13dB 40km SFP+ Transceiver |
R6L33A |
|
Smartoptics D9600 16/8/4Gb FC/FICON DWDM 1529.55nm SM DDM 13dB 40km SFP+ Transceiver |
R6L34A |
|
Description |
SKU |
|
10Gbps DWDM Fibre Channel SFP+ transceivers |
|
|
Smartoptics D9210 10G ZR DWDM 100GHz 1560.61nm 23dB 80km SFP+ Module |
Q2S34A |
|
Smartoptics D9220 10G ZR DWDM 100GHz 1559.79nm 23dB 80km SFP+ Module |
Q2S35A |
|
Smartoptics D9230 10G ZR DWDM 100GHz 1558.98nm 23dB 80km SFP+ Module |
Q2S36A |
|
Smartoptics D9240 10G ZR DWDM 100GHz 1558.17nm 23dB 80km SFP+ Module |
Q9D24A |
|
Smartoptics D9250 10G ZR DWDM 100GHz 1557.36nm 23dB 80km SFP+ Module |
Q9D25A |
|
Smartoptics D9260 10G ZR DWDM 100GHz 1556.55nm 23dB 80km SFP+ Module |
Q9D26A |
|
Smartoptics D9270 10G ZR DWDM 100GHz 1555.75nm 23dB 80km SFP+ Module |
Q9D27A |
|
Smartoptics D9280 10G ZR DWDM 100GHz 1554.94nm 23dB 80km SFP+ Module |
Q9D28A |
|
Smartoptics D9210 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L46A |
|
Smartoptics D9220 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L47A |
|
Smartoptics D9230 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L48A |
|
Smartoptics D9240 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L49A |
|
Smartoptics D9250 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L50A |
|
Smartoptics D9260 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L51A |
|
Smartoptics D9270 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L52A |
|
Smartoptics D9280 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L53A |
|
Smartoptics 10GBASE-ZR DWDM 80km SFP+ Transceiver |
R6L45A |
|
Smartoptics 10G ZR MR 9.95-11.1 G C Tunable DWDM C-Band 50GHz 2.0W 22db 80km SFP+ Module |
R0P19A |
|
Smartoptics 10G LR 1310nm SM DDM 6.2dB 10km SFP+ Module |
R0P32A |
|
Smartoptics 10G SR 850nm MM DDM 5.1dB 300m OM3 SFP+ Module |
R0P33A |
|
8Gbps DWDM Fibre Channel SFP+ transceivers |
|
|
Smartoptics 8G DWDM 1560.61nm 14dB 40km SFP+ Module |
P9N10A |
|
Smartoptics 8G DWDM 1559.79nm 14dB 40km SFP+ Module |
P9N11A |
|
Smartoptics 8G DWDM 1558.98nm 14dB 40km SFP+ Module |
P9N12A |
|
Smartoptics 8G DWDM 1558.17nm 14dB 40km SFP+ Module |
P9N13A |
|
Smartoptics 8G DWDM 1557.36nm 14dB 40km SFP+ Module |
P9N14A |
|
Smartoptics 8G DWDM 1556.55nm 14dB 40km SFP+ Module |
P9N15A |
|
Smartoptics 8G DWDM 1555.75nm 14dB 40km SFP+ Module |
P9N16A |
|
Smartoptics 8G DWDM 1554.94nm 14dB 40km SFP+ Module |
P9N17A |
|
Smartoptics 8G DWDM 1554.13nm 14dB 40km SFP+ Module |
P9N18A |
|
Smartoptics 8G DWDM 1555.33nm 14dB 40km SFP+ Module |
P9N19A |
|
Smartoptics 8G DWDM 1552.52nm 14dB 40km SFP+ Module |
P9N20A |
|
Smartoptics 8G DWDM 1551.72nm 14dB 40km SFP+ Module |
P9N21A |
|
Smartoptics 8G DWDM 1550.92nm 14dB 40km SFP+ Module |
P9N22A |
|
Smartoptics 8G DWDM 1550.12nm 14dB 40km SFP+ Module |
P9N23A |
|
Smartoptics 8G DWDM 1549.32nm 14dB 40km SFP+ Module |
P9N24A |
|
Smartoptics 8G DWDM 1548.51nm 14dB 40km SFP+ Module |
P9N25A |
|
Smartoptics D9210 8/4/2/1Gb FC/FICON DWDM 1560.61nm SM DDM 23dB 80km SFP+ Transceiver |
R6K87A |
|
Smartoptics D9220 8/4/2/1Gb FC/FICON DWDM 1559.79nm SM DDM 23dB 80km SFP+ Transceiver |
R6K88A |
|
Smartoptics D9230 8/4/2/1Gb FC/FICON DWDM 1558.98nm SM DDM 23dB 80km SFP+ Transceiver |
R6K89A |
|
Smartoptics D9240 8/4/2/1Gb FC/FICON DWDM 1558.17nm SM DDM 23dB 80km SFP+ Transceiver |
R6K90A |
|
Description |
SKU |
|
Smartoptics D9250 8/4/2/1Gb FC/FICON DWDM 1557.36nm SM DDM 23dB 80km SFP+ Transceiver |
R6K91A |
|
Smartoptics D9260 8/4/2/1Gb FC/FICON DWDM 1556.55nm SM DDM 23dB 80km SFP+ Transceiver |
R6K92A |
|
Smartoptics D9270 8/4/2/1Gb FC/FICON DWDM 1555.75nm SM DDM 23dB 80km SFP+ Transceiver |
R6K93A |
|
Smartoptics D9280 8/4/2/1Gb FC/FICON DWDM 1554.94nm SM DDM 23dB 80km SFP+ Transceiver |
R6K94A |
|
Passive DWDM Multiplexers |
|
|

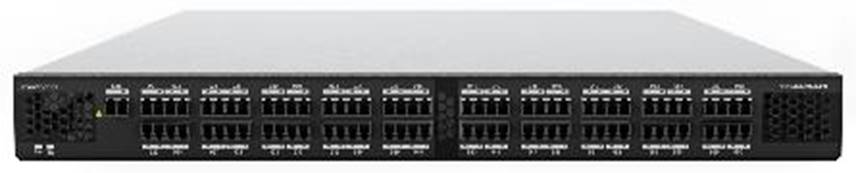

Smartoptics 40-channel DWDM MUX/DEMUX 7.5dB 100GHz Device |
P9N32A |
|
Smartoptics 16-channel DWDM MUX/DEMUX 5.3dB 100GHz Device |
P9N33A |
|
Smartoptics 8-channel DWDM MUX/DEMUX 3.5dB Device |
P9M83A |
|
Smartoptics 8-channel DWDM MUX/DEMUX 4.5dB Device |
P9N34A |
|
Smartoptics 40-channel DWDM MUX/DEMUX 11.5db 100GHz Device |
Q0G40A |
|
Smartoptics 32-channel DWDM MUX/DEMUX 5.8db 100GHz Device |
Q0G41A |
|
Intelligent DWDM Multiplexers |
|
|
Smartoptics 8-channel OSC/PAM4 0-70km Device |
R0P20A |
|
Smartoptics 40-channel D921-D960 OSC/PAM4 0-80km Device |
R0P21A |
|
Smartoptics 40-channel D921-D960 OSC/PAM4 0-40km NRZ Device |
R0P22A |
|
Smartoptics 40-channel D921-D960 OSC/PAM4 15-55km NRZ Device |
R0P23A |
|
Smartoptics 40-channel D921-D960 OSC/PAM4 40-80km Device |
R6L41A |
|
Smartoptics 16-channel Expansion Port EDFA 80km Device |
P9M85A |
|
Smartoptics M-3817-921936 16-channel DWDM MUX/DEMUX 4.6db 100GHz Device |
Q0F90A |
|
Smartoptics M-3809-921928 8-channel DWDM MUX/DEMUX 4.2db 100GHz Device |
Q0F91A |
|
Smartoptics M-3809-929936 8-channel DWDM MUX/DEMUX 4.2db 100GHz Device |
Q0F92A |
|
Smartoptics M-Series AC Power Supply Unit |
P9M86A |
|
Smartoptics M-Series DC Power Supply Unit |
P9M87A |
|
Smartoptics C13-C14 Power Cable |
P9M88A |
|
Smartoptics C13 (US) Power Cable |
P9M89A |
|
Smartoptics C13 (EU) Power Cable |
P9M90A |
|
Smartoptics C13 (UK) Power Cable |
P9M91A |
|
Smartoptics C13 (AU) Power Cable |
P9M92A |
|
Smartoptics C13 (EU) Right Angle Power Cable |
P9M93A |
|
Smartoptics 16-channel DWDM MUX/DEMUX 5.0db Pass Thru Device |
Q0G43A |
|
Smartoptics 16-channel DWDM MUX/DEMUX Transmitter EDFA 40km Device |
Q0G45A |
|
Smartoptics 16-channel DWDM MUX/DEMUX Receiver EDFA Device |
Q0G46A |
|
Smartoptics 16-channel DWDM MUX/DEMUX Receiver EDFA 40km Device |
Q0G47A |
|
Smartoptics 16-channel DWDM MUX/DEMUX Transmitter/Receiver EDFA 80km Device |
Q0G49A |
|
Smartoptics DCP-2 1U 2-slot Chassis with Management Board and Fan Units |
Q0G51A |
|
Smartoptics DCP-101 1-channel 100Gbps Transponder Device |
Q0G52A |
|
Smartoptics DCP-1610 10-channel 1G-16Gbps SFP+ to SFP+ PM Transponder |
Q2S31A |
|
Smartoptics DCP-1610 Firmware and Crypto LTU |
Q9U88A |
|
Smartoptics 103Gbps DWDM 25db CFP Module |
Q0G54A |
|
Smartoptics DCP-2-101 AC Power Supply |
Q0G53A |
|
Smartoptics 8x40/100Gb Transponder for QSFP28 to QSFP28 Device |
R6L94A |
|
Description |
SKU |
|
8Gbps CWDM Fibre Channel SFP+ transceivers |
|
|
Smartoptics 8G CWDM 1470nm 23dB 70km SFP+ Module |
P9N02A |
|
Smartoptics 8G CWDM 1490nm 23dB 70km SFP+ Module |
P9N03A |
|
Smartoptics 8G CWDM 1510nm 23dB 70km SFP+ Module |
P9N04A |
|
Smartoptics 8G CWDM 1530nm 23dB 70km SFP+ Module |
P9N05A |
|
Smartoptics 8G CWDM 1550nm 23dB 70km SFP+ Module |
P9N06A |
|
Smartoptics 8G CWDM 1570nm 23dB 70km SFP+ Module |
P9N07A |
|
Smartoptics 8G CWDM 1590nm 23dB 70km SFP+ Module |
P9N08A |
|
Smartoptics 8G CWDM 1610nm 23dB 70km SFP+ Module |
P9N09A |
|
32Gbps DWDM Fibre Channel SFP+ transceivers |
|
|
Smartoptics D210 32/16Gb DWDM 10km SFP28 Transceiver |
R6L54A |
|
Smartoptics D220 32/16Gb DWDM 10km SFP28 Transceiver |
R6L55A |
|
Smartoptics D230 32/16Gb DWDM 10km SFP28 Transceiver |
R6L56A |
|
Smartoptics D240 32/16Gb DWDM 10km SFP28 Transceiver |
R6L57A |
|
Smartoptics D250 32/16Gb DWDM 10km SFP28 Transceiver |
R6L58A |
|
Smartoptics D260 32/16Gb DWDM 10km SFP28 Transceiver |
R6L59A |
|
Smartoptics D270 32/16Gb DWDM 10km SFP28 Transceiver |
R6L60A |
|
Smartoptics D280 32/16Gb DWDM 10km SFP28 Transceiver |
R6L61A |
|
Smartoptics D290 32/16Gb DWDM 10km SFP28 Transceiver |
R6L62A |
|
Smartoptics D300 32/16Gb DWDM 10km SFP28 Transceiver |
R6L63A |
|
Smartoptics D310 32/16Gb DWDM 10km SFP28 Transceiver |
R6L64A |
|
Smartoptics D320 32/16Gb DWDM 10km SFP28 Transceiver |
R6L65A |
|
Smartoptics D330 32/16Gb DWDM 10km SFP28 Transceiver |
R6L66A |
|
Smartoptics D340 32/16Gb DWDM 10km SFP28 Transceiver |
R6L67A |
|
Smartoptics D350 32/16Gb DWDM 10km SFP28 Transceiver |
R6L68A |
|
Smartoptics D360 32/16Gb DWDM 10km SFP28 Transceiver |
R6L69A |
|
Smartoptics D370 32/16Gb DWDM 10km SFP28 Transceiver |
R6L70A |
|
Smartoptics D380 32/16Gb DWDM 10km SFP28 Transceiver |
R6L71A |
|
Smartoptics D390 32/16Gb DWDM 10km SFP28 Transceiver |
R6L72A |
|
Smartoptics D400 32/16Gb DWDM 10km SFP28 Transceiver |
R6L73A |
|
Smartoptics D410 32/16Gb DWDM 10km SFP28 Transceiver |
R6L74A |
|
Smartoptics D420 32/16Gb DWDM 10km SFP28 Transceiver |
R6L75A |
|
Smartoptics D430 32/16Gb DWDM 10km SFP28 Transceiver |
R6L76A |
|
Smartoptics D440 32/16Gb DWDM 10km SFP28 Transceiver |
R6L77A |
|
Smartoptics D450 32/16Gb DWDM 10km SFP28 Transceiver |
R6L78A |
|
Smartoptics D460 32/16Gb DWDM 10km SFP28 Transceiver |
R6L79A |
|
Smartoptics D470 32/16Gb DWDM 10km SFP28 Transceiver |
R6L80A |
|
Smartoptics D480 32/16Gb DWDM 10km SFP28 Transceiver |
R6L81A |
|
Smartoptics D490 32/16Gb DWDM 10km SFP28 Transceiver |
R6L82A |
|
Smartoptics D500 32/16Gb DWDM 10km SFP28 Transceiver |
R6L83A |
|
Smartoptics D510 32/16Gb DWDM 10km SFP28 Transceiver |
R6L84A |
|
Smartoptics D520 32/16Gb DWDM 10km SFP28 Transceiver |
R6L85A |
|
Description |
SKU |
|
Smartoptics D530 32/16Gb DWDM 10km SFP28 Transceiver |
R6L86A |
|
Smartoptics D540 32/16Gb DWDM 10km SFP28 Transceiver |
R6L87A |
|
Smartoptics D550 32/16Gb DWDM 10km SFP28 Transceiver |
R6L88A |
|
Smartoptics D560 32/16Gb DWDM 10km SFP28 Transceiver |
R6L89A |
|
Smartoptics D570 32/16Gb DWDM 10km SFP28 Transceiver |
R6L90A |
|
Smartoptics D580 32/16Gb DWDM 10km SFP28 Transceiver |
R6L91A |
|
Smartoptics D590 32/16Gb DWDM 10km SFP28 Transceiver |
R6L92A |
|
Smartoptics D600 32/16Gb DWDM 10km SFP28 Transceiver |
R6L93A |
|
Passive CWDM Multiplexers |
|
|
Smartoptics 8-channel CWDM MUX/DEMUX 2.8dB Device |
P9N31A |
|
Smartoptics Adjustable Mounting Bracket for T Series Module |
Q0F34A |
|
Smartoptics Adjustable Mounting Bracket for M Series Module |
Q0F35A |
|
| |
|
Miscellaneous |
|
|
Smartoptics 1m Duplex Single Mode Fiber Jumper Cable |
P9M94A |
|
Smartoptics 3m Duplex Single Mode Fiber Jumper Cable |
P9M95A |
|
Smartoptics 10m Duplex Single Mode Fiber Jumper Cable |
P9M96A |
|
Smartoptics 100GBASE-SR4 850nm QSFP+ Module |
Q0G55A |
|
Smartoptics MTP8 to 8xLC Fan-out Multi-mode OM4 3m Aqua Cable |
R6L95A |
|
| |
|
Service SKUs |
|
|
Smartoptics Advanced Product Replacement APR 1 Service |
R5Z61A |
|
Smartoptics Advanced Product Replacement APR 2 Service |
R5Z62A |
|
Smartoptics Advanced Product Replacement APR 3 Service |
R5Z63A |
|
Smartoptics Advanced Product Replacement APR 4 Service |
R5Z64A |
|
Smartoptics Advanced Product Replacement APR 5 Service |
R5Z65A |
|
Smartoptics Extended Warranty EWS 1 Service |
R5Z66A |
|
Smartoptics Extended Warranty EWS 2 Service |
R5Z67A |
|
Smartoptics Extended Warranty EWS 3 Service |
R5Z68A |
|
Smartoptics Extended Warranty EWS 4 Service |
R5Z69A |
|
Smartoptics Extended Warranty EWS 5 Service |
R5Z70A |
|
Smartoptics General Service |
R5Z71A |
|
|
|
Embedded xWDM networking The ability to synchronously replicate sensitive and important data over a dark fiber network is key to the successful implementation of a remote back up or disaster recovery policy. Embedded xWDM (a technology that allows a vast quantity of data and storage traffic to be transported simultaneously over a fiber network) offers the most simple and reliable method to achieve this. Just four key elements are required for a successful implementation: |
|
|
|
|
|
MUX/DEMUX |
|
|
|

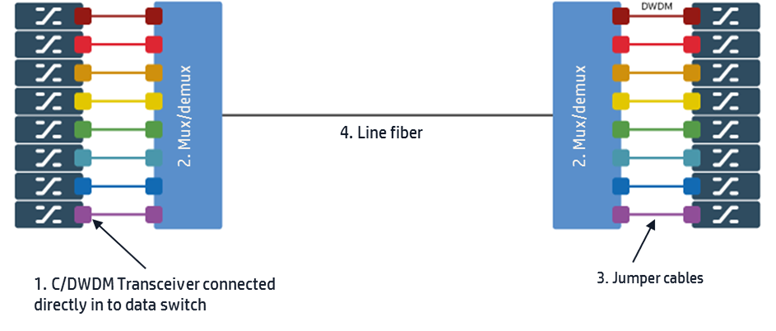

Four key elements are required for embedded xWDM networking
A wavelength specific optical transceiver (SFP, SFP+, XFP, etc.) placed directly in to the data or storage switch. Up to 40 DWDM wavelengths are available and can all be used as independent traffic channels. Each channel can be any variety of 100/10/1G Ethernet and 32/16/8G Fibre Channel. There are no restrictions.
A "Patch panel" at the heart of a xWDM network that collects all of these individual traffic types together on to a single common output. Each of the 40 DWDM wavelength channels are combined together in a multiplexer so that it can be transported simultaneously over a single dark fiber network.
The transceivers and multiplexer ports are labelled with the discrete wavelength channels. The jumper cable, usually an LC-LC patch cable connects between the transceiver and the corresponding channel on the multiplexer. They are colored in the diagram to highlight the different colored wavelength channels.
The "dark fiber" linking the sites or data centers. Without access to a dark fiber there is no opportunity to build a dedicated fiber network. |
|
|
|
Architectures

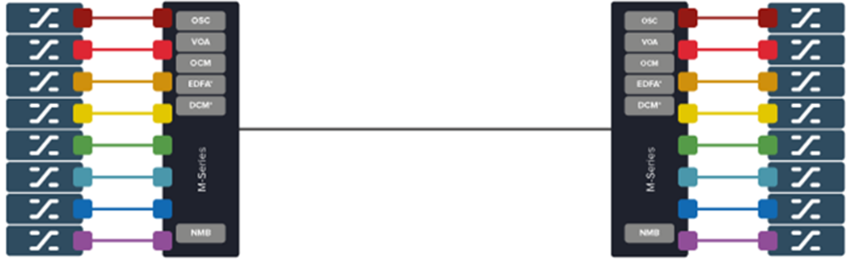

Passive embedded DWDM networking Embedded solutions are based on a passive C/DWDM transceiver embedded in to data switch and the output connecting through a jumper cable to a C/DWDM multiplexer. With a passive multiplexer, up to 40 independent channels can be connected over a dark fiber. In this way fiber operating expenses can be drastically reduced for communication up to 25 kilometers. |
|
|
|
|
|
|
|
|

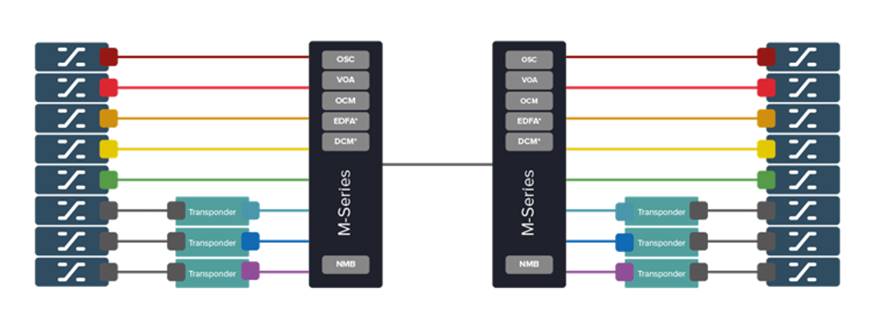

Ethernet and Fibre Channel extension with OSI Layer 1 Encryption The passive and managed embedded xWDM networking solutions described above are easily complemented by a transponder module, if the optics can not be placed embedded in the switches. The transponder module has the same modular 1U form factor as any other data equipment and can provide additional functionality, such as encryption, for each individual channel. |
|
|
|
|
|
|
|
|
Key features and benefits
|
|
|
|
Cost efficient 16/32G FC and 100G transport, using embedded DWDM optics Developed to support low cost 100G traffic and 16/32G FC, the DCP-M has all the features usually reserved for the more complex DWDM platforms fully integrated in to a simple plug and play 1U module. The DCP-M provides everything required for an open line networking system. |
|
|
|
|
|
|
Key features and benefits
|
|
|
|
Service and Support for the Smartoptics product is provided directly by Smartoptics. When HPE's customer requires support for Smartoptics, HPE's customer can contact Smartoptics at HPE.support@Smartoptics.com or call the following numbers,
Smartoptics licensors service delivery organization will be responsible for responding with a call, assigning a Severity Level to the call, and determining the service Severity Level acceptable to HPE's customer. The support request will be processed by Smartoptics in accordance with the Severity Level agreed upon. |
|
|
|
Warranty Hardware SMARTOPTICS undertakes to repair or replace equipment or remedy Services or provide a credit where SMARTOPTICS determines that there is a material defect in materials or workmanship covered by the terms of this warranty. SMARTOPTICS shall not be liable under this warranty, unless it receives written notice of the defect, which notice must be given direct to SMARTOPTICS (not through a dealer or other third party) within the relevant warranty period set out below and within 14 days of the date the Customer discovered, or ought to have discovered, the defect. Prior to any return, Customer must provide any proof of warranty eligibility requested by SMARTOPTICS and receive a written return authorization. Upon receipt of the return authorization, the Customer shall return, at its own cost and risk and within 30 days, the relevant Equipment, properly packed, to a service facility designated by SMARTOPTICS. SMARTOPTICS reserves the right to return Equipment at Customer's expense if return authorization was not issued prior to return. If the repaired or replacement Equipment is to be shipped to a location which is not in the same country as the designated service facility, the cost and risk, including an duties and taxes, of shipment are for the Customer. All other costs are for SMARTOPTICS unless the claim is found to be outside the scope or duration of the warranty, when costs of transportation, investigation and repair are for the Customer. |
|
|
|
Warranty Period Warranty periods are as follows, commencing on the date of delivery:
Repairs and replacements shall be carried out in accordance with the reasonable procedures advised to Customer by SMARTOPTICS. Hardware and Software products manufactured by third parties that are sold by SMARTOPTICS as components of Equipment or otherwise will carry the original manufacturer's warranty only to the extent rights thereunder are available to the Customer. Warranty support for SMARTOPTICS Software constituting or included in any Equipment or Services is limited to the version or release of the Software currently being provided by SMARTOPTICS to the Customer at the time service is requested, and the next version or release of the Software. The benefit of this SMARTOPTIC warranty may not be assigned or transferred in whole or in part under any circumstances. Repaired and replacement Equipment shall have the benefit of a warranty on the terms of this SMARTOPTICS warranty for the unexpired period of the original SMARTOPTICS warranty or 3 months from provision of the repair or replacement, whichever is longer. The SMARTOPTICS warranty set out above represents the sole remedy of SMARTOPTICS in respect of defective Equipment or Services and SMARTOPTICS has no other obligation to the Customer, and the Customer waives any rights it may otherwise be entitled to, by virtue of any warranties or conditions expressed or implied by operation of law or otherwise. No statement or recommendation made or assistance given by SMARTOPTICS to the Customer in connection with the Equipment or Services shall constitute or be construed as a representation or warranty of any kind. All product demonstrations are for illustrative purposes only. SMARTOPTICS reserves the right to discontinue or modify its list of products without notice to the Customer If SMARTOPTICS replaces Equipment under the SMARTOPTICS warranty, SMARTOPTICS may substitute the Equipment with products determined by SMARTOPTICS to be of comparable quality and functionality in the event the original Equipment purchased is no longer available. In no event will SMARTOPTICS be liable to the Customer as a result of any discontinuance or modification of any product, or variance of any replaced product from Equipment supplied under a Contract. |
|
|
|
Return Policy for Resellers Stocking of Smartoptics products are not recommended. Please purchase accurate quantity required to fulfil the customer order. |
|
|
Configuration Information
|
Configuration Smartoptics offers 3 customers options.
|
|
|
| |
|
Option 1 Start with Step 1.0 (16G), 1.1 (10G), 1.2 (8G), 1.3 (100G) 1.4 (16/8/4G) or 1.5 (32G) Step 1.0 16G FC Optics Transceivers Select 16G FC Transceivers, select based on wave length desired (choose amongst (40) 14db or (40) 13db defined wave lengths from 1528.77 to 1560.61 nm or from a custom 14db wave lengths) 16G DWDM Fiber Optical SFP+ transceiver operates at wavelength defined and includes a PIN diode and temperature stabilized DFB-EML transmitter. The module has a duplex LC optical interface and are compliant to RoHS-6/6. | |
|
Descriptions |
SKU |
|
Smartoptics 16G DWDM 1528.77nm 14db 40km SFP+ Module |
Q0G11A |
|
Smartoptics 16G DWDM 1529.55nm 14db 40km SFP+ Module |
Q0G10A |
|
Smartoptics 16G DWDM 1530.33nm 14db 40km SFP+ Module |
Q0G09A |
|
Smartoptics 16G DWDM 1531.12nm 14db 40km SFP+ Module |
Q0G08A |
|
Smartoptics 16G DWDM 1531.90nm 14db 40km SFP+ Module |
Q0G07A |
|
Smartoptics 16G DWDM 1532.68nm 14db 40km SFP+ Module |
Q0G06A |
|
Smartoptics 16G DWDM 1533.47nm 14db 40km SFP+ Module |
Q0G05A |
|
Smartoptics 16G DWDM 1534.25nm 14db 40km SFP+ Module |
Q0G04A |
|
Smartoptics 16G DWDM 1535.04nm 14db 40km SFP+ Module |
Q0G03A |
|
Smartoptics 16G DWDM 1535.82nm 14db 40km SFP+ Module |
Q0G02A |
|
Smartoptics 16G DWDM 1536.61nm 14db 40km SFP+ Module |
Q0G01A |
|
Smartoptics 16G DWDM 1537.40nm 14db 40km SFP+ Module |
Q0G00A |
|
Smartoptics 16G DWDM 1538.19nm 14db 40km SFP+ Module |
Q0G39A |
|
Smartoptics 16G DWDM 1538.98nm 14db 40km SFP+ Module |
Q0G38A |
|
Smartoptics 16G DWDM 1539.77nm 14db 40km SFP+ Module |
Q0G37A |
|
Smartoptics 16G DWDM 1540.56nm 14db 40km SFP+ Module |
Q0G36A |
|
Smartoptics 16G DWDM 1541.35nm 14db 40km SFP+ Module |
Q0G35A |
|
Smartoptics 16G DWDM 1542.14nm 14db 40km SFP+ Module |
Q0G34A |
|
Smartoptics 16G DWDM 1542.94nm 14db 40km SFP+ Module |
Q0G33A |
|
Smartoptics 16G DWDM 1543.73nm 14db 40km SFP+ Module |
Q0G32A |
|
Smartoptics 16G DWDM 1544.53nm 14dB 40km SFP+ Module |
P9N01A |
|
Smartoptics 16G DWDM 1545.32nm 14dB 40km SFP+ Module |
P9N00A |
|
Smartoptics 16G DWDM 1546.12nm 14dB 40km SFP+ Module |
P9M99A |
|
Smartoptics 16G DWDM 1546.92nm 14dB 40km SFP+ Module |
P9M98A |
|
Smartoptics 16G DWDM 1547.72nm 14dB 40km SFP+ Module |
P9M97A |
|
Smartoptics 16G DWDM 1548.51nm 14dB 40km SFP+ Module |
P9N50A |
|
Smartoptics 16G DWDM 1549.32nm 14dB 40km SFP+ Module |
P9N49A |
|
Smartoptics 16G DWDM 1550.12nm 14dB 40km SFP+ Module |
P9N48A |
|
Smartoptics 16G DWDM 1550.92nm 14dB 40km SFP+ Module |
P9N47A |
|
Descriptions |
SKU |
|
Smartoptics 16G DWDM 1551.72nm 14dB 40km SFP+ Module |
P9N46A |
|
Smartoptics 16G DWDM 1552.52nm 14dB 40km SFP+ Module |
P9N45A |
|
Smartoptics 16G DWDM 1554.13nm 14dB 40km SFP+ Module |
P9N43A |
|
Smartoptics 16G DWDM 1554.94nm 14dB 40km SFP+ Module |
P9N42A |
|
Smartoptics 16G DWDM 1555.33nm 14dB 40km SFP+ Module |
P9N44A |
|
Smartoptics 16G DWDM 1555.75nm 14dB 40km SFP+ Module |
P9N41A |
|
Smartoptics 16G DWDM 1556.55nm 14dB 40km SFP+ Module |
P9N40A |
|
Smartoptics 16G DWDM 1557.36nm 14dB 40km SFP+ Module |
P9N39A |
|
Smartoptics 16G DWDM 1558.17nm 14dB 40km SFP+ Module |
P9N38A |
|
Smartoptics 16G DWDM 1558.98nm 14dB 40km SFP+ Module |
P9N37A |
|
Smartoptics 16G DWDM 1559.79nm 14dB 40km SFP+ Module |
P9N36A |
|
Smartoptics 16G DWDM 1560.61nm 14dB 40km SFP+ Module |
P9N35A |
|
Smartoptics D9210 16/8/4Gb FC/FICON DWDM 1560.61nm SM DDM 13dB 40km SFP+ Transceiver |
R6K95A |
|
Smartoptics D9220 16/8/4Gb FC/FICON DWDM 1559.79nm SM DDM 13dB 40km SFP+ Transceiver |
R6K96A |
|
Smartoptics D9230 16/8/4Gb FC/FICON DWDM 1558.98nm SM DDM 13dB 40km SFP+ Transceiver |
R6K97A |
|
Smartoptics D9240 16/8/4Gb FC/FICON DWDM 1558.17nm SM DDM 13dB 40km SFP+ Transceiver |
R6K98A |
|
Smartoptics D9250 16/8/4Gb FC/FICON DWDM 1557.36nm SM DDM 13dB 40km SFP+ Transceiver |
R6K99A |
|
Smartoptics D9260 16/8/4Gb FC/FICON DWDM 1556.55nm SM DDM 13dB 40km SFP+ Transceiver |
R6L00A |
|
Smartoptics D9270 16/8/4Gb FC/FICON DWDM 1555.75nm SM DDM 13dB 40km SFP+ Transceiver |
R6L01A |
|
Smartoptics D9280 16/8/4Gb FC/FICON DWDM 1554.94nm SM DDM 13dB 40km SFP+ Transceiver |
R6L02A |
|
Smartoptics D9290 16/8/4Gb FC/FICON DWDM 1554.13nm SM DDM 13dB 40km SFP+ Transceiver |
R6L03A |
|
Smartoptics D9300 16/8/4Gb FC/FICON DWDM 1553.33nm SM DDM 13dB 40km SFP+ Transceiver |
R6L04A |
|
Smartoptics D9310 16/8/4Gb FC/FICON DWDM 1552.52nm SM DDM 13dB 40km SFP+ Transceiver |
R6L05A |
|
Smartoptics D9320 16/8/4Gb FC/FICON DWDM 1551.72nm SM DDM 13dB 40km SFP+ Transceiver |
R6L06A |
|
Smartoptics D9330 16/8/4Gb FC/FICON DWDM 1550.92nm SM DDM 13dB 40km SFP+ Transceiver |
R6L07A |
|
Smartoptics D9340 16/8/4Gb FC/FICON DWDM 1550.12nm SM DDM 13dB 40km SFP+ Transceiver |
R6L08A |
|
Smartoptics D9350 16/8/4Gb FC/FICON DWDM 1549.32nm SM DDM 13dB 40km SFP+ Transceiver |
R6L09A |
|
Smartoptics D9360 16/8/4Gb FC/FICON DWDM 1548.51nm SM DDM 13dB 40km SFP+ Transceiver |
R6L10A |
|
Smartoptics D9370 16/8/4Gb FC/FICON DWDM 1547.72nm SM DDM 13dB 40km SFP+ Transceiver |
R6L11A |
|
Smartoptics D9380 16/8/4Gb FC/FICON DWDM 1546.92nm SM DDM 13dB 40km SFP+ Transceiver |
R6L12A |
|
Smartoptics D9390 16/8/4Gb FC/FICON DWDM 1546.12nm SM DDM 13dB 40km SFP+ Transceiver |
R6L13A |
|
Smartoptics D9400 16/8/4Gb FC/FICON DWDM 1545.32nm SM DDM 13dB 40km SFP+ Transceiver |
R6L14A |
|
Smartoptics D9410 16/8/4Gb FC/FICON DWDM 1544.53nm SM DDM 13dB 40km SFP+ Transceiver |
R6L15A |
|
Smartoptics D9420 16/8/4Gb FC/FICON DWDM 1543.73nm SM DDM 13dB 40km SFP+ Transceiver |
R6L16A |
|
Smartoptics D9430 16/8/4Gb FC/FICON DWDM 1542.94nm SM DDM 13dB 40km SFP+ Transceiver |
R6L17A |
|
Smartoptics D9440 16/8/4Gb FC/FICON DWDM 1542.14nm SM DDM 13dB 40km SFP+ Transceiver |
R6L18A |
|
Smartoptics D9450 16/8/4Gb FC/FICON DWDM 1541.35nm SM DDM 13dB 40km SFP+ Transceiver |
R6L19A |
|
Smartoptics D9460 16/8/4Gb FC/FICON DWDM 1540.56nm SM DDM 13dB 40km SFP+ Transceiver |
R6L20A |
|
Smartoptics D9470 16/8/4Gb FC/FICON DWDM 1539.77nm SM DDM 13dB 40km SFP+ Transceiver |
R6L21A |
|
Smartoptics D9480 16/8/4Gb FC/FICON DWDM 1538.98nm SM DDM 13dB 40km SFP+ Transceiver |
R6L22A |
|
Smartoptics D9490 16/8/4Gb FC/FICON DWDM 1538.19nm SM DDM 13dB 40km SFP+ Transceiver |
R6L23A |
|
Smartoptics D9500 16/8/4Gb FC/FICON DWDM 1537.40nm SM DDM 13dB 40km SFP+ Transceiver |
R6L24A |
|
Smartoptics D9510 16/8/4Gb FC/FICON DWDM 1536.61nm SM DDM 13dB 40km SFP+ Transceiver |
R6L25A |
|
Smartoptics D9520 16/8/4Gb FC/FICON DWDM 1535.82nm SM DDM 13dB 40km SFP+ Transceiver |
R6L26A |
|
Smartoptics D9530 16/8/4Gb FC/FICON DWDM 1535.04nm SM DDM 13dB 40km SFP+ Transceiver |
R6L27A |
|
Smartoptics D9540 16/8/4Gb FC/FICON DWDM 1534.25nm SM DDM 13dB 40km SFP+ Transceiver |
R6L28A |
|
Smartoptics D9550 16/8/4Gb FC/FICON DWDM 1533.47nm SM DDM 13dB 40km SFP+ Transceiver |
R6L29A |
|
Smartoptics D9560 16/8/4Gb FC/FICON DWDM 1532.68nm SM DDM 13dB 40km SFP+ Transceiver |
R6L30A |
|
Smartoptics D9570 16/8/4Gb FC/FICON DWDM 1531.90nm SM DDM 13dB 40km SFP+ Transceiver |
R6L31A |
|
Smartoptics D9580 16/8/4Gb FC/FICON DWDM 1531.12nm SM DDM 13dB 40km SFP+ Transceiver |
R6L32A |
|
Smartoptics D9590 16/8/4Gb FC/FICON DWDM 1530.33nm SM DDM 13dB 40km SFP+ Transceiver |
R6L33A |
|
Smartoptics D9600 16/8/4Gb FC/FICON DWDM 1529.55nm SM DDM 13dB 40km SFP+ Transceiver |
R6L34A |
|
Notes: 16G DWDM Fiber Optical SFP+ transceiver operates at different wavelengths other than mentioned above (please refer Appendix). Transceivers can be plugged directly into FC switch. All are Brocade layer 1 tested and approved. 16/8/4 Gbps Fibre Channel/Ficon. | |
|
Step-1.1
Select 10G FC Transceivers Select 10G FC Transceivers, select based on wave length desired (first determine if 23dB 80km or 14dB 40km is needed, then choose amongst 8 defined wave lengths from 1554.94 to 1560.61 nm or from custom wave lengths) 10G DWDM Fiber Optical SFP+ transceiver operates at wavelength defined and includes a PIN diode and temperature stabilized DFB-EML transmitter. The module has a duplex LC optical interface and are compliant to RoHS-6/6. | |
|
Smartoptics D9210 10G ZR DWDM 100GHz 1560.61nm 23dB 80km SFP+ Module |
Q2S34A |
|
Smartoptics D9220 10G ZR DWDM 100GHz 1559.79nm 23dB 80km SFP+ Module |
Q2S35A |
|
Smartoptics D9230 10G ZR DWDM 100GHz 1558.98nm 23dB 80km SFP+ Module |
Q2S36A |
|
Smartoptics D9240 10G ZR DWDM 100GHz 1558.17nm 23dB 80km SFP+ Module |
Q9D24A |
|
Smartoptics D9250 10G ZR DWDM 100GHz 1557.36nm 23dB 80km SFP+ Module |
Q9D25A |
|
Smartoptics D9260 10G ZR DWDM 100GHz 1556.55nm 23dB 80km SFP+ Module |
Q9D26A |
|
Smartoptics D9270 10G ZR DWDM 100GHz 1555.75nm 23dB 80km SFP+ Module |
Q9D27A |
|
Smartoptics D9280 10G ZR DWDM 100GHz 1554.94nm 23dB 80km SFP+ Module |
Q9D28A |
|
Smartoptics 10G ZR MR 9.95-11.1 G C Tunable DWDM C-Band 50GHz 2.0W 22db 80km SFP+ Module |
R0P19A |
|
Smartoptics D9210 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L46A |
|
Smartoptics D9220 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L47A |
|
Smartoptics D9230 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L48A |
|
Smartoptics D9240 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L49A |
|
Smartoptics D9250 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L50A |
|
Smartoptics D9260 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L51A |
|
Smartoptics D9270 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L52A |
|
Smartoptics D9280 10GBASE-ER DWDM SM DDM 14dB 40km SFP+ Transceiver |
R6L53A |
|
Smartoptics 10GBASE-ZR DWDM 80km SFP+ Transceiver |
R6L45A |
|
Notes: 10G DWDM Fiber Optical SFP+ transceiver operates at different wavelengths other than mentioned above (please refer Appendix). | |
|
| |
|
Step-1.2
Select 8G FC Transceivers Select 8G FC Transceivers, select based on wave length desired (first determine if 23dB 80km or 14dB 40km is needed, then choose amongst defined wave lengths from 1528.77 to 1548.51 nm or from custom wave lengths) 8G DWDM Fiber Optical SFP+ transceiver operates at wavelength defined and includes a PIN diode and temperature stabilized DFB-EML transmitter. The module has a duplex LC optical interface and are compliant to RoHS-6/6. | |
|
Descriptions |
SKU |
|
Smartoptics 8G DWDM 1560.61nm 14dB 40km SFP+ Module |
P9N10A |
|
Smartoptics 8G DWDM 1559.79nm 14dB 40km SFP+ Module |
P9N11A |
|
Smartoptics 8G DWDM 1558.98nm 14dB 40km SFP+ Module |
P9N12A |
|
Smartoptics 8G DWDM 1558.17nm 14dB 40km SFP+ Module |
P9N13A |
|
Smartoptics 8G DWDM 1557.36nm 14dB 40km SFP+ Module |
P9N14A |
|
Smartoptics 8G DWDM 1556.55nm 14dB 40km SFP+ Module |
P9N15A |
|
Smartoptics 8G DWDM 1555.75nm 14dB 40km SFP+ Module |
P9N16A |
|
Smartoptics 8G DWDM 1554.94nm 14dB 40km SFP+ Module |
P9N17A |
|
Smartoptics 8G DWDM 1554.13nm 14dB 40km SFP+ Module |
P9N18A |
|
Smartoptics 8G DWDM 1555.33nm 14dB 40km SFP+ Module |
P9N19A |
|
Smartoptics 8G DWDM 1552.52nm 14dB 40km SFP+ Module |
P9N20A |
|
Smartoptics 8G DWDM 1551.72nm 14dB 40km SFP+ Module |
P9N21A |
|
Smartoptics 8G DWDM 1550.92nm 14dB 40km SFP+ Module |
P9N22A |
|
Smartoptics 8G DWDM 1550.12nm 14dB 40km SFP+ Module |
P9N23A |
|
Smartoptics 8G DWDM 1549.32nm 14dB 40km SFP+ Module |
P9N24A |
|
Smartoptics 8G DWDM 1548.51nm 14dB 40km SFP+ Module |
P9N25A |
|
Smartoptics 8G DWDM Custom Wavelength SFP+ Module |
QOF38A |
|
Smartoptics D9210 8/4/2/1Gb FC/FICON DWDM 1560.61nm SM DDM 23dB 80km SFP+ Transceiver |
R6K87A |
|
Smartoptics D9220 8/4/2/1Gb FC/FICON DWDM 1559.79nm SM DDM 23dB 80km SFP+ Transceiver |
R6K88A |
|
Smartoptics D9230 8/4/2/1Gb FC/FICON DWDM 1558.98nm SM DDM 23dB 80km SFP+ Transceiver |
R6K89A |
|
Smartoptics D9240 8/4/2/1Gb FC/FICON DWDM 1558.17nm SM DDM 23dB 80km SFP+ Transceiver |
R6K90A |
|
Smartoptics D9250 8/4/2/1Gb FC/FICON DWDM 1557.36nm SM DDM 23dB 80km SFP+ Transceiver |
R6K91A |
|
Smartoptics D9260 8/4/2/1Gb FC/FICON DWDM 1556.55nm SM DDM 23dB 80km SFP+ Transceiver |
R6K92A |
|
Smartoptics D9270 8/4/2/1Gb FC/FICON DWDM 1555.75nm SM DDM 23dB 80km SFP+ Transceiver |
R6K93A |
|
Smartoptics D9280 8/4/2/1Gb FC/FICON DWDM 1554.94nm SM DDM 23dB 80km SFP+ Transceiver |
R6K94A |
|
Notes: 8G DWDM Fiber Optical SFP+ transceiver operates at different wavelengths other than mentioned above (please refer Appendix). Transceivers can be plugged directly into FC switch. All are Brocade layer 1 tested and approved. 8/4/2/1 Gbps Fibre Channel/Ficon. | |
|
Step-1.3
Select 100G DWDM QSFP28 Transceivers Select 100G FC Transceivers, select based on switch channel desired 100G DWDM Fiber Optical SFP+ transceiver operates at wavelength defined and includes a PIN diode and temperature stabilized DFB-EML transmitter. The module has a duplex LC optical interface and are compliant to RoHS-6/6. | |
|
Descriptions |
SKU |
|
Smartoptics D921 103G DWDM SM DDM QSFP28 Module |
R0P24A |
|
Smartoptics D922 103G DWDM SM DDM QSFP28 Module |
R0P25A |
|
Smartoptics D923 103G DWDM SM DDM QSFP28 Module |
R0P26A |
|
Smartoptics D924 103G DWDM SM DDM QSFP28 Module |
R0P27A |
|
Smartoptics D925 103G DWDM SM DDM QSFP28 Module |
R0P28A |
|
Smartoptics D926 103G DWDM SM DDM QSFP28 Module |
R0P29A |
|
Smartoptics D927 103G DWDM SM DDM QSFP28 Module |
R0P30A |
|
Smartoptics D928 103G DWDM SM DDM QSFP28 Module |
R0P31A |
|
Smartoptics D945 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L35A |
|
Smartoptics D946 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L36A |
|
Smartoptics D947 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L37A |
|
Smartoptics D948 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L38A |
|
Smartoptics D949 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L39A |
|
Smartoptics D950 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L40A |
|
Smartoptics D951 103Gb DWDM SM DDM QSFP28 Transceiver |
R6L42A |
|
| |
|
Step-1.4
Select 16/8/4G FC Transceivers Select 16/8/4G FC Transceivers, select based on wave length and distance desired. The module has a duplex LC optical interface and are compliant to RoHS-6/6. | |
|
Smartoptics 16/8/4G FC/FICON 850nm MM DDM 4dB 35m/OM2 100m/OM3 125m/OM4 SFP+ Module |
R0P17A |
|
Smartoptics 16/8/4G FC/FICON 1310nm SM DDM 8.9dB 10km SFP+ Module |
R0P18A |
|
| |
|
Step-1.5
Select 32G FC Transceivers Select 32G FC Transceivers, select based on wave length desired. 32G DWDM Fiber Optical SFP+ transceiver operates at wavelength defined and includes a PIN diode and temperature stabilized DFB-EML transmitter. The module has a duplex LC optical interface and are compliant to RoHS-6/6. | |
|
Smartoptics D210 32/16Gb DWDM 10km SFP28 Transceiver |
R6L54A |
|
Smartoptics D220 32/16Gb DWDM 10km SFP28 Transceiver |
R6L55A |
|
Smartoptics D230 32/16Gb DWDM 10km SFP28 Transceiver |
R6L56A |
|
Smartoptics D240 32/16Gb DWDM 10km SFP28 Transceiver |
R6L57A |
|
Smartoptics D250 32/16Gb DWDM 10km SFP28 Transceiver |
R6L58A |
|
Smartoptics D260 32/16Gb DWDM 10km SFP28 Transceiver |
R6L59A |
|
Smartoptics D270 32/16Gb DWDM 10km SFP28 Transceiver |
R6L60A |
|
Smartoptics D280 32/16Gb DWDM 10km SFP28 Transceiver |
R6L61A |
|
Smartoptics D290 32/16Gb DWDM 10km SFP28 Transceiver |
R6L62A |
|
Descriptions |
SKU |
|
Smartoptics D300 32/16Gb DWDM 10km SFP28 Transceiver |
R6L63A |
|
Smartoptics D310 32/16Gb DWDM 10km SFP28 Transceiver |
R6L64A |
|
Smartoptics D320 32/16Gb DWDM 10km SFP28 Transceiver |
R6L65A |
|
Smartoptics D330 32/16Gb DWDM 10km SFP28 Transceiver |
R6L66A |
|
Smartoptics D340 32/16Gb DWDM 10km SFP28 Transceiver |
R6L67A |
|
Smartoptics D350 32/16Gb DWDM 10km SFP28 Transceiver |
R6L68A |
|
Smartoptics D360 32/16Gb DWDM 10km SFP28 Transceiver |
R6L69A |
|
Smartoptics D370 32/16Gb DWDM 10km SFP28 Transceiver |
R6L70A |
|
Smartoptics D380 32/16Gb DWDM 10km SFP28 Transceiver |
R6L71A |
|
Smartoptics D390 32/16Gb DWDM 10km SFP28 Transceiver |
R6L72A |
|
Smartoptics D400 32/16Gb DWDM 10km SFP28 Transceiver |
R6L73A |
|
Smartoptics D410 32/16Gb DWDM 10km SFP28 Transceiver |
R6L74A |
|
Smartoptics D420 32/16Gb DWDM 10km SFP28 Transceiver |
R6L75A |
|
Smartoptics D430 32/16Gb DWDM 10km SFP28 Transceiver |
R6L76A |
|
Smartoptics D440 32/16Gb DWDM 10km SFP28 Transceiver |
R6L77A |
|
Smartoptics D450 32/16Gb DWDM 10km SFP28 Transceiver |
R6L78A |
|
Smartoptics D460 32/16Gb DWDM 10km SFP28 Transceiver |
R6L79A |
|
Smartoptics D470 32/16Gb DWDM 10km SFP28 Transceiver |
R6L80A |
|
Smartoptics D480 32/16Gb DWDM 10km SFP28 Transceiver |
R6L81A |
|
Smartoptics D490 32/16Gb DWDM 10km SFP28 Transceiver |
R6L82A |
|
Smartoptics D500 32/16Gb DWDM 10km SFP28 Transceiver |
R6L83A |
|
Smartoptics D510 32/16Gb DWDM 10km SFP28 Transceiver |
R6L84A |
|
Smartoptics D520 32/16Gb DWDM 10km SFP28 Transceiver |
R6L85A |
|
Smartoptics D530 32/16Gb DWDM 10km SFP28 Transceiver |
R6L86A |
|
Smartoptics D540 32/16Gb DWDM 10km SFP28 Transceiver |
R6L87A |
|
Smartoptics D550 32/16Gb DWDM 10km SFP28 Transceiver |
R6L88A |
|
Smartoptics D560 32/16Gb DWDM 10km SFP28 Transceiver |
R6L89A |
|
Smartoptics D570 32/16Gb DWDM 10km SFP28 Transceiver |
R6L90A |
|
Smartoptics D580 32/16Gb DWDM 10km SFP28 Transceiver |
R6L91A |
|
Smartoptics D590 32/16Gb DWDM 10km SFP28 Transceiver |
R6L92A |
|
Smartoptics D600 32/16Gb DWDM 10km SFP28 Transceiver |
R6L93A |
|
| |
|
Step-2
Select passive (unmanaged) Or intelligent (monitored and amplified) DWDM MUX/DEMUX | |
|
Passive DWDM system (no monitoring or distance extension capabilities) |
|
|
Smartoptics 40-channel DWDM MUX/DEMUX 7.5dB 100GHz Device |
P9N32A |
|
Notes: 40-channel 100GHz DWDM protocol transparent Mux/Demux unit. Channels operate in the standard C-band of the fiber with Insertion Loss of 7.5dB. Passive, no electric power required. | |
|
Smartoptics 16-channel DWDM MUX/DEMUX 5.3dB 100GHz Device |
P9N33A |
|
Notes: 16-channel 100GHz DWDM protocol transparent Mux/Demux unit. Channels operate in the standard C-band of the fiber with Insertion Loss of 5.35dB. Passive, no electric power required. | |
|
Smartoptics 8-channel DWDM MUX/DEMUX 3.5dB Device |
P9M83A |
|
Notes: 8-channel 100GHz DWDM protocol transparent Mux/Demux unit. Channels operate in the standard C-band of the fiber with Insertion Loss of 3.5dB. Passive, no electric power required. | |
|
Descriptions |
SKU |
|
Smartoptics 8-channel DWDM MUX/DEMUX 4.5dB Device |
P9N34A |
|
Notes: 8-channel 100GHz DWDM protocol transparent Mux/Demux unit. Channels operate in the standard C-band of the fiber with Insertion Loss of 4.5dB. Passive, no electric power required. | |
|
Smartoptics 40-channel DWDM MUX/DEMUX 11.5db 100GHz Device |
Q0G40A |
|
Notes: 40-channel 100GHz DWDM protocol transparent Mux/Demux unit. Channels operate in the standard C-band of the fiber with Insertion Loss of 11.5dB. Passive, no electric power required. | |
|
Passive DWDM system (no monitoring or distance extension capabilities) |
|
|
Smartoptics 32-channel DWDM MUX/DEMUX 5.8db 100GHz Device |
Q0G41A |
|
Notes: 32-channel 100GHz DWDM protocol transparent Mux/Demux unit. Channels operate in the standard C-band of the fiber with Insertion Loss of 5.8dB. Passive, no electric power required. | |
|
Smartoptics M-3809-921928 8-channel DWDM MUX/DEMUX 4.2db 100GHz Device |
Q0F91A |
|
Notes: 8-channel 100GHz DWDM protocol transparent Mux/Demux unit. Channels operate in the standard C-band of the fiber with Insertion Loss of 4.2dB. Passive, no electric power required. | |
|
Smartoptics M-3809-929936 8-channel DWDM MUX/DEMUX 4.2db 100GHz Device |
Q0F92A |
|
Notes: 8-channel 100GHz DWDM protocol transparent Mux/Demux unit. Channels operate in the standard C-band of the fiber with Insertion Loss of 4.2dB. Passive, no electric power required. | |
|
Smartoptics M-3817-921936 16-channel DWDM MUX/DEMUX 4.6db 100GHz Device |
Q0F90A |
|
Notes: M-series 16 channel. DWDM Intelligent Mux/Demux with DWDM expansion port up to 40km. M-3817 has an additional DWDM expansion port so that M-3816 can be seamlessly connected to increase capacity from 16 to 32 protocol transparent DWDM channels. | |
|
Intelligent DWDM system (Channel monitoring and distance extension capabilities) |
|
|
Notes: Customers can reuse their existing muxes with the optics. | |
|
Smartoptics 16-channel Expansion Port EDFA 80km Device |
P9M85A |
|
Notes: M-series 16 channel DWDM Intelligent Mux/Demux with DWDM expansion port up to 80km. | |
|
Smartoptics 16-channel DWDM MUX/DEMUX 5.0db Pass Thru Device |
Q0G43A |
|
Notes: M-series 16 channel. DWDM Intelligent Mux/Demux with DWDM expansion port up to 40km, pass through mode. | |
|
Smartoptics 16-channel DWDM MUX/DEMUX Transmitter EDFA 40km Device |
Q0G45A |
|
Notes: M-series 16 channel. DWDM Intelligent Mux/Demux transmitter EDFA with DWDM expansion port up to 40km, pass through mode. | |
|
Smartoptics 16-channel DWDM MUX/DEMUX Receiver EDFA Device |
Q0G46A |
|
Notes: M-series 16 channel. DWDM Intelligent Mux/Demux receiver EDFA mode. | |
|
Smartoptics 16-channel DWDM MUX/DEMUX Receiver EDFA 40km Device |
Q0G47A |
|
Notes: M-series 16 channel. DWDM Intelligent Mux/Demux receiver EDFA with DWDM expansion port up to 40km, pass through mode. | |
|
Smartoptics 16-channel DWDM MUX/DEMUX Transmitter/Receiver EDFA 80km Device |
Q0G49A |
|
Notes: M-series 16 channel. DWDM Intelligent Mux/Demux transmitter/receiver EDFA with DWDM expansion port up to 80km, pass through mode. | |
|
Smartoptics 8-channel OSC/PAM4 0-70km Device |
R0P20A |
|
Smartoptics 40-channel D921-D960 OSC/PAM4 0-80km Device |
R0P21A |
|
Smartoptics 40-channel D921-D960 OSC/PAM4 0-40km NRZ Device |
R0P22A |
|
Smartoptics 40-channel D921-D960 OSC/PAM4 15-55km NRZ Device |
R0P23A |
|
Smartoptics 40-channel D921-D960 OSC/PAM4 40-80km Device |
R6L41A |
|
Step - 3
Select Accessories |
|
|
Descriptions |
SKU |
|
Passive DWDM System |
|
|
Mounting Bracket (if 8 channel T-Series DWDM module is selected) |
|
|
Smartoptics Adjustable Mounting Bracket for T Series Module |
Q0F34A |
|
Notes: Mounting Bracket for 8 Channel T-series mux/demuxes. | |
|
Intelligent DWDM System |
|
|
Smartoptics M-Series AC Power Supply Unit |
P9M86A |
|
Notes: AC Power Supply unit for M-series MUX/DEMUX device. | |
|
Smartoptics M-Series DC Power Supply Unit |
P9M87A |
|
Notes: AC Power Supply unit for M-series MUX/DEMUX device. | |
|
Smartoptics C13-C14 Power Cable |
P9M88A |
|
Notes: Device Power Cable, IEC C13 to C14 connectors, 13 amp rating. | |
|
Smartoptics C13 (US) Power Cable |
P9M89A |
|
Notes: Device Power Cable for US, IEC C13, 13 amp rating. | |
|
Smartoptics C13 (EU) Power Cable |
P9M90A |
|
Notes: Device Power Cable for Europe, IEC C13. | |
|
Smartoptics C13 (UK) Power Cable |
P9M91A |
|
Notes: Device Power Cable for UK, IEC C13. | |
|
Smartoptics C13 (AU) Power Cable |
P9M92A |
|
Notes: Device Power Cable for Australia, IEC C13. | |
|
Smartoptics C13 (EU) Right Angle Power Cable |
P9M93A |
|
Notes: Device Right Angle Power Cable for Europe, IEC C13. | |
|
Step - 4
Select Jumper cables | |
|
Notes: A jumper cable is required per transceiver to connect it to the multiplexer. | |
|
Smartoptics 1m Duplex Single Mode Fiber Jumper Cable |
P9M94A |
|
Notes: 1m Jumper Cable for transceivers. | |
|
Smartoptics 3m Duplex Single Mode Fiber Jumper Cable |
P9M95A |
|
Notes: 3m Jumper Cable for transceivers. | |
|
Smartoptics 10m Duplex Single Mode Fiber Jumper Cable |
P9M96A |
|
Notes: 10m Jumper Cable for transceivers. | |
|
| |
|
Option: 2 8G FC CWDM Solution |
|
|
Step-1
Select Transceivers Select 8G FC CWDM, 8 channels 70km Optics select based on wave length desired (choose from 1470 to 1610 nm) 8G DWDM Fiber Optical SFP+ transceiver operates at wavelength defined and includes an APD receiver and temperature stabilized DFB-EML transmitter. The module has a duplex LC optical interface and are compliant to RoHS-6/6. | |
|
Descriptions |
SKU |
|
Smartoptics 8G CWDM 1470nm 23dB 70km SFP+ Module |
P9N02A |
|
Smartoptics 8G CWDM 1490nm 23dB 70km SFP+ Module |
P9N03A |
|
Smartoptics 8G CWDM 1510nm 23dB 70km SFP+ Module |
P9N04A |
|
Smartoptics 8G CWDM 1530nm 23dB 70km SFP+ Module |
P9N05A |
|
Smartoptics 8G CWDM 1550nm 23dB 70km SFP+ Module |
P9N06A |
|
Smartoptics 8G CWDM 1570nm 23dB 70km SFP+ Module |
P9N07A |
|
Smartoptics 8G CWDM 1590nm 23dB 70km SFP+ Module |
P9N08A |
|
Smartoptics 8G CWDM 1610nm 23dB 70km SFP+ Module |
P9N09A |
|
Notes: Transceivers can be plugged directly into FC switch. All are Brocade layer 1 tested and approved. 8/4/2/1 Gbps Fibre Channel/Ficon. | |
|
Step-2
Select MUX/DEMUX |
|
|
CWDM MUX/DEMUX |
|
|
Smartoptics 8-channel CWDM MUX/DEMUX 2.8dB Device |
P9N31A |
|
Notes: T-Series 8 channel CWDM Mux/Demux model which has 1310nm expansion ports that allow either existing legacy 1310nm traffic or additional CWDM wavelength channels to be added. Multiplexing of up to 16 channels on fiber pair. Passive device, no electric power required. | |
|
Step-3
Select Accessories |
|
|
Mounting Bracket |
|
|
Smartoptics Adjustable Mounting Bracket for T Series Module |
Q0F34A |
|
Notes: Mounting Bracket for T-series modules. | |
|
Jumper cables | |
|
Notes: One jumper cable is required per transceiver to connect it to the multiplexer. | |
|
Smartoptics 1m Duplex Single Mode Fiber Jumper Cable |
P9M94A |
|
Notes: 1m Jumper Cable for transceivers. | |
|
Smartoptics 3m Duplex Single Mode Fiber Jumper Cable |
P9M95A |
|
Notes: 3m Jumper Cable for transceivers. | |
|
Smartoptics 10m Duplex Single Mode Fiber Jumper Cable |
P9M96A |
|
Notes: 10m Jumper Cable for transceivers. | |
|
| |
|
Option: 3
Custom 10/100G Ethernet CWDM Solution with possibility to encrypt 1/8/10/16G traffic In cases of mixed FC and Ethernet traffic a transponder can complement the embedded Fiber Channel solution to transport the Ethernet signals. In this case the hand off between switch/router and transponder is done using 1310 or 850 "grey" optics. The same transponder can also be used to encrypt traffic. In this case the same hardware are used, but in addition an encryption license is needed. The transponder can encrypt 1/8/10/16G traffic. | |
|
Step-1
Select Transponder | |
|
Description |
SKU |
|
Smartoptics M-Series AC Power Supply Unit |
P9M86A |
|
Smartoptics M-Series DC Power Supply Unit |
P9M87A |
|
Notes: AC Power Supply unit for M-series MUX/DEMUX device. | |
|
Smartoptics C13-C14 Power Cable |
P9M88A |
|
Notes: Device Power Cable, IEC C13 to C14 connectors, 13 amp rating. | |
|
Smartoptics C13 (US) Power Cable |
P9M89A |
|
Notes: Device Power Cable for US, IEC C13, 13 amp rating. | |
|
Smartoptics C13 (EU) Power Cable |
P9M90A |
|
Notes: Device Power Cable for Europe, IEC C13. | |
|
Smartoptics C13 (UK) Power Cable |
P9M91A |
|
Notes: Device Power Cable for UK, IEC C13. | |
|
Smartoptics C13 (AU) Power Cable |
P9M92A |
|
Notes: Device Power Cable for Australia, IEC C13. | |
|
Smartoptics C13 (EU) Right Angle Power Cable |
P9M93A |
|
Notes: Device Right Angle Power Cable for Europe, IEC C13. | |
|
Smartoptics DCP-2 1U 2-slot Chassis with Management Board and Fan Units |
Q0G51A |
|
Notes: DCP-2 1U 2-slot Chassis with Management Board and Fan Units. | |
|
Smartoptics DCP-101 1-channel 100Gbps Transponder Device |
Q0G52A |
|
Notes: DCP-101 single channel 100Gbps transponder device. | |
|
Smartoptics DCP-1610 10-channel 1G-16Gbps SFP+ to SFP+ PM Transponder |
Q2S31A |
|
Notes: DCP-1610, 10 x 1-16G transponder device. | |
|
Smartoptics 8x40/100Gb Transponder for QSFP28 to QSFP28 Device |
R6L94A |
|
Smartoptics 100GbE 1310nm SM LC DDM 10km QSFP28 Transceiver |
R6L43A |
|
Smartoptics 100GbE 850nm MM MPO OM4 DDM 100m QSFP28 Transceiver |
R6L44A |
|
Notes: 8x40/100Gb Transponder for QSFP28 to QSFP28 Device, Select Transceivers as required | |
|
Smartoptics DCP-1610 Firmware and Crypto LTU |
Q9U88A |
|
Notes: Encryption licence for DCP-1610. This is a license to be used with SKU Q2S31A. | |
|
Smartoptics 103Gbps DWDM 25db CFP Module |
Q0G54A |
|
Notes: Smartoptics 103Gbps DWDM 25db CFP Module. | |
|
Smartoptics 100GBASE-SR4 850nm QSFP+ Module |
Q0G55A |
|
Notes: Smartoptics 100GBASE-SR4 850nm QSFP+ Module. | |
|
Smartoptics DCP-2-101 AC Power Supply |
Q0G53A |
|
Notes: AC Power Supply unit for DCP-2-101 MUX/DEMUX device. | |
|
| |
|
Step - 2
Select Transceiver Select CWDM or DWDM transceivers select based on wavelength desired. The intention is to use CWDM or DWDM transceivers as line side interfaces on the transponder. When the line side is selected, choose client facing optics, either 850 MM or 1310 SM. These modules has a duplex LC optical interface and are compliant to RoHS-6/6. | |
|
Description |
SKU |
|
DWDM transceivers |
|
|
Smartoptics D9210 10G ZR DWDM 100GHz 1560.61nm 23dB 80km SFP+ Module |
Q2S34A |
|
Smartoptics D9220 10G ZR DWDM 100GHz 1559.79nm 23dB 80km SFP+ Module |
Q2S35A |
|
Smartoptics D9230 10G ZR DWDM 100GHz 1558.98nm 23dB 80km SFP+ Module |
Q2S36A |
|
Smartoptics D9240 10G ZR DWDM 100GHz 1558.17nm 23dB 80km SFP+ Module |
Q9D24A |
|
Smartoptics D9250 10G ZR DWDM 100GHz 1557.36nm 23dB 80km SFP+ Module |
Q9D25A |
|
Smartoptics D9260 10G ZR DWDM 100GHz 1556.55nm 23dB 80km SFP+ Module |
Q9D26A |
|
Smartoptics D9270 10G ZR DWDM 100GHz 1555.75nm 23dB 80km SFP+ Module |
Q9D27A |
|
Smartoptics D9280 10G ZR DWDM 100GHz 1554.94nm 23dB 80km SFP+ Module |
Q9D28A |
|
Notes: 10G DWDM Fiber Optical SFP+ transceiver operates at different wavelengths other than mentioned above (please refer Appendix). | |
|
Client side optics |
|
|
Smartoptics 10G LR 1310nm SM DDM 6.2dB 10km SFP+ Module |
R0P32A |
|
Smartoptics 10G SR 850nm MM DDM 5.1dB 300m OM3 SFP+ Module |
R0P33A |
|
Notes: Module used as client side optics on the DCP-1610. | |
|
| |
|
Step - 3
Select CWDM MUX/DEMUX |
|
|
Smartoptics 8-channel CWDM MUX/DEMUX 2.8dB Device |
P9N31A |
|
Notes: T-Series 8 channel CWDM Mux/Demux model which has 1310nm expansion ports that allow either existing legacy 1310nm traffic or additional CWDM wavelength channels to be added. Multiplexing of up to 16 channels on fiber pair. Passive device, no electric power required. | |
|
Step - 4
Select Accessories |
|
|
Mounting Bracket |
|
|
Smartoptics Adjustable Mounting Bracket for T Series Module |
Q0F34A |
|
Notes: Mounting Bracket for T-series modules. | |
|
Jumper cables |
|
|
Notes: One jumper cable is required per transceiver to connect it to the multiplexer. |
|
|
Smartoptics 1m Duplex Single Mode Fiber Jumper Cable |
P9M94A |
|
Notes: 1m Jumper Cable for transceivers. | |
|
Smartoptics 3m Duplex Single Mode Fiber Jumper Cable |
P9M95A |
|
Notes: 3m Jumper Cable for transceivers. | |
|
Smartoptics 10m Duplex Single Mode Fiber Jumper Cable |
P9M96A |
|
Notes: 10m Jumper Cable for transceivers. | |
|
| |
|
Step - 5
Select Services |
|
|
Description |
SKU |
|
Smartoptics Advanced Product Replacement APR 1 Service |
R5Z61A |
|
Smartoptics Advanced Product Replacement APR 2 Service |
R5Z62A |
|
Smartoptics Advanced Product Replacement APR 3 Service |
R5Z63A |
|
Smartoptics Advanced Product Replacement APR 4 Service |
R5Z64A |
|
Smartoptics Advanced Product Replacement APR 5 Service |
R5Z65A |
|
Smartoptics Extended Warranty EWS 1 Service |
R5Z66A |
|
Smartoptics Extended Warranty EWS 2 Service |
R5Z67A |
|
Smartoptics Extended Warranty EWS 3 Service |
R5Z68A |
|
Smartoptics Extended Warranty EWS 4 Service |
R5Z69A |
|
Smartoptics Extended Warranty EWS 5 Service |
R5Z70A |
|
Smartoptics General Service |
R5Z71A |
|
Notes: The Advanced Product Replacement and Extended Warrenty SKUs are segmented into 1-5 levels, which is based on the total value of the order based on list prices. The levels are defined as noted below in US $: 1) $0 to $20,000 2) $20,001 to $50,000 3) $50,001 to $150,000 4) $150,001 to $400,000 5) For order values over $400,000 General Service provides flexibility to meet customer service needs, it requires working with Smartoptics to develop custom proposal For Advanced Product Replacement, please select for the applicable level as defined above with the quantity of SKUs to meet the number ofyears coverage desiredas defined in this data sheet: https://www.smartoptics.com/wp-content/uploads/2019/08/SO-DS-APR_R5.0.pdf For Extended Warrenty Service, please select for the applicable level as defined above with the quantityof years coverage desired as defined in this data sheet: https://www.smartoptics.com/wp-content/uploads/2019/08/SO-DS-EWS_R5.0.pdf For General Service, please use this link for more information: https://www.smartoptics.com/services-support/ | |
|
| |
|
Appendix | ||||||||||||||||||||||||||
|
DWDM wavelength table and mux/demux selection guide | ||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
|
|
M-Series channel plan |
|
40ch Mux/Demux |
|
32ch Mux/Demux |
|
16ch |
|
16ch Mux/Demux |
|
8ch Mux/Demux |
|
|
DWDM over CWDM |
|
16/8G Trx Sept release |
|
16/8G Trx Novrelease | ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
T-3810 |
|
|
|
| ||||||||
|
|
9600 |
|
|
|
|
|
|
|
|
|
|
|
|
|
September release Custom 16/8G wavelengths |
|
Custom replaced by the remaining 16/8G DWDM wavelengths | |||||||||
|
|
9590 |
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||||||
|
|
9580 |
|
|
|
|
M-160x |
|
M-3817-943958-M |
|
M-3809-951958-M |
|
|
|
| ||||||||||||
|
|
9570 |
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
|
9560 |
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
|
9550 |
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
|
9540 |
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
|
9530 |
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
|
9520 |
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
|
9510 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
9500 |
|
|
|
|
|
M-3809-943950-M |
|
|
|
|
| ||||||||||||||
|
|
9490 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
9480 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
9470 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
9460 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
9450 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
9440 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
9430 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
9420 |
|
|
|
Unused wavelength area 9370 to 9420 |
|
|
T-3809 |
|
September release wavelengths |
|
| ||||||||||||||
|
|
9410 |
|
|
|
|
|
| |||||||||||||||||||
|
|
9400 |
|
|
|
|
|
| |||||||||||||||||||
|
|
9390 |
|
|
|
|
|
| |||||||||||||||||||
|
|
9380 |
|
|
|
|
|
| |||||||||||||||||||
|
|
9370 |
|
|
|
|
|
| |||||||||||||||||||
|
|
9360 |
|
|
M-3832-M |
|
M-160x |
|
M3817-921936-M |
|
M-3809-929936-M |
|
|
|
| ||||||||||||
|
|
9350 |
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
|
9340 |
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
|
9330 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
9320 |
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
|
9310 |
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
|
9300 |
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
DWDM wavelength table and mux/demux selection guide | ||||||||||||||||||||||||||
|
|
9290 |
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
|
|
9280 |
|
|
|
|
|
M-3809-921928-M |
|
|
|
| |||||||||||||||
|
|
9270 |
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
|
9260 |
|
|
|
|
|
|
|
|
| ||||||||||||||||
|
|
9250 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
9240 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
9230 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
9220 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
9210 |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
|
|
CWDM wavelength table |
|
| |||||||||||||||||||||||
|
|
|
| ||||||||||||||||||||||||
|
|
|
| ||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||
|
|
CWDM wavelength plan |
|
8 Channel Mux/Demux |
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||
|
|
1470 |
|
T-3009 |
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||
|
|
1490 |
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||||
|
|
1510 |
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||||
|
|
1530 |
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||||
|
|
1550 |
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||||
|
|
1570 |
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||||
|
|
1590 |
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||||
|
|
1610 |
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||||
|
| ||||||||||||||||||||||||||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
06-Jul-2020 |
Version 7 |
Changed |
Added 32G Transievers, additional 100G, 16G, 10G and 8G switch channel tranceivers |
|
04-May-2020 |
Version 6 |
Changed |
Overview, Features and Benefits, Configuration Information were revised. |
|
03-Sep-2019 |
Version 5 |
Changed |
Updated product name |
|
05-Nov-2018 |
Version 4 |
Changed |
Overview, Features and Benefits, Configuration Information were revised. Added 100G Transievers, and 40Ch PAM Devices along with support options |
|
07-May-2018 |
Version 3 |
Changed |
Overview, Features and Benefits, Configuration Information, Service, Support and Warranty Information were revised. |
|
Removed |
Obsolete SKUs were removed from the QuickSpecs. | ||
|
28-Nov-2016 |
Version 2 |
Changed |
Changes made to the entire document. |
|
26-Sep-2016 |
Version 1 |
New |
New QuickSpecs |
Copyright
|
|
| ||||||||||||
|
|
|
© Copyright 2020 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation. Unix is a registered trademark of The Open Group.
c05205226 - 15649 - Worldwide - V7 - 06-July-2020 | ||||||||||||
