HPE Synergy 50Gb Interconnect Link Module QuickSpecs
The HPE Synergy 50Gb Interconnect Link Module, satellite module is designed for Composable Infrastructure. Based on disaggregated, rack-scale design, it uses a primary/satellite architecture to consolidate data center network connections, reduce hardware and scale network bandwidth across multiple HPE Synergy Frames. This module extends HPE composable fabric up to four additional satellite frames with 25/50Gb connectivity to Synergy Compute Modules and replaces a fixed ratio of interconnects in each frame by extending the fluid pool of network resources. |
|
|
The primary module contains intelligent networking capabilities that extend connectivity to frames equipped with satellite modules. This reduces the need for top of rack switches and substantially decreases cost. The reduction in components simplifies fabric management at scale while consuming fewer ports at the data center aggregation layer. | |||
|
| |||
|
| |||
|
| |||
|

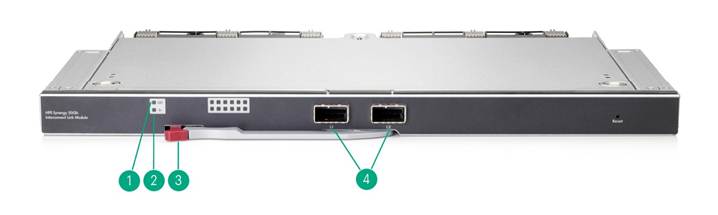

Figure 1 HPE Synergy 50Gb Interconnect Link Module | |||
|
Item |
Description |
Item |
Description |
|
1. |
UID LED |
3. |
Insertion & Extraction Lever |
|
2. |
Health LED |
4. |
CXP28 ports - L1 & L2 used for Interconnect Link Ports |
|
| |||
|
Product Features
Performance - 12 x 25Gb or 12 x 50Gb (2 lanes of 25Gb) Ethernet downlinks (traversing the midplane) to compute module Converged Network Adapters - The FlexHBA can be configured to transport either Fibre Channel over Ethernet/CEE or Accelerated iSCSI protocol. - Each FlexNIC and FlexHBA is recognized by the compute module as a PCIe physical function device with adjustable speeds from 250Mb to 25Gb in 250Mb increments when connected to a 2-port Converged Network Adapter or any Flex-25/50 NIC and from 500Mb to 50Gb in 500Mb increments when connected to a Dual-Port 25/50Gb Converged Network Adapter
Management - Integrated composer based HPE OneView included with every frame, providing out-of-the-box Virtual Connect configuration and management. - Pre-configure compute modules I/O configurations prior to their installation for easy deployment - Move, add, or change compute module network connections on the fly without impacting LAN and SAN administrator - Provisioned storage resource is associated directly to a specific virtual machine - even if the virtual server is re-allocated within a frame - Compute module-side NPIV removes storage management constraint of a single physical HBA on a compute module does not add to SAN switch domains or require traditional SAN management - Licensing support for native Fibre Channel through Composer powered by OneView |
|
|
|
Supported Configurations |
|
|
|

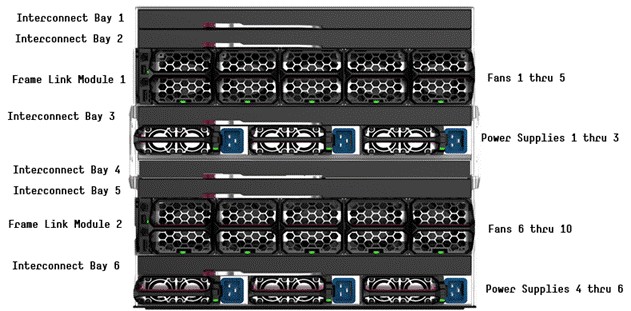

HPE Synergy 12000 Frame - Rear View |
| ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
|
For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services. |
|
Models | ||||
|
Spare Part Numbers |
SKU Description |
Orderable SKU Number | ||
|
879437-001 |
HPE Synergy 50Gb Interconnect Link Module |
867793-B21 | ||
|
P57815-001 | ||||
|
|
|
| ||
|
P02747-001 |
HPE Synergy 50Gb TAA-compliant Interconnect Link Module |
867793-B22
| ||
|
P57838-001 | ||||
|
Notes: - All SKUs of the HPE Synergy 50Gb Interconnect Link Module are functionally equivalent to each other and operate and behave as expected on all versions of HPE OneView for Synergy until it is time for a firmware upgrade. To update firmware on Spare Part Numbers P57815-001 and P57838-001 you must have HPE OneView for Synergy version 6.60.01 or HPE OneView for Synergy version 7.2 or later. - HPE Synergy 50Gb Interconnect Link Modules with different Spare Part Numbers can operate together within the same environment. An upgrade is not required for this support. To differentiate between the new and old HPE Synergy 50Gb Interconnect Link Modules, refer to the spare part number on the module or firmware version on each module. Spare Part Numbers P57815-001 and P57838-001 will contain the 2.x firmware and the Spare Part Numbers 879437-001 and P02747-001 will contain the 1.x firmware. - For future firmware updates:
o a. Use HPE OneView for Synergy to check the firmware version or spare part number of the module. IMPORTANT: Because the new interconnect link module's firmware version is unknown to existing SSP releases, HPE OneView for Synergy displays a message that the firmware does not match the baseline version and provides a resolution to update the firmware. Disregard this resolution as this firmware dierence from baseline is expected. See the HPE OneView for Synergy User Guide (Document - HPE OneView for HPE Synergy Firmware and Driver Update Guide | HPE Support for information on identifying firmware versions and spare part numbers. o b. Look on the outside of the module for the spare part number.
|
||||
|
| ||||
|
Compatibility HPE Synergy 50Gb Interconnect Link Module interoperates with the following HPE Synergy hardware housed in the Synergy Frames. | ||||
|
HPE Synergy Compute Modules | ||||
|
HPE Synergy 480 Gen11 Configure-to-order Compute Module |
P39531-B21 | |||
|
HPE Synergy 480 Gen11 TAA-compliant Configure-to-order Compute Module |
P39531-B22 | |||
|
HPE Synergy 480 Gen12 Configure-to-order Compute Module |
P68217-B21 | |||
|
HPE Virtual Connect Module |
| |||
|
HPE Virtual Connect SE 100Gb F32 Module for Synergy |
867796-B21 | |||
|
HPE Virtual Connect SE 100Gb F32 TAA-compliant Module for Synergy |
867796-B22 | |||
|
HPE Network Adapters |
| |||
|
HPE Synergy 4820C 10/20/25Gb Converged Network Adapter |
876449-B21 | |||
|
HPE Synergy 6820C 25/50Gb Converged Network Adapter |
P02054-B21 | |||
|
HPE Synergy 6310C 25/50Gb Ethernet Adapter |
P64724-B21 | |||
|
CXP28 Cables |
| |||
|
HPE Synergy 300Gb Interconnect Link 2.1m Direct Attach Copper Cable |
876680-B21 | |||
|
The following 3 SKUs all comply with the Low Smoke Zero Halogen (LSZH) standard and refer to the behavior of chemical compounds when combusted - specifically the quantity of smoke generated and the toxicity of the emissions. |
| |||
|
HPE Synergy 300Gb Interconnect Link 3m Active Optical Cable |
876689-B21 | |||
|
HPE Synergy 300Gb Interconnect Link 5m Active Optical Cable |
876692-B21 | |||
|
HPE Synergy 300Gb Interconnect Link 5m Active Optical Cable |
876692-B21 | |||
|
The following 3 SKUs are all Plenum-Rated referring to its special insulation that has low smoke and low flame characteristics. |
| |||
|
HPE Synergy 300Gb Interconnect Link 3m Plenum Rated Active Optical Cable |
P64635-B21 | |||
|
HPE Synergy 300Gb Interconnect Link 5m Plenum Rated Active Optical Cable |
P64638-B21 | |||
|
HPE Synergy 300Gb Interconnect Link 15m Plenum Rated Active Optical Cable |
P64641-B21 | |||
|
Notes: - Mixing LSZH and Plenum-Rated cables in the same Logical Enclosure (LE) is not supported. - Since the Plenum-Rated cables are newer, they require a minimum version of OneView and a minimum firmware version on the modules that they are connecting --- VC 100Gb F32 Switch module and the 50G ICM Satellite module. o OneView version must be OV 9.0 or higher o VC 100Gb F32 Switch must have firmware of 2.7.0 or higher o 50Gb ICM Satellite that has Spare Part Number 879437-001 or P02747-001 must have firmware of 1.2.1.0 or higher o 50Gb ICM Satellite that has Spare Part Number P57815-001 or P57838-001 must have firmware of 2.0.2.0 or higher o The firmware versions for the VC 100Gb F32 Switch and the 50Gb ICM Satellite modules are part of the SSP SY2024.07.01
Warning: If non-supported firmware is used with Plenum cables, creation of the Logical Enclosure will fail. Customers must upgrade all firmware on connecting modules before installing the Plenum-Rated cables. Ensure that OneView and the modules that these cables are connecting have supported firmware before starting any replacement or growth operations with Plenum-Rated cables. Check the HPE OneView for Synergy version number. If you are not running HPE OneView for Synergy version 9.0 or later, update the software. See the HPE OneView for Synergy User Guide Document - HPE OneView for HPE Synergy Firmware and Driver Update Guide | HPE Support for details on updating the software. Update the firmware on the connecting modules. See the HPE OneView for Synergy User Guide Document - HPE OneView for HPE Synergy Firmware and Driver Update Guide | HPE Support for details on updating the firmware. | ||||
|
| ||||
|
HPE Synergy Services |
|
|
Preferred Support Services |
|
|
HPE 5 Year Tech Care Essential SY IC Link Module Service |
H35F3E |
|
HPE Installation Synergy Node Service |
H0YW6E |
|
HPE 5 Year Tech Care Critical SY IC Link Module Service |
H35E5E |
|
HPE 1 Year Post Warranty Tech Care Essential SY IC Link Module Service |
H35F4PE |
|
Support Recommended |
|
|
HPE 5 Year Tech Care Essential SY IC Link Module Service |
H35F3E |
|
HPE 5 Year Tech Care Critical SY IC Link Module Service |
H35E5E |
|
Deployment/Installation & Start-up Services |
|
|
HPE Factory Express Synergy Initial Frame Package 4 Service |
HA454A1-300 |
|
HPE Factory Express Synergy Add-on Frame Package 4 Service |
HA454A1-301 |
|
HPE Synergy First Frame Onsite Startup Service |
U8JM3E |
|
HPE Synergy Addl Frame Onsite Startup Service |
U8JM4E |
|
HPE Installation Non Standard Hours Synergy Node Service |
H0YW7E |
|
Tech Care Critical |
|
|
HPE 5 Year Tech Care Critical with CDMR SY IC Link Module Service |
H35E9E |
|
HPE 4 Year Tech Care Critical SY IC Link Module Service |
H35E4E |
|
HPE 4 Year Tech Care Critical with CDMR SY IC Link Module Service |
H35E8E |
|
HPE 3 Year Tech Care Critical SY IC Link Module Service |
H35E3E |
|
HPE 3 Year Tech Care Critical with CDMR SY IC Link Module Service |
H35E7E |
|
HPE 1 Year Post Warranty Tech Care Critical with CDMR SY IC Link Service |
H35F0PE |
|
HPE 1 Year Post Warranty Tech Care Critical SY IC Link Module Service |
H35E6PE |
|
Tech Care Essential |
|
|
HPE 5 Year Tech Care Essential with CDMR SY IC Link Module Service |
H35F8E |
|
HPE 4 Year Tech Care Essential SY IC Link Module Service |
H35F2E |
|
HPE 4 Year Tech Care Essential with CDMR SY IC Link Module Service |
H35F7E |
|
HPE 3 Year Tech Care Essential SY IC Link Module Service |
H35F1E |
|
HPE 3 Year Tech Care Essential with CDMR SY IC Link Module Service |
H35F6E |
|
HPE 2 Year Post Warranty Tech Care Essential SY IC Link Module Service |
H35F5PE |
|
HPE 1 Year Post Warranty Tech Care Essential with CDMR SY IC LinkModule Service |
H35F9PE |
|
Tech Care Basic |
|
|
HPE 5 Year Tech Care Basic SY IC Link Module Service |
H35G2E |
|
HPE 5 Year Tech Care Basic with CDMR SY IC Link Module Service |
H35G7E |
|
HPE 4 Year Tech Care Basic SY IC Link Module Service |
H35G1E |
|
HPE 4 Year Tech Care Basic with CDMR SY IC Link Module Service |
H35G6E |
|
HPE 3 Year Tech Care Basic SY IC Link Module Service |
H35G0E |
|
HPE 3 Year Tech Care Basic with CDMR SY IC Link Module Service |
H35G5E |
|
HPE 2 Year Post Warranty Tech Care Basic SY IC Link Module Service |
H35G4PE |
|
HPE 1 Year Post Warranty Tech Care Basic with CDMR SY IC LinkModule Service |
H35G8PE |
|
HPE 1 Year Post Warranty Tech Care Basic SY IC Link Module Service |
H35G3PE |
|
Notes: - Service levels and response times for Hewlett Packard Enterprise Support Services may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. HPE Support Services are governed by the applicable HPE terms and conditions of service provided or indicated to customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected by the HPE terms and conditions of service or the HPE Limited Warranty provided with your HPE Product. - Learn more at http://www.hpe.com/services/ssc - Extended Services Plans enable customers to extend service coverage beyond the base warranty period and are available in one-year increments for durations of one to five years. - See Hewlett Packard Enterprise Support Services Data Sheet and terms and conditions for complete details. | |
|
| |
|
System Unit | |||
|
Shipping Dimensions | |||
|
Length |
19.53 in (496 mm) | ||
|
Width |
15.67 in (398 mm) | ||
|
Height |
5.88 in (149.5 mm) | ||
|
Shipping Weight |
Approximately 3.0 kg (6.2 Lbs) | ||
|
Product Specifications Hardware | |||
|
Performance |
Non-blocking architecture | ||
|
Connectors and Cabling |
12 x 50Gb downlinks through the midplane | ||
|
2 x 300Gb interconnect link ports | |||
|
Indicators |
Health LED | ||
|
UID LED | |||
|
Link cable port LEDs | |||
|
Compute Module Link LEDs | |||
|
Weight |
2.81 kg (6.2 Lbs) | ||
|
Latency |
Low-latency design (<5 ns round trip) | ||
|
Environmental Ranges |
Temperature Range | ||
|
Specification |
10° to 35°C (50° to 95°F)* | ||
|
Temperature Range | |||
|
Operating |
10° to 35°C (50° to 95°F) | ||
|
Shipping |
Shipping -40°C to 60°C | ||
|
Storage |
-20°C to 60°C | ||
|
Maximum wet bulb temperature |
30°C (80°F) | ||
|
Relative Humidity (non-condensing) | |||
|
Operating |
10% to 90% | ||
|
Shipping |
10% to 90% | ||
|
Notes: - All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia. - Storage maximum humidity of 90% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa. | |||
|
Power Specification |
12V @ 3.58A (43 W max) | ||
|
Safety and Compliance | |||
|
Safety Certifications |
- UL/CUL Recognition to UL/CSA 60950-1 - TUV to EN 60950-1 - CB report and certificate to IEC 60950-1 with all country deviations - CE Marking | ||
|
Electromagnetic Emissions Certifications FCC Part 15 Class A |
- FCC Part 15 Class A - EN 55022 Class A (CISPR22 Class A) - VCCI Class A - CE Marking - FCC - ICES (Canada) - VCCI (Japan) - RCM (Australia/NZ) - KCC (Korea) - BSMI (Taiwan) | ||
|
Environment-friendly Products and Approach - End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/info/recycle. To recycle your product, please go to: http://www.hpe.com/info/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hpe.com/info/recycle. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
|
|
|
