HPE Synergy 10Gb Pass-Thru Module: технические характеристики и документация

HPE Synergy 10Gb Pass Thru Module

Overview

Have feedback on QuickSpecs? We're listening

HPE Synergy 10Gb Pass-Thru Module QuickSpecs

The HPE Synergy 10Gb Pass-Thru Module is designed for the HPE Synergy 12000 Frame for customers requiring a non-blocking, one -to-one connection between each Synergy Compute Module and the network. The pass-thru module provides 12 uplink ports that can accept SFP+ connectors using a QSFP+ to SFP+ adapter.

The HPE Synergy 10Gb Pass-Thru Module can support 10Gb connections on a port by port basis. Optical as well as Direct Attach Copper (DAC) cables are also supported. Both standard Ethernet as well as Converged Enhanced Ethernet (CEE) traffic to an FCoE capable switch is possible when using the appropriate HPE Synergy Converged Network Adapter.

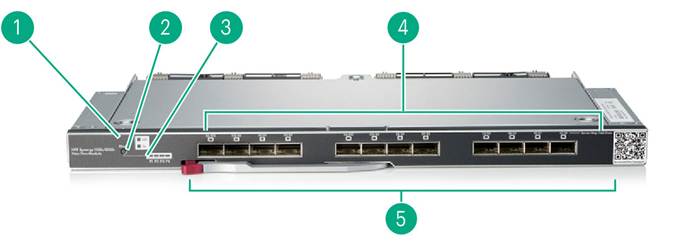

HPE Synergy 10Gb Pass-Thru Module

Item	Description	Item	Description
1.	UID LED	4.	Ethernet port link status and speed LEDs
2.	Module Status/Health LED	5.	Uplink ports that accept QSFP+ to SFP+ adapter to support SFP+ transceivers and Direct Attach Cables (DAC)
3.	Mode LED

At A Glance

Performance:

- 12 direct Synergy Compute Module to network connections

- Auto-sense 10Gb operation on a port by port basis

- Supports standard Ethernet as well as Converged Enhanced Ethernet

- Supports HPE Synergy Ethernet Converged Network Adapters

Management:

- No management required - automatic discovery be HPE Synergy Composer

- Module performance monitored by the HPE Synergy Composer

- Hardware diagnosis, error reporting, and firmware updates through HPE Synergy Composer

Compute Module to HPE 10Gb Pass-Thru Module Port Mapping

Faceplate Port

Q10

Q11

Q12

PTM in Odd Bay

(1, 3, 5)

CM6

CM12

CM5

CM11

CM4

CM10

CM3

CM9

CM2

CM8

CM1

CM7

PTM in Even Bay (2, 4, 6)

CM12

CM6

CM11

CM5

CM10

CM4

CM9

CM3

CM8

CM2

CM7

CM1

Notes: CM - Compute Module.

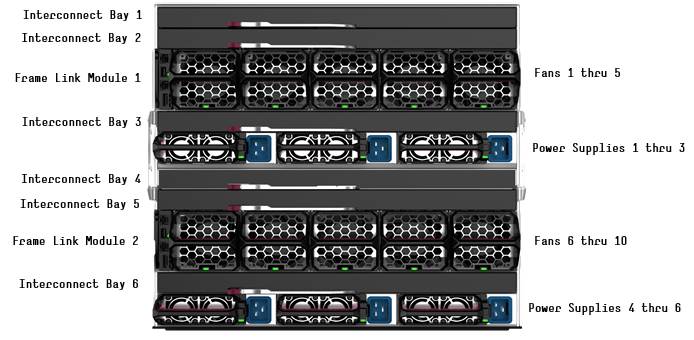

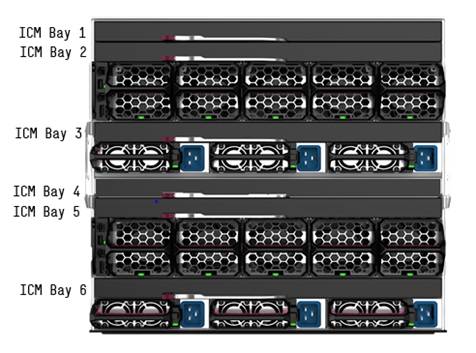

HPE Synergy 12000 Frame - Rear View

Platform Information

Models
Description	SKU
HE Synergy 10Gb Pass-Thru Module	799330-B21
HPE Synergy 10Gb TAA-compliant Pass-Thru Module	799330-B22
Notes: - TAA in the name of this product provides that this product meets the US Trade Agreements Act (19 U.S.C & 2501-2581) and is compliant for resale on GSA (General Services Administration) agreements or contracts. - HPE now includes TAA products and options for the Synergy line of product solutions. TAA refers to the US Trade Agreements Act (19 U.S.C & 2501-2581). TAA compliance for HPE simply means that as a product manufacturer or reseller on GSA (General Services Administration), the "final products" that we sell through your GSA Schedule are manufactured or substantially transformed in a TAA-compliant country. HPE Synergy TAA products are aligned for the configuration of a complete TAA-compliant solution or subsets of the complete solution. - HPE Synergy 12000 TAA Configure-To-Order Frames may include TAA specific, naturally compliant, or standard product options and become a TAA approved solutions when substantially transformed/integrated at a designated HPE TAA Compliant Factory. Please look for TAA in the name when defining HPE Synergy Options or Solutions that may require TAA compliance. - The package ships with 12 quantities of HPE BladeSystem c-Class QSFP+ to SFP+ Adapter (Part Number - 720193-B21).

Compatibility HPE Synergy 10Gb Pass-Thru Module supports the following hardware.
HPE Synergy Compute Modules - HPE Synergy 480 Gen9 Compute Module - HPE Synergy 620 Gen9 Compute Module - HPE Synergy 660 Gen9 Compute Module - HPE Synergy 680 Gen9 Compute Module - HPE Synergy 480 Gen10 Compute Module - HPE Synergy 660 Gen10 Compute Module - HPE Synergy 480 Gen10Plus Compute Module - HPE Synergy 480 Gen11 Compute Module
HPE Network Adapters Converged Network Adapter: - HPE Synergy 2820C 10Gb Converged Network Adapter - HPE Synergy 3820C 10/20Gb Converged Network Adapter - HPE Synergy 4820C 10/20/25Gb Converged Network Adapter - HPE Synergy 4610C 10/25Gb Ethernet Adapter Notes: Consult individual compute module TechSpecs for specific adapter support.

Supported Configurations

Cabling and Transceivers

SFP+ cables connected to QSFP+ to SFP+ Adapter:

- HP BladeSystem c-Class QSFP+ to SFP+ Adapter

Notes: One HP BladeSystem c-Class QSFP+ to SFP+ Adapter is required for each QSFP+ port to connect 10Gb DAC cables to the HPE Synergy 10Gb Pass-Thru Module.

- HP BladeSystem c-Class Small Form-Factor Pluggable 3m 10GbE Copper Cable

- HP BladeSystem c-Class Small Form-Factor Pluggable 5m 10GbE Copper Cable

Notes: The above cables have been tested and verified to work with the HPE 10Gb Pass-Thru Module. However, the module will accept cables from any vendor. Hewlett Packard Enterprise does not guarantee the performance of non HPE cables and users may receive a warning message via the CLI when a non-verified cable has been inserted.

Transceivers:

- HPE BladeSystem c-Class QSFP+ to SFP+ Adapter

- HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver

- HPE BladeSystem c-Class 10Gb SFP+ LR Transceiver

- HPE 10GBase-T SFP+ Transceiver

Notes:

- One HPE QSFP+ to SFP+ adapter is required for each QSFP+ port to connect 10Gb transceivers to the HPE Synergy 10Gb Pass-Thru Module.

- Only HPE transceivers listed above may be used in the HPE 10Gb Pass-Thru Module.

Service and Support

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

Related Options

Cables and Transceiver
SFP+ Direct attached cables
Description	SKU
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable	487655-B21
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable	537963-B21
Notes: QSFP+ to SFP+ adapter required for each QSFP+ port to connect SFP+ cables/transceivers
Transceivers
Description	SKU
HPE BladeSystem c-Class QSFP+ to SFP+ Adapter	720193-B21
HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver	455883-B21
HPE BladeSystem c-Class 10Gb SFP+ LR Transceiver	455886-B21
HPE 10GBase-T SFP+ Transceiver	813874-B21

Technical Specifications

Product Specifications
Shipping Dimensions
Length	19.45 in (494 mm)
Width	15.55 in (395 mm)
Height	5.75 in (145 mm)
Shipping Weight	3.2 kg (7.0 lbs)
Product Specifications Hardware
Performance	240 Gbps external port bandwidth per module at 10Gb
Connectors and Cabling	Uplink Ports	12 QSFP+/SFP+ Modules
	Management	Mini-USB Management
Network Transfer Rate	10 Gbps port (20,000 Mbps full duplex)
LED Indicators	UID LED	Blue light on module is activated. Blue light off module is deactivated.
	Mode LED	Green lights
	Health LED	Solid Amber: The pass-thru module is powered off. Green: The pass-thru module is powered up, and all ports match. Flashing Amber: Fault exists.
	Ethernet port	Green Link is 10G Flashing blue QSFP+ indicator Red configuration error
Product Dimensions
Length	10.5 in (267.7 mm)
Width	7.5 in (192.79 mm)
Height	1.1 in (27.94mm)
Product Weight	1.6 kg (3.97 lbs)
Environmental Ranges
Temperature Range ²
Specification	10°C to 40°C (50°F to 104°F)¹
Operating	10°C to 40°C (50°F to 104°F)
Shipping	Shipping -40°C to 70°C (-40°F to 158°F)
Storage	-30°C to 60°C (-22°F to 140°F)
Maximum wet bulb temperature	38.7°C (101.66°F)
Relative Humidity (noncondensing) ³
Operating	5% to 95%
Shipping	5% to 95%
Notes: - ^1,2 All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048 m (10,000 ft) or 70 KPa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia. - ³ Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa.
Power Specification	12V @ 10A (124 W max)

Safety and Compliance
Safety Certifications	UL/CUL Recognition to UL/CSA 60950-1
	TUV to EN 60950-1
	CB report and certificate to IEC 60950-1 with all country deviations
	CE Marking

Electromagnetic Information
Electromagnetic Emissions Certifications FCC Part 15 Class A	FCC Part 15 Class A
	EN 55022 Class A (CISPR22 Class A)
	VCCI Class A
	CE Marking

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/info/recycle. To recycle your product, please go to: http://www.hpe.com/info/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hpe.com/info/recycle. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Summary of Changes

Date	Version History	Action	Description of Change
20-Jul-2026	Version 15	Changed	Service and Support section was updated
16-Feb-2026	Version 14	Changed	HPE Rebranding applied
08-Jan-2024	Version 13	Changed	Service and Support section was updated
01-May-2023	Version 12	Changed	Platform Information and Service and Support sections were updated Updated to show Gen10Plus Gen11 compatibility
15-Sep-2021	Version 11	Changed	Related Options section was updated Services and Support Pointnext Tech Care and Complete Care information added
06-Apr-2021	Version 10	Changed	Platform Information section was updated
06-May-2019	Version 9	Changed	Platform Information and Related Options sections were updated. Obsolete SKU was deleted: 487652-B21
05-Nov-2017	Version 8	Changed	Platform Information section was updated.
11-Jul-2017	Version 7	Changed	Overview, Platform Information and SKU added in Platform Information: 799330-B22.
18-Nov-2016	Version 6	Changed	Models and Options section was updated.
26-Aug-2016	Version 5	Changed	Modules and Options and Service and Support sections were updated.
29-Jul-2016	Version 4	Changed	QuickSpecs updated.
06-Jun-2016	Version 3	Changed	Overview, Compatibility, Service and Support, Related Options, and Technical Specifications sections were updated. SKUs were added in Related Options Sections: 799330-B21, 487652-B21, 487655-B21, 537963-B21, 720193-B21, 455883-B21, 455886-B21, 813874-B21.
11-Dec-2015	Version 2	Changed	Sections in QuickSpecs were updated.
01-Dec-2015	Version 1	New	New QuickSpecs
