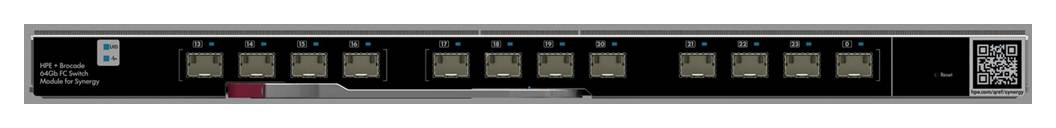

Brocade 64Gb Fibre Channel Module for HPE Synergy QuickSpecs High-Performance 64Gb SAN Module for Synergy. The Brocade 64Gb Fibre Channel Module for HPE Synergy represents a composable and integrated Fibre Channel interconnect module with Gen7 technology that simplifies integration of the HPE Synergy blade chassis into a Storage Area Network (SAN). It provides breakthrough application performance, operational stability and simplified manageability to meet the stringent business requirements with 64Gb FC technology for HPE's Composable Infrastructure. It is ideal for enterprises planning to deploy 64Gb FC to meet the ever-growing bandwidth demands of high-density virtualization/applications utilizing top-end Storage arrays and for customers looking to deploy scalable private cloud storage networks using HPE Synergy for workloads. |
|
|
Brocade 64Gb Fibre Channel Module for HPE Synergy | |
|
The Brocade 64Gb FC Switch for HPE Synergy provides industry-leading performance with <700ns frame latency for fast switching, switching bandwidth up to 1,536 Gbps to enable demanding applications and high-density server virtualization. It provides scalability with 12 external SFP+ ports each supporting 64Gb, 32Gb, and 16Gb FC speeds that customers can utilize on-demand paralleling their business growth. The Brocade 64Gb FC Module for HPE Synergy includes HPE Power Pack+ SAN management software baseline, which enables customers to manage data flow and maintain optimized application performance. With the HPE PowerPack+ software, customers can also utilize IO Insight software for proactive and real-time monitoring of storage and application-level IO and VM Insight software to optimize VM workloads and ensure service-level objectives are met. Brocade 64Gb FC Switch Module for HPE Synergy is designed with NVMe in mind and provides next-generation storage connectivity to existing storage networks. Brocade 64Gb FC Module for HPE Synergy also lowers TCO as it hot-plugs into the back of the HPE Synergy Frame. This frees-up rack space, enables shared power and cooling, and reduces cabling resulting in significant infrastructure savings. | |
|
| |
|
| |
|
Brocade 64Gb Fibre Channel Module for HPE Synergy | |
|
| |
|
Models |
|
|
Description |
SKU |
|
Brocade 64Gb Fibre Channel Module for HPE Synergy |
P77653-B21 |
|
|
|
|
| |
|
At a Glance |
|
Integrated SAN connectivity Enables data center consolidation with HPE Synergy through a state-of-the-art zero-footprint design while lowering cost through shared power and cooling, fewer cables and less space resulting in reduced infrastructure complexity and lower operations costs. |
|
64 Gb FC storage networking Enables support of virtualized environments and other emerging technologies through high-speed technology that doubles the performance of the storage network. External facing ports auto-sense lower bandwidth components for flexibility and investment protection with existing FC ports (64Gb, 32Gb, and 16Gb FC for external ports) as well as to the future FC products. |
|
Non-blocking architecture Includes connection speed support for all ports to provide a high-performance system with switching bandwidth of up to 1,536 Gbps (24 ports x 64 Gbps). |
|
ISL Trunking performance enhancements Support for multiple trunks, with the maximum trunk size of up to eight SAN ports for up to 512Gbps balanced throughput per each trunk group. Trunking of the SAN-facing ports with external Brocade or HPE B-series switches provides a high-bandwidth solution while lowering costs through fewer SFPs and cables. You can trunk up to 8 external FC SFP+ ports |
|
Fabric Vision Enables powerful built-in monitoring SAN management, and diagnostic tools to simplify administration, increase uptime and reduce costs. This results in significant insight and visibility across SANs with extensive analytics to keep your SAN optimized for best results. Available by default in the Power Pack+ model or as an upgrade option. It enables IO Insight and VM Insight Software. |
|
Access Gateway mode Employs N_Port ID Virtualization (NPIV), an ANSI T11 standard, to enable interoperability with other SAN fabrics and eliminate domain considerations while improving SAN scalability. |
|
Broad range of management tools and SMI-s conformance Integrates with HPE OneView for monitoring and leverages HPE B-series SAN management and monitoring tools (PowerPack+, Fabric Vision). New REST API in addition to existing SMI-s API enables the use of industry standard interfaces to integrate management with other applications.
Utilizes advanced Web Tools to simplify fabric set-up and on-going maintenance for SAN administrators. |
|
|
|
What's New |
|
- New 64 Gb/s Fibre Channel embedded high performance switch module for HPE Synergy Frame - 12 downlink internal server ports, up to 12 uplink (SFP+) external ports |
|
|
|
Advanced Fabric Services - Hardware Enforced Zoning* - Dynamic Path Selection* - Web Tools - Power Pack+ fabric services software bundle (included) - Extended Fabrics* - Fabric Vision (Includes IO Insight and VM Insight Software) - ISL Trunking
| |
|
| |
|
Manageability - Web Tools - HPE Storage Operations Orchestration (optional) - SMI API - SNMP - REST API - SAN automation with Ansible | |
|
| |
|
Interoperability Brocade Access Gateway mode enables the Brocade 64Gb Fibre Channel Module for HPE Synergy to interoperate with other SAN fabrics running supported firmware. While in Access Gateway mode, the device must be connected to an NPIV-enabled edge switch or director. Supported edge environments are listed in the SAN Design Guide https://support.hpe.com/hpsc/doc/public/display?docId=c00403562 | |
|
| |
|
Software Components, Standard | |
|
Access Gateway* Brocade Access Gateway Mode enables seamless connectivity for the Brocade 64Gb Fibre Channel Module for HPE Synergy to other supported SAN fabrics, enhances scalability and simplifies manageability. Utilizing N_Port ID Virtualization (NPIV) standards, Brocade Access Gateway eliminates switch/domain considerations.
Notes: *Brocade Access Gateway mode does not support switch-related features, including some features in the Power Pack+ bundle (e.g. Extended Fabric). Please refer to the Access Gateway Administrator's Guide for details.
| |
|
Frame Filtering A special B-Series ASIC-based capability that enables new applications and features. The switch has the ability to "view" the first 64-bytes of the Fibre Channel frame. At this time, Frame Filtering enables advanced capabilities such as Advanced Zoning, Frame-level analytics and statistics.
| |
|
Advanced Zoning Zoning (Port and Worldwide Name), as well as Access Control, are enforced by hardware within the ASIC. Hardware enforcement enables the highest level of zoning enforcement without any impact on performance. Administrators can organize a physical fabric into logical groups and prevent unauthorized access by devices outside the Zone.
| |
|
Web Tools Enables organizations to monitor and manage single Fibre Channel switches and monitor small SAN fabrics. Tasks can be performed through a Web browser from a standard laptop, desktop PC or workstation from any location within the enterprise.
| |
|
Dynamic Path Selection Improves performance by dynamically routing data traffic across multiple links and trunk groups.
| |
|
Adaptive Networking Services Adaptive Networking services optimize fabric behavior and ensure ample bandwidth for mission-critical applications. The tools currently include Quality of Service (QoS), Ingress Rate Limiting and Traffic Isolation. By assigning zones a high, medium, or low priority, QoS allocates bandwidth in the event of congestion to expedite high-priority traffic and keep all traffic flowing. Ingress Rate Limiting restricts data flow from less-critical hosts at preset bandwidths. Traffic Isolation assigns high-bandwidth data flows to specific ISLs.
Notes: Adaptive Networking Services are included by default in the switch firmware and do not require a separate license. | |
|
| |
|
Software Components, Optional | |
|
Power Pack+ Software Bundle The Power Pack+ Software Bundle includes: - Fabric Vision (Includes IO Insight and VM Insight Software) - ISL Trunking - Extended Fabrics*
Notes: - *Not supported in Access Gateway mode (see the Access Gateway Administrator´s guide for full details). - Adaptive Networking and Server Application Optimization features are included by default in the switch firmware and do not require a separate license
| |
|
Fabric Vision Fabric Vision offers innovative diagnostic, monitoring and management capabilities to help accelerate new application deployments, address SAN problems before they impact operations and reduce operational costs, it Includes: - VM Insight: Seamlessly monitors end-to-end VM performance through standards-based VM tagging - IO Insight: Automatically detect degraded storage IO performance with integrated device latency and IOPS monitoring - Monitoring and Alerting Policy Suite: - Configuration and Operational Monitoring Policy Automation Services Suite (COMPASS): - ClearLink® Diagnostics: - Port (D_Port) is an advanced capability of Fibre Channel platforms. - Flow Vision: - Forward Error Correction (FEC): | |
|
HPE SANnav Management Software HPE SANnav Management Software is the next-generation SAN management application suite for HPE B-series SAN environments. It consists of SANnav Management Portal Software and SANnav Global View Software: - SANnav Management Portal is a next-generation SAN management application with a simple browser-based user interface (UI) streamlining common workflows, such as configuration, zoning, deployment, troubleshooting, and reporting. - SANnav Global View helps administrators visualize the health, performance and inventory of multiple SANnav Management Portal instances at data centers across the globe or a single multi-tenant data center using a simple, intelligent dashboard.
SANnav Management Portal and SANnav Global View not only transform SAN telemetry data into useful insights, such as health and performance scores, but also enable administrators to quickly associate real-time data with historical metrics and logs for in-depth analysis. This can help with spotting trends, establishing baselines, and identifying any behavioral changes over time.
HPE SANnav Management Software is available as a term-license for 1-year, 3-years and 5-years period as both - physical and electronic License-to-Use (LTU). It supports 16Gb, 32Gb and 64Gb FC Switches and Directors.
|
|
|
ISL Trunking For high performance and seamless failover, this optional license logically groups up to eight E_ports (switch mode) or F_ports (Access Gateway mode) to provide a high bandwidth trunk between two HPE B-Series or Brocade switches. Each switch needs its own license. The fabric operating system views the trunk as a single, high bandwidth ISL resource (up to 512 Gbps when routing connections between 64 Gb/s capable switches). Connections are load-balanced across the individual links, which comprise the logical trunk group. |
|
|
|
|
|
HPE Synergy Frame 12000 compatibility |
|
|
Brocade 64Gb FC Module for HPE Synergy must be deployed within the HPE's Composable Infrastructure solution and is compatible only with HPE Synergy Frames. |
|
|
HPE FC HBA Mezzanines 64Gb and 32Gb HPE Fibre Channel Mezzanine cards for HPE Synergy are supported - Please refer to the HPE FC Mezzanine HBA Product QuickSpecs for Compute Module support details.
|
|
|
HPE Synergy Frame Frame HPE Synergy Frame 12000 |
|
|
|
|
|
Switch interoperability
|
|
|
HPE B-Series Switches, Directors, and Routers |
|
|
64Gbps Fibre Channel Switches and Directors - HPE SN8700B 64Gb Director Switch (Enterprise) - HPE SN6750B 64Gb Fibre Channel Switch - HPE SN6700B 64Gb Fibre Channel Switch (Midmarket) - HPE SN3700B 64Gb Fibre Channel Switch (Entry) - HPE Synergy 7330C 64Gb Fibre Channel Host Bus Adapter - Brocade 64Gb Fibre Channel Module for HPE Synergy
32Gbps Fibre Channel Switches and Directors - HPE SN8600B 32Gb Director Switch (Enterprise) - HPE SN6650B 32Gb Fibre Channel SAN Switch - HPE SN6600B 32Gb Fibre Channel Switch (Midmarket) - HPE SN3600B 32Gb Fibre Channel Switch (Entry) - HPE Synergy 5331C 32Gb Fibre Channel Host Bus Adapter - HPE Synergy 5330C 32Gb Fibre Channel Host Bus Adapter - HPE Synergy 5830C 32Gb Fibre Channel Host Bus Adapter - Brocade 32Gb Fibre Channel SAN Switch Module for HPE Synergy
16Gbps Fibre Channel Switches and Directors - HPE SN8000B 16Gb Director Switch (Enterprise) - HPE SN6500B 16Gb Fibre Channel SAN Switch - HPE SN6000B 16Gb Fibre Channel Switch (Midmarket) - HPE SN3000B 16Gb Fibre Channel Switch (Entry) - Brocade 16Gb Fibre Channel SAN Switch Module for HPE Synergy
|
|
|
Virtual Connect - HPE Virtual Connect 32 Gb 24-port Fibre Channel Module - HPE Virtual Connect 16 Gb 24-port Fibre Channel Module
| |
|
Multi-Protocol Routers and Gateways - HPE SN4700B 64Gb Fibre Channel SAN Extension Switch - HPE B-series SN8600B 32Gb SAN Extension Blade - HPE Multi-protocol Extension Blade - HPE B-series SN4000B FC SAN Extension Switch - HPE 1606 SAN Extension Switch | |
|
| |
|
Family Comparison | |||
|
Features |
Brocade 16Gb Fibre Channel SAN Switch Module for HPE Synergy |
Brocade 32Gb Fibre Channel SAN Switch Module for HPE Synergy |
Brocade 64Gb Fibre Channel Module for HPE Synergy |
|
Targeted Environment |
Enterprise, Datacenters, Workgroups, Departments |
Enterprise, Datacenters, Workgroups, Departments |
Enterprise, Datacenters, Workgroups, Departments |
|
Port Bandwidth |
16Gbps |
32Gbps |
64Gbps |
|
Aggregate device bandwidth |
576 Gbps (36 ports x 16 Gbps) |
896 Gbps (28 ports x 32 Gbps) |
1,536 Gbps (24 ports x 64 Gbps) |
|
OS Support |
Please Refer to SPOCK https://www.hpe.com/storage/spock | ||
|
Storage system |
HPE 3Par StoreServ P8400, MSA 2052/MSA2060, Nimble Series HF, XP7/XP8, Primera C630, Alletra 6000/6030/9000/9060 |
HPE 3Par StoreServ P8400, MSA 2052/MSA2060, Nimble Series HF, XP7/XP8, Primera C630, Alletra 6000/6030/9000/9060 | |
|
FC Ports |
8 SFP+ external, 4 QSFP external /12 internal (24 maximum) |
8 SFP+ external, 2 QSFP external /12 internal |
12 SFP+ external /12 internal |
|
SFP |
B-series |
B-series |
B-series |
|
Advanced Trunking |
Included with Power Pack+ or Optional Upgrade |
Included with Power Pack+ or Optional Upgrade |
Included with Power Pack+ |
|
Adaptive Networking |
Included |
Included |
Included |
|
Fabric Vision Software |
Included with HPE PowerPack+ upgrade |
Included with HPE PowerPack+ upgrade |
Included with HPE PowerPack+ |
|
Form factor |
Embedded |
Embedded |
Embedded |
|
Zoning Software |
Yes (Included) |
Yes (Included) |
Yes (Included) |
|
Hot plug, redundant power supplies |
Yes, in Synergy Frame |
Yes, in Synergy Frame |
Yes, in Synergy Frame |
|
Hot plug fans |
Yes, in Synergy Frame |
Yes, in Synergy Frame |
Yes, in Synergy Frame |
|
|
|
|
|
|
|
Warranty Hardware Warranty - Three-year on-site warranty, normal business hours, next business day response, and installation not included.
Notes: The hardware warranty covers firmware and embedded non-saleable software. Saleable software carries its own warranty, please see below.
Software Warranty: Hewlett Packard Enterprise warrants only that the software media will be free of physical defects for a period of ninety (90) days from delivery.
Notes: The entire liability of Hewlett Packard Enterprise and its suppliers and your exclusive remedy for software that does not conform to this Limited Warranty shall be the repair or replacement of the defective media. This warranty and remedy are subject to your returning the defective media during the warranty period to Hewlett Packard Enterprise in the country in which you obtained the software. |
|
|
|
Services Included with Product Purchase
The Brocade 64Gb Fibre Channel Module for HPE Synergy (P77653-B21) includes 3-years of Hewlett Packard Enterprise standard business hours, standard business days Software Support (includes software technical support and software product and documentation updates). |
|
|
|
HPE Services No matter where you are in your transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
Consulting services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational |
|
|
|
Recommended Services
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.
https://www.hpe.com/services/techcare
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides: - A complete coverage approach - An assigned HPE team - Modular and fully personalized engagement - Enhanced Incident Management experience with priority access - Digitally enabled and AI driven customer experience https://www.hpe.com/services/completecare |
|
|
|
Other related services from HPE Services
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include: - Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system. - HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment. - HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment. - Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums. |
|
- HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices. https://www.hpe.com/services/lifecycle - For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu |
|
|
|
HPE SAN Deployment Service Hewlett Packard Enterprise delivers complete design and implementation services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI SAN connectivity components.
Learn more: https://www.hpe.com/psnow/doc/5981-8527enw?jumpid=in_lit-psnow-red |
|
|
|
HPE Installation Service Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
Learn more: https://h20195.www2.hpe.com/v2/Getdocument.aspx?docname=5981-9356enw
|
|
HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
|
Defective Media Retention An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
How to purchase services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners: - Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools. - Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/ |
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience.
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
https://support.hpe.com/hpesc/public/home/signin |
|
GreenLake GreenLake is the cloud to run and manage your entire hybrid landscape-private, public, and edge. It helps you to: - Streamline IT Operations across compute, storage, and networking without the chaos - Unify and secure data, as you move faster - Accelerate AI, from pilot to production The result: greater operational efficiency, lower TCO, and faster AI delivery-all from one unified, intelligent platform built for today's hybrid enterprise |
|
|
|
Step 1 - Base Configuration | |
|
Description |
SKU |
|
Brocade 64Gb Fibre Channel Module for HPE Synergy |
P77653-B21 |
|
- (1) 64Gbps SAN Switch - 24 ports enabled for any combination (12 internal and 12 external) - 4 64Gb SFP56 Transceivers (R7M15A) - Dual function mode - Native OS (default) or Access Gateway Mode - Documentation and includes Power Pack+ Bundle and management tools (see software components) | |
|
| |
|
Step 2 - Additional Options | |
|
Select each type of required options with quantities specified. | |
|
Hardware | |
|
64Gbps / 32Gbps Optical Transceivers (SFP+) |
|
|
Description |
SKU |
|
HPE B-series 64Gb SFP56 Short Wave 1-pack Secure Transceiver |
R7M15A |
|
HPE B-series 64Gb SFP56 Short Wave 8-pack Secure Transceiver |
R7M16A |
|
HPE B-series 32Gb SFP28 Short Wave 1-pack Secure Transceiver |
R6B12A |
|
HPE B-series 32Gb SFP28 Short Wave 8-pack Secure Transceiver |
R6W26A |
|
HPE B-series 16Gb SFP+ Short Wave Transceiver |
QK724A |
|
HPE B-series 16Gb SFP+ Short Wave 8-pack Secure Transceiver |
R6W28A |
|
| |
|
Optical cables | |
|
PremierFlex OM4 LC/LC Multi-mode Cables |
|
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable |
QK732A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable |
QK733A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable |
QK734A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable |
QK735A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable |
QK736A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable |
QK737A |
|
OM3 LC/LC Multi-mode Cables |
|
|
HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable |
AJ833A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable |
AJ834A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable |
AJ835A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable |
AJ836A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable |
AJ837A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable |
AJ838A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable |
AJ839A |
|
Software | ||
|
Power Pack+ Software Included | ||
|
Includes bundled license for: - Fabric Vision (Includes IO Insight and VM Insight Software) - ISL Trunking - Extended Fabrics |
||
|
SANnav Software Licenses: | ||
|
Notes: For users purchasing SANnav licenses for the first time, one of the following SKUs should be purchased. For users wanted to renew a SANnav license, a renewal license should be selected from the SANnav Renewal Software License in the next section. | ||
|
HPE SANnav Management Portal Base 1yr E-LTU |
R3P45AAE | |
|
HPE SANnav Management Portal Enterprise 1yr E-LTU |
R3P46AAE | |
|
HPE SANnav Global View 1yr E-LTU |
R3P47AAE | |
|
HPE SANnav Management Portal Base 3yr E-LTU |
R3P48AAE | |
|
HPE SANnav Management Portal Enterprise 3yr E-LTU |
R3P49AAE | |
|
Description |
SKU | |
|
HPE SANnav Global View 3yr E-LTU |
R3P50AAE | |
|
HPE SANnav Management Portal Base 5yr E-LTU |
R4P29AAE | |
|
HPE SANnav Management Portal Enterprise 5yr E-LTU |
R4P30AAE | |
|
HPE SANnav Global View 5yr E-LTU |
R4P31AAE | |
|
Notes: - The Base edition of HPE SANnav Management Portal does not support management of director class switches. - HPE SANnav Management Software License-to-Use (LTU/E-LTU) includes maintenance and support for the duration of the license. At the end of the license period, customers have the option to renew the license, maintaining the same license key, by selecting from the SANnav Renewal Software License section below Software renewal via HPE Services is not allowed/supported. - Trial Licenses: depending on the version of SANnav license, the trial period is different.
|
||
|
SANnav Renewal Software Licenses | |
|
Notes: For users who currently have a SANnav license and want to renew their software license, one of the following licenses should be selected. The SANnav license must align with the current type of software license i.e. in order to renew a Base license, the Base renewal licenses will need to be selected. | |
|
HPE SANnav Management Portal Base 1-year Renewal E-LTU |
S1S52AAE |
|
HPE SANnav Management Portal Enterprise 1-year Renewal E-LTU |
S1S55AAE |
|
HPE SANnav Global View 1-year Renewal E-LTU |
S1S58AAE |
|
Notes: - The Base edition of HPE SANnav Management Portal does not support management of director class switches. - HPE SANnav Management Software License-to-Use (LTU/E-LTU) includes maintenance and support for the duration of the license. - Trial Licenses - depending on the version of SANnav license, the trial period is different.
|
|
|
| |
|
Fibre Channel ports 12 Internal 32/64Gbps (downlink) ports; 12 External 16/32/64 Gbps auto-sensing (12x SFP+) (uplink) - universal (E, F, N, D) ports. |
|
|
|
Device support and Scalability guidelines https://support.hpe.com/hpsc/doc/public/display?docId=emr_na-c04787660 |
|
|
|
Performance 64Gbps line speed, full duplex |
|
|
|
Certified maximum Certified maximum information available at https://support.hpe.com/hpsc/doc/public/display?docId=emr_na-c04787660 |
|
|
|
Switch core Non-blocking |
|
|
|
Fabric latency <=700 nanoseconds through the use of cut-through frame routing at 64Gbps (includes FEC logic delay) |
|
|
|
Maximum frame size 2112-byte payload |
|
|
|
Classes of service Class 2, Class 3, Class F (inter-switch frames) |
|
|
|
Port types D_Port (Diagnostic port), E_Port, F_Port; optional port type control Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port |
|
|
|
Data traffic types Fabric switches supporting unicast |
|
|
|
Media types Hot-pluggable, B-Series Branded Small Form Factor Pluggable (SFP), LC connector; Short-Wave Laser (SWL), Long-Wave Laser (LWL); Extended Long-Wave Laser (ELWL); distance depends on fiber-optic cable and port speed. Supports SFP+ (64/32 Gbps) optical transceivers. |
|
|
|
Advanced Short-wave, long-wave, and extended long wave laser transceivers are supported |
|
|
|
Fabric services Simple Name Server, Registered State Change Notification (RSCN). Includes Advanced WebTools and Advanced Zoning. Optional advanced fabric services include: Fabric Vision, ISL Trunking, and Extended Fabrics. |
|
|
|
Options SFP media, port upgradeable licensing, advanced management software licensing |
|
|
|
Supported software Telnet, SSH, SNMP (FE MIB, FC Management MIB), HPE Storage Operations Manager, Advanced WebTools, Advanced Zoning, HPE SANnav Management Software, SmartSAN, and Anisible Automation |
|
|
|
Management access Web Tools, SMI-s provider, REST API, SNMP, Telnet, and SSH |
|
|
|
Diagnostics Cable diagnostic (D_Port), including electrical/optical loopback, link traffic/latency/distance |
|
|
|
Power consumption Typical 50W, maximum is 70W (with all ports running at maximum speed) |
|
|
|
Technical Specifications | |||
|
Dimensions |
Depth |
1.08 in. (2.75 cm.) | |
|
Height |
11.05 in. (28.07 cm.) | ||
|
Width |
16.92 in. (42.97 cm.) | ||
|
Weight |
Approx. 7.0 lb. (3.18 kg.) - without media | ||
|
Environment |
System Inlet Temperature |
Operating |
Inlet air temperature up to 43°C (109.4°F) at sea level with an altitude derating of 1.0°C per every 1000 feet of elevation above sea level to a maximum operating altitude. For example, the maximum inlet air |
|
Non-operating |
-40°C to 70°C (-40° to 158°F). Maximum rate of change is 20°C/Hr (36°F/Hr). | ||
|
Relative Humidity |
Operating |
5 to 95% relative humidity, 38.7°C maximum wet bulb temperature, and Non-condensing. | |
|
Non-operating |
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. | ||
|
Altitude |
Operating |
3050 m (10,000 ft.). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min). | |
|
Non-operating |
9144 m (30,000 ft.). Maximum allowable altitude change rate is 457 m/min (1500 ft. /min). | ||
|
Vibration |
Operating |
1 G, 10-500 Hz, 60 minutes per axis | |
|
Non-operating |
2 G, 10-500 Hz, 30 minutes | ||
|
Shock |
Operating |
Half-sine-wave shock, 40 G, 2 ms duration, in each direction of three mutually perpendicular axes. | |
|
Non-operating |
Half-sine-wave shock, 140 G, 2 ms duration, in each direction of three mutually perpendicular axes; and square-wave shock up to 80 G, 180 inches/s velocity change, in each direction of three mutually perpendicular axes. | ||
|
| |||
|
| |||
|
Date |
Version History |
Action |
Description of Change |
|
06-Apr-2026 |
Version 2 |
Changed |
Added compatibility with 5330C and 5830C 32G HBAs Added compatible 16G FC switches and 16G SFP+ transceivers Corrected port counts and quantity of transceivers included |
|
02-Feb-2026 |
Version 1 |
New |
New QuickSpecs |
|
|
|
Shape the Future of QuickSpecs - Your Input Matters | |
|
|
|
| |
|
|
|
Chat now | |
|
|
|
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
a50009254enw - 17286 - Worldwide - V2 - 06-April-2026 | |
|
|
|
HEWLETT PACKARD ENTERPRISE HPE.com |
|
