HPE Synergy 480 Gen11 Compute Module QuickSpecs

The HPE Synergy 480 Gen11 Compute Module delivers exceptional capacity, efficiency, and flexibility in a two-socket, half-height form factor-featuring up to 64-core 4th- and 5th-Generation Intel® Xeon® Scalable Processors.

HPE DDR5 Smart Memory supporting up to 4 TB per processor, and flexible I/O and storage controller options. As part of the HPE Synergy Composable Infrastructure platform, it dynamically pools and composes compute, storage, and fabric resources to accelerate traditional and next-generation workloads.

HPE Synergy, the first platform built from the ground up for Composable Infrastructure, offers an experience that empowers IT to create and deliver new value instantly and continuously. It is a single infrastructure that reduces operational complexity for traditional workloads and increases operational velocity for the new breed of applications and services. Through a single interface, HPE Synergy composes physical and virtual compute, storage, and fabric pools into any configuration for any application. As an extensible platform, it easily enables a broad range of applications and operational models such as virtualization, hybrid cloud, and DevOps. With HPE Synergy, IT can become not just the internal service provider but the business partner to rapidly launch new applications that become the business.

The HPE Synergy 480 Gen11 Compute Module delivers exceptional capacity, efficiency, and flexibility in a two-socket, half-height form factor to support demanding workloads. Powered by the 4th and 5th Generation Intel® Xeon® Scalable Processors with up to 64 cores, HPE DDR5 Smart Memory supporting up to 4TB per processor, flexible storage controller options, multiple I/O connectors, and designed to create a pool of flexible compute capacity within a composable infrastructure the HPE Synergy 480 Gen11 Compute Module is the ideal platform for general-purpose enterprise workload performance now and in the future.

This QuickSpecs document focuses on the HPE Synergy 480 Gen11 Compute Module.

Notes: The HPE Synergy 480 Gen11 compute module installation involves a minimum upgrade requirement for component compatibility purposes. To ensure proper system functionality, you must update your system to the appropriate Synergy Software Release before installing and operating your compute module.

For information on Synergy Releases, go to: http://www.hpe.com/downloads/synergy.

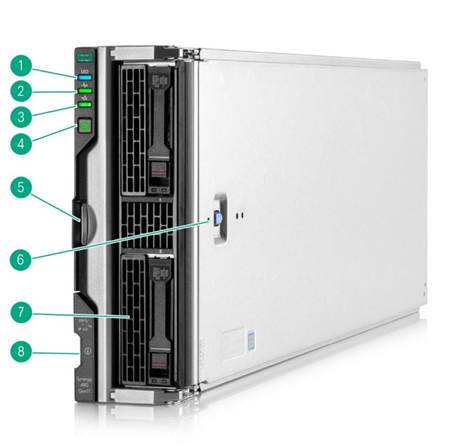

Front View - HPE Synergy 480 Gen11 Compute Module

Item

Description

Item

Description

1.

UID LED

5.

Compute Module handle release latch

2.

Health Status LED

6.

Quick Access Panel

3.

Mezzanine NIC status LED

7.

Removable drive cage¹

4.

Power On/Standby button and system power LED

8.

Pull Out Label²

Notes:

- ¹Options for 2, 4, 8 drive bays, or drive-less.

- ²Tab used for ID information on product. External USB 3.0 connector & iLO USB connection (behind serial label pull tab).

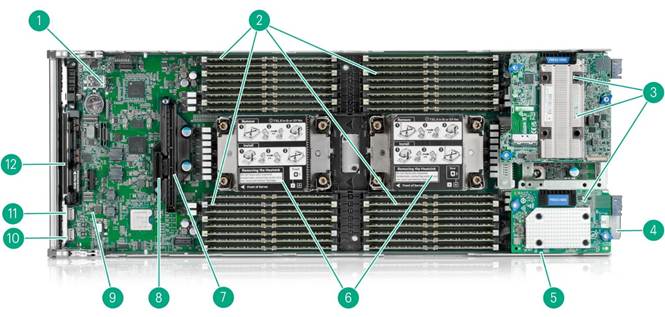

Synergy 480 Gen11 Compute Module

(Drive Cage removed)

Item

Description

Item

Description

1.

Internal USB 3.0

7.

Connection point for Optional Drive Cage solutions²

2.

Thirty-Two (32) DDR5 DIMM memory slots¹

8.

HPE NS204i-d Gen11 Boot Controller Connector

3.

Mezzanine connectors (3 x16 PCIe 5.0)

9.

Embedded TPM

4.

Compute Module Power and Management connector

10.

External USB 3.0

5.

Storage Controller Energy Pack connection

11.

External USB iLO

6.

Up to two (2) Gen4 or Gen5 Intel® Xeon® Scalable Family processors

12.

Selectable front cage options³

Notes:

- ¹16 per processor.

- ²2x Drive bays (SAS/SATA/NVMe), 4x Drive Bays (4x NVMe Direct Connect or 4x SAS/SATA/NVMe) or drive-less.

- ³HPE NS204i-d Gen11 Boot Controller connects under drive cage.

What's New

- Synergy 480 Gen11 designed to provide increased performance and capacity

- Optional Drive Cage options for 2, 4, 8 drive and drive-less for your needed SAN and vSAN workloads

- HPE NS204i-d Gen11 Boot Controller designed for VMware HW RAID Requirements - operates with all drive cage options (all delivered as Factory Installed or sold as customer installable options)

- Intel® 5^th Generation of Xeon® Scalable Family of processors

- 32 Memory DIMMs for up to 16 per processor up to 4TB Max, 16GB to 256GB Capacities @ speeds up to 5600 MT/s

- PCIe 5.0 throughout the module to provide the best performance for Boot, Storage and IO

- Regional Certifications including Energy Star, EU Lot 9, and Top Runner - Japan Fully Compliant

ErP Lot9 Quick Summary

The European Parliament (ErP) is responsible for setting the ecological standards for products that are imported into the EU. The European Parliament Commission Regulation 2019/424 (also known as the ErP Lot 9 regulation) are a new set of product standards that deal with servers and data storage devices and goes into effect on March 1, 2020. Products that are not compliant with Lot 9 requirements cannot be imported into the European Union after March 1, 2020.  For details see Tech Specs section of this document.  See Configure to Order section for details on configurable options.

SY480 Gen11 meets Lot9 in all configurations.

For additional information, please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html.

Documents provided by HPE: Lot 9 Declarations, White paper, and FAQ.

Platform Information

Form Factor

- Single Slot Blade - Half-Height

Chassis Types

- Single Compute chassis for CTO

- 2 SFF SAS/SATA/NVMe Premium Drive Cage Option

- 4 SFF SAS/SATA/NVMe Premium Drive Cage Option

- 4 SFF NVMe Direct Connect Drive Cage Option

- 8 EDSFF NVMe E3.S Direct Connect Drive Cage Option

- Drive-less Cage Option

System Fans

- Comes with Frame by default and not this product

Notes: The HPE Synergy SY480 Gen11 Compute Module requires the Synergy 12000 Frame to be configured with the HPE Synergy 12000 High Capacity Fan Kits.

Synergy Gen11 - Front Cage Options

The Synergy SY480 Gen11 consists of a single base chassis with multiple selectable drive and controller option kits. These options include multiple Front Cage options for boot and storage.

Notes:

- The Front Cage options are offered as factory installed and BTO options offered for later field updates.

- One of the following Drive Chassis options is required to ship to any customer.

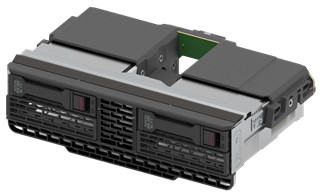

HPE SY480 Gen11 2 SFF SAS/SATA/NVMe Premium Drive Cage Kit

A two drive SAS/SATA/NVMe Drive Cage Option for Boot and Store requirements.

Notes: This Drive Cage requires HPE SY480 Gen11 SAS Cable Opt Kit to connect to HPE SR416ie-m Gen11 x16 Lanes 4GB Cache SPDM Mezzanine Storage Controller.

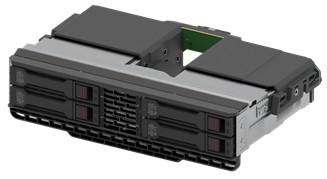

HPE SY480 Gen11 4 SFF SAS/SATA/NVMe Premium Drive Cage Kit

A four drive SAS/SATA/NVMe Drive Cage Option for Boot and Store requirements.

Notes: This Drive Cage requires HPE SY480 Gen11 SAS Cable Opt Kit to connect to HPE SR416ie-m Gen11 x16 Lanes 4GB Cache SPDM Mezzanine Storage Controller.

For more details check your local sales office or see more details below in this QuickSpecs.

HPE SY480 Gen11 4SFF NVMe Direct Connect Drive Cage Kit

A four drive solution that supports up to 4x NVMe direct connect drives for Boot and Store requirements.

For more details look further down in this QuickSpecs.

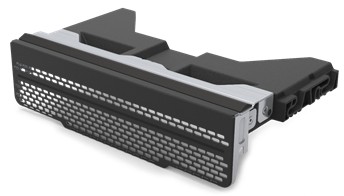

HPE Synergy 480 Gen11 without Drive Front Cage Kit

A drive-less solution is for when no onboard storage is needed for Boot from SAN solutions or with the new HPE NS204i-d Gen11 Controller solution is used.

For more details look further down in this QuickSpecs.

HPE NS204i-d Gen11 M.2 Boot Controller

The NS204i-d Gen11 Plus M.2 Boot Controller is a HW RAID Solution - requires 2x M.2 NVMe Drives to be configured with Option for Mirrored RAID.

Notes:

- May be used with any drive cage option above, May be selected as a CTO or BTO Option.

- Refer to the Boot Devices Advisory Notice for information about changes in VMware ESXi 7.0 or later.

Synergy Management

HPE Composer powered by OneView

Notes: Read and learn more about OneView

On Compute Management Chipset

HPE iLO 6 ASIC

Notes: Read and learn more in the iLO QuickSpecs

Processors

Synergy 480 Gen11 is designed and consumes on Intel Xeon Scalable Family Generation 5 processors (x5xx) and Generation 4 processors (x4xx).

Up to 2 of the following.

Notes:

- The 2nd digit of the processor model number "x5xx" is used to denote the processor generation (i.e. 4 = 4^th  generation or 5 = 5^th generation).

- This table covers the public Intel offering only.

For more information regarding Intel Xeon processors, please see the following: http://www.intel.com/xeon.

Notes:

- 4.0 TB maximum RAM per socket.

- PCIe 5.0 lanes.

Chipset

Intel C741 Chipset

Notes: For more information regarding Intel® chipsets, please see the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

System Management Chipset

HPE iLO 6 ASIC

Notes: Read and learn more in the iLO QuickSpecs.

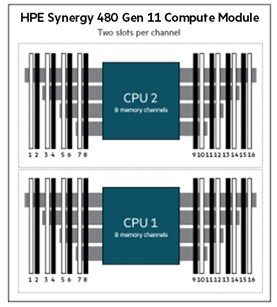

Memory

Notes:

- All processors support up to 4TB memory per socket.

- The maximum memory speed is limited by the processor selection.

- To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required.

- The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

- For additional information, please visit the HPE Memory QuickSpecs and Technical White Papers or HPE DDR5 Smart Memory QuickSpecs.

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit errors that occur within a single DRAM chip.

Memory

One of the following depending on model

The following memory supports Intel® Xeon® Scalable Family processors 5^th generation (Models x5xx)

- HPE 16GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

- HPE 32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

- HPE 64GB (1x64GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

- HPE 96GB (1x96GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

- HPE 128GB (1x128GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

- HPE 128GB (1x128GB) Quad Rank x4 DDR5-5600 CAS-52-45-45 EC8 Registered 3DS Smart Memory Kit

- HPE 256GB (1x256GB) Quad Rank x4 DDR5-5600 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit

The following memory supports Intel® Xeon® Scalable Family processors 4^th generation (Models x4xx)

- HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

- HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

- HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

- HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit

- HPE 128GB (1x128GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit

- HPE 128GB (1x128GB) Quad Rank x4 DDR5-4800 CAS-46-39-39 EC8 Registered 3DS Smart Memory Kit

- HPE 256GB (1x256GB) Quad Rank x4 DDR5-4800 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit

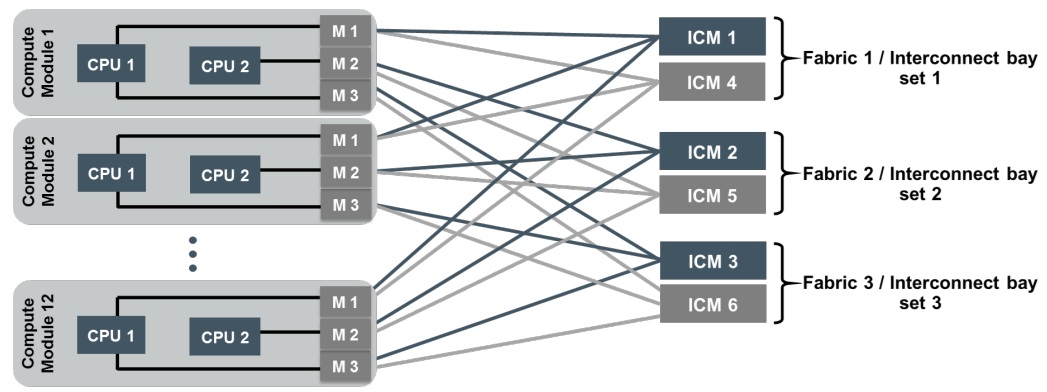

Mezzanine Connectors (PCIe 5.0)

Three (3) I/O expansion mezzanine connectors:

- Mezzanine 1 -- x16 PCIe 5.0

• Supports Type C and Type D mezzanine cards

Notes: This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 1 and the other to bay 4.

- Mezzanine 2 -- x16 PCIe 5.0

• Supports Type C and Type D mezzanine cards

Notes:

- This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 2 and the other to bay 5.

- A second processor must be installed (in processor slot 2) to have access to mezzanine connector 2.

- Mezzanine 3 -- x16 PCIe 5.0

• Supports Type C mezzanine cards

Notes: This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 3 and the other to bay 6.

Network & Storage Adapters or Mezzanine options include:

- HPE Synergy 6310C 25/50Gb Ethernet Adapter

- HPE Synergy 4820C 10/20/25Gb CNA Converged Network Adapter

- HPE Synergy 6820C 25/50Gb CNA Converged Network Adapter

- HPE Synergy 5330C 32G Fibre Channel Host Bus Adapters

- HPE Synergy 5830C 32G Fibre Channel Host Bus Adapters

- HPE SR416ie-m Gen11 x16 Lanes 4GB Cache SPDM Mezzanine Storage Controller

Notes: Please refer to the Fabric/Network Options QuickSpecs for more details.

HPE Compute Module ROM

HPE ROM (read-only memory) is now digitally signed using the HPE Corporate Signing Service. As part of the Secure Start, this signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.

HPE ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system.

HPE ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis.

HPE Synergy Compute ROM is used to configure the following:

- Processor and chipset status registers.

- System memory, memory map, and memory initialization.

- System hardware configuration (integrated PCI devices and optional PCIe Mezzanine cards).

- Customer-specific BIOS configuration using the UEFI System Utilities.

Storage Drive cages and Controllers

One of the following depending on model

Drive Cage Options

HPE SY480 Gen11 Premium 2 Drive Cage Kit

- Supports 2 SFF SAS, SATA, or NVMe Drives.

- Requires HPE SR416ie-m Gen11 x16 Lanes 4GB Cache SPDM Mezzanine Storage Controller (requires SR416 SAS cable P39956-B21).

• HPE NS204i-d Gen11 Controller option
  Notes: NS204i-d Gen11 Controller works with SR416ie-m Gen11 Controller.

HPE SY480 Gen11 Premium 4 Drive Cage Kit

- Supports 4 SFF SAS, SATA, or NVMe Drives.

- Requires HPE SR416ie-m Gen11 x16 Lanes 4GB Cache SPDM Mezzanine Storage Controller (requires SR416 SAS cable P39956-B21).

• HPE NS204i-d Gen11 Controller option
  Notes: NS204i-d Gen11 Controller works with SR416ie-m Gen11 Controller.

HPE SY480 Gen11 4SFF NVMe Direct Connect Drive Cage Kit

- Supports 4 SFF NVMe drives direct connected to Socket 1.

- The SR416ie-m controller may also be used for connection to the HPE D3940 Storage Module.

• HPE NS204i-d Gen11 Controller option
  Notes: NS204i-d Gen11 Controller works with SR416ie-m Gen11 Controller.

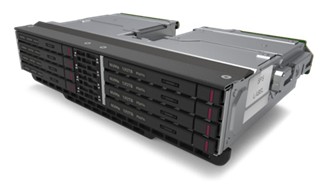

HPE Synergy 480 Gen11 8EDSFF NVMe E3.S Direct Connect Drive Cage Kit supports 4 SFF NVMe drives direct connected to Socket 1

- The SR416ie-m controller may also be used for connection to the HPE D3940 Storage Module.

• HPE NS204i-d Gen11 Controller option
  Notes: NS204i-d Gen11 Controller works with SR416ie-m Gen11 Controller.

HPE SY480 Gen11 without Drive Front Cage Kit

- Designed for the Stateless or No Drive solution where customer boots from SAN or alternate boot & store devices such as the new HPE NS204i-d Gen11 Controller.

RAID solutions

NVMe Boot Devices - HW RAID

- HPE NS204i-d Synergy Gen11 Boot Controller for HPE
Notes:  Direct PCIe connection below drive cages. Supports 2x M.2 NVMe Drives ready for Boot.

Intel® VROC - SW RAID

Notes:  Only available with 4SFF NVMe Drive Direct Connect and 8EDSFF NVMe Drive Direct Connect drive cages.

Performance RAID Controller

- HPE SR416ie-m Gen11 x16 Lanes 4GB Cache SPDM Mezzanine Storage Controller
Tri-Mode support -PCIe Gen4 NVME, 24G SAS, 6G SATA), 8 internal 8 external lanes/2GB cache for use with Synergy D3940 Storage Modules, as well as, 2 and 4 Drive Premium front cages for SAS/SATA/NVME drives).

Frames

HPE Synergy 12000 Frame, is the base for all Synergy products and supports:

- Up to 12 half-height, 6 full-height single-wide, or 3 full-height double-wide Compute Modules (mixing allowed)

- Up to 5 half-height double-wide HPE Synergy D3940 Storage Modules (mixing with compute modules in any to any ratio allowed)

- One HPE Synergy 12000 Frame will support up to twelve (12) HPE Synergy 480 Gen11 Compute Modules

- Synergy 480 Gen11 Compute Module require HPE Synergy 12000 High Capacity Fans be installed in the frame

Industry Standard Compliance

- Microsoft® Logo certifications

- WOL enabled on some adapters

- PXE support enabled

- USB 3.0 Compliant; iLO USB 2.0 Compliant

- TPM 2.0 Support

- IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)

- Advanced Encryption Standard (AES)

- Triple Data Encryption Standard (3DES)

- SNMP v3

- SSL 2.0

- DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP

- Active Directory v1.0

- PCIe 5.0 Compliant

- UEFI (Unified Extensible Firmware Interface Forum)

- Redfish API (iLO6)

- Energy Star Compliant

- Top Runner - Japan Compliant

- ErP Lot9 Compliant (see Technical Specifications) HPE Environmental Declarations website for HPE Lot9 Declarations, a White Paper, FAQs and products list of verified products

Notes: See requirements at end of this document or in OCA for valid configurations to meet ErP Lot9 requirements.

Graphics (iLO)

Integrated Matrox G200eH2 video standard with 16 MB of Video RAM

- 1280 x 1024 (32 bpp)

- 1920 x 1200 (16 bpp)

HPE iLO 6 on system management memory

- 32 MB Flash

- 8 Gbit DDR4 with ECC protection

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration while interacting with your server at boot time. HPE ProLiant Gen11 servers have a UEFI Class 2 implementation.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi

UEFI enables numerous new capabilities specific to HPE Synergy Compute Modules such as:

- Secure Boot and Secure Start enable for enhanced security

- Operating system specific functionality

- Support for > 2.2 TB (using GPT) boot drives

- USB 3.0 Stack

- Embedded UEFI Shell

- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

- PXE boot support for IPv6 networks

- Workload Profiles for simple performance optimization

UEFI Boot Mode only:

- TPM 2.0 Support

- NVMe Boot Support

- Platform Trust Technology (PTT) can be enabled

- iSCSI Software Initiator Support

- HTTP/HTTPs Boot support as a PXE alternative

- Boot support for option cards that only support a UEFI option ROM

Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

Embedded Management

HPE Synergy Composer powered by HPE OneView

HPE Synergy integrates HPE OneView to deliver 'Composable infrastructure' with a view of resources. This flexible and scalable solution provides IT managers with the architecture to implement their Software-Defined data center (SDDC) -- and to address the changing business needs and the challenges of today's enterprise data centers.

HPE Integrated Lights-Out (HPE iLO)

Silicon Root of Trust.  Protect, detect, recover with iLO.  Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at https://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at  UEFI System Utilities (hpe.com).

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at https://www.hpe.com/info/restfulapi.

Security

Newest forms of security based on iLO6 features.

- Secure Start, with hardware root of trust.

- HPE hardware designed logic in iLO chip validates iLO firmware burned in chip.

- iLO then validates system/compute ROM firmware for digital signature.

- iLO completes the chain of trust.

- ROM validates option ROMs and OS Bootloader via UEFI Secure Boot.

Standard security features

- Power-on password

- Administrator's password

- Keyboard password (QuickLock)

- HPE iLO Management On System Management Chipset with SSL encryption, Secure Shell version 2, Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface, AES and RC4 encryption of video

- External USB port enable/disable

- Network server mode

- Serial interface control

- TPM (Trusted Platform Module) 2.0 support

- Advanced Encryption Standard (AES)

- Intel® Advanced Encryption Standard-New Instructions (AES-NI)

About Trusted Platform Module

Trusted Platform Module (TPM) is a separate processor that monitors the system state. TPM is a passive component needing to be updated and not able to lock down any component in the system except access to its own memory. It also provides some cryptographic operations - among them: creating RSA keypairs and working with them.

The first verification of signatures happens by code on the CPU, which can be intercepted and replaced. Emulating a "properly" booted system is possible by sending the right values to the TPM.

The bootblock, the part of the firmware that contains the first instructions executed by the CPU, comes first and anchors the root of trust. But if you can't trust the bootblock to send a truthful state into the TPM, this is a vulnerability.

About HPE Silicon Root of Trust

As soon as the server is powered on and the iLO firmware comes alive, it looks into the silicon for the immutable fingerprint that verifies all the firmware code is valid and uncompromised. Over a million lines of firmware code run before the operating system starts, making it vital to confirm that all server essential firmware is free from malware or compromised code.

During operation of the server, HPE has a new technology that conducts run-time firmware validation that checks the firmware stored in the server. At any point, if compromised code or malware is inserted in any of the critical firmware, an iLO audit log alert is created to notify the customer that a compromise has occurred. It is achieved by storing iLO 6 and UEFI firmware in non-volatile Flash memory which is thoroughly scanned at regular user determined intervals. The contents of the firmware stored in memory must be exactly right, down to the individual bit, or else it is flagged as compromised. See the iLO 6 QuickSpecs for recovery processes.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://www.hpe.com/services/support.

Server Management

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen9, Gen10, Gen10 Plus, and Gen11 servers.

HPE iLO Advanced (standard with Synergy compute)

HPE iLO Advanced licenses offer smart remote functionality without compromise. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. This also includes the enhanced security and power management functionality.

Fibre Channel Support

Up to two (2) optional Fibre Channel Mezzanine HBAs are supported on the HPE Synergy 480 Gen11

- HPE Synergy 5330C 32G Fibre Channel Host Bus Adapters

- HPE Synergy 5830C 32G Fibre Channel Host Bus Adapters

Compatible SAN

HPE Synergy 480 Gen11 Compute Modules are optimized for HPE MSA, Nimble, Primera, and Alletra.

HPE Virtual Connect

HPE Synergy composable fabric delivers high performance and composability for the delivery of applications and services. The composable fabric is based on primary/satellite architecture.

The HPE Virtual Connect SE 100Gb F32 Module, primary modules, based on composable fabric is designed for Composable Infrastructure. Its disaggregated, rack-scale design uses a primary/satellite architecture to consolidate data center network connections, reduce hardware and scales network bandwidth across multiple HPE Synergy Frames.

The primary module contains intelligent networking capabilities that extend connectivity to satellite frames through Interconnect Link Modules. This eliminates top of rack switch need and substantially reduces cost. The reduction in components also simplifies fabric management at scale while consuming fewer ports at the data center aggregation layer.

The HPE VC SE 100Gb F32 Module eliminates up to 95% of network sprawl at the compute module edge with one device that converges traffic inside frames and directly connects to external LANs. Each redundant pair of Virtual Connect modules provide eight adjustable downlink connections (six Ethernet and two Fibre Channel, or eight Ethernet) to dual-port 10 Gb and in case of 20 Gb Converged Network Adapters 16 adjustable downlinks connections (14 Ethernet and two Fibre Channel) on each compute module.

Up to six uplinks using QSFP+ interfaces are available for connection to upstream Ethernet switches. Including splitter cables up to 24 uplinks are available for connection to upstream Ethernet and Fibre Channel. The HPE VC SE 100 Gb F32 module avoids the confusion of traditional and other converged network solutions by eliminating the need for multiple Ethernet and Fibre Channel switches, extension modules, cables and software licenses. Also, Virtual Connect wire-once connection management is built-in enabling compute modules adds, moves, and replacement in minutes instead of days or weeks. The Primary/Satellite disaggregated architecture removes fixed ratios of interconnects in every frame and allows extending networking resources pool for Virtual Connect to satellite frames.

For more information on Virtual Connect and converged network options, see

HPE Virtual Connect SE 100Gb F32 Module for Synergy for more details.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance.

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

Step 1: Base Configuration

Description

SKU

HPE Synergy 480 Gen11 Configure-to-order Compute Module

P39531-B21

HPE Synergy 480 Gen11 TAA-compliant Configure-to-order Compute Module

P39531-B22

Step 2: Choose your Boot, Drive Cage and Controller Options

Option 1: Front Drive Cage

Description

SKU

HPE Synergy 480 Gen11 2SFF SAS/SATA/NVMe Premium Drive Cage Kit

P39590-B21

HPE Synergy 480 Gen11 4SFF SAS/SATA/NVMe Premium Drive Cage Kit

P39591-B21

Required Controller for above Drive Cages:

HPE SR416ie-m Gen11 x16 Lanes 4GB Cache SPDM Mezzanine Storage Controller

P39959-B21

Notes:  Also works with D3940 Storage Drive if installed in Frame

Description

SKU

HPE Synergy 480 Gen11 SAS SR416ie-m Controller Cable Kit

P39956-B21

Notes: Cable Required for 2 & 4 Premium Drive Cage Kit

Option 2: Front Drive Cage

Description

SKU

HPE Synergy 480 Gen11 4SFF NVMe Direct Connect Drive Cage Kit

P39592-B21

HPE Synergy 480 Gen11 8EDSFF NVMe E3.S Direct Connect Drive Cage Kit

P39593-B21

Optional Controller:

HPE SR416ie-m Gen11 x16 Lanes 4GB Cache SPDM Mezzanine Storage Controller

P39959-B21

Notes: Works with D3940 Storage Drive if installed in Frame

Option 3: Front Drive Cage

Description

SKU

HPE Synergy 480 Gen11 without Drive Front Cage Kit

P39594-B21

Optional Controller:

HPE SR416ie-m Gen11 x16 Lanes 4GB Cache SPDM Mezzanine Storage Controller

P39959-B21

Notes: Works with D3940 Storage Drive if installed in Frame.

HPE Synergy NS204i-d Gen11 NVMe Boot Storage Device

P39568-B21

Notes:

- M.2 HW RAID Controller.

- Installs below any Drive Cage option and can be used with any of the Drive Cage options above.

Step 3: Choose Required Options

Please select up to two matching processors.

Notes:

- Mixing two different processor models is not supported.

- CTO server requires selection of heatsinks with your selection of 1 or 2 processors.

Processor Option Kits

5th Generation Intel® Xeon®-Platinum

Notes:

- All SKUs below ship with processor only.  Appropriate heatsinks must be selected.

- Requires HPE Synergy 480 Gen11 CPU Front Heat Sink Kit P39587-B21 or Rear Heat Sink Kit P39589-B21.

- 5600 MT/S maximum memory speed unless otherwise noted.

Description

SKU

Intel Xeon-Platinum 8592+ 1.9GHz 64-core 350W Processor for HPE

P67089-B21

Intel Xeon-Platinum 8592V 2.0GHz 64-core 330W Processor for HPE

P67107-B21

Intel Xeon-Platinum 8580 2.0GHz 60-core 350W Processor for HPE

P67088-B21

Intel Xeon-Platinum 8570 2.1GHz 56-core 350W Processor for HPE

P67087-B21

Intel Xeon-Platinum 8568Y+ 2.3GHz 48-core 350W Processor for HPE

P67086-B21

Intel Xeon-Platinum 8562Y+ 2.8GHz 32-core 300W Processor for HPE

P67065-B21

Intel Xeon-Platinum 8558P 2.7GHz 48-core 350W Processor for HPE

P67108-B21

Intel Xeon-Platinum 8558 2.1GHz 48-core 330W Processor for HPE

P67097-B21

5^th Generation Intel® Xeon®-Gold

Notes:

- All SKUs below ship with processor only.  Appropriate heatsinks must be selected.

- Requires HPE Synergy 480 Gen11 CPU Front Heat Sink Kit P39587-B21 or Rear Heat Sink Kit P39589-B21.

- 5600 MT/S maximum memory speed unless otherwise noted.

Description

SKU

Intel Xeon-Gold 6554S 2.2GHz 36-core 270W Processor for HPE

P67110-B21

Intel Xeon-Gold 6548N 2.8GHz 32-core 250W Processor for HPE

P67105-B21

Intel Xeon-Gold 6548Y+ 2.5GHz 32-core 250W Processor for HPE

P67082-B21

Intel Xeon-Gold 6544Y 3.6GHz 16-core 270W Processor for HPE

P67084-B21

Intel Xeon-Gold 6542Y 2.9GHz 24-core 250W Processor for HPE

P67081-B21

Intel Xeon-Gold 6538N 2.1GHz 32-core 205W Processor for HPE

P67104-B21

Intel Xeon-Gold 6538Y+ 2.2GHz 32-core 225W Processor for HPE

P67096-B21

Intel Xeon-Gold 6534 3.9GHz 8-core 195W Processor for HPE

P67083-B21

Intel Xeon-Gold 6530 2.1GHz 32-core 270W Processor for HPE

P67095-B21

Intel Xeon-Gold 6526Y 2.8GHz 16-core 195W Processor for HPE

P67080-B21

Intel Xeon-Gold 5520+ 2.2GHz 28-core 205W Processor for HPE

P67094-B21

Notes: 4800 MT/S maximum memory speed.

Intel Xeon-Gold 5515+ 3.2GHz 8-core 165W Processor for HPE

P67079-B21

Notes: 4800 MT/S maximum memory speed.

5^th Generation Intel® Xeon®-Silver

Notes:

- All SKUs below ship with processor only.  Appropriate heatsinks must be selected.

- Requires HPE Synergy 480 Gen11 CPU Front Heat Sink Kit P39587-B21 or Rear Heat Sink Kit P39589-B21.

- 4400 MT/S maximum memory speed unless otherwise noted.

Description

SKU

Intel Xeon-Silver 4516Y+ 2.2GHz 24-core 185W Processor for HPE

P67093-B21

Intel Xeon-Silver 4514Y 2.0GHz 16-core 150W Processor for HPE

P67092-B21

Intel Xeon-Silver 4510 2.4GHz 12-core 150W Processor for HPE

P67091-B21

Notes: 4000 MT/S maximum memory speed.

Intel Xeon-Platinum 8480+ 2.0GHz 56-core 350W Processor for HPE

P49607-B21

Notes:

- All SKUs below ship with processor only.  Appropriate heatsinks must be selected.

- Requires HPE Synergy 480 Gen11 CPU Front Heat Sink Kit P39587-B21 or Rear Heat Sink Kit P39589-B21.

- 4800 MT/S maximum memory speed unless otherwise noted.

Intel Xeon-Platinum 8480+ 2.0GHz 56-core 350W Processor for HPE

P49607-B21

Intel Xeon-Platinum 8470N 1.7GHz 52-core 300W Processor for HPE

P49649-B21

Intel Xeon-Platinum 8470 2.0GHz 52-core 350W Processor for HPE

P49606-B21

Intel Xeon-Platinum 8468 2.1GHz 48-core 350W Processor for HPE

P49605-B21

Intel Xeon-Platinum 8460Y+ 2.0GHz 40-core 300W Processor for HPE

P49604-B21

Intel Xeon-Platinum 8458P 2.7GHz 44-core 350W Processor for HPE

P49632-B21

Intel Xeon-Platinum 8452Y 2.0GHz 36-core 300W Processor for HPE

P49616-B21

Intel Xeon-Platinum 8462Y+ 2.8GHz 32-core 300W Processor for HPE

P49603-B21

4^th Generation Intel® Xeon®-Gold

Notes:

- All SKUs below ship with processor only.  Appropriate heatsinks must be selected.

- Requires HPE Synergy 480 Gen11 CPU Front Heat Sink Kit P39587-B21 or Rear Heat Sink Kit P39589-B21.

- 4800 MT/S maximum memory speed unless otherwise noted.

Description

SKU

Intel Xeon-Gold 6430 2.1GHz 32-core 270W Processor for HPE

P49614-B21

Intel Xeon-Gold 6426Y 2.5GHz 16-core 185W Processor for HPE

P49598-B21

Intel Xeon-Gold 6442Y 2.6GHz 24-core 225W Processor for HPE

P49599-B21

Intel Xeon-Gold 6448Y 2.1GHz 32-core 225W Processor for HPE

P49600-B21

Intel Xeon-Gold 6434 3.7GHz 8-core 195W Processor for HPE

P49601-B21

Intel Xeon-Gold 6444Y 3.6GHz 16-core 270W Processor for HPE

P49602-B21

Intel Xeon-Gold 6438Y+ 2.0GHz 32-core 205W Processor for HPE

P49615-B21

Intel Xeon-Gold 5415+ 2.9GHz 8-core 150W Processor for HPE

P49597-B21

Notes: 4400 MT/S maximum memory speed.

Description

SKU

Intel Xeon-Gold 5418Y 2.0GHz 24-core 185W Processor for HPE

P49612-B21

Notes: 4400 MT/S maximum memory speed.

Intel Xeon-Gold 5418N 1.8GHz 24-core 165W Processor for HPE

P49640-B21

Notes: 4400 MT/S maximum memory speed.

Intel Xeon-Gold 5416S 2.0GHz 16-core 150W Processor for HPE

P49653-B21

Notes: 4400 MT/S maximum memory speed.

4^th Generation Intel® Xeon®-Silver

Notes:

- All SKUs below ship with processor only.  Appropriate heatsinks must be selected.

- Requires HPE Synergy 480 Gen11 CPU Front Heat Sink Kit P39587-B21 or Rear Heat Sink Kit P39589-B21.

- 4000 MT/S maximum memory speed unless otherwise noted.

Description

SKU

Intel Xeon-Silver 4410Y 2.0GHz 12-core 150W Processor for HPE

P49610-B21

Intel Xeon-Silver 4416+ 2.0GHz 20-core 165W Processor for HPE

P49611-B21

Step 4: Choose Memory Options

Please select one or more memory DIMMs from below.

For new Gen11 memory population rule whitepaper and optimal memory performance guidelines, please go to:

https://www.hpe.com/docs/memory-population-rules

Notes:

- The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

- Quantity of memory DIMMs selected per socket must be 1, 2, 4, 6, 8, 12 or 16.

- The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

- For additional information, please see the HPE DDR5 Smart Memory QuickSpecs

Registered DIMMs DDR5 (RDIMMs)

DDR5-5600 (applies to the 5th Generation Intel® Xeon® Scalable Processors)

Description

SKU

HPE 16GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64705-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64706-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64707-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64708-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P69976-B21

Description

SKU

Notes:

- 5600 MT/s memory SKUs offer a transfer rate of 5600 MT/s at 1 DIMM per channel and 4800 MT/s at 2 DIMMs per channel.

- 96 GB Memory cannot be mixed with any other Memory.

HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43322-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43328-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43331-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit

P66675-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P69974-B21

Notes:

- 4800 MT/s memory SKUs offer a transfer rate of 4800 MT/s at 1 DIMM per channel and 4400 MT/s at 2 DIMMs per channel.

- 96 GB Memory cannot be mixed with any other Memory.

- If 96 GB memory is selected, either 8 or 16 memory quantity can be allowed per processor.

Memory Blank Kit

Description

SKU

HPE DDR4 DIMM Blank Kit

P07818-B21

Notes:

- Important: Empty memory slots require DIMM Slot Blanks for improved thermal control. (HPE DDR4 DIMM Blanks Kit, P07818-B21).

- HPE memory from previous generation servers (DDR4) is not compatible with this compute module.

Step 5: Choose Networking Adapters

Notes: Only one or more of the following from each list unless otherwise noted.

Description

SKU

HPE Synergy 4820C 10/20/25Gb Converged Network Adapter

876449-B21

HPE Synergy 6820C 25/50Gb Converged Network Adapter

P02054-B21

HPE Synergy 6310C 25/50Gb Ethernet Adapter

P64724-B21

Notes: Networking adapters must have matched Interconnect Modules or Interconnect Links matched in the corresponding ICM slot on the rear of the Synergy 12000 Frame. See Specifications Section below for Mezzanine to ICM Best Practices and matching requirements.

Step 6: Additional Factory Integratable Options

HPE Storage Controllers

Description

SKU

HPE Synergy NS204i-d Gen11 NVMe Boot Storage Device

P39568-B21

Notes: Can be used with any Front Drive Cage options.

HPE SR416ie-m Gen11 x16 Lanes 4GB Cache SPDM Mezzanine Storage Controller

P39959-B21

Notes: New HPE SR416ie-m manages the drives in the HPE D3940 Synergy Storage Module (40 Frame shared SFF drives) and is for SATA/SAS/NVMe drives in the Front 2 and 4 Drive Premium Cages. For more information on the 2 and 4 Drive Premium Cages with SAS Cable defined, see the Drive Cage sections of documents above.

HPE I/O Expansion Options

Description

SKU

HPE Synergy 6310C 25/50Gb Ethernet Adapter

P64724-B21

HPE Synergy 6820C 25/50Gb Converged Network Adapter

P02054-B21

HPE Synergy 4820C 10/20/25Gb Converged Network Adapter

876449-B21

HPE Synergy 5330C 32Gb Fibre Channel Host Bus Adapter

870828-B21

HPE Synergy 5830C 32Gb Fibre Channel Host Bus Adapter

777456-B21

Notes: See specific Frame and Interconnect QuickSpecs below for Best Practices and requirements for options placement in correct mezzanine slots that match with Interconnect model slotting for correct operations.

Step 7: Choose additional options for Factory Integration from Additional Options sections below or the following:

- HPE Synergy 12000 Frame QuickSpecs
https://www.hpe.com/psnow/doc/c04815113

- HPE Synergy Interconnect and Mezzanine Components QuickSpecs
https://www.hpe.com/psnow/doc/c04815110

- HPE Synergy D3940 Storage Module QuickSpecs
https://www.hpe.com/psnow/doc/c04815141

Step 8: Choose from Pointnext Services for HPE Synergy

HPE Synergy Operational Services

Description

SKU

HPE 5Y Tech Care Essential Service

HU4A6A5

HPE 5Y Tech Care Critical Service

HU4A3A5

HPE 5Y Complete Care Addon Essential Service

HU4D5A5

HPE 5Y Complete Care Addon Critical Service

HU4D2A5

Description

SKU

HPE 3Y Tech Care Basic Service

HU4B2A3

HPE 3Y Tech Care Basic with Defective Media Retention Service

HU4B3A3

HPE 3Y Tech Care Basic with Comprehensive Defective Material Retention Service

HU4B4A3

HPE 3Y Complete Care Addon Basic Service

HU4D8A3

HPE 3Y Complete Care Addon Basic with Defective Media Retention Service

HU4D9A3

HPE 3Y Complete Care Addon Basic with Comprehensive Defective Material Retention Service

HU4E0A3

HPE 3Y Tech Care Essential Service

HU4A6A3

HPE 3Y Tech Care Essential with Defective Media Retention Service

HU4A7A3

HPE 3Y Tech Care Essential with Comprehensive Defective Material Retention Service

HU4A8A3

HPE 3Y Complete Care Addon Essential Service

HU4D5A3

HPE 3Y Complete Care Addon Essential with Defective Media Retention Service

HU4D6A3

HPE 3Y Complete Care Addon Essential with Comprehensive Defective Material Retention Service

HU4D7A3

HPE 3Y Tech Care Critical Service

HU4A3A3

HPE 3Y Tech Care Critical with Defective Media Retention Service

HU4A4A3

HPE 3Y Tech Care Critical with Comprehensive Defective Material Retention Service

HU4A5A3

HPE 3Y Complete Care Addon Critical Service

HU4D2A3

HPE 3Y Complete Care Addon Critical with Defective Media Retention Service

HU4D3A3

HPE 3Y Complete Care Addon Critical with Comprehensive Defective Material Retention Service

HU4D4A3

HPE 4Y Tech Care Basic Service

HU4B2A4

HPE 4Y Tech Care Basic with Defective Media Retention Service

HU4B3A4

HPE 4Y Tech Care Basic with Comprehensive Defective Material Retention Service

HU4B4A4

HPE 4Y Complete Care Addon Basic Service

HU4D8A4

HPE 4Y Complete Care Addon Basic with Defective Media Retention Service

HU4D9A4

HPE 4Y Complete Care Addon Basic with Comprehensive Defective Material Retention Service

HU4E0A4

HPE 4Y Tech Care Essential Service

HU4A6A4

HPE 4Y Tech Care Essential with Defective Media Retention Service

HU4A7A4

HPE 4Y Tech Care Essential with Comprehensive Defective Material Retention Service

HU4A8A4

HPE 4Y Complete Care Addon Essential Service

HU4D5A4

HPE 4Y Complete Care Addon Essential with Defective Media Retention Service

HU4D6A4

HPE 4Y Complete Care Addon Essential with Comprehensive Defective Material Retention Service

HU4D7A4

HPE 4Y Tech Care Critical Service

HU4A3A4

HPE 4Y Tech Care Critical with Defective Media Retention Service

HU4A4A4

HPE 4Y Tech Care Critical with Comprehensive Defective Material Retention Service

HU4A5A4

HPE 4Y Complete Care Addon Critical Service

HU4D2A4

HPE 4Y Complete Care Addon Critical with Defective Media Retention Service

HU4D3A4

HPE 4Y Complete Care Addon Critical with Comprehensive Defective Material Retention Service

HU4D4A4

Description

SKU

HPE 5Y Tech Care Basic Service

HU4B2A5

HPE 5Y Tech Care Basic with Defective Media Retention Service

HU4B3A5

HPE 5Y Tech Care Basic with Comprehensive Defective Material Retention Service

HU4B4A5

HPE 5Y Complete Care Addon Basic Service

HU4D8A5

HPE 5Y Complete Care Addon Basic with Defective Media Retention Service

HU4D9A5

HPE 5Y Complete Care Addon Basic with Comprehensive Defective Material Retention Service

HU4E0A5

HPE 5Y Tech Care Essential Service

HU4A6A5

HPE 5Y Tech Care Essential with Defective Media Retention Service

HU4A7A5

HPE 5Y Tech Care Essential with Comprehensive Defective Material Retention Service

HU4A8A5

HPE 5Y Complete Care Addon Essential Service

HU4D5A5

HPE 5Y Complete Care Addon Essential with Defective Media Retention Service

HU4D6A5

HPE 5Y Complete Care Addon Essential with Comprehensive Defective Material Retention Service

HU4D7A5

HPE 5Y Tech Care Critical Service

HU4A3A5

HPE 5Y Tech Care Critical with Defective Media Retention Service

HU4A4A5

HPE 5Y Tech Care Critical with Comprehensive Defective Material Retention Service

HU4A5A5

HPE 5Y Complete Care Addon Critical Service

HU4D2A5

HPE 5Y Complete Care Addon Critical with Defective Media Retention Services

HU4D3A5

HPE 5Y Complete Care Addon Critical with Comprehensive Defective Material Retention Service

HU4D4A5

Enterprise - 12G SAS - SFF Drives

Description

SKU

HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P53562-B21

HPE 600GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P53561-B21

SSD Selection

For SSD selection guidance, please visit https://ssd.hpe.com

Read Intensive - SAS - SFF - Solid State Drives

Description

SKU

HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49045-B21

HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40509-B21

HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49041-B21

HPE 3.84TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-3 PM7 SSD

P83347-B21

HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40508-B21

HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49035-B21

HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40507-B21

HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40506-B21

HPE 960GB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49029-B21

Mixed Use - SAS - SFF - Solid State Drives

Description

SKU

HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49057-B21

HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40512-B21

HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49053-B21

HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40511-B21

HPE 1.6TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-3 PM7 SSD

P83344-B21

HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49049-B21

HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40510-B21

HPE 800GB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49047-B21

Read Intensive - SATA - SFF - Solid State Drives

Description

SKU

HPE 7.68TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40501-B21

HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40500-B21

HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40499-B21

HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40497-B21

HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40498-B21

Mixed Use - SATA - SFF - Solid State Drives

Description

SKU

HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40505-B21

HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40504-B21

HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40503-B21

HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40502-B21

Read Intensive - NVMe - SFF - Solid State Drives

Description

HPE 30.72TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM9 SSD

P85676-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91249-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM9 Private SSD

P85674-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78810-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500b SSD

P84239-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive BC U.3 Static V2 SPDM Multi Vendor SSD

P84236-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50224-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63841-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91247-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM9 SSD

P85672-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50222-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63837-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91245-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM9 SSD

P85670-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78806-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50219-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63833-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91243-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM9 SSD

P85668-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63829-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78806-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78808-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84242-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64848-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84244-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64846-B21

HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64844-B21

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64842-B21

Mixed Use - NVMe - SFF - Solid State Drives

Description

SKU

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91241-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM9 SSD

P85666-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50233-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63853-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91239-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM9 SSD

P85664-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD

P78801-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50230-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63849-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91237-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM9 SSD

P85662-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50227-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63845-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD

P78804-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-B21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65023-B21

HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65015-B21

HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65007-B21

HPE 800GB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P64999-B21

Read Intensive - NVMe - EDSFF E3.S - Solid State Drives

Description

SKU

HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD

P85745-B21

HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 EDSFF SPDM 9550 SSD

P79965-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91233-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD

P85743-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD

P78793-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61187-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91231-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD

P85741-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD

P78791-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57803-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61183-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91229-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin CM9 SSD

P85739-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD

P78789-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61179-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91096-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91094-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69239-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91092-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69237-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91090-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-B21

HPE 30.72TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P79065-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63938-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63934-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63930-B21

Mixed Use - NVMe - EDSFF E3.S - Solid State Drives

Description

SKU

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91102-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD

P85735-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91100-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin CM9 SSD

P85733-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78787-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61195-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91098-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD

P85731-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78784-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61191-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70669-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91088-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91086-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91084-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85114-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-B21

M.2 Drive Options

Description

SKU

HPE 480GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD

P80318-B21

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD

P80321-B21

Notes:  2x M.2 SSD required for HPE NS204i-d Synergy Gen11 Boot Controller.

Drive Qualification Exceptions

At this time there are no exceptions to list.

HPE Security

Description

SKU

HPE iLO Common Password FIO Setting

P08040-B21

Memory Subsystem Architecture

Each processor socket contains eight memory channels that support two DIMMs each for a total of 16 DIMM per installed processor or a grand total of thirty two (32) DIMMs for the compute module with 2 processors..

Memory Population Rules and Guidelines

- A minimum of one DIMM is required per processor.

- Install DIMMs only if the corresponding processor is installed.

- If only one processor is installed in a two processor system, only half of the DIMM slots are available.

- DIMM sizes can be mixed in channel. To maximize performance, it is recommended to balance the total memory capacity between all installed processors and to load the channels similarly whenever possible.

- LRDIMM and RDIMMs are all distinct memory technologies and cannot be mixed within a compute module.

- DIMMs of different speeds may be mixed in any order; the compute module will select a common optimal speed.

- The maximum memory speed is a function of the memory type, memory configuration, and processor model.

- The maximum memory capacity is a function of the memory type and number of installed processors.

- The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

- HPE memory from previous generation servers is not compatible with the HPE Synergy 480 Gen11 Compute Module.

For additional information, please see the HPE DDR5 Smart Memory

Notes: The maximum memory speed is a function of the memory type, memory configuration, and processor model.

Memory Population Rules and Guidelines

Drawing showing SY480 Gen11 system board layout for processors and memory.
