Mellanox SH2200 TAA Switch Module for HPE Synergy | |||
|
Mellanox SH2200 TAA Switch Module for HPE Synergy delivers high-performance, high-speed 25Gb and 50Gb Ethernet connectivity to the Synergy compute modules, and 40/100Gb Ethernet to the upstream network switches. Designed for hybrid IT data centers requiring advanced feature sets such as deterministic low latency network fabric, hardware-based virtualization support, or storage offloading. Based on the Mellanox SpectrumTM ASIC, the module delivers up to 2.8 Tbps switching capacity, 8.4 BPPS throughput and ultra low latency for the most demanding data center workloads such as Network Function Virtualization, financial services, high frequency trading, or virtualized enterprise data centers. HPE Synergy is a single infrastructure of physical and virtual pools of compute, storage, and fabric resources, and a management interface that allows configuration of server resources in any configuration. The Mellanox SH2200 Switch Module is managed by industry standard management resources that allows network functions to managed by network administrators. As the foundation for the New Style of Business infrastructure, HPE Synergy eliminates hardware and operational complexity so IT organizations can precisely deliver infrastructure resources to applications faster and with greater flexibility | |||
|
| |||
|
Figure 1 Mellanox SH2200 Switch Module for HPE Synergy Bezel | |||
|
1. |
Console port |
3. |
Status LEDs |
|
2. |
40/100Gb QSFP28 Ethernet uplink ports |
|
|
|
| |||
|
Platform Information
| |
|
Models | |
|
Mellanox SH2200 TAA-compliant Switch Module for HPE Synergy |
866573-B21 |
|
Notes: HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. This product is either manufactured or substantially transformed in a designated country. | |
|
Compatibility | |
|
Mellanox SH2200 TAA Switch Module for HPE Synergy supports the following hardware. | |
|
| |
|
Obsolete Products* Notes: *No longer available for purchase, informational only | |
| |
|
| |
|
Supported Configurations |
|
|
|

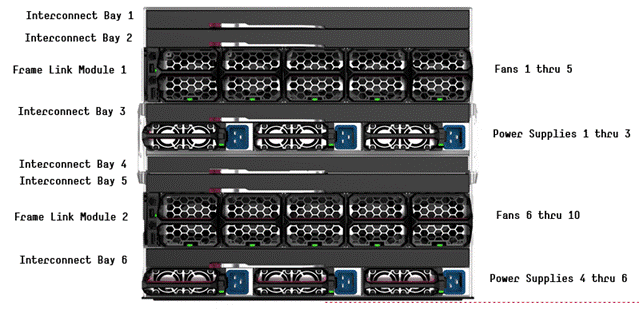

HPE Synergy 12000 Frame - Rear View |
|
|
|

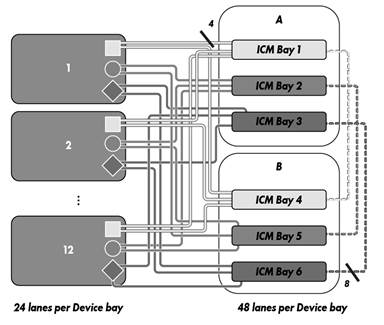

Mezzanines to Interconnect Port Mapping |
|
The first interconnect in an ICM bay set is connected to Port 1 of the mezzanine card and the second interconnect in an ICM bay set is connected to Port 2 of that mezzanine card. If the two interconnects in an ICM bay set are of the same type, they provide redundant connectivity to the two mezzanine ports. |
|
|
|
|
Standard Features
|
Product Features
|
|
Performance
Management
|
|
Layer 2 Switching
- 32 ports/channel - 64 groups per system
- BPDU filter - Root guard - Loop guard - BPDU guard
Layer 3 Switching
|
|
SNMP MIBs
Options
Supports Ethernet adapters for HPE Synergy Compute Nodes (Supported functionality defined by each adapter)
|
|
|
Service and Support
|
HPE Services No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
|
|
Consulting Services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting
|
|
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational
|
|
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare
|
|
|
|
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
|
|
|
|
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
Notes:
To review the list of Lifecycle Services available for your product
go to: For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
|
|
|
|
Other Related Services from HPE Services: HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
|
|
|
Defective Media Retention An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. |
|
|
|
How to Purchase Services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent. https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT On Your Terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information http://www.hpe.com/services |
|
|
Related Options
|
QSFP28 uplink ports options | |
|
HPE 100Gb QSFP28 MPO SR4 100m Transceiver |
845966-B21 |
|
HPE 100Gb QSFP28 Bidirectional Transceiver |
845972-B21 |
|
HPE 100Gb QSFP28 to QSFP28 3m Direct Attach Copper Cable |
845406-B21 |
|
HPE 100Gb QSFP28 to QSFP28 5m Direct Attach Copper Cable |
845408-B21 |
|
HPE QSFP28 to SFP28 Adapter |
845970-B21 |
|
Notes: HPE QSA28 (QSFP28 to SFP28) adapter (845970-B21) is required to convert a QSFP+/QSFP28 slot to a single SFP+/SFP28 slot for 25G or 10G operation with this switch model. | |
|
| |
|
QSFP+ uplink ports options | |
|
HPE BladeSystem c-Class 40Gb QSFP+ MPO SR4 100m Transceiver |
720187-B21 |
|
HPE 40Gb QSFP+ Bidirectional Transceiver |
841716-B21 |
|
HPE BladeSystem c-Class 40G QSFP+ to QSFP+ 15m Active Optical Cable |
720211-B21 |
|
HPE BladeSystem c-Class QSFP+ to 4x10G SFP+ 15m Active Optical Cable |
721076-B21 |
|
SFP+ uplink ports options | |
|
HPE 10GBASE-T SFP+ RJ45 30m 1-pack Transceiver |
R0R41B |
|
HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver |
455883-B21 |
|
HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable |
JD095C |
|
| |
|
HPE Synergy Services | |
|
Notes: See HPE Support Services Central for additional services at HPE Global IT Services-Infrastructure and Business Technology Services | HPE | |
|
Deployment/Installation & Start-up Services |
|
|
HPE Factory Express Synergy Initial Frame Package 4 Service |
HA454A1-300 |
|
HPE Factory Express Synergy Add-on Frame Package 4 Service |
HA454A1-301 |
|
HPE Synergy First Frame Startup Service |
U8JM3E |
|
HPE Synergy Additional Frame Startup Service |
U8JM4E |
|
| |
Technical Specifications
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Safety and Compliance To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center: Document - Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products | HPE Support | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment-friendly Products and Approach
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
End-of-life Management and Recycling Hewlett Packard Enterprise Enetrpise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/info/recycle. To recycle your product, please go to: http://www.hpe.com/info/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
