HPE Virtual Connect SE 16Gb FC Module for Synergy: технические характеристики и документация
В архивеOverview
|
HPE Virtual Connect SE 16Gb FC Module for HPE Synergy |
| ||||
|
The HPE Virtual Connect SE 16Gb FC Module for HPE Synergy is a Storage Area Network (SAN) interconnect with a wire-once change-ready technology. The Fibre Channel (FC) module in conjunction with Synergy composer powered by HPE OneView allows workloads to be moved or managed without modifying the network. HPE OneView provides an intuitive management console for seamless connectivity between virtualized Synergy Compute Modules 16Gb FC SAN fabrics.
For the best-in-class enterprise datacenter performance environments, the HPE VC SE 16Gb FC module or the alternative, Brocade 16Gb FC SAN Switch Module for HPE Synergy, are the best choices for operating systems and applications demanding low-latency high I/O performance, i.e. SSD storage. No other server enclosure technology (iSCSI, Ethernet, or FCoE) on the market can guarantee up to 384Gb/s of bandwidth. The unique QSFP ports not only significantly simplify cabling infrastructure, reduces cabling from four to one, but also helps reduce power 2.5x attributed to optics transceivers.
If deployment costs are a concern, by adopting the Synergy frame and Gen 5 16Gb FC technology, you can reduce costs and simplify connections to SANs, consolidate your network connections and enable administrators to add, replace and recover compute modules resources on-the-fly. The integrated Synergy design frees up rack space, reduces power and cooling requirements.
The HPE Virtual Connect SE 16Gb FC Module for HPE Synergy is protected by HPE Services 3-Years Next Business Day 9x5 Hardware Support. |
|||||
|
|
|||||
|
|
|||||
|

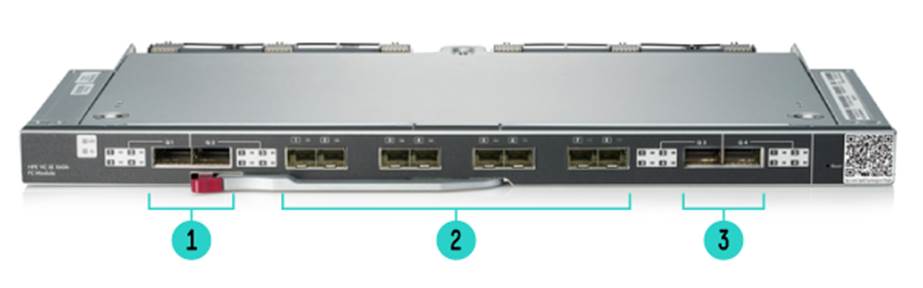

Figure 1 The HPE Virtual Connect SE 16Gb FC Module for HPE Synergy Front View |
| ||||
|
1. |
Q1-Q2 QSFP+ ports |
3. |
Q3-Q4 QSFP+ ports |
||
|
2. |
1-8 SFP+ ports |
|
|
||
|
|
| ||||
|
Models |
| ||||
|
HPE Virtual Connect SE 16Gb Fibre Channel Module for HPE Synergy |
P08477-B21 |
| |||
|
|
| ||||
|
| |||||
Standard Features
|
Supported Products |
|
Compatibility New HW part number is being introduced due to business process updates. The previous part number (779227-B21) is being deprecated and will no longer be orderable. The new part number will be supported on Virtual Connect Firmware v4.63 and VCSU 1.13.1 and later. For customers using HPE OneView, the new part number will be supported by HPE OneView 4.20 and later. For customers on older OneView releases, the new part number is supported on the 4.00.11 and 4.10.02 update releases. Customers will have to be on the supported VCM and OneView releases in order to use the modules with new part numbers. The interconnect modules are unchanged except for the part number. |
|
HPE Compute Module HPE Compute Modules:
|
|
Fibre Channel Host Bus Adapters (HBA)
Notes: Consult individual compute module TechSpecs for specific adapter support |
|
|
|
Supported Configurations |
|
|
|

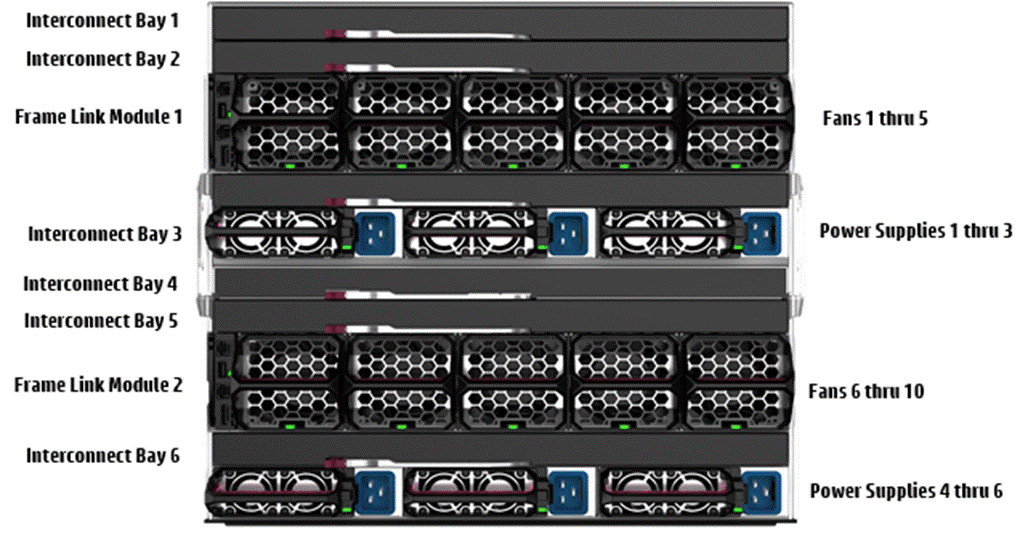

HPE Synergy 12000 Frame - Rear View |
|
|
|
Mezzanines |
|
Port Mapping Port mapping differs slightly between full height and half-height compute modules due to the support for additional Mezzanine cards on the full height version. |
|
|
|
HPE 12000 Synergy Frame |
|
Notes: For ease of representation and understanding paired Interconnect Bay (ICB) are shown adjacent rather than vertically as in the real-frame. Interconnect frames are formed between ICB 1 with ICB 4, ICB 2 with ICB 5, and ICB 3 with ICB 6. Hence the below representation. |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Stacking Configuration Stacking is only supported on Virtual Connect SE 40Gb F8 Modules via Primary/Satellite stacking or between two Virtual Connects with M-LAG. The Virtual Connect FC modules don’t support stacking. |
|
|
|
Product Features Performance
|
|
Management
|
|
Virtual server profiles
|
|
|
Related Options
|
Transceivers |
|
|
HPE B-series 4x16 Short Wave QSFP Transceiver |
K2Q87A |
|
HPE B-series 16Gb SFP+ Short Wave 1-pack Secure Transceiver HPE B-series 16Gb SFP+ Short Wave 8-pack Secure Transceiver |
R6B10A R6W28A |
|
| |
|
Cables |
|
|
HPE Multi Fiber Push On to 4 x Lucent Connector 5m Cable |
K2Q46A |
|
HPE Multi Fiber Push On to 4 x Lucent Connector 15m Cable |
K2Q47A |
|
HPE Premier Flex MPO/MPO Multi-mode OM4 12 Fiber 10m Cable |
QK729A |
|
HPE Premier Flex MPO/MPO Multi-mode OM4 8 Fiber 50m Cable |
QK731A |
|
HPE Premier Flex MPO/MPO OM4 100m Cable |
H6Z30A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable |
QK732A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable |
QK733A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable |
QK734A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable |
QK735A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable |
QK736A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable |
QK737A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable |
AJ833A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable |
AJ834A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable |
AJ835A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable |
AJ836A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable |
AJ837A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable |
AJ838A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable |
AJ839A |
|
| |
|
HPE Synergy Services |
|
|
Notes: See HPE Support Services Central for additional services at https://ssc.hpe.com/portal/site/ssc/ |
|
|
Deployment/Installation & Start-up Services |
|
|
HPE Factory Express Synergy Initial Frame Package 4 Service |
HA454A1-300 |
|
HPE Factory Express Synergy Add-on Frame Package 4 Service |
HA454A1-301 |
|
HPE Synergy First Frame Startup Service |
U8JM3E |
|
HPE Synergy Additional Frame Startup Service |
U8JM4E |
|
| |
Service and Support
|
HPE Services No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
|
|
Consulting Services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting
|
|
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational
|
|
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare
|
|
|
|
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
|
|
|
|
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
Notes:
To review the list of Lifecycle Services available for your product
go to: For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
|
|
|
|
Other Related Services from HPE Services: HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
|
|
|
Defective Media Retention An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. |
|
|
|
How to Purchase Services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent. https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT On Your Terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information http://www.hpe.com/services |
|
|
Technical Specifications
|
Shipping Dimensions | ||
|
Length |
19.45 in (494 mm) | |
|
Width |
15.55 in (395 mm) | |
|
Height |
5.75 in (154 mm) | |
|
Shipping Weight |
1.497 kg (3.18 lbs) | |
|
Product Specifications Hardware | ||
|
Performance |
16 Gb/sec line speed, full duplex | |
|
Bandwidth |
96Gbps, Full Duplex @ 4-Gbps | |
|
192Gbps, Full Duplex @ 8-Gbps | ||
|
384Gbps, Full Duplex @ 16-Gbps | ||
|
Fabric Latency (intra-switch) |
700 nSec. Latency increases as input port speed is lower than the output port speed. | |
|
Number of Fibre Channel Ports |
24 external 4/8/16-Gbps ports (Max 12 usable) | |
|
12 internal 16-Gbps ports | ||
|
External Port Type |
Configured as Node port s (N_Port), | |
|
Internal Port Type |
Configured as Fabric port (F_Port), | |
|
Classes of Service |
Class 2 and Class 3 Fibre Channel services | |
|
Scalability |
Does not contribute to the total switch limit. See the SAN Design Guide for latest supported configurations. | |
|
Buffer Credits |
8 buffer credits per port, ASIC embedded memory | |
|
Connectors and Cabling |
QSFP+ and SFP+ optical hot-pluggable transceiver with LC connector | |
|
Indicators |
Port ID Indicator | |
|
Module Status Indicator | ||
|
Port Link/Activity Indicator | ||
|
Module Locator (UID) | ||
|
Dimensions |
Width |
16.918 in |
|
Depth |
11.051 in | |
|
Height |
1.082 in | |
|
Weight |
Approx 3.18 lbs - without media | |
|
Environmental Ranges |
Specification |
10C to 35C (50F to 95F) |
|
Temperature Range | ||
|
Operating |
Inlet air temperature up to 43°C (109.4°F) at sea level with an altitude derating of 1.0°C per every 1000 feet of elevation above sea level to a maximum operating altitude. For example, the maximum inlet air temperature requirement at 5000 ft. above Sea level is 38ºC. | |
|
Non-operating |
-40°C to 70°C (-40° to 158°F). Maximum rate of change is 20°C/Hr (36°F/Hr). | |
|
Relative humidity (noncondensing) | ||
|
Operating |
5 to 95% relative humidity, 38.7°C maximum wet bulb temperature, and Non-condensing. | |
|
Non-Operating |
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. | |
|
Altitude | ||
|
Operating |
3050 m (10,000 ft.). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min). | |
|
Non-operating |
9144 m (30,000 ft.). Maximum allowable altitude change rate is 457 m/min (1500 ft. /min). | |
|
Vibration | ||
|
Operating |
1 G, 10-500 Hz, 60 minutes per axis | |
|
Non-Operating |
9144 m (30,000 ft.). Maximum allowable altitude change rate is 457 m/min (1500 ft. /min). | |
|
Shock | ||
|
Operating |
Half-sine-wave shock, 40 G, 2 ms duration, in each direction of three mutually perpendicular axes. | |
|
Non-Operating |
Half-sine-wave shock, 140 G, 2 ms duration, in each direction of three mutually perpendicular axes; and square-wave shock up to 80 G, 180 inches/s velocity change, in each direction of three mutually perpendicular axes. | |
|
Power Specification |
12V @ 4.65A (56 W) |
|
|
| ||
|
Product Specifications Software | ||
|
Industry Standard NPIV Support The Virtual Connect Fibre Channel module works by aggregating multiple FC HBA ports over a single N-port uplink through the use of N_port_ID virtualization (NPIV). NPIV allows multiple distinguishable identities (multiple port WWNs and port IDs) over a single N-port connection. Most Fibre Channel SAN switch vendors have support for NPIV in their latest firmware release. By conforming to the NPIV standard, SAN equipment interoperability simplified. The Virtual Connect Fibre Channel Module Provides basic 4:1, 8:1, or 12:1 NPIV Fibre Channel concentration.
| ||
|
Data Center Connectivity Each Virtual Connect Fibre Channel module supports up to 12 SAN fabrics and is typically connected to a Fibre Channel switch that has been configured to run in NPIV mode. The 12 uplink ports are speed selectable from 16, 8 or 4Gb/s. The setup allows SAN administrators to name the fabric that servers will connect into and set the oversubscription rate. Fibre Channel boot parameters and WWN administration are configurable options that can be integrated into server profiles. In an NPIV environment, there is an initial brief login function between the Virtual Connect Fibre Channel Module and the data center switch. Once completed, all HBA connections appear as though they are directly connected between the compute modules and the SAN switch. The Virtual Connect Fibre Channel Module appears as a pass-thru device to the SAN, yet cables are reduced as much as 12:1.
| ||
|
Management Features
|
||
|
| ||
|
Management and Standards Support Standards
|
|
|
|
Safety and Compliance Safety Certifications
|
|
|
|
Electromagnetic Emissions Certifications FCC Part 15 Class A
|
|
|
|
Environment-friendly Products and Approach - End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: These instructions may be used by recyclers and other WEEE treatment facilities as well Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
08-Jan-2024 |
Version 11 |
Changed |
Service and Support section was updated |
|
15-Sep-2021 |
Version 10 |
Changed |
Related Options section was updated Obsolete SKUs were removed Services and Support Pointnext Tech Care and Complete Care information added |
|
11-Jan-2021 |
Version 9 |
Changed |
Standard Features section was updated. |
|
24-Aug-2020 |
Version 8 |
Changed |
Related Options section was updated. Rebranding applied to document. |
|
13-Nov-2018 |
Version 7 |
Changed |
Standard Features section was updated. |
|
05-Nov-2018 |
Version 6 |
Changed |
Overview and Supported Products were updated. SKU added in Overview section: P08477-B21. SKU deleted in Overview section: 779227-B21 |
|
05-Mar-2018 |
Version 5 |
Changed |
HPE Compute Module section was updated. |
|
08-May-2017 |
Version 4 |
Changed |
Related Options section was updated. Obsolete SKUs were deleted: QK725A, H6Z29A, AJ717A |
|
27-Jan-2017 |
Version 3 |
Changed |
Related Options and Service and Support sections were updated. |
|
31-Mar-2016 |
Version 2 |
Changed |
Overview, Supported Products, Standard Features, Related Options, Technical Specifications sections were updated. SKUs added in Related Options section: |
|
01-Dec-2015 |
Version 1 |
Created |
New QuickSpecs |
