В архивеOverview
|
HPE Synergy 480 Gen10 Plus Graphics Accelerators |
|
HPE Synergy 480 Gen10 and Gen10 Plus |
|
Datacenter GPU hardware acceleration enables delivery of required functionality, performance, and user experience for mid to ultra-high-end 3D engineering, compute, design, and business application workloads. It also enables "Work from anywhere" business models with the user able to access systems from anywhere remotely, maintaining high levels of user experience without sacrificing data security and system performance. The graphics accelerator options paired with the HPE Synergy 480 Gen10 and Gen10 Plus compute modules offer a variety of deployment options, operating environments.
- Density-optimized GPU options and solutions portfolio for all end-user computing workloads requirements - Software-definable virtual GPU profiles that enable all workload types from low-end non-accelerated, mid-range knowledge workloads requiring high fidelity experience (multi-monitor just-like-desktop user experience), up to workstation-class ultra-high-end user workloads.
- HPE Synergy 480 2 Slot PCIe Expansion Module, supporting up to two PCIe double-wide full-size GPUs (e.g. NVIDIA A40, A16) - HPE Synergy 480 4 Slot PCIe Expansion Module, supporting up to four PCIe single-wide full-length or small form factor GPUs (e.g. NVIDIA A10, T4, A2) - HPE Synergy 480 8 Slot PCIe Expansion Module, supporting up to eight PCIe Gen4 small form factor GPUs (e.g. NVIDIA T4 or A2) - HPE synergy front pcie gpu enable kit supporting one PCIe Gen4 small form factor GPUs (e.g. NVIDIA T4 or A2)
- Up to two PCIe Gen3 double-wide full-size GPUs (e.g. NVIDIA RTX 6000) - Up to four PCIe Gen3 single-wide full-length or small form factor GPUs (e.g. NVIDIA T4) |
|
|
|
What's new in HPE Synergy 480 Gen10 Plus |
|
|
|

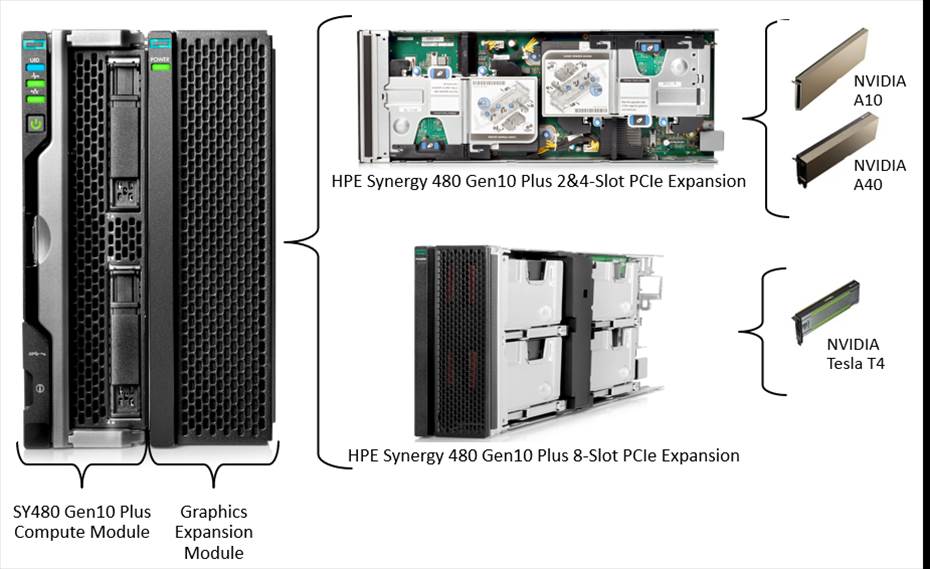

HPE Synergy 480 Gen10 Plus Graphics Accelerator Options Overview |
|
HPE Synergy graphics accelerator options are paired with the HPE Synergy 480 Compute Module to provide a wide variety of deployment options, operating environments, and remote access methods. The HPE Synergy 480 Gen10 Plus graphics accelerator options deliver data center deployments of GPU-enabled servers optimized for high-density graphics accelerated VDI (virtual Workstation), virtual applications, and compute deployments such as deep learning, inferencing, and HPC workloads. |
|
|
HPE Synergy 480 Gen10 Plus Graphics Options Detail |
|
HPE Synergy 480 Gen10 Plus graphics accelerators are offered and supported in four different configurations:
|
- Double wide configuration (occupies two Synergy frame slots) - Supports up to eight PCIe Gen4 x16 small form factor cards - Supported cards include: o NVIDIA T4 o NVIDIA A2 Non-CEC
- Single wide configuration (occupies one Synergy frame slot) - Support one PCIe Gen4 x16 small form factor cards - Supported cards include: o NVIDIA T4 (limited availability) o NVIDIA A2 Non-CEC
- Double wide configuration (two Synergy frame slots) - Supports up to two PCIe Gen4 x16 double-wide full-length cards - Supported cards include: o NVIDIA A40 (limited availability) o NVIDIA A16 (release OCT '22)
- Double wide configuration (occupies two Synergy frame slots) - Supports up to four PCIe Gen4 x8 single-wide full-length cards - Supported cards include: o NVIDIA A10 Non-CEC (release Oct '22)
|
|
|
|
|
|
HPE Synergy 480 Compute GPU Expansion Options |
|
|
|

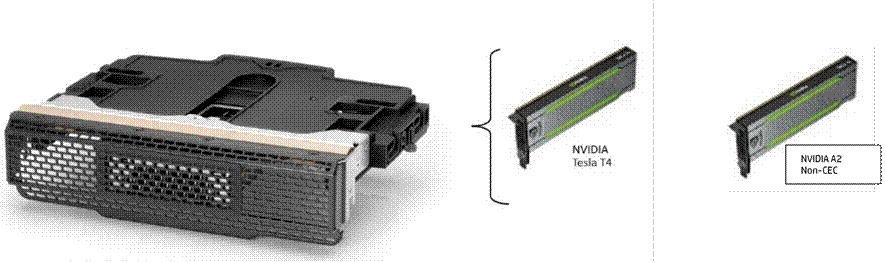

HPE Synergy 480 Front PCIe Accelerator Enablement Kit |
|
|
|
|
|

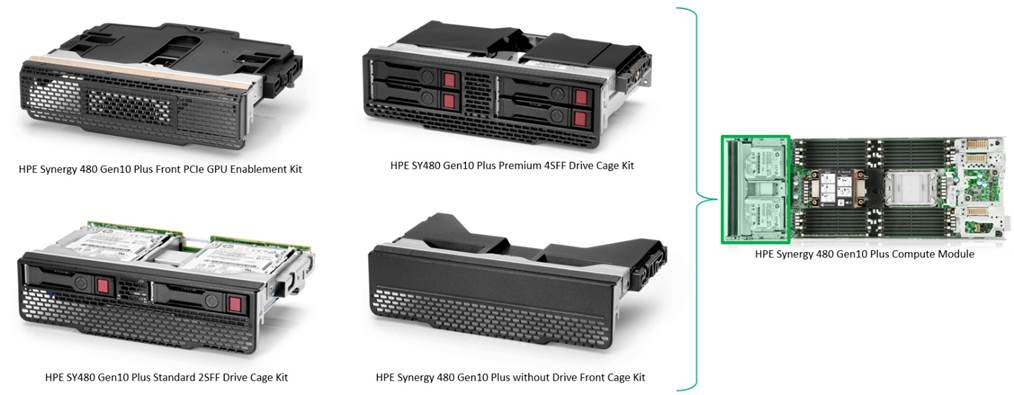

All HPE Synergy 480 Front Bay Options |
|
Notes: IMPORTANT Configuration notes - When the HPE Synergy 480 Front PCIe Accelerator Enablement Kit is installed, it takes the place of other SFF driver cage options for internal drives. If internal storage is required, choose the HPE NS204i-d SY Gen10+ M.2 Controller or HPE P416ie-m Smart Array Controller for HPE Synergy D3940 storage module support. |
|
|
|
HPE Synergy 480 Gen10 Graphics Options |
|
The HPE Synergy 480 Gen10, with its portfolio of GPU-optimized hardware solutions, offers complete flexibility for a virtualized end-user computing workloads that include the following benefits:
- Up to two PCIe Gen3 double-wide full-size GPUs (e.g. NVIDIA A40 / A16)) - Up to four PCIe Gen3 single-wide full-length or small form factor GPUs (e.g. NVIDIA A10 Non-CEC, T4 or A2) |
|
HPE Synergy 480 Gen10 Graphics Options Detail |
|
For the HPE Synergy 480, graphics accelerators are offered and supported in four different configurations:
- Double Wide System (two Synergy frame slots) - Supports up to two PCIe Gen3 x16 double-wide full-length cards - Supported cards include: o NVIDIA A40 (Non-CEC) o NVIDIA A16 (Non-CEC)
- Double Wide System (occupies two Synergy frame slots) - Supports up to four PCIe Gen3 single-wide full-length cards - Supported cards include: o NVIDIA A10 (Non-CEC) |
|
|
|

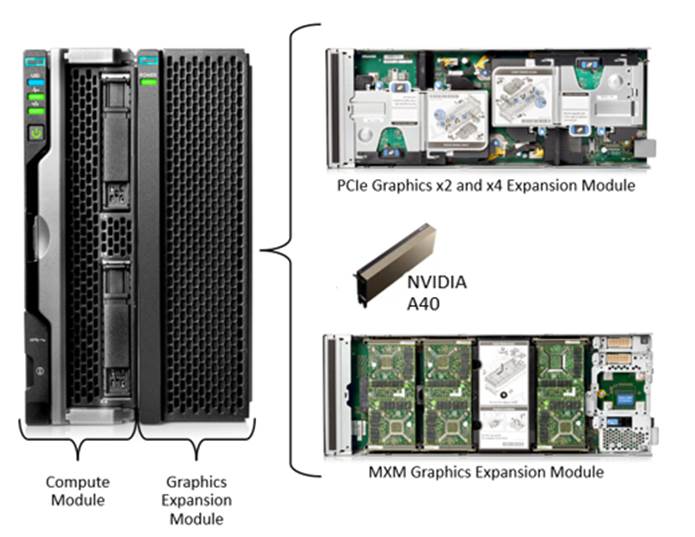

HPE Synergy 480 Compute and Graphics Expansion Module
|
|
|
|
HPE Synergy 480 Gen10 and Gen10 Plus Compute GPU Expansion Options |
|
|
|
|
The HPE Synergy 480 Graphics Option Modules in Detail |
|
Graphics Accelerators are supported in x16 PCIe Expansion Module with single and dual risers to support double and single-wide PCIe GPUs. |
|
|
|
|
|

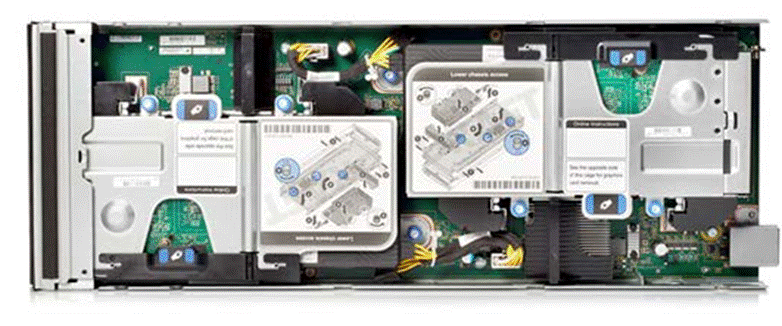

HPE SY 480 Gen10 PCIe FIO Exp Module and the HPE SY 480 Gen10 PCIe x4 Exp module |
|
|
|
The HPE SY 480 Gen10 PCIe FIO Expansion Module supports either one or two full-length, full-height, double-wide GPUs. Each GPU can be up to 300 watts each. Currently, the NVIDIA A40 is supported.
The HPE SY 480 Gen10 PCIe x4 Expansion Module support 2 or 4 full height, full length single wide GPUs. Each GPU can be up to 150 watts each. Currently, the NVIDIA A10 is supported. |
|
|
Standard Features
PCIe Graphics Card Options for HPE Synergy 480 Gen10 and Synergy 480 Gen10 Plus
|
HPE Synergy 480 Gen10 and Gen10 Plus supports the following GPUs:
- Supported GPU Expansion Model: o 1 or 2 cards supported in HPE Synergy 480 Gen10 Plus 2-Slot PCIe Expansion Module - Max number supported: 2 - Type: Double-width, full-height, full-length GPU - Availability: Currently available* - GPU info: Workload flexibility for NVIDIA vGPU virtualization, deep learning, data science, and computer-based workloads
- Supported GPU Expansion Model: o 2 or 4 cards supported in HPE Synergy 480 Gen10 Plus 4-Slot PCIe Expansion Module - Max number supported: 4 - Type: Single-width, full-height, full-length GPU - Availability: Currently available* - GPU info: Workload flexibility for NVIDIA vGPU virtualization, deep learning, data science, and computer-based workloads
- Supported GPU Expansion Model: o 2, 4, 6, or 8 cards supported in HPE Synergy 480 Gen10 Plus 8-Slot PCIe Expansion Module o 1 card supported in HPE Synergy 480 Gen10 Plus Front PCIe GPU Enablement Kit - Max number supported: 9 (Combining 8-slot expansion and Front PCIe GPU Enablement Kit) - Type: Single-width, half-height, half-length GPU - Availability: Currently available* - GPU info: Universal accelerator for distributed computing environments including vGPU virtualization, deep learning, data science, and computer-based workloads |
|
|
|
|
|
HPE Synergy 480 GPU Segmentation Chart
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HPE Synergy 480 Gen10/Gen10 Plus Server and Hypervisor Support | ||||||||||||||||||||
|
The following table shows the support for server operating systems and hypervisors on HPE Synergy 480 with graphics options installed. | ||||||||||||||||||||
|
| ||||||||||||||||||||
| ||||||||||||||||||||
|
Notes: - 1Not support and tested for Client OS, GPU only tested and supported for compute workloads. - Operating System support may change from time to time. To get the most updated information, please go to the HPE OS Support Matrix at http://www.hpe.com/info/ossupport | ||||||||||||||||||||
|
|
Service and Support
|
HPE Services No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
|
|
Consulting Services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting
|
|
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational
|
|
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare
|
|
|
|
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
|
|
|
|
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
Notes:
To review the list of Lifecycle Services available for your product
go to: For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
|
|
|
|
Other Related Services from HPE Services: HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
|
|
|
Defective Media Retention An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. |
|
|
|
How to Purchase Services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent. https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT On Your Terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information http://www.hpe.com/services |
|
|
Additional Options
|
Synergy Gen10 Plus GPU Expansion PCIe Modules | |||||||||||||||||||||||||
|
HPE Synergy 480 2-slot PCIe Expansion Module |
P14256-B21 | ||||||||||||||||||||||||
|
HPE Synergy 480 4-slot PCIe Expansion Module |
P14257-B21 | ||||||||||||||||||||||||
|
HPE Synergy 480 8-slot PCIe Expansion Module |
P14258-B21 | ||||||||||||||||||||||||
|
HPE Synergy Front PCIe GPU Enablement Kit |
P15825-B21 | ||||||||||||||||||||||||
|
| |||||||||||||||||||||||||
|
PCIe Expansion Module GPU Options for HPE Synergy 480 Gen10 / Plus Compute Module
X - No longer available
Notes: Please check the latest availability information of the cards from your account manager | |||||||||||||||||||||||||
|
| |||||||||||||||||||||||||
|
PCIe Expansion Module Cable Kit Options for Synergy 480 Gen10 Plus Compute Module
| |||||||||||||||||||||||||
|
| |||||||||||||||||||||||||
|
Synergy Gen10 Plus GPU Expansion PCIe Modules
| |||||||||||||||||||||||||
|
GPU Expansion Modules - PCIe | |||||||||||||||||||||||||
|
HPE Synergy 480 Gen10 PCIe FIO Expansion Module |
872628-B21 | ||||||||||||||||||||||||
|
HPE Synergy 480 Gen10 PCIe x4 Expansion Module |
P14255-B21 | ||||||||||||||||||||||||
|
| |||||||||||||||||||||||||
|
PCIe Expansion Module Cable Kit Options for Synergy 480 Gen10 Compute Module
| |||||||||||||||||||||||||
| |||||||||||||||||||||||||
|
| |||||||||||||||||||||||||
|
PCIe Expansion Module GPU Options for HPE Synergy 480 Gen10 Compute Module
| |||||||||||||
| |||||||||||||
|
X - No longer available* Notes: Please check the latest availability information of the cards from your account manager | |||||||||||||
|
| |||||||||||||
|
HPE Synergy Operational Services | |||||||||||||
|
HPE 5Y Tech Care Essential Service |
HU4A6A5 | ||||||||||||
|
HPE 5Y Tech Care Critical Service |
HU4A3A5 | ||||||||||||
|
HPE 5Y Complete Care Addon Essential Service |
HU4D5A5 | ||||||||||||
|
HPE 5Y Complete Care Addon Critical Service |
HU4D2A5 | ||||||||||||
|
| |||||||||||||
