HPE Synergy 480 Gen10 Plus Compute Module: технические характеристики и документация

HPE Synergy 480 Gen10 Plus Compute Module

HPE Synergy, the first platform built from the ground up for Composable Infrastructure, offers an experience that empowers IT to create and deliver new value instantly and continuously. It is a single infrastructure that reduces operational complexity for traditional workloads and increases operational velocity for the new breed of applications and services. Through a single interface, HPE Synergy composes physical and virtual compute, storage, and fabric pools into any configuration for any application. As an extensible platform, it easily enables a broad range of applications and operational models such as virtualization, hybrid cloud, and DevOps. With HPE Synergy, IT can become not just the internal service provider but the business partner to rapidly launch new applications that become the business.

HPE Synergy supports new  two-socket  compute modules which provide the performance, scalability, density optimization, storage simplicity, and configuration flexibility to power a variety of workloads, including business processing, IT infrastructure, web infrastructure, collaborative, and high-performance computing.

The HPE Synergy 480 Gen10 Plus Compute Module delivers superior capacity, efficiency, and flexibility in a two-socket, half-height form factor to support demanding workloads. Powered by the latest Intel® Xeon® Scalable processors, HPE DDR4 Smart Memory supporting up to 4TB per processor, flexible storage controller options, three I/O connectors, and designed to create a pool of flexible compute capacity within a composable infrastructure the HPE Synergy 480 Gen10 Plus Compute Module is the ideal platform for general-purpose enterprise workload performance now and in the future.

Get the right balance of performance, flexibility, and density for your traditional or new style of business applications. The HPE Synergy 480 Gen10 Plus Compute Module delivers even more choice of performance, capacity and flexibility to meet your workload needs. Powered with newest Intel® Xeon® Scalable processors, HPE Smart Memory, more storage solutions and capacity, unique Smart Arrays and new GPU options the Synergy 480 Gen10 Plus Compute is ideal to fit any workload you have, now and in the future.

HPE Synergy offers additional compute module options (that have individual QuickSpecs) including:

• HPE Synergy 660 Gen10 (2-4-socket, general purpose)

Notes:  This product will not be updated and will continue through to EOL 3Q2023 with Synergy Intel Cascade Lake  programs.

This QuickSpecs document focuses on the HPE Synergy 480 Gen10 Plus Compute Module.

Notes: The HPE Synergy Gen10 Plus compute modules installation involves a minimum upgrade requirement for component compatibility purposes. To ensure proper system functionality, you must update your system to Release Set Version 3.00.20170707 (or later) before installing and operating your compute module.

Go to: http://www.hpe.com/downloads/synergy.

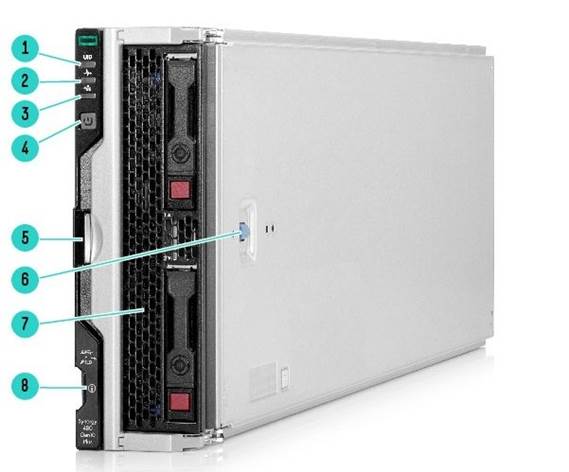

Front View - HPE Synergy 480 Gen10 Plus Compute Module

1.

UID LED

5.

Compute Module handle release latch

2.

Health Status LED

6.

Quick Access Panel

3.

Mezzanine NIC status LED

7.

Removable drive cage¹

4.

Power On/Stand by button and system power LED

8.

Pull Out Label²

Notes:

- ¹Options for 2, 4 drive bays, drive less or single PCIe slot GPU options.

- ²Tab used for ID information on product.  External USB 3.0 connector & iLO USB connection (behind serial label pull tab)

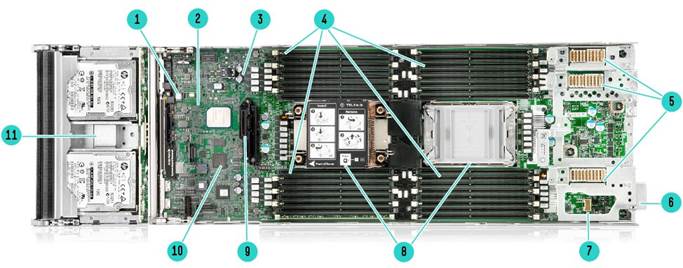

Synergy 480 Gen10 Plus Compute Module

(Drive Cage removed)

1.

Single microSD Slot

6.

Compute Module Power and Management connector

2.

TPM connector²

7.

Smart Array Energy Pack connection

3.

USB 3.0³

8.

Up to two (2) Gen3 Intel® Xeon® Scalable Family processors

4.

Thirty Two (32) DDR4 DIMM memory slots⁴

9.

Connection point for Optional Drive Cage solutions⁶

5.

Mezzanine connectors⁵ (3 x16 PCIe 4.0)

10.

iLO chipset²

11

Selectable front cage options¹

Notes:

- ¹2x Drive bays(SAS/SATA), 4x Drive Bays( 4x NVMe or 2x NVMe + 2x SAS/SATA), Drive less or Single PCIe Cage for select GPU options.

- ²Under drive cage

- ³Boot port under drive cage (mSD or USB)

- ⁴16 per processor

- ⁵3 x16 PCIe 4.0

- ⁶Including  Dual M.2 Boot Drive HW RAID1 Boot Solution. (HPE NS204i-d Gen10+ Boot Controller connects under drive cage)

What's New

• Synergy 480 Gen10 Plus designed to provide increased performance and capacity.
• New Optional Drive Cage options for 2, or 4 Drive and Drive-less for your needed SAN and VSAN workloads.
• HPE NS204i-d Gen10+ Boot Controller with two M.2 480GB drives included designed for VMware HW RAID Requirements - operates with most of the drive cages options (all delivered as Factory Installed or sold as customer installable options).

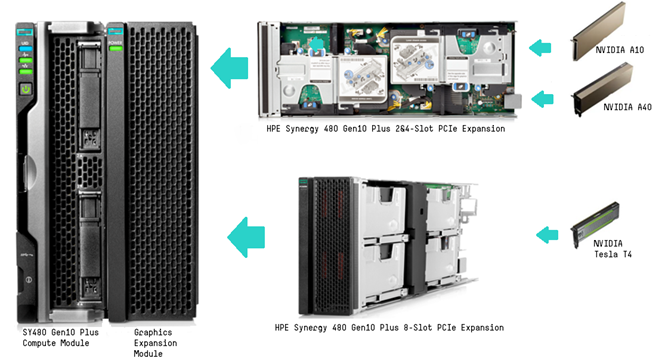

• New PCIe GPU Front Cage option for single GPU workloads, plus  New GPU PCIe Expansion Modules for 2, 4 and 8 standard PCIe GPUs
• Intel®  3rd Generation of Xeon® Scalable Family of processors
• 32 Memory DIMMs for up to 16  per processor up to 4TB Max, 8GB to 256GB Capacities @ speeds up to 3200MT/s
• PCIe 4.0 throughout the module to provide the best performance for Boot, Storage and IO.

• Regional Certifications including Energy Star, EU Lot 9, and Top Runner - Japan Fully Compliant.

ErP Lot9 Quick Summary

The European Parliament (ErP) is responsible for setting the ecological standards for products that are imported into the EU. The European Parliament Commission Regulation 2019/424 (also known as the ErP Lot 9 regulation) are a new set of product standards that deal with servers and data storage devices and goes into effect on March 1, 2020. Products that are not compliant with Lot 9 requirements cannot be imported into the European Union after March 1, 2020.  For details see Tech Specs section of this document.  See Configure to Order section for details on configurable options.

SY480 Gen10 Plus meets Lot9 in all configurations

For additional information, please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html .

Documents provided by HPE: Lot 9 Declarations, White paper, and FAQ.

Platform Information

Form Factor

• Single Slot Blade - Half-Height

Chassis Types

• Single Compute chassis for CTO
• 2 SFF Drive Cage Option(CTO/BTO), same as in use for Gen10
• 4 SFF NVMe Drive Cage solution with options for 2x NVMe and 2x SATA/SAS, (with new MicroChip Smart RAID P416ie-m controller).
• Drive Less Cage Option
• Front PCIe Enablement Kit

System Fans

• Come with Frame by default and not this product.

Synergy Gen10 Plus - Front Cage Options

With introduction of Gen10 Plus, Synergy has moved to a single base chassis with multiple selectable drive and controller option kits. These options include multiple Front Cage options for boot, storage, or single system GPUs.

Notes:

- The Front Cage options are offered as factory installed and BTO options offered for later field updates.

- One of the below Drive Chassis options is required to ship to any customer

- This Drive Cage solution along with it options are available as a BTO option for either Gen10 or Gen10 Plus Compute Field installations/updates.

HPE SY480 Gen10 Plus Standard 2Drive Kit

1.

SAS/SATA or uFF

A two drive SAS/SATA Drive Cage Option for Boot and Store requirements.
Notes: This Drive Cage requires options of Essential RAID Controller(HBA): HPE Smart Array E208i-c SR Gen10 12G SAS Modular Controller(8 internal lanes/no cache), or Performance RAID Controller (Smart Array): HPE Smart Array P204i-c SR Gen10 12G SAS Modular Controller(4 internal lanes/1GB cache) or single HPE Synergy Compute Chipset SATA FIO Board Kit for SATA drive use only (this solution is non-compatible with the HPE NS204i-d Gen10 Plus M.2 HW RAID Boot Controller).

HPE SY480 Gen10 Plus Premium 4Drive Kit

1.

NVMe, SAS/SATA or uFF

2.

NVMe always

A four drive solution that has an option for 4x NVMe Direct Connect Drives, or a 2x NVMe(bottom two shown) and 2x SAS/SATA drive solution.(Top two shown)

Notes:

- May be set at factory to 4 NVMe drive solution with HPE SY480 Gen10+ 4SFF Direct Cbl Opt Kit included, or 2x NVMe (Direct Connect) and 2x SAS/SAS solution with HPE SY480 Gen10+ SlimSAS Cable Opt Kit to connect to MicroChip Smart RAID P416ie-m Gen10 Plus Mezz Controller.

- HPE 480 Gen10 Plus Premium 4Drive Kit - Scheduled for September Release

For more details check your local sales office or see more details below in this QuickSpecs

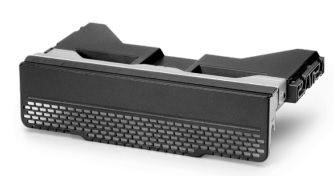

HPE Synergy 480 Gen10 Plus without Drive less Front Cage Kit

A Drive less solution is for when no onboard storage is needed for Boot from SAN solutions or with the new HPE NS204i-d Gen10 Plus M.2 Controller solution is used.

For more details look further down in this QuickSpecs.

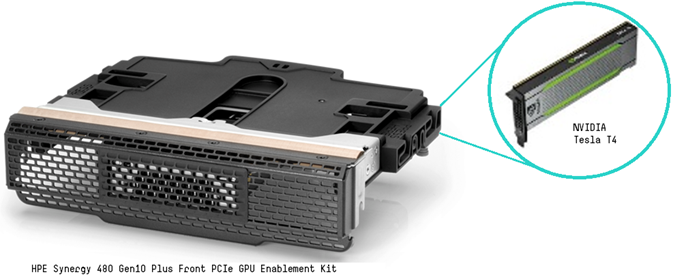

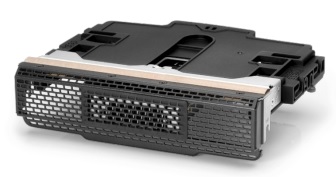

HPE SY480 Gen10 Plus PCIe Slot Option Front Cage

A single PCIe Slot Option Front Cage for single purpose GPU.

For more details look further down in this Quick Spec, or check the HPE GPU options documents.

HPE NS204i-d Gen10 Plus M.2 Boot Controller

The NS204i-d Gen10 Plus M.2 Boot Controller is a redesign New HPE M.2 option is a HW RAID Solution - 2x 480GB M.2 NVMe Drives included with Option for Mirrored RAID.
Notes:

- May be used with any drive cage option above, except when HPE Synergy Compute Chipset SATA FIO Board Kit in 2 Drive Cage.May be selected as a CTO or BTO Option

- This option is a redesign for Synergy PCIe direct connect based on the HPE NS204i-p Gen10+ Boot Device PCIe card option for ProLiant Family

Notes:

- Boot Devices Advisory for USB/SD with VMware 7.0 U2 and beyond:

o Background:

• VMware; at  7.0 U1, made changes in the Boot/Store format to better manage IO growth.  The format change of the ESX-OSDATA boot data partition was from FAT to a VMFS-L.  The new format allows for faster IO to the scratch partition, allowing an overwhelming level of IO traffic to flow and some Hosts may become unresponsive or boot bank not found on boot devices like USB/SD cards.

o Issue:

• The host (USB/SD with ESXi) goes into an unresponsive mode due to "Bootbank cannot be found in the path" and the boot device is in an APD (All Paths Down) state.  In some cases the Host goes to non-responsive state and shows disconnected from VCenter.

o Options for HPE Customers @ Next Update:

• When the customer decides to upgrade to VMware Next or beyond ESXi 7.0 U2c Update Release, VMware will deprecate any USB/SD drive and already recommends the customer use alternative High Endurance SSD's for "Boot & Store partitions.

o HPE Synergy recommends that customer move to alternative Boot & Store solutions as well, examples below:

• With any SY480 Gen10 move from USB/SD Boot & Store devices to HPE 2x Drive Cage solution(P36675-B21), with HPE Smart Array P204i-c SR Gen10 12G SAS Modular Controller(804424-B21) Smart Array or HPE Smart Array E208i-c SR Gen10 Ctrlr (823852-B21) and additional Drives.
• With SY480 Gen10 Plus servers you have the options to move from USB/SD Boot & Store devices to an HPE NS204i-d SY Gen10 Plus NVMe PCIe3 M.2 OS Boot Device (w/ 2x M.2 NVMe 480GB Drives) and/or
• HPE 2x Drive Cage solution (P36675-B21), with HPE Smart Array P204i-c SR Gen10 12G SAS Modular Controller (804424-B21) Smart Array and additional SSD Drives. Options for Gen10 Plus and Gen10.

Synergy Management

HPE Composer powered by OneView

Notes: Read and learn more about OneView

On Compute Management Chipset

HPE iLO 5 ASIC

Notes: Read and learn more in the iLO QuickSpecs

Processors

Synergy 480 Gen10 Plus is designed and consumes on Intel Xeon Scalable Family Generation 3 processors(x3xx)

Up to 2 of the following..

Notes:

- The 2nd digit of the processor model number "x3xx" is used to denote the processor generation (i.e. 3 = 3rd generation).

- This table covers the public Intel offering only.

For more information regarding Intel Xeon processors, please see the following: http://www.intel.com/xeon.

Notes:

- 4.0TB maximum RAM per socket.

- PCIe 4.0 lanes.

- 1.5 MB L3 cache/core, except on 6354 and 6346 processors (2.16 and 2.25 MB L3/core respectively).

- Intel SST-CP (Core Power)- Enables flexibility for workloads that benefit from higher base frequency on a subset of the processor's cores. While the max turbo frequency across the cores remain constant across the cores, a subset of the cores can be assigned as to run at a higher base frequency than specified, while the other cores run at lower base frequency.

- Intel SST-TF (Turbo Frequency)- Enables flexibility for workloads that benefit from higher turbo frequency on a subset of the processor's cores. While the base frequency remains constant across the cores, a subset of the cores can be assigned to run at a higher turbo frequency than specified, while the other cores run at lower turbo frequency.

- Intel SST-BF (Base Frequency)- Allows the configuration of a guaranteed higher base frequency, for a specific number of cores, to support those workloads and applications that are not optimized for turbo frequencies.

- Intel Speed select SST-BF, SST-TF, SST-CP supported on Gold and Platinum processors. Power Profile (SST-PP) only suppported on Y processors.

Notes:

- 8-Channel DDR4 @ 3200 MT/s (lower DDR4 speed may be used in segment optimized processors (i.e. Cloud, NFV, etc).

- 2 socket capable, 3 UPI @ 11.2 GT/s.

- Advanced RAS (except 8358P), AVX-512 2 FMA, SGX 64GB, TME-MT 64 keys.

- Limited Support for all Optane 200 Series Memory

- ¹Deterministic base frequency rating only applicable to VM workloads. Other workloads may see throttling.

- ²Supports Intel® Speed Select Performance Profile (SST-P), even though not being a "Y" processor.

Notes:

- 8-channel DDR4 @ 3200 MT/s (lower DDR4 speed may be used in segment optimized processors (i.e. NFV, etc).

- 2 sockets capable, 3 UPI @ 11.2 GT/s.

- Advanced RAS, AVX-512 2 FMA, SGX 64GB, TME-MT 64 keys.

- Limited Support for all Optane 200 Series Memory

- ¹Deterministic base frequency rating only applicable for NFV workloads. Other workloads may see throttling.

- ²Default Speed Select Performance Profile value.

Chipset

Intel C621A Chipset

Notes: For more information regarding Intel® chipsets, please see the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

System Management Chipset

HPE iLO 5 ASIC

Notes: Read and learn more in the iLO QuickSpecs.

Memory

Notes:

- All processors support up to 4TB memory per socket.

- Mixing of RDIMM and LRDIMM memory is not supported.

- To realize the performance memory capabilities listed in this document, HPE DDR4 Smart Memory is required.

- For additional information, please see the HPE DDR4 Smart Memory QuickSpecs.

- Intel Persistent Memory 200 series only supported on Gold and Platinum Processors.

- For General Server Memory and Persistent Memory Population Rules and Guidelines for Gen10 Plus see details here: http://www.hpe.com/docs/memory-population-rules

Memory Protection

 Memory RAS Technologies

HPE Fast Fault Memory
Notes: For information please refer to:

Memory RAS technologies for HPE ProLiant/Synergy/Blade Gen10 servers with Intel Xeon Scalable processors technical white paper

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online Spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Notes: For more information see our Memory RAS feature technical whitepaper.

Memory

One of the following depending on model

The following memory supports Intel® Xeon® Scalable Family processors 3nd generation (Models x3xx)

• HPE 8GB (1x8GB) Single Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
• HPE 16GB (1x16GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
• HPE 16GB (1x16GB) Dual Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
• HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
• HPE 32GB (1Rx4) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
• HPE 64GB (1x64GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
• HPE 128GB (1x128GB) Quad Rank x4 DDR4-3200 CAS-22-22-22 LRDIMM Smart Memory Kit
• HPE 256GB (1x256GB) Octal Rank x4 DDR4-3200 CAS-26-22-22 3DS LRDIMM Smart Memory Kit

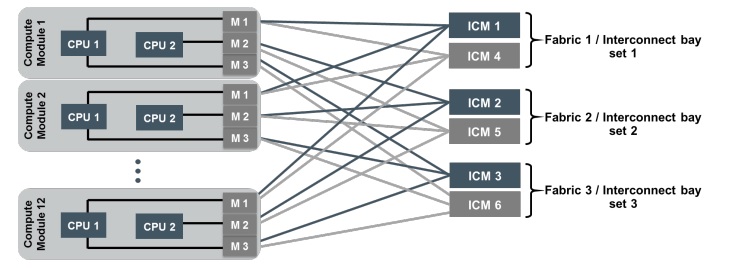

Mezzanine Connectors (PCIe 4.0)

Three (3) I/O expansion mezzanine connectors:

• Mezzanine 1 -- x16 PCIe 4.0 Type D

- Supports Type C and Type D mezzanine cards

Notes: This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 1 and the other to bay 4.

• Mezzanine 2 -- x16 PCIe 4.0

- Supports Type C and Type D mezzanine cards

Notes:

- This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 2 and the other to bay 5.

- A second processor must be installed (in processor slot 2) to have access to mezzanine connector 2.

• Mezzanine 3 -- x16 PCIe 4.0

- Supports Type C mezzanine cards

Notes: This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 3 and the other to bay 6.

Network & Storage Adapters or Mezzanine options include:

• HPE  Synergy 4820C 10/20/25Gb CNA Converged Network Adapter
• HPE Synergy 6820C 25/50Gb CNA Converged Network Adapter
• HPE Synergy 5330C 32G Fibre Channel Host Bus Adapters
• HPE Synergy 5830C 32G Fibre Channel Host Bus Adapters

Notes: Please refer to the Fabric/Network Options Quick Specs for more details.

HPE Compute Module ROM

HPE ROM (read only memory) is now digitally signed using the HPE Corporate Signing Service. As part of the Secure Start, this signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.

HPE ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system.

HPE ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis.

HPE Synergy Compute ROM is used to configure the following:

• Processor and chipset status registers
• System memory, memory map, and memory initialization
• System hardware configuration (integrated PCI devices and optional PCIe Mezzanine cards).
• Customer-specific BIOS configuration using the UEFI System Utilities.

Notes: For further information, please refer to the  https://support.hpe.com/hpsc/doc/public/display?docId=a00016407en_us en

Storage Drive cages and Controllers

One of the following depending on model

Drive Cage Options

HPE SY480 Gen10 Plus Standard 2Drive Kit

• Supports 2 SFF SAS or SATA Drives and/or up to 2 of the uFF Dual Drive options.
• Requires one E208i-c HBA or P204i-c HPE Smart Array controllers and either one of below:

- Gen10 SATA Board Kit ( 872955-B21) or

- NS204i-d Gen10 Plus M.2 Boot Controller option
Notes: NS204i-d Gen10 Plus M.2 option works with either controller above, except HPE Synergy FIO Gen10 SATA Board Kit ( 872955-B21).

HPE SY480 Gen10 Plus Premium 4Drive Kit

• Supports 4x SFF NVMe  (requires P29009-B21, HPE SY480 Gen10+ 4SFF Direct Connect Cable Option Kit)
• Supports 2x2 Drive Options.  2x NVMe and 2x SAS/SATA Drives  ( requires P29010-B21,  HPE SY480 Gen10 Plus SlimSAS Cable Option Kit + P38721-B21, MicroChip Smart RAID P416ie-m x16 Lanes 2GB Cache SAS 12G Controller for HPE for connection)
• Works with HPE NS204i-d Gen10+ Boot Controller for HPE (does not work with HPE Synergy FIO Gen10 SATA Board Kit, 872955-B21).

HPE SY480 Gen10 Plus Drive Less Kit

• Designed for the Stateless or No Drive solution where customer boots from SAN or alternate boot & store devices such and the new HPE NS204i-d Gen10+ M.2 Boot Controller.
• Designed for those use cases where you need a single GPU.
  Notes: can be used with with HPE NS204i-d Gen10+ M.2 Boot Controller

Software RAID Solutions

HPE Smart Array S100i SR Gen10 SW RAID

Notes:

- HPE Smart Array S100i SR Gen10 SW RAID is off by default and can be enabled RBSU.

- For legacy support select Legacy mode settings part, 758959-B22.

Hardware RAID solutions

NVMe Boot Devices - HW RAID

• HPE NS204i-d Gen10 Plus Boot Controller for HPE
  Notes:  Direct PCIe connection below drive cages and comes complete with 2x M.2 NVMe 480GB Drives ready for Boot.

Essential RAID Controller

• HPE Smart Array E208i-c SR Gen10 12G SAS Modular Controller
  (8 internal lanes/no cache)

Performance RAID Controller

• HPE Smart Array P204i-c SR Gen10 12G SAS Modular Controller
  (4 internal lanes/1GB cache)
• HPE MicroChip Smart RAID P416ie-m SR Gen10 12G SAS Mezzanine Controller
  (8 internal 8 external lanes/2GB cache for use with with Synergy D3940 Storage Modules, as well as, 4 Drive front cage for SAS/SATA drives)

Premium Backplane CTO Compute Module

• CTO offers a Premium Backplane Compute Module for use with up to 4 NVMe drives in front drive cage.  Or, supports 2x NVMe drives and 2 SAS drives with MicroChip Smart RAID P416ie-m (P38721-B21) with specific SAS cable connections allowing MicroChip Smart RAID P416ie-m (P38721-B21) to manage 2x SATA or SAS drives in both front drive cage as well as any drives on the Synergy D3940 Storage Module)

Notes: For more details on HPE Smart Array Controller solutions please see their QuickSpecs

Frames

HPE Synergy 12000 Frame, is the base for all Synergy products and supports:

• Up to 12 half-height, 6 full-height single-wide, or 3 full-height double-wide Compute Modules (mixing allowed)
• Up to 5 half-height double-wide HPE Synergy D3940 Storage Modules (mixing with compute modules in any to any ratio allowed)
• One HPE Synergy 12000 Frame will support up to twelve (12) HPE Synergy 480 Gen10 Plus Compute Modules

Industry Standard Compliance

• Microsoft® Logo certifications
• WOL enabled on some adaptors
• PXE support enabled
• USB 3.0 Compliant; iLO USB 2.0 Compliant
• TPM 2.0 Support(RBSU support for TPM 1.2)
• IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)
• Advanced Encryption Standard (AES)
• Triple Data Encryption Standard (3DES)
• SNMP v3
• SSL 2.0
• DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

• Active Directory v1.0
• PCIe 3.0 Compliant
• UEFI (Unified Extensible Firmware Interface Forum)
• Redfish API (iLO5)
• Energy Star Compliant
• Top Runner - Japan Compliant
• ErP Lot9 Compliant (see Technical Specifications see HPE Environmental Declarations website for HPE Lot9 Declarations, a White Paper, FAQs and products list of verified products.

Notes: See requirements at end of this document or in OCA for valid configurations to meet ErP Lot9 requirements.

Graphics (iLO)

Integrated Matrox G200eH2 video standard with 16 MB of Video RAM

• 1280 x 1024 (32 bpp)
• 1920 x 1200 (16 bpp)

HPE iLO 5 on system management memory

• 32 MB Flash
• 512 MB with ECC (224 MB after ECC and video)

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit https://support.hpe.com/hpesc/public/docDisplay?docId=c04398276

https://itpfdoc.hitachi.co.jp/manuals/ha8000v/hard/Gen10/UEFI/881334-401_en.pdf

UEFI enables numerous new capabilities specific to HPE Synergy Compute Modules such as:

• Secure Boot and Secure Start enable for enhanced security
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack
• Embedded UEFI Shell
• Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant.
• PXE boot support for IPv6 networks
• Workload Profiles for simple performance optimization

UEFI Boot Mode only:

• TPM 2.0 Support
• NVMe Boot Support
• Platform Trust Technology (PTT) can be enabled.
• iSCSI Software Initiator Support.
• HTTP/HTTPs Boot support as a PXE alternative.
• Boot support for option cards that only support a UEFI option ROM

Notes:

- For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

- UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE Synergy Gen10 Plus Server.

Embedded Management

HPE Synergy Composer powered by HPE OneView

HPE Synergy integrates HPE OneView to deliver 'Composable infrastructure' with a view of resources. This flexible and scalable solution provides IT managers with the architecture to implement their Software-Defined data center (SDDC) -- and to address the changing business needs and the challenges of today's enterprise data centers.

HPE Integrated Lights-Out (HPE iLO)

Silicon Root of Trust.  Protect, detect, recover with iLO.  Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at  UEFI System Utilities (hpe.com)

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Security

Newest forms of security based on iLO 5 features.

• Secure Start, with hardware root of trust.
• HPE hardware designed logic in iLO chip validates iLO firmware burned in chip.
• iLO then validates system/compute ROM firmware for digital signature.
• iLO completes the chain of trust.
• ROM validates option ROMs and OS Bootloader via UEFI Secure Boot.

Standard security features

• Power-on password
• Administrator's password
• Keyboard password (QuickLock)
• HPE iLO Management On System Management Chipset with SSL encryption, Secure Shell version 2, Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface, AES and RC4 encryption of video
• External USB port enable/disable
• Network server mode
• Serial interface control
• TPM (Trusted Platform Module) 1.2 or 2.0 option
• Advanced Encryption Standard (AES)
• Intel® Advanced Encryption Standard-New Instructions (AES-NI)

About Trusted Platform Module

Trusted Platform Module (TPM) is a separate processor that monitors the system state. TPM is a passive component needing to be updated and not able to lock down any component in the system except access to its own memory. It also provides some cryptographic operations - among them: creating RSA keypairs, and working with them.

The first verification of signatures happens by code on the CPU, which can be intercepted and replaced. Emulating a "properly" booted system is possible by sending the right values to the TPM.

The bootblock, the part of the firmware that contains the first instructions executed by the CPU, comes first and anchors the root of trust. But if you can't trust the bootblock to send a truthful state into the TPM, this is a vulnerability.

About HPE Silicon Root of Trust

As soon as the server is powered on and the iLO firmware comes alive, it looks into the silicon for the immutable fingerprint that verifies all the firmware code is valid and uncompromised. Over a million lines of firmware code run before the operating system starts, making it vital to confirm that all server essential firmware is free from malware or compromised code.

During operation of the server, HPE has a new technology that conducts run-time firmware validation that checks the firmware stored in the server. At any point, if compromised code or malware is inserted in any of the critical firmware, an iLO audit log alert is created to notify the customer that a compromised has occurred. It is achieved by storing iLO 5 and UEFI firmware in non-volatile Flash memory which is thoroughly scanned at regular user determined intervals. The contents of the firmware stored in memory must be exactly right, down to the individual bit, or else it is flagged as compromised.See the iLO 5 Quickspecs for recovery processes.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://www.hpe.com/services/support.

Server Management

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing  Gen9, Gen10 and Gen10 Plus servers.

HPE iLO Advanced (standard with Synergy Compute)

HPE iLO Advanced licenses offer smart remote functionality without compromise. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality

HPE iLO Advanced Premium (optional)

Security Edition for iLO 5 includes iLO Advanced License plus high-end security modes, unique security capabilities, like Automatic FW recovery; Runtime FW verification, and Secure erase.

HPE Synergy 480 Gen10 Plus Graphics Accelerator Options Overview

HPE Synergy graphics accelerator options are paired with the HPE Synergy 480 Gen10 Plus Compute Module to provide a wide variety of deployment options, operating environments, and remote access methods. The HPE Synergy 480 Gen10 Plus graphics accelerator options deliver data center deployments of GPU-enabled servers optimized for high-density graphics accelerated VDI (virtual Workstation), virtual applications, and compute deployments such as deep learning, inferencing, and HPC workloads.

HPE Synergy 480 Gen10 Plus Graphics Options Detail

HPE Synergy 480 Gen10 Plus graphics accelerators are offered and supported in four different configurations:

• HPE Synergy 480 Gen10 Plus Front PCIe GPU Enablement Kit

- Front Cage Single PCIe SLot

- Supports PCIe Gen3 x8 small form factor cards

- Low Profile small form factor cards

- HPE available/supported cards include:

o NVIDIA T4

• HPE Synergy 480 Gen10 Plus 8-Slot PCIe Expansion Module

- Double wide configuration with Compute Module (occupies two Synergy frame slots)

- Supports up to eight PCIe Gen3 x8.

- HPE available/supported cards include:

o NVIDIA T4

• HPE Synergy 480 Gen10 Plus 2-Slot PCIe Expansion Module

- Double wide configuration with Compute Module (occupies two Synergy frame slots)

- Supports up to two PCIe Gen4 x16 double-wide full-length cards

- HPE available/supported cards include:

o  NVIDIA A40

• HPE Synergy 480 Gen10 Plus 4-Slot PCIe Expansion Module

- Double wide configuration with Compute Module (occupies two Synergy frame slots)

-  Supports up to four PCIe Gen4 x8 single-wide full-length cards

- HPE available/supported cards include:

o  NVIDIA A10

Fibre Channel Support

Up to two (2) optional Fibre Channel mezzanine HBAs are supported on the HPE Synergy 480 Gen10.

• HPE Synergy 5330C 32G Fibre Channel Host Bus Adapters
• HPE Synergy 5830C 32G Fibre Channel Host Bus Adapters

Compatible SAN

HPE Synergy 480 Gen10 Plus Compute Modules are optimized for HPE MSA,  Nimble, Primera,  and Alletra.

HPE Virtual Connect

HPE Synergy composable fabric delivers high performance and composability for the delivery of applications and services. The composable fabric is based on primary/satellite architecture.

The HPE Virtual Connect SE 100Gb F32 Module or Virtual Connect SE 40Gb F8 Module, primary modules, based on composable fabric is designed for Composable Infrastructure. Its disaggregated, rack-scale design uses a primary/satellite architecture to consolidate data center network connections, reduce hardware and scales network bandwidth across multiple HPE Synergy Frames.

The primary module contains intelligent networking capabilities that extend connectivity to satellite frames through Interconnect Link Modules. This eliminates top of rack switch need and substantially reduces cost. The reduction in components also simplifies fabric management at scale while consuming fewer ports at the data center aggregation layer.

The HPE VC SE 100Gb F32 Module or HPE VC SE 40 Gb F8 module eliminate up to 95% of network sprawl at the compute module edge with one device that converges traffic inside frames and directly connects to external LANs. Each redundant pair of Virtual Connect modules provide eight adjustable downlink connections (six Ethernet and two Fibre Channel, or eight Ethernet ) to dual-port 10 Gb and in case of 20 Gb Converged Network Adapters 16 adjustable downlinks connections 14 Ethernet and two Fibre Channel) on each compute module. Up to six uplinks using QSFP+ interfaces are available for connection to upstream Ethernet switches. Including splitter cables up to 24 uplinks are available for connection to upstream Ethernet and Fibre Channel. The HPE VC SE 100 Gb F32 or VC SE 40 Gb F8 module avoid the confusion of traditional and other converged network solutions by eliminating the need for multiple Ethernet and Fibre Channel switches, extension modules, cables and software licenses. Also, Virtual Connect wire-once connection management is built-in enabling compute modules adds, moves and replacement in minutes instead of days or weeks. The Primary/Satellite disaggregated architecture removes fixed of ratios of interconnects in every frame and allows extending networking resources pool for Virtual Connect to satellite frames.

For more information on Virtual Connect and converged network options, see VC SE 40Gb F8 Module  or  HPE Virtual Connect SE 100Gb F32 Module for Synergy for more details.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE.

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

Intel Xeon-Platinum 8380 2.3GHz 40-core 270W Processor for HPE

P36941-B21

Intel Xeon-Platinum 8368 2.4GHz 38-core 270W Processor for HPE

P36940-B21

Notes: 512GB SGX Enclave.

Intel Xeon-Platinum 8360Y 2.4GHz 36-core 250W Processor for HPE

P36939-B21

Notes: 36/32/24 cores would result in 2.4/2.5/2.6 GHz operating points at 250W/250W/220W TDPs

Intel Xeon-Platinum 8358P 2.6GHz 32-core 240W Processor for HPE

P37598-B21

Notes: 8GB SGX Enclave.

Intel Xeon-Platinum 8358 2.6GHz 32-core 250W Processor for HPE

P36938-B21

Intel Xeon-Platinum 8352Y 2.2GHz 32-core 205W Processor for HPE

P36929-B21

Notes: 32/24/16 cores would result in 2.2/2.3/2.6 GHz operating points at 205W/185W/185W TDPs.

Intel Xeon-Platinum 8352V 2.1GHz 36-core 195W Processor for HPE

P37599-B21

Notes:

- Supports Intel® Speed Select Performance Profile (SST-P), even though not being a "Y" processor.

- 36/32/24 cores would result in 2.1/2.0/2.0 GHz operating points at 195W/180W/155W TDPs.

- 3200 MT/s max. memory speed.

- 8GB SGX Enclave.

3rd Generation Intel® Xeon®-Gold

Notes:

- All SKUs below ship  with appropriate heatsinks.

- 3200 MT/S maximum memory speed unless otherwise noted.

- 64GB SGX Enclave unless otherwise noted.

Intel Xeon-Gold 6354 3.0GHz 18-core 205W Processor for HPE

P36935-B21

Intel Xeon-Gold 6348 2.6GHz 28-core 235W Processor for HPE

P36937-B21

Intel Xeon-Gold 6346 3.1GHz 16-core 205W Processor for HPE

P36934-B21

Intel Xeon-Gold 6342 2.8GHz 24-core 230W Processor for HPE

P36936-B21

Intel Xeon-Gold 6338N 2.2GHz 32-core 185W Processor for HPE

P37603-B21

Notes: 2677 MT/s max. memory speed.

Intel Xeon-Gold 6338 2.0GHz 32-core 205W Processor for HPE

P36928-B21

Intel Xeon-Gold 6336Y 2.4GHz 24-core 185W Processor for HPE

P36926-B21

Notes: 24/12/8 cores would result in 2.4/2.9/3.1 GHz operating points at 185W/150W/150W TDPs.

Intel Xeon-Gold 6334 3.6GHz 8-core 165W Processor for HPE

P36933-B21

Intel Xeon-Gold 6330N 2.2GHz 28-core 165W Processor for HPE

P37604-B21

Notes: 2667 MT/s max. memory speed.

Intel Xeon-Gold 6330 2.0GHz 28-core 205W Processor for HPE

P36927-B21

Notes: 2933 MT/s max. memory speed.

Intel Xeon-Gold 6326 2.9GHz 16-core 185W Processor for HPE

P36932-B21

Intel Xeon-Gold 5320 2.2GHz 26-core 185W Processor for HPE

P36925-B21

Notes: 2933 MT/s max. memory speed.

Intel Xeon-Gold 5318Y 2.1GHz 24-core 165W Processor for HPE

P36924-B21

Notes:

- 24/24/22 cores would result in 2.1/1.9/2.0 GHz operating points at 165W/150W/150W TDPs.

- 2933 MT/s max. memory speed.

Intel Xeon-Gold 5318S 2.1GHz 24-core 165W Processor for HPE

P37612-B21

Notes:

- Supports Intel® Speed Select Performance Profile (SST-P), even though not being a "Y" processor.

- 24/20 cores would result in 2.1/2.0 GHz operating points at 150W/135W TDPs.

- 2933 MT/s max. memory speed.

Intel Xeon-Gold 5318N 2.1GHz 24-core 150W Processor for HPE

P37605-B21

Notes:

- Supports Intel® Speed Select Performance Profile (SST-P), even though not being a "Y" processor.

- 24/24/22 cores would result in 2.1/1.9/2.0 GHz operating points at 165W/150W/150W TDPs.

- 2667 MT/s max. memory speed.

Intel Xeon-Gold 5317 3.0GHz 12-core 150W Processor for HPE

P36931-B21

Notes: 2933 MT/s max. memory speed.

Intel Xeon-Gold 5315Y 3.2GHz 8-core 140W Processor for HPE

P36930-B21

Notes:

- 8/6/4 cores would result in 3.2/3.2/3.4 GHz operating points at 140W/125W/115W TDPs.

- 2933 MT/s max. memory speed.

3^rd Generation Intel Xeon-Silver

Notes:

- All SKUs below ship with processor and appropriate heatsinks.

- 2666 MT/S maximum memory speed.

- 8GB SGX Enclave unless otherwise noted.

Intel Xeon-Silver 4316 2.3GHz 20-core 150W Processor for HPE

P36923-B21

Intel Xeon-Silver 4314 2.4GHz 16-core 135W Processor for HPE

P36922-B21

Notes: Intel Optane 200 Series persistent memory not supported with 43xx Series except 4314  processor.

Intel Xeon-Silver 4310 2.1GHz 12-core 120W Processor for HPE

P36921-B21

Intel Xeon-Silver 4309Y 2.8GHz 8-core 105W Processor for HPE

P36920-B21

Notes: 8/8/8 cores would result in 2.8/2.6/2.3 GHz operating points at 105W/95W/85W TDPs.

Step 4: Choose Memory Options

Please select one or more memory DIMMs from below.

For new Gen10 Plus memory population rule whitepaper and optimal memory performance guidelines, please go to:

http://www.hpe.com/docs/memory-population-rules

For Gen10 Plus memory speed table, please go to: https://www.hpe.com/docs/memory-speed-table

For memory Reliability, Accessibility, Serviceability (RAS) features whitepaper like Gen10 Plus Fast Fault Tolerance and legacy mirrored memory feature etc. please go to: http://www.hpe.com/docs/memory-ras-feature.

Notes:

- The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

- Quantity of memory DIMMs selected per socket must be 1, 2, 4, 6, 8, 12 or 16.

- For additional information, please see the HPE DDR4 Smart Memory QuickSpecs

Registered DIMMs (RDIMMs)

HPE 8GB (1x8GB) Single Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P07525-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P06031-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P06029-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P06033-B21

HPE 32GB (1x32GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P40007-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P06035-B21

Load Reduced DIMMs (LRDIMMs)

Notes: Mixing of 3DS and non-3DS DIMMs not allowed.

HPE 128GB (1x128GB) Quad Rank x4 DDR4-3200 CAS-22-22-22 Load Reduced Smart Memory Kit

P06037-B21

HPE DDR4 DIMM Blank Kit

P07818-B21

Notes:

- Important: Empty memory slots require DIMM Slot Blanks for improved thermal control. (HPE DDR-4 DIMM Blanks Kit, P07818-B21)

- HPE memory from previous generation servers (DDR3) is not compatible with this compute module. HPE Smart Memory is required to realize the memory performance improvements and enhanced functionality listed in this document for SY480 Gen10 Plus. For additional information, please see the HPE Smart Memory QuickSpecs .

- LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a compute module.

- For the latest information on Memory Speed.

- If you want to know more about the memory, reference the RAS feature whitepaper.

- See Server Memory and Persistent Memory Population Rules for details.

Server Memory and Persistent Memory Population Rules for HPE Gen10 Plus servers with 3rd Gen Intel Xeon Scalable Processors technical white paper

Intel Optane 200 Series  - HPE Persistent Memory dimm options (availability in September)

Intel Optane 256GB persistent memory 200 Series for HPE

P23535-B21

For additional information regarding HPE Persistent Memory Population Rules and Guidelines for Gen10 Plus visit: http://www.hpe.com/docs/memory-population-rules

Step 5: Choose Networking Adapters

Notes: Only one or more of the following from each list unless otherwise noted

HPE Synergy 4820C 10/20/25Gb Converged Network Adapter

876449-B21

HPE Synergy 6820C 25/50Gb Converged Network Adapter

P02054-B21

Notes: Networking adapters must have matched Interconnect Modules or Interconnect Links matched in the corresponding ICM slot on the rear of the Synergy 12000 Frame. See Specifications Section below for Mezzanine to ICM Best Practices and matching requirements.

Step 6: Additional Factory Integratable Options

HPE Storage Controllers

HPE FIO Enable Smart Array SW RAID

784308-B21

Notes: HPE NS204i-d Gen10 Plus  Boot Controller cannot be used with HPE Synergy Compute Chipset SATA FIO Board Kit

HPE 96W Smart Storage Lithium-ion Battery with 260mm Cable Kit

P01367-B21

HPE Smart Storage Hybrid Capacitor with 260mm Cable Kit

P02381-B21

Notes: New MicroChip Smart RAID P416ie-m manages the drives in the HPE D3940 Synergy Storage Module(40 Frame shared drives) amd is for SATA/SAS drive use with Front 4 Drive Premium Cage module (2x local drives). For more information on the 4 Drive Premium Cage with SAS Cable defined, see the Drive Cage sections of documents above.

HPE I/O Expansion Options

HPE Synergy 6820C 25/50Gb Converged Network Adapter

P02054-B21

HPE Synergy 4820C 10/20/25Gb Converged Network Adapter

876449-B21

HPE Synergy 5330C 32Gb Fibre Channel Host Bus Adapter

870828-B21

HPE Synergy 5830C 32Gb Fibre Channel Host Bus Adapter

777456-B21

Notes: See Specfications sections below for Best Practices and requirements for options placement in correct mezzanine slots that match with Interconnect model slotting for correct operations.

Step 7: Choose additional options for Factory Integration from Additional Options sections below or the following:

• HPE Synergy 12000 Frame QuickSpecs
  https://www.hpe.com/h20195/v2/GetHtml.aspx?docname=c04815113
• HPE Synergy Interconnect and Mezzanine Components QuickSpecs
  https://www.hpe.com/h20195/v2/GetHtml.aspx?docname=c04815110
• HPE Synergy D3940 Storage Module QuickSpecs
  https://www.hpe.com/h20195/v2/GetHtml.aspx?docname=c04815141

Step 8: Choose from Pointnext Services for HPE Synergy

HPE Synergy Operational Services

HPE 5Y Tech Care Essential Service

HU4A6A5

HPE 5Y Tech Care Critical Service

HU4A3A5

HPE 5Y Complete Care Addon Essential Service

HU4D5A5

HPE 5Y Complete Care Addon Critical Service

HU4D2A5

HPE 3Y Tech Care Basic Service

HU4B2A3

HPE 3Y Tech Care Basic with Defective Media Retention Service

HU4B3A3

HPE 3Y Tech Care Basic with Comprehensive Defective Material Retention Service

HU4B4A3

HPE 3Y Complete Care Addon Basic Service

HU4D8A3

HPE 3Y Complete Care Addon Basic with Defective Media Retention Service

HU4D9A3

HPE 3Y Complete Care Addon Basic with Comprehensive Defective Material Retention Service

HU4E0A3

HPE 3Y Tech Care Essential Service

HU4A6A3

HPE 3Y Tech Care Essential with Defective Media Retention Service

HU4A7A3

HPE 3Y Tech Care Essential with Comprehensive Defective Material Retention Service

HU4A8A3

HPE 3Y Complete Care Addon Essential Service

HU4D5A3

HPE 3Y Complete Care Addon Essential with Defective Media Retention Service

HU4D6A3

HPE 3Y Complete Care Addon Essential with Comprehensive Defective Material Retention Service

HU4D7A3

HPE 3Y Tech Care Critical Service

HU4A3A3

HPE 3Y Tech Care Critical with Defective Media Retention Service

HU4A4A3

HPE 3Y Tech Care Critical with Comprehensive Defective Material Retention Service

HU4A5A3

HPE 3Y Complete Care Addon Critical Service

HU4D2A3

HPE 3Y Complete Care Addon Critical with Defective Media Retention Service

HU4D3A3

HPE 3Y Complete Care Addon Critical with Comprehensive Defective Material Retention Service

HU4D4A3

HPE 4Y Tech Care Basic Service

HU4B2A4

HPE 4Y Tech Care Basic with Defective Media Retention Service

HU4B3A4

HPE 4Y Tech Care Basic with Comprehensive Defective Material Retention Service

HU4B4A4

HPE 4Y Complete Care Addon Basic Service

HU4D8A4

HPE 4Y Complete Care Addon Basic with Defective Media Retention Service

HU4D9A4

HPE 4Y Complete Care Addon Basic with Comprehensive Defective Material Retention Service

HU4E0A4

HPE 4Y Tech Care Essential Service

HU4A6A4

HPE 4Y Tech Care Essential with Defective Media Retention Service

HU4A7A4

HPE 4Y Tech Care Essential with Comprehensive Defective Material Retention Service

HU4A8A4

HPE 4Y Complete Care Addon Essential Service

HU4D5A4

HPE 4Y Complete Care Addon Essential with Defective Media Retention Service

HU4D6A4

HPE 4Y Complete Care Addon Essential with Comprehensive Defective Material Retention Service

HU4D7A4

HPE 4Y Tech Care Critical Service

HU4A3A4

HPE 4Y Tech Care Critical with Defective Media Retention Service

HU4A4A4

HPE 4Y Tech Care Critical with Comprehensive Defective Material Retention Service

HU4A5A4

HPE 4Y Complete Care Addon Critical Service

HU4D2A4

HPE 4Y Complete Care Addon Critical with Defective Media Retention Service

HU4D3A4

HPE 4Y Complete Care Addon Critical with Comprehensive Defective Material Retention Service

HU4D4A4

HPE 5Y Tech Care Basic Service

HU4B2A5

HPE 5Y Tech Care Basic with Defective Media Retention Service

HU4B3A5

HPE 5Y Tech Care Basic with Comprehensive Defective Material Retention Service

HU4B4A5

HPE 5Y Complete Care Addon Basic Service

HU4D8A5

HPE 5Y Complete Care Addon Basic with Defective Media Retention Service

HU4D9A5

HPE 5Y Complete Care Addon Basic with Comprehensive Defective Material Retention Service

HU4E0A5

HPE 5Y Tech Care Essential Service

HU4A6A5

HPE 5Y Tech Care Essential with Defective Media Retention Service

HU4A7A5

HPE 5Y Tech Care Essential with Comprehensive Defective Material Retention Service

HU4A8A5

HPE 5Y Complete Care Addon Essential Service

HU4D5A5

HPE 5Y Complete Care Addon Essential with Defective Media Retention Service

HU4D6A5

HPE 5Y Complete Care Addon Essential with Comprehensive Defective Material Retention Service

HU4D7A5

HPE 5Y Tech Care Critical Service

HU4A3A5

HPE 5Y Tech Care Critical with Defective Media Retention Service

HU4A4A5

HPE 5Y Tech Care Critical with Comprehensive Defective Material Retention Service

HU4A5A5

HPE 5Y Complete Care Addon Critical Service

HU4D2A5

HPE 5Y Complete Care Addon Critical with Defective Media Retention Services

HU4D3A5

HPE 5Y Complete Care Addon Critical with Comprehensive Defective Material Retention Service

HU4D4A5

HPE 2TB SATA 6G Business Critical 7.2K SFF SC 1-year Warranty 512e HDD

765455-B21

HPE 240GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18420-B21

HPE 480GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18422-B21

HPE 480GB SATA 6G Read Intensive SFF SC PM893 SSD

P47810-B21

HPE 960GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18424-B21

HPE 960GB SATA 6G Read Intensive SFF SC PM893 SSD

P47811-B21

HPE 1.92TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18426-B21

HPE 1.9TB SATA 6G Read Intensive SFF SC PM893 SSD

P47812-B21

HPE 3.84TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18428-B21

HPE 3.84TB SATA 6G Read Intensive SFF SC PM893 SSD

P47813-B21

HPE 7.68TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18430-B21

HPE 480GB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18432-B21

HPE 480GB SATA 6G Mixed Use SFF SC PM897 SSD

P47814-B21

HPE 960GB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18434-B21

HPE 960GB SATA 6G Mixed Use SFF SC PM897 SSD

P47815-B21

HPE 1.92TB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18436-B21

HPE 1.92TB SATA 6G Mixed Use SFF SC PM897 SSD

P47816-B21

HPE 3.84TB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18438-B21

SAS Drives (listed by Capacity)

HPE 1TB SAS 12G Business Critical 7.2K SFF SC 1-year Warranty HDD

832514-B21

HPE 2TB SAS 12G Business Critical 7.2K SFF SC 1-year Warranty 512e HDD

765466-B21

HPE 2.4TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD

881457-B21

HPE 300GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872475-B21

HPE 600GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872477-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872479-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD

872481-B21

HPE 300GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870753-B21

HPE 600GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870757-B21

HPE 900GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870759-B21

HPE 960GB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49028-B21

HPE 960GB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P36997-B21

HPE 1.92TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P36999-B21

HPE 1.92TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49030-B21

HPE 3.84TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49034-B21

HPE 3.84TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P37001-B21

HPE 7.68TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49039-B21

HPE 7.68TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P37003-B21

HPE 15.36TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49044-B21

HPE 800GB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49046-B21

HPE 960GB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37005-B21

HPE 1.6TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49048-B21

HPE 1.92TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37011-B21

HPE 3.2TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49052-B21

HPE 3.84TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37017-B21

HPE 6.4TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49056-B21

HPE 1.6TB SAS 12G Write Intensive SFF SC PM6 SSD

P26376-B21

NVMe Drives (listed by Capacity)

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF SC U.3 Static Multi Vendor SSD

P47842-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF SC U.3 Static V2 Multi Vendor SSD

P64845-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF SC U.3 PM1733 SSD

P26109-B21

HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF SC U.3 Static Multi Vendor SSD

P47835-B21

HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF SC U.3 Static V2 Multi Vendor SSD

P65011-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF SC U.3 PM1733 SSD

P26104-B21

HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF SC U.3 Static Multi Vendor SSD

P47834-B21

HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF SC U.3 Static V2 Multi Vendor SSD

P65003-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF SC U.3 PM1735 SSD

P26124-B21

SSD SED Drives (listed by Capacity)

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF SC Self-encrypting FIPS U.3 CM6 SSD

P44584-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF SC Self-encrypting FIPS U.3 CM6 SSD

P44568-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF SC Self-encrypting FIPS U.3 CM6 SSD

P44576-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF SC Self-encrypting FIPS U.3 CM6 SSD

P44592-B21

M.2 Drive Options

HPE NS204i-d Gen10 Plus NVMe PCIe3 x4 M.2 OS Boot Device

P21410-B21

Drive Qualification Exceptions:

At this time there are no exceptions to list.

HPE Security

HPE Trusted Platform Module 2.0 Gen10 Plus Black Rivets Kit

P13771-B21

HPE Gen10 TPM 1.2 FIO Setting

872108-B21

HPE iLO Common Password FIO Setting

P08040-B21

Memory Subsystem Architecture

Each processor socket contains eight memory channels that support two DIMMs each for a total of 16 DIMM per installed processor or a grand total of thirty two  (32) DIMMs for the compute module with 2 processors..

Memory Population Rules and Guidelines

• A minimum of one DIMM is required per processor.
• Install DIMMs only if the corresponding processor is installed.
• If only one processor is installed in a two processor system, only half of the DIMM slots are available.
• DIMM sizes can be mixed in channel. To maximize performance, it is recommended to balance the total memory capacity between all installed processors and to load the channels similarly whenever possible.
• LRDIMM and RDIMMs are all distinct memory technologies and cannot be mixed within a compute module.
• DIMMs of different speeds may be mixed in any order; the compute module will select a common optimal speed.
• The maximum memory speed is a function of the memory type, memory configuration, and processor model.
• The maximum memory capacity is a function of the memory type and number of installed processors.
• HPE memory from previous generation servers is not compatible with the HPE Synergy 480 Gen10 Plus Compute Module.

To realize the performance memory capabilities listed in this document, HPE Smart Memory is required. For additional information, please see the HPE DDR4 Smart Memory QuickSpecs

Synergy 480 Gen10 Compute Module Memory Tables

Notes:

- The maximum memory speed is a function of the memory type, memory configuration, and processor model.

- The information contained herein is subject to change without notice. HPE Confidential. Not for customer viewing. Do not distribute.

Memory Population Rules and Guidelines

Drawing showing SY480 Plus system board layout for processors and memory.
