HPE Synergy 480 Gen10 Compute Module

HPE Synergy, the first platform built from the ground up for Composable Infrastructure, offers an experience that empowers IT to create and deliver new value instantly and continuously. It is a single infrastructure that reduces operational complexity for traditional workloads and increases operational velocity for the new breed of applications and services. Through a single interface, HPE Synergy composes physical and virtual compute, storage, and fabric pools into any configuration for any application. As an extensible platform, it easily enables a broad range of applications and operational models such as virtualization, hybrid cloud, and DevOps. With HPE Synergy, IT can become not just the internal service provider but the business partner to rapidly launch new applications that become the business.

HPE Synergy supports both two-socket and four-socket compute modules which provide the performance, scalability, density optimization, storage simplicity, and configuration flexibility to power a variety of workloads, including business processing, IT infrastructure, web infrastructure, collaborative, and high-performance computing.

The HPE Synergy 480 Gen10 Compute Module delivers superior capacity, efficiency, and flexibility in a two-socket, half-height form factor to support demanding workloads. Powered by the latest Intel® Xeon® Scalable processors, HPE DDR4 Smart Memory supporting up to 3TB, flexible storage controller options, three I/O connectors, and designed to create a pool of flexible compute capacity within a composable infrastructure the HPE Synergy 480 Gen10 Compute Module is the ideal platform for general-purpose enterprise workload performance now and in the future.

Get the right balance of performance, flexibility, and density for your traditional or new style of business applications. The HPE Synergy 480 Gen10 Compute Module delivers even more choice of performance, capacity and flexibility to meet your workload needs. Powered with newest Intel® Xeon® Scalable processors, HPE Smart Memory, more storage solutions and capacity, unique Smart Arrays and new GPU options the Synergy 480 Gen10 Compute is ideal to fit any workload you have, now and in the future.

HPE Synergy offers additional compute module options (that have individual QuickSpecs) including:

• HPE Synergy 660 Gen10
• HPE Synergy 480 Gen10 Plus Compute Module
• HPE Synergy 480 Gen11 Compute Module

This QuickSpecs document focuses on the HPE Synergy 480 Gen10 Compute Module.

Notes: The HPE Synergy Gen10 compute modules installation involves a minimum upgrade requirement for component compatibility purposes. To ensure proper system functionality, you must update your system to Release Set Version 3.00.20170707 (or later) before installing and operating your compute module. Go to http://www.hpe.com/downloads/synergy.

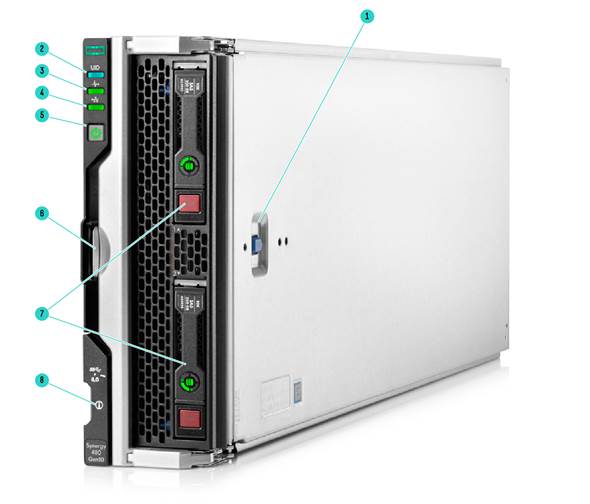

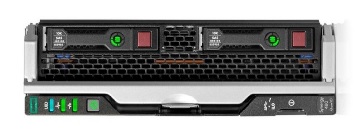

Front View - HPE Synergy 480 Gen10 Compute Module

1.

Quick Access Panel

2.

UID LED

3.

Health Status LED

4.

Mezzanine NIC status LED

5.

Power On/Stand by button and system power LED

6.

Compute Module handle release latch

7.

Removable drive cage with two hot-plug drive bays

8.

External USB 3.0 connector & iLO USB connection (behind serial label pull tab)

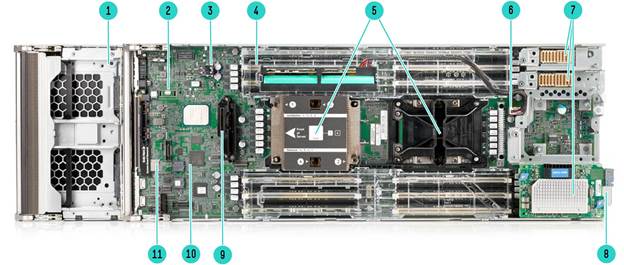

Synergy 480 Gen10 Compute Module

(Drive Cage removed)

1.

Removable drive cage with two hot-plug drive bays and connection point for M.2 Drive Adaptor Kit

2.

TPM connector (under drive cage)

3.

USB 3.0 (boot port under drive cage - see notes regarding VMware changes to boot disks)

4.

Twenty-four (24) DDR4 DIMM memory slots (12 per processor)

5.

Up to two (2) Intel® Xeon® Scalable Family processors

6.

Smart Array Battery connection

7.

Mezzanine connectors (3 x16 PCIe 3.0)

8.

Compute Module Power and Management connector

9.

M.2 Storage Adapter connection (under cage)

10.

iLO chipset (under drive cage)

11.

MicroSD Slot (under drive cage)

ErP Lot9 Quick Summary

The European Parliament (ErP) is responsible for setting ecological standards for products that are imported into the EU. The European Parliament Commission Regulation 2019/424 (also known as the ErP Lot 9 regulation) is a set of product standards that deal with servers and data storage devices and goes into effect on March 1, 2020. Products that are not compliant with Lot 9 requirements cannot be imported into the European Union after March 1, 2020.  For details see Tech Specs section of this document.  See Configure to Order section for details on configurable options.

For additional information, please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html .

Documents provided by HPE: Lot 9 Declarations, White paper, and FAQ.

Processors

Notes: Up to 2 of the following depending on model.

With the extension of the lifecycle of Gen10 Compute, HPE introduces a new line up of Intel Xeon Scalable Family of processors or Gen2.  HPE offers both Gen1 and Gen2 processors during the introduction of this life cycle.  Below are the two generations and specifications.  Further details on selecting the right processor are provided in the Configuring Your System section below.

Notes:

- This table covers the public HPE Synergy Gen10 offering only.

- The 2nd digit of the processor model number "x1xx" and "x2xx" is used to denote the processor generation (i.e. 1=1st generation and 2=2nd generation)

- Intel Xeon M or L labeled processors support extended memory capacities as show up to 2 and 4.5TB per socket. However, maximum memory capacity for the server will be limited by maximum capacity DIMMs available and number of DIMM slots.

- For more information regarding Intel Xeon processors, please see the following https://www.intel.com/content/www/us/en/products/details/processors/xeon.html

Processor Suffix Description Offering (generation 2 Processors)

R Latest Intel Refresh SKU offerings

L Large memory tier Up to 4.5 TB addressable memory per socket

N NFV Optimized Targeted at Network Function Virtualization (NFV) workloads. IntelR SST-BF improves performance by directing base frequency to high priority/bottleneck cores. Other workloads may see throttling.

S Search Optimized base frequency to address 'search' workloads. Other workloads may see throttling.

V VM Optimized Fosters enhanced VM density, allowing to support more/larger virtual machines per host.

Y Speed Select IntelR SST-PP increases base frequency when less cores are enabled. Allows greater flexibility, deployment options and platform longevity.

Notes:

- Platinum - 8200 Series - Supports 2 socket (Synergy 480 Gen10) or up to 4 socket (Synergy 660 Gen10) compute modules, 2 Socket supports 2UPI and 4 Socket supports 3UPI @ 10.4 GT/s, supports 6-Channel DDR4 @ 2933 MT/s providing up to 1TB on most and 2, 4.5TB on select processor SKUs.  Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported.  Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.

- Gold - 5200, 6200 Series - Supports 2 socket (Synergy 480 Gen10) or up to 4 socket (Synergy 660 Gen10) compute modules, 2 Socket supports 2UPI and 4 Socket supports 3UPI @ 10.4 GT/s, supports 6-Channel DDR4 @ 2933/2666MT/S  providing up to 1, 2, or 4.5TB memory capacity depending on processor selected. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)  (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS supported.

- Silver - 4200 Series - Supports 2 socket (Synergy 480 Gen10) compute module only, 2 Socket supports 2UPI, 6-Channel DDR4 @ 2400 MT/S providing up to 1, 2, or 4.5TB depending on processor selected.  Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

- Bronze - 3200 Series - Supports 2 socket (Synergy 480 Gen10) compute module only, 2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2133MT/S depending on processor and memory selected, providing up to 1TB memory capacity. Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

Chipset

Intel C621 Series Chipset

Notes: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

Synergy Management

HPE Composer powered by OneView

Notes: Read and learn more about OneView

On Compute Management Chipset

HPE iLO 5 ASIC

Notes: Read and learn more in the iLO QuickSpecs

Memory

One of the following depending on model

The following memory supports Intel® Xeon® Scalable Family processors 2nd generation (Models x2xx)

• HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
• HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
• HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
• HPE Synergy 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
• HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
• HPE 32GB 1Rx4 PC4-2933Y-R Smart Kit
• HPE Synergy 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
• HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
• HPE 128GB (1x128GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart Memory Kit

Modes of Operation

New class of memory which can be configured as either large server memory or fast storage

• Flexibility to deploy as dense memory or fast storage
• Single technology used as memory or storage reducing datacenter complexity

Notes:

- The 128 GB LRDIMM may not be mixed with other DIMM capacities/types.

- LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a compute module.

- HPE memory from previous generation servers (DDR3) is not compatible with this compute module. HPE DDR4 Smart Memory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10. Please see Memory Speed Tables for memory speed changes based on processors selected. For additional information, please see the HPE DDR4 Smart Memory QuickSpecs.

• HPE Non-Volatile Memory DIMMs (NVDIMMs)

Notes: Available/compatible on Intel Xeon Scalable Family Generation 1 Only.

• HPE 16GB NVDIMM Single Rank x4 DDR4-2666 Module Kit

Notes:

- HPE memory from previous generation servers (DDR3) is not compatible with this compute module. HPE Smart Memory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10.

- For additional information, please see the HPE Smart Memory QuickSpecs.

- LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a compute module.

- For the latest information on Memory Speed.

- If you want to know more about the memory, reference the RAS feature whitepaper.

HPE Persistent Memory featuring Intel Optane DC Persistent Memory

• HPE 128GB 2666 Persistent Memory Kit featuring Intel Optane DC Persistent Memory
• HPE 256GB 2666 Persistent Memory Kit featuring Intel Optane DC Persistent Memory
• HPE 512GB 2666 Persistent Memory Kit featuring Intel Optane DC Persistent Memory

Notes: Supported on select HPE Synergy Gen10 servers with Intel Xeon Scalable Generation 2 processors  (SY480 and SY660).

Memory Protection

• Advanced ECC
  Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.
• Online Spare
  Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.
• Online Mode
  Memory Online Spare Mode (Rank Spare Mode)

Notes: For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature.

HPE Persistent Memory module-processor compatibility

HPE Persistent Memory modules are supported only in designated compute modules with second-generation Intel Xeon Scalable processors installed.

For information regarding HPE Persistent Memory visit: http://www.hpe.com/info/persistentmemory

System requirements

Notes: Hewlett Packard Enterprise recommends that you implement best practice configurations for high availability (HA) such as clustered configurations.

The following hardware components are required:

• HPE DDR4 Standard Memory RDIMMs or LRDIMMs
• HPE Persistent Memory modules
• Second-generation Intel Xeon Scalable processors

Supported firmware versions:

• System ROM version 2.10 or later
• Server Platform Services (SPS) Firmware version 04.01.04.296
• HPE iLO 5 Firmware version 1.43
• HPE Innovation Engine Firmware version 2.1.x or later

Download the required firmware and drivers from the Hewlett Packard Enterprise website http://http://www.hpe.com/info/persistentmemory

Supported operating systems:

• Windows Server 2012 R2 with persistent memory drivers from Hewlett Packard Enterprise
• Windows Server 2016 with persistent memory drivers from Hewlett Packard Enterprise
• Windows Server 2019
• Red Hat Enterprise Linux 7.6
• Red Hat Enterprise Linux 8.0
• SUSE Linux Enterprise Server 12 SP4
• SUSE Linux Enterprise Server 15 with SUSE-SU-2019:0224-1 kernel update
• SUSE Linux Enterprise Server 15 SP1 with SUSE-SU-2019:1550-1 kernel update
• VMware vSphere 6.7 U2 + Express Patch 10 (ESXi670-201906002) or later (supports App Direct and Memory modes)
• VMware vSphere 6.5 U3 or later (supports Memory mode.

Hardware and licensing requirements for optional encryption of the HPE Persistent Memory modules:

• HPE TPM 2.0 (local key encryption)
• HPE iLO Advanced License (remote key encryption)
• Key management server (remote key encryption)

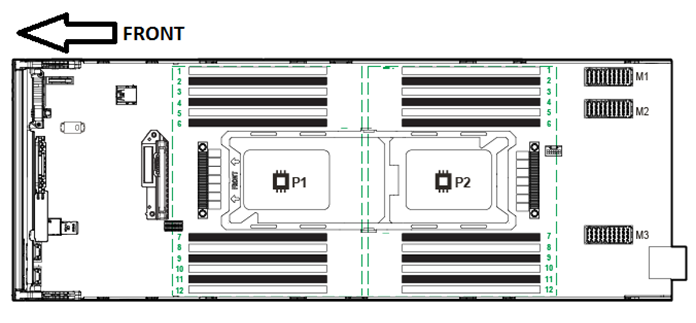

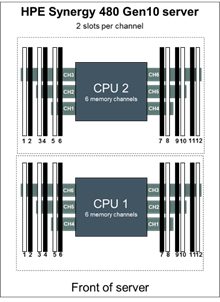

HPE Persistent Memory population information

DIMMs and HPE Persistent Memory modules are installed in specific configurations based on the workload requirements of the server. Supported configurations are optimized for persistent memory capacity, volatile memory capacity, and performance.

• Persistent memory capacity-the available capacity is equal to the HPE Persistent Memory module capacity.
• Volatile memory capacity:
• App Direct mode-the volatile capacity is equal to the DRAM capacity (the capacity of all the non-
• HPE Persistent Memory modules installed).
• Memory mode-the volatile capacity is some or all the HPE Persistent Memory module capacity.
• Memory tier capacity-the memory tier capacity is the total capacity of all installed memory (DRAM and HPE Persistent Memory modules).

Notes: If the installed memory exceeds the processor capacity, the system will map out all but one DIMM channel and operate in App Direct mode. A message will be logged to the IML for exceeding capacity. To resolve the issue, remove the memory that exceeds the processor capacity.

• Performance:

- Uses all channels to efficiently utilize processor resources.

- Memory mode-more regular DIMMs provide a better cache ratio.

For more information, see Memory cache ratios on page 6 of this document. https://support.hpe.com/hpsc/doc/public/display?docId=emr_na-a00074717en_us&docLocale=en_US

For specific population and configuration information, see Server Memory and Persistent Memory Population rules for HPE Gen10 servers.

Modes of Operation

New class of memory which can be configured as either large server memory or fast storage

• Flexibility to deploy as dense memory or fast storage
• Single technology used as memory or storage reducing datacenter complexity

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit errors that occur within a single DRAM chip.

Online Spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Online Mode

Memory Online Spare Mode (Rank Spare Mode)

Notes: For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature.

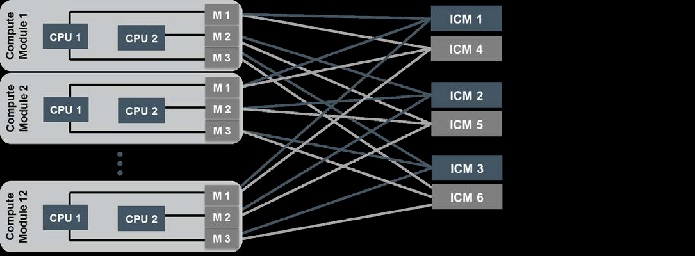

Mezzanine Connectors

Three (3) I/O expansion mezzanine connectors:

• x16 PCIe 3.0 Type D

- Supports Type C and Type D mezzanine cards

- Mezzanine connector 1

Notes: This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 1 and the other to bay 4.

• x16 PCIe 3.0 Type D

- Supports Type C and Type D mezzanine cards

- Mezzanine connector 2

Notes:

- This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 2 and the other to bay 5.

- A second processor must be installed (in processor slot 2) to have access to mezzanine connector 2.

• x16 PCIe 3.0 Type C

- Supports Type C mezzanine cards

- Mezzanine connector 3).

Notes: This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 3 and the other to bay 6.

Network & Storage Adapters or Mezzanine options include:

• HPE Synergy 4820C 10/20/25Gb Converged Network Adapter
• HPE Synergy 6820C 25/50Gb Converged Network Adapter
• HPE Synergy 6410C 25/50Gb Ethernet
• HPE Synergy 5330C 32G Fibre Channel Host Bus Adapters
• HPE Synergy 5830C 32G Fibre Channel Host Bus Adapters
• HPE Synergy 3530C 16G Fibre Channel Host Bus Network Adapter
• HPE Synergy 3830C 16G Fibre Channel Host Bus Network Adapter

Notes: Please refer to the Fabric/Network Options Quick Specs for more details.

HPE Compute Module ROM

HPE ROM (read only memory) is now digitally signed using the HPE Corporate Signing Service. As part of the Secure Start, this signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.

HPE ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM).
HPE ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis.

HPE Synergy Compute ROM is used to configure the following:

• Processor and chipset status registers
• System memory, memory map, and memory initialization
• System hardware configuration (integrated PCI devices and optional PCIe cards).
• Customer-specific BIOS configuration using the UEFI System Utilities.

Storage Controllers

One of the following depending on model

Software RAID

HPE Smart Array S100i SR Gen10 SW RAID

Notes:

- HPE Smart Array S100i SR Gen10 SW RAID is off by default and can be enabled RBSU.

- HPE Smart Array S100i SR Gen10 SW RAID is an HPE factory setting(784308-B21), will operate in UEFI mode only and requires HPE Synergy FIO Gen10 SATA Brd Kit ( 872955-B21) for enablement to Local Drives.

- HPE Synergy 480 Gen10 M.2 FIO Adptr Brd Kit(873165-B21) required for M.2 SATA Drives (Factory Integration Option only.

- HPE Synergy 480 Gen10 M.2 NGFF Adptr Brd Kit(P38437-B21) offered Factory Integration or field service/customer integration. (Replacement for 873165-B21)

- For legacy support select Legacy mode settings part, 758959-B22.

Essential RAID Controller

• HPE Smart Array E208i-c SR Gen10 12G SAS Modular Controller
  (8 internal lanes/no cache)

Performance RAID Controller

• HPE Smart Array P204i-c SR Gen10 12G SAS Modular Controller
  (4 internal lanes/1GB cache)
• HPE Smart Array P416ie-m SR Gen10 12G SAS Mezzanine Controller
  (8 internal 8 external lanes/2GB cache for use with with Synergy D3940 Storage Modules)

Premium Backplane CTO Compute Module

Premium Backplane Modules, CTO offers a Premium Backplane Compute Module for use with up to 2 NVMe drives in front drive cage.  Or, supports P416ie-m with specific SAS cable connections allowing P416ie-m to manage 2x SATA or SAS drives in both front drive cage and drives on the Synergy D3940 Storage Module)

Notes: For more details on HPE Smart Array Controller solutions please see their QuickSpecs

Interfaces

• Micro SDHC Slot  (Not intended for VMware Boot solutions)
  One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot
• USB 3.0 Port
  One (1) internal USB 3.0 connector for USB flash media drive keys
  Notes: The above options are intended for integrated hypervisor virtualization environments of VMware 7.0 U2 and prior. Neither USB or SD devices will be supported beyond 7.0 U2 and other storage devices are recommended..
• USB 3.0 Port   (Not intended for VMware Boot solutions)
  One (1) external USB 3.0 connector for USB flash media drive keys.  (Not intended for VMware Boot solutions)
• iLO Port
• One (1) external USB port for direct iLO access to compute.  (Not intended for VMware Boot solutions)

Operating Systems and Virtualization Software Support

• Microsoft Windows Server
• Microsoft Hyper-V Server
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
• VMware vSphere

Notes: Operating System support may change. To get the most updated information, please go to the HPE OS Support Matrix at http://www.hpe.com/info/ossupport

Client OS

• With GPU Options Only
• Windows & Enterprise Client OS
• Red Hat Enterprise Linux Desktop/Workstation
• SLES Desktop (64 bit - includes KVM)

Notes: For Operating Systems tested with the NVIDIA and AMD GPU options, please see the Graphics Adapter Quick Specs for details https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=a00016718enw

Frames

HPE Synergy 12000 Frame, is the base for all Synergy products and supports:

• Up to 12 half-height, 6 full-height single-wide, or 3 full-height double-wide Compute Modules (mixing allowed)
• Up to 5 half-height double wide HPE Synergy D3940 Storage Modules (mixing with compute modules in any to any ratio allowed)
• One HPE Synergy 12000 Frame will support up to twelve (12) HPE Synergy 480 Gen10 Compute Modules

Industry Standard Compliance

• Microsoft® Logo certifications
• WOL enabled on some adaptors
• PXE support enabled
• USB 3.0 Compliant; iLO USB 2.0 Compliant
• TPM 2.0 Support (RBSU support for TPM 1.2)
• IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)
• Advanced Encryption Standard (AES)
• Triple Data Encryption Standard (3DES)
• SNMP v3
• SSL 2.0
• DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
• Active Directory v1.0
• PCIe 3.0 Compliant
• UEFI (Unified Extensible Firmware Interface Forum)
• Redfish API (iLO5)
• ErP Lot9 (see Technical Specifications see HPE Environmental Declarations website for HPE Lot9 Declarations, a White Paper, FAQs and products list of verified products.

Notes: See requirements at end of this document or in OCA for valid configurations to meet Erp Lot9 requirements.

Graphics (ilO)

Integrated Matrox G200eH2 video standard with 16 MB of Video RAM

• 1280 x 1024 (32 bpp)
• 1920 x 1200 (16 bpp)

HPE iLO 5 on system management memory

• 32 MB Flash
• 512 MB with ECC (224 MB after ECC and video)

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi

UEFI enables numerous new capabilities specific to HPE Synergy Compute Modules such as:

• Secure Boot and Secure Start enable for enhanced security
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack
• Embedded UEFI Shell
• Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant.

• PXE boot support for IPv6 networks
• Workload Profiles for simple performance optimization

UEFI Boot Mode only:

• TPM 2.0 Support
• NVMe Boot Support
• Platform Trust Technology (PTT) can be enabled.
• iSCSI Software Initiator Support.
• HTTP/HTTPs Boot support as a PXE alternative.
• Boot support for option cards that only support a UEFI option ROM

Notes:

- For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

- UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE Synergy Gen10 Server.

Embedded Management

HPE Synergy Composer powered by HPE OneView

HPE Synergy integrates HPE OneView to deliver 'composable infrastructure' with a view of resources. This flexible and scalable solution provides IT managers with the architecture to implement their software-defined data center (SDDC) -- and to address the changing business needs and the challenges of today's enterprise data centers.

HPE Integrated Lights-Out (HPE iLO)

Silicon Root of Trust.  Protect, detect, recover with iLO.  Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Security

Newest forms of security based on iLO 5 features.

• Secure Start, with hardware root of trust.
• HPE hardware designed logic in iLO chip validates iLO firmware burned in chip.
• iLO then validates system/compute ROM firmware for digital signature.
• iLO completes the chain of trust.
• ROM validates option ROMs and OS Bootloader via UEFI Secure Boot.

Standard security features

• Power-on password
• Administrator's password
• Keyboard password (QuickLock)
• HPE iLO Management On System Management Chipset with SSL encryption, Secure Shell version 2, Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface, AES and RC4 encryption of video
• External USB port enable/disable
• Network server mode
• Serial interface control
• TPM (Trusted Platform Module) 1.2 or 2.0 option
• Advanced Encryption Standard (AES)
• Intel® Advanced Encryption Standard-New Instructions (AES-NI)

About Trusted Platform Module

Trusted Platform Module (TPM) is a separate processor that monitors the system state. TPM is a passive component needing to be updated and not able to lock down any component in the system except access to its own memory. It also provides some cryptographic operations - among them: creating RSA keypairs and working with them.

The first verification of signatures happens by code on the CPU, which can be intercepted and replaced. Emulating a "properly" booted system is possible by sending the right values to the TPM.

The bootblock, the part of the firmware that contains the first instructions executed by the CPU, comes first and anchors the root of trust. But if you can't trust the bootblock to send a truthful state into the TPM, this is a vulnerability.

About HPE Silicon Root of Trust

As soon as the server is powered on and the iLO firmware comes alive, it looks into the silicon for the immutable fingerprint that verifies all the firmware code is valid and uncompromised. Over a million lines of firmware code run before the operating system starts, making it vital to confirm that all server essential firmware is free from malware or compromised code.

During operation of the server, HPE has a new technology that conducts run-time firmware validation that checks the firmware stored in the server. At any point, if compromised code or malware is inserted in any of the critical firmware, an iLO audit log alert is created to notify the customer that a compromised has occurred. It is achieved by storing iLO 5 and UEFI firmware in non-volatile Flash memory which is thoroughly scanned at regular user determined intervals. The contents of the firmware stored in memory must be exactly right, down to the individual bit, or else it is flagged as compromised.See the iLO 5 QuickSpecs for recovery processes.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://www.hpe.com/services/support.

Server Management

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8 Gen9 and Gen10 servers.

HPE iLO Advanced (standard with Synergy Compute)

HPE iLO Advanced licenses offer smart remote functionality without compromise. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE iLO Advanced Premium (optional)

Security Edition for iLO 5 includes iLO Advanced License plus high-end security modes, unique security capabilities, like Automatic FW recovery; Runtime FW verification, and Secure erase.

HPE Graphics Accelerators and Expansion

Standard PCIe Expansion Module GPU Options

• NVIDIA A2 16GB PCIe Non-CEC Accelerator for HPE
• NVIDIA A40 48GB PCIe Non-CEC Accelerator for HPE

Notes:

- For more details on Graphic Acceleration Options please see the Graphics Accelerator QuickSpecs.

Fibre Channel Support

Up to two (2) optional Fibre Channel mezzanine HBAs are supported on the HPE Synergy 480 Gen10.

• HPE Synergy 3530C 16G Fibre Channel Host Bus Adapters
• HPE Synergy 3830C 16G Fibre Channel Host Bus Adapters
• HPE Synergy 5330C 32G Fibre Channel Host Bus Adapters
• HPE Synergy 5830C 32G Fibre Channel Host Bus Adapters

Compatible SAN

HPE Synergy 480 Gen10 Compute Modules are optimized for HPE MSA, EVA, 3PAR, Primera, Alletra, XP, and StoreVirtual VSA.

HPE Virtual Connect

HPE Synergy composable fabric delivers high performance and composability for the delivery of applications and services. The composable fabric is based on primary/satellite architecture.

The HPE Virtual Connect SE 40Gb F8 Module, primary module, based on composable fabric is designed for Composable Infrastructure. Its disaggregated, rack-scale design uses a primary/satellite architecture to consolidate data center network connections, reduce hardware and scales network bandwidth across multiple HPE Synergy Frames.

The primary module contains intelligent networking capabilities that extend connectivity to satellite frames through Interconnect Link Modules. This eliminates the need for a top of rack switch and substantially reduces cost. The reduction in components also simplifies fabric management at scale while consuming fewer ports at the data center aggregation layer.

The HPE VC SE 40 Gb F8 modules eliminate up to 95% of network sprawl at the compute module edge with one device that converges traffic inside frames and directly connects to external LANs. Each redundant pair of Virtual Connect modules provide eight adjustable downlink connections (six Ethernet and two Fibre Channel, or eight Ethernet) to dual-port 10 Gb and in case of 20 Gb Converged Network Adapters 16 adjustable downlinks connections 14 Ethernet and two Fibre Channel) on each compute module. Up to six uplinks using QSFP+ interfaces are available for connection to upstream Ethernet switches. Including splitter cable up to 24 uplinks are available for connection to upstream Ethernet and Fibre Channel. The HPE VC SE 40 Gb F8 modules avoid the confusion of traditional and other converged network solutions by eliminating the need for multiple Ethernet and Fibre Channel switches, extension modules, cables and software licenses. Also, Virtual Connect wire-once connection management is built-in enabling compute modules adds, moves and replacement in minutes instead of days or weeks. The Primary/Satellite disaggregated architecture removes fixed ratios of interconnects in every frame and allows extending networking resources pool for Virtual Connect to satellite frames.

For more information on Virtual Connect and converged network options, see https://www.hpe.com/psnow/doc/c04815258.pdf?jumpid=in_lit-psnow-getpdf

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE.

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

Step 2: Choose Required Options

Step 2a: Choose Processors Options

Processor Option Kits

HPE SY480 Gen10 Compute may be configured with either Intel Xeon Scalable Family of Generation 1 or Generation 2 Processors (Mixing not allowed)

Intel Xeon Scalable Family Gen 2 - Processor Option Kits

Intel Xeon-Platinum Processors

Intel Xeon-Platinum 8280L (2.7GHz/28-core/205W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07363-L21

Intel® Xeon-Platinum 8280 (2.7GHz/28-core/205W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07361_B21

Intel Xeon-Platinum 8276L (2.2GHz/28-core/165W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07360-L21

Intel Xeon-Platinum 8276 (2.2GHz/28-core/165W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07358-L21

Intel Xeon-Platinum 8270 (2.7GHz/26-core/205W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07357-L21

Intel Xeon-Platinum 8268 (2.9GHz/24-core/205W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07356-L21

Intel Xeon-Platinum 8260Y (2.4GHz/24-core/165W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07355-L21

Intel Xeon-Platinum 8260L (2.4GHz/24-core/165W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07354-L21

Intel Xeon-Platinum 8260 (2.4GHz/24-core/165W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07352-L21

Intel Xeon-Platinum 8253 (2.2GHz/16-core/125W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07338-L21

Intel Xeon-Gold Processors

Intel Xeon-Gold 6262V (1.9GHz/24-core/135W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P11881-L21

Intel Xeon-Gold 6258R (2.7GHz/28-core/205W) FIO Processor Kit for HPE Synergy 480 Gen10

P23596-L21

Intel Xeon-Gold 6254 (3.1GHz/18-core/200W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07351-L21

Intel Xeon-Gold 6252N (2.3GHz/24-core/150W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P08920-L21

Intel Xeon-Gold 6252 (2.1GHz/24-core/150W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07350-L21

Intel Xeon-Gold 6248R (3.0GHz/24-core/205W) FIO Processor Kit for HPE Synergy 480 Gen10

P23593-L21

Intel Xeon-Gold 6248 (2.5GHz/20-core/150W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07349-L21

Intel Xeon-Gold 6246R (3.4GHz/16-core/205W) FIO Processor Kit for HPE Synergy 480 Gen10

P23592-L21

Intel Xeon-Gold 6246 (3.3GHz/12-core/165W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P16385-L21

Intel Xeon-Gold 6244 (3.6GHz/8-core/150W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07348-L21

Intel Xeon-Gold 6242R (3.1GHz/20-core/205W) FIO Processor Kit for HPE Synergy 480 Gen10

P23591-L21

Intel Xeon-Gold 6242 (2.8GHz/16-core/150W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07347-L21

Intel Xeon-Gold 6240R (2.4GHz/24-core/165W) FIO Processor Kit for HPE Synergy 480 Gen10

P23590-L21

Intel Xeon-Gold 6240Y (2.6GHz/18-14-8-core/150W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07346-L21

Intel Xeon-Gold 6240L (2.6GHz/18-core/150W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P11886-L21

Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07345-L21

Intel Xeon-Gold 6238R (2.2GHz/28-core/165W) FIO Processor Kit for HPE Synergy 480 Gen10

P23589-L21

Intel Xeon-Gold 6238L (2.1GHz/22-core/140W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P11885-L21

Intel Xeon-Gold 6234 (3.3GHz/8-core/130W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P11694-L21

Intel Xeon-Gold 6230R (2.1GHz/26-core/150W) FIO Processor Kit for HPE Synergy 480 Gen10

P23588-L21

Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07344-L21

Intel Xeon-Gold 6226R (2.9GHz/16-core/150W) FIO Processor Kit for HPE Synergy 480 Gen10

P23587-L21

Intel Xeon-Gold 6226 (2.7GHz/12-core/125W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P12767-L21

Intel Xeon-Gold 6222V (1.8GHz/20-core/115W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P11880-L21

Intel Xeon-Gold 5222 (3.8GHz/4-core/105W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P08679-L21

Intel Xeon-Gold 5220S (2.7GHz/18-core/125W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P11882-L21

Intel Xeon-Gold 5218R (2.1GHz/20-core/125W) FIO Processor Kit for HPE Synergy 480 Gen10

P18506-L21

Intel Xeon-Gold 5218B (2.3GHz/16-core/125W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P12572-L21

Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07342-L21

Intel Xeon-Gold 5217 (3.0GHz/8-core/115W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07339-L21

Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) FIO Processor Kit for HPE Synergy 480/660 Gen10

P07336-L21

Intel Xeon-Silver Processors

Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) FIO Processor Kit for HPE Synergy 480 Gen10

P11692-L21

Intel Xeon-Silver 4215R (3.2GHz/8-core/130W) FIO Processor Kit for HPE Synergy 480 Gen10

P23586-L21

Intel Xeon-Silver 4215 (2.5GHz/8-core/85W) FIO Processor Kit for HPE Synergy 480 Gen10

P08680-L21

Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) FIO Processor Kit for HPE Synergy 480 Gen10

P18503-L21

Intel Xeon-Silver 4214Y (2.2GHz/12-10-8-core/85W) FIO Processor Kit for HPE Synergy 480 Gen10

P07334-L21

Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) FIO Processor Kit for HPE Synergy 480 Gen10

P11693-L21

Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) FIO Processor Kit for HPE Synergy 480 Gen10

P18502-L21

Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit for HPE Synergy 480 Gen10

P07333-L21

Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) FIO Processor Kit for HPE Synergy 480 Gen10

P08678-L21

Intel Xeon-Bronze Processors

Notes:

- All processors within any single compute module must be identical.

- HT indicates that the processor model supports Intel® Hyper-Threading Technology.

- Turbo indicates the maximum potential frequency when using Intel® Turbo Boost Technology. The frequency boost increment is dependent on the processor SKU and the number of active cores. In general, a higher boost increment is obtained when fewer cores are active.

- DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

- Supports 1 or 2 processors. Mixing different processor models is not supported.

- For the Intel® C621 Chipset Scalable Family Processors come with model numbers to indicate SKU level, processor generation, SKU model, integrations-optimizations or memory capacity. (i.e.. HPE Synergy 480/660 Gen10 Intel Xeon-Gold 6136; 6 is the SKU Level, 1 or 2 is the processor generation, 34 is the SKU model, m indicates memory SKU)

- The HPE Synergy 480 Gen10 Compute Module includes three I/O mezzanine connectors. A processor must be installed in processor slot 1 for access to mezzanine connectors one and three (mezzanine connectors 1 and 3). A processor must be installed in processor slot 2 for access to the mezzanine connector two (mezzanine connector 2).

- The processor model as well as the memory configuration determines the maximum speed memory can operate. Please see the see the "Memory" section later in this document.

- Bronze - 3200 Series - Supports 2 socket (Synergy 480 Gen10) compute module only, 2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2133MT/S depending on processor and memory selected, providing up to 1TB memory capacity. Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

- See individual Specs for more details

Intel® Xeon®-Bronze Processors

Notes:

- All processors within any single compute module must be identical.

- HT indicates that the processor model supports Intel® Hyper-Threading Technology.

- Turbo indicates the maximum potential frequency when using Intel® Turbo Boost Technology. The frequency boost increment is dependent on the processor SKU and the number of active cores. In general, a higher boost increment is obtained when fewer cores are active.

- DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

- Supports 1 or 2 processors. Mixing different processor models is not supported.

- For the Intel® C621 Chipset Scalable Family Processors come with model numbers to indicate SKU level, processor generation, SKU model, integrations-optimizations or memory capacity. (i.e. HPE Synergy 480/660 Gen10 Intel Xeon-Gold 6136; 6 is the SKU Level, 1 is the processor generation, 34 is the SKU model, m indicates memory SKU)

- The HPE Synergy 480 Gen10 Compute Module includes three I/O mezzanine connectors. A processor must be installed in processor slot 1 for access to mezzanine connectors one and three (mezzanine connectors 1 and 3). A processor must be installed in processor slot 2 for access to the mezzanine connector two (mezzanine connector 2).

- The processor model as well as the memory configuration determines the maximum speed memory can operate. Please see the see the "Memory" section later in this document.

- Platinum - 8100 Series - 2 and 4 socket capable, 2S - 2UPI, 4S - 3UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2666 MT/s, 768 GB memory capacity (1.5 TB on select SKUs), Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.

- Gold - 5100, 6100 Series - 2 and 4 socket capable, 2S - 2UPI, 4S - 3UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2400 MT/S (SKU 5122=supports 2666), 768 GB memory capacity (1.5 TB on select SKUs), Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)  (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS.

- Silver and Bronze processors are primarily designed for 2 Socket servers and will appear as Synergy 480 Gen10 only processors.

- Silver - 4100 Series - 2 socket capable, 2S - 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MT/S, 768 GB memory capacity, Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS.

- Bronze - 3100 Series - 2 socket capable, 2S - 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2133 MT/S, 768 GB memory capacity, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS

Step 2b: Choose Memory Options

Only one of the following from each list unless otherwise noted.

Select memory associated with the processors selected in previous section.

HPE Smart Memory

The following memory supports Intel® Xeon® Scalable Family processors - 2nd generation

Notes:

- HPE memory from previous generation servers (DDR3) is not compatible with this compute module. HPE Smart Memory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10.

- For additional information, please see the HPE Smart Memory QuickSpecs.

- LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a compute module.

- For the latest information on Memory Speed.

- If you want to know more about the memory, reference the RAS feature whitepaper.

HPE Persistent Memory Kit featuring Intel Optane DC Persistent Memory

The following memory is for use with specific Intel Xeon Scalable Family Generation 2 processors only.

For information regarding HPE Persistent Memory visit: http://www.hpe.com/info/persistentmemory

Intel Optane 128GB persistent memory 100 Series for HPE

835804-B21

Intel Optane 256GB persistent memory 100 Series for HPE

835807-B21

Intel Optane 512GB persistent memory 100 Series for HPE

835810-B21

Notes:

- Supported on select HPE Synergy Gen10 servers with second generation Intel Xeon Scalable Gen2 processors (SY480 and SY660)

- For information regarding HPE Persistent Memory visit: http://www.hpe.com/info/persistentmemory

Step 2c: Choose Networking Adapters

Notes: Only one or more of the following from each list unless otherwise noted

HPE Synergy 4820C 10/20/25Gb Converged Network Adapter

876449-B21

HPE Synergy 6810C 25/50Gb Ethernet Adapter

867322-B21

HPE Synergy 6410C 25/50Gb Ethernet Adapter

868779-B21

HPE Synergy 6820C 25/50Gb Converged Network Adapter

P02054-B21

Notes: Networking adapters must have matched Interconnect Modules or Interconnect Links matched in the corresponding ICM slot on the rear of the Synergy 12000 Frame. See Specifications Section below for Mezzanine to ICM Best Practices and matching requirements.

Step 3: Choose Additional Factory Integrated Options

Notes: Only one or more of the following

HPE Storage Controllers

HPE FIO Enable Smart Array SW RAID

784308-B21

HPE Synergy Compute Chipset SATA FIO Board Kit

872955-B21

Notes:

- HPE Synergy Compute Chipset SATA FIO Board Kit cannot be used with M.2 Adapter Kit.

- M.2 Adapter Kit cannot be used with HPE Synergy Compute Chipset SATA FIO Board Kit

- M.2 Adapter Kit is key option available for 871941-B21/-B22 no drive Compute Modules)

HPE Synergy 480 Gen10 M2 NGFF Adapter Kit

P38437-B21

Notes: Replacement for 873165-B21

HPE Smart Array E208i-c SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular Controller

823852-B21

HPE Smart Array P204i-c SR Gen10 (4 Internal Lanes/1GB Cache) 12G SAS Modular Controller

804424-B21

HPE 96W Smart Storage Lithium-ion Battery with 260mm Cable Kit

P01367-B21

HPE Smart Storage Hybrid Capacitor with 260mm Cable Kit

P02381-B21

HPE Smart Array P416ie-m SR Gen10 (8 Int 8 Ext Lanes/2GB Cache) 12G SAS Mezzanine Controller

804428-B21

HPE Smart Array P416ie-m SR Gen10 SAS Cable Kit

871573-B21

Notes: For SATA/SAS drive use with premium compute modules/front local drives

HPE I/O Expansion Options

HPE Synergy 6810C 25/50Gb Ethernet Adapter

867322-B21

HPE Synergy 6410C 25/50Gb Ethernet Adapter

868779-B21

HPE Synergy 6820C 25/50Gb Converged Network Adapter

P02054-B21

HPE Synergy 4820C 10/20/25Gb Converged Network Adapter

876449-B21

HPE Synergy 5330C 32Gb Fibre Channel Host Bus Adapter

870828-B21

HPE Synergy 5830C 32Gb Fibre Channel Host Bus Adapter

777456-B21

Notes: See Specifications sections below for Best Practices and requirements for options placement in correct mezzanine slots that match with Interconnect model slotting for correct operations.

Step 4: Choose additional options for Factory Integration from Additional Options sections below or the following:

• HPE Synergy 12000 Frame QuickSpecs
  https://www.hpe.com/psnow/doc/c04815113
• HPE Synergy Interconnect and Mezzanine Components QuickSpecs
  https://www.hpe.com/psnow/doc/c04815110
• HPE Synergy D3940 Storage Module QuickSpecs
  https://www.hpe.com/psnow/doc/c04815141

Step 5: Choose HPE Synergy Services

HPE Synergy Tech Care Services

HPE 5Y Tech Care Essential Service

HU4A6A5

HPE 5Y Tech Care Essential with Defective Media Retention Service

HU4A7A5

HPE Synergy Complete Care Services

HPE 5Y Complete Care Addon Essential Service

HU4D5A5

HPE 5Y Complete Care Addon Essential with Defective Media Retention Service

HU4D6A5

SAS Drives (HDD-SDD listed by Capacity)

HPE 2TB SAS 12G Business Critical 7.2K SFF SC 1-year Warranty 512e HDD

765466-B21

HPE 1TB SAS 12G Business Critical 7.2K SFF SC 1-year Warranty HDD

832514-B21

HPE 300GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872475-B21

HPE 600GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872477-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872479-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD

872481-B21

HPE 2.4TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD

881457-B21

HPE 300GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870753-B21

HPE 600GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870757-B21

HPE 900GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870759-B21

HPE 960GB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P36997-B21

HPE 960GB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49028-B21

HPE 1.92TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49030-B21

HPE 1.92TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P36999-B21

HPE 3.84TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49034-B21

HPE 3.84TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P37001-B21

HPE 7.68TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P37003-B21

HPE 7.68TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49039-B21

HPE 15.36TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49044-B21

HPE 960GB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37005-B21

HPE 1.92TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37011-B21

HPE 3.84TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37017-B21

HPE 1.6TB SAS 12G Write Intensive SFF SC PM6 SSD

P26376-B21

HPE 800GB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49046-B21

HPE 1.6TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49048-B21

HPE 3.2TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49052-B21

HPE 6.4TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49056-B21

NVMe Drives (listed by Capacity)

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF SCN U.3 PM1733 SSD

P22276-B21

HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.2 Multi Vendor SSD

P47823-B21

HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.2 V2 Multi Vendor SSD

P64874-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.2 Multi Vendor SSD

P47824-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.2 V2 Multi Vendor SSD

P64882-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF SCN U.3 PM1733 SSD

P22278-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF SCN U.3 PM1733 SSD

P22280-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.2 Multi Vendor SSD

P47825-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.2 V2 Multi Vendor SSD

P64890-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF SCN U.3 PM1733 SSD

P22282-B21

HPE 375GB NVMe Gen3 High Performance Low Latency Write Intensive SFF SCN U.2 P4800X SSD

878014-B21

HPE 750GB NVMe Gen3 High Performance Low Latency Write Intensive SFF SCN U.2 P4800X SSD

P06952-B21

HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.2 Multi Vendor SSD

P47820-B21

HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.2 V2 Multi Vendor SSD

P64870-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 PM1735 SSD

P22270-B21

HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.2 Multi Vendor SSD

P47821-B21

HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.2 V2 Multi Vendor SSD

P64878-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 PM1735 SSD

P22272-B21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.2 Multi Vendor SSD

P47822-B21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.2 V2 Multi Vendor SSD

P64886-B21

HPE 12.8TB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 PM1735 SSD

P22274-B21

M.2 Drive Options

HPE Synergy 480 Gen10 M2 NGFF Adapter Kit

P38437-B21

HPE 240GB SATA 6G Read Intensive M.2 Multi Vendor SSD

P47817-B21

HPE 480GB SATA 6G Read Intensive M.2 Multi Vendor SSD

P47818-B21

Memory Subsystem Architecture

Each processor socket contains six memory channels that support two DIMMs each for a total of 12 DIMM per installed processor or a grand total of twenty-four (24) DIMMs for the compute module.

Memory Population Rules and Guidelines

• A minimum of one DIMM is required per processor.
• Install DIMMs only if the corresponding processor is installed.
• If only one processor is installed in a two processor system, only half of the DIMM slots are available.
• DIMM sizes can be mixed in channel. To maximize performance, it is recommended to balance the total memory capacity between all installed processors and to load the channels similarly whenever possible.
• LRDIMM and RDIMMs are all distinct memory technologies and cannot be mixed within a compute module.
• DIMMs of different speeds may be mixed in any order; the compute module will select a common optimal speed.
• The maximum memory speed is a function of the memory type, memory configuration, and processor model.
• The maximum memory capacity is a function of the memory type and number of installed processors.
• HPE memory from previous generation servers is not compatible with the HPE Synergy 480 Gen10 Compute Module.

To realize the performance memory capabilities listed in this document, HPE Smart Memory is required. For additional information, please see the HPE DDR4 Smart Memory QuickSpecs

Synergy 480 Gen10 Compute Module

Notes:

- *The maximum memory speed is a function of the memory type, memory configuration, and processor model.

- The information contained herein is subject to change without notice.  HPE Confidential.  Not for customer viewing.  Do not distribute.

Notes:

- *The maximum memory speed is a function of the memory type, memory configuration, and processor model.

- The information contained herein is subject to change without notice.  HPE Confidential.  Not for customer viewing.  Do not distribute.

Notes: For more information refer to: http://www.hpe.com/docs/memory-speed-table

Memory Population Rules and Guidelines

Drawing showing SY480 system board layout for processors and memory.

Population guidelines for HPE Smart Memory DIMMs in HPE Synergy 480 Gen10 compute modules

HPE Synergy 480 Gen10 compute modules have twelve DIMM slots per CPU.

Table: Population guidelines for HPE Smart Memory DIMMs in HPE Synergy 480 Gen10 compute modules
