В архивеOverview
|
HPE Synergy 40Gb F8 Switch Module | ||||
|
HPE Synergy 40Gb F8 Switch Module is a key network switch element of HPE Synergy providing resilient fabric functionality. It provides network switching to data or storage networks. The Synergy 40Gb F8 Switch Module eliminates up to 95% of network sprawl at the compute module edge with one device that converges traffic from within Synergy 12000 Frames and directly connects to external networks. The Synergy 40Gb F8 Switch Module provides simultaneous support for Ethernet. Each redundant pair of Synergy 40Gb F8 Switch modules provides Ethernet downlink connections to dual-port 10Gb/20Gb Converged Network Adapters on each compute module. There are six QSFP+ uplink multi-function ports available for connection to upstream 40Gb Ethernet switches. These six multi-function ports can be configured as 4x10Gb Ethernet per QSFP+ connector. A QSFP+ 40Gb/4x10Gb/4x8Gb transceiver provides four uplinks per QSFP+ port for connection to upstream 4x10Gb Ethernet connections. In addition to the six multi-use QSFP+ uplinks, there are two additional QSFP+ ports that can be used for cluster links between Synergy 40Gb F8 Switches Modules or for additional Ethernet uplinks. The Master/Satellite disaggregated architecture removes fixed traditional ratios of ports in a single frame and allows a high-speed, near zero latency connection of network resources directly to other frames via Interconnect Link Modules. HPE Synergy is a single infrastructure of physical and virtual pools of compute, storage, and fabric resources, and a management interface that allows configuration of server resources in any configuration. The HPE Synergy 40Gb F8 Switch module is managed by industry standard management resources that allows network functions to managed by network administrators. As the foundation for the New Style of Business infrastructure, HPE Synergy eliminates hardware and operational complexity so IT organizations can precisely deliver infrastructure resources to applications faster and with greater flexibility. | ||||
|
| ||||
|
| ||||
|

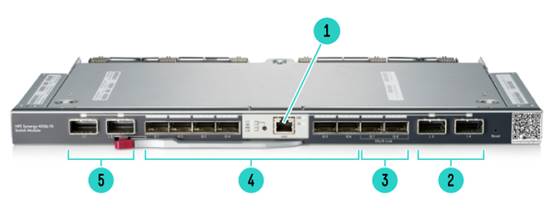

Figure 1 HPE Synergy 40Gb F8 Switch Module Bezel | ||||
|
1. |
Console port |
4. |
40Gb QSFP+ multi-use uplink ports | |
|
2. |
Interconnect link ports |
5. |
Interconnect link ports | |
|
3. |
40Gb QSFP+ Ethernet uplink/ICM clustering ports |
|
| |
|
| ||||
|
Models | ||||
|
HPE Synergy 40Gb F8 Switch Module |
779224-B23 | |||
|
(Trade Agreement Act (TAA) compliant SKU same as above) |
| |||
|
Notes: HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. | ||||
|
| ||||
Standard Features
|
Compatibility |
|
|
HPE Synergy 40Gb F8 Switch Module Module supports the following hardware. |
|
|
HPE Compute Modules
|
|
|
HPE Interconnect Link Modules
|
|
|
HPE Network Adapters
|
|
|
|
|
|
Supported Configurations |
|
|
|
|
|

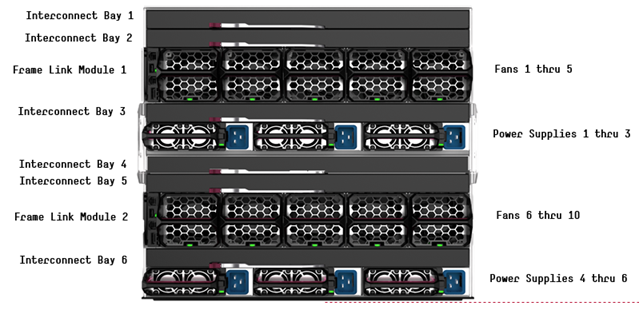

HPE Synergy 12000 Frame - Rear View |
|
|
|
|
|

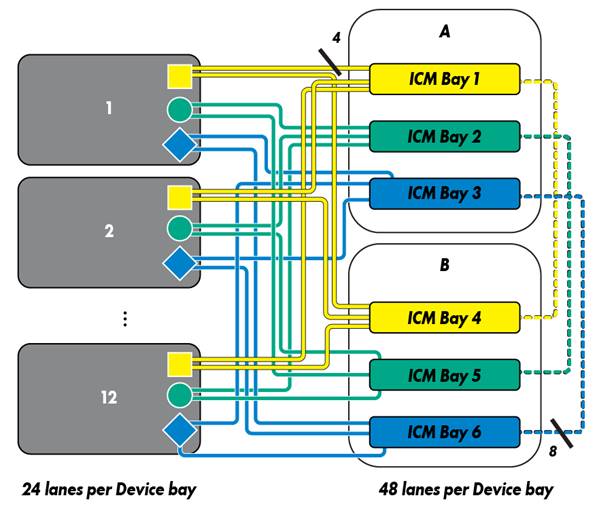

Mezzanines to Interconnect Port Mapping |
|
The first interconnect in an ICM bay set is connected to Port 1 of the mezzanine card and the second interconnect in an ICM bay set is connected to Port 2 of that mezzanine card. If the two interconnects in an ICM bay set are of the same type, they provide redundant connectivity to the two mezzanine ports. Notes: Dotted lines in the figure below indicate paired Interconnect Bay (ICB) |
|
|
|
|
|
HPE 12000 Synergy Frame | ||||||||||||||||||||||||
|
Notes: For ease of representation and understanding paired Interconnect Bay (ICB) are shown adjacent rather than vertically as in the real-frame. Interconnect frames are formed between ICB 1 with ICB 4, ICB 2 with ICB 5, and ICB 3 with ICB 6. Hence the below representation. Upto 3 Synergy frames can be deployed with the HPE Synergy 40Gb F8 module when paired with the HPE 20Gb ILM. Shown below is a 2 frame example with different combination of slot placements.
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
|
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
|
| ||||||||||||||||||||||||
|
Product Features |
|
Performance
|
|
Management
|
|
Security
|
|
Layer 2 Switching
|
|
Options
|
|
|
Service and Support
|
HPE Pointnext operational and Warranty Information |
|
Service and Support HPE Technology Services offers you a rich portfolio of consulting and support services designed to add value to our core products and solutions. We have the know-how and experience to put technology to work for you. We work closely with you, as your strategic partner, leveraging our full services portfolio to make sure that everything works to help optimize your enterprise. Choose from services aligned to our product offerings and lifecycle. From proactive onsite services to innovative support when your products are connected to Hewlett Packard Enterprise, you choose the precise level of attention and support your business demands. HPE Technology Services for HPE Synergy HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time. Protect your business beyond warranty with HPE Support Services HPE support services offer complete care and support expertise with committed response choices that are designed to meet your IT and business needs. HPE Foundation Care services offer scalable reactive support-packages for HPE Synergy and software. You choose the type and level of service that is most suitable for your IT and business needs.
HPE Proactive Care keeps your system stable and reliable helping to prevent problems and reduce outages through proactive service management and enhanced technical response. |
|
|
|
Advise, Transform, Integrate, Support, Automate, and Flex HPE Technology Services helps you get the most out of what you have today and transition to HPE Synergy, a composable infrastructure, at your pace and from wherever you are on the journey. Start with the HPE Transformation Workshop to ensure that your business and IT organizations collaborate, define the topline strategy for composable, software-defined, cloud-ready infrastructure and kick-start your projects confidently. This workshop clarifies your business requirements and the issues that IT and operations teams must resolve in order to meet these requirements. A detailed executive briefing or high-level report summarizes the strategies, high-level plan and functional requirements. HPE
Modernization and Migration Services helps
you choose
the right platform for the right workload at the right cost and evolve
your IT infrastructure, processes and organization taking advantage
of "on-hybrid infrastructure" innovations such as composable, converged,
software-defined, technologies.
Hewlett
Packard Enterprise
experts advise, transform, integrate and implement for platform refresh,
datacenter consolidation virtualization, migration and automation projects.
HPE Flexible Capacity is a pay per use model for on premise infrastructure. This offers needed HPE Synergy capacity in the datacenter, plus a buffer of additional capacity. As HPE Synergy will be a dynamic environment, this provides enough room to grow your environment, but only pay for actual metered use. Technology transitions and refresh can be built in, infrastructure and services are billed monthly, enabling you to align costs to business use. HPE Datacenter Care Infrastructure Automation: HPE Synergy with OneView embedded helps enable infrastructure automation and is integrated with tools such as those from Chef, Puppet, and Docker, to enable rapid bare metal provisioning. With DC-IA, HPE service experts provide advice, support, best practices, for these tools that work with OneView to help create a fast, agile, and reliable automated IT environment. With this approach, customers can deploy faster. DC-IA delivers support to customers to enable infrastructure as code and agile processes as part of the service. Customers schedule quarterly reviews and reports with HPE Center of Expertise, as well as having access to these experts when needed, for automation development and code coaching. |
|
|
|
Deploy and integrate HPE Factory Express Initial Frame Service for Synergy Factory Express allows a customers' configurations to be pre-configured in the HPE Integration center with an implementation project manager to manage the deployment end to end. The project manager will act as a single point of contact to coordinate the build, delivery and onsite installation and commissioning of the solution. In addition to the configuration and deployment activities, your HPE Synergy configuration goes through comprehensive testing and a detailed documentation package on the configuration and settings of the delivered solution will be provided. HPE Factory Express Synergy Additional Frame Service for Synergy Add additional frames to your HPE Synergy Factory Express service or expand your existing HPE Synergy Infrastructure. HPE Synergy First Frame Installation and Startup - Provides for hardware installation (HPE Synergy compute modules, Storage Modules, Virtual Connect modules, Interconnect Link Modules, Fibre Channel Modules, Frame Link Modules, and HPE Synergy D3940 Storage Modules) and software startup for the first frame of your HPE Synergy deployment. Additional frames can be added using the HPE Synergy Additional Frame Installation and Startup Service. HPE Synergy Additional Frame Installation and Startup Service - Add additional frames to your HPE Synergy First Frame Startup service or expand your existing HPE Synergy Infrastructure. |
|
|
|
Optimized Support Choose the right support to maximize uptime, free up your resources, and achieve improved value-as you get the most out of the existing IT assets while accelerating time-to-revenue. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA5-3259ENW.pdf |
|
|
|
Standard Support HPE Proactive Care with 24x7 coverage, three year Support Service Hardware and software support services designed specifically for your technology with rapid access to Advanced Solution Center specialists for start to finish case management plus proactive reports and recommendations for firmware and software management and best practice advice. This recommendation provides 24x7 coverage with four-hour response for hardware and Basic Software Support and Collaborative Call Management for selected non-HPE software that offers two-hour callback for supported software issues. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf |
|
|
|
HPE Education Training your IT staff is critical to help drive the value of HPE Synergy with increased efficiencies and better business outcomes. Training is key to the transformation and management of HPE Synergy. |
|
|
|
Parts and Materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
|
|
Warranty HPE Synergy 40Gb F8 Switch Module Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty |
|
|
|
For more information Additional Support Services can be found at HPE Support Services Central |
|
|
Related Options
|
Interconnect Link Module Cables |
|
|
HPE Synergy Interconnect Link 2.1m Direct Attach Copper Cable |
804155-B21 |
|
HPE Synergy Interconnect Link 3m Active Optical Cable |
804101-B21 |
|
HPE Synergy Interconnect Link 5m Active Optical Cable |
804104-B21 |
|
HPE Synergy Interconnect Link 15m Active Optical Cable |
804110-B21 |
|
| |
|
QSFP+ uplink ports options |
|
|
HPE Synergy 40GbE/4x10GbE/4x8Gb FC QSFP+ Transceiver |
817040-B21 |
|
HPE BladeSystem c-Class 40Gb QSFP+ MPO SR4 100m Transceiver |
720187-B21 |
|
HPE 40Gb QSFP+ Bidirectional Transceiver |
841716-B21 |
|
HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver |
JG661A |
|
HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver |
JG709A |
|
HPE X140 40G QSFP+ MPO SR4 Transceiver |
JG325B |
|
HPE Multi Fiber Push On to 4 x Lucent Connector 5m Cable |
K2Q46A |
|
HPE Multi Fiber Push On to 4 x Lucent Connector 15m Cable |
K2Q47A |
|
HPE Premier Flex MPO/MPO Multi-mode OM4 12 fiber 10m Cable |
QK729A |
|
HPE Premier Flex MPO/MPO Multi-mode OM4 8 fiber 50m Cable |
QK731A |
|
HPE Premier Flex MPO/MPO OM4 100m (12ft) Cable |
H6Z30A |
|
HPE BladeSystem c-Class 40G QSFP+ to QSFP+ 15m Active Optical Cable |
720211-B21 |
|
HPE BladeSystem c-Class 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable |
720199-B21 |
|
HPE BladeSystem c-Class 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable |
720202-B21 |
|
HPE BladeSystem c-Class QSFP+ to 4x10G SFP+ 15m Active Optical Cable |
721076-B21 |
|
HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable |
721064-B21 |
|
HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable |
JG326A |
|
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable |
JG330A |
|
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable |
JG331A |
|
| |
|
QSFP+ to SFP+ Options |
|
|
HPE BladeSystem c-Class QSFP+ to SFP+ Adapter |
720193-B21 |
|
HPE BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver |
453151-B21 |
|
HPE BladeSystem CClass Virtual Connect 1G SFP RJ45 Transceiver |
453154-B21 |
|
HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver |
455883-B21 |
|
HPE BladeSystem c-Class 10Gb SFP+ LR Transceiver |
455886-B21 |
|
HPE 10GBase-T SFP+ Transceiver |
813874-B21 |
|
HPE X130 10G SFP+ LC SR Transceiver |
JD092B |
|
HPE X130 10G SFP+ LC LR Transceiver |
JD094B |
|
HPE X130 10G SFP+ LC ER 40km Transceiver |
JG234A |
|
HPE B-series SFP+ to SFP+ Active Copper 1.0m Direct Attach Cable |
AP818A |
|
HPE B-series SFP+ to SFP+ Active Copper 3.0m Direct Attach Cable |
AP819A |
|
HPE B-series SFP+ to SFP+ Active Copper 5.0m Direct Attach Cable |
AP820A |
|
HPE C-series 3M Passive Copper SFP+ Cable |
K2Q21A |
|
HPE C-series 5M Passive Copper SFP+ Cable |
K2Q22A |
|
HPE C-series SFP+ to SFP+ Active Copper 7.0m Direct Attach Cable |
QK701A |
|
HPE C-series SFP+ to SFP+ Active Copper 10.0m Direct Attach Cable |
QK702A |
|
HPE 16Gb SFP+ Short Wave 1-pack Industrial Extended Transceiver |
E7Y09A |
|
HPE B-series 16Gb SFP+ Short Wave Transceiver |
QK724A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable |
AJ833A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable |
AJ834A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable |
AJ835A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable |
AJ836A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable |
AJ837A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable |
AJ838A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable |
AJ839 |
|
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable |
487655-B21 |
|
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable |
537963-B21 |
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
JD097C |
|
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable |
JG081C |
|
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable |
JG329A |
|
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable |
JG330A |
|
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable |
JG331A |
|
| |
|
HPE Synergy Services Notes: See HPE Support Services Central for additional services at http://ssc.hpe.com/portal/site/ssc | |
|
HPE Synergy Proactive Care Services |
|
|
HPE 3 Year Proactive Care 24x7 40Gb F8 Switch Module Service |
H0WX3E |
|
HPE 3 Year Proactive Care 24x7 with CDMR 40Gb F8 Switch Module Service |
H0WX5E |
|
HPE 3 Year Proactive Care Advanced 24x7 40Gb F8 Switch Module Service |
H0WX6E |
|
HPE 3 Year Proactive Care Advanced 24x7 with CDMR 40Gb F8 Switch Module Service |
H0WX8E |
|
Deployment/Installation & Start-up Services |
|
|
HPE Factory Express Synergy Initial Frame Package 4 Service |
HA454A1-300 |
|
HPE Factory Express Synergy Add-on Frame Package 4 Service |
HA454A1-301 |
|
HPE Synergy First Frame Startup Service |
U8JM3E |
|
| |
Technical Specifications
|
Shipping Dimensions | ||
|
Length |
19.45 in (494 mm) | |
|
Width |
15.55 in (395 mm) | |
|
Height |
5.75 in (145 mm) | |
|
Shipping Weight |
Approximately 5.4Kg (12.0 Lbs) | |
|
Product Specifications Hardware | ||
|
Performance |
Line-rate, full-duplex 2.56 Tbps bridging fabric | |
|
Non-blocking architecture | ||
|
Maximum transmission unit (MTU) of up to 12000 bytes (super jumbo frames) | ||
|
Connectors and Cabling |
12 x 20Gb downlinks through the midplane 4x120Gb Interconnect Link ports Console port | |
|
Indicators |
Interconnect link cable port LED QSFP+ port LED Next button Reset pin-hole Health LED Ethernet mode LED PID mode LED Link/Activity mode LED | |
|
Weight |
4.22Kg (9.3 Lbs) | |
|
Latency |
1.0 µs on Ethernet only port | |
|
Scalability |
Does not contribute to the total switch limit. | |
|
Buffer Credits |
16 buffer credits per port, ASIC embedded memory | |
|
Environmental Ranges |
Temperature Range |
|
|
Specification |
10°C to 40°C (50°F to 104°F)* | |
|
Temperature Range |
| |
|
Operating |
10°C to 40°C (50°F to 104°F) | |
|
Shipping |
Shipping -40°C to 70°C (-40°F to 158°F) | |
|
Storage |
-30°C to 60°C (-22°F to 140°F) | |
|
Maximum wet bulb temperature |
38.7°C (101.66°F) | |
|
Relative Humidity (noncondensing) |
| |
|
Operating |
5% to 95% | |
|
Shipping |
5% to 95% | |
|
Notes: - All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia. - Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa. | ||
|
Power Specification |
12V @ 20A (240 W max) | |
|
| ||
|
Management and Standards Support Standards General protocols
|
|
|
|
Safety and Compliance Safety Certifications
|
|
|
|
Electromagnetic Emissions Certifications FCC Part 15 Class A
|
|
|
|
Environment-friendly Products and Approach - End-of-life Management and Recycling Hewlett Packard Enterprise Enetrpise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/info/recycle. To recycle your product, please go to: http://www.hpe.com/info/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
|
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
17-Aug-2020 |
Version 10 |
Chnaged |
Related Options section was updated. Rebranding applied to document. |
|
02-Apr-2018 |
Version 9 |
Changed |
Standard Features, Service and Support, and Related Options sections were updated. |
|
Added |
SKUs added in Related Options sections: | ||
|
Removed |
Obsolete SKUs were deleted in Related Options sections: | ||
|
11-Jul-2017 |
Version 8 |
Changed |
Overview, Platform Information, Standard Features, and Related Options sections were updated. |
|
12-Jun-2017 |
Version 7 |
Changed |
Supported Products and Standard Features sections were updated. |
|
08-May-2017 |
Version 6 |
Changed |
Related Options sections was updated. |
|
Added |
SKU added in Overview section: | ||
|
Removed |
SKU removed in Overview section: 779224-B21 | ||
|
18-Nov-2016 |
Version 5 |
Changed |
Models, Related Options and Service and Support sections were updated. |
|
29-Jul-2016 |
Version 4 |
Changed |
QuickSpecs updated. |
|
15-Apr-2016 |
Version 3 |
Changed |
QuickSpecs updated. |
|
31-Mar-2016 |
Version 2 |
Changed |
Overview, Supported Products, Standard Features, Service and Support, Related Options, Technical Specifications sections were updated. |
|
Added |
SKUs added in Overview and Related Options sections: | ||
|
1-Dec-2015 |
Version 1 |
Created |
New QuickSpecs |
