HPE Synergy 20Gb Interconnect Link Module | |||
|
The HPE Synergy 20Gb Interconnect Link Module, satellite module, is designed for Composable Infrastructure. Based on disaggregated, rack-scale design, it uses a primary/satellite architecture to consolidate data center network connections, reduce hardware and scale network bandwidth across multiple HPE Synergy Frames. This module extends HPE composable fabric up to two additional satellite frames with 20Gb connectivity to Synergy Compute Modules and replaces fixed ratio of interconnects in each frame by extending the fluid pool of network resources. | |||
|
| |||
|
Figure 1 HPE Synergy 20G Interconnect Link Module Bezel | |||
|
1. |
UID LED |
3. |
Interconnect Link Ports |
|
2. |
Health LED |
|
|
|
| |||
|
Models | |
|
HPE Synergy 20Gb Interconnect Link Module |
779218-B21 |
|
HPE Synergy 20Gb TAA-compliant Interconnect Link Module |
779218-B22 |
|
Notes: - TAA in the name of this product provides that this product meets the US Trade Agreements Act (19 U.S.C & 2501-2581) and is compliant for resale on GSA (General Services Administration) agreements or contracts. - HPE now includes TAA products and options for the Synergy line of product solutions. TAA refers to the US Trade Agreements Act (19 U.S.C & 2501-2581). TAA compliance for HPE simply means that as a product manufacturer or reseller on GSA (General Services Administration), the "final products" that we sell through your GSA Schedule are manufactured or substantially transformed in a TAA-compliant country. HPE Synergy TAA products are aligned for the configuration of a complete TAA-compliant solution or subsets of the complete solution. - HPE Synergy 12000 TAA Configure-To-Order Frames may include TAA specific, naturally compliant, or standard product options and become a TAA approved solutions when substantially transformed/integrated at a designated HPE TAA Compliant Factory. Please look for TAA in the name when defining HPE Synergy Options or Solutions that may require TAA compliance. | |
|
| |
|
Compatibility HPE Synergy 20G Interconnect Link Module supports the following hardware. |
|
HPE Servers HPE Synergy Compute Modules
|
|
HPE Interconnects HPE Synergy Interconnect Modules
|
|
HPE Network Adapters Converged Network Adapter:
HPE
Synergy 2820C 10Gb Converged Network Adapter |
|
|
|
Supported Configurations |
|
|
|

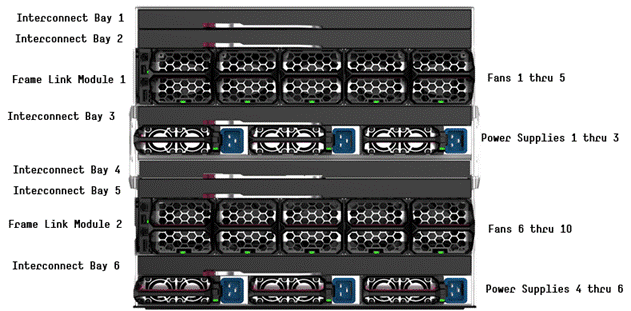

HPE Synergy 12000 Frame - Rear View |
|
|
|
Mezzanines | ||||||||||||||||||||||||||||||||||||||||||
|
Port Mapping Port mapping differs slightly between full height and half-height server compute modules due to the support for additional Mezzanine cards on the full height version. | ||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||
|
HPE 12000 Synergy Frame Notes: Shown below are 2 frame and 3 Synergy frame examples when using the HPE VC SE 40Gb F8 module in conjunction with HPE 20Gb ILM | ||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||
Standard Features
|
Product Features Performance
Management
|
|
|
Service and Support
|
HPE Pointnext - Service and Support Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.
Consume IT on your terms HPE GreenLake brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world..
Managed services to run your IT operations HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. |
|
|
|
Free up resources with Operational Services from HPE Pointnext Services HPE delivers services for IT by using proven best practices as well as automation and methodologies that have been tested and refined by HPE experts and artificial intelligence through thousands of deployments globally. Choose from the recommended services for customers purchasing from Hewlett Packard Enterprise or an authorized reseller. Services are quoted using Hewlett Packard Enterprise order configuration tools.
HPE Pointnext Tech Care HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.
https://www.hpe.com/services/techcare
HPE Pointnext Complete Care HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:
https://www.hpe.com/services/completecare
|
|
|
|
Other related services from HPE Pointnext Services |
|
HPE Technology Services for HPE Synergy HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time. |
|
|
|
Advise, transform, integrate, support, automate, and flex HPE Technology Services helps you get the most out of what you have today and transition to HPE Synergy, a composable infrastructure, at your pace and from wherever you are on the journey.
Start with the HPE Transformation Workshop to ensure that your business and IT organizations collaborate, define the topline strategy for composable, software-defined, cloud-ready infrastructure and kick-start your projects confidently. This workshop clarifies your business requirements and the issues that IT and operations teams must resolve in order to meet these requirements. A detailed executive briefing or high-level report summarizes the strategies, high-level plan and functional requirements. HPE Modernization and Migration Services helps you choose the right platform for the right workload at the right cost and evolve your IT infrastructure, processes and organization taking advantage of "on-hybrid infrastructure" innovations such as composable, converged, software-defined, technologies. Hewlett Packard Enterprise experts advise, transform, integrate and implement for platform refresh, datacenter consolidation virtualization, migration and automation projects. HPE Flexible Capacity is a pay per use model for on premise infrastructure. This offers needed HPE Synergy capacity in the datacenter, plus a buffer of additional capacity. As HPE Synergy will be a dynamic environment, this provides enough room to grow your environment, but only pay for actual metered use. Technology transitions and refresh can be built in, infrastructure and services are billed monthly, enabling you to align costs to business use.
|
|
|
|
Deploy and integrate HPE Factory Express Initial Frame Service for Synergy Factory Express allows a customers' configurations to be pre-configured in the HPE Integration center with an implementation project manager to manage the deployment end to end. The project manager will act as a single point of contact to coordinate the build, delivery and onsite installation and commissioning of the solution. In addition to the configuration and deployment activities, your HPE Synergy configuration goes through comprehensive testing and a detailed documentation package on the configuration and settings of the delivered solution will be provided. HPE Factory Express Synergy Additional Frame Service for Synergy Add additional frames to your HPE Synergy Factory Express service or expand your existing HPE Synergy Infrastructure.
|
|
|
|
HPE Education Services Training your IT staff is critical to help drive the value of HPE Synergy with increased efficiencies and better business outcomes. Training is key to the transformation and management of HPE Synergy. |
|
|
|
Parts and Materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
Defective Media Retention An option available with HPE Pointnext Complete Care and HPE Pointnext Tech Care and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
|
|
|
|
For more information
To learn more on HPE Storage Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html HPE Support Services are sold by HPE and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
Related Options
|
CXP DAC Cables |
|
|
HPE Synergy Interconnect Link 2.1m Direct Attach Copper Cable |
804155-B21 |
|
| |
|
CXP AOC Cables |
|
|
HPE Synergy Interconnect Link 3m Active Optical Cable |
804101-B21 |
|
HPE Synergy Interconnect Link 5m Active Optical Cable |
804104-B21 |
|
HPE Synergy Interconnect Link 15m Active Optical Cable |
804110-B21 |
|
| |
|
HPE Synergy Services |
|
|
HPE Synergy Tech Care Services |
|
|
| |
|
Deployment/Installation & Start-up Services |
|
|
HPE Factory Express Synergy Initial Frame Package 4 Service |
HA454A1-300 |
|
HPE Factory Express Synergy Add-on Frame Package 4 Service |
HA454A1-301 |
|
HPE Synergy First Frame Startup Service |
U8JM3E |
|
HPE Synergy Additional Frame Startup Service |
U8JM4E |
|
| |
Technical Specifications
|
Shipping Dimensions |
Length |
19.53 in (496 mm) | ||
|
Width |
15.67 in (398 mm) | |||
|
Height |
5.88 in (149.5 mm) | |||
|
Shipping Weight |
Approximately 3.0 Kg (6.2 Lbs) | |||
|
Product Specifications Hardware |
Performance |
Non-blocking architecture | ||
|
Connectors and Cabling |
12 x 20Gb downlinks through the midplane | |||
|
2 x 120Gb interconnect link ports | ||||
|
Indicators |
Health LED | |||
|
UID LED | ||||
|
Link cable port LEDs | ||||
|
Compute Module Link LEDs | ||||
|
Weight |
2.81Kg (6.2 Lbs) | |||
|
Latency |
Low-latency design (<5ns round trip) | |||
|
Environmental Ranges |
Temperature Range |
| ||
|
Specification |
10° to 35°C (50° to 95°F)* | |||
|
Temperature Range |
| |||
|
Operating |
10° to 35°C (50° to 95°F) | |||
|
Shipping |
Shipping -40°C to 60°C | |||
|
Storage |
-20°C to 60°C | |||
|
Maximum wet bulb temperature |
30C (80F) | |||
|
Relative Humidity (noncondensing) |
| |||
|
Operating |
10% to 90% | |||
|
Shipping |
10% to 90% | |||
|
Notes: - All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia. - Storage maximum humidity of 90% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa. | ||||
|
Power Specification |
12V @ 1.4A (17 W max) | |||
|
Safety and |
Safety Certifications
|
|||
|
Electromagnetic Emissions Certifications FCC Part 15 Class A |
FCC Part 15 Class A EN 55022 Class A (CISPR22 Class A) VCCI Class A CE Marking FCC ICES (Canada) VCCI (Japan) RCM (Australia/NZ) KCC (Korea) BSMI (Taiwan) | |||
|
|
| |||
|
Environment-friendly Products and Approach -End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/info/recycle. To recycle your product, please go to: http://www.hpe.com/info/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hpe.com/info/recycle. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
| |||
|
|
| |||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
15-Nov-2021 |
Version 9 |
Changed |
Service and Support Pointnext Tech Care and Complete Care information updated |
|
11-Jan-2021 |
Version 8 |
Changed |
Overview, Standard Features, Service and Support, and Technical Specifications sections were updated. |
|
07-Jan-2019 |
Version 7 |
Changed |
Platform Information and Service and Support sections were updated. |
|
11-Jul-2017 |
Version 6 |
Changed |
Overview and Platform Information sections were updated. |
|
Added |
SKU added in Models – Platform Information section: | ||
|
08-May-2017 |
Version 5 |
Changed |
Related Options, and Technical Specifications sections were updated. |
|
Added |
SKUs added in Related Options section: | ||
|
18-Nov-2016 |
Version 4 |
Changed |
Models, Related Options and Service and Support sections were updated, |
|
29-Jul-2016 |
Version 3 |
Changed |
QuickSpecs updated. |
|
31-Mar-2016 |
Version 2 |
Changed |
Overview, Supported Products, Standard Features, Related Options, Service and Support and Technical Specifications sections were updated. |
|
Added |
SKUS were added in Overview and Related Options Sections: | ||
|
1-Dec-2015 |
Version 1 |
Created |
New QuickSpecs |
