HPE Slingshot interconnect 400 QuickSpecs
Powered by the HPE Slingshot Fabric Management suite and packed with advanced fabric health monitoring and telemetry analytics capabilities HPE Slingshot interconnect 400 is a modern high-performance networking solution for classic and AI Supercomputing clusters. It delivers industry leading performance, bandwidth, congestion control, and low latency for Ethernet HPC applications. Doubling the feeds and speeds of HPE Slingshot, it is Cray's 9th generation interconnect architecture targeting 400G endpoint deployments. It enables unified clusters with over 260,000 endpoints that deliver superior performance for traditional HPC modeling, analytics and simulations, multi-tenant HPCaaS environments, and mixed HPC/AI workloads. IP/Ethernet interoperability allows for connectivity to Slingshot and 3rd party Ethernet NICs, switches, and IP storage without gateway nodes. It also enables secure integration of supercomputing clusters into a larger cloud data center infrastructure using standard VLAN, VXLAN, and ACL implementations. |
|
|
HPE Slingshot interconnect 400 consists of elements for end-to-end connectivity: a switch ASIC and multiple switch systems, a NIC ASIC and multiple adapter cards, as well as cables and transceivers. Boasting 64 ports of 400G, the switch ASIC implements 256 SerDes supporting 100G signaling and achieves 51.2 Tbps of bidirectional bandwidth while maintaining line rate forwarding at 64B per packet. Switch ports are individually configured either as edge ports for connectivity to Ethernet NICs or border routers, or as fabric ports that link the switches together with enhanced resiliency and performance. The 400 Gbps NIC ASIC doubles the host and link bandwidths compared to the previous generation. It supports the same MPI and RDMA processing capabilities with nominal latency reductions.
HPE Slingshot interconnect 400 is available across a wide spectrum of standalone and chassis-based high-performance computing platforms including HPE Cray XD, HPE ProLiant, and the leadership-class HPE Cray EX.
Please consult the HPE Cray EX QuickSpecs for additional information |
|
|
|
HPE Slingshot interconnect 400 Highlights High Bandwidth, Low-Diameter Network, and Low-Latency Ethernet HPE Slingshot 400 switch provides 51.2 Tbps of bi-directional bandwidth with 64 ports each capable of 400 Gbps. The high-radix switch enables low-diameter topologies to reduce the quantity of network equipment, cabling, power and cooling costs. While implementing a full range of Ethernet standards, it delivers high bandwidth and low latency simultaneously, overcoming traditional Ethernet approaches to buffering and error handling that result in queueing latency and hinder low-latency RDMA applications. It is supported in All-to-all and Fat Tree topologies.
Automatic Congestion Management and Fine-Grained Adaptive Routing With increased buffer per port to support 400 Gbps traffic, the switch continues to uniquely address congestion challenges of short-lived, small packet flows typical in HPC applications. In hardware, each switch detects congestion, identifies its causes, and provides real-time feedback to its peers. The system distinguishes perpetrators from victims of injection and limits the injection rate from the perpetrator until congestion clears. Real-time information is tracked on workloads across each switch-to-switch path, and traffic is dynamically re-routed to balance load to improve network performance and bandwidth utilization. Adaptive routing decisions are made on a packet-by-packet basis for unordered traffic, or a flow-by-flow basis for protocols (like TCP/IP) requiring ordered delivery. Added support for global exact match forwarding tables increases route visibility across the entire cluster, making congestion management even more robust.
Quality of Service Highly configurable quality-of-service (QoS) provides the ability to control how network bandwidth is allocated to different classes of traffic and applications. The HPE Slingshot 400 switches support up to 12 traffic classes, allowing for 4 dedicated bidirectional Slingshot Transport classes and 4 dedicated classic unidirectional Ethernet classes simultaneously.
Additional Switch Hardware Enhancements P4-programmibility allows HPE Cray team to optimize and harden switch forwarding rules and innovate at the pace of software development with the same hardware. The introduction of ACL tables enables security and isolation for supercomputing clusters. Finally, the support of port splitting offers increased granularity for supporting a wider range of endpoint port speeds.
HPE Slingshot 400 Network Interface Card The HPE Slingshot 400 Network Interface Card provides a single port of 400 Gbps connectivity to PCI-Express Gen 5-based host systems. It is qualified in HPE Cray XD and HPE ProLiant server systems, as well as the HPE Cray EX and GX platforms. The NIC continues to feature high performance RDMA and extensive hardware acceleration for MPI and SHMEM based software. These features are exposed to software applications using the Libfabric API interface. Additionally, the NIC supports a broad range of host software natively using the Linux "sockets" interface for IP software.
Cables HPE Slingshot 400 cables are designed and validated to reliably support the demanding signaling speed used in 400 Gbps links. Passive and active electrical copper cables support shorter lengths, while active optical cables and Transceivers provide longer reach connectivity.
Multi-Fabric Connectivity The new Slingshot Transport Link Aggregation Group (ST LAG) feature allows both Ethernet and Slingshot traffic to flow across fabrics. It provides the flexibility to add HPE Slingshot interconnect 400 compute cabinets to an existing HPE Slingshot storage system, add 400G-based storage to an existing 200G compute fabric, and operate 400G-based on the compute and storage fabrics independently.
HPE Slingshot Fabric Management Suite, Monitoring Software, and AIOPS Software The Fabric Manager provides configuration, monitoring, control, and networking functions across the HPE Slingshot interconnect 400 network. It runs on standard HPE ProLiant servers and connects to switches using the cluster's out-of-band management network. The Monitoring Software is designed to monitor the fabric's overall health. The AIOPS Software is an advanced analytics toolset leveraging telemetry data. It is designed to extract actionable insights and, as a result, to improve application and fabric performance. |
|
|
|
HPE Slingshot 400 switch offerings The HPE Slingshot 400 switches are designed from the silicon-level up for the highest throughput, performance and reliability while minimizing queueing latency. Optimizations on links between switches reduce packet overheads and eliminate end-to-end timeouts and retransmissions that otherwise hinder use of Ethernet for latency-sensitive HPC and AI applications. Meanwhile, adaptive routing and congestion control between switches ensure bandwidth is used extremely efficiently. The product family includes two switch models: a multipurpose Top-of-Rack (ToR) and a blade for HPE Cray EX platforms

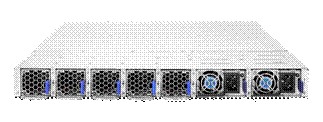

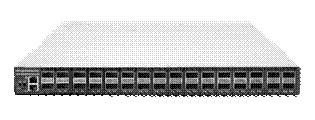

The ToR exposes 64 400 Gbps ports via 32 QSFP double density (QSFP-DD) connectors in a 1U 19" standard rack-mount form factor chassis. Ports can be configured to connect to other HPE Slingshot switches, to edge routers including select HPE or 3rd party enterprise Ethernet switches, and to supported NICs. Redundant N+1 hot swappable power supplies and fans ensure availability. Management and monitoring operations utilize the cluster's out-of-band management network. | ||
|
| ||
|
The 1U full-width direct liquid-cooled blade switch for HPE Cray EX platform has 24 QSFP-DD connectors on the faceplate to connect 48 400 Gbps to other switches and/or Ethernet NIC ports, and 16 400 Gbps ports routed internally to compute endpoints though mezzanine NIC cards operating in the EX chassis. Management and monitoring operations utilize the out-of-band management network via HPE Cray EX cabinet manager. | ||
|
| ||
|
| ||
|
Ordering Information |
SKU | |
|
HPE Slingshot 4064 32xQSFP-DD 1U Switch |
R9Y96A | |
|
HPE Slingshot 4064EX 24xQSFP-DD Switch Blade |
R9Y97A | |
|
| ||
|
HPE Slingshot 400 NIC offerings The HPE Slingshot NICs accelerate HPC and AI performance and are also based on silicon designed by the HPE Cray team. They expose RDMA and HPC optimized features to software using the Libfabric software interface. MPI messages are transmitted over the same links as data traffic, and the NICs's MPI message matching offload capability frees up host memory bandwidth and CPU resources. The NIC reduces compute overhead for GPU-initiated communications by allowing the host CPU to set up operations that the GPU can trigger asynchronously. The efficient command-launch mechanism reduces latency by receiving and pipelining commands without reading host memory. And a reliable delivery mechanism detects packet loss and enables end-to-end retry in hardware to reduce software overhead.
The NICs deliver supercomputing-class performance at double the bandwidth of the previous generation on challenging latency-sensitive HPC codes without compromise while also running standard IP applications using native Ethernet IP protocols. Some HPE Slingshot fabric capabilities are extended to the NIC-to-switch port link when using the HPE Slingshot NIC versus industry standard NICs. This includes enhanced link resiliency and fine-grained flow control. The latter helps the automatic congestion apply stiff backpressure to the specific flow causing congestion which delivers granularity over backpressure to the entire port.
The ASIC is a dual-NIC device running 400 Gbps Ethernet links, and supports 32 lanes of Gen 5 PCIe. 400G Ethernet ports are based on 4 lanes of 100G PAM-4 that can also be configured as 4x50G PAM-4 and 4x25G NRZ for respective 200G and 100G port operations. It is available in form factors for HPE Cray EX, Cray XD and ProLiant platforms. HPE Cray XD and ProLiant nodes use the standard half-height half-length standup PCI form factor. This model has a single QSFP connector as it only makes use of 1 NIC port and 16 PCIe lanes. | ||
|
| ||
|
The mezzanine card for HPE Cray EX platform makes full advantage of the ASIC capacity and drives two Slingshot ports to the EX switch blade through Cray EX chassis' internal circuitry.
| ||
|
Ordering Information Consult HPE Slingshot interconnect 400 reference architecture information for supported host systems.
| ||
|
Description |
SKU | |
|
HPE Slingshot SA410S 400 GbE 1-port QSFP PCIe5 HHHL NIC |
R9Y95A | |
|
HPE Slingshot SA420M 400 GbE 2-port QSFP PCIe5 Mezzanine NIC |
R9Y94A | |
|
| ||
|
HPE Slingshot Fabric Management Suite The HPE Slingshot Fabric Management Suite provides the management, control, and network functions and is required to configure and operate the HPE Slingshot network. For large deployments it is recommended to install the software on a dedicated standard server that communicates with the switches via a 1 or 10 Gbps management network. It may also be installed on a virtual machine on a shared server, or on a shared server as a container. In the latter case, the Fabric Manager installation file contains all required podman-based packages to make the software deployment trivial for the administration. The Fabric Management Suite supports comprehensive health checking, monitoring and logging, performance profiling, and diagnostics that assure high performance with high availability and effective operational processes. Event, error, and counter data is gathered from all the switches in the network. Open documented APIs and a scriptable command line interface allow for integration with cluster management and network monitoring tools. All of these APIs support AuthN based on client certificates. The separation of data and control of planes allows for the independent reliable data transfers and management operations. All network management traffic is encrypted with switch-based certificates. Scaling, efficiency, and performance of management and operations are achieved via a hierarchical distributed control plane design. Multiple Fabric Management Suite nodes can optionally operate in an Active/Standby mode to deliver a high-availability configuration. | |||||||||||||||||||
|
| |||||||||||||||||||
|
Ordering Information Consult HPE Slingshot interconnect 400 reference architecture information for current details on supported host systems and recommended configurations. | |||||||||||||||||||
|
Description |
SKU | ||||||||||||||||||
|
HPE Slingshot Fabric Manager E-RTU |
R6M77AAE | ||||||||||||||||||
|
HPE Slingshot Fabric Manager FIO Software |
R6M78A | ||||||||||||||||||
|
| |||||||||||||||||||
|
HPE Slingshot Monitoring Software and HPE Slingshot AIOps Software The HPE Slingshot Monitoring Software (SMS) is designed to generate real-time insights, offering a quick and clear synthesis of the fabric's overall health. Real-time notifications allow customers to identify key issues on easy-to-read dashboards. They reduce root cause identification time and manual troubleshooting. End users can improve or maintain fabric utilization, ensuring all components operate optimally while swiftly detecting and resolving any degradation or failures. Slingshot Monitoring Software is available at no cost for Slingshot Customers. The HPE Slingshot AIOps Software is an advanced analytics toolset aimed at managing complex HPE Slingshot Fabric challenges with advanced analytics techniques. Developed to address the quantity of telemetry data collections, it leverages advanced analytics to extract actionable insights, empowering system administrators to improve application and fabric performance. By continuously monitoring application and fabric performance the software enables administrators to act before any business impact, implement rapid remediation techniques when possible, and divert resources to boost ROI. For information about licensing please refer to the related Slingshot AIOps QuickSpecs. Both HPE Slingshot Monitoring Software and HPE Slingshot AIOps Software rely on HPE Performance Cluster Manager (HPCM) to collect Slingshot telemetry. HPCM version 1.12 or higher is required. | |||||||||||||||||||
|
Ordering Information Consult HPE Slingshot interconnect 400 reference architecture information for current details on supported host systems and recommended configurations.
For customers requiring a "standalone" Slingshot monitoring telemetry node, a single HPCM license is sufficient. One perpetual license per node includes three years of support. Electronic and paper license options are available. The software will continue working even when the support term ends. For customers with existing, separately purchased HPCM, no additional HPCM license is required to enable SMS.
| |||||||||||||||||||
Slingshot AIOps requires additional term licenses. It should be quoted per network endpoint connected to the Slingshot fabric.
HPE Slingshot 400 Cables HPE validates HPE Slingshot 400 cables to ensure reliability and performance running up to 400 Gbps with the switch and supported adapters. Because HPE Slingshot 400 switches use double density connectors, each QSFP-DD cable-end carries two 400 Gbps links, reducing the total cable count to deploy. HPE offers Passive Electrical Copper (PEC), Active Electrical Copper (AEC), and Active Optical (AOC) cables with various lengths. This generation also introduces transceiver modules to be deployed with passive optical fiber cables. There is no restriction for support of passive cables on any jack of the ToR switch or the EX switch blade. There are likewise no restrictions for supporting active electrical or optical cables on any jack of the ToR switch. However, the EX switch blade supports AOCs on the top row only and up to 9 jacks, while simultaneously supporting up to 10 AECs on the bottom row. And SR8 transceiver is not supported on the EX blade, and can only be used in jacks 1, 2, 31 and 32 of the ToR switch. Consult configuration guides for specific interoperability guidelines that must be followed for proper operation.
| |||||||||||||||||||
|
| |||||||||||||||||||
|
Ordering Information Consult HPE Slingshot interconnect 400 reference architecture information for current details on supported host systems and recommended configurations.
|
|
HPE Services No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.HPE.com/services |
|
|
|
Consulting Services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.HPE.com/services/consulting |
|
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE |
|
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.HPE.com/services/operational |
|
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides: - A complete coverage approach -- edge to cloud - An assigned HPE team - Modular and fully personalized engagement - Enhanced Incident Management experience with priority access - Digitally enabled and AI driven customer experience https://www.HPE.com/services/completecare |
|
|
|
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.HPE.com/services/techcare |
|
|
|
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include: - Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system. - HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment. - HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment. - Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums. - HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices. Notes: To review the list of Lifecycle Services available for your product go to:
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu |
|
|
|
Other Related Services from HPE Services: HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.HPE.com/services/training |
|
HPE Slingshot eLearning and (face-to-face or virtual) instructor-led training from HPE Education Services enables product adoption and reduces risks with new technology deployment. The simplest way to add training to any quote is to use HPE Education Learning Credits (H33XSA1 or H33XSE) where credits can be combined for multiple courses, multiple days, and multiple students, including the following learning path: - HPE Slingshot Hardware (H38BMAAE) eLearning. Discusses unique features, hardware components, and topologies - HPE Slingshot Foundation (H41BDAAE) eLearning. Provides foundational knowledge of functionality, implementation, and underlying technologies. - HPE Slingshot Fabric Manager Administration (H41KMS) instructor-led. Hands-on training focused on fabric manager commands, configuration, diagnostics, and troubleshooting. Schedule training in a way that works best for your business with flexible continuous learning options including HPE Digital Learner subscriptions.
For more information on the entire HPE HPC/Cray training portfolio - www.HPE.com/ww/learnHPC
|
|
Defective Media Retention An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. |
|
|
|
How to Purchase Services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners: - Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools. - Customers purchasing from a commercial reseller can find services at https://ssc.HPE.com/portal/site/ssc/ |
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience
Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent. https://support.HPE.com/hpesc/public/home/signin |
|
|
|
Consume IT On Your Terms GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world. - Get faster time to market - Save on TCO, align costs to business - Scale quickly, meet unpredictable demand - Simplify IT operations across your data centers and clouds To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.HPE.com/us/en/contact-HPE.html
For more information http://www.HPE.com/services |
|
|
|
HPE Slingshot interconnect 400 components are available in multiple form factors for different standalone and chassis-based solutions. While large network deployments with HPE Cray EX are typically custom tuned to achieve best price/performance, small and midsize clusters with HPE Cray XD and ProLiant can be ordered with off-the-shelf offerings. HPE strongly recommends HPE supplied rack-level integration of HPE Slingshot-based clusters. Please contact your Hewlett Packard Enterprise representative for requirements to configure the solution correctly and for recent additions and details on supported configurations. |
|
|
|
Single-switch use Even though the HPE Slingshot interconnect technology is built to implement the largest high-performance computing machines in the world, it is also suitable for the smallest compute environments. A single top-of-rack switch (R9Y96A) can simply sit in a standard 19" rack and connect up to 64 processors and accelerators. |
|
| ||||||||||||||||||||||||||||||||||||||||||||||
|

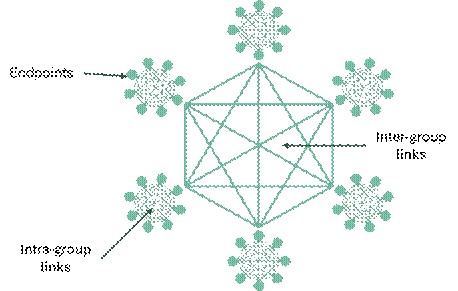

All-to-all Topology HPE Slingshot 400 supports "dragonfly" network topologies that ensure great bandwidth using low-cost electrical links for most of the connections. Ports on every switch are configured either as downlinks that connect to server endpoints, "intra-group" links that connect to other switches in the dragonfly group, and "inter-group" links (or "global" links) that connect each group to all the other groups. All endpoints are networked with a maximum of 3 switch hops.
Group size is chosen based on factors such as the maximum system size, the desired scalable unit(s) for building and expanding the cluster, density and rack size impact to the economic tradeoffs between switches and optical cables, and preferences such as physical grouping, placement of resources, and cable routing policies.
Single all-to-all group: 17 switches, with 32 endpoints attached to each, can be connected together with dual-density cables for a total of up to 544 endpoints 33 switches, with 32 endpoints attached to each, can be connected together with single-density links for a total of up to 1,056 endpoints
Two-level all-to-all: In order to build very large clusters, only 16 endpoints may be attached to each switch. It is common to form groups of 16 switches connected in all-to-all fashion with dual-density cables. In this scenario, 9 dual-density cables are theoretically available per switch for global links. Up to 145 groups can be networked together, with 256 endpoints each for a total of 37,120 endpoints. The same idea can be applied to form groups of 32 switches with single-density all-to-all links. With 16 endpoints attached per switch, 18 single-density links would remain available per switch such that up to 577 groups can be networked together for a theoretical maximum number of 295,424 endpoints. | ||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||
|
Fat Tree Topology | ||||||||||||||||||||||||||||||||||||||||||||||
|

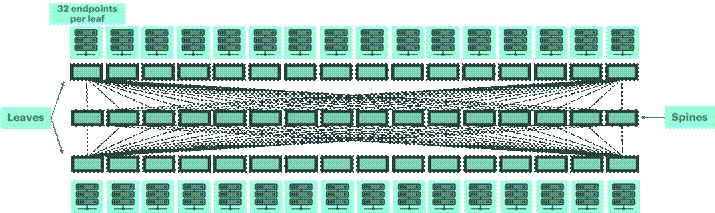

In Fat Tree or Clos topology every leaf switch can attach up to 32 endpoints. The 16 dual-density uplinks can connect to 16 different spine switches. Using a single 64-radix switch per spine allows to network 32 leaf switches and a total of 1,024 endpoints in a simple 2-Tier architecture.
It is possible to build larger 3-Tier Fat Trees with multi-chip switch complexes or with a Middle-of-Row complex. Please check with your sales representative for availability and software support. HPE Slingshot interconnect 400 for Cray XD and ProLiant clusters Deployments with Cray XD and ProLiant may implement Fat Tree or Dragonfly topologies. It is possible to build an entire supercomputing fabric with the HPE Slingshot 400 switch R9Y96A and the HPE Slingshot 400 NIC R9Y95A models along with cables for each NIC-to-Switch and Switch-to-Switch link. Please refer to this link to identify HPE Cray XD and ProLiant server nodes supporting the HPE Slingshot 400 NIC R9Y95A HPE Slingshot interconnect 400 for Cray EX supercomputers Deployments with Cray EX supercomputers implement the Dragonfly topology. In Cray EX cabinets, the HPE Slingshot 400 NIC R9Y94A model connects to the HPE Slingshot 400 switch blade R9Y97A.
The following L0 cables need to be configured for the NIC to switch connectivity through the EX cabinets. Cables are specific to the HPE Cray EX server nodes:
The following L1 convenience cable kits need to be configured for switch-to-switch all-to-all connectivity with EX4000 and EX2500 cabinets:
Please refer to the HPE Cray EX QuickSpecs for further details. Interoperability with HPE Slingshot and Multi-Fabric Connectivity HPE Slingshot 400 is interoperable with previous generation switches and NICs at 200 Gbps per link. For cabling recommendations please refer to the Supplemental Configuration and Integration Guidelines for Slingshot 400
For the new Slingshot Transport LAG feature and its use cases please refer to the Configuration Guide - HPE Slingshot - Multi Fabric Support and Connectivity application note. Edge router Interoperability HPE Slingshot 400 switches are validated with select HPE Networking and third-party enterprise Ethernet switch routers for connectivity between the HPE Slingshot cluster and external Ethernet networks without use of gateway nodes. Please refer to the Supplemental Configuration and Integration Guidelines for Slingshot 400 for a list of supported edge routers.
|
|
Common Features This section describes HPE Slingshot interconnect 400 common specifications available on any HPE Cray EX, Cray XD and ProLiant platforms
HPE Slingshot interconnect 400 for Cray XD and ProLiant Clusters
HPE Slingshot interconnect 400 for Cray EX
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Date |
Version History |
Action |
Description of Change |
|
20-Apr-2026 |
Version 2 |
Changed |
Added eLearning offering links in HPE Education Services section |
|
02-Mar-2026 |
Version 1 |
New |
New QuickSpecs |
|
|
|
