HPE SGI 8600 System The HPE SGI 8600 System is a liquid cooled, tray-based, high-density clustered computer system designed from the ground up to deliver the utmost in performance, scale, and density. The basic building block of the HPE SGI 8600 System is the E-cell. The E-cell consists of two 42U high E-racks which are separated by a cooling rack. The E-cell is a sealed unit, uses closed-loop cooling technology, and does not exhaust heated air into the data center. A direct attached liquid cooled "cold sink" provides for efficient heat removal from high power devices including processors, GPUs, and switches via an auxiliary cooling distribution unit (CDU). |
|
|
|

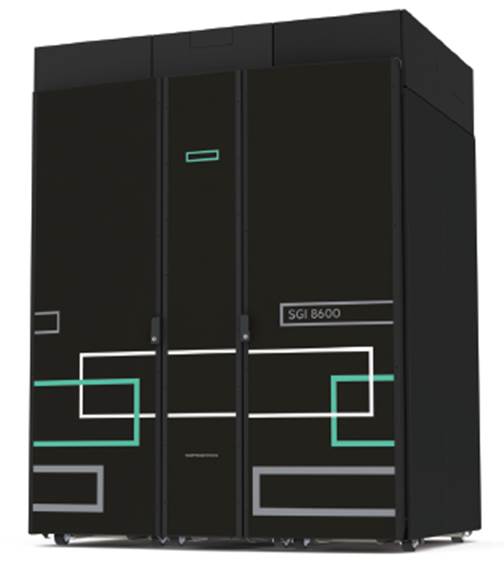

HPE SGI 8600 E-cell - Closed and With Trim |
|
|
|
|
|

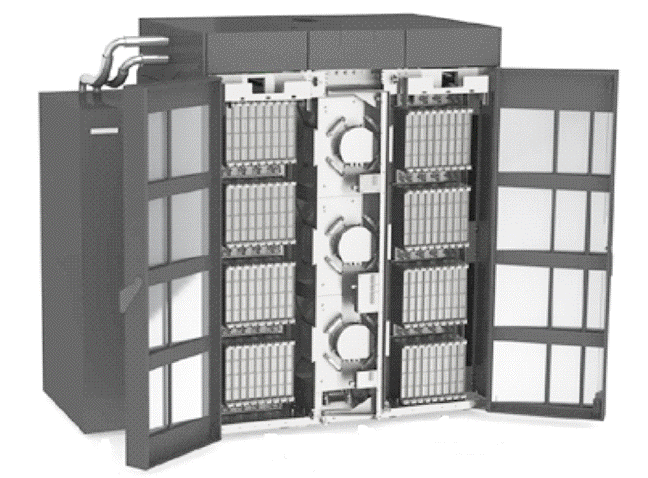

HPE SGI 8600 E-cell with CDU- Open and Without Cooling Rack Trim |
|
|
|
Each E-rack contains up to four compute enclosures which provide power, cooling, system control, and network fabric for up to nine compute trays. An E-Cell therefore can contain up to 72 compute trays. An integrated midplane between compute trays and fabric switches delivers cableless infrastructure inside the enclosure. |
|
|
|
E-Rack Detail A single E-rack can accommodate up to 36 compute tray slots within four compute enclosures. The E-rack is not configured with any cooling fans. All the cooling needs for the E-rack are provided by the cooling rack. This approach to cooling provides greater efficiency for the rack-level cooling, decreases power costs associated with cooling (fewer blowers) and utilizes a single water source for two racks. The custom-designed 42U-high E-rack supports both indirect and direct cooling methods. The indirect method is where the conditioned air supplied by the cooling rack provides the cooling to the components in the E-rack. This method can be used for configurations that require a lower level of heat removal. The direct method is the addition of liquid-cooled cold sinks to the processors in the compute trays. This method is used in parallel with the indirect cooling when the indirect cooling method is not sufficient to remove all of the heat from the E-rack. One 42U high, 60cm wide E-rack supports the following:
|
|
|
|
Compute Enclosure Detail The compute enclosure is a 10.5U high chassis assembly that provides power, cooling, system control, and network fabric for up to nine compute tray slots via a midplane. A maximum of four enclosures can be placed in a single 42U high E-rack. The features of the compute enclosure are as follows:
|
|
|
Standard Features
|
Server Trays Server trays have three basic sections: computation, memory, and I/O expansion and consume one tray slot in the compute enclosure. The following three server trays are designed for the HPE SGI 8600 System: | |
|
| |
|
HPE XA730i "Saxon"- Quad Node The features of this server tray are as follows
- Support for full Intel® Xeon® Processor Scalable family SKU stack - Support for Intel® Cascade Lake Refresh Processors
- Up to 128 GB DIMMs (1.54 TB/node) at up to 2933 MT/s
- Mellanox Connect-IB (FDR) - Mellanox ConnectX-5 (EDR) - Intel Omni-Path (OPA1)
- Up to (2) 2.5 inch SATA HDD/SSD - (1) HDD/SSD and (1) x16 PCIe slot
|
|
|
| |
|
HPE XA780i "Plainfield" - Single Node with NVidia SXM2 The features of this server tray are as follows:
- Support for full Intel® Xeon® Processor Scalable family SKU stack - Support for Intel® Cascade Lake Refresh Processors
- Up to 128GB DIMMs (1.54TB/node) at up to 2933 MT/s - Two DIMM slots reserved for Intel 3D XPoint Support (when available)
- Mellanox Connect-IB (FDR) - Mellanox ConnectX-5 (EDR) - Intel Omni-Path (OPA1)
- Up to (4) 2.5 inch SATA HDD/SSD - Two or four NVIDIA SXM2 Pascal GPUs with NVLink
|
|
|
| |
|
HPE XA760i "Kendall" - Quad Node The features of this server tray are as follows:
- Up to 64GB DIMMs (384GB/node) at up to 2400 MT/s
- Mellanox Connect-IB (FDR) - Mellanox ConnectX-5 (EDR) - Intel Omni-Path (OPA1)
- Up to (4) 2.5 inch SATA HDD/SSD
|
|
|
|
|
|
Switch Enclosure The switch enclosure is 10.5U high and is mounted to the rear of the compute enclosure. The purpose of the switch enclosure is to provide a structure for mounting the switch blades and CMC to the compute enclosure. The switch enclosure supports a maximum of four switch blades. |
|
|
|
|
|
The following Switch blade types are supported
The Standard FDR and EDR switch have a single 36-port ASIC with 18 ports connecting to compute nodes and 18 ports for connecting to external targets. The Premium FDR and EDR switch has two 36-port ASICS with nine ports from each ASIC connecting to compute nodes and 18 ports from each ASIC for connecting to external targets. The additional ports routed to the bulkhead on the premium switch enable richer fabric across the system versus the standard switch. The 48-port Intel Omni-Path standard switch blade contains a single 48-port Intel Omni-Path switch ASIC from Intel. Eighteen ports of the ASIC connect to the compute trays in the enclosure, and the other thirty ports connect to externally mounted QSFP ports. |
|
|
|
|
|
The following mezzanine card types are supported
Single port mezzanine cards are used for single-plane topologies and are a cost reduced and lowest performance mezzanine card. Dual port mezzanine cards with one ASIC is a higher performance FDR and EDR option for customers that want a dual-plane topology. It is the highest performance Omni-Path option as it is connected to the compute node via two x16 Gen3 PCIe channels of the Wolf River ASIC. Dual port EDR mezzanine cards with two ASIC are the highest performance EDR option as it is connected to the compute node via two x16 Gen3 PCIe channels. |
|
|
|
|
|
Topology There are four topologies supported in the HPE SGI 8600: All-to-All, Hypercube, Enhanced Hypercube and Fat tree. The chart below provides a high level depiction of each topology including a summary of their use cases.
| ||||||||||||
|
|
|
Cooling Tower One cooling rack is required for every two E-racks in a full E-cell. In a full E-cell the cooling rack is positioned between two E-racks. Notes: A half E-cell is supported. A half E-cell consists of one E-rack (the left side E-rack) and a cooling rack.
The cooling rack has three large blowers that pull conditioned air from the front of the E-rack to the rear (this is a suction based system). In a standard configuration, the cooling rack has a maximum cooling capacity of approximately 72 kW. The input fluid temperature range is between 5 and 32 degrees C non-condensing. |
|
|
|
The mechanical dimensions, weight, and power of the cooling rack are as follows:
|
|
|
|
CDU (Cooling Distribution Unit) The cooling distribution unit (CDU) is a liquid-to-liquid heat exchanger that is used to remove heat from processors, network ASICs, and GPU ASICs via cold sinks. The CDU uses a secondary loop to circulate a heat transfer liquid to the cold sinks. The heat captured in the secondary loop is transferred to the facilities primary loop via a liquid-to-liquid heat exchanger. The CDU is designed to circulate and control the heat transfer fluid to the manifolds that are in each enclosure in the E-rack. The CDU is rated for 305kW (1040.6 BTU/H) of cooling. One CDU supports a maximum of four E-racks (two E-cells). The CDU consists of a cabinet that includes a heat exchanger, circulating pump(s), control valve, sensors, controller, valves, and piping. The CDU monitors room conditions and prevents condensation by maintaining the secondary loop at a temperature above the room's dew point. All functions, such as switching pumps (if applicable), controlling water temperature, etc., are managed by the controller using user defined settings. |
|
|
|
Software Stack Hewlett Packard Enterprise offers customers complete software stack for HPE SGI 8600 so they can choose the right mix of software solutions to fit their needs - from system software to application and software development tools. |
|
|
|
Operating systems
|
|
|
|
Fabric software
|
|
|
|
System management HPE Performance Cluster Manager - complete integrated cluster management software for all HPE HPC clusters offering: system setup, hardware monitoring and management and cluster health management, image management and software updates as well as power management. The software also integrates with leading HPC ISV and open source software solutions. |
|
|
|
Workload Management and Orchestration
|
|
|
|
Software Development Tools (Programming languages,debuggers, libraries)
|
|
|
|
Remote Visualization NICE DCV & EnginFrame |
|
|
|
For more information about software solutions for HPE SGI 8600 visit: https://www.hpe.com/global/h22150/50272cbe-0563-4ed5-8f07-1ff0ecf06b88/index.html/ |
|
|
Service and Support
|
HPE Services No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
|
|
Consulting Services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting
|
|
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational
|
|
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare
|
|
|
|
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
|
|
|
|
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
Notes:
To
review the list of Lifecycle Services available for your product go
to: For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
|
|
|
|
Other Related Services from HPE Services: HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
|
|
|
Defective Media Retention An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. |
|
|
|
How to Purchase Services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent. https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT On Your Terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information http://www.hpe.com/services |
|
|
Technical Specifications
|
HPE SGI 8600 System E-Rack | |
|
Dimensions |
89.6 x 24 x 48 in (H x W x D) 227.58 x 60.96 x 121.92 cm (H x W x D) |
|
Compute tray enclosure |
Up to four compute tray enclosures per rack with integrated compute trans, switches, and power Up to 8 + 1 redundant 3000W power supplies per compute tray enclosure |
|
Cooling |
Closed-loop airflow with direct liquid cooling for high wattage components and room neutral up to 32°C data center supply water. |
|
Compute Tray Options - HPE XA730i Gen10 Server | |
|
Form factor |
HPE XA730i is a single-slot tray for the HPE SGI 8600 System compute enclosure assembly |
|
Processors |
Intel Xeon Processor Scalable Family (support for full SKU stack); Intel Cascade Lake Refresh |
|
Compute nodes/Tray |
Four 2-socket CPU nodes |
|
Memory/Node |
Up to 1536 GB per node, 12 DIMM slots (6 per CPU socket) per node |
|
Memory technology |
8, 16, 32, 64, and 128 GB DDR4 2933 MT/s ECC Registered DIMMs |
|
Extension space options (per node) |
Up to (2) 2.5" SATA HDD/SSD (1) HDD/SSD and (1) x16 low profile PCIe slot |
|
Fabric options (via Mezzanine Card) (per node) |
Single or dual port Mellanox Connect-IB (FDR) Single or dual port Mellanox ConnectX-5 (EDR) Single or dual port Intel Omni-Path |
|
HPE XA780i Gen10 Server | |
|
Form factor |
HPE XA780i is a single-slot tray for the HPE SGI 8600 System compute enclosure assembly |
|
Processors |
Intel Xeon Processor Scalable Family; Intel Cascade Lake Refresh |
|
Compute nodes/Tray |
One 2-socket CPU node |
|
Memory/Node |
Up to 1536 GB per node, 14 DIMM slots (8 per CPU socket) per node |
|
Memory technology |
8, 16, 32, 64, and 128 GB DDR4 2933 MT/s ECC Registered DIMMs |
|
GPU options |
Up to 4 NVIDIA Tesla for SXM2 GPUs with NVLink |
|
Extension space options (per node) |
Up to 4 SSD per node |
|
Fabric options (via Mezzanine Card) (per node) |
Up to 4 high-speed connections per node (Mellanox Connect-IB [FDR], Mellanox ConnectX-5 [EDR], or Intel Omni-Path) |
|
HPE XA760i Server | |
|
Form factor |
HPE XA760i is a single-slot tray for the HPE SGI 8600 System compute enclosure assembly |
|
Processors |
Intel Xeon Phi Processor; Intel Cascade Lake Refresh |
|
Compute nodes/Tray |
Four 1-socket CPU nodes |
|
Memory/Node |
Up to 1536 GB per node, 12 DIMM slots (6 per CPU socket) per node |
|
Memory technology |
8, 16, 32, 64, and 128 GB DDR4 2400 MT/s ECC Registered DIMMs |
|
Extension space options (per node) |
Up to (2) 2.5 inch SATA HDD/SSD |
|
Fabric options (via Mezzanine Card) (per node) |
Single or dual port Mellanox Connect-IB (FDR) Single or dual port Mellanox ConnectX-5 (EDR) Single or dual port Intel Omni-Path |
|
Integrated Switch Options | |
|
Standard InfiniBand |
Single 36-port FDR or EDR InfiniBand switch with 18 ports external |
|
Premium InfiniBand |
Dual 36-port FDR or EDR InfiniBand switch with 36 port external |
|
Intel Omni-Path |
Single 48-port Intel Omni-Path switch with 30 ports external |
|
System Software | |
|
Operating systems |
SUSE Linux Enterprise Server 12, 15 Red Hat Enterprise Linux 7, 8 CentOS 7, 8 TOSS 7 |
|
Fabric software |
Mellanox UFM Intel Omni-Path Fabric Software |
|
HPE management |
HPE Performance Cluster Manager - complete integrated cluster management software for all HPE HPC clusters offering: system setup, hardware monitoring and management and cluster health management, image management and software updates as well as power management. The software also integrates with leading HPC ISV and open source software solutions. |
|
Workload Management and Orchestration |
Altair® PBS Professional Slurm Workload Manager Containers: Singularity & Docker Kubernetes |
|
Software Development Tools (Programming languages, debuggers, libraries) |
HPE Message Passing Interface (MPI) Open MPI PGI Compilers Intel® Parallel Studio XE (w/Intel® MPI) PGI® Professional Edition GNU Compiler Collection Rogue Wave Software® TotalView® Arm® Forge Professional Mellanox HPC-X OpenHPC NVIDIA CUDA Toolkit, OpenCL, OpenACC |
|
Remote Visualization |
NICE DCV & EnginFrame |
For more information on software portfolio for HPE SGI 8600 systems, visit:https://www.hpe.com/global/h22150/50272cbe-0563-4ed5-8f07-1ff0ecf06b88/index.html/ | |
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
04-Dec-2023 |
Version 9 |
Changed |
HPE Services Rebranding |
|
15-Nov-2021 |
Version 8 |
Changed |
Service and Support section was updated. |
|
24-Feb-2020 |
Version 7 |
Changed |
Update processors for server trays Update table on page 13 Standard Features and Technical Specification sections were updated. |
|
07-Oct-2019 |
Version 6 |
Changed |
Standard Features section was updated |
|
15-Apr-2019 |
Version 5 |
Changed |
Standard Features and Technical Specification sections were updated. |
|
04-Sep-2018 |
Version 4 |
Changed |
Technical Specifications was updated. |
|
10-Oct-2017 |
Version 3 |
Changed |
Update verbiage in some sections |
|
24-Jul-2017 |
Version 2 |
Changed |
Update sections throughout the QuickSpecs |
|
11-Jul-2017 |
Version 1 |
New |
New QuickSpecs |
