Motivair Liquid Cooled Doors

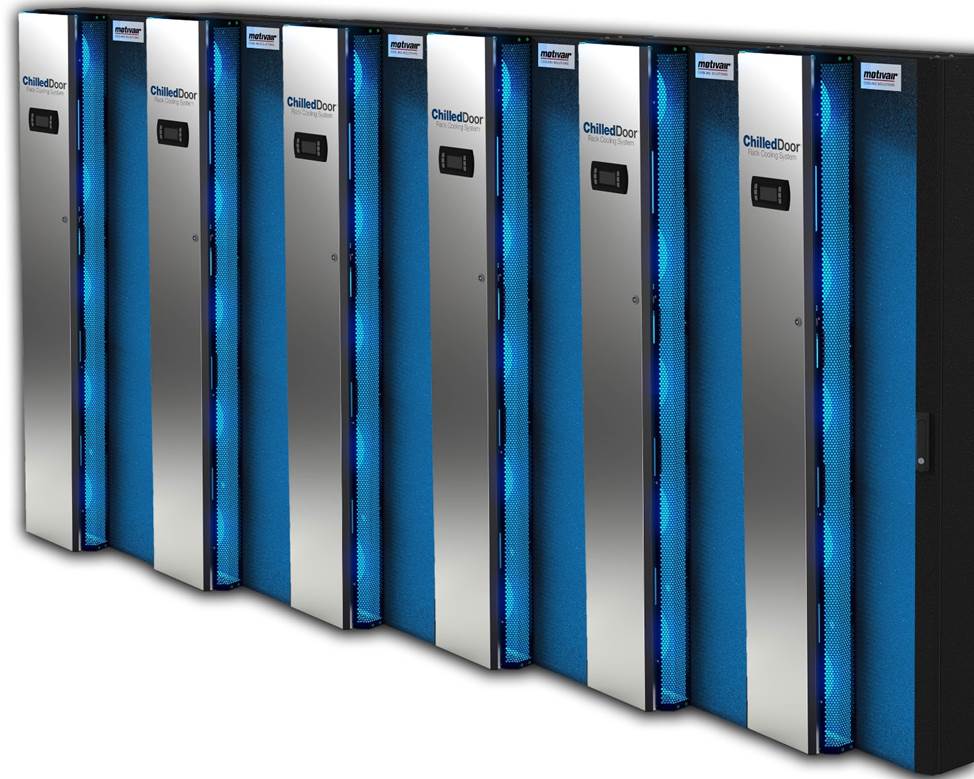

Motivair Liquid Cooled Doors, or Rear Door Heat Exchangers (RDHX) is a liquid to air heat exchanger cooling system that removes the high levels of heat generated by today's servers, mass storage, and core networking hardware. It is mounted directly to the rear panel of HPE racks. RDHX are compatible with 42U or 48U racks with a range of IT capacity when used under certain load and site conditions.

RDHX are designed to complement any new or existing datacenter by enabling computing power growth without adding to the heat load in the datacenter.

Air flow of RDHX fully supports industry-standard front-to-back cooling designs and standard server dimensions.  Hot air exiting the rear of the servers is neutralized as the air is cooled down via the coils in the RDHX.  It can connect directly to facility water feed or to a CDU depending on the dewpoint temperature of the datacenter room. Top or bottom liquid feed options are supported. Mural graphics on the Doors are also supported. RDHX can also be deployed with Direct Liquid Cooling (DLC) to increase the percentage of heat capture to water, meeting room-neutral requirements.

RDHX with 42U or 48U Rack Options

Key Features

General Solution

• Liquid to air heat exchanger cooling system attached to back of a standard IT rack
• Hot air exhaust from the server moves through cooling coils to remove the heat

Cooling Capacity (kW per rack)*

• M8: 5-17kW
• M12: 14-35kW
• M14: 35-55kW
• M16: 55-75kW (Only Available in 48Ux800mm)

*See RDHX Site Planning Guide for additional information and specifications

Water

• Accommodates facility water temperatures 2° C (4F) above maximum anticipated dew point
• Accommodates water pressure between 25 and 100 psi (172 - 689 kpa)
• For water temperatures at or below the dewpoint, a Cooling Distribution Unit (CDU) will be required to create a secondary warmer water loop to supply the doors

Power

• Input power support for 208V / 230V / 277V (1-phase)

Flexibility

• HPE Apollo 42U or 48U racks for IT equipment are supporting shipping of fully integrated rack solutions (HPE Factory Express or Partner rack integration) as these are delivered on shock pallet
• Underfloor and overhead plumbing capabilities
• Full services offering available, including planning, deployment and maintenance

Agency Certifications

• ETL, CSA, CE Certified

Each Motivair door SKU includes

• One external 2-way control valve & actuator assembly
• One external flow meter
• All cabling to connect external controls to door

For 42U 600mm HPE G2 Racks (Rack SKU P9K10A)

Motivair M8 42U 600mm G2 Rack 208-230V Top Feed NA Rear Door Heat Exchanger

R7N53A

Motivair M8 42U 600mm G2 Rack 208-230V Bottom Feed NA Rear Door Heat Exchanger

R7S23A

Motivair M8 42U 600mm G2 Rack 208-230V Bottom Feed EU Rear Door Heat Exchanger

R7S24A

Motivair M8 42U 600mm G2 Rack 208-230V Top Feed EU Rear Door Heat Exchanger

R7N56A

Motivair M12 42U 600mm G2 Rack 208-230V Top Feed NA Rear Door Heat Exchanger

R7N59A

Motivair M12 42U 600mm G2 Rack 208-230V Top Feed EU Rear Door Heat Exchanger

R7N62A

Motivair M12 42U 600mm G2 Rack 208-230V Bottom Feed NA Rear Door Heat Exchanger

R7S25A

Motivair M12 42U 600mm G2 Rack 208-230V Bottom Feed EU Rear Door Heat Exchanger

R7S26A

Motivair M14 42U 600mm G2 Rack 260-290V Bottom Feed NA Rear Door Heat Exchanger

R4N05A

Motivair M14 42U 600mm G2 Rack 260-290V Top Feed NA Rear Door Heat Exchanger

R4N06A

Motivair M14 42U 600mm G2 Rack 208-230V Bottom Feed Rear Door Heat Exchanger

R4M97A

Motivair M14 42U 600mm G2 Rack 208-230V Top Feed Rear Door Heat Exchanger

R4M98A

For 42U 800mm HPE G2 Racks (Rack SKU P9K48A)

Motivair M8 42U 800mm G2 Rack 208-230V Bottom Feed NA Rear Door Heat Exchanger

R7N54A

Motivair M8 42U 800mm G2 Rack 208-230V Top Feed NA Rear Door Heat Exchanger

R7N55A

Motivair M8 42U 800mm G2 Rack 208-230V Bottom Feed EU Rear Door Heat Exchanger

R7N57A

Motivair M8 42U 800mm G2 Rack 208-230V Top Feed EU Rear Door Heat Exchanger

R7N58A

Motivair M12 42U 800mm HPE G2 Rack 208-230V Bottom Feed NA Rear Door Heat Exchanger

R7N60A

Motivair M12 42U 800mm G2 Rack 208-230V Top Feed NA Rear Door Heat Exchanger

R7N61A

Motivair M12 42U 800mm G2 Rack 208-230V Bottom Feed EU Rear Door Heat Exchanger

R7N63A

Motivair M12 42U 800mm G2 Rack 208-230V Top Feed EU Rear Door Heat Exchanger

R7N64A

Motivair M14 42U 800mm G2 Rack 208-230V Top Feed Rear Door Heat Exchanger

R4N00A

Motivair M14 42U 800mm G2 Rack 260-290V Bottom Feed NA Rear Door Heat Exchanger

R4N07A

Motivair M14 42U 800mm G2 Rack 260-290V Top Feed NA Rear Door Heat Exchanger

R4N08A

Motivair M14 42U 800mm G2 Rack 208-230V Bottom Feed Rear Door Heat Exchanger

R4M99A

For 48U 600mm HPE G2 Racks (Rack SKU P9K52A)

Motivair M12 48U 600mm G2 Rack 208-230V Top Feed NA Rear Door Heat Exchanger

R9R27A

Motivair M12 48U 600mm G2 Rack 208-230V Top Feed EU Rear Door Heat Exchanger

R9R28A

Motivair M12 48U 600mm G2 Rack 208-230V Bottom Feed NA Rear Door Heat Exchanger

R9R29A

Motivair M12 48U 600mm G2 Rack 208-230V Bottom Feed EU Rear Door Heat Exchanger

R9R30A

Motivair M12 48U 600mm G2 Rack 260-290V Top Feed NA Rear Door Heat Exchanger

R9R31A

Motivair M12 48U 600mm G2 Rack 260-290V Bottom Feed NA Rear Door Heat Exchanger

R9R32A

Motivair M14 48U 600mm G2 Rack 208-230V Top Feed Rear Door Heat Exchanger

R9R33A

Motivair M14 48U 600mm G2 Rack 208-230V Bottom Feed Rear Door Heat Exchanger

R9R34A

Motivair M14 48U 600mm G2 Rack 260-290V Top Feed NA Rear Door Heat Exchanger

R9R35A

Motivair M14 48U 600mm G2 Rack 260-290V Bottom Feed NA Rear Door Heat Exchanger

R9R36A

For 48U 800mm HPE G2 Racks (Rack SKU P9K58A)

Motivair M8 48U 800mm G2 Rack 208-230V Top Feed NA Rear Door Heat Exchanger

R8D54A

Motivair M8 48U 800mm G2 Rack 208-230V Bottom Feed NA Rear Door Heat Exchanger

R8D55A

Motivair M8 48U 800mm G2 Rack 208-230V Top Feed EU Rear Door Heat Exchanger

R8D56A

Motivair M8 48U 800mm G2 Rack 208-230V Bottom Feed EU Rear Door Heat Exchanger

R8D57A

Motivair M12 48U 800mm G2 Rack 208-230V Top Feed NA Rear Door Heat Exchanger

R9R37A

Motivair M12 48U 800mm G2 Rack 208-230V Top Feed EU Rear Door Heat Exchanger

R9R38A

Motivair M12 48U 800mm G2 Rack 208-230V Bottom Feed NA Rear Door Heat Exchanger

R9R39A

Motivair M12 48U 800mm G2 Rack 208-230V Bottom Feed EU Rear Door Heat Exchanger

R9R40A

Motivair M12 48U 800mm G2 Rack 260-290V Top Feed NA Rear Door Heat Exchanger

R9R41A

Motivair M12 48U 800mm G2 Rack 260-290V Bottom Feed NA Rear Door Heat Exchanger

R9R42A

Motivair M14 48U 800mm G2 Rack 208-230V Top Feed Rear Door Heat Exchanger

R9R43A

Motivair M14 48U 800mm G2 Rack 208-230V Bottom Feed Rear Door Heat Exchanger

R9R44A

Motivair M14 48U 800mm G2 Rack 260-290V Top Feed NA Rear Door Heat Exchanger

R9R45A

Motivair M14 48U 800mm G2 Rack 260-290V Bottom Feed NA Rear Door Heat Exchanger

R9R46A

For 42U 600mm Heavy Racks (Rack SKU R4L97A)

Motivair M8 42U 600mm Heavy Rack 208-230V Bottom Feed NA Rear Door Heat Exchanger

R4M13A

Motivair M8 42U 600mm Heavy Rack 208-230V Bottom Feed EU Rear Door Heat Exchanger

R4M12A

Motivair M12 42U 600mm Heavy Rack 208-230V Bottom Feed EU Rear Door Heat Exchanger

R4M14A

Motivair M12 42U 600mm Heavy Rack 208-230V Bottom Feed NA Rear Door Heat Exchanger

R4M15A

Motivair M14 42U 600mm Heavy Rack 208-230V Bottom Feed Rear Door Heat Exchanger

R9R26A

For 48U 600mm Heavy Racks (Rack SKU R4M95A)

Motivair M12 48U 600mm x 1300mm Heavy Rack 208-230V Bottom Feed NA Rear Door Heat Exchanger

R9B89A

Motivair M12 48U 600mm Heavy Rack 208-230V Top Feed NA Rear Door Heat Exchanger

R7S28A

Motivair M12 48U 600mm Heavy Rack 208-230V Bottom Feed EU Rear Door Heat Exchanger

R7S29A

Motivair M12 48U 600mm Heavy Rack 208-230V Top Feed EU Rear Door Heat Exchanger

R7S30A

Motivair M14 48U 600mm Heavy Rack 208-230V Bottom Feed Rear Door Heat Exchanger

R4N01A

Motivair M14 48U 600mm Heavy Rack 208-230V Top Feed Rear Door Heat Exchanger

R4N02A

Motivair M14 48U 600mm Heavy Rack 260-290V Bottom Feed NA Rear Door Heat Exchanger

R4N09A

Motivair M14 48U 600mm Heavy Rack 260-290V Top Feed NA Rear Door Heat Exchanger

R4N10A

For 42U 750mm Heavy Racks (available on special request)

Motivair M12 42U 750mm Heavy Rack 208-230V Bottom Feed EU Rear Door Heat Exchanger

 R8D49A

Motivair M14 42U 750mm Heavy Rack 208-230V Bottom Feed Rear Door Heat Exchanger

 R8F27A

For 48U 750mm Heavy Racks (available on special request)

Motivair M14 48U 750mm Heavy Rack 208-230V Bottom Feed Rear Door Heat Exchanger

 R4N03A

Motivair M14 48U 750mm Heavy Rack 260-290V Bottom Feed Rear Door Heat Exchanger

 R4N11A

Motivair M14 48U 750mm Heavy Rack 260-290V Top Feed Rear Door Heat Exchanger

 R4N12A

Motivair M14SP 48U 750mm Heavy Rack 208-230V Bottom Feed Rear Door Heat Exchanger

 R4N13A

Motivair M14SP 48U 750mm Heavy Rack 208-230V Top Feed Rear Door Heat Exchanger

 R4N14A

Motivair M14SP 48U 750mm Heavy Rack 260-290V Bottom Feed Rear Door Heat Exchanger

 R4N15A

Motivair M14SP 48U 750mm Heavy Rack 260-290V Top Feed Rear Door Heat Exchanger

 R4N16A

Motivair M16 48U 750mm Heavy Rack 208-230V Bottom Feed Rear Door Heat Exchanger

R4M91A

Motivair M16 48U 750mm Heavy Rack 208-230V Top Feed Rear Door Heat Exchanger

R4M92A

Motivair M16 48U 750mm Heavy Rack 260-290V Bottom Feed Rear Door Heat Exchanger

R4M93A

Motivair M16 48U 750mm Heavy Rack 260-290V Top Feed Rear Door Heat Exchanger

R4M94A

Hose Kits for RDHX

HPE QD to TC 1.8m Hose Pair for Liquid Cooled Door

R4N58A

HPE QD to TC 2.4m Hose Pair for Liquid Cooled Door

R4N59A

HPE QD to TC 3m Hose Pair for Liquid Cooled Door

R4N60A

HPE QD to TC 3.7m Hose Pair for Liquid Cooled Door

R4N61A

HPE QD to TC 4.3m Hose Pair for Liquid Cooled Door

R4N62A

USA Facility Adapter for RDHX

HPE Cray EX 25.4mm Water Hose Adapter Kit

R6W44A

International Facility Adapter for RDHX (ONLY INTERNATIONAL SITES THAT REQUIRE BSPT THREAD)

HPE Cray Supercomputer 25.4mm Water Adapter BSPT Assembly

S0B09A

Notes:

- Need 1 Hose Kit SKU and 1 Facility Adapter SKU per door that is on order.

USA Voltage CDU for RDHX

HPE Cray Supercomputer 3-phase 270kW 208V 60Hz 63.5mm NA Floor Coolant Distribution Unit

R4N53A

HPE Cray Supercomputer 3-phase 270kW 480V 60Hz 63.5mm NA Floor Coolant Distribution Unit

R4N56A

EU Voltage CDU for RDHX

HPE Cray Supercomputer 3-phase 270kW 400V 50Hz 63.5mm EU Floor Coolant Distribution Unit

R9B19A

USA Facility Adapter RDHX CDU

HPE Cray EX 76.2mm Water Hose Adapter Kit

R6T83A

International Facility Adapter for RDHX CDU (ONLY INTERNATIONAL SITES THAT REQUIRE BSPT THREAD)

HPE Cray Supercomputer 76.2mm Water Adapter BSPT Assembly

S0B12A

Notes:

- Need 1 Facility Adapter SKU (R6T83A or S0B12A) per CDU on order.

- A CDU is required for sites that have supply water temperature at or below dew point.

- The CDUs include a primary hose kit, secondary manifold, and treated water for the secondary cooling loop to the RDHX's.

- HPE provided secondary manifold is designed for raised floor data centers. If the data center is on a concrete slab, the customer is required to provide the overhead secondary manifold that feeds from the CDU to the RDHX's.

- Consult with Site Engineering when planning to use or don't know if you will need to use a CDU.

HPE Services Operational services

No matter where you are in your transformation journey, you can count on HPE Services to deliver the expertise you need when, where, and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach - solution support with end-to-end case resolution
• An assigned HPE support team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with direct access to HPC experts
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

Service and Installation SKUs

Installation SKU and Band number for RDHXs:  HA114A1#V16

Installation SKU and Band numbers for CDUs

Hardware SKU

Installation SKU & Band Number

HPE Cray SC 270kW 208V 60Hz NA Floor CDU

R4N53A

HA114A1#V17

HPE Cray SC 270kW 480V 60Hz NA Floor CDU

R4N56A

HA114A1#V17

HPE Cray SC 270kW 400V 50Hz EU Floor CDU

R9B19A

HA114A1#V17

Support Band number for RDHXs and CDUs

Hardware SKU

Support Band Number

Default RDHX

-

ZNK

MVAIR M8 42U600 Hvy 208-230V BF EU RDHX

R4M12A

Z85

MVAIR M8 42U600 Hvy 208-230V BF NA RDHX

R4M13A

Z85

MVAIR M12 42U600 Hvy 208-230V BF EU RDHX

R4M14A

Z85

MVAIR M12 42U600 Hvy 208-230V BF NA RDHX

R4M15A

Z85

HPE Cray SC 48Ux600x1200 AR3307 Rack

R4M95A

ZNL

HPE Cray SC 48Ux750x1200 AR3357 Rack

R4M96A

ZNL

HPE Cray SC 270kW 208V 60Hz NA Floor CDU

R4N53A

ZNM

HPE Cray SC 270kW 480V 60Hz NA Floor CDU

R4N56A

ZNM

HPE Cray SC Bottom Feed 270KW 575V CDU

R4N57A

ZNM

HPE Cray SC 270kW 400V 50Hz EU Floor CDU

R9B19A

ZNM

Upfront Support SKUs

HPE 3Y Tech Care Basic Service

HU4B2A3

HPE 4Y Tech Care Basic Service

HU4B2A4

HPE 5Y Tech Care Basic Service

HU4B2A5

HPE 3Y Tech Care Basic with Defective Media Retention Service

HU4B3A3

HPE 4Y Tech Care Basic with Defective Media Retention Service

HU4B3A4

HPE 5Y Tech Care Basic with Defective Media Retention Service

HU4B3A5

HPE 3Y Tech Care Essential Service

HU4A6A3

HPE 4Y Tech Care Essential Service

HU4A6A4

HPE 5Y Tech Care Essential Service

HU4A6A5

HPE 3Y Tech Care Essential with Defective Media Retention Service

HU4A7A3

HPE 4Y Tech Care Essential with Defective Media Retention Service

HU4A7A4

HPE 5Y Tech Care Essential with Defective Media Retention Service

HU4A7A5

HPE 3Y Complete Care Addon Basic Service

HU4D8A3

HPE 4Y Complete Care Addon Basic Service

HU4D8A4

HPE 5Y Complete Care Addon Basic Service

HU4D8A5

HPE 3Y Complete Care Addon Basic with Defective Media Retention Service

HU4D9A3

HPE 4Y Complete Care Addon Basic with Defective Media Retention Service

HU4D9A4

HPE 5Y Complete Care Addon Basic with Defective Media Retention Service

HU4D9A5

HPE 3Y Complete Care Addon Essential Service

HU4D5A3

HPE 4Y Complete Care Addon Essential Service

HU4D5A4

HPE 5Y Complete Care Addon Essential Service

HU4D5A5

HPE 3Y Complete Care Addon Essential with Defective Media Retention Service

HU4D6A3

HPE 4Y Complete Care Addon Essential with Defective Media Retention Service

HU4D6A4

HPE 5Y Complete Care Addon Essential with Defective Media Retention Service

HU4D6A5

Notes:

- Example of building a Support SKU for a HW SKU:

- 5Y Tech Care Essential for R4M12A = HU4A6A5#Z85

- Learn more about HPE Tech Care

- Learn more about HPE Complete Care

Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered, or disposed of in a responsible manner.

The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site.

These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

06-Nov-2023

Version 7

Changed

Updated additional SKUs and Service section

10-Jul-2023

Version 6

Changed

Overview, Standard Features and Configuration Information sections were updated.

05-Dec-2022

Version 5

Changed

Configuration Information section was updated

04-Apr-2022

Version 4

Changed

Overview, Standard Features and Configuration Information sections were updated.

06-Dec-2021

Version 3

Changed

Configuration Information section was updated

11-Oct-2021

Version 2

Changed

Service and Support section was updated.

02-Aug-2021

Version 1

New

New QuickSpecs

© Copyright 2023 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

ChilledDoor® Rack Cooling System and Motivair® are U.S. registered trademarks of Motivair Corporation.

a50002584enw - 16739 - Worldwide  - V7 - 06-November-2023
