HPE ProLiant Compute DL340e Gen12

Are you looking for secure and efficient server-based data infrastructure with larger economical storage capacity and balanced performance for data-driven initiatives?

The HPE ProLiant Compute DL340e Gen12 is a 2U 1P enhanced storage server that offers one CTO chassis that supports up to 24 LFF in the front and optional EDSFF in the rear. The new generation ProLiant enhanced storage servers are built for data-intensive applications with optimized storage density and balanced data processing design as the future generation of the current HPE Alletra Storage Server 4000 family. The ProLiant Compute DL340e Gen12 server is ideal for customers that have a requirement for larger storage capacity and higher data management efficiency.

From active analytics AI data lakes to deep archives and data protection, file and object Software-Defined Storage, and so much more, the HPE ProLiant Compute DL340e Gen12 enhanced storage server provides the data infrastructure for any successful data-driven organization.

The HPE ProLiant Compute DL340e Gen12 is powered by Intel® Xeon® 6 processors with up to 144 cores, memory capability up to 2TB, and high-speed PCIe Gen5. The DL340e Gen12 SP server is a great 2U single socket storage solution driving better storage density and capacity efficiency.

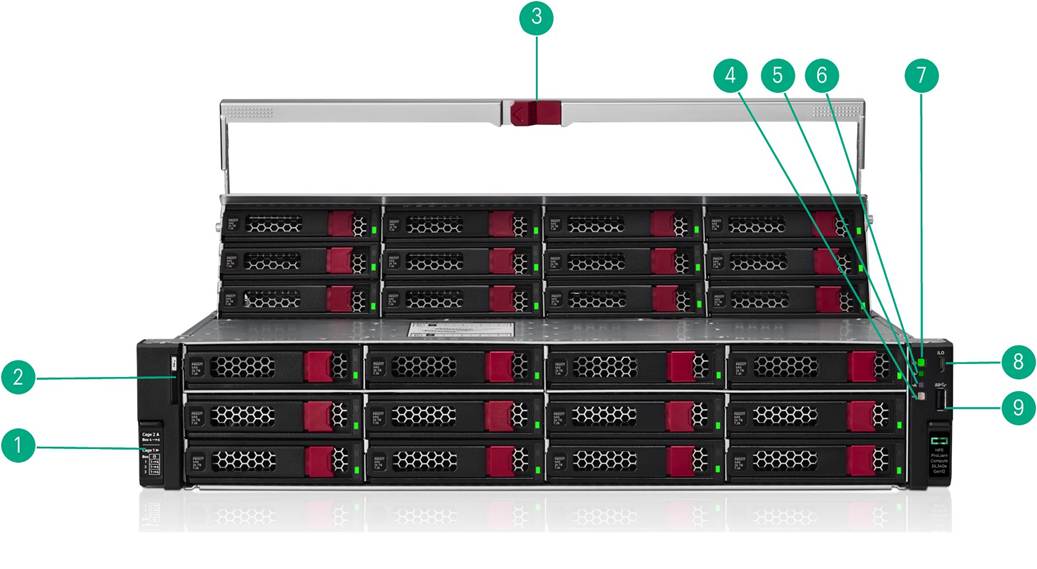

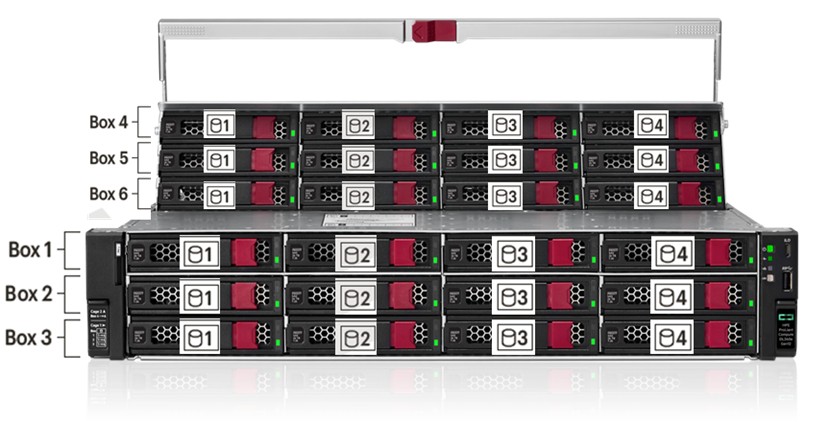

Front View - LFF CTO chassis (with Front 24LFF FIO Enablement Kit shown)

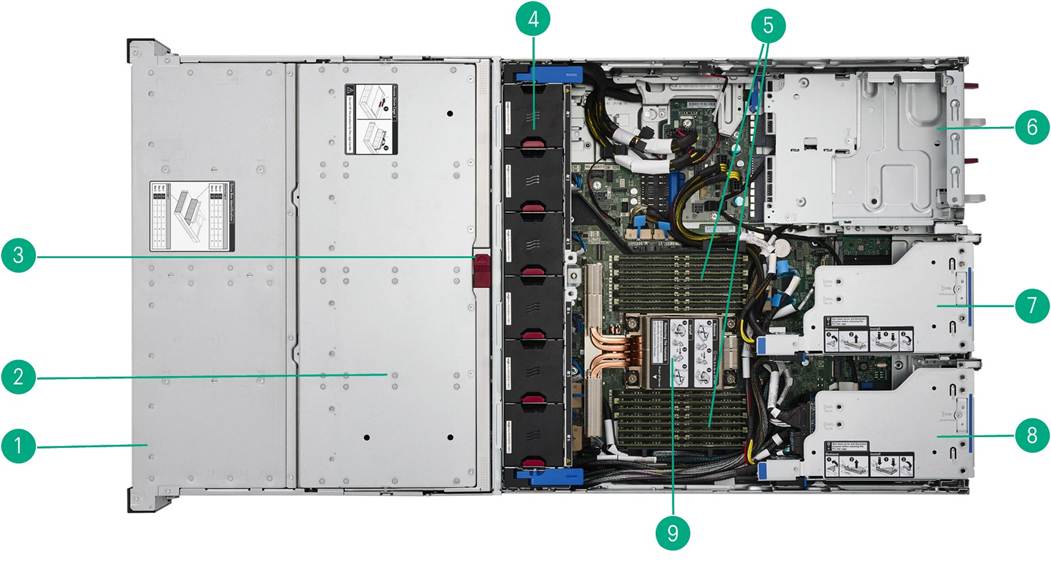

Internal View (with Rear 6x PCIe Enablement Kit shown)

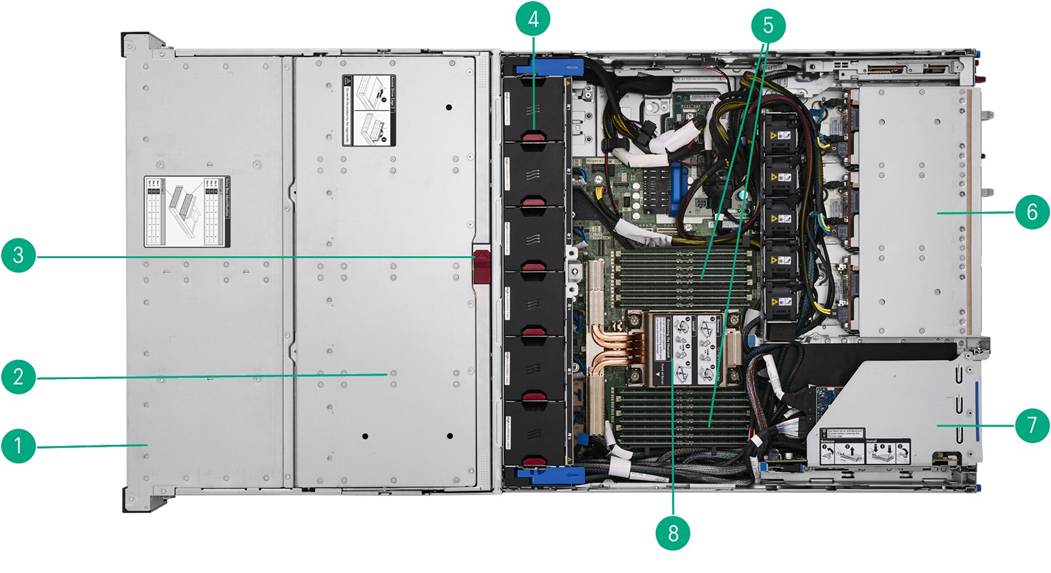

Internal View (with Rear EDSFF 4x PCIe Enablement Kit shown)

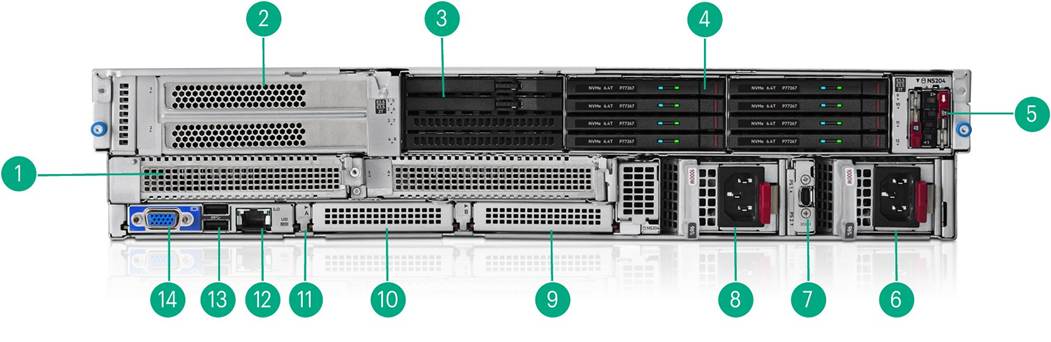

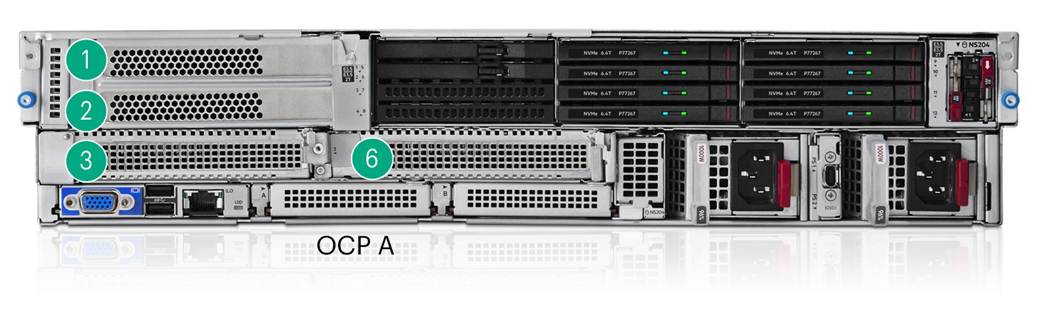

Rear View - EDSFF and 4x PCIe Enablement Kit

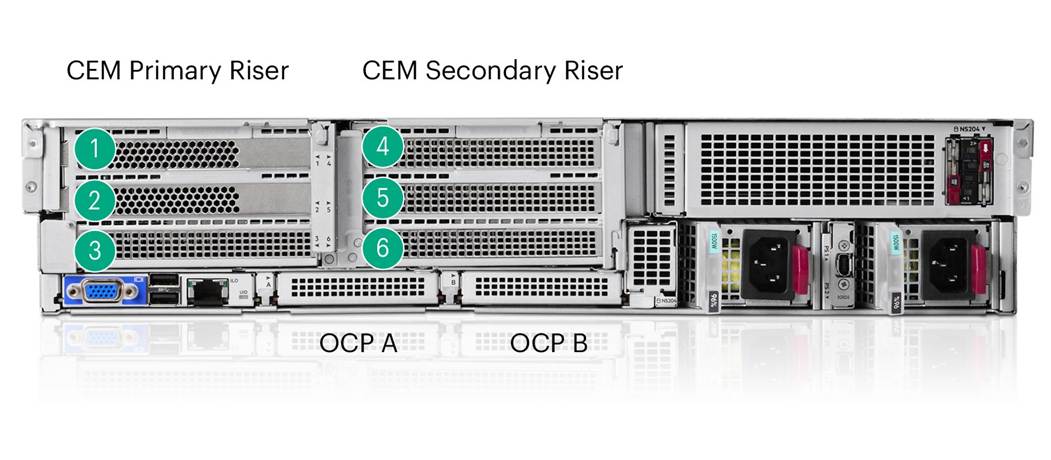

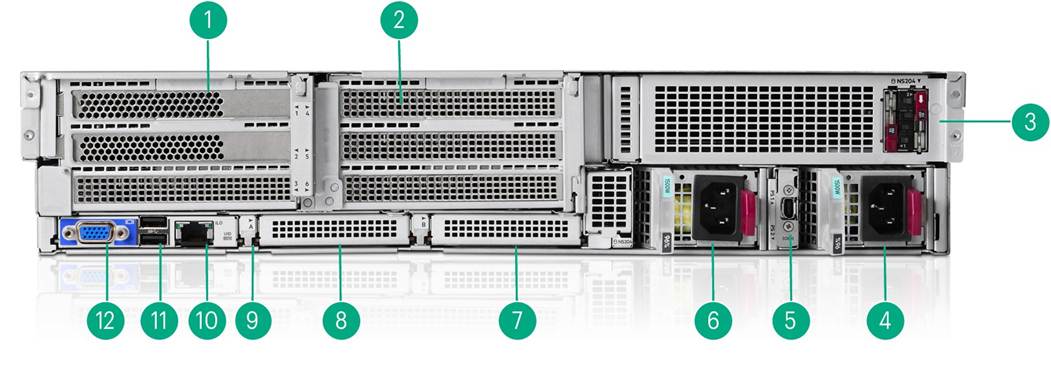

Rear View - 6x PCIe Enablement Kit

What's New

- All-New DL340e Gen12 server.

- Front 24LFF drive cages and optional rear E3.S EDSFF SSD drive cage.

- Intel® Xeon® 6 Processors:

• Single Socket / RICH I/O Processor support (i.e., 136 PCIe lanes).

- Data Center - Modular Hardware System (DC-MHS) design.

- Modular - Common Redundant Power Supply (M-CRPS) design.

- OCP 3.0.

- DDR5 6400 MT/s memory.

Platform Information

Form Factor

- 2U rack.

Chassis Types

- Front 24 LFF FIO (P85519-B21).

- Front 16 LFF FIO (P85520-B21).

System Fans

- Performance fans (6) are included in the CTO server.

Rear options

- Rear 6x PCIe Enablement Kit (P85521-B21).

- Rear EDSFF add 4x PCIe Enablement Kit (P85522-B21).

Memory

Type

HPE DDR5 Smart Memory

Registered (RDIMM)

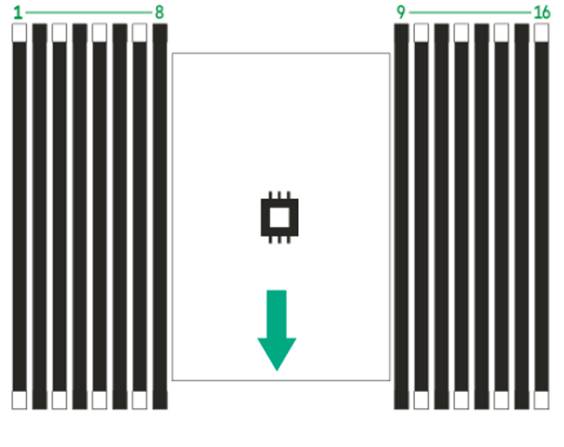

DIMM Slots Available

16 DIMM Slots, 8 channels, 2 DIMMs per channel.

Maximum capacity (RDIMM)

2TB

16 x 128 GB RDIMM 6400 MT/s @ 1 DPC and 5200 MT/s @ 2 DPC

Expansion Slots #

Technology

Bus Width

Connector Width

1 Rear OCP A (OCP 3.0) embedded

PCIe 5.0

x16

x16

1 Rear OCP B (OCP 3.0) optional

*OCP B is available only when Rich I/O CPU and Rear 6x PCIe Enablement Kit (P85521-B21) installed

PCIe 5.0

x16

x16

Expansion Slots #

Technology

Bus Width

Connector Width

1 Rear OCP A (OCP 3.0) embedded

PCIe 5.0

x16

x16

Chassis

Drive Type

Drive Capacity

Total Storage

HPE DL340e Gen12 LFF CTO Server

LFF SATA HDD

26 TB

624 TB (24 x 26 TB)

HPE DL340e Gen12 LFF CTO Server

LFF SAS HDD

26 TB

624 TB (24 x 26 TB)

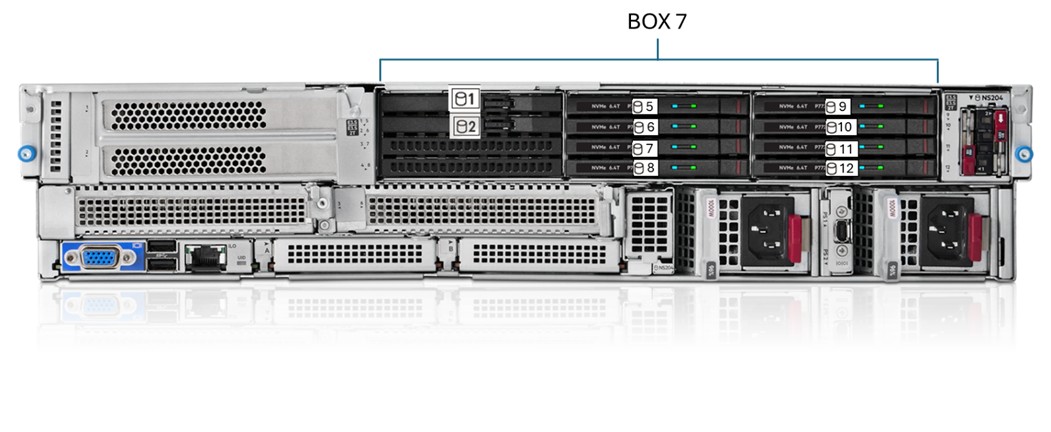

HPE DL340e optional Rear EDSFF 4x PCIe Enablement Kit

E3.S EDSFF NVMe SSD

61.44 TB

491.52 TB (8 x 61.44 TB)

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the fully integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template-driven approach to

provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9, Gen10 & Gen10 Plus servers. To learn more visit http://www.hpe.com/info/oneview.

HPE InfoSight for Servers

HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities. Learn more at https://www.hpe.com/servers/infosight

Accelerator and GPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE ProLiant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we have created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages. HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome

Smart Templates from HPE

HPE is releasing new Smart Template technology in the One Config Advanced (OCA) configurator. These Templates represent the CTO equivalents of the top-selling BTO configurations. They intend to provide simple starting points to assist you in easily creating and customizing your desired Server solutions. HPE Servers that have Platform Templates, developed by HPE Product Managers, will have a separate tab in the HPE OCA configurator.

Workload Solutions Templates from HPE

The Workload Solutions Templates are built on the Smart Templates technology to easily develop working configurations of the most compelling Workload Solutions. The templates complement the Reference Builds developed by HPE. Workload Solutions templates preconfigure some of the key architecture decisions and make it easier for Sellers to get started and complete a differentiated server solution for your customer's specific workload.

Mainstream SKUs

HPE launched the Mainstream SKU initiative as a market-driven approach to Demand Steering. It is a simplified portfolio of our top selling options that meet the current and future market trends. HPE has committed to providing a more predictable and faster experience for these options. Mainstream SKUs enjoy higher safety stock levels and have higher fulfillment service levels than non-Mainstream SKUs. Mainstream orders are fulfilled 30% faster than non-Mainstream orders, have fewer shortages, and better recovery dates. This platform has Mainstream SKUs in the options portfolio and is eligible for an improved Mainstream experience.

Mainstream SKUs are designated with a Mainstream symbol in our configurators.

Mainstream Configurations

HPE is using the new Smart Templates technology to present Mainstream configurations. All the options in a Mainstream configuration are pre-selected Mainstream SKUs to optimize the performance, predictability, and fulfillment experience. Check the Template section in our configurators for eligible Mainstream configurations.

European Union ErP Lot 9 Regulation

Switzerland must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.

HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

This section lists the steps required to configure a Factory Integrated Model. To ensure only valid configurations are

ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales

representative for information on configurable product offerings and requirements.

- Factory Integrated Models must start with a CTO Server.

- Factory Integrated Option (FIO) indicates that this option is only available as a factory installable option.

- All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives.

- ordered with the server.

- Some options may not be integrated at the factory. Contact your local sales representative for additional information.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

- FIO indicates that this option is only available as a factory installable option.

- All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

- Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration - choose one (1) of the following three (3) configurable server models from the table below.

Step 2: Choose Core Options

- Choice of 1 Processor model and Heat Sink Kit:

• Requires necessary Heat Sink for processor selected.

- Choice of DDR5 memory options.

- Choice of Front Drive FIO Enablement kit.

- Choice of Rear Enablement kit.

- Choice of Storage Controllers and Storage Controller Cables (depending on configuration).

- Choice of HDD and SSD.

- Choice of OS Boot Devices, Intel® VROC.

- Choice of Networking options:

• PCIe standup or OCP 3.0. Subjects to the recommended system ambient temperature.

- Choice of Accelerator options.

- Choice of Power and Cooling options.

- Choice of Management Options.

Step 3: Choose Additional Options

- Choice of Security options.

- Choice of Software as a Service Management - HPE Compute Ops Management and HPE OneView.

- Choice of Embedded Management.

- Choice of Rail Kits.

- Choice of Rack options.

- Choice of Support Services.

Step 2: Choice of Core Options

Processor - Select one of the below processors.

Intel® Xeon® 6 Efficient-Core (E-Core) Performance per Watt Processors

Intel Xeon 6710E 2.4GHz 64-core 205W Processor for HPE

P71117-B21

Intel Xeon 6731E 2.2GHz 96-core 250W Processor for HPE

P71118-B21

Intel Xeon 6740E 2.4GHz 96-core 250W Processor for HPE

P71119-B21

Intel Xeon 6746E 2.0GHz 112-core 250W Processor for HPE

P71120-B21

Intel Xeon 6756E 1.8GHz 128-core 225W Processor for HPE

P71121-B21

Intel Xeon 6766E 1.9GHz 144-core 250W Processor for HPE

P71122-B21

Intel® Xeon® 6 Efficient-Core (E-Core) Performance Processors

Intel Xeon 6780E 2.2GHz 144-core 330W Processor for HPE

P71124-B21

Intel® Xeon® 6 Performance-Core (P-Core) Processors

Intel Xeon 6507P 3.5GHz 8-core 150W Processor for HPE

P74504-B21

Intel Xeon 6517P 3.2GHz 16-core 190W Processor for HPE

P74507-B21

Intel Xeon 6527P 3.0GHz 24-core 255W Processor for HPE

P74570-B21

Intel Xeon 6730P 2.5GHz 32-core 250W Processor for HPE

P74573-B21

Intel Xeon 6732P 3.8GHz 32-core 350W Processor for HPE

P74578-B21

Intel Xeon 6736P 2.0GHz 36-core 205W Processor for HPE

P74575-B21

Intel Xeon 6737P 2.9GHz 32-core 270W Processor for HPE

P74576-B21

Intel Xeon 6745P 3.1GHz 32-core 300W Processor for HPE

P81591-B21

Intel Xeon 6747P 2.7GHz 48-core 330W Processor for HPE

P73831-B21

Intel Xeon 6767P 2.4GHz 64-core 350W Processor for HPE

P73834-B21

Intel Xeon 6787P 2.0GHz 86-core 350W Processor for HPE

P73837-B21

Intel® Xeon® 6 Mainline Processors

Intel Xeon 6505P 2.2GHz 12-core 150W Processor for HPE

P74503-B21

Intel Xeon 6515P 2.3GHz 16-core 150W Processor for HPE

P74506-B21

Intel Xeon 6520P 2.4GHz 24-core 210W Processor for HPE

P74568-B21

Intel Xeon 6530P 2.3GHz 32-core 225W Processor for HPE

P74571-B21

Intel Xeon 6740P 2.1GHz 48-core 270W Processor for HPE

P73829-B21

Intel Xeon 6760P 2.2GHz 64-core 330W Processor for HPE

P73832-B21

Intel® Xeon® 6 Single Socket Processors (RICH I/O)

Intel Xeon 6511P 2.3GHz 16-core 150W Processor for HPE

P74505-B21

Intel Xeon 6521P 2.6GHz 24-core 225W Processor for HPE

P74569-B21

Intel Xeon 6731P 2.5GHz 32-core 245W Processor for HPE

P74574-B21

Intel Xeon 6741P 2.5GHz 48-core 300W Processor for HPE

P73830-B21

Intel Xeon 6761P 2.5GHz 64-core 350W Processor for HPE

P73833-B21

Intel Xeon 6781P 2.0GHz 80-core 350W Processor for HPE

P73836-B21

Memory - Please select one or more memory DIMMs from the below.

HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69726-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69727-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69728-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69729-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69730-B21

Notes: The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

Notes: All SKUs below ship with one processor only. Adequate fans and heatsinks must be selected.

Backplane / Drive cage / Enablement Kit

HPE ProLiant Compute DL340e Gen12 Front 24LFF FIO Enablement Kit

P85519-B21

Notes: Supports up to 24 SAS/SATA LFF drives.

HPE ProLiant Compute DL340e Gen12 Front 16LFF FIO Enablement Kit

P85520-B21

Notes: Supports up to 16 SAS/SATA LFF drives.

Rear Drive cage / Risers / Enablement kit

Each server must select one from the two rear enablement kits

HPE ProLiant Compute DL340e Gen12 Rear 6x PCIe Enablement Kit

P85521-B21

Notes: This kit enables up to six PCIe slots depending on the processor selected.

HPE ProLiant Compute DL340e Gen12 Rear EDSFF 4x PCIe Enablement Kit

 P85522-B21

Notes: This kit enables up to ten E3.S EDSFF SSD bays and four PCIe slots depending on the Storage Controller and Storage Cable(s) selected.

Storage Controller - Please select a storage controller from the below list.

Drive / Interface Support Matrix

Please refer to the storage controller QuickSpecs for more detailed information:

HPE Compute MR Gen11 Controllers QuickSpecs

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

Notes: These controllers support up to 16 SAS/SATA/NVMe Drives.

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

Notes:

- These controllers support up to 16 SAS/SATA/NVMe Drives.

- Requires 96W Smart Stg Li-ion Batt 145mm Kit (P01366-B21) or Smart Hybrid Capacitor w/ 145mm Cable (P02377-B21).

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Battery and Hybrid Capacitor

HPE 16W Smart Hybrid Capacitor with 145mm Cable

P65038-B21

HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit

P01366-B21

Notes: If HPE 96W Smart Stg Li-ion Batt 145mm Kit is selected then HPE Smart Hybrid Capacitor 145mm kit cannot be selected and vice versa.

Cables

HPE ProLiant Compute DL340e Gen12 Rear 8EDSFF x4 Direct Attach Cable Kit

P85523-B21

Notes:

- This SKU can be selected only when HPE ProLiant Compute DL340e Gen12 Rear EDSFF 4x PCIe Enablement Kit (P85522-B21) is selected.

- This SKU can be selected only when Intel® Xeon® 6 Single Socket Processors (RICH I/O) is selected.

- When this SKU is selected, the rear 8 EDSFF bays are PCIe Gen5 x4 directly attached to the processor.

- When this SKU is selected, HPE ProLiant Compute DL340e Gen12 Rear 8EDSFF x2 Direct Attach Cable Kit (P85524-B21) cannot be selected.

- When this SKU is selected, HPE ProLiant Compute DL340e Gen12 Rear 8EDSFF Controller Cable Kit (P85525-B21) cannot be selected.

- When this SKU is selected, HPE DL360 G12 2SFF B4 B5 PCIe S1 Cbl Kit (P77188-B21) cannot be selected.

HPE ProLiant Compute DL340e Gen12 Rear 8EDSFF x2 Direct Attach Cable Kit

P85524-B21

Notes:

- This SKU can be selected only when HPE ProLiant Compute DL340e Gen12 Rear EDSFF 4x PCIe Enablement Kit (P85522-B21) is selected.

- When this SKU is selected, the rear 8 EDSFF bays are PCIe Gen5 x2 directly attached to the processor.

- When this SKU is selected, HPE ProLiant Compute DL340e Gen12 Rear 8EDSFF x4 Direct Attach Cable Kit (P85523-B21) cannot be selected.

- When this SKU is selected, HPE ProLiant Compute DL340e Gen12 Rear 8EDSFF Controller Cable Kit (P85525-B21) cannot be selected.

- When this SKU is selected, HPE DL360 G12 2SFF B4 B5 PCIe S1 Cbl Kit (P77188-B21) cannot be selected.

HPE ProLiant Compute DL340e Gen12 Rear 8EDSFF Controller Cable Kit

P85525-B21

- This SKU can be selected only when HPE ProLiant Compute DL340e Gen12 Rear EDSFF 4x PCIe Enablement Kit (P85522-B21) is selected.

- This SKU can be selected only when additional internal controller is selected for the rear 8 EDSFF bays.

- When this SKU is selected, the rear 8 EDSFF bays are connected to the selected internal storage controller.

- When this SKU is selected, HPE ProLiant Compute DL340e Gen12 Rear 8EDSFF x4 Direct Attach Cable Kit (P85523-B21) cannot be selected.

- When this SKU is selected, HPE ProLiant Compute DL340e Gen12 Rear 8EDSFF x2 Direct Attach Cable Kit (P85524-B21) cannot be selected.

HPE ProLiant Compute DL360 Gen12 2SFF Stacking x2 Box4 Box5 PCIe Slot1 Controller Cable Kit

P77188-B21

Notes:

- This SKU can be selected only when HPE ProLiant Compute DL340e Gen12 Rear EDSFF 4x PCIe Enablement Kit (P85522-B21) is selected.

- When this SKU is selected, the dedicated rear 2 EDSFF bays for boot are connected to additional selected HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller (P47785-B21).

- When this SKU is selected, HPE ProLiant Compute DL340e Gen12 Rear 8EDSFF Controller Cable Kit (P85525-B21) cannot be selected.

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB MCIO Cable Kit

P71426-B21

Notes:

- This SKU can be selected only when HPE ProLiant Compute DL340e Gen12 Rear 6x PCIe Enablement Kit (P85521-B21) is selected.

- This SKU can be selected only when Intel® Xeon® 6 Single Socket Processors (RICH I/O) is selected.

- When this SKU is selected, the OCP SlotB is PCIe Gen5 X16 connected.

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB for R1S MCIO Cable Kit

P75154-B21

Notes:

- This SKU can be selected only when HPE ProLiant Compute DL340e Gen12 Rear 6x PCIe Enablement Kit (P85521-B21) is selected.

- This SKU can be selected only when Intel® Xeon® 6 Single Socket Processors (RICH I/O) is selected.

- When this SKU is selected, the OCL SlotB is PCIe Gen5 X8 connected.

HPE ProLiant Compute DL3X0 Gen12 Direct Attach OCP SlotB MXIO Cable Kit

P77556-B21

HPE ProLiant Compute DL3X0 Gen12 SP MHS Serial Port Enablement Kit

P71432-B21

HPE Drives

Solid State Drives

For SSD selection guidance, please visit https://ssd.hpe.com/

Please refer to the HPE Solid State Disk Drives QuickSpecs for more detailed information:

HPE Solid State Disk Drives QuickSpecs

Mixed Use - 12G SAS - LFF

HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD

P37009-B21

Read Intensive - 6G SATA - LFF

HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD

P47808-B21

Read Intensive - NVMe - EDSFF E3.S 1T

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77269-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85121-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77271-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69237-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85124-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77273-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69239-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85126-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77275-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85128-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61179-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61183-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61187-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-B21

Mixed Use - NVMe - EDSFF E3.S 1T

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77262-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85114-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77265-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85117-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77267-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85119-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61191-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61195-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-B21

Very-Read-Optimized - NVMe - EDSFF E3.S 1T

HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63930-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63934-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63938-B21

SED (Self-Encryption Drive) - NVMe - EDSFF E3.S 1T

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87719-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87721-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87723-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87715-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87717-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70669-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-B21

Hard Disk Drive

Please refer to the HPE Hard Disk Drives QuickSpecs for more detailed information:

HPE Hard Disk Drives QuickSpecs

Business Critical / Midline - 12G SAS - LFF Drives

HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833928-B21

HPE 8TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834031-B21

HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881781-B21

HPE 16TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23608-B21

HPE 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53553-B21

HPE 24TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68583-B21

HPE 26TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80577-B21

Business Critical / Midline - 6G SATA - LFF Drives

HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861686-B21

HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861681-B21

HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861683-B21

HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834028-B21

HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881787-B21

HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23449-B21

HPE 20TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53554-B21

HPE 24TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68585-B21

HPE 26TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80578-B21

OS Boot Device

Please refer to the HPE Boot Device Options QuickSpecs for more detailed information:

HPE Boot Device Options QuickSpecs

HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device

P78279-B21

HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device

P81160-B21

HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device

P81162-B21

HPE ProLiant Compute DL3XX Gen12 NS204i-u Rear Cable Kit

P71433-B21

Notes:

- Includes (2) NVMe SSDs.

- RAID 1 is preconfigured on the NS204i-u boot device and no additional RAID can be applied.

- HPE ProLiant Compute DL3XX Gen12 NS204i-u Boot Extension Enablement Kit (P71433-B21) is required when NS204i-u v2 is selected.

Intel® VROC for HPE

Please refer to the Intel® VROC for HPE QuickSpecs for more detailed information:

Intel VROC for HPE QuickSpecs

Intel Virtual RAID on CPU Premium E-RTU for HPE

R7J59AAE

Intel Virtual RAID on CPU Premium FIO Software for HPE

R7J57A

Notes:

- Supports RAID 0,1,5,10.

- Supports up to 32 NVMe drives, depending on processor.

- SATA drives not supported.

Intel Virtual RAID on CPU RAID 1 E-RTU for HPE

S3Q39AAE

Intel Virtual RAID on CPU RAID 1 FIO Software for HPE

S3Q19A

Notes:

- Supports RAID 1.

- Supports up to 32 NVMe drives, depending on processor.

- SATA drives not supported.

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE Security

HPE Trusted Supply Chain for HPE ProLiant

P36394-B21

Notes:

- HPE Trusted Supply Chain is an optional security upgrade intended for agencies and regulated industries needing enhanced security and compliance needs. Applying this option to a DL345 Gen11 CTO server ensures it is built in the USA in a secured facility by vetted HPE personnel assigned to the manufacturing processes. A multitude of checkpoints/inspections for malicious microcode and counterfeit parts are performed throughout the server build, and additional safeguards are put in place against cyber-exploits throughout the server lifecycle. Learn more at http://www.hpe.com/security.

- This option requires the selection of HPE Gen11 Intrusion Detection Kit (P48922-B21).

- This option requires the selection of either HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features (BD505A) or HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features (512485-B21).

- This option is limited to stand-alone DL345Gen11 CTO servers only. The HPE Trusted Supply Chain configuration will not be available if the server is ordered as factory integrated into a rack.

- One instance of the following Electronic License to Use is required per order (not per server):

- R6X85AAE (HPE Trusted Supply Chain E-LTU).

- This option cannot be selected with TAA instruction SKU or TAA CTO Models.

HPE ProLiant DL385 Gen11 Intrusion Cable Kit

P55713-B21

Notes: This provides a physical connection from the chassis board and hood and detects any physical intrusion into the chassis, providing security during the entire supply chain process of shipping, receiving distribution, and operation.

HPE Bezel Lock Kit

875519-B21

HPE Gen11 2U Bezel Kit

P50400-B21

Notes: The Bezel lock kit (875519-B21) must be selected along with the bezel kit (P50400-B21).

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

- Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

- Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.

Server Management

HPE Compute Ops Management

HPE Compute Ops Management Standard 3-year Upfront ProLiant SaaS

R7A11AAE

HPE Compute Ops Management Standard 5-year Upfront ProLiant SaaS

R7A12AAE

HPE Compute Cloud Management Server FIO Enablement

S1A05A

HPE Compute Ops Management Advanced Flex with ProLiant Enablement

S6C28AAE

HPE OneView

HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView including 3yr 24x7 Support Track 1-server LTU

E5Y36A

HPE OneView for ProLiant DL Server including 3yr 24x7 Support Bundle Track 1-server LTU

E5Y44A

For more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

Supported Servers - CTO only. No OEM. - Complete list can be found here: Latest Supported Server List:

https://www.hpe.com/info/com-supported-servers

Embedded Management

HPE iLO Advanced

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE Support Services

Installation & Startup Services

HPE ProLiant DL/ML Install Service

U4554E

HPE ProLiant DL/ML Onsite Startup Service

U4555E

Tech Care Services

HPE 3 Year Tech Care Essential DL340e Gen12 HW Service

H56YXE

HPE 3 Year Tech Care Essential wDMR DL340e Gen12 HW Service

H56YYE

HPE 5 Year Tech Care Essential DL340e Gen12 HW Service

H56ZVE

HPE 5 Year Tech Care Essential wDMR DL340e Gen12 HW Service

H56ZWE

Rail Kits

Easy Install rail kits contain telescoping rails which allow for in-rack serviceability.

To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative.

Notes:

- HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E. In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer's own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits.

- Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and the number of people to use for any installation.

HPE Ball Bearing Rail 6 Kit

P69769-B21

HPE Cable Management Arm 2 for Ball Bearing Rail Kit

P69776-B21

HPE Racks

- Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Advanced Series Racks

- Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Enterprise Series Racks

HPE Power Distribution Units (PDUs)

- Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

- Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

- Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

HPE Uninterruptible Power Systems (UPS)

- To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.

- Please see the HPE Line Interactive Rack/Tower Uninterruptible Power System QuickSpecs for information on these products and their specifications.

- Please see the HPE Online Double Conversion Rackmount Uninterruptible Power System QuickSpecs for information on these products and their specifications.

The arrow points to the front of the server

Notes:

- ¹ Support Hemi (hemisphere mode).

- ² Support Software Guard Extensions (SGX).

General Memory Population Rules and Guidelines:

- Install DIMMs only after the corresponding processor is installed.

- All DIMMs must be DDR5.

- x4 and x8 DIMMs can be mixed in the same channel.

- Mixing of non-3DS and 3DS LRDIMMs is not allowed on the same channel.

- The maximum memory speed is a function of the memory type, memory configuration, and processor model.

- The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.

- To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required.

- For additional information, please reference the HPE DDR5 Smart Memory QuickSpecs.

System Unit

Dimensions (Height x Width x Depth)

- LFF chassis:

• 8.75 x 44.80 x 80.65 cm.
• 3.45 x 17.64 x 32.36 in.

Weight (approximate)

- LFF chassis:

• Minimum: LFF chassis and rear PCIe with 2 LFF drives, 1 processor, 1 power supply, 1 performance heatsink, 1 DIMM, 1 MR controller, and 6 performance fans.

- 22.93 kg (50.51 lb).

• Maximum: LFF chassis and rear EDSFF with 24 LFF drives, 8 E3.S drives, 1 processor, 2 power supply, 1 performance heatsink, 16 DIMM, 2 MR PCIe controller, and 6 performance fans.

- 46.55 kg (102.53 lb).

Input Requirements (per power supply)

Rated Line Voltage

- Low-line input voltage: 100 VAC to 120 VAC.

- High-line input voltage: 200 VAC to 240 VAC.

- 240 VDC for China.

BTU Rating

Maximum

- For 3200W M-CRPS Power Supply: 5142 (at 100 VAC), 11699 (at 240VAC).

- For 2400W M-CRPS Power Supply: 4268 (at 100 VAC), 8532 (at 240VAC).

- For 1500W M-CRPS Power Supply: 3792 (at 100 VAC), 5560 (at 200 VAC).

- For 1000W M-CRPS Power Supply: 3044 (at 100 VAC), 3680 (at 200 VAC).

Power Supply Output (per power supply)

Rated Steady-State Power

- For 3200W M-CRPS Power Supply: 1600W: (at 100-127 VAC), 3200W (at 200-240 VAC), 3200W (at 240 VDC) input for China only.

- For 2400W M-CRPS Power Supply: 1200W: (at 100-127 VAC), 2400W (at 200-240 VAC), 2400W (at 240 VDC) input for China only.

- For 1500W M-CRPS Power Supply: 1000W: (at 100 VAC), 1100W (at 110-120VAC), 1500W (at 200-240 VAC), 1500W (at 240 VDC) input for China only.

- For 1000W M-CRPS Power Supply: 800W: (at 100-120 VAC), 1000W (at 200-240 VAC), 1000W (at 240 VDC) input for China only.

Maximum Peak Power

- For 3200W M-CRPS Power Supply: 1600W: (at 100-127 VAC), 3200W (at 200-240 VAC), 3200W (at 240 VDC) input for China only.

- For 2400W M-CRPS Power Supply: 2400W (at 100 to 127 VAC), 2400W (at 200 to 240 VAC), 2400W (at 240 VDC) input for China only.

- For 1500W M-CRPS Power Supply: 1000W: (at 100 VAC), 1100W (at 110-120VAC), 1500W (at 200-240 VAC), 1500W (at 240 VDC) input for China only.

- For 1000W M-CRPS Power Supply: 800W: (at 100-120 VAC), 1000W (at 200-240 VAC), 1000W (at 240 VDC) input for China only.

For more information on power specifications and technical content, reference the HPE M-CRPS QuickSpecs.

System Inlet Temperature

- Standard Operating Support

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft.) above sea level to a maximum of 3050 m (10,000 ft.), no direct sustained sunlight. The maximum rate of change is 20°C/hr.

(36°F/hr.). The upper limit and rate of change may be limited by the type and number of options installed.

System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

- Extended Ambient Operating Support

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and

35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft.) above

900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: https://www.hpe.com/support/ASHRAEGen11

For approved hardware configurations, the supported system inlet range is extended to be 40°C to 45°C (104°F to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft.)

above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: https://www.hpe.com/support/ASHRAEGen11

System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

- Non-operating

-30° to 60°C (-22° to 140°F). The maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity (non-condensing)

- Operating

8% to 90% - Relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

- Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

- Operating

3050 m (10,000 ft.). This value may be limited by the type and number of options installed. The maximum allowable

altitude change rate is 457 m/min (1500 ft./min).

- Non-operating

9144 m (30,000 ft.). The maximum allowable altitude change rate is 457 m/min (1500 ft./min).

Emissions Classification (EMC)

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

https://support.hpe.com/hpesc/public/docDisplay?docLocale=en_US&docId=c03471072

Acoustic Noise

Listed are the declared mean A-Weighted sound power levels (LWA,m), declared average bystander position A-Weighted sound pressure levels (LpAm) and the statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power level, LWA,m when the product is operating in a 23± 2°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations.  Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Notes:

- All measurements made to conform to ISO 7779 / ECMA-74 and declared to conform to ISO 9296 / ECMA-109. Operating mode is represented by 50% of CPU TDP.

- The results in this declaration apply only to the specific configuration listed below when operating and tested according to the indicated modes and standards. A system with additional configuration components or increased operating functionality may increase the noise emission values.

- SKU1, Entry - 12LFF + R1S(RIO) MAX IO (NO EDSFF): 1x INT Xeon 6511P CPU, 12x 20TB SAS 7.2K LFF HDD, 4x 32GB DIMM, 2x 800W PSU, 6x SYS Fan, 1x NS204i-u V2 Ht Plg Boot Opt Dev, 1x MR216i-p, 2x 10/25GbE 4p SFP28 Adptr

- SKU2, Typical 1 - 18LFF + 8EDSFF: 1x INT Xeon 6521P CPU, 18x 20TB SAS 7.2K LFF HDD, 4x 3.2TB NVMe MU E3S SSD, 8x 32GB DIMM, 2x 1000W PSU, 6x SYS Fan & 5x rear Fan, 1x NS204i-u V2 Ht Plg Boot Opt Dev, 1x Fan OCP interposer, 2x MR416i-p, 1x 200G 2p QSFP112 Adptr

- SKU3, Performance 1 - 16LFF + L4 GPU x1: 1x INT Xeon 6731P CPU, 16x 20TB SAS 7.2K LFF HDD, 8x 3.2TB NVMe MU E3S SSD, 16x 32GB DIMM, 2x 2400W PSU, 6x SYS Fan & 5x rear Fan, 1x NS204i-u v2 960GB NVMe HP Boot Dev, 1x Fan OCP interposer, 1x MR416i-p, 1x 200G 2p QSFP112 Adptr, 1x NVIDIA L4 24GB PCIe Accelerator

- The declared mean A-weighted sound power level, LWA,m, is computed as the arithmetic average of the measured.

- A-weighted sound power levels for a randomly selected sample, rounded to the nearest 0,1 B.

- The declared mean A-weighted emission sound pressure level, LpA,m, is computed as the arithmetic average of the measured A-weighted emission sound pressure levels at the bystander positions for a randomly selected sample, rounded to the nearest 1 dB.

- The statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power level, LWA,m, such that there will be a 95% probability of acceptance, when using the verification procedures of ISO 9296, if no more than 6,5 % of the batch of new equipment, has A-weighted sound power levels greater than (LWA,m + Kv).

- The quantity, LWA,c (formerly called LWAd), can be computed from the sum of LWA,m and Kv.

- B, dB, abbreviations for bels and decibels, respectively, where 1 B = 10 dB.

- System under abnormal conditions may increase the noise level, people in the vicinity of the product [cabinet] for extended periods of time should consider.

wearing hearing protection or using other means to reduce noise exposure.

Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered, or disposed of in a responsible manner.

The European Union Waste Electrical and Electronic Equipment Directive [EU WEEE] (2002/95/EC) requires

manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise website. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

03-Aug-2026

Version 5

Changed

Core Options section was updated.

06-Jul-2026

Version 4

Changed

Core Options and Technical Specifications sections were updated.

Added

26TB SAS 12G HDD

26TB SATA 6G HDD

Acoustic Noise tables.

01-Jun-2026

Version 3

Changed

Standard Features section was updated.

Intel® Xeon® 6 Single Socket Processors (RICH I/O) 6511 Speed attributes.

04-May-2026

Version 2

Changed

Core Options section was updated.

Intel® Xeon® 6 Performance-Core (P-Core) Processors, Memory factory rules, and HPE InfiniBand SKU.

06-Apr-2026

Version 1

New

New QuickSpecs.
