HPE Alletra Storage Server 4140

QuickSpecs

Are you looking for server-based data infrastructure with the highest density of storage capacity and balanced performance for bulk data-driven initiatives?

The HPE Alletra Storage Server 4140 is specifically designed to provide high throughput for the largest storage-centric workloads to power your data-driven initiatives. From deep archives and data protection to active analytics data lakes, file and object Software-Defined Storage, and so much more, the two chassis deliver the capabilities you need at ideal economics with trusted security and cloud-operating experience. Designed for high-density hybrid bulk storage, the HPE Alletra Storage Server 4140 supports up to 2.2 PB of storage in 4U. It includes the option to consume bulk storage as a service via GreenLake, enabling you to shift from owning and maintaining to simply utilizing it. The HPE Alletra Storage Server 4000 family of storage servers provides the data infrastructure for any successful data-driven organization.

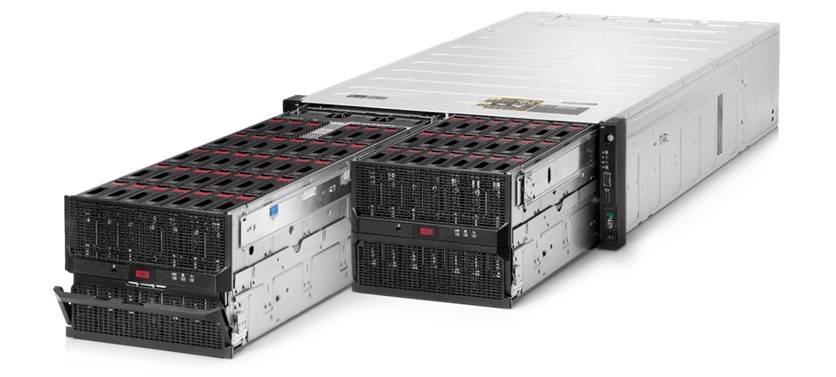

HPE Alletra Storage Server 4140 (68 LFF system shown)

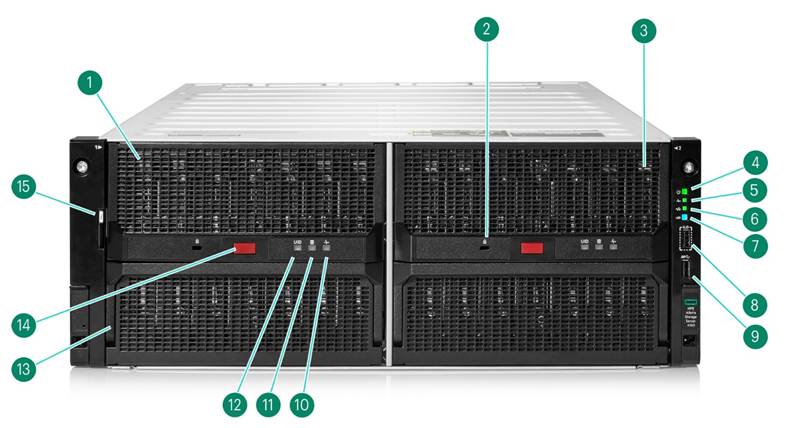

HPE Alletra Storage Server 4140 Configure-to-order System Front View

Item

Description

Item

Description

1.

Drive Drawer 1

9.

USB 3.0 Port

2.

Drive Drawer Lock slot

10.

Backplane Health LED

3.

Drive Drawer 2

11.

Drive Health LED

4.

Power On/Standby button and system power LED

12.

Drive Drawer UID LED

5.

System Health LED

13.

Drawer handle

6.

NIC Status LED

14.

Drawer handle release button

7.

System UID LED

15.

System information pull-tab

8.

iLO Service Port

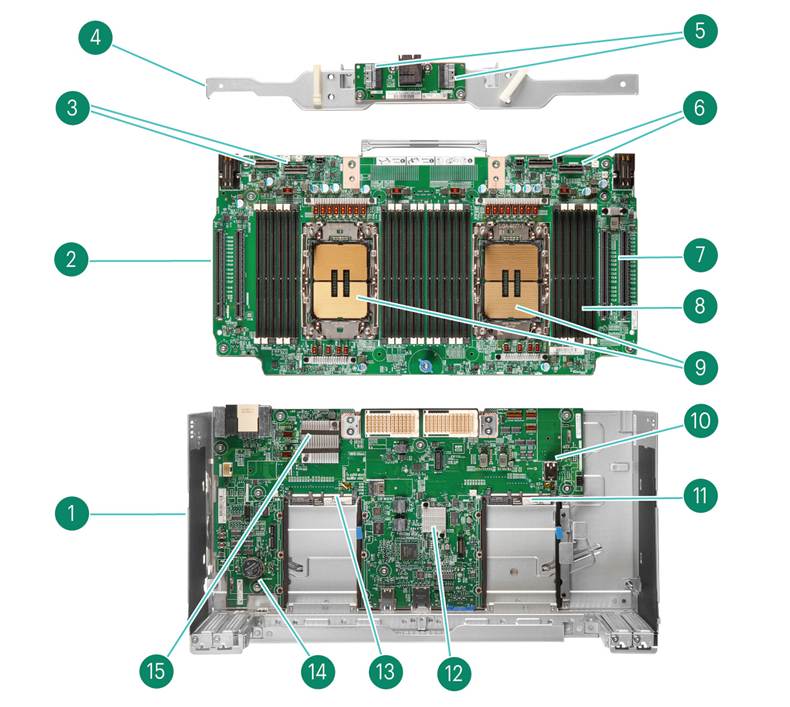

HPE Alletra Storage Server 4140 Configure-to-order System Exploded Server Node View

Item

Description

Item

Description

1.

Management Board

9.

Up to 2 processors

2.

CPU Board

10.

Internal USB connector

3.

MCIO connectors left

11.

OCP 3.0 connector

4.

SAS Interposer Board

12.

iLO

5.

SAS connectors

13.

OCP 3.0 connector

6.

MCIO connectors right

14.

System battery

7.

PCIe x16 slots

15.

Platform Control Hub

8.

Up to 24 DDR5 DIMM slots

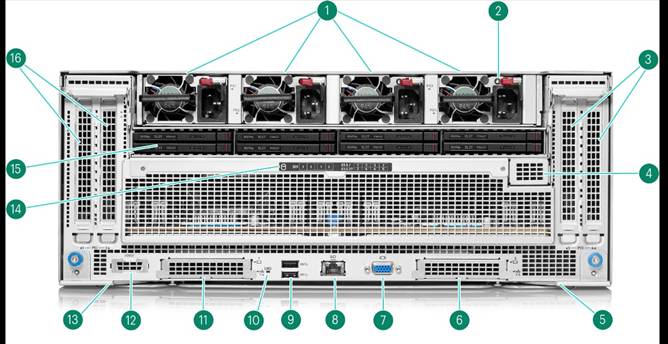

HPE Alletra Storage Server 4140 Configure-to-order System Rear View

Item

Description

Item

Description

1.

Flex Slot power supply bays 1 through 4

9.

USB 3.0 ports

2.

Power Supply LEDs

10.

UID LED

3.

PCIe FHHL slots 3 and 4

11.

OCP 3.0 slot 1 (Slot ID 14)

4.

Location for NS204i-u or M.2 boot devices

12.

Location for serial port option

5.

Server node release handles 1

13.

Server node release handles 2

6.

OCP 3.0 slot 2 (Slot ID 15)

14.

Rear drive numbering label

7.

Video port

15.

8 EDSFF rear drive cage option

8.

iLO NIC port

16.

PCIe FHHL slots 1 and 2

What's New

- HPE NS204i-u v2 960 GB NVMe Hot Plug Boot-optimized Storage Device.

- HPE NS204i-u v2 960 GB NVMe SED Hot Plug Boot-optimized Storage Device.

Notes: ¹ 4800 MT/s versus 3200 MT/s for the 3rd generation Intel® Xeon® Scalable processors.

Platform Information

Form Factor

- 4U rack.

Chassis Types

- Base model with 60 or 68 LFF SAS 24 Gb/SATA 6 Gb slots, depending on whether a rear drive cage is installed.

- Extended model with 84 or 92 LFF SAS 24 Gb/SATA 6 Gb slots, depending on whether a rear drive cage is installed.

Notes:

- Optional Rear Drive Cages:

• 8 EDSFF E3S EC1 EDSFF NVMe x4 Rear Drive Cage.
• 4 SFF NVMe U.3 x4 Rear Drive Cage.

System Fans

6 system quad-fan modules shipped as standard.

Processors

Up to 2 of the following depending on model.

Notes:

- The 2^nd digit of the processor model number "x4xx" is used to denote the processor generation (i.e., 4 = 4th generation).

- This table covers the public Intel offering only.

- For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

Notes:

- 2 socket capable, 2S - 4 or 3 UPI @ 20 or 16 GT/s, except U SKUs.

- 4^th and 5^th Generation: 8-Channel DDR5 1DPC @ 5200 - 4000 MT/s.

- 80 lanes PCIe 5.0, advanced RAS.

- Y SKUs support Intel Speed Select Technology - Performance Profile 2.0 (Intel SST-PP).

- U SKUs supported in one-socket configurations only.

- S SKUs are storage & hyperconverged infrastructure (HCI) optimized SKUs.

- N SKUs support Intel QuickAssist Technology (QAT).

- + Feature Plus: Support AMX, DLB, DSA, IAA and QAT additionally.

Notes:

- 2 socket capable, 2S - 2 UPI @ 16 GT/s, except U SKUs.

- 4^th Generation: 8-Channel DDR5 @ 4000 MT/s.

- 80 lanes PCIe 5.0, advanced RAS.

- Y SKUs support Intel Speed Select Technology - Performance Profile 2.0 (Intel SST-PP).

- + Feature Plus: Support AMX, DLB, DSA, IAA and QAT additionally.

Notes:

- 4th Generation: 8-Channel DDR5 @ 4000 MT/s.

- 80 lanes PCIe 5.0, advanced RAS.

- U SKUs supported in one-socket configurations only.

Chipset

Intel C741 Chipset.

Notes: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.

On System Management Chipset

HPE iLO 6 ASIC.

Notes: Read and learn more in the iLO QuickSpecs.

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit errors that occur within a single DRAM chip.

Internal Storage Devices

- Hard Drives

None shipped as standard.

Storage Controllers

NVMe Boot Devices

- Optional HPE NS204i-u Gen11 NVMe Hot Plug Boot-optimized Storage Device.

- Optional HPE NS204i-u v2 960 GB NVMe Hot Plug Boot-optimized Storage Device.

- Optional HPE NS204i-u v2 960 GB NVMe SED Hot Plug Boot-optimized Storage Device.

Notes:

- NS204i-u does not occupy a PCIe slot.

- Two 480 GB, 960 GB or 960 GB SED M.2 NVMe SSD drives are included in the NS204i-u Gen11 or v2 Hot Plug Boot Device.

- Hardware RAID 1 supported on the NS204i-u Gen11 or v2 Hot Plug Boot Device.

Smart Array Controller

- HPE Alletra 41X0 SR 32-port PCIe FIO Storage Controller.

Notes: Only available for factory integration.

- HPE SR932i-p Gen11 x32 Lanes 8 GB Wide Cache PCI SPDM Plug-in Storage.

Notes: Suggested for field upgrade only.

- HPE Smart Array E208e-p SR Gen10 Storage Controller.

Notes: Used for attaching external storage devices such as JBODs and tape drives.

Notes: For additional details, please visit: HPE Compute SR Gen11 Controllers QuickSpecs.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at: http://www.HPE.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at: http://www.HPE.com/servers/uefi.

Intelligent Provisioning

Streamlined server and Operating System provisioning for one or more servers with Intelligent Provisioning. Learn more at: http://www.HPE.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at: http://www.HPE.com/info/restfulapi.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at: http://www.HPE.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.HPE.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at:

https://www.HPE.com/us/en/servers/smart-update.html

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9, Gen10 and Gen11 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities. Learn more at: http://www.HPE.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.HPE.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at: http://www.HPE.com/info/resttool.

Scripting Tools

Provision one-to-many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at: http://www.HPE.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at: http://www.HPE.com/info/oneview.

HPE Compute Ops Management

HPE is intelligently transforming compute management with a completely new as a service experience that delivers greater security, simplicity, and efficiency. Discover a completely modernized compute management experience delivered through GreenLake that securely streamlines operations from edge-to-cloud, and automates key lifecycle tasks (onboard, update, manage and monitor HPE servers), bringing the agility and greater efficiencies to wherever compute devices reside via a unified single browser-based interface.

HPE Compute Ops Management is built on a unique cloud-native architecture that abstracts, manages and controls HPE servers regardless of physical location. The management application resides in the GreenLake cloud platform (access via: https://console.greenlake.HPE.com) and leverages the GreenLake architecture, security, and unified operations.

Security

- UEFI Secure Boot and Secure Start support

- Immutable Silicon Root of Trust

- FIPS 140-2 validation

- Common Criteria certification

- Configurable for PCI DSS compliance

- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

- Support for Commercial National Security Algorithms (CNSA)

- iLO Security Modes

- Granular control over iLO interfaces

- Smart card (PIV/CAC) and Kerberos based 2-factor Authentication

- Tamper-free updates - components digitally signed and verified

- Secure Recovery - recover critical firmware to known good state on detection of compromised FW

- Ability to roll back firmware

- Secure erase of NAND

- TPM (Trusted Platform Module) 2.0 option

- Bezel Locking Kit

- Chassis Intrusion detection

HPE Trusted Platform Module

HPE Trusted Platform Module 2.0 is included on Pre-Configured models and can be enabled and disabled using the BIOS.

Notes: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Service operational services or customized service agreements. Hard drives have either a one-year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no additional cost. Additional information regarding worldwide limited warranty and technical support is available at:

https://support.HPE.com/hpesc/public/docDisplay?docId=sd00004309en_us&docLocale=en_US.

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE iLO Advanced Premium Security Edition

HPE iLO Advanced Premium Security Edition for iLO 5 includes iLO Advanced License plus high-end security modes, unique security capabilities, like Automatic FW recovery; Runtime FW verification, and Secure erase. Learn more about HPE iLO Advanced Premium Security Edition at: https://support.HPE.com/hpesc/public/docDisplay?docId=sd00002201en_us&page=GUID-64558145-CCB8-49F8-A197-6EB4433B26A9.html&docLocale=en_US

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template-driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9, Gen10 and Gen11 servers. To learn more visit: http://www.HPE.com/info/oneview.

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at: http://www.HPE.com/info/cmu.

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we've created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We have a cost-effective KVM switch for your first rack and multiple connection IP (Idle Power) switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

Notes:

- Rack fitment of HPE Alletra Storage Servers is optimized for HPE G2 Series Racks, HPE rail kits, HPE cables and HPE power distribution units.

- Proper rack fitment of HPE Alletra Storage Servers in third-party racks using third-party racking options is the sole responsibility of the customer. Consult the HPE Alletra Storage Server 4140 Setup and Installation Guide, Mechanical specifications section, for fitment planning.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance:

https://h22174.www2.HPE.com/SimplifiedConfig/Welcome#

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

This section lists some of the steps required to configure a Factory Integrated Model.

To ensure valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

- Factory Integrated Models must start with a CTO Server.

- FIO indicates that this option is only available as a factory installable option.

- Some options may not be integrated at the factory. Contact your local sales representative for additional information

Step 1: Base Configuration (choose one of the following configurable models)

Network Choice (NC) Models

Network Choice models do not include embedded LOM. To enable networking capability please select a validated alternative NIC -OCP or PCIe- from the Core Options section.

Notes: *HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country.

Step 2: Choose Required Options

Please select one or two matching processors for either HPE Alletra Storage Server 4140 system.

Notes:

- Mixing of two different processor models is not supported.

- All Processors require the HPE Alletra Storage Server 4140 CPU Heat Sink (P64001-B21).

Step 2a: Choose Processor Options

Processor Option Kits

5th Generation Intel Xeon-Gold

SKU

Intel Xeon-Gold 6538N 2.1GHz 32-core 205W Processor Kit for HPE Alletra Storage Server 41X0

P67412-B21

Intel Xeon-Gold 6526Y 2.8GHz 16-core 195W Processor Kit for HPE Alletra Storage Server 41X0

P67418-B21

Intel Xeon-Gold 5520+ 2.2GHz 28-core 205W Processor Kit for HPE Alletra Storage Server 41X0

P67413-B21

Intel Xeon-Gold 5515+ 3.2GHz 8-core 165W Processor Kit for HPE Alletra Storage Server 41X0

P67402-B21

Intel Xeon-Gold 5512U 2.1GHz 28-core 185W Processor Kit for HPE Alletra Storage Server 41X0

P67414-B21

5th Generation Intel Xeon-Silver

SKU

Intel Xeon-Gold 5512U 2.1GHz 28-core 185W Processor Kit for HPE Alletra Storage Server 41X0

P67414-B21

Intel Xeon-Silver 4516Y+ 2.2GHz 24-core 185W Processor Kit for HPE Alletra Storage Server 41X0

P67416-B21

Intel Xeon-Silver 4514Y 2.0GHz 16-core 150W Processor Kit for HPE Alletra Storage Server 41X0

P67419-B21

Intel Xeon-Silver 4510 2.4GHz 12-core 150W Processor Kit for HPE Alletra Storage Server 41X0

P67420-B21

Intel Xeon-Silver 4509Y 2.6GHz 8-core 125W Processor Kit for HPE Alletra Storage Server 41X0

P67403-B21

5th Generation Intel Xeon-Bronze

SKU

Intel Xeon-Bronze 3508U 2.1GHz 8-core 125W Processor Kit for HPE Alletra Storage Server 41X0

P67404-B21

Notes: U Supported in one-socket configurations only.

4th Generation Intel Xeon-Gold

SKU

Intel Xeon-Gold 6438Y+ 2.0GHz 32-core 205W Processor Kit for HPE Alletra Storage Server 41X0

P50806-B21

Intel Xeon-Gold 6426Y 2.5GHz 16-core 185W Processor Kit for HPE Alletra Storage Server 41X0

P50794-B21

Intel Xeon-Gold 5420+ 2.0GHz 28-core 205W Processor Kit for HPE Alletra Storage Server 41X0

P50804-B21

Intel Xeon-Gold 5418Y 2.0GHz 24-core 185W Processor Kit for HPE Alletra Storage Server 41X0

P50803-B21

Intel Xeon-Gold 5418N 1.8GHz 24-core 165W Processor Kit for HPE Alletra Storage Server 41X0

P50816-B21

Intel Xeon-Gold 5416S 2.0GHz 16-core 150W Processor Kit for HPE Alletra Storage Server 41X0

P50808-B21

Intel Xeon-Gold 5415+ 2.9GHz 8-core 150W Processor Kit for HPE Alletra Storage Server 41X0

P50793-B21

Intel Xeon-Gold 5412U 2.1GHz 24-core 185W Processor Kit for HPE Alletra Storage Server 41X0

P50812-B21

Notes: U Supported in one-socket configurations only.

4th Generation Intel Xeon-Silver

SKU

Notes: All SKUs below ship with processor only. 4000 MT/s maximum memory speed unless otherwise noted.

Intel Xeon-Silver 4416+ 2.0GHz 20-core 165W Processor Kit for HPE Alletra Storage Server 41X0

P50802-B21

Intel Xeon-Silver 4410Y 2.0GHz 12-core 150W Processor Kit for HPE Alletra Storage Server 41X0

P50801-B21

4th Generation Intel Xeon-Bronze

SKU

Notes: All SKUs below ship with processor only. 4000 MT/s maximum memory speed unless otherwise noted.

Intel Xeon-Bronze 3408U 1.8GHz 8-core 125W Processor Kit for HPE Alletra Storage Server 41X0

P50811-B21

Notes: U Supported in one-socket configurations only.

Step 2b: Choose Memory Options

Please select one or more memory from below.

For additional information, please see the HPE DDR5 Smart Memory QuickSpecs.

Notes:

- The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

- Quantity of memory DIMMs selected per socket must be 1, 2, 4, 6, 8, or 12.

- Mixing of 3DS and non-3DS DIMMs not allowed.

- The 5600 MT/s Memory SKUs are supported for 5th Gen processors only.

- The 4800 MT/s Memory SKUs are supported for 4th Gen processors only.

- The -K21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -K21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

Registered DIMMs (RDIMMs)

Notes:

- The mixing of 3DS and non-3DS DIMMs is not allowed.

- Rank Mixing is not supported.

Description

SKU

HPE 16GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64705-K21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64706-K21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64707-K21

Notes: Mixing of different DDR5-5600 DIMM capacities is NOT allowed.

HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43322-K21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43328-K21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43331-K21

Notes: Mixing different DDR5-4800 DIMM capacities is NOT allowed.

Step 2c: Choose Power Supplies

Please select up to 4 power supplies from below.

Notes: Mixing different power supplies is NOT allowed.

HPE Flex Slot Power Supplies

SKU

HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

P03178-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38997-B21

HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit

P44712-B21

Notes: Only supports high line voltage (200 VAC to 240 VAC).

Step 3: Choose Additional (FIO) Factory Integratable Options

Each of the following may be selected if desired at time of factory integration

Description

SKU

HPE Smart Memory Fast Fault Tolerance FIO Setting

875293-B21

Notes:

- Enables Fast Fault Tolerance mode, an HPE Memory RAS feature introduced in HPE Gen10 servers that survives up to two DRAM failures.

- This RAS feature combines Adaptive Double DRAM Device Correction (ADDC) with HPE Advanced Error Detection Technology, resulting in significantly better memory reliability and availability than what ADDDC provides on its own. For more information see our Memory RAS feature technical whitepaper.

HPE Security Options

HPE Server Security Optimized Service for HPE ProLiant (R9S59A) is an optional security upgrade intended for agencies and regulated industries with enhanced security and compliance needs. Applying this option to a HPE Alletra 41X0 CTO system ensures it is hardened by turning on advanced safeguards in place against cyber-exploits throughout the server lifecycle. An iLO Advanced License required for High Security Mode and compatible intrusion detection device option kits are prerequisites for the full optimization service.

Step 4: Management software

Select your choice of cloud-native management or on-premises management software.

HPE Compute Ops Management for cloud-native management

Notes: HPE Compute Ops Management for cloud-native management of Alletra Storage Servers, as well as ProLiant servers. The SKUs below are for Alletra Storage Servers specifically, and are billed upfront. If you want to be billed monthly or annually, please order R6Z73AAE standalone.

Recommended SKU

SKU

HPE Compute Ops Management Standard 5-year Upfront Alletra 4000 SaaS

S1E13AAE

Alternative SKUs

SKU

HPE Compute Ops Management Standard 3-year Upfront Alletra 4000 SaaS

S1E12AAE

HPE Compute Ops Management Advanced 3-year Upfront Alletra 4000 SaaS

S5E63AAE

HPE Compute Ops Management Advanced 5-year Upfront Alletra 4000 SaaS

S5E64AAE

Notes: The COM Advanced SKUs also include an iLO Advanced license and support so a standalone iLO Advanced license does not need to be ordered separately.

Required SKU when ordering through GreenLake Flex:

SKU

HPE Compute Ops Management Standard with Alletra 4000 Enablement

S4P39AAE

Notes: Both the tracking SKU above as well as one of the COM SaaS SKUs (S1E13AAE or S1E12AAE) are needed to allow COM to be included and transacted as part of a GL Flex solution and contracts.

HPE OneView

SKU

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Unique Options

Heat Sink

SKU

HPE Alletra Storage Server 4140 CPU Heat Sink Kit

P64001-B21

Notes: Required for all processors.

System FIO Storage Controllers

SKU

HPE Alletra Storage Server 41X0 SR 32-port PCIe FIO Storage Controller

P61479-B21

Notes: Minimum of one is required to connect to LFF drives in the drawers.

Optional Rear Drive Cage

If desired, please select one of the two optional NVMe rear drive cages available from below. These rear drive cages must be installed in the factory. The NVMe SSDs in either of these cages can be directly connected to the processors or can be connected through one or two storage controllers.

Description

SKU

HPE Alletra Storage Server 4140 8EDSFF E3.S Thin Carrier Rear FIO Drive Cage Kit

P63129-B21

Notes: Initially, this rear cage option will not support VROC with only one processor and direct-attached drives. Use either two processors or connect the EDSFF drives through a storage controller.

HPE Alletra Storage Server 4140 4SFF PCIe x4 U.3 BC Rear Drive Cage FIO Enablement Kit

P63131-B21

Rear Drive Cage Cables

SKU

Notes:

- One of the Rear Drive Cage Cable must be selected when Rear Drive Cage Upgrade SKU is selected.

- If no rear cage is selected, no cable is required.

- Choose a cable based on the rear cage type, whether there is 1 processor or two, and if the rear drives are to be directly connected to the processor(s) or through storage controller(s) as indicated in the description.

HPE Alletra Storage Server 4140 1P 4SFF Rear Drive Cage Controller Attached Cable Kit

P64677-B21

HPE Alletra Storage Server 4140 1P 4SFF Rear Drive Cage Direct Attached Cable Kit

P64679-B21

HPE Alletra Storage Server 4140 1P 8EDSFF Rear Drive Cage Controller Attached Cable Kit

P64683-B21

HPE Alletra Storage Server 4140 1P 8EDSFF Rear Drive Cage Direct Attached Cable Kit

P64685-B21

Notes: Initially, this rear cage cable option will not support VROC.

HPE Alletra Storage Server 4140 2P 8EDSFF Rear Drive Cage Direct Attached Cable Kit

P65897-B21

HPE Alletra Storage Server 4140 2P 4SFF Rear Drive Cage Balanced Controller Attached Cable Kit

P64687-B21

Notes: When this SKU is selected, the 2nd processor and two storage controllers are required.

HPE Alletra Storage Server 4140 2P 4SFF Rear Drive Cage Balanced Direct Attached Cable Kit

P64689-B21

Notes: When this SKU is selected, the 2nd processor and two storage controllers are required.

HPE Alletra Storage Server 4140 2P 8EDSFF Rear Drive Cage Balanced Controller Attached Cable Kit

P64691-B21

Notes: When this SKU is selected, the 2nd processor and two storage controllers are required.

Description

SKU

HPE Alletra Storage Server 4140 2P 8EDSFF Rear Drive Cage Direct Attached Cable Kit

P65897-B21

Notes: When this SKU is selected, the 2nd processor and two storage controllers are required.

HPE Alletra Storage Server 4140 1P 4SFF Rear Drive Cage 2x Controller Attached Cable Kit

P65899-B21

Notes: When this SKU is selected, two storage controllers are required.

HPE Alletra Storage Server 4140 1P 8EDSFF Rear Drive Cage 2x Controller Attached Cable Kit

P65901-B21

Notes: When this SKU is selected, two storage controllers are required.

HPE Alletra Storage Server 4140 2P 8EDSFF Rear Cage 4x Backplane 2x Drawer Controller Cable Kit

P67633-B21

Notes: When this SKU is selected, the 2^nd processor and four storage controllers are required.

System Racking Options

SKU

HPE Alletra Storage Server 4140 Serial Port FIO Enablement Kit

P64208-B21

HPE Alletra Storage Server 4140 Chassis Handle Kit

P79783-B21

Notes: This SKU includes 4 handles and is used when installing an Alletra 4140 without the use of a server lift. Empty the Alletra 4140 enclosure (including hard drives) before lifting, installing and removing from a rack.

System NVMe Boot Device Enablement Options

SKU

HPE Alletra Storage Server 4140 NS204i-u FIO Enablement Kit

P64210-B21

Notes:

- This FIO SKU is required when HPE NS204i-u Gen11 or v2 NVMe Hot Plug Boot-optimized Storage Device (P48183-B21, P81160-B21, or P81162-B21) or Alletra 41X0 NVMe M.2 Boot Device (P60350-B21) is installed.

- Because this is an FIO SKU, the installation of either boot device and this enablement kit must all be done in the factory.

Security

Description

SKU

HPE Bezel Lock Kit

875519-B21

Notes: This SKU is needed for each drive drawer in the Alletra 4140 to be secured.

HPE Processors

Please select one or two matching processors.

Notes:

- Mixing of two different processor models is not supported.

- All Processors require Heat Sink Kit (P64001-B21).

Processor Option Kits

5th Generation Intel Xeon-Gold

SKU

Intel Xeon-Gold 6538N 2.1GHz 32-core 205W Processor Kit for HPE Alletra Storage Server 41X0

P67412-B21

Intel Xeon-Gold 6526Y 2.8GHz 16-core 195W Processor Kit for HPE Alletra Storage Server 41X0

P67418-B21

Intel Xeon-Gold 5520+ 2.2GHz 28-core 205W Processor Kit for HPE Alletra Storage Server 41X0

P67413-B21

Intel Xeon-Gold 5515+ 3.2GHz 8-core 165W Processor Kit for HPE Alletra Storage Server 41X0

P67402-B21

Intel Xeon-Gold 5512U 2.1GHz 28-core 185W Processor Kit for HPE Alletra Storage Server 41X0

P67414-B21

5th Generation Intel Xeon-Silver

SKU

Intel Xeon-Gold 5512U 2.1GHz 28-core 185W Processor Kit for HPE Alletra Storage Server 41X0

P67414-B21

Intel Xeon-Silver 4516Y+ 2.2GHz 24-core 185W Processor Kit for HPE Alletra Storage Server 41X0

P67416-B21

Intel Xeon-Silver 4514Y 2.0GHz 16-core 150W Processor Kit for HPE Alletra Storage Server 41X0

P67419-B21

Intel Xeon-Silver 4510 2.4GHz 12-core 150W Processor Kit for HPE Alletra Storage Server 41X0

P67420-B21

5th Generation Intel Xeon-Bronze

SKU

Intel Xeon-Bronze 3508U 2.1GHz 8-core 125W Processor Kit for HPE Alletra Storage Server 41X0

P67404-B21

Notes: U Supported in one-socket configurations only.

4th Generation Intel Xeon Gold

SKU

Notes:

- All SKUs below ship with processor only. Adequate heatsinks (standard, or high performance) must be selected.

- 4800 MT/S maximum memory speed unless otherwise noted.

Intel Xeon-Gold 6438Y+ 2.0GHz 32-core 205W Processor Kit for HPE Alletra Storage Server 41X0

P50806-B21

Intel Xeon-Gold 6426Y 2.5GHz 16-core 185W Processor Kit for HPE Alletra Storage Server 41X0

P50794-B21

Intel Xeon-Gold 5420+ 2.0GHz 28-core 205W Processor Kit for HPE Alletra Storage Server 41X0

P50804-B21

Intel Xeon-Gold 5418Y 2.0GHz 24-core 185W Processor Kit for HPE Alletra Storage Server 41X0

P50803-B21

Intel Xeon-Gold 5418N 1.8GHz 24-core 165W Processor Kit for HPE Alletra Storage Server 41X0

P50816-B21

Intel Xeon-Gold 5416S 2.0GHz 16-core 150W Processor Kit for HPE Alletra Storage Server 41X0

P50808-B21

Intel Xeon-Gold 5415+ 2.9GHz 8-core 150W Processor Kit for HPE Alletra Storage Server 41X0

P50793-B21

Intel Xeon-Gold 5412U 2.1GHz 24-core 185W Processor Kit for HPE Alletra Storage Server 41X0

P50812-B21

Notes: U Supported in one-socket configurations only.

4th Generation Intel Xeon-Silver

SKU

Notes:

- All SKUs below ship with processor only. Adequate heatsinks must be selected.

- 4000 MT/s maximum memory speed unless otherwise noted.

Intel Xeon-Silver 4416+ 2.0GHz 20-core 165W Processor Kit for HPE Alletra Storage Server 41X0

P50802-B21

Intel Xeon-Silver 4410Y 2.0GHz 12-core 150W Processor Kit for HPE Alletra Storage Server 41X0

P50801-B21

Midline - 6G SATA - LFF Drives

SKU

HPE 24TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68585-K21

HPE 20TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53554-K21

HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23449-K21

HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881787-K21

HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834028-K21

HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861683-K21

HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861681-K21

HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861686-K21

SSD Selection

For SSD selection guidance, please visit https://ssd.HPE.com/

For SSDs with optimal product availability, HPE advocates SSDs from the list located here: https://www.HPE.com/us/en/products.html.

High Peformance Read Intensive - PCIe/NVMe EDSFF - E3S EC1 EDSFF Solid State Drives

SKU

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-K21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-K21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD

P78789-K21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-K21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD

P78791-K21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-K21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD

P78793-K21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-K21

Notes: When used in the HPE Alletra Storage Server 4140, the PM1743 SSD will exhibit lower performance for some metrics compared to the values in the HPE SSD QuickSpecs.

High Performance Read Intensive - PCIe/NVMe EDSFF - E3S EC1 SED FIPS 140-2 Solid State Drives

SKU

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-K21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P79122-K21

High Performance Mixed Use - PCIe/NVMe EDSFF - E3S EC1 EDSFF Solid State Drives

SKU

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-K21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78784-K21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78787-K21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-K21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-K21

High Performance Mixed Use - PCIe/NVMe EDSFF - E3S EC1 SED FIPS 140-2 Solid State Drives

SKU

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70669-K21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-K21

Mainstream Performance Read Intensive - PCIe/NVMe EDSFF - E3S EC1 EDSFF Solid State Drives

SKU

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-K21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77269-K21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69237-K21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69239-K21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77273-K21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-K21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77275-K21

Mainstream Performance Mixed Use - PCIe/NVMe EDSFF - E3S EC1 EDSFF Solid State Drives

SKU

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-K21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77262-K21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-K21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77265-K21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-K21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77267-K21

Mainstream Performance Mixed Very Read Optimized - PCIe/NVMe EDSFF - E3S EC1 EDSFF Solid State Drives

SKU

HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63930-K21

HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63934-K21

HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63938-K21

HPE 30.72TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P79065-K21

Read Intensive - 24G SAS - LFF -Solid State Drives

SKU

HPE 7.68TB SAS 24G Read Intensive LFF LPC Multi Vendor SSD

P49040-K21

Mixed Use - 12G SAS - LFF -Solid State Drives

SKU

HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD

P37009-K21

HPE Alletra Storage Server 4XXX 1.92TB SAS Mixed Use LFF LPC Value SAS Multi Vendor SSD

S3T31A

HPE Alletra Storage Server 4XXX 3.84TB SAS Mixed Use LFF LPC Value SAS Multi Vendor SSD

S3T32A

HPE Alletra Storage Server 4XXX 1.6TB SAS Mixed Use LFF LPC Multi Vendor SSD

S3T29A

HPE Alletra Storage Server 4XXX 3.2TB SAS Mixed Use LFF LPC Multi Vendor SSD

S3T30A

Read Intensive - 6G SATA - LFF - Solid State Drives

SKU

HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD

P47808-K21

High Performance Read Intensive - NVMe - SFF - Solid State Drives

SKU

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-K21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-K21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-K21

Mainstream Performance Read Intensive - NVMe - SFF - Solid State Drives

SKU

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84242-K21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84244-K21

HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500b SSD

P84239-K21

High Performance Read Intensive - NVMe - SFF - Self-encrypting FIPS - Solid State Drives

SKU

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-K21

Description

SKU

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-K21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-K21

High Performance Mixed Use - NVMe - SFF - Solid State Drives

SKU

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50227-K21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50230-K21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-K21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD

P78801-K21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50233-K21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-K21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD

P78804-K21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78806-K21

High Performance Mixed Use - NVMe - SFF - Self Encrypting FIPS - Solid State Drives

SKU

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-K21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-K21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-K21

High Performance Read Intensive - NVMe - SFF - SPDM - Solid State Drives

SKU

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-K21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-K21

Mixed Use - NVMe - SFF - Solid State Drives

SKU

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-K21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-K21

HPE Networking

100 Gigabit PCI-e Ethernet adapters

SKU

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE

P25960-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P21112-B21

Notes: Only Direct Attached Cables (DAC) are supported when these SKUs are used.

25 Gigabit PCI-e Ethernet adapters

SKU

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P26264-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P26262-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P08458-B21

Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P42044-B21

10 Gigabit PCI-e Ethernet adapters

SKU

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE

P26253-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

P26259-B21

1 Gigabit PCI-e Ethernet adapters

SKU

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P51178-B21

Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P21106-B21

Notes:

- All listed PCIe NICs connected via Direct Attach Cables (DAC) are supported in both 68LFF and 92LFF chassis, with or without rear drive cage kits.

- All listed PCIe 1 GbE, 10 GbE and 10/25 GbE NICs connected via Active Optical Cables (AOC) are supported in both 68LFF and 92LFF chassis, with or without rear drive cage kits.

- The PCIe NIC configurations listed above applies to a maximum 30°C ambient temperature environment.

OCP 3.0 Adapters

SKU

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P08449-B21

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

Notes:

- All listed OCP NICs connected via Direct Attach Cables (DAC) or Active Optical Cables (AOC) are supported in the 68LFF chassis, with or without rear drive cage kits.

- All listed OCP NICs connected via Direct Attached Cables (DAC) are supported in the 92LFF chassis, with or without rear drive cage kits.

- All listed OCP 1 GbE, 10 GbE,10/25 GbE and 100 GbE NICs connected via Active Optical Cables (AOC) are supported in the 92LFF chassis, with or without rear drive cage kits.

- The OCP NIC configurations listed above applies to a maximum 30°C ambient temperature environment.

Storage Offload Adapters

SKU

NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter for HPE

R8M41A

Notes: Only Direct Attached Cables (DAC) are supported when these SKUs are used.

HPE Power Supplies

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies

HPE Flex Slot Platinum Hot-plug Power supplies

SKU

HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

P03178-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38997-B21

HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit

P44712-B21

Notes:

- Only supports high line voltage (200 VAC to 240 VAC).

- Power supplies can only be ordered as Qty = 2 or Qty = 4.

HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit

P17023-B21

HPE Alletra Storage Server 4140 3.5m DC Power Supply Cable Kit

P80006-B21

Notes: P80006-21 is required when orderring HPE 1600 W Flex Slot -48 VDC Hot Plug Power Supply Kit (P17023-B21). One cable required per power supply.

HPE Compute Ops Management

Notes: HPE Compute Ops Management Enhanced for cloud-native management provides for management of multiple systems. Billing frequency is available as upfront payments.

Description

SKU

HPE Compute Ops Management Standard 3-year Upfront Alletra 4000 SaaS

S1E12AAE

HPE Compute Ops Management Standard 5-year Upfront Alletra 4000 SaaS

S1E13AAE

HPE Compute Ops Management Advanced 3-year Upfront Alletra 4000 SaaS

S5E63AAE

HPE Compute Ops Management Advanced 5-year Upfront Alletra 4000 SaaS

S5E64AAE

Notes: The COM Advanced SKUs also include a iLO Advanced license and support so a standalone iLO Advanced license does not need to be ordered separately.

Embedded Management

Notes: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE iLO Advanced

SKU

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Common Password

SKU

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

- Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

- Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.

HPE Converged Infrastructure Management Software

HPE OneView Advanced (with HPE iLO Advanced)

SKU

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView Advanced (without HPE iLO Advanced)

SKU

HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

Notes:

- Licenses ship without media. The HPE OneView Media Kit can be ordered separately or can be downloaded at: https://www.HPE.com/us/en/integrated-systems/software.html.

- Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.

HPE Security

SKU

HPE Bezel Lock Kit

875519-B21

HPE Smart Array Controllers

Notes: For more information on the HPE Gen11 Storage Controller, please refer to:

HPE Compute SR Gen11 Controllers QuickSpecs

Essential RAID Controllers

SKU

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Notes:

- This controller is used to connect external storage devices such as JBODs and tape drives to the HPE Alletra Storage Server 4140. Even though it has Gen10 in the name, it is supported in Gen11.

- For more information on the HPE Smart Array E208i-p SR Gen10 Controller, please refer to the QuickSpecs.

HPE Tri-Mode Controllers

SKU

HPE SR932i-p Gen11 x32 Lanes 8GB Wide Cache PCI SPDM Plug-in Storage Controller

P47184-B21

HPE Smart Storage Battery

SKU

HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit

P01366-B21

Notes: Required when more than two controllers are selected.

HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit

P02377-B21

Notes: Required when two controllers are selected and no rear cage option is selected.

HPE 16W Smart Hybrid Capacitor with 145mm Cable

P65038-B21

Notes: Required when two controllers are selected and no rear cage option is selected.

HPE NVMe OS Boot Device

SKU

HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device

P48183-B21

HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device

P81160-B21

HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device

P81162-B21

Optional Software

SKU

HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU

Q2F26AAE

Intel VROC for HPE

Intel VROC for HPE is an enterprise, hybrid RAID solution, specifically designed for NVMe SSDs connected directly to the CPU. Intel® VROC is made possible by the new CPU feature Intel® Volume Management Device, Intel® VMD, a new hardware architecture on Intel® Xeon® Scalable Processors. Intel® VMD enhances drive performance as drives are directly connect to the Intel CPU enabling the lowest latency. Intel® VROC capitalizes on Intel® VMD for a simple software RAID solution that requires no additional hardware.

Description

SKU

Intel Virtual RAID on CPU Premium E-RTU for HPE

R7J59AAE

Intel Virtual RAID on CPU Premium FIO Software for HPE

R7J57A

Description

SKU

Intel Virtual RAID on CPU RAID 1 E-RTU for HPE

S3Q39AAE

Intel Virtual RAID on CPU RAID 1 FIO Software for HPE

S3Q19A

Notes: For more information on features and specifications of Intel VROC for HPE see: https://www.HPE.com/psnow/doc/a50002570enw?ver=7

HPE Storage Options

Emulex Fibre Channel HBAs

SKU

HPE SN1610E 32Gb 1-port Fibre Channel Host Bus Adapter

R2J62A

HPE SN1610E 32Gb 2-port Fibre Channel Host Bus Adapter

R2J63A

HPE SN1700E 64Gb 1-port Fibre Channel Host Bus Adapter

R7N77A

HPE SN1700E 64Gb 2-port Fibre Channel Host Bus Adapter

R7N78A

QLogic Fibre Channel HBAs

SKU

HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter

R2E08A

HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter

R2E09A

HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter

R7N86A

HPE SN1700Q 64Gb 2-port Fibre Channel Host Bus Adapter

R7N87A

HPE Racking Options

Rail Kits

SKU

HPE Alletra Storage Server 4140 Rail Kit

P64970-B21

HPE Alletra Storage Server 4140 Serial Port FIO Enablement Kit

P64208-B21

HPE s6500 Chassis Handles Kit

608477-B21

Notes: SKU 608477-B21 is used when installing an HPE Alletra Storage Server 4140 in a rack and a server lift is not available. All HDDs and SSDs should be removed from server prior to lifting. The handles are removed once the server is installed.

HPE Racks

- Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications.

- Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications.

- Please see the HPE Standard Series Racks QuickSpecs for information on additional racks options and rack specifications.

HPE Power Distribution Units (PDUs)

- Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

- Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

- Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on these products and their specifications.

- Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

HPE Uninterruptible Power Systems (UPS)

To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.

- Please see the HPE DirectFlow Three Phase Uninterruptible Power System QuickSpecs for information on these products and their specifications.

- Please see the HPE Line Interactive Single Phase UPS QuickSpecs for information on these products and their specifications.

Emissions Classification (EMC)

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

http://www.HPE.com/support/Safety-Compliance-EnterpriseProducts

Environment-friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

TCO Certified

The HPE Alletra Storage Server 4140 has been TCO Certified. All HPE TCO Certified products can be found on:

TCO Certified Product Finder.

More information on TCO Certified can be downloaded here:

https://www.HPE.com/us/en/about/environment/eco-labels.html

Have feedback on QuickSpecs? We're listening

Chat now

© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.

Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.

For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less due to system requirements

a50007017enw - 17127 - Worldwide  - V27 - 03-August-2026

HEWLETT PACKARD ENTERPRISE

HPE.com
